Summit 20 inch wide retractable range hood for recirculating operation, HRTX20W

Made in the USA, Summit brings new innovation to small kitchens with the industry's first retractable range hood designed and engineered for recirculating use.

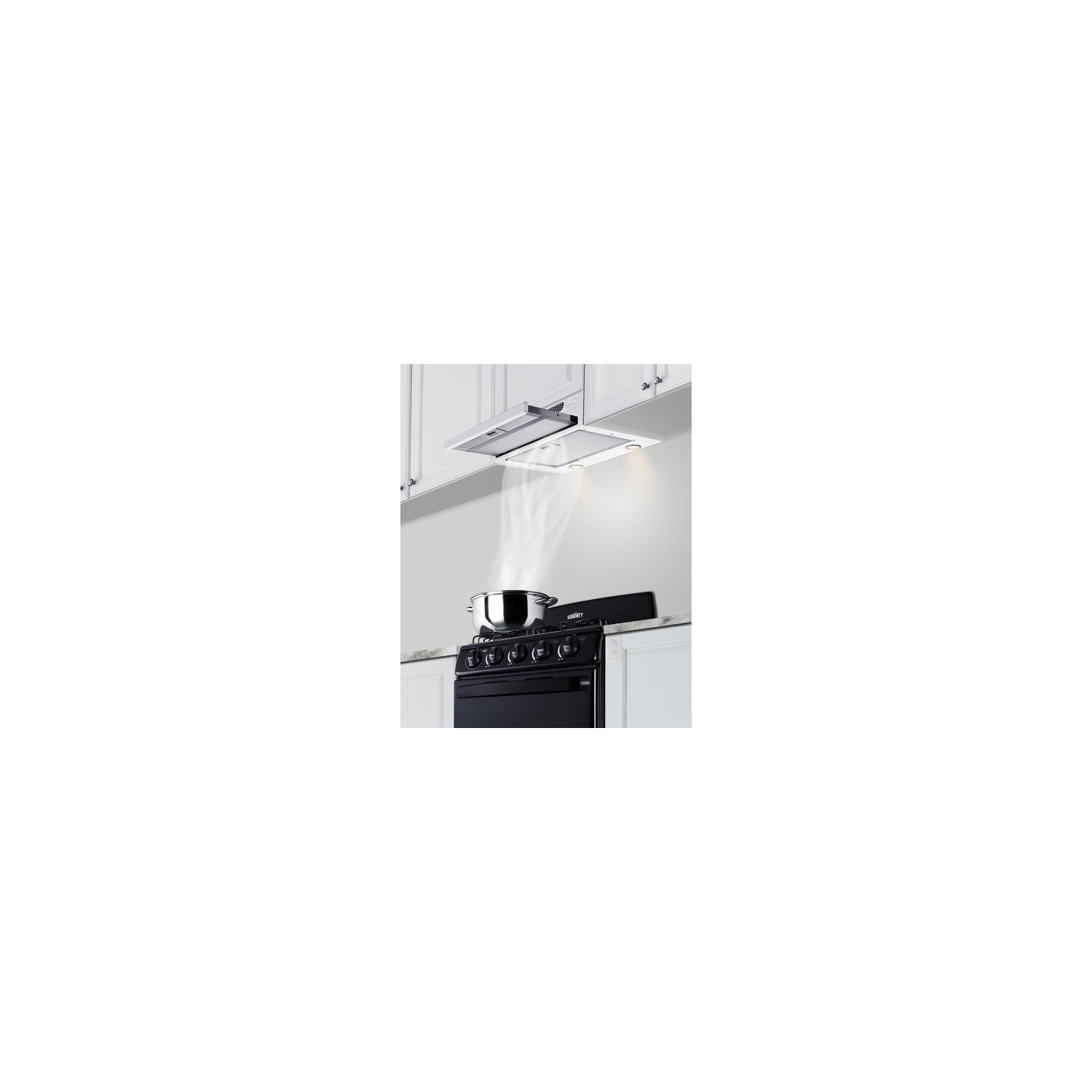

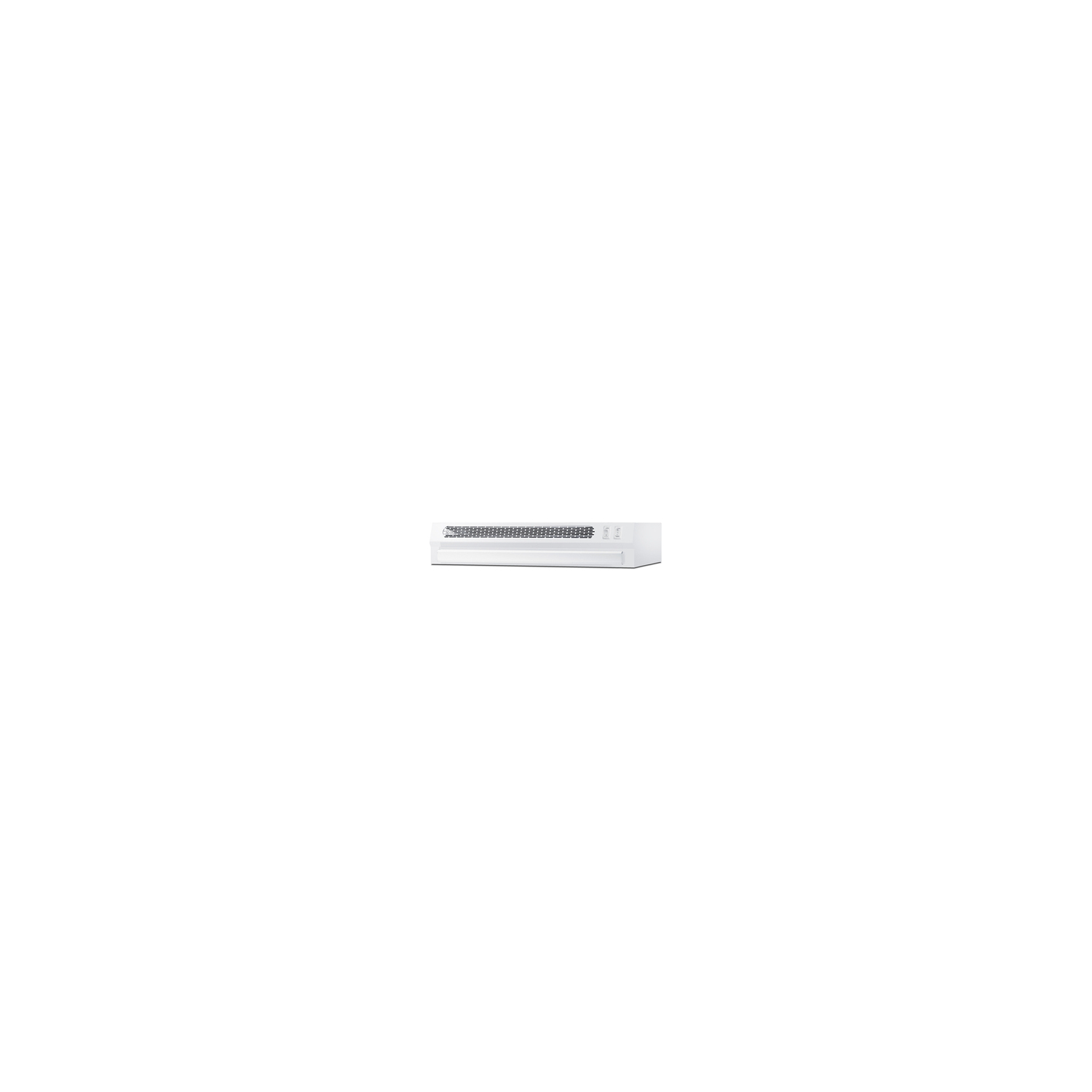

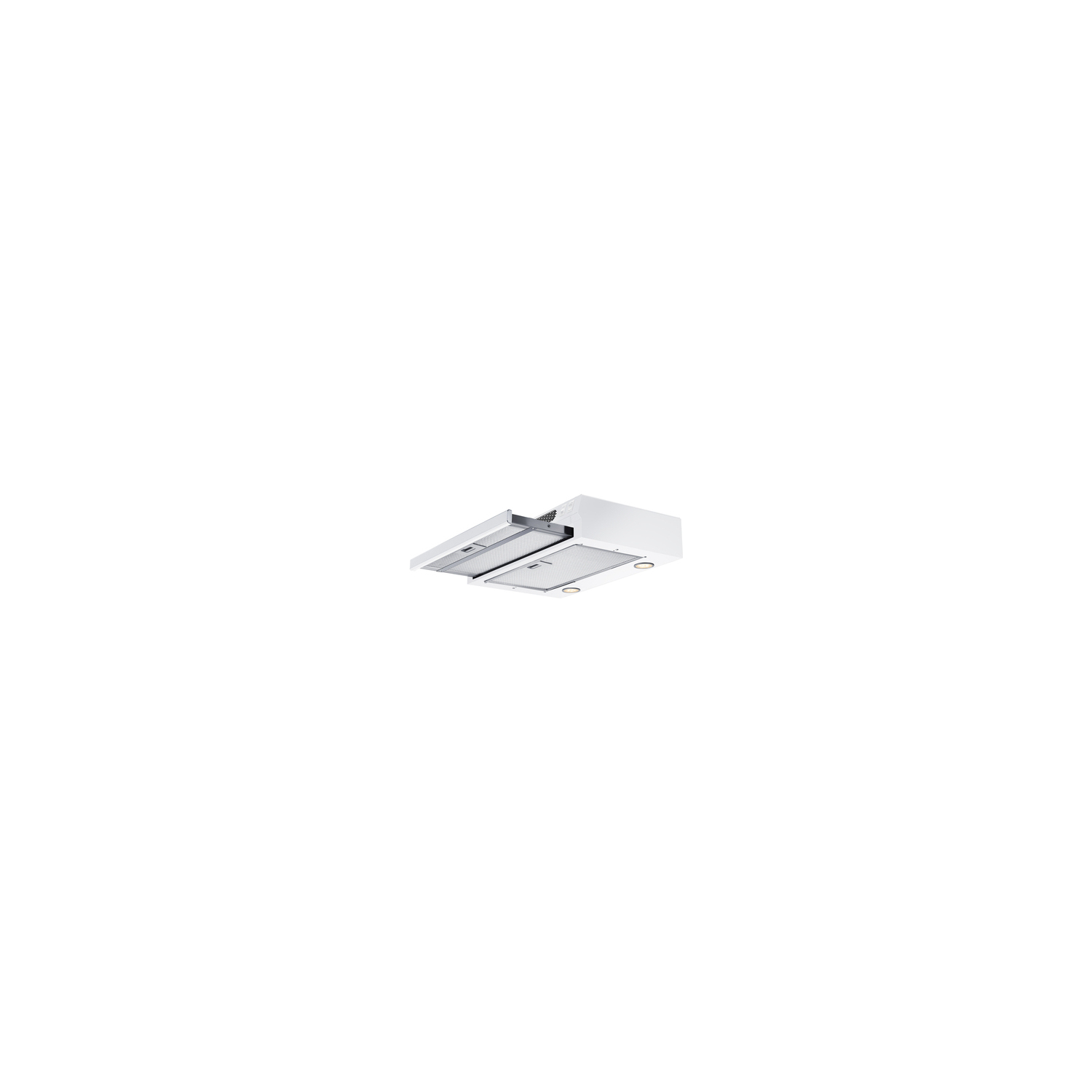

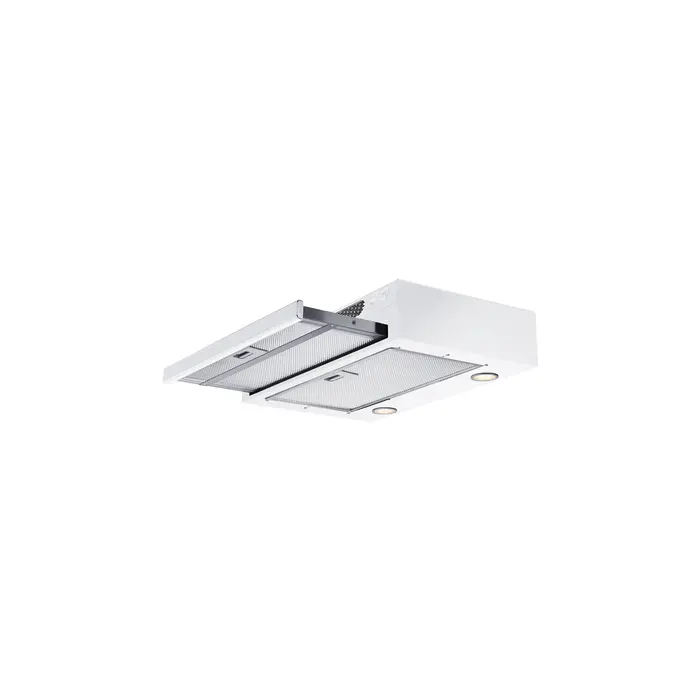

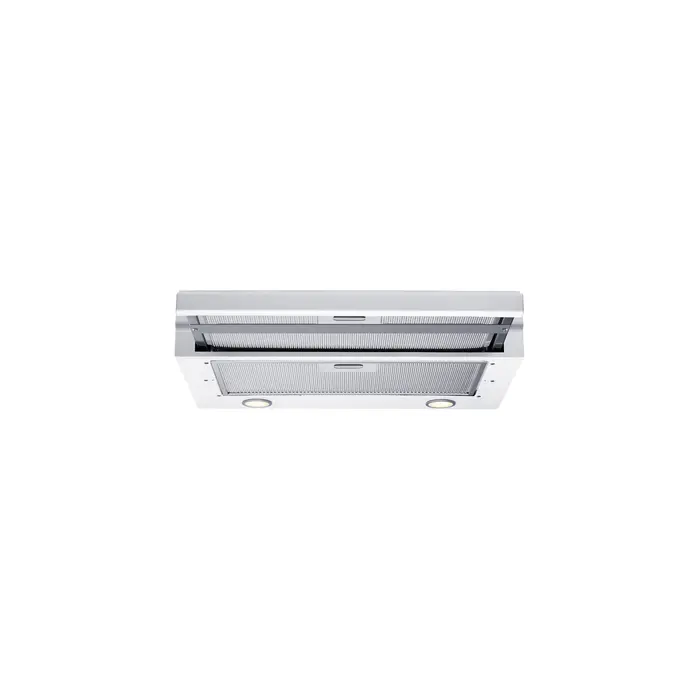

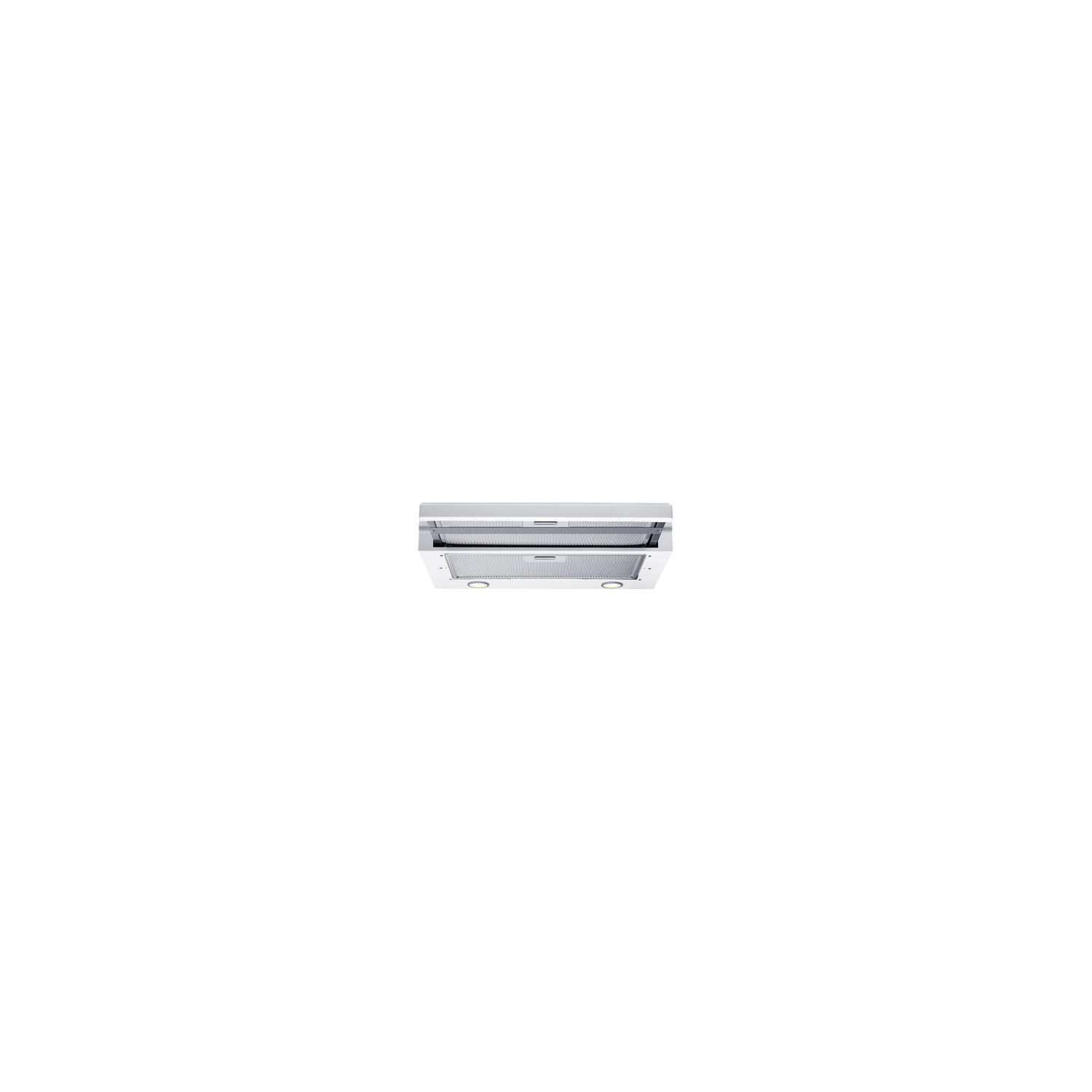

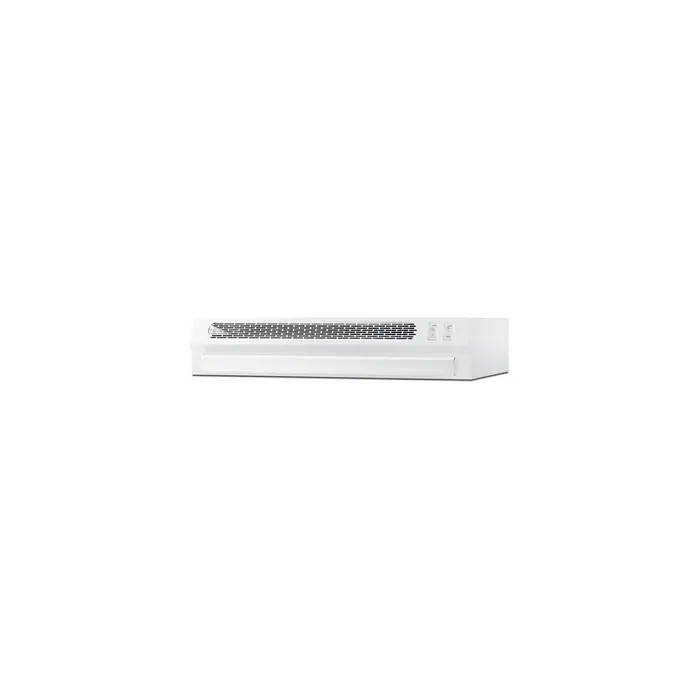

Model HRTX20W is a 20" wide range hood in a glossy white powder-coated finish. The retractable design and 4" height create a low profile, minimalist look that seamlessly blends into your kitchen when not in use. For maximum surface coverage, the retractable hood slides out as needed. Two oversized aluminum mesh filters with a carbon layer absorb grease, smoke, and cooking odors. This hood is equipped with two pre-installed LED light bulbs that provide convenient illumination over your cooking surface.

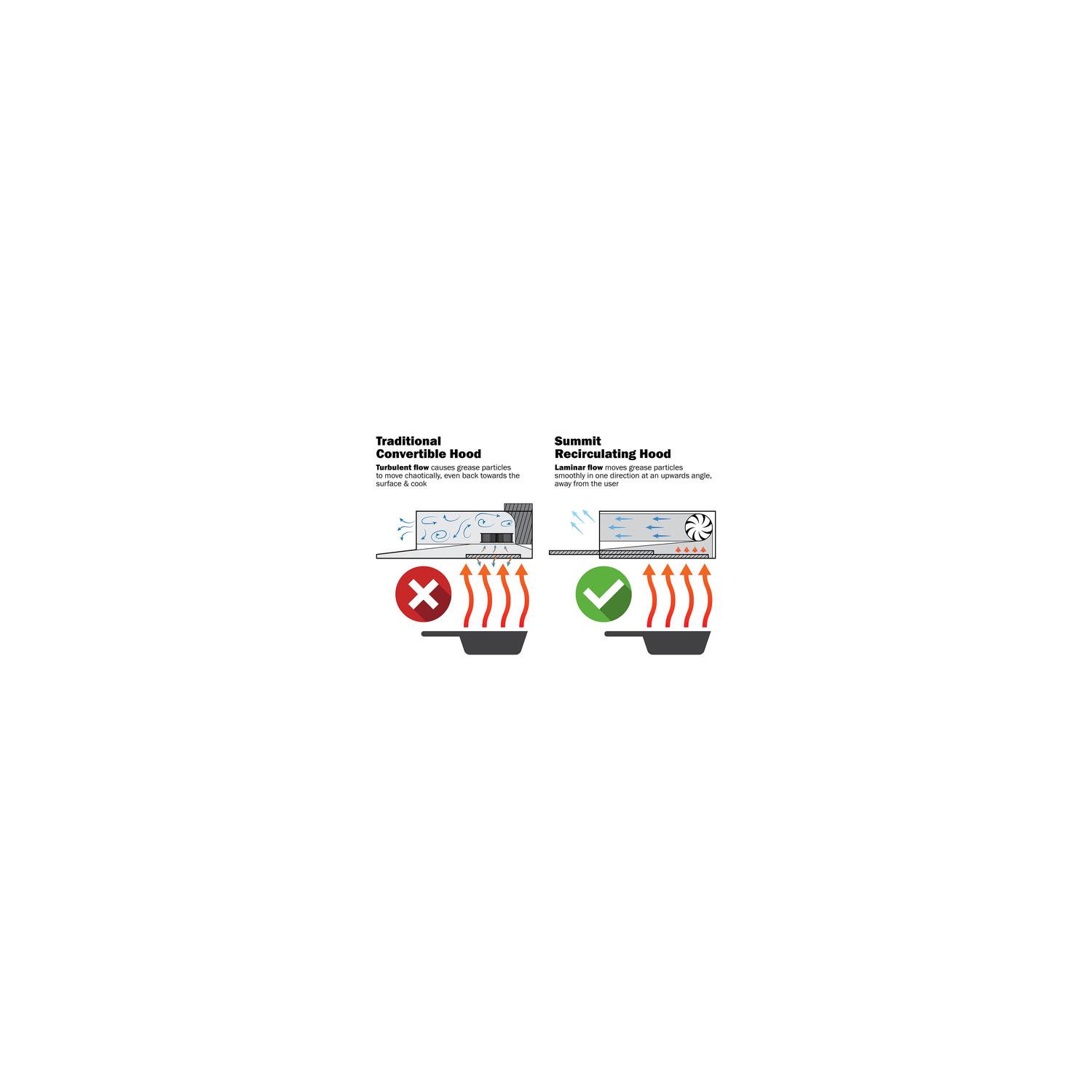

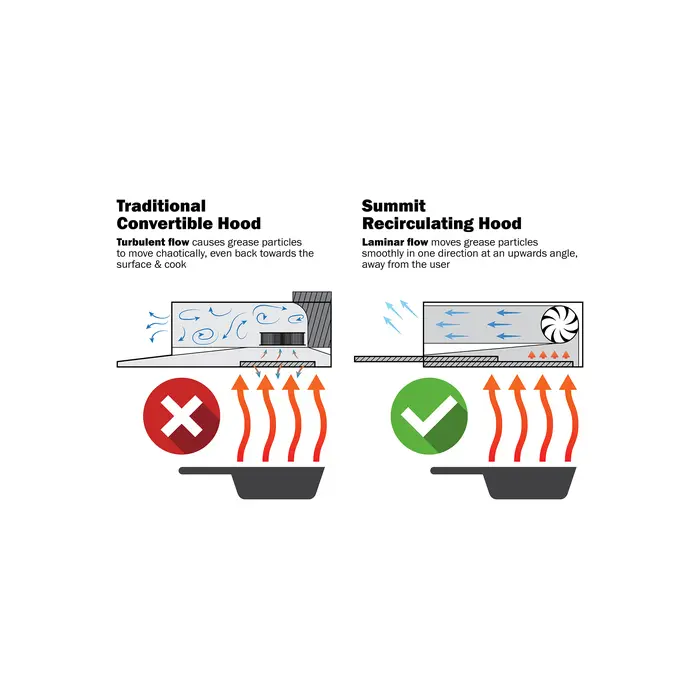

Unlike traditional ductless ventilation, our retractable hood is not convertible: it's exclusively designed, constructed, and rigorously tested for ductless applications where there is no access to outside venting. Instead of blocking airflow with a simple baffle, the Summit engineering team has created a quieter, more efficient system with smarter technology. It utilizes a cross-flow fan to rotate horizontally, redirecting air smoothly out of the front louvers set at a slight upwards angle to ensure smoke and odors won't be directed towards the user. This maintains laminar airflow, avoiding back pressure and minimizing the noise found in converted range hoods that use axial fans. Though it operates at a lower CFM, its effective airflow outperforms traditional axial fans with a more efficient, quiet performance.

This range hood ships without a power cord and is designed to be hard-wired by a licensed professional. We also offer this unit with a pre-installed power cord and plug (add suffix "PTC"), as well as ADA compliant options with separate controls to be installed according to ADA guidelines. Additional colors and sizes are available, as well as convertible and ducted range hoods. Explore the full collection to find the perfect ventilation system for your kitchen.

SPECIFICATIONS

Overview

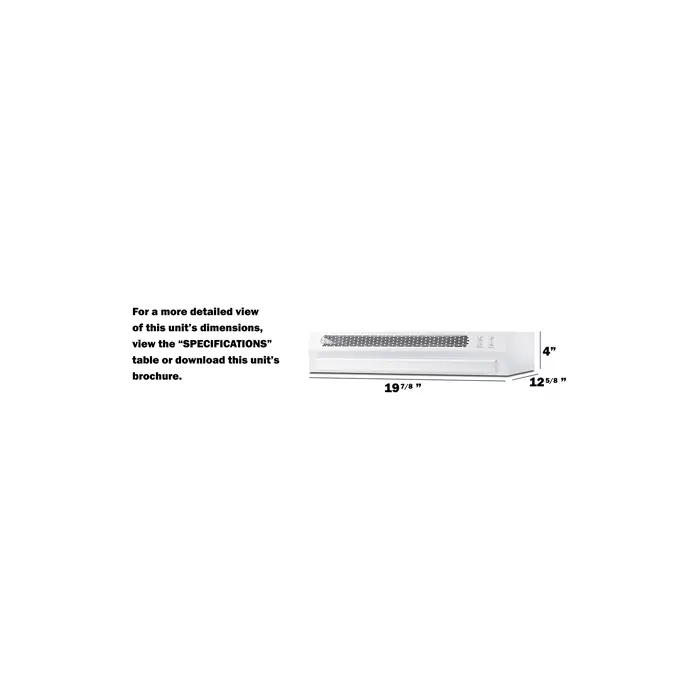

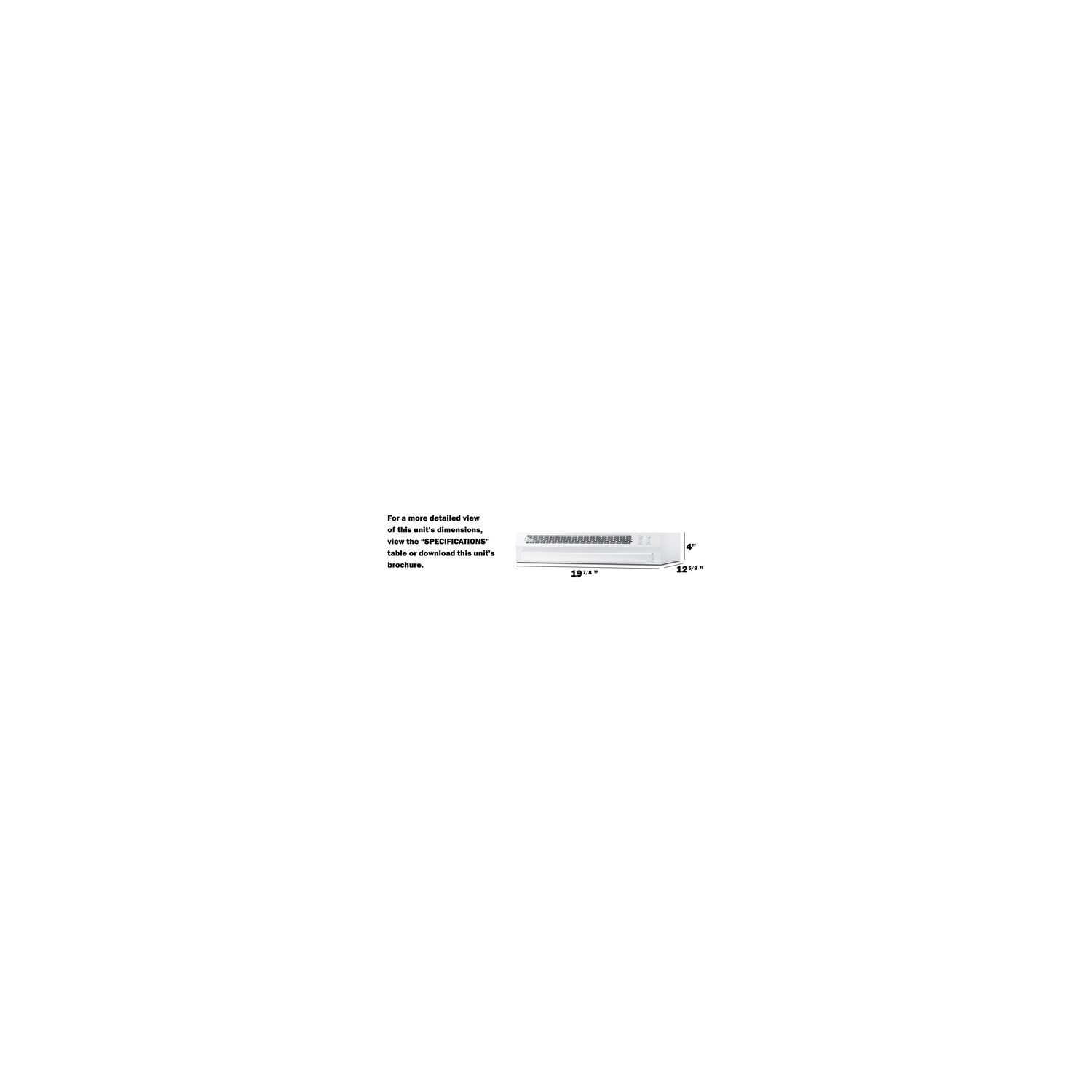

Height of Cabinet 4.0" (10 cm)

Width 19.88" (50 cm)

Depth 12.0" (30 cm)

Depth with door at 90° 18.25" (46 cm)

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 1.7

Voltage/Frequency 115 V AC/60 Hz

Weight 18.0 lbs. (8 kg)

Parts & Labor Warranty 1 Year

UPC 761101154770

Range Hood

Installation Under Cabinet

Venting Recirculating

Controls Dial

Light Yes

Number of Lights 2

Light Type LED

Number of Fan Speeds 2

FEATURES

20" Wide Retractable Recirculating Range Hood Slim-fitting low profile range hood ideal for apartments and other small kitchens

Premium design for luxury kitchens Retractable filter blends in seamlessly with cabinetry when not in use for an elevated kitchen look

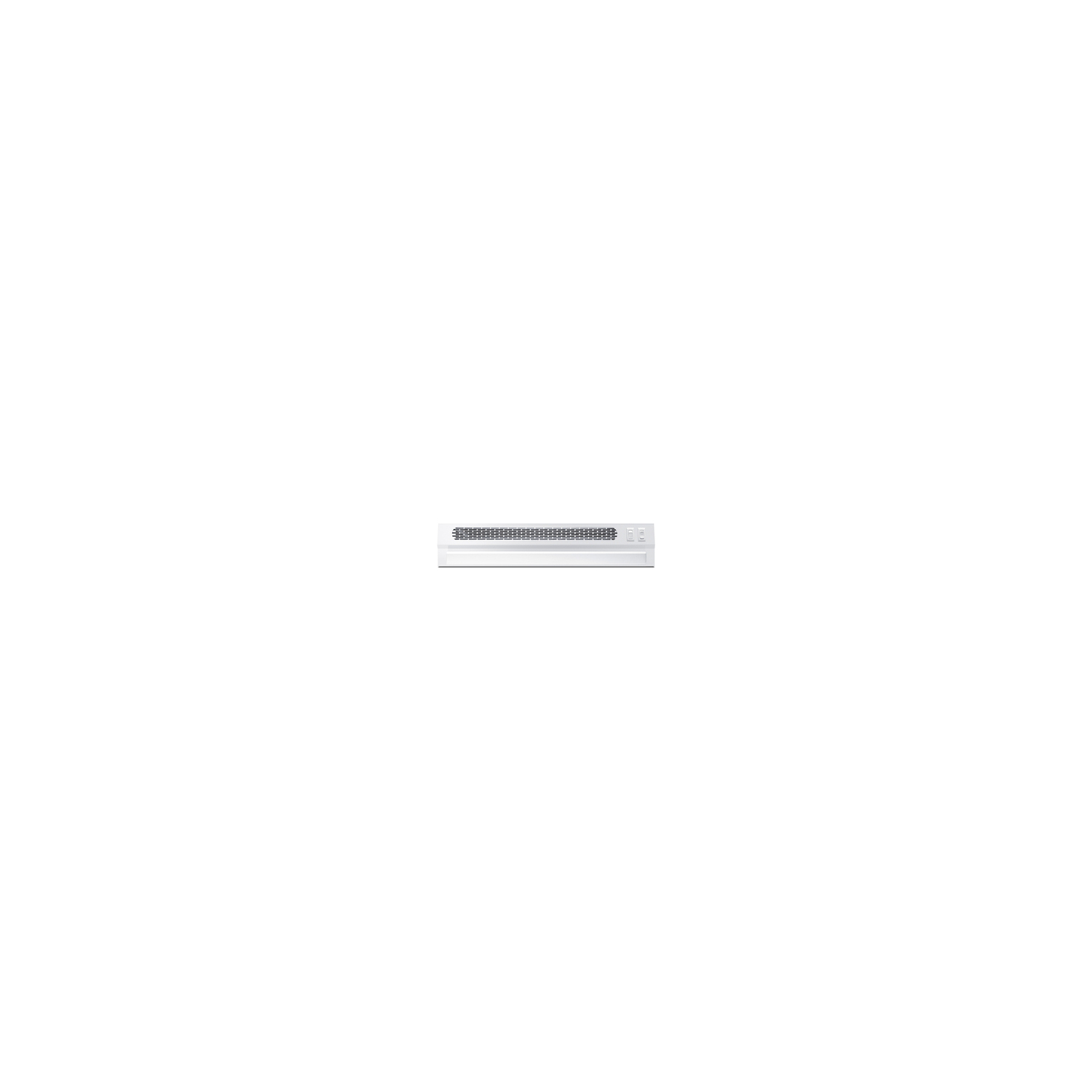

Low profile 4" height One of the slimmest under-cabinet hoods in the market, creating a minimalist look that takes up less vertical space than the competition

Designed for ductless operation The industry's first range hood specifically made for efficient filtration in recirculating applications with no access to exterior ducting

Made in the USA Designed and manufactured by Summit in the USA, complete with American steel for lasting durability

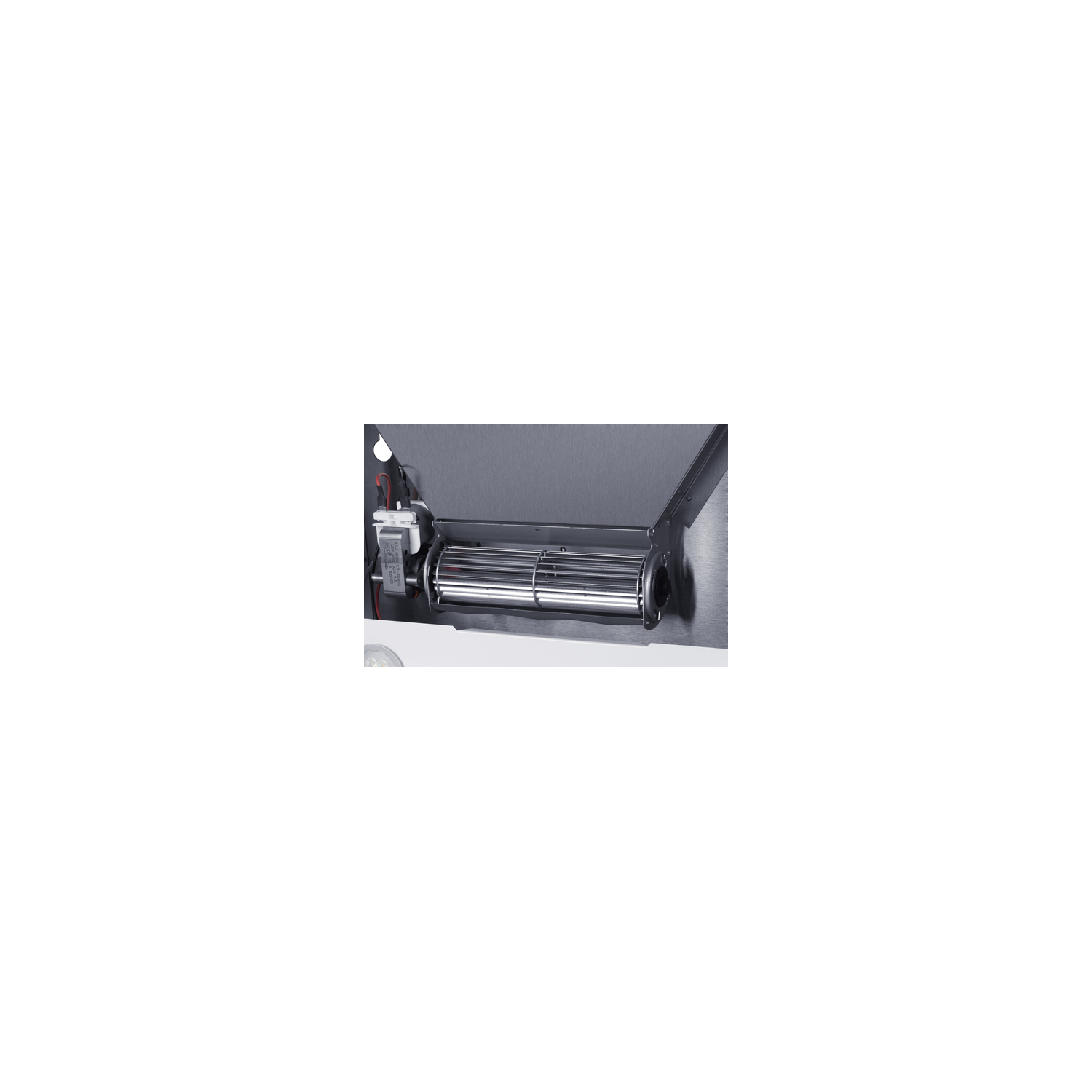

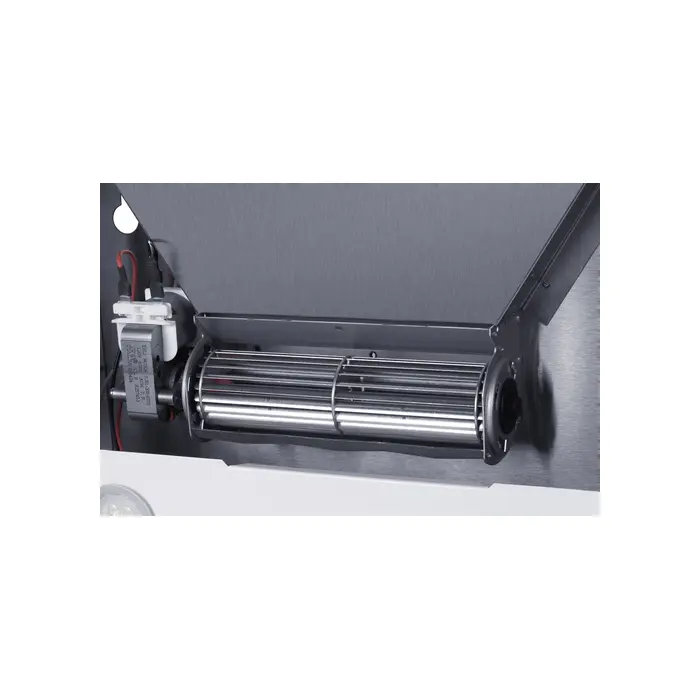

Improved filtration with smoother airflow Unique cross-flow fan moves up to 40% more air through the filters than standard hoods converted to recirculating mode

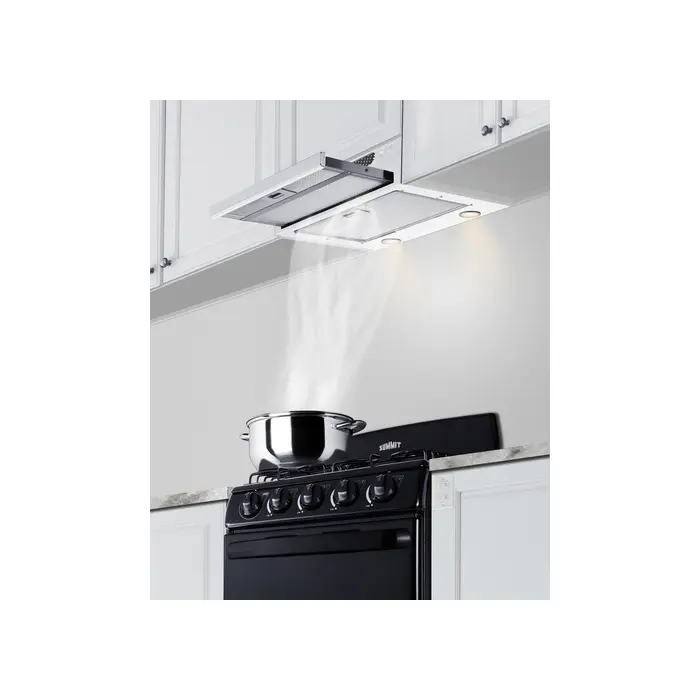

Angled airflow keeps smoke away from user Vents are set at a slight upwards angle, ensuring smoke and odors won't be directed towards the home cook

Quality construction for long-lasting use Metal ball-bearing glides, innovative cross-flow fan, and steel materials to ensure efficient use for years of reliable ventilation

Two-speed fan for versatile ventilation High and low setting to accommodate heavy and light levels of cooking activity

Two pre-installed LED light bulbs Efficient and attractive illumination over your cooking surface

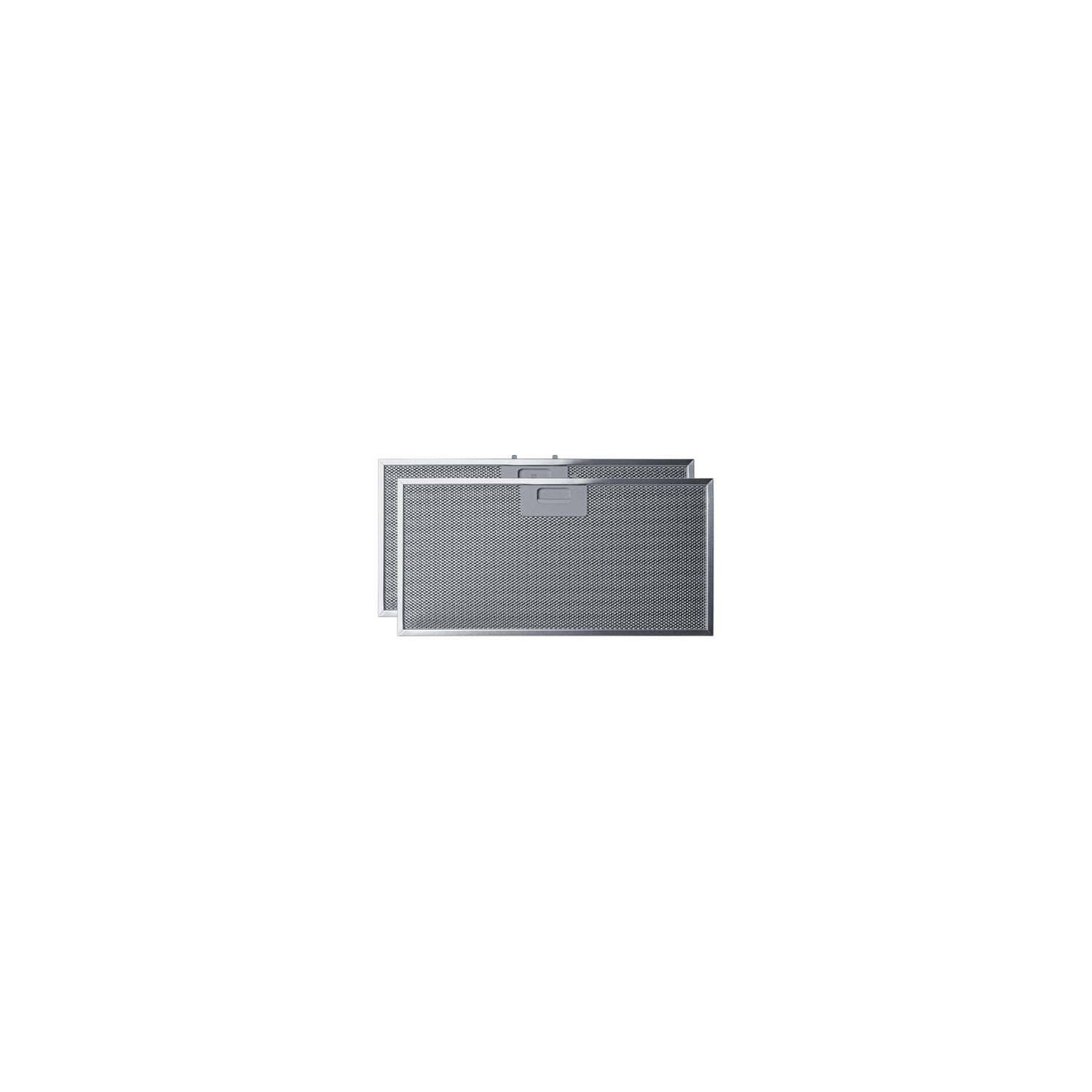

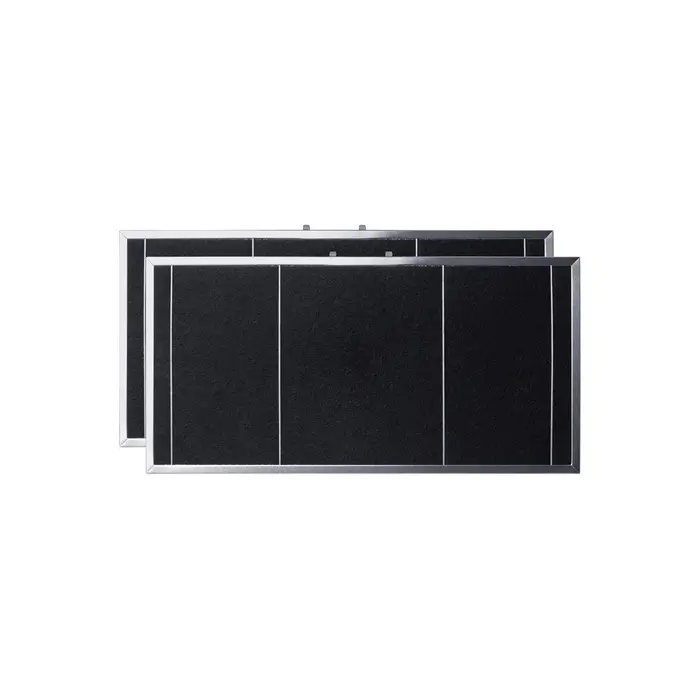

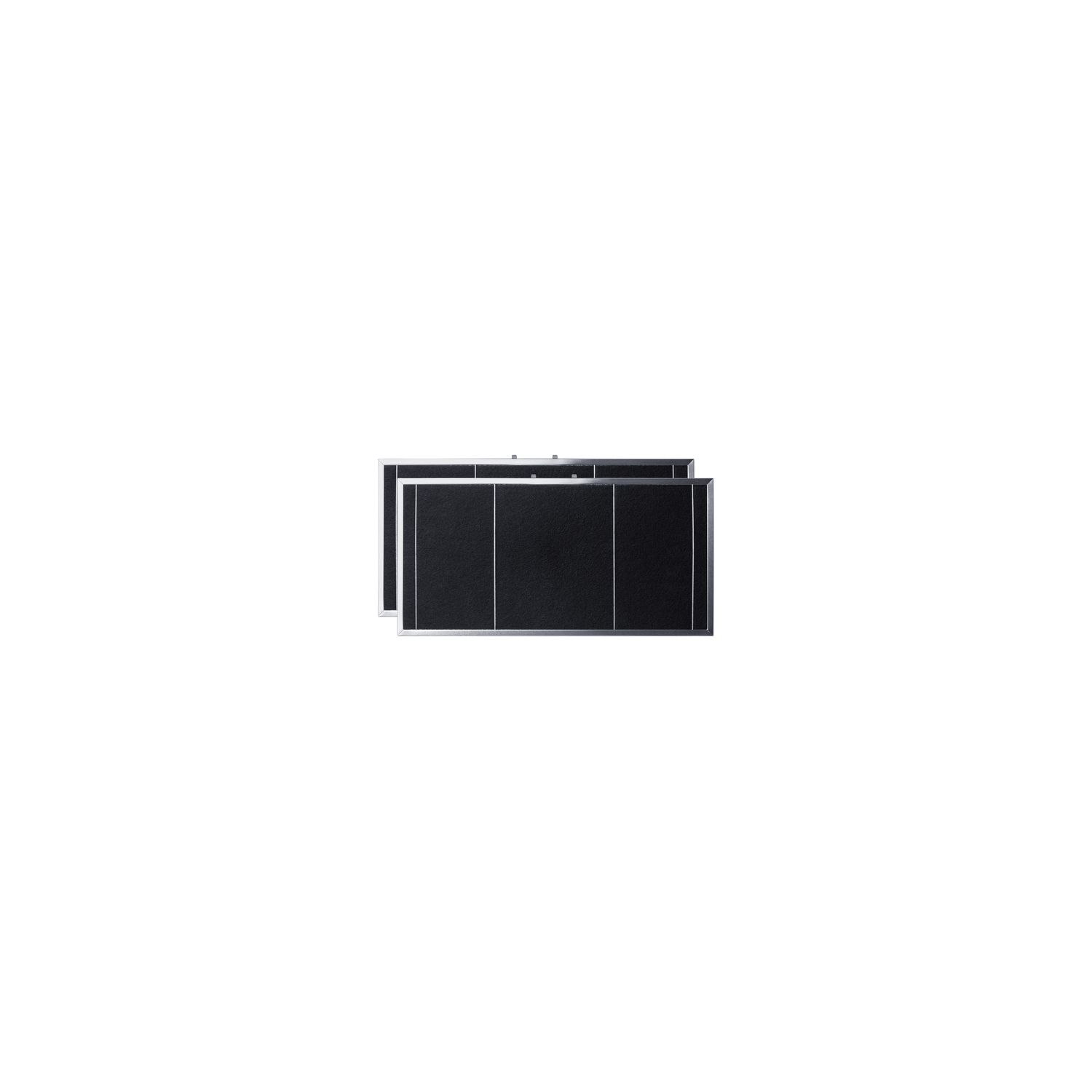

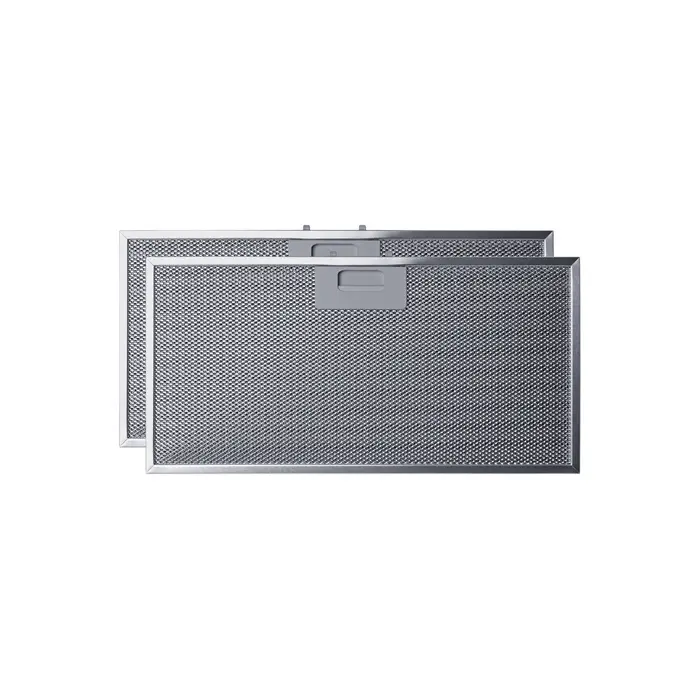

8x the filtration area of standard convertible hoods Two oversized combination aluminum filters with carbon strips cover your full cooking surface to remove more smoke and odors

Easy maintenance with removable filters Filters can be removed by user for replacements as needed. See HRTXFILTERSET accessory

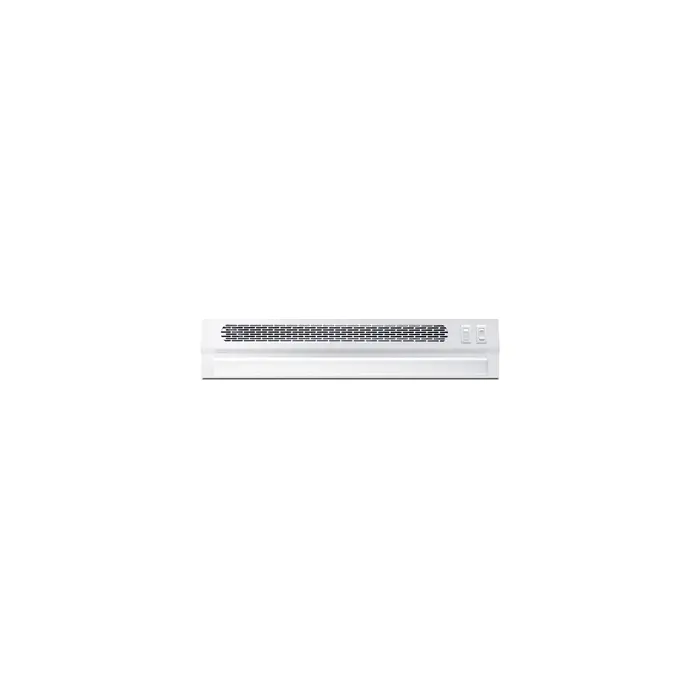

Simple & intuitive controls Front-located on/off and high/low rocker switches make it easy to manage the light and fan

Quiet operation Cross-flow fan reduces noise to operate quietly under 60 dB

White exterior Glossy white finish in powder-coated steel

20 inch width Sized for use over 20 inch cooking surfaces (additional sizes available)

Professional installation required Designed to be hard-wired by a licensed professional; units with pre-installed power cords also available
