Summit 24 inch wide convertible range hood for ducted or ductless use, 7.61101e+011, HC24BB
$176.75
Retail Price: $240.00
Free shipping
$ 176.75
Description
Made in North America, Summit's HC series under cabinet convertible range hoods offer versatile ventilation solutions for every kitchen space.

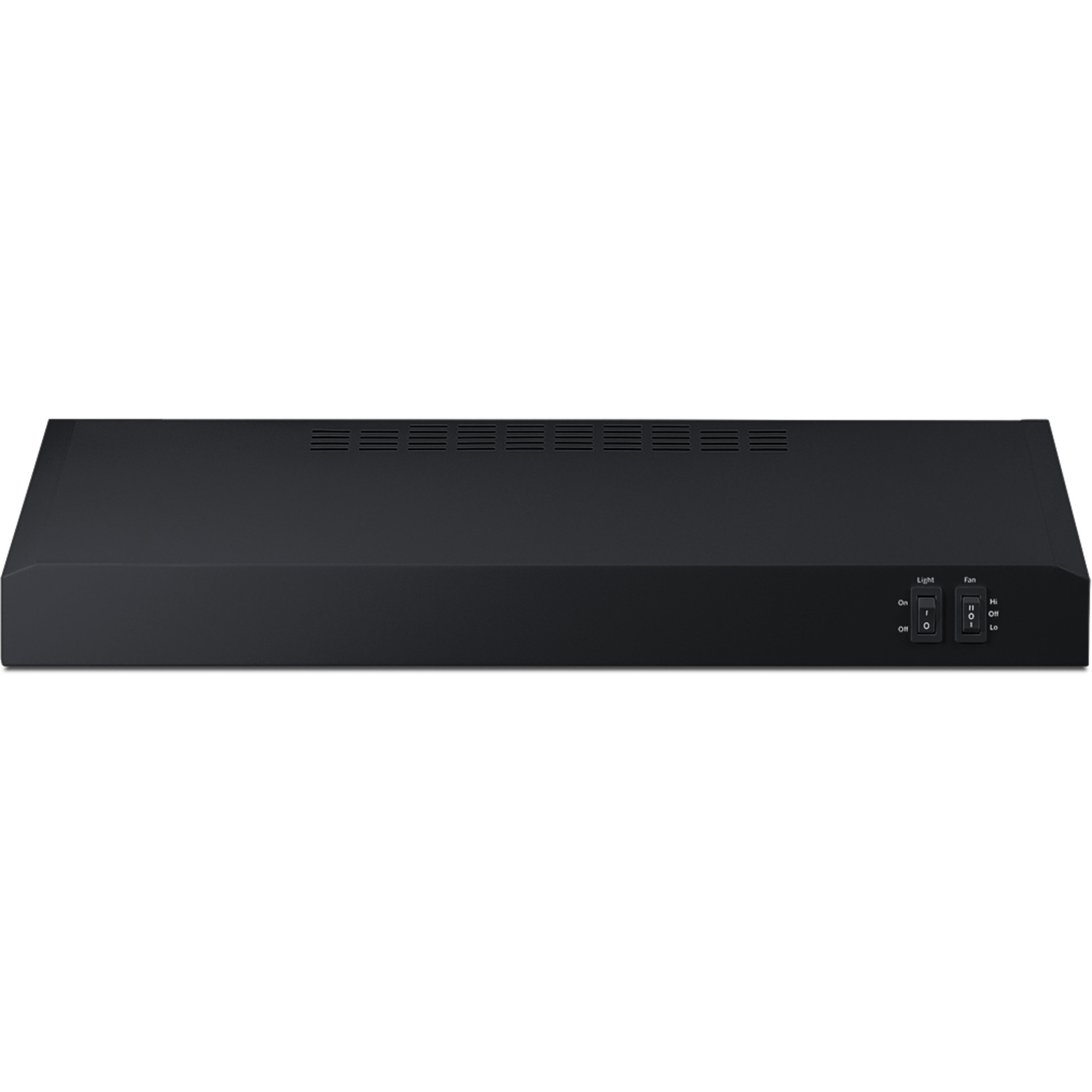

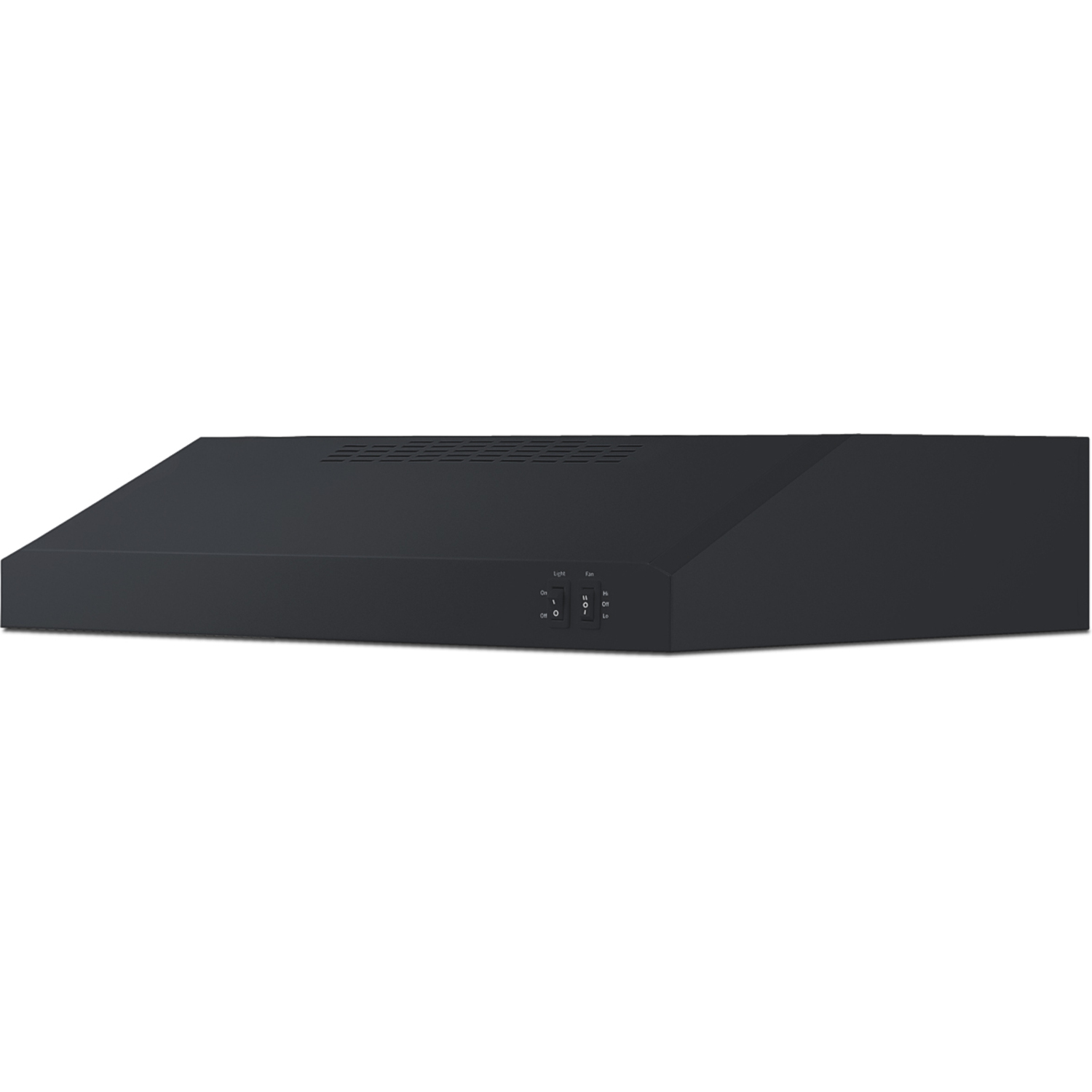

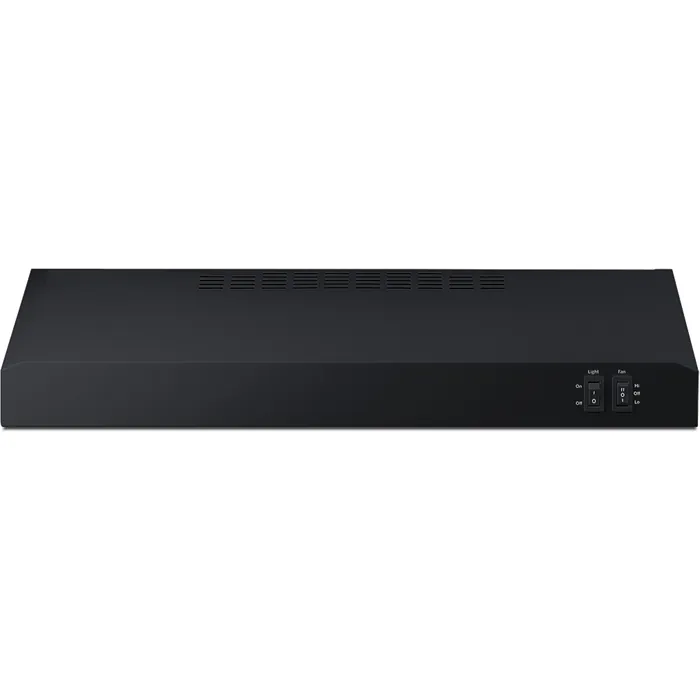

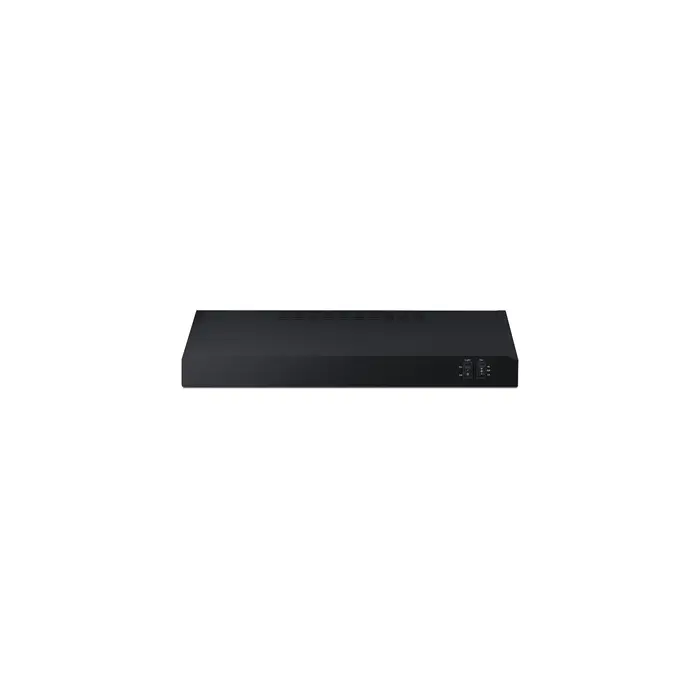

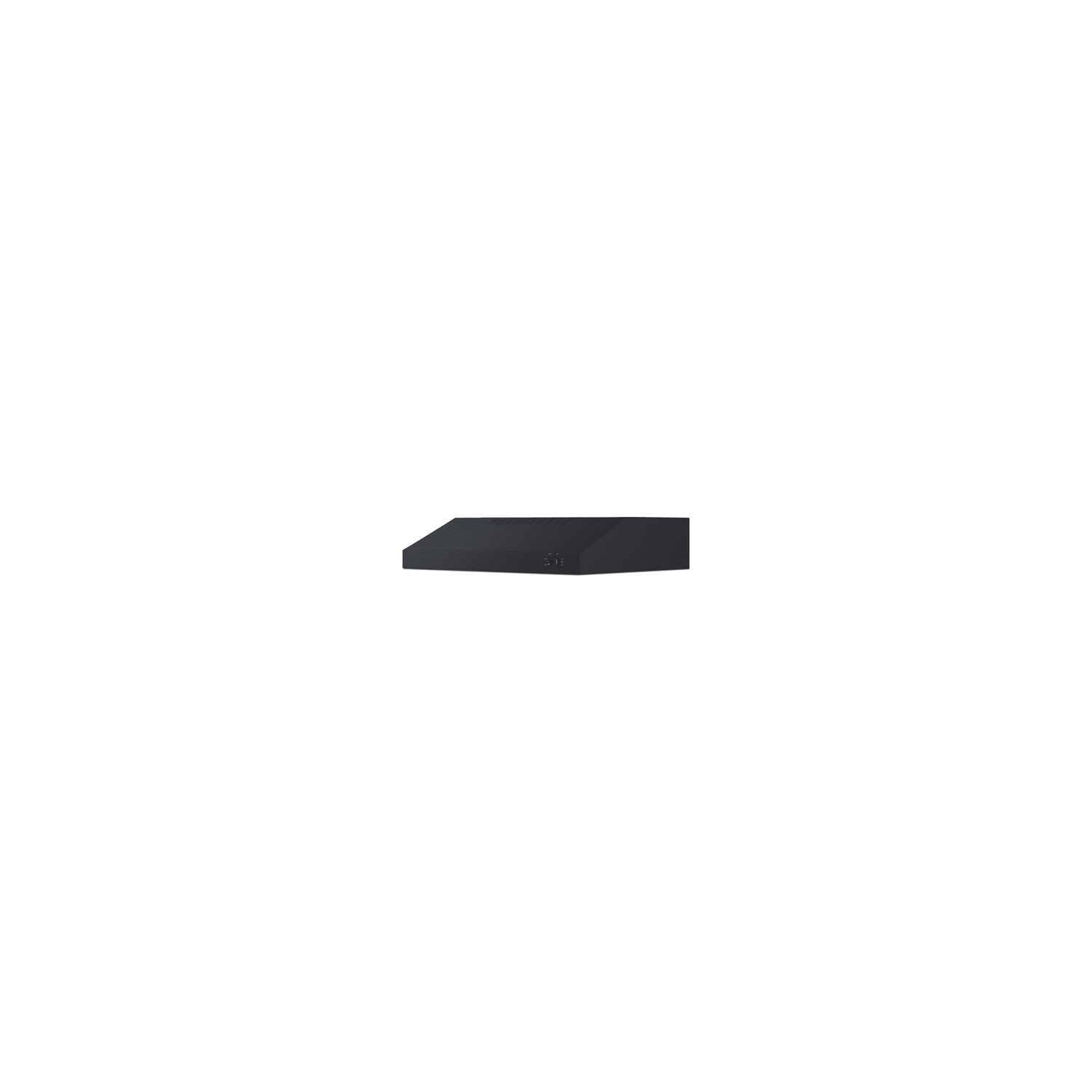

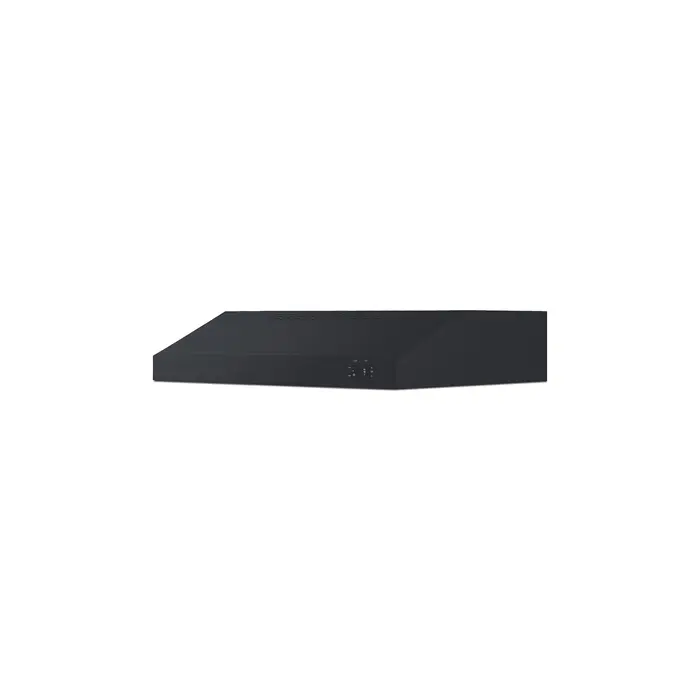

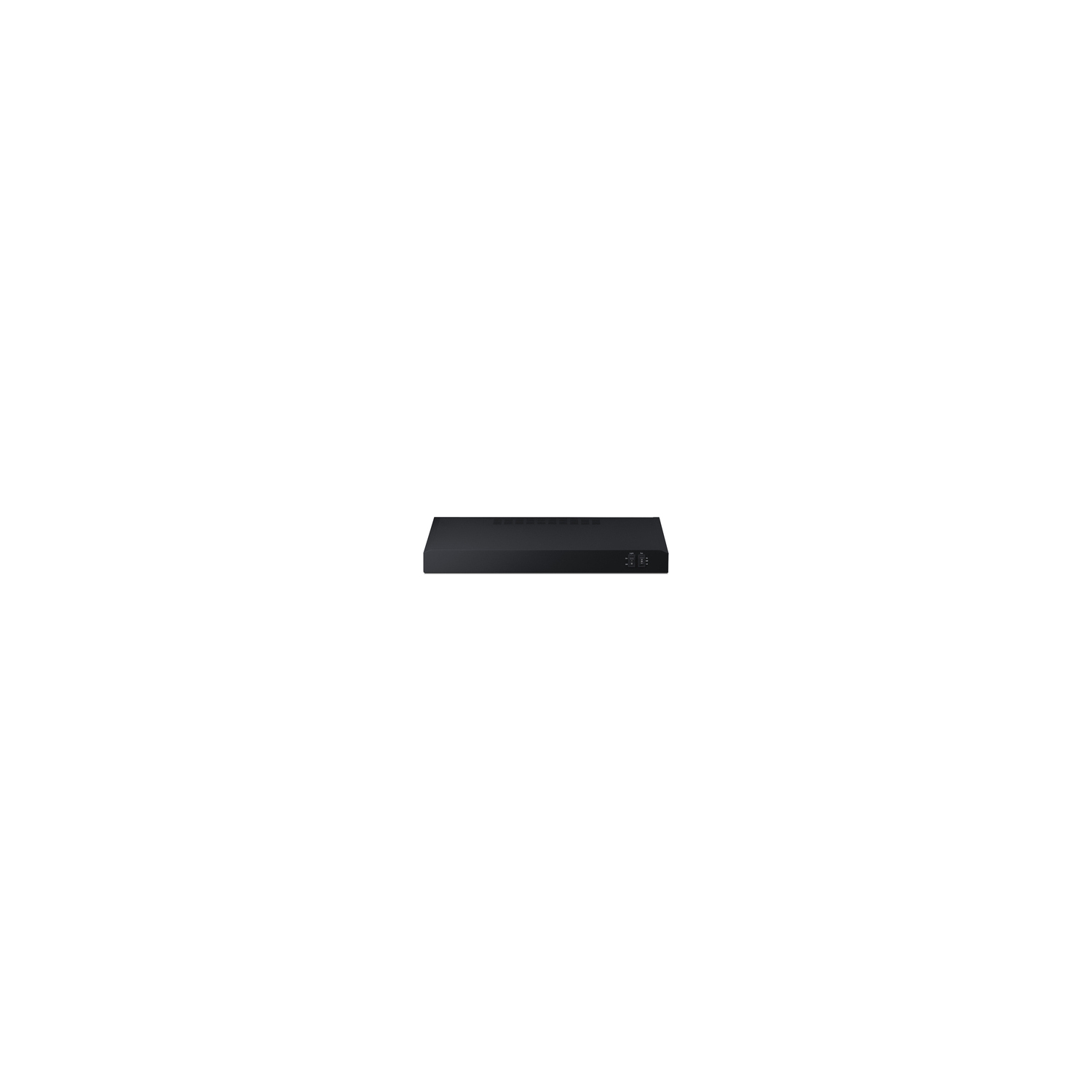

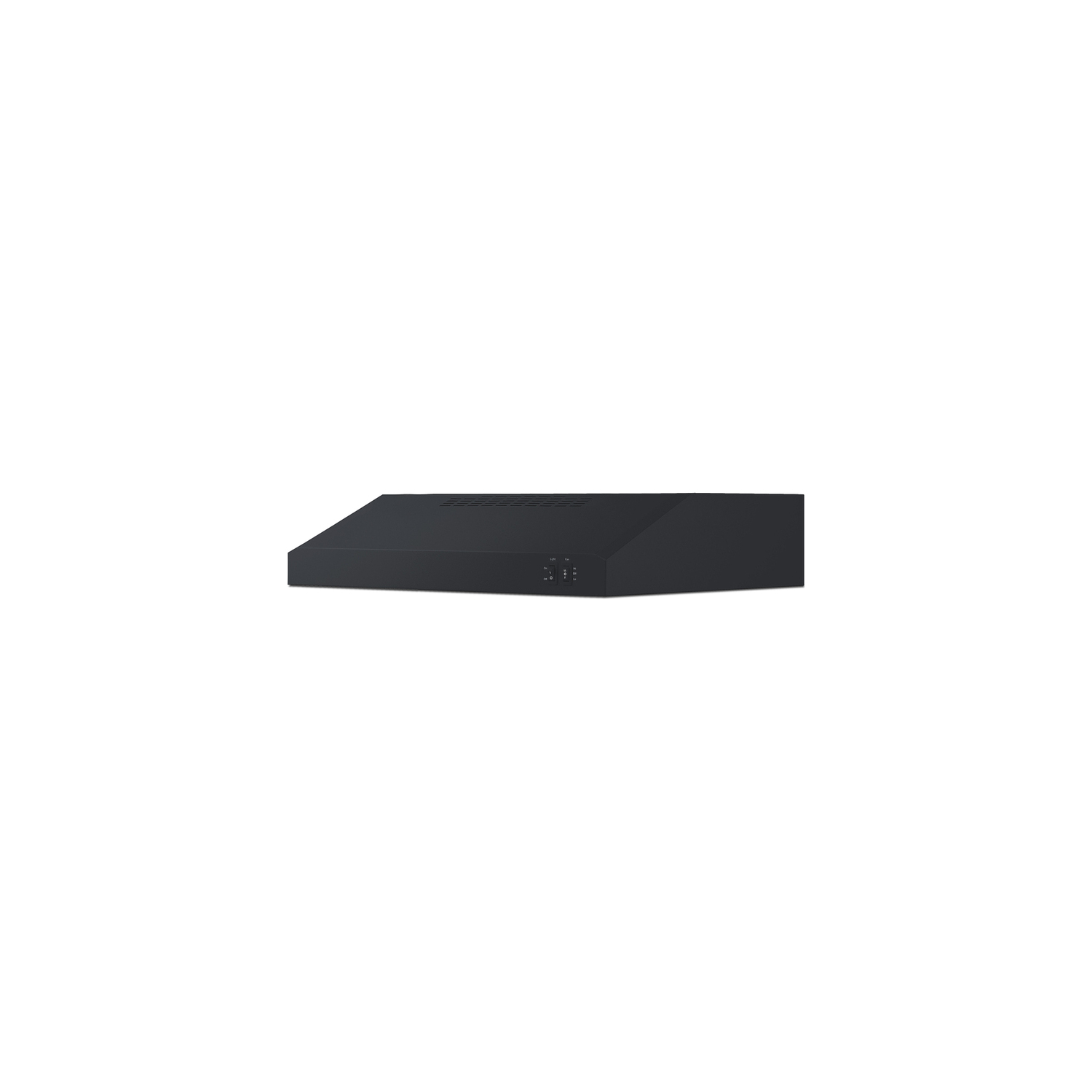

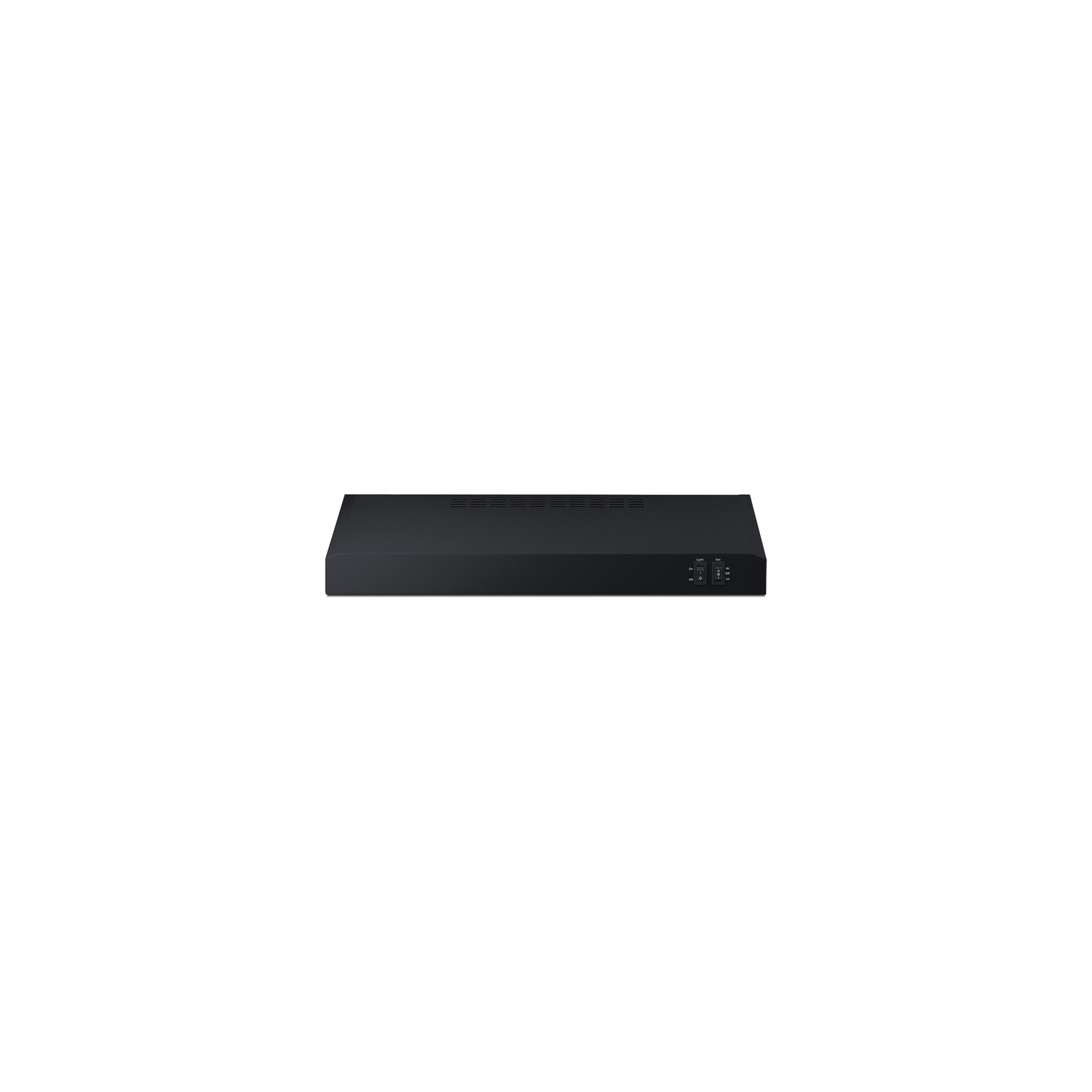

Model HC24BB is a 24" wide range hood ideal for apartments and other smaller kitchens. It comes in a jet black finish constructed from 21 gauge galvanized steel for a clean look and durable design. The powerful 2-speed fan is easily managed by a rocker switch with a high and low setting. This unit can operate at 270 CFM for thorough ventilation. Airflow is directed upwards at a slight angle, ensuring smoke and odors won't blow towards the home chef.

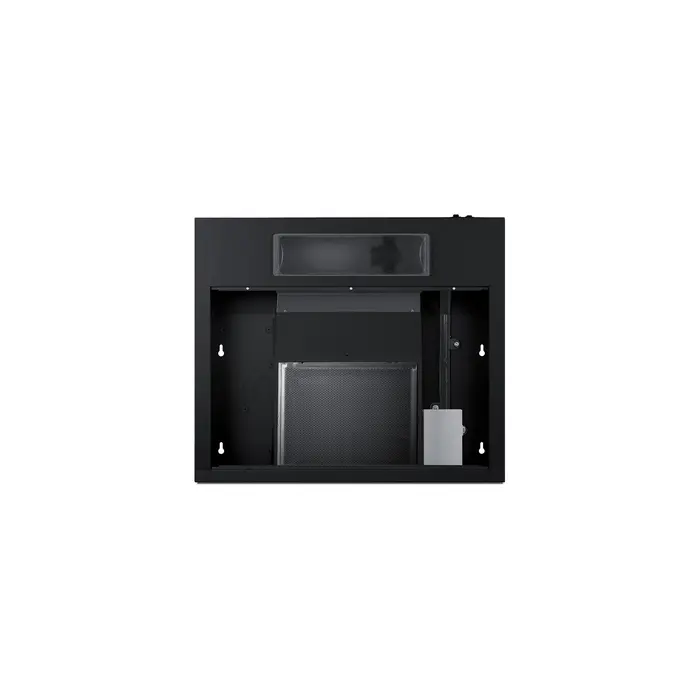

This hood ships for ductless/recirculating ventilation (where no exhaust connection to the outside is available) but is convertible for horizontal or vertical ducted ventilation (3 1/4" x 10" rectangular ducting or 7" round, transition required). We include a combination aluminum mesh/charcoal filter to absorb grease, smoke, and odors. This unit accepts a standard light bulb (not included). Both the filter and lens cover snap in place, with no tools required to change out as needed. Note: this hood does not include a power cord and is designed to be hard-wired by a licensed professional.
In addition to this range hood, Summit manufactures this series in additional colors, as well as shell hoods, wall-mounted European hoods, and island hoods in a range of styles. Browse the full Summit product line to explore your options.
SPECIFICATIONS
Overview
Nominal Height 6.0" (15 cm)
Height of Cabinet 5.5" (14 cm)
Nominal Width 24.0" (61 cm)
Width 23.88" (61 cm)
Nominal Depth 20.0" (51 cm)
Depth 20.0" (51 cm)
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.7
Voltage/Frequency 115 V AC/60 Hz
Weight 12.0 lbs. (5 kg)
Parts & Labor Warranty 1 Year
UPC 761101087078
Range Hood
Installation Under Cabinet
Venting Convertible
Controls Dial
Number of Fan Speeds 2
Maximum Air Movement 270.0 CFM
Sone Rating 6
Duct Shape 3"1/4" x 10" rectangular or 6/7" round with transition
FEATURES
Under cabinet range hood Low profile design offers classic style to finish your kitchen
24 inch width Sized for use over 24 inch cooking surfaces (additional sizes available)
Convertible design Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible
Black finish Matte finish in jet black suits any kitchen space
Easy conversion Ships pre-set for recirculating mode but can be converted in a few simple steps

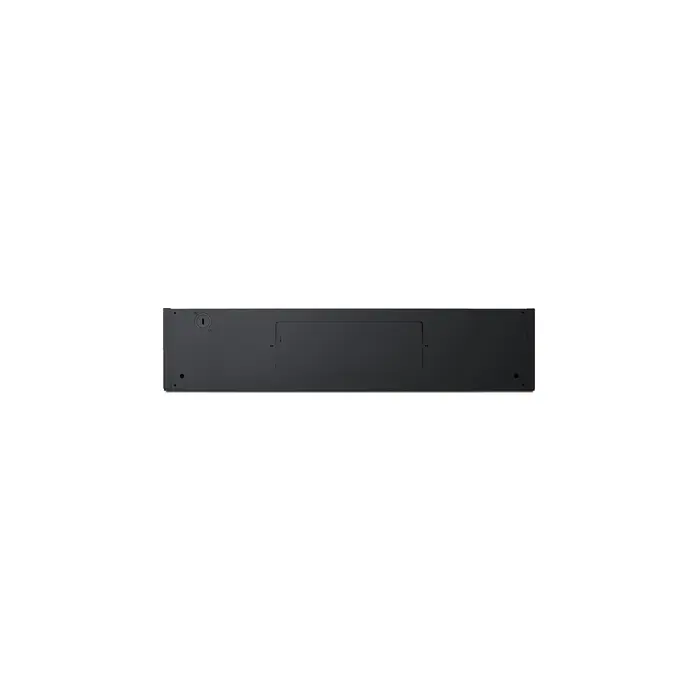

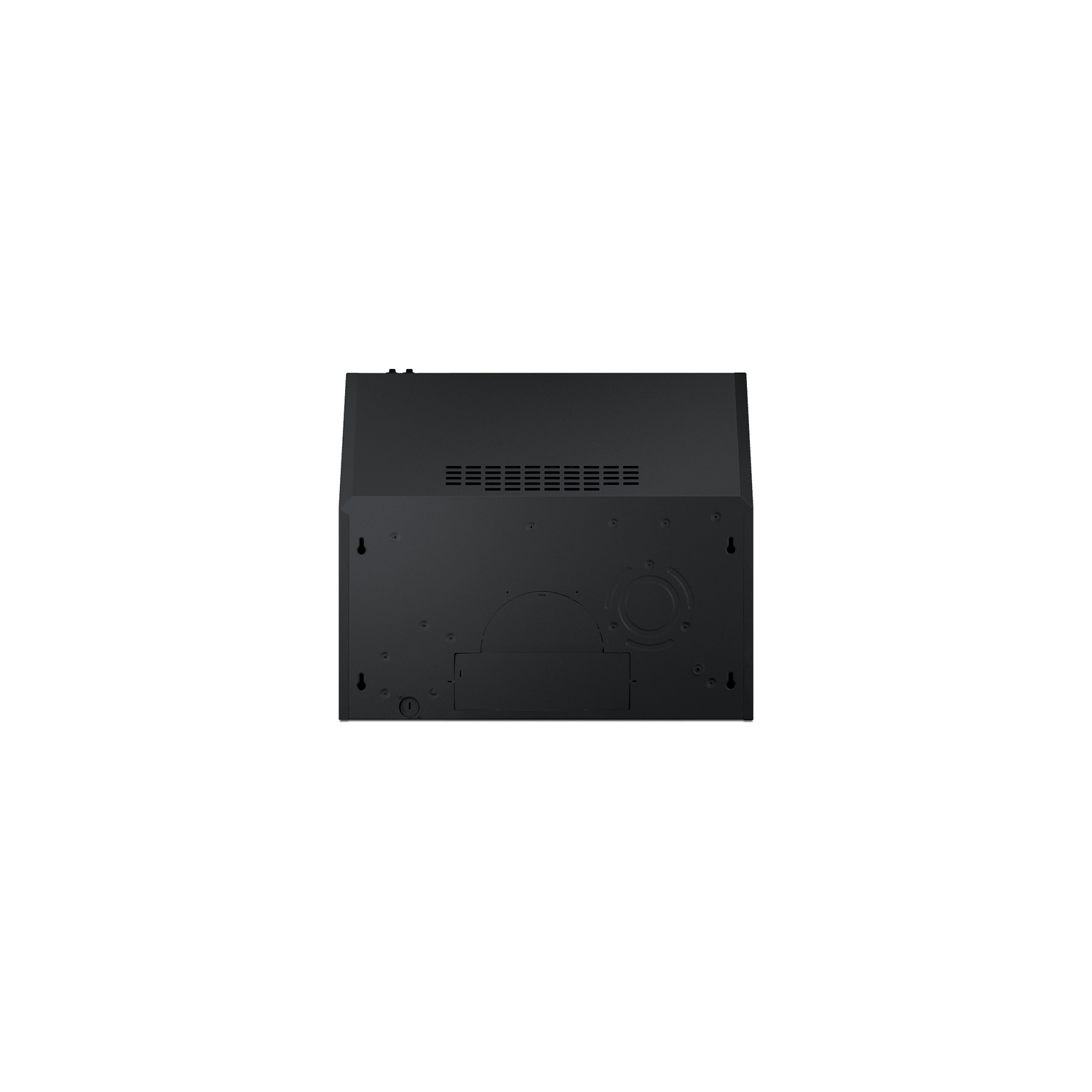

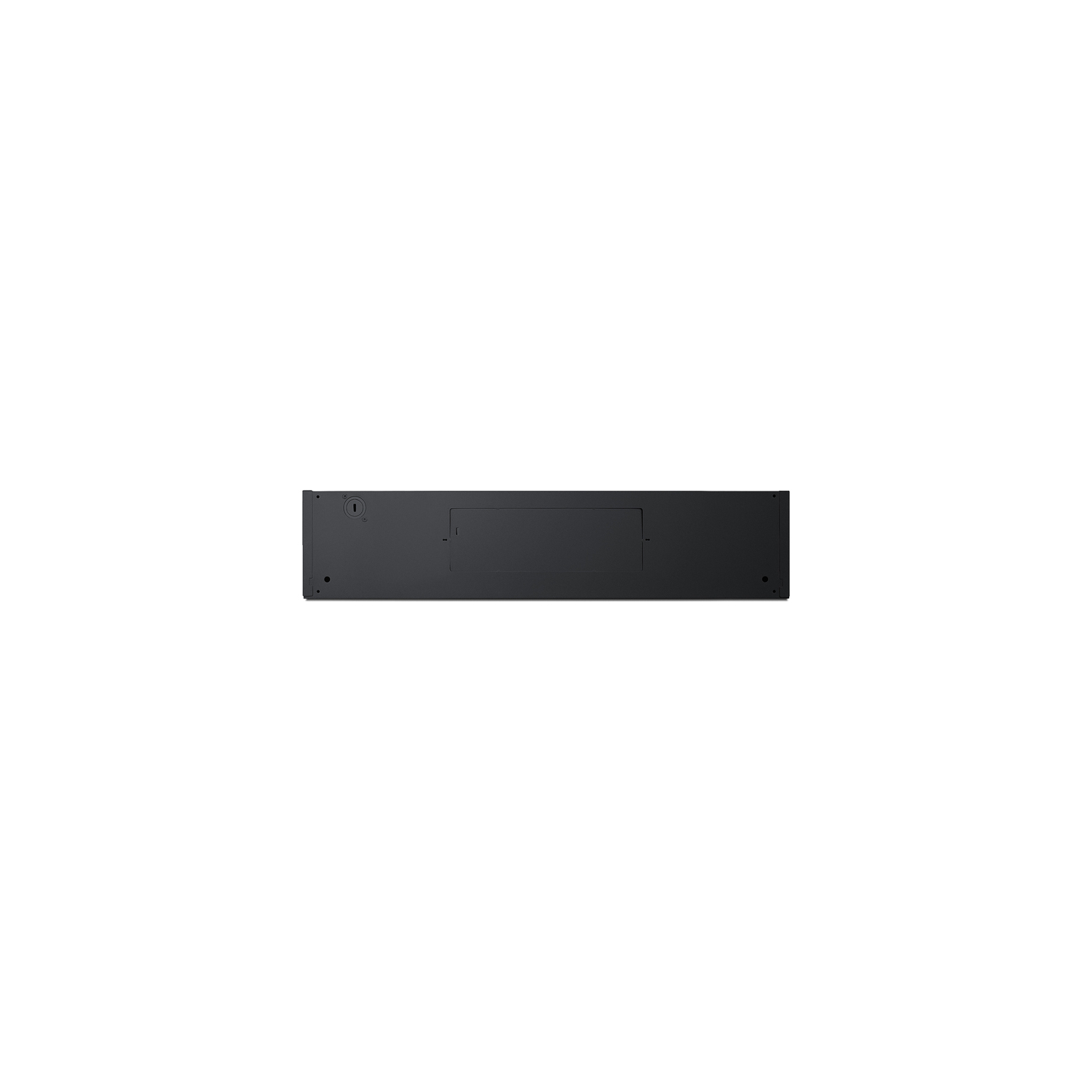

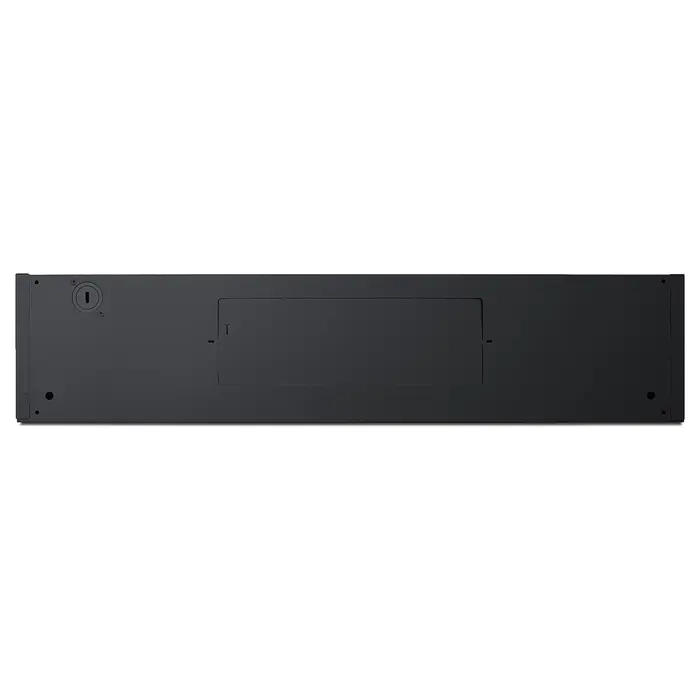

Versatile top or rear exhaust Can be connected to 3 1/4" x 10" vertical or horizontal exterior venting or 7" round vertical (transition required for both)
Powerful ventilation Can operate at 270 CFM to ensure thorough ventilation of your cooking surface
Angled airflow Vents are set at a slight upwards angle, ensuring smoke and odors won't be directed towards the user
Durable 21 gauge steel construction Powder-coated finish over a 21 gauge steel design for lasting durability

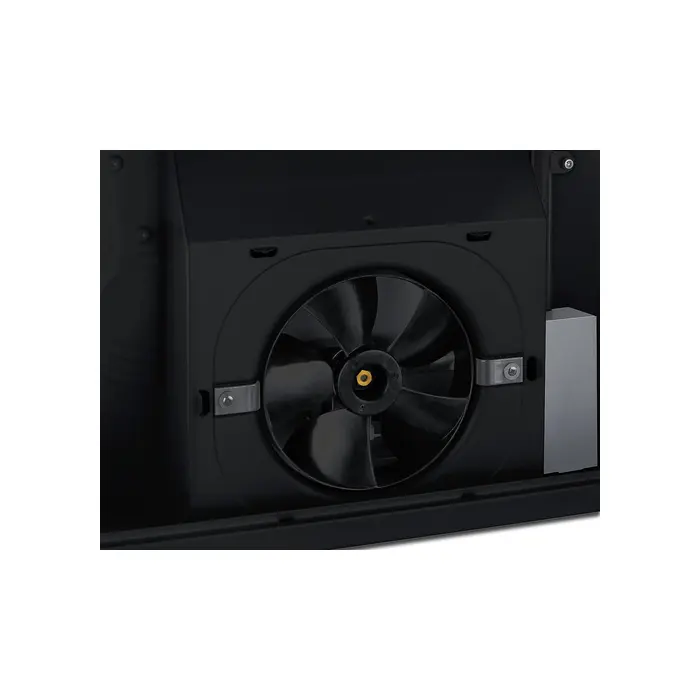

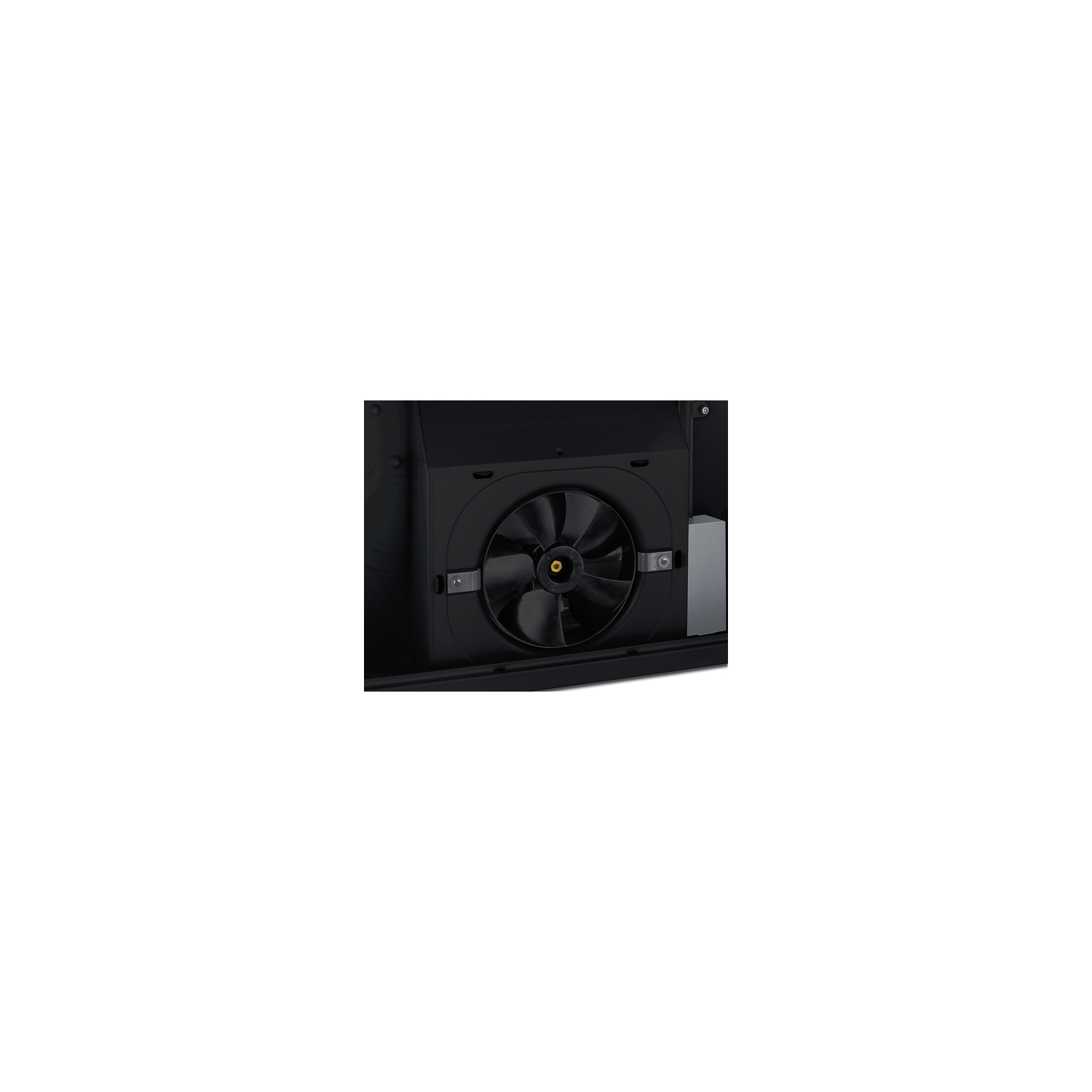

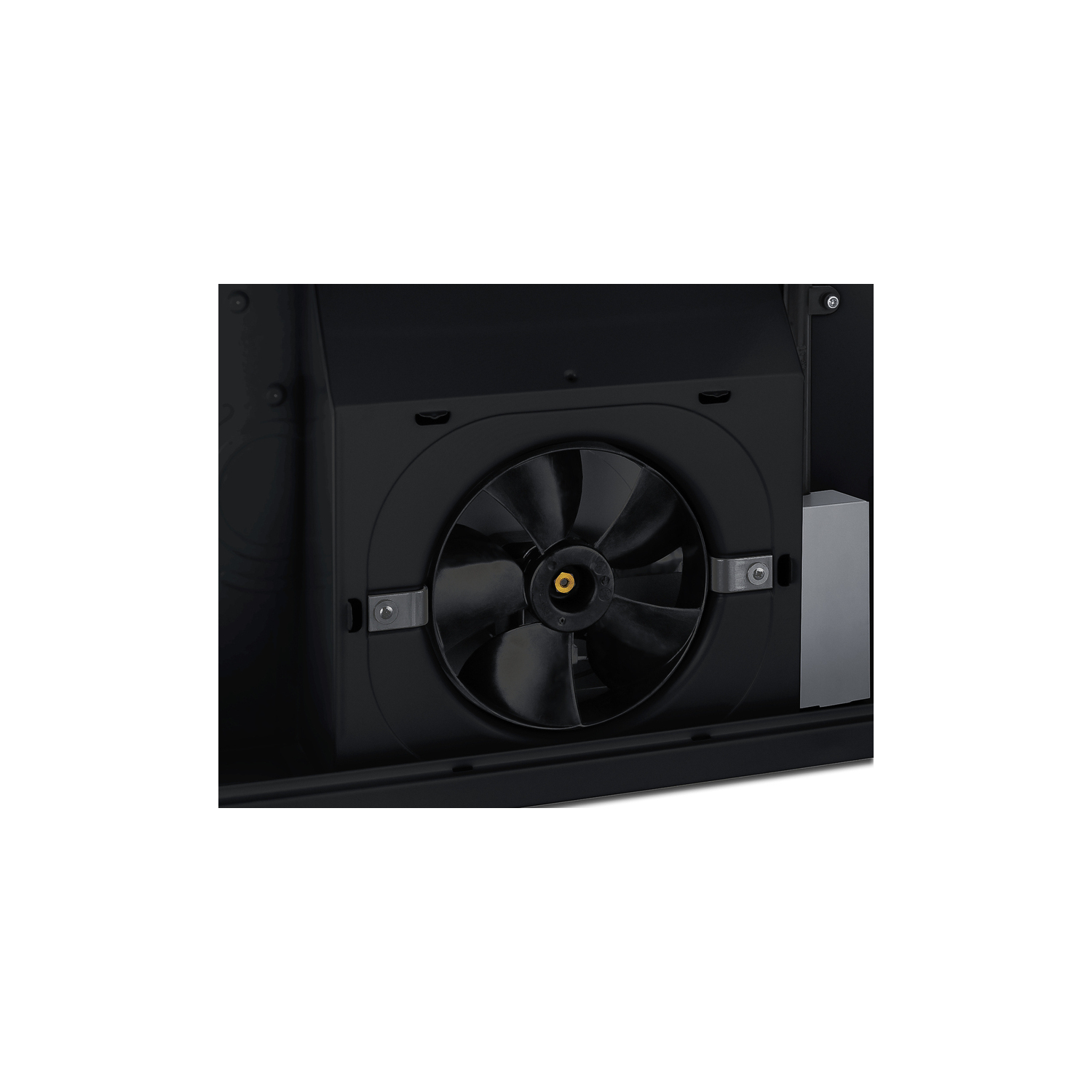

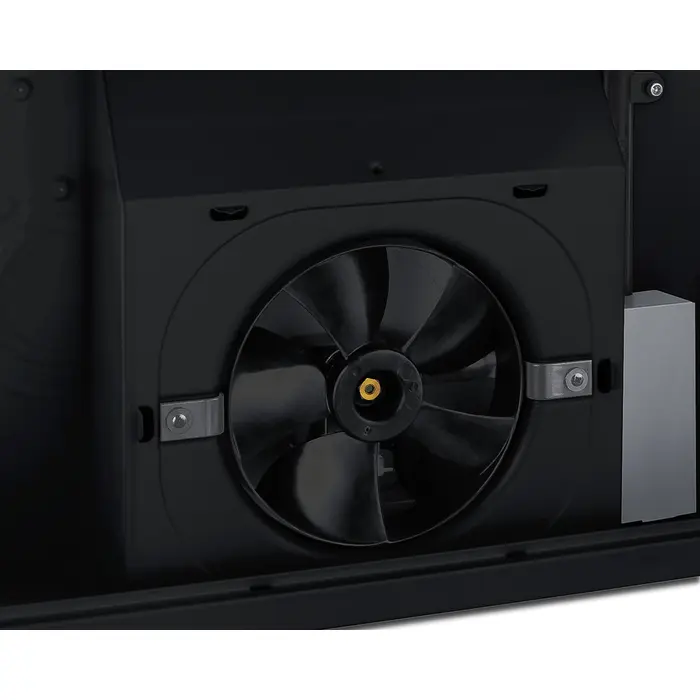

Two-speed fan High and low setting to allow proper ventilation of your kitchen as needed
Accepts a standard bulb Designed to hold a standard incandescent light bulb with easy installation and no tools required

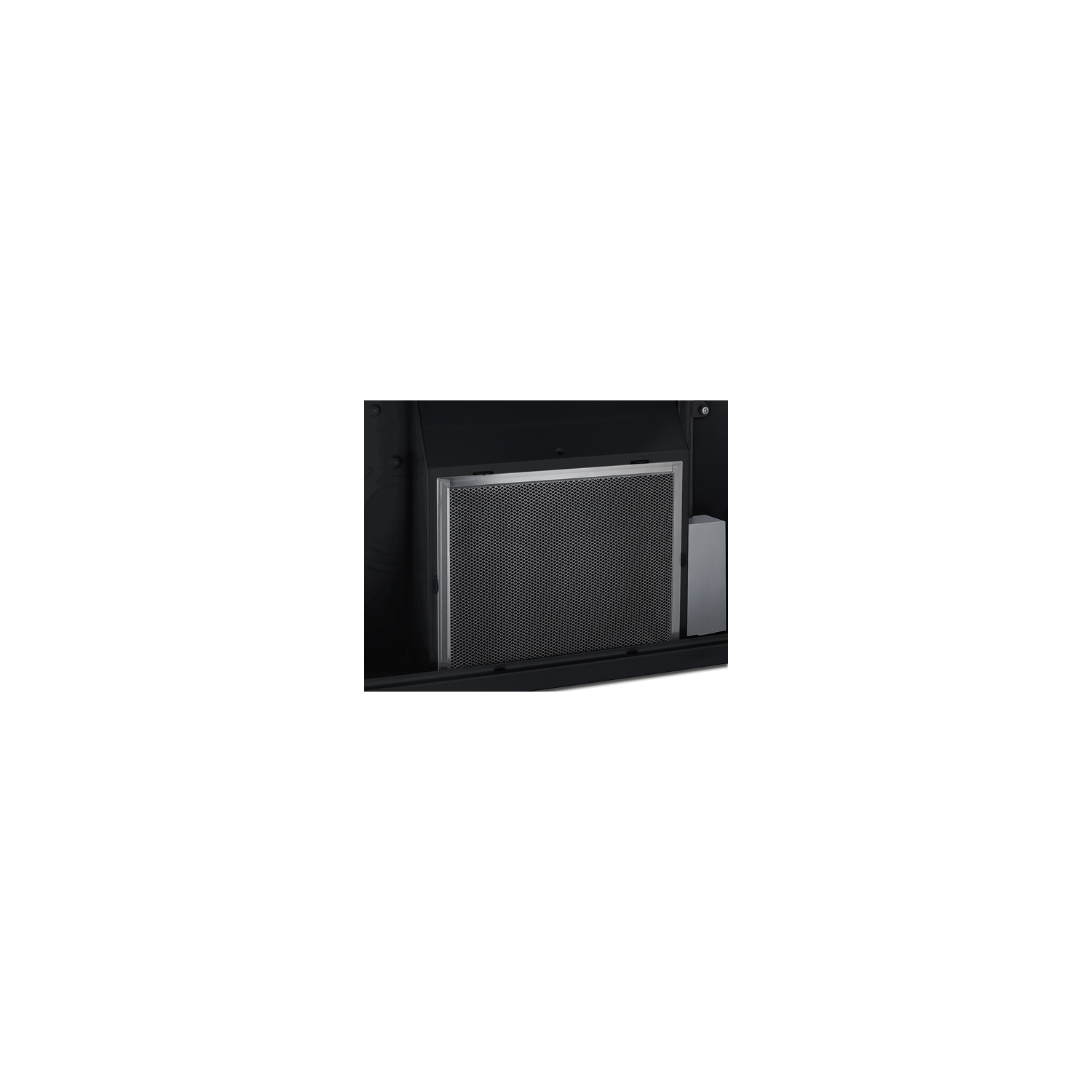

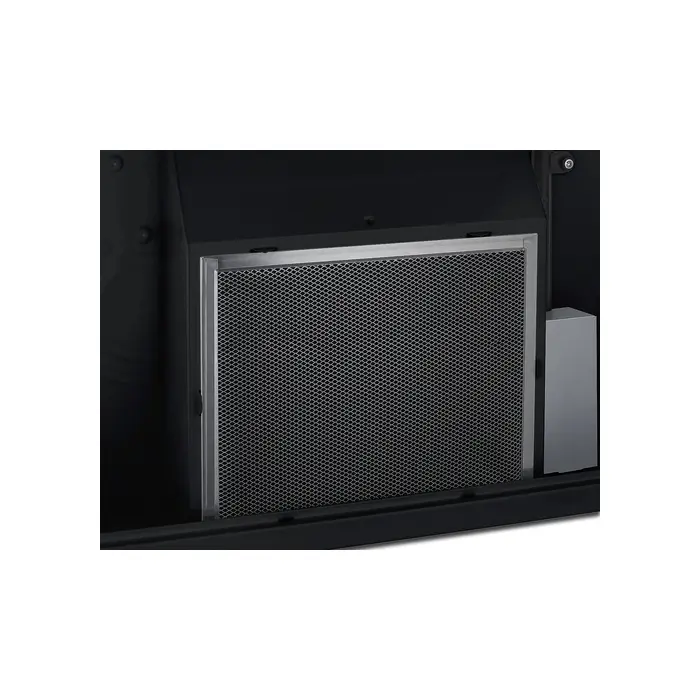

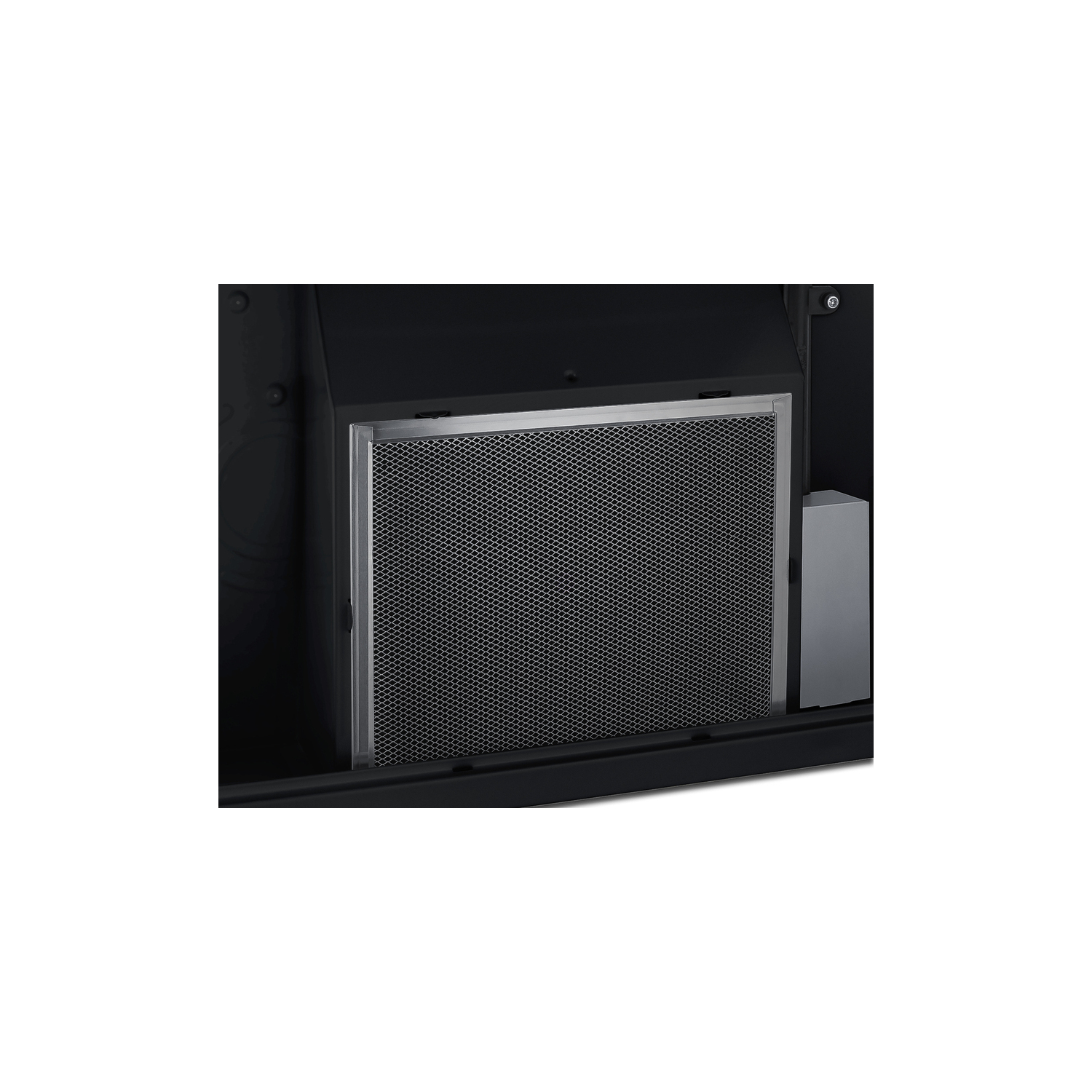

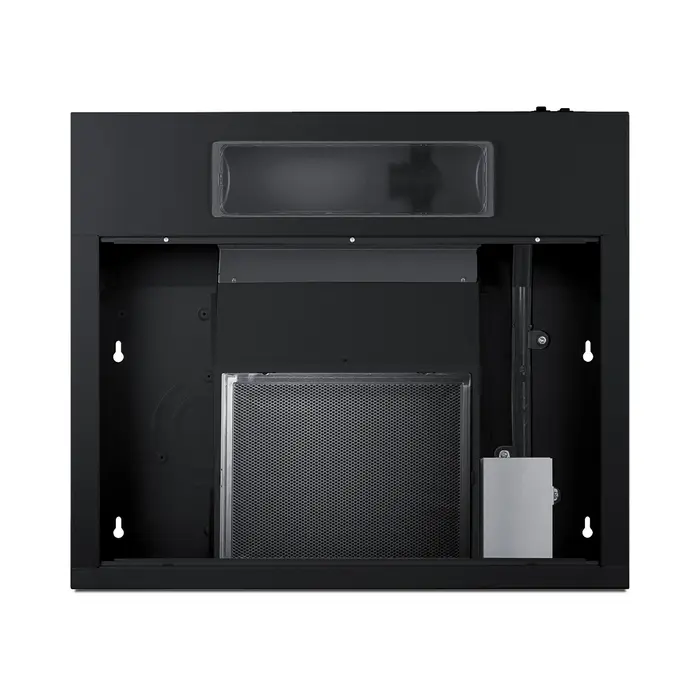

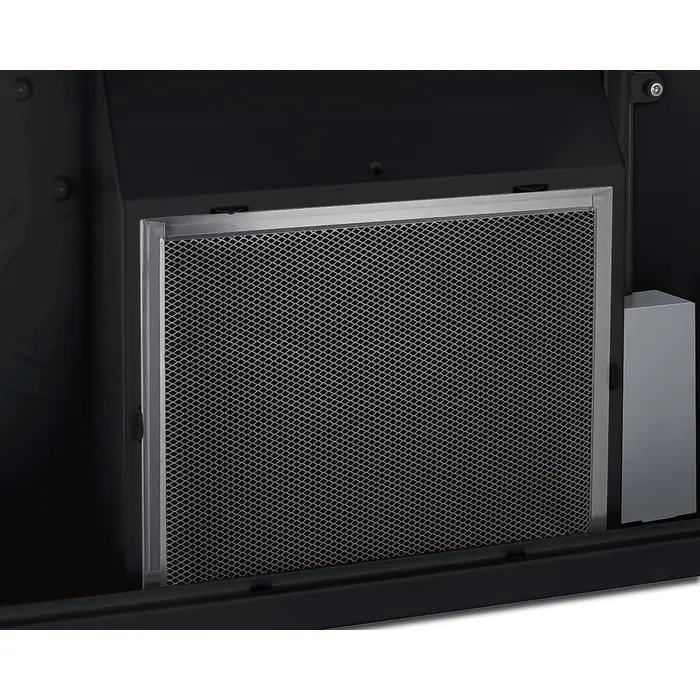

Combination charcoal/aluminum mesh filter Aluminum filter includes charcoal filler to absorb smoke, grease, and odors for a cleaner kitchen experience
Removable filter Snap-in design allows you to easily remove the filter for fast replacing as needed

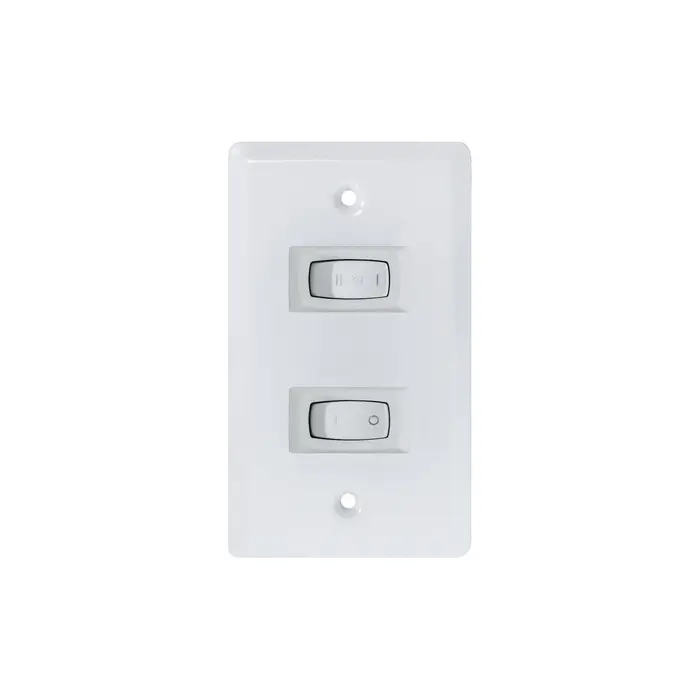

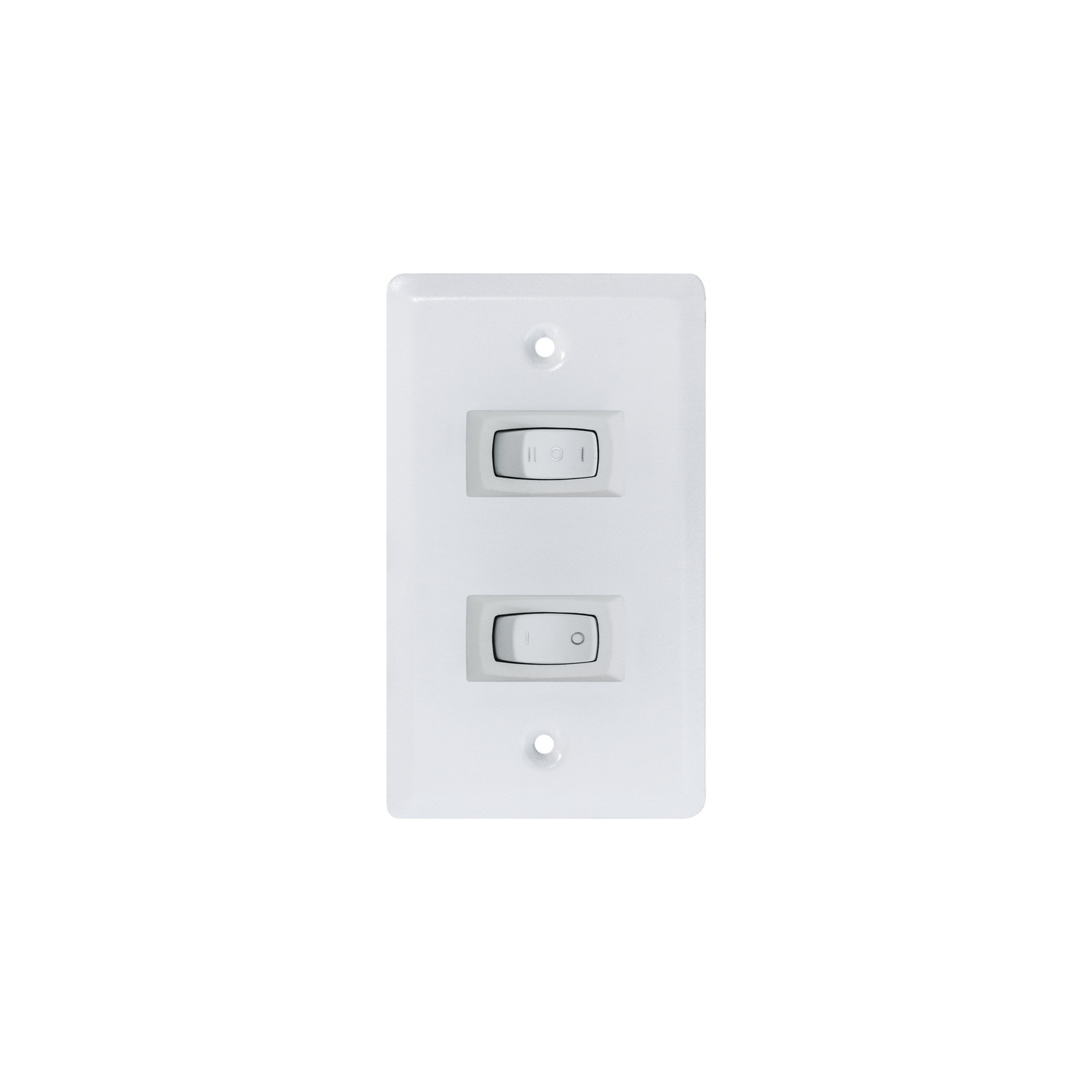

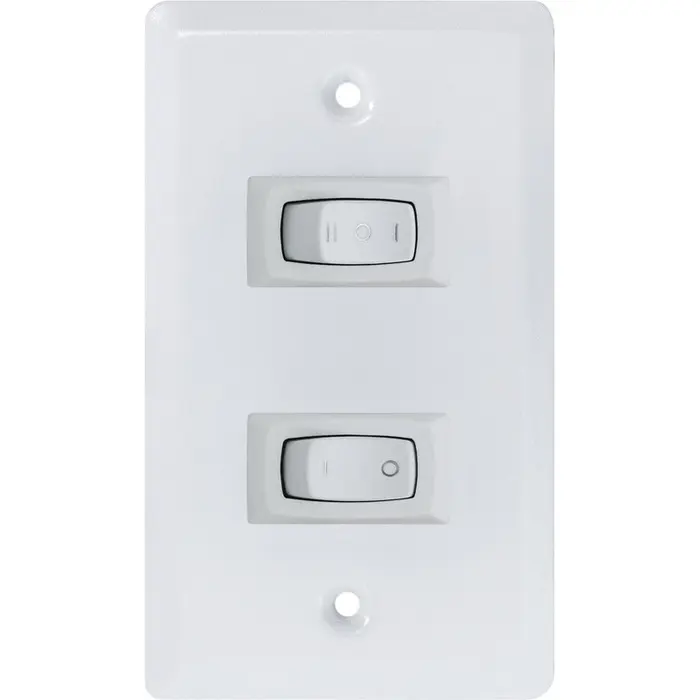

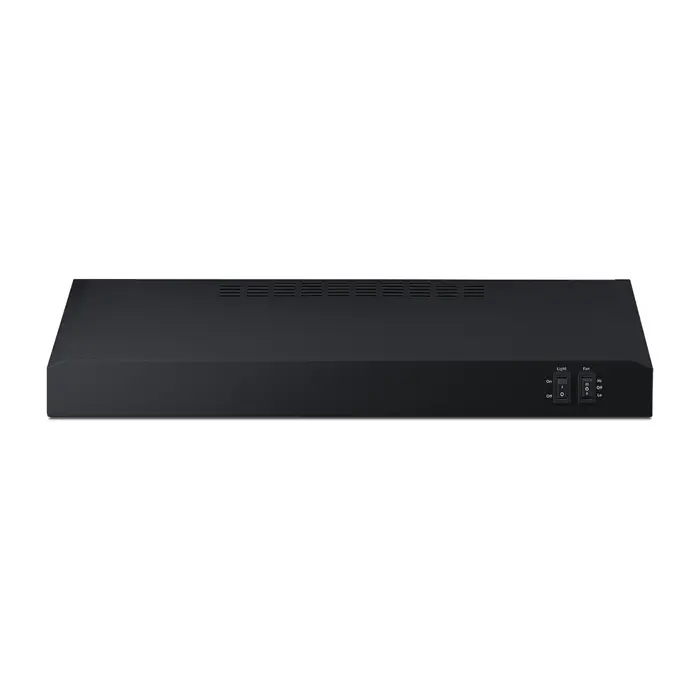

Rocker switch controls Front-located on/off and high/low switches make it easy to manage the light and fan
Professional installation Designed to be hard-wired by a licensed professional
Made in North America TAA compliant
