Summit 20 inch wide convertible range hood for ducted or ductless use, 7.61101e+011, HC20WW

Made in North America, Summit's HC series under cabinet convertible range hoods offer versatile ventilation solutions for every kitchen space.

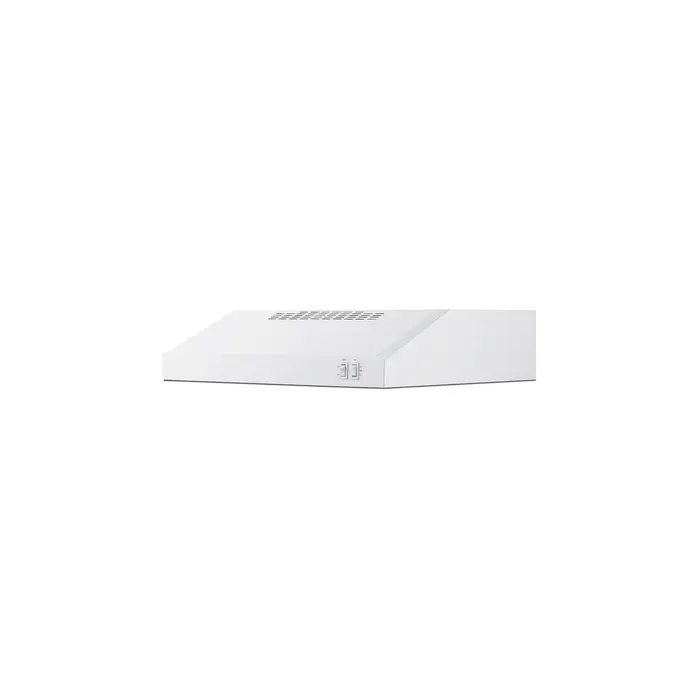

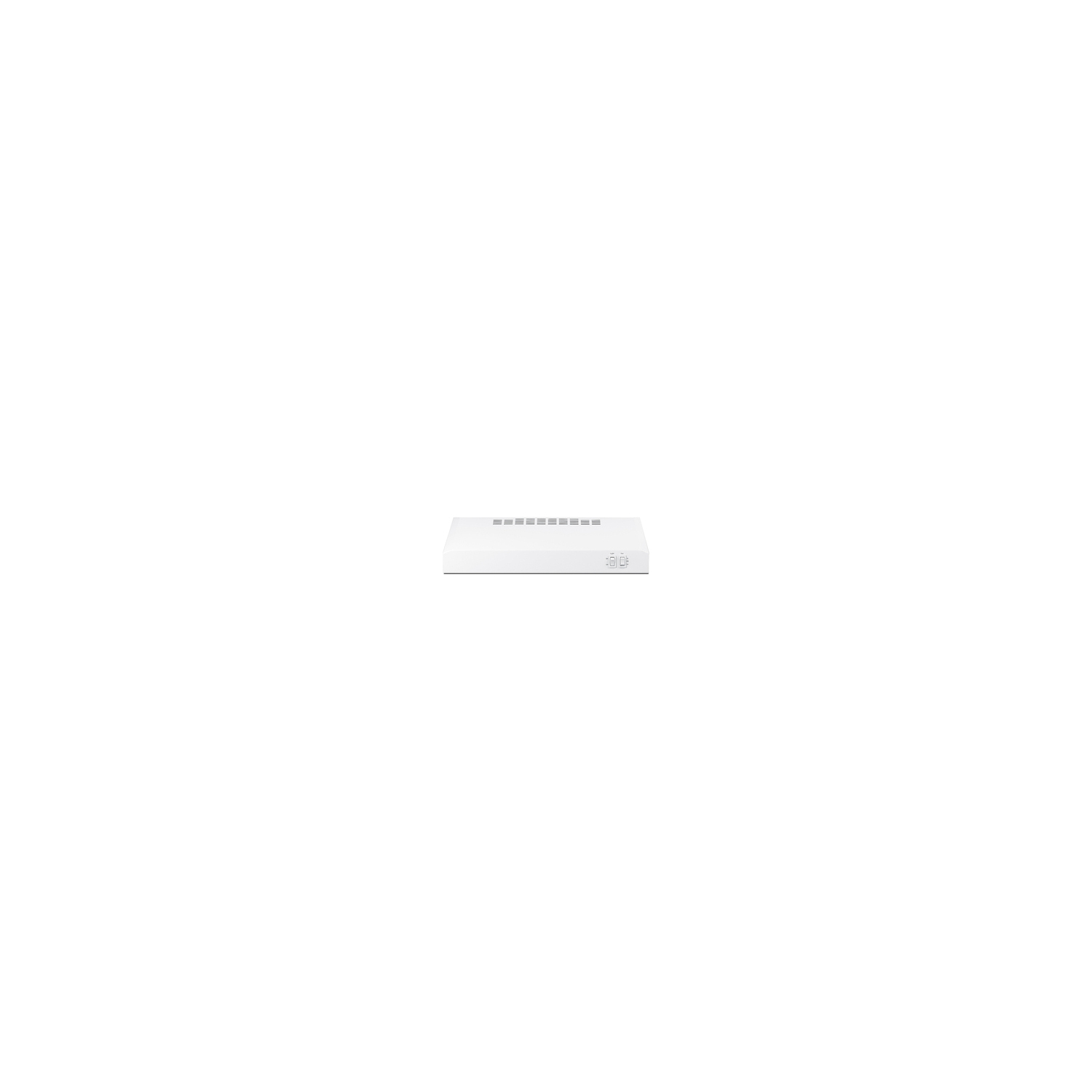

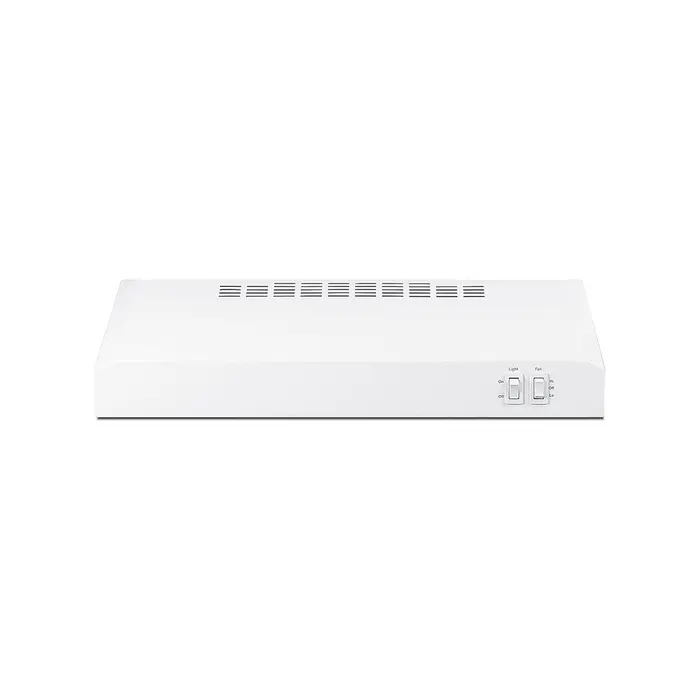

Model HC20WW is a 20" wide range hood ideal for apartments and other smaller kitchens. It comes in a clean white finish constructed from 21 gauge galvanized steel for a clean look and durable design. The powerful 2-speed fan is easily managed by a rocker switch with a high and low setting. This unit can operate at 270 CFM for thorough ventilation. Airflow is directed upwards at a slight angle, ensuring smoke and odors won't blow towards the home chef.

This hood ships for ductless/recirculating ventilation (where no exhaust connection to the outside is available) but is convertible for horizontal or vertical ducted ventilation (3 1/4" x 10" rectangular ducting or 7" round, transition required). We include a combination aluminum mesh/charcoal filter to absorb grease, smoke, and odors. This unit accepts a standard light bulb (not included). Both the filter and lens cover snap in place, with no tools required to change out as needed. Note: this hood does not include a power cord and is designed to be hard-wired by a licensed professional.

In addition to this range hood, Summit manufactures this series in additional colors, as well as shell hoods, wall-mounted European hoods, and island hoods in a range of styles. Browse the full Summit product line to explore your options.

SPECIFICATIONS

Overview

Nominal Height 6.0" (15 cm)

Height of Cabinet 5.5" (14 cm)

Nominal Width 20.0" (51 cm)

Width 20.0" (51 cm)

Nominal Depth 20.0" (51 cm)

Depth 20.0" (51 cm)

Cabinet White

US Electrical Safety UL

Canadian Electrical Safety ULC

Amps 1.7

Voltage/Frequency 115 V AC/60 Hz

Weight 11.0 lbs. (5 kg)

Parts & Labor Warranty 1 Year

UPC 761101087061

Range Hood

Installation Under Cabinet

Venting Convertible

Controls Dial

Number of Fan Speeds 2

Maximum Air Movement 270.0 CFM

Sone Rating 6

Duct Shape 3"1/4" x 10" rectangular or 7" round with transition

FEATURES

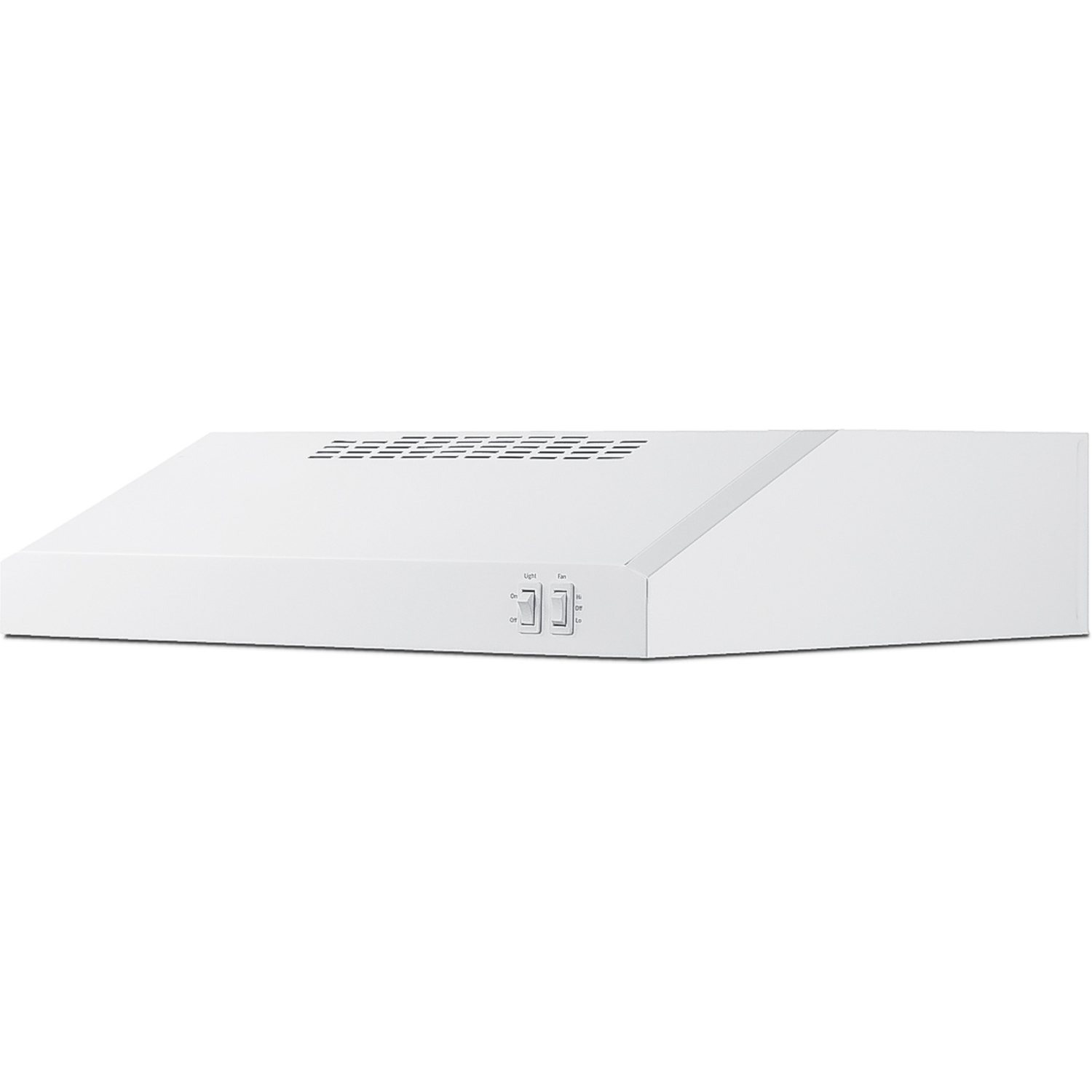

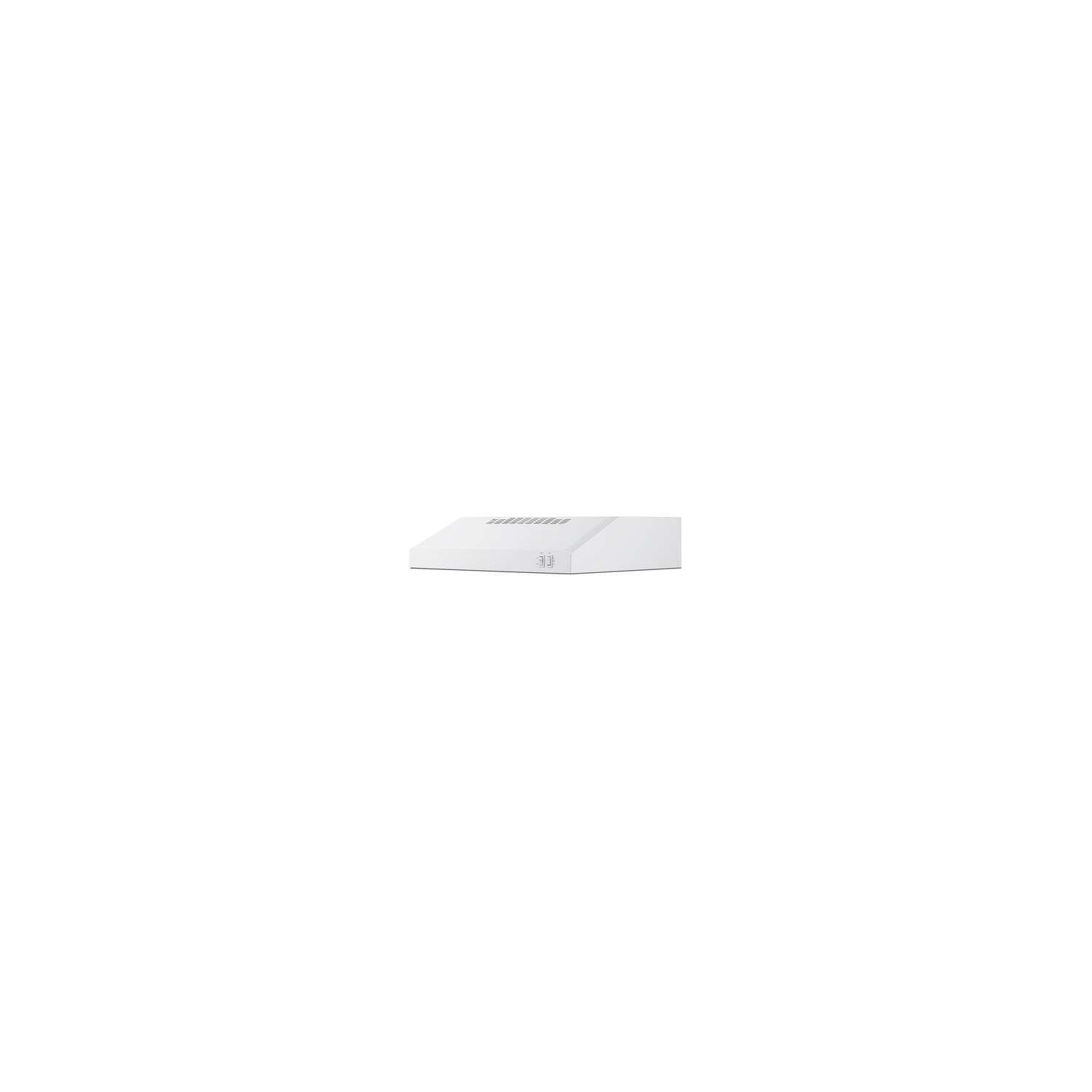

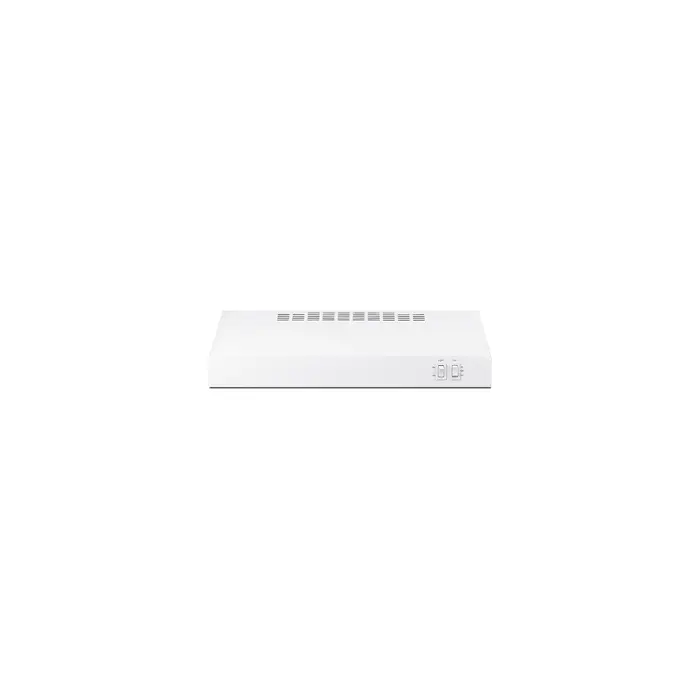

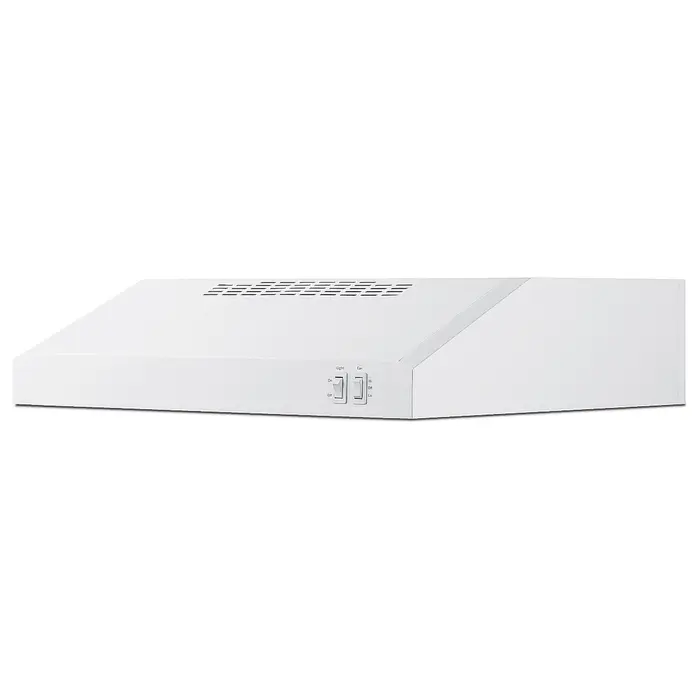

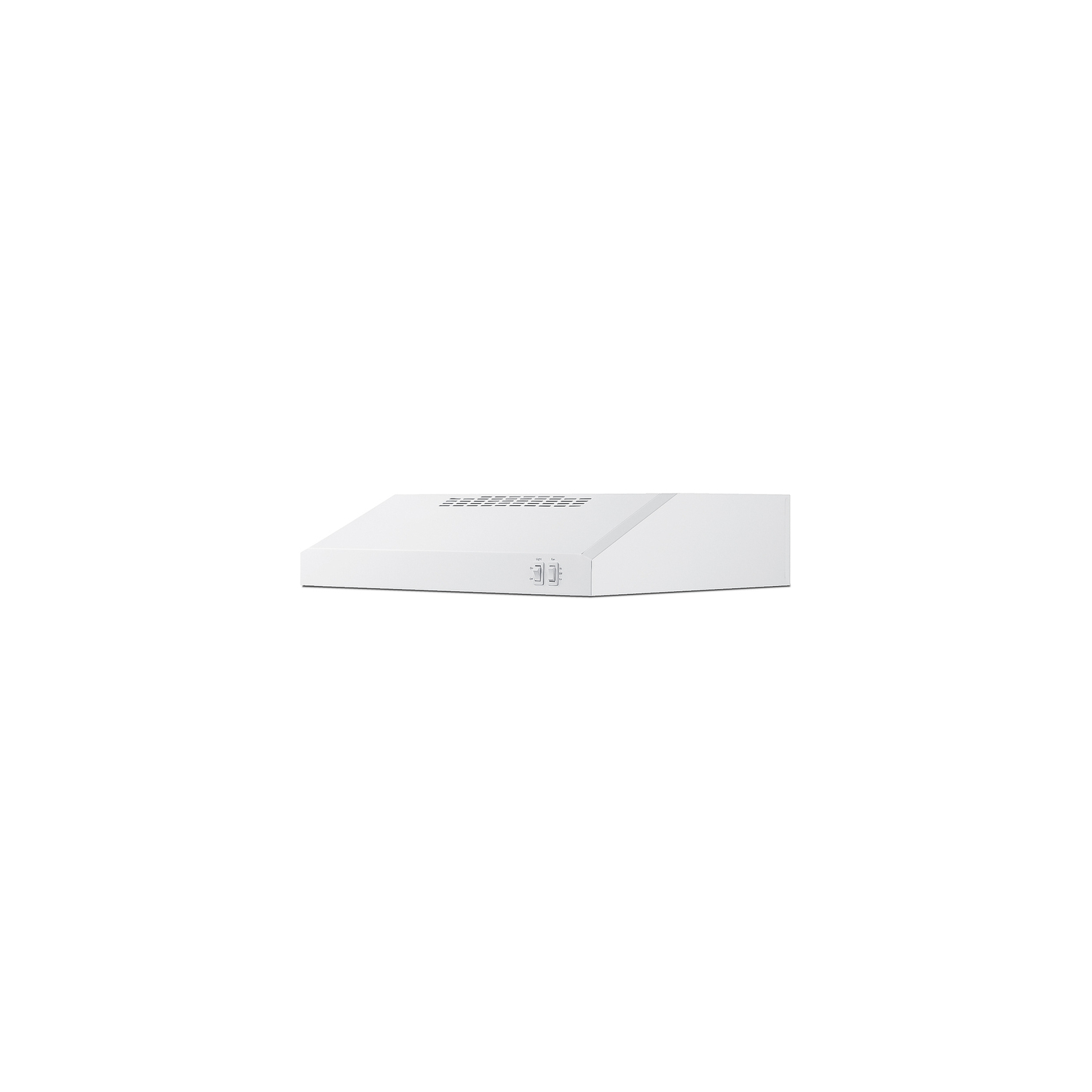

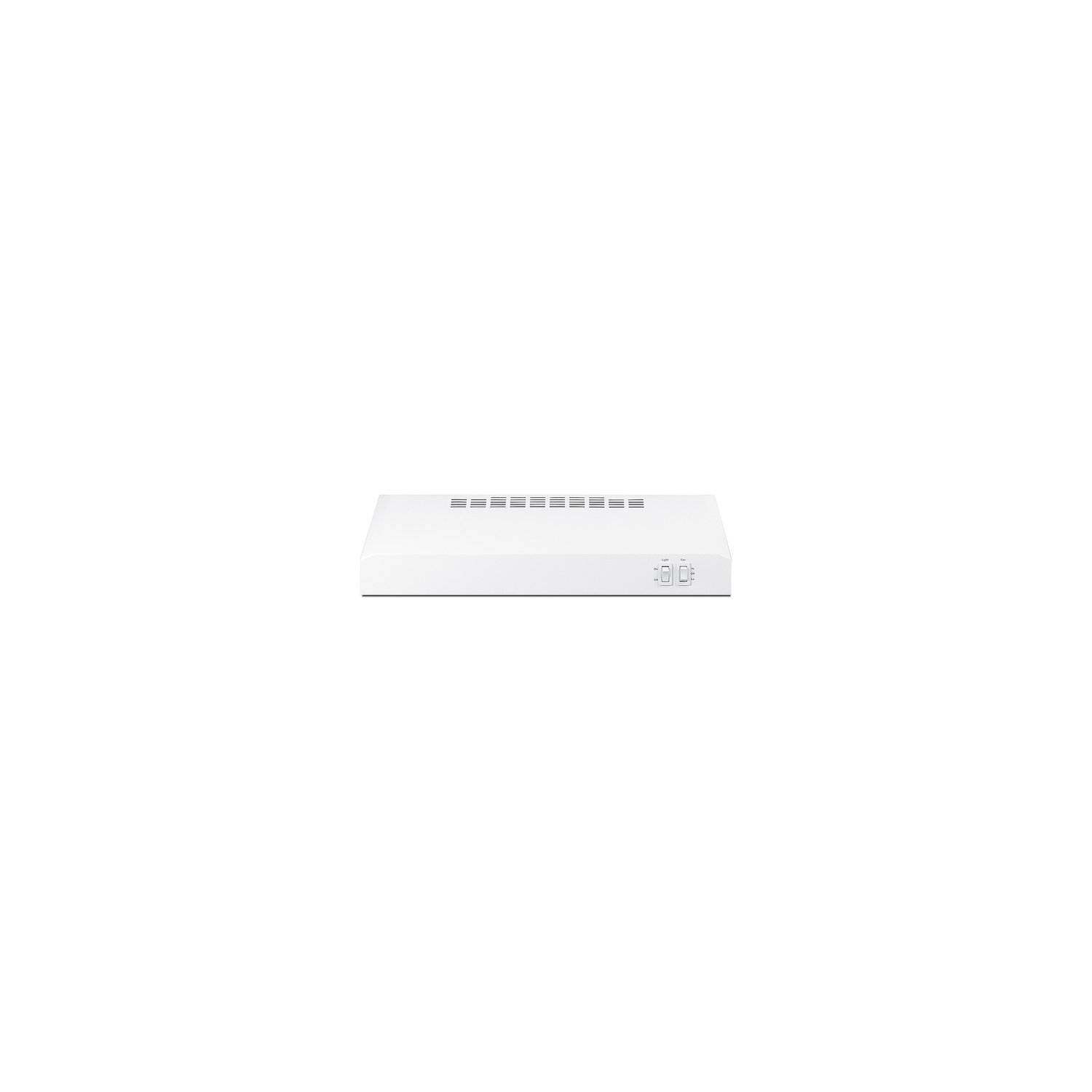

Under cabinet range hood Low profile design offers classic style to finish your kitchen

20 inch width Sized for use over 20 inch cooking surfaces (additional sizes available)

Convertible design Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible

White finish Matte finish in classic white suits any kitchen space

Easy conversion Ships pre-set for recirculating mode but can be converted in a few simple steps

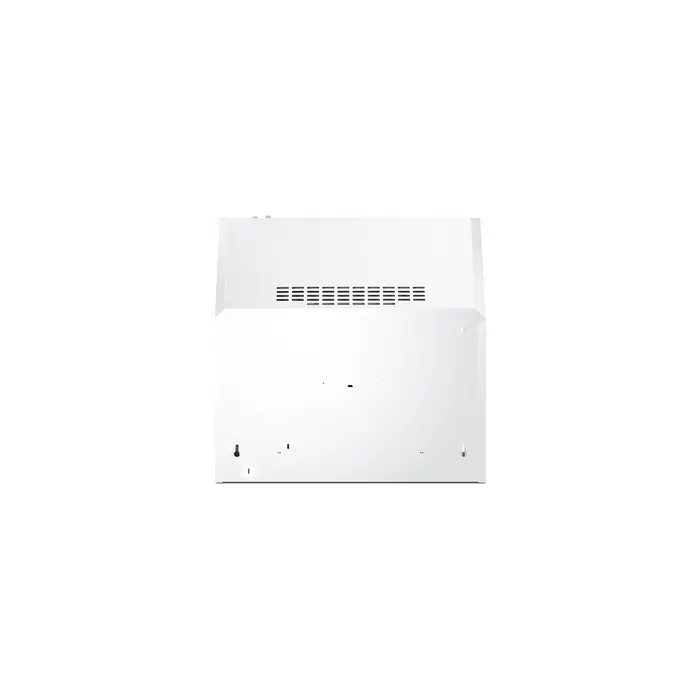

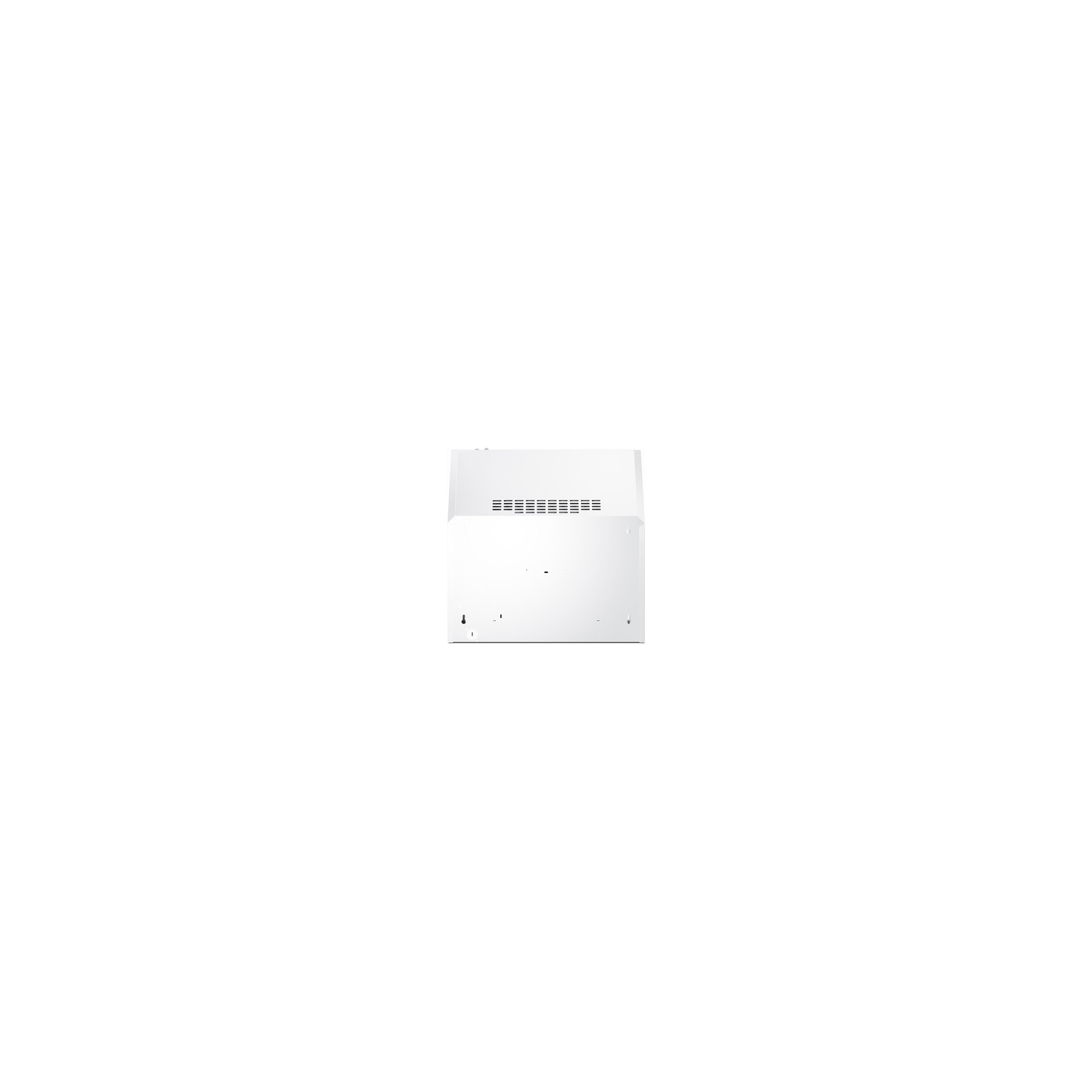

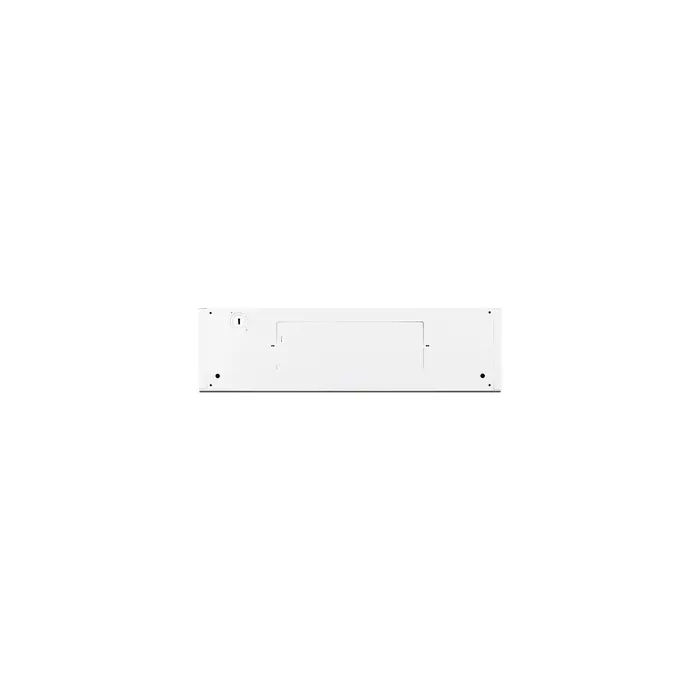

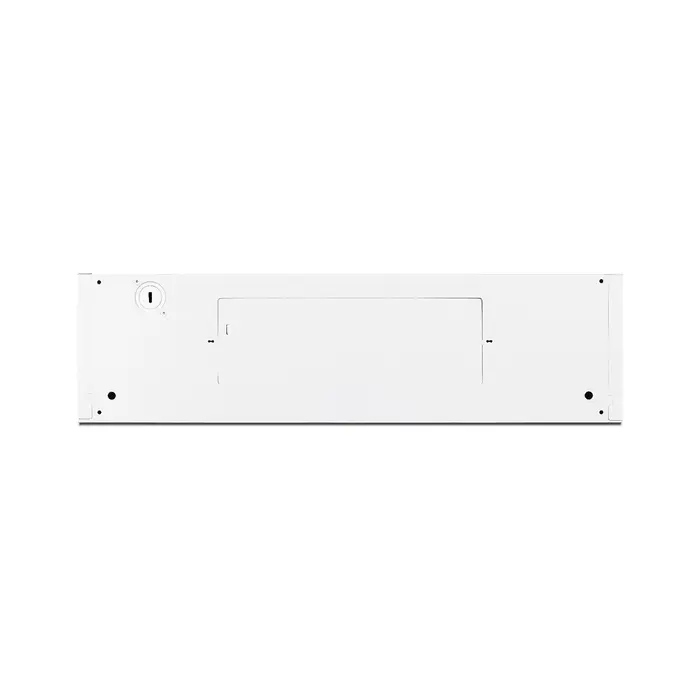

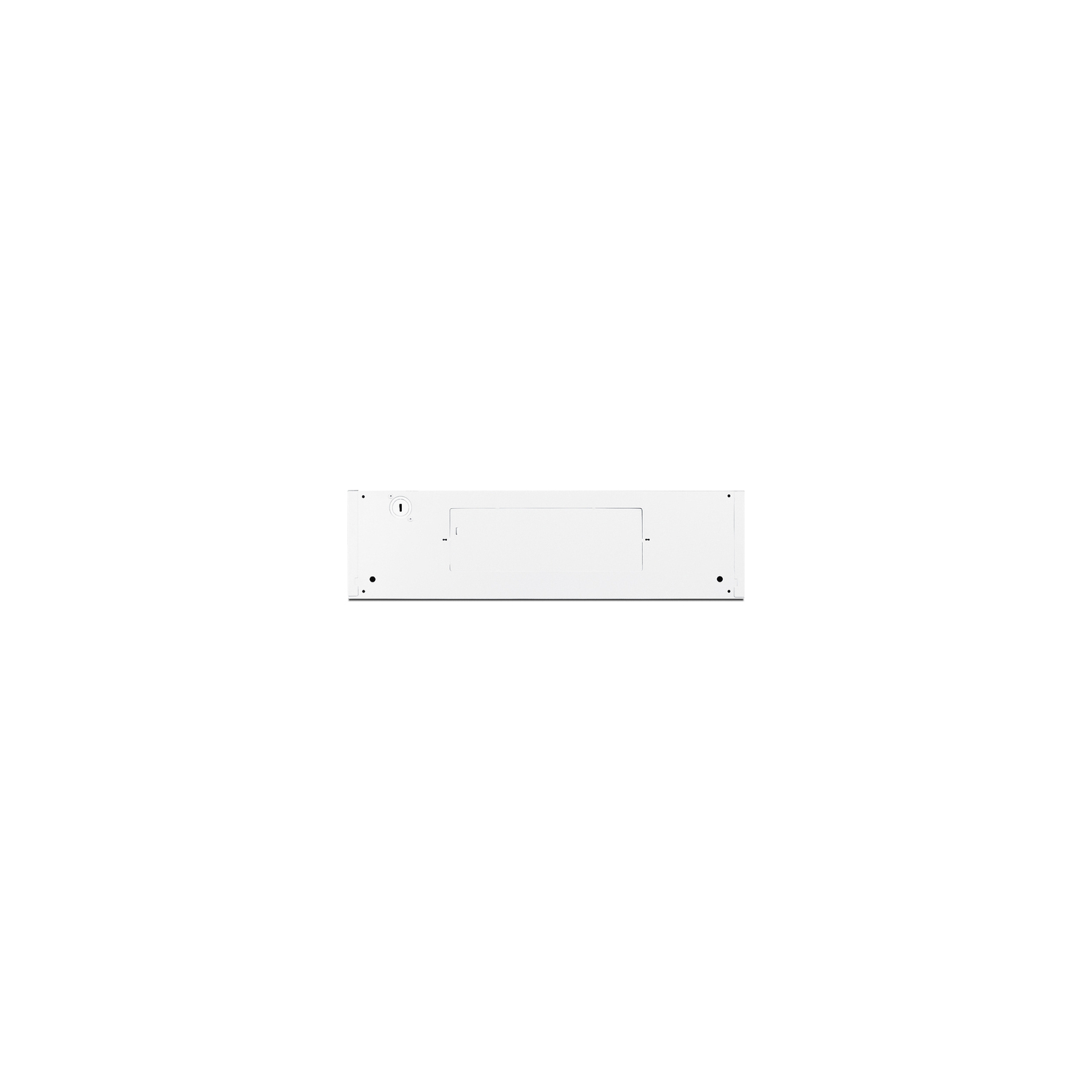

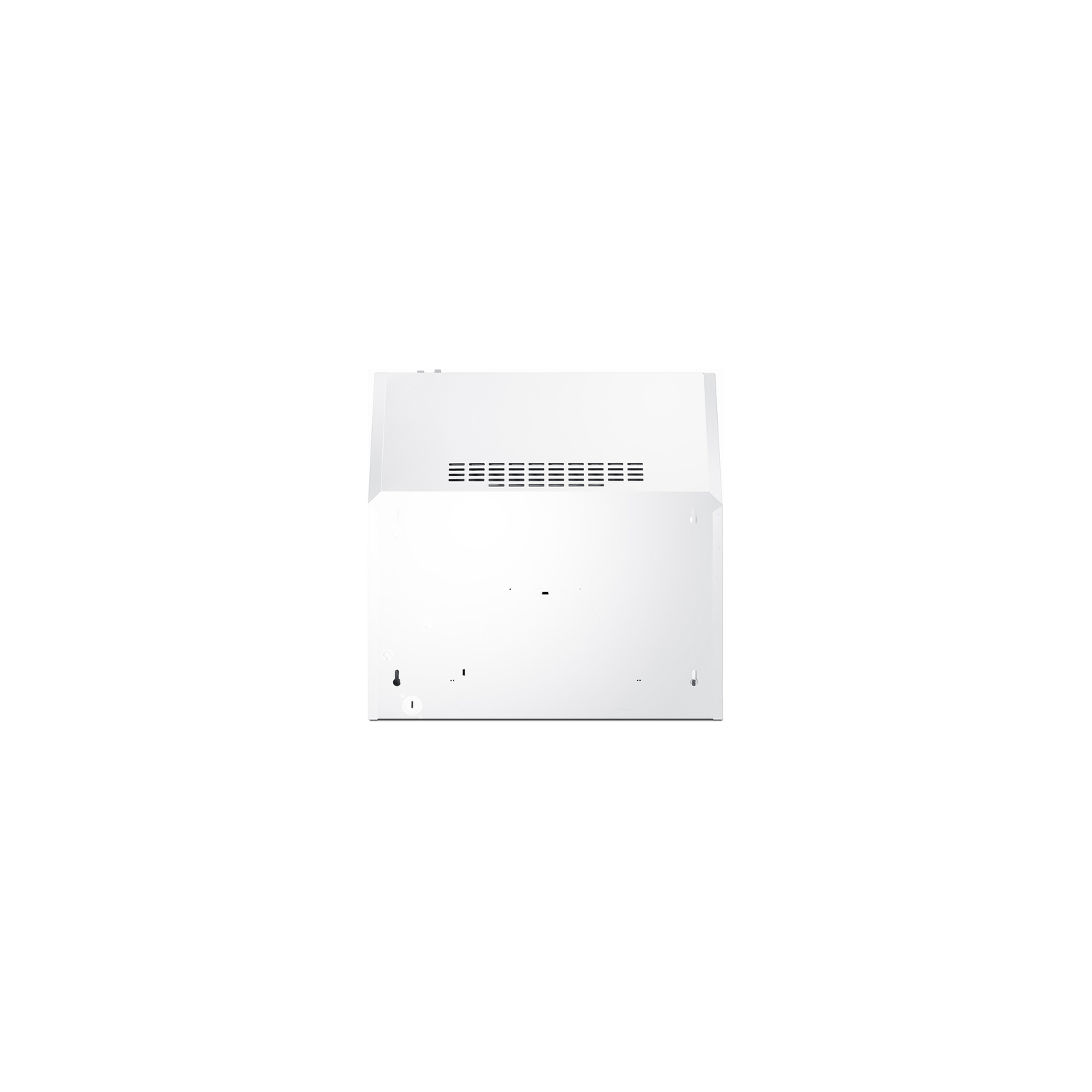

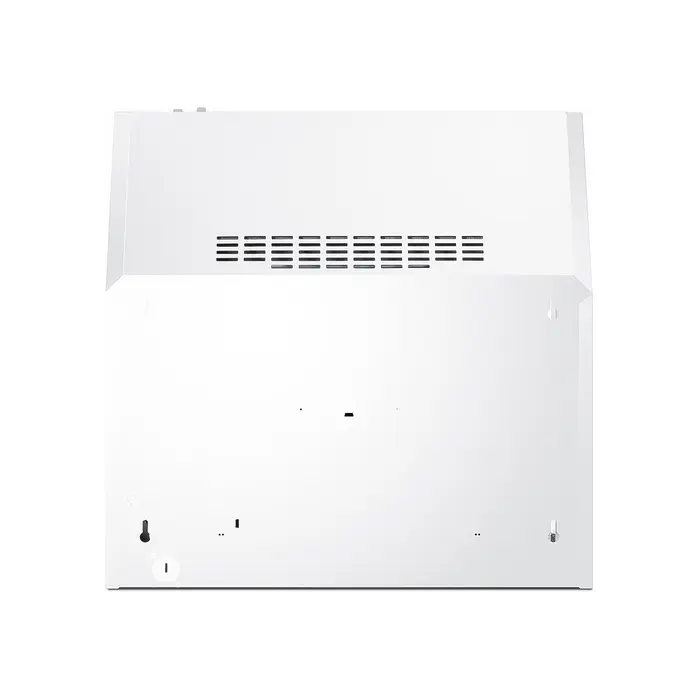

Versatile top or rear exhaust Can be connected to 3 1/4" x 10" vertical or horizontal exterior venting or 7" round vertical (transition required for both)

Powerful ventilation Can operate at 270 CFM to ensure thorough ventilation of your cooking surface

Angled airflow Vents are set at a slight upwards angle, ensuring smoke and odors won't be directed towards the user

Durable 21 gauge steel construction Powder-coated finish over steel that's 53% heavier gauge than most of the industry's under cabinet hoods

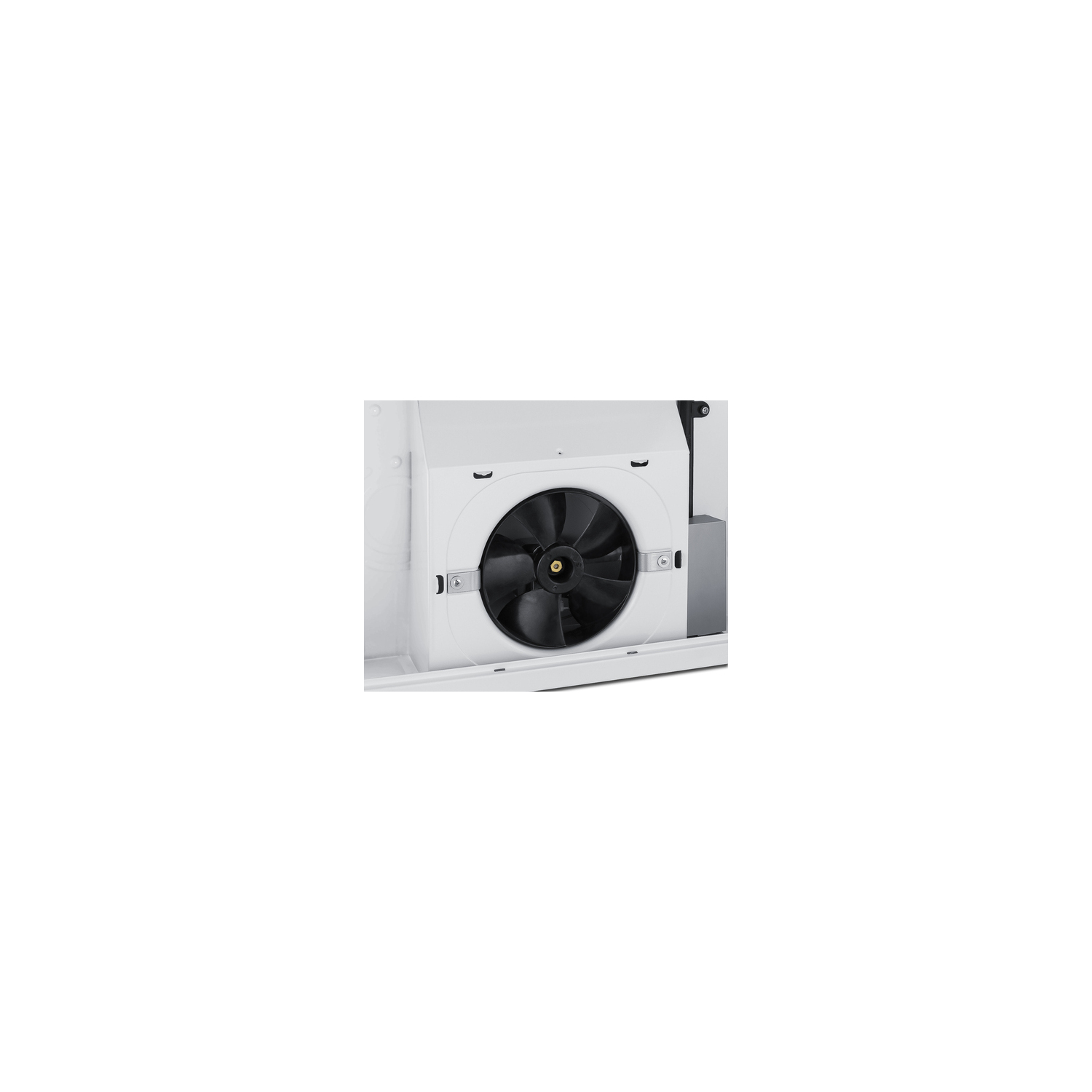

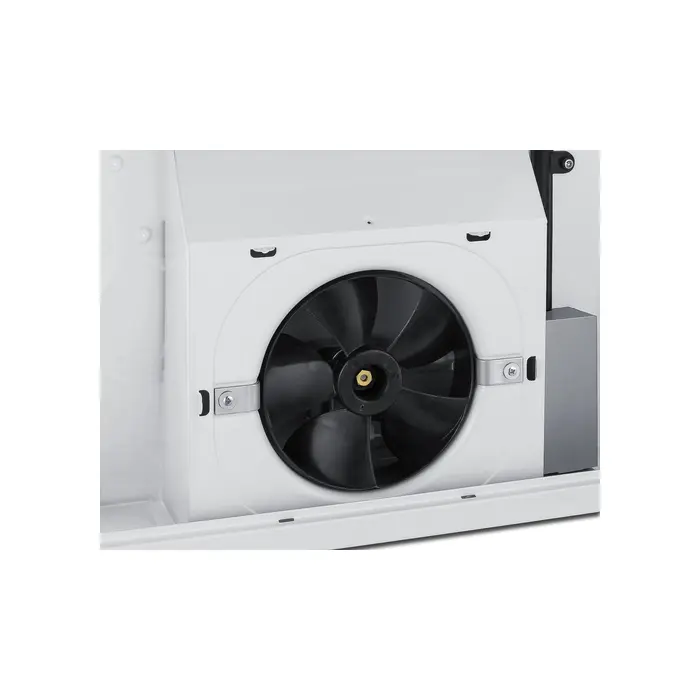

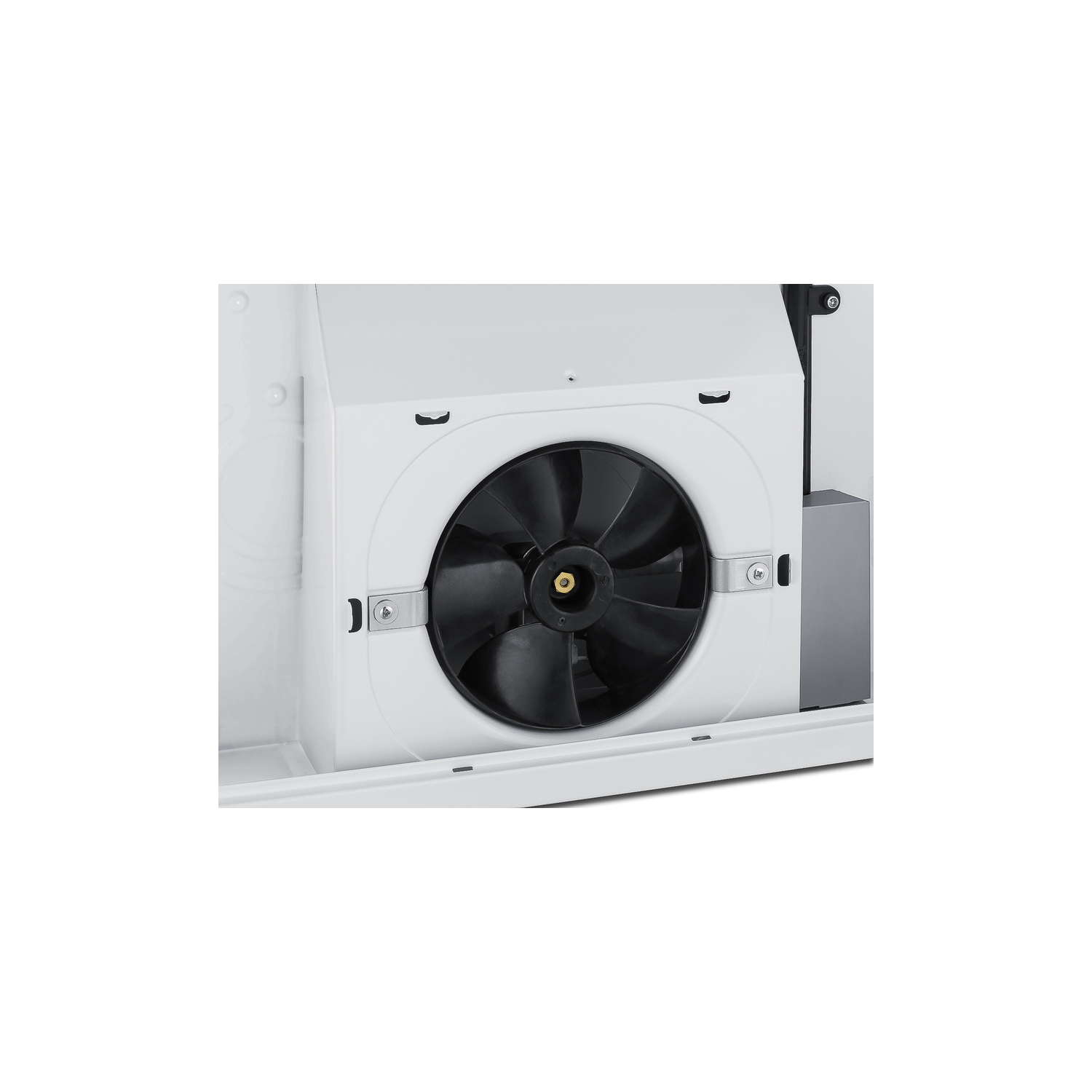

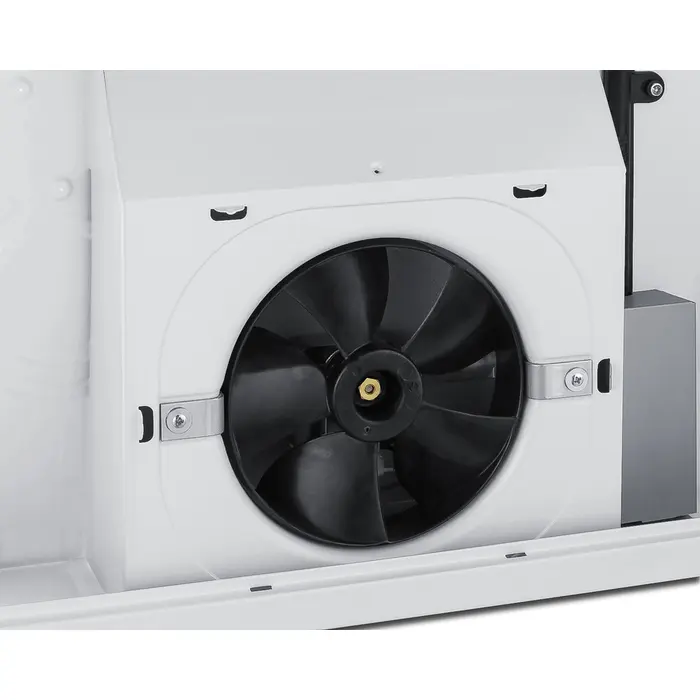

Two-speed fan High and low setting to allow proper ventilation of your kitchen as needed

Accepts a standard bulb Designed to hold a standard incandescent light bulb with easy installation and no tools required

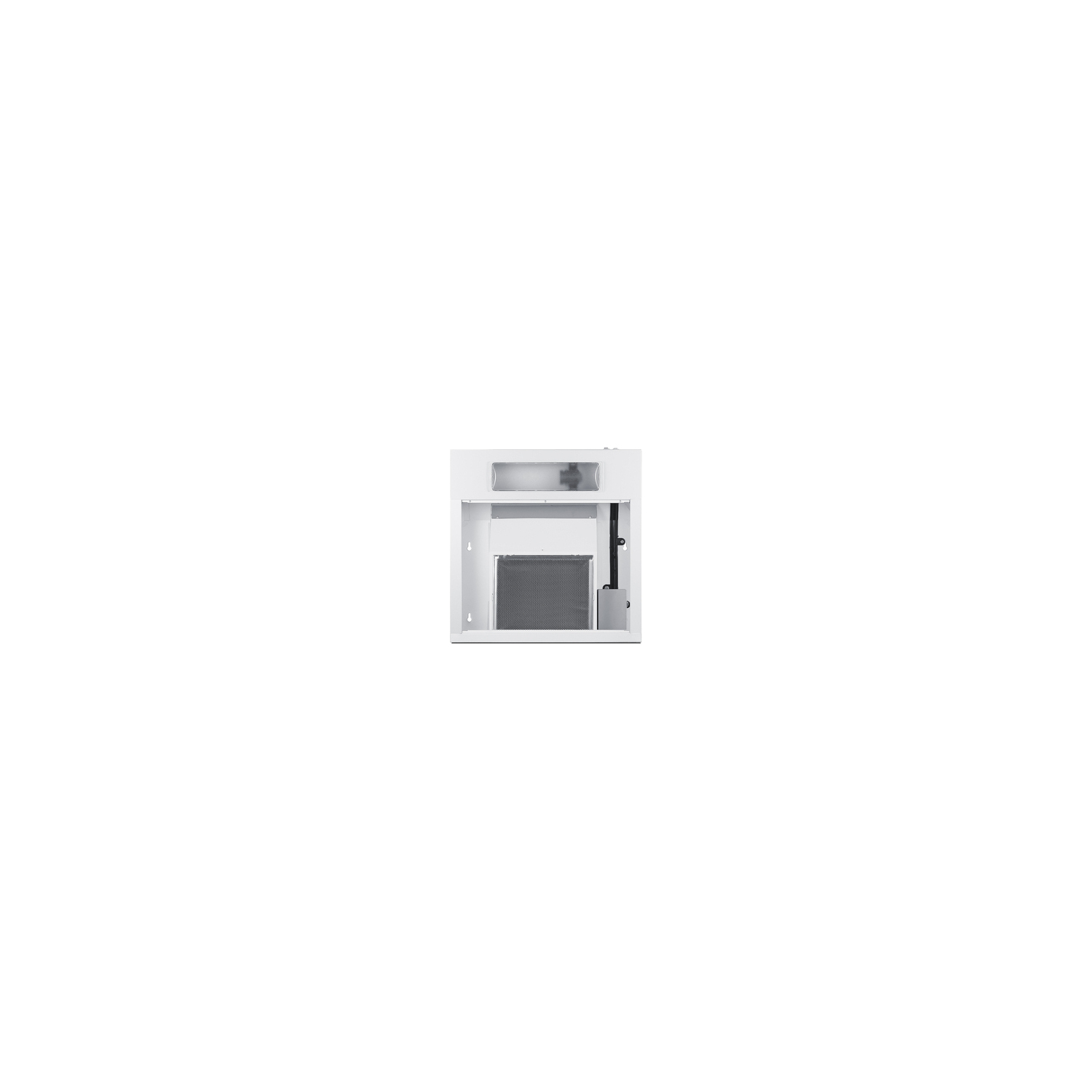

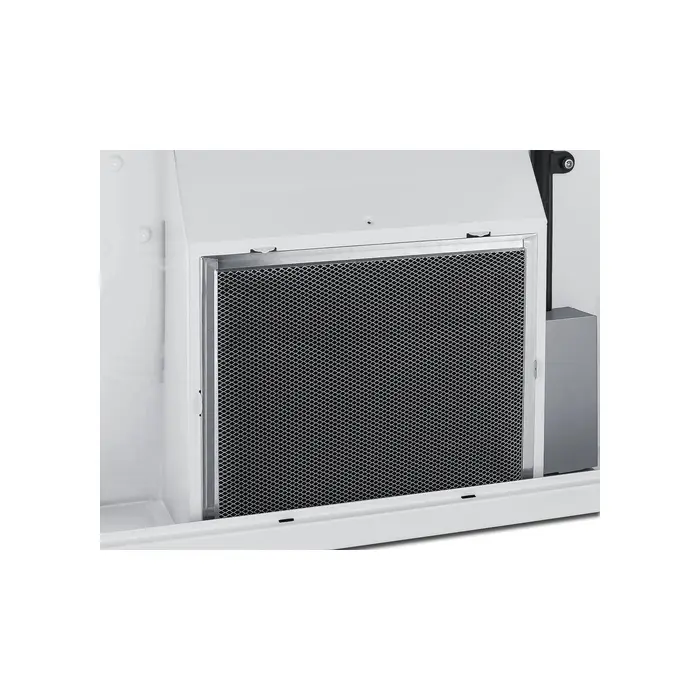

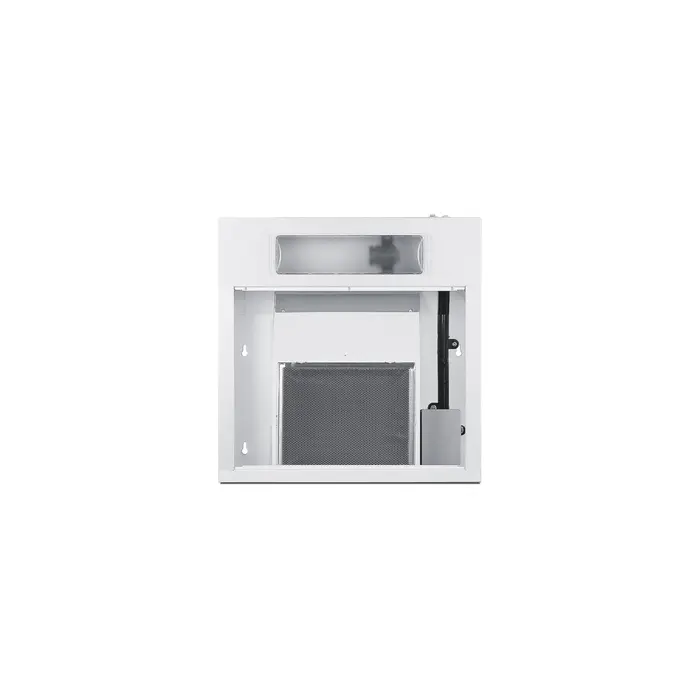

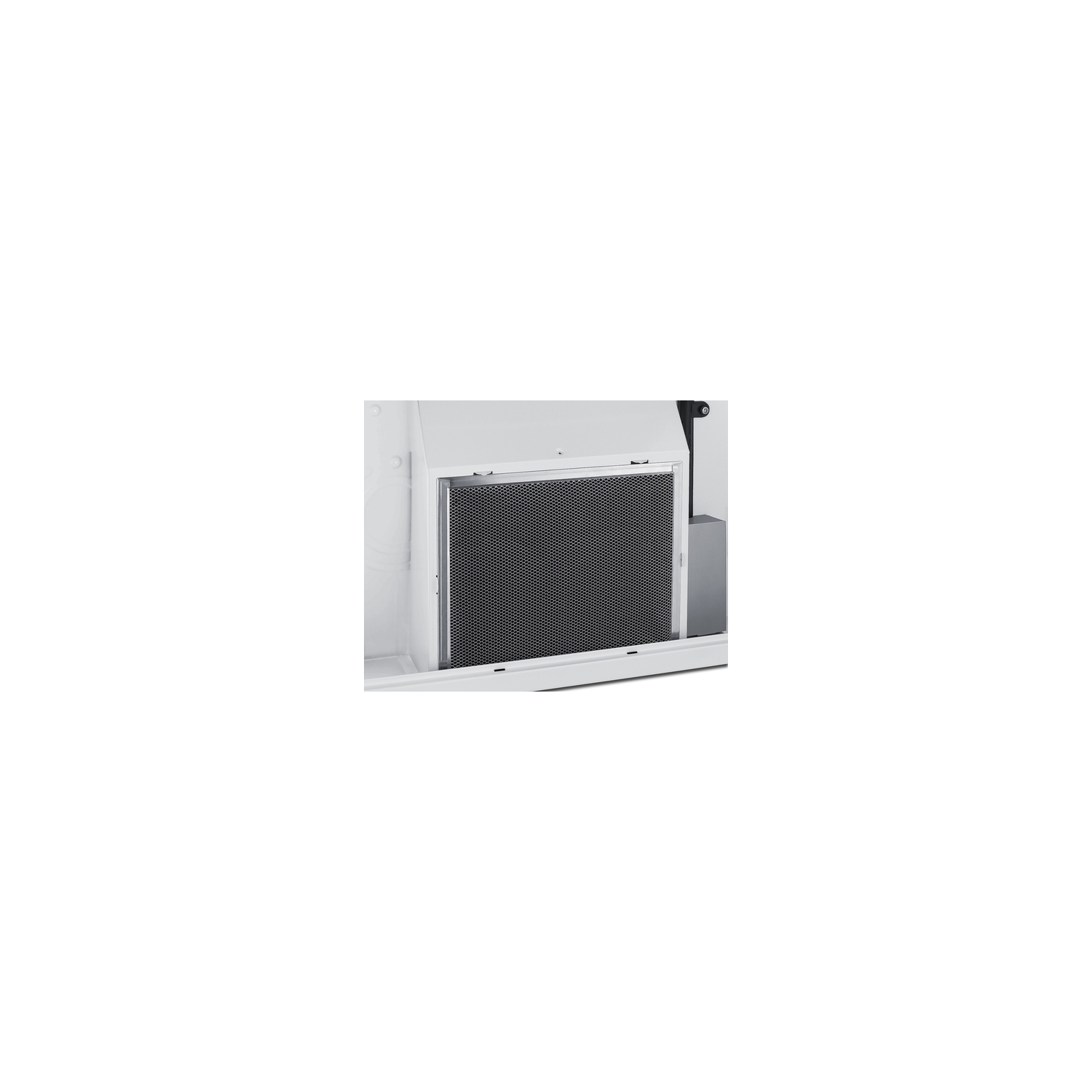

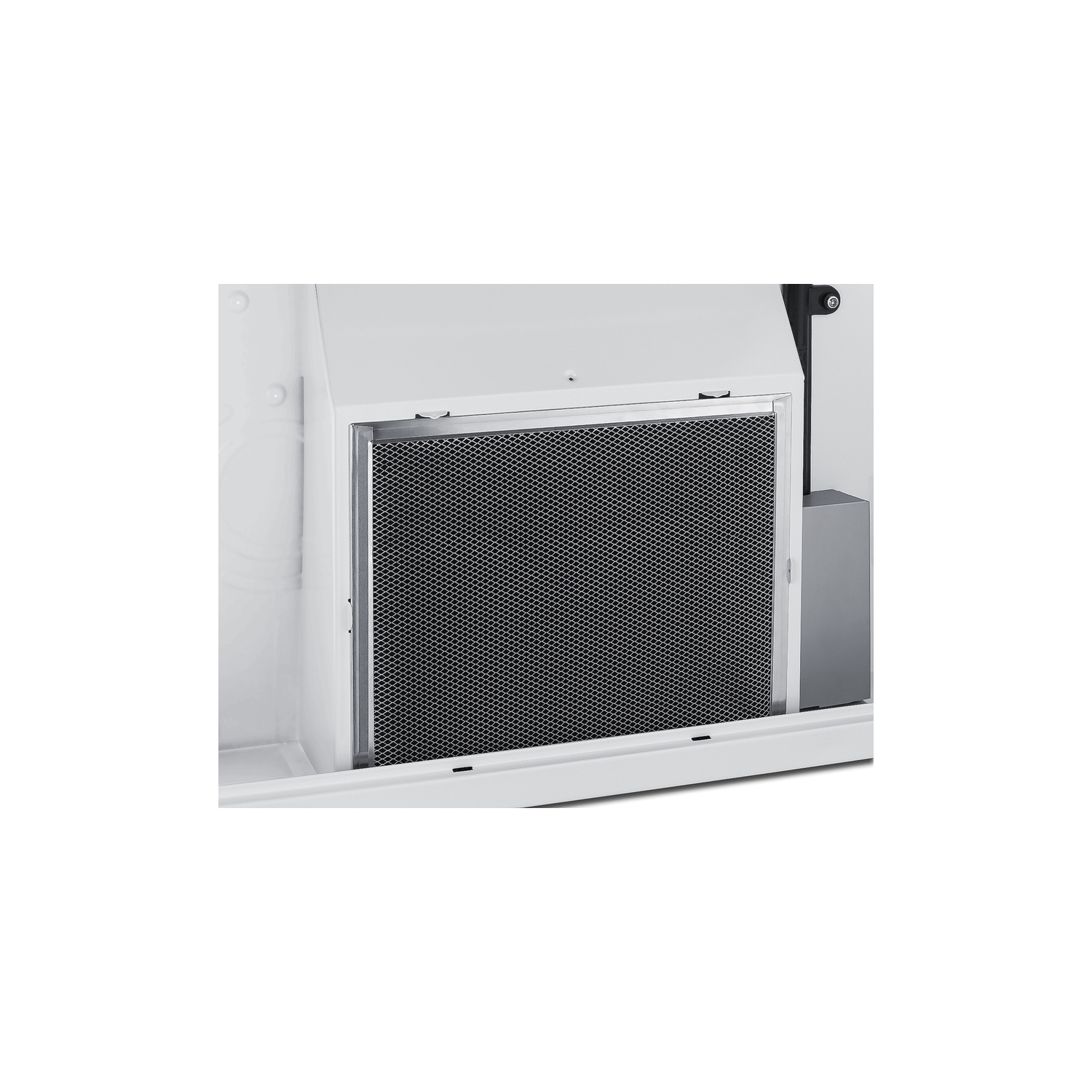

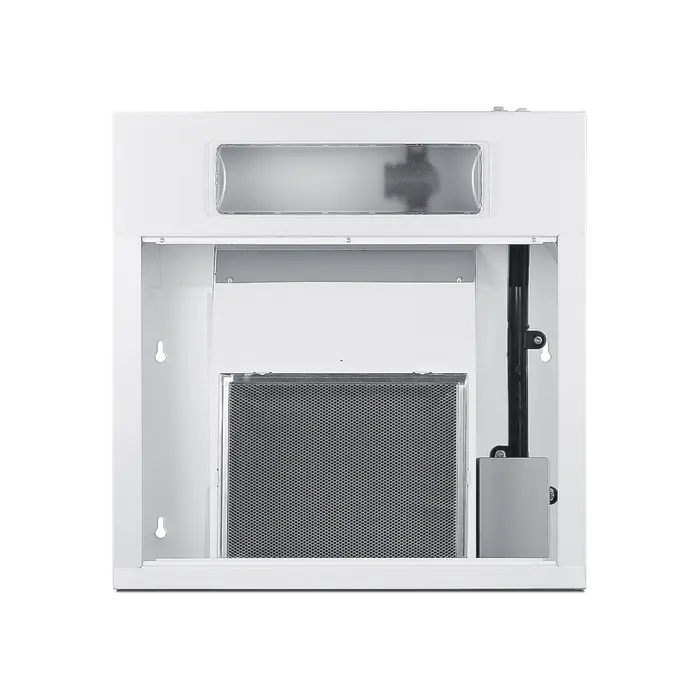

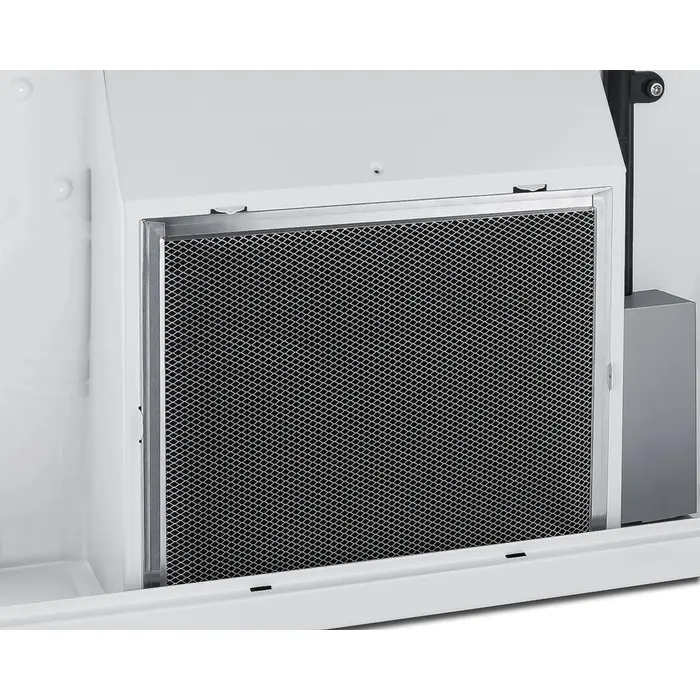

Combination charcoal/aluminum mesh filter Aluminum filter includes charcoal filler to absorb smoke, grease, and odors for a cleaner kitchen experience

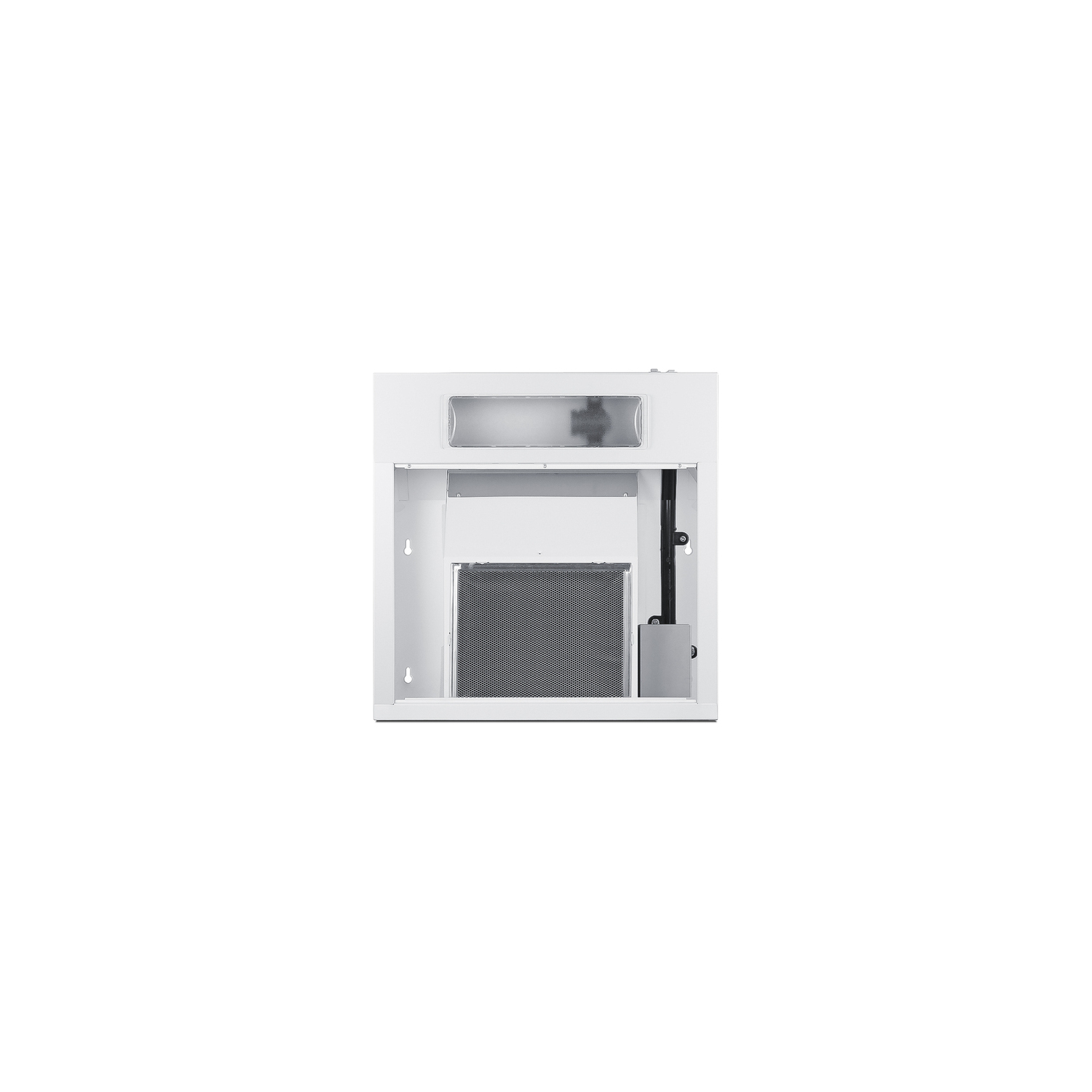

Removable filter Snap-in design allows you to easily remove the filter for fast replacing as needed

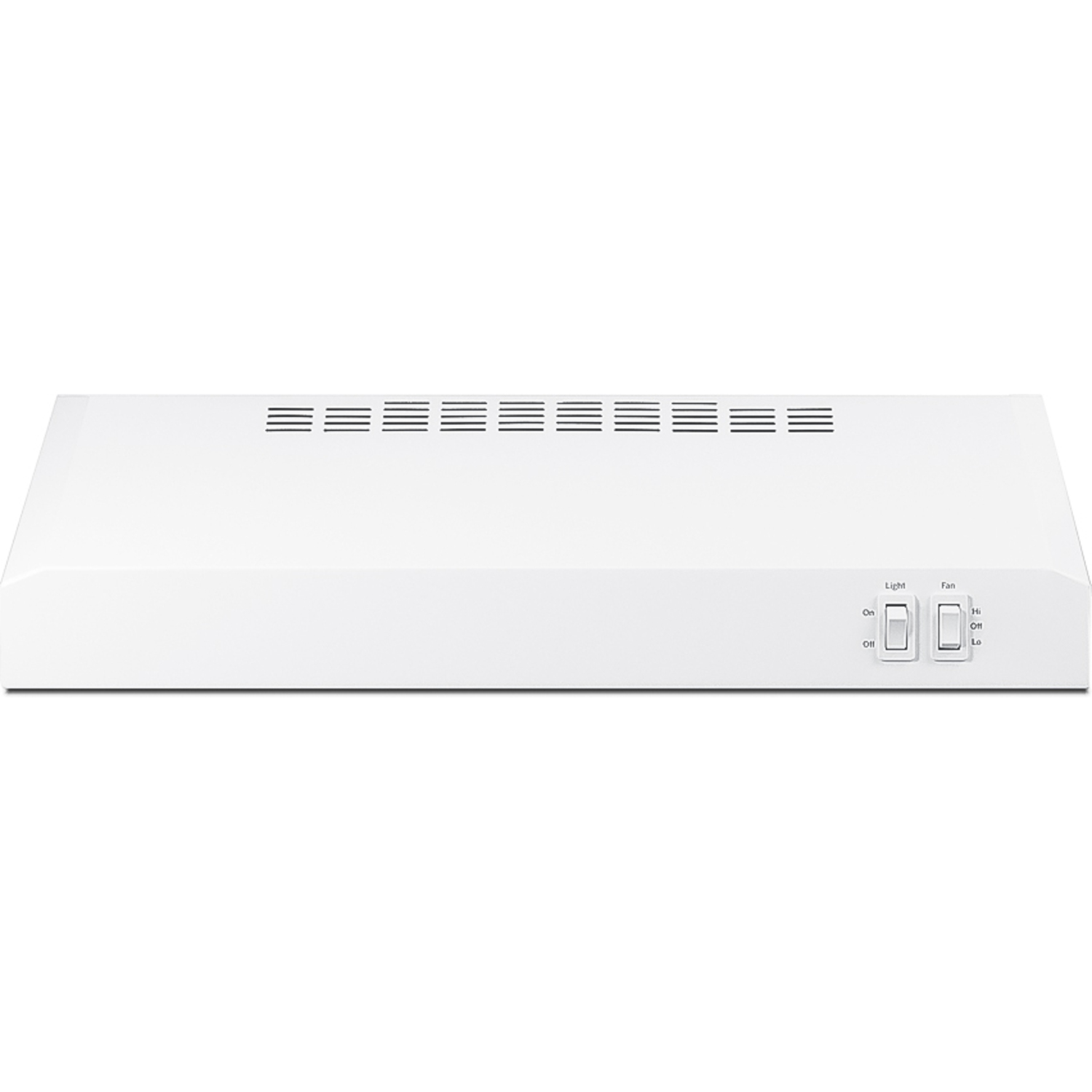

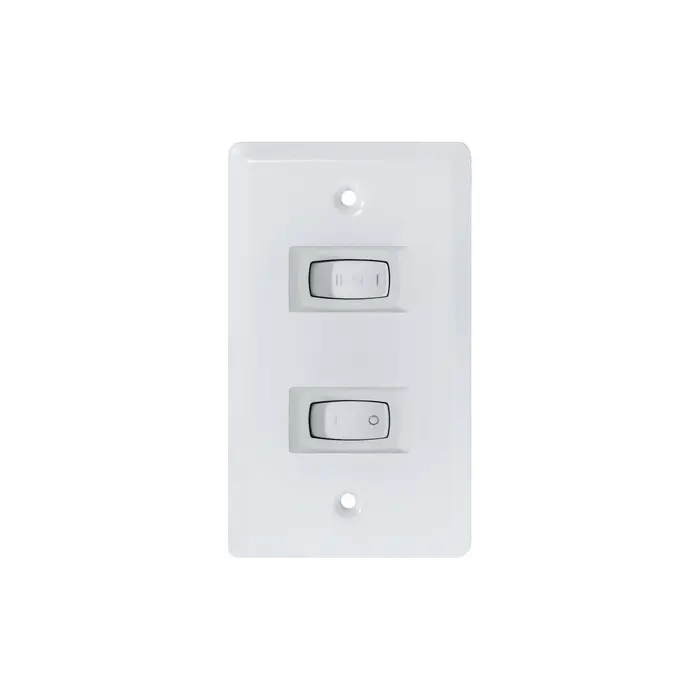

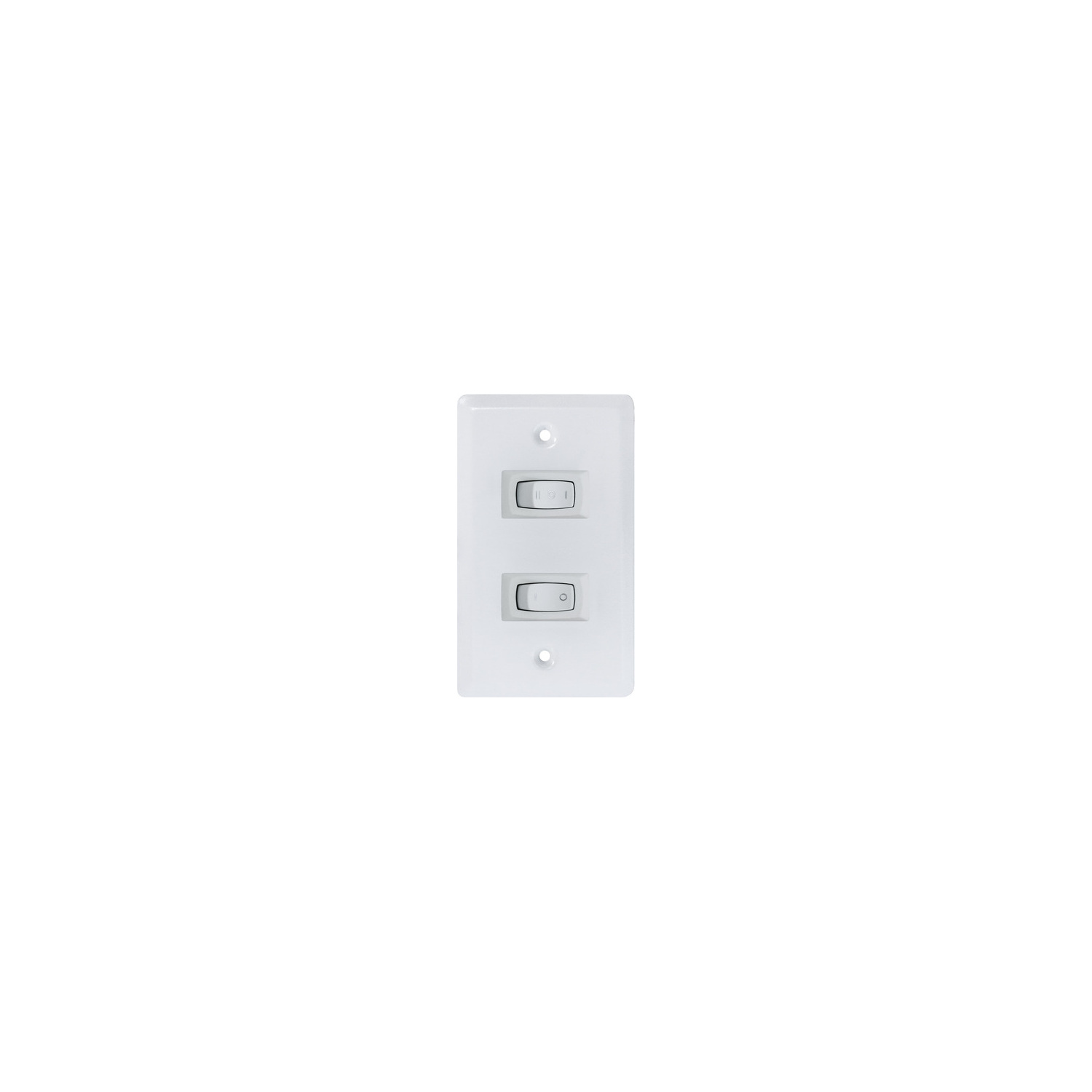

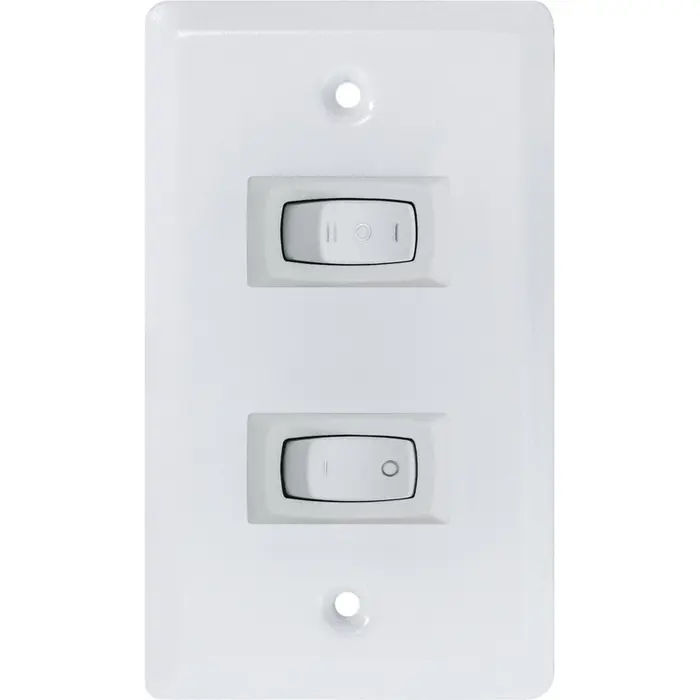

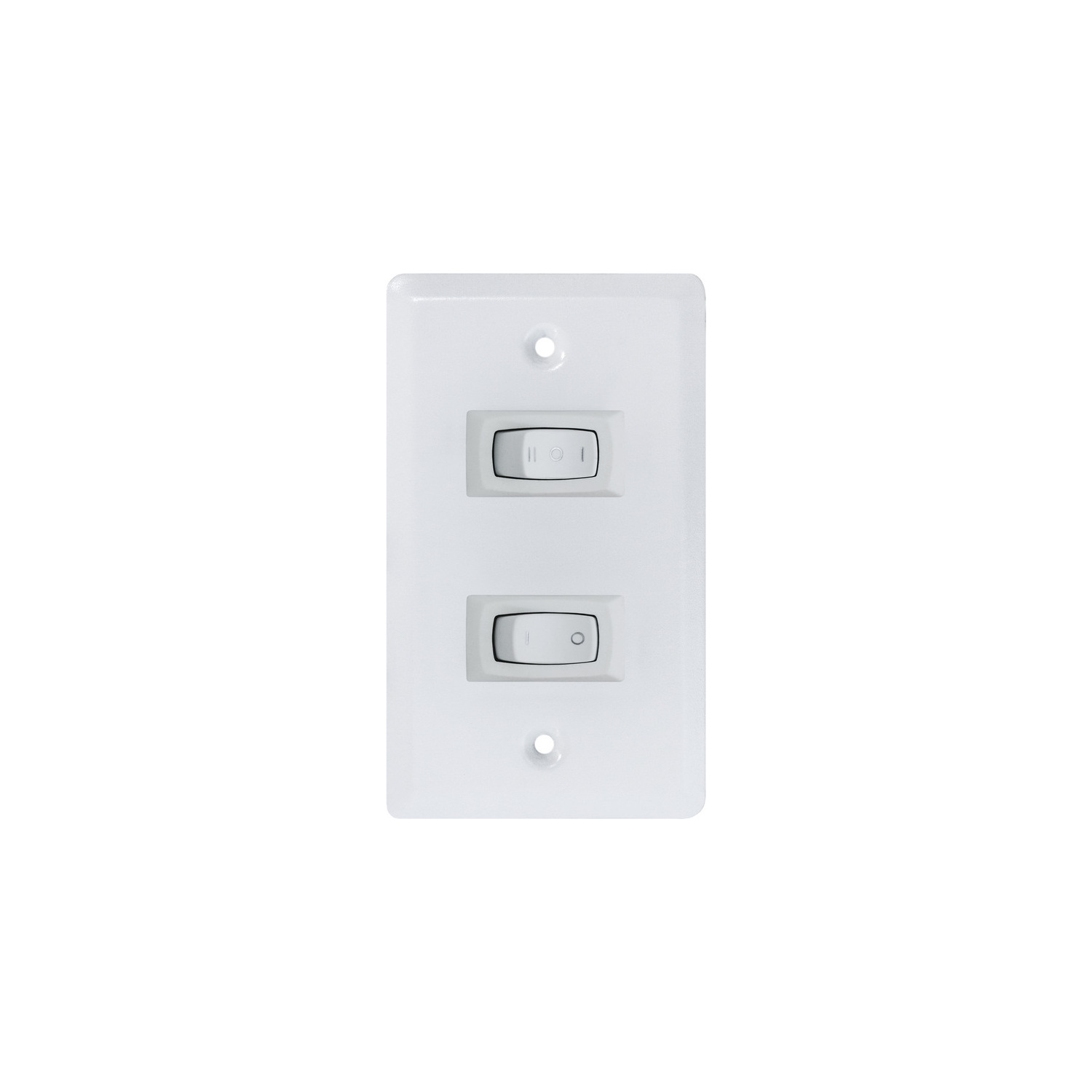

Rocker switch controls Front-located on/off and high/low switches make it easy to manage the light and fan

Professional installation Designed to be hard-wired by a licensed professional

Made in North America TAA compliant
