Summit 36 inch convertible hood in stainless steel, 7.61101e+011, H36RSS

Summit's under cabinet convertible range hoods offer versatile ventilation solutions for every kitchen space.

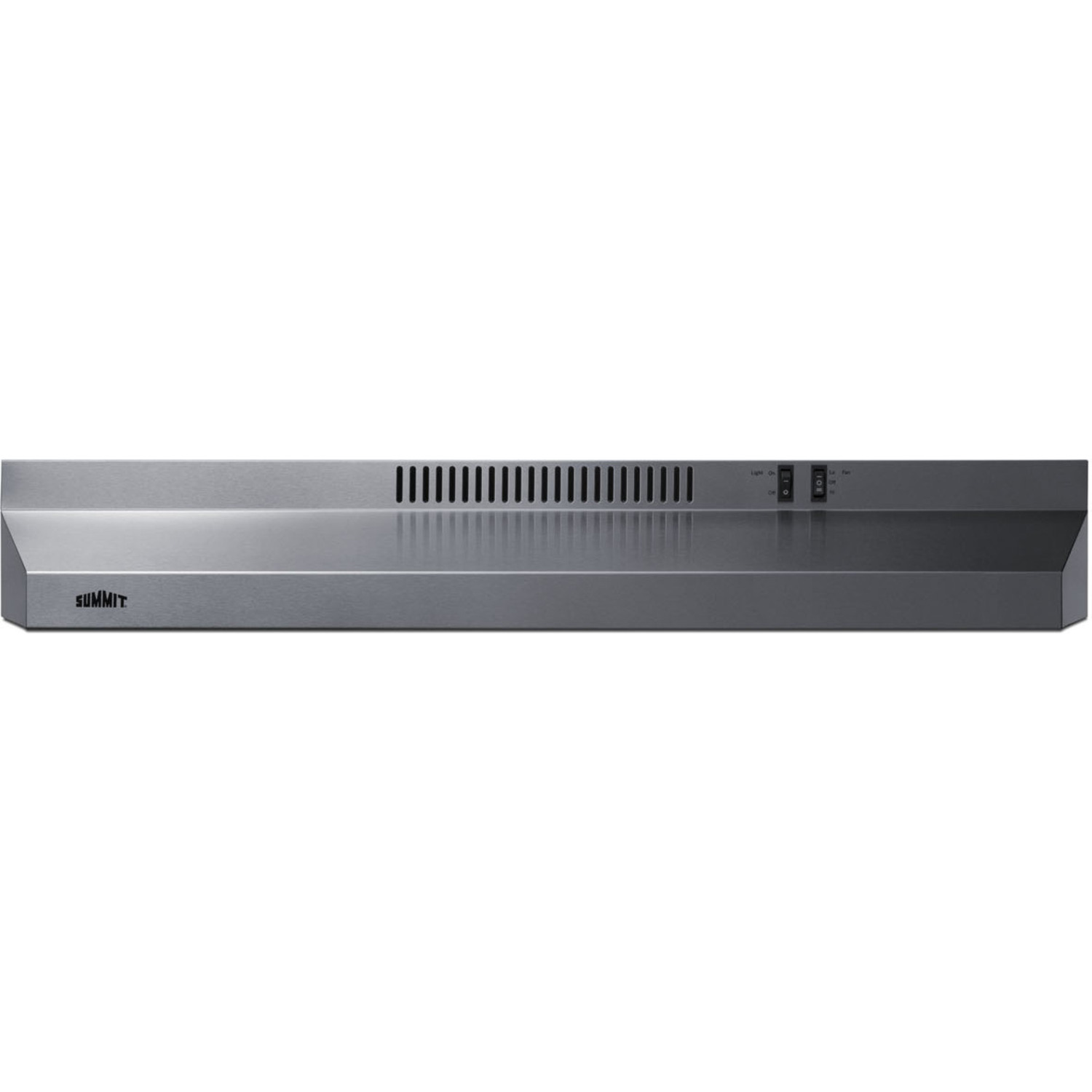

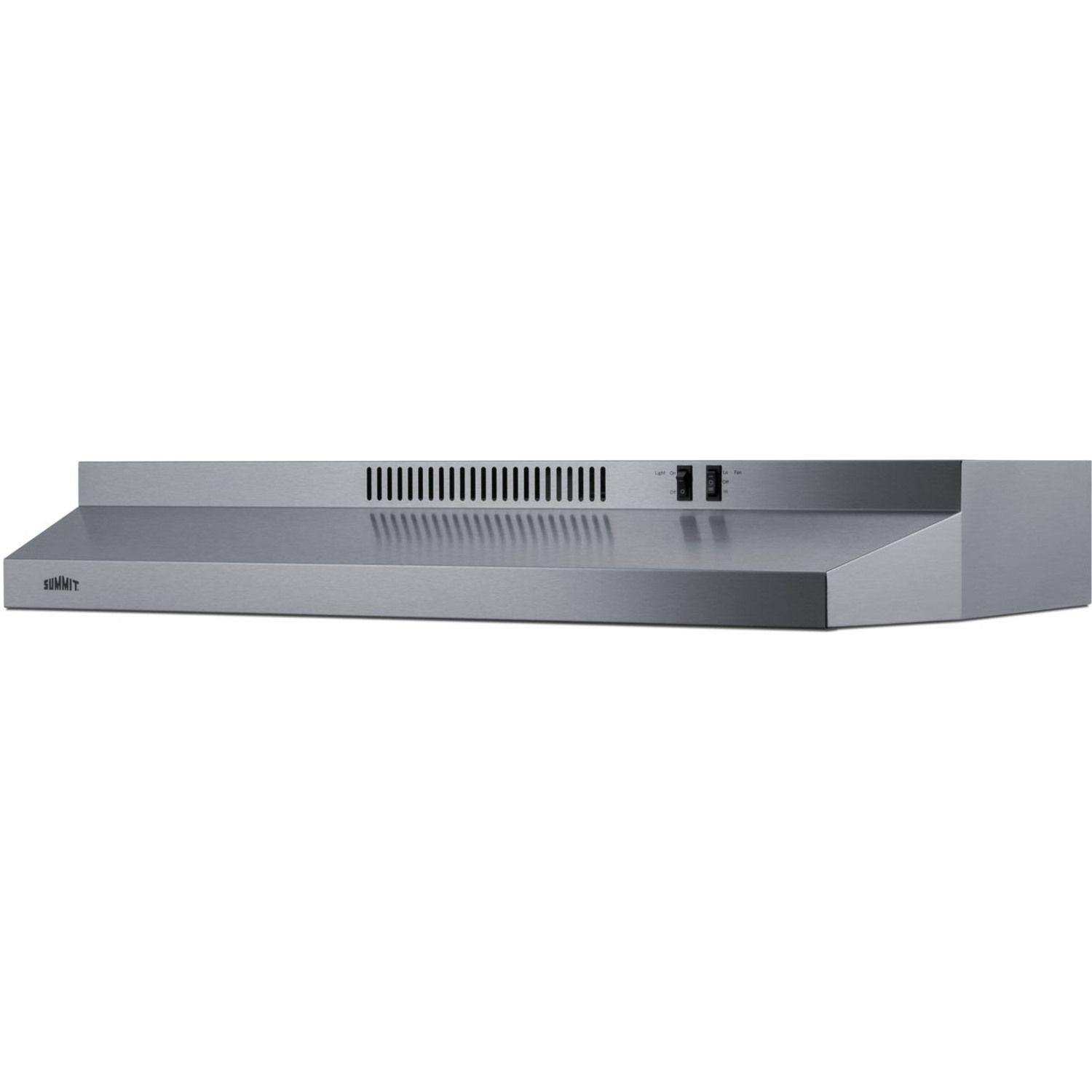

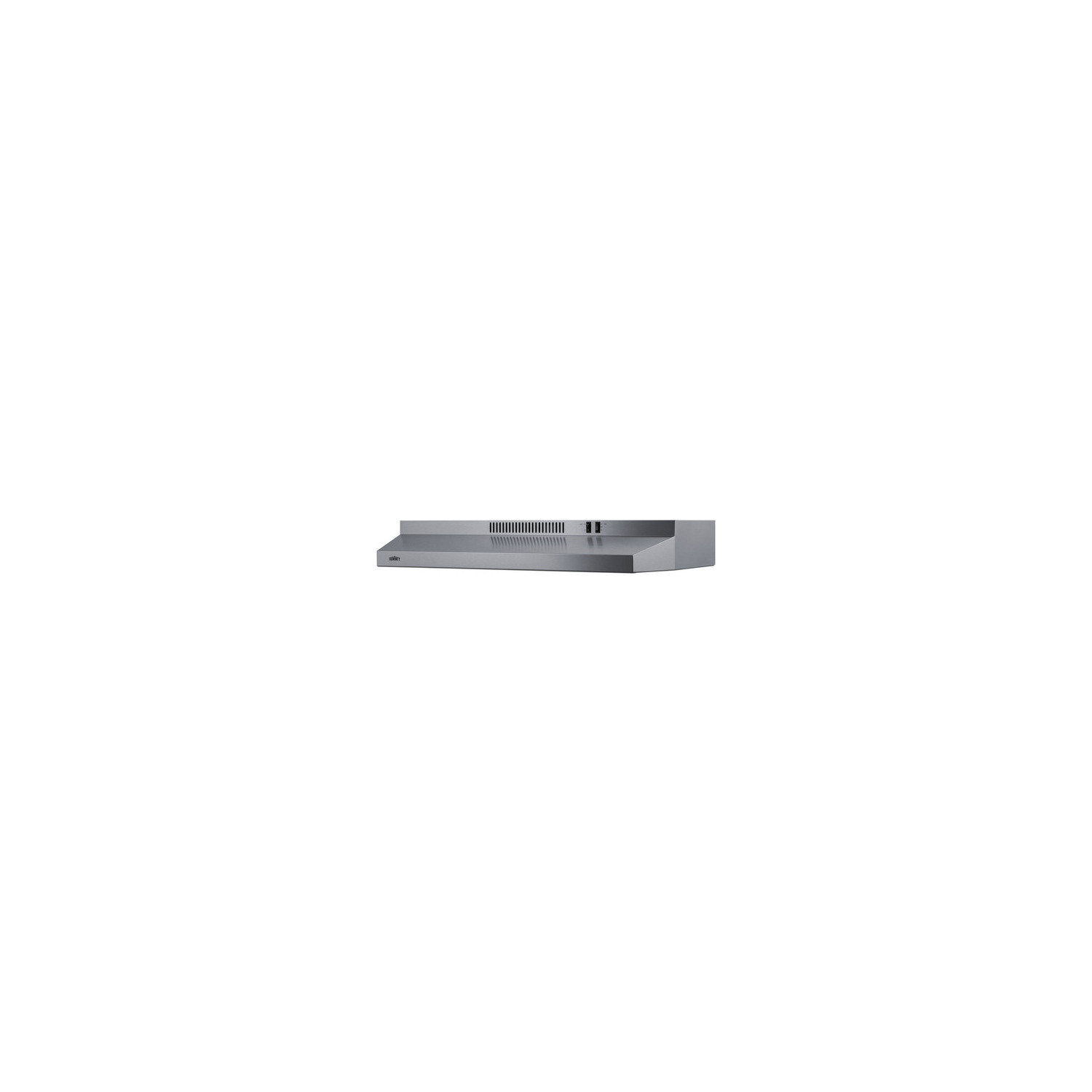

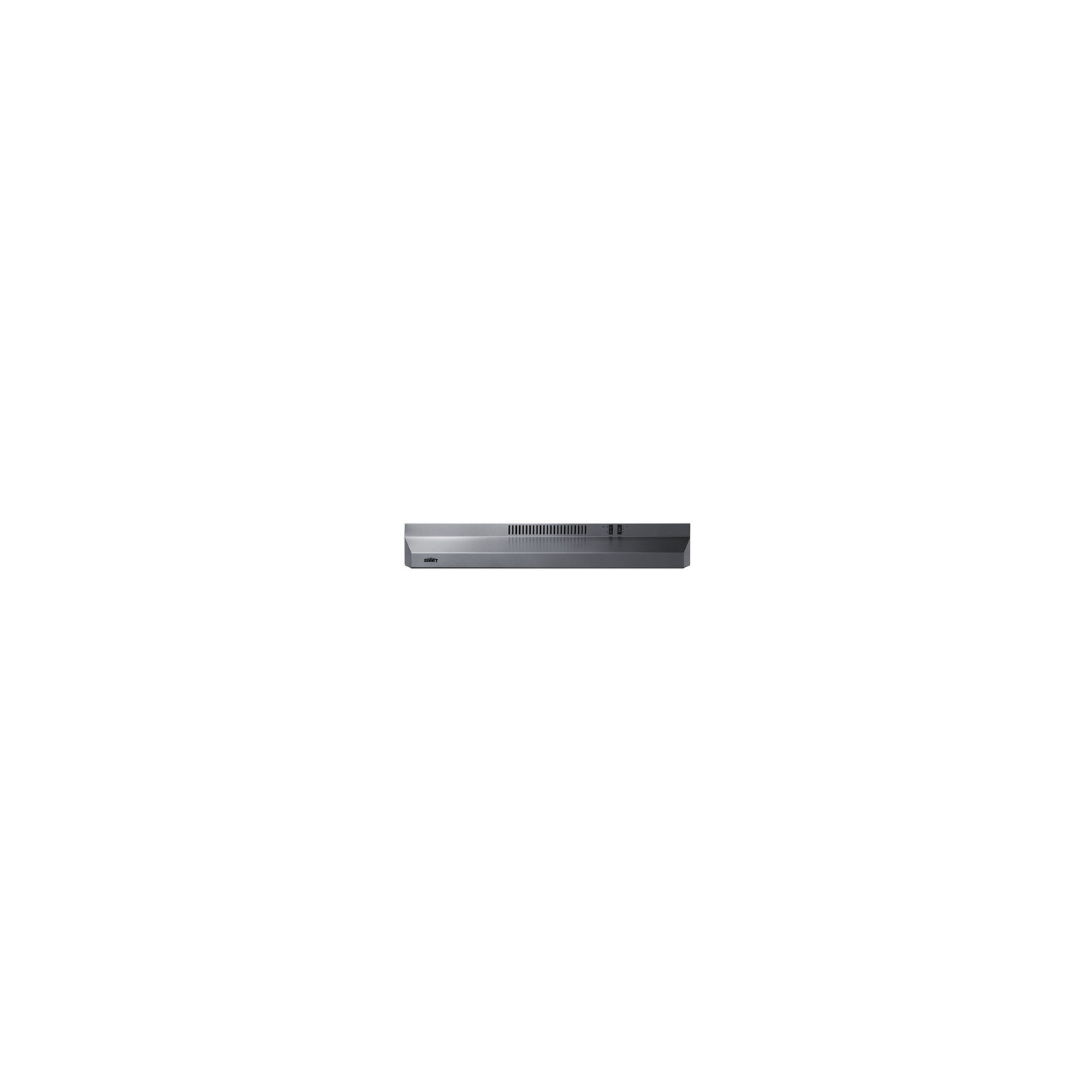

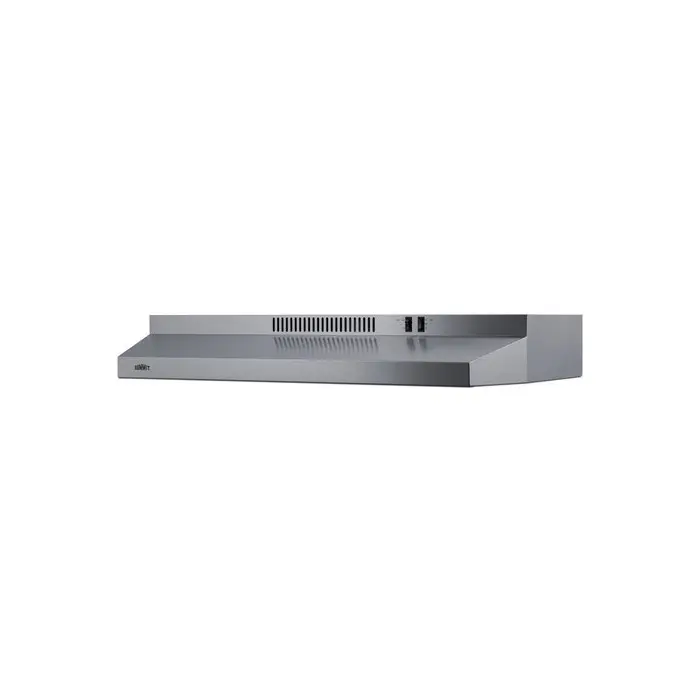

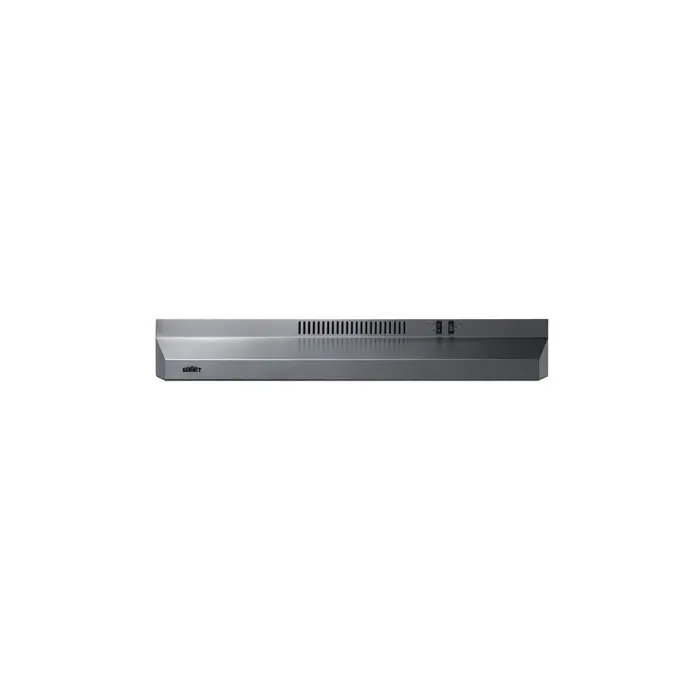

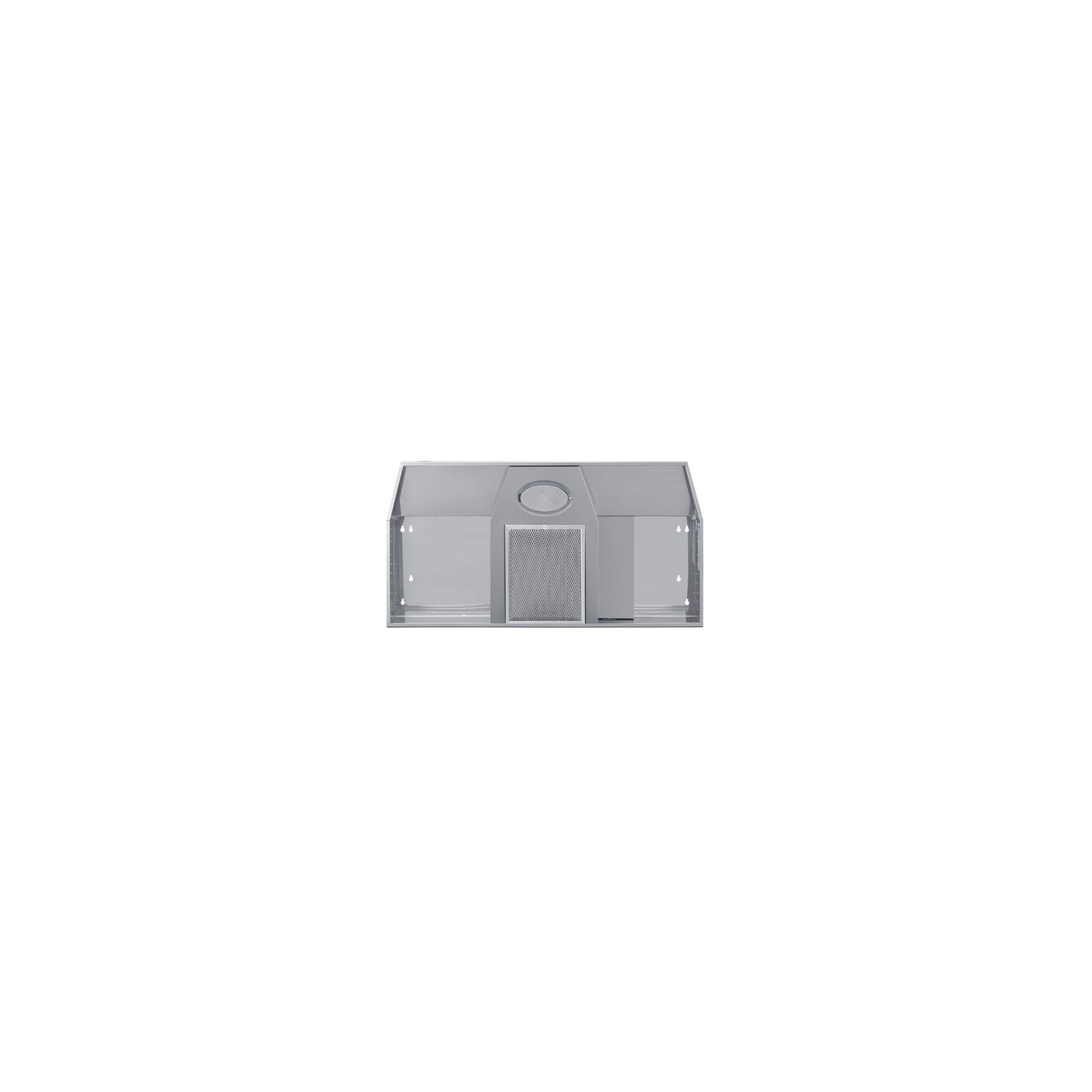

Model H36RSS is a 36" wide range hood. It features an attractive stainless steel finish with a horizontal grain. We include a pre-installed light bulb to illuminate your cooking surface. The 2-speed fan is easily managed by a rocker switch with a high and low ventilation setting.

This hood is convertible for horizontal or vertical ducted ventilation or ductless/recirculating ventilation where no exhaust connection to the outside is available. It ships ready for standard 3 1/4" x 10" rectangular ducting, but it can be used with a round 6" or 7" duct with the addition of a transition (not included). We include a metal mesh filter to catch grease and a charcoal filter to absorb smoke and odors when using in recirculating applications. This unit does not include a power cord and is designed to be hard-wired by a licensed professional.

Additional convertible range hoods are available in 18", 20", 24", and 30", with more styles and choices coming soon. Browse the full Summit product line to explore your options.

SPECIFICATIONS

Overview

Nominal Height 6.0" (15 cm)

Height of Cabinet 5.13" (13 cm)

Nominal Width 36.0" (91 cm)

Width 35.88" (91 cm)

Nominal Depth 19.0" (48 cm)

Depth 18.63" (47 cm)

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Voltage/Frequency 115 V AC/60 Hz

Weight 13.0 lbs. (6 kg)

Parts & Labor Warranty 1 Year

UPC 761101085098

Range Hood

Venting Convertible

Controls Dial

Light Yes

Number of Lights 1

Light Type Incandescent

Number of Fan Speeds 2

Duct Shape 3"1/4" x 10" rectangular or 6/7" round with transition

FEATURES

Under cabinet range hood Low profile design offers a classic way to finish your kitchen

36 inch width Sized for use over 36 inch cooking surfaces (additional sizes available)

Convertible design Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible

Easy 1-step conversion Ships pre-set for recirculating mode but can be converted for ducted use in less than a minute

Versatile top or rear exhaust Ships for standard 3 1/4" x 10" vertical or horizontal exterior venting and convertible to a 6" or 7" round vertical venting with a transition (not included)

Stainless steel finish Durable construction in an attractive style with a horizontal grain

Two-speed fan High and low setting to allow proper ventilation of your kitchen as needed

Light & bulb included Includes an incandescent bulb to help illuminate your cooking surface

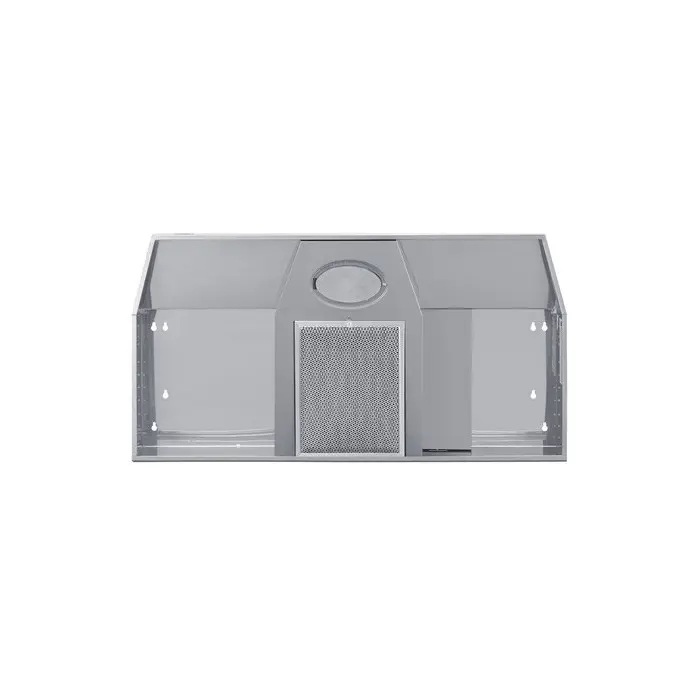

Removable metal grease filter Easy installation and detaching allows you to properly clean the filter for optimum efficiency

Charcoal filter included Helps absorb grease and odors when using the hood in recirculating mode

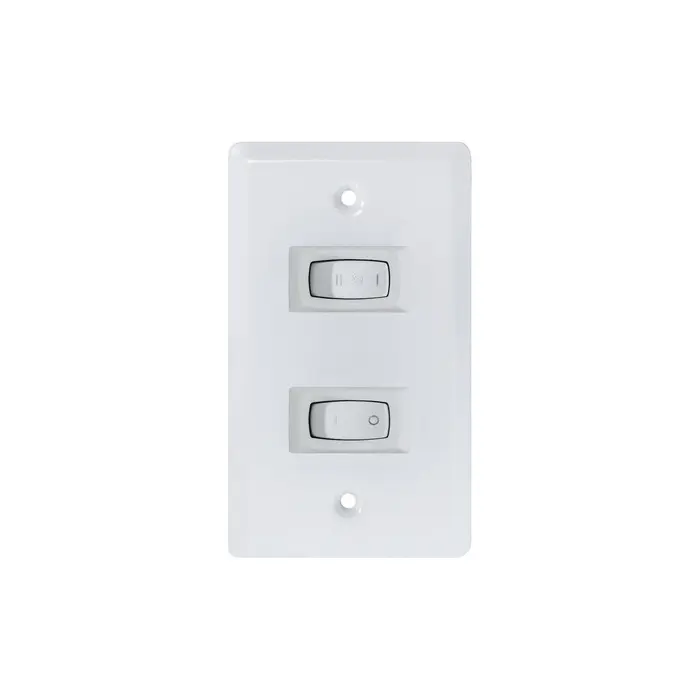

Rocker switch controls Front-located on/off and high/low switches make it easy to manage the light and fan

Professional installation Designed to be hard-wired by a licensed professional

DOWNLOADS

BROCHURE w/ DRAWINGS (H36RSS.pdf)

TECHNICAL DRAWING (.dwg) (H36RSS.dwg)

ASSEMBLY DRAWING (H36RSS-Assembly.pdf)

REVIT MODEL (QF_Summit_H36RSS_36_Inch_Wide_Under_Cabinet_Convertible_Range_Hood.rfa)

USE & CARE (H36RSS-User-Manual.pdf)
