Summit 24 inch convertible hood in stainless steel, 7.61101e+011, H24RSS
$164.45
Retail Price: $225.00
Free shipping
$ 164.45
Description
Summit's under cabinet convertible range hoods offer versatile ventilation solutions for every kitchen space.

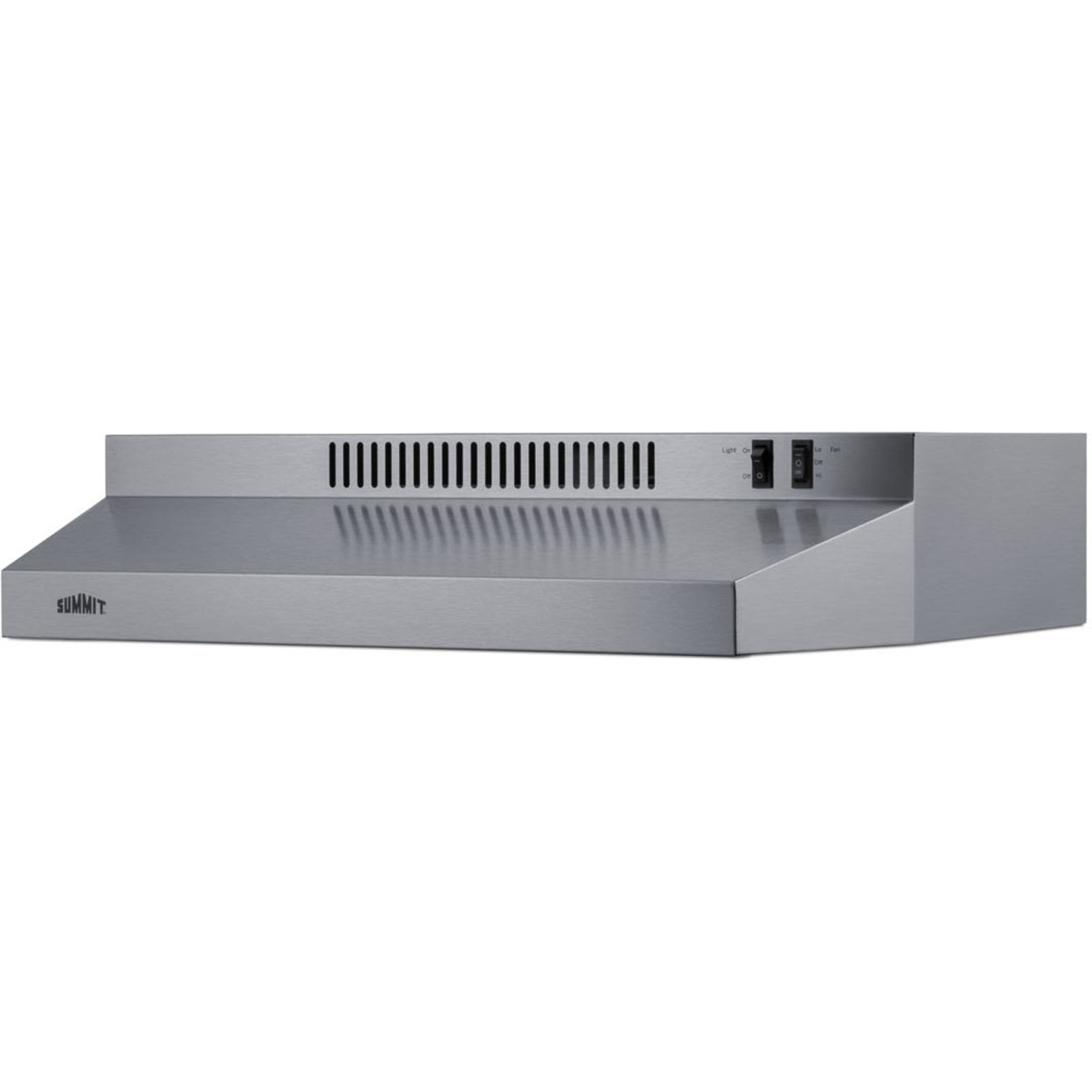

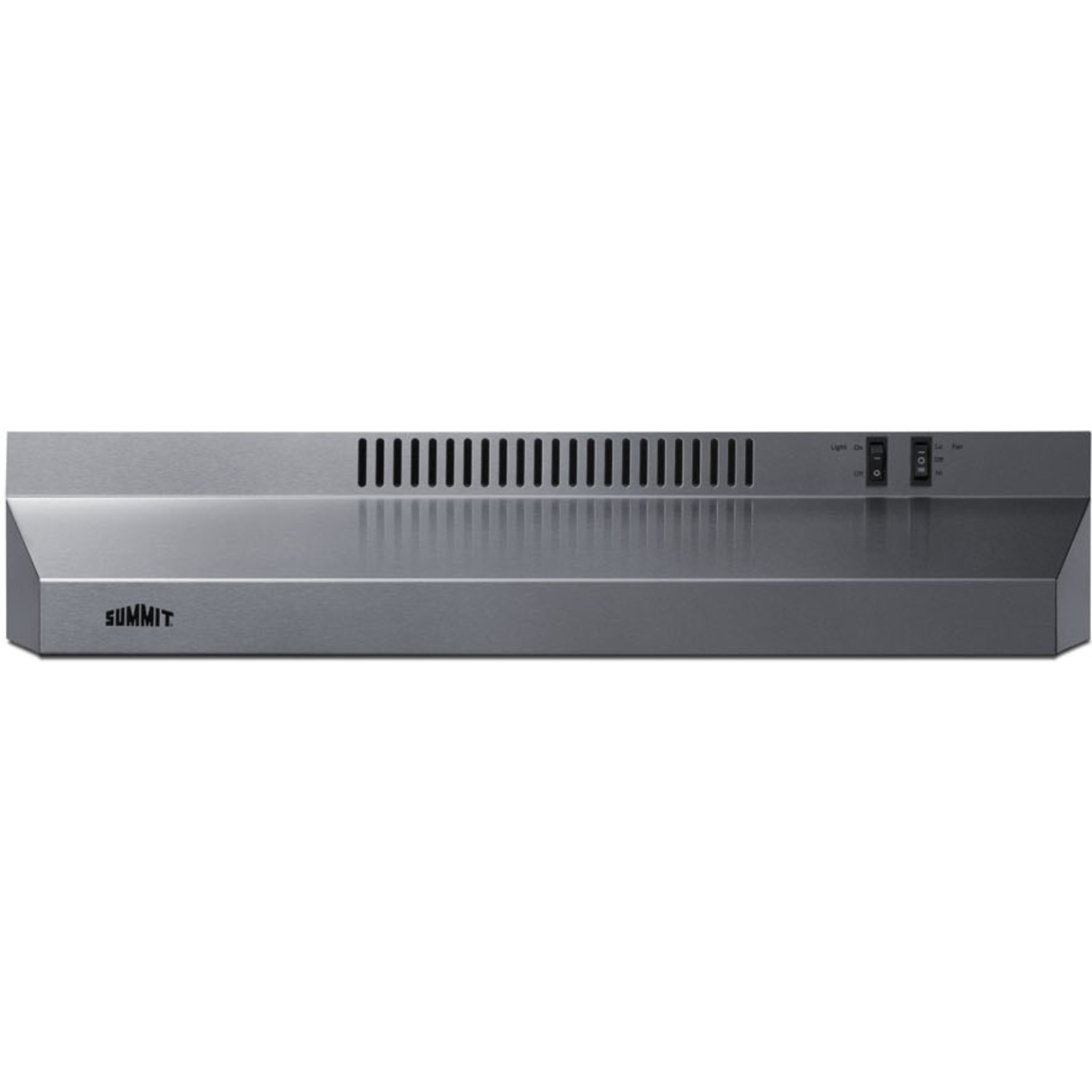

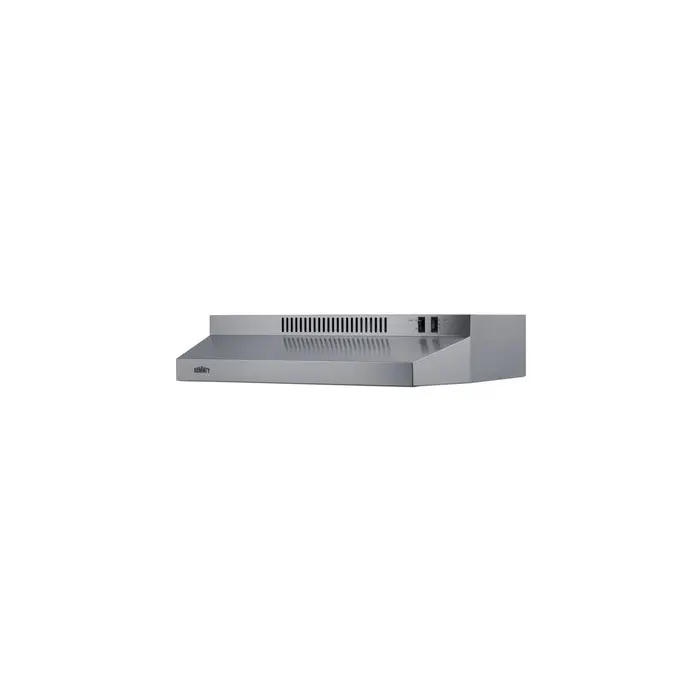

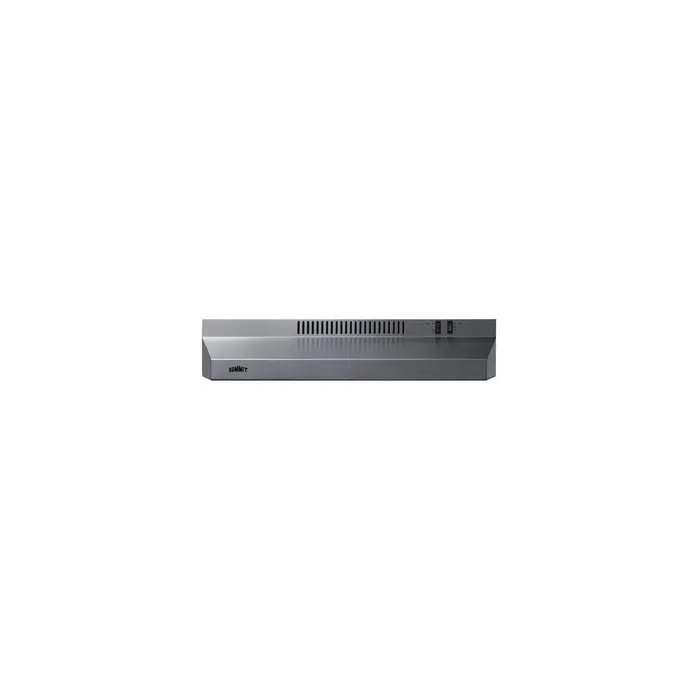

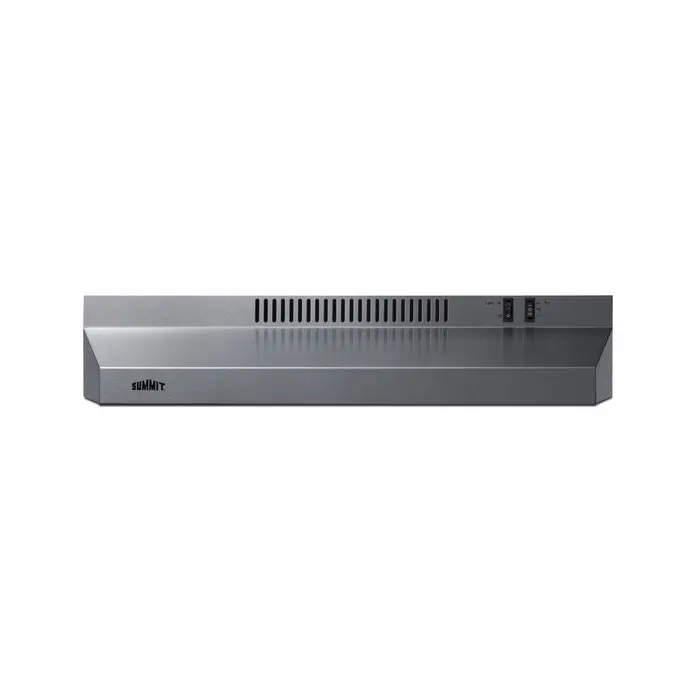

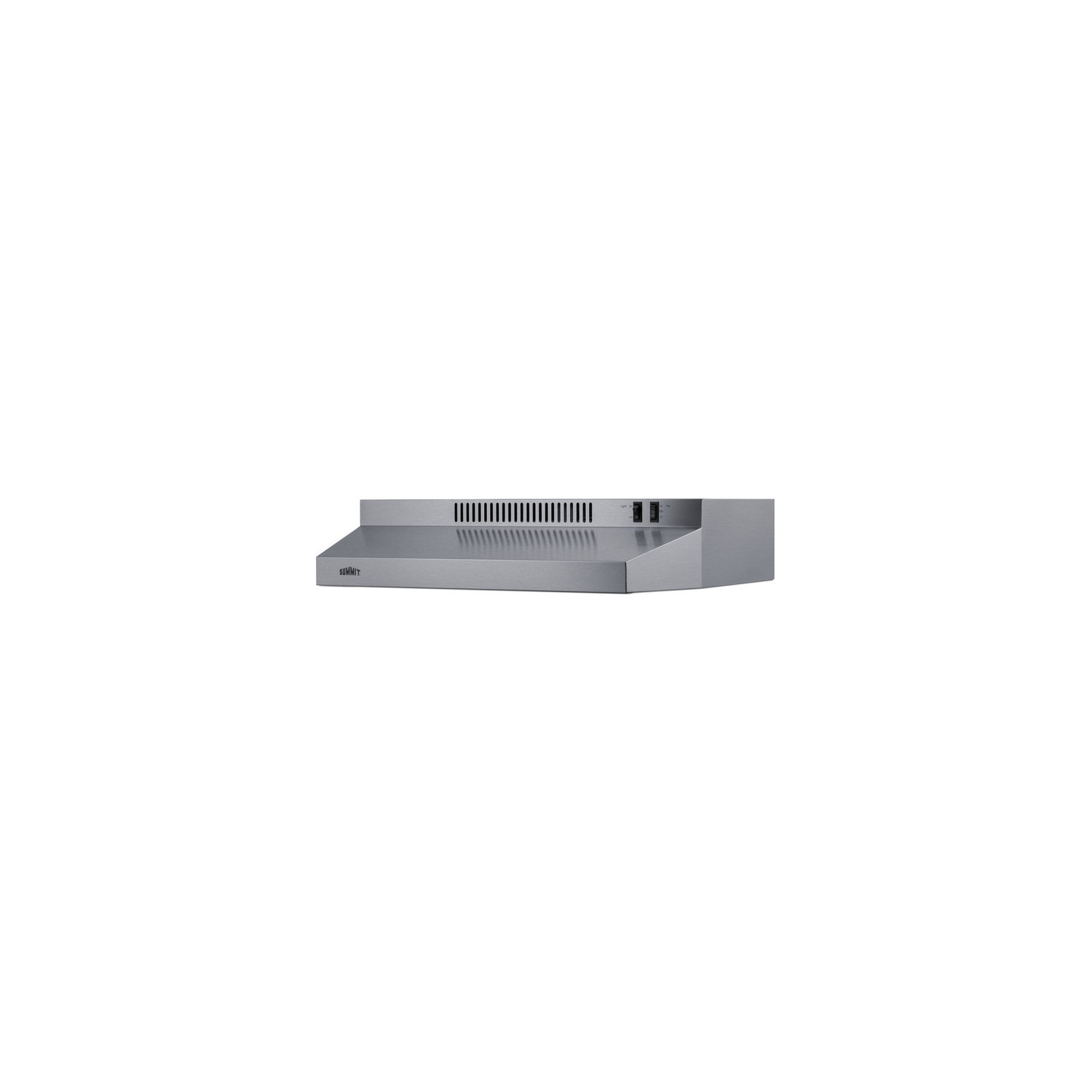

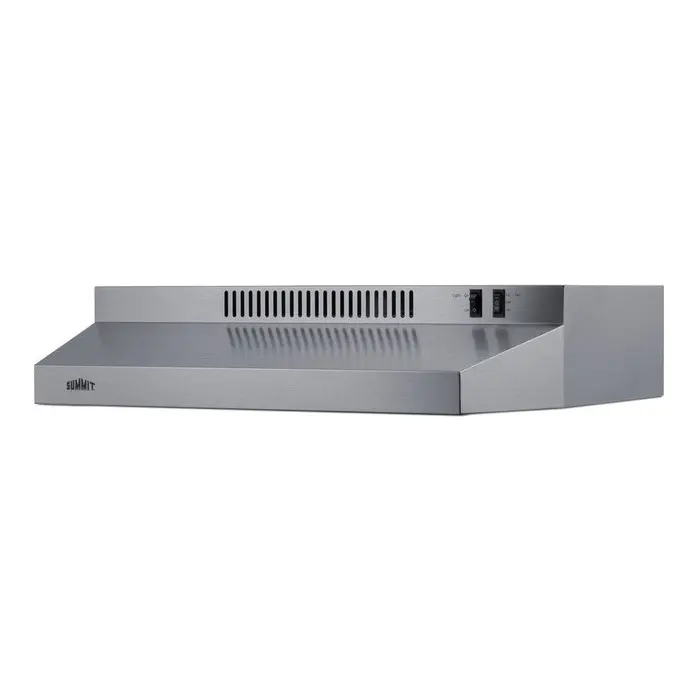

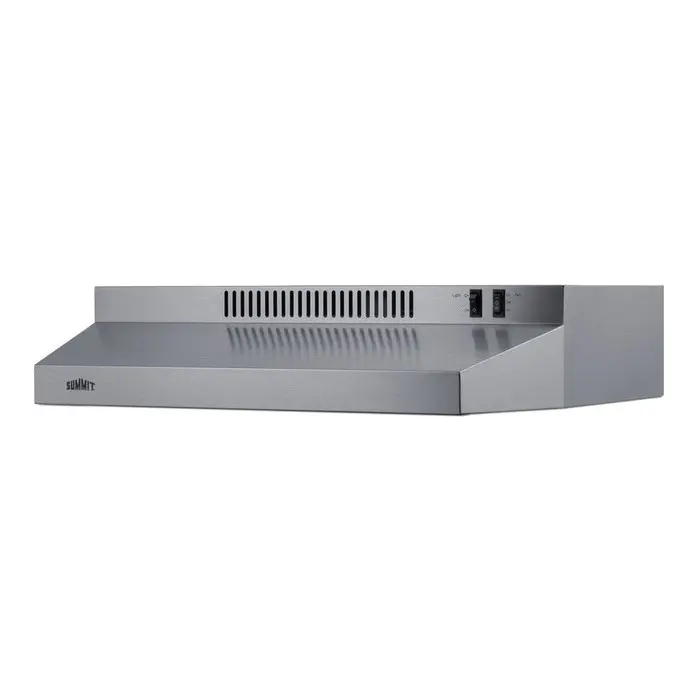

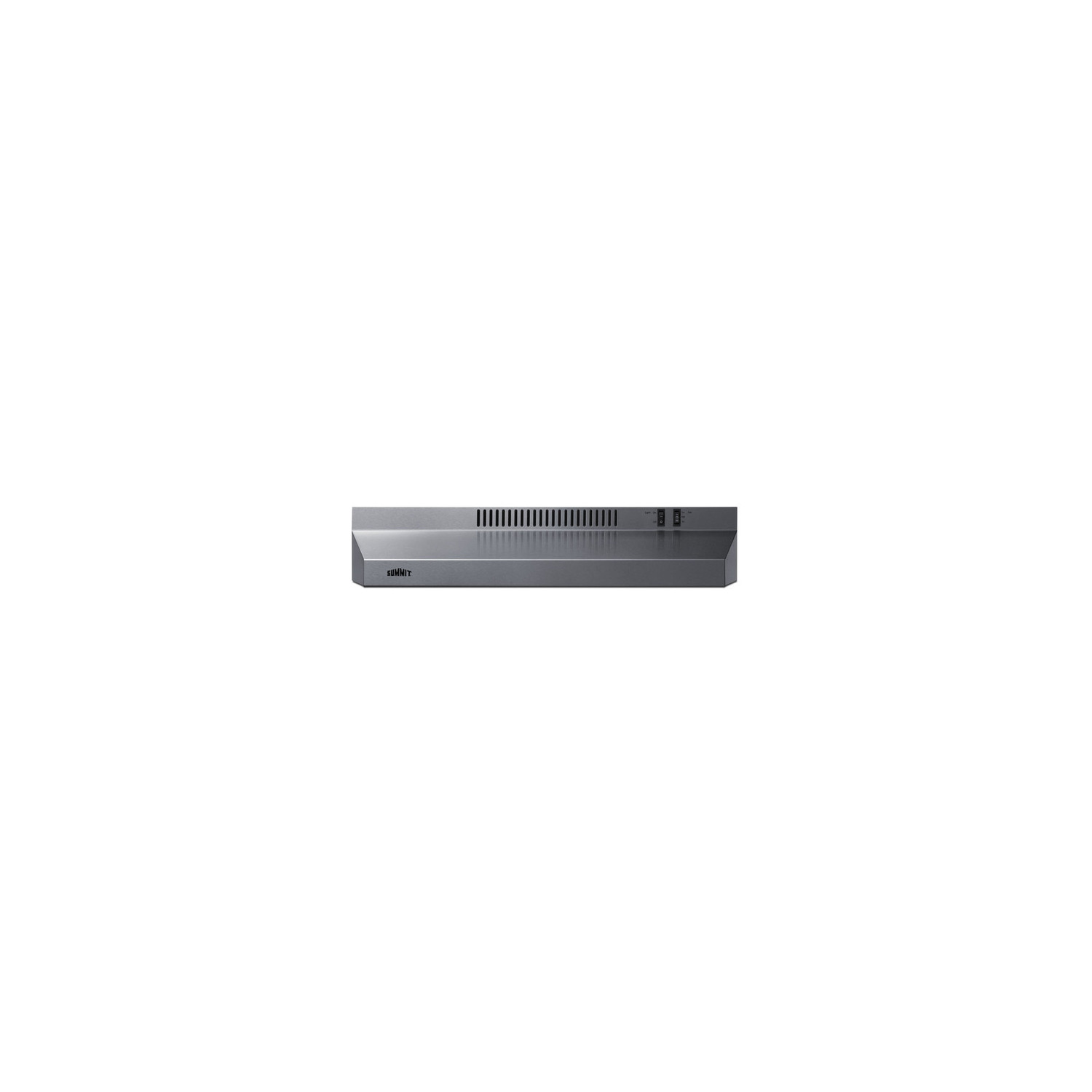

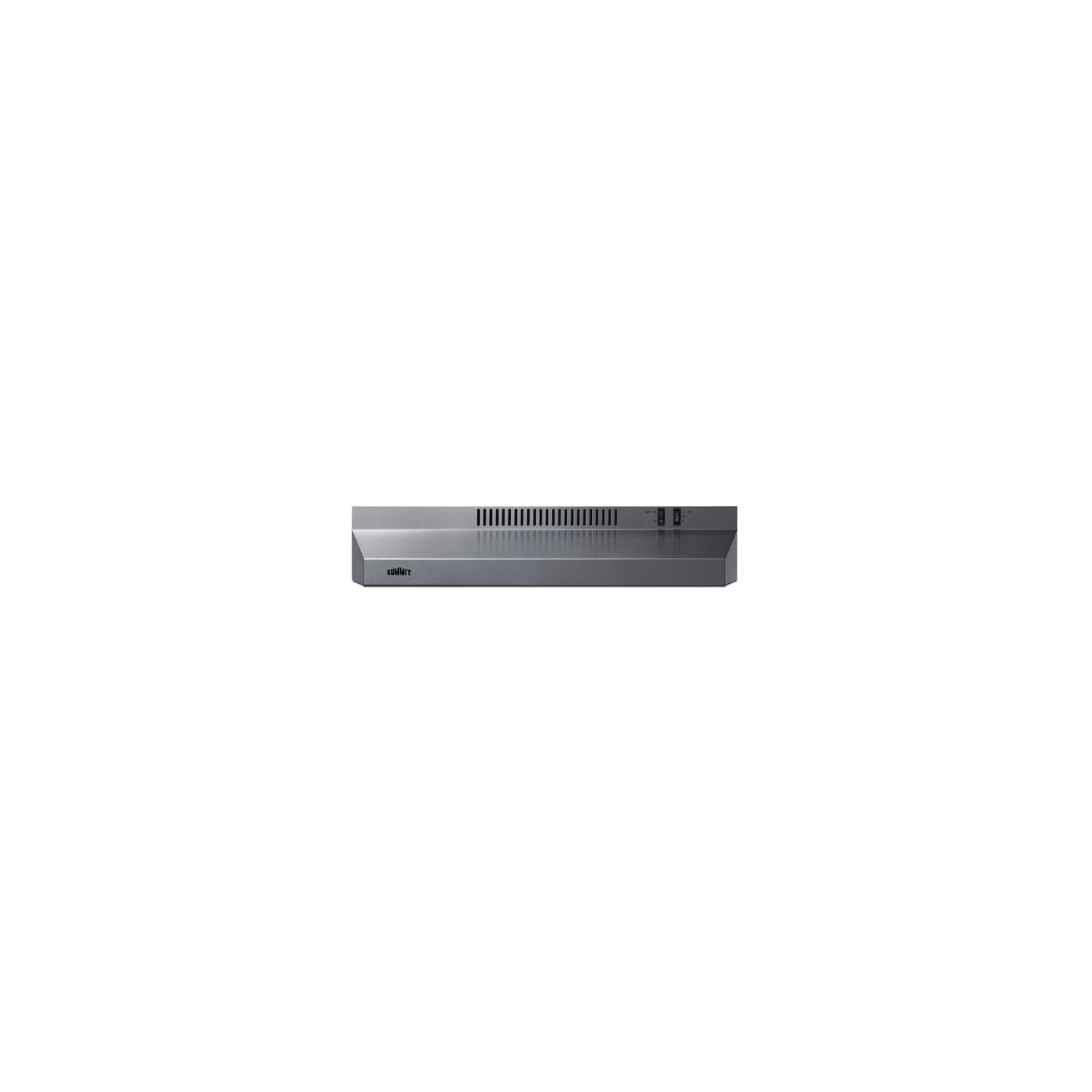

Model H24RSS is a 24" wide range hood ideal for apartments and other smaller kitchens. It features an attractive stainless steel finish with a horizontal grain. We include a pre-installed light bulb to illuminate your cooking surface. The 2-speed fan is easily managed by a rocker switch with a high and low ventilation setting.
This hood is convertible for horizontal or vertical ducted ventilation or ductless/recirculating ventilation where no exhaust connection to the outside is available. It ships ready for standard 3 1/4" x 10" rectangular ducting, but it can be used with a round 6" or 7" duct with the addition of a transition (not included). We include a metal mesh filter to catch grease and a charcoal filter to absorb smoke and odors when using in recirculating applications. This unit does not include a power cord and is designed to be hard-wired by a licensed professional.

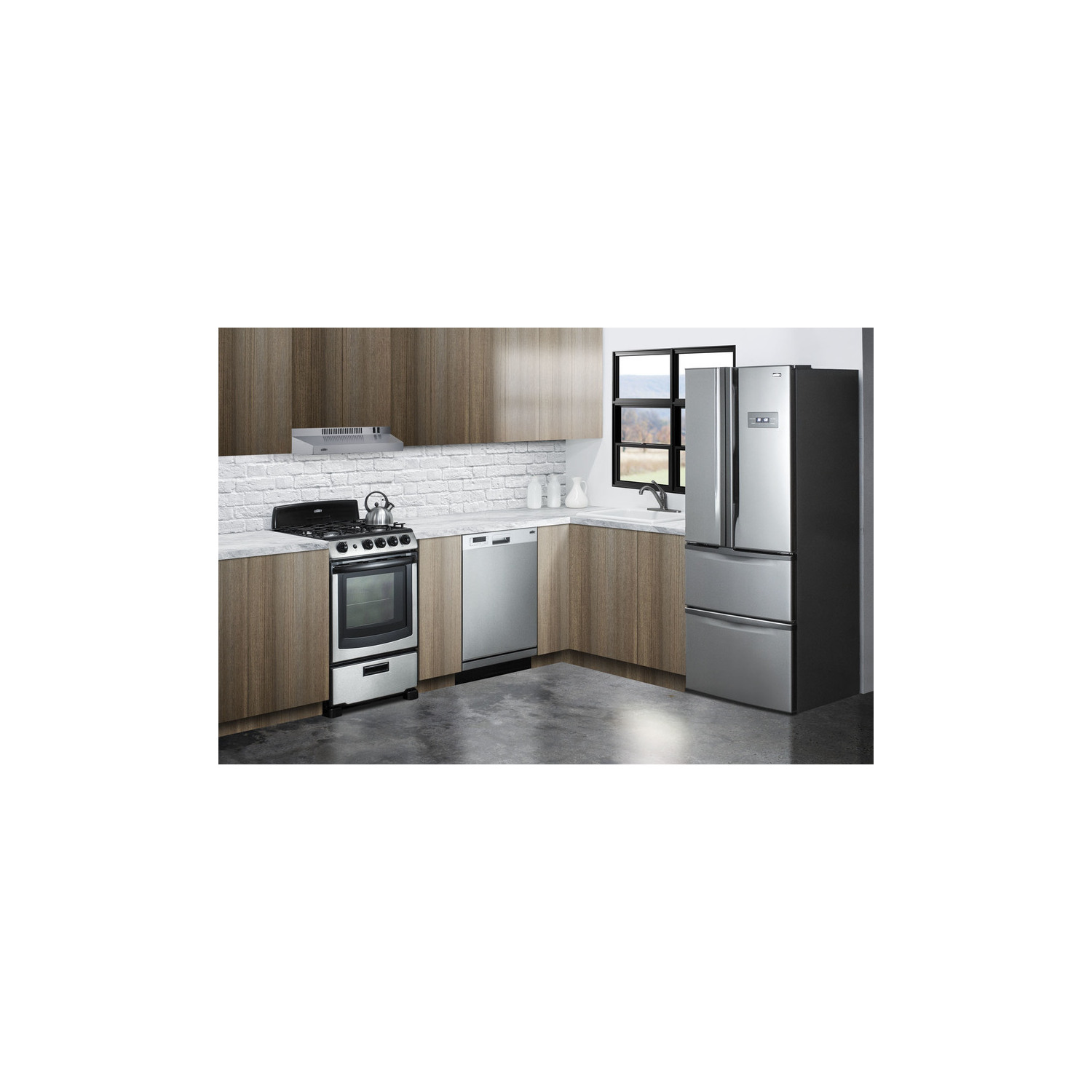

Additional convertible range hoods are available in 18", 20", 30", and 36" sizes, with more styles and choices coming soon. We also manufacture an extensive selection of 24" wide ranges and cooktops, providing complete kitchen solutions at incredible value. Browse the full Summit product line to explore your options.
SPECIFICATIONS
Overview
Nominal Height 6.0" (15 cm)
Height of Cabinet 5.13" (13 cm)
Nominal Width 24.0" (61 cm)
Width 23.88" (61 cm)
Nominal Depth 19.0" (48 cm)
Depth 18.63" (47 cm)
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Voltage/Frequency 115 V AC/60 Hz
Weight 11.0 lbs. (5 kg)
Parts & Labor Warranty 1 Year
UPC 761101085074
Range Hood
Venting Convertible
Controls Dial
Light Yes
Number of Lights 1
Light Type Incandescent
Number of Fan Speeds 2
Duct Shape 3"1/4" x 10" rectangular or 6/7" round with transition
FEATURES

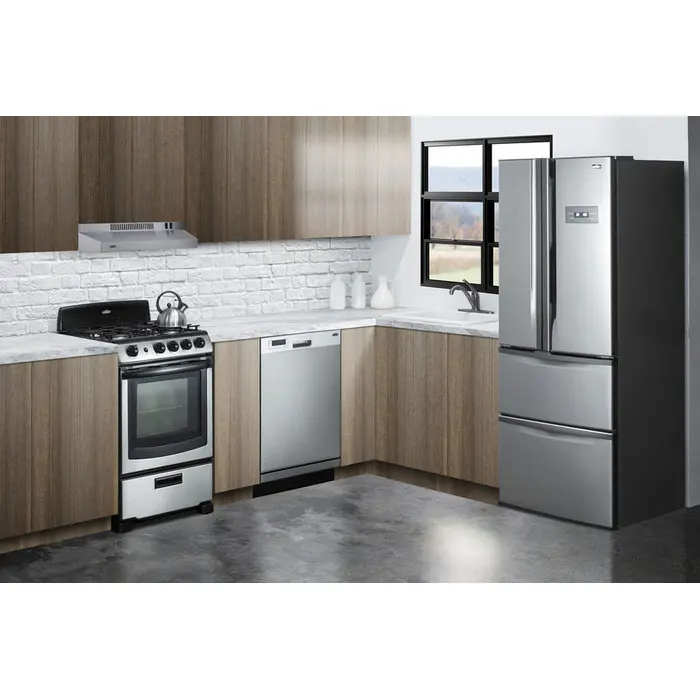

Under cabinet range hood Low profile design offers a classic way to finish your kitchen
24 inch width Sized for use over 24 inch cooking surfaces (additional sizes available)
Convertible design Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible
Easy 1-step conversion Ships pre-set for recirculating mode but can be converted for ducted use in less than a minute
Versatile top or rear exhaust Ships for standard 3 1/4" x 10" vertical or horizontal exterior venting and convertible to a 6" or 7" round vertical venting with a transition (not included)
Stainless steel finish Durable construction in an attractive style with a horizontal grain
Two-speed fan High and low setting to allow proper ventilation of your kitchen as needed
Light & bulb included Includes an incandescent bulb to help illuminate your cooking surface

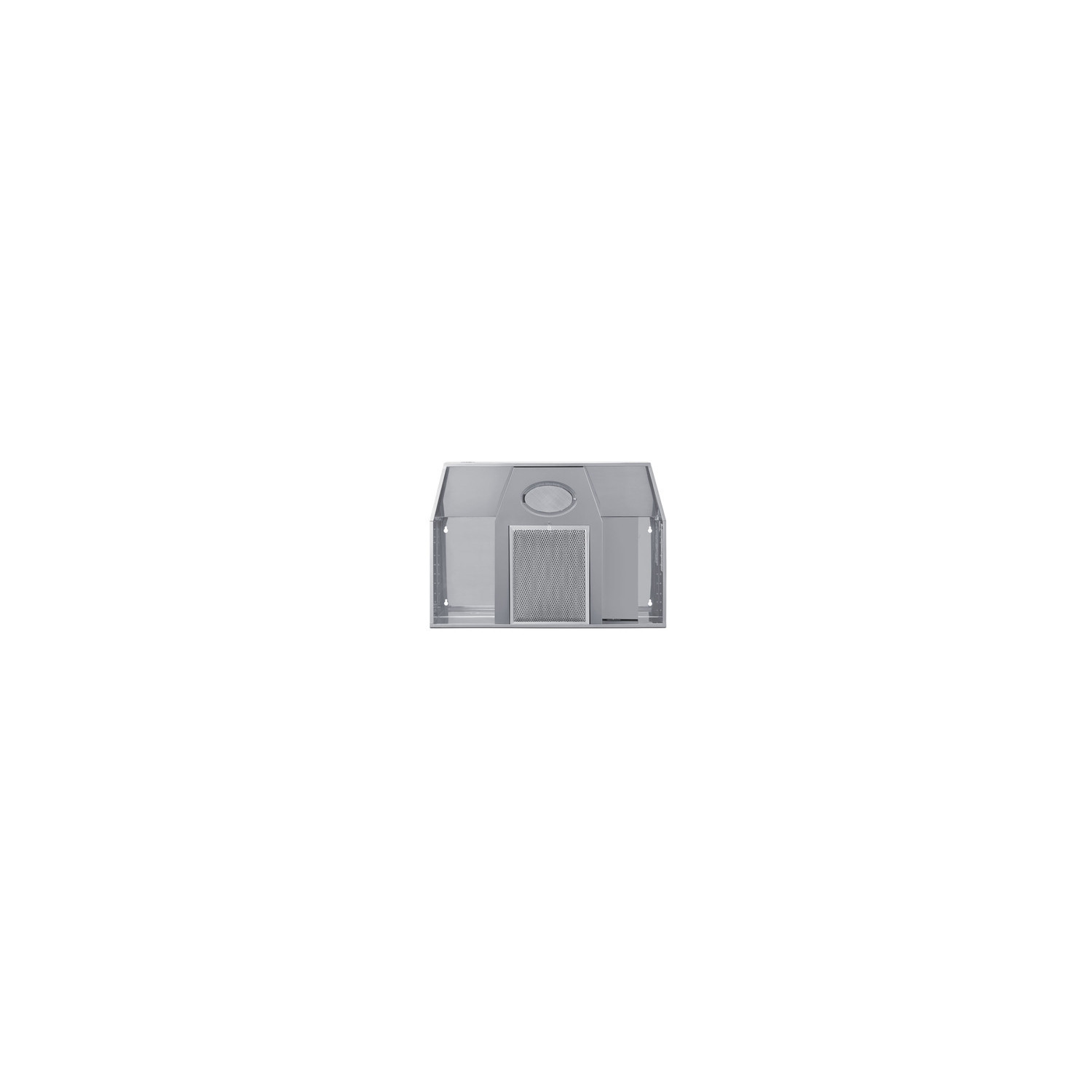

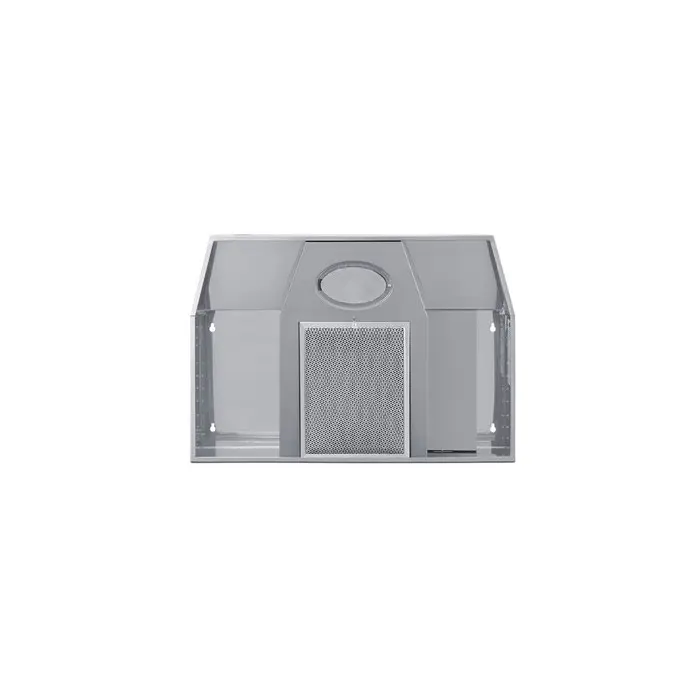

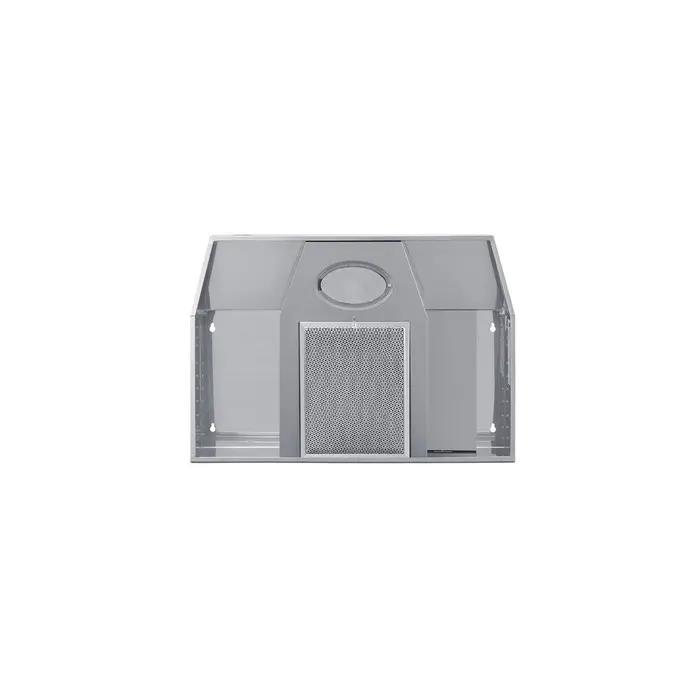

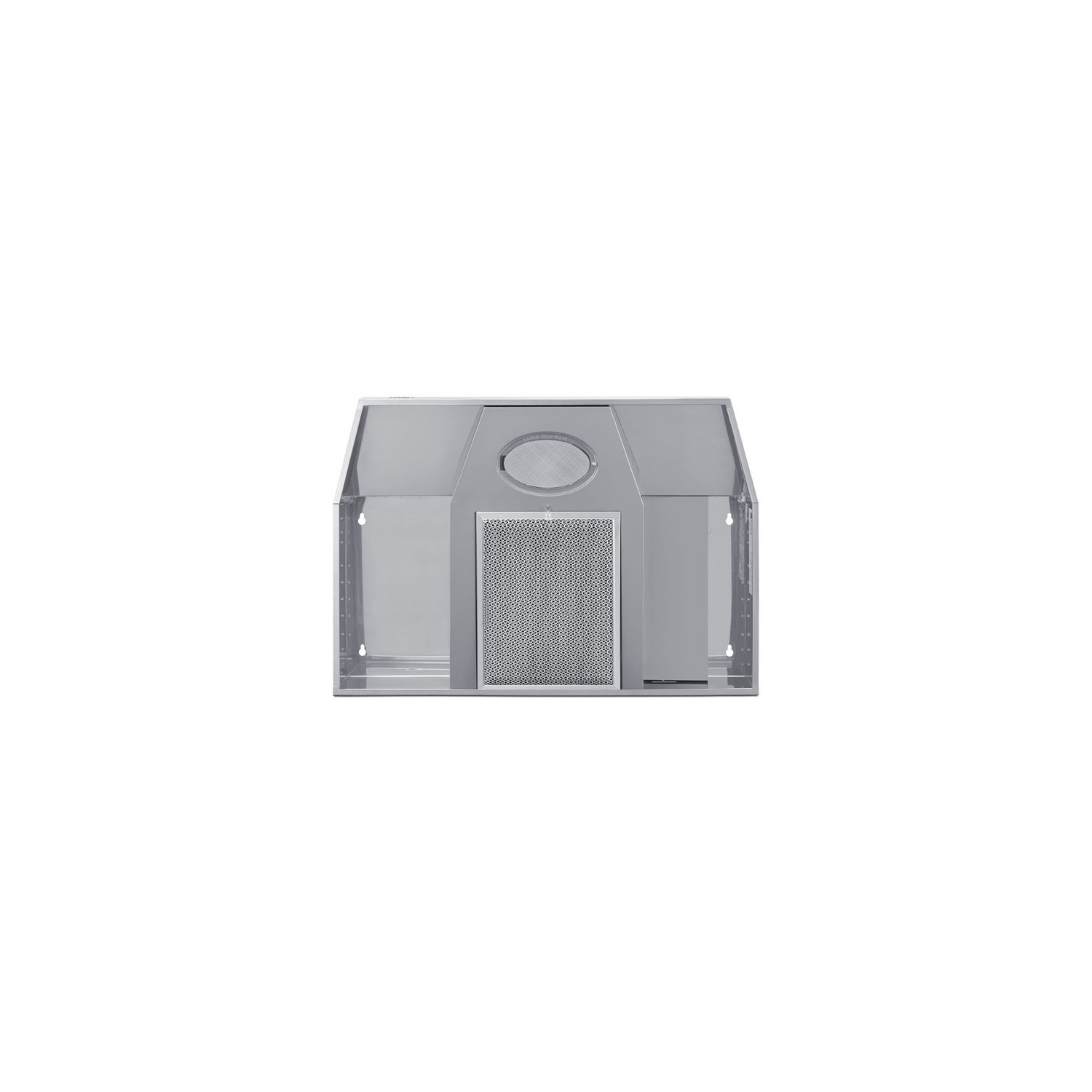

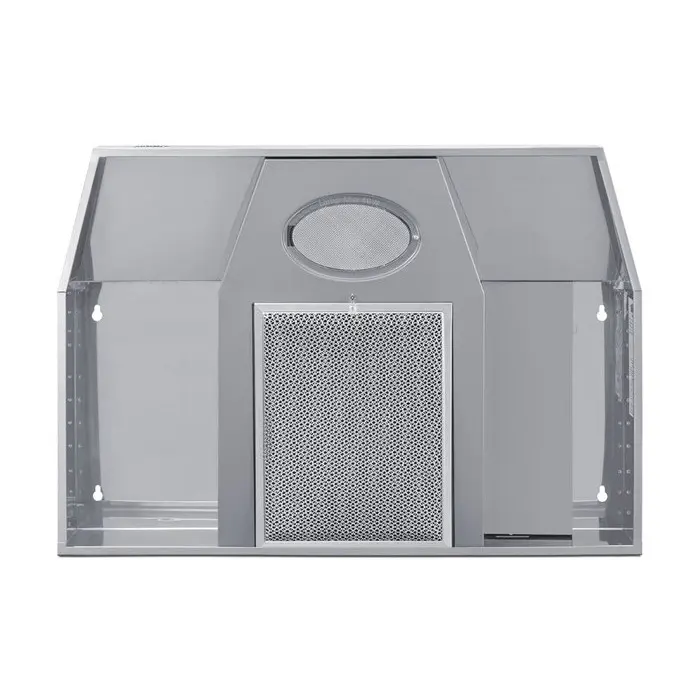

Removable metal grease filter Easy installation and detaching allows you to properly clean the filter for optimum efficiency
Charcoal filter included Helps absorb grease and odors when using the hood in recirculating mode

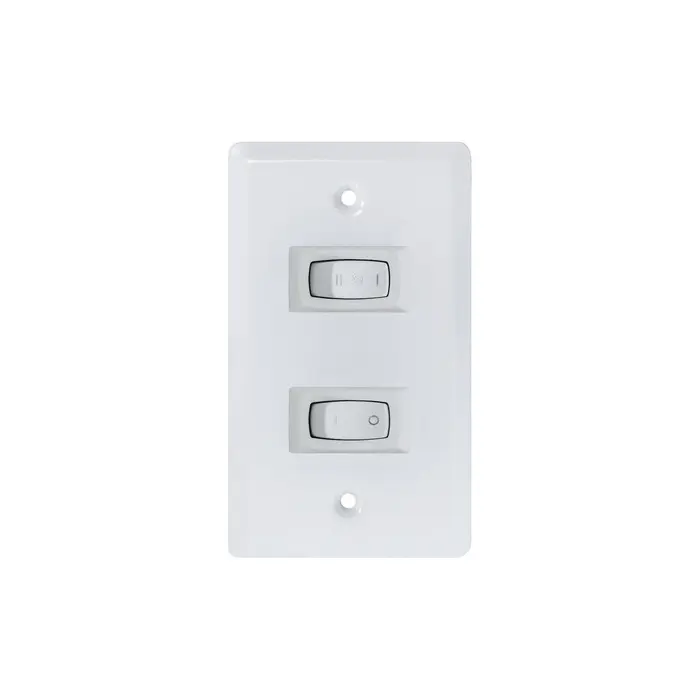

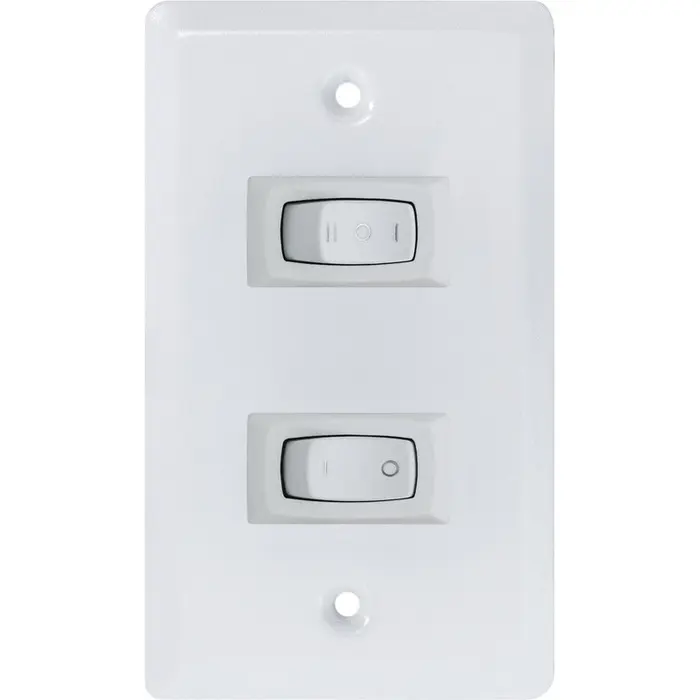

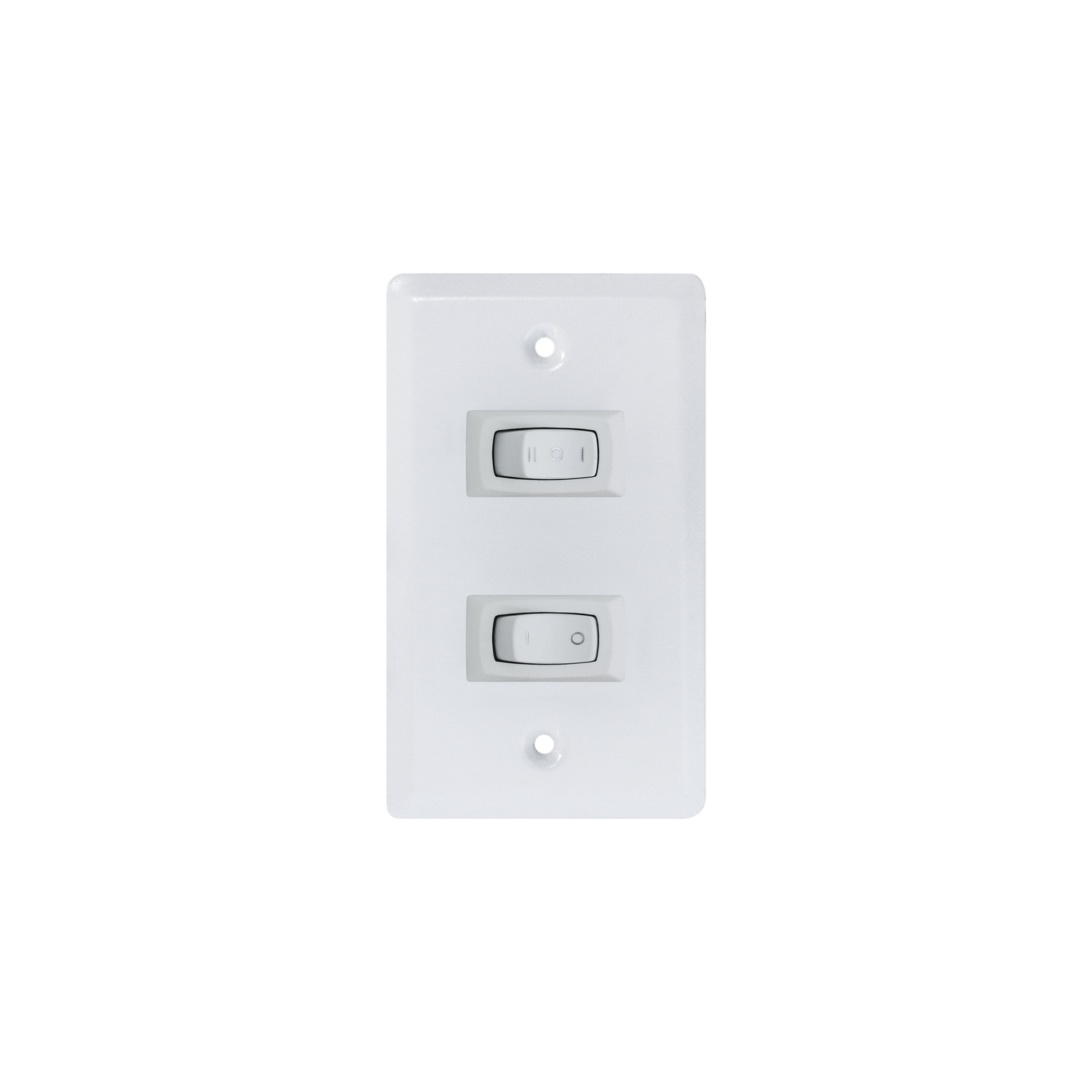

Rocker switch controls Front-located on/off and high/low switches make it easy to manage the light and fan
Professional installation Designed to be hard-wired by a licensed professional
DOWNLOADS
BROCHURE w/ DRAWINGS (H24RSS.pdf)
TECHNICAL DRAWING (.dwg) (H24RSS.dwg)
ASSEMBLY DRAWING (H24RSS-Assembly.pdf)
REVIT MODEL (QF_Summit_H24RSS_24_Inch_Wide_Under_Cabinet_Convertible_Range_Hood.rfa)
