Summit Compact manual defrost all-freezer with lock and probe hole, 7.61101e+011, FS30LPRO

Accucold's PRO Series features all-refrigerators and all-freezers designed for reliable temperature stability in institutional settings.

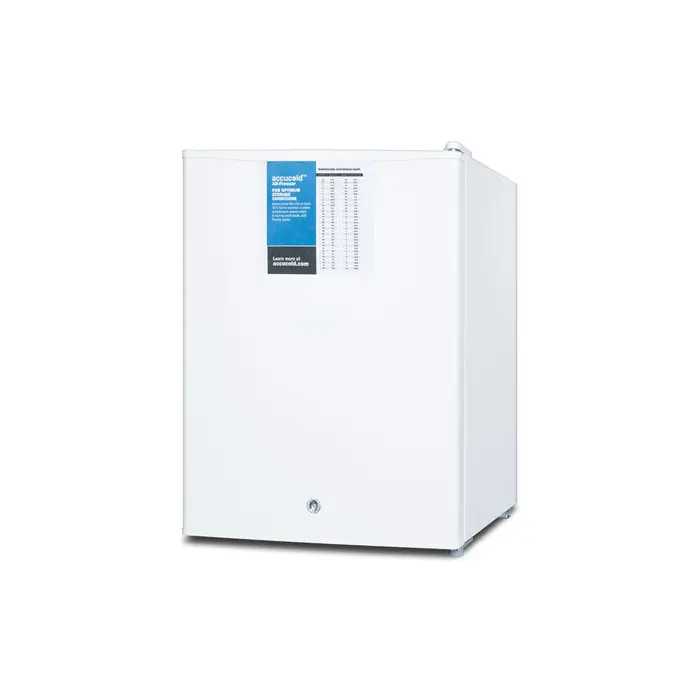

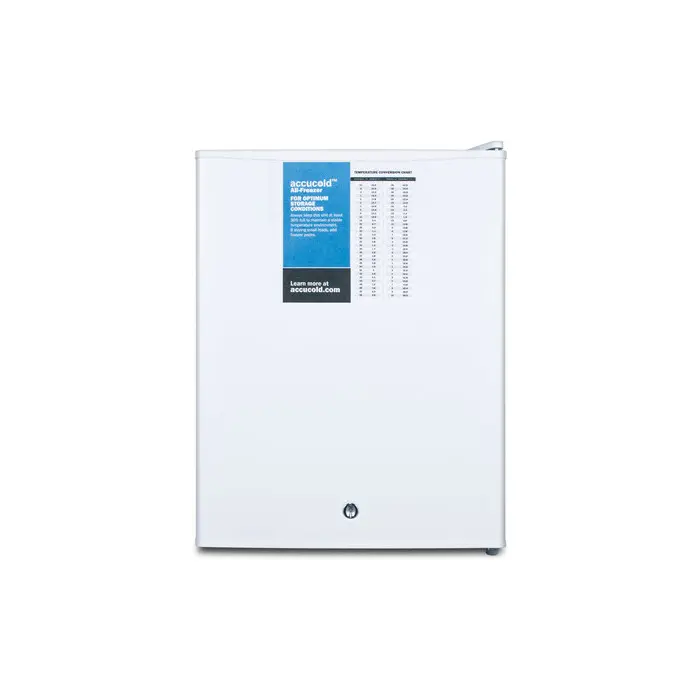

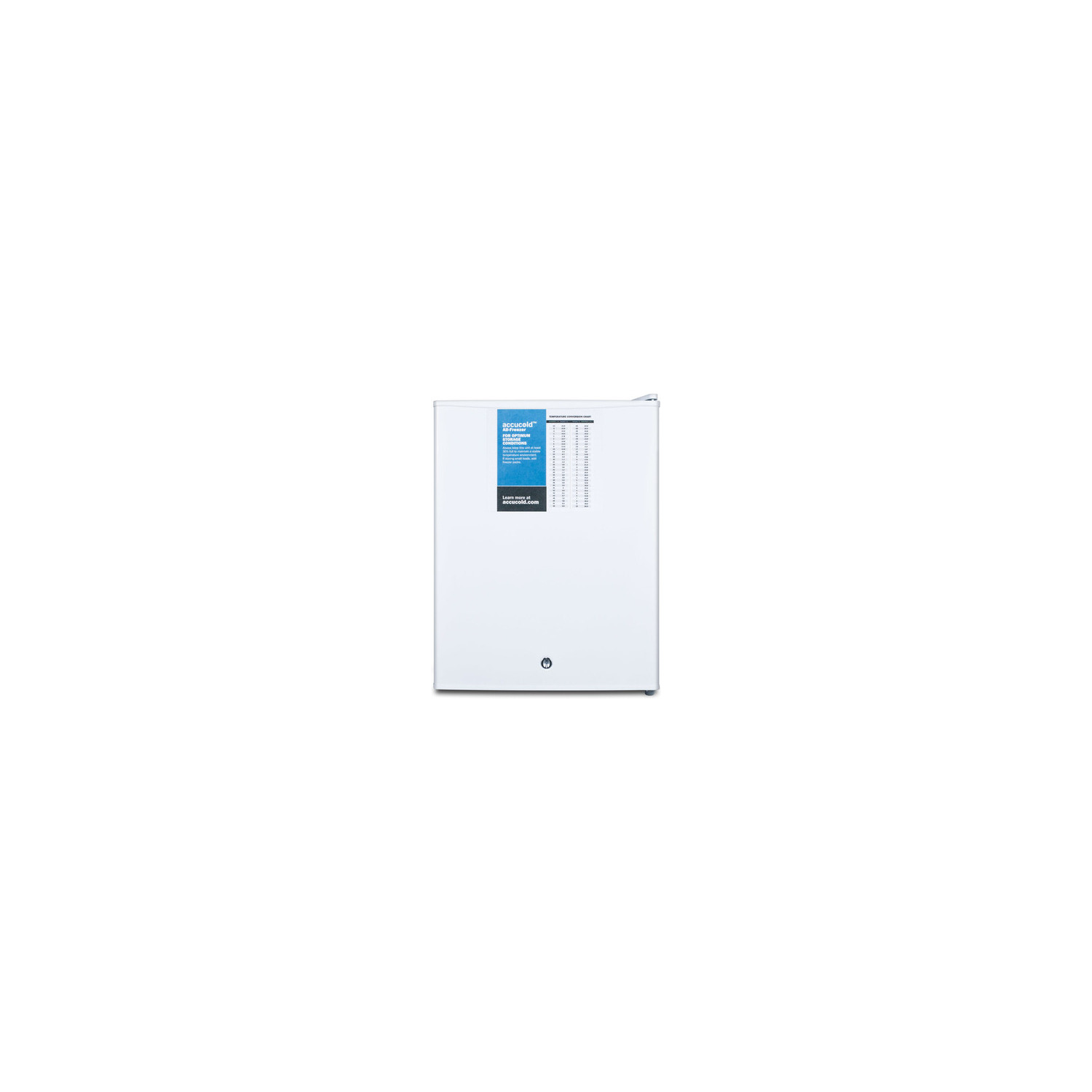

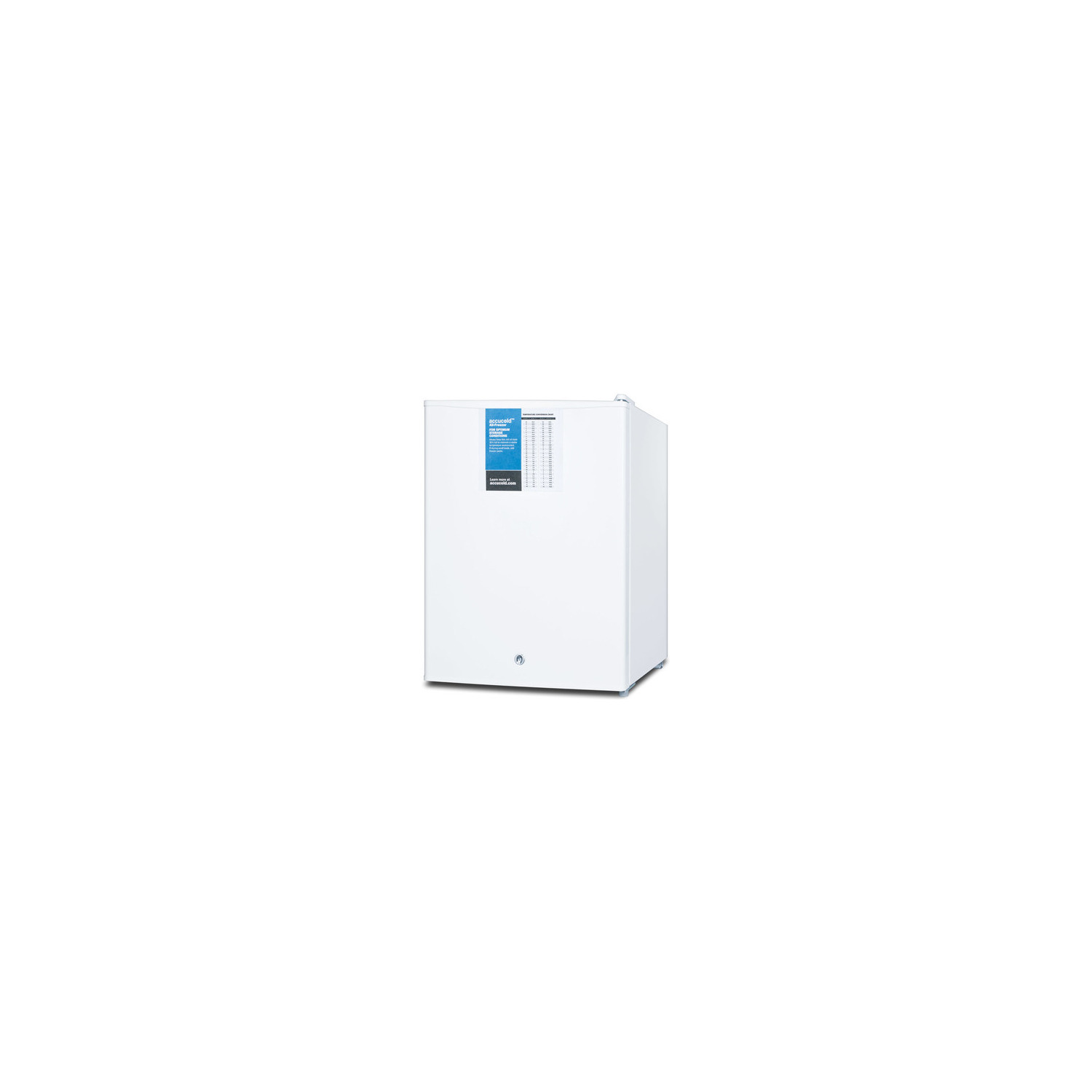

The FS30LPRO is a compact all-freezer for use in hospitals, doctors' offices, and other facilities with specific temperature needs. We include a factory-installed lock for keyed security. A hospital grade cord with a 'green dot' plug offers added safety in high traffic areas. This unit has a digital thermostat mounted on top of the cabinet to allow users to modify the temperature without opening the door.

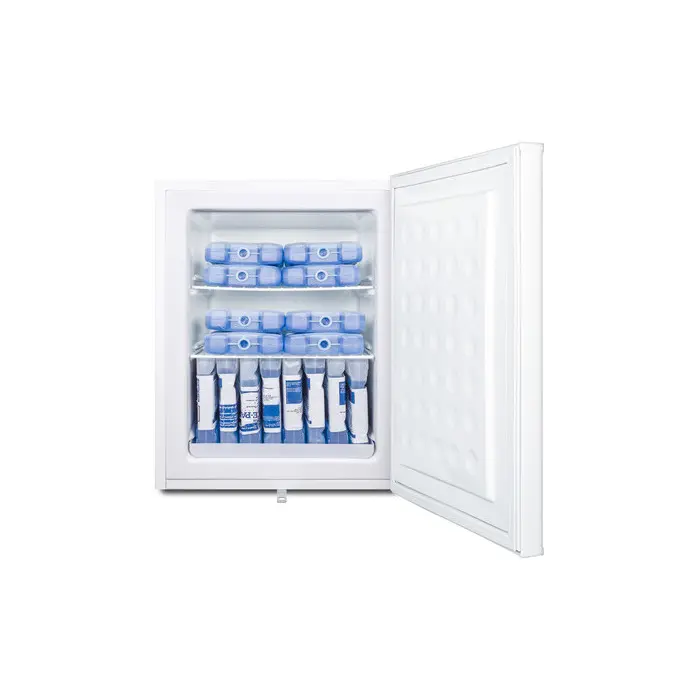

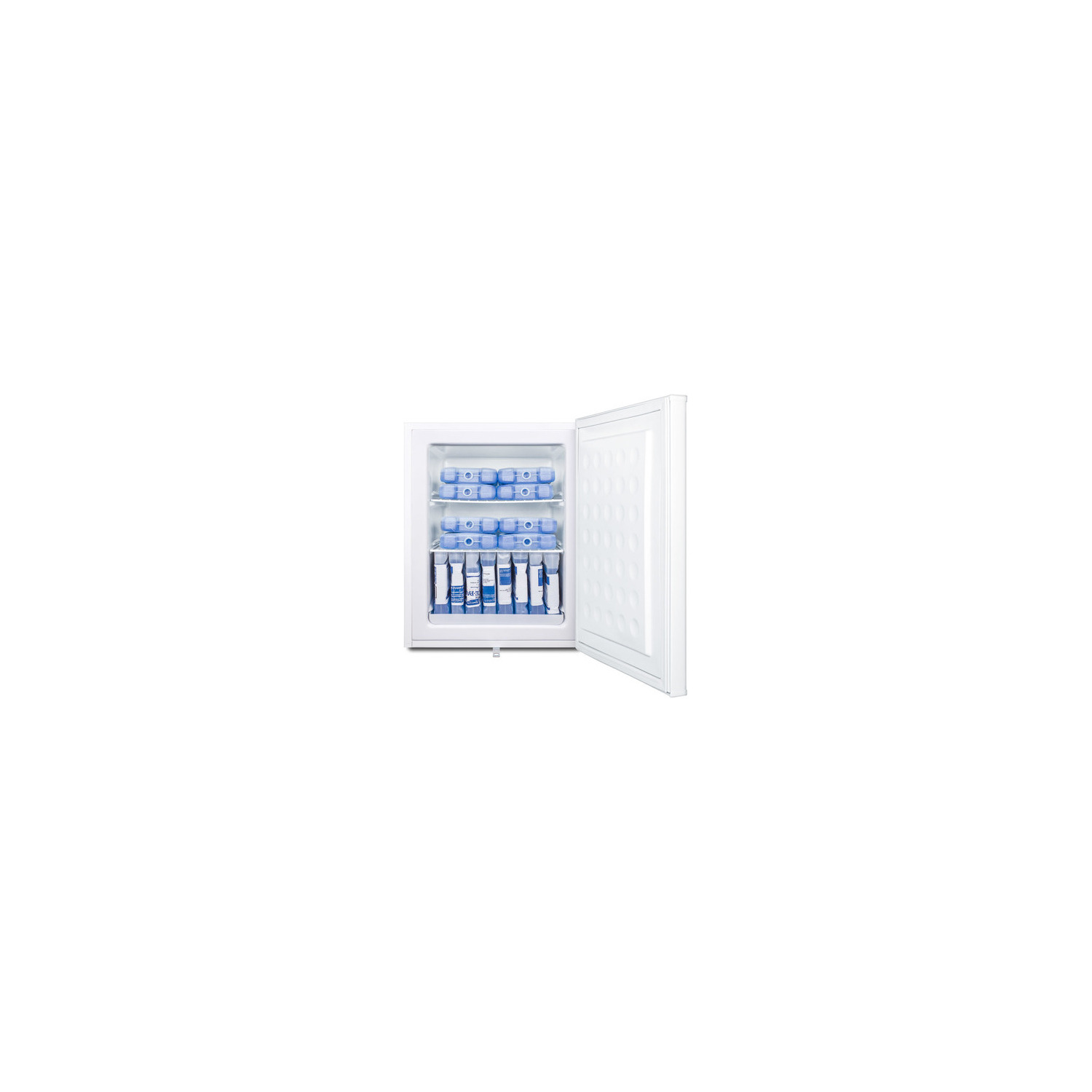

This manual defrost -20ºC capable unit features four removable interior drawers with clear fronts, ideal for keeping contents protected from ambient temperature when the door is opened. It has a flat door liner as recommended by the CDC and VFC. An access port is installed in the rear to allow users to install their own temperature monitoring equipment.

The FS30LPRO can be paired with a matching all-refrigerator (model FF28LWHPRO). Additional options, including NIST calibrated temperature alarms and data loggers, can also be added. Contact our product specialists for more information.

Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For more information, browse Accucold's purpose-built line or contact our product specialists at 1-888-4-MED-LAB.

SPECIFICATIONS

Overview

Nominal Height 25.0" (64 cm)

Height of Cabinet 24.5" (62 cm)

Height to Hinge Cap 24.87" (63 cm)

Nominal Width 19.0" (48 cm)

Width 18.5" (47 cm)

Nominal Depth 18.0" (46 cm)

Depth 17.75" (45 cm)

Depth with door at 90° 34.5" (88 cm)

Capacity 1.8 cu.ft. (51 L)

Defrost Type Manual

Door White

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 0.8

Voltage/Frequency 115 V AC/60 Hz

Weight 50.0 lbs. (23 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101057316

Freezer

Door Swing RHD

Reversible Yes

Interior Height 18.63" (47 cm)

Interior Width 13.38" (34 cm)

Interior Depth 13.0" (33 cm)

Shelf Type Wire

Shelf Qty 2

Thermostat Type Dial

Refrigerant Type R600a

Refrigerant Amount 0.8 oz.

Level Legs 2

Compressor Step Height 8.0" (20 cm)

Compressor Step Width 13.38" (34 cm)

Compressor Step Depth 5.75" (15 cm)

FEATURES

Compact dimensions Sized for easy use on top of counters

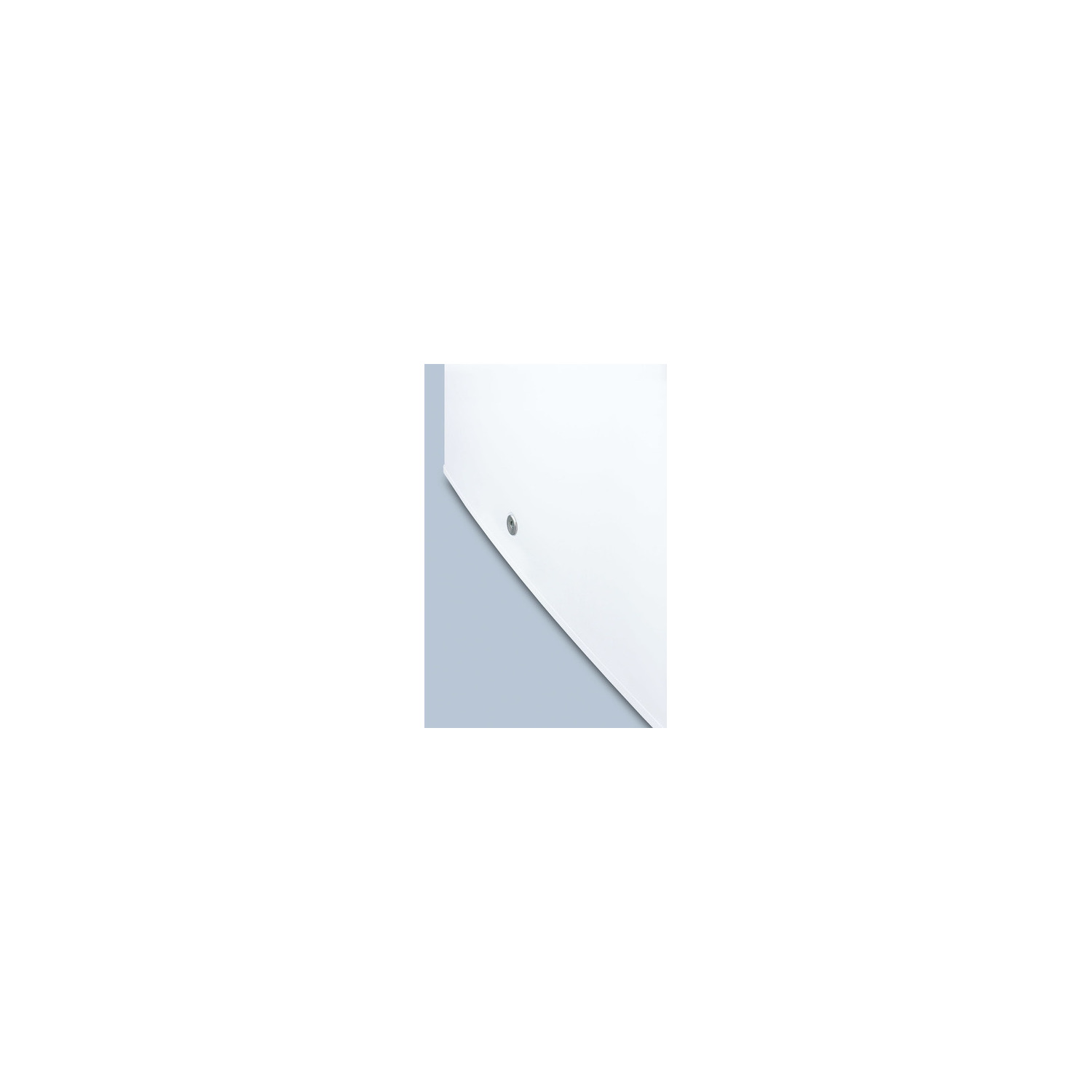

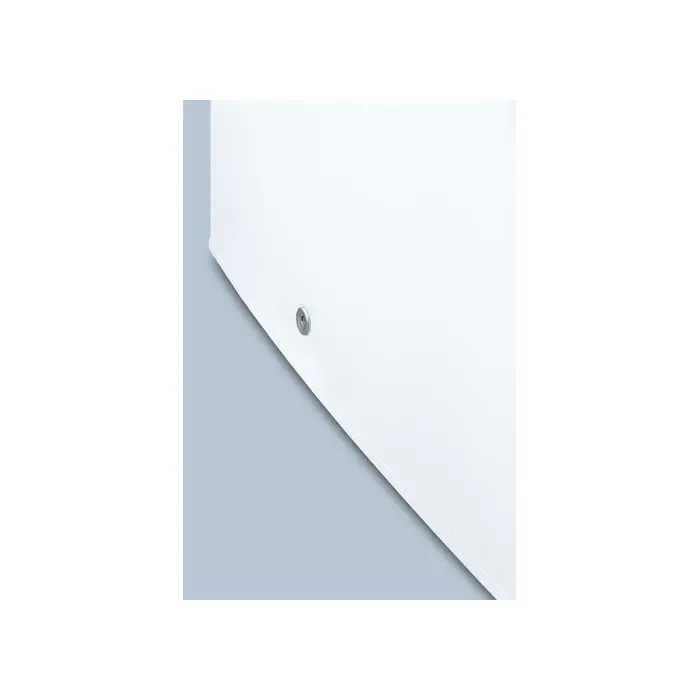

Factory installed lock Keyed lock for a secure interior

Manual defrost Static cooling system for improved temperature stability

-20ºC capable Low temperature capability ideal for certain sensitive items

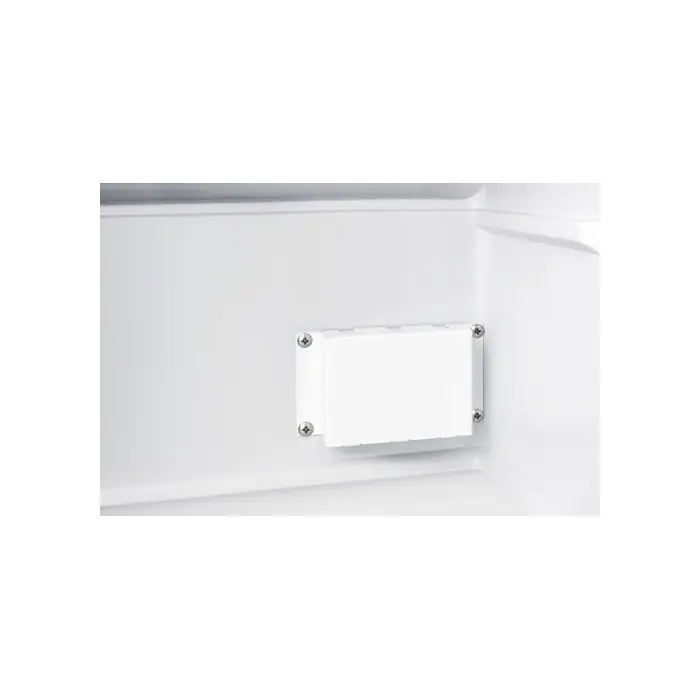

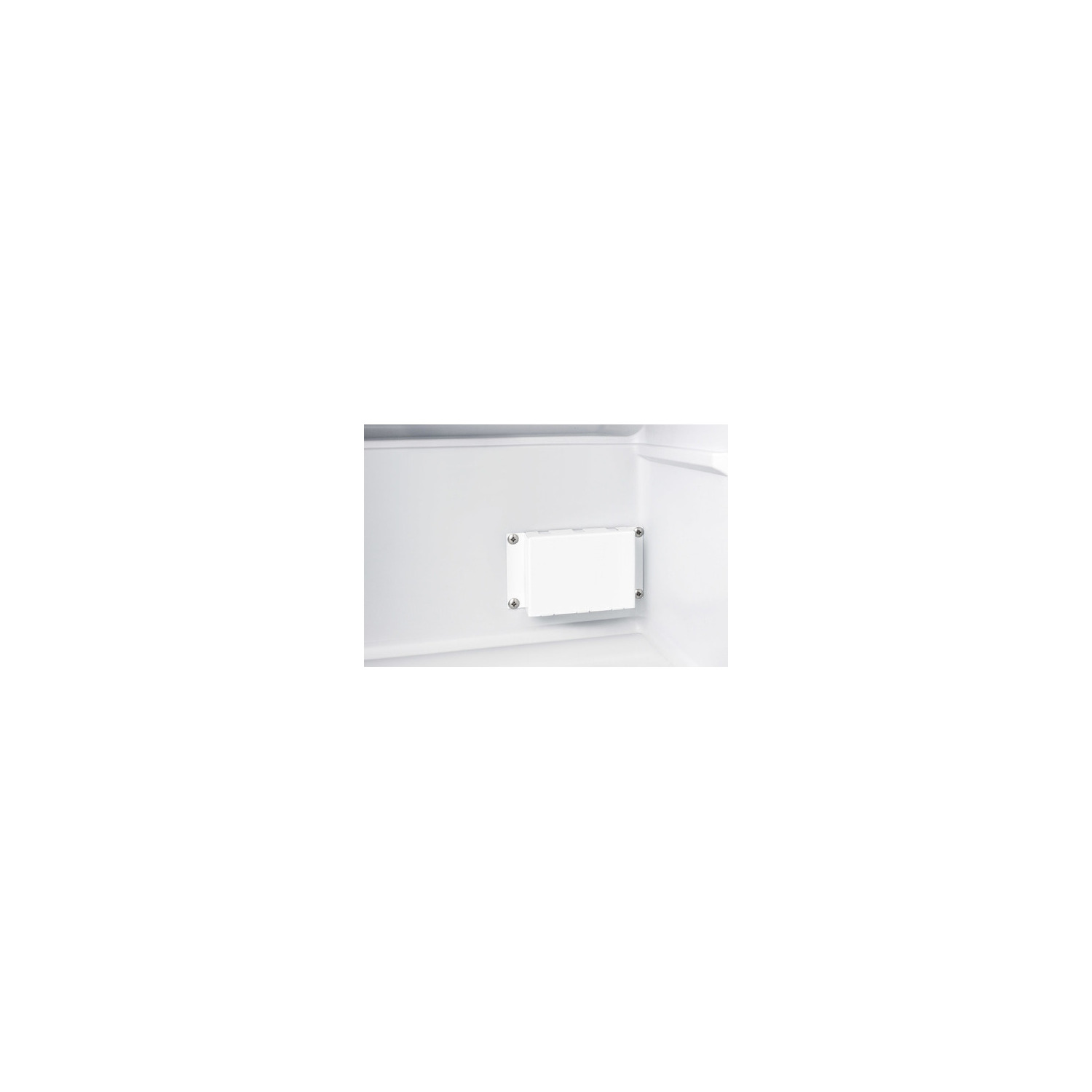

Access port Includes a factory installed probe hole for users to install their own monitoring equipment

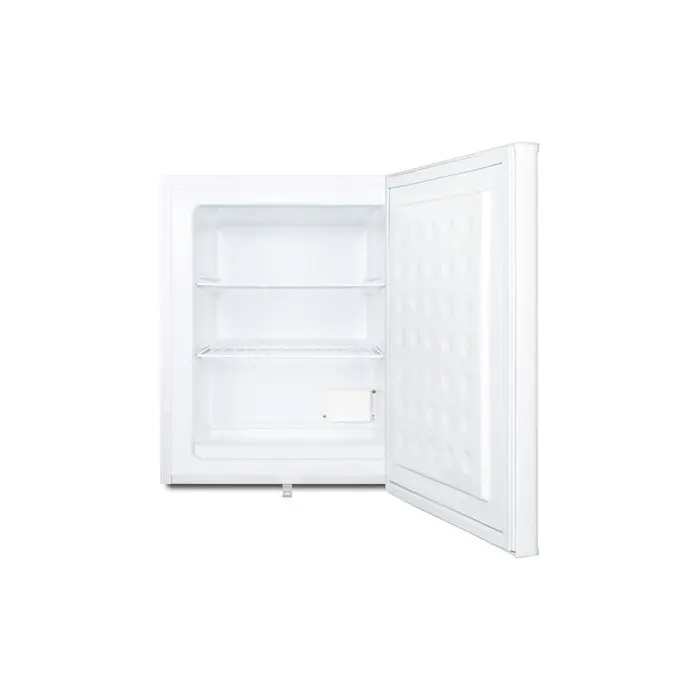

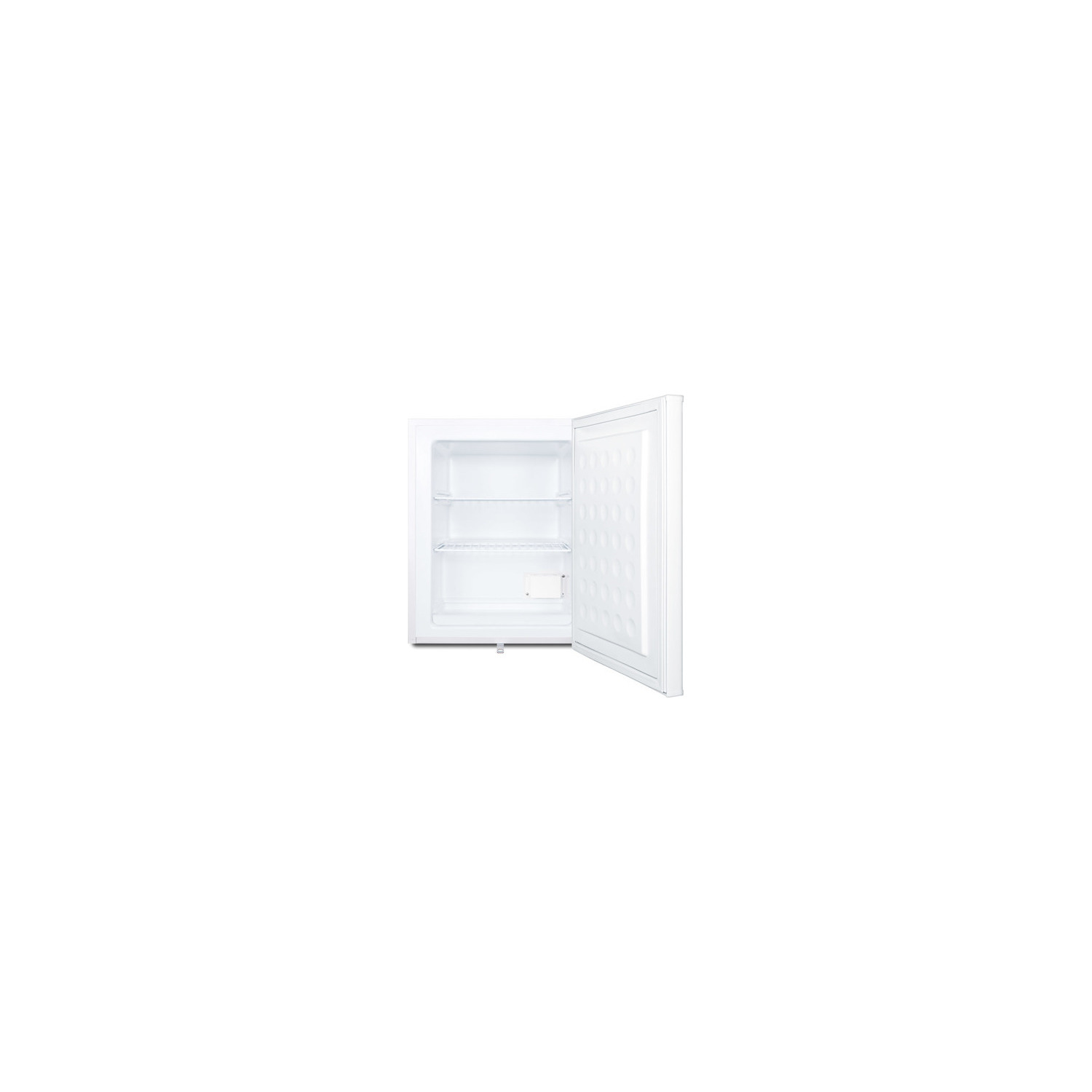

Removable shelves Wire shelves can be removed to accommodate different sizes or for easy cleanup

One piece interior liner Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Flat door liner Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

Adjustable thermostat Dial thermostat located inside the unit

Foamed-in-place cabinet Designed to ensure a sufficiently insulated interior

Magnetic door gasket Quality door gaskets ensure a tight seal for energy savings and improved performance

Approved for use in the USA and Canada ETL and ETL-C listed for North American sales

Fully finished cabinet Allows the unit to be used freestanding

Factory reversible door Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
