Summit Compact manual defrost all-freezer for medical/general purpose use, with lock and reversible door, 7.61101e+011, FS30L

Accucold by Summit Appliance carries a quality selection of compact freezers for general purpose use in medical facilities.

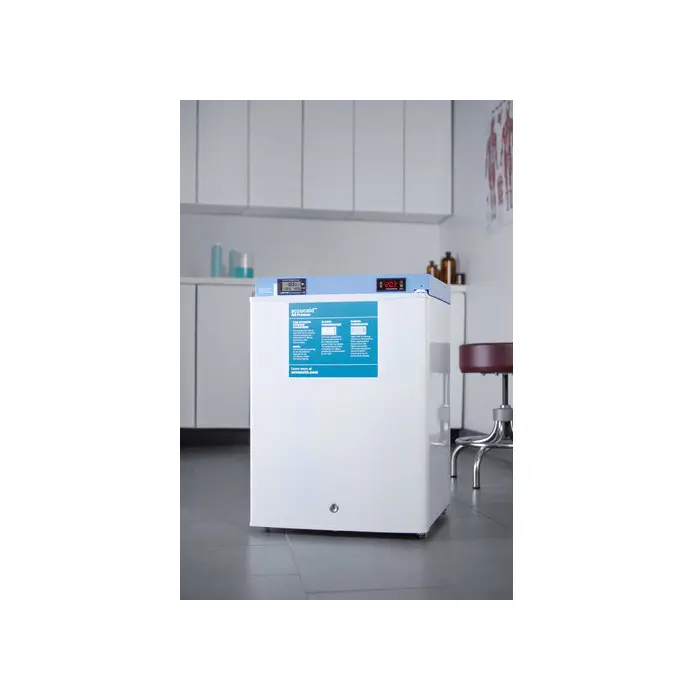

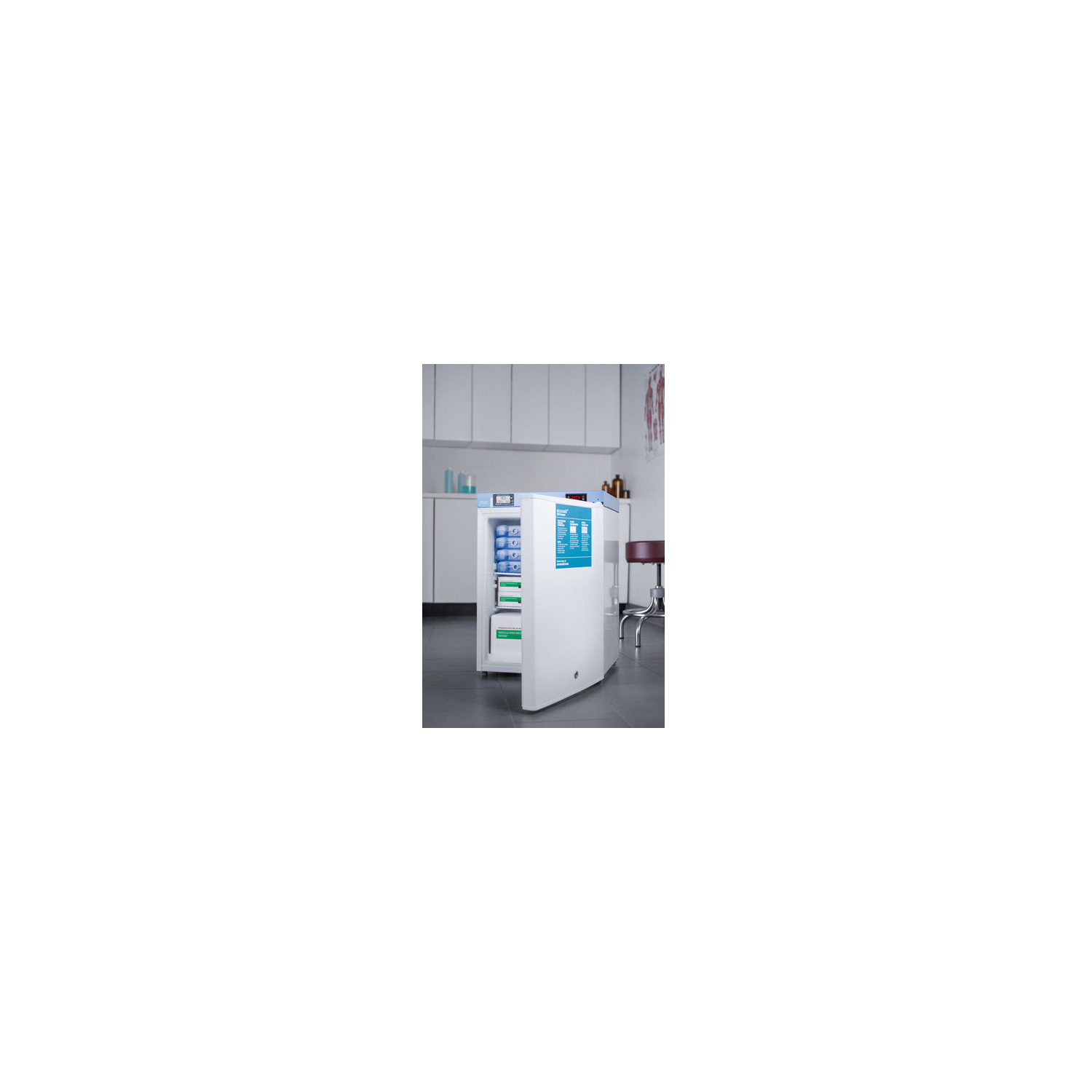

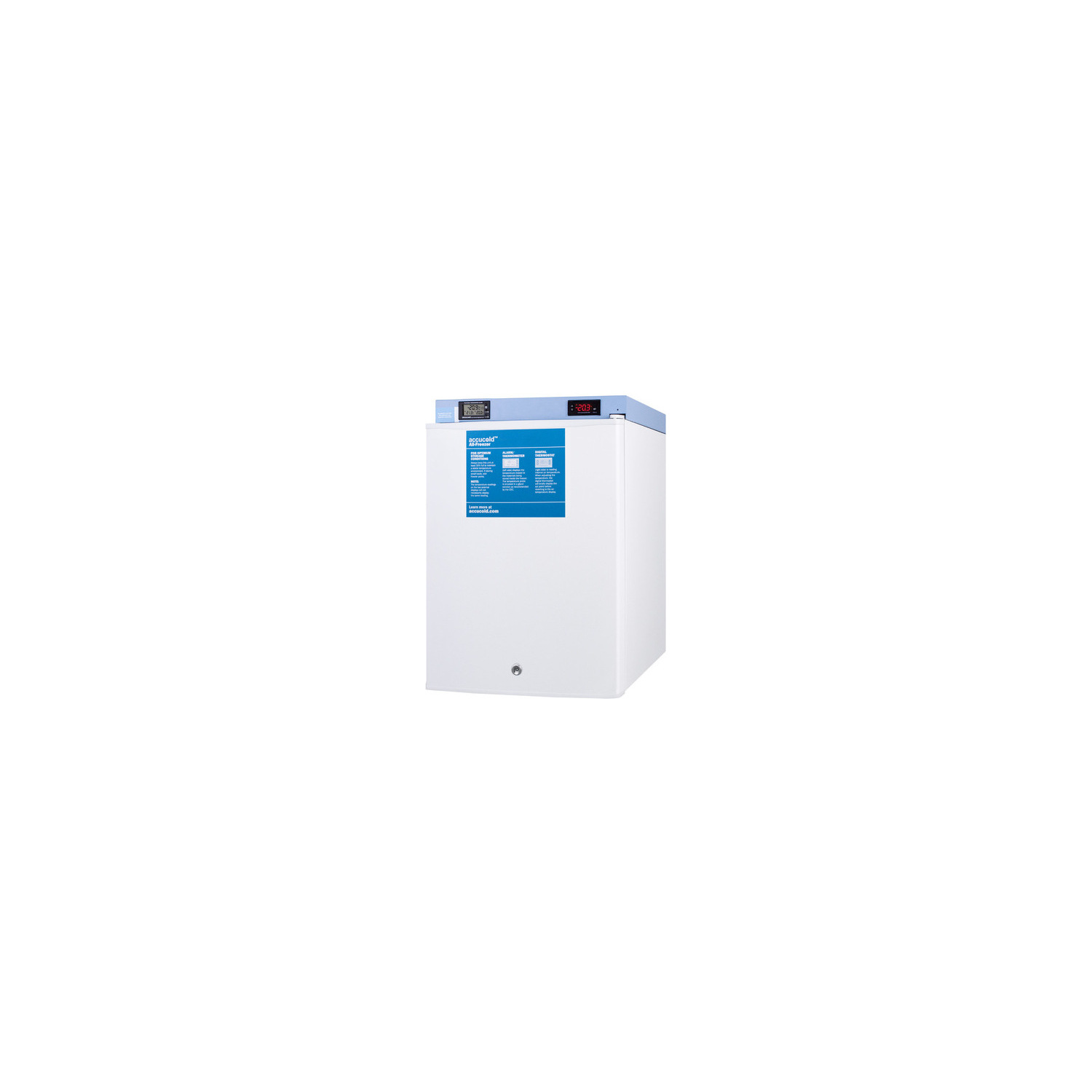

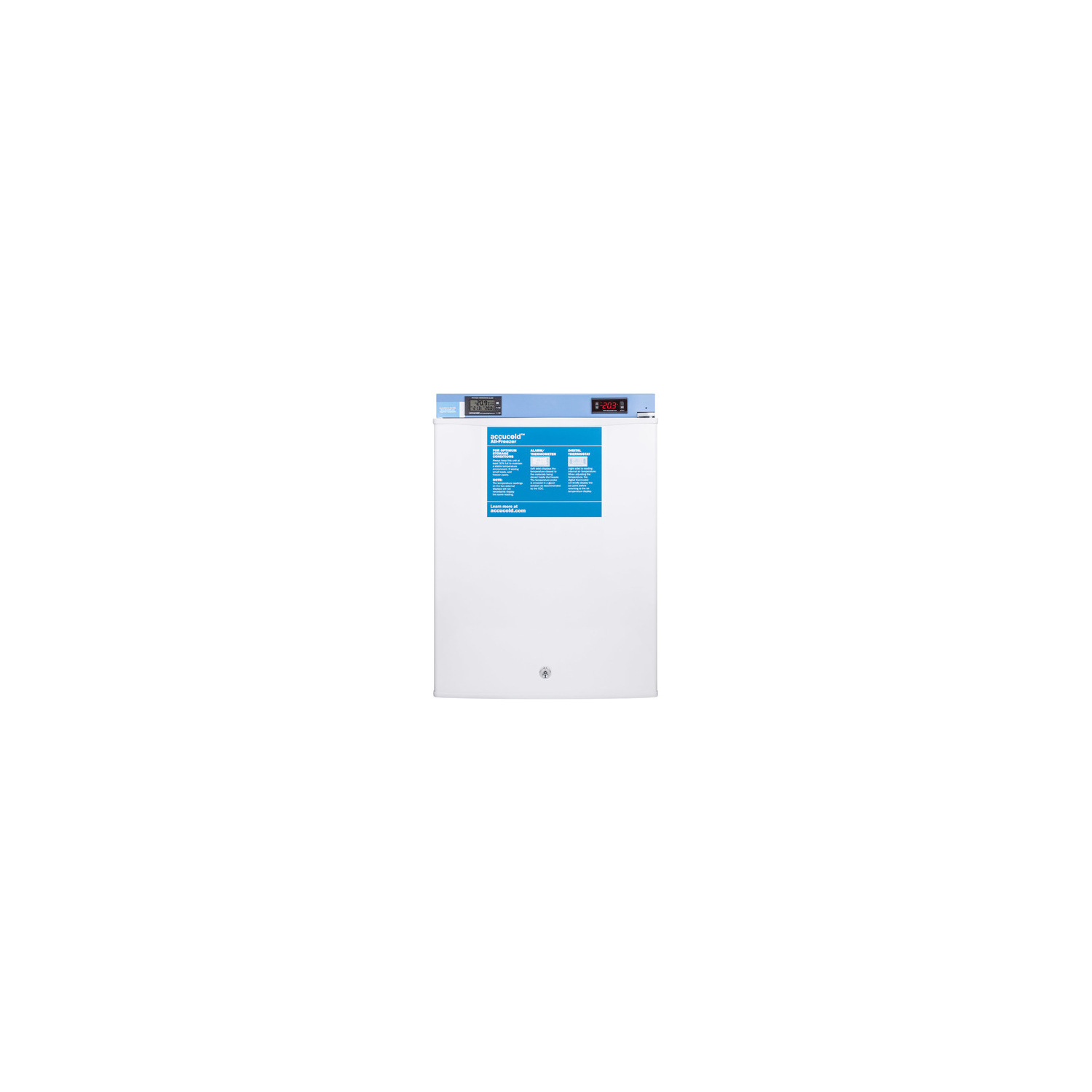

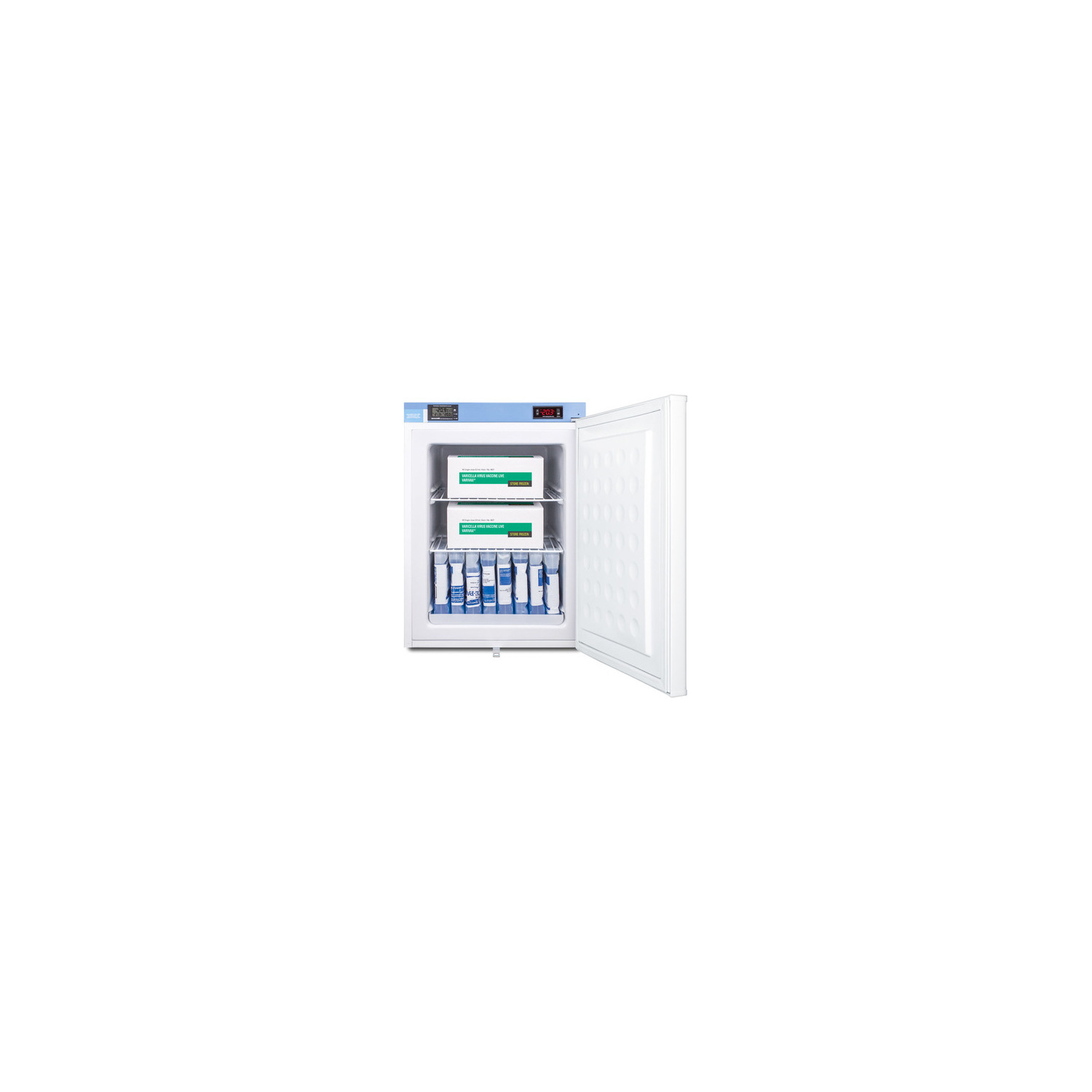

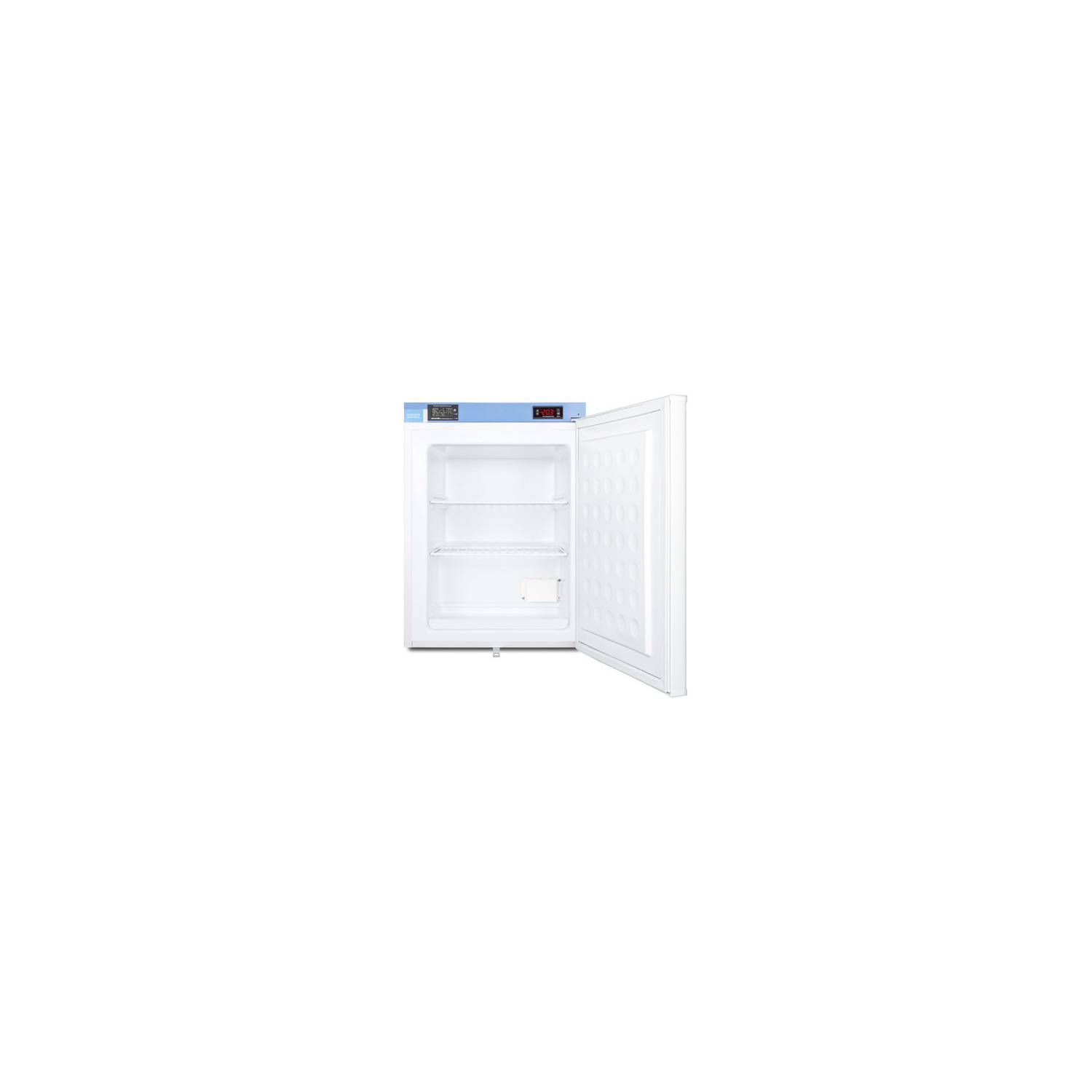

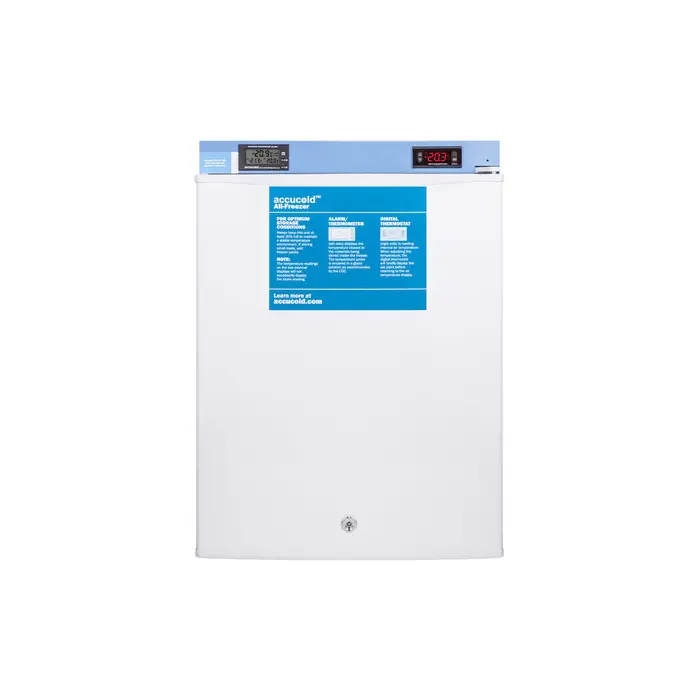

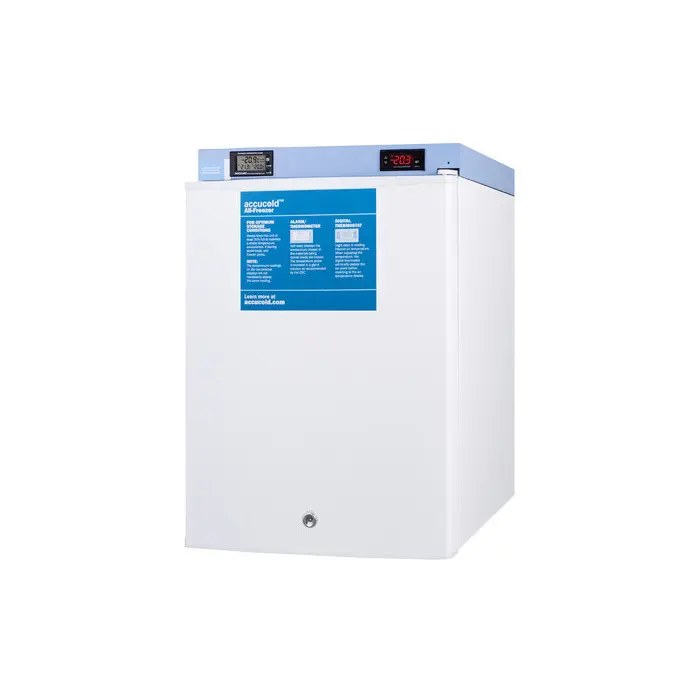

The FS30L is a compact 1.8 cu.ft. all-freezer designed for countertop use. It comes in a white exterior finish, with a factory installed lock on the user-reversible door. The interior includes removable wire shelves for optimum circulation and a one-piece interior liner to ensure easy cleanup. The dial thermostat is located inside the unit. This freezer is manual defrost and operates at an average temperature of -20ºC.

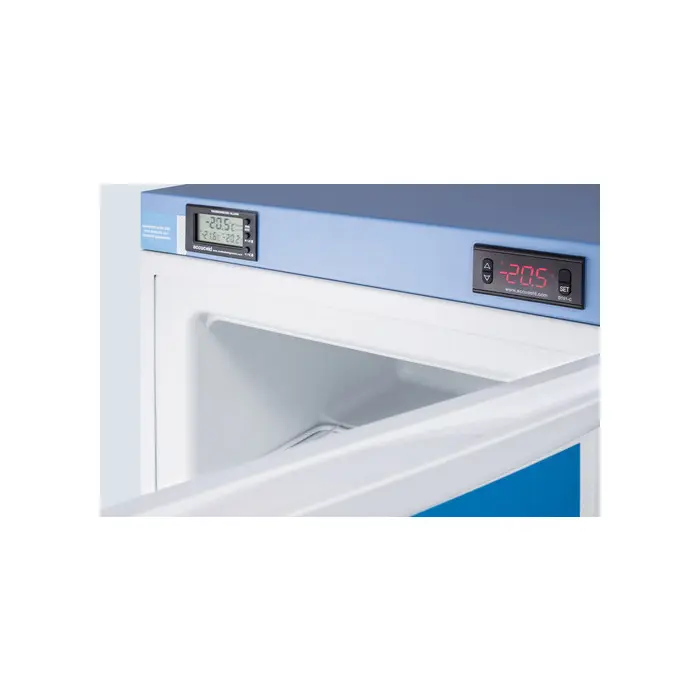

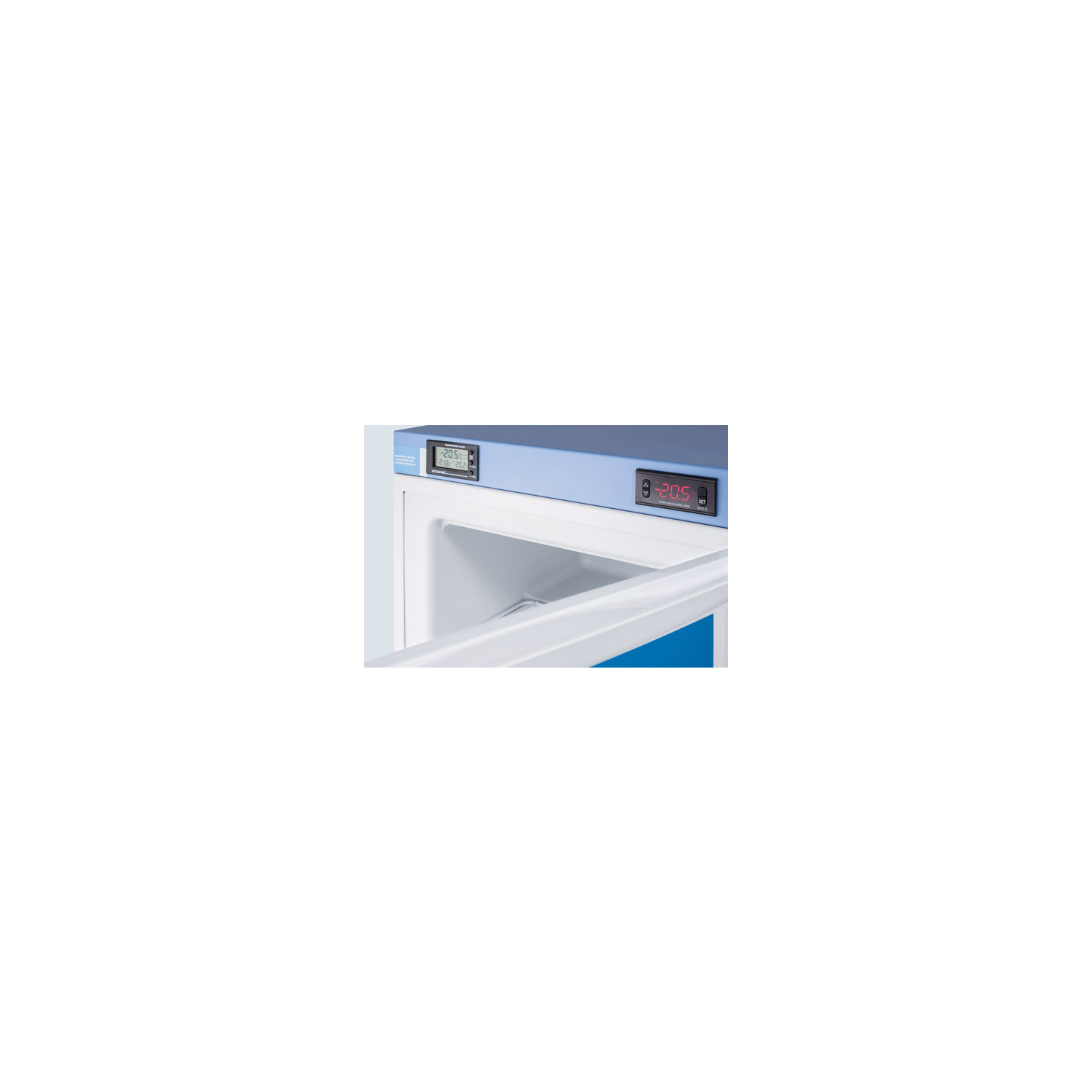

With reliable construction and a convenient size, the FS30L is the ideal freezer for storing select items in institutional facilities. This unit can also be ordered with more advanced medical features, including a digital thermostat, self-closing door, temperature alarm, and more.

Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For more information, browse Accucold's purpose-built line or contact our product specialists at 1-888-4-MED-LAB.

SPECIFICATIONS

Overview

Nominal Height 25.0" (64 cm)

Height of Cabinet 24.5" (62 cm)

Height to Hinge Cap 24.63" (63 cm)

Nominal Width 19.0" (48 cm)

Width 18.5" (47 cm)

Nominal Depth 18.0" (46 cm)

Depth 17.75" (45 cm)

Depth with door at 90° 34.5" (88 cm)

Capacity 1.8 cu.ft. (51 L)

Defrost Type Manual

Door White

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 0.8

Voltage/Frequency 115 V AC/60 Hz

Weight 43.0 lbs. (20 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101029207

Freezer

Door Swing RHD

Reversible Yes

Interior Height 18.63" (47 cm)

Interior Width 13.38" (34 cm)

Interior Depth 13.0" (33 cm)

Shelf Type Wire

Shelf Qty 2

Thermostat Type Dial

Refrigerant Type R600a

Refrigerant Amount 0.8 oz.

Level Legs 2

Compressor Step Height 8.0" (20 cm)

Compressor Step Width 13.38" (34 cm)

Compressor Step Depth 5.75" (15 cm)

Sound Level 33.3 dB

FEATURES

Compact dimensions Sized for easy use on top of counters

Fully finished cabinet Allows the unit to be used freestanding

Manual defrost Static cooling system for improved temperature stability

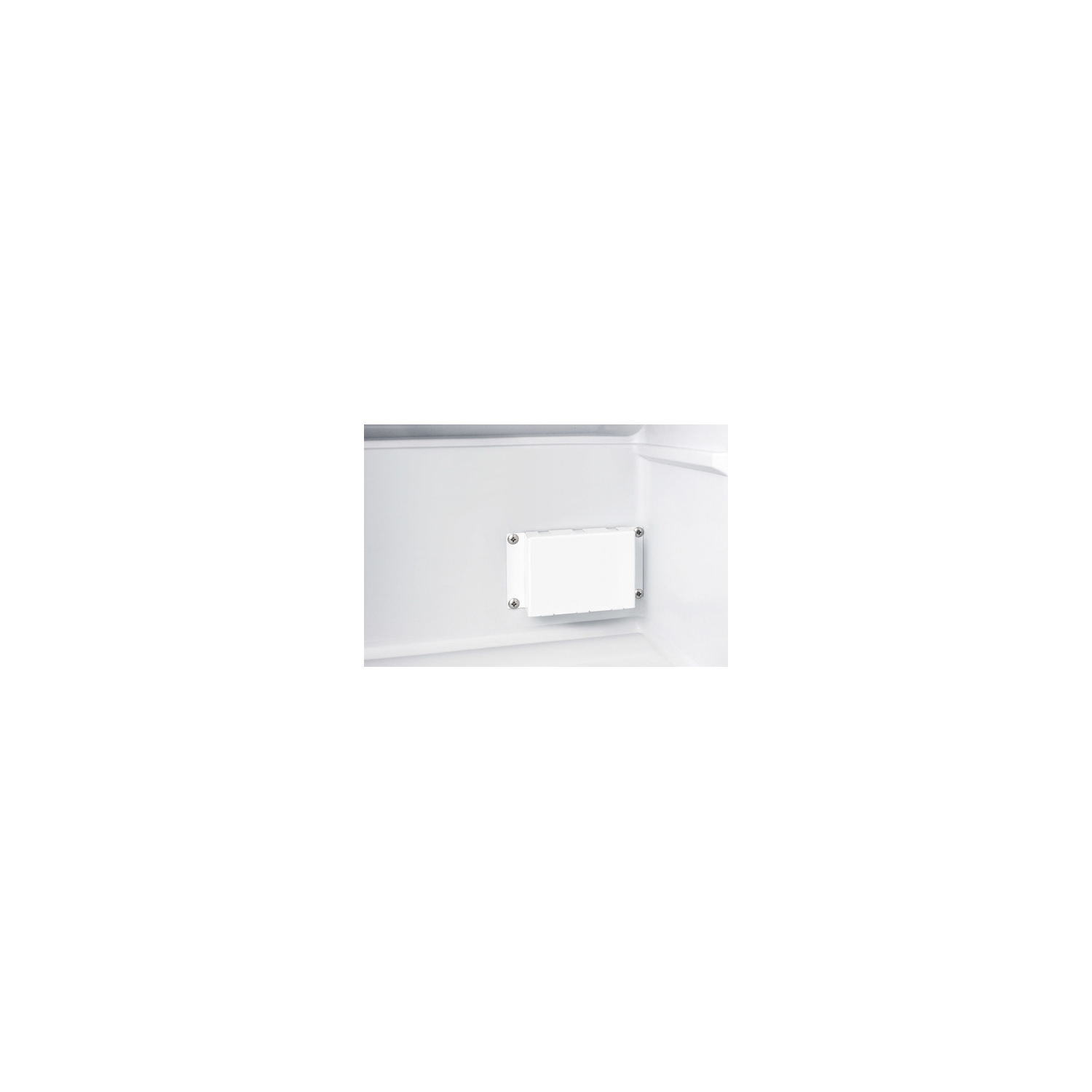

Adjustable thermostat Dial thermostat located inside the unit

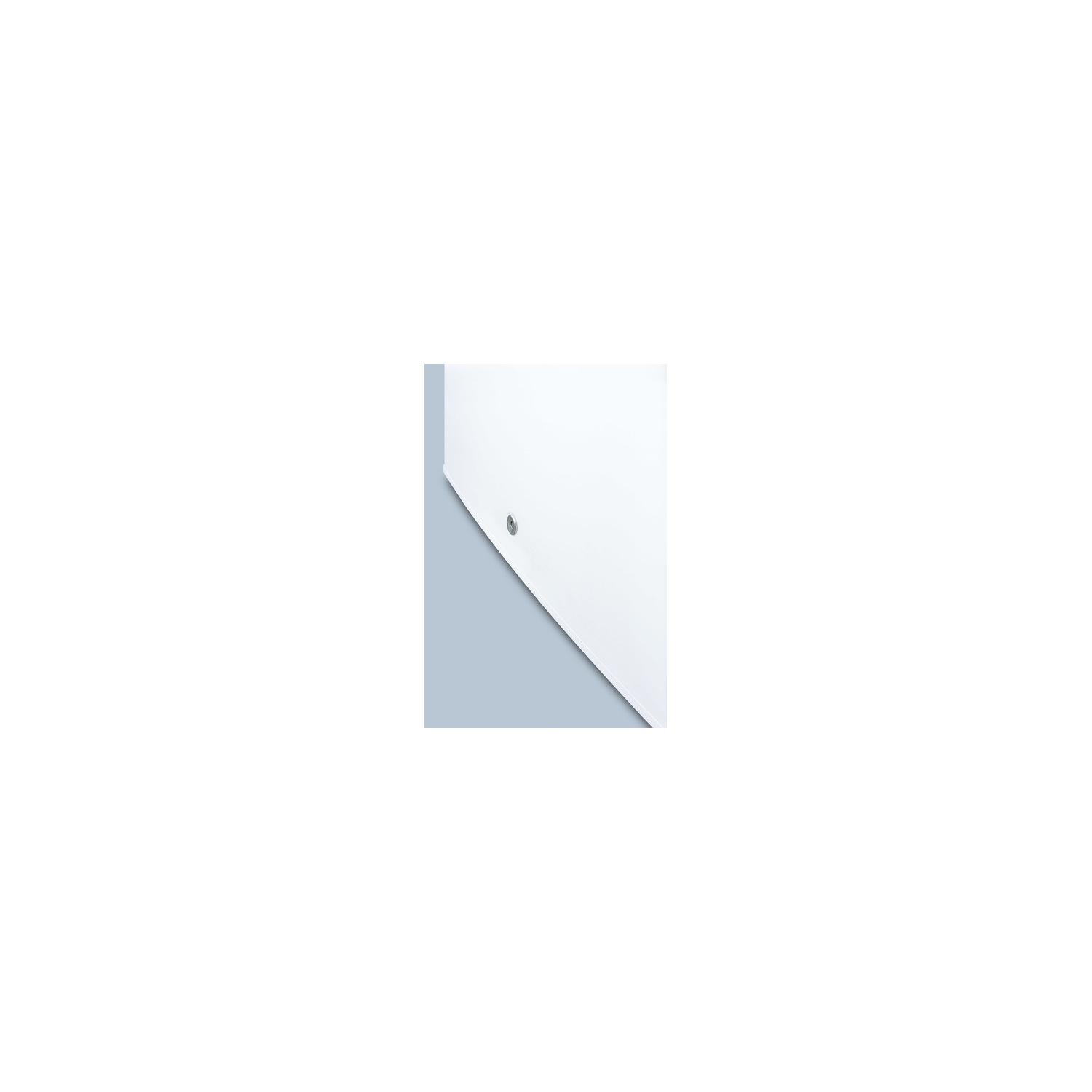

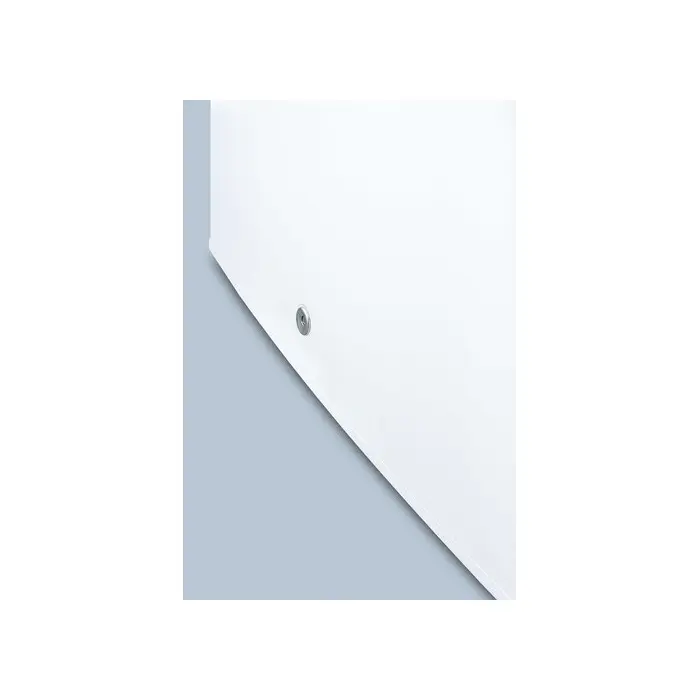

Factory installed lock Keyed lock for a secure interior

Reversible door User-reversible door swing allows for more flexibility in placing the unit

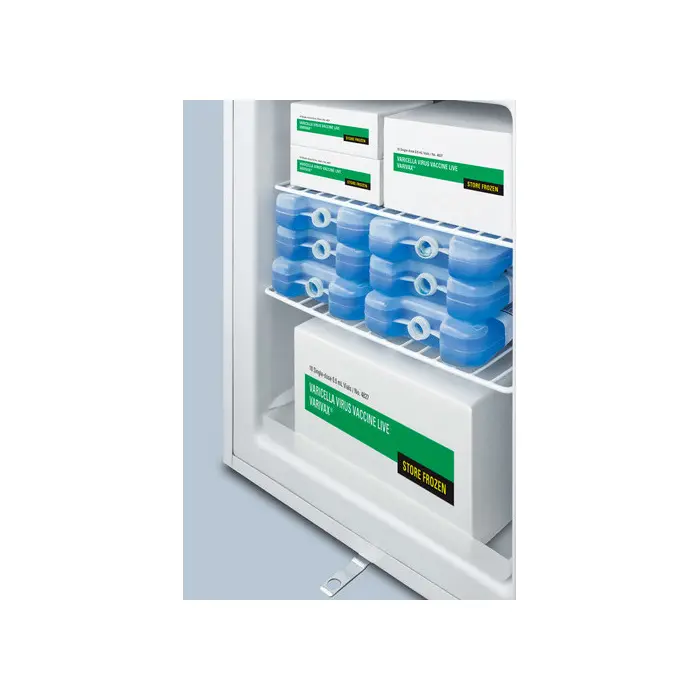

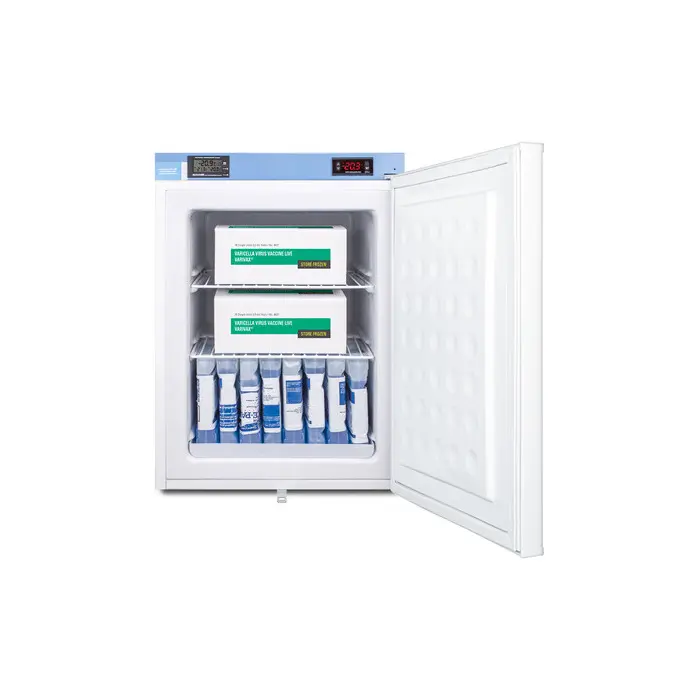

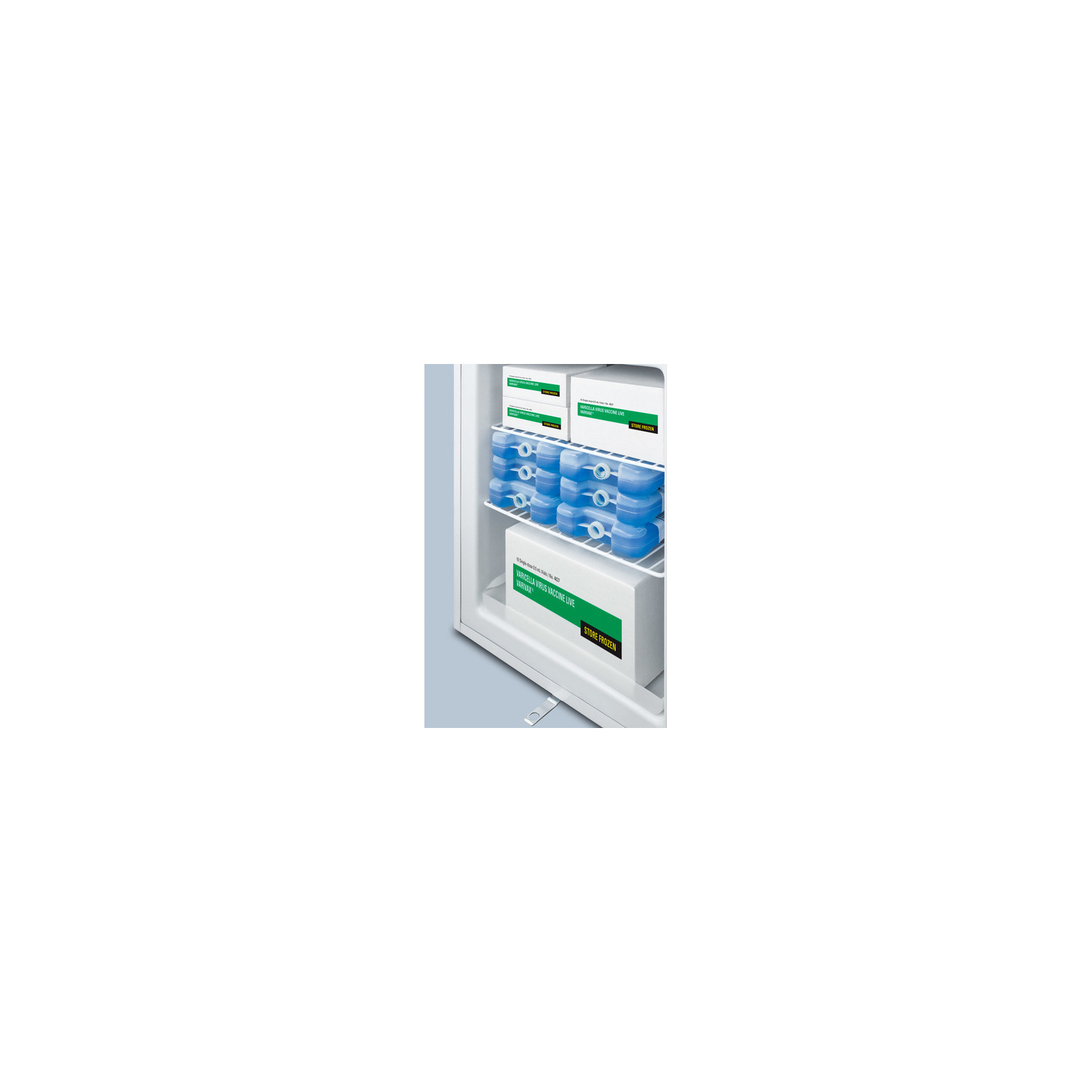

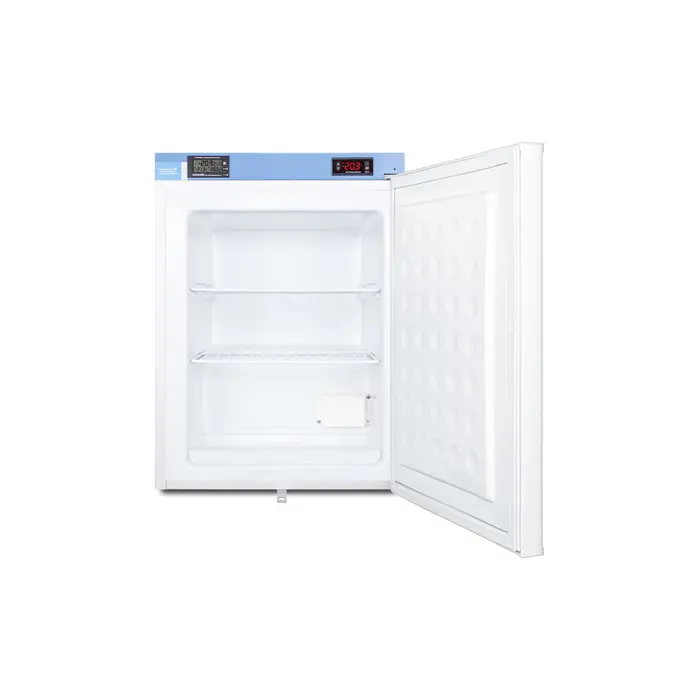

Removable shelves Wire shelves can be removed to accommodate different sizes or for easy cleanup

Flat door liner Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

One piece interior liner Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
