Summit Compact commercially listed manual defrost all-freezer with NIST calibrated thermometer and lock, 7.61101e+011, FS30L7PLUS2

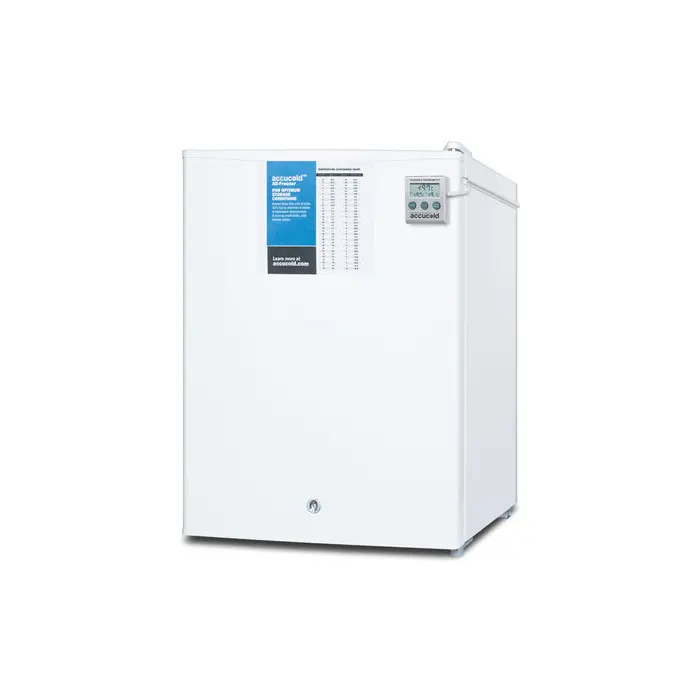

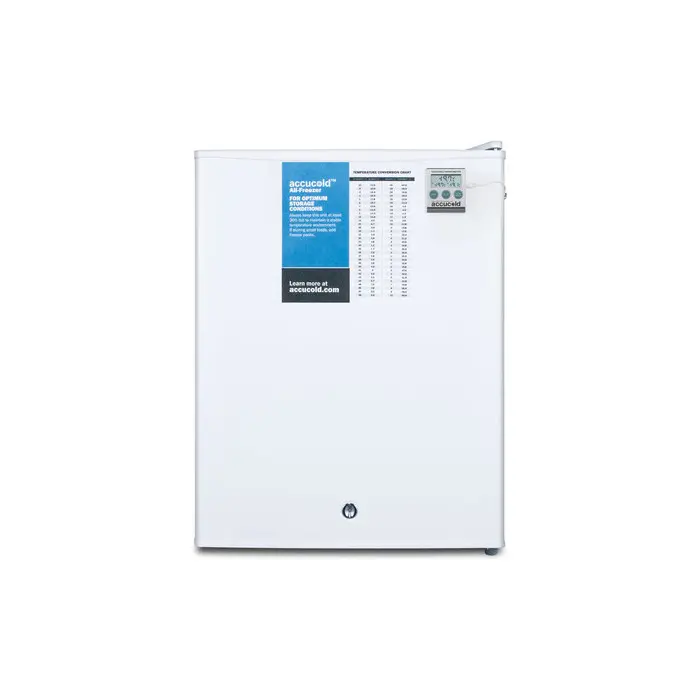

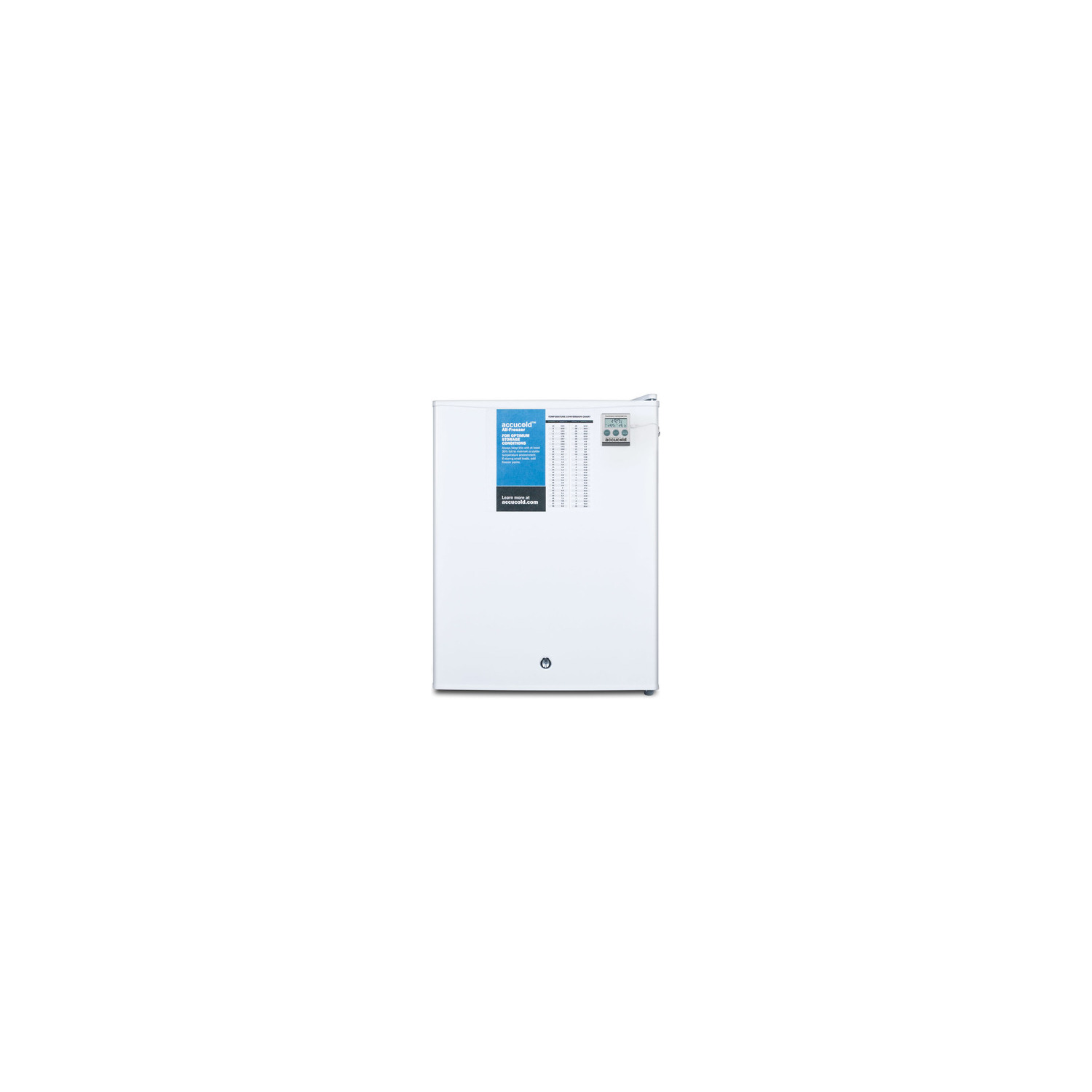

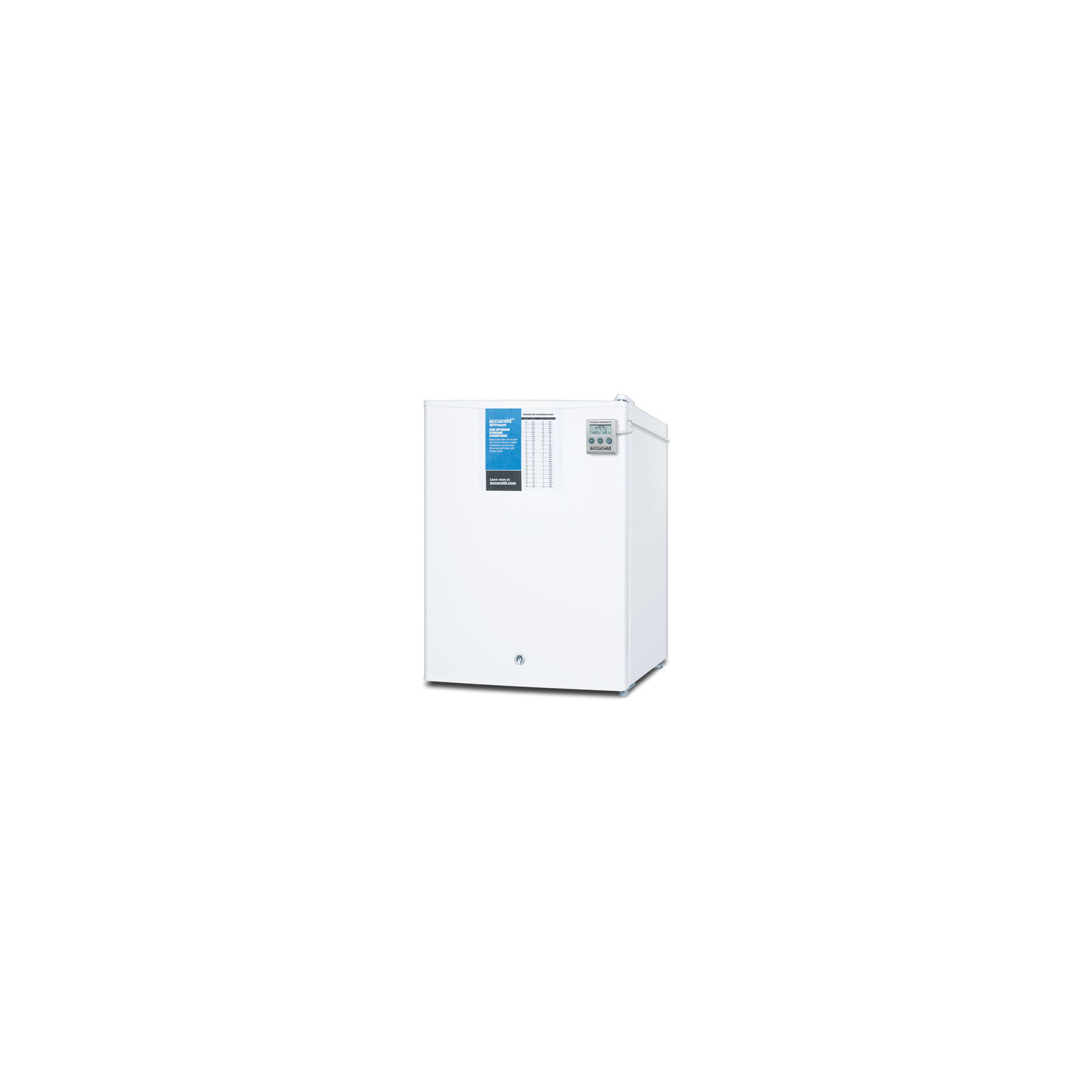

The FS30L7PLUS2 is a compact 1.8 cu.ft. all-freezer that is ETL-S listed to NSF-7 commercial standards. It comes in a white exterior. The door includes a factory-installed lock and a thermometer calibrated to NIST standards in our ISO/IEC 17025:2017 laboratory. It displays the current, minimum, and maximum temperature to the nearest tenth degree viewable in Celsius or Fahrenheit. The buffered temperature probe is stored in a glycol-filled bottle to ensure the temperature reading best reflects the temperature of other stored freezer contents. This freezer is manual defrost and operates at an average temperature of -20ºC.

With reliable construction and a convenient size, the FS30L7PLUS2 is the ideal freezer for storing select items in institutional facilities. This unit can also be ordered with more advanced medical features, including a digital thermostat, self-closing door, temperature alarm, and more.

Accucold's PLUS2 series freezers are intended for a wide variety of basic storage only. Storage of high-value vaccines, life science materials, medical, or clinical biologicals require a product with design features including, but not limited to tighter temperature controls, monitoring, and/or back-up.

SPECIFICATIONS

Overview

Nominal Height 25.0" (64 cm)

Height of Cabinet 24.5" (62 cm)

Height to Hinge Cap 24.63" (63 cm)

Nominal Width 19.0" (48 cm)

Width 18.5" (47 cm)

Nominal Depth 18.0" (46 cm)

Depth 17.75" (45 cm)

Depth with door at 90° 34.5" (88 cm)

Capacity 1.8 cu.ft. (51 L)

Defrost Type Manual

Door White

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 0.8

Voltage/Frequency 115 V AC/60 Hz

Weight 50.0 lbs. (23 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101057774

Freezer

Door Swing RHD

Reversible Factory Reversible

Interior Height 18.63" (47 cm)

Interior Width 13.38" (34 cm)

Interior Depth 13.0" (33 cm)

Shelf Type Wire

Shelf Qty 2

Thermostat Type Dial

Refrigerant Type R600a

Refrigerant Amount 0.8 oz.

Level Legs 2

Compressor Step Height 8.0" (20 cm)

Compressor Step Width 13.38" (34 cm)

Compressor Step Depth 5.75" (15 cm)

FEATURES

Commercially approved ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments

Compact dimensions Sized for easy use on top of counters

Manual defrost Static cooling system for improved temperature stability

-20ºC capable Low temperature capability ideal for certain sensitive items

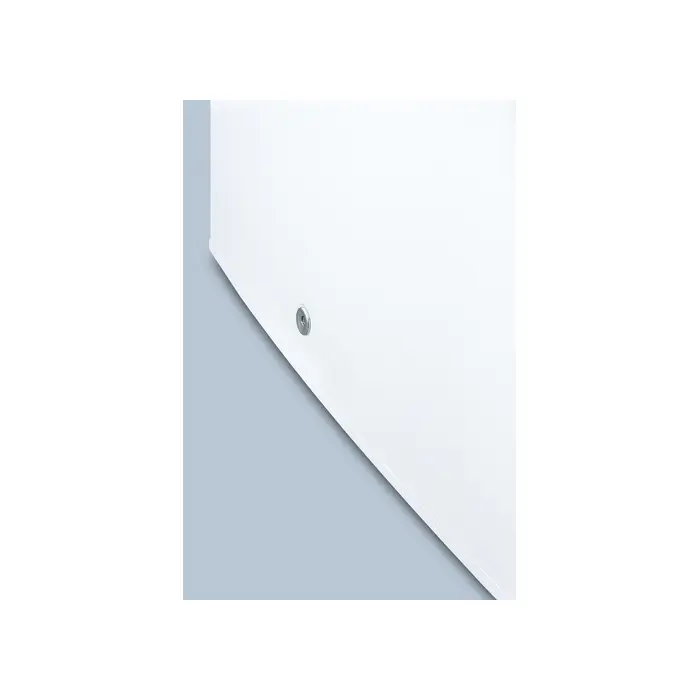

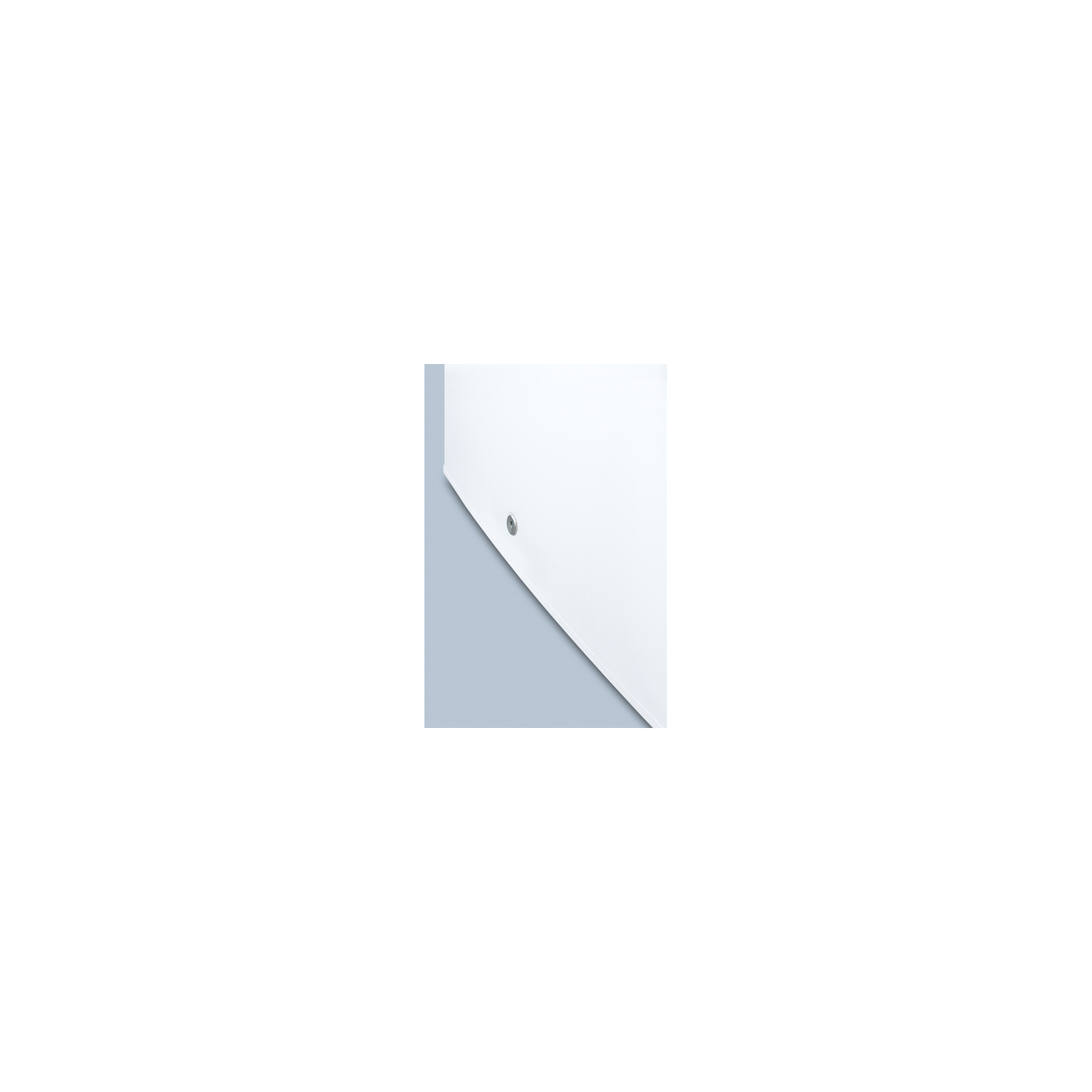

Factory installed lock Keyed lock for a secure interior

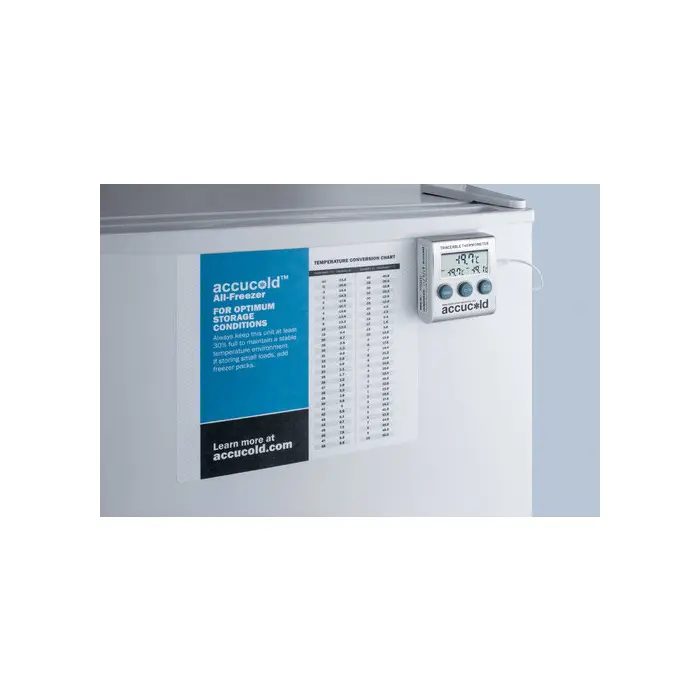

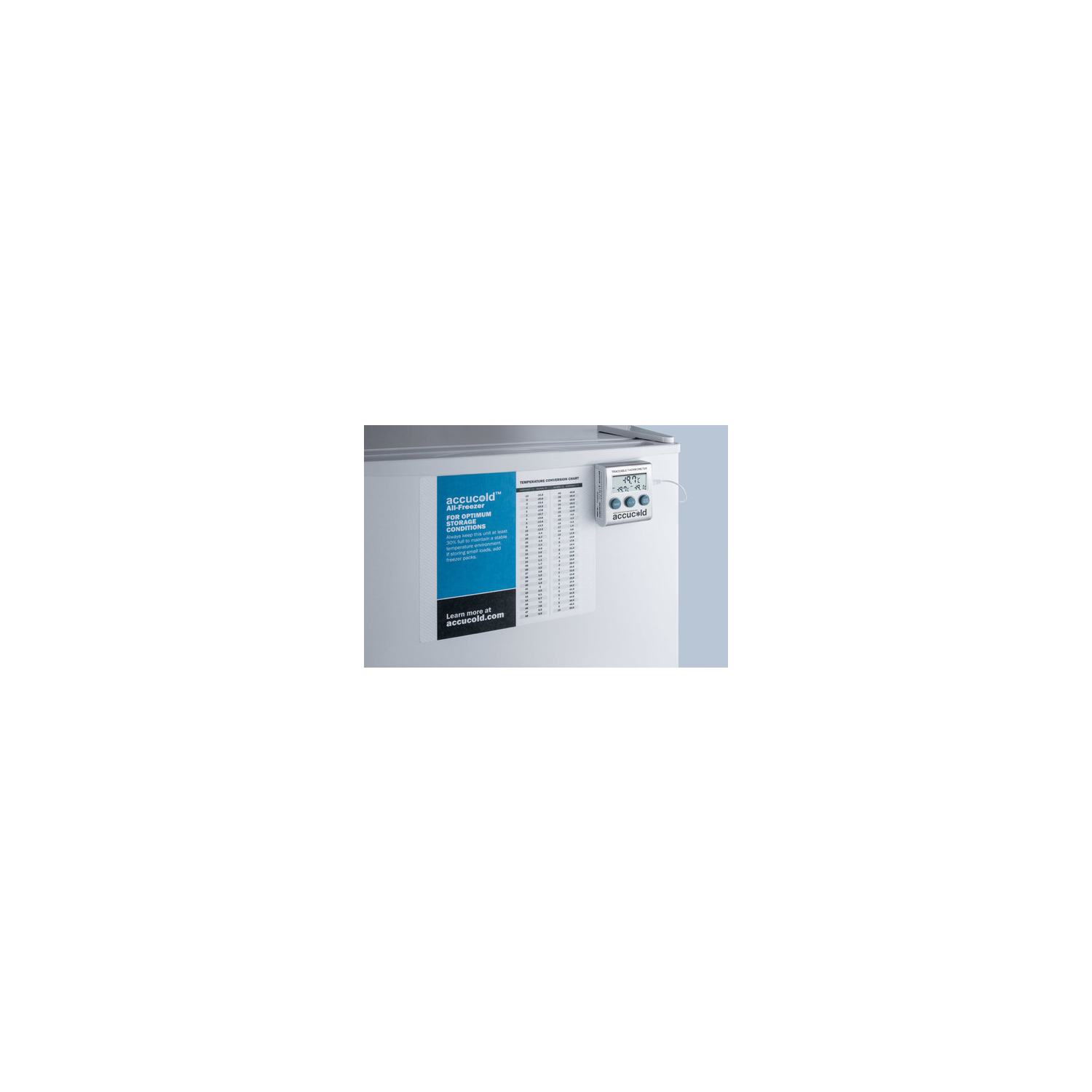

NIST calibrated thermometer Thermometer provides continuous display of the current and high/low temperature to the nearest tenth of a degree, with a readout switchable from Celsius to Fahrenheit at the touch of a button

Buffered temperature probe Thermometer probe is encased in a glycol-filled bottle to better simulate the temperature of stored contents instead of freezer air temperature

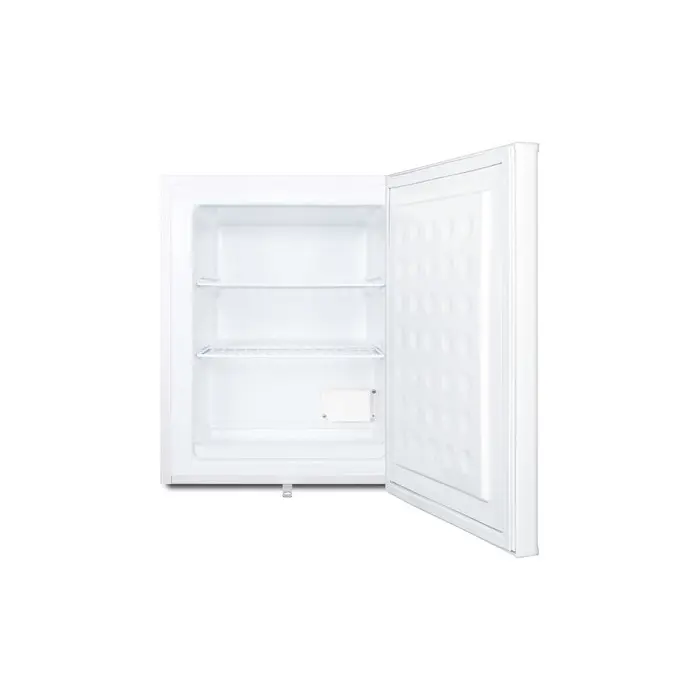

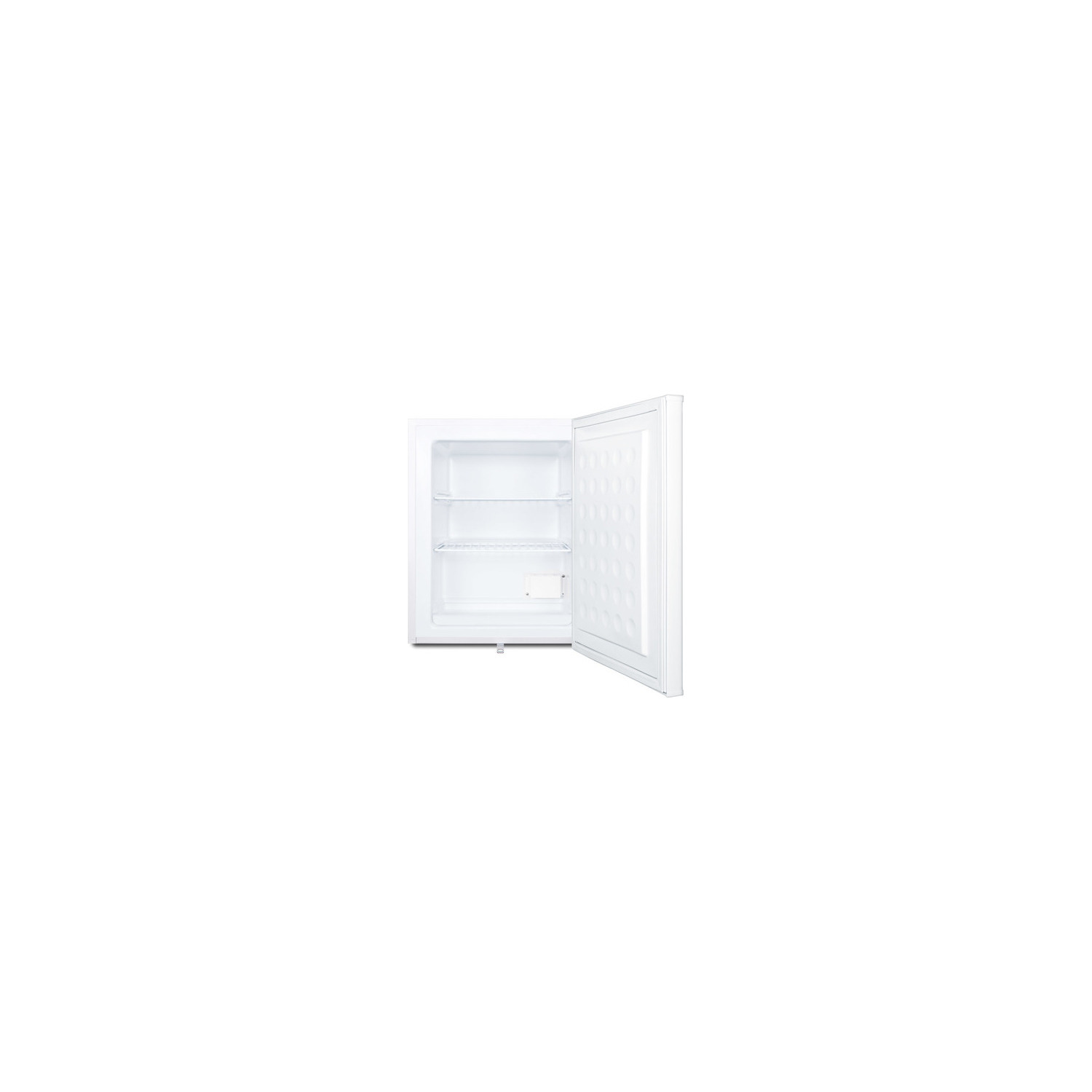

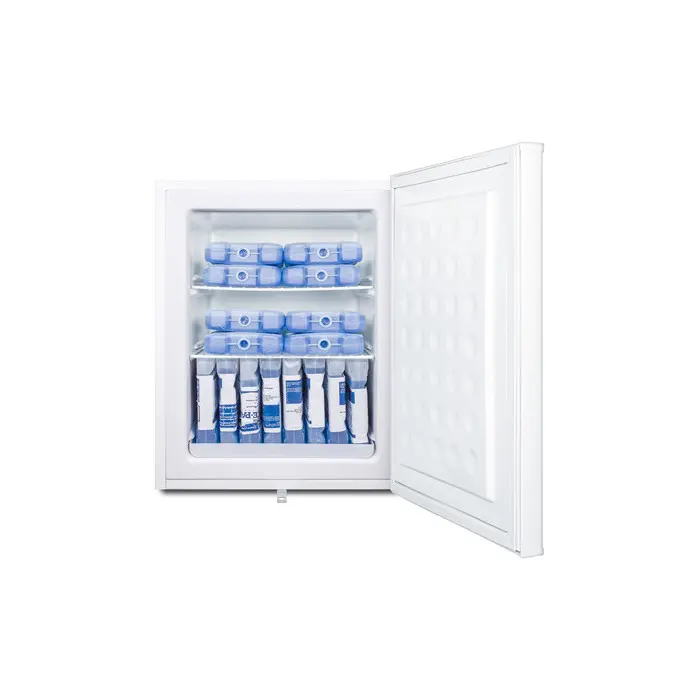

Removable shelves Wire shelves can be removed to accommodate different sizes or for easy cleanup

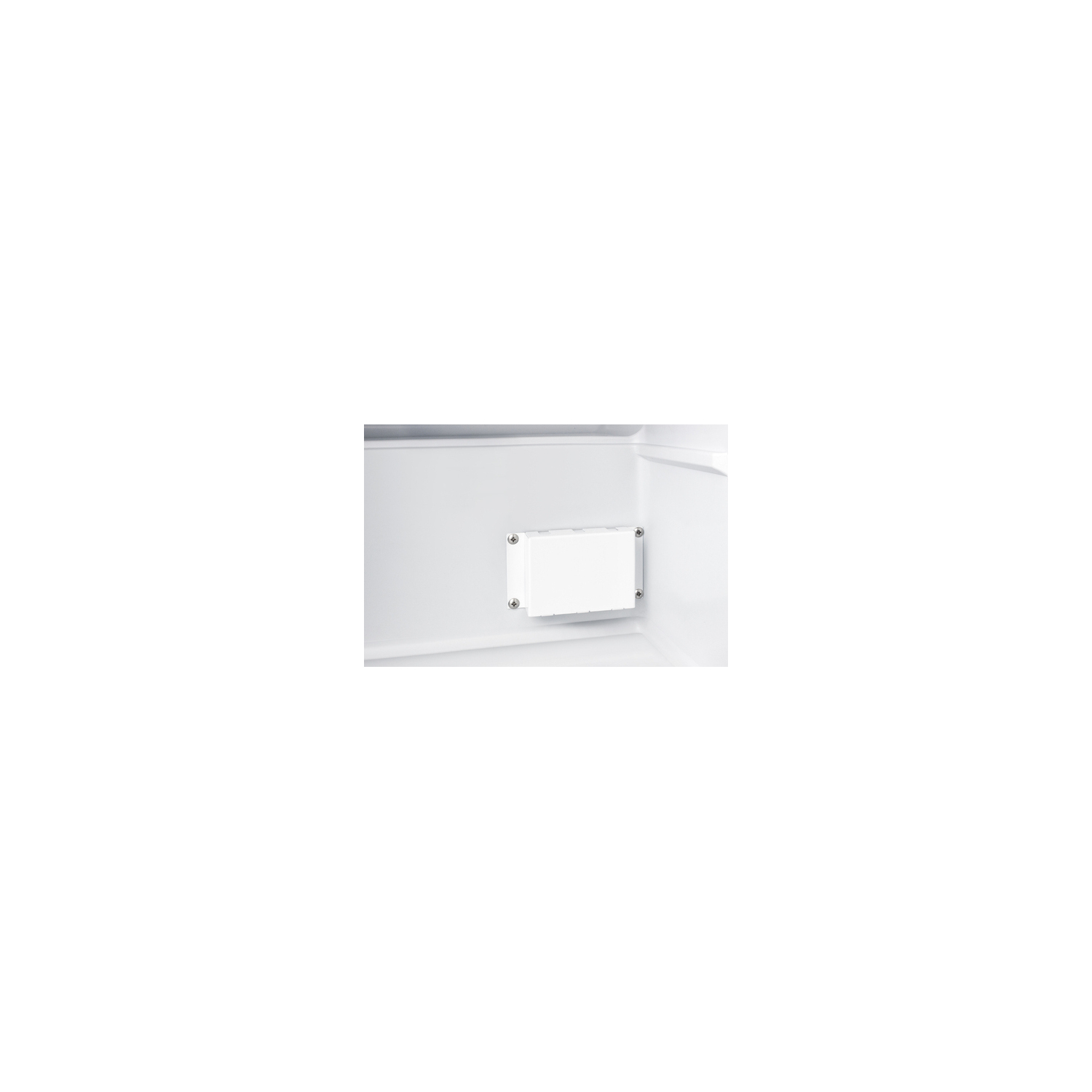

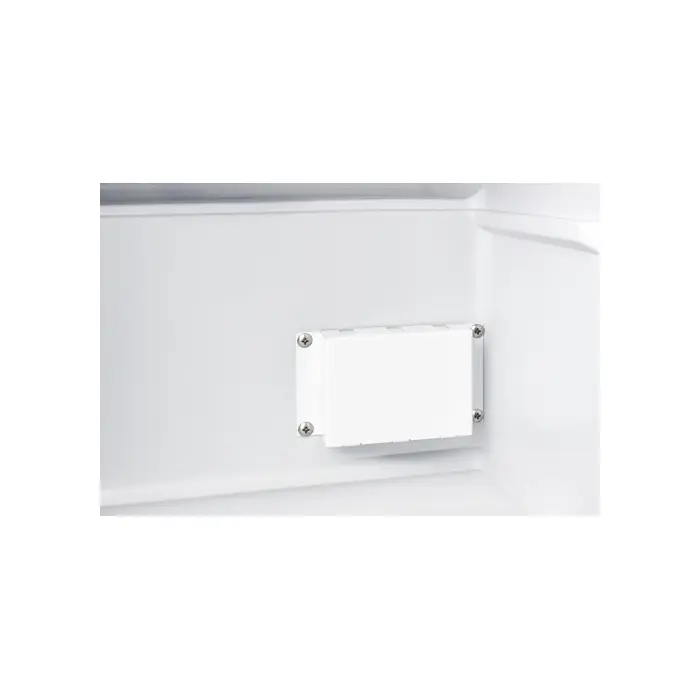

Adjustable thermostat Dial thermostat located inside the unit

Flat door liner Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

One piece interior liner Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Magnetic door gasket Quality door gaskets ensure a tight seal for energy savings and improved performance

Foamed-in-place cabinet Designed to ensure a sufficiently insulated interior

Fully finished cabinet Allows the unit to be used freestanding

Approved for use in the USA and Canada ETL and ETL-C listed for North American sales

Factory reversible door Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
