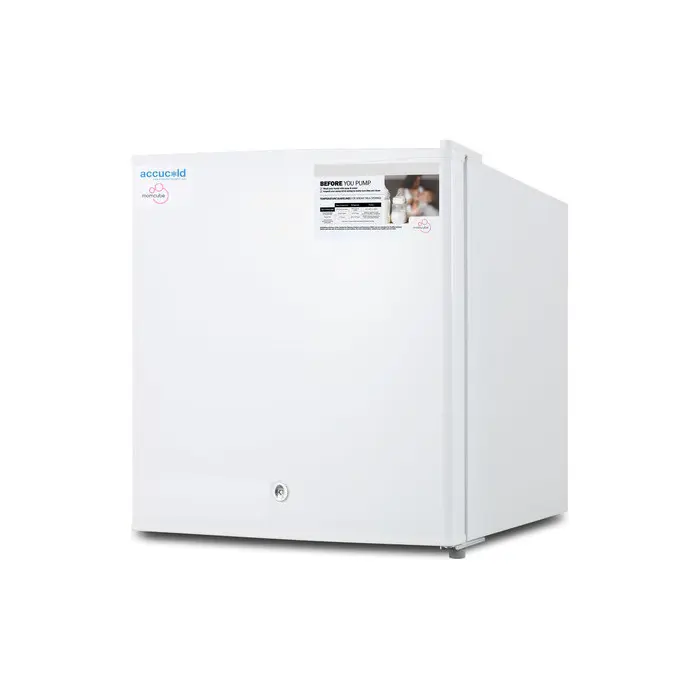

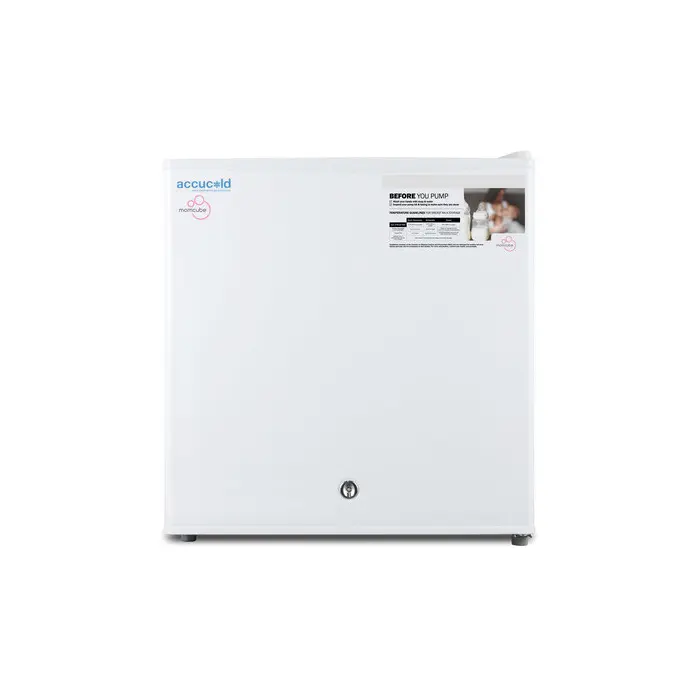

Summit Compact all-freezer for general purpose use, manual defrost with lock, 7.61101e+011, FS24L

ACCUCOLD by SUMMIT Appliance offers a quality line of general purpose all-freezers designed for reliable cold storage in medical, scientific, and laboratory facilities.

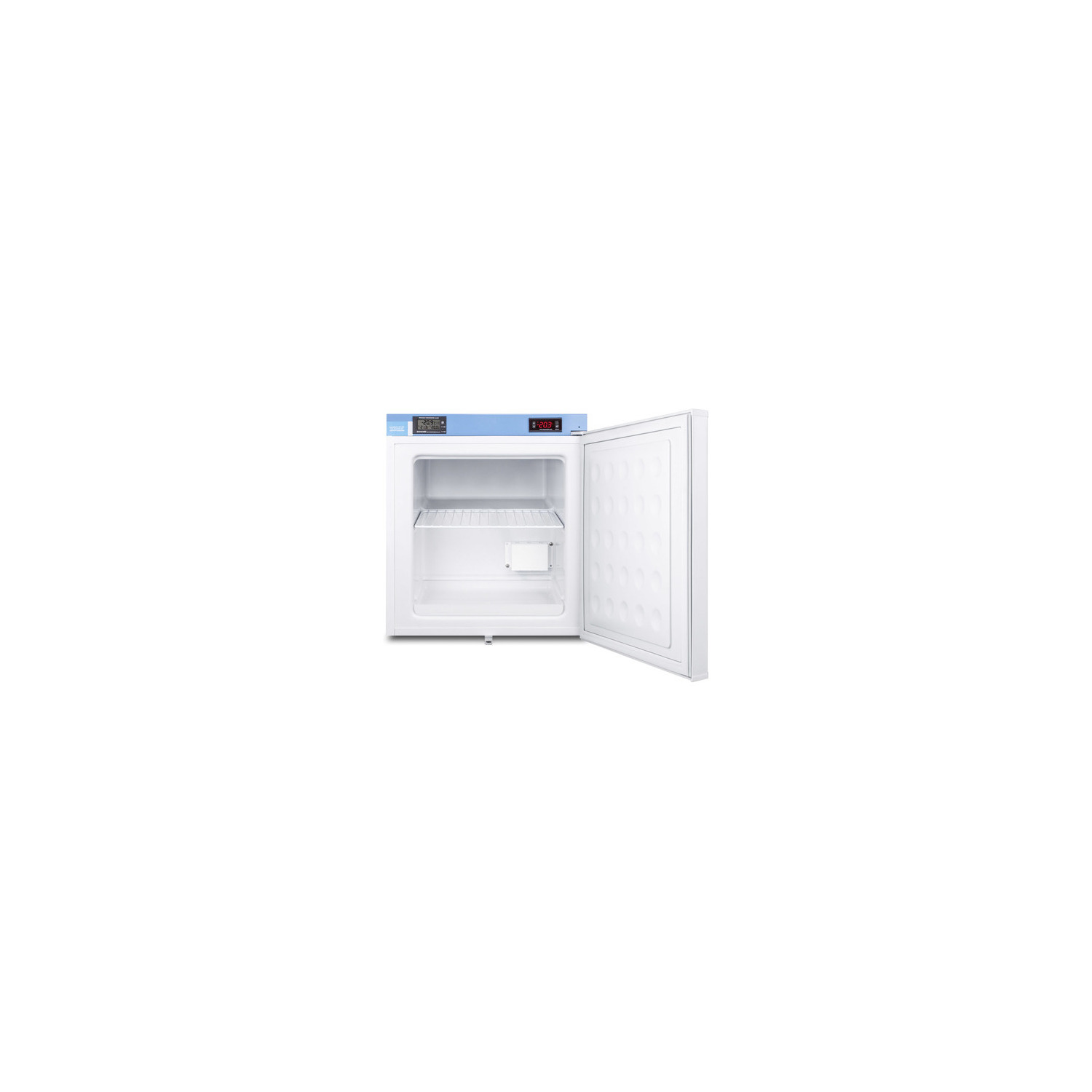

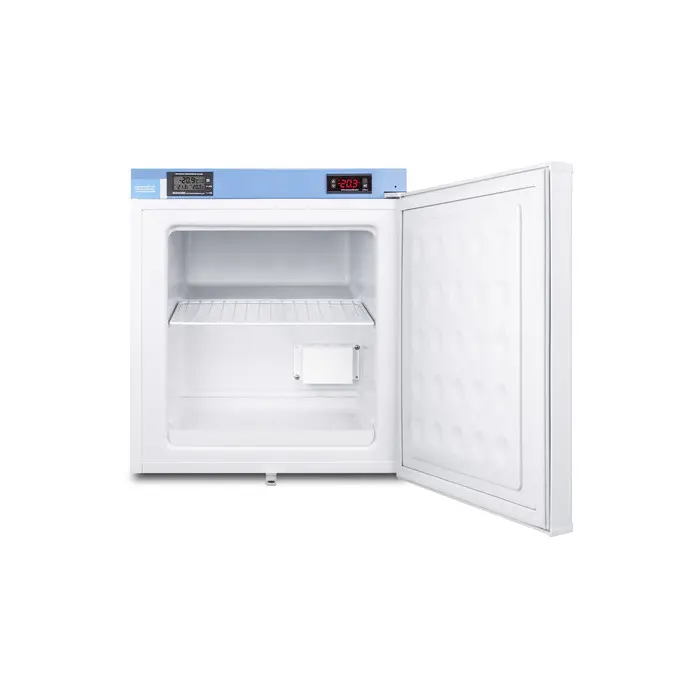

The FS24L is a compact all-freezer designed to reach -20º C, the ideal temperature for long-term storage of select sensitive materials. The 1.4 cu.ft. manual defrost interior offers static cooling for stable results. A removable wire shelf allows easy storage options, with a seamless interior liner to simplify cleanup. The dial thermostat is located inside. This unit has a flat door liner as recommended by the CDC.

The FS24L includes a factory installed lock for added security, with a reversible door that offers more convenience when placing the unit. This model can also be customized with a variety of upgrades, including a digital thermostat, temperature alarm, data logger, and more.

Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For more information, browse Accucold's purpose-built line or contact our product specialists at 1-888-4-MED-LAB.

SPECIFICATIONS

Overview

Nominal Height 20.0" (51 cm)

Height of Cabinet 19.63" (50 cm)

Height to Hinge Cap 20.0" (51 cm)

Nominal Width 19.0" (48 cm)

Width 18.5" (47 cm)

Nominal Depth 18.0" (46 cm)

Depth 17.63" (45 cm)

Depth with door at 90° 34.5" (88 cm)

Capacity 1.4 cu.ft. (40 L)

Defrost Type Manual

Door White

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 0.8

Voltage/Frequency 115 V AC/60 Hz

Weight 31.0 lbs. (14 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101033792

Freezer

Door Swing RHD

Reversible Yes

Interior Height 14.38" (37 cm)

Interior Width 13.5" (34 cm)

Interior Depth 13.25" (34 cm)

Shelf Type Wire

Shelf Qty 1

Thermostat Type Dial

Refrigerant Type R600a

Refrigerant Amount 0.8 oz.

High Side PSI 110.0

Low Side PSI 70.0

Level Legs 2

Compressor Step Height 8.5" (22 cm)

Compressor Step Width 13.5" (34 cm)

Compressor Step Depth 6.0" (15 cm)

FEATURES

Compact size Convenient "cube" shape is ideal for use on top of counters

Factory installed lock Keyed lock for a secure interior

Manual defrost Static cooling system

One-piece interior liner Seamless interior for easier cleanup

Removable shelf Includes one wire shelf for easier storage

Reversible door User reversible door swing for added flexibility

Adjustable thermostat Dial thermostat for easy temperature management

Flat door liner Designed to comply with CDC guidelines

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
