Summit Upright 22 cu.ft. all-freezer with icemaker in white, 7.61101e+011, FFUF234IM

Accucold's general purpose series offers reliable cold storage in a variety of designs, including full-sized freezers with frost-free operation for low maintenance use.

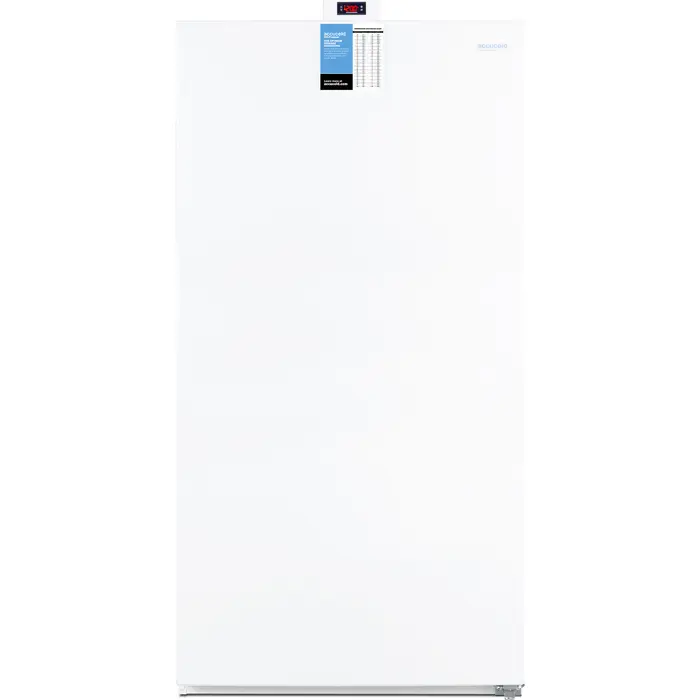

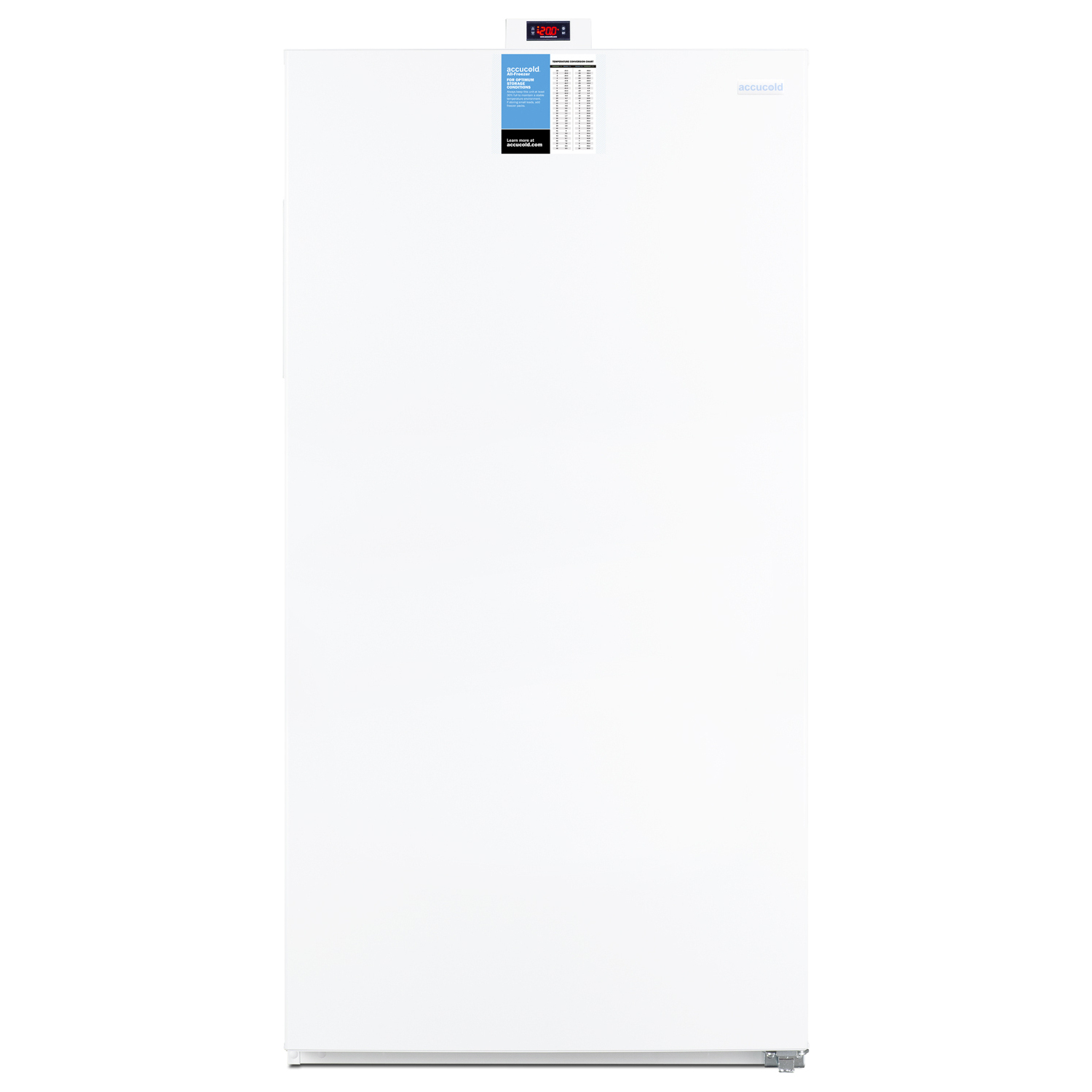

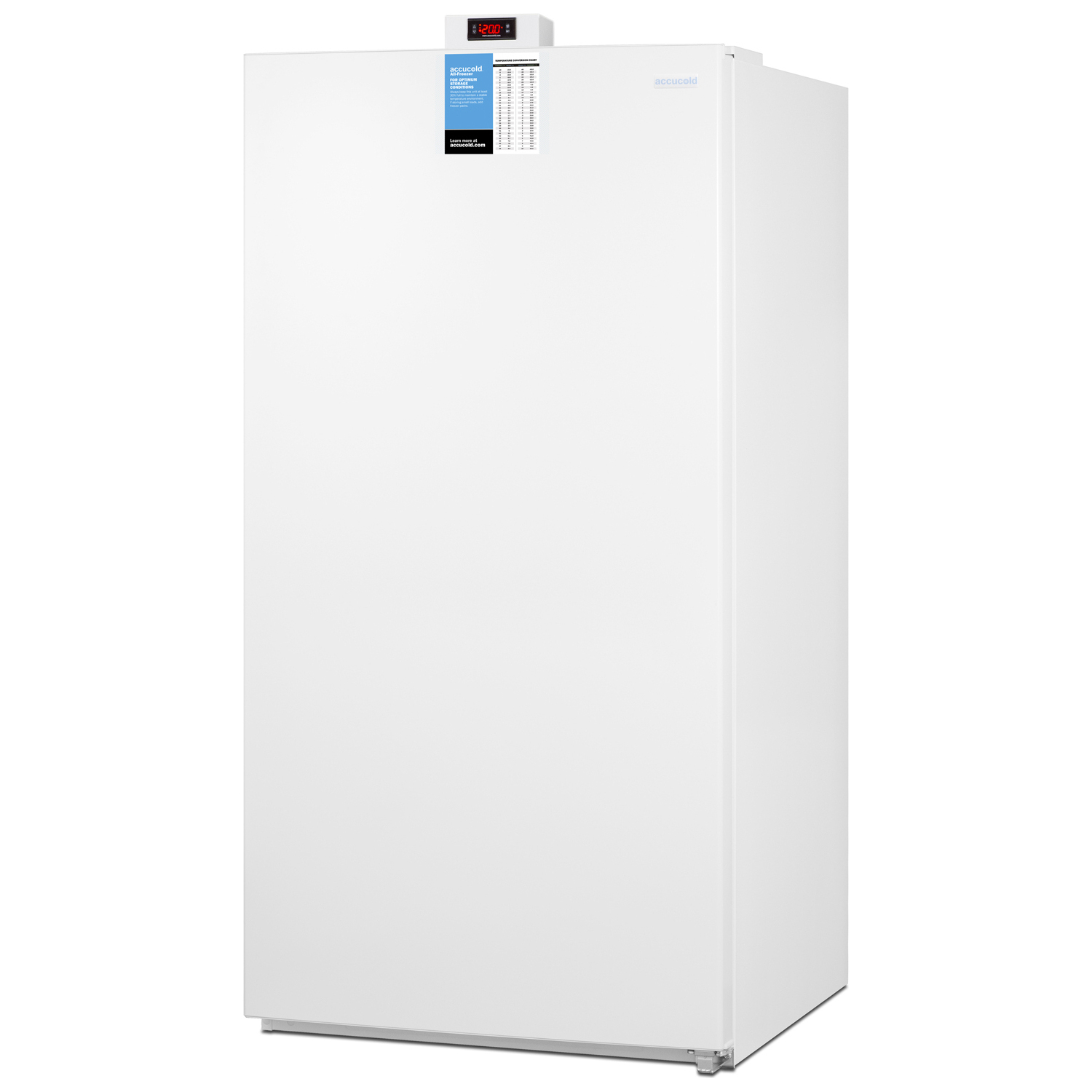

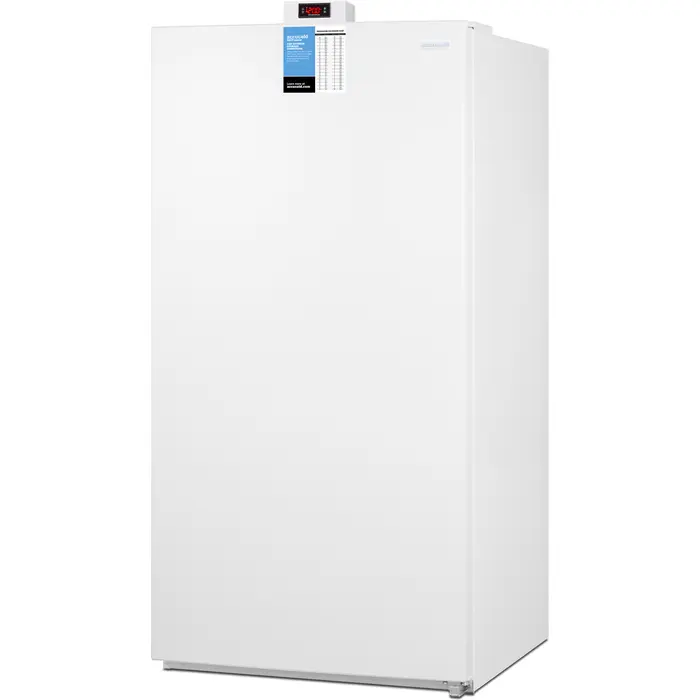

Model FFUF234IM is an upright all-freezer with a full 21 cu.ft. storage capacity and factory-installed 8 lb. icemaker. It comes in a white exterior finish with a right hand door swing and powerful seal to ensure items are protected. This unit has a sealed back for easier cleanup and a right angle cord to allow a better fit. The digital control panel is located on top of the cabinet, allowing you to manage the interior temperature without opening the door. The FFUF194IM is designed to operate between -25 to -10ºC. For a matching all-refrigerator, see the FFUR23.

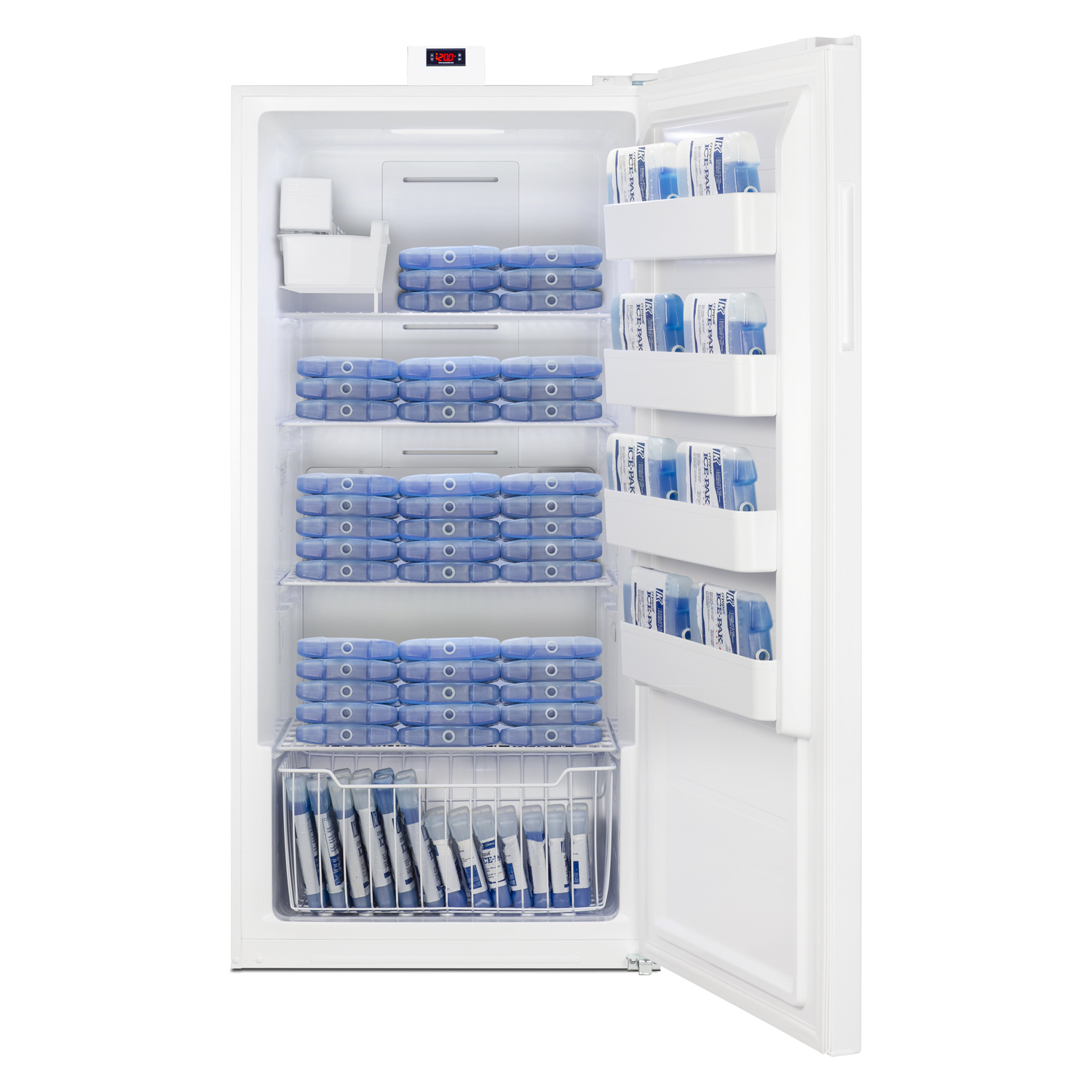

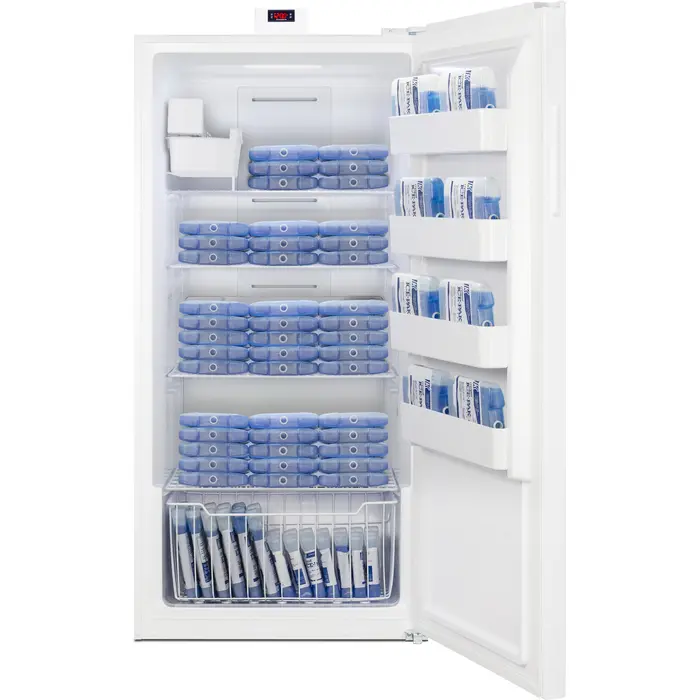

The FFUF234IM utilizes frost-free operation, eliminating the need to manually defrost the interior. Adjustable wire shelves accommodate a variety of sizes, with a removable lower basket for additional storage. Four door racks are included. This unit features LED lighting for an efficient view.

With its low maintenance design and large storage capacity, the FFUF234IM is ideal for storing non-critical products in research, clinical, and industrial laboratory applications.

SPECIFICATIONS

Overview

Nominal Height 80.0" (203 cm)

Height of Cabinet 79.75" (203 cm)

Nominal Width 33.0" (84 cm)

Width 32.75" (83 cm)

Width with Door Open 33.75" (86 cm)

Nominal Depth 31.0" (79 cm)

Depth 30.25" (77 cm)

Depth with door at 90° 59.75" (152 cm)

Capacity 21.0 cu.ft. (595 L)

Defrost Type Frost-Free/Automatic

Door White

Cabinet White

US Electrical Safety CSA

Canadian Electrical Safety CSA-C

Amps 1.8

Voltage/Frequency 115 V AC/60 Hz

Weight 237.0 lbs. (108 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101084527

Freezer

Door Swing RHD

Reversible No

Crisper Cover Wire

Interior Height 68.63" (174 cm)

Interior Width 26.5" (67 cm)

Interior Depth 22.5" (57 cm)

Shelf Type Wire

Shelf Qty 4

Full Door Shelves 4

Adjustable Shelves Yes

Gallon Door Storage Yes

Can Storage Yes

Thermostat Type Digital

Interior Light Yes

Refrigerant Type R600a

Refrigerant Amount 2.47 oz.

High Side PSI 210.0

Low Side PSI 103.0

Level Legs 2

Interior Drawers Yes

Drawers Qty 1

Compressor Step Height 11.0" (28 cm)

Compressor Step Width 26.5" (67 cm)

Compressor Step Depth 4.0" (10 cm)

Temperature Range -25 to -10ºC

FEATURES

Large capacity 21 cu.ft. of interior space

Frost-free operation True no-frost operation that eliminates the need to ever manually defrost the interior

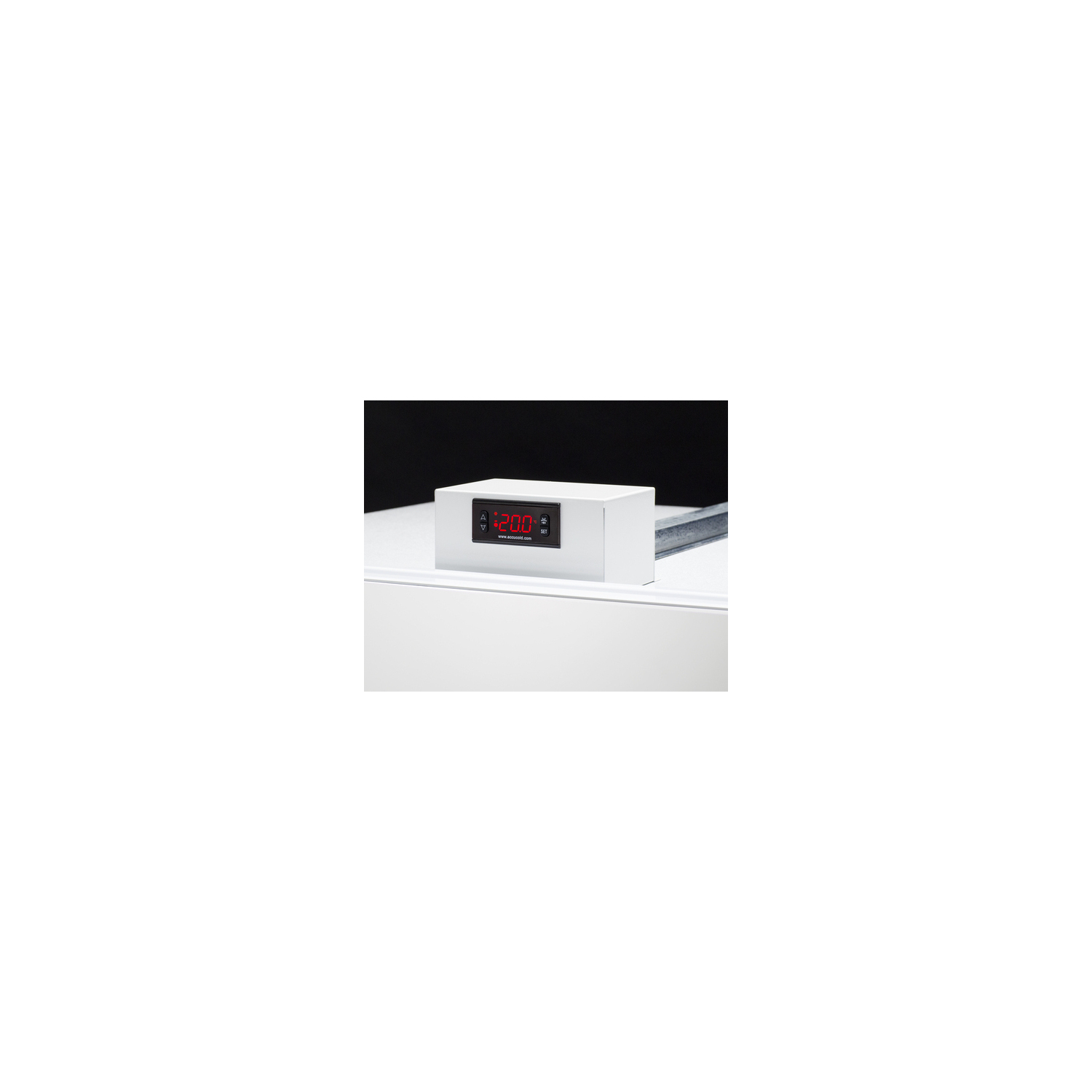

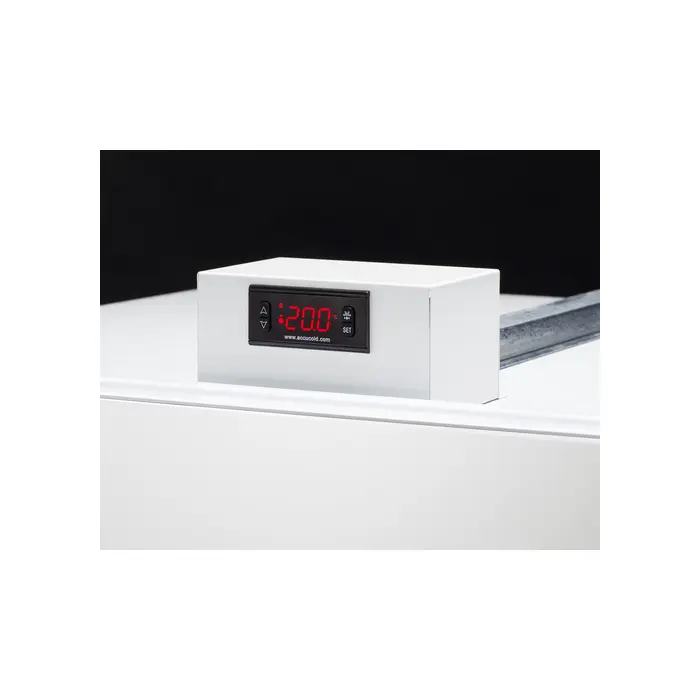

Digital controls Electronic thermostat located on top of the freezer cabinet, allowing you to manage the temperature without opening the door

Icemaker included Factory-installed icemaker produces up to 8 lbs. of crescent shaped ice

Adjustable shelves Four wire shelves allow users to rearrange the freezer space to fit any sized item or remove shelves for simple cleanup

Door shelves Four shelves provide convenient storage on the door

Storage basket Lower wire drawer for additional organizing of stored contents

Interior light Automatically illuminates when the door is opened

Fully finished white cabinet Allows the unit to be freestanding

Magnetic door gasket Powerful magnetic gaskets ensure a tight seal for energy savings and improved performance

Right hand door swing Note: this door is not reversible

Sealed back Space saving design for easier cleanability

Matching refrigerator Can be paired with the FFUR23 all-refrigerator

Right-angle plug Provides flexibility in unit placement without needing added depth

100% CFC free Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Lead-free certified Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
