Summit 24 inch wide undercounter panel ready refrigerator-freezer with icemaker, FFRF5IMPNR

Summit brings quality and value under the counter with the industry’s largest collection of built-in refrigerator-freezers.

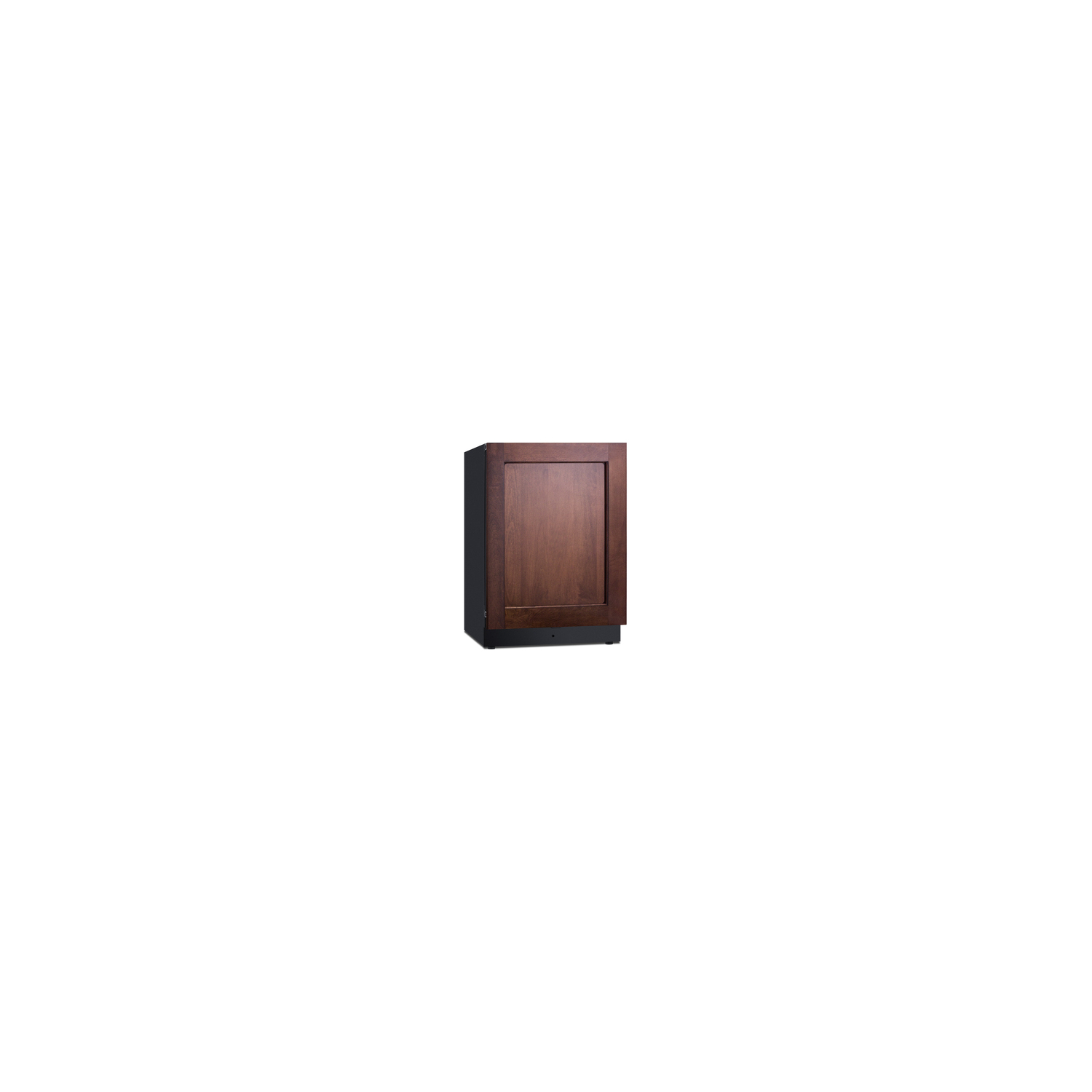

Sized at 24" wide, the FFRF5IMPNR is an bottom-mount refrigerator-freezer featuring a front-breathing design that allows built-in installation under counters. The unit has a user-reversible stainless steel door with a fully articulating European-style hinge design to ensure a smoother opening. We include a 2-piece bracket kit that allows easy installation of overlay panels to create a custom look that can blend into your existing cabinetry design. The user-reversible door swing allows easy adjustment as needed. A factory-installed lock adds enhanced security, while the sealed rear and right-angle plug offer a better fit.

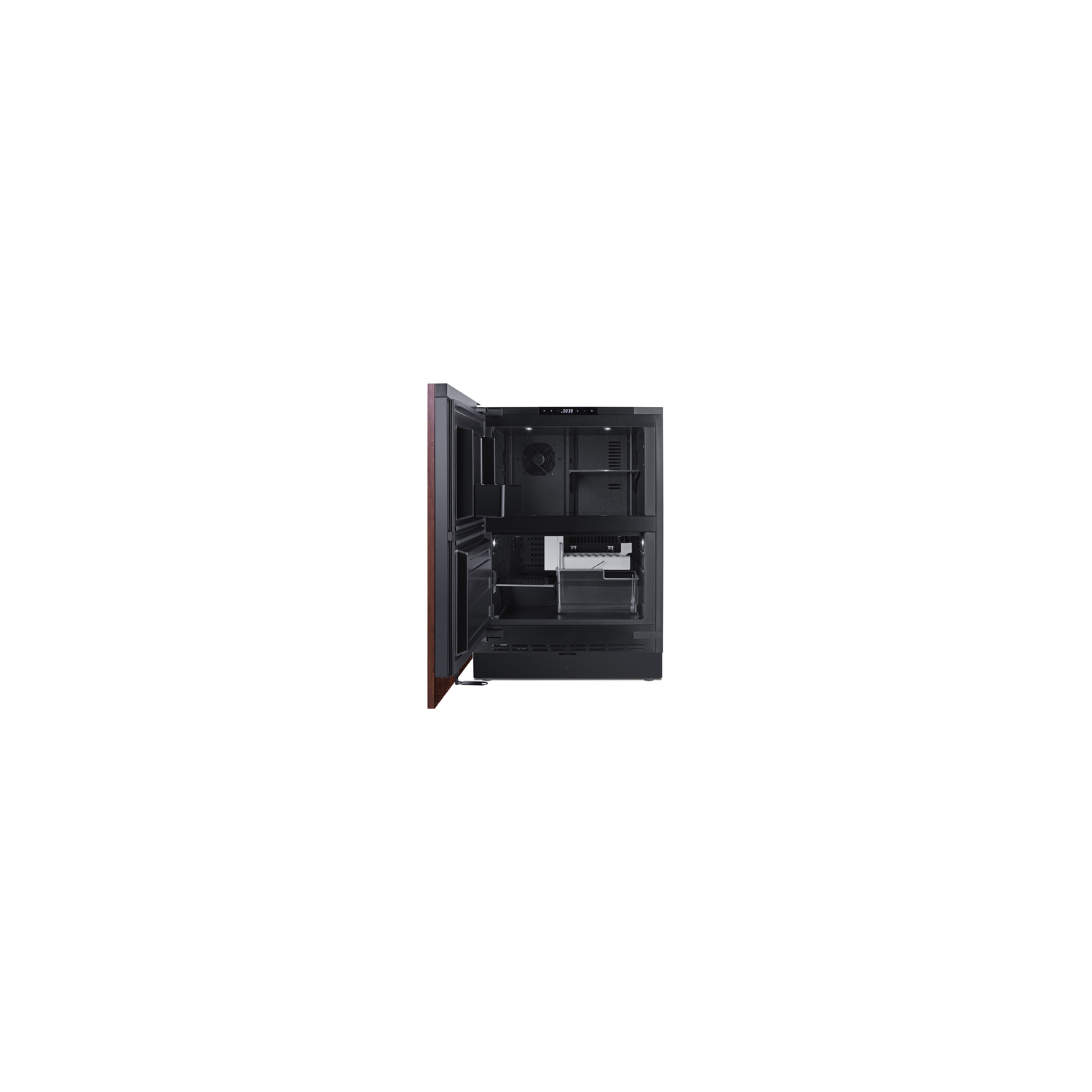

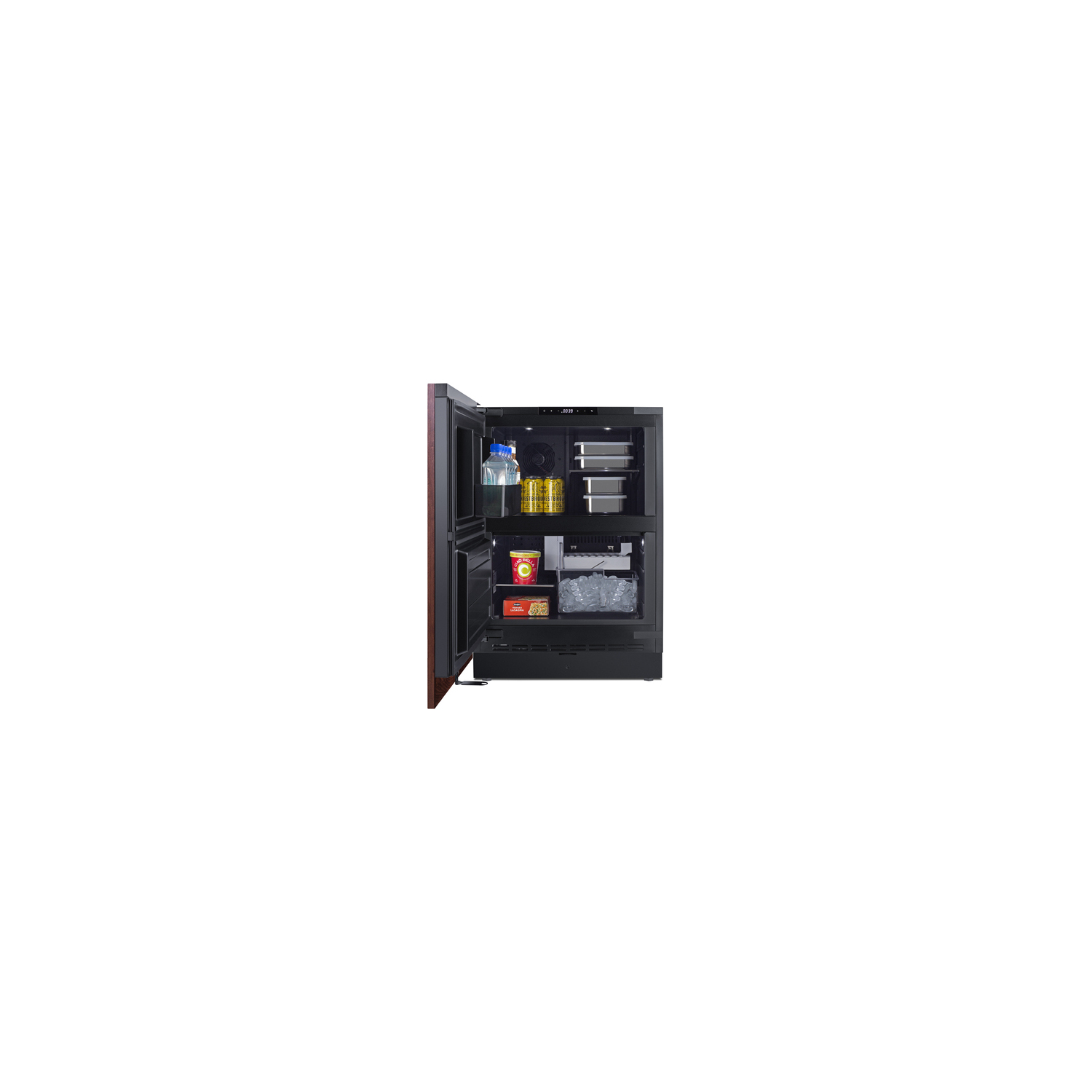

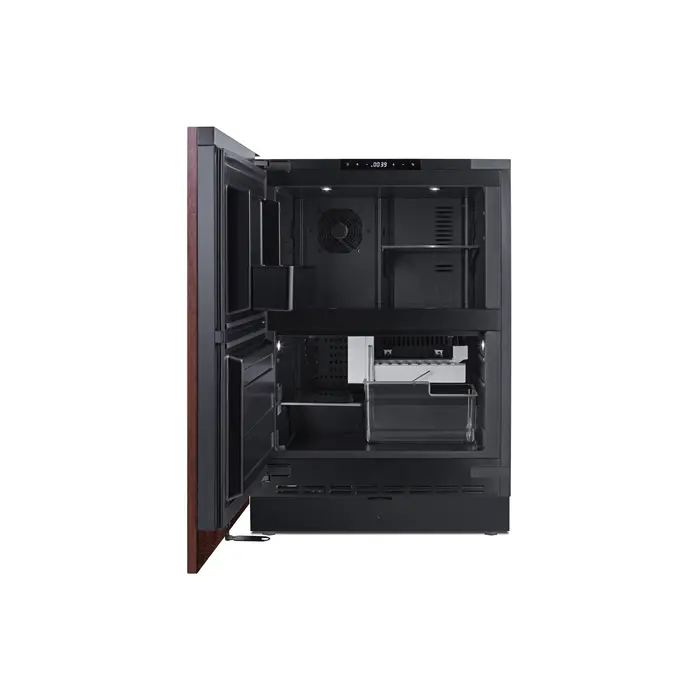

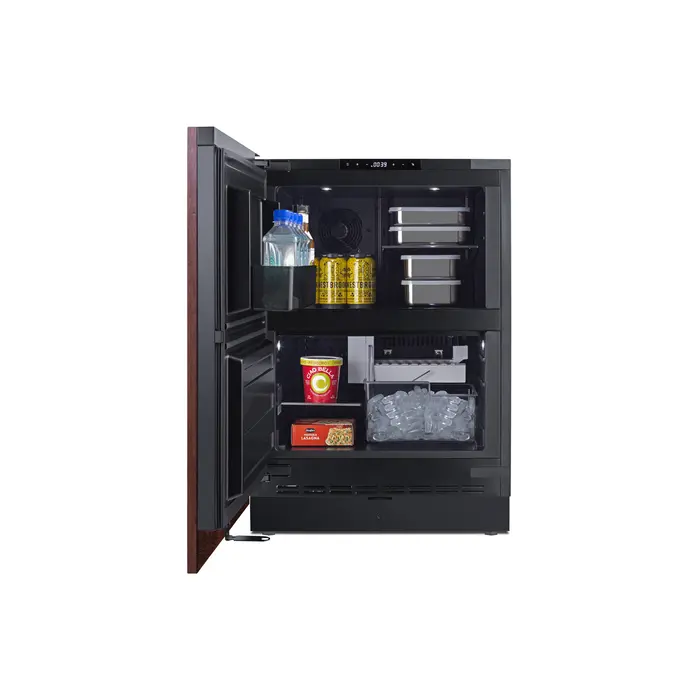

Inside, this model features a frost-free freezer compartment, and above is a fresh food refrigerator compartment. Both sections include LED lighting. An innovative touch control system lets you manage both the refrigerator and freezer temperature with an intuitive digital thermostat. The readout can be viewed in Fahrenheit or Celsius. This unit includes an optional Sabbath mode setting to allow users to disable certain functions during periods of religious observance. Audible alarms sound if the door is left open for over a minute or if the temperature is not cold enough.

The upper refrigerator compartment includes one adjustable glass shelf for cleaner, spill-proof storage of small fresh food items. A large removable door rack offers additional storage ideal for condiments and beverages. An internal fan assures the compartment is cooled evenly from top to bottom. This section is designed to function at 36 to 43°F to store food and beverages.

The lower freezer compartment is equipped with a factory-installed icemaker that produces up to 5 lbs. of crescent ice cubes per day. No drain is required . The freezer operates between -11 and +11ºF. A half-sized glass shelf is included to help store small frozen meals or ice cream on the other side of the icemaker.

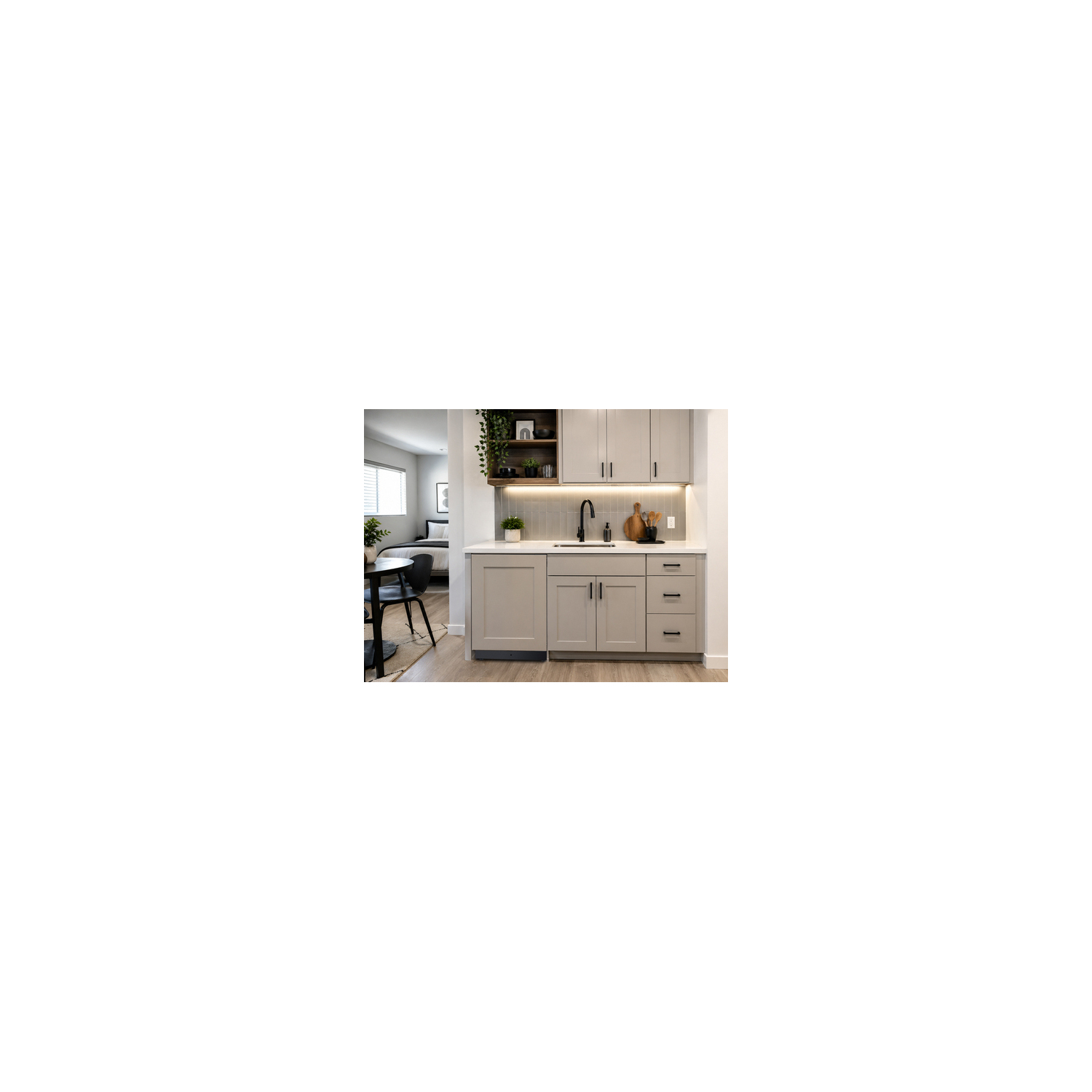

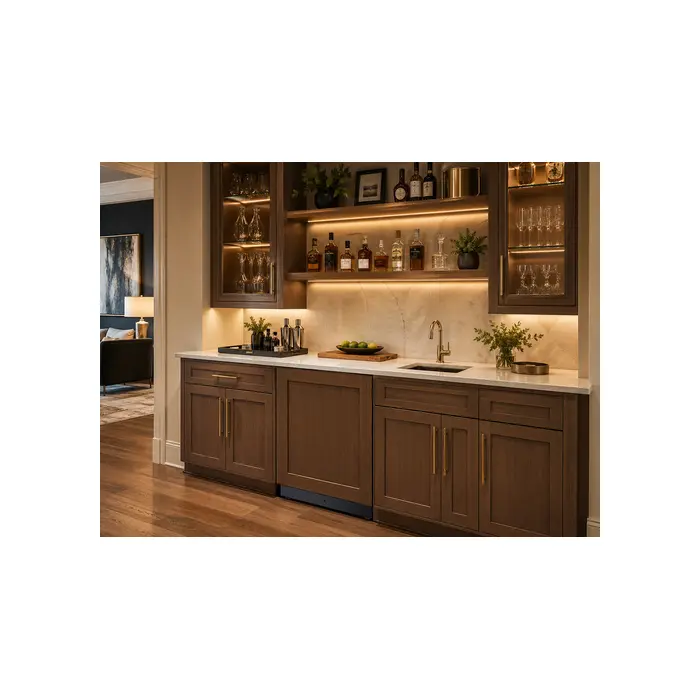

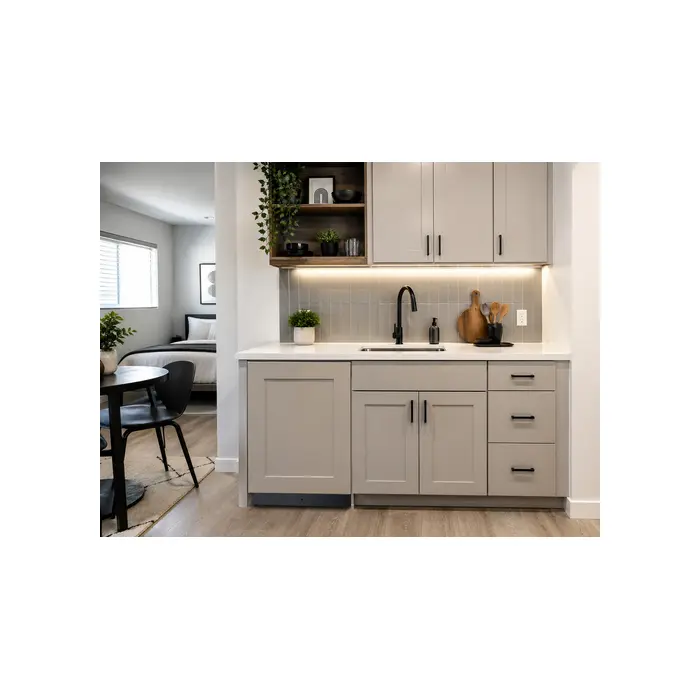

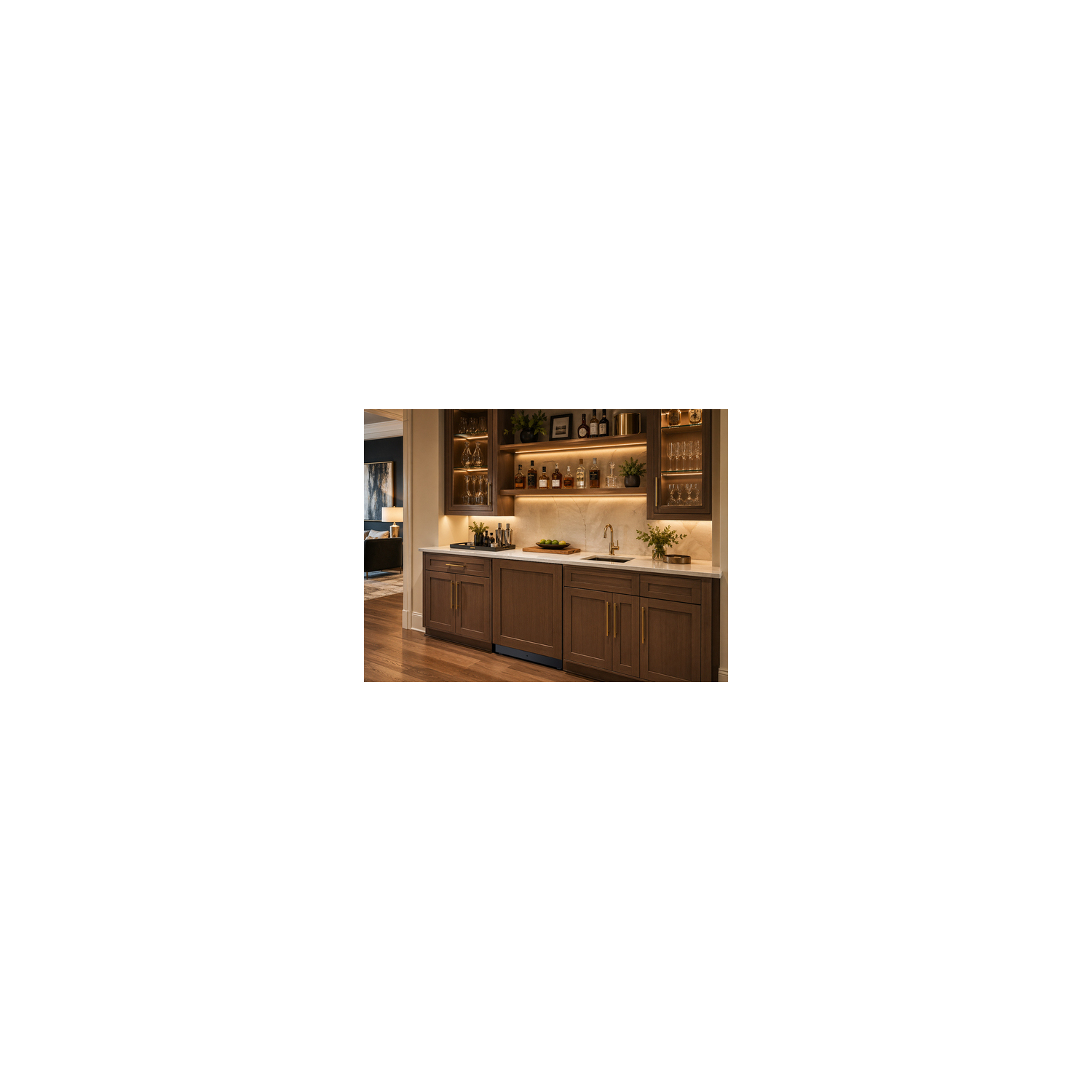

The FFRF5IMPNR is ETL listed to UL standards for residential use. With its versatile performance, professional finish, and pre-installed icemaker, this refrigerator-freezer is a convenient option for small apartments, second kitchens, tiny homes, home bars, offices, and other settings in need of all-in-one storage under the counter. For a panel-ready version, see model, FFRF5IMPNR.

Additional choices for under the counter are available, including ADA compliant models, French door refrigerator-freezers, and more. Browse the full Summit catalog to discover the perfect appliance for your refrigeration needs.

SPECIFICATIONS

Overview

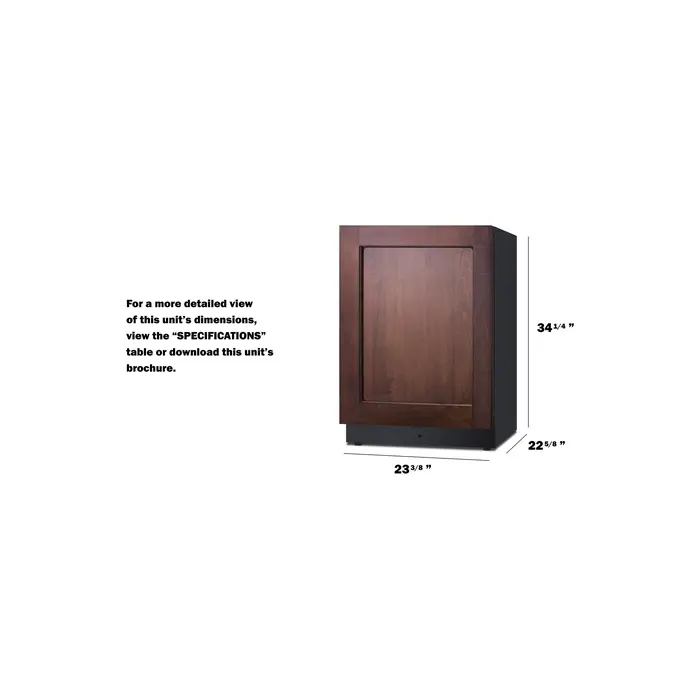

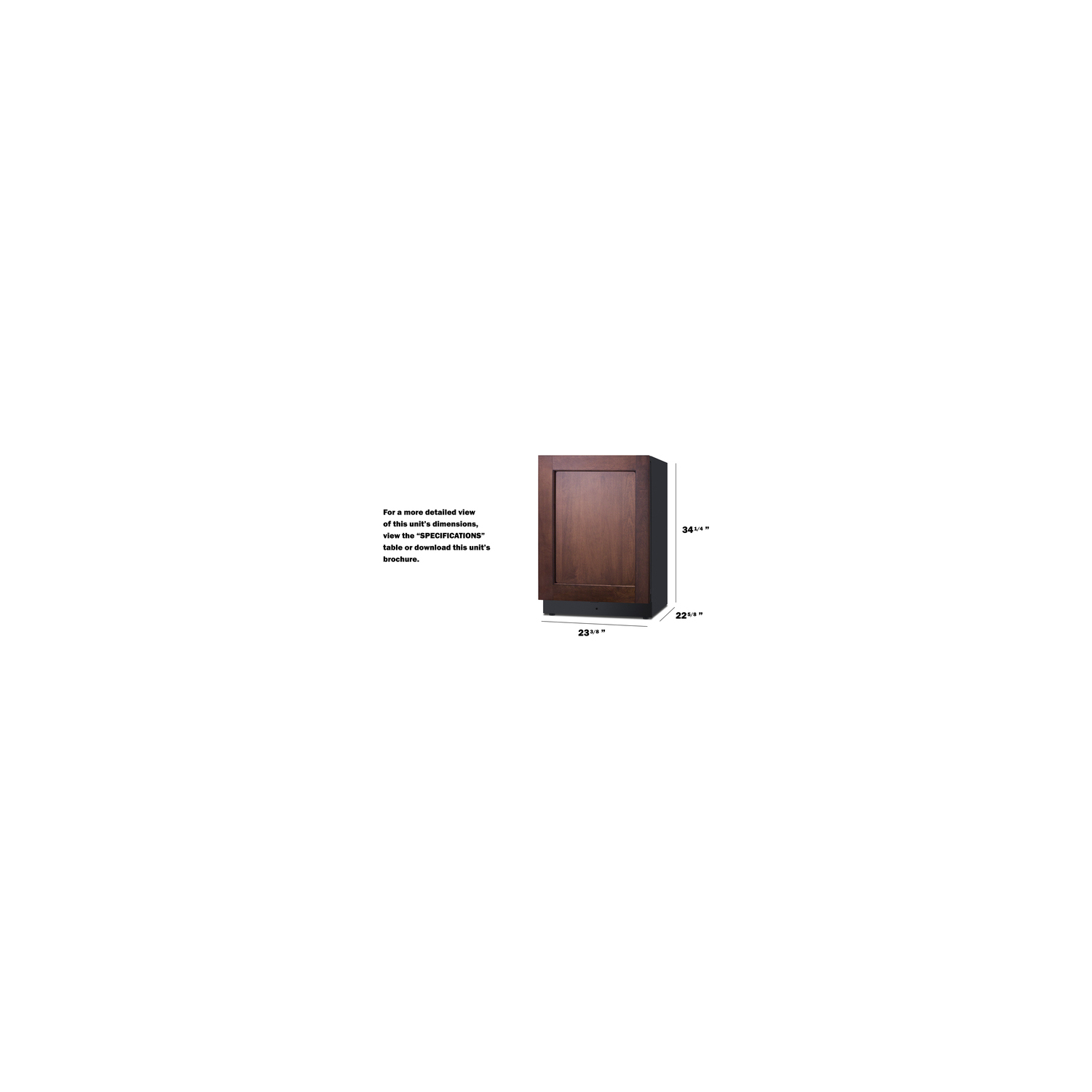

Height of Cabinet 34.25" (87 cm)

Width 23.38" (59 cm)

Width with Door Open 24.13" (61 cm)

Depth 22.63" (57 cm)

Depth with Panel 22.63" (57 cm)

Depth with door at 90° 48.75" (124 cm)

Capacity 3.2 cu.ft. (91 L)

Defrost Type Automatic

Door Stainless Steel/Panel-Ready

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 414.0kWh/year

Amps 3.0

Plug Type NEMA 5-15P (Right Angle)

Voltage/Frequency 115 V AC/60 Hz

Weight 130.0 lbs. (59 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101160528

Refrigerator-Freezer

Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Interior Light Yes

Refrigerator - Interior Height 10.75" (27 cm)

Refrigerator - Interior Width 18.63" (47 cm)

Refrigerator - Interior Depth 15.5" (39 cm)

Refrigerator - Capacity 1.95 cu.ft

Refrigerator - Shelf Type Glass

Refrigerator - Shelf Qty 1

Refrigerator - Full Door Shelves 1

Refrigerator - Temperature Range 36°F to 43°F

Freezer - Interior Height 10.75" (27 cm)

Freezer - Interior Width 18.63" (47 cm)

Freezer - Interior Depth 15.5" (39 cm)

Freezer - Capacity 1.25 cu.ft

Freezer - Shelf Type Glass

Freezer - Shelf Qty 1

Thermostat Type Digital

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 1.34 oz.

Freezer - Temperature Range -11°F to 11°F

Compressor Step Height 2.5" (6 cm)

Compressor Step Width 18.63" (47 cm)

Compressor Step Depth 5.0" (13 cm)

Sabbath Mode Yes

FEATURES

24" Wide Built-In Refrigerator-Freezer Undercounter 3.2 cu.ft. refrigerator-freezer with a factory-installed icemaker and lock

Built-in undercounter design Front-breathing design lets you make the best use of space by installing your appliance under the counter

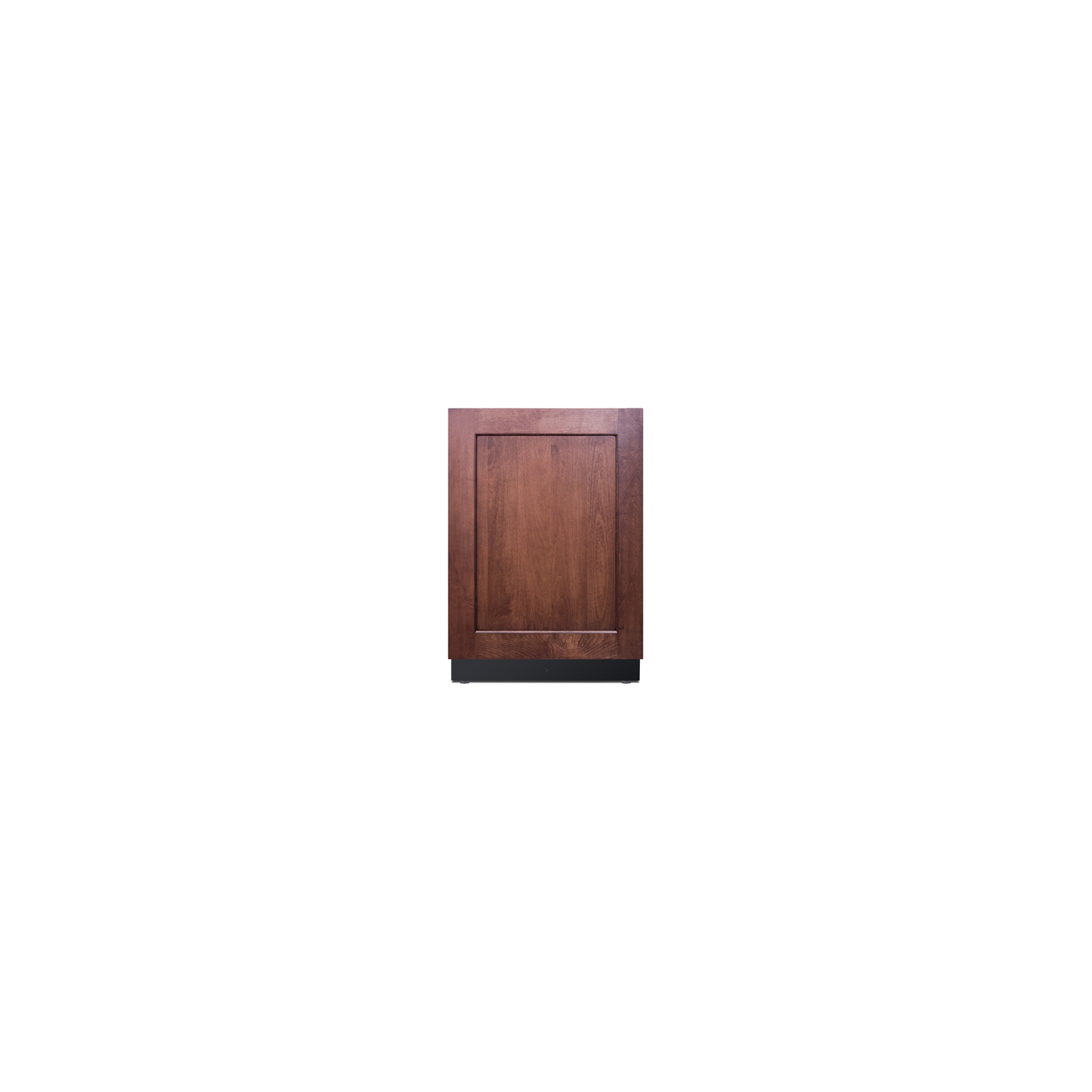

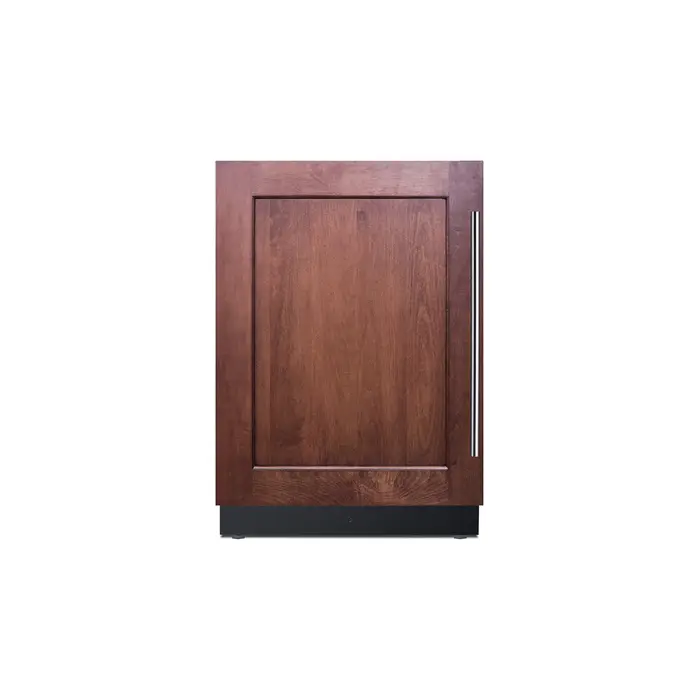

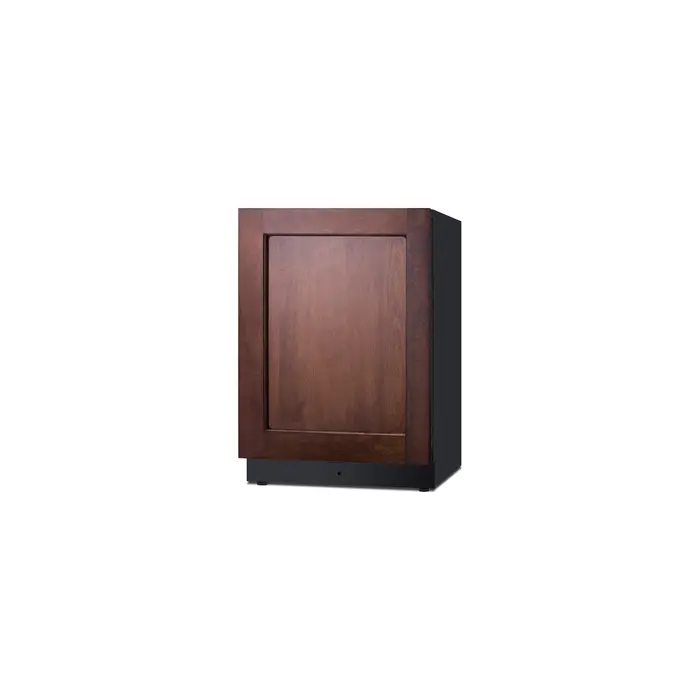

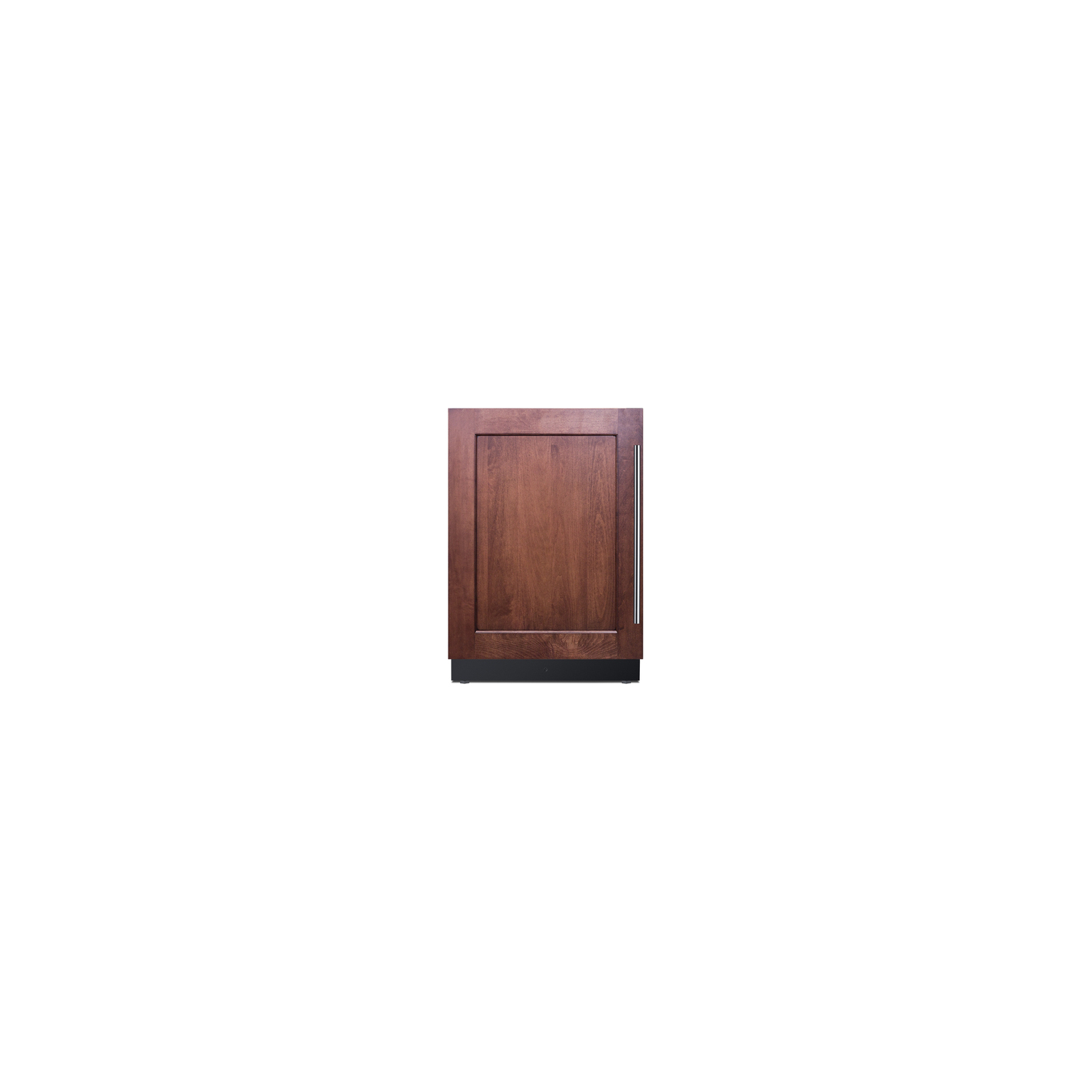

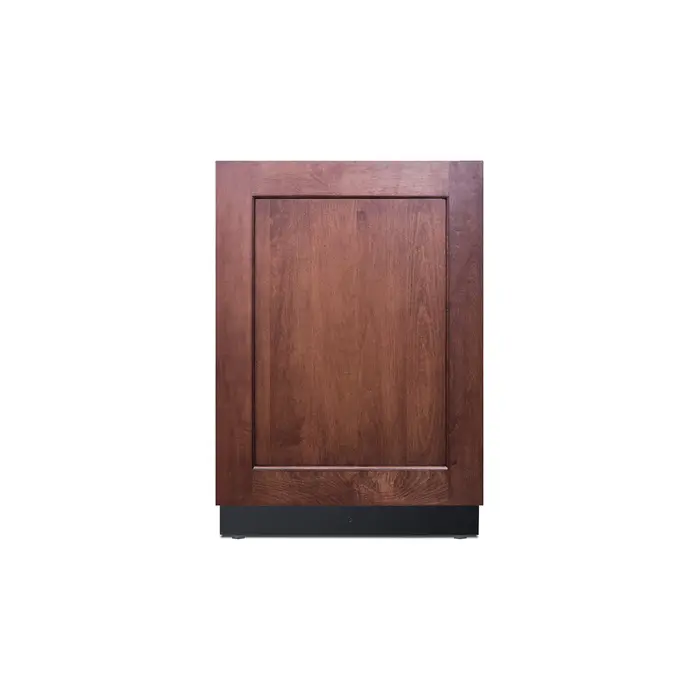

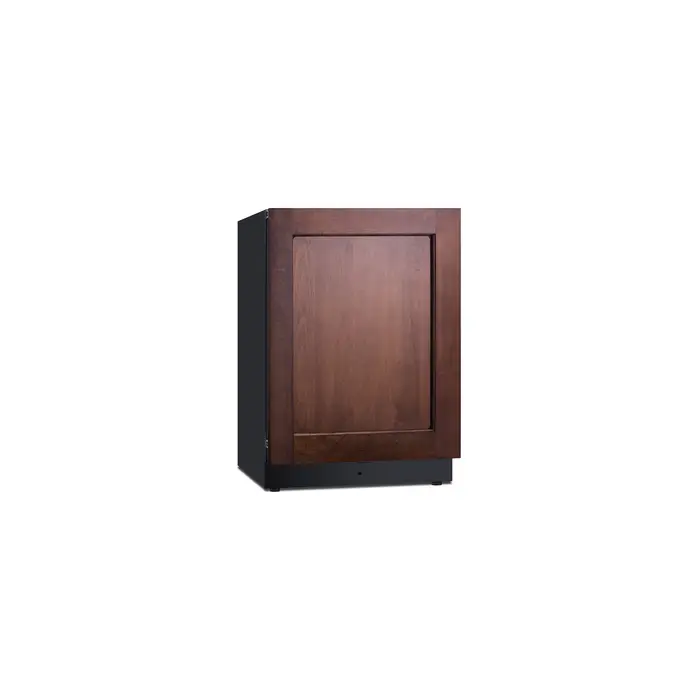

Panel-ready door European style articulating door hinge and bracket kit allow easy installation of custom overlay panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 30" H x 23 3/8" W

Stainless steel door option Unit ships with a stainless steel door front that you can remove to add a panel and reapply if your style changes

Frost-free operation No-frost convenience for reduced user maintenance

Dual zone storage Refrigerator section functions at 36 to 43ºF for fresh food and beverage storage, while the lower freezer operates between -11 and 11ºF to store ice cream, frozen meals, and more

Bottom-mount freezer Separate freezer space provides ample storage for frozen foods

Factory-installed icemaker Produces up to 5 lbs of crescent cubes in a day

Digital temperature control Intuitive digital control panel makes it easy to manage the refrigerator and freezer temperature at the touch of a button

Convertible temperature display Temperature readout can be displayed in Fahrenheit or Celsius

High temperature alarm Audible alarm sounds if the interior temperature rises out of range

Open door alarm Audible alarm sounds if the door is left open for over 1 minute

Door storage Removable refrigerator rack ideal for keeping bottles and condiments in easy reach

Adjustable glass shelves Both refrigerator and freezer sections come with a half-sized glass shelf

Interior LED lighting Automatically illuminates both compartments when you open the door

Sabbath mode Optional feature disables alarms, interior light, and displays for up to 96 hours

Internal fan Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Fully finished black cabinet Allows the unit to be used freestanding

Reversible door User-reversible door swing for added flexibility to best accommodate your setting

Black interior Attractive jet black finish inside to match the cabinet and kickplate

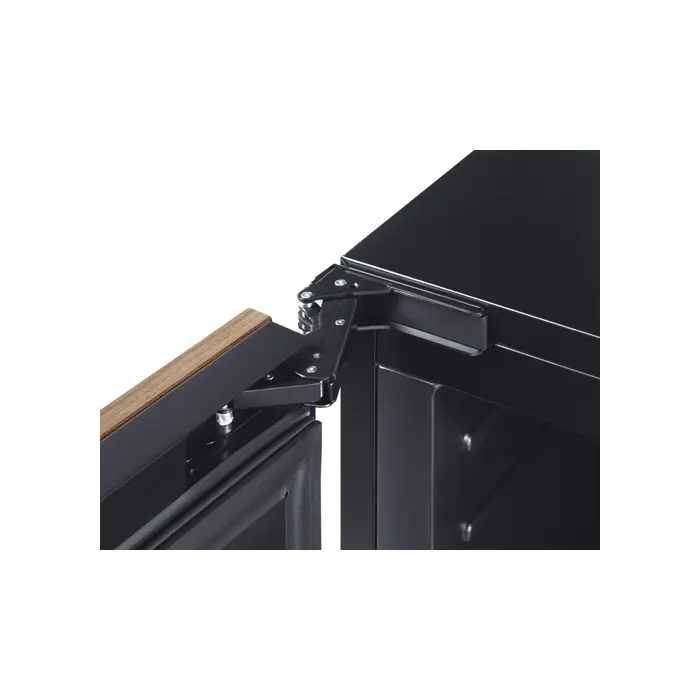

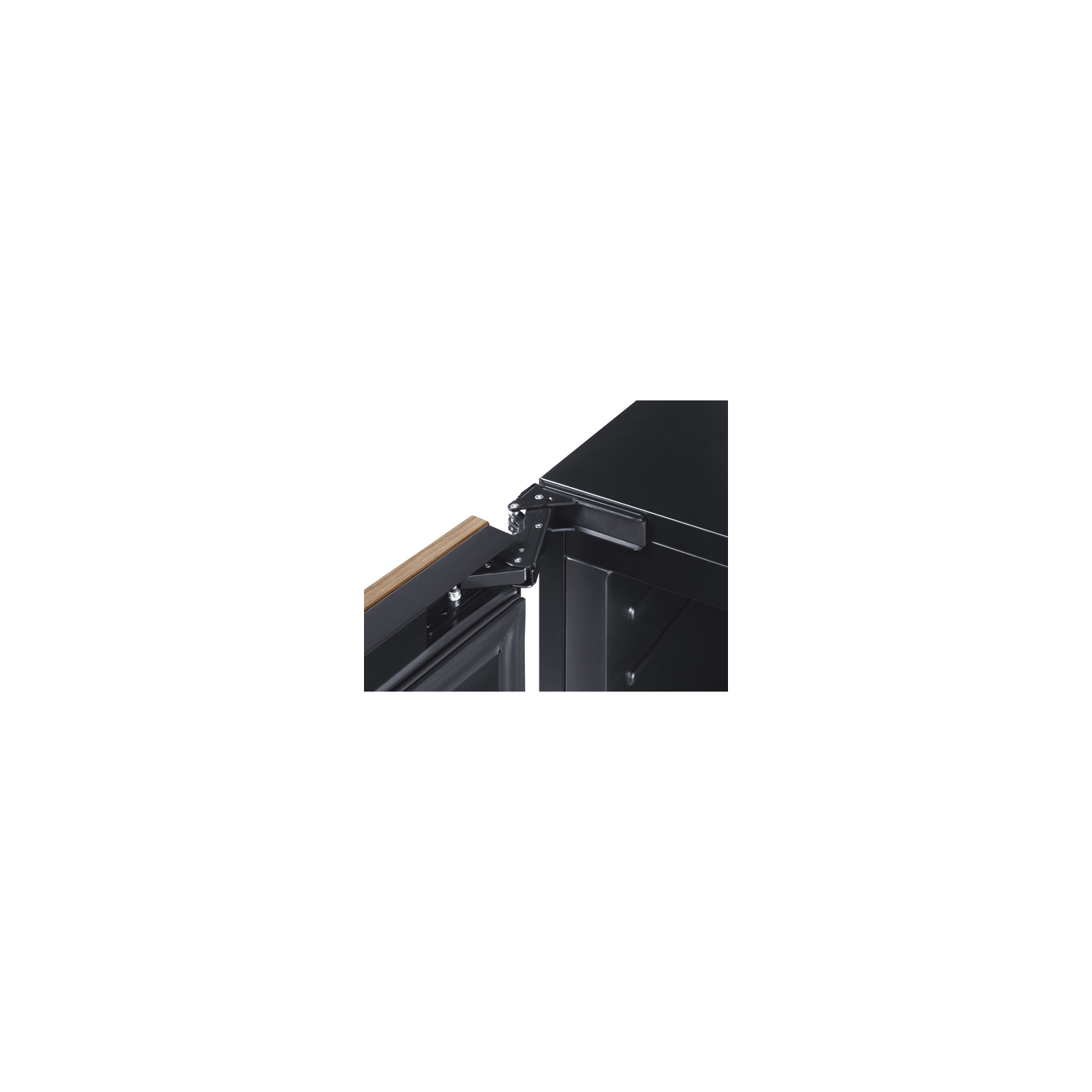

Fully articulating style hinge European style door hinge design ensures a flush fit and allows for a smoother opening

Factory installed lock Keyed lock for a secure interior (2 keys included)

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Anti-tip bracket Included bracket recommended for installation to help prevent tipping for added safety

Sealed back No exposed coils for easier cleaning and a better fit

No drain required Convenient design allows more flexibility in positioning the unit

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Lead-free certified Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
