Summit 36 inch wide frost-free side-by-side undercounter refrigerator-freezer black cabinet, stainless steel doors, and digital controls, 7.61101e+011, FFRF36

SUMMIT brings quality and value under the counter with the industry’s largest collection of built-in refrigeration.

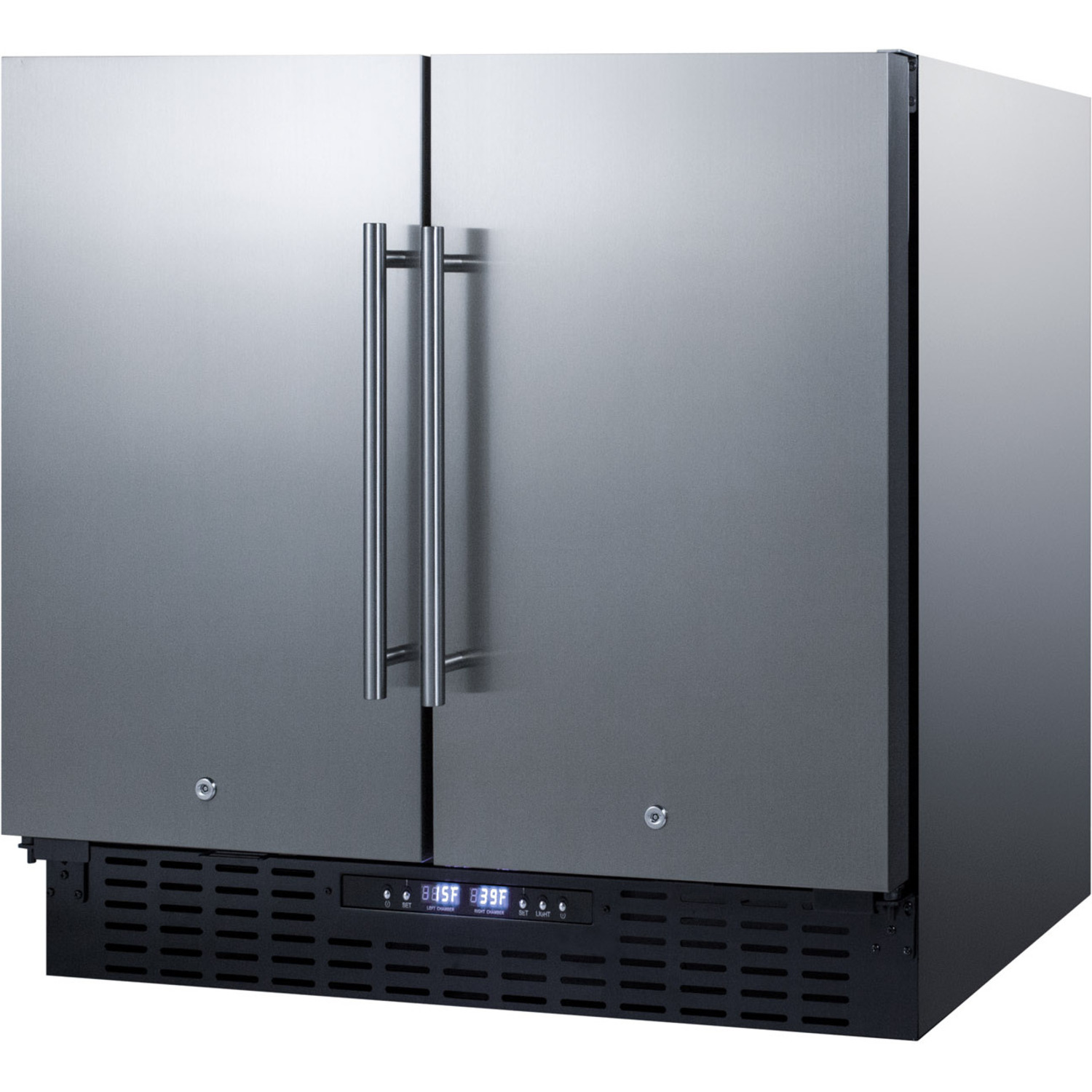

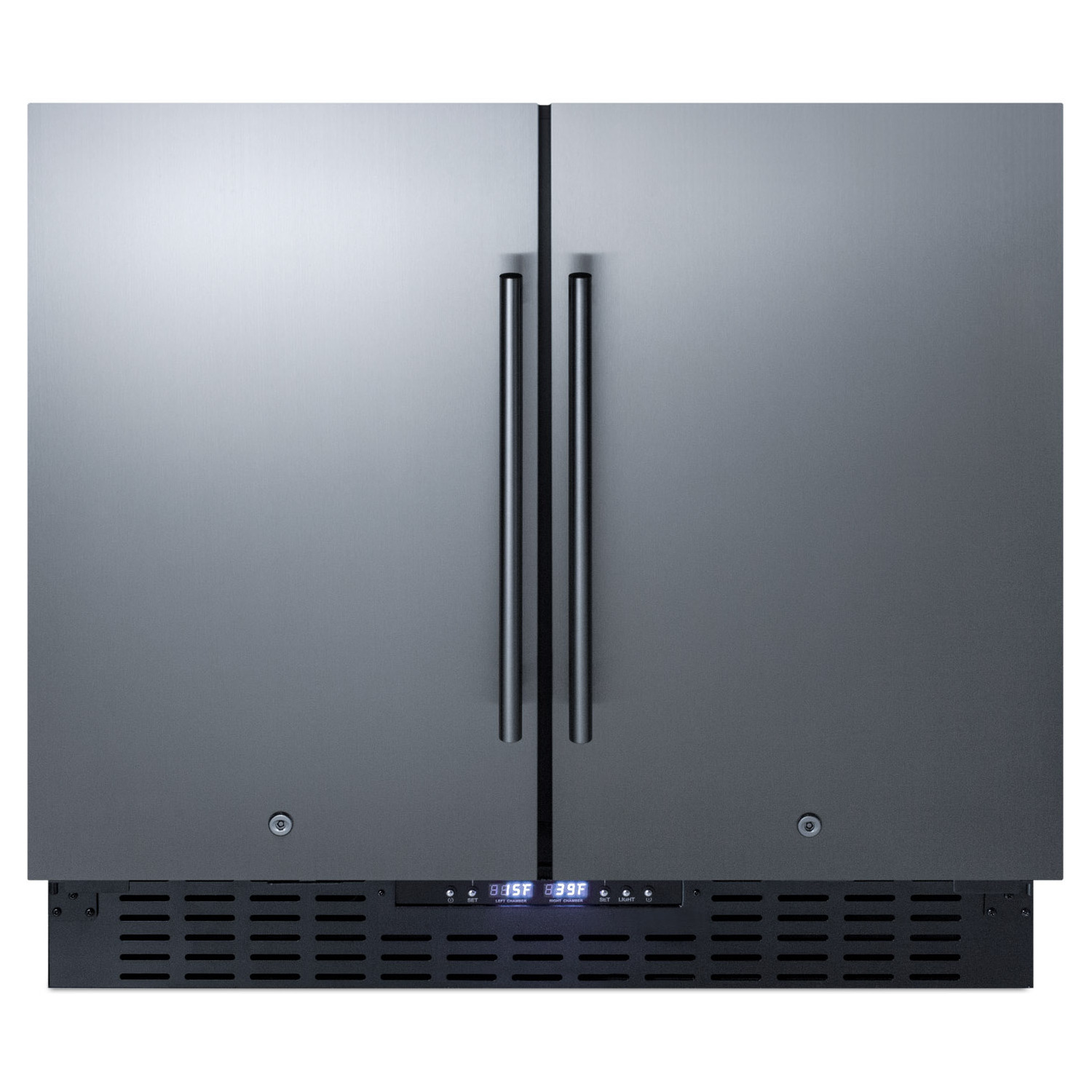

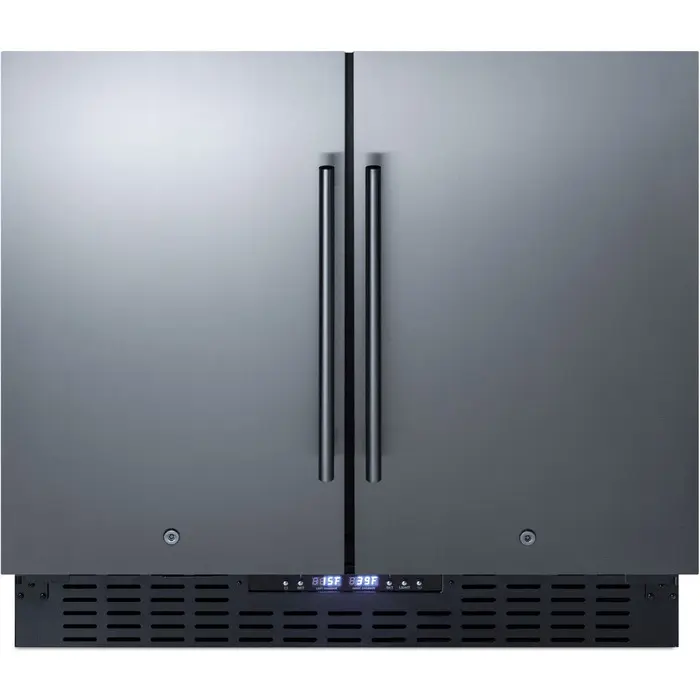

The FFRF36 features a versatile design that meets NSF-7 and UL-471 commercial standards but is also approved for residential use. Sized at 36" wide, this all-in-one, side-by-side refrigerator-freezer is designed for built-in or freestanding installation. This unit features a jet black cabinet and stainless steel doors complete with pro style handles. Both sections include factory-installed keyed locks for added security. Digital controls are located in the kickplate, allowing you to adjust the temperature without opening the door. This unit has a sealed back design to enable easier cleanup and added space savings.

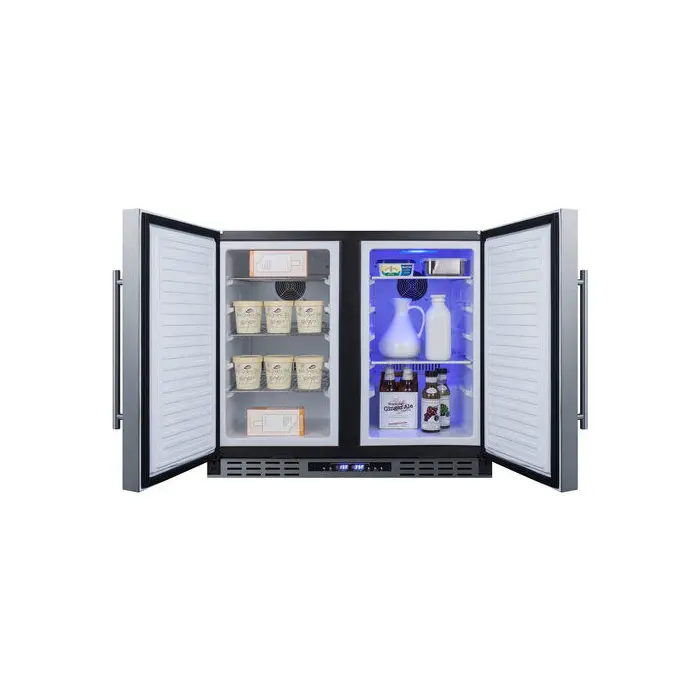

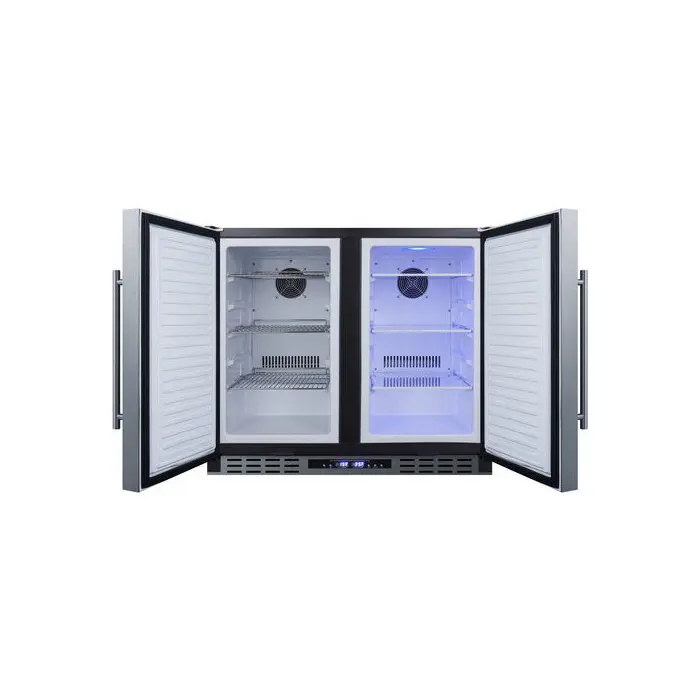

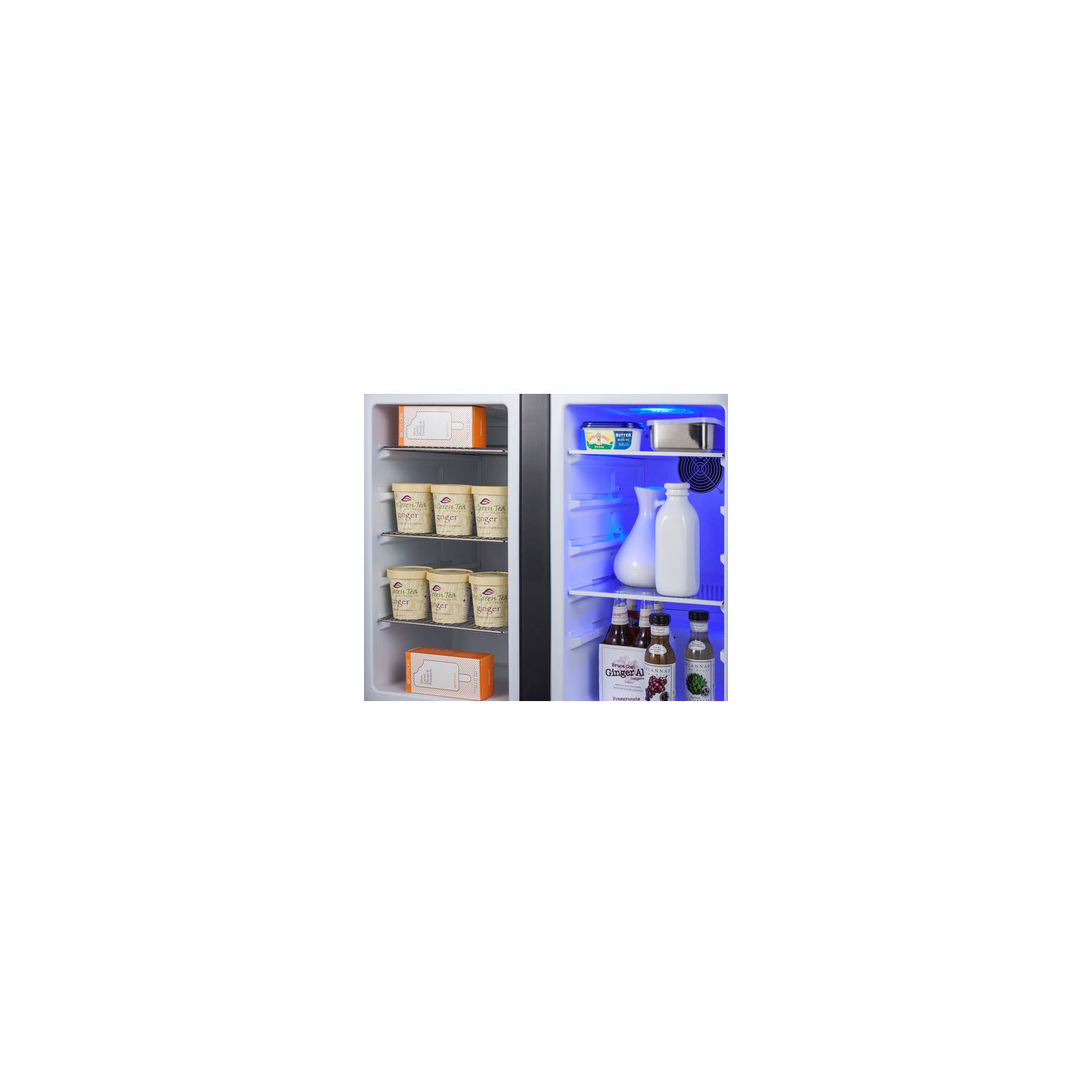

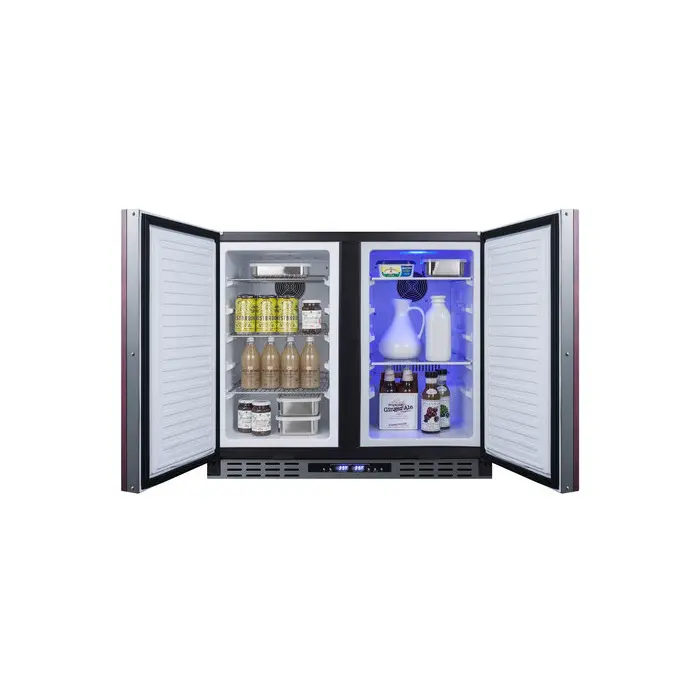

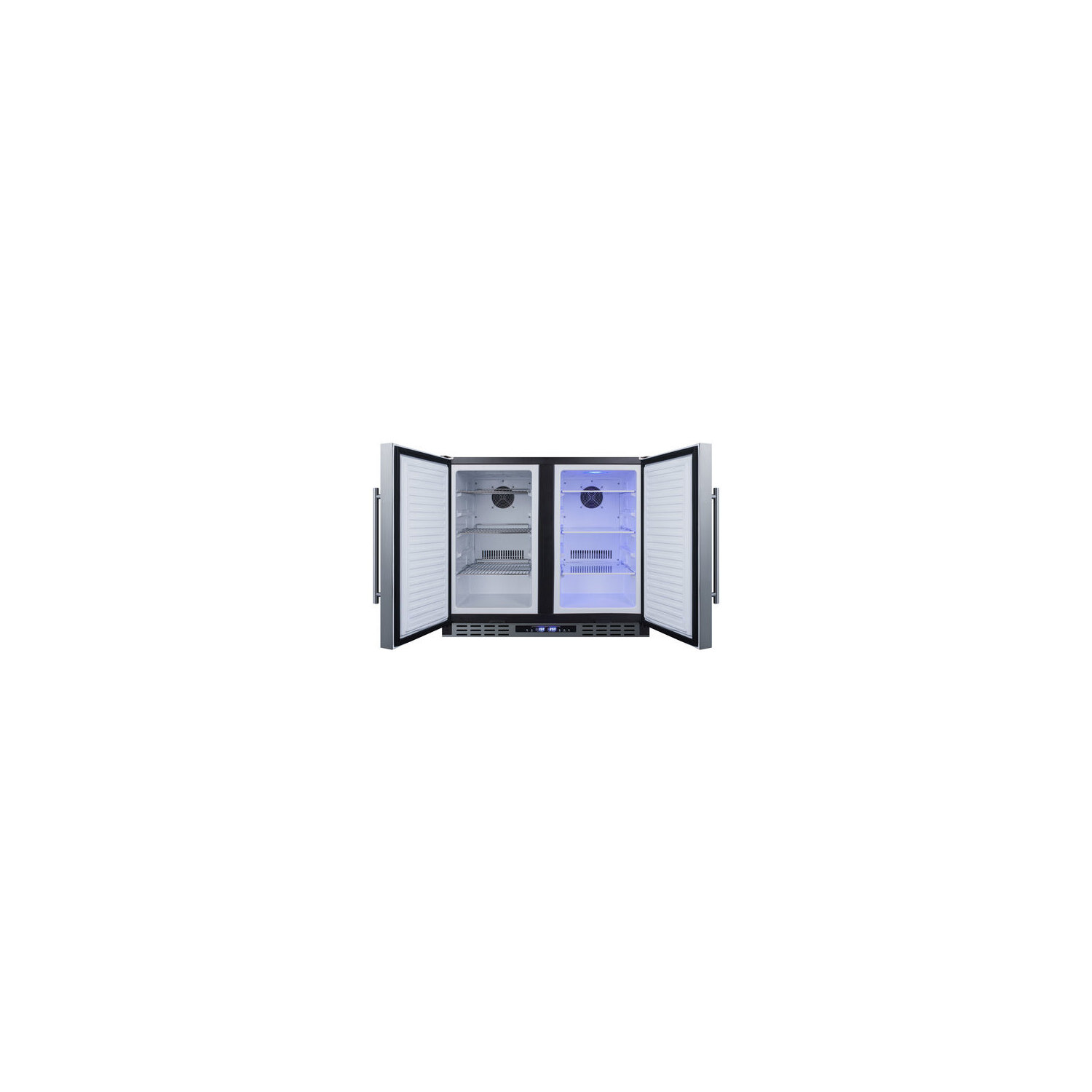

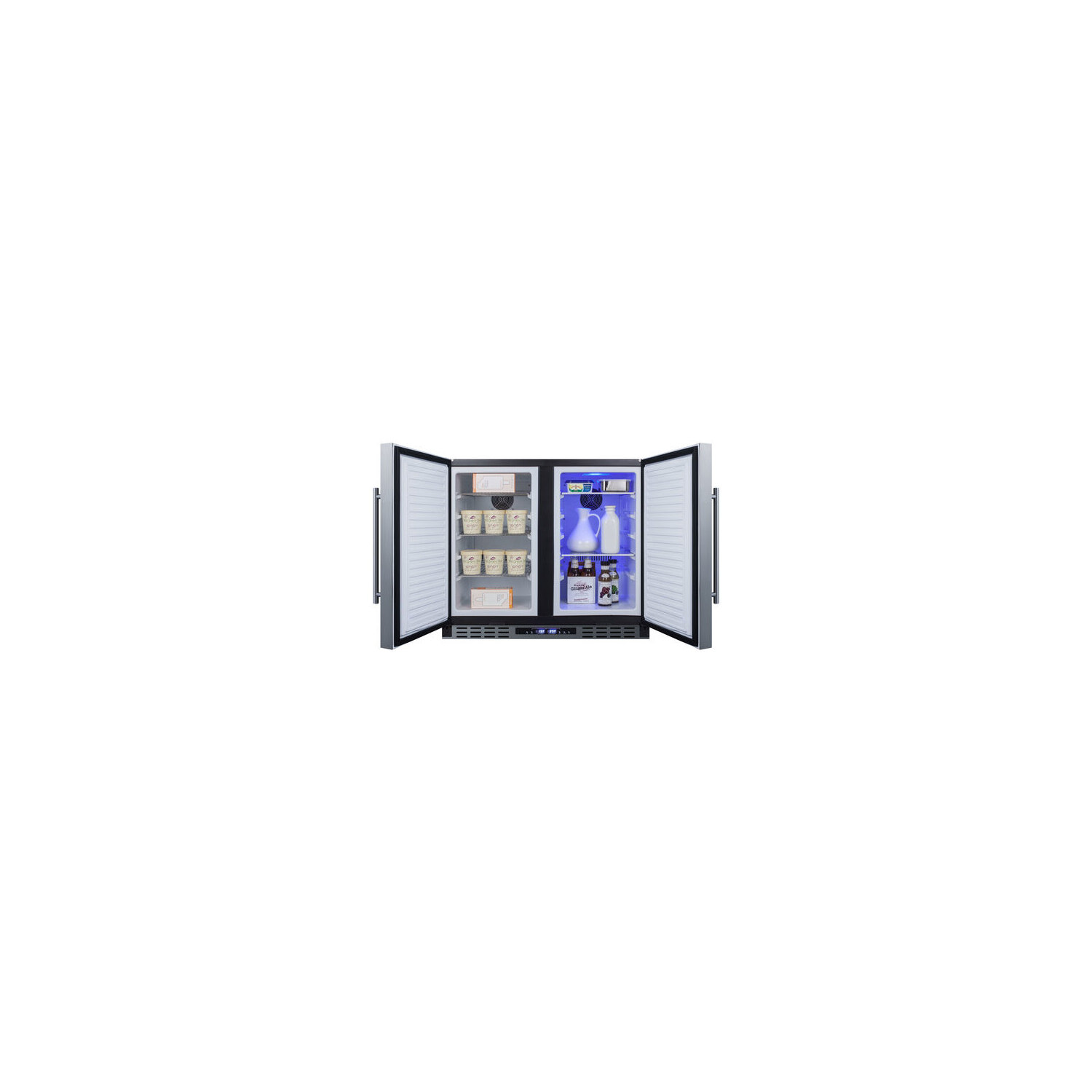

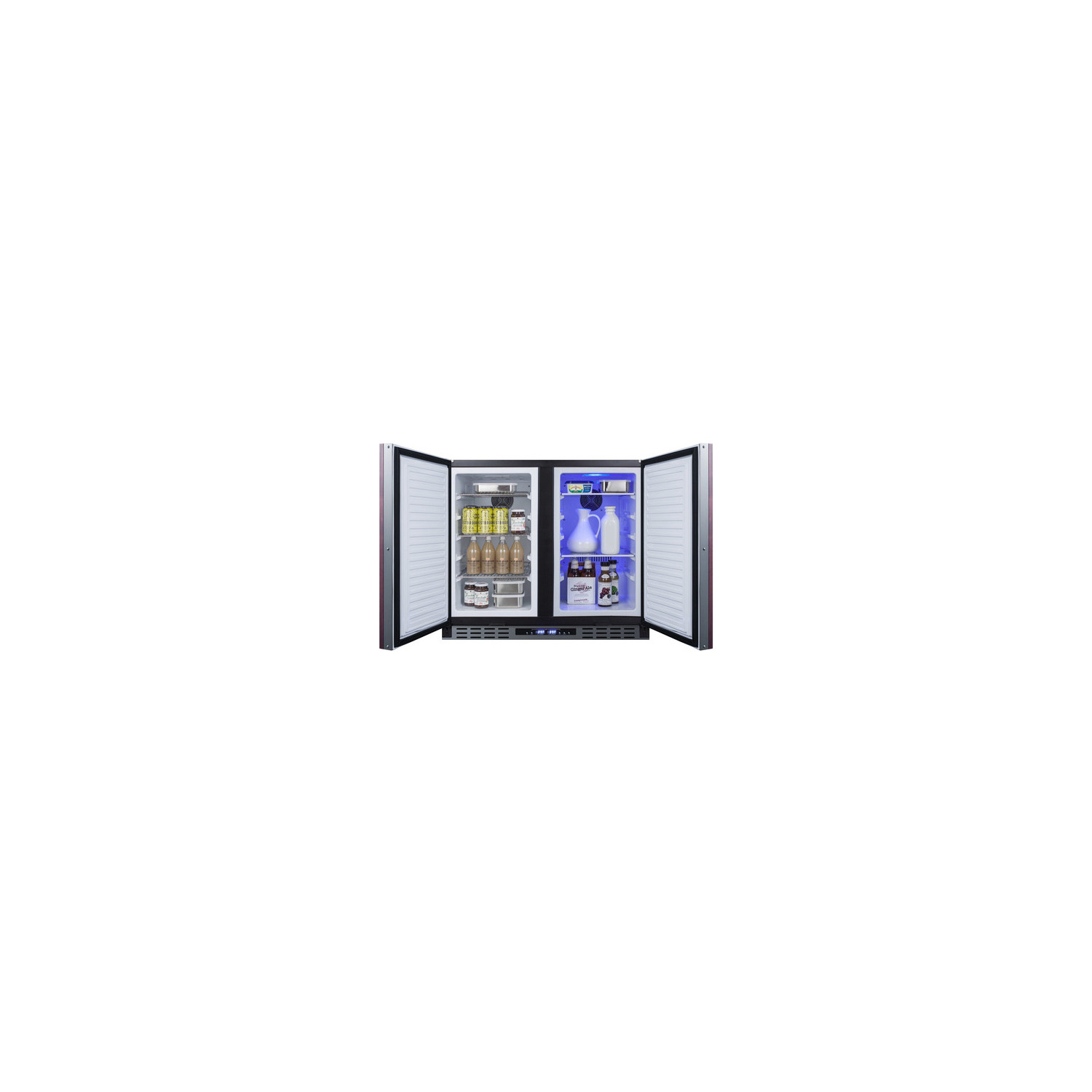

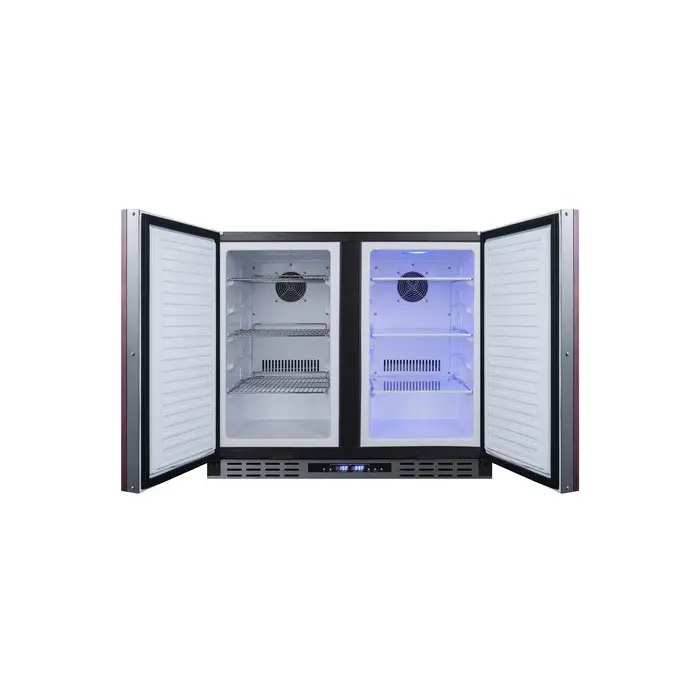

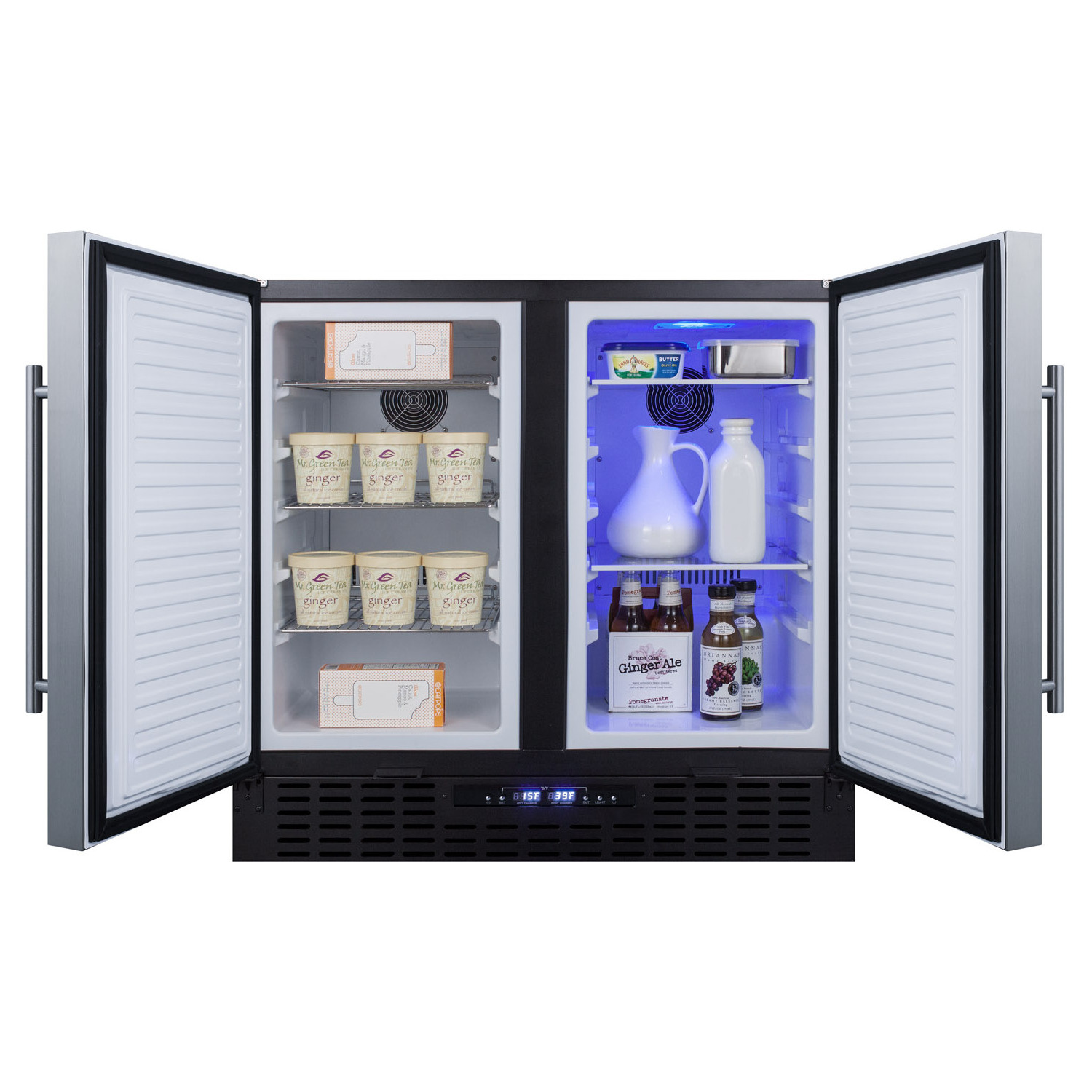

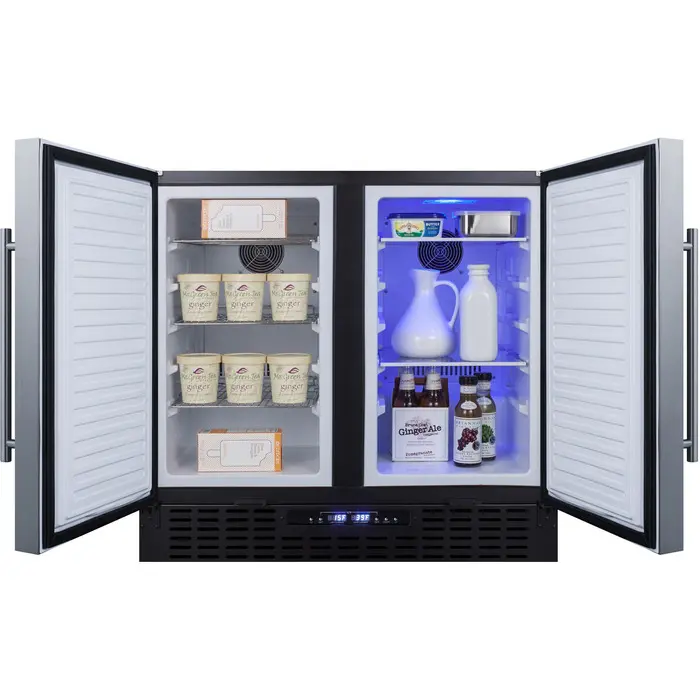

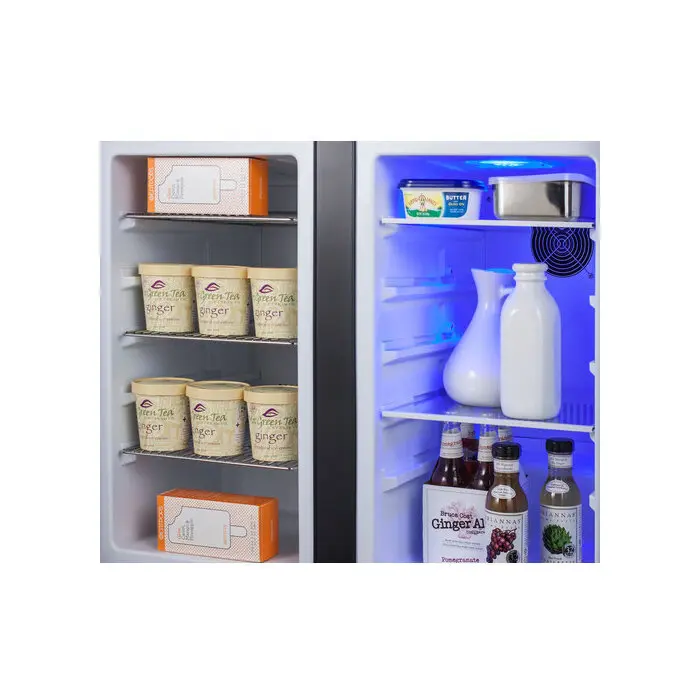

Inside, the FFRF36 features a 2.9 cu.ft. frost-free freezer compartment on the left and a 2.9 cu.ft. frost-free refrigerator compartment on the right. Both sections are frost-free for easy maintenance, with internal fans to help provide even cooling. The refrigerator compartment includes three adjustable glass shelves with five placement options that offer multiple spill-proof storage options. The freezer compartment includes three adjustable chrome shelves for proper cold air circulation. Additionally, the freezer section can be converted to run as a refrigerator, allowing you to adjust the temperature range to best accommodate your storage needs at the touch of a button.

With its innovative all-in-one design, user-friendly features, and frost-free operation, the FFRF36 is a great choice for smaller kitchens looking to maximize storage space.

NOTE: Due to its larger commercial design, the FFRF36 requires an additional 5/8" of width for each door to open to a full 90º. If placing this unit against a right angle wall, be sure to accommodate this extra space.

SPECIFICATIONS

Overview

Nominal Height 35.0" (89 cm)

Height of Cabinet 34.25" (87 cm)

Nominal Width 36.0" (91 cm)

Width 35.5" (90 cm)

Width with Door Open 36.75" (93 cm)

Nominal Depth 25.0" (64 cm)

Depth 24.25" (62 cm)

Depth with Handle 25.13" (64 cm)

Depth with door at 90° 40.0" (102 cm)

Capacity 5.35 cu.ft. (151 L)

Defrost Type Frost-Free

Door Stainless Steel

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 504.0kWh/year

Amps 1.3

Voltage/Frequency 115 V AC/60 Hz

Weight 160.0 lbs. (73 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101063140

Refrigerator-Freezer

Door Swing French

Adjustable Shelves Yes

Interior Light Yes

Refrigerator - Interior Height 23.5" (60 cm)

Refrigerator - Interior Width 12.75" (32 cm)

Refrigerator - Interior Depth 16.75" (43 cm)

Refrigerator - Capacity 2.9 cu.ft

Refrigerator - Shelf Type Glass

Refrigerator - Shelf Qty 3

Refrigerator - Temperature Range 36°F to 46°F

Refrigerator - Refrigerant Type R600a

Refrigerator - Refrigerant Amount 1.59 oz.

Freezer - Interior Height 23.5" (60 cm)

Freezer - Interior Width 12.75" (32 cm)

Freezer - Interior Depth 16.75" (43 cm)

Freezer - Capacity 2.9 cu.ft

Freezer - Shelf Type Chrome

Freezer - Shelf Qty 3

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.59 oz.

High Side PSI 150.0

Low Side PSI 50.0

Level Legs 2

Freezer - Temperature Range -22°F to 46°F

Compressor Step Height 4.75" (12 cm)

Compressor Step Width 12.75" (32 cm)

Compressor Step Depth 4.25" (11 cm)

FEATURES

Commercially approved ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings

Built-in capable Front-breathing system allows the unit to be used built-in

All-in-one design Separate refrigerator and freezer sections with single compressor operation

Frost-free operation No-frost operation ensures reduced maintenance in both the refrigerator and freezer compartments

Factory-installed locks Keyed locks for each section offer added security

Pro style handles Stainless steel handles offer an attractive finish for the appliance

Digital thermostat Digital control panel allows for easy temperature control, with a clear readout in Fahrenheit or Celsius

LED lighting (refrigerator) Interior LED lighting in the primary refrigerator section offers an attractive and energy efficient presentation

Adjustable shelves (5 placement options) Refrigerator section includes three spill-proof glass shelves for easier cleaning, while the freezer includes three adjustable chrome shelves to ensure proper cold air circulation

Convertible freezer Freezer compartment temperature can be set to serve as a second refrigerator as needed

Internal fans Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Sealed back Space-saving design with no exposed coils in the rear offers easy cleanability

Temperature memory function In the event of power loss, the unit will retain its last temperature settings upon power recovery

Fully finished cabinet Allows the unit to be used freestanding

Leveling legs Two leveling legs ensure the unit is even when placed on uneven surfaces

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
