Summit 30 inch wide undercounter side-by-side refrigerator-freezer with panel-ready black front, FFRF3070BL

Summit manufactures unique refrigeration solutions to combine full functionality and custom style under the counter.

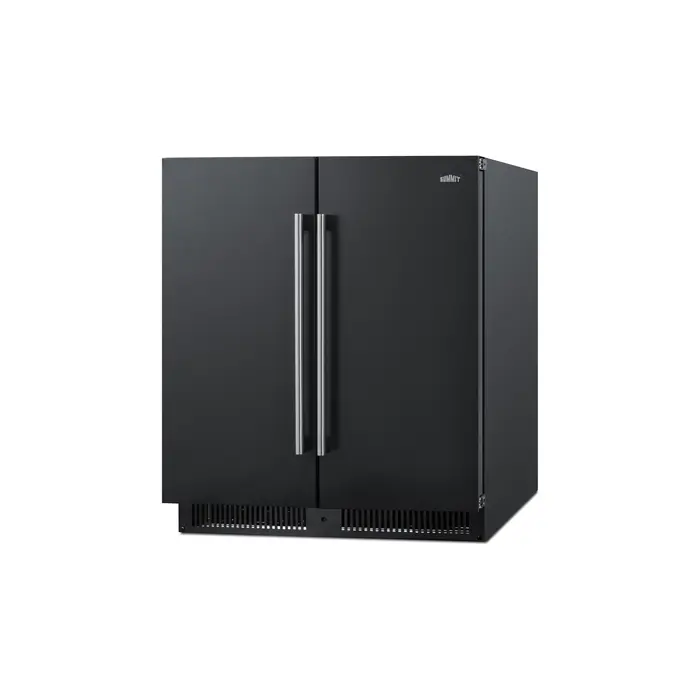

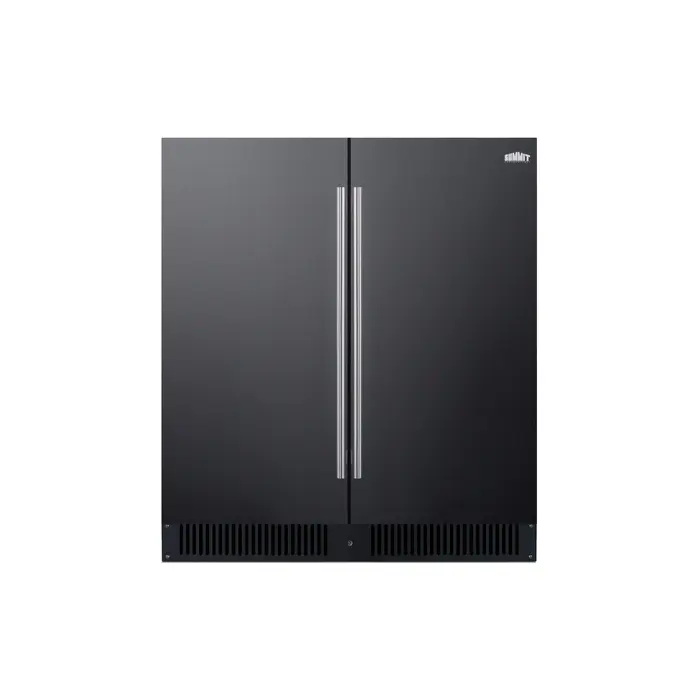

Sized at 30" wide, the FFRF3070BL is an all-in-one side-by-side refrigerator-freezer. The front-breathing design allows built-in installation under counters, while the fully finished black cabinet also enables freestanding use. French doors allow you to separately store refrigerated and frozen foods. This unit comes in a jet black finish. The European style fully articulating hinging ensures seamless integration into your space. This unit includes a lock in the kickplate to secure both sections. A sealed back and right angle plug offer added space savings.

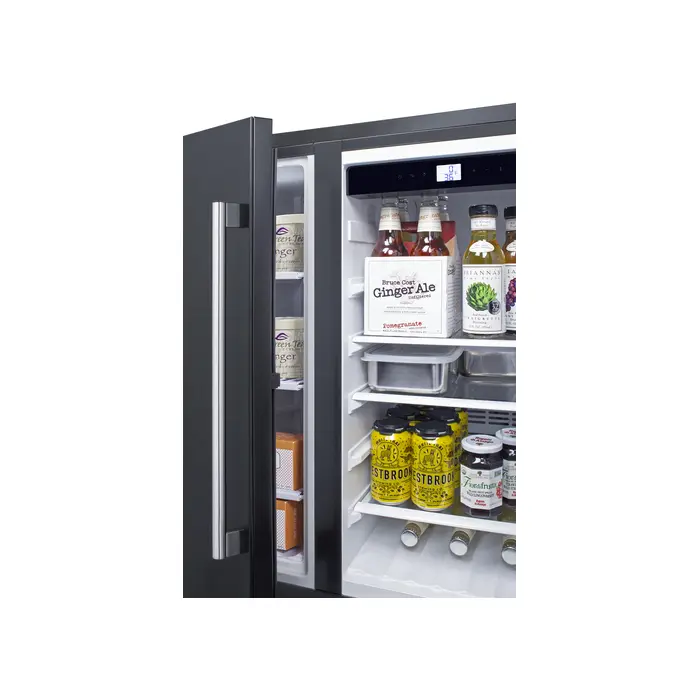

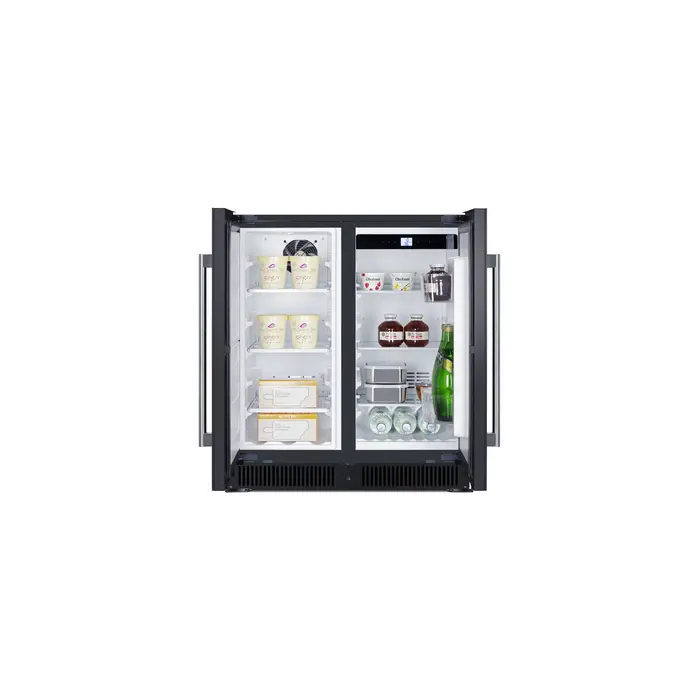

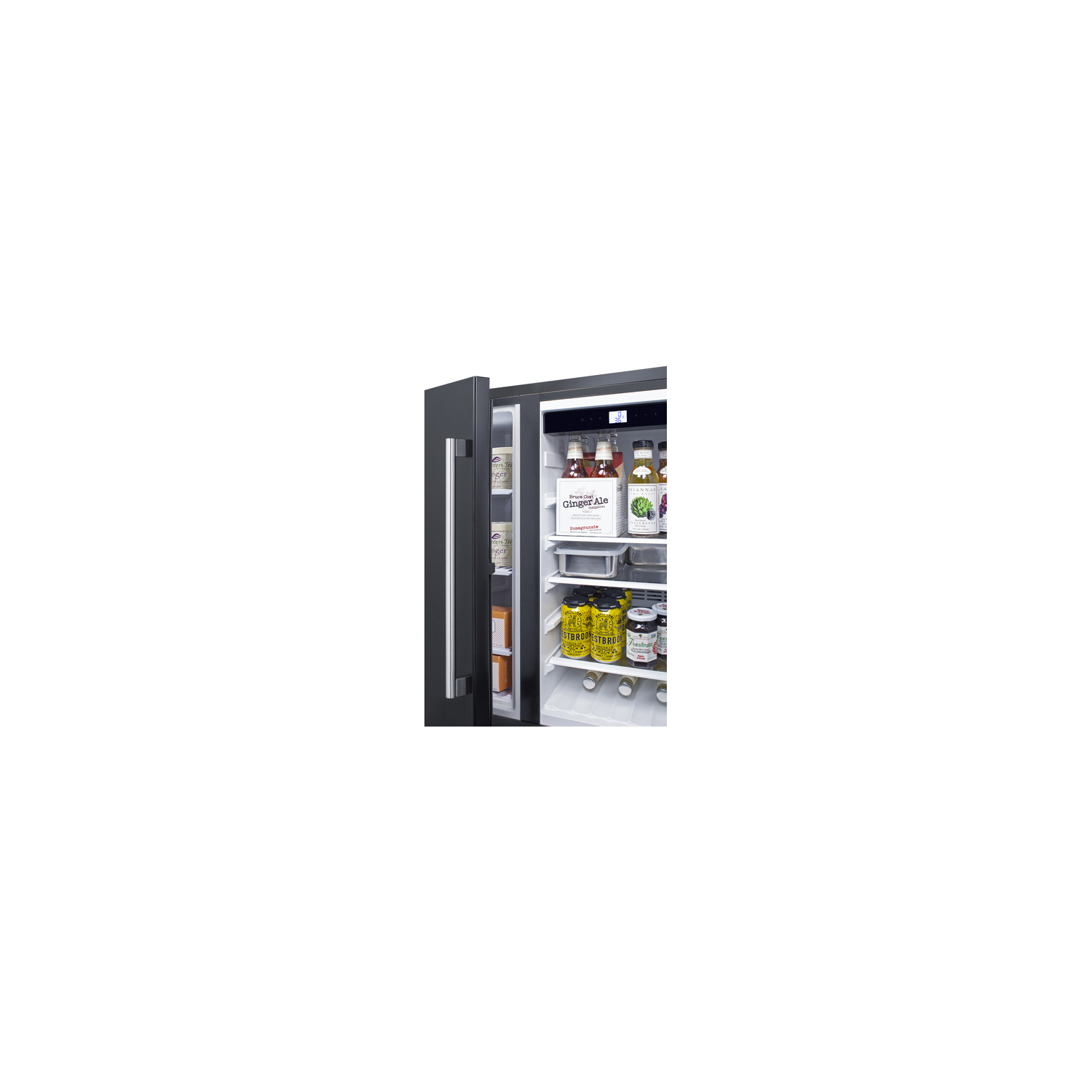

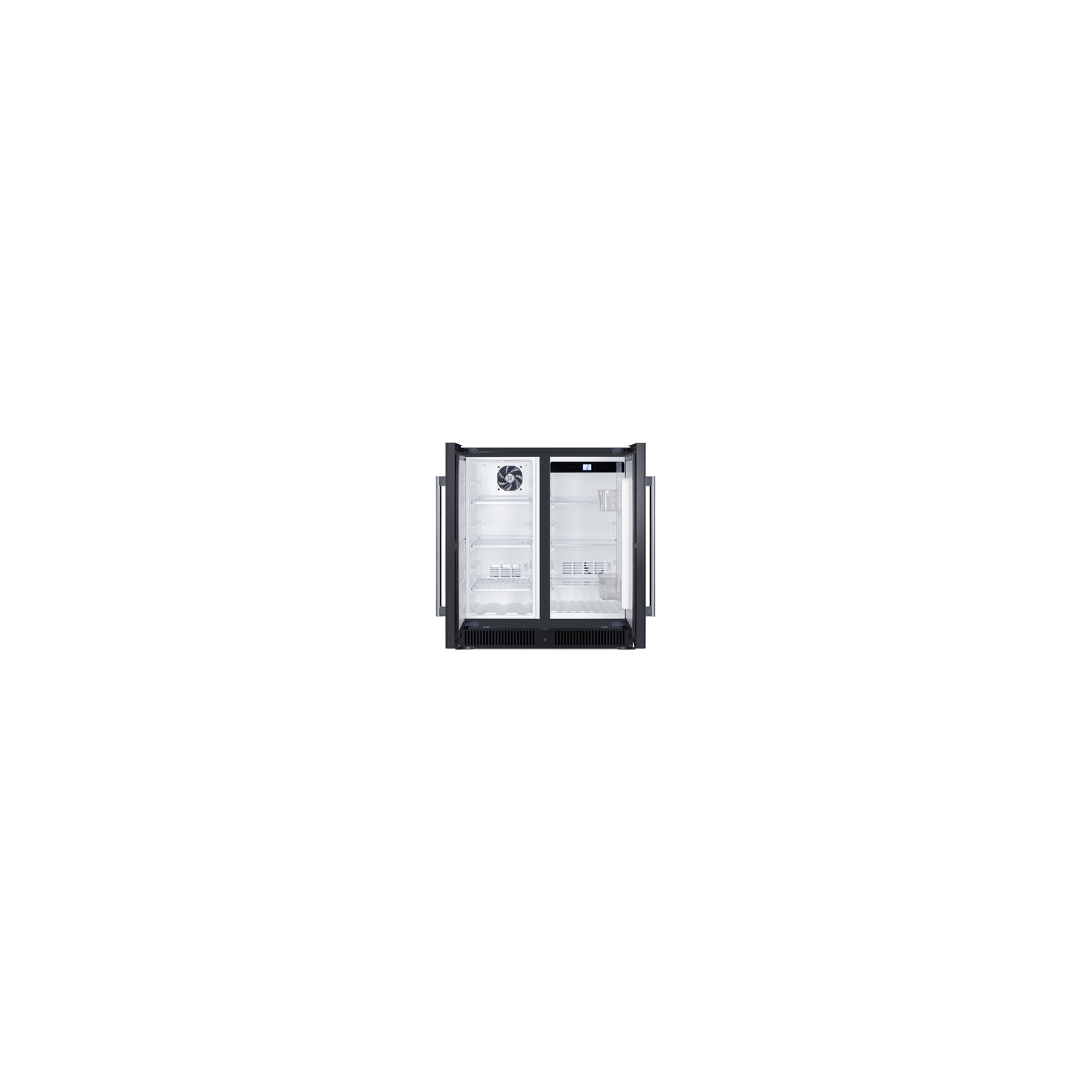

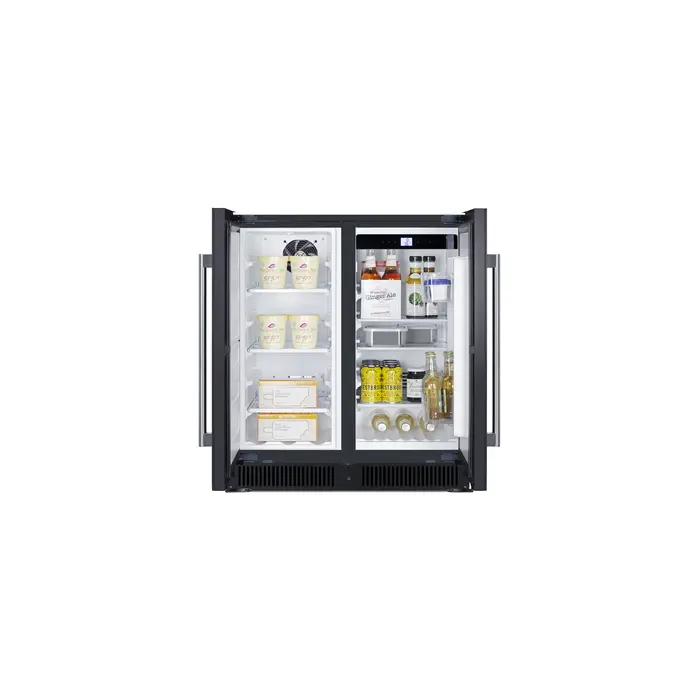

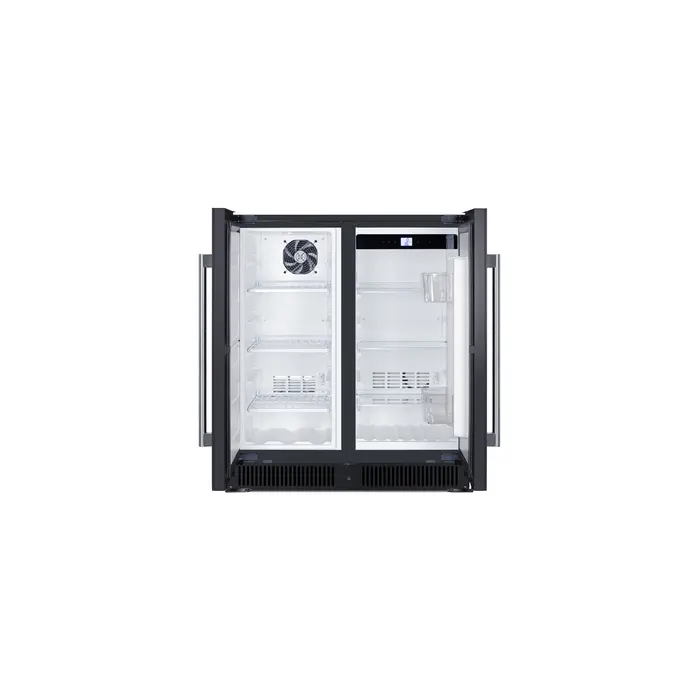

Inside, the FFRF3070BL features a frost-free freezer compartment on the left and a frost-free refrigerator compartment on the right. The refrigerator includes a digital thermostat allowing users to manage the temperature in each compartment, with a readout in Celsius or Fahrenheit for added convenience. Adjustable glass shelves offer cleaner spill-proof storage for fresh food items, while two removable door shelves provide additional storage space as needed. The freezer compartment includes adjustable wire shelves to ensure proper cold air circulation. Both sides feature LED lighting to provide an attractive, energy efficient presentation. The slotted floor design is ideal for keeping bottles safely in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that allows you to disable certain functions during religious observance.

With its innovative all-in-one design, user-friendly features, and full frost-free operation, the FFRF3070BL is a great choice for smaller kitchens looking to maximize storage space under the counter. Additional choices are available in white and stainless steel, and with panel-ready doors for a custom look. Browse the full Summit selection to discover the perfect fit for your space.

SPECIFICATIONS

Overview

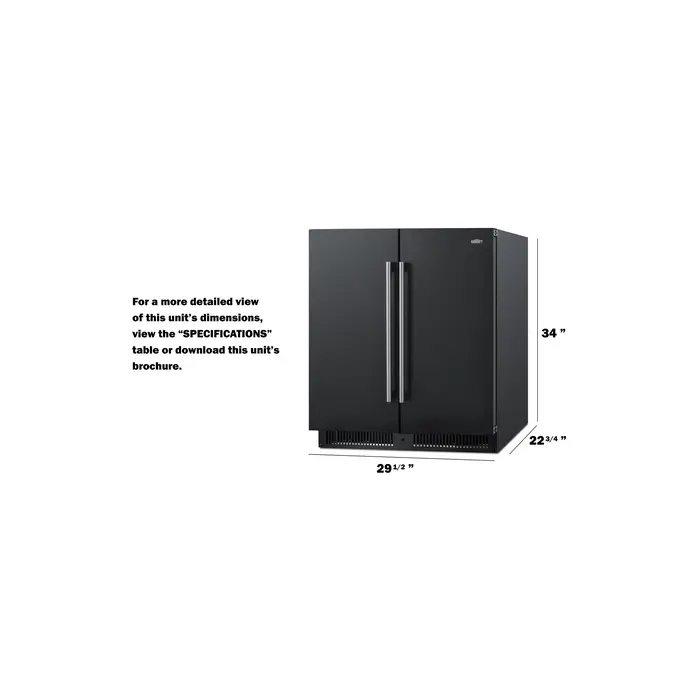

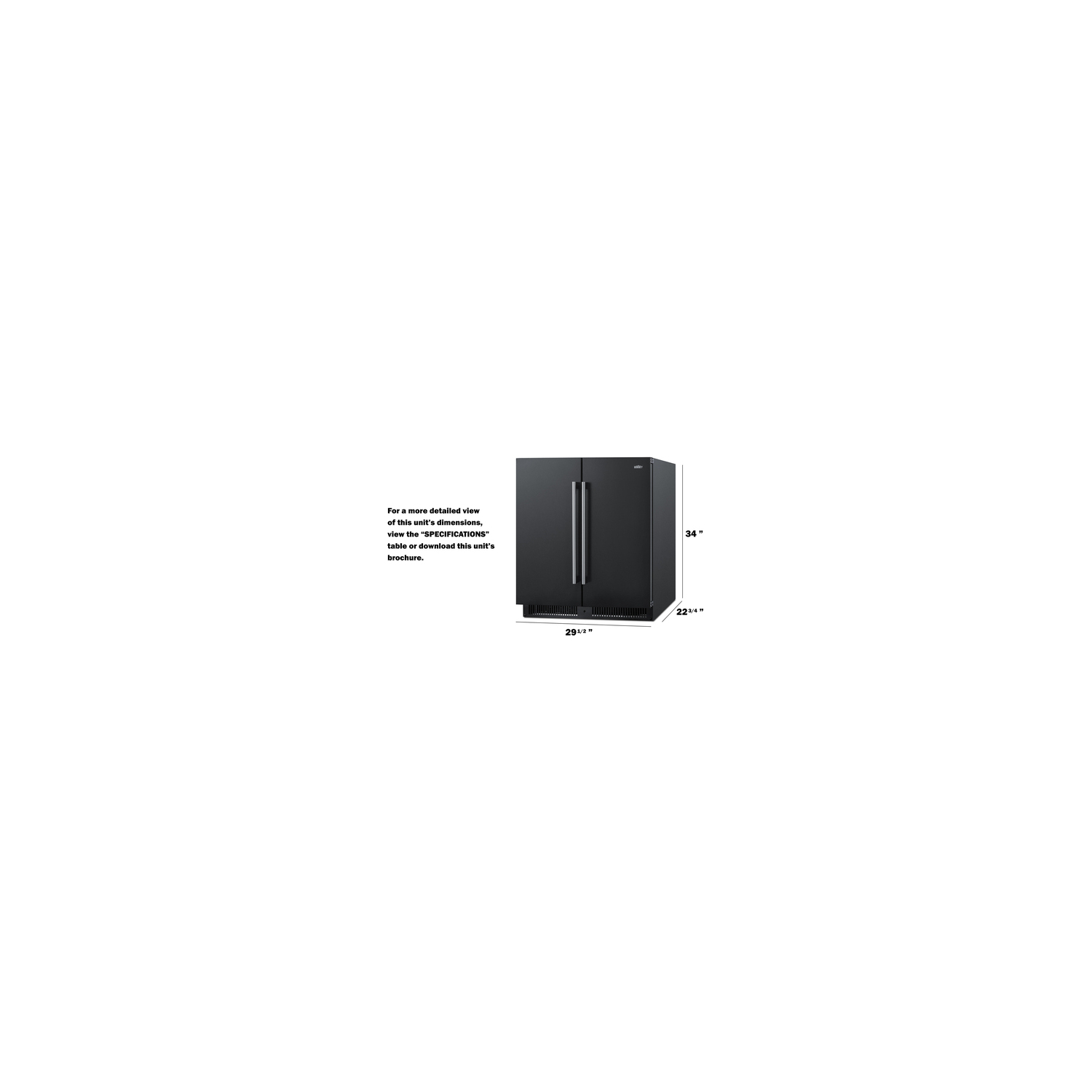

Nominal Height 34.0" (86 cm)

Height of Cabinet 34.0" (86 cm)

Nominal Width 30.0" (76 cm)

Width 29.5" (75 cm)

Nominal Depth 25.0" (64 cm)

Depth 22.75" (58 cm)

Depth with Panel 23.5" (60 cm)

Capacity 5.1 cu.ft. (144 L)

Defrost Type Frost-Free

Door Black

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 440.0kWh/year

Amps 1.5

Voltage/Frequency 115 V AC/60 Hz

Weight 125.0 lbs. (57 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101159959

Refrigerator-Freezer

Door Swing French

Adjustable Shelves Yes

Interior Light Yes

Refrigerator - Interior Height 25.0" (64 cm)

Refrigerator - Interior Width 12.25" (31 cm)

Refrigerator - Interior Depth 17.25" (44 cm)

Refrigerator - Capacity 2.8 cu.ft

Refrigerator - Shelf Type Glass

Refrigerator - Shelf Qty 3

Refrigerator - Full Door Shelves 2

Refrigerator - Temperature Range 36°F to 43°F

Freezer - Interior Height 25.75" (65 cm)

Freezer - Interior Width 10.5" (27 cm)

Freezer - Interior Depth 15.75" (40 cm)

Freezer - Capacity 2.3 cu.ft

Freezer - Shelf Type Wire

Freezer - Shelf Qty 3

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.41 oz.

High Side PSI 270.0

Low Side PSI 105.0

Level Legs 2

Freezer - Temperature Range -4º to 4ºF

Compressor Step Height 4.0" (10 cm)

Compressor Step Width 10.5" (27 cm)

Compressor Step Depth 4.5" (11 cm)

Sound Level 33.5 dB

FEATURES

30" Wide Undercounter Refrigerator-Freezer Combination unit with a unique French door swing

All-in-one design Separate refrigerator and freezer sections with single compressor operation

Built-in capable Front-breathing system allows the unit to be used built-in

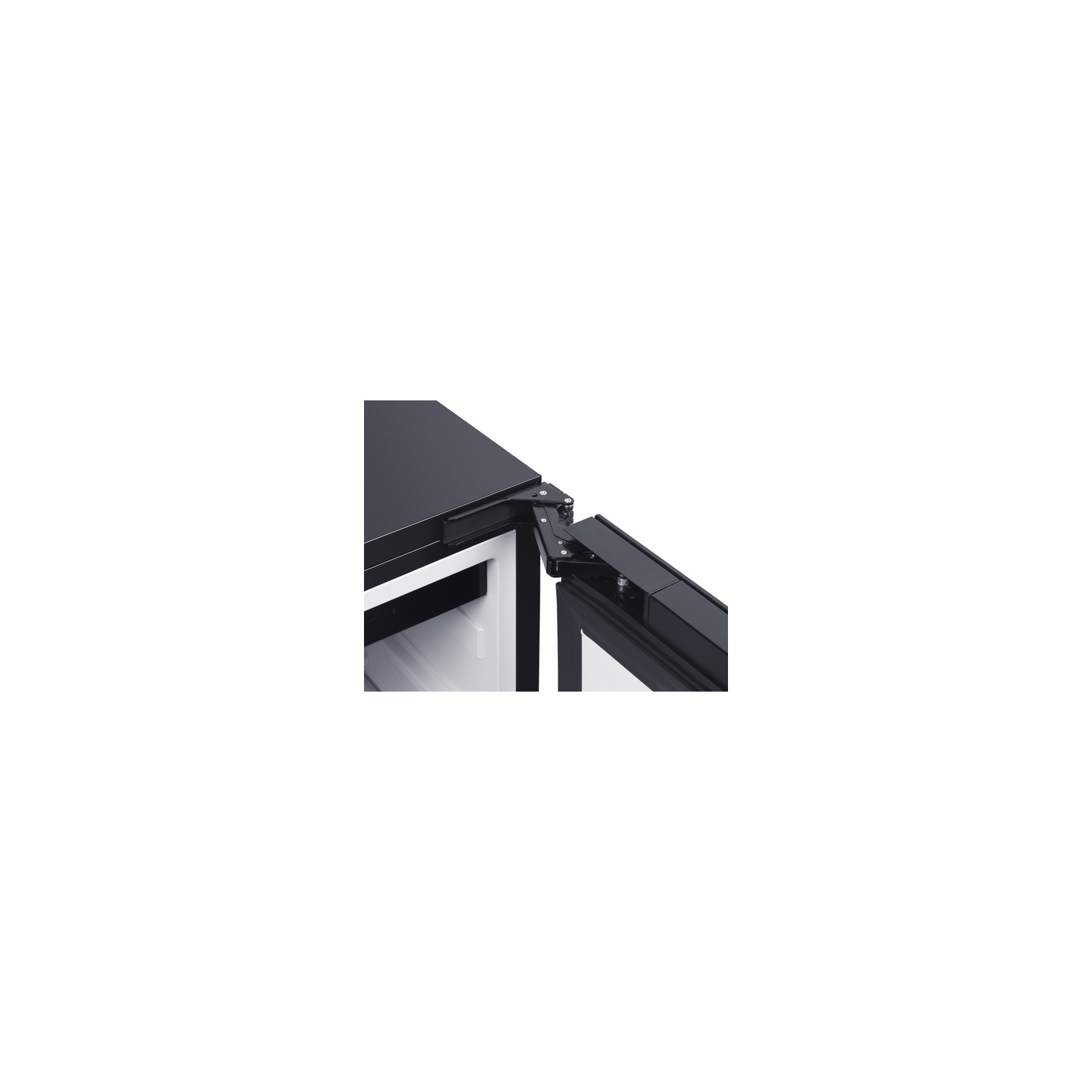

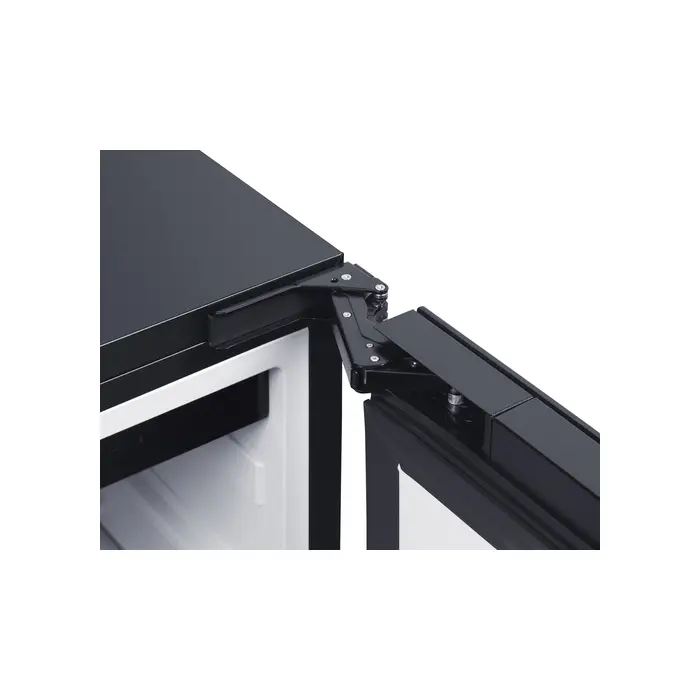

Fully articulating hinging European style hinge design ensures a flush fit and allows for a smoother opening

Frost-free operation No-frost operation ensures reduced maintenance in both the refrigerator and freezer compartments

Digital thermostat Refrigerator section includes a digital control panel to manage each compartment's temperature for added convenience, with a readout in Celsius or Fahrenheit

LED lighting Interior LED lighting in both sections offers an attractive and energy efficient presentation

Sabbath mode Setting allows you to disable the digital displays, lights, and alarms for religious observance

Adjustable shelves Refrigerator section includes spill-proof glass shelves for easier cleaning, while the freezer includes three adjustable wire shelves to ensure proper cold air circulation

Door shelves Two removable door racks provide additional storage as needed

Open door alarm Alarm will sound if either door is left open for over 60 seconds

High temperature alarm Audible alarm sounds if the interior temperature rises above the recommended range

Slotted floors Floor is specially designed with slots to allow you to store bottles safely on their sides

Sealed back Space-saving design with no exposed coils in the rear offers easy cleanability

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Temperature memory function In the event of power loss, the unit will retain its last temperature settings upon power recovery

Finished black exterior Unit comes in a fully finished jet black finish

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE (FFRF3070BL.pdf)

TECHNICAL DRAWING (.dwg) (FFRF3070BPNR_2.dwg)

ASSEMBLY DRAWING (FFRF3070BPNR-Assembly_2.pdf)

MSDS INFORMATION (R600a_K.pdf)

USE & CARE (FFRF3070BL-User-Manual.pdf)

Energy Guide
