Summit 24 inch wide undercounter frost-free side-by-side refrigerator-freezer in stainless steel with locks, stainless steel handles, and digital controls, 7.61101e+011, FFRF24SS

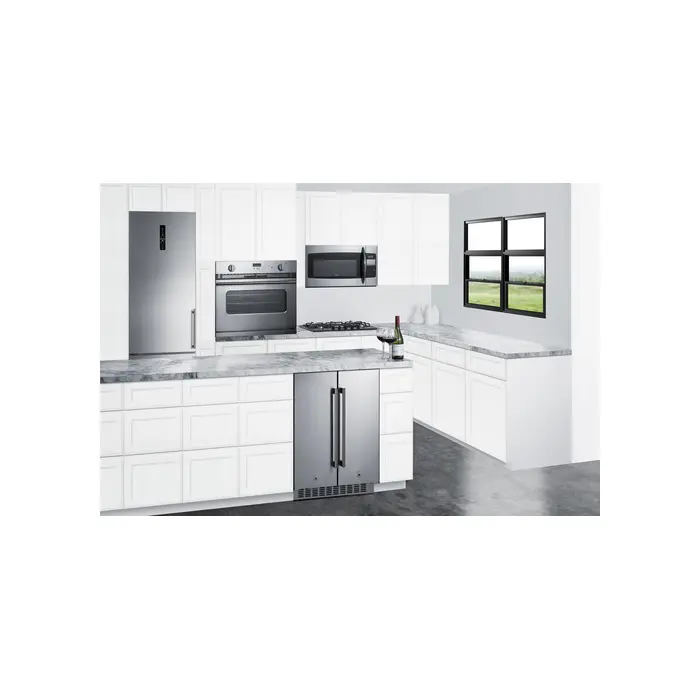

SUMMIT brings quality and value under the counter with the industry’s largest collection of built-in refrigeration.

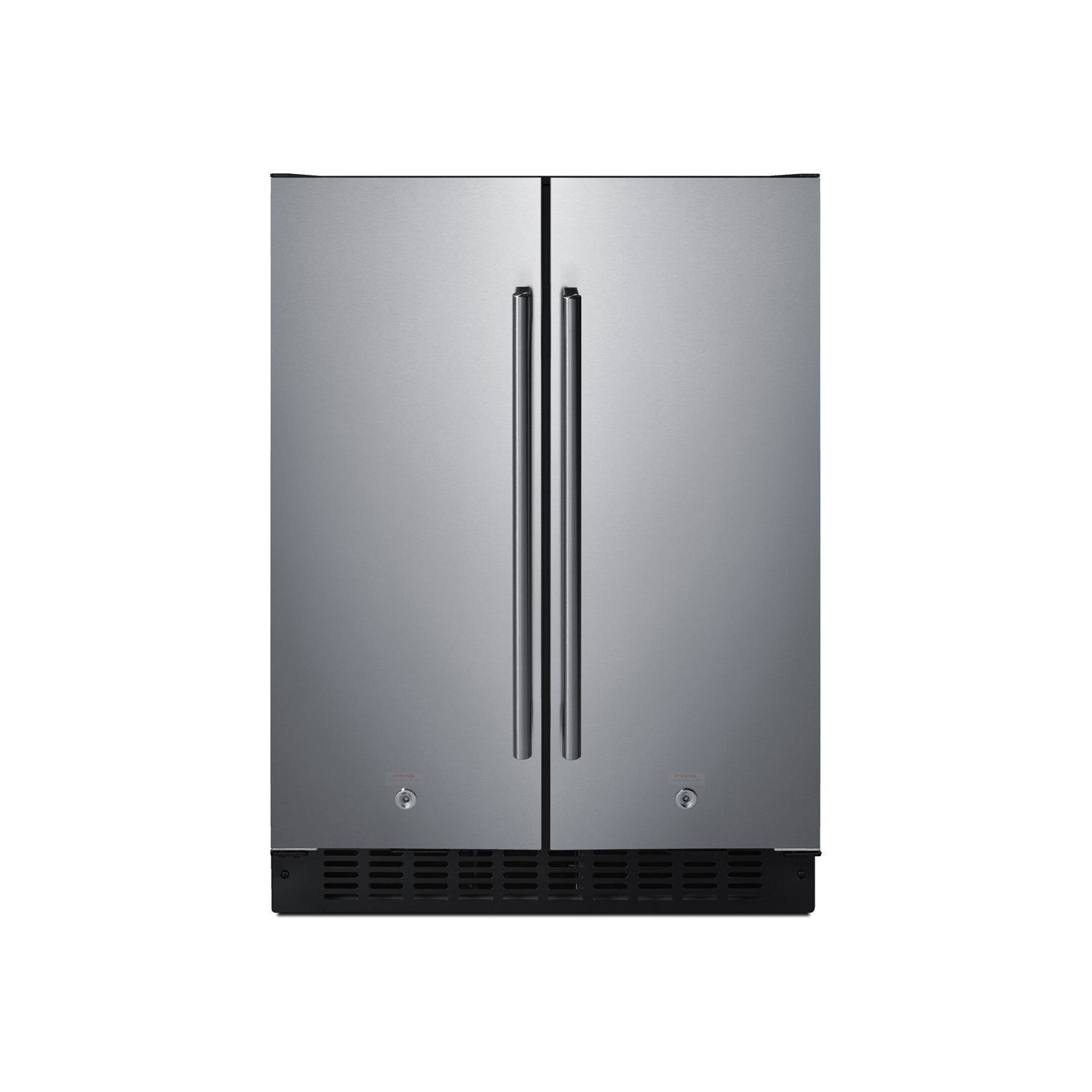

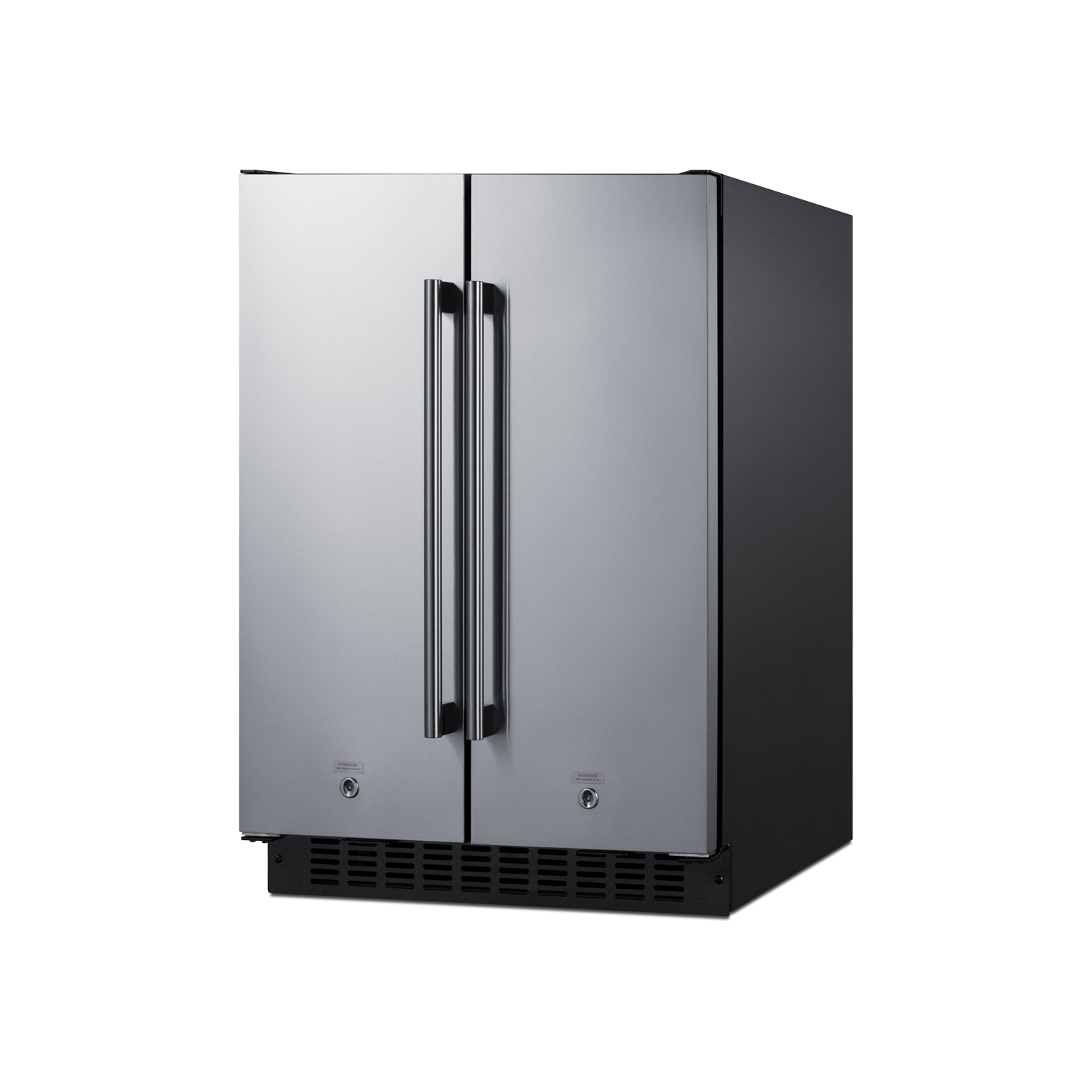

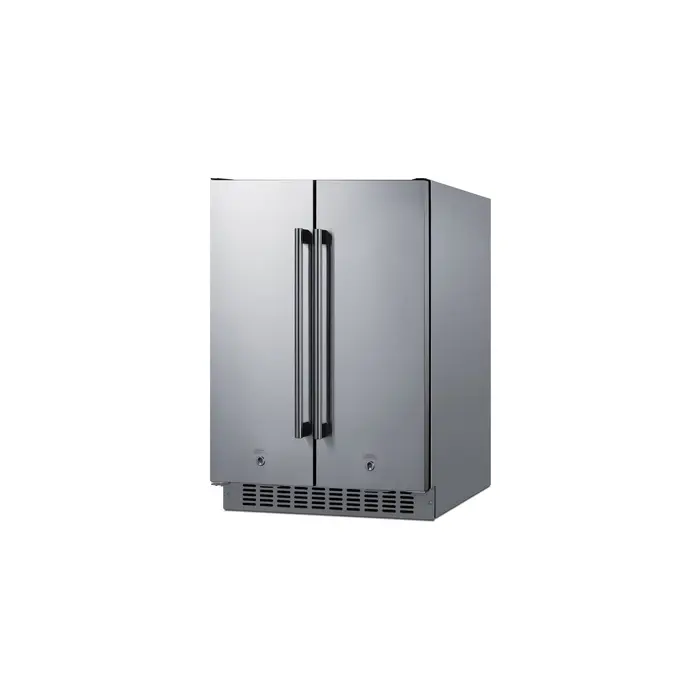

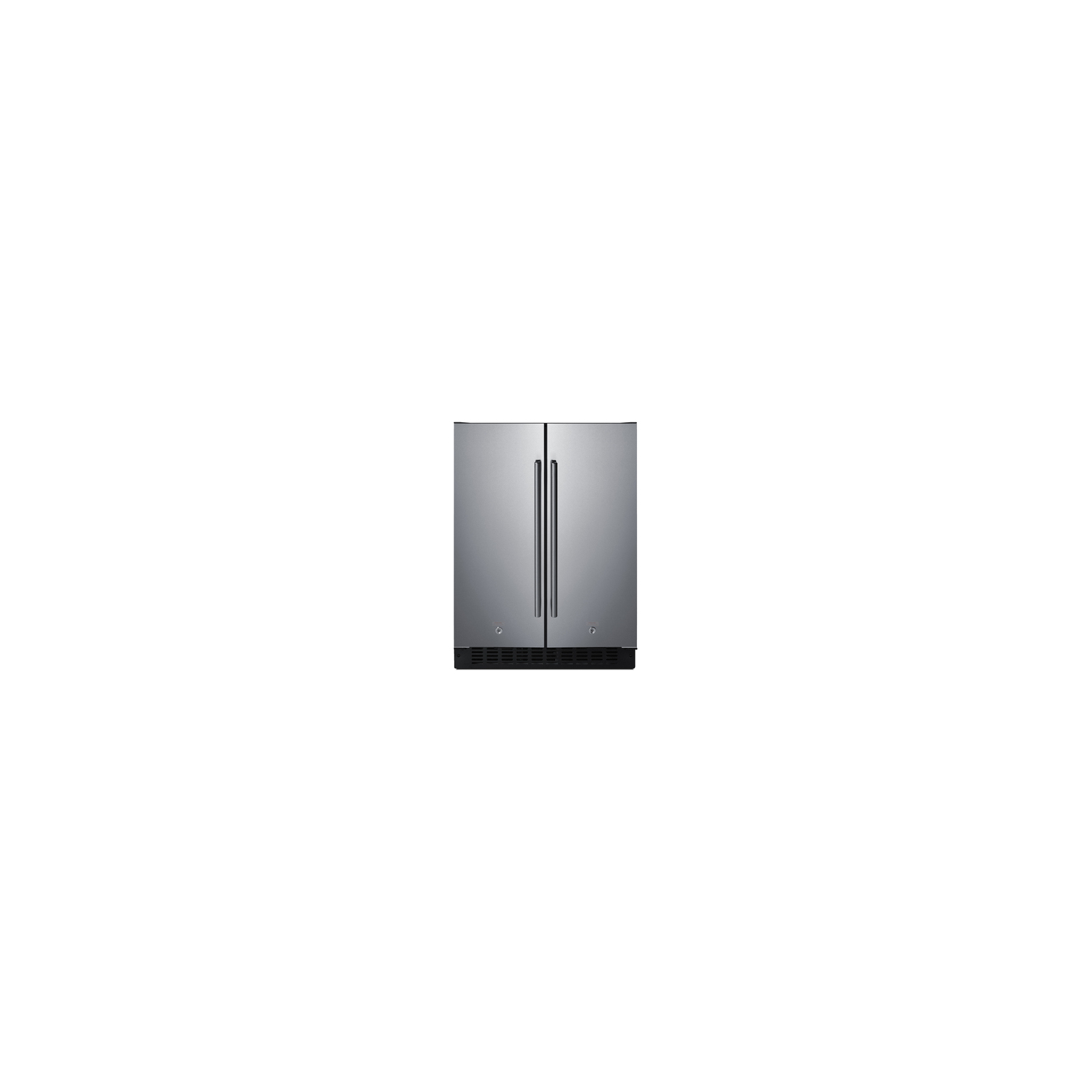

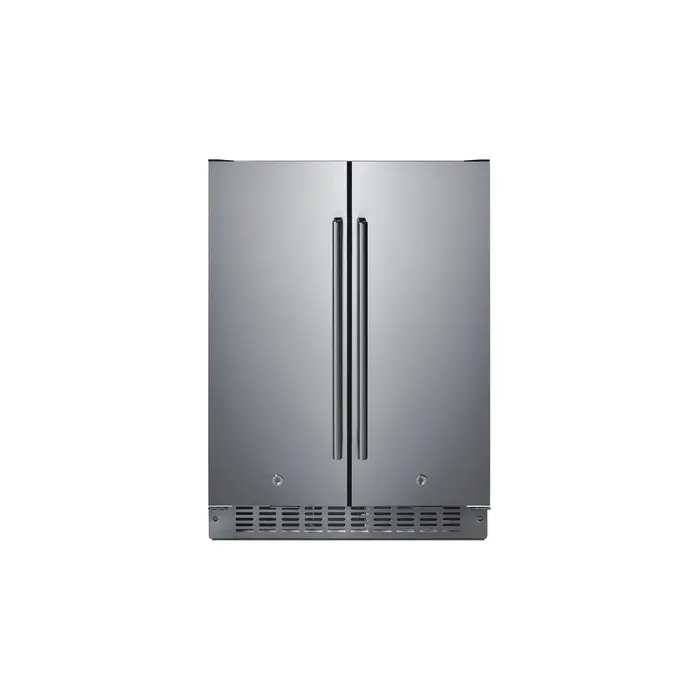

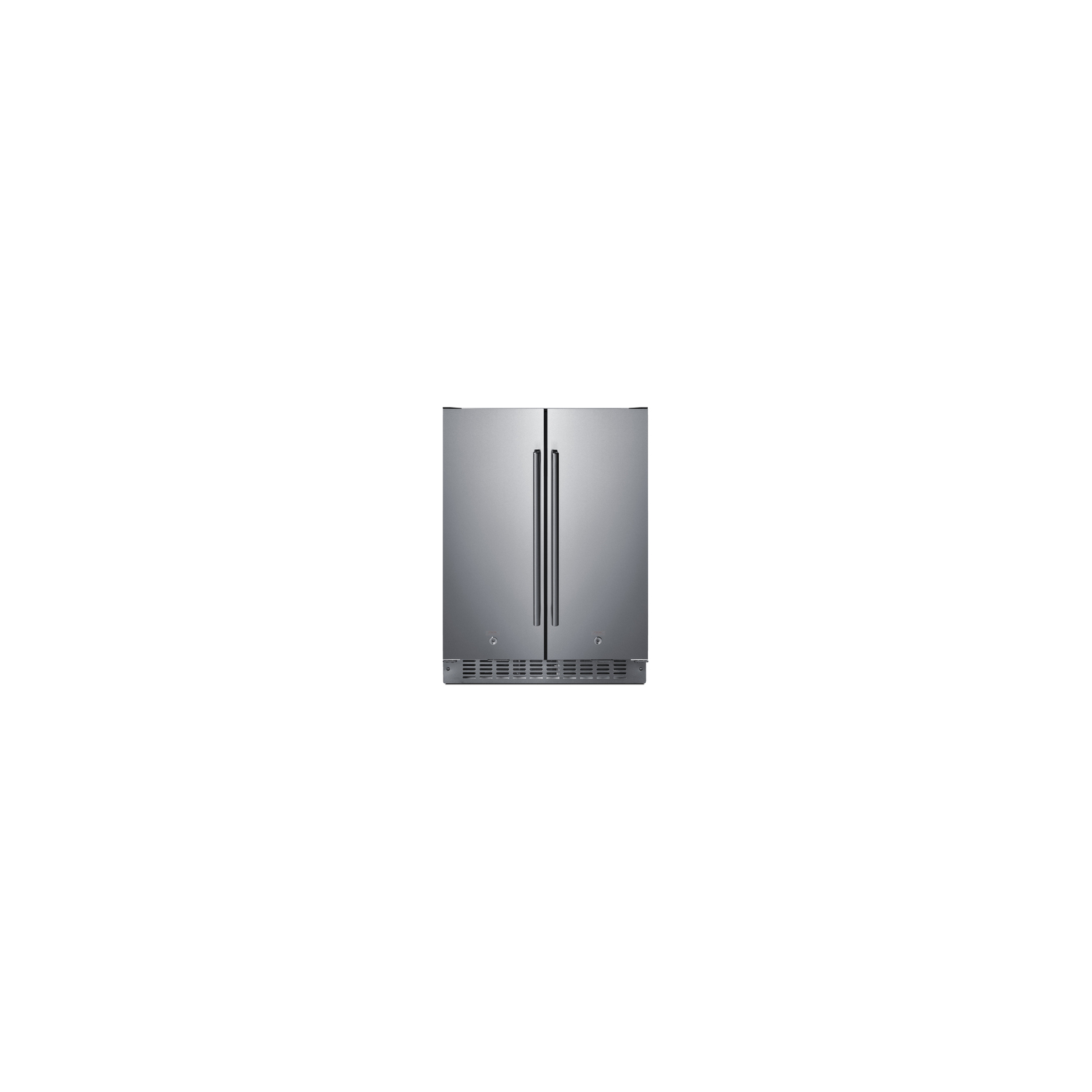

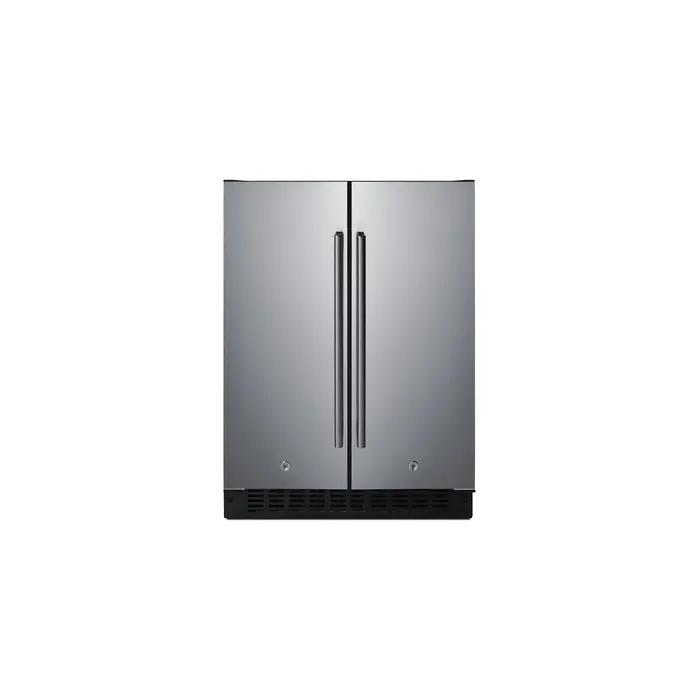

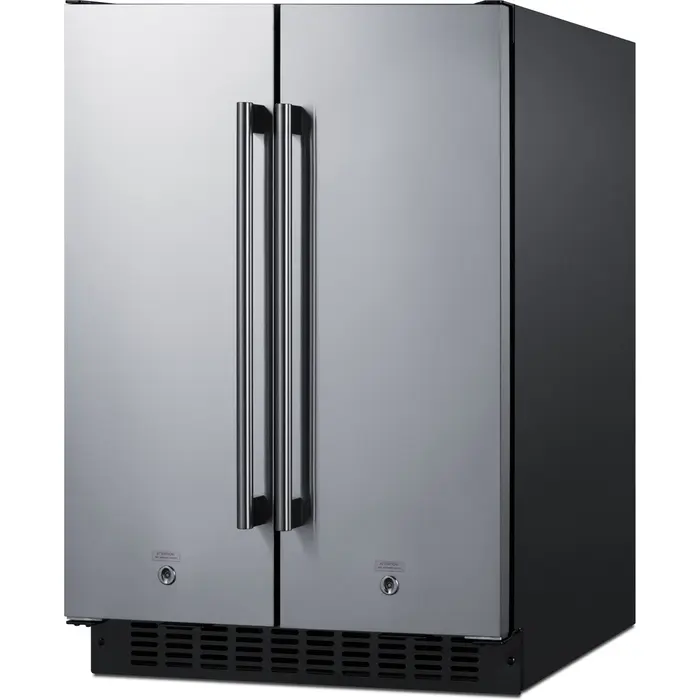

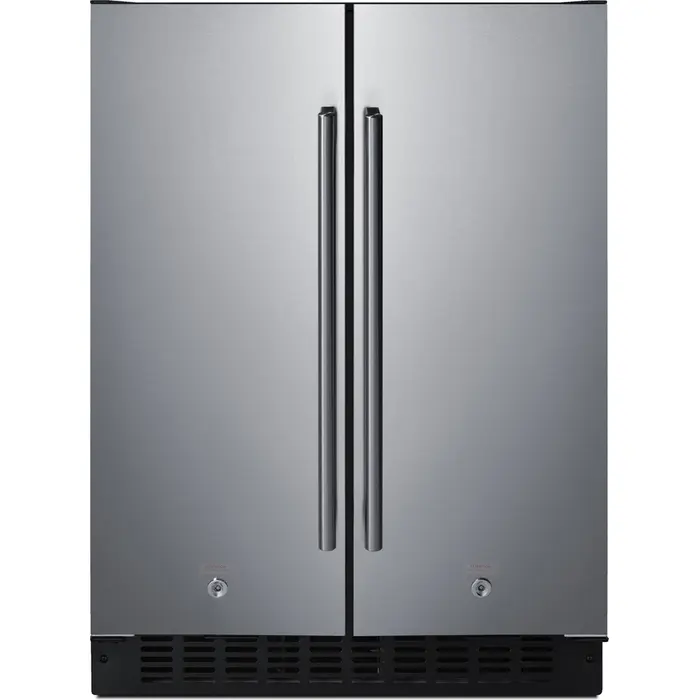

Sized at 24" wide, the FFRF24SS is an all-in-one side-by-side refrigerator-freezer. The front breathing design allows built-in installation under counters, while the fully finished black cabinet also enables freestanding use. This unit features stainless steel wrapped doors with a horizontal grain and pro style handles. Each compartment has a factory installed front lock for added security. The sealed rear and right angle plug offer a better fit.

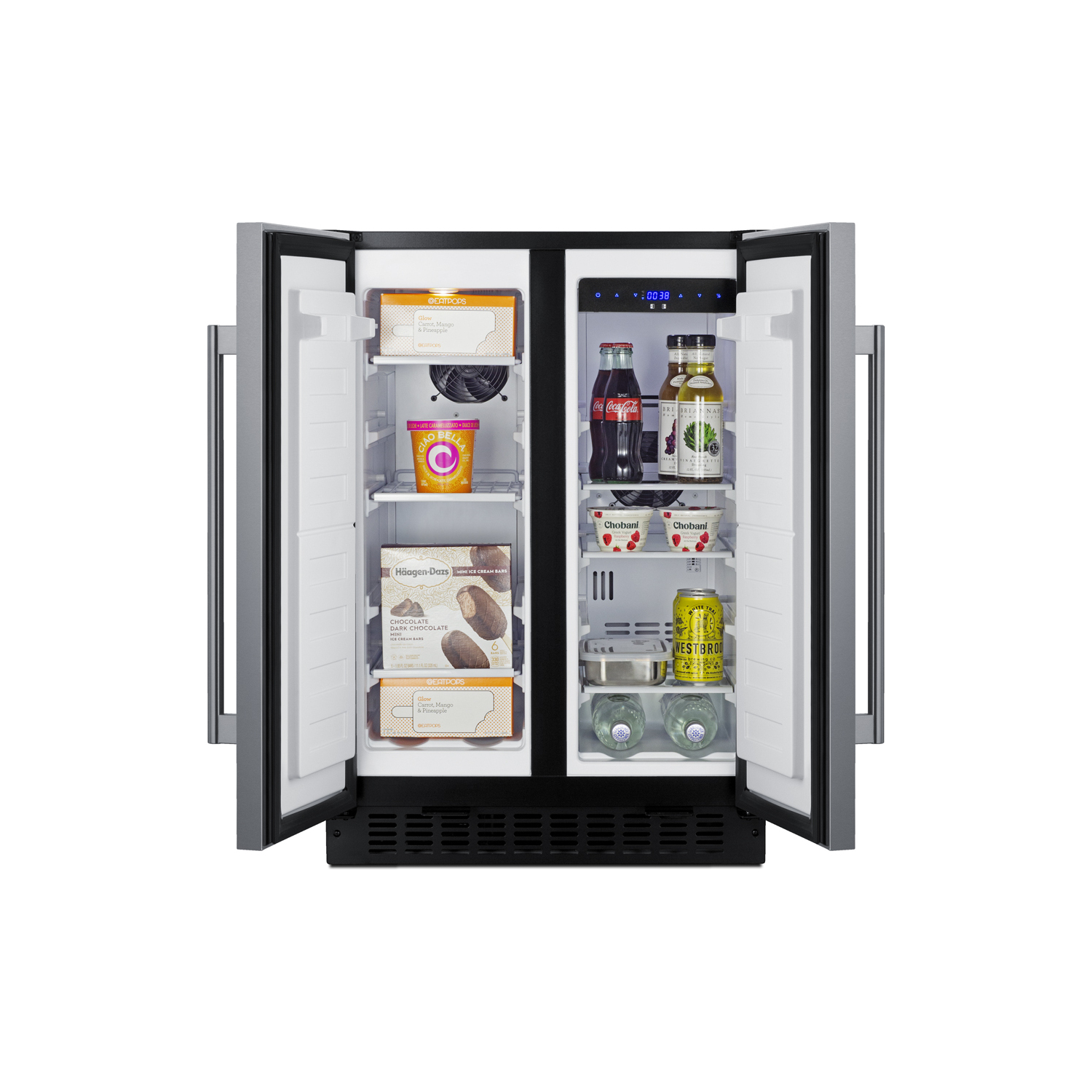

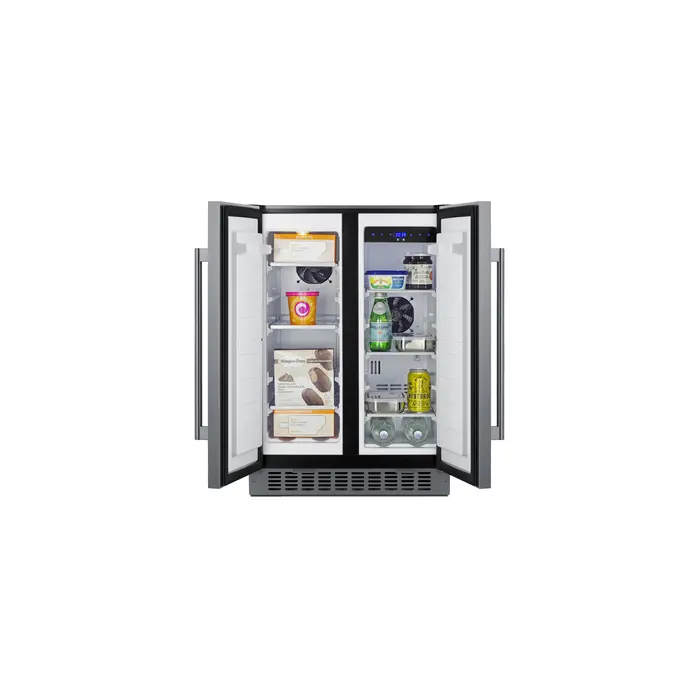

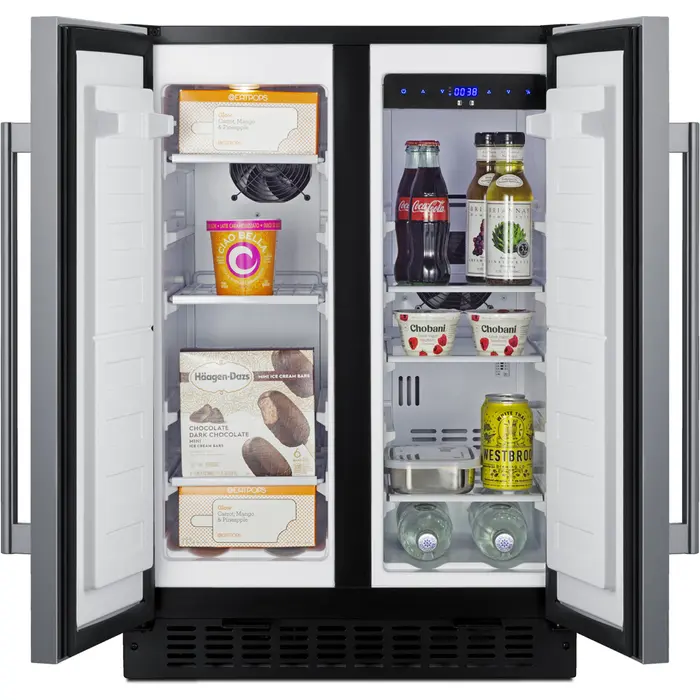

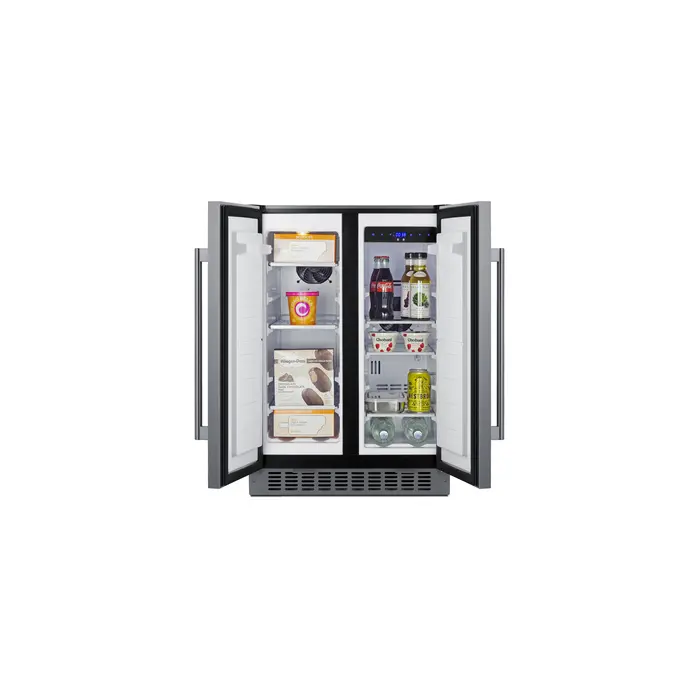

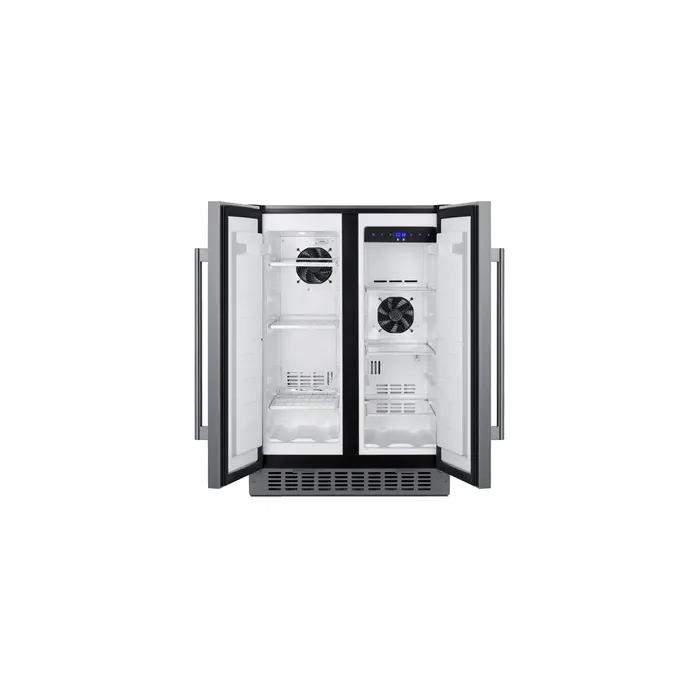

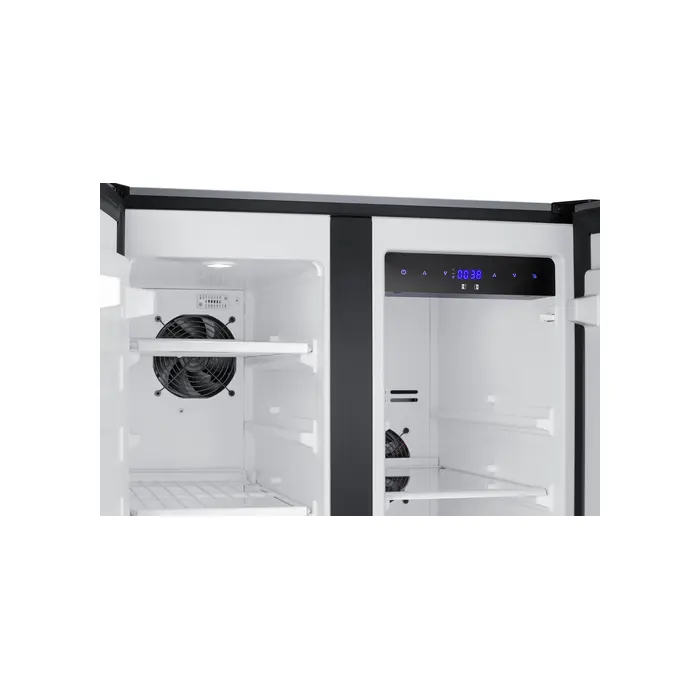

Inside, the FFRF24SS features a frost-free freezer compartment on the left and a frost-free refrigerator compartment on the right. The refrigerator includes a digital thermostat allowing users to manage the temperature in each compartment, with a readout in Celsius or Fahrenheit for added convenience. Adjustable glass shelves offer cleaner spill-proof storage for fresh food items, while two removable door shelves provide additional storage space as needed. An internal fan assures the compartment is cooled evenly from top to bottom. The freezer compartment includes adjustable wire shelves to ensure proper cold air circulation. Both sides feature LED lighting to provide an attractive, energy efficient presentation. The slotted floor design is ideal for keeping bottles safely in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that allows you to disable certain functions during religious observance.

With its innovative all-in-one design, user-friendly features, and full frost-free operation, the FFRF24SS is a great choice for smaller kitchens looking to maximize storage space under the counter.

SPECIFICATIONS

Overview

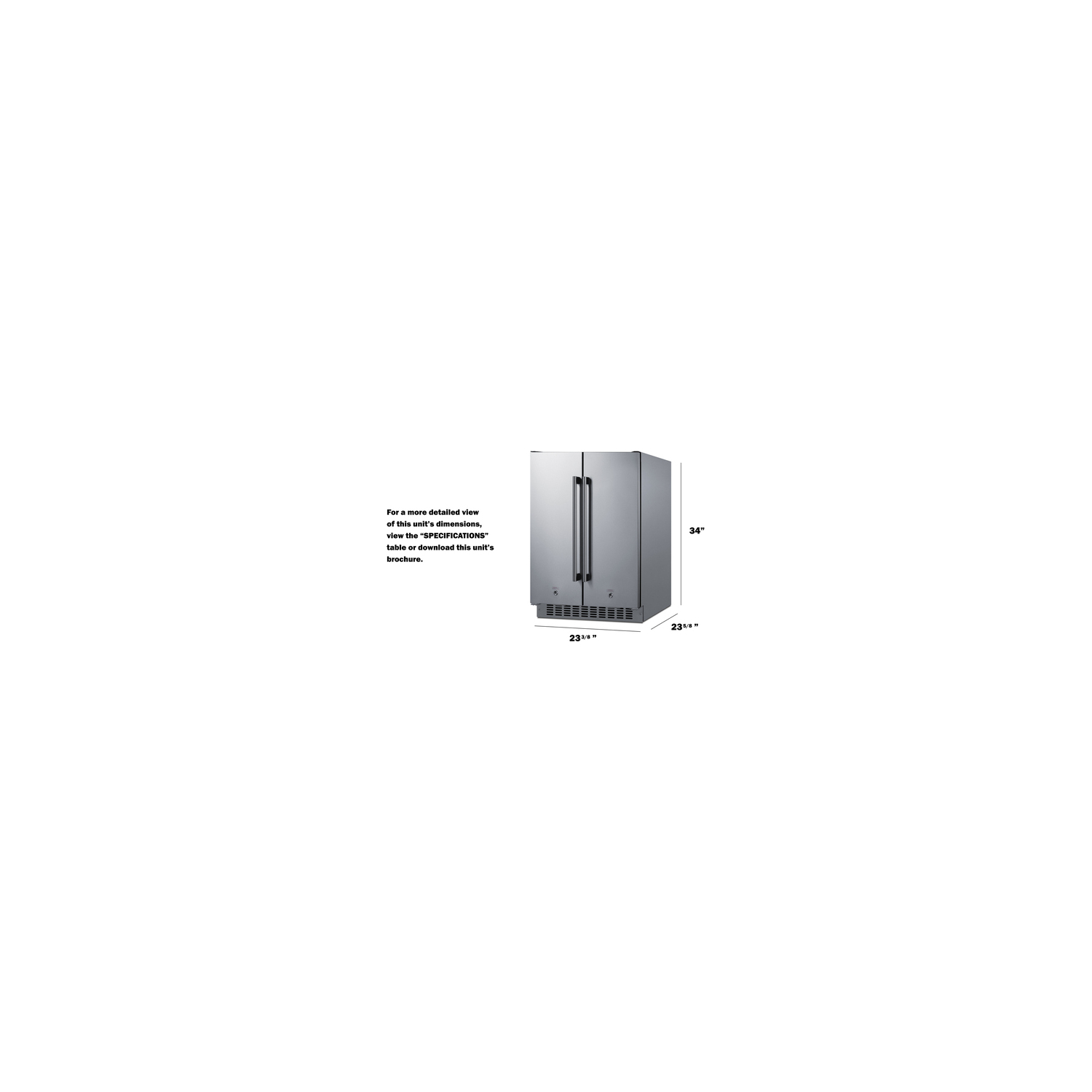

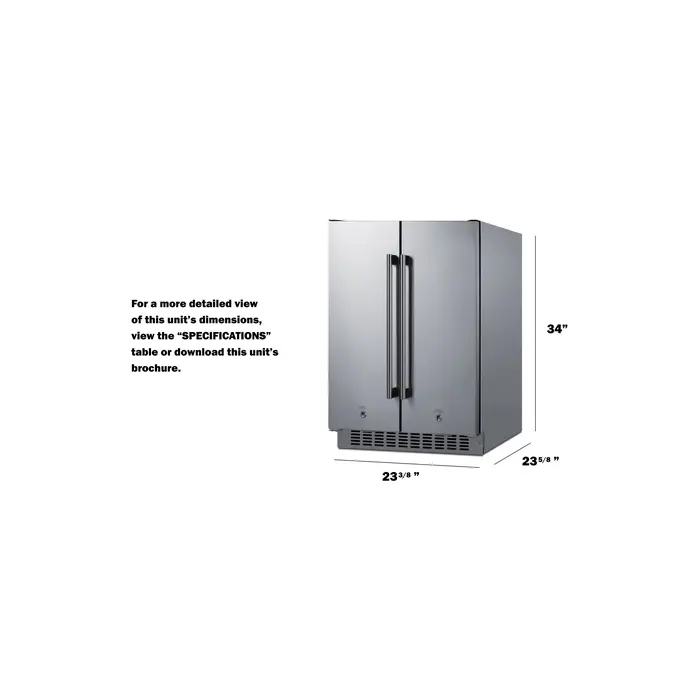

Nominal Height 34.0" (86 cm)

Height of Cabinet 34.0" (86 cm)

Nominal Width 24.0" (61 cm)

Width 23.38" (59 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.63" (60 cm)

Depth with Handle 25.38" (64 cm)

Depth with door at 90° 33.88" (86 cm)

Capacity 3.78 cu.ft. (107 L)

Defrost Type Frost-Free

Door Stainless Steel

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 405.0kWh/year

Amps 1.5

Voltage/Frequency 115 V AC/60 Hz

Weight 115.0 lbs. (52 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101079547

Refrigerator-Freezer

Door Swing French

Adjustable Shelves Yes

Interior Light Yes

Refrigerator - Interior Height 23.5" (60 cm)

Refrigerator - Interior Width 8.5" (22 cm)

Refrigerator - Interior Depth 17.63" (45 cm)

Refrigerator - Shelf Type Glass

Refrigerator - Shelf Qty 3

Refrigerator - Full Door Shelves 2

Refrigerator - Temperature Range 36°F to 43°F

Freezer - Interior Height 24.25" (62 cm)

Freezer - Interior Width 8.5" (22 cm)

Freezer - Interior Depth 16.5" (42 cm)

Freezer - Shelf Type Wire

Freezer - Shelf Qty 3

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.41 oz.

High Side PSI 270.0

Low Side PSI 105.0

Level Legs 2

Freezer - Temperature Range -4º to 4ºF

Compressor Step Height 3.25" (8 cm)

Compressor Step Width 8.5" (22 cm)

Compressor Step Depth 5.25" (13 cm)

Sound Level 34.7 dB

FEATURES

24" Wide Refrigerator-Freezer French door design with a separate refrigerator and freezer section in a 24" footprint for undercounter installation

Built-in capable Front-breathing system allows the unit to be used built-in

All-in-one design Separate refrigerator and freezer sections with single compressor operation

Stainless steel door fronts Attractive and durable design suits any kitchen style

Frost-free operation No-frost operation ensures reduced maintenance in both the refrigerator and freezer compartments

Factory-installed locks Keyed locks for each section offer added security

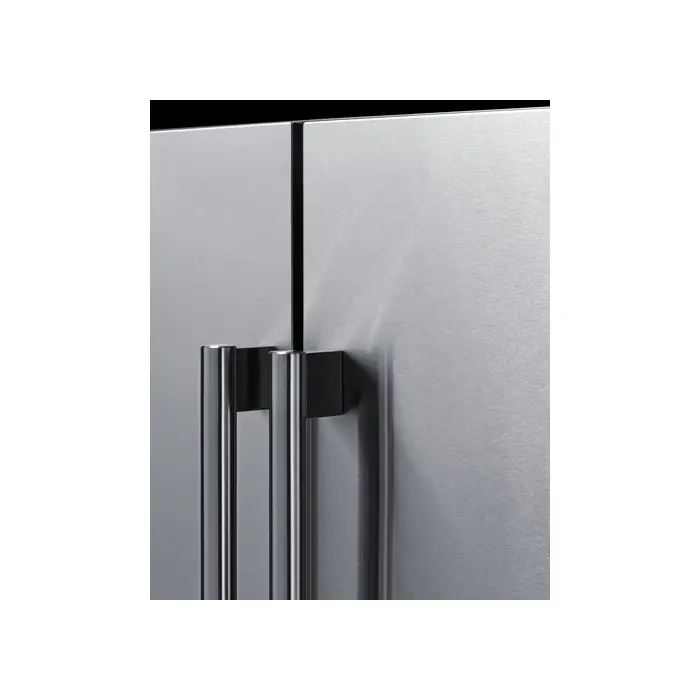

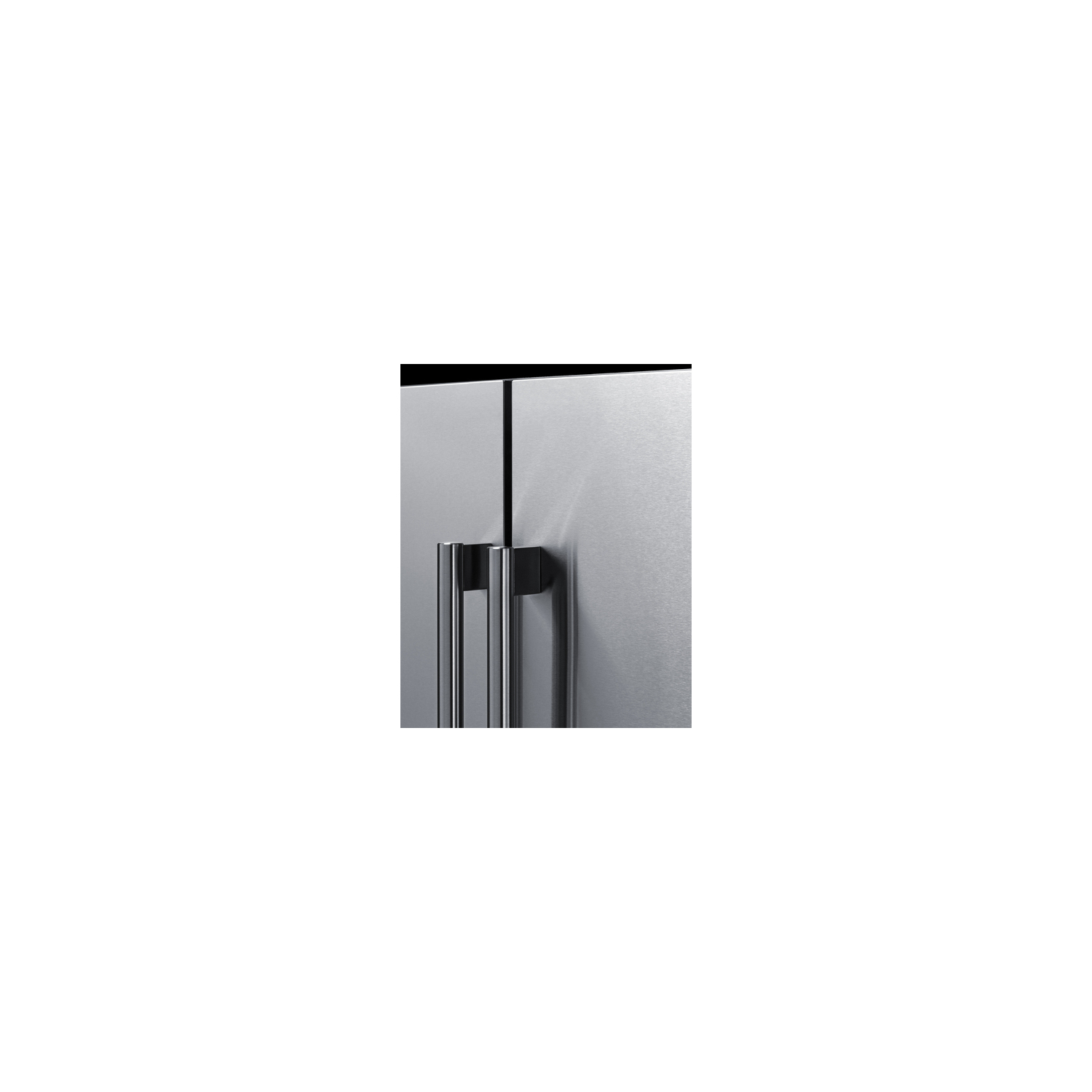

Pro style handles Stainless steel handles offer an attractive finish for the appliance

Digital thermostat Refrigerator section includes a digital control panel to manage each compartment's temperature for added convenience, with a readout in Celsius or Fahrenheit

LED lighting Interior LED lighting in both sections offers an attractive and energy efficient presentation

Sabbath mode Setting allows you to disable the digital displays, lights, and alarms for religious observance

Adjustable shelves Refrigerator section includes spill-proof glass shelves for easier cleaning, while the freezer includes three adjustable wire shelves to ensure proper cold air circulation

Door shelves Two removable door racks provide additional storage as needed

Open door alarm Alarm will sound if either door is left open for over 60 seconds

High temperature alarm Audible alarm sounds if the interior temperature rises above the recommended range

Slotted floors Floor is specially designed with slots to allow you to store bottles safely on their sides

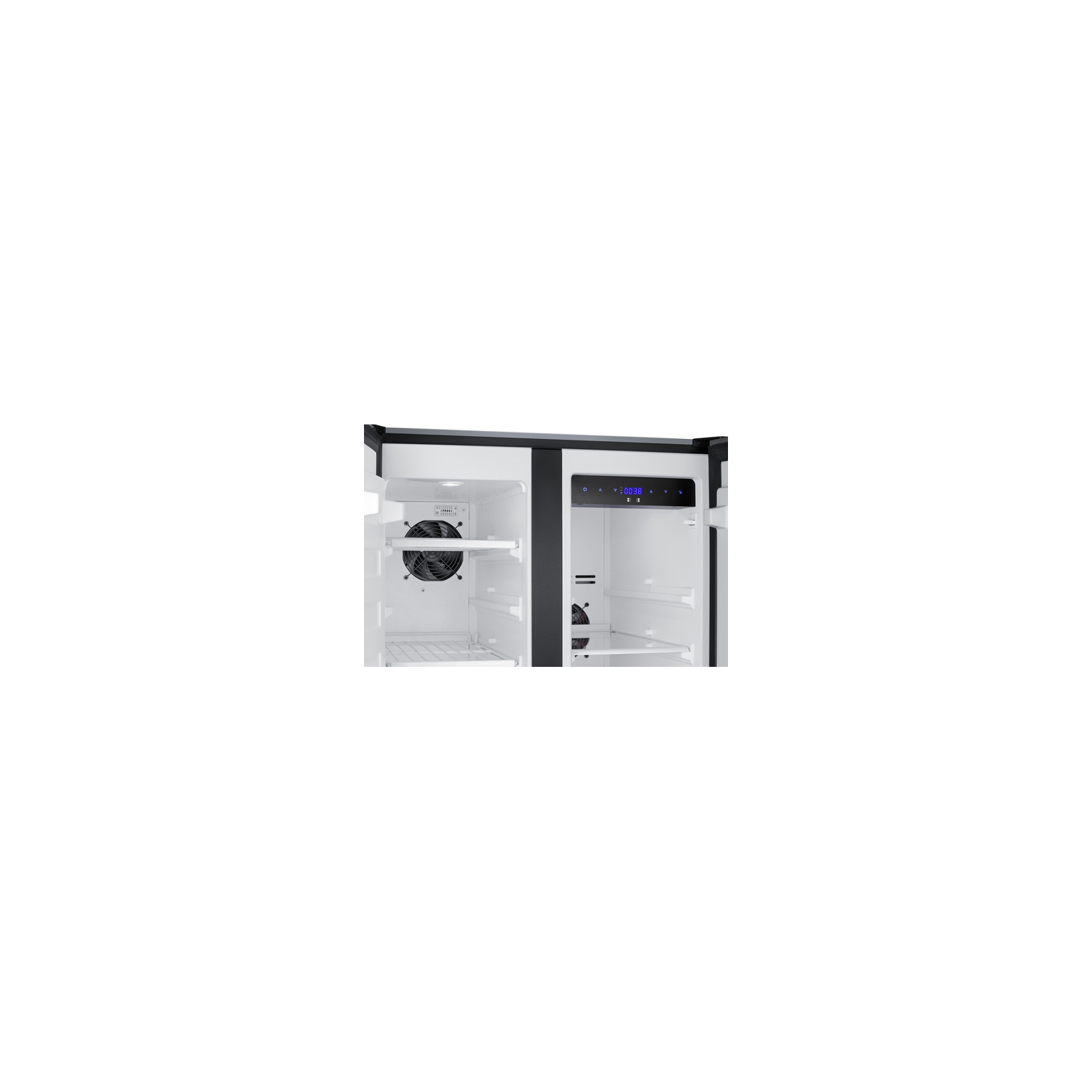

Internal fan (refrigerator compartment) Fan-forced cooling ensures the compartment is evenly cooled from top to bottom

Sealed back Space-saving design with no exposed coils in the rear offers easy cleanability

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Integrated hinges Recessed hinge ensures no added height for an easier fit under the counter

Temperature memory function In the event of power loss, the unit will retain its last temperature settings upon power recovery

Fully finished cabinet Allows the unit to be used freestanding

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (FFRF24SS.pdf)

TECHNICAL DRAWING (.dwg) (FFRF24SS.dwg)

ASSEMBLY DRAWING (FFRF24SS-Assembly.pdf)

REVIT MODEL (QF_Summit_FFRF24SS_Refrigerator_Freezer.rfa)

USE & CARE (FFRF24SS-User-Manual.pdf)

MSDS INFORMATION (R600a_K.pdf)

Energy Guide
