Summit Frost-free bottom freezer refrigerator with factory-installed icemaker, handles, and grill to raise height to 72 inch, 7.61101e+011, FFBF279SSXIMH72

Summit's counter depth series of frost-free refrigerator-freezers provides attractive, user-friendly, and efficient solutions to bringing full storage convenience to small kitchen spaces.

The FFBF279SSXIMH72 is conveniently sized at 27 5/8 inches wide and just under 27 inches deep, with a generous 14.6 cu.ft. capacity to meet a family's storage needs in minimum floor space. The stainless steel doors feature an attractive horizontal grain and stainless steel handles for a professional look. We include a decorative steel grill accessory in matte black for optional installation on top of the cabinet, allowing you to fill extra vertical space depending on your kitchen cabinetry height. This unit ships with a right hand swing (for a left hand version, see model FFBF279SSXIMH72LHD). The sealed back offers added space savings and easier cleanup.

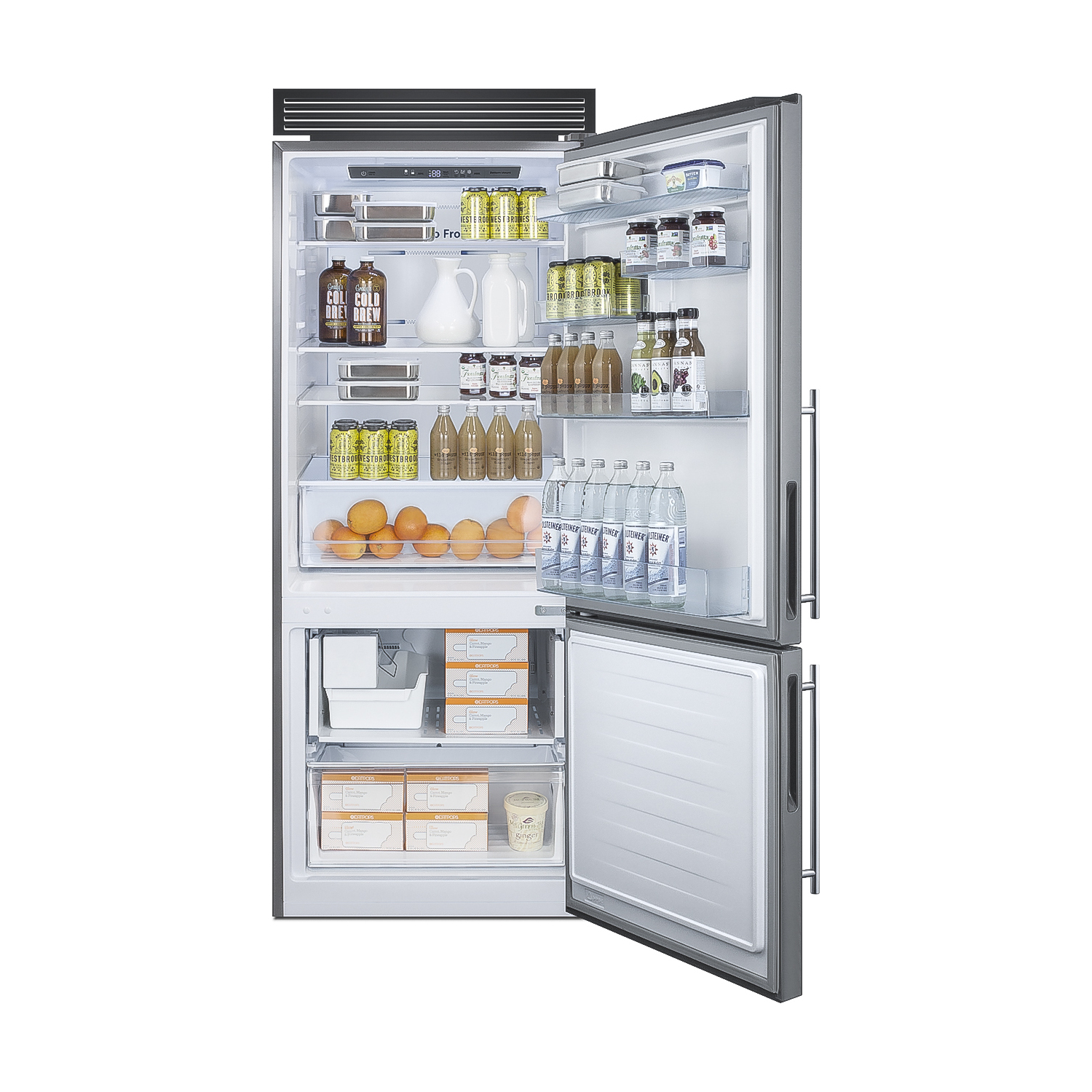

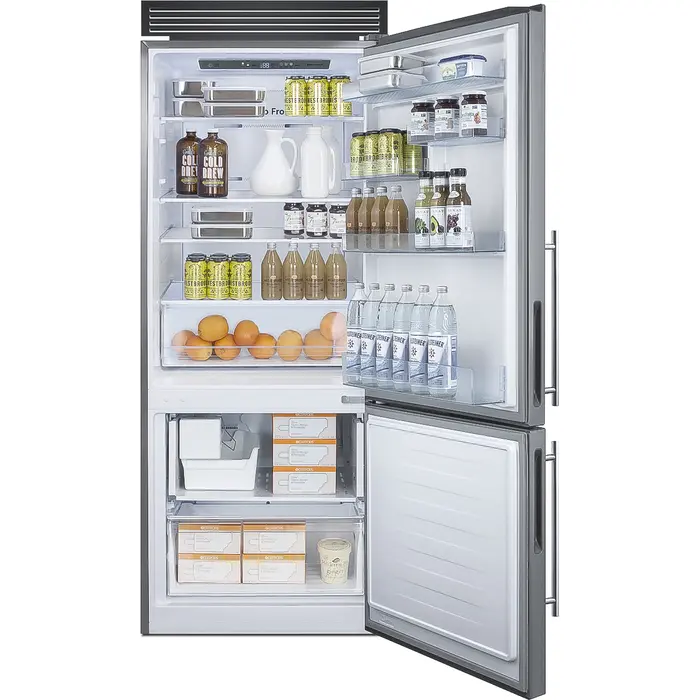

Inside, the FFBF279SSXIMH72 utilizes frost-free operation for low maintenance use. The digital controls ensure easy temperature management. It also includes a holiday setting, which allows the refrigerator to run at warmer temperatures to help save energy when not in use during vacation or other extended periods of inactivity. The refrigerator section features automatic LED lighting for an attractive, energy efficient view. Adjustable glass shelves and a full-width crisper drawer ensure easy storage. The door includes three full shelves and two adjustable half racks to best accommodate bottles and other condiments.

The large freezer section features a factory-installed icemaker to keep a steady supply of crescent cubes on hand at all times. A side-out drawer in clear plastic helps to protect stored items from warmer temperature when the door is opened. A "super freeze" setting lets you run the freezer at colder temperatures, an ideal feature when loading new groceries.

With its unique footprint and fully featured design, the FFBF279SSXIMH72 is a great solution for apartments and other space-challenged kitchens in need of a fully functioning refrigerator in a slim-fitting size.

SPECIFICATIONS

Overview

Nominal Height 72.0" (183 cm)

Height of Cabinet 71.88" (183 cm)

Nominal Width 28.0" (71 cm)

Width 27.63" (70 cm)

Width with Door Open 28.63" (73 cm)

Nominal Depth 27.0" (69 cm)

Depth 26.75" (68 cm)

Depth with Handle 28.25" (72 cm)

Depth with door at 90° 52.5" (133 cm)

Capacity 14.6 cu.ft. (413 L)

Defrost Type Frost-Free

Door Stainless Steel

Cabinet Platinum

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 507.0kWh/year

Amps 2.0

Voltage/Frequency 115 V AC/60 Hz

Weight 177.0 lbs. (80 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101103976

Refrigerator-Freezer

Door Swing RHD

Reversible Factory Reversible

Adjustable Shelves Yes

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Glass

Interior Light Yes

Refrigerator - Interior Height 36.75" (93 cm)

Refrigerator - Interior Width 24.0" (61 cm)

Refrigerator - Interior Depth 21.5" (55 cm)

Refrigerator - Capacity 10.74 cu.ft

Refrigerator - Shelf Type Glass

Refrigerator - Shelf Qty 3

Refrigerator - Full Door Shelves 3

Refrigerator - Half Door Shelves 2

Refrigerator - Temperature Range 36 to 46ºF

Freezer - Interior Height 21.5" (55 cm)

Freezer - Interior Width 22.0" (56 cm)

Freezer - Interior Depth 15.0" (38 cm)

Freezer - Capacity 3.86 cu.ft

Thermostat Type Digital

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 1.69 oz.

High Side PSI 250.0

Low Side PSI 88.0

Level Legs 2

Freezer - Temperature Range -11 to +5ºF

FEATURES

Bottom freezer refrigerator Uniquely sized at under 27" deep with a full 14.6 cu.ft. capacity to bring full storage convenience to space-challenged kitchens

Factory-installed icemaker Freezer section is equipped with a pre-installed icemaker that keeps a steady supply of up to 8 lbs. of crescent ice

Stainless steel doors Stainless steel doors with a gentle curve offer a professional look for any kitchen

Professional handles Brushed stainless steel handles to elevate your refrigerator style

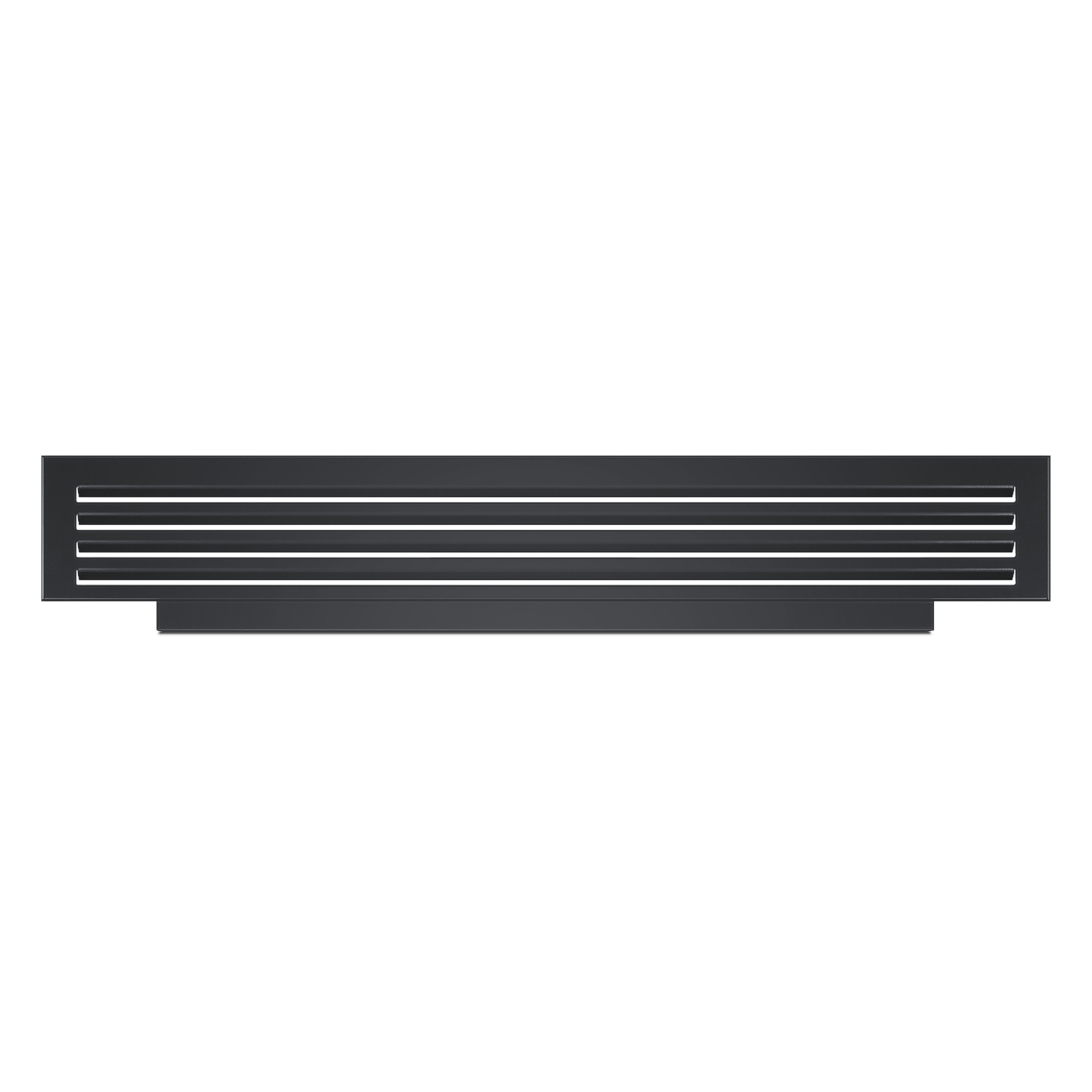

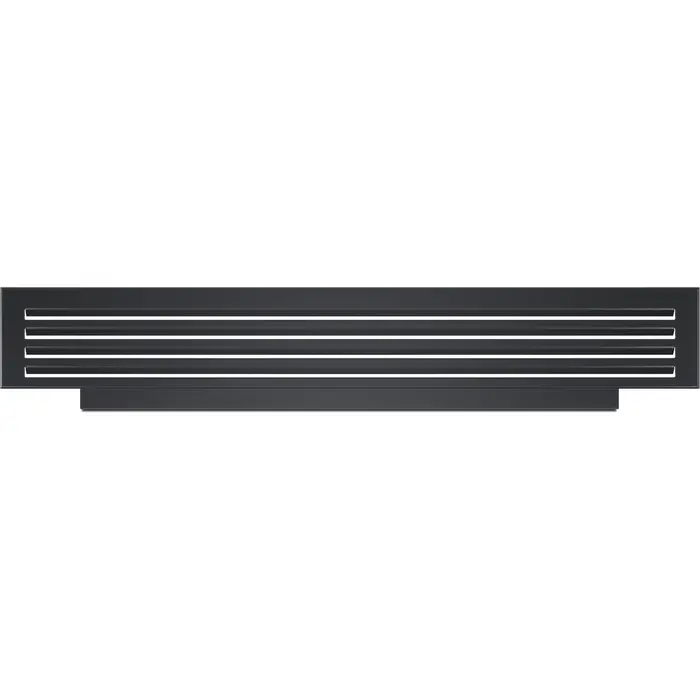

Decorative grill included Ships with our GRILL27B, a powder-coated decorative grill in jet black to help cover the extra vertical space

Large capacity Nearly 15 cu.ft. of storage inside a slim 27.63" W x 26.75" D footprint

Frost-free operation No-frost operation ensures reduced maintenance

Digital temperature control Innovative control panel located inside the refrigerator makes it easy to manage the refrigerator and freezer temperature at the touch of a button

Adjustable glass shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Full-width door racks Includes three large door shelves ideal for keeping bottles and condiments in easy reach

Adjustable door storage Two half racks can be adjusted to best accommodate different sized bottles

Crisper drawer Get the longest life and best taste out of produce by storing it in a convenient slide drawer

Interior LED lighting Refrigerator section includes automatic LED lighting for an energy efficient view

Transparent freezer drawer Unique freezer design keeps the cold inside, even when the door is opened

Holiday setting Energy saving function lets you run the refrigerator at a warmer temperature to save energy during vacation or other periods when the unit is not in use

Super freeze setting Allows you to run the freezer at colder temperatures for up to 52 hours

Sealed back Space-saving design with no exposed coils in the rear offers easy cleanability

Fully finished cabinet Textured cabinet in an attractive deep gray finish

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Lead-free certified Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

DOWNLOADS

BROCHURE w/ DRAWINGS (FFBF279SSXIMH72.pdf)

TECHNICAL DRAWING (.dwg) (FFBF279SSXIMH72LHD.dwg)

ASSEMBLY DRAWING (FFBF279SSXIMH72-Assembly.pdf)

SUPPORT (889.bin)

USE & CARE (FFBF279SSXIMH72-User-Manual.pdf)

MSDS INFORMATION (R600a_MSDS_A.PDF)

USE & CARE (FFBF279SSXIMH72-User-Manual_2.pdf)

Energy Guide
