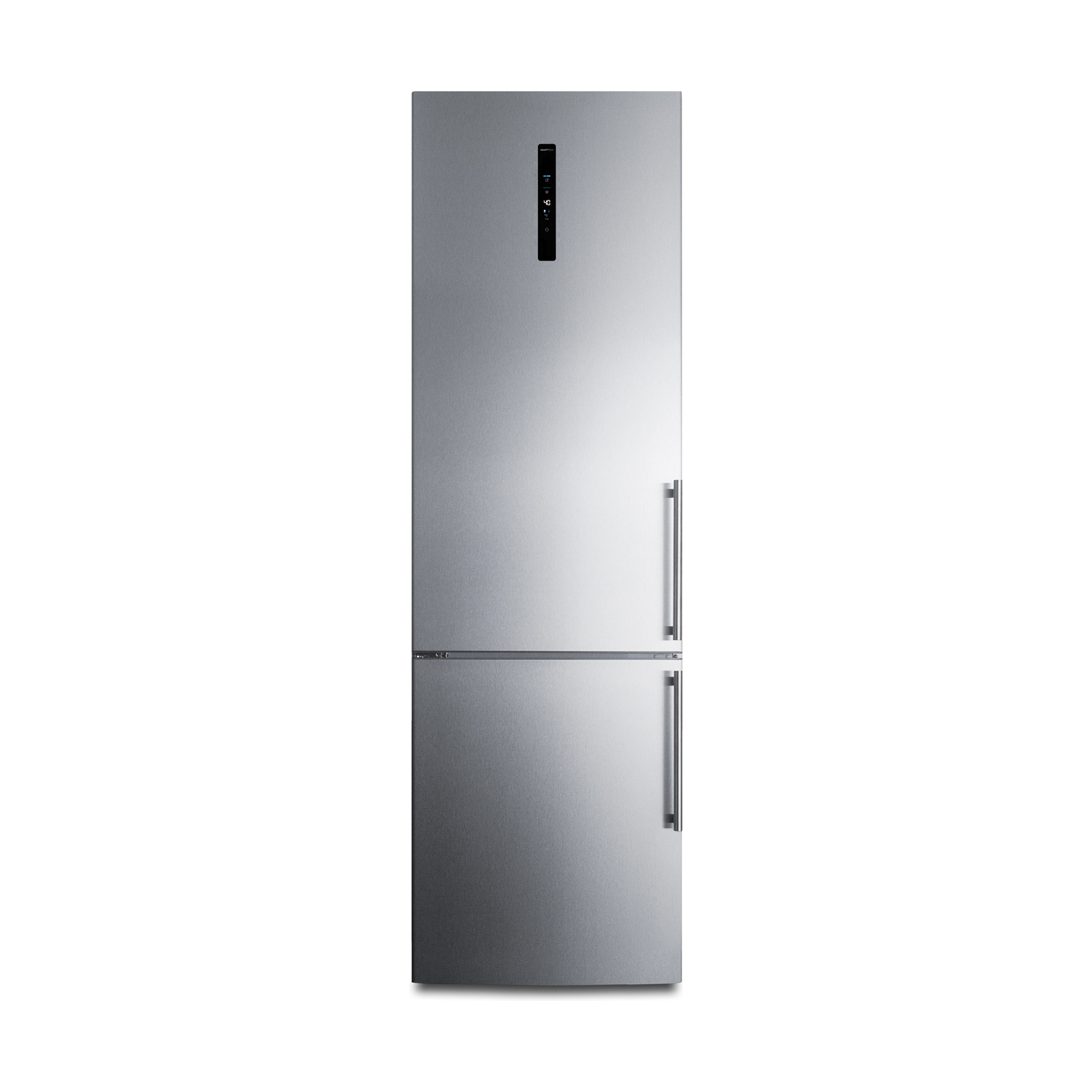

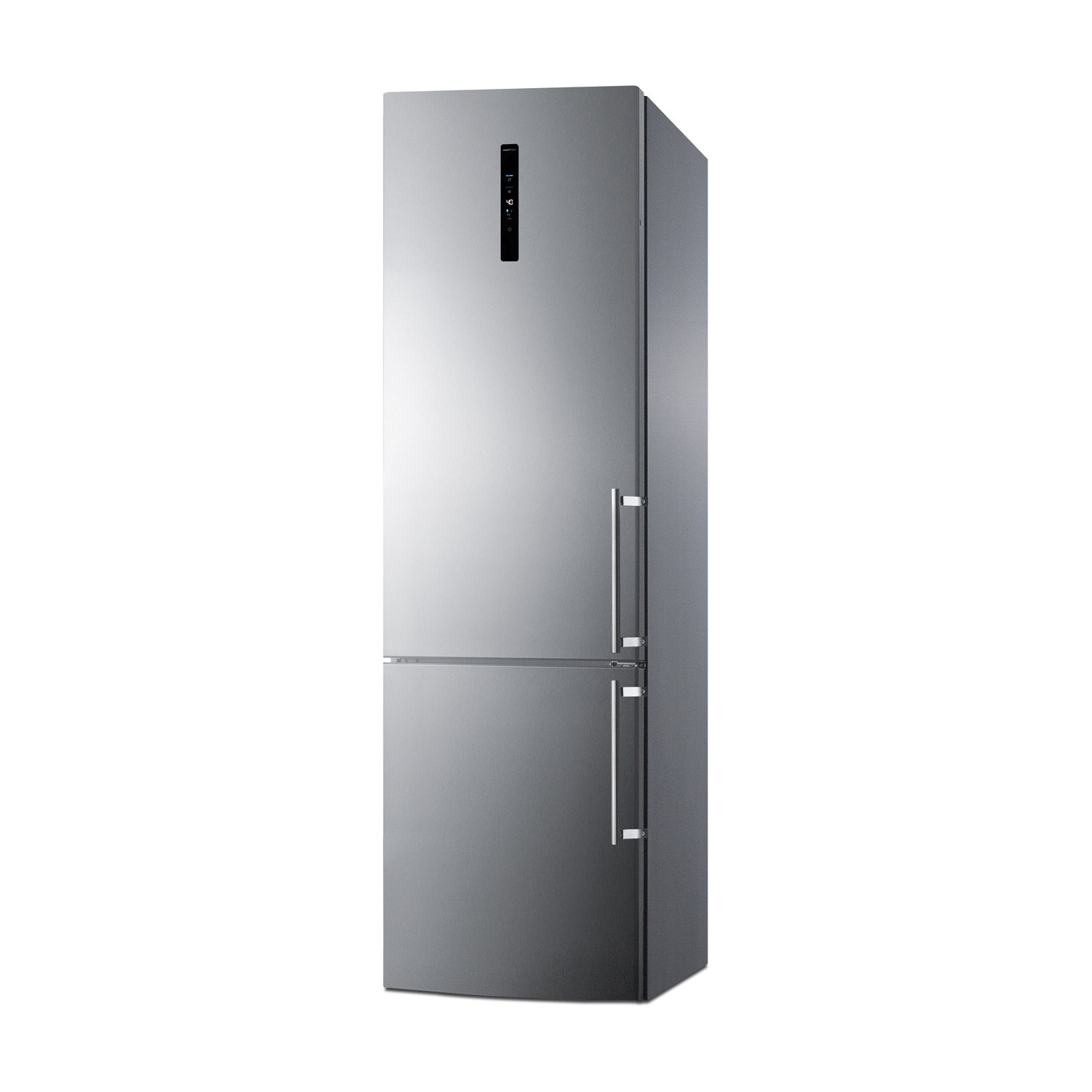

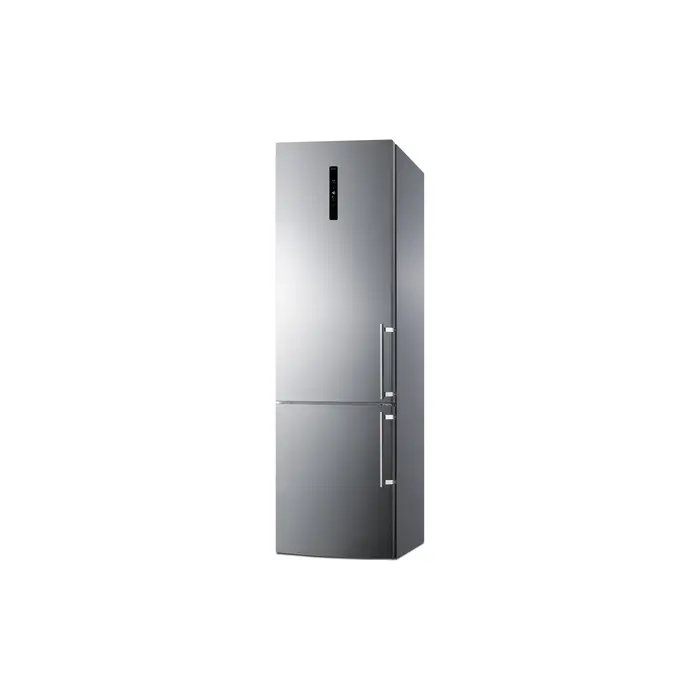

Summit ENERGY STAR certified European counter depth bottom freezer refrigerator with stainless steel doors, platinum cabinet, and digital controls for each section; left hand door swing, 7.61101e+011, FFBF181ES2LHD

Bring European luxury to small kitchen spaces with Summit's premium counter depth bottom freezer refrigerators, sized with a 24 inch footprint for an easy fit and ENERGY STAR certified for an efficient performance.

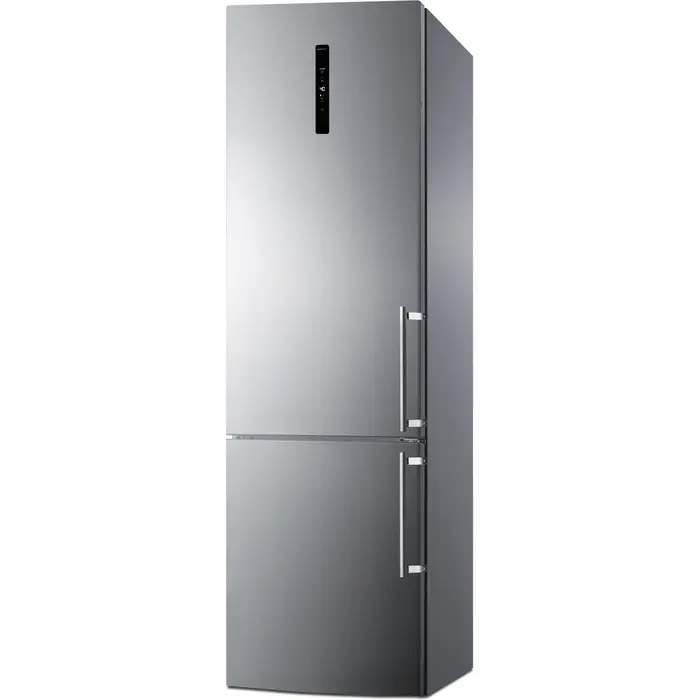

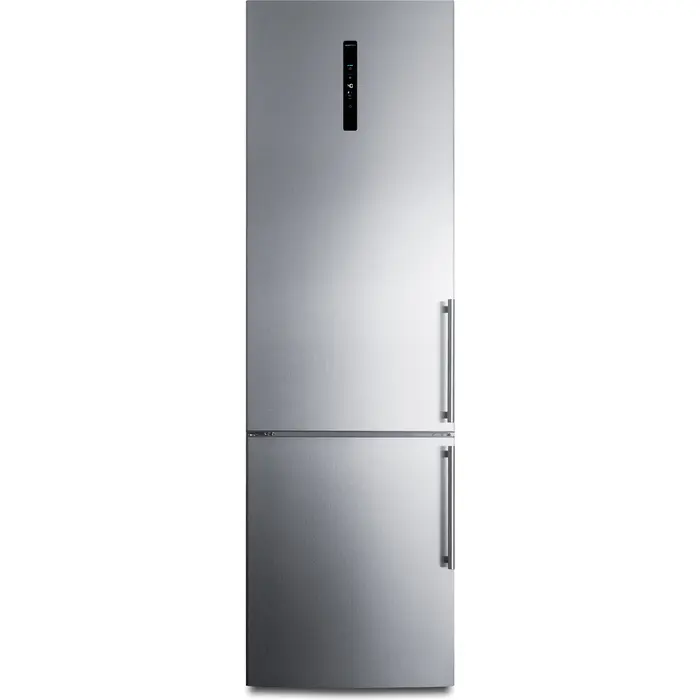

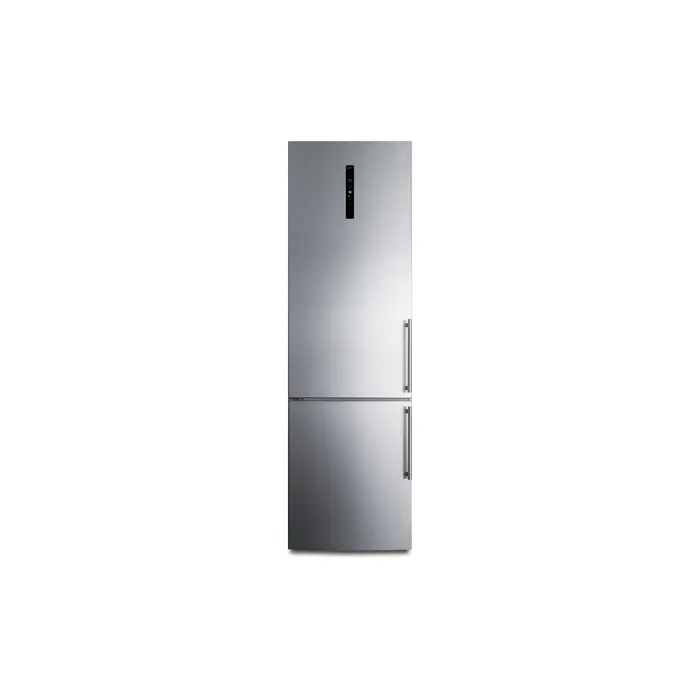

Model FFBF181ES2LHD offers nearly 12 cu.ft. of storage capacity in a uniquely slim and shallow fit under 24". The real stainless steel doors feature a vertical grain and a gentle curve, with pro style handles and a textured gray cabinet to complete the elegant, modern look. The sealed back and right angle plug help to ensure a clean fit. This unit comes with a left hand door swing. For a right hand version, see the FFBF181ES2.

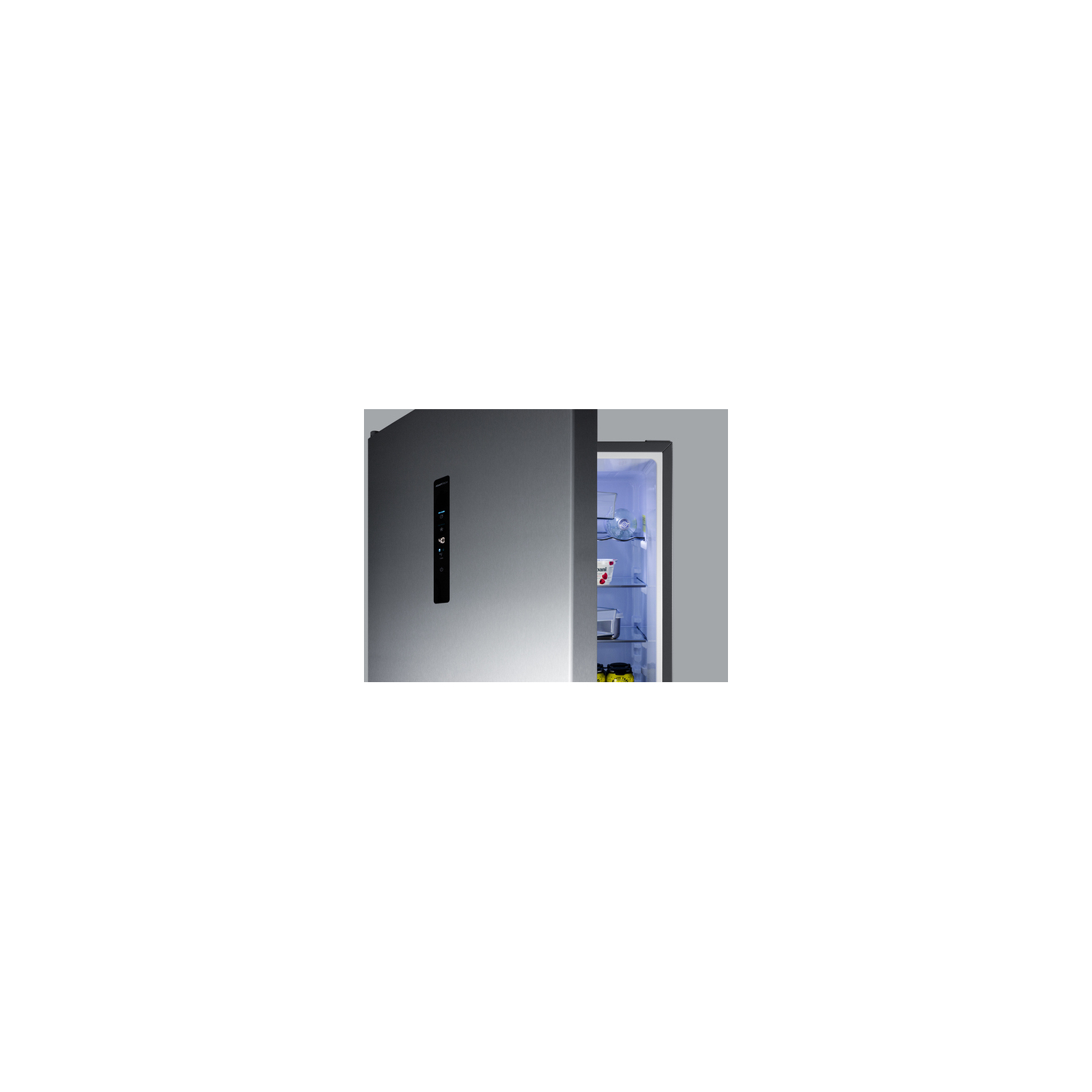

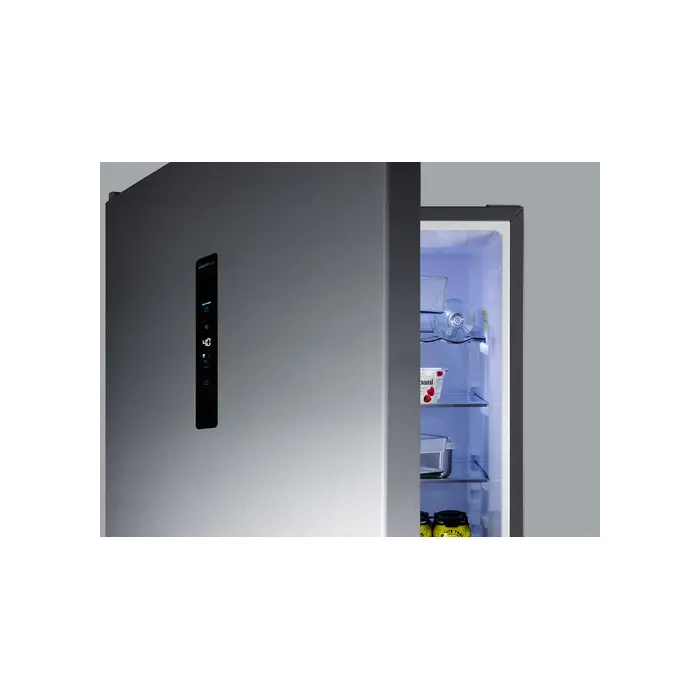

Designed and manufactured in Europe, the FFBF181ES2LHD features advanced cooling technology. The digital control panel is located on the door's front, allowing you to adjust the refrigerator or freezer temperature without opening the door. Audible and visual high temperature and open door alarms helps to protect stored contents, while the child lock prevents unnecessary adjustments. The frost-free interior utilizes a MultiFlow Fan system to evenly distribute temperature. This refrigerator is designed with adaptive intelligent technology that adjusts the cooling to your habits based on the frequency of door openings. Additional features include a fast freeze setting (ideal for loading groceries) and an eco setting.

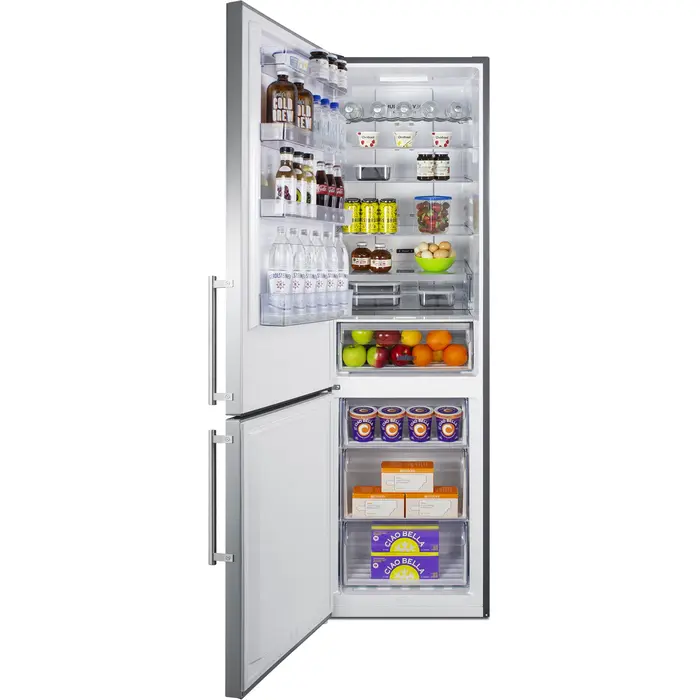

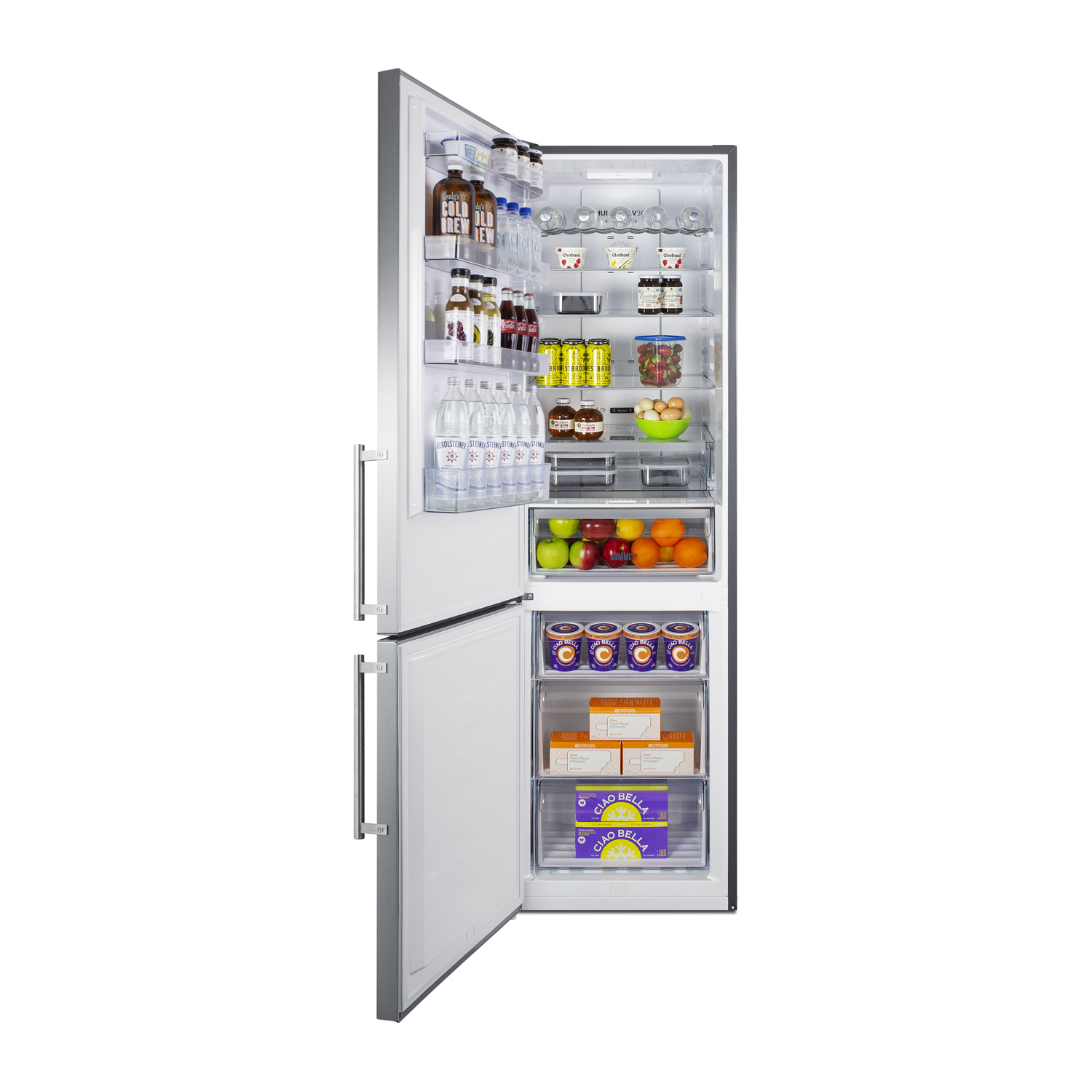

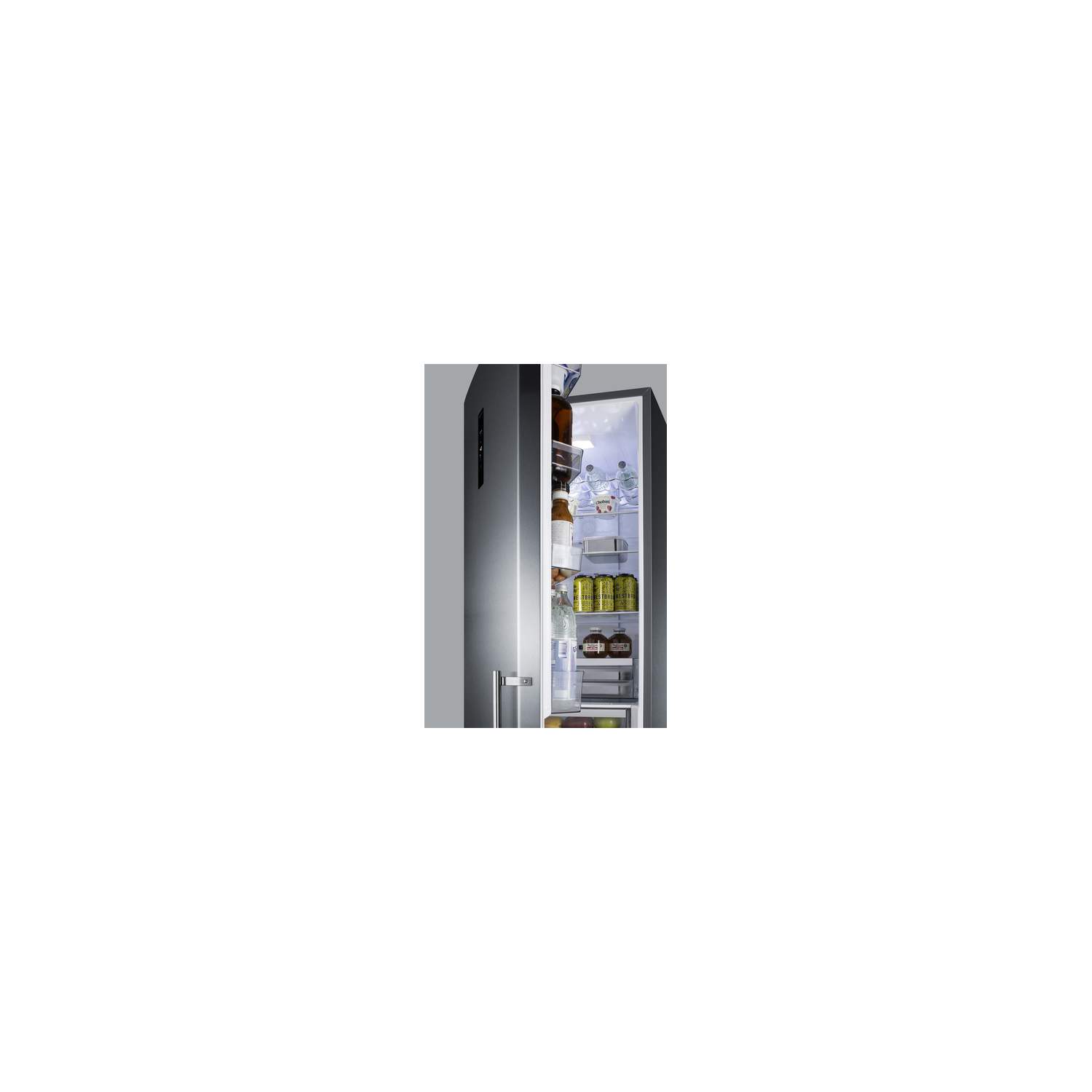

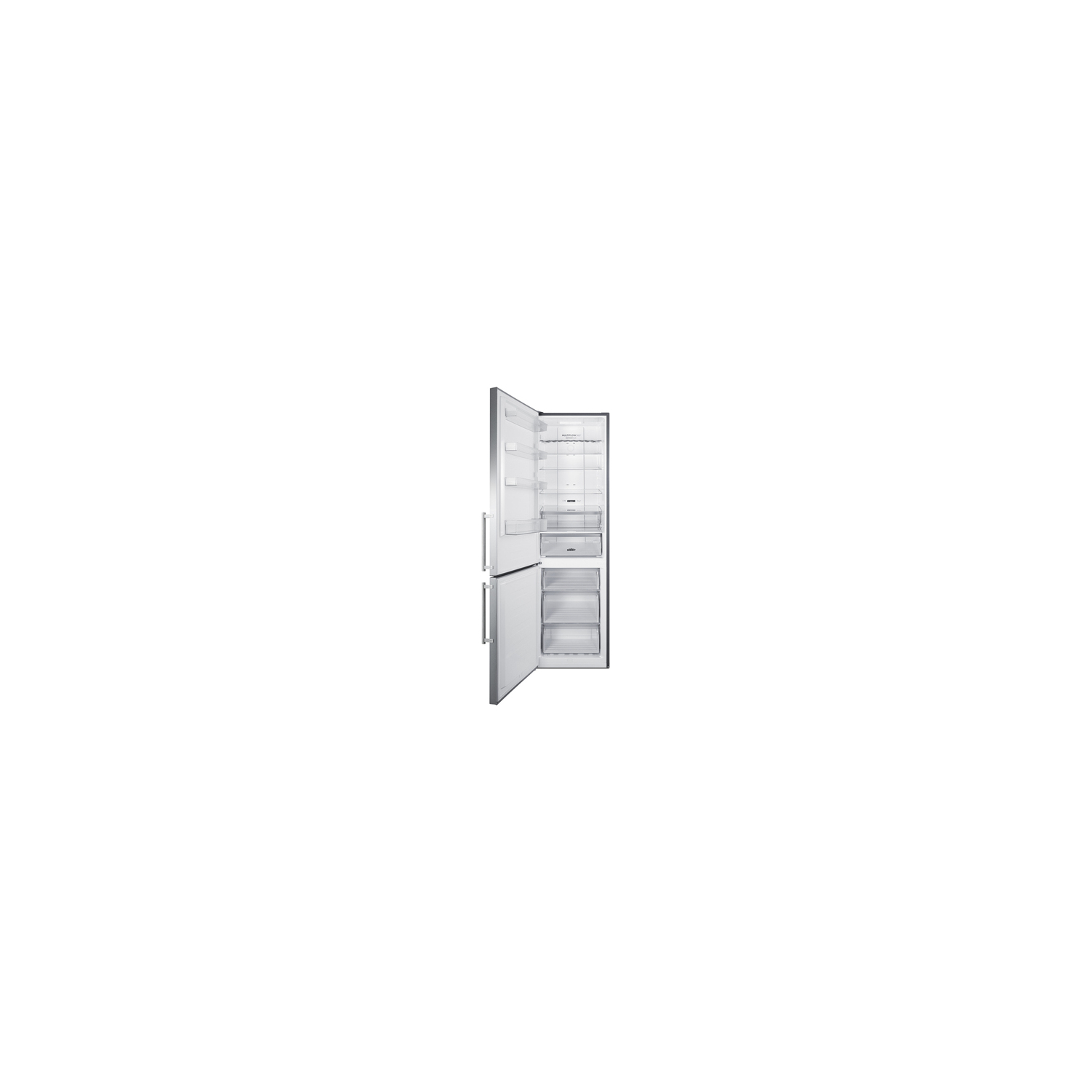

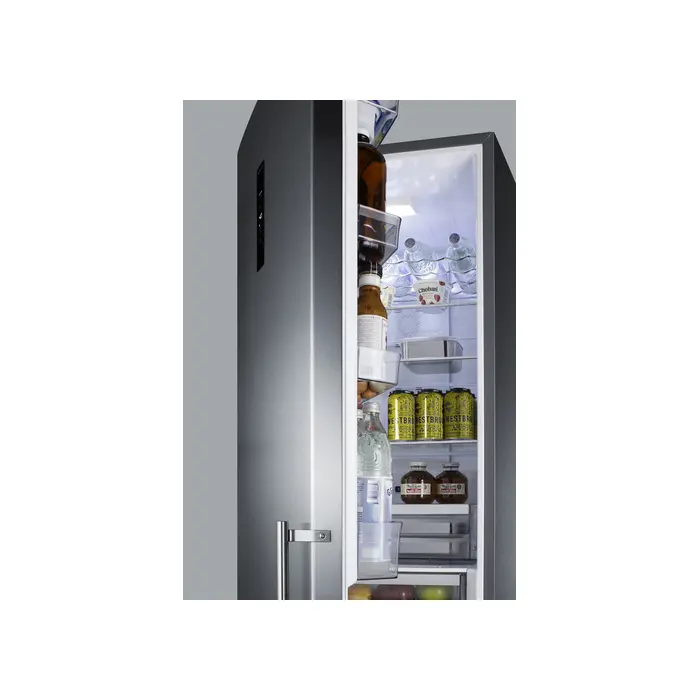

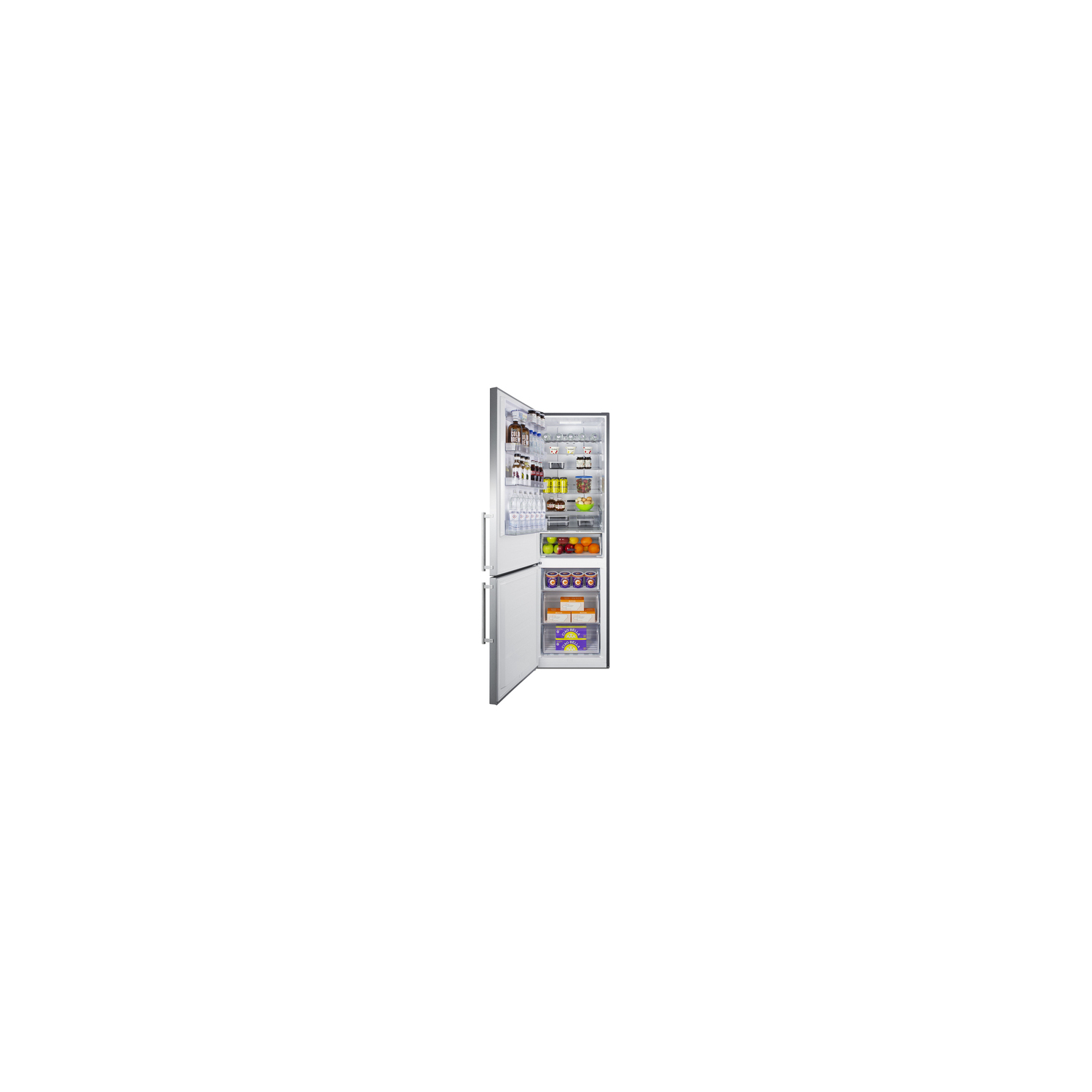

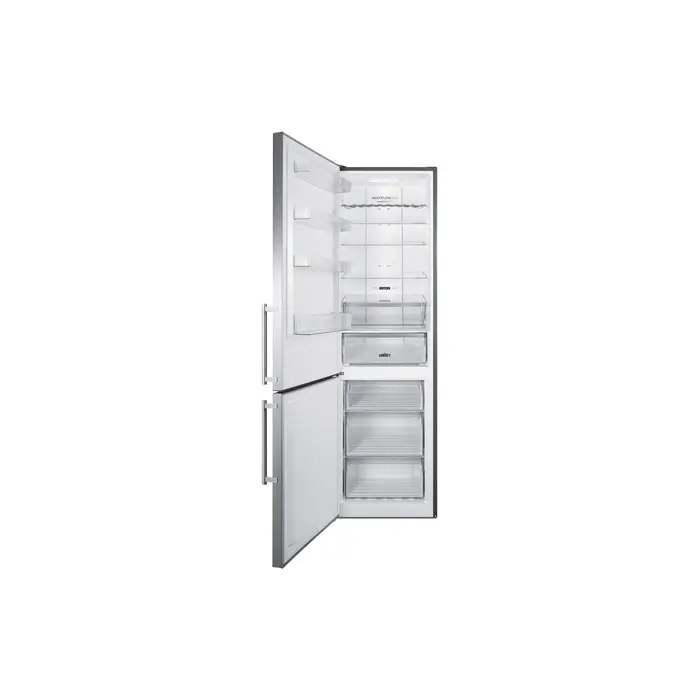

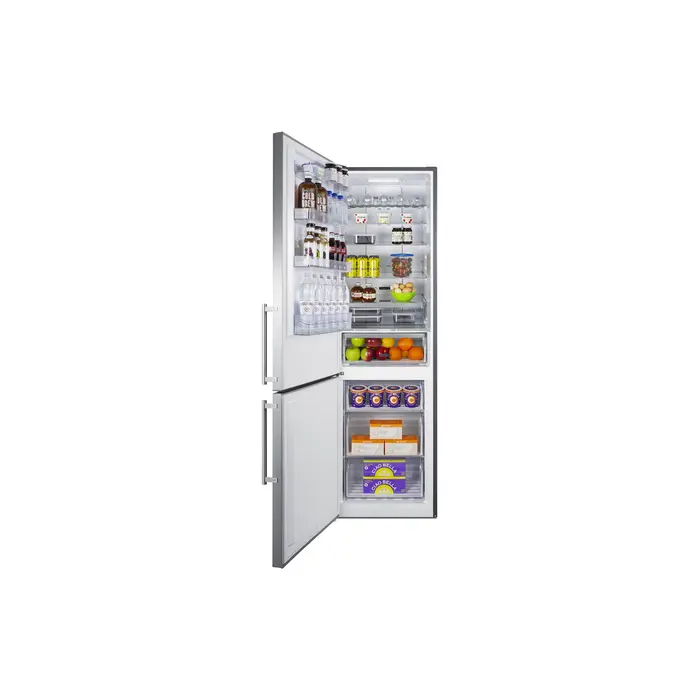

Inside, the FFBF181ES2LHD is designed to maximize storage convenience with LED lighting providing a clean display. The refrigerator section includes three slide-out adjustable shelves in spill-proof glass with stainless steel front trim for an attractive look. We also include an adjustable scalloped steel rack to hold bottles in place. Four removable door shelves offer flexible condiment and bottle storage. This unit includes a large humidity-controlled crisper drawer and a FreshZone deli drawer that can hold colder temperatures for meat or be converted to regular crisper conditions with an easy slide dial. The large freezer section features three slide-out storage drawers with clear plastic fronts. This helps to protect your frozen items from warmer ambient temperature when the door is opened.

The FFBF181ES2LHD is ENERGY STAR certified for added operation savings, with a hydrocarbon-based cooling system to ensure an eco-friendly green footprint. This unit also operates quietly at 32.6 dB for added peace of mind. Its slim fit, professional design, and user-friendly features makes it the perfect refrigerator for small kitchens with high standards.

SPECIFICATIONS

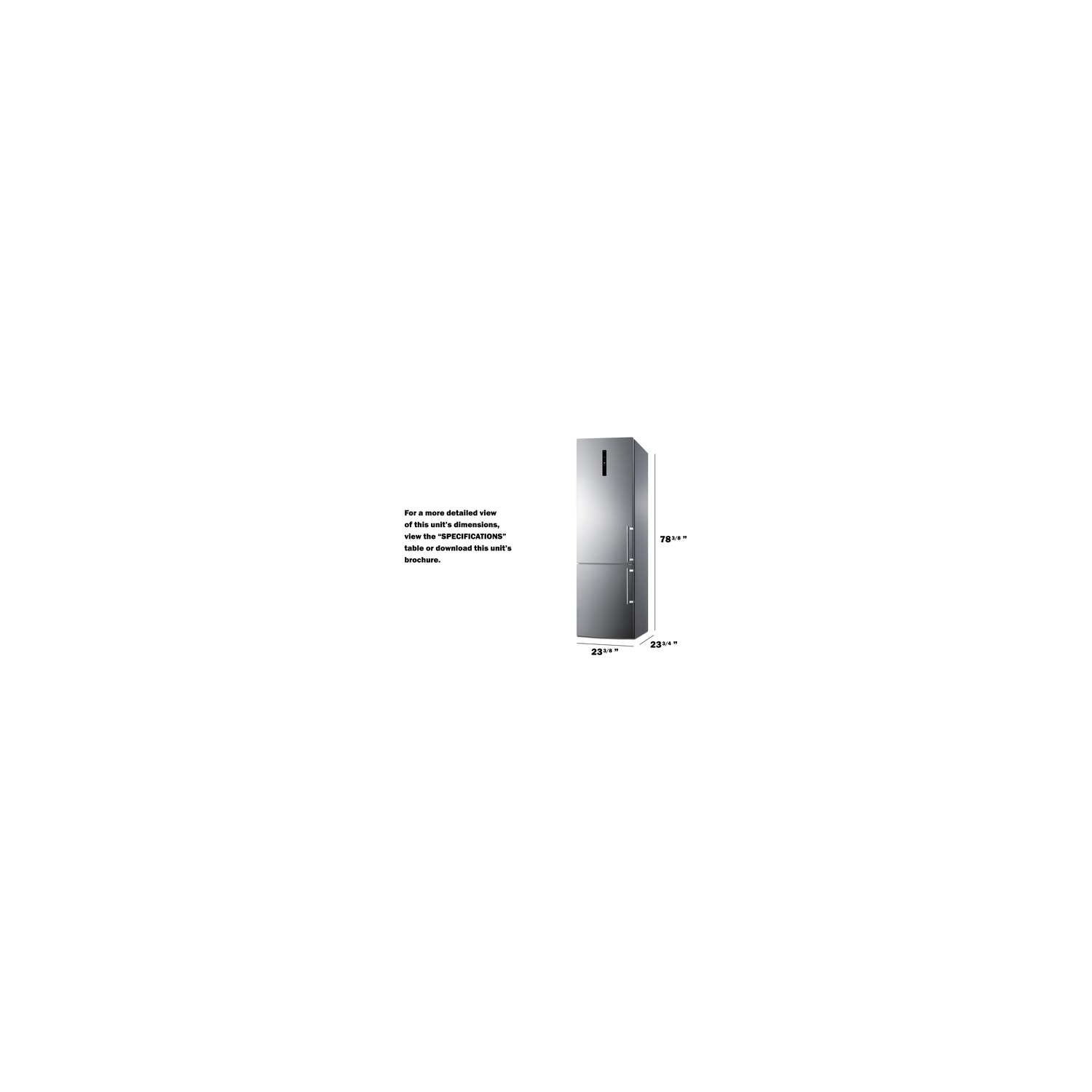

Overview

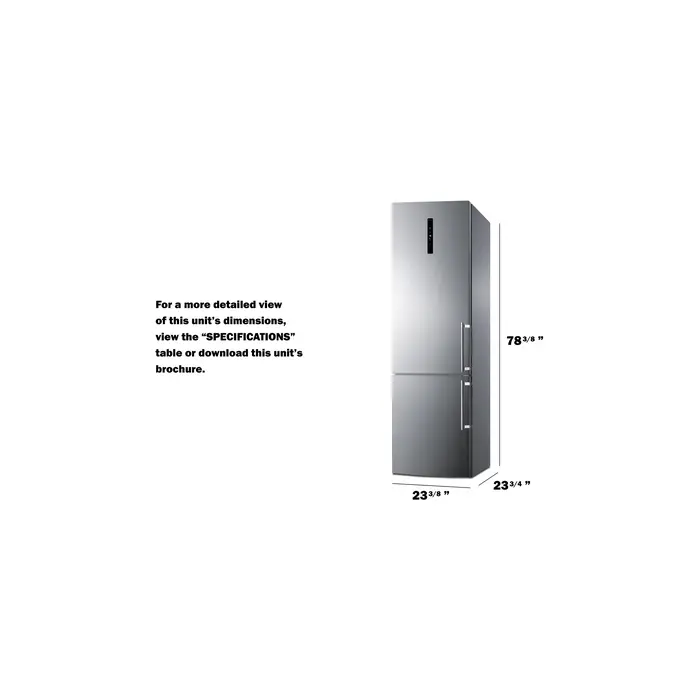

Nominal Height 78.0" (198 cm)

Height of Cabinet 77.88" (198 cm)

Height to Hinge Cap 78.38" (199 cm)

Nominal Width 24.0" (61 cm)

Width 23.38" (59 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.75" (60 cm)

Depth with Handle 25.0" (64 cm)

Depth with door at 90° 45.38" (115 cm)

Capacity 11.7 cu.ft. (331 L)

Defrost Type Frost-Free/Automatic

Door Stainless Steel

Cabinet Platinum

US Electrical Safety UL

Canadian Electrical Safety ULC

Energy Usage/Year 380.0kWh/year

Amps 0.6

Voltage/Frequency 115 V AC/60 Hz

Weight 185.0 lbs. (84 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101088976

Refrigerator-Freezer

Door Swing LHD

Reversible Factory Reversible

Adjustable Shelves Yes

Interior Drawers Yes

Drawer Qty 5

Crisper Qty 2

Crisper Finish Transparent

Crisper Cover Glass

Wine Bottle Shelving Yes

Interior Light Yes

Refrigerator - Interior Height 41.63" (106 cm)

Refrigerator - Interior Width 19.63" (50 cm)

Refrigerator - Interior Depth 17.63" (45 cm)

Refrigerator - Capacity 8.31 cu.ft

Refrigerator - Shelf Type Glass and Scalloped

Refrigerator - Shelf Qty 4

Refrigerator - Full Door Shelves 4

Refrigerator - Temperature Range 34º to 46ºF

Freezer - Interior Height 27.0" (69 cm)

Freezer - Interior Width 17.25" (44 cm)

Freezer - Interior Depth 14.63" (37 cm)

Freezer - Capacity 3.41 cu.ft

Thermostat Type Digital

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 1.13 oz.

Level Legs 2

Condensor Location Rear of Unit

Freezer - Temperature Range -6º to 6ºF

Compressor Step Height 10.5" (27 cm)

Compressor Step Width 17.25" (44 cm)

Compressor Step Depth 5.38" (14 cm)

Sound Level 32.6 dB

FEATURES

24" wide counter depth refrigerator-freezer Made in Europe with a 24" footprint that offers full storage capacity in a uniquely slim, shallow depth fit

ENERGY STAR certified Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

Stainless steel doors Professional look in real stainless steel construction with a vertical grain and gentle curve on the doors

Digital thermostats Separate digital controls let you adjust the refrigerator and freezer sections without opening the door

Adaptive intelligent technology Innovative sensor technology allows the unit to adjust to your habits, reading your patterns to manage the temperature based on the frequency of door openings and grocery loading

Adjustable glass shelves Spill-proof safety glass with attractive steel trim ensure durable and easy-to-clean storage that can be rearranged as needed

Adjustable door storage Four door racks can be adjusted in height to accommodate a variety of sizes

Bottle shelf Adjustable scalloped steel rack lets you store wine or other bottles in a space-saving horizontal position

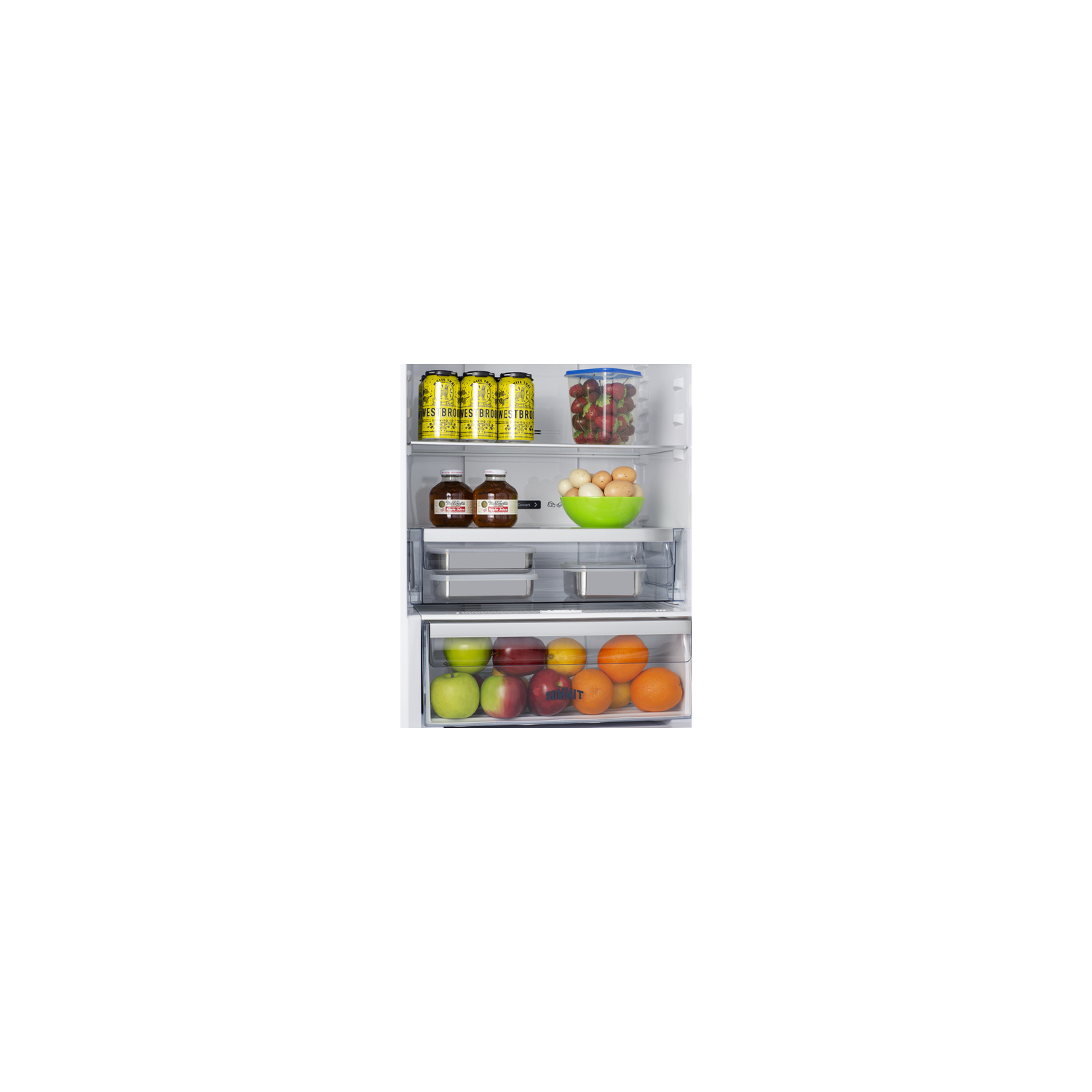

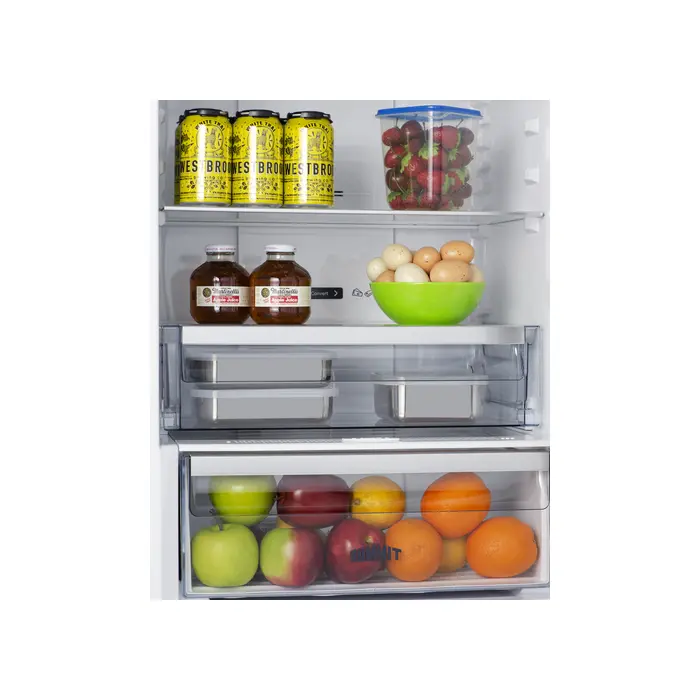

Humidity controlled crisper Large crisper drawer allows you to ensure the optimum storage of fruits and vegetables

FreshZone deli drawer Slide-out drawer allows you to store meats and other deli items at a slightly colder temperature, or convert to a second crisper using the easy slide control

Interior LED refrigerator light Automatically illuminates when you open the door

3 removable transparent freezer drawers Unique freezer design keeps the cold inside, even when the door is opened

Open door alarm Audible and visual alarm will alert if the doors have been left ajar for over 2 minutes

High temperature alarm Audible and visual alarms will alert if the temperature in the refrigerator or freezer compartment is too high

LED visual alarms All alarms are both audible and visual, with lamps in the control panel that will illuminate when the alarm is sounded

No-frost operation Frost-free freezer section and automatic defrost refrigerator offer low maintenance operation

Multi-Flow Fan Advanced internal fan system helps to ensure even temperature distribution throughout the refrigerator interior

Intensive freezing function Allows you to rapidly cool the freezer section, ideal for bringing newly loaded groceries to a safer storage temperature

Eco function Allows you to run the unit at its most efficient settings

Child lock Temperature controls include a locking function to prevent accidental setting changes

Quiet operation 32.6 dB for a quiet performance in your kitchen

Sealed back Space-saving design with no exposed coils for easier cleanability

Left hand door swing For this unit with a standard right hand door swing, see model FFBF181ES2

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (FFBF181ES2LHD.pdf)

TECHNICAL DRAWING (.dwg) (FFBF181ES2LHD_REFRIGERATOR_FREEZER__1_.dwg)

ASSEMBLY DRAWING (FFBF181ES2LHD_REFRIGERATOR_FREEZER-ASSY.pdf)

REVIT MODEL (QF_Summit_FFBF181ES2_Freezer_Refrigerator_2.rfa)

USE & CARE (FFBF181ES2LHD-User-Manual.pdf)

Energy Guide
