Summit ENERGY STAR certified bottom mount refrigerator-freezer with drawer freezer and factory-installed icemaker, FFBF179SSIM

Summit's collection of counter-depth, bottom-mount refrigerator-freezers brings efficiency, reliability, and style to every kitchen.

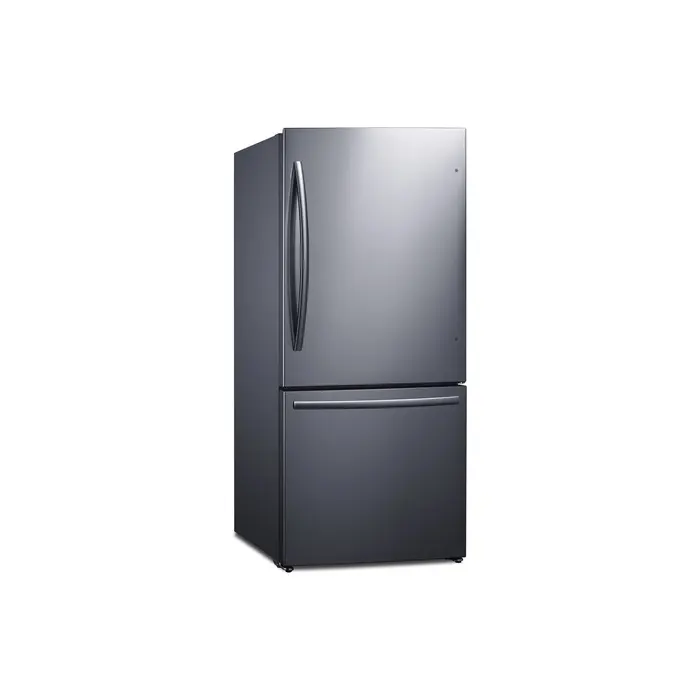

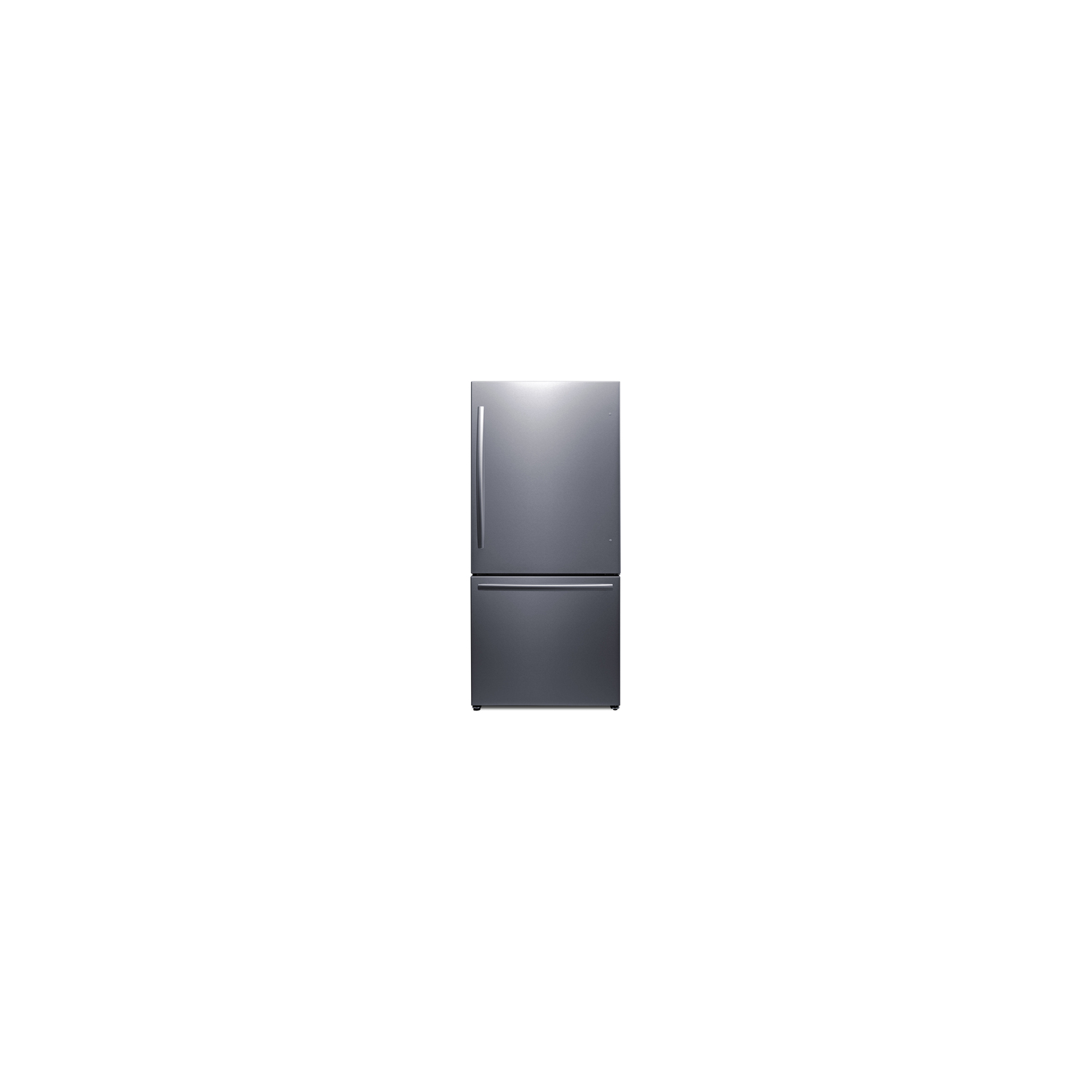

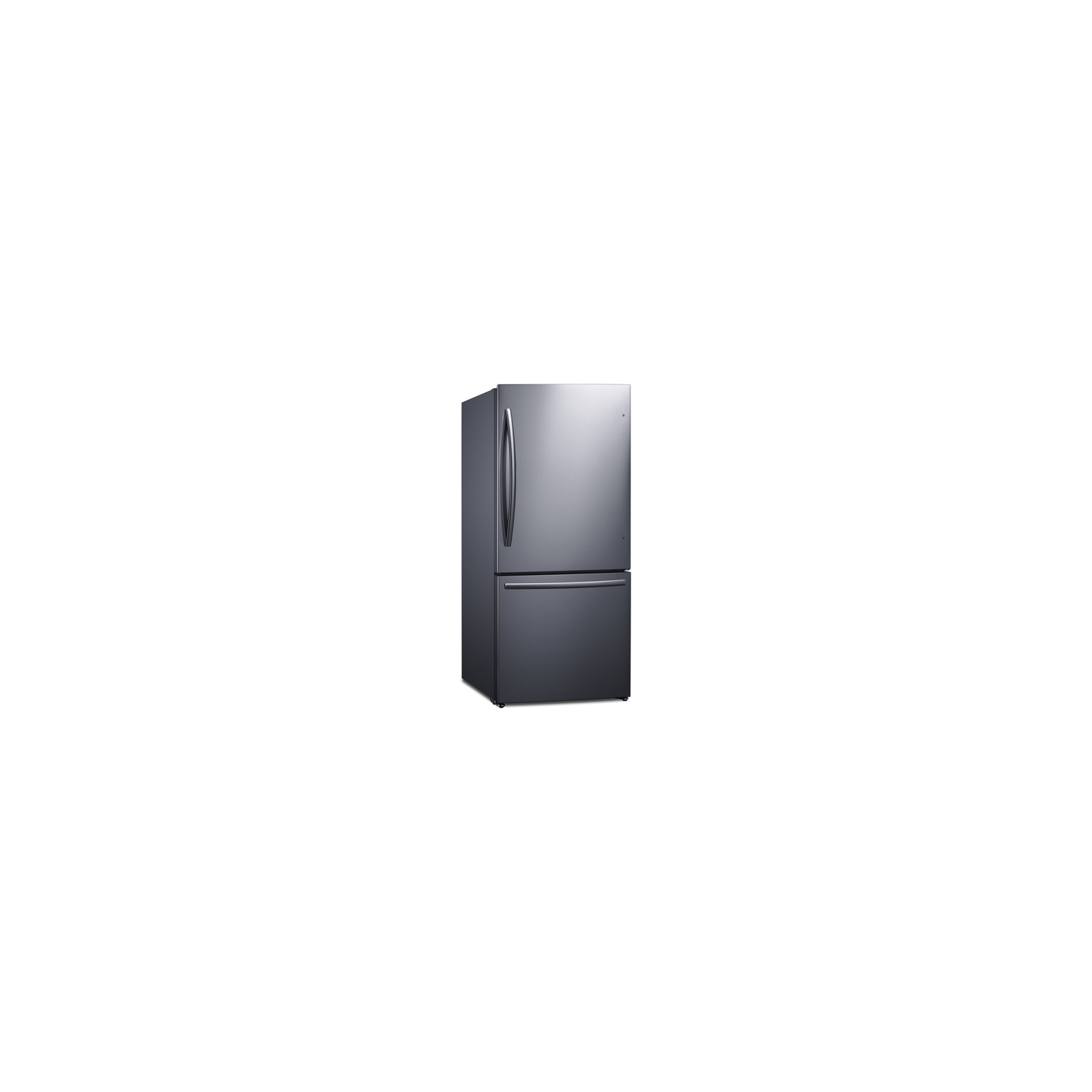

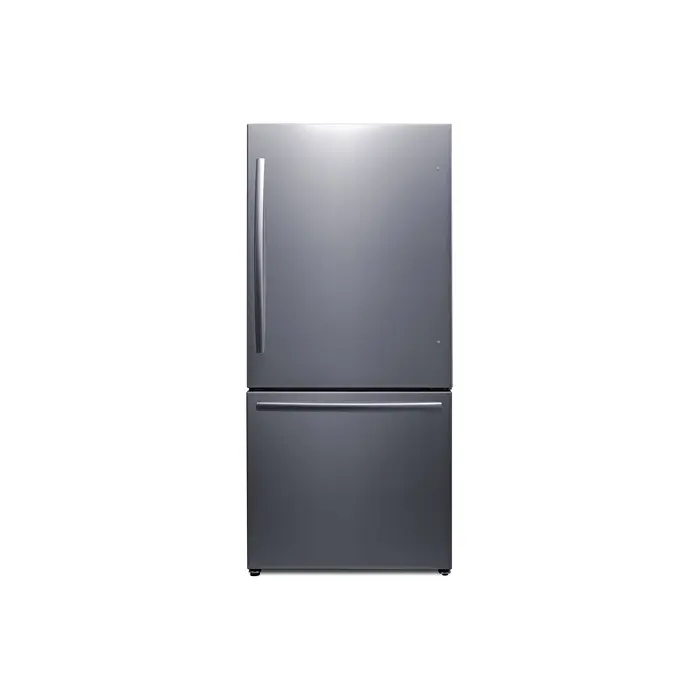

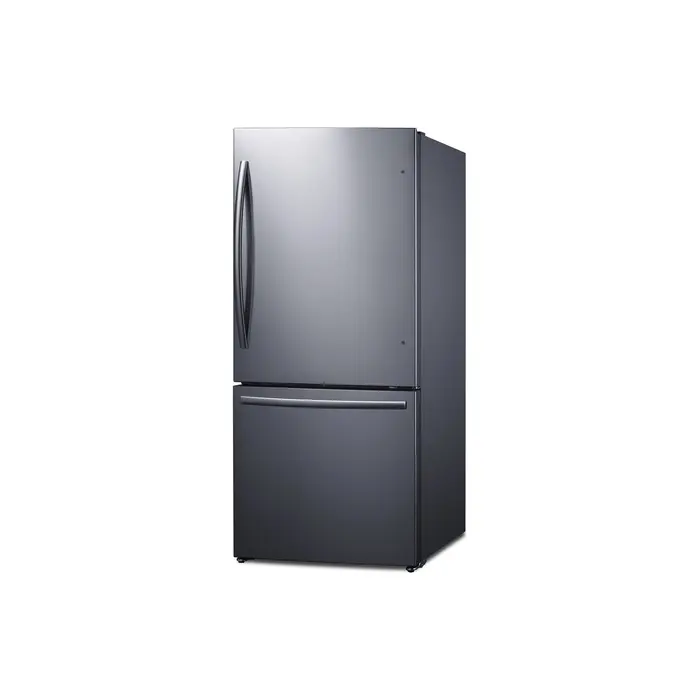

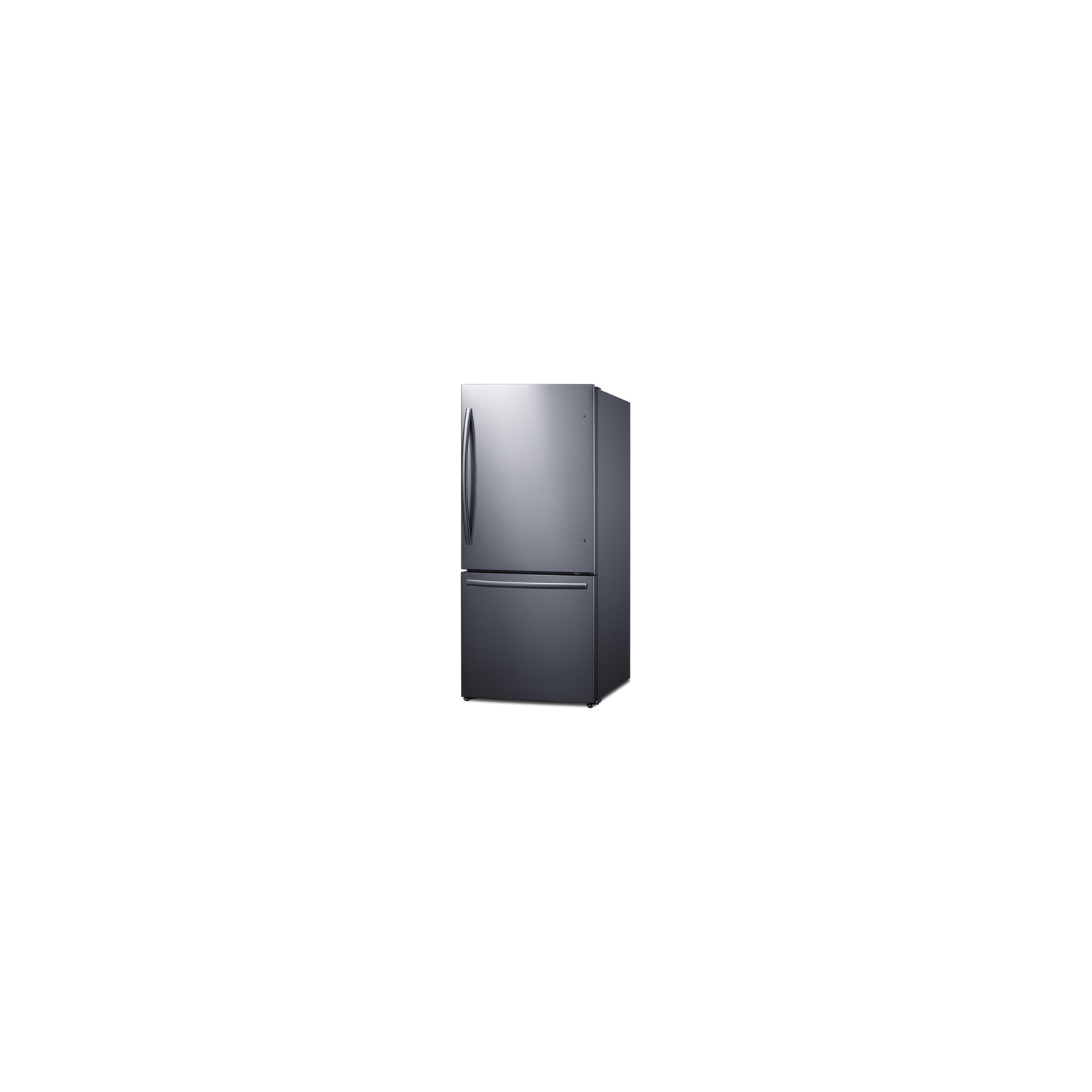

The ENERGY STAR certified FFBF179SSIM offers 17.2 cu.ft of storage capacity to meet full family needs. This unit features a user-reversible upper refrigerator door. The lower freezer compartment is a slide-out drawer with two levels of drawer storage, ensuring easy access and organization. Both sections include pro-style handles in a curved design. This unit comes with a textured gray cabinet and real stainless steel doors featuring a horizontal grain and protective film that helps to keep the door clean from fingerprints and smudges. The right angle plug and sealed back help to ensure a better fit.

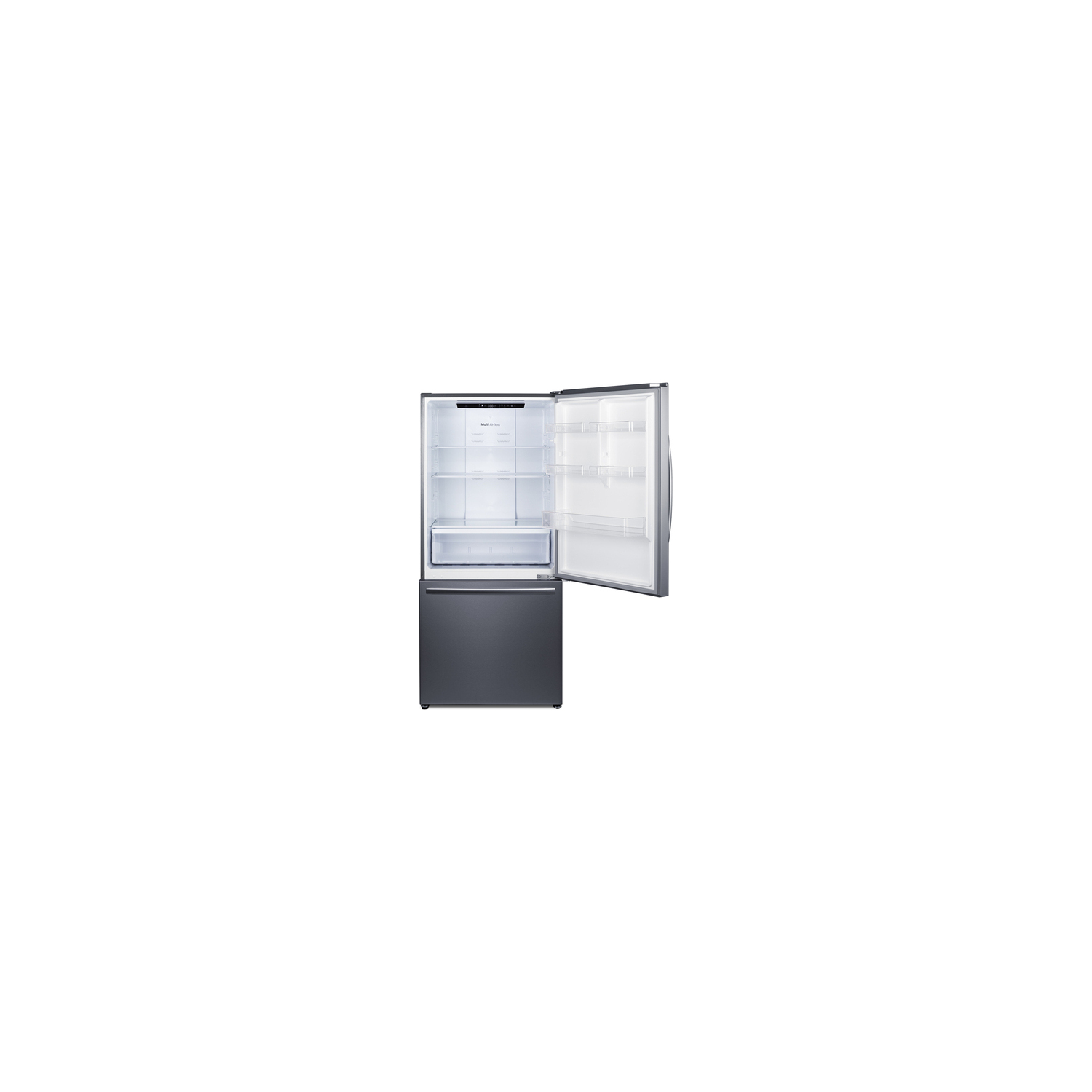

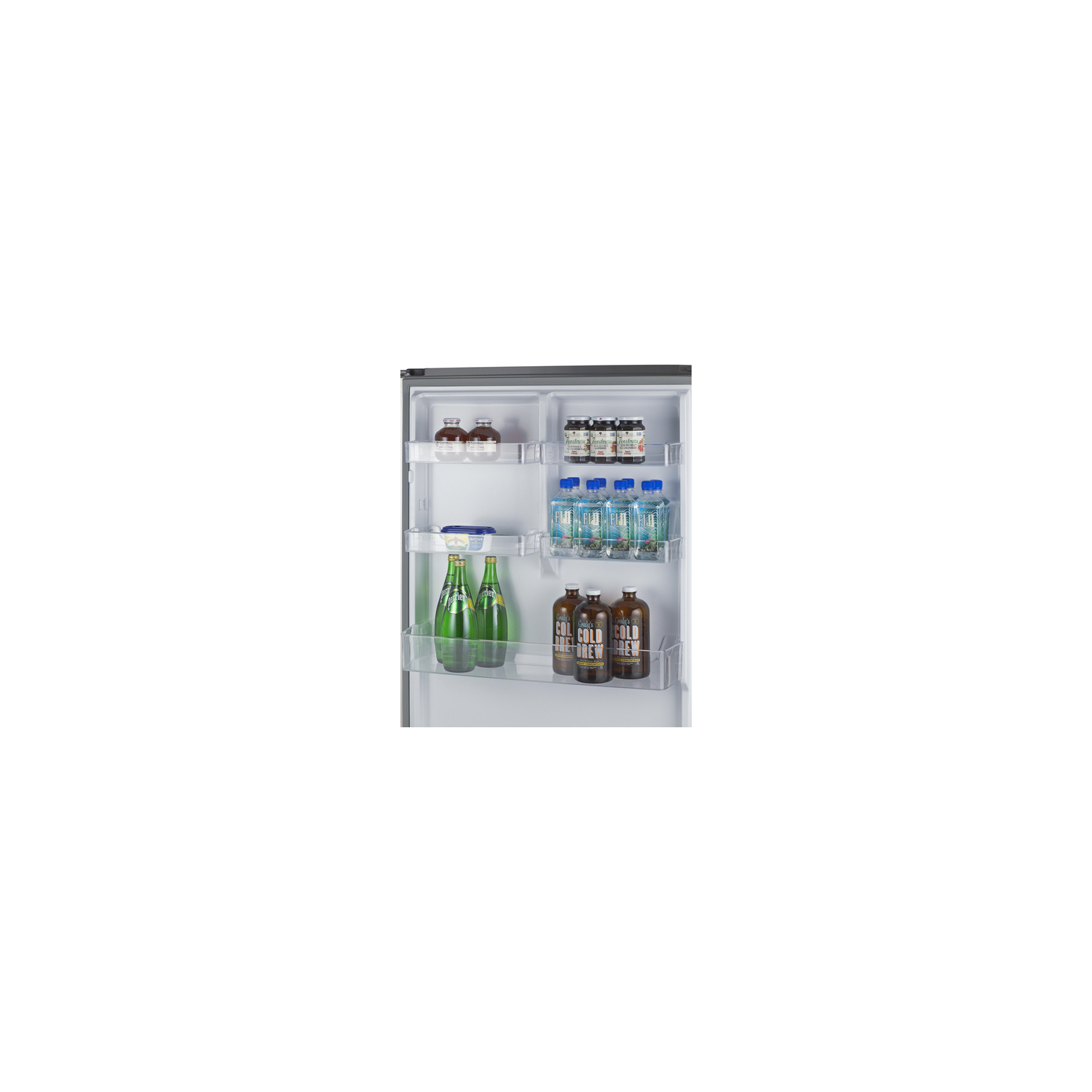

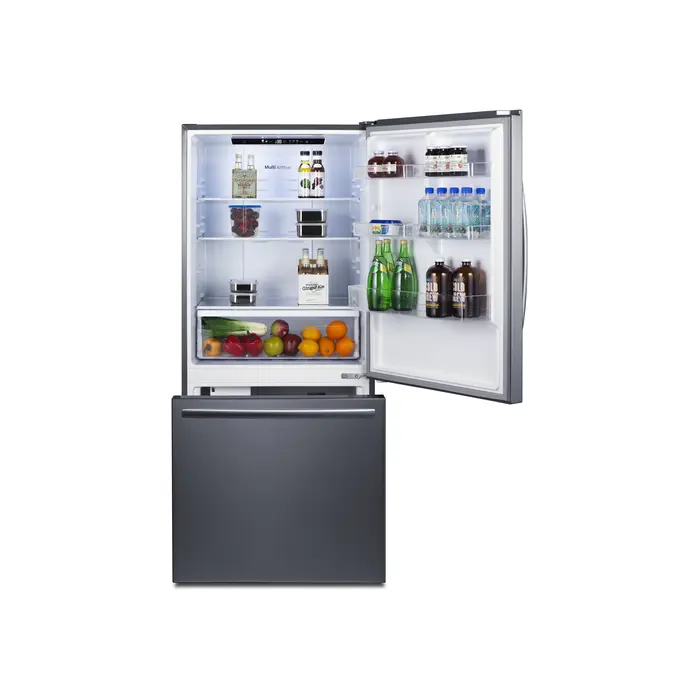

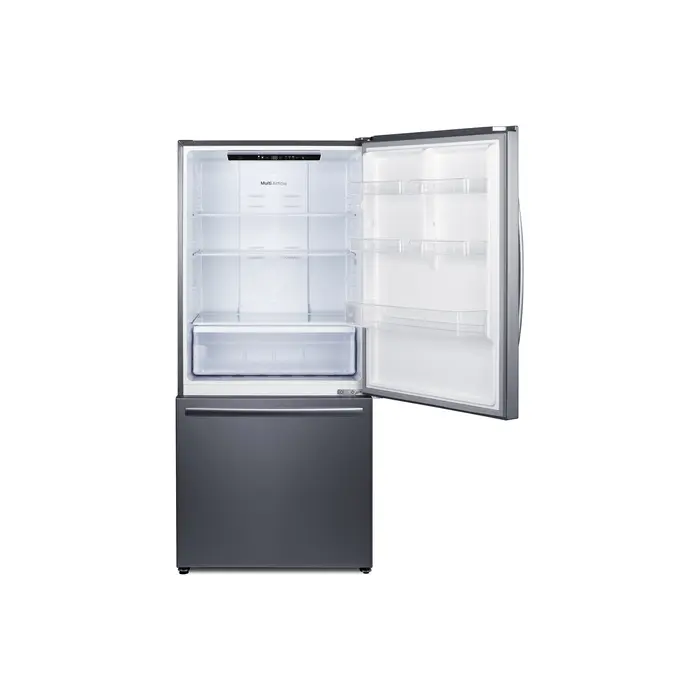

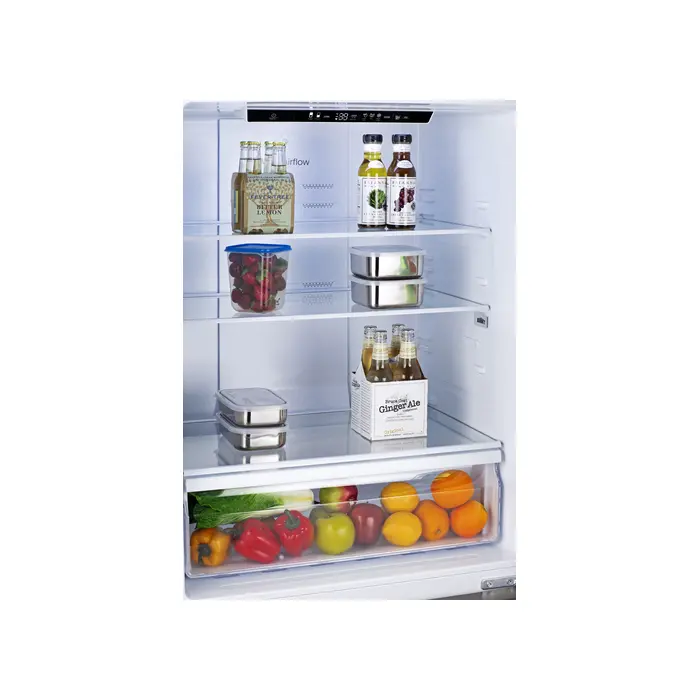

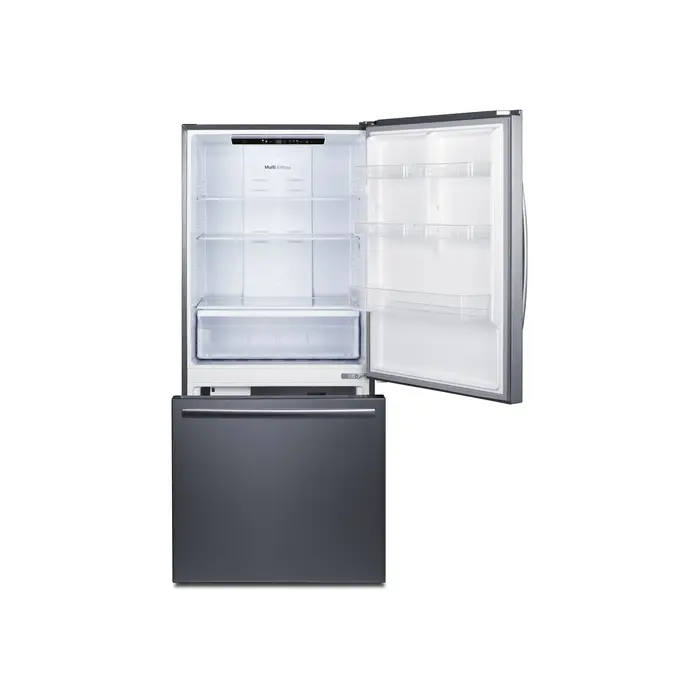

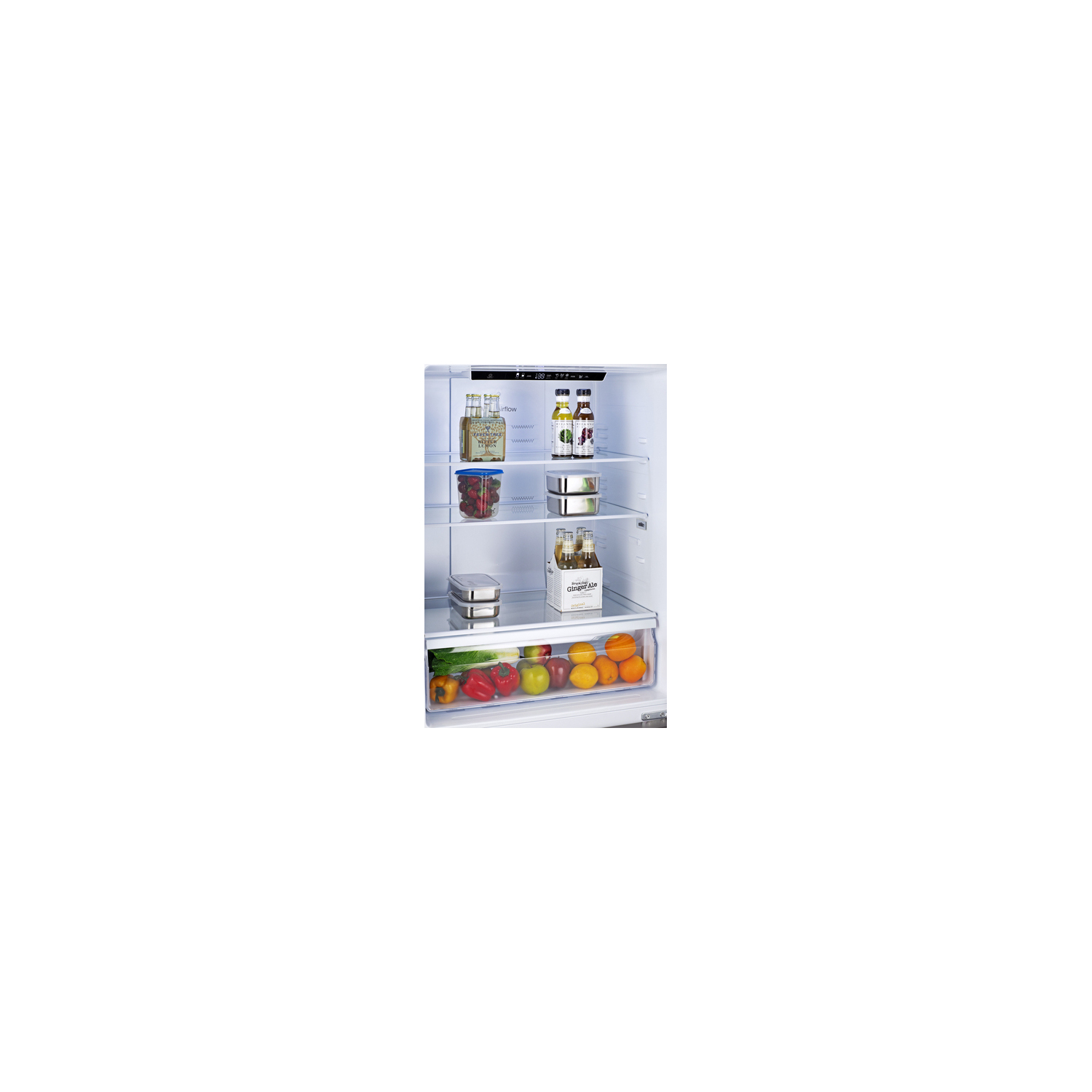

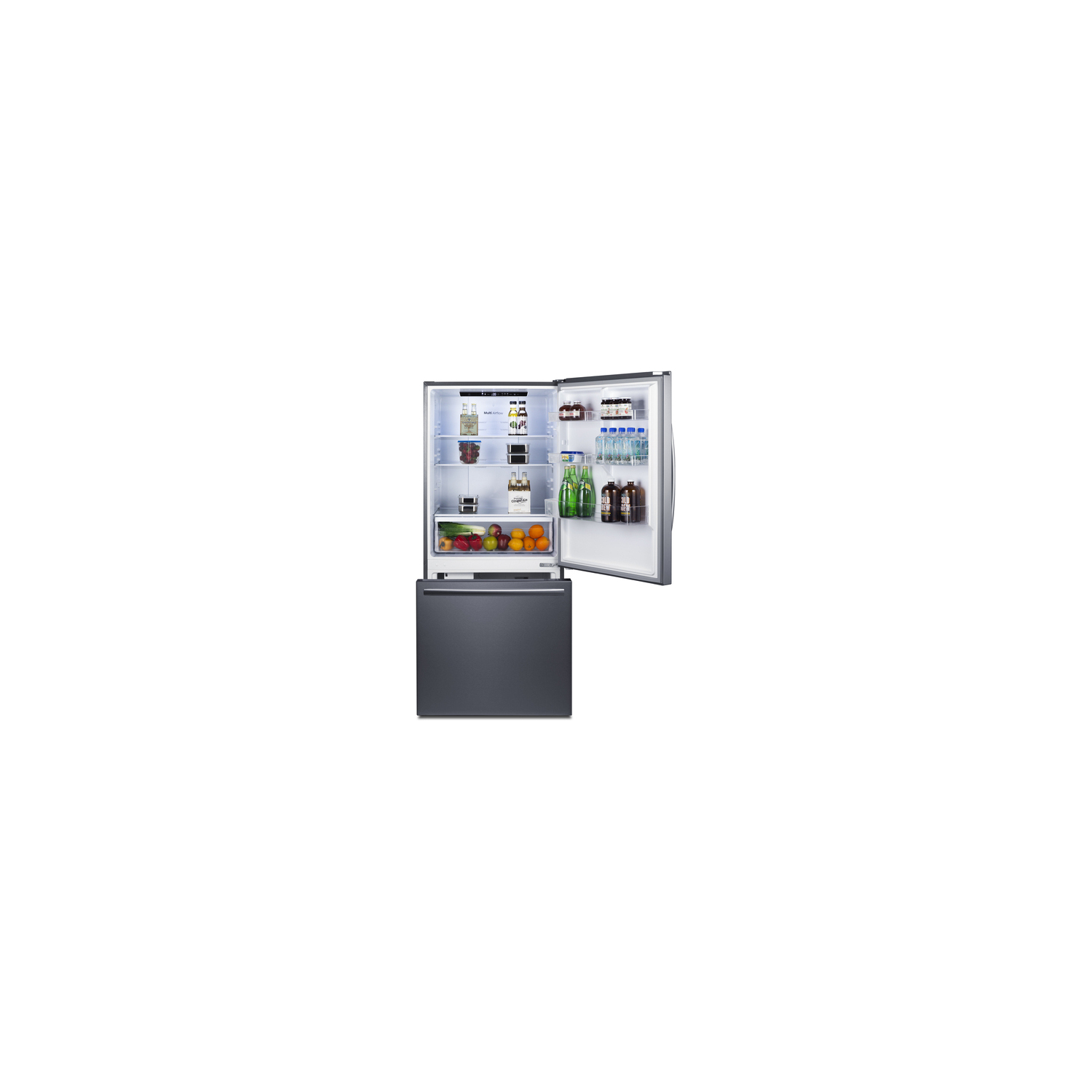

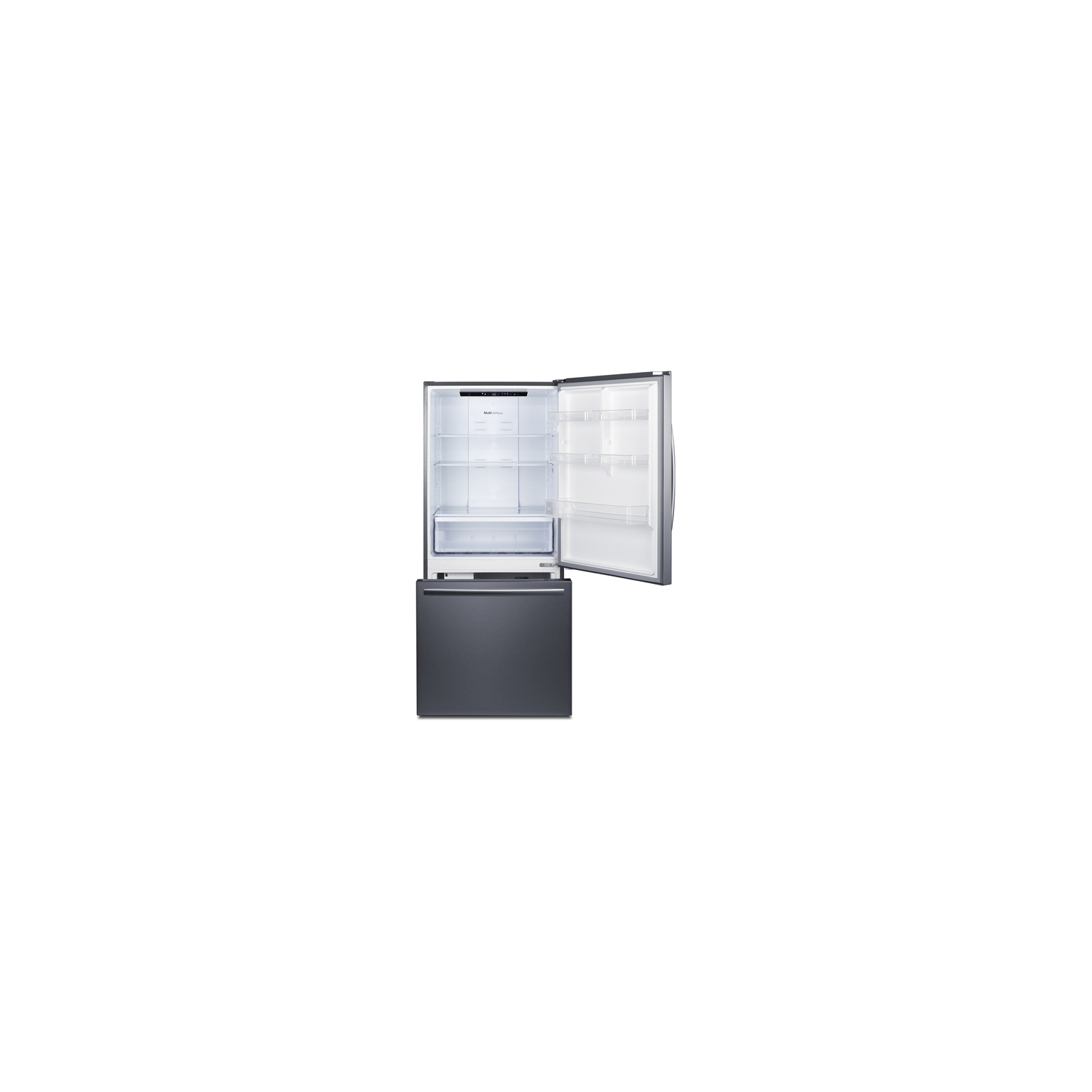

Inside, the FFBF179SSIM comes fully featured for maximum storage convenience with frost-free operation ideal for minimum maintenance. The refrigerator section includes two adjustable glass shelves. On the door, four half-sized adjustable door racks offer additional storage options, in addition to one full-width rack that can accommodate gallon-sized containers. The large, full-width clear crisper is ideal for keeping produce fresh.

An innovative touch control system lets you manage both the refrigerator and freezer temperature with an intuitive digital thermostat. LED lighting offers an efficient and attractive view inside. The open door alarm alerts with an audio and visual signal when the door is left ajar for over two minutes. This model's refrigerator also features a SuperCool function, ideal for cooling fresh foods quickly.

The lower freezer compartment's upper drawer features a factory-installed icemaker that keeps a full supply of crescent-shaped ice on hand. The SuperFreeze function is ideal for bringing newly loaded groceries to freezing temperature quickly.

Made in North America, the FFBF179SSIM is the perfect energy-efficient addition to any kitchen. Additional bottom mount, French door, and top mount refrigerator-freezers are available. Browse the full Summit lineup to complete your space with style and efficiency.

SPECIFICATIONS

Overview

Height of Cabinet 69.0" (175 cm)

Width 31.25" (79 cm)

Width with Door Open 31.75" (81 cm)

Depth 27.38" (70 cm)

Depth with Handle 30.13" (77 cm)

Depth with door at 90° 59.13" (150 cm)

Capacity 17.2 cu.ft. (487 L)

Defrost Type Frost-Free

Door Stainless Steel

Cabinet Gray

US Electrical Safety UL

Canadian Electrical Safety ULC

Energy Usage/Year 537.0kWh/year

Amps 1.25

Voltage/Frequency 115 V AC/60 Hz

Weight 201.0 lbs. (91 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101155470

Refrigerator-Freezer

Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Interior Drawers Yes

Drawer Qty 2

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Glass

Interior Light Yes

Refrigerator - Interior Height 36.5" (93 cm)

Refrigerator - Interior Width 27.0" (69 cm)

Refrigerator - Interior Depth 21.0" (53 cm)

Refrigerator - Capacity 12.2 cu.ft

Refrigerator - Shelf Type Glass

Refrigerator - Shelf Qty 2

Refrigerator - Full Door Shelves 1

Refrigerator - Half Door Shelves 4

Refrigerator - Temperature Range 36 to 46ºF

Freezer - Interior Height 27.0" (69 cm)

Freezer - Interior Width 23.0" (58 cm)

Freezer - Interior Depth 13.75" (35 cm)

Freezer - Capacity 5.0 cu.ft

Freezer - Shelf Type Drawers

Freezer - Shelf Qty 2

Gallon Door Storage Yes

Thermostat Type Digital

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 1.76 oz.

High Side PSI 250.0

Low Side PSI 88.0

Level Legs 2

Freezer - Temperature Range -11 to +5ºF

Interior Height - Drawer 1 7.0" (18 cm)

Interior Width - Drawer 1 23.0" (58 cm)

Interior Depth - Drawer 1 13.75" (35 cm)

Interior Height - Drawer 2 9.75" (25 cm)

Interior Width - Drawer 2 22.5" (57 cm)

Interior Depth - Drawer 2 13.25" (34 cm)

FEATURES

31" Wide Bottom-Mount Refrigerator-Freezer Full-sized 17.2 cu.ft. refrigerator-freezer with a spacious interior to add true convenience to any kitchen space

ENERGY STAR certified Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

Counter depth fit Cabinet measures 24 5/8" deep for an ideal fit, with the overall depth with doors measuring 27 3/8"

Factory-installed icemaker Freezer section is equipped with a pre-installed icemaker that keeps a steady supply of crescent ice

Bottom-mount drawer freezer design Convenient design keeps all refrigerated storage at eye level for easier use

Large capacity Generous 17.2 cu.ft of interior storage

Stainless steel finish Stainless steel doors offer a professional look for any kitchen

Frost-free operation No-frost operation ensures reduced maintenance

Digital temperature control Innovative control panel located inside the refrigerator makes it easy to manage the refrigerator and freezer temperature at the touch of a button

Adjustable glass shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

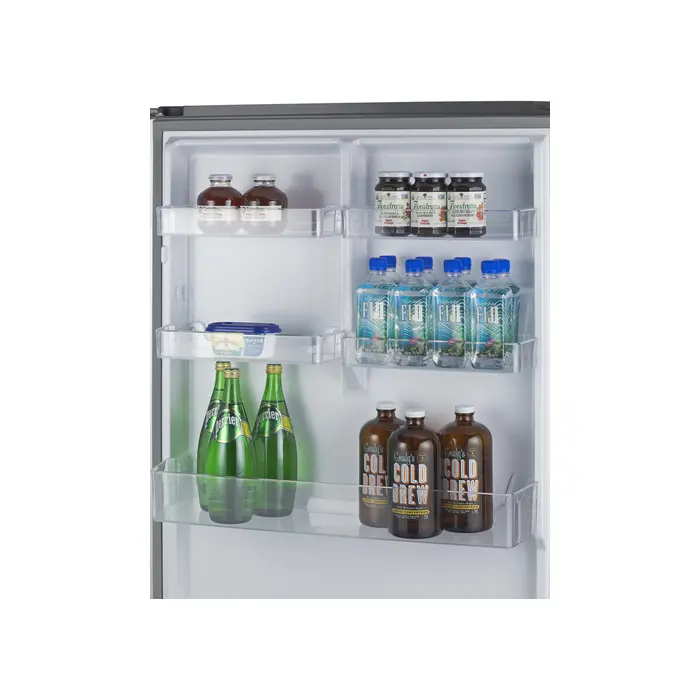

Adjustable door storage Store tall bottles and condiments right on the door for convenient access

Gallon door shelf Deep rack accepts full gallon-sized containers

Crisper drawer Get the longest life and best taste out of produce by storing it in a convenient slide drawer

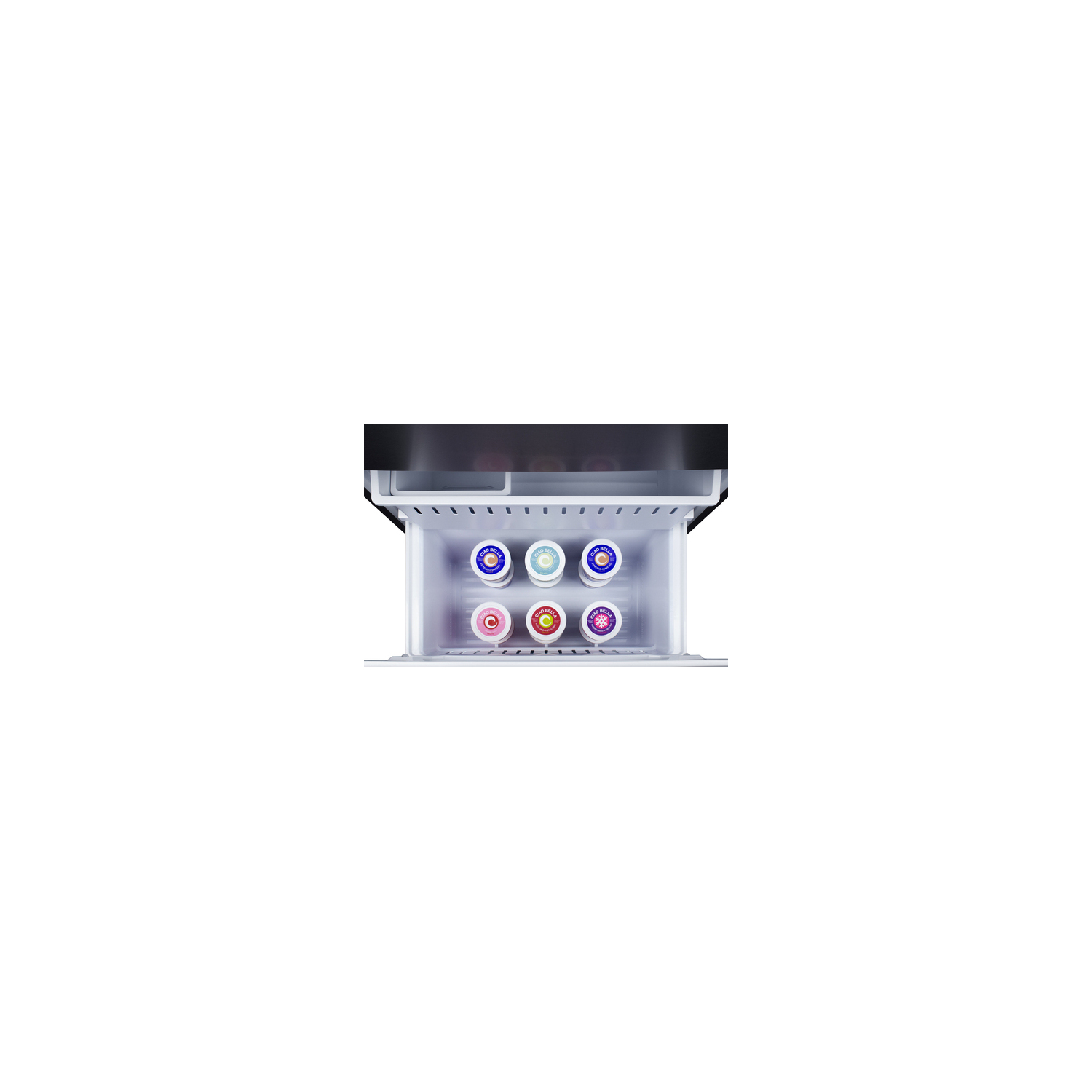

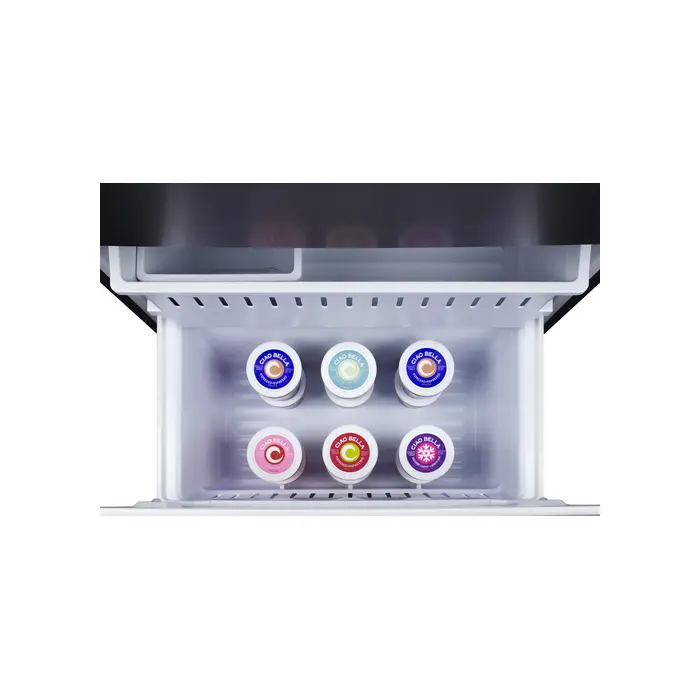

Lower freezer drawer Slide-out freezer with two inner drawer compartments allows easy storage

SuperCool + SuperFreeze functions Functions ideal for cooling and freezing newly loaded groceries. Both functions override current thermostat controls to ensure compressor operates continuously

Eco mode Energy saving function allows the unit to run more efficiently, ideal for vacation or when the unit is not in regular use

Open door alarm Alarm sends an audio and visual signal when the door is left ajar for over two minutes

Reversible refrigerator door User-reversible door swing for added flexibility

Professional handles Brushed steel handles in a curved shape for easy opening and modern style

Sealed back Space-saving design with no exposed coils in the rear offers easy cleanability

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Approved for Canadian sales ETL/ETL-C and NRCAN registered for use in Canada

TAA Compliant Made in North America

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Lead-free certified Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

DOWNLOADS

BROCHURE (FFBF179SSIM.pdf)

TECHNICAL DRAWING (.dwg) (FFBF179SSIM.dwg)

ASSEMBLY DRAWING (FFBF179SSIM-Assembly.pdf)

USE & CARE (FFBF179SSIM-User-Manual.pdf)

MSDS INFORMATION (R600a_MSDS_A.PDF)

Energy Guide
