Summit Bottom mount refrigerator-freezer, FFBF173SS

Summit's fully-featured, bottom-mount refrigerator-freezers are specially designed to bring modern style and true convenience to any kitchen.

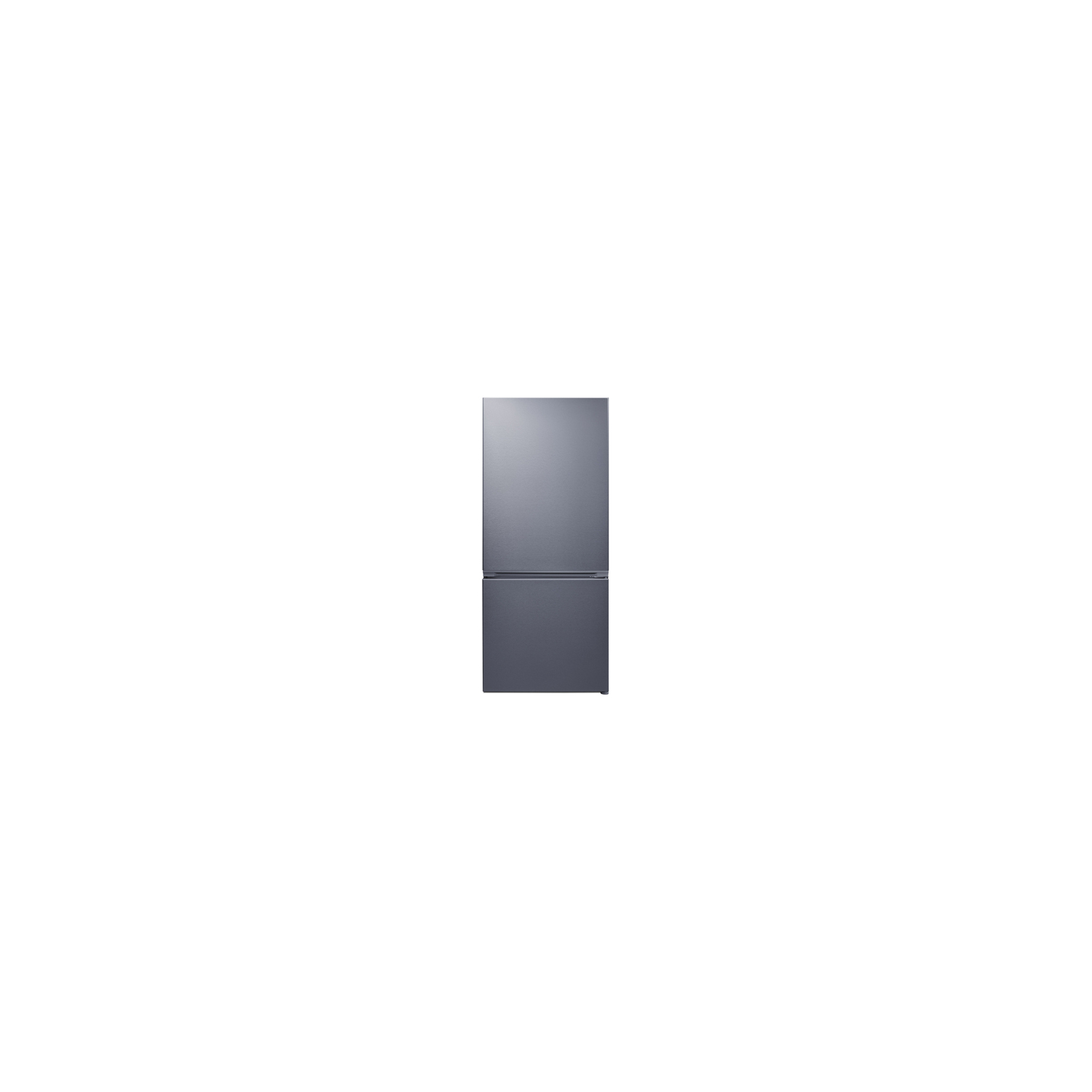

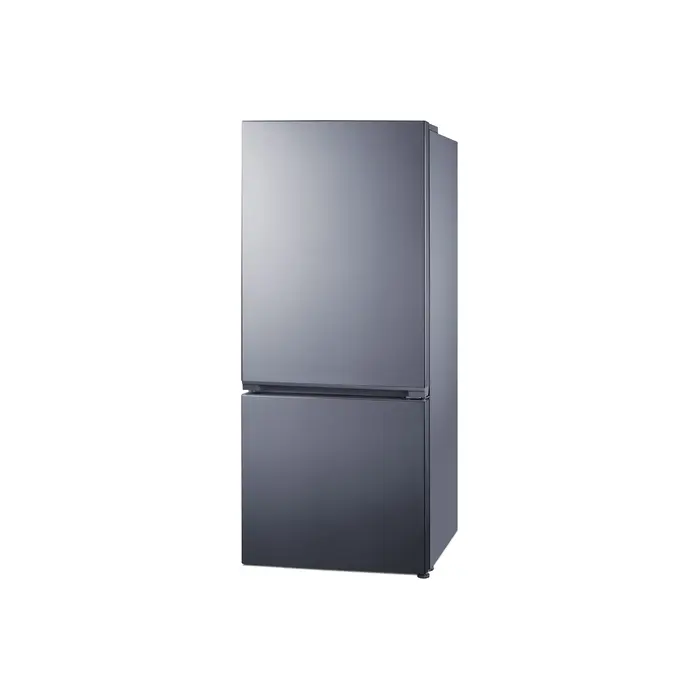

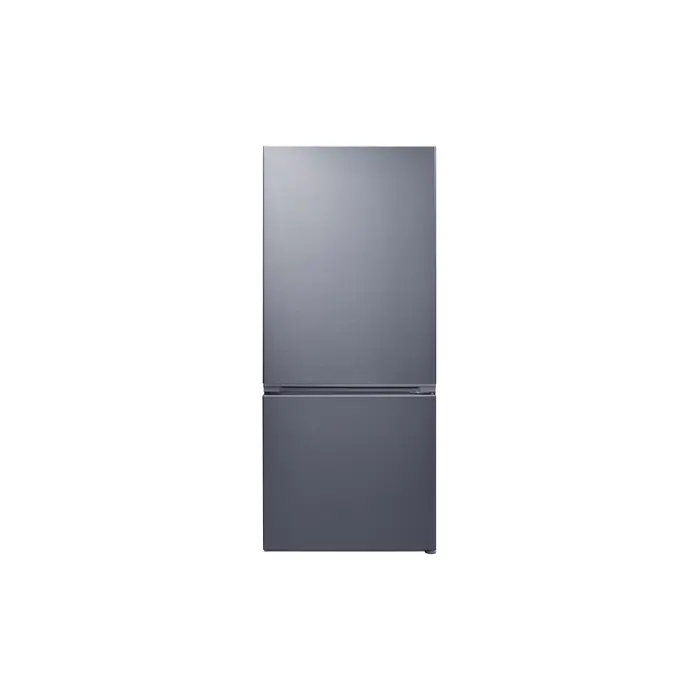

The ENERGY STAR certified FFBF173SS is conveniently sized at 30" wide. Stainless steel doors feature pocket handles and an attractive horizontal grain, with a smooth silver cabinet for a stylish modern look in any kitchen. The sealed back offers added space savings and easier cleanup. Both doors are user-reversible to best suit your space.

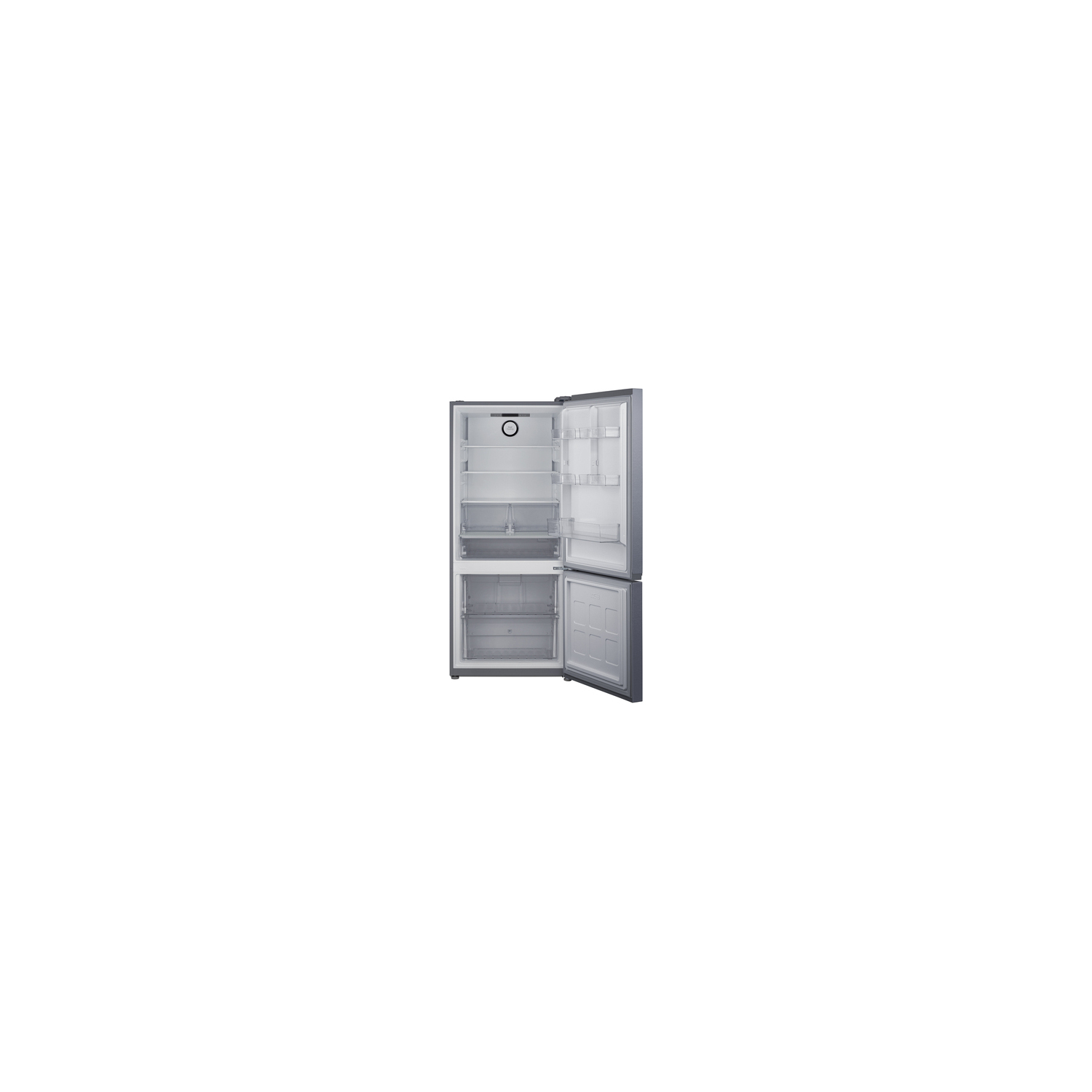

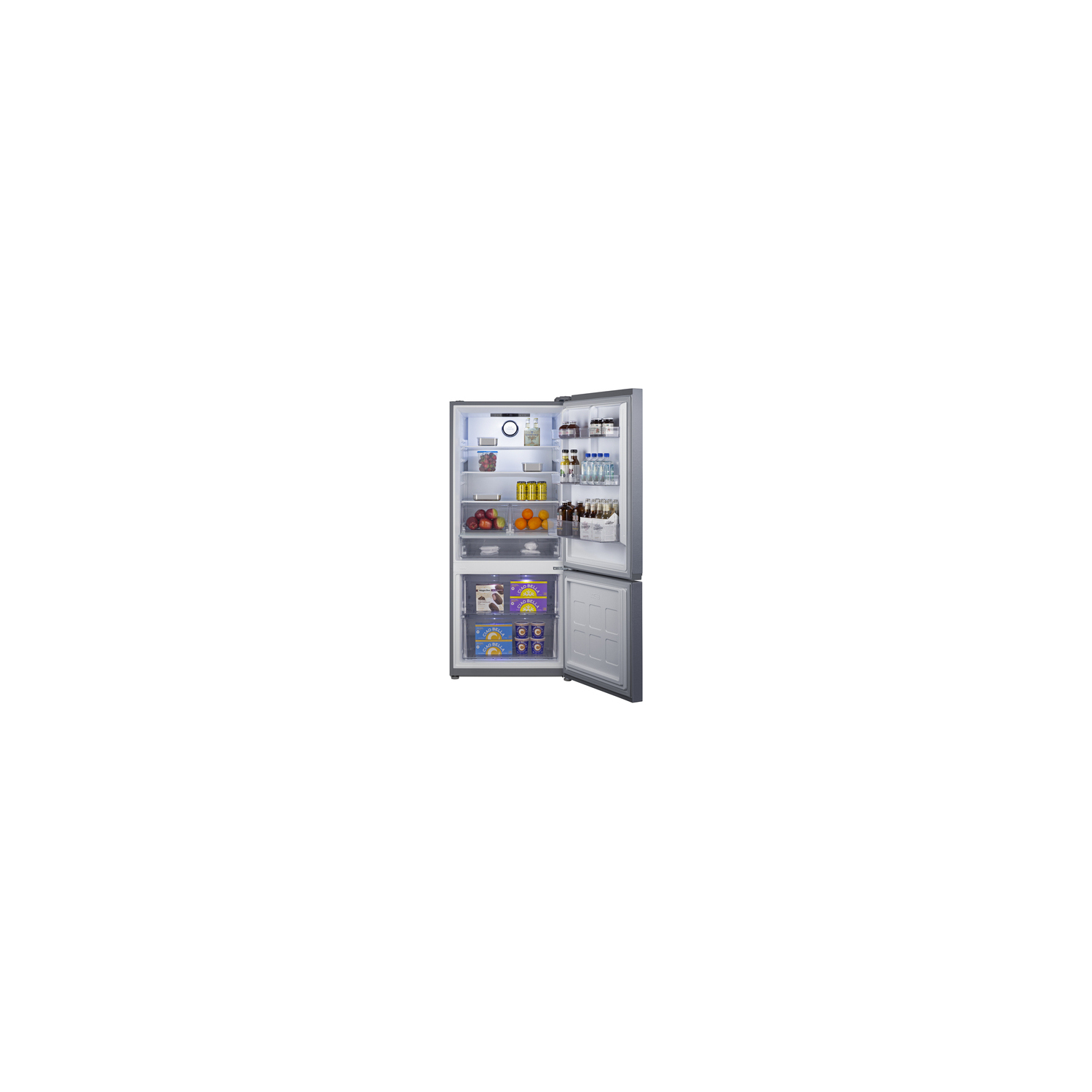

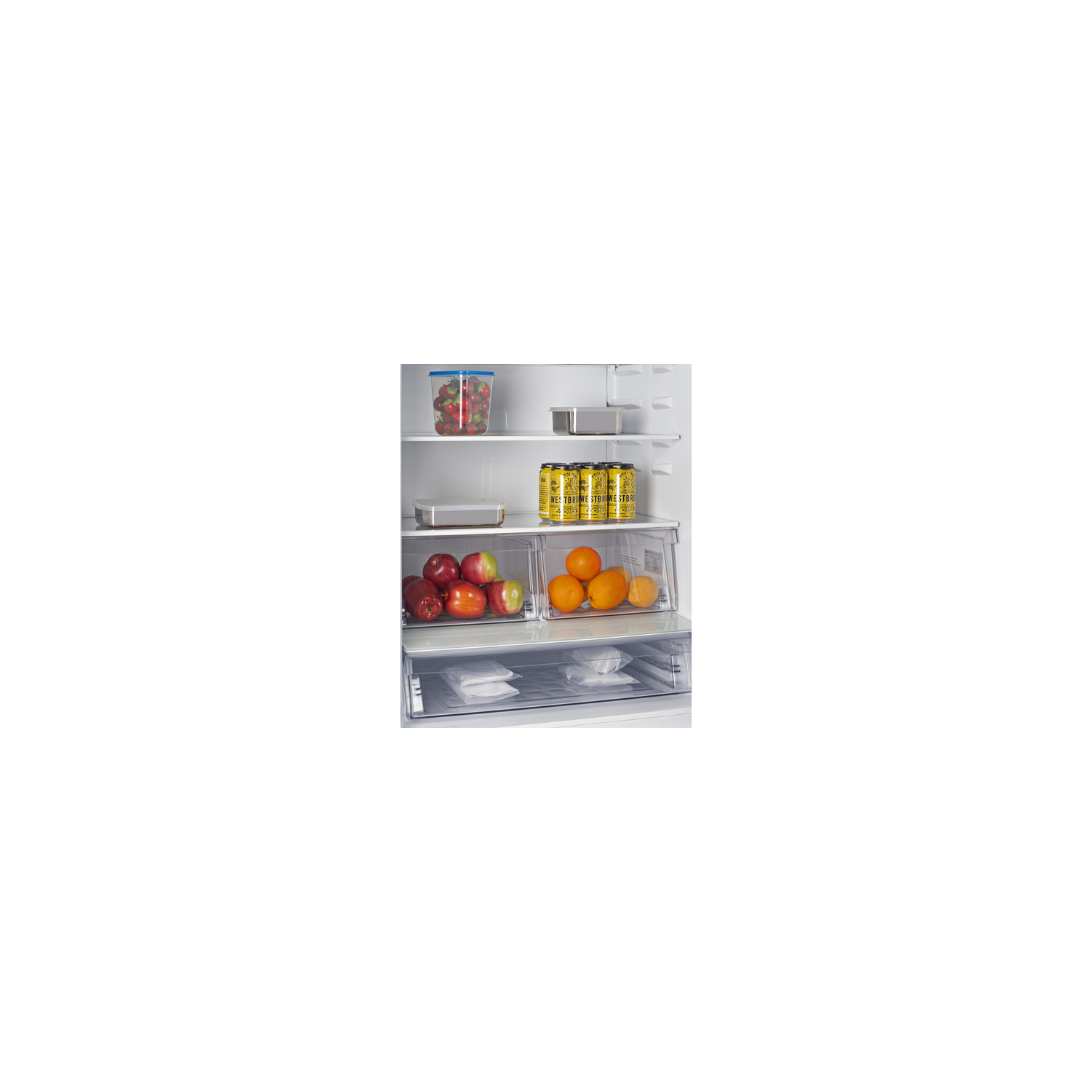

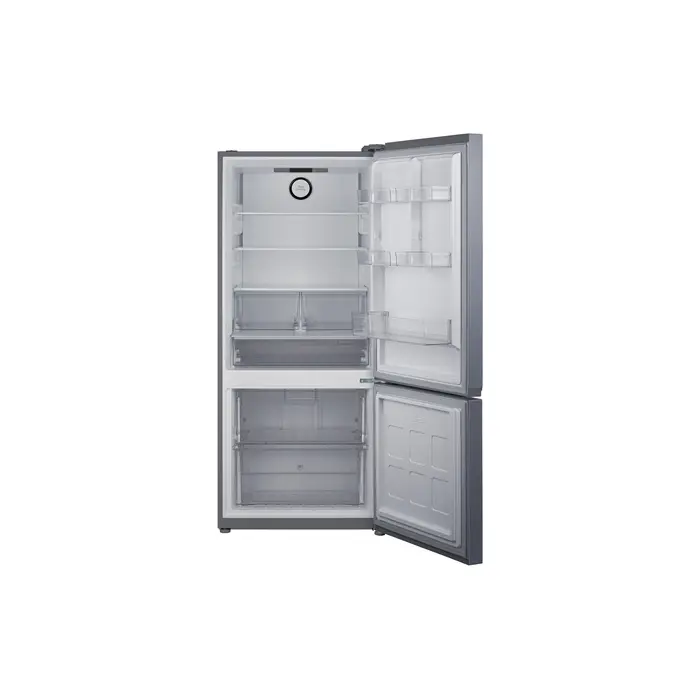

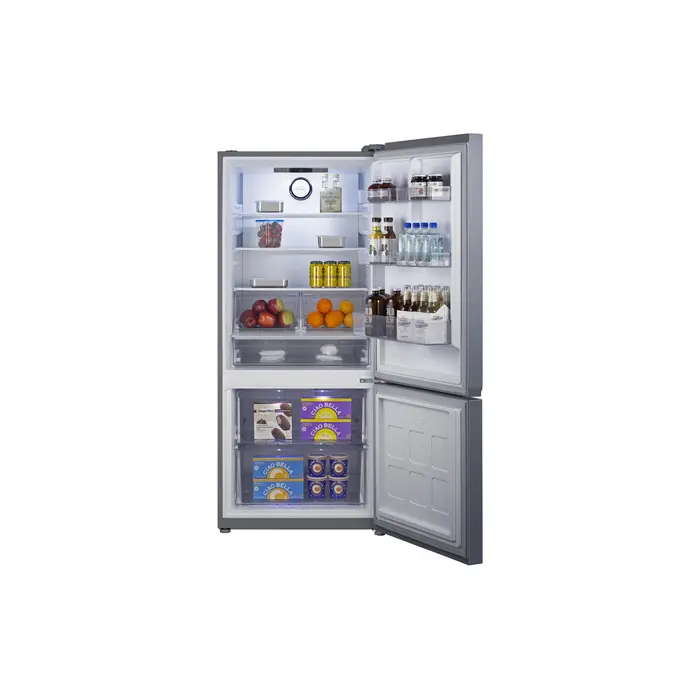

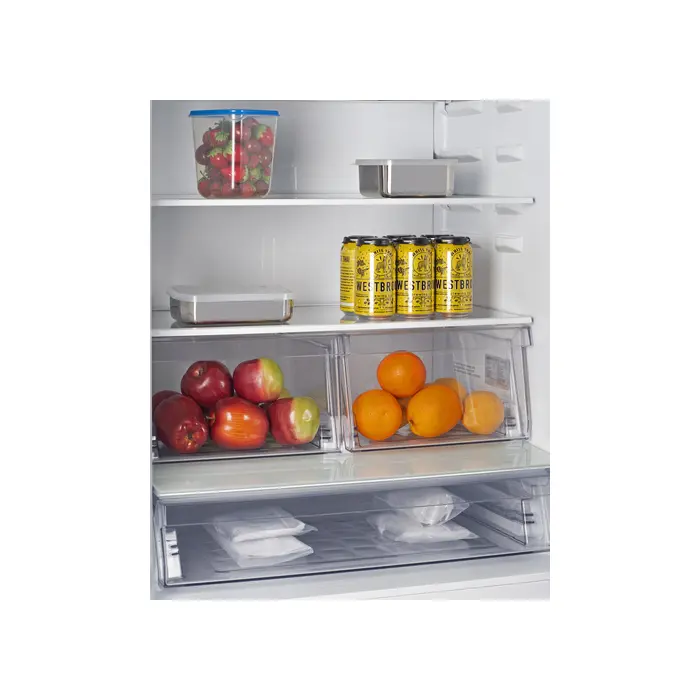

Inside, the FFBF173SS boasts a generous 16.1 cu.ft of storage space to meet the storage needs of any family, no matter their size. This model utilizes frost-free operation for low user maintenance. The interior includes three adjustable glass shelves, two half-width produce crisper drawers, and a full-width deli drawer for easy storage. The refrigerator door includes four half shelves and one full gallon shelf to safely store bottles and other condiments.

An innovative digital system lets you manage the refrigerator and freezer temperature with an intuitive digital thermostat. LED lighting in the side walls of the refrigerator offers an efficient and attractive view inside. The open door alarm alerts with an audio and visual signal when the door is left ajar for over one minute. This unit is equipped with an optional sabbath mode feature that allows you to deactivate certain electrical features for up to 72 hours.

The FFBF173SS's large freezer section features one plastic slide-out drawer that help protect your stored items from warmer temperatures when the door is opened. A QuickFreeze setting lets you run the freezer at colder temperatures, ideal for freezing newly loaded groceries.

With its ENERGY STAR certified performance, attractive design, and convenient features, the FFBF173SS is the ideal choice for kitchens looking for an energy-efficient refrigerator-freezer. For this unit in classic white, see model FFBF172W. For this unit with a factory-installed icemaker, see model FFBF174SSIM.

SPECIFICATIONS

Overview

Height of Cabinet 69.5" (177 cm)

Width 29.88" (76 cm)

Width with Door Open 30.88" (78 cm)

Depth 27.75" (70 cm)

Depth with door at 90° 54.25" (138 cm)

Capacity 16.1 cu.ft. (456 L)

Defrost Type Frost-Free

Door Stainless Steel

Cabinet Silver

US Electrical Safety UL

Canadian Electrical Safety ULC

Energy Usage/Year 355.0kWh/year

Amps 2.0

Voltage/Frequency 115 V AC/60 Hz

Weight 218.0 lbs. (99 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101151618

Refrigerator-Freezer

Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Interior Drawers Yes

Drawer Qty 5

Crisper Qty 3

Crisper Finish Transparent

Crisper Cover Glass

Interior Light Yes

Refrigerator - Interior Height 37.75" (96 cm)

Refrigerator - Interior Width 25.25" (64 cm)

Refrigerator - Interior Depth 20.25" (51 cm)

Refrigerator - Capacity 10.89 cu.ft

Refrigerator - Shelf Type Glass

Refrigerator - Shelf Qty 3

Refrigerator - Full Door Shelves 1

Refrigerator - Half Door Shelves 4

Refrigerator - Temperature Range 33 to 46ºF

Freezer - Interior Height 22.0" (56 cm)

Freezer - Interior Width 24.5" (62 cm)

Freezer - Interior Depth 18.5" (47 cm)

Freezer - Capacity 5.22 cu.ft

Gallon Door Storage Yes

Thermostat Type Digital

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 2.12 oz.

Level Legs 2

Freezer - Temperature Range -11 to 0ºF

Sabbath Mode Yes

Sound Level 32.6 dB

FEATURES

30" Wide Bottom-Mount Refrigerator-Freezer Full-sized 16.1 cu.ft. refrigerator-freezer with a spacious interior to add modern style and true convenience to any kitchen space

Counter depth fit Cabinet measures 24 1/2" deep for an ideal fit, with the overall depth with doors measuring 27 3/4"

ENERGY STAR certified Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

Bottom mount freezer Convenient design keeps all refrigerated storage at eye level for easier use

Large capacity 16.1 cu.ft. interior offers generous storage space

Stainless steel finish Stainless steel doors with a horizontal grain and gentle curve offer a professional look for any kitchen

Frost-free operation No-frost operation ensures reduced maintenance

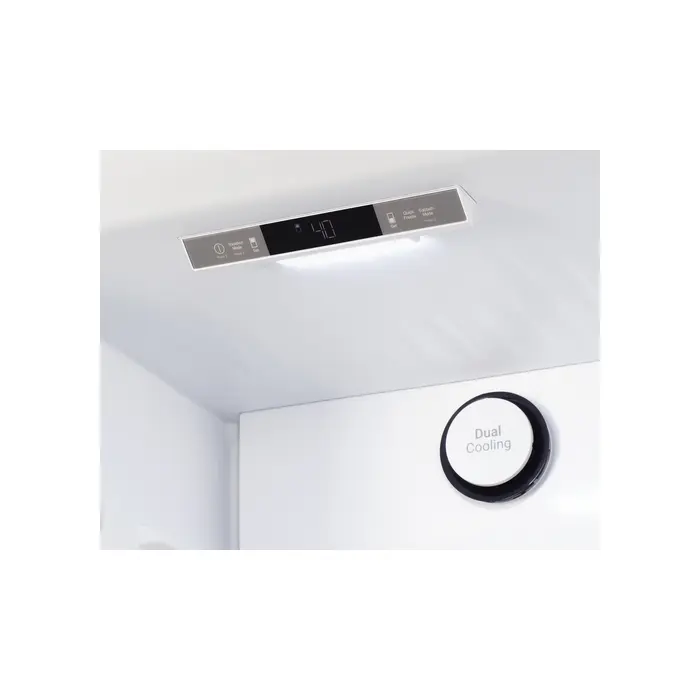

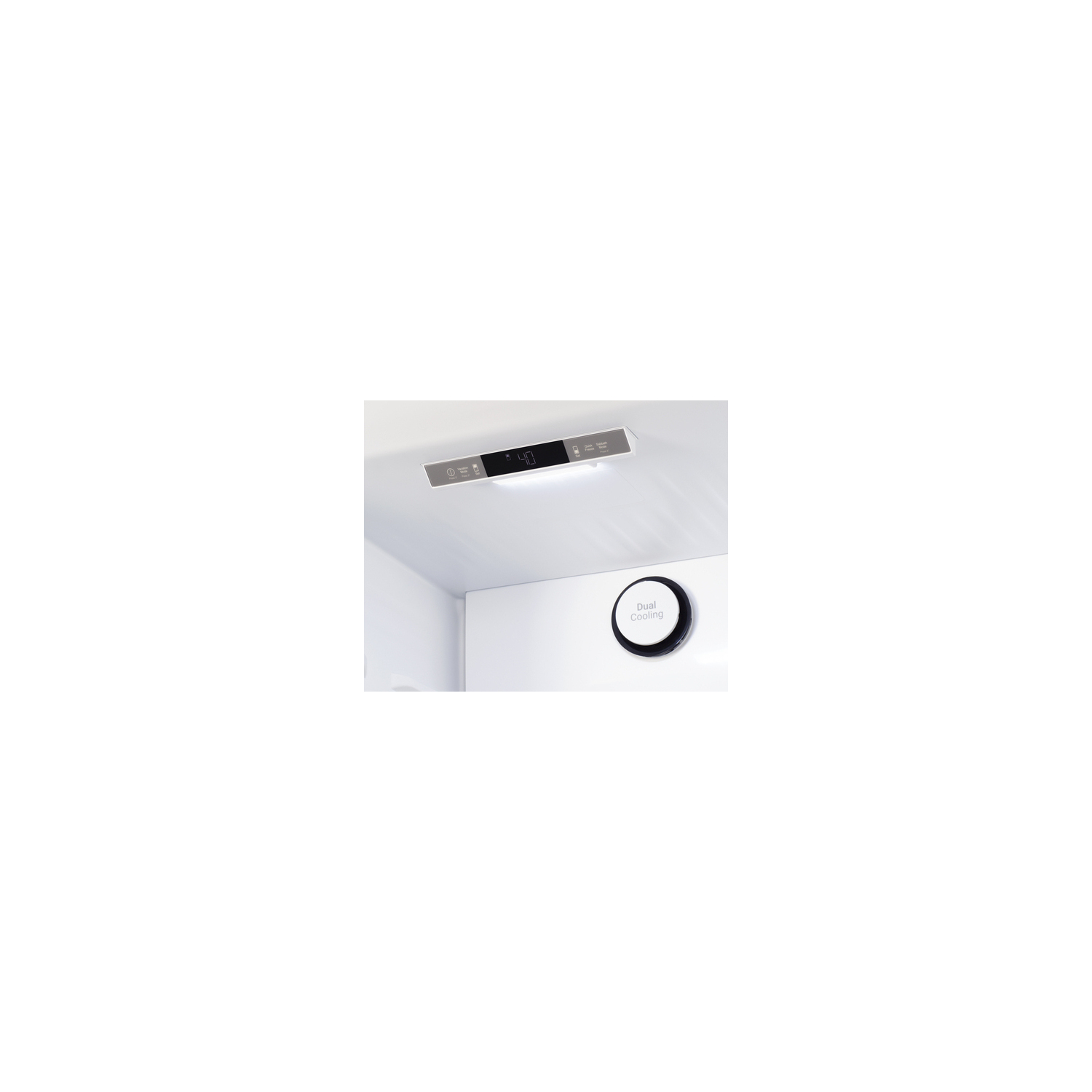

Digital temperature control Innovative control panel located inside the refrigerator makes it easy to manage the refrigerator and freezer temperature at the touch of a button

Deli drawer Designed with enhanced cool air circulation to help preserve the freshness of deli items, including meats and cheeses

Crisper drawers Get the longest life and best taste out of produce by storing it in two convenient slide drawers

Gallon door shelf Deep rack accepts full gallon-sized containers

Adjustable glass shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Adjustable door storage Store tall bottles and condiments right on the door for convenient access

Open door alarm Alarm sends an audio and visual signal when the door is left ajar for over one minute

Interior LED lighting Energy efficient lighting located inside the walls to provide a better view of the refrigerator interior

QuickFreeze function This setting is ideal for freezing fresh foods quickly. Function overrides current thermostat controls to ensure compressor operates continuously

Transparent freezer drawers Unique freezer design keeps the cold inside, even when the door is opened

Sabbath mode This unit is equipped with an optional sabbath mode feature that allows you to deactivate certain electrical features for up to 72 hours.

Reversible doors User-reversible door swing for added flexibility

Open door alarm Alarm sends an audio and visual signal when the door is left ajar for over one minute

Sealed back Space-saving design with no exposed coils in the rear offers easy cleanability

Quiet operation Variable compressor ensures a quiet performance measured at just 32.6 dB

Approved for Canadian sales ETL/ETL-C and NRCAN registered for use in Canada

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Lead-free certified Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
