Summit Bottom mount refrigerator-freezer, 7.61101e+011, FFBF121W

Summit's fully-featured, European-made bottom freezer refrigerators are specially designed to bring true convenience to any kitchen.

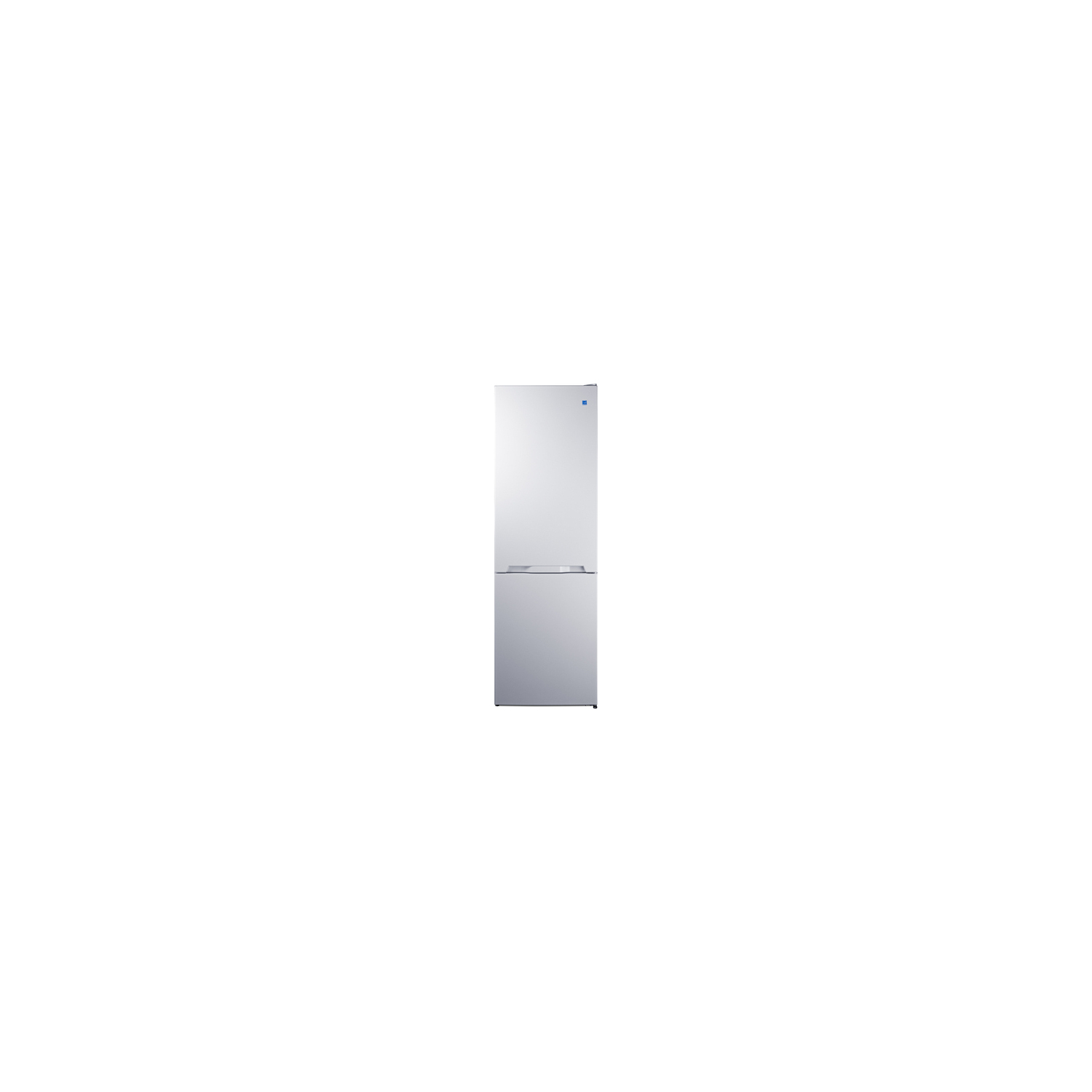

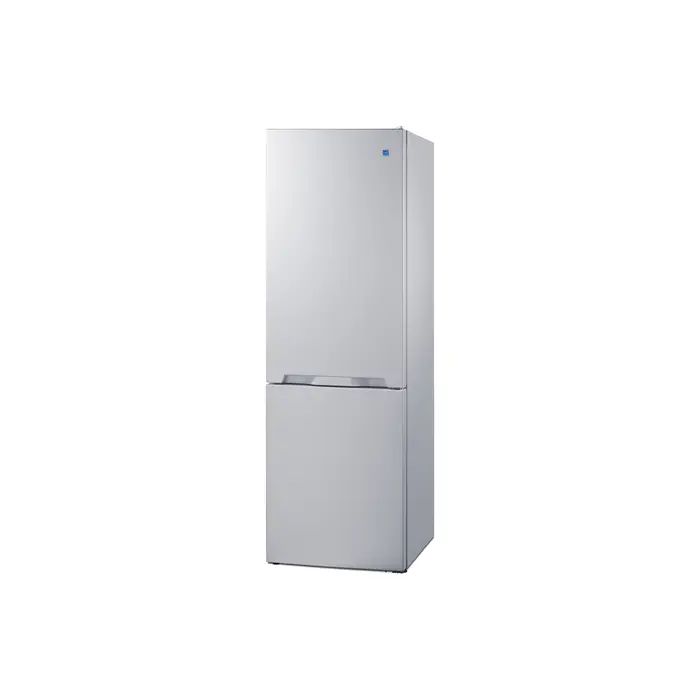

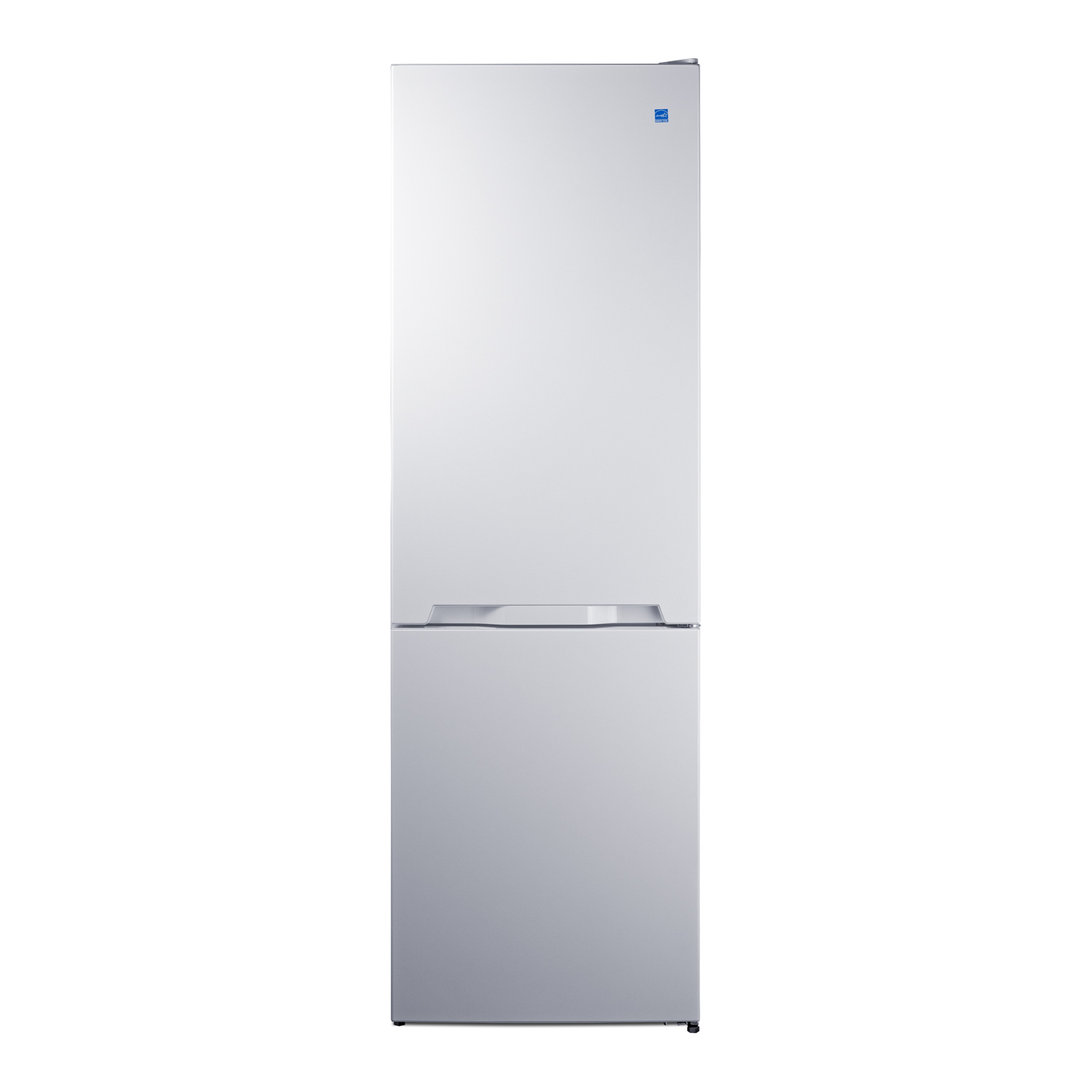

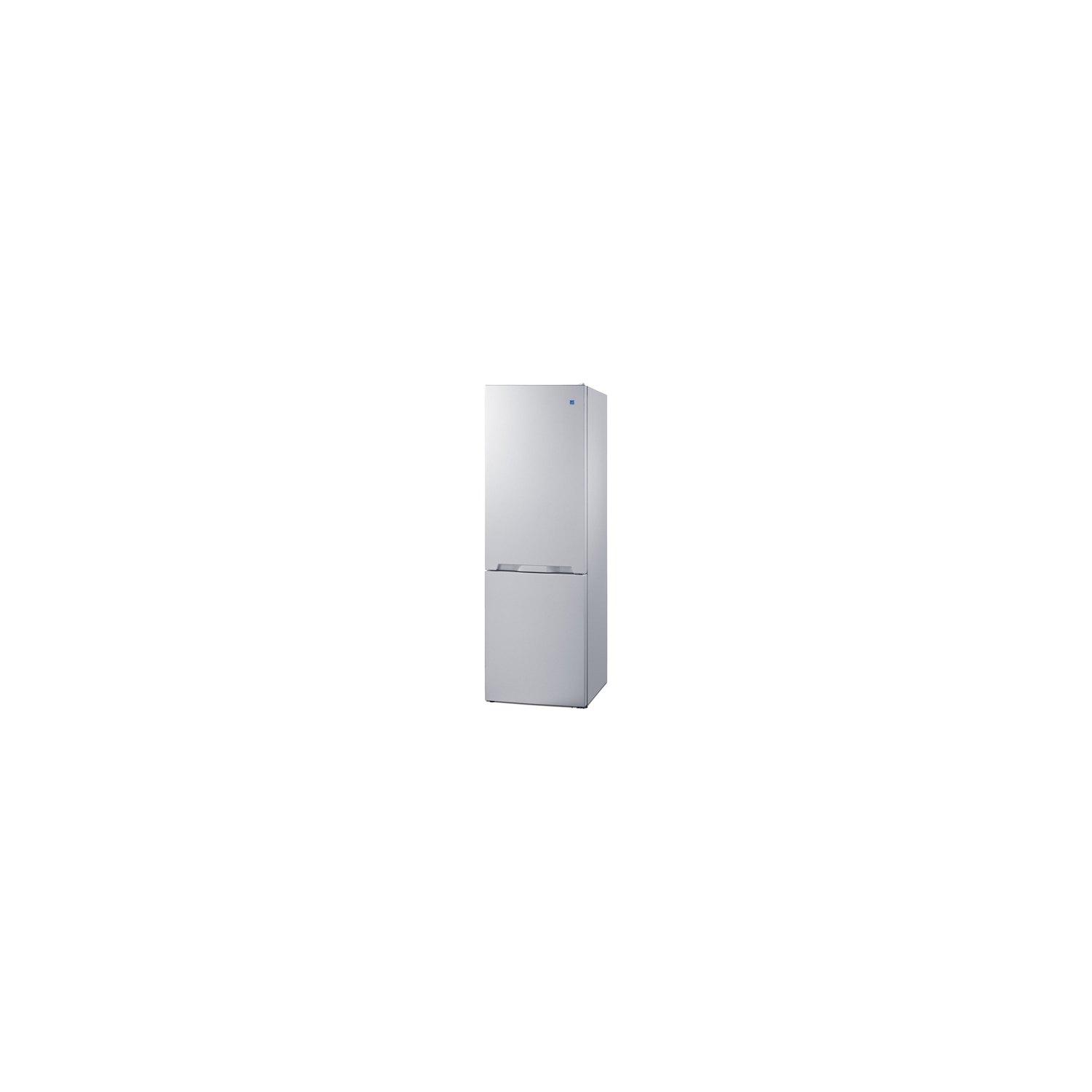

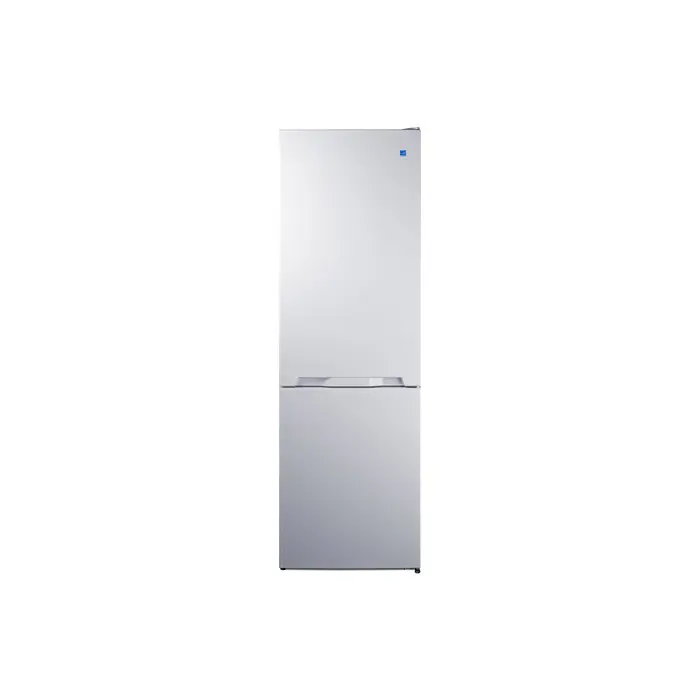

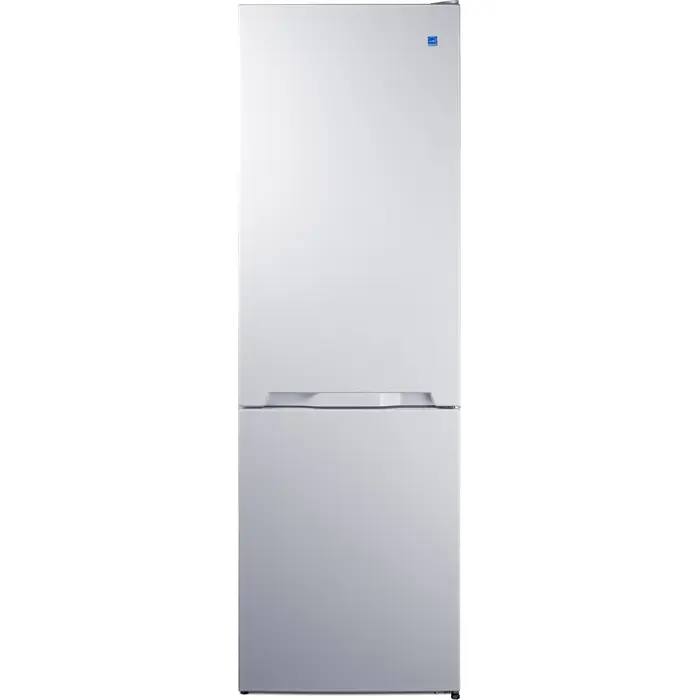

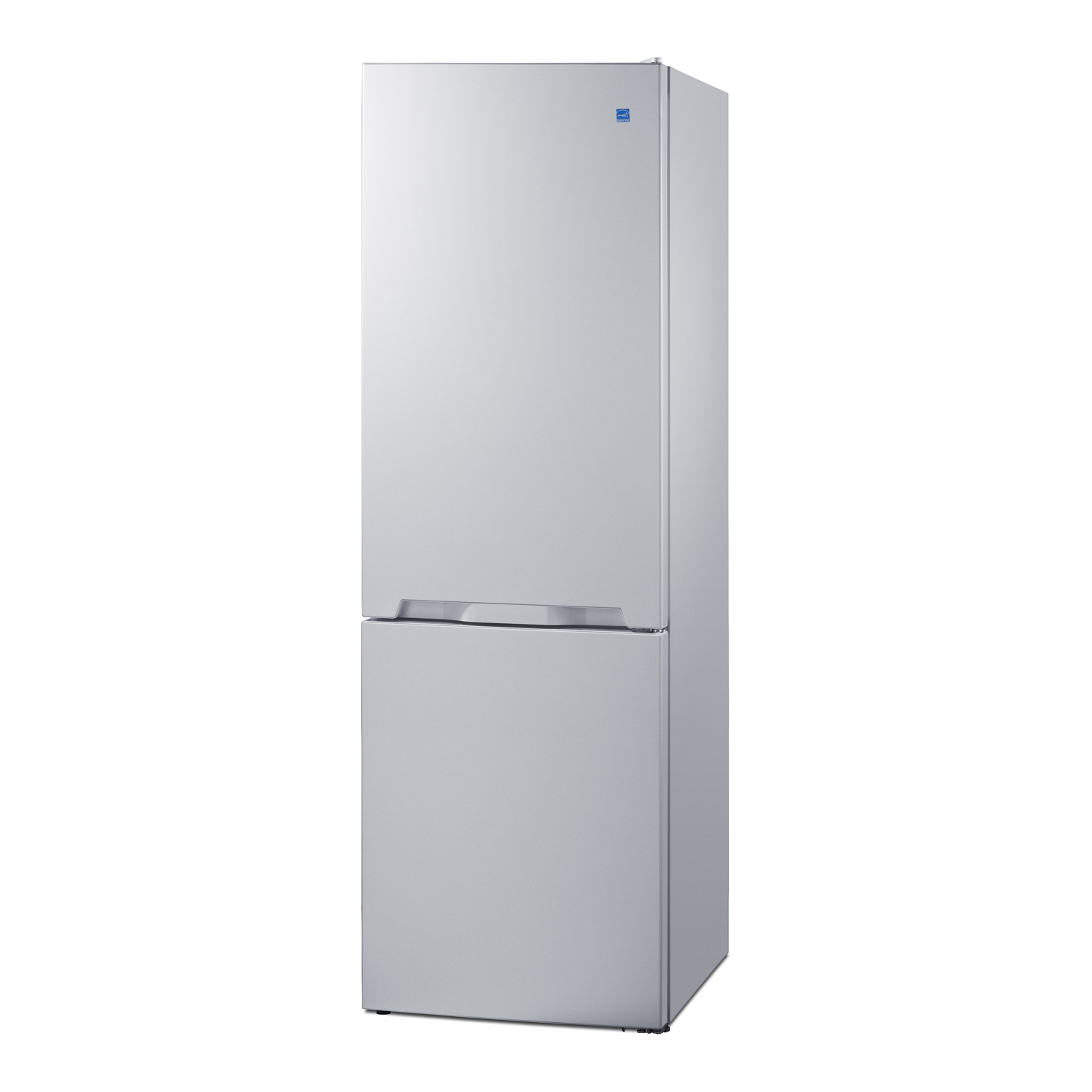

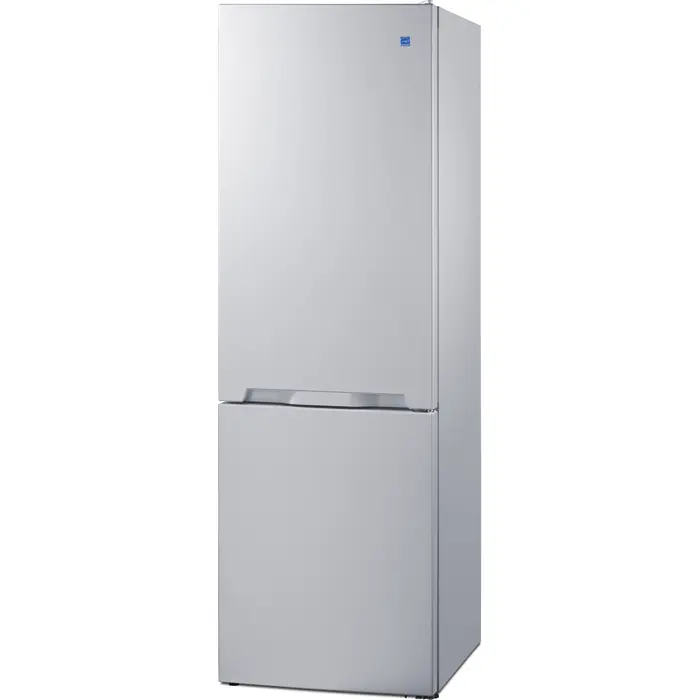

The ENERGY STAR certified FFBF121W features a spacious 11.7 cu.ft. of storage capacity in a slim counter depth fit. The smooth white doors and cabinet offer contemporary kitchens a traditional aesthetic. This unit utilizes frost-free defrost to minimize user-maintenance, with digital controls for easy operation. The doors are user-reversible to best suit your space.

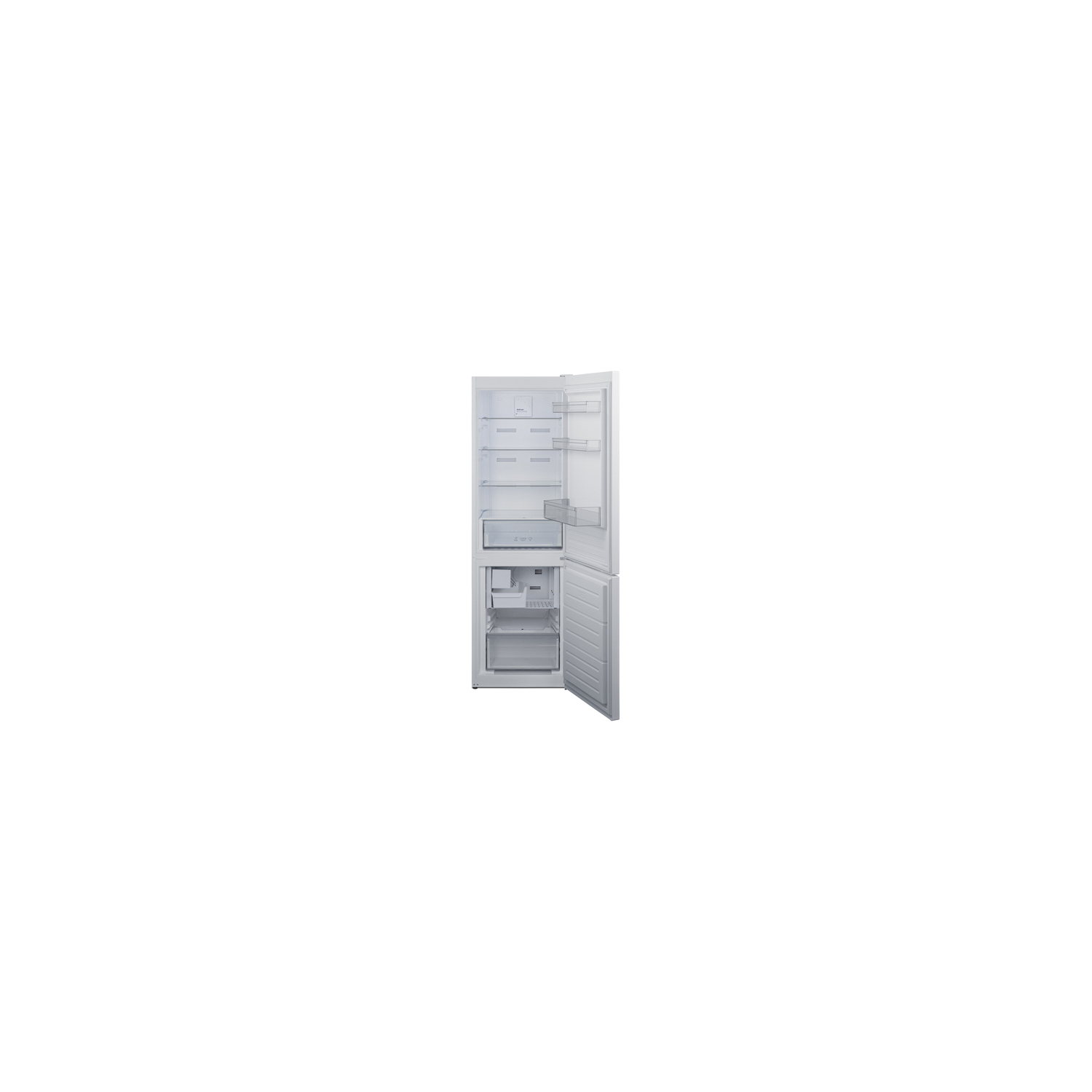

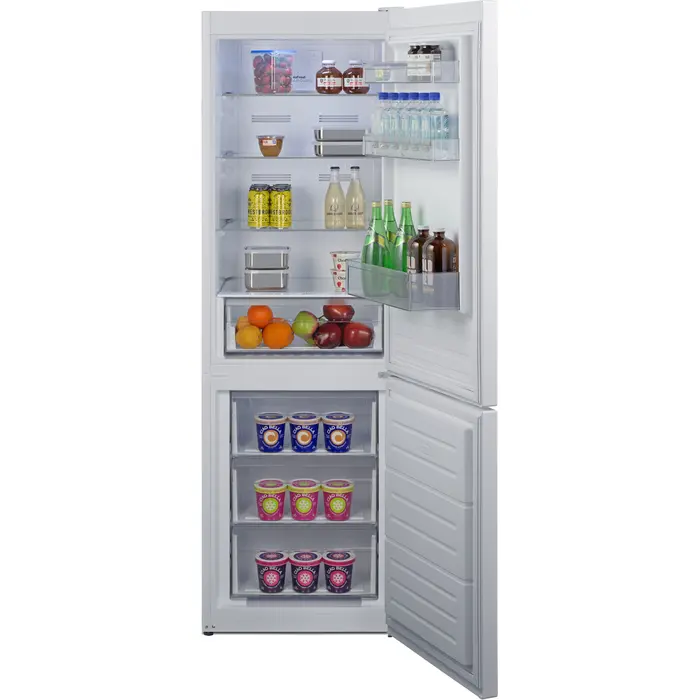

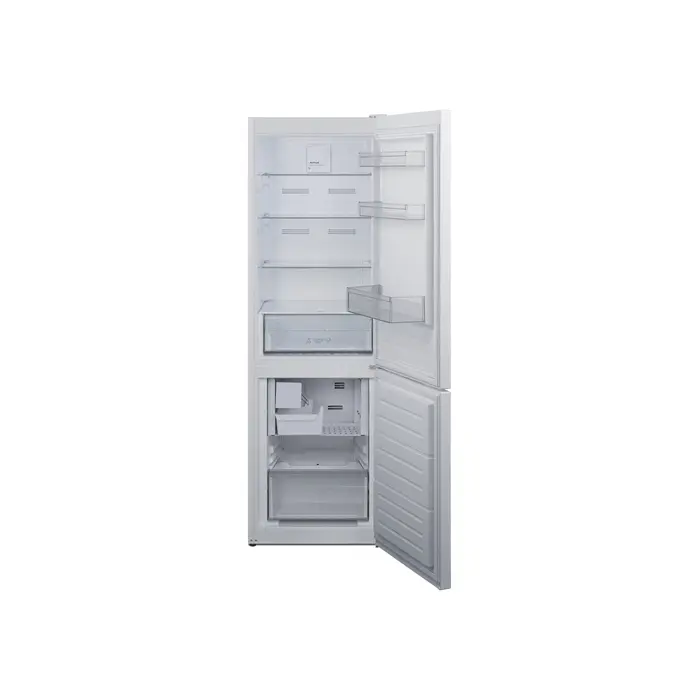

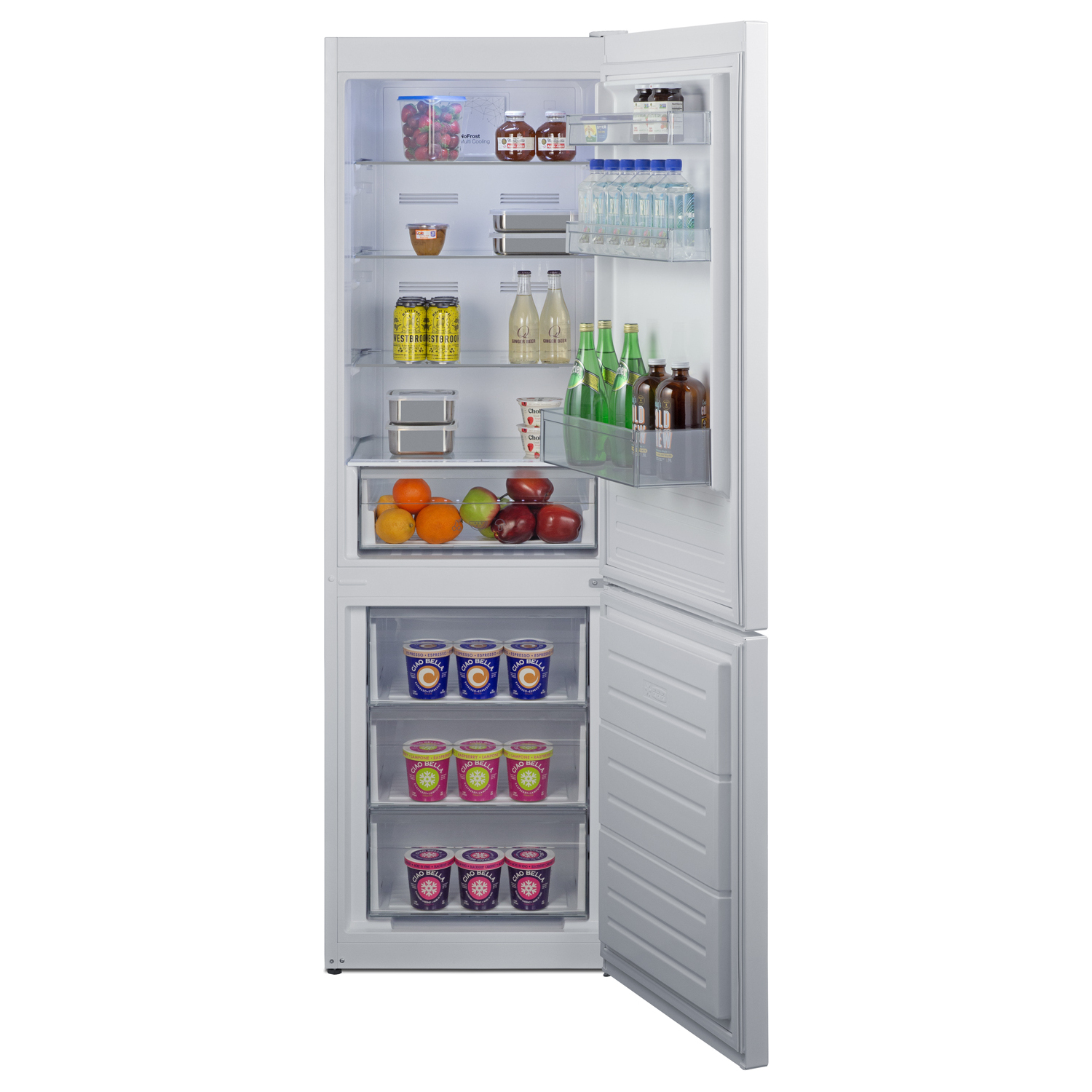

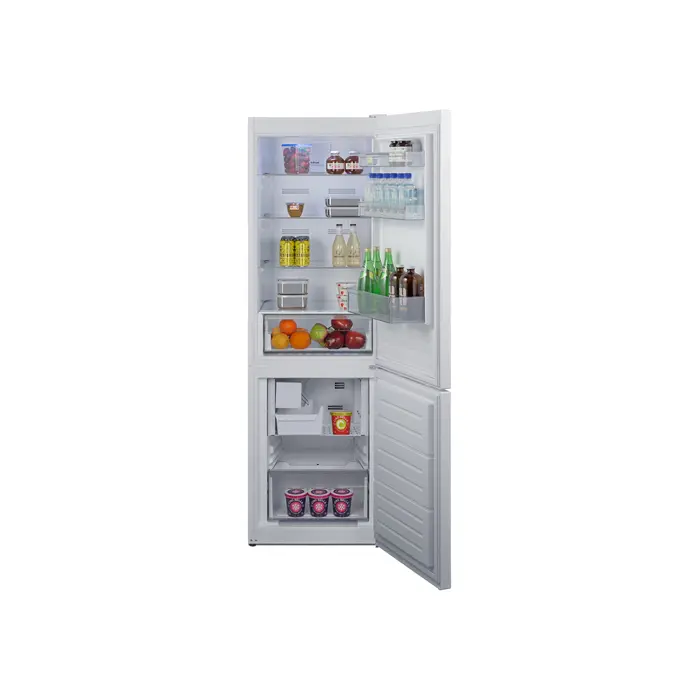

The FFBF121W's refrigerator section is fully featured for fresh food storage with LED lighting, three adjustable glass shelves, a humidity-controlled clear crisper, and three removable door racks. The unit's bottom door shelf accommodates gallon-sized containers. The lower freezer compartment features three slide-out drawers with plastic fronts to help protect stored items when the door is opened. This model also features a SuperFreeze setting, which is great for quickly freezing newly loaded foods.

With its ENERGY STAR certified performance and convenient features, the FFBF121W is the ideal choice for apartments looking for an energy-efficient refrigerator-freezer. For this unit in a sleek stainless steel finish, see model FFBF124SS.

Explore summitappliance.com to browse our complete series of apartment-sized refrigerators.

SPECIFICATIONS

Overview

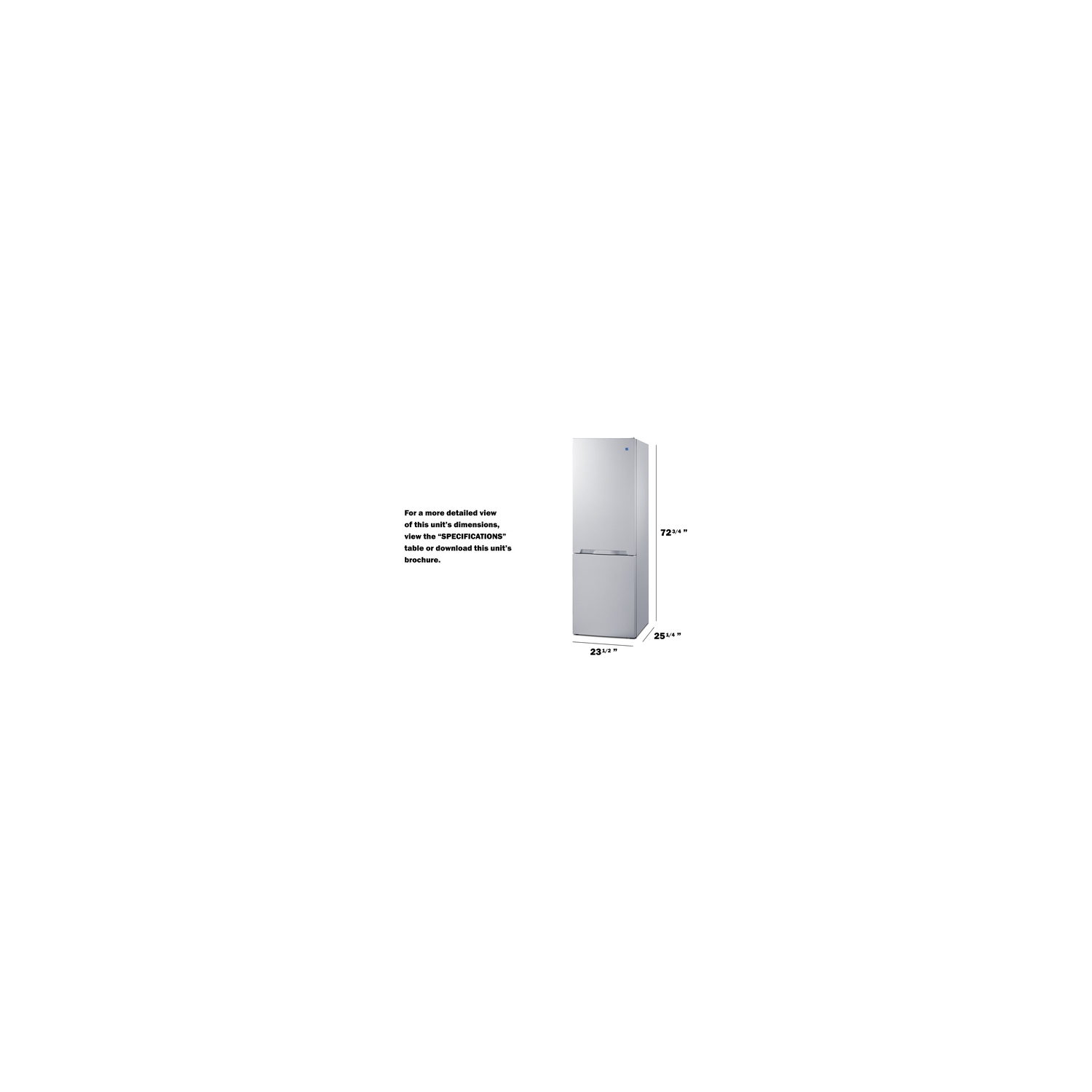

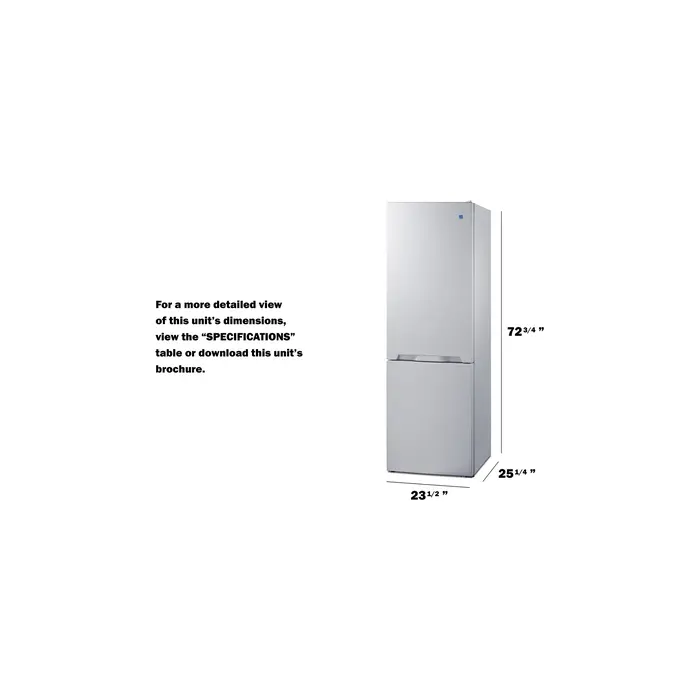

Height of Cabinet 72.75" (185 cm)

Height to Hinge Cap 73.25" (186 cm)

Width 23.5" (60 cm)

Depth 25.25" (64 cm)

Depth with door at 90° 49.75" (126 cm)

Capacity 11.7 cu.ft. (331 L)

Defrost Type Frost-Free

Door White

Cabinet White

US Electrical Safety UL

Canadian Electrical Safety ULC

Energy Usage/Year 399.0kWh/year

Amps 1.99

Voltage/Frequency 115 V AC/60 Hz

Weight 141.0 lbs. (64 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101146560

Refrigerator-Freezer

Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Interior Drawers Yes

Drawer Qty 3

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Glass

Interior Light Yes

Refrigerator - Interior Height 37.0" (94 cm)

Refrigerator - Interior Width 19.75" (50 cm)

Refrigerator - Interior Depth 18.75" (48 cm)

Refrigerator - Shelf Type Glass

Refrigerator - Shelf Qty 3

Refrigerator - Full Door Shelves 3

Freezer - Interior Height 25.25" (64 cm)

Freezer - Interior Width 15.75" (40 cm)

Freezer - Interior Depth 18.75" (48 cm)

Freezer - Shelf Type Drawers

Gallon Door Storage Yes

Thermostat Type Digital

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 1.76 oz.

Interior Height - Drawer 1 7.5" (19 cm)

Interior Width - Drawer 1 15.75" (40 cm)

Interior Depth - Drawer 1 13.0" (33 cm)

Interior Height - Drawer 2 7.5" (19 cm)

Interior Width - Drawer 2 15.75" (40 cm)

Interior Depth - Drawer 2 13.0" (33 cm)

Interior Height - Drawer 3 8.0" (20 cm)

Interior Width - Drawer 3 15.75" (40 cm)

Interior Depth - Drawer 3 10.0" (25 cm)

Compressor Step Height 8.0" (20 cm)

Compressor Step Width 15.75" (40 cm)

Compressor Step Depth 10.0" (25 cm)

Sound Level 32.5 dB

FEATURES

24" Wide Bottom Mount Refrigerator-Freezer Full-sized 11.7 cu.ft. refrigerator-freezer with a spacious interior to add true convenience to any kitchen space

Bottom mount freezer Convenient design keeps all refrigerated storage at eye level for easier use

ENERGY STAR certified Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

Spacious capacity 11.7 cu.ft. interior offers generous storage in a slim fit

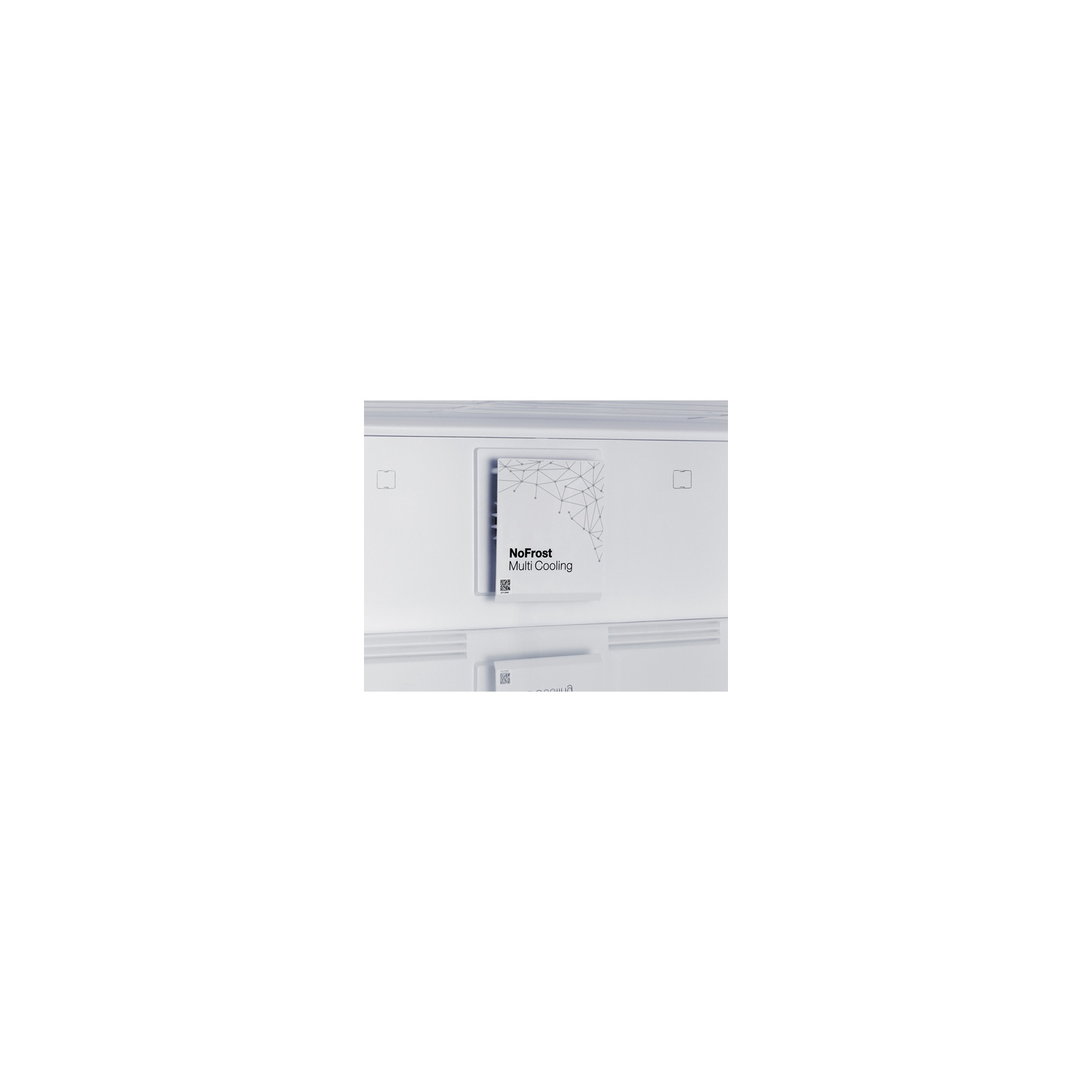

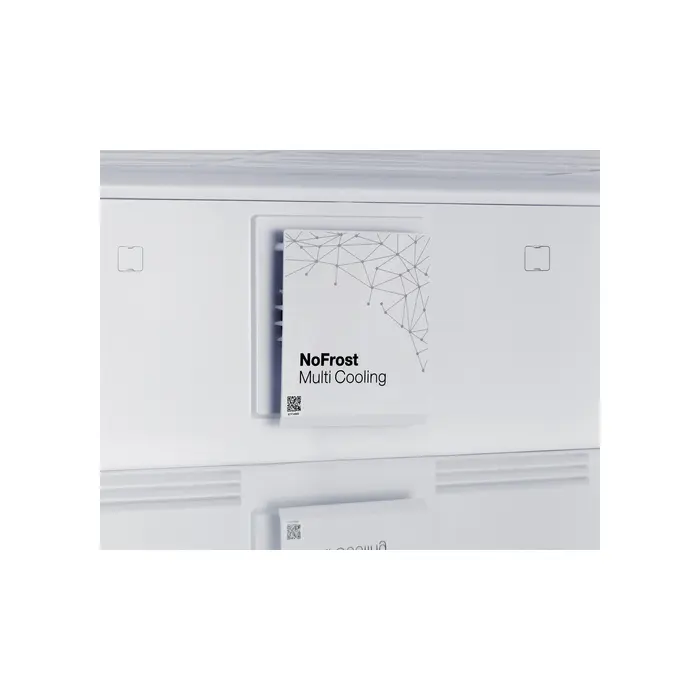

Frost-free operation No-frost convenience requires no manual defrosting

Classic white finish Cabinet and doors come in a clean, traditional white finish with a smooth texture for easier cleaning

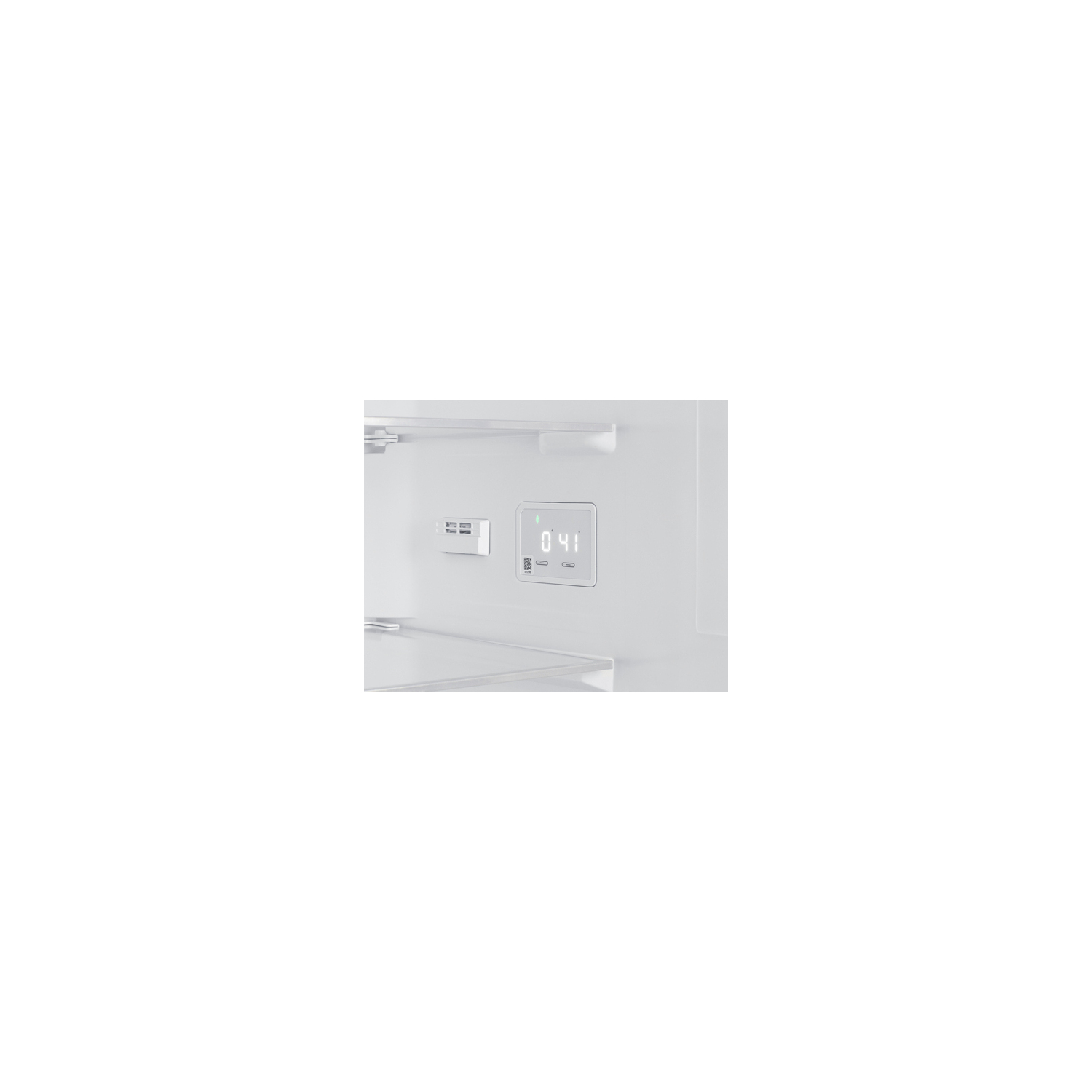

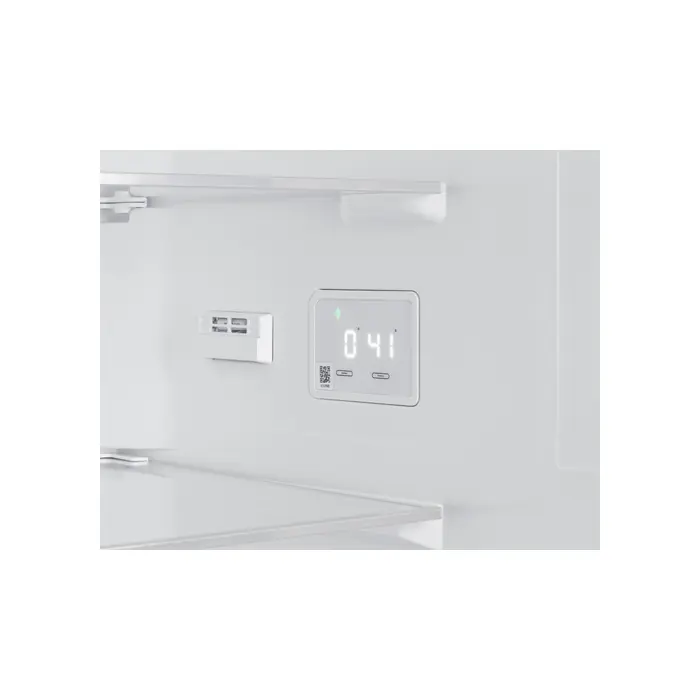

Digital temperature control Innovative control panel located inside the refrigerator makes it easy to manage the refrigerator and freezer temperature at the touch of a button

Convertible temperature display Temperature readout can be displayed in Fahrenheit or Celsius

Gallon door storage Deep rack accepts full gallon-sized containers

Adjustable door storage Three door racks can be adjusted in height to accommodate a variety of sizes

Adjustable glass shelves Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Humidity controlled crisper Full crisper with humidity control for optimum storage of fruits and vegetables

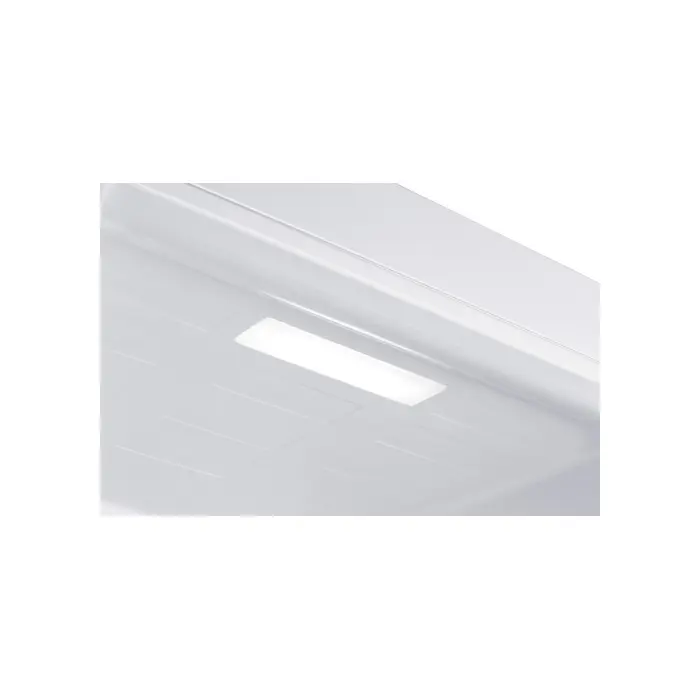

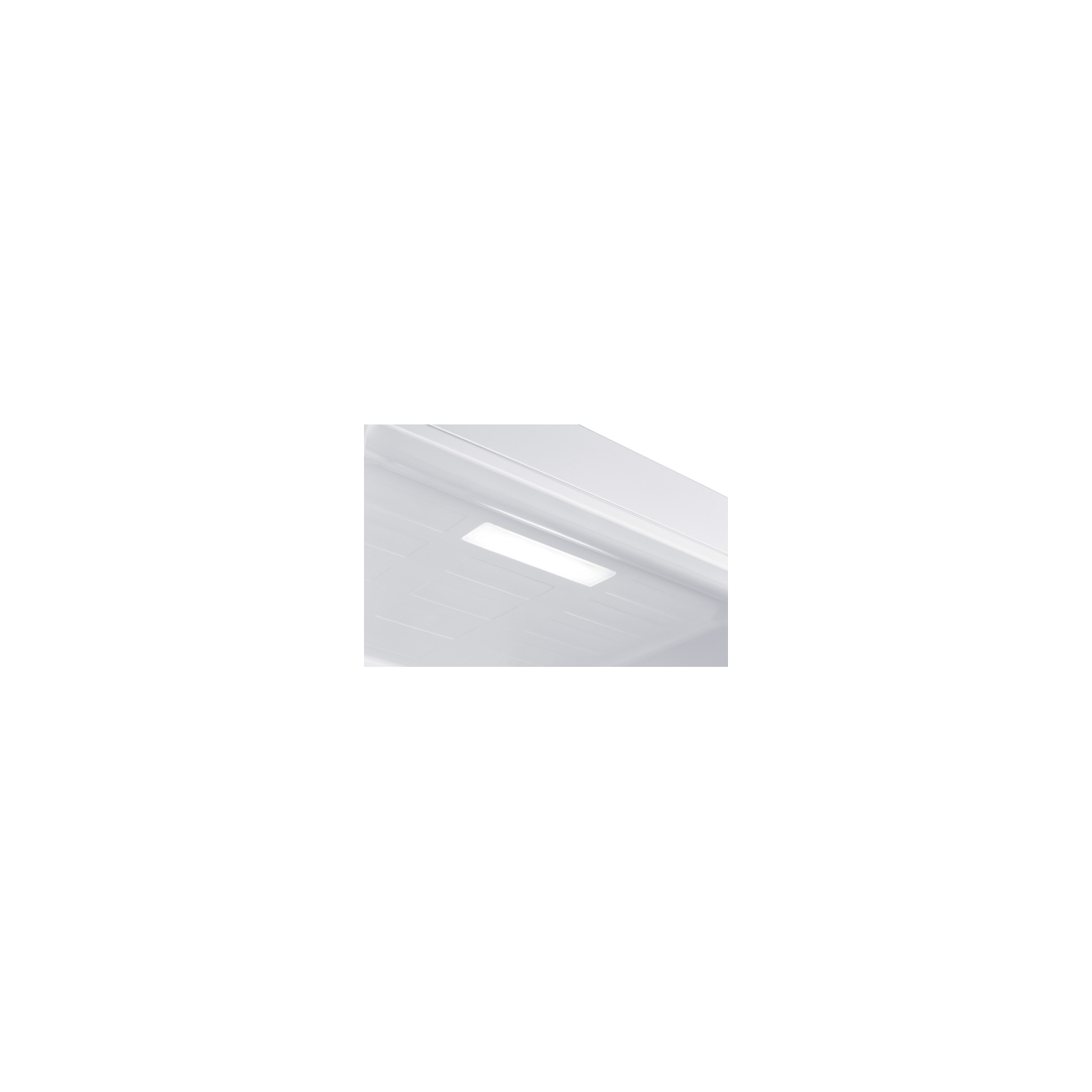

Interior LED refrigerator light Automatically illuminates when you open the door

Open door alarm Audible and visual alarm will alert if the doors have been left ajar for over 2 minutes

SuperFreeze function This setting is ideal for freezing fresh foods quickly. Function overrides current thermostat controls to ensure compressor operates continuously

Transparent freezer drawers Unique freezer drawer design keeps the cold inside, even when the door is opened

Reversible doors User-reversible door swing for added flexibility

Approved for Canadian sales ETL/ETL-C and NRCAN registered for use in Canada

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE (FFBF121W.pdf)

TECHNICAL DRAWING (.dwg) (FFBF121W.dwg)

ASSEMBLY DRAWING (FFBF121W-Assembly.pdf)

USE & CARE (FFBF121W-User-Manual.pdf)

Energy Guide
