Summit 24 inch wide fully integrated panel-ready bottom freezer refrigerator, 7.61101e+011, FFBF11NT
$1,671.24
Retail Price: $2,550.00
Free shipping
$ 1,671.24
Description
Summit brings endless inspiration to smaller kitchen spaces with our fully integrated counter depth refrigeration.

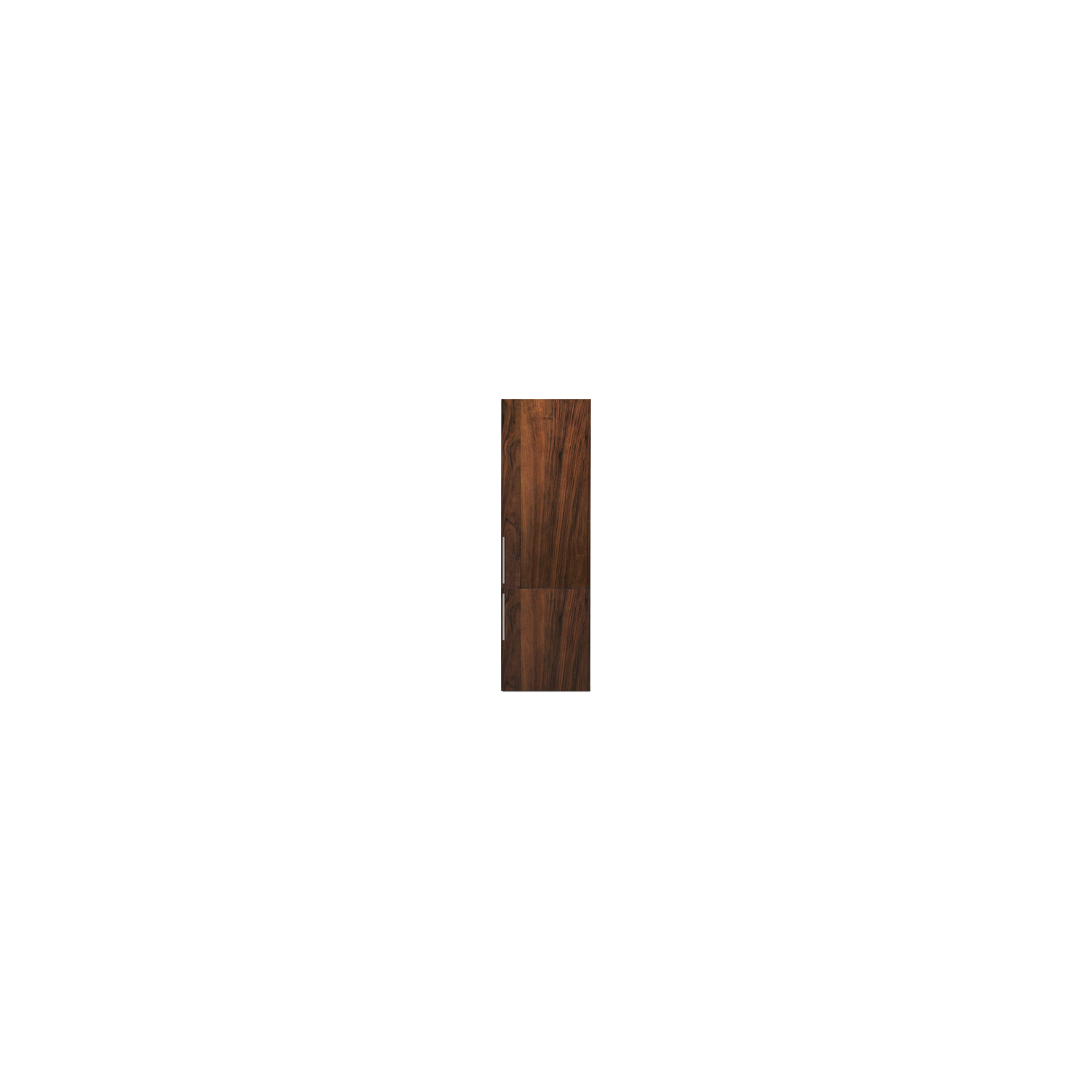

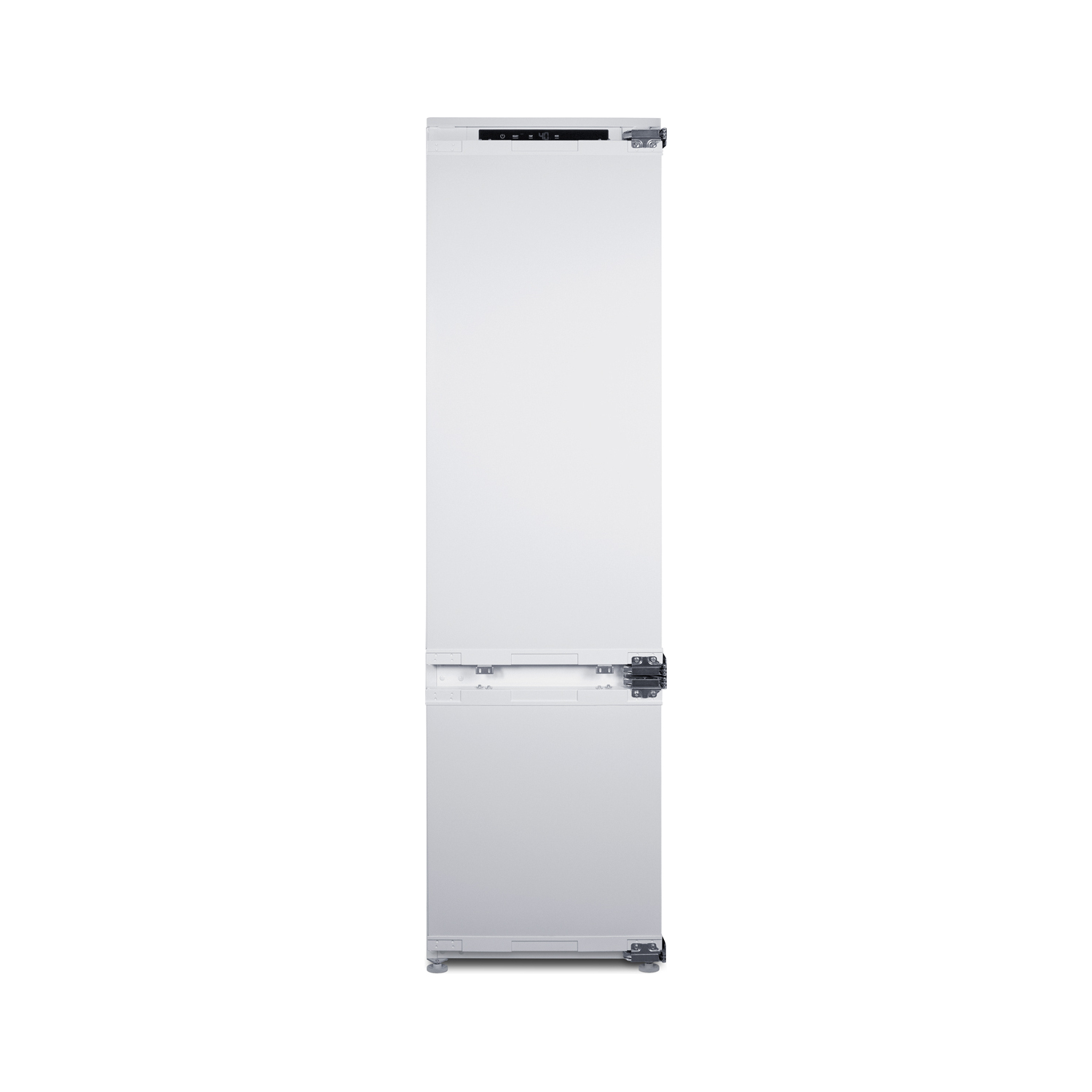

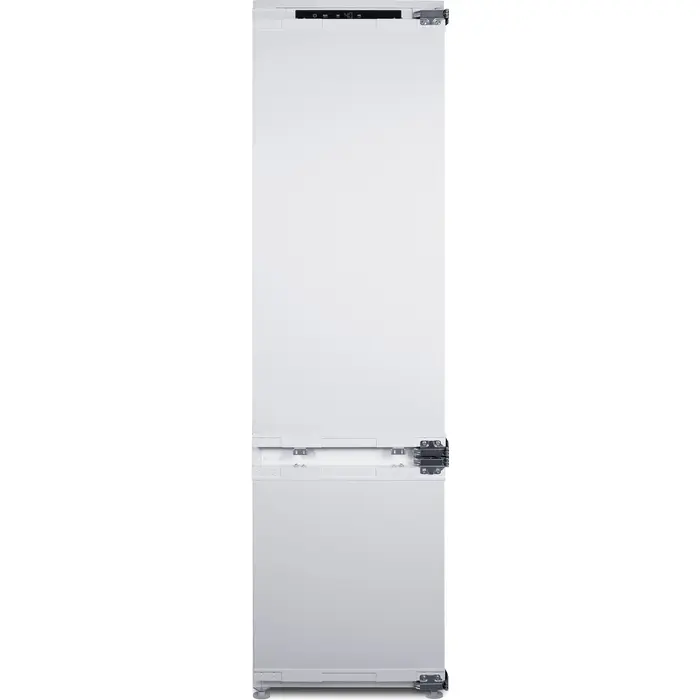

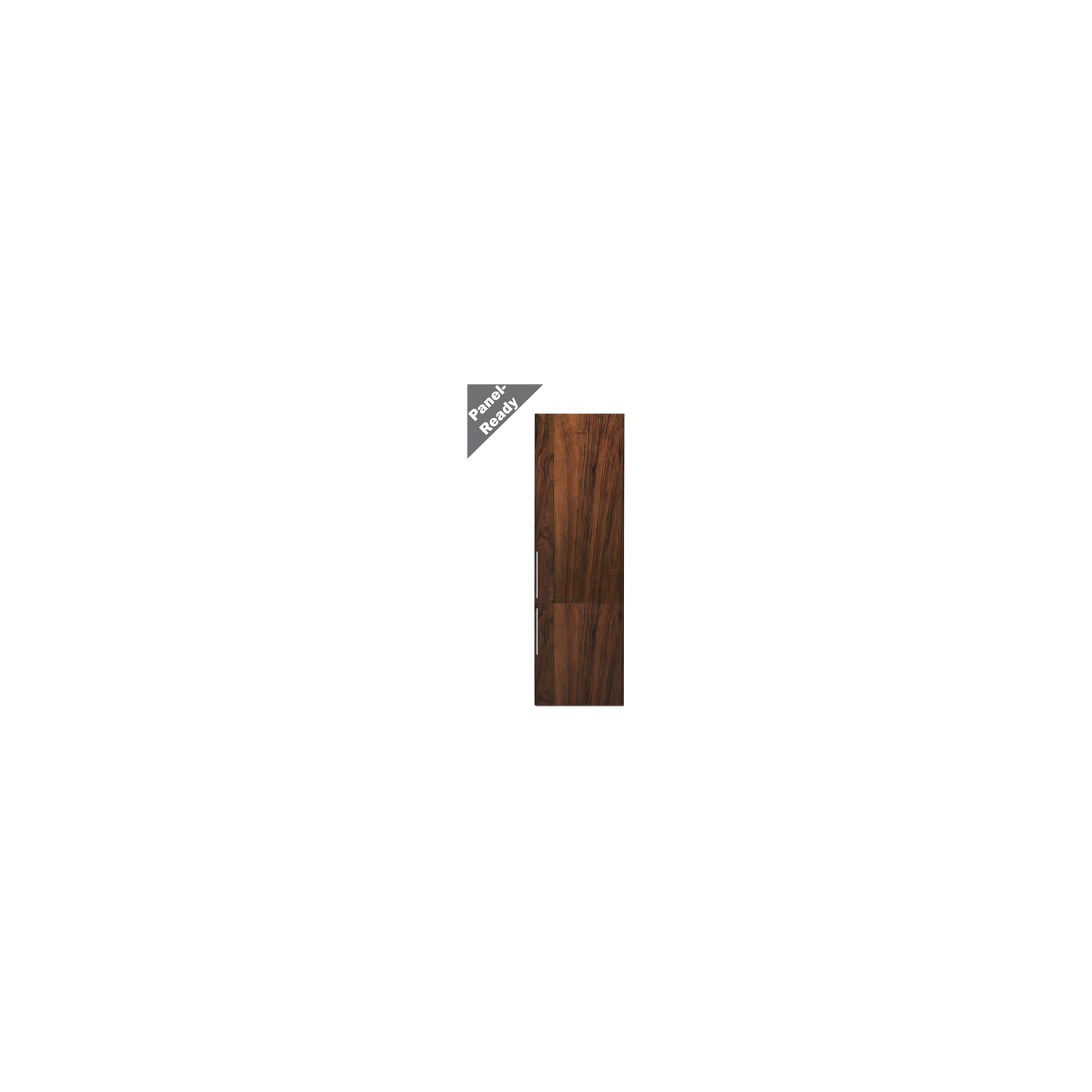

Sized for 24" openings, the FFBF11NT is an ENERGY STAR certified bottom mount refrigerator-freezer. The unfinished fronts are designed to accept custom panels (refrigerator door: 50 1/2" H x 23 1/8" W; freezer door: 27 5/8" H x 23 1/8" W; both at 3/4" thick and max 33 lbs.). This allows you to create a seamless look that blends the refrigerator into adjacent cabinetry. Customers provide their own handles. This unit is intended to fit cabinet openings sized at 76 7/8" H x 21 3/4" W x 22 1/2" to 23 5/8" D.

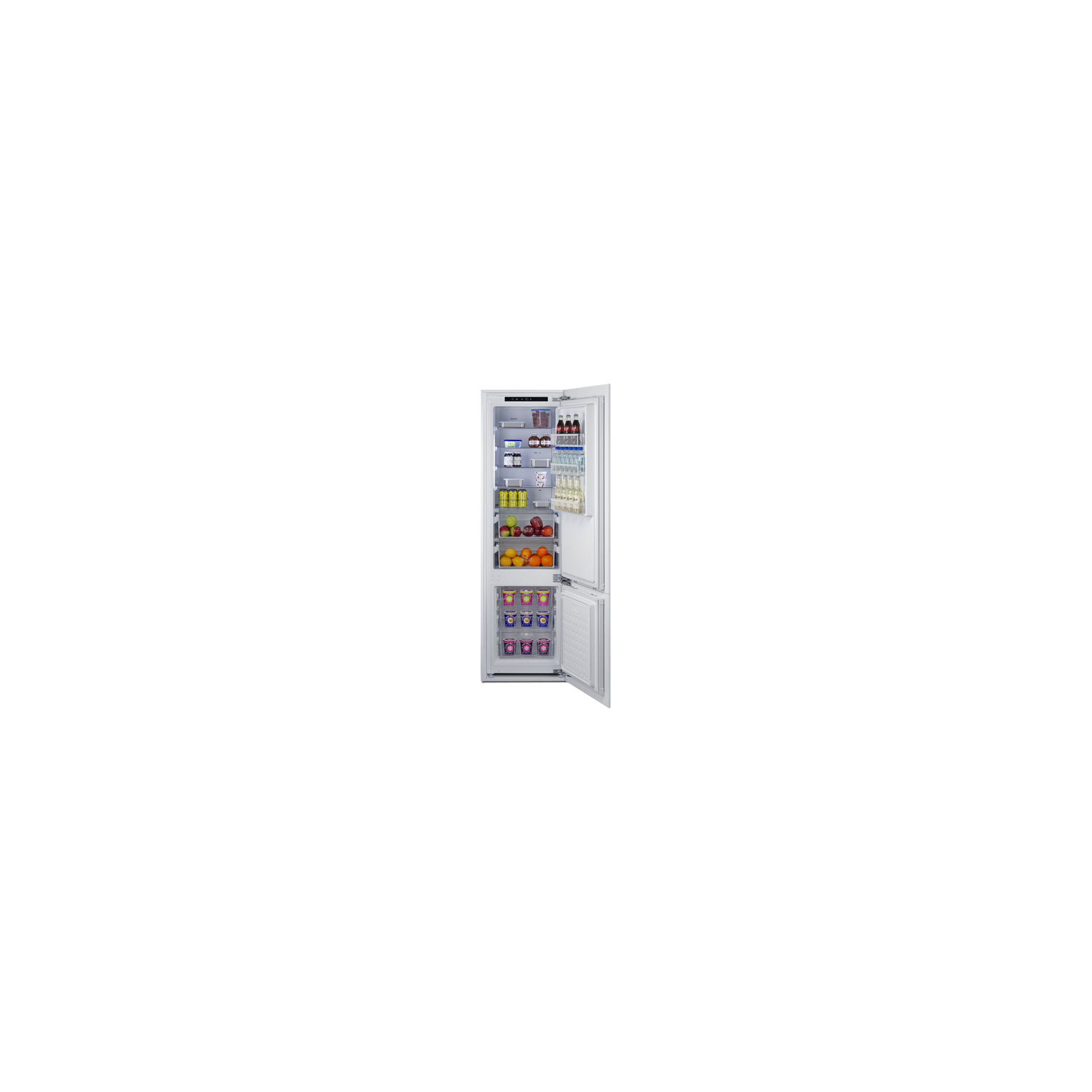

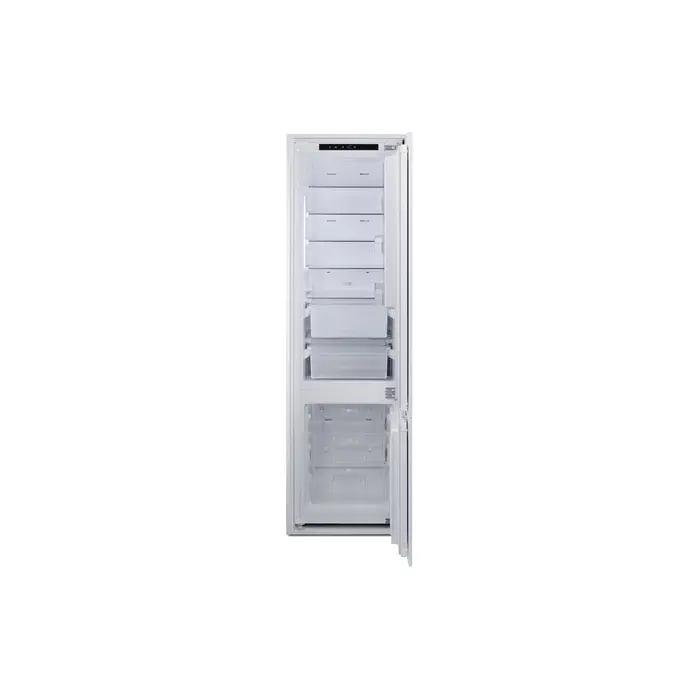

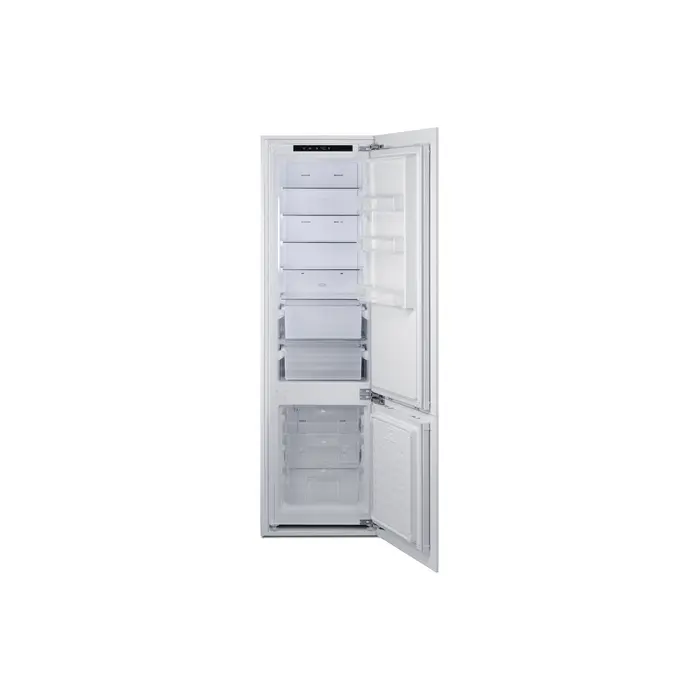

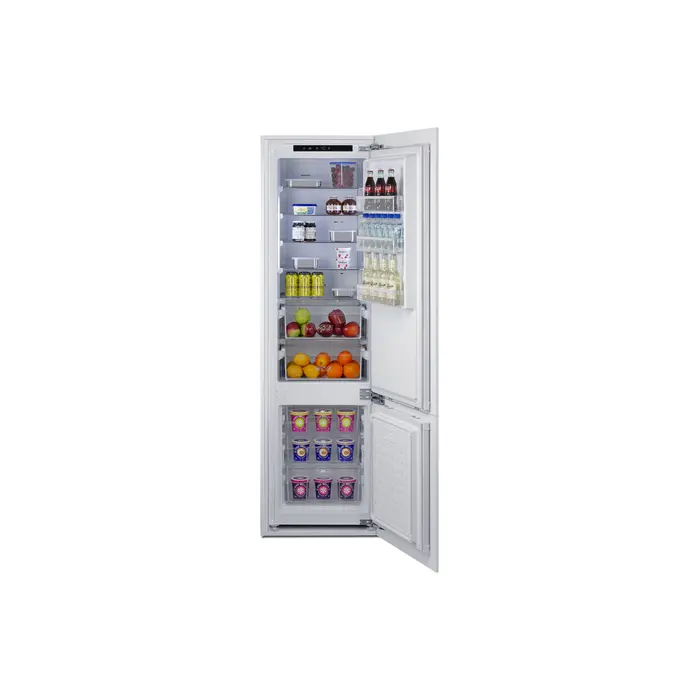

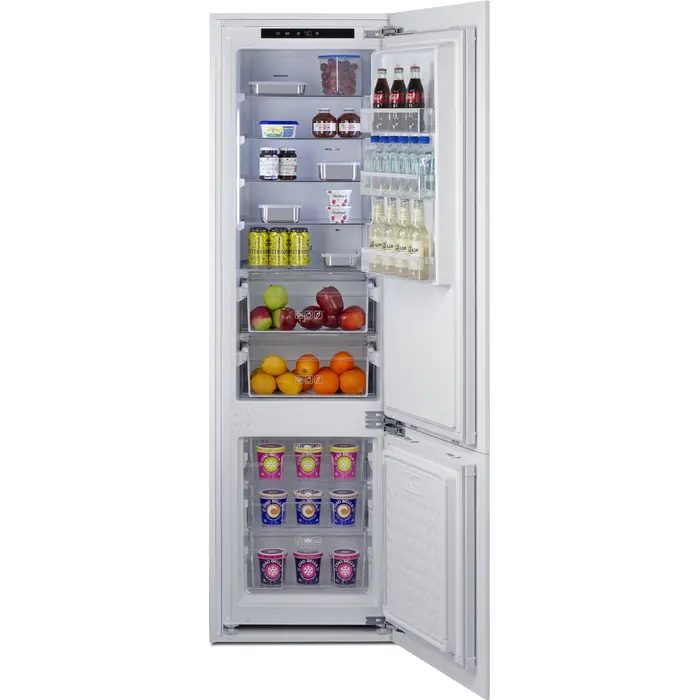

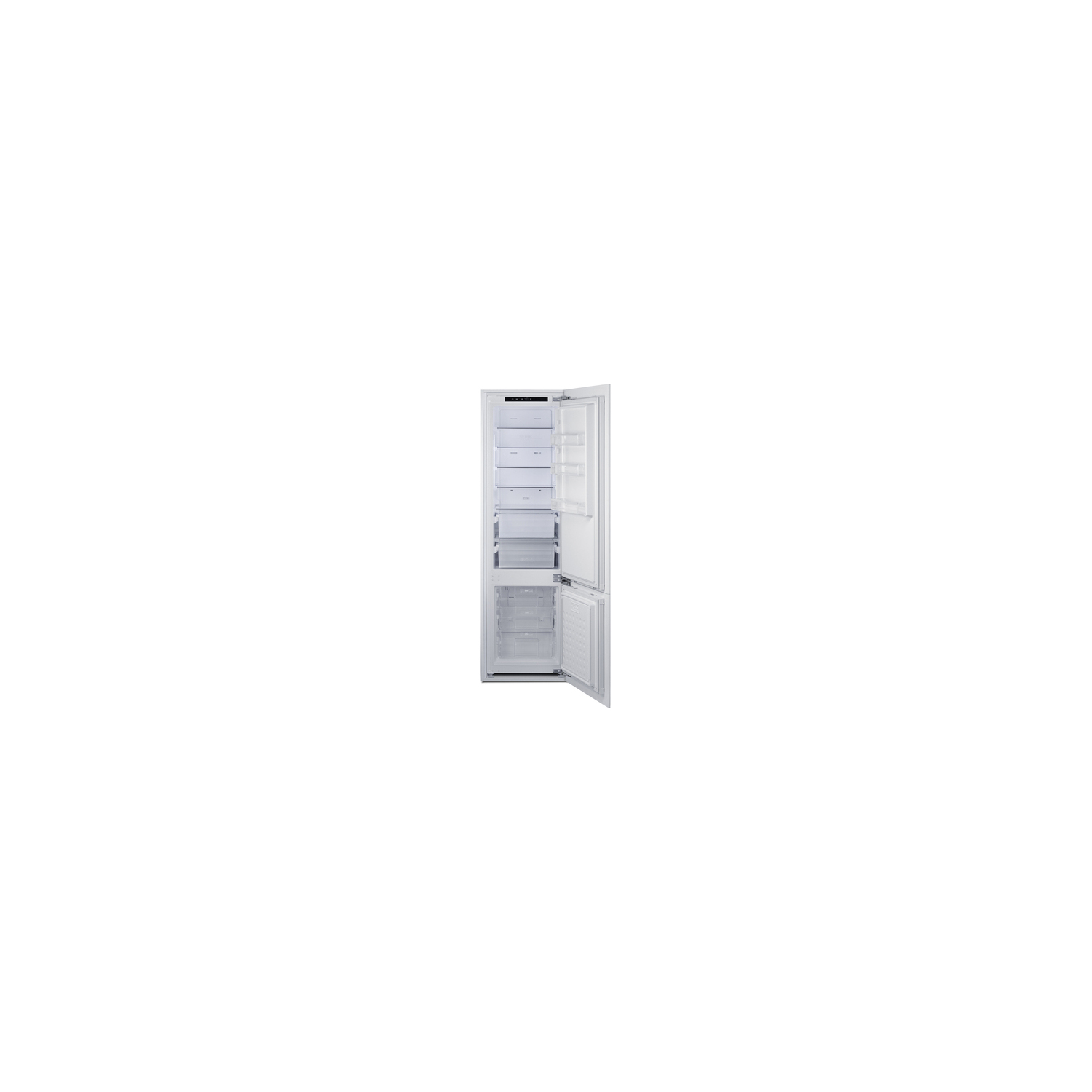

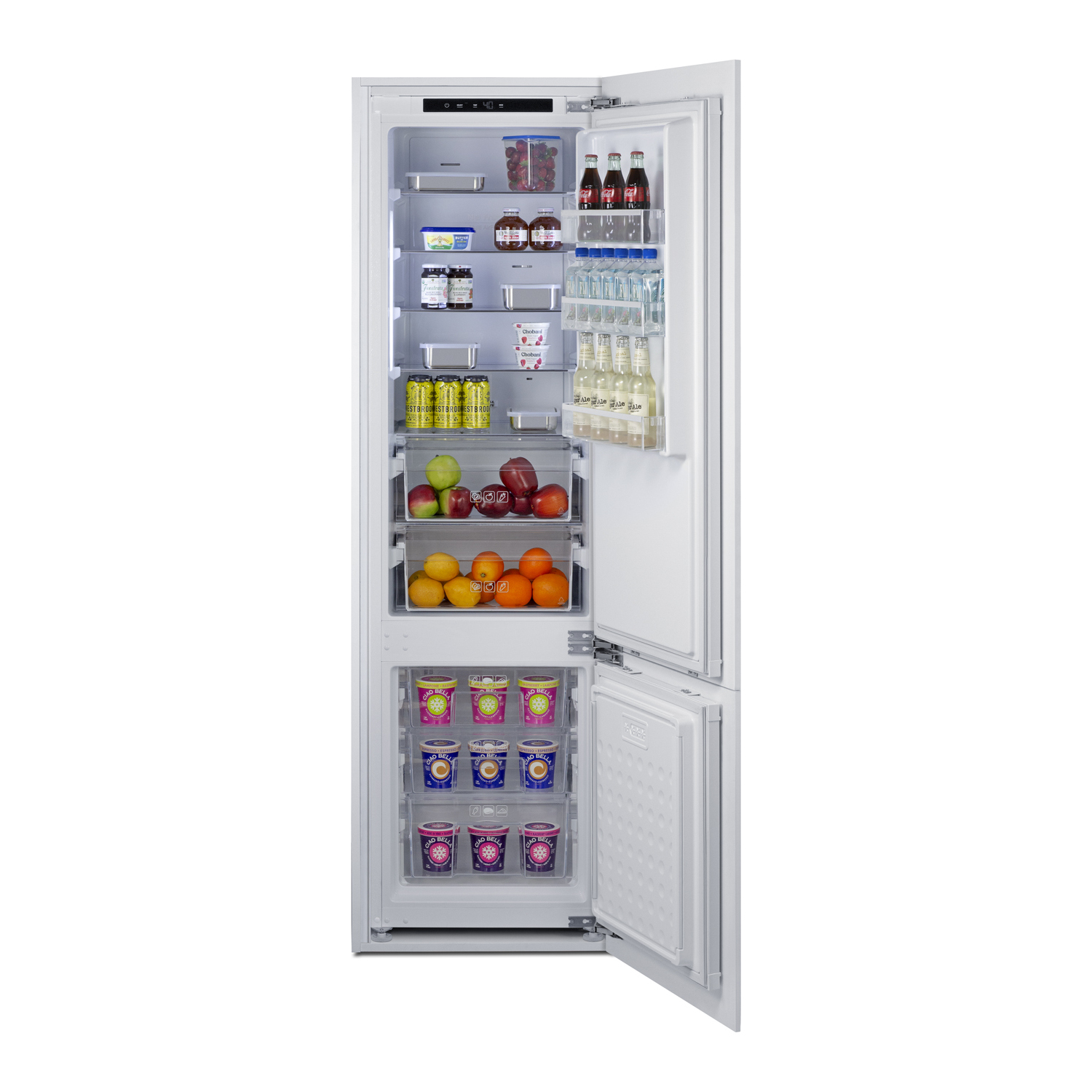

Inside, the FFBF11NT utilizes frost-free operation for decreased user maintenance. The refrigerator section features digital controls to ensure easy temperature management and a Fast Cooling function, excellent for cooling newly loaded foods quickly. This unit includes four adjustable glass shelves and two crisper drawers for easy and fresh storage. The refrigerator door consists of three full-width adjustable racks best to accommodate containers, bottles, and other condiments. Additional features include an open-door alarm and attractive LED lighting in the walls.
The freezer, like the refrigerator, includes a Fast Freeze function that is ideal for freezing fresh groceries. There are three transparent slide-out drawers to offer convenient storage while protecting stored items when the door is open.

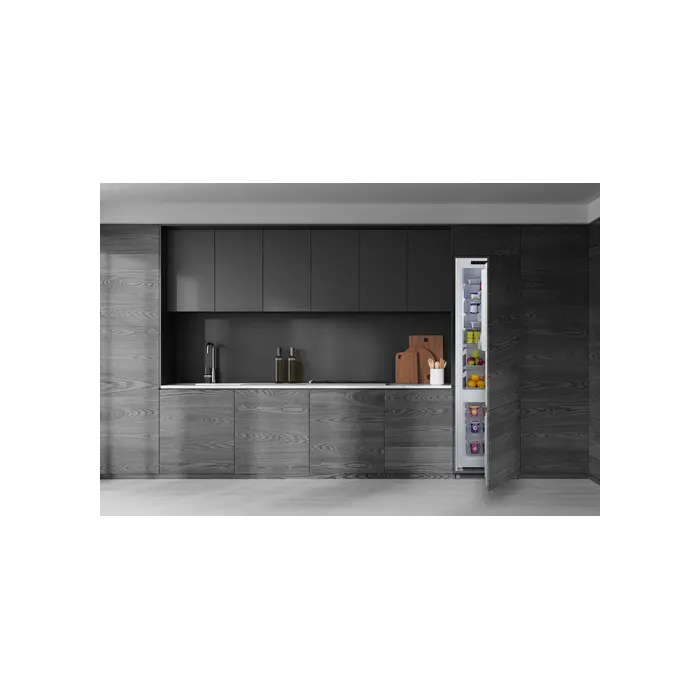

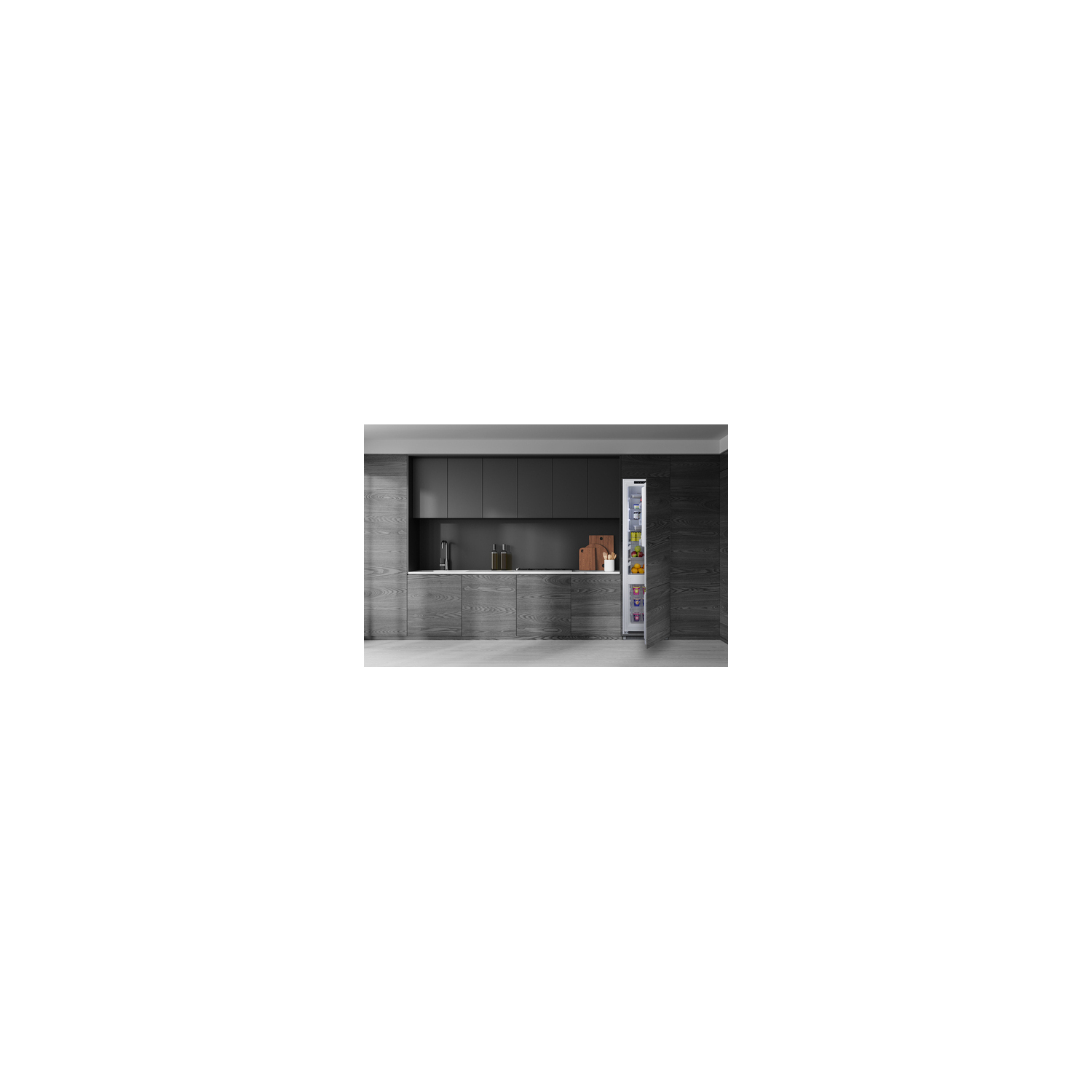

With its uniquely slim fit and panel-ready front, the FFBF11NT is the perfect integrated refrigeration solution for kitchens with an uninterrupted cabinetry design. Explore summitappliance.com to browse our complete series of uniquely sized panel-ready refrigerators.
SPECIFICATIONS
Overview
Height of Cabinet 76.38" (194 cm)
Width 21.25" (54 cm)
Depth 21.88" (56 cm)
Depth with Panel 22.63" (57 cm)
Capacity 10.77 cu.ft. (305 L)
Defrost Type Frost-Free
Door Panel-Ready
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 400.0kWh/year
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 128.0 lbs. (58 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101107103
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Interior Drawers Yes
Drawer Qty 5
Crisper Qty 2
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 44.5" (113 cm)
Refrigerator - Interior Width 17.25" (44 cm)
Refrigerator - Interior Depth 16.25" (41 cm)
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 5
Refrigerator - Full Door Shelves 3
Freezer - Interior Height 20.5" (52 cm)
Freezer - Interior Width 16.25" (41 cm)
Freezer - Interior Depth 10.0" (25 cm)
Freezer - Shelf Type Plastic
Freezer - Shelf Qty 3
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.34 oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs 4
Sound Level 32.8 dB
FEATURES
24" Wide Integrated Refrigerator-Freezer 24" wide panel-ready refrigerator-freezer ideal for kitchens with an uninterrupted cabinetry design
ENERGY STAR certified Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs
Built-in installation Make the best use of space by installing your refrigerator-freezer into the cabinetry for a concealed and streamlined kitchen design (cutout dimensions: 76 7/8" H x 21 3/4" W x 22 1/2" to 23 5/8" D)

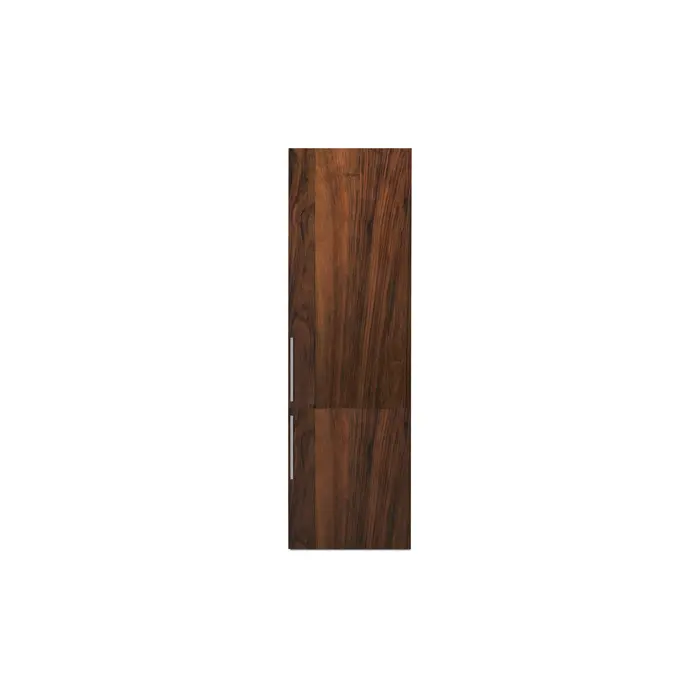

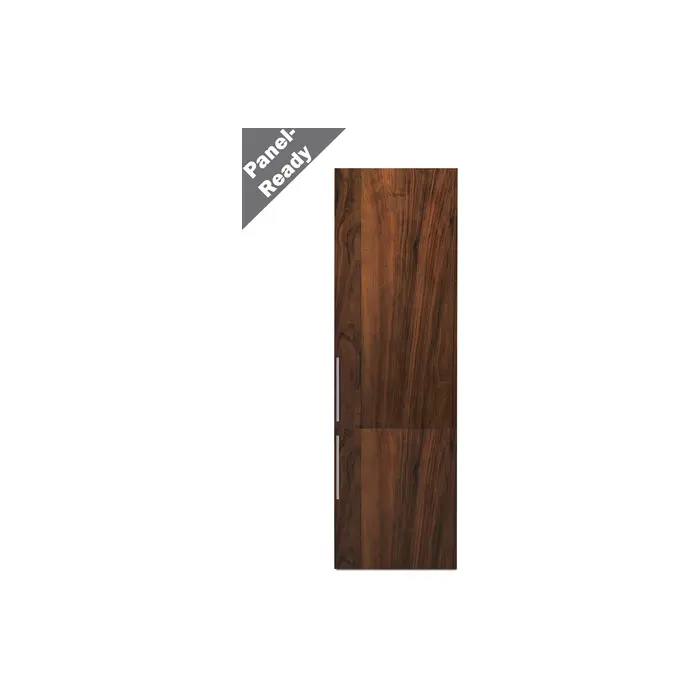

Panel-ready Doors are designed to accept custom panels for a seamless look that can be fully integrated into your cabinetry (refrigerator door panel: 50 1/2" H x 23 1/8" W; freezer door panel: 27 5/8" H x 23 1/8" W; both at 3/4" thick and max 33 lbs.)

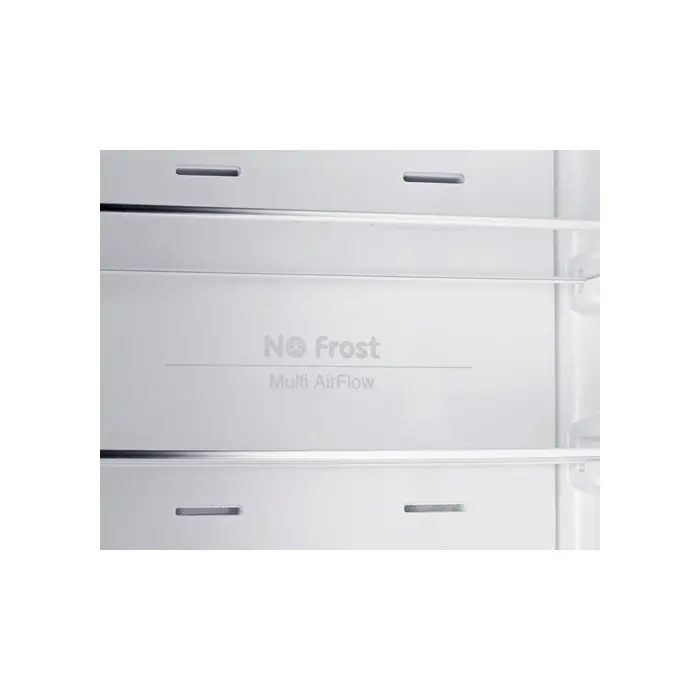

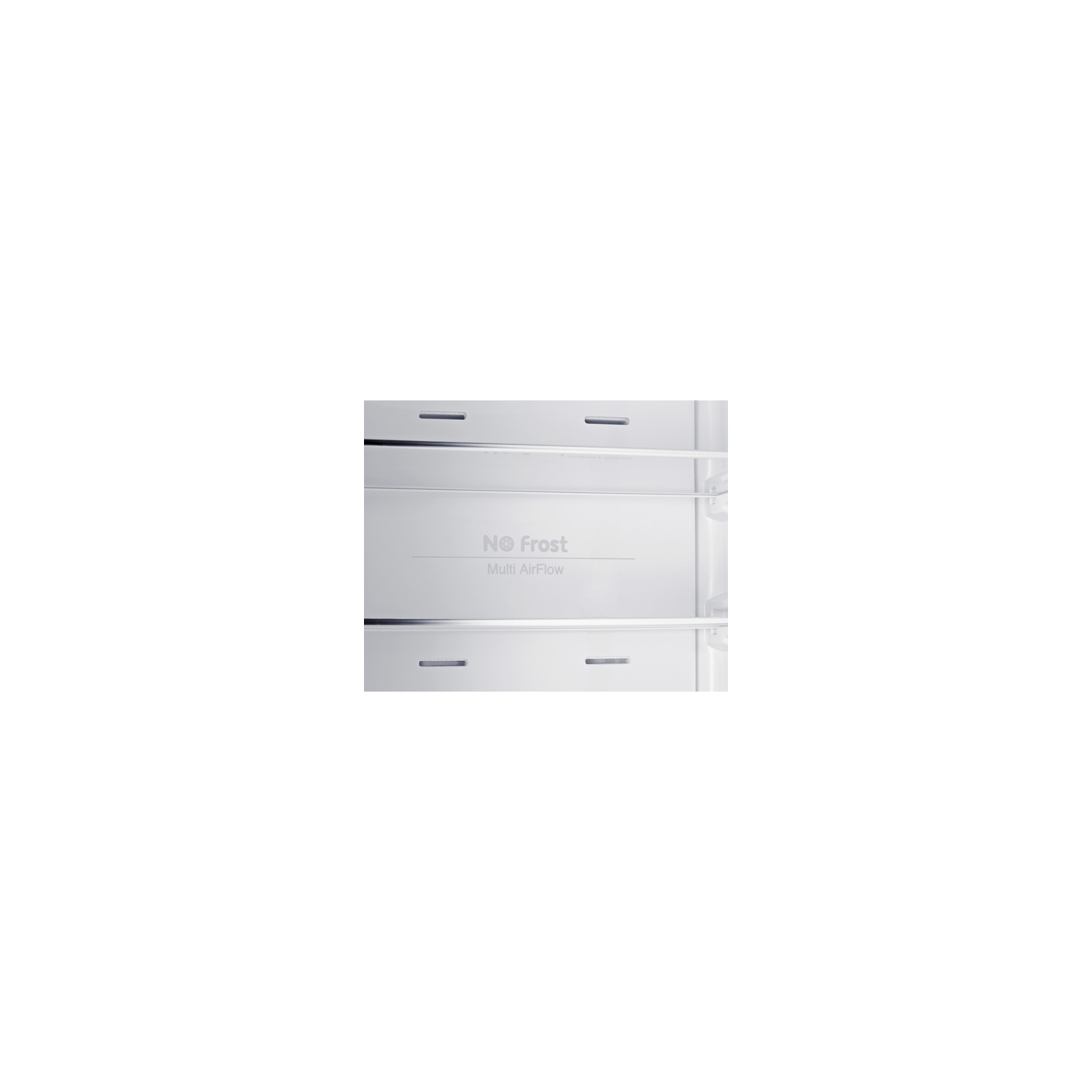

Frost-free operation Frost-free operation for minimum user maintenance
Spacious capacity 10.7 cu.ft. interior offers generous storage in a slim counter depth fit
Digital temperature control Innovative control panel located inside the refrigerator makes it easy to manage the refrigerator and freezer temperature at the touch of a button

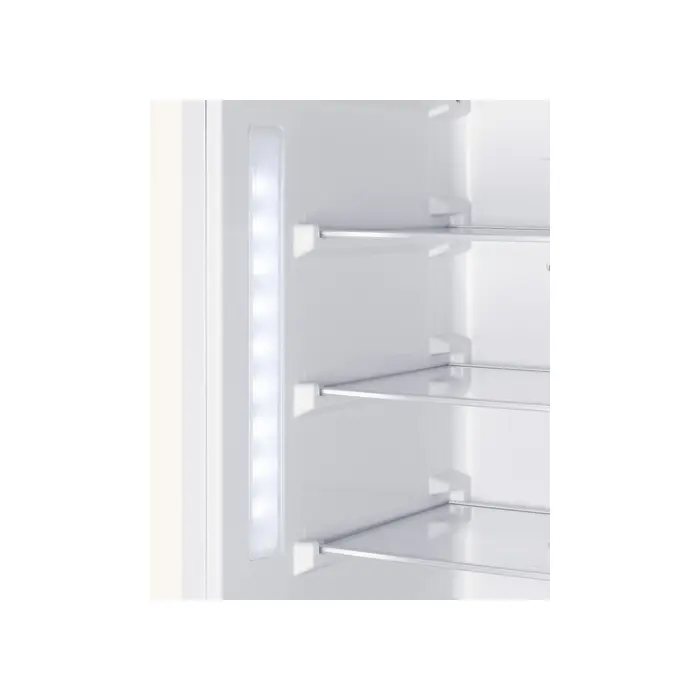

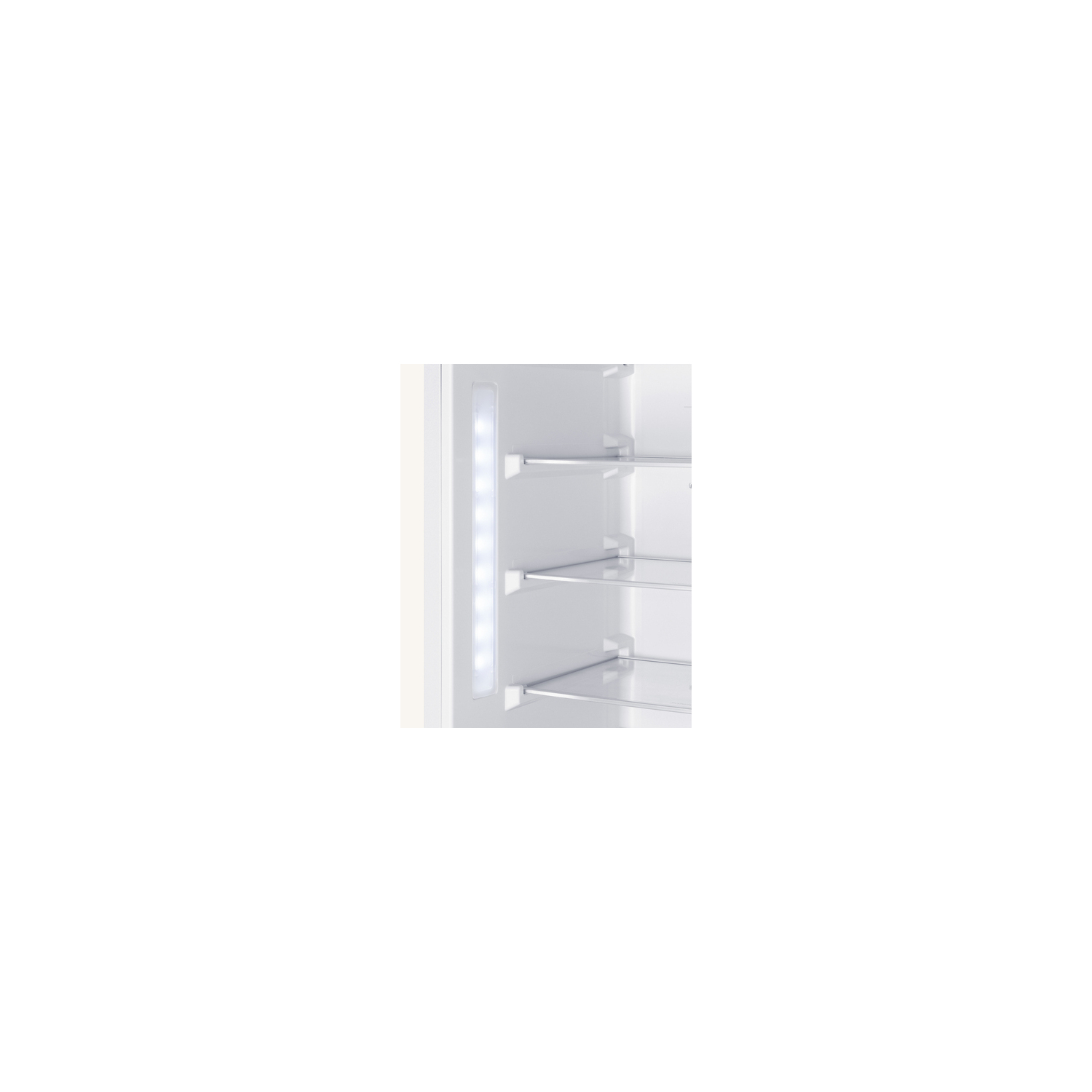

Interior LED lighting Energy efficient lighting located inside the walls to provide a better view of the interior
Open door alarm Audible alarm sounds if the door is left ajar
Fast-cooling function This setting is ideal for cooling fresh foods quickly. Function overrides current thermostat controls to ensure compressor operates continuously
Adjustable door storage Store tall bottles and condiments right on the door for convenient access

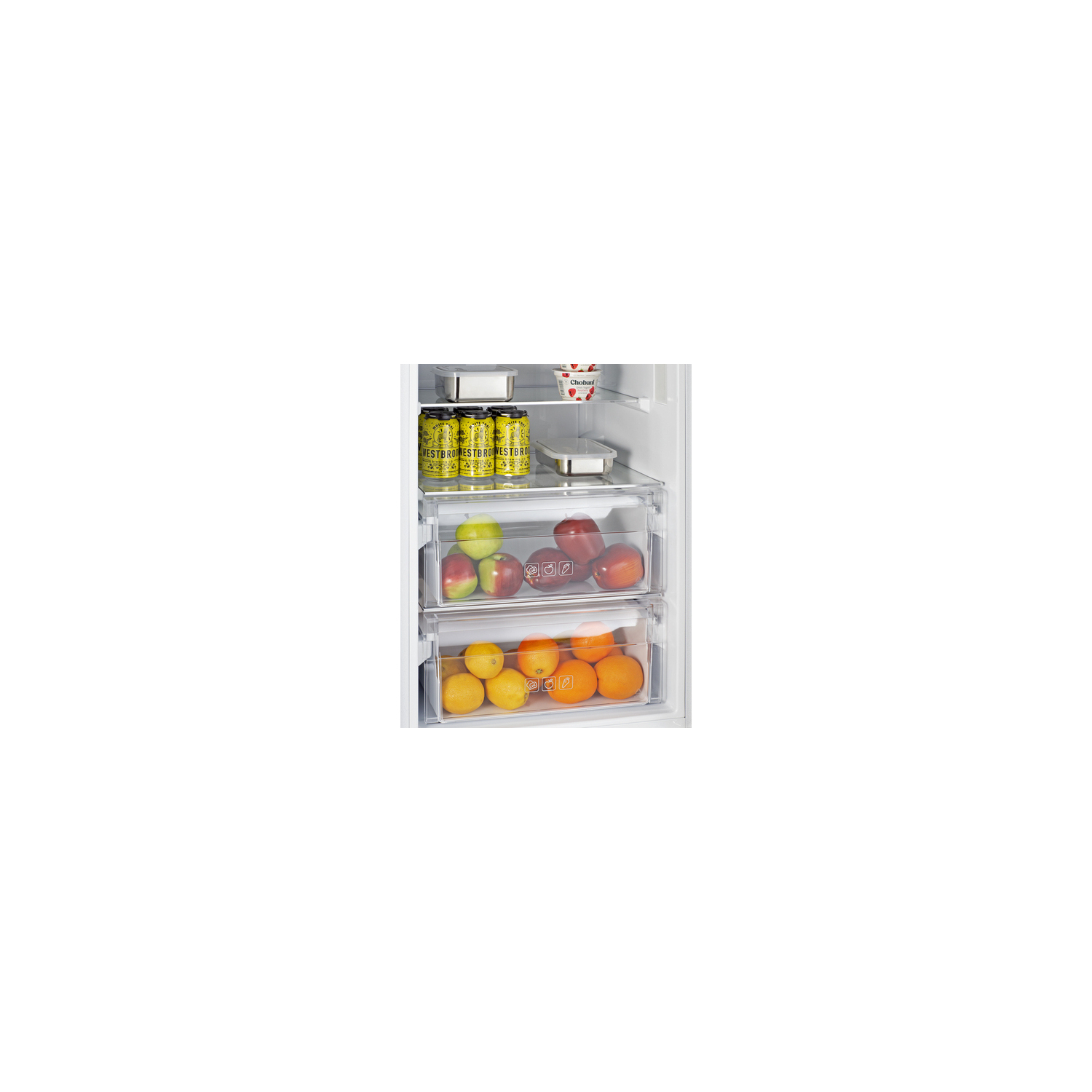

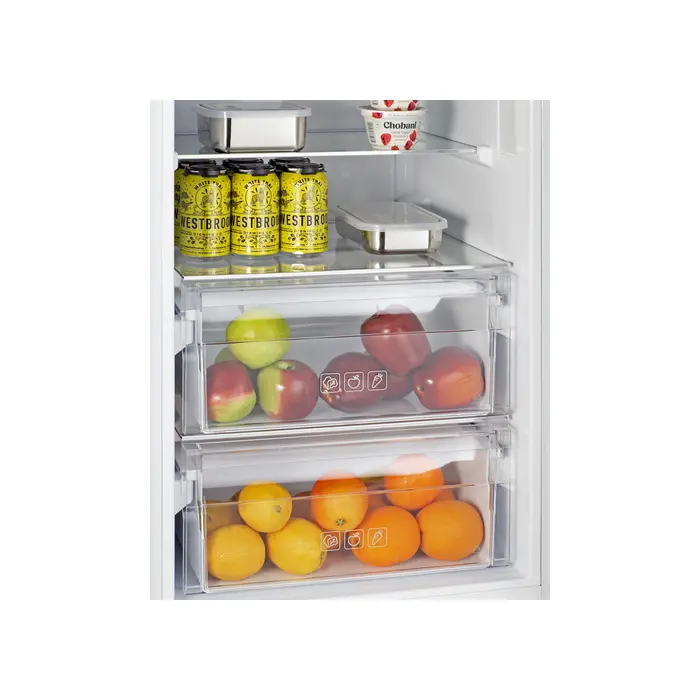

Two crisper drawers Refrigerator's two full-width crisper drawers are ideal storage spaces for fruits and vegetables
Transparent freezer drawers Unique freezer design keeps the cold inside, even when the door is opened

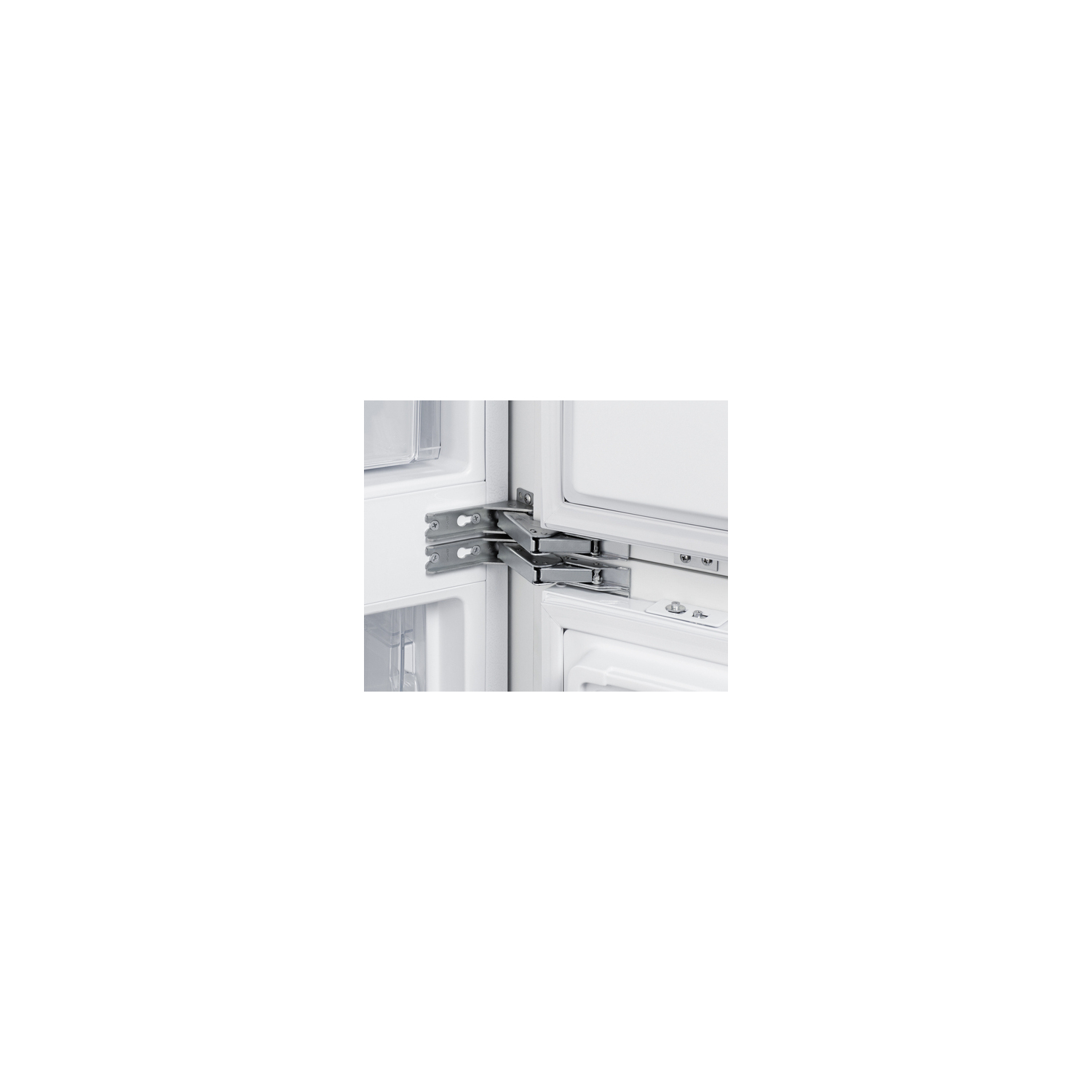

Reversible doors User-reversible door swing for added flexibility
100% CFC free Environmentally friendly design without ozone-damaging chemicals
CARB compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Approved for Canadian sales ETL/ETL-C and NRCAN registered for use in Canada
DOWNLOADS
TECHNICAL DRAWING (.dwg) (FFBF11NT.dwg)
ASSEMBLY DRAWING (FFBF11NT-Assembly.pdf)
USE & CARE (FFBF11NT-User-Manual.pdf)
Energy Guide
