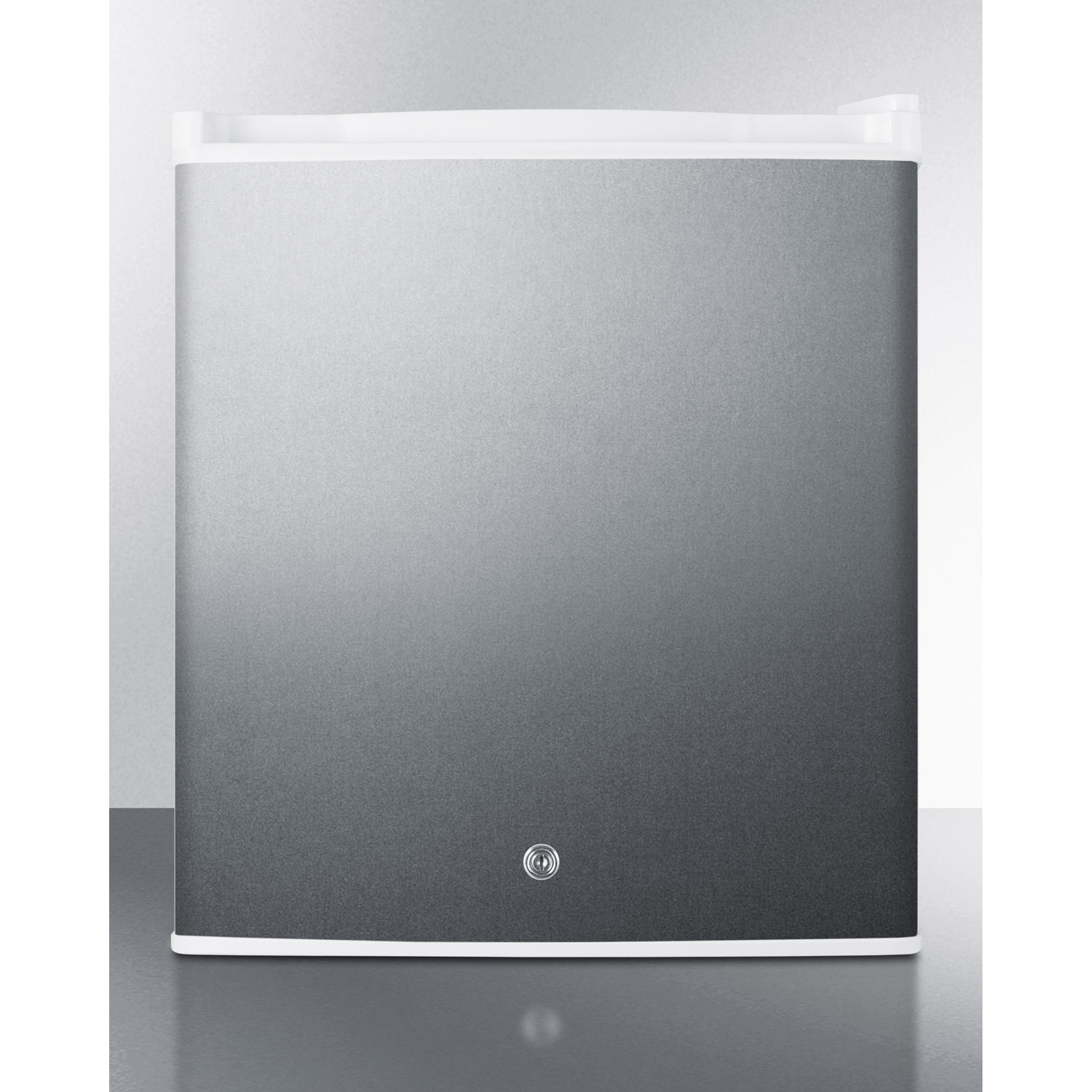

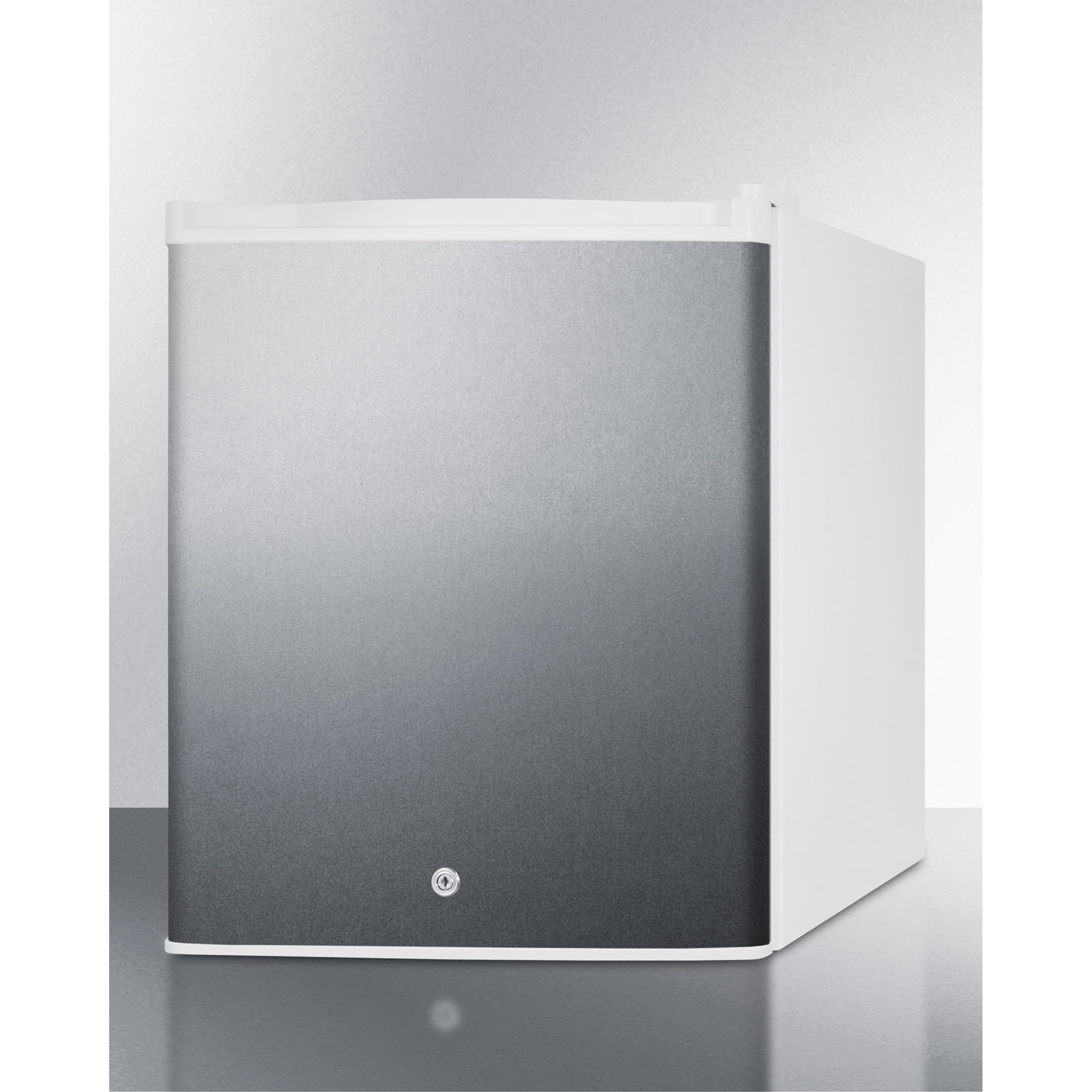

Summit Commercial style compact built-in all-refrigerator with digital thermostat and stainless steel door, 7.61101e+011, FFAR25L7BISS

SUMMIT COMMERCIAL offers a quality line of compact refrigeration designed and constructed for reliable use in commercial applications.

The FFAR25L7BISS is a compact all-refrigerator that can be used built-in or freestanding. The commercial design meets UL-471 electrical standards. The unit comes with a white cabinet and reversible stainless steel door. A factory installed front lock offers keyed security, while the rear features a sealed metal cover for improved sanitation.

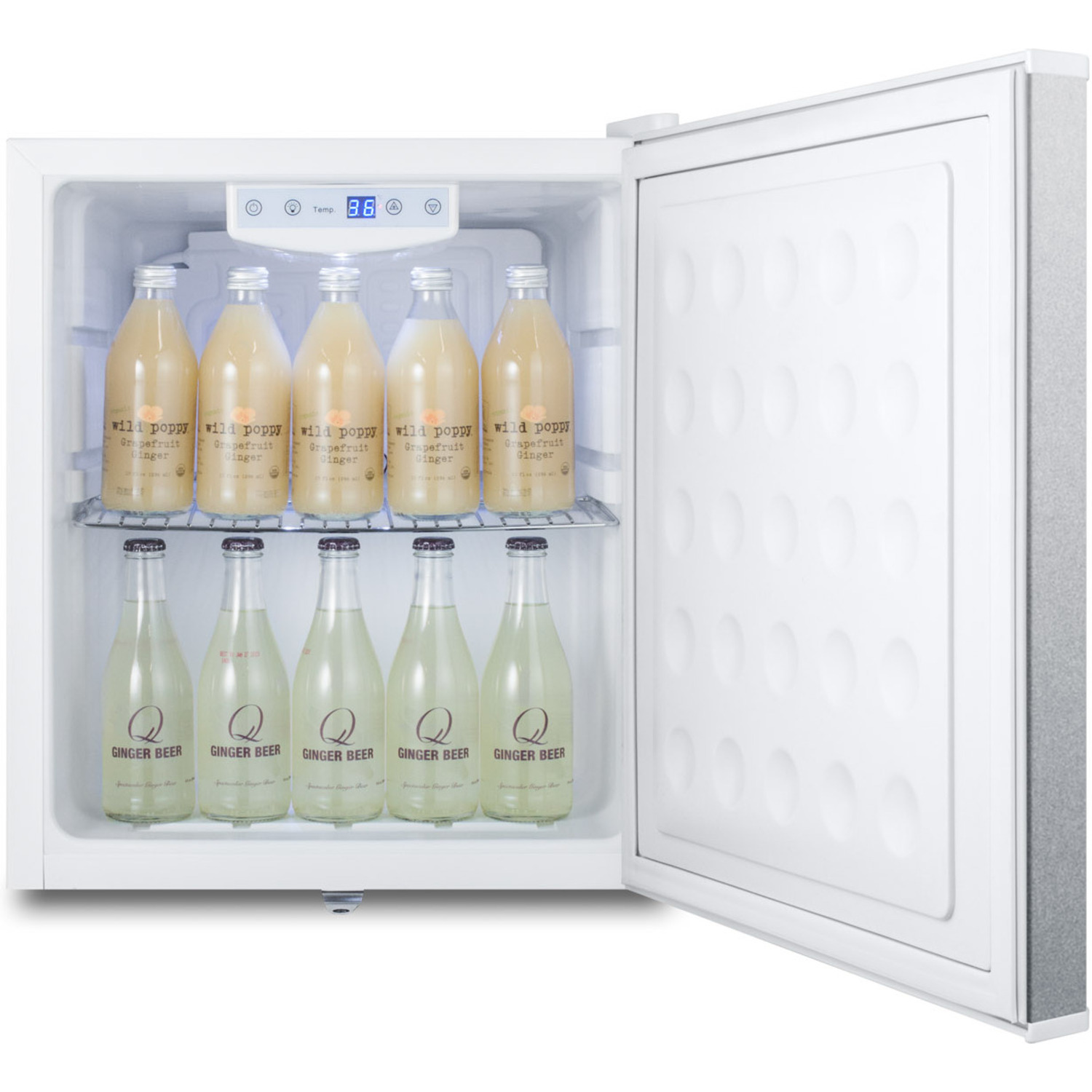

Inside, the FFAR25L7BISS utilizes automatic defrost operation for low maintenance use. Two removable chrome shelves offer convenient storage, while the flat door liner allows you to store deeper items. The digital thermostat is located inside and can be managed in Celsius or Fahrenheit. Interior LED lighting offers an attractive, energy efficient view of the interior in a soft blue hue.

With its ideal dimensions and user-friendly features, the FFAR25L7BISS offers added convenience to the usual compact refrigerator.

SPECIFICATIONS

Overview

Nominal Height 21.0" (53 cm)

Height of Cabinet 20.25" (51 cm)

Height to Hinge Cap 20.75" (53 cm)

Nominal Width 17.0" (43 cm)

Width 17.0" (43 cm)

Width with Door Open 17.75" (45 cm)

Nominal Depth 20.0" (51 cm)

Depth 19.13" (49 cm)

Depth with door at 90° 34.25" (87 cm)

Capacity 1.7 cu.ft. (48 L)

Defrost Type Automatic

Door Stainless Steel

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 1.3

Voltage/Frequency 115 V AC/60 Hz

Weight 55.0 lbs. (25 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101055008

Refrigerator Features

Door Swing RHD

Reversible Yes

Shelf Type Chrome

Shelf Qty 2

Adjustable Shelves Yes

Thermostat Type Digital

Refrigerant Type R600a

Refrigerant Amount 0.6oz.

High Side PSI 270.0

Low Side PSI 103.0

Interior Light Yes

Temperature Range 34°F to 43°F

Dimensions

Interior Height 16.5" (42 cm)

Interior Width 13.75" (35 cm)

Interior Depth 15.0" (38 cm)

Compressor Step Height 8.0" (20 cm)

Compressor Step Width 13.75" (35 cm)

Compressor Step Depth 6.0" (15 cm)

FEATURES

Built-in capable Front-breathing system allows the unit to be used built-in

Commercial design Meets UL-471 electrical standards

Automatic defrost No-frost convenience for reduced user maintenance

Digital thermostat Electronic controls offer more precision in temperature management, with a readout viewable in Celsius or Fahrenheit

Factory-installed lock Keyed lock for a secure interior

Adjustable chrome shelves Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup

LED lighting Interior LED lighting offers an energy efficient view in an attractive blue hue

Reversible stainless steel door User-reversible door swing for added flexibility

Flat door liner No door shelving allows the unit to accommodate deeper items

Sealed back Space-saving design with no exposed coils in the rear offers easy cleanability

Fully finished cabinet Allows the unit to be used freestanding

100% CFC free Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (FFAR25L7BISS.pdf)

TECHNICAL DRAWING (.dwg) (FFAR25L7_REFRIGERATOR__A-C_2000__4.dwg)

MSDS INFORMATION (MSDS_R600a_C.pdf)

USE & CARE (FFAR25L7BISS-User-Manual.pdf)
