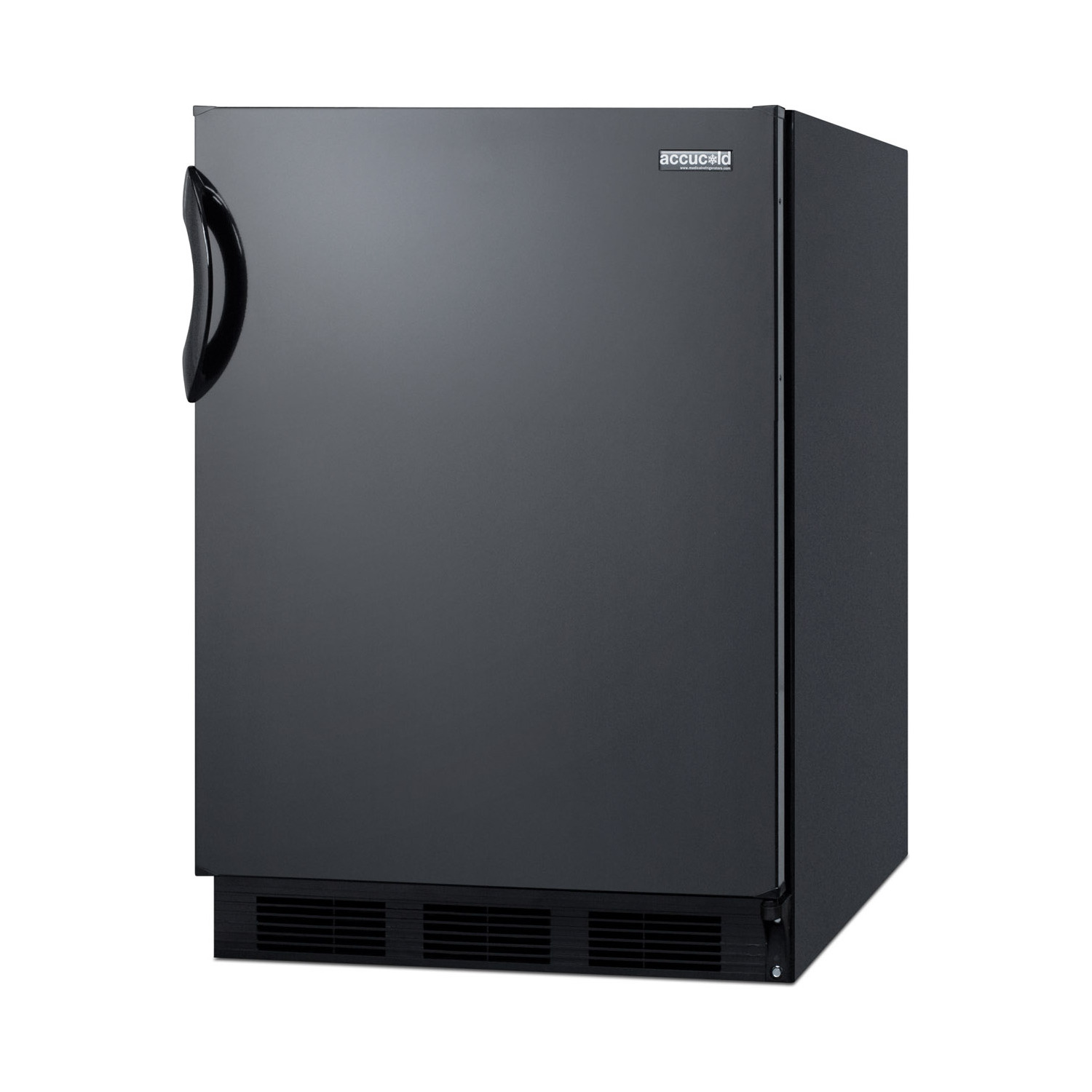

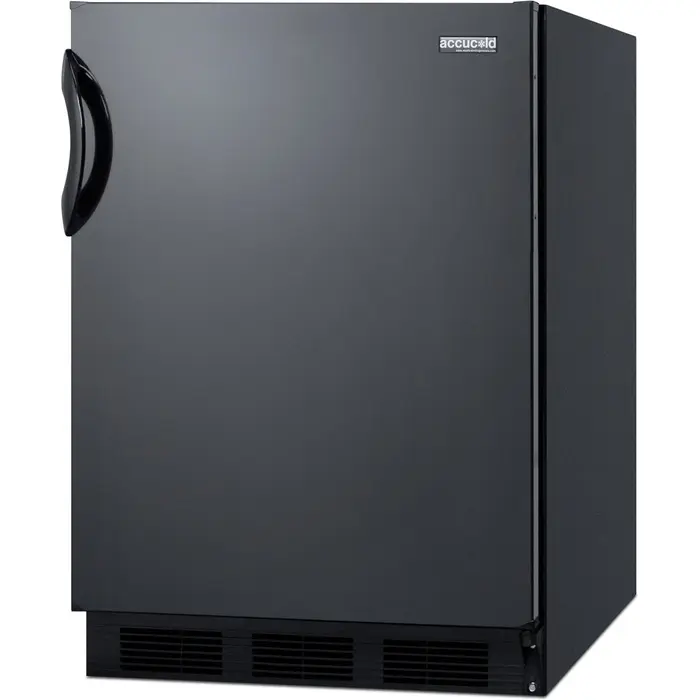

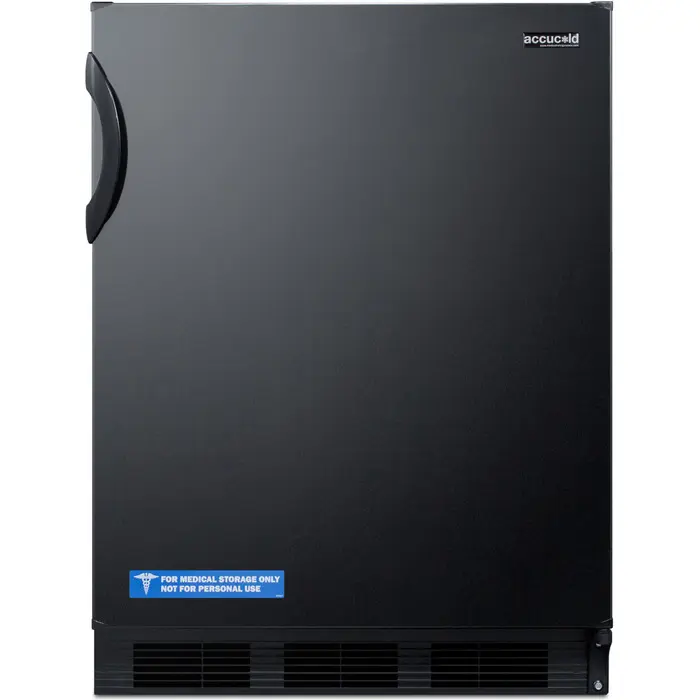

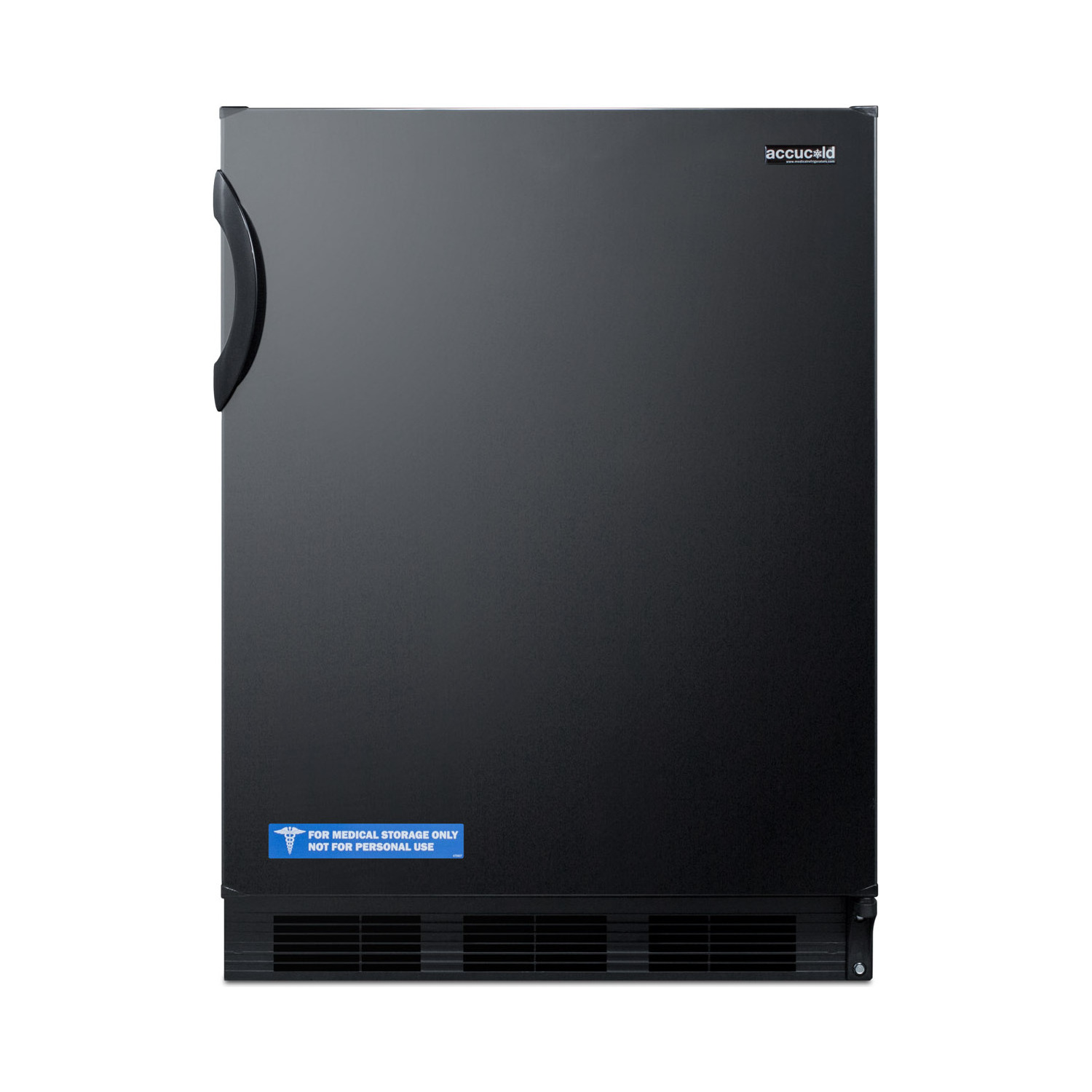

Summit Commercially listed built-in undercounter all-refrigerator for general purpose use, with flat door liner, automatic defrost operation and black exterior, FF7BKBI

Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The commercially listed FF7BI Series features high performing, perfectly sized all-refrigerators designed for built-in use under counters.

The FF7BKBI features a front-breathing design that allows built-in installation under counters, while the fully finished cabinet also enables freestanding use. The 24" footprint is ideal for many common cutouts, while the full 5.5 cu.ft. interior provides more storage than most units in this size class. This unit has a black exterior and user-reversible door swing.

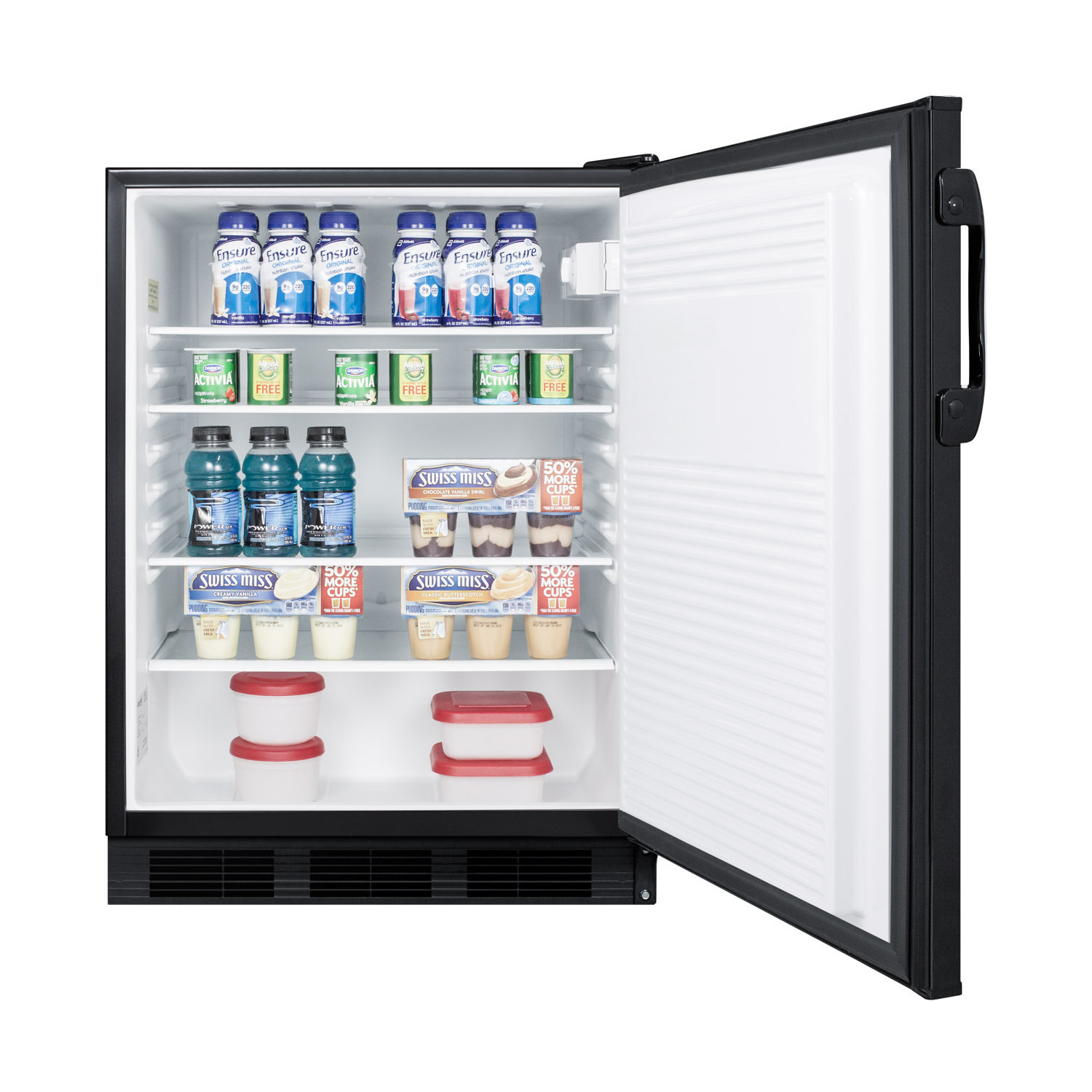

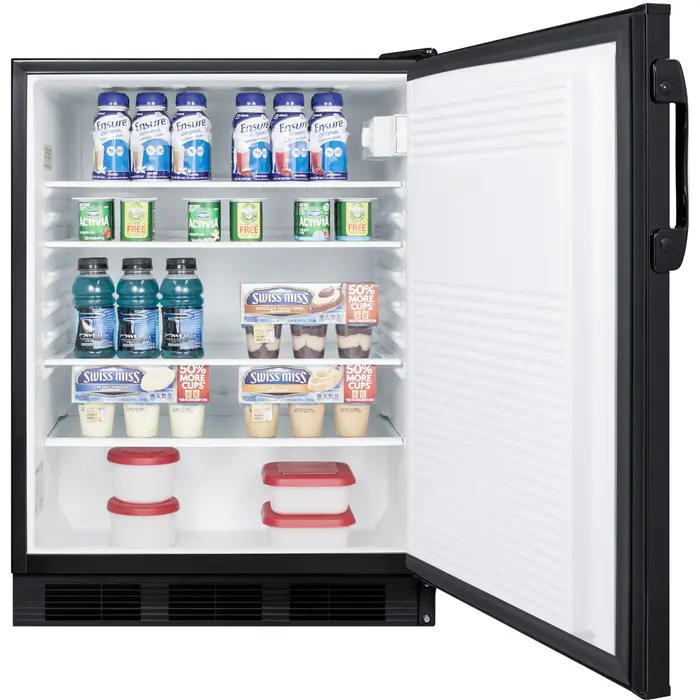

Inside, the FF7BKBI utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space. This unit has a flat door liner that allows it to accept larger trays (up to 19 1/2" x 16"). Adjustable glass shelves allow users to reconfigure the interior to accommodate a variety of sizes. The interior light is controlled by an on/off rocker switch located behind the thermostat dial.

The FF7BKBI is ETL-S listed to NSF-7 standards for use in commercial establishments. For more finish options, browse the entire FF7BI Series.

NOTE: This unit is designed for general purpose or commercial applications and does not meet DOE energy standards for residential use.

SPECIFICATIONS

Overview

Nominal Height 33.0" (84 cm)

Height of Cabinet 32.63" (83 cm)

Height to Hinge Cap 33.25" (84 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.5" (60 cm)

Depth with Handle 25.13" (64 cm)

Depth with door at 90° 45.63" (116 cm)

Capacity 5.5 cu.ft. (156 L)

Defrost Type Automatic

Door Black

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 1.4

Voltage/Frequency 115 V AC/60 Hz

Weight 100.0 lbs. (45 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101072760

Refrigerator Features

Door Swing RHD

Reversible Yes

Height Adjustable 1

Shelf Type Glass

Shelf Qty 3

Adjustable Shelves Yes

Thermostat Type Dial

Fan Type Exterior

Refrigerant Type R600a

Refrigerant Amount 0.64oz.

High Side PSI 180.0

Low Side PSI 80.0

Level Legs Qty 4

Interior Light Yes

Dimensions

Interior Height 27.75" (70 cm)

Interior Width 20.0" (51 cm)

Interior Depth 17.5" (44 cm)

Compressor Step Height 7.0" (18 cm)

Compressor Step Width 20.0" (51 cm)

Compressor Step Depth 6.0" (15 cm)

FEATURES

Commercially approved ETL-S listed to NSF-7 Standards for use in commercial establishments

Automatic defrost Reduced user maintenance with automatic defrost

Built-in capability Make the best use of space by installing your refrigerator under the counter and flush with other cabinets

One piece seamless interior liner Enjoy easy clean-up with a one piece liner that won't hold a mess in hidden crevices

Hidden evaporator Cold wall design with hidden evaporator and seamless interior

Adjustable glass shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Adjustable thermostat Dial thermostat for easy temperature management

Interior light on rocker switch Turn the light on when you need it and off when you're done with a convenient rocker switch located just behind the thermostat

Reversible door User-reversible door swing

Deep shelf space Interior accommodates large trays up to 19 1/2" x 15 1/2"

Fully finished black cabinet Allows the unit to be used freestanding

Height Adjustable Adjustable legs allow the unit to be sized from 33 1/4" to 34 1/2" high

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (FF7BKBI.pdf)

TECHNICAL DRAWING (.dwg) (FF7BBIREFRIGERATORA-C2000.dwg)

REVIT MODEL (QF_Summit_FF7BK_Refrigerator_2.rfa)

USE & CARE (FF7BKBI-User-Manual.pdf)
