Summit Commercial 5.5 cu.ft. beverage zone all-refrigerator with stainless steel handle, 7.61101e+011, FF6W7BZADA

Summit Commercial manufactures an extensive lineup of commercially approved European refrigeration to bring extra cold storage capability in a slim-fitting footprint. Our Beverage Zone series includes undercounter and ADA height all-refrigerators ideal for foodservice environments.

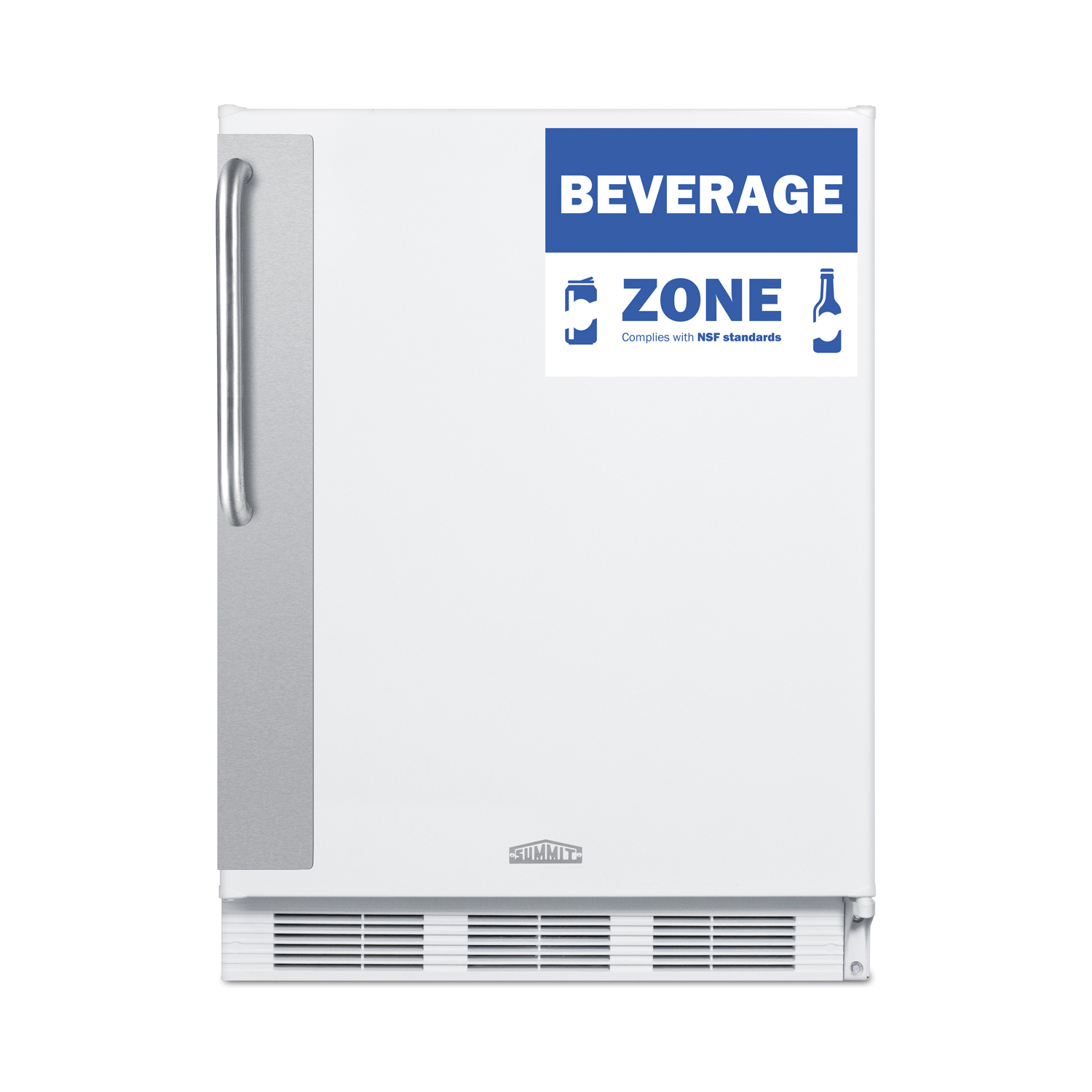

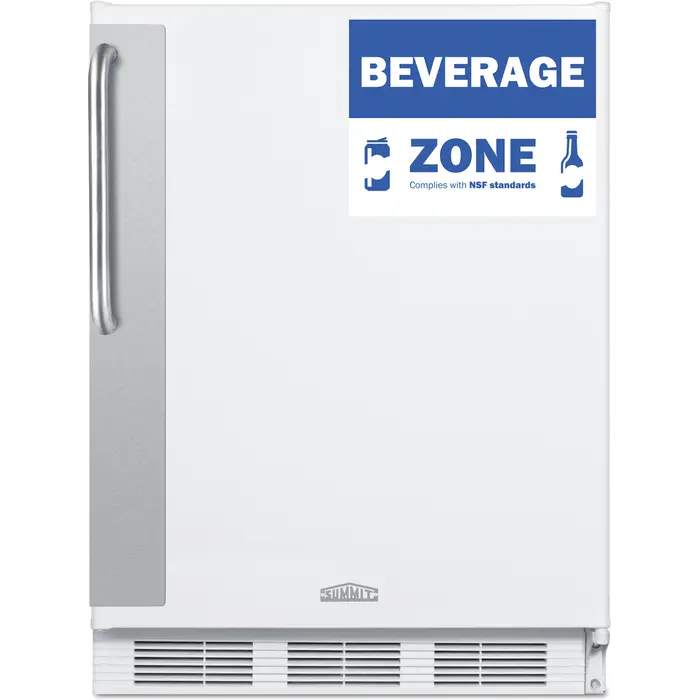

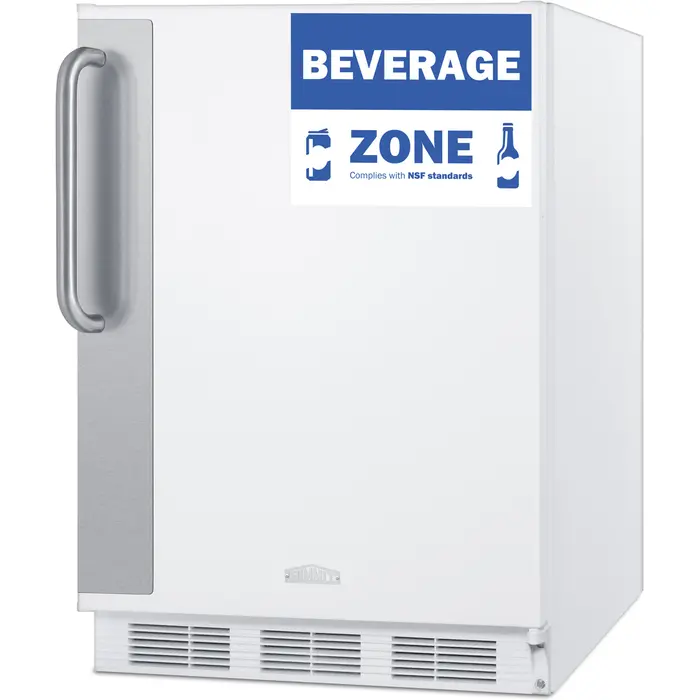

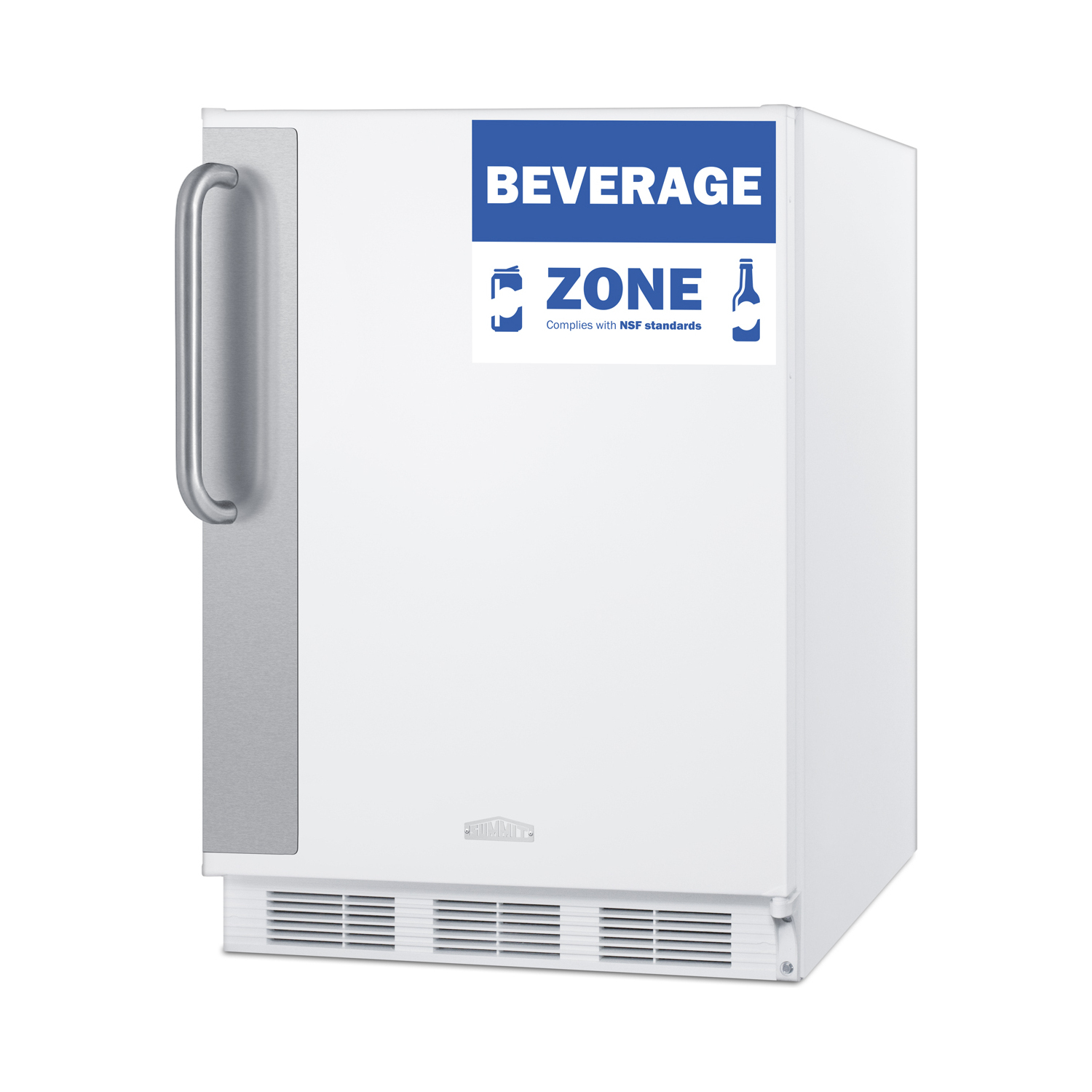

Model FF6W7BZADA is ETL-S listed to NSF-7 commercial standards. It comes in a clean white exterior finish with a front-mounted towel bar handle in brushed stainless steel, located at a convenient position for busy bar staff to access without reaching far down. The handle side of the door includes a factory-installed stainless steel corner guard for added protection in high traffic settings. At just under 24 inches wide and deep, this refrigerator offers a generous 5.5 cu.ft. storage capacity, larger than most units in this size class. The cabinet is sized under 32 inches (and 32 1/8 inch to the top of the hinge) in order to fit under lower ADA compliant counters. It can be used freestanding or with minimum clearance for recessed installation.

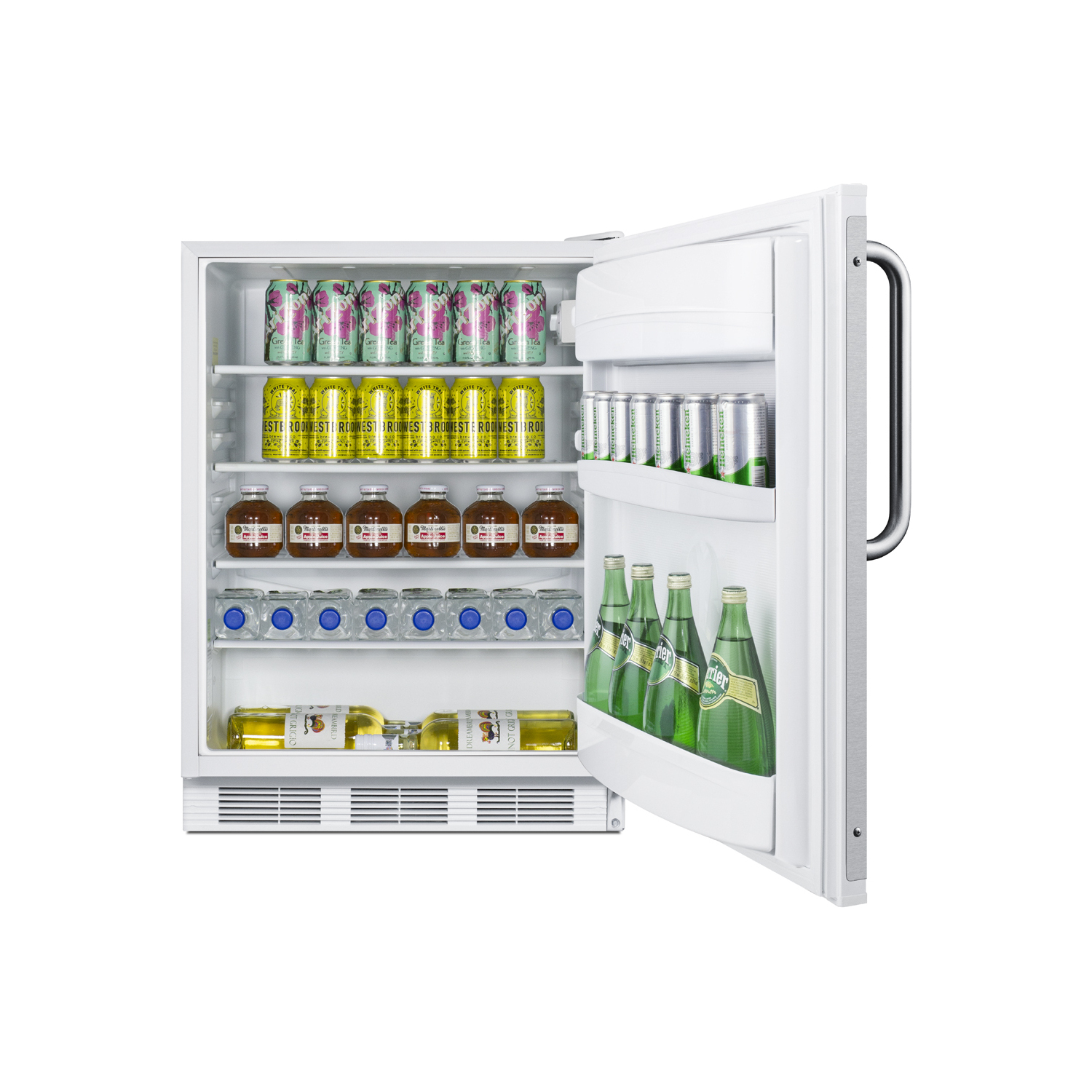

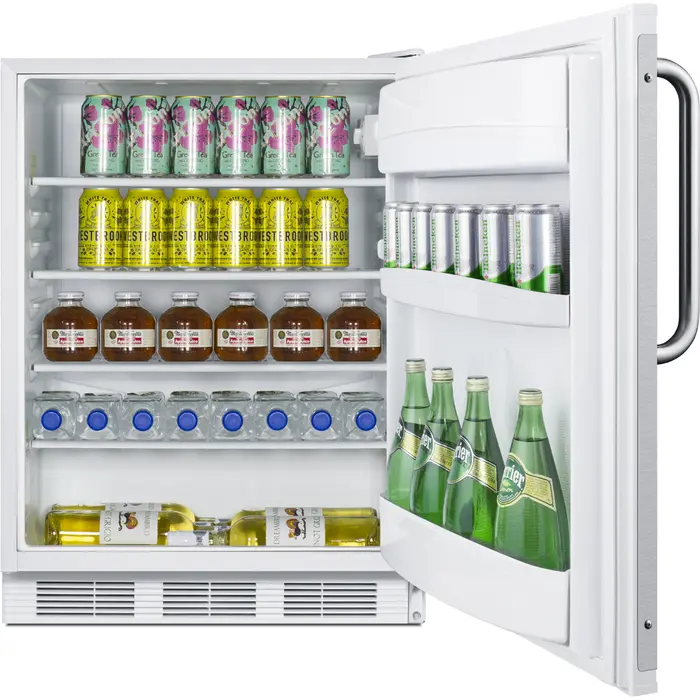

Made in Europe, the Beverage Zone series utilizes automatic defrost with a hidden evaporator behind the rear wall for reliable, even cooling. Adjustable shelves offer flexible storage and a removable crisper drawer allows options for holding lemons, limes, and other serving extras. The door includes two racks ideal for holding smaller bottles and cans in place. This unit has a clean white interior with an automatic light for maximum visibility, especially helpful in bars, restaurants, and settings that may be dimly lit.

Additional commercial and back bar refrigeration options are available in a range of sizes and finishes, including glass door beverage centers, shallow depth storage options, and much more. Browse the full Summit product line or contact our product specialists to find the right fit for your needs.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 31.88" (81 cm)

Height to Hinge Cap 32.13" (82 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.75" (58 cm)

Depth with Handle 25.25" (64 cm)

Depth with door at 90° 45.0" (114 cm)

Capacity 5.5 cu.ft. (156 L)

Defrost Type Automatic

Door White

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 1.4

Voltage/Frequency 115 V AC/60 Hz

Weight 100.0 lbs. (45 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101089744

Refrigerator Features

Door Swing RHD

Reversible Factory Reversible

Crisper Qty 1

Crisper Finish Opaque

Crisper Cover Glass

Shelf Type Wire

Shelf Qty 3

Full Door Shelf Qty 3

Adjustable Shelves Yes

Thermostat Type Dial

Refrigerant Type R600a

Refrigerant Amount 0.64oz.

High Side PSI 180.0

Low Side PSI 80.0

Level Legs Qty 4

Interior Light Yes

Dimensions

Interior Height 26.0" (66 cm)

Interior Width 21.0" (53 cm)

Interior Depth 17.75" (45 cm)

Compressor Step Height 6.75" (17 cm)

Compressor Step Width 21.0" (53 cm)

Compressor Step Depth 6.0" (15 cm)

FEATURES

Counter height commercial all-refrigerator 24 inch wide European refrigerator with a generous 5.5 cu.ft. interior capacity

Commercially approved ETL-S listed to NSF-7 commercial standards for use in bars, restaurants, and other foodservice environments

Made in Europe European construction with a classic design that's been the industry standard for over 30 years

ADA Compliant height Sized at 32" high (32.13" to hinge cap) to fit under lower counters complying with ADA guidelines

Stainless steel towel bar handle Curved handle in brushed stainless steel offers an easy grip, ideal for servers in busy commercial settings

Stainless steel corner guard Handle is mounted over a 304 grade stainless steel bumper to help protect the door

24 inch footprint Perfectly sized and designed for freestanding or recessed installation in commercial settings

Adjustable shelves Flexible storage to accommodate a variety of sizes

Door storage Two door racks let you keep bottles and cans in easy reach for busy servers

Removable crisper drawer Lower slide-out drawer offers additional storage, or remove to hold taller bottles as needed

White interior Bright interior finish offers maximum visibility, especially helpful in restaurants and other dimmer settings

Interior light Automatically illuminates when you open the door

Automatic defrost Reduced maintenance with auto defrost system

Hidden evaporator Cold wall design with hidden evaporator and seamless interior for reliable cooling

Square door design Flat front and corners help to ensure a better fit

Magnetic door gasket Quality door gaskets ensure a tight seal for an efficient performance

Right hand door swing For this unit with the door opening from the other side, see model FF6W7BZADALHD

Adjustable thermostat Simple and intuitive dial thermostat located inside ensures easy temperature management with trusted reliability

Customizable design We include a removable Beverage Zone decal; alternatively, add your own branding or ask our sales team about customized options

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (FF6W7BZADA.pdf)

TECHNICAL DRAWING (.dwg) (FF6W7BZADA_FF6BK7BZADA_2.dwg)

ASSEMBLY DRAWING (FF6W7BZADA_FF6BK7BZADA-Assembly_2.pdf)

REVIT MODEL (QF_Summit_FF6W7BZADA_Refrigerator_2.rfa)

USE & CARE (FF6W7BZADA-User-Manual.pdf)
