Summit Built-in undercounter all-refrigerator for general purpose use, with front lock, automatic defrost operation and white exterior, FF6LWBI

Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The FF6BI Series features high performing, perfectly sized all-refrigerators for built-in undercounter installation, with automatic defrost and deluxe interiors designed for maximum storage convenience.

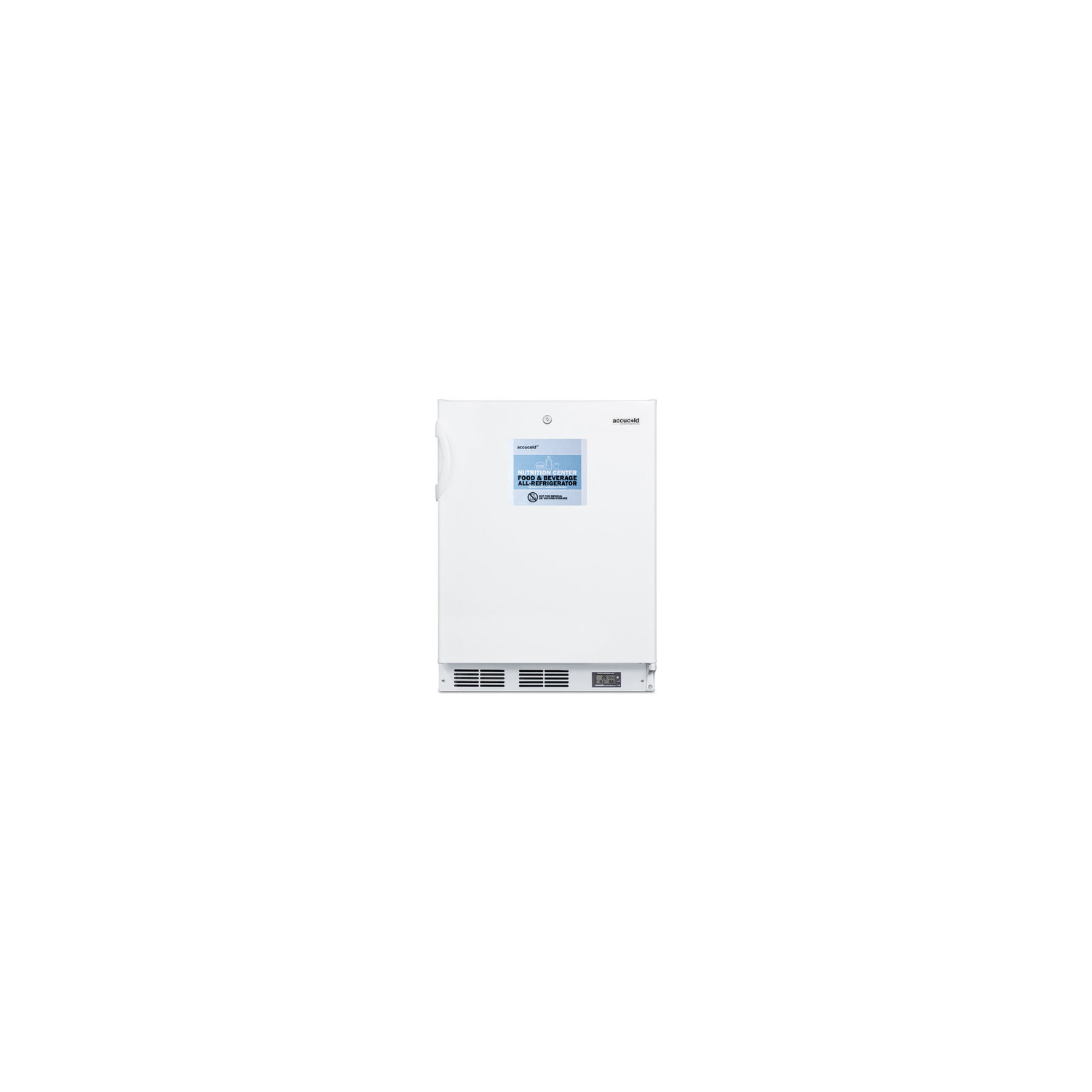

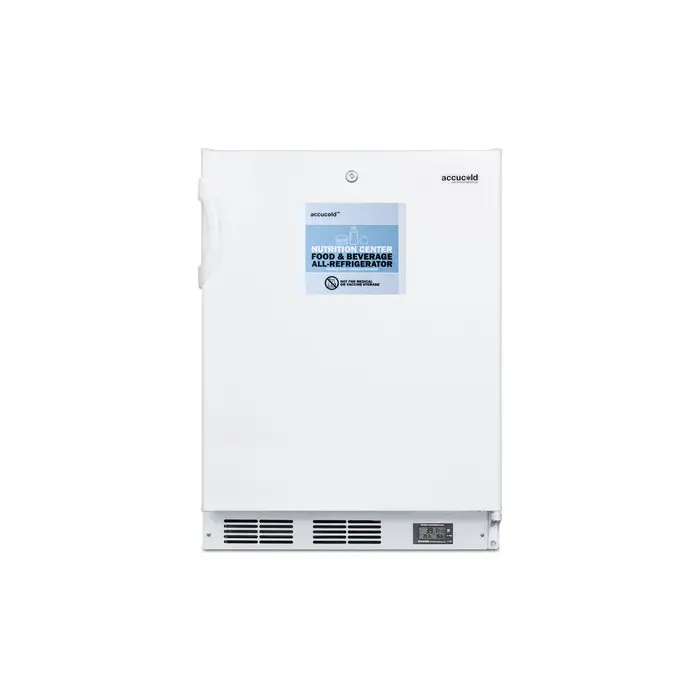

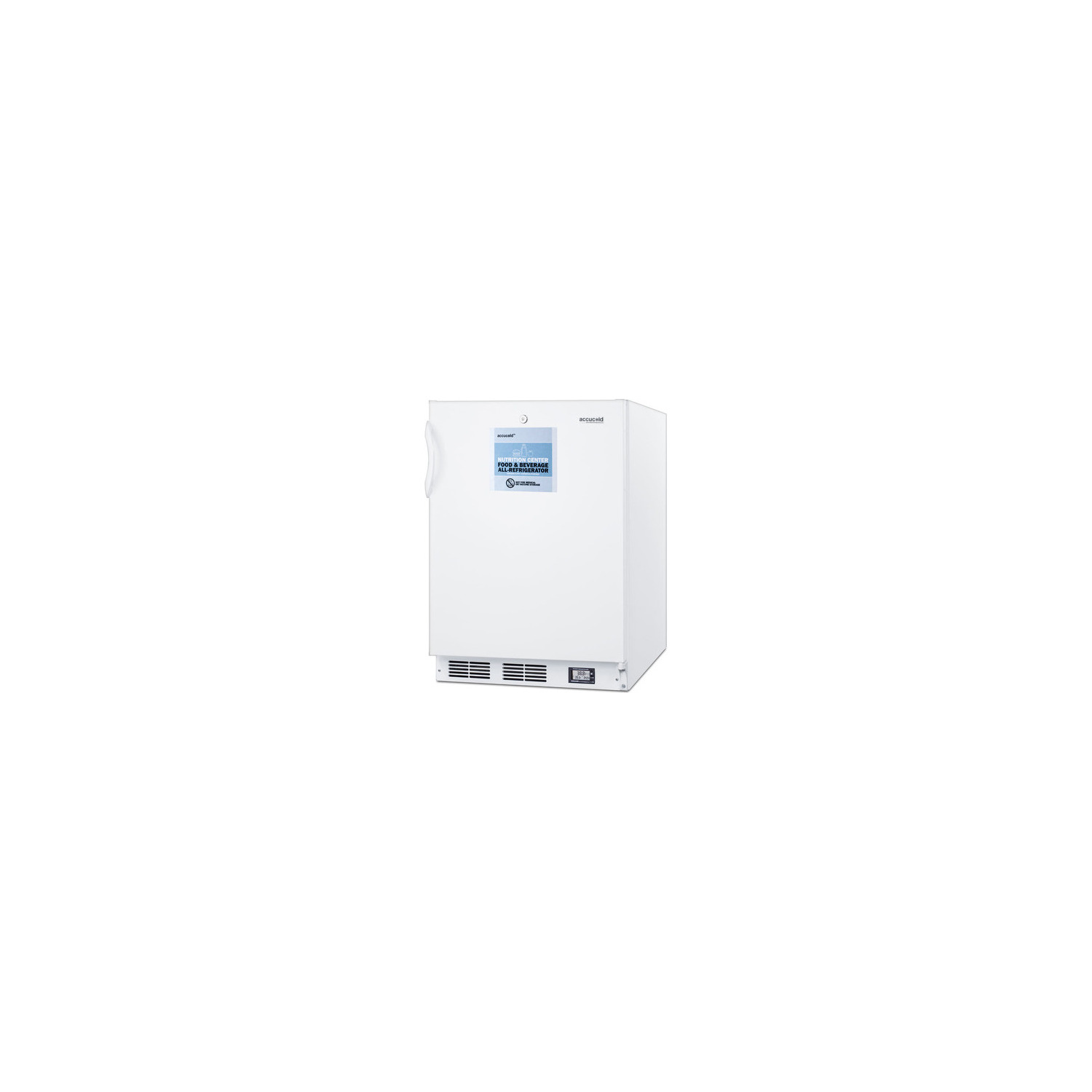

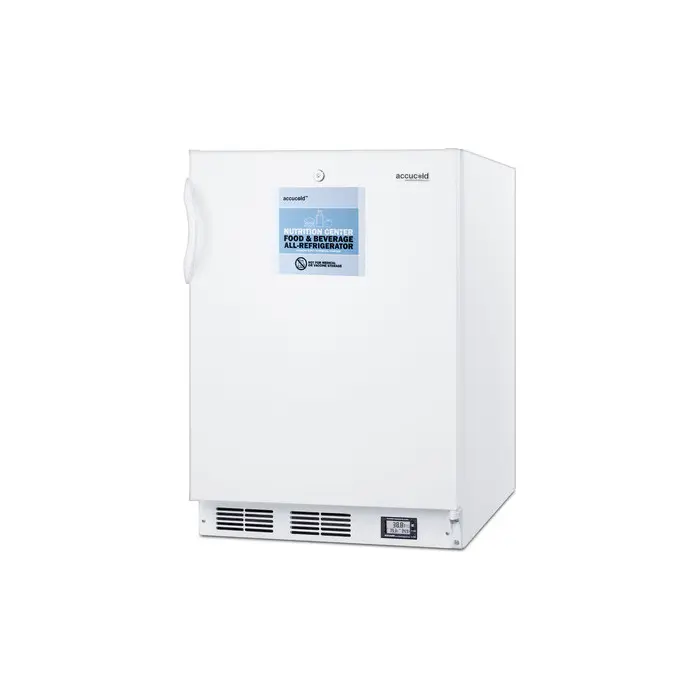

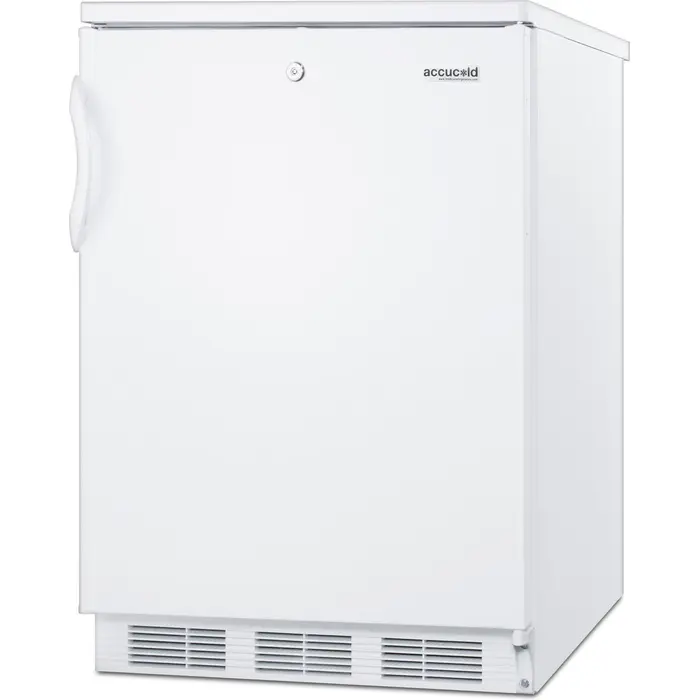

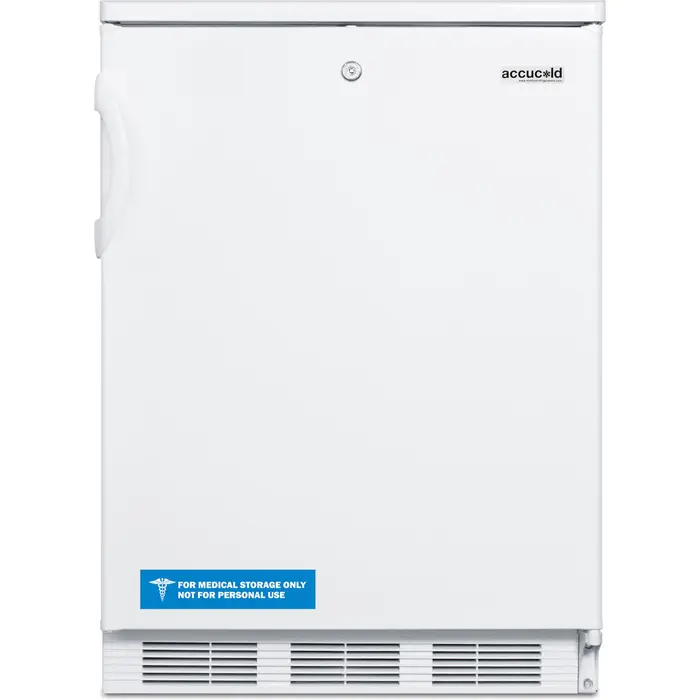

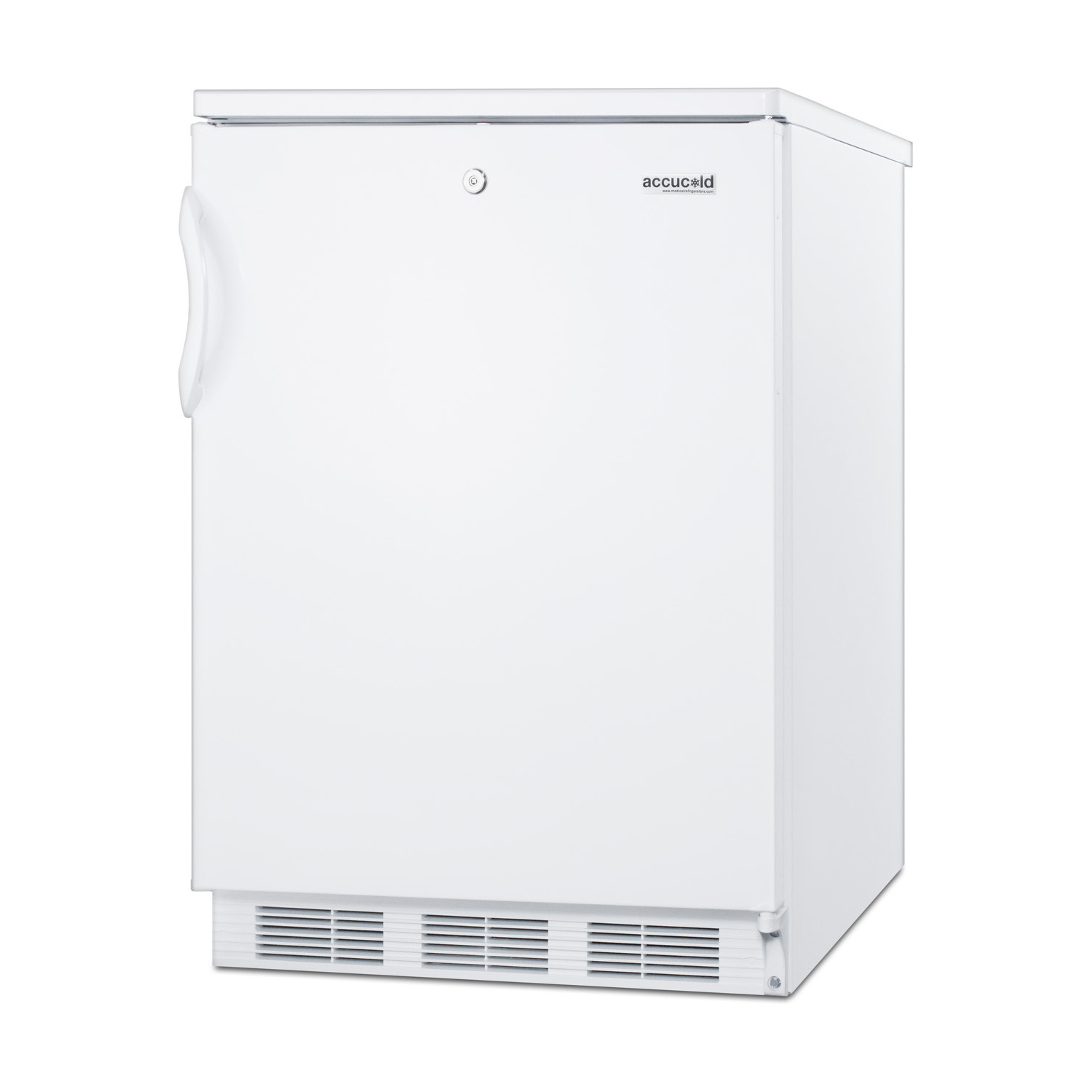

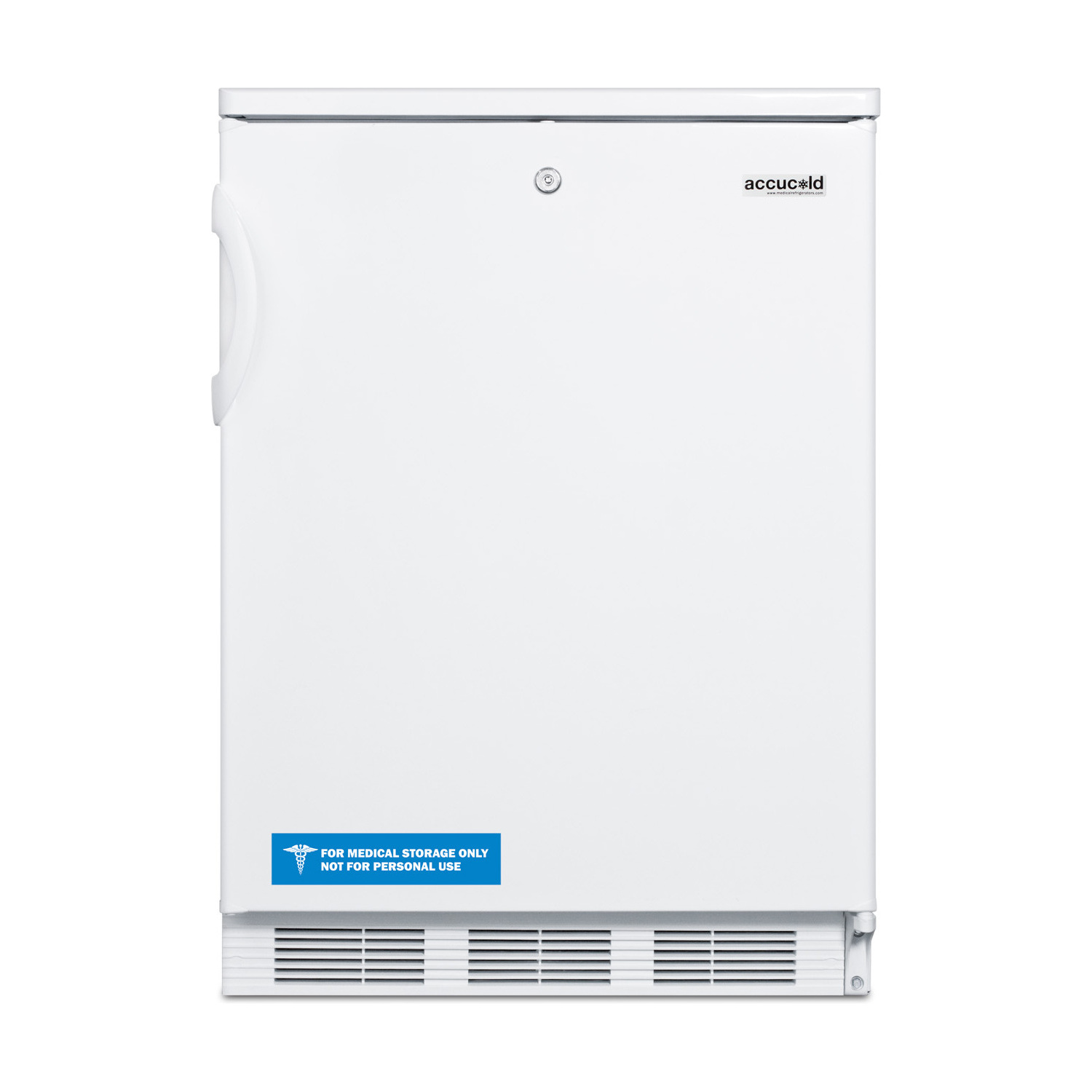

The FF6LWBI can be built-in under counters or used freestanding. The 24" footprint is ideal for many cutouts, while the full 5.5 cu.ft. interior provides more storage than most units in this size class. This unit has a white exterior and user-reversible door swing. A front-mounted lock located towards the top of the door offers convenient security.

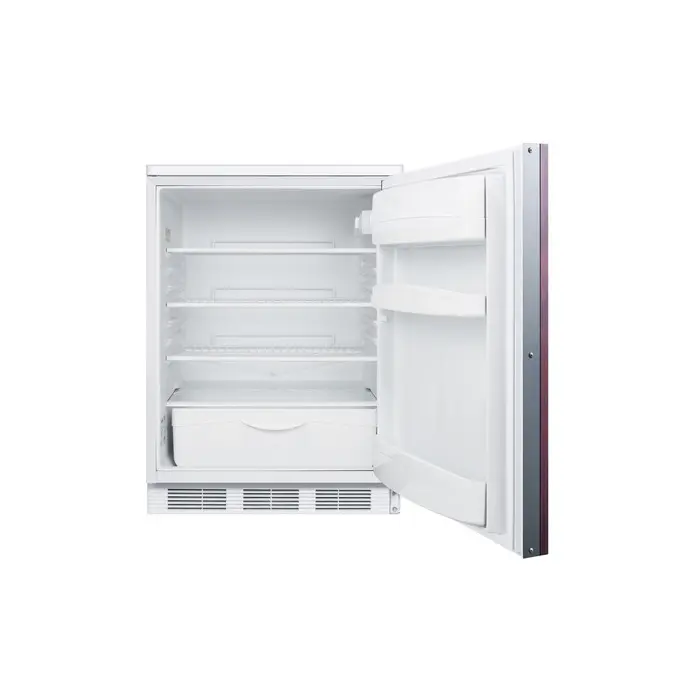

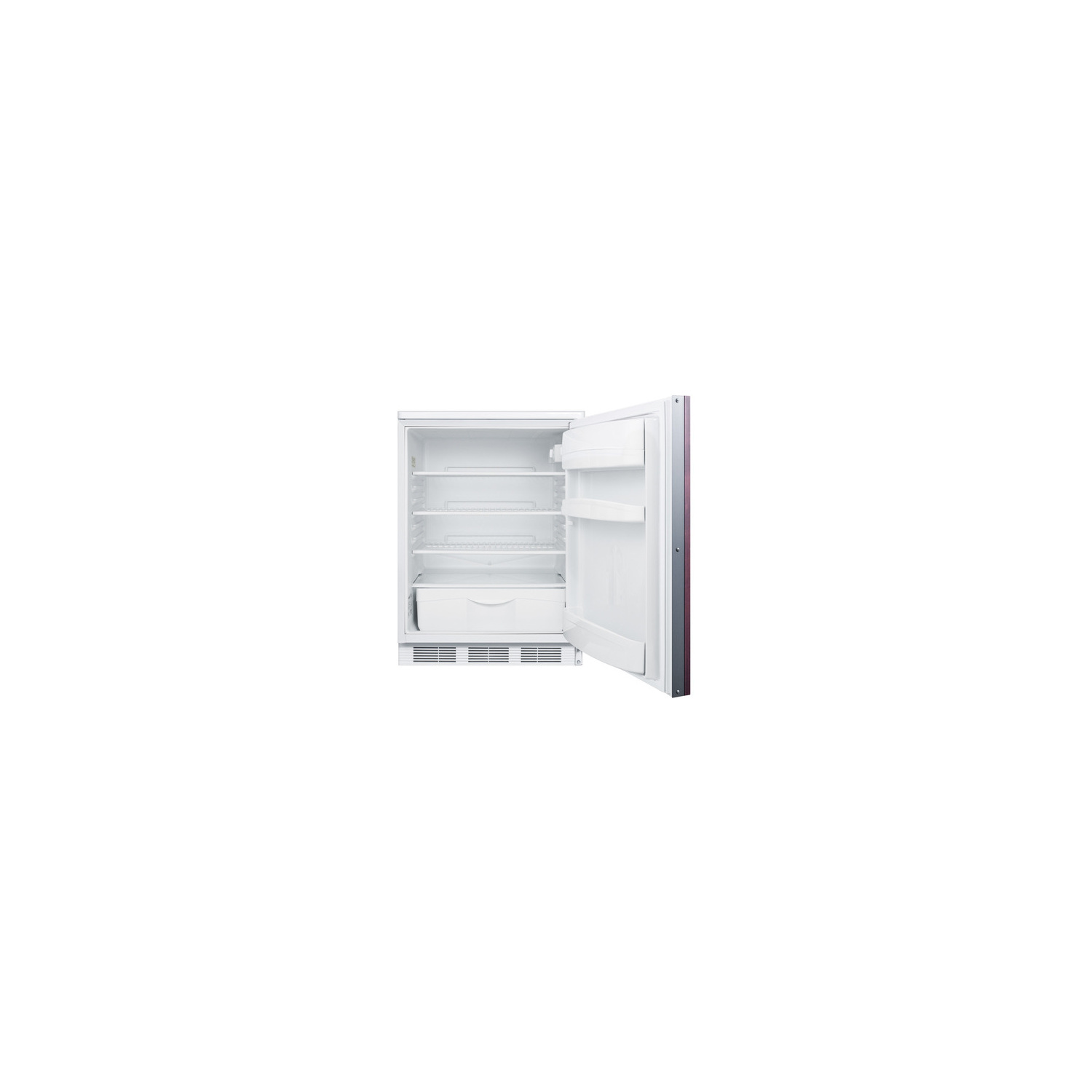

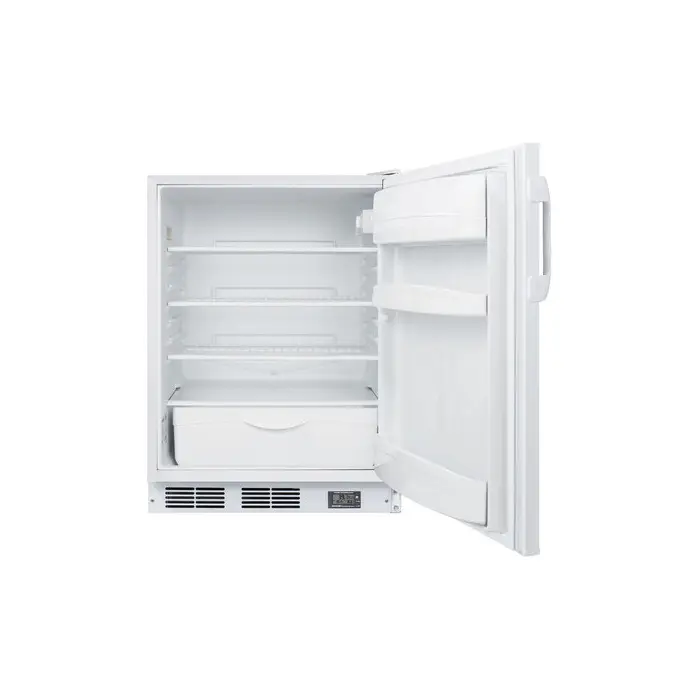

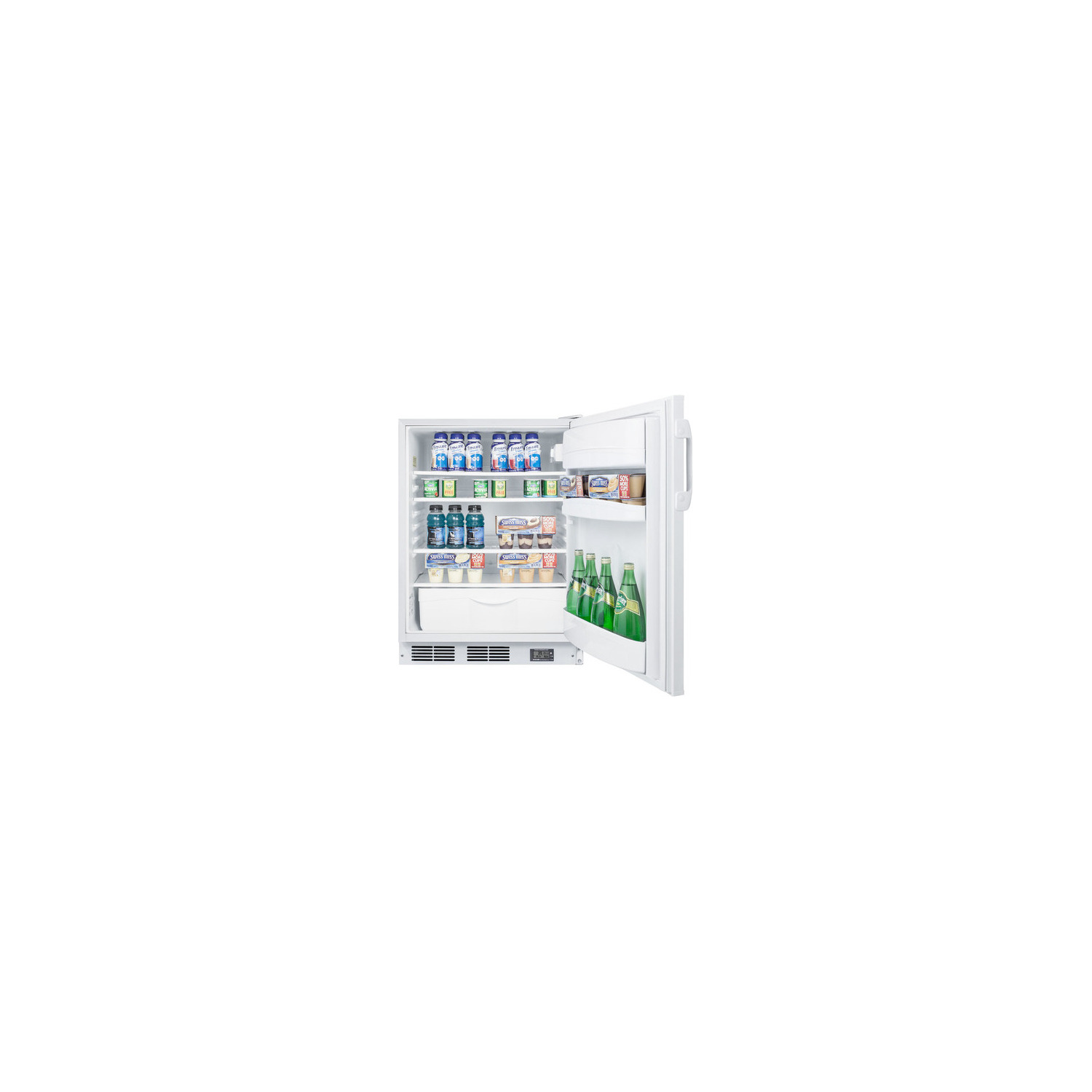

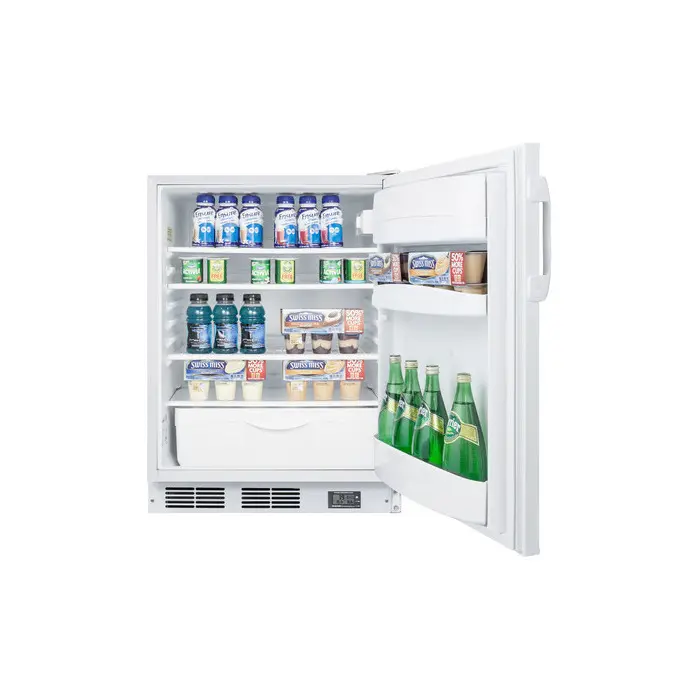

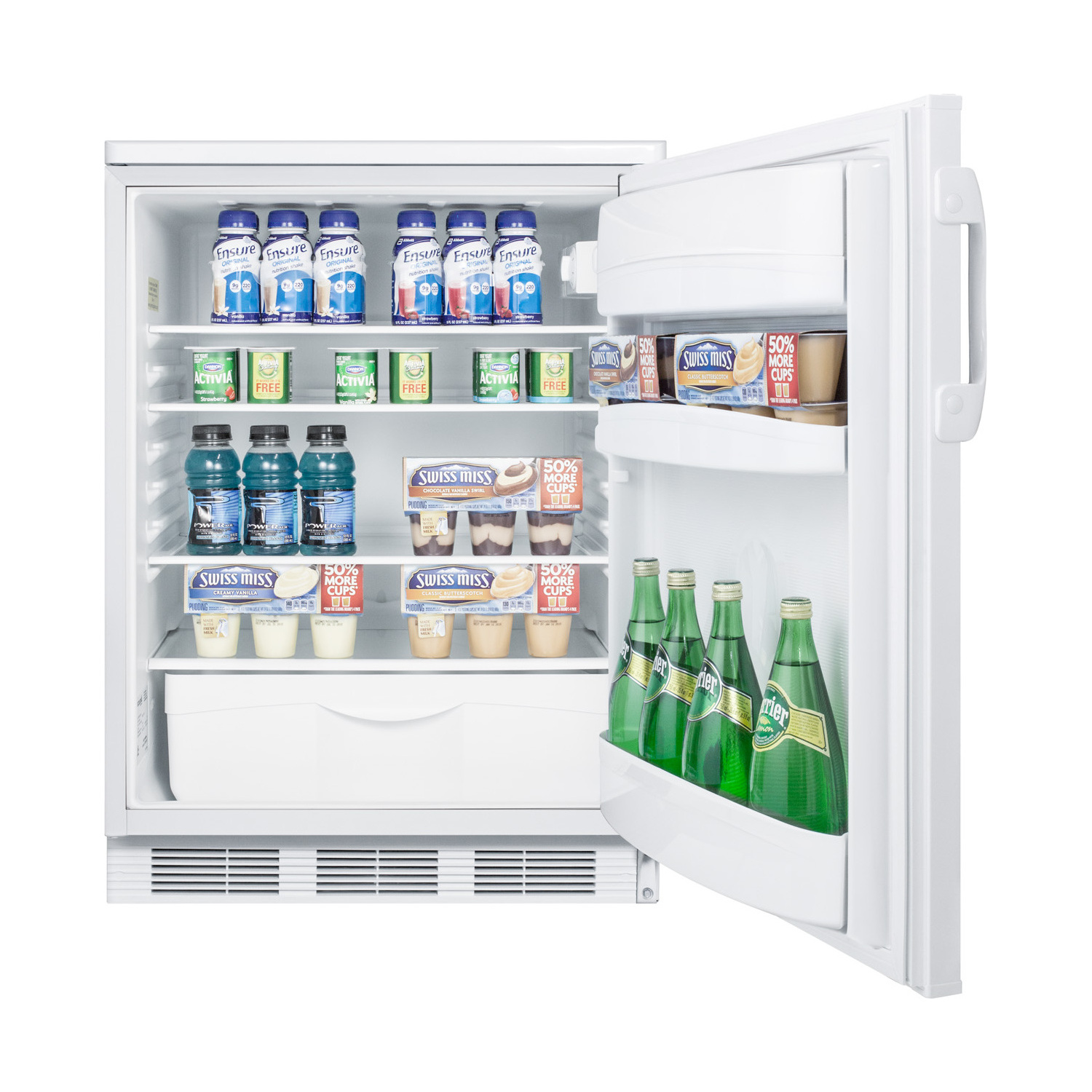

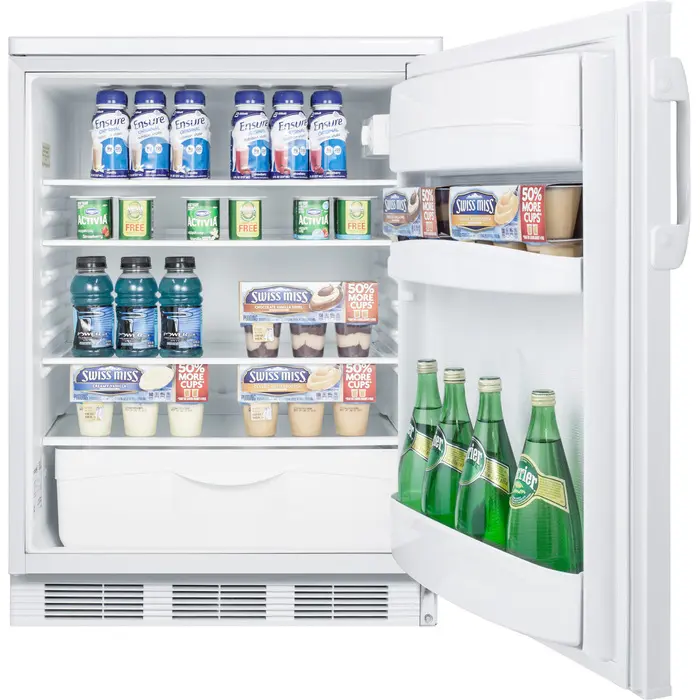

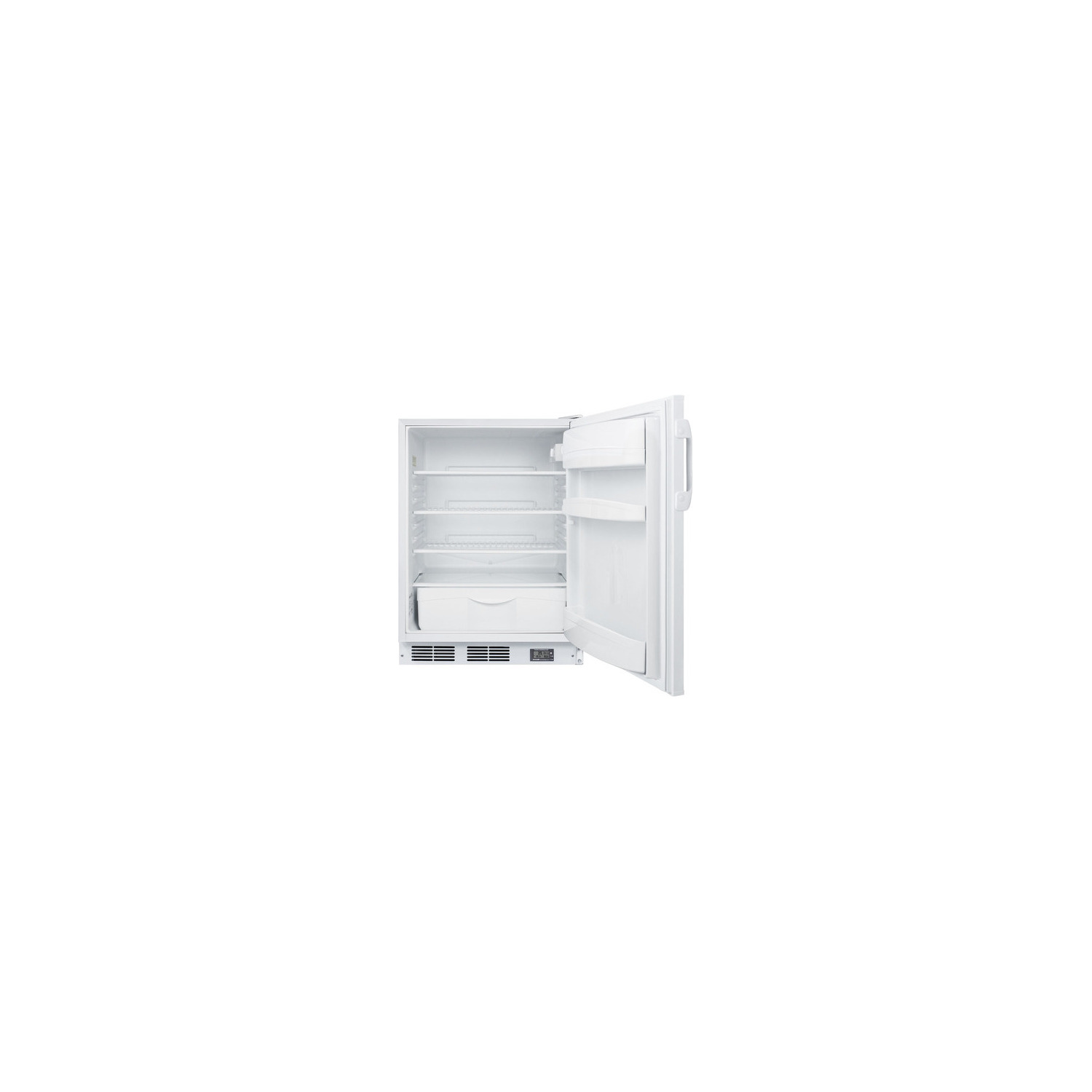

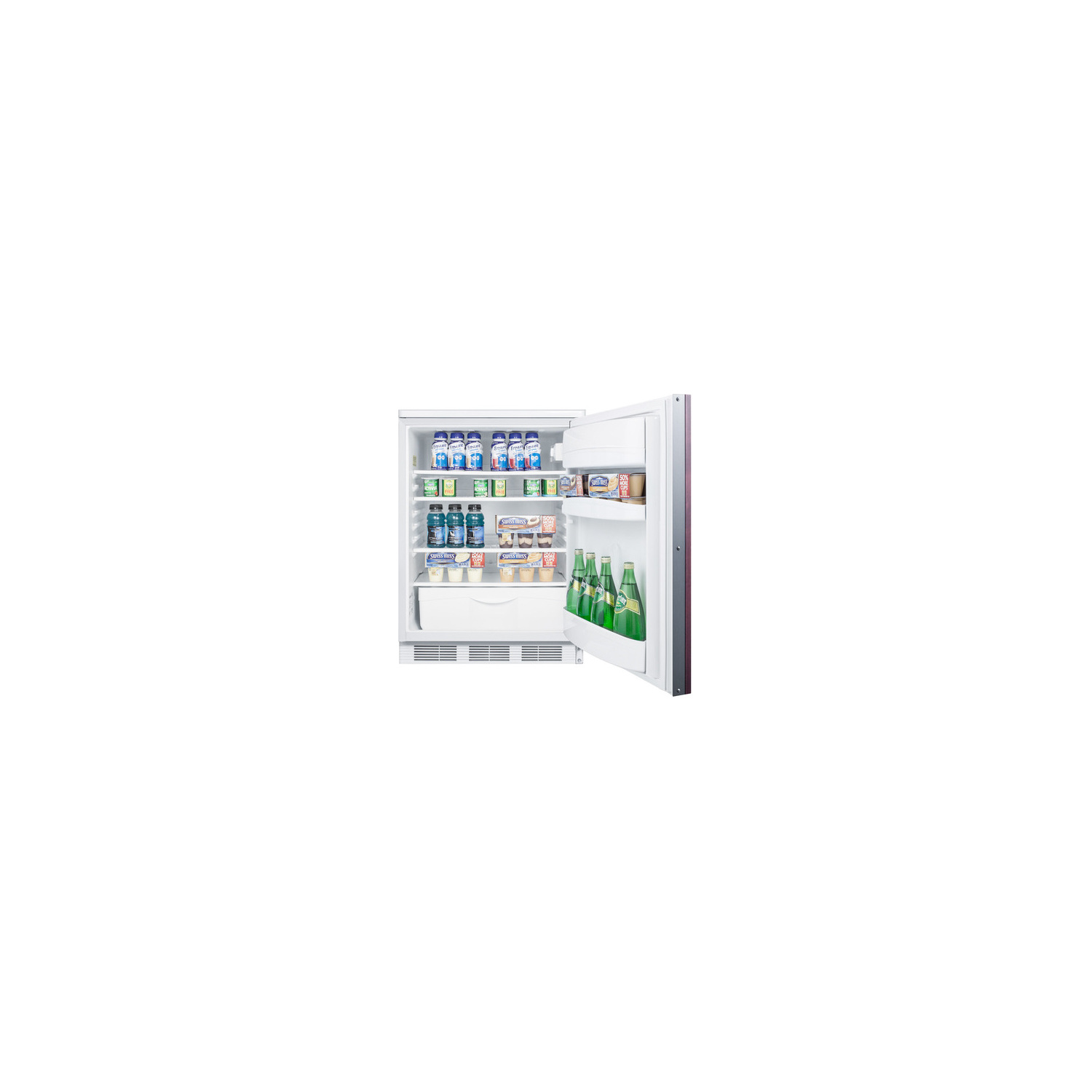

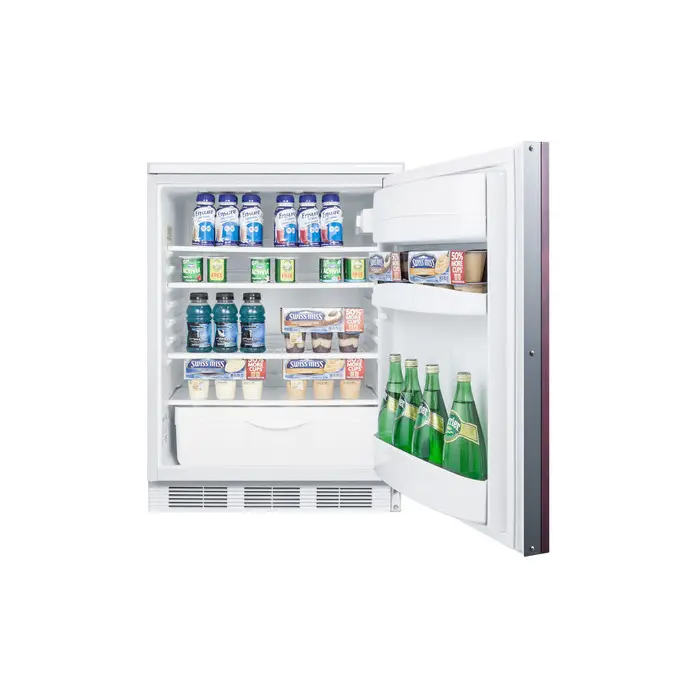

Inside, the FF6LWBI utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space to provide generous storage. Adjustable wire shelves allow users to reconfigure the interior to accommodate a variety of sizes. Additional features include automatic interior lighting, door storage, and a crisper drawer. This unit includes an adjustable dial thermostat.

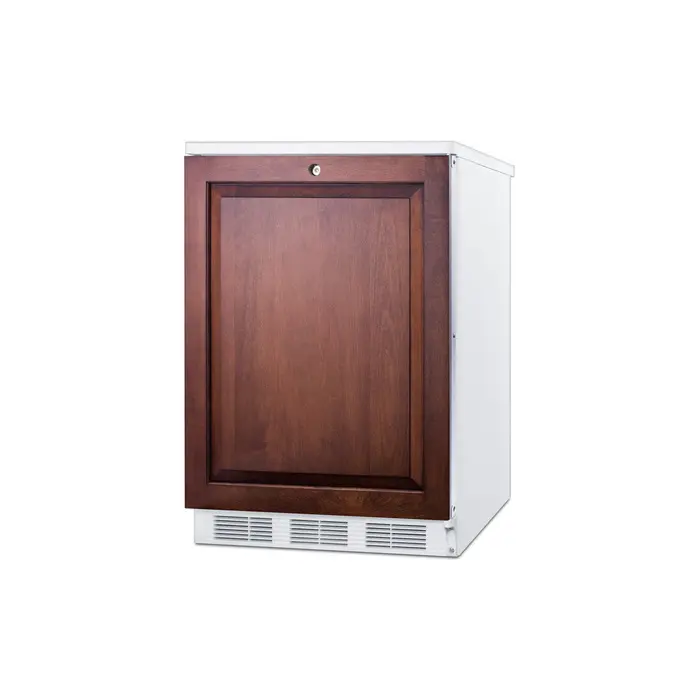

With its ideal size and quality design, the FF6LWBI is an attractive and reliable refrigerator for a variety of general purpose applications. For more finish options, browse the entire FF6BI Series.

NOTE: This unit is designed for general purpose applications and does not meet DOE energy standards for residential use.

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 33.5" (85 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.5" (60 cm)

Depth with Handle 25.13" (64 cm)

Depth with door at 90° 46.13" (117 cm)

Capacity 5.5 cu.ft. (156 L)

Defrost Type Automatic

Door White

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 1.4

Weight 100.0 lbs. (45 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101070704

Refrigerator Features

Door Swing RHD

Reversible Yes

Crisper Qty 1

Crisper Finish Opaque

Crisper Cover Glass

Shelf Type Wire

Shelf Qty 3

Full Door Shelf Qty 3

Adjustable Shelves Yes

Thermostat Type Dial

Fan Type Exterior

Refrigerant Type R600a

Refrigerant Amount 0.64oz.

High Side PSI 180.0

Low Side PSI 80.0

Level Legs Qty 4

Interior Light Yes

Dimensions

Interior Height 27.75" (70 cm)

Interior Width 20.0" (51 cm)

Interior Depth 17.5" (44 cm)

Compressor Step Height 7.0" (18 cm)

Compressor Step Width 20.0" (51 cm)

Compressor Step Depth 6.0" (15 cm)

FEATURES

Slim undercounter dimensions Our unique 24" wide models offer full capacity in a slim fit

Built-in capable Make the best use of space by installing your appliance under the counter and flush with other cabinets

Fully finished white cabinet Allows the unit to be used freestanding

Height Adjustable Adjustable legs allow the unit to be sized from 33 1/2" to 34 3/4" high

Front-mounted lock Keyed lock offers added security

Automatic defrost Reduced maintenance with auto defrost system

Reversible door User-reversible door swing for added flexibility

Hidden evaporator Cold wall design with hidden evaporator and seamless interior

One piece interior liner Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Adjustable shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Crisper Get the longest life and best taste out of produce by storing it in a convenient slide drawer

Door storage Store large bottles right on the door for easy access

Interior light Automatically illuminates when you open the door

Adjustable thermostat Dial thermostat located inside for easy temperature management

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (FF6LWBI.pdf)

TECHNICAL DRAWING (.dwg) (FF6LBI_FF6L7BIREFRIGERATORA-C2000.dwg)

REVIT MODEL (QF_Summit_FF6LW_Refrigerator_3.rfa)

USE & CARE (FF6LWBI-User-Manual.pdf)
