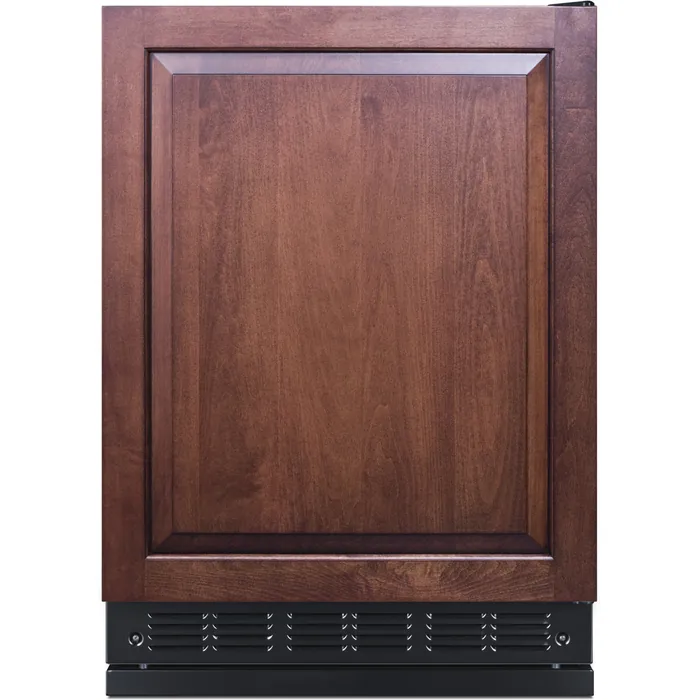

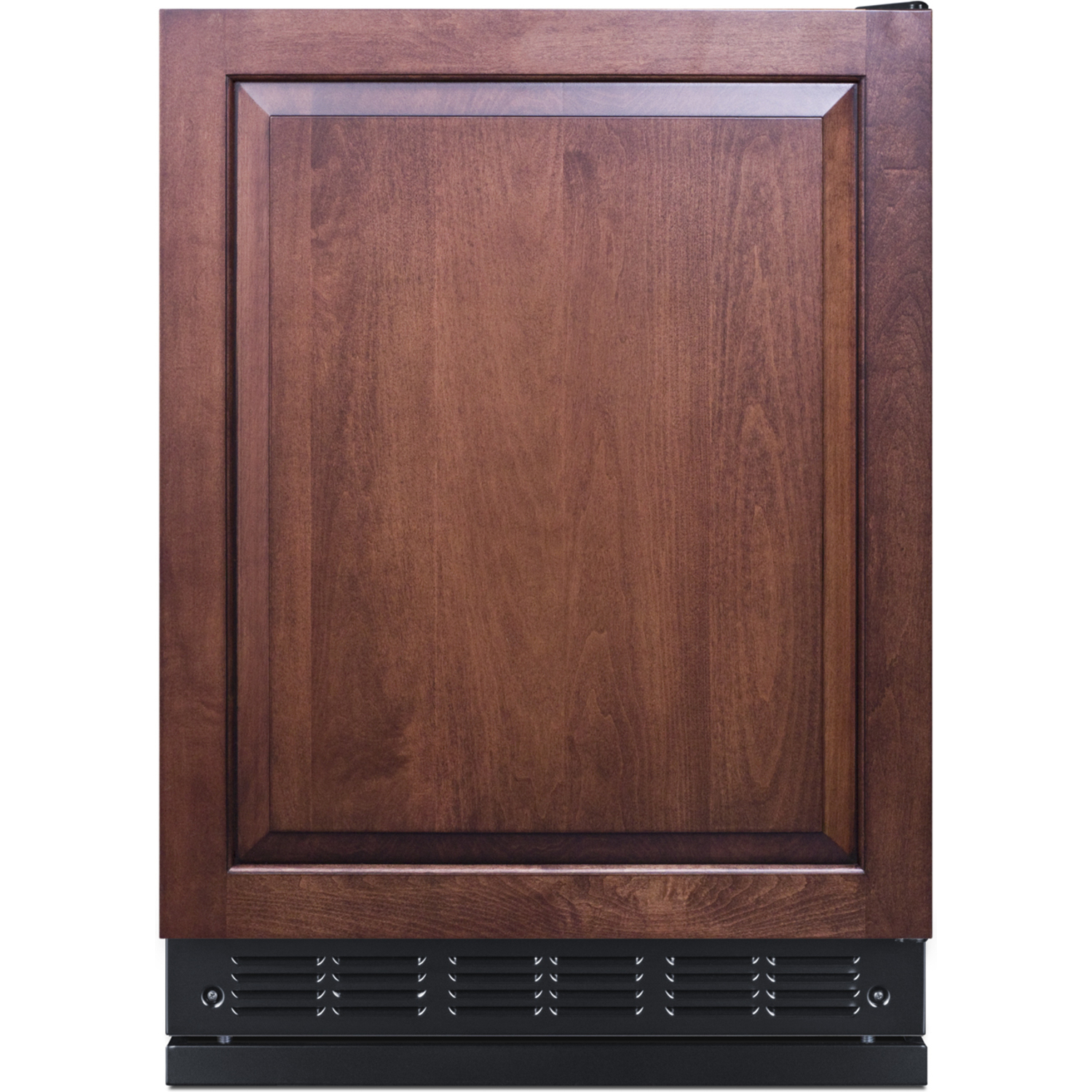

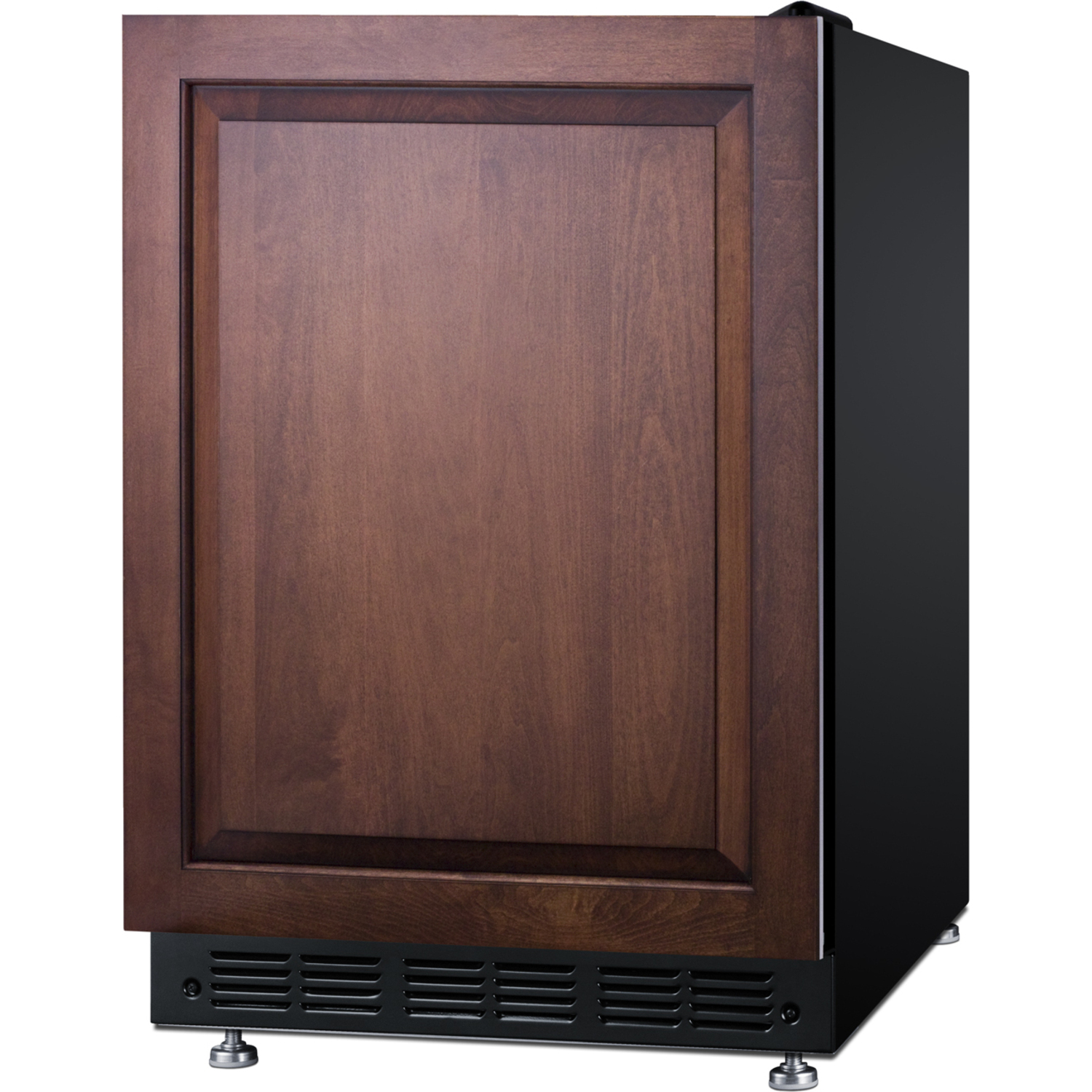

Summit 24 inch wide European undercounter all-refrigerator, 7.61101e+011, FF6BK2SSRSIF

Summit's undercounter lineup of European-made, energy efficient refrigeration features counter height choices that offer the largest capacity in the industry.

Sized with a 24" footprint, model FF6BK2SSRSIF is an ENERGY STAR certified all-refrigerator designed for recessed installation or freestanding use in residential kitchens. The door features an integrated stainless steel exterior frame designed to accept overlay panels, allowing you to create a custom look that can seamlessly blend into your kitchen (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick). Users provide their own handle to complete the look. This unit has a jet black exterior cabinet and runs quietly at less than 33 dB. Adjustable legs allow you to set the height between 33 1/2" and 34 1/2" for the perfect fit. We include a black steel leg shield for optional use if you find there is too much space between the front and floor when the unit is set at its taller height.

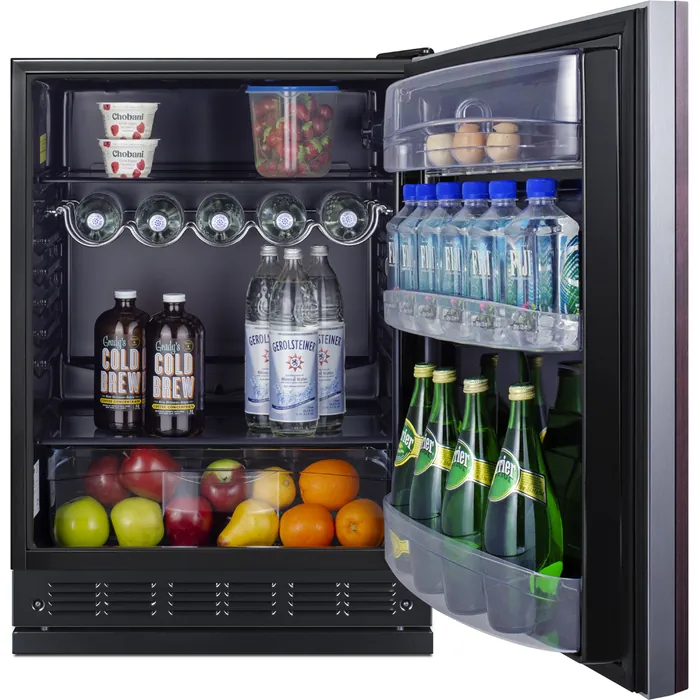

With a full 5.8 cu.ft. interior, the FF6BK2SSRSIF offers a higher storage capacity than other counter height units in the market. It features a black interior liner and black trimmed adjustable glass shelves for spill-proof storage. We also include a removable scalloped steel rack ideal for holding bottles in a horizontal position. A large clear crisper makes it easy to store produce at its best and three clear door racks let you keep condiments in easy reach. A light automatically illuminates the interior when the door is open.

Summit's European lineup features classic mechanical controls. The dial thermostat ensures an intuitive, trouble-free performance without any internal boards or chips. Automatic defrost reduces user maintenance and our signature cold wall design creates an efficient, reliable cooling system.

The FF6BK2SSRSIF is UL listed for residential use. With its large capacity, professional finish, and user-friendly features, this freezerless refrigerator is a convenient option for homes, offices, schools, and other settings in need of reliable cold storage. Additional choices are available in lower ADA height, as well as with freezer compartments (model CT66BK2SSRSIF). Browse the full Summit catalog to discover the perfect appliance for your refrigeration needs.

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 33.13" (84 cm)

Height to Hinge Cap 33.5" (85 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.38" (57 cm)

Depth with Handle 24.0" (61 cm)

Depth with door at 90° 44.25" (112 cm)

Capacity 5.8 cu.ft. (164 L)

Defrost Type Automatic

Door Panel-Ready

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 280.0kWh/year

Amps 0.8

Voltage/Frequency 115 V AC/60 Hz

Weight 100.0 lbs. (45 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101103235

Refrigerator Features

Door Swing RHD

Reversible Factory Reversible

Height Adjustable Yes

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Glass

Shelf Type Glass and Scalloped

Shelf Qty 3

Full Door Shelf Qty 3

Adjustable Shelves Yes

Wine Bottle Shelves Yes

Thermostat Type Dial

Refrigerant Type R600a

Refrigerant Amount 0.64oz.

Level Legs Qty 2

Interior Light Yes

Temperature Range 36 to 46°F

Sound Level 32.6 dBa

Dimensions

Interior Height 27.75" (70 cm)

Interior Width 21.0" (53 cm)

Interior Depth 18.0" (46 cm)

Compressor Step Height 5.5" (14 cm)

Compressor Step Width 21.0" (53 cm)

Compressor Step Depth 6.0" (15 cm)

FEATURES

24" wide European all-refrigerator Freezerless refrigerator designed and manufactured in Europe for residential use

ENERGY STAR certified Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

Panel-ready door Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)

Large capacity 5.8 cu.ft. interior offers more storage space than units in this size class

Slim counter height dimensions for recessed or freestanding use Ideal 24" footprint for an easy fit

Height adjustable Adjustable legs allow you to set the height anywhere between 33.5" and 34.5" to best fit under your counter

Leg shield included Removable cover that lets you fill the gap that can appear between the refrigerator's kickplate and floor when raising the height

Automatic defrost No-frost operation for minimum user maintenance

Adjustable glass shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Door storage Store tall bottles and condiments right on the door for convenient access

Bottle shelf included Removable scalloped steel shelf lets you keep wine and other bottles stored horizontally

Fruit and vegetable crisper Removable clear crisper drawer offers the ideal conditions for keeping produce at its best

Interior light Automatically illuminates when you open the door

One piece interior liner Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Hidden evaporator Cold wall design with hidden evaporator creates a seamless, easy to clean interior

Black interior Attractive jet black finish inside to match the cabinet and kickplate

Adjustable mechanical thermostat Simple and intuitive analog controls located inside for easy temperature management

Quiet operation Runs at under 33 dB for a quiet performance in any setting

Fully finished black cabinet Allows the unit to be used freestanding

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (FF6BK2SSRSIF.pdf)

TECHNICAL DRAWING (.dwg) (FF6BK2SSRSIF.dwg)

ASSEMBLY DRAWING (FF6BK2SSRSIF-Assembly.pdf)

REVIT MODEL (QF_Summit_FF6BK2SSRSIF_Refrigerator_2.rfa)

SUPPORT (IF_Instructions_-_General.pdf)

USE & CARE (FF6BK2SSRSIF-User-Manual.pdf)

Energy Guide
