Summit 24 inch wide European ADA height all-refrigerator, 7.61101e+011, FF6BK2SSIFADA

Summit's ADA compliant undercounter lineup of European-made refrigeration features 32" high choices that offer the largest capacity in the industry.

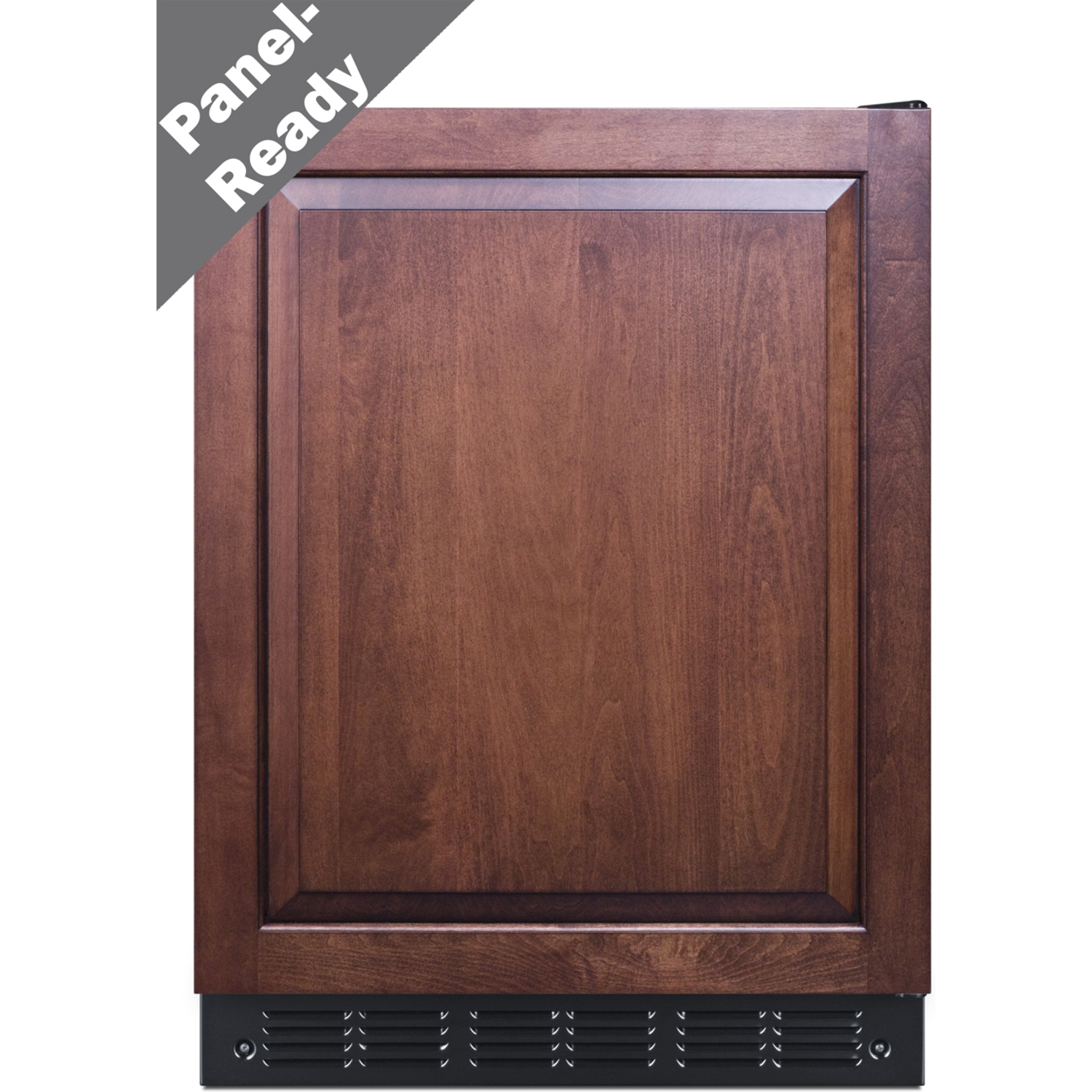

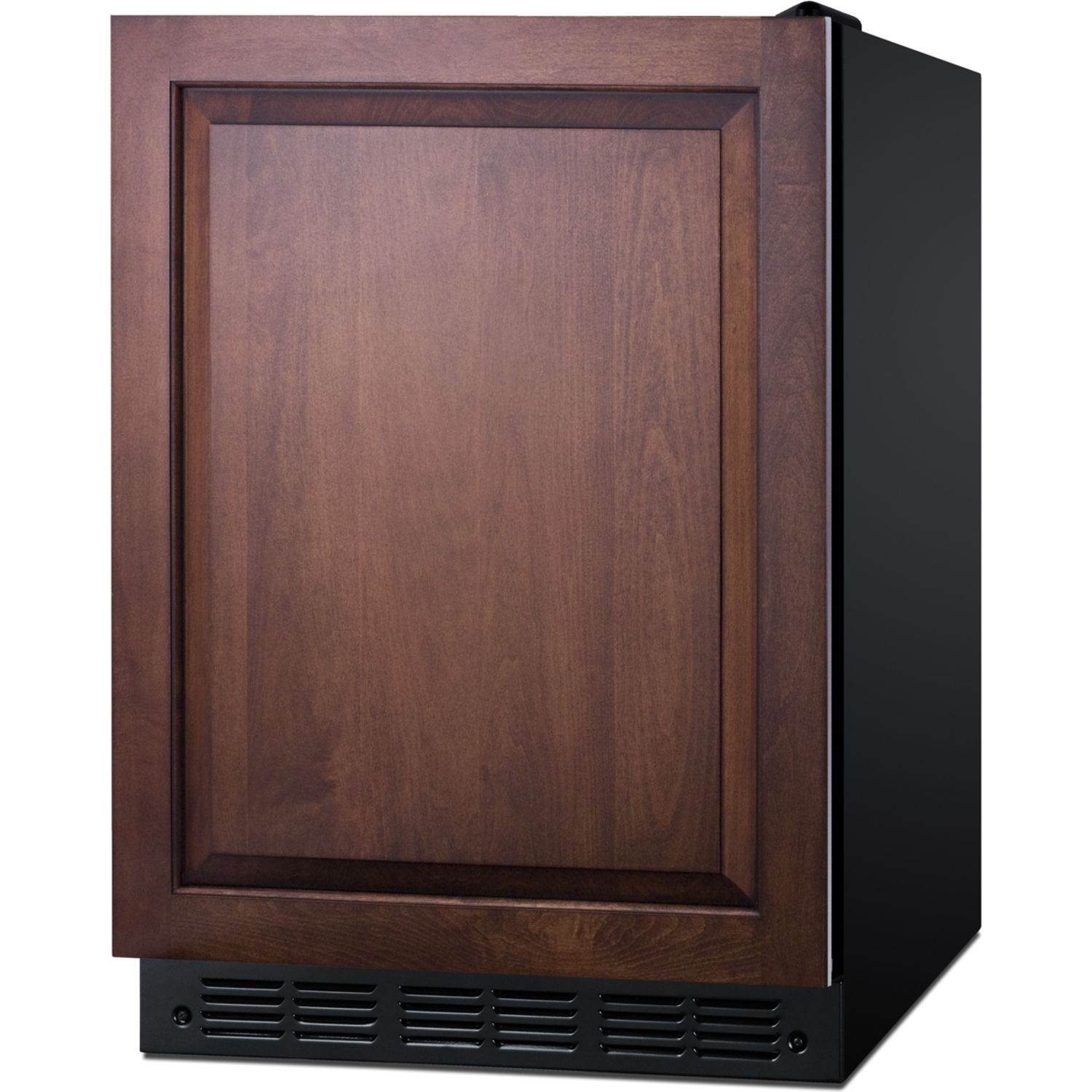

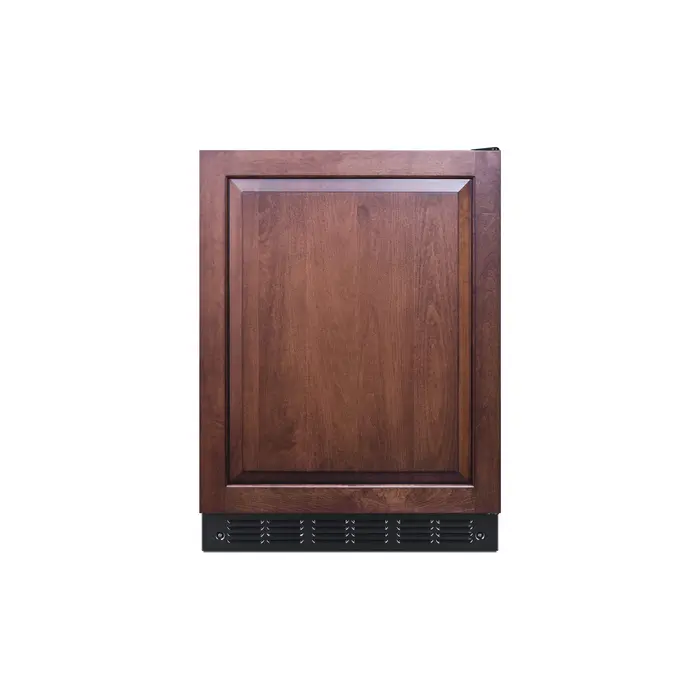

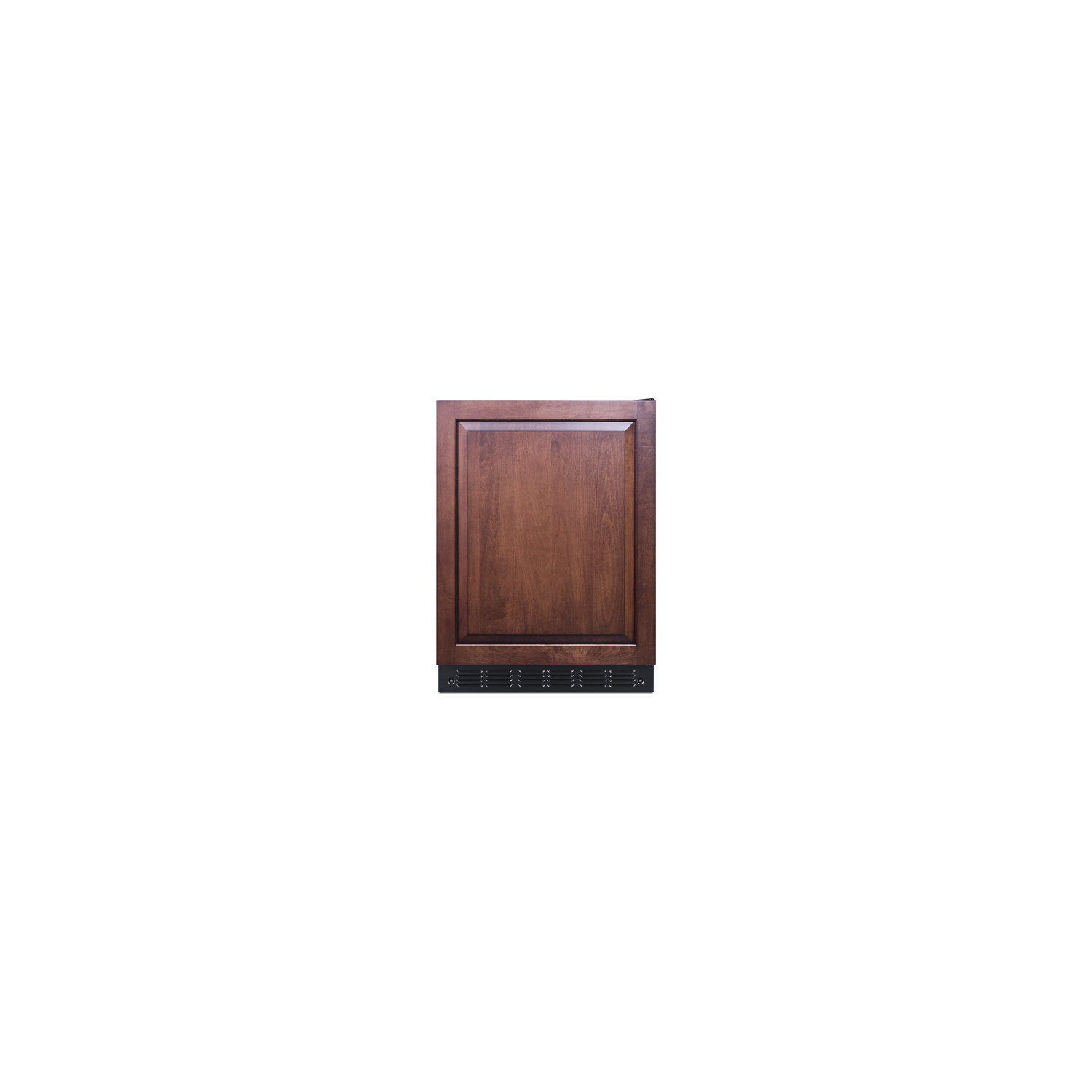

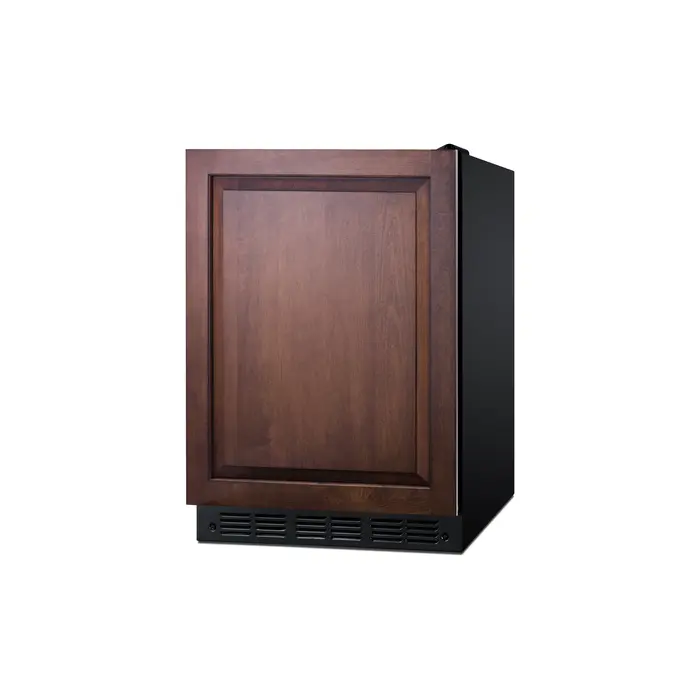

Sized at 32" high with a 24" footprint, model FF6BK2SSIFADA is an ENERGY STAR certified all-refrigerator designed for residential use under lower ADA compliant counters. The door features an integrated stainless steel exterior frame designed to accept overlay panels, allowing you to create a custom look that can seamlessly blend into your kitchen (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick). Users provide their own handle to complete the look. This unit has a jet black exterior cabinet and runs quietly at less than 33 dB.

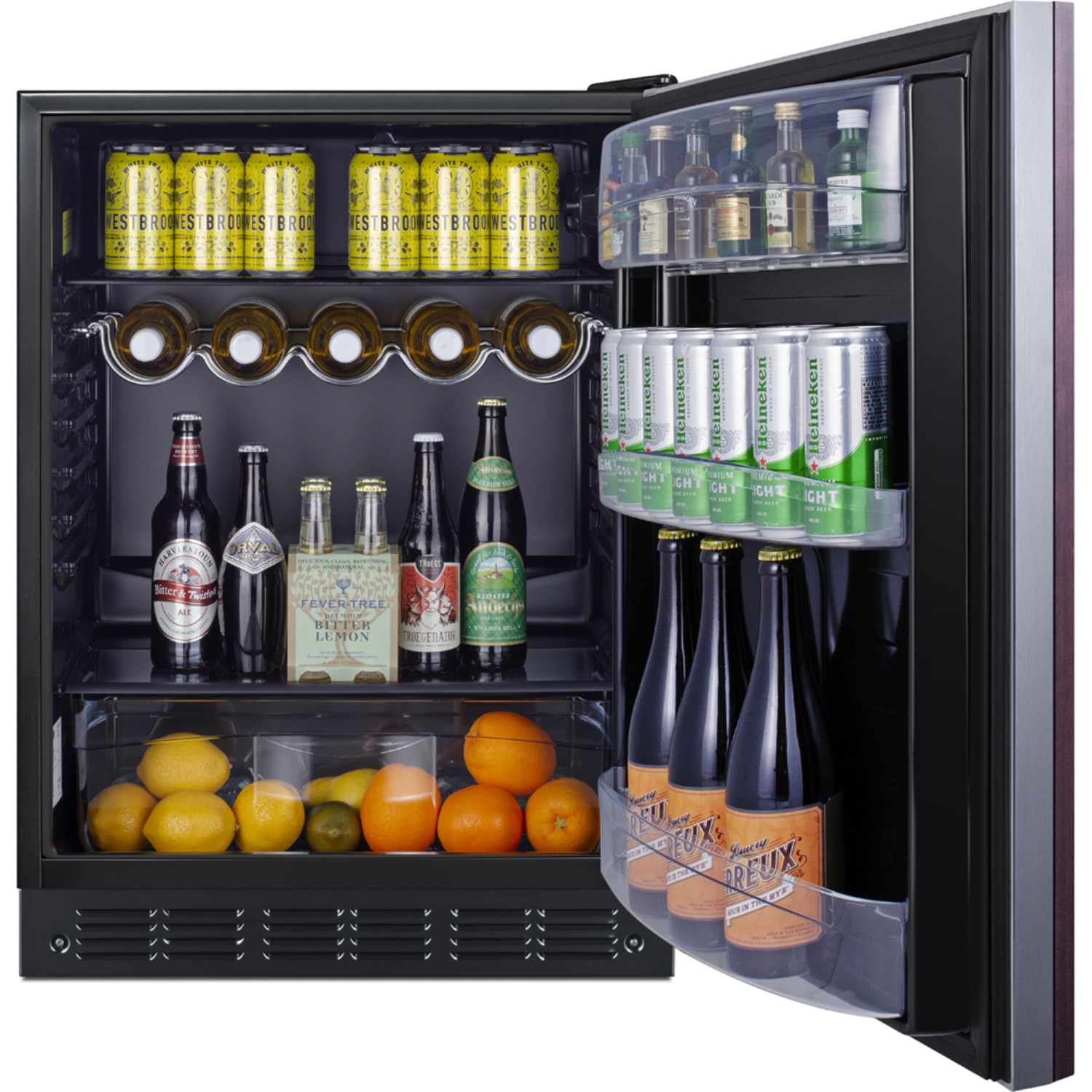

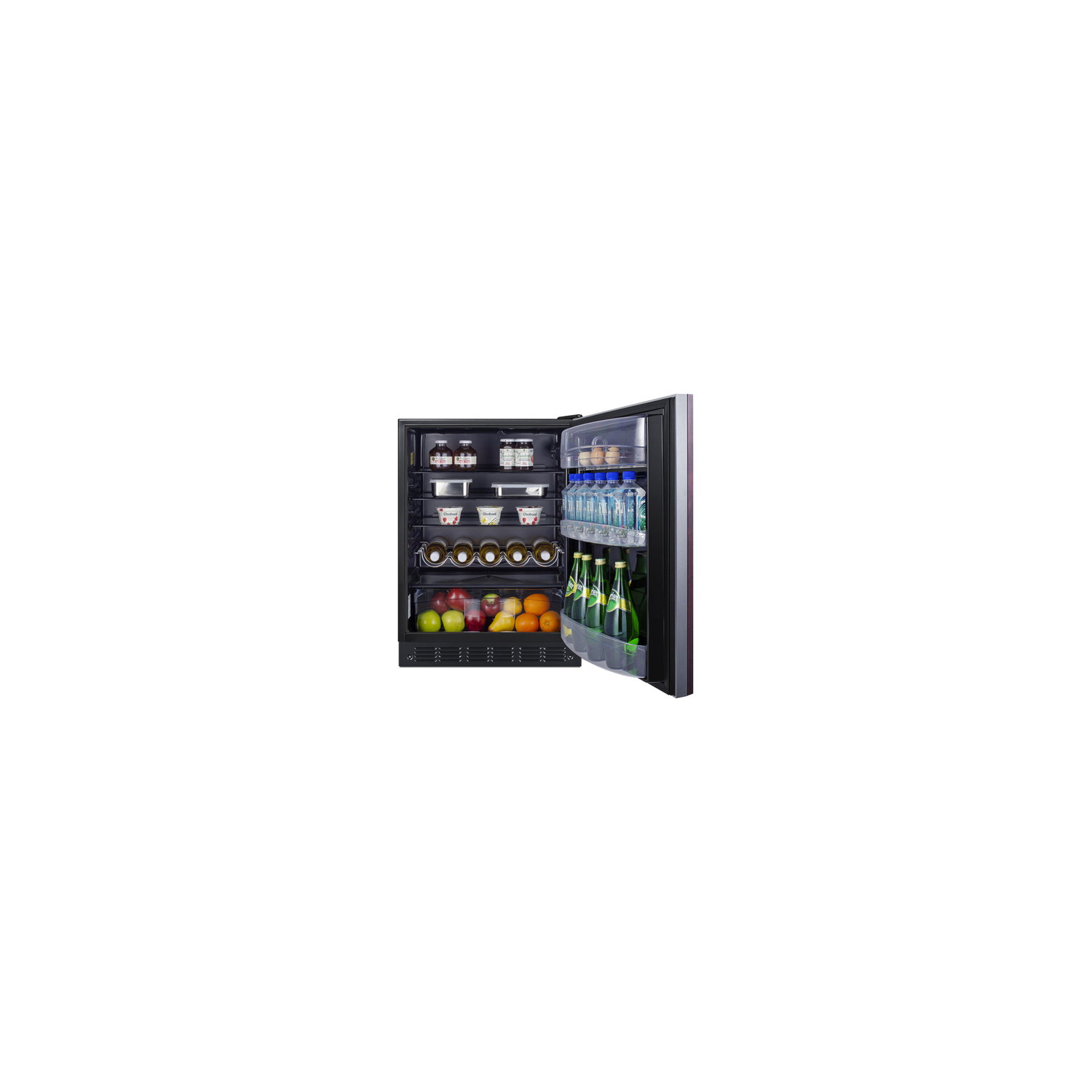

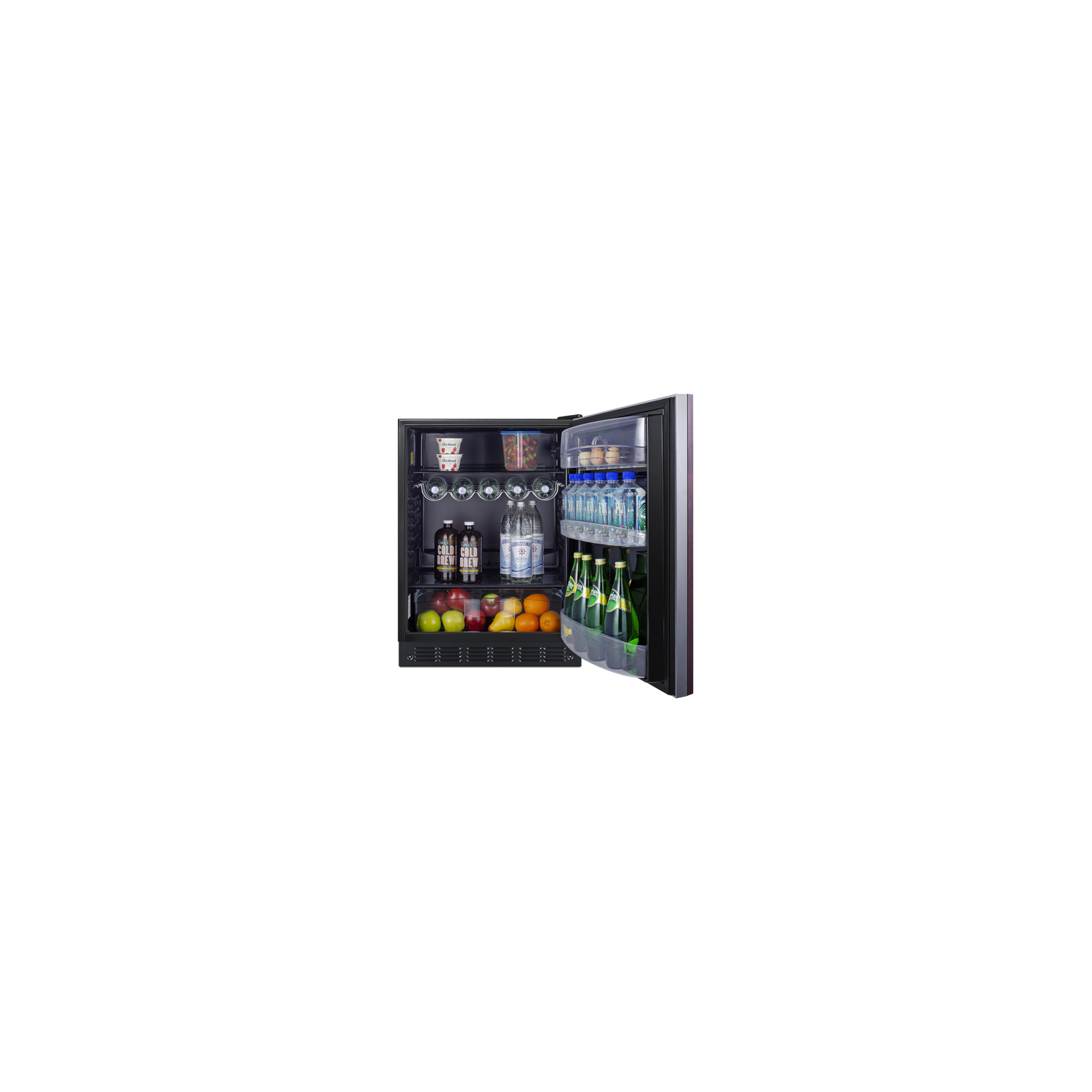

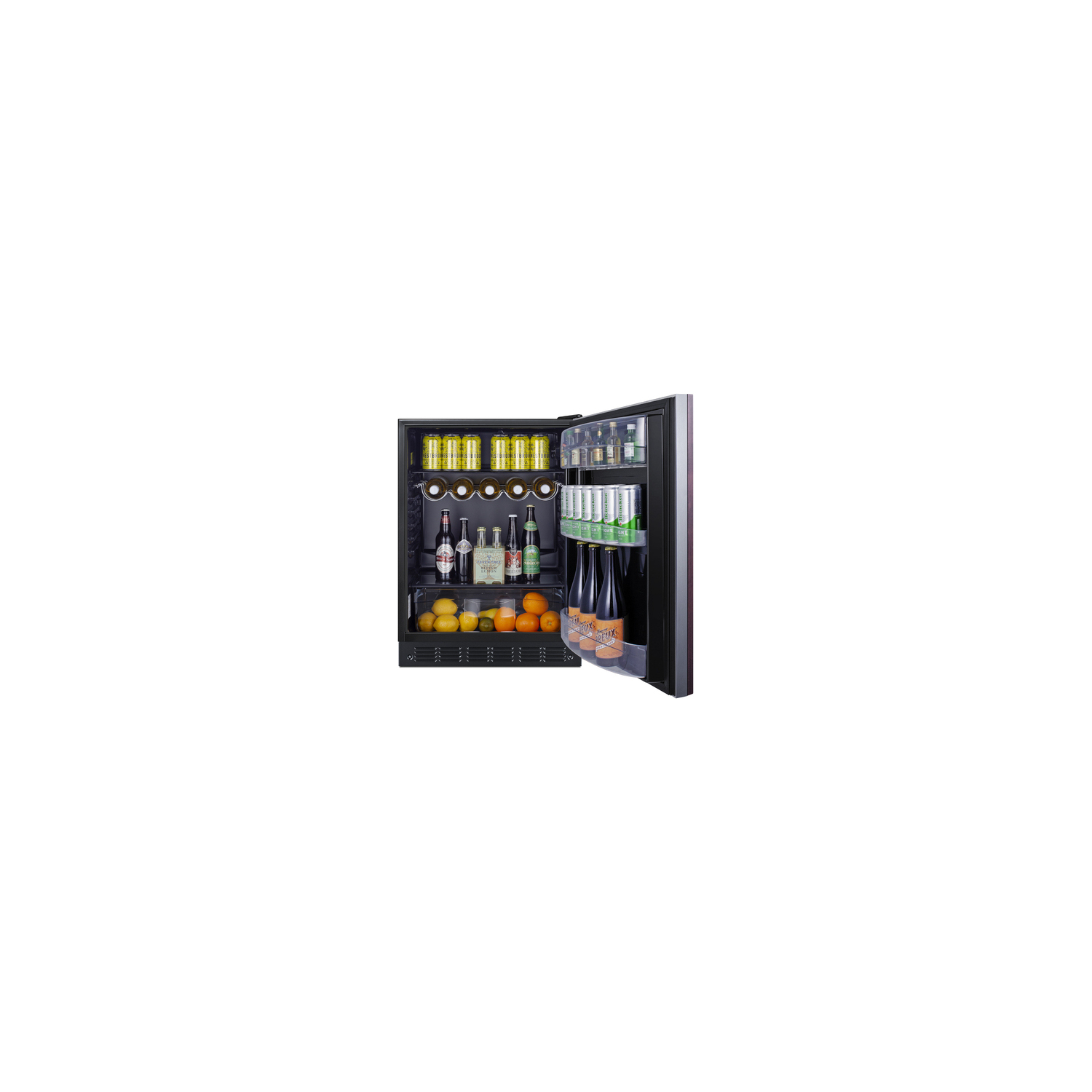

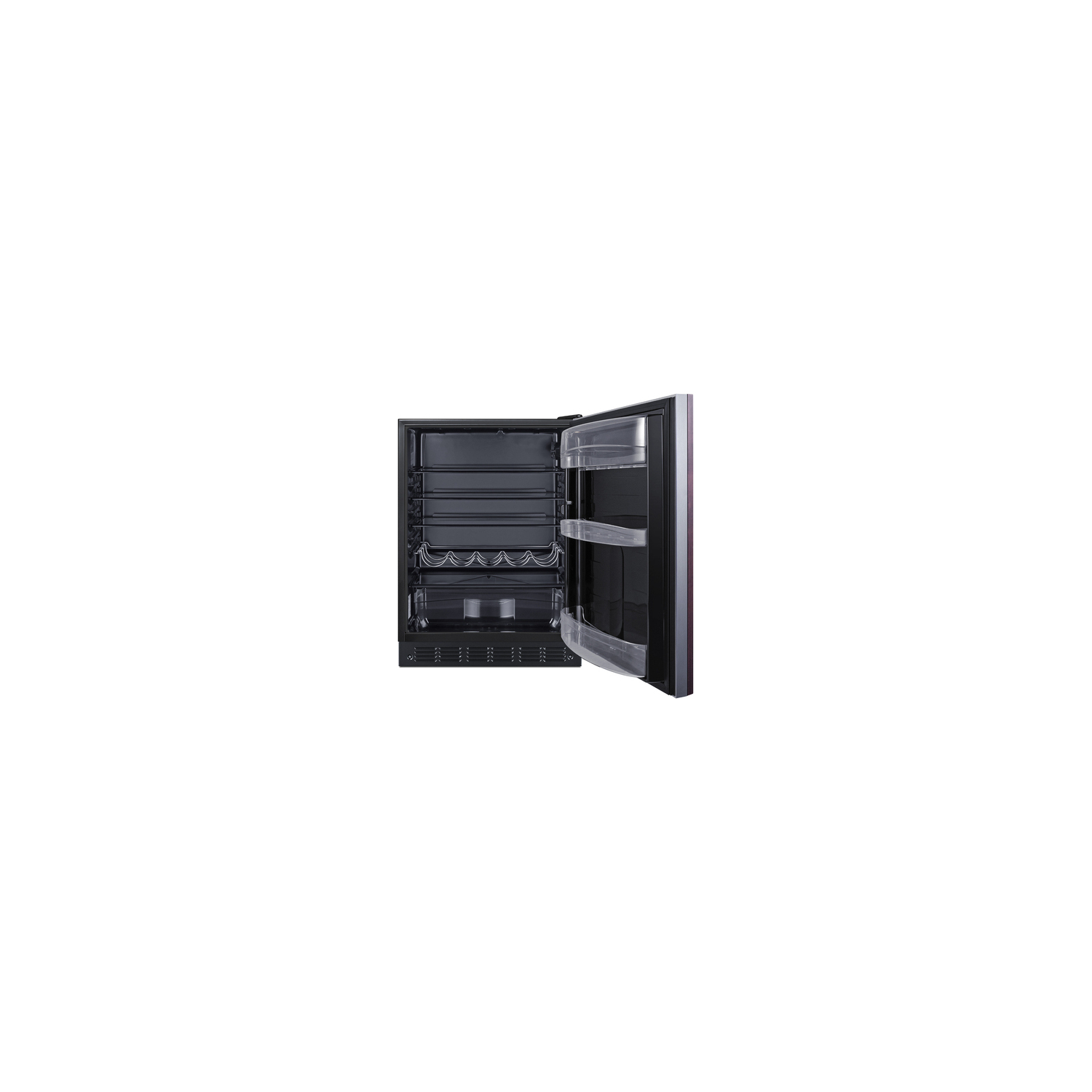

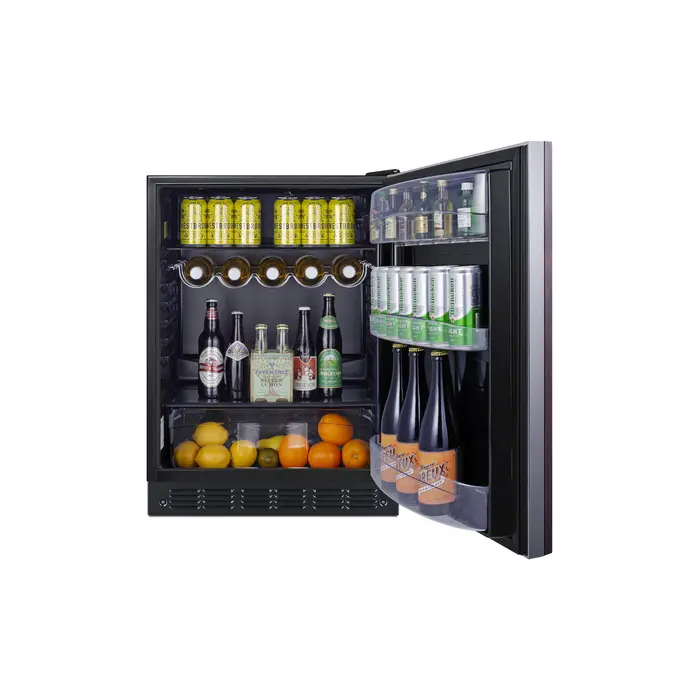

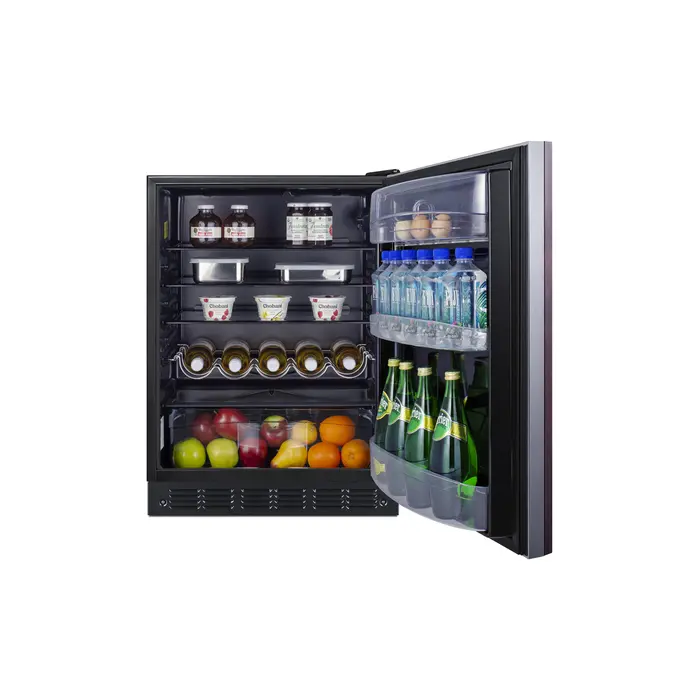

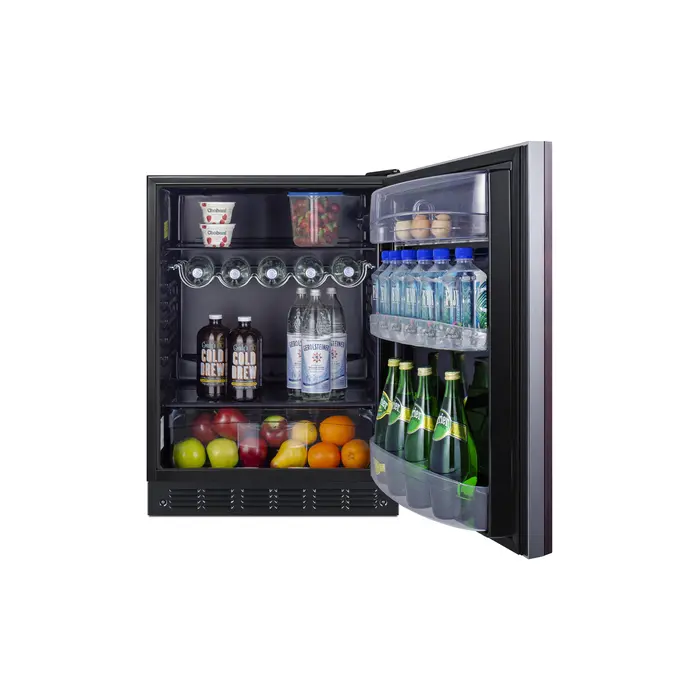

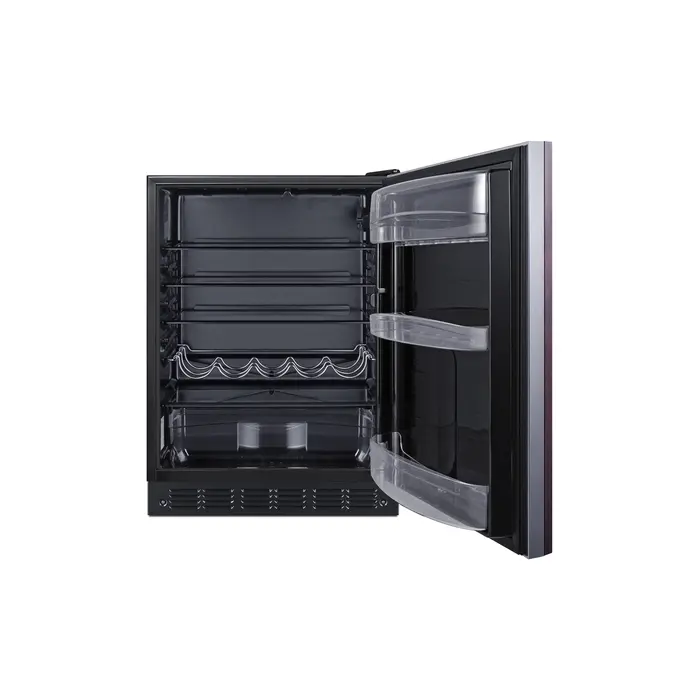

With a full 5.8 cu.ft. interior, the FF6BK2SSIFADA offers a higher storage capacity than other counter height units in the market. It features a black interior liner and black trimmed adjustable glass shelves for spill-proof storage. We also include a removable scalloped steel rack ideal for holding bottles in a horizontal position. A large clear crisper makes it easy to store produce at its best and three clear door racks let you keep condiments in easy reach. A light automatically illuminates the interior when the door is open.

Summit's European lineup features classic mechanical controls. The dial thermostat ensures an intuitive, trouble-free performance without any internal boards or chips. Automatic defrost reduces user maintenance and our signature cold wall design creates an efficient, reliable cooling system.

The FF6BK2SSIFADA is UL listed for residential use. With its large capacity, professional finish, and user-friendly features, this freezerless refrigerator is a convenient option for homes, offices, schools, and other settings in need of reliable cold storage. Additional choices are available in other finishes, as well as with freezer compartments (model CT66BK2SSIFADA). Browse the full Summit catalog to discover the perfect appliance for your refrigeration needs.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.0" (81 cm)

Height to Hinge Cap 32.13" (82 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.38" (57 cm)

Depth with Handle 24.0" (61 cm)

Depth with door at 90° 44.25" (112 cm)

Capacity 5.8 cu.ft. (164 L)

Defrost Type Automatic

Door Panel-Ready

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 280.0kWh/year

Amps 0.8

Voltage/Frequency 115 V AC/60 Hz

Weight 100.0 lbs. (45 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101103242

Refrigerator Features

Door Swing RHD

Reversible Factory Reversible

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Glass

Shelf Type Glass and Scalloped

Shelf Qty 3

Full Door Shelf Qty 3

Adjustable Shelves Yes

Wine Bottle Shelves Yes

Thermostat Type Dial

Refrigerant Type R600a

Refrigerant Amount 0.64oz.

Level Legs Qty 2

Interior Light Yes

Temperature Range 36 to 46°F

Sound Level 32.6 dBa

Dimensions

Interior Height 27.75" (70 cm)

Interior Width 21.0" (53 cm)

Interior Depth 18.0" (46 cm)

Compressor Step Height 5.5" (14 cm)

Compressor Step Width 21.0" (53 cm)

Compressor Step Depth 6.0" (15 cm)

FEATURES

24" wide European all-refrigerator Freezerless refrigerator designed and manufactured in Europe for residential use

ENERGY STAR certified Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

ADA Compliant height 32" height allows easy installation under lower ADA compliant counters

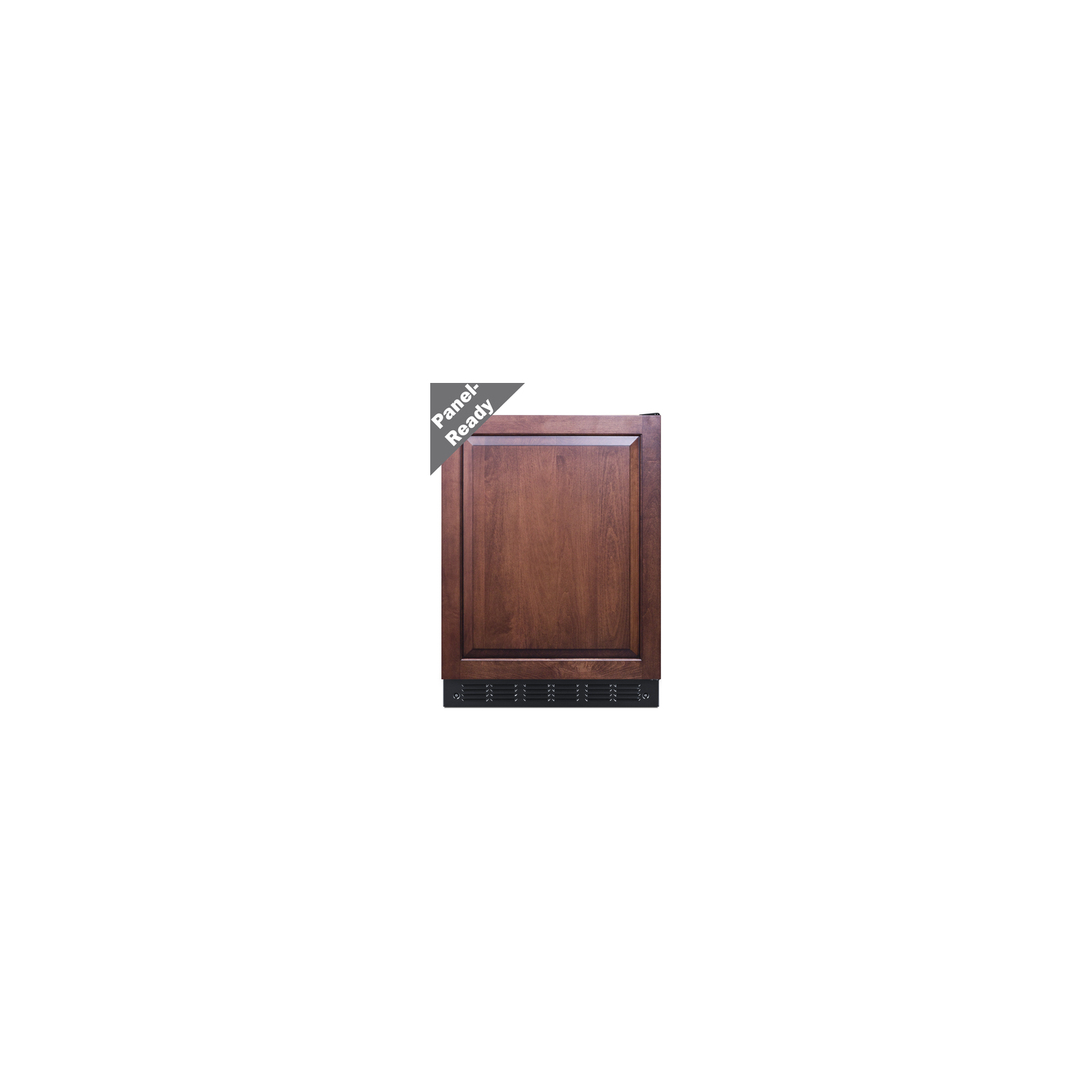

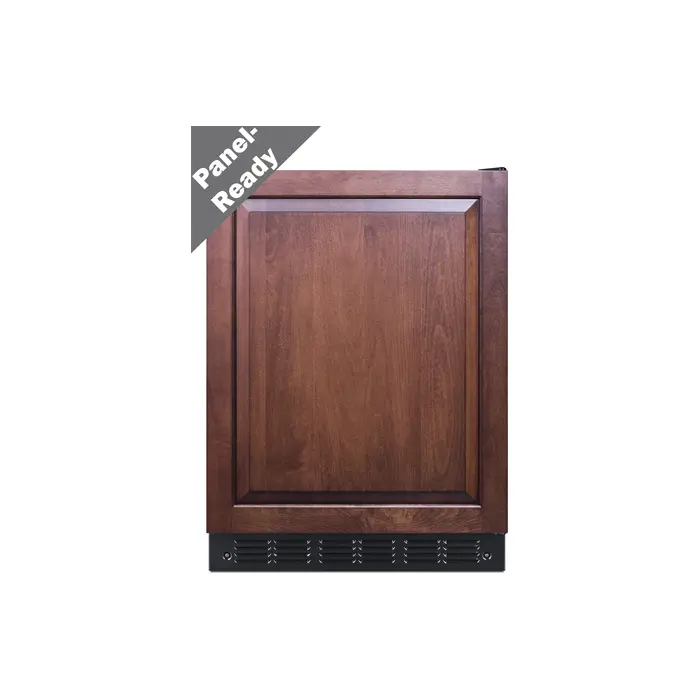

Panel-ready door Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)

Large capacity 5.8 cu.ft. interior offers more storage space than units in this size class

Automatic defrost No-frost operation for minimum user maintenance

Adjustable glass shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

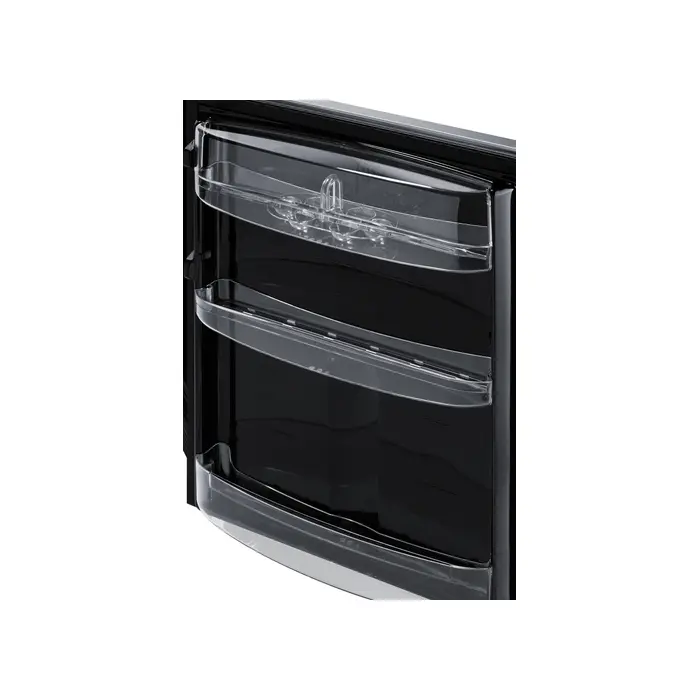

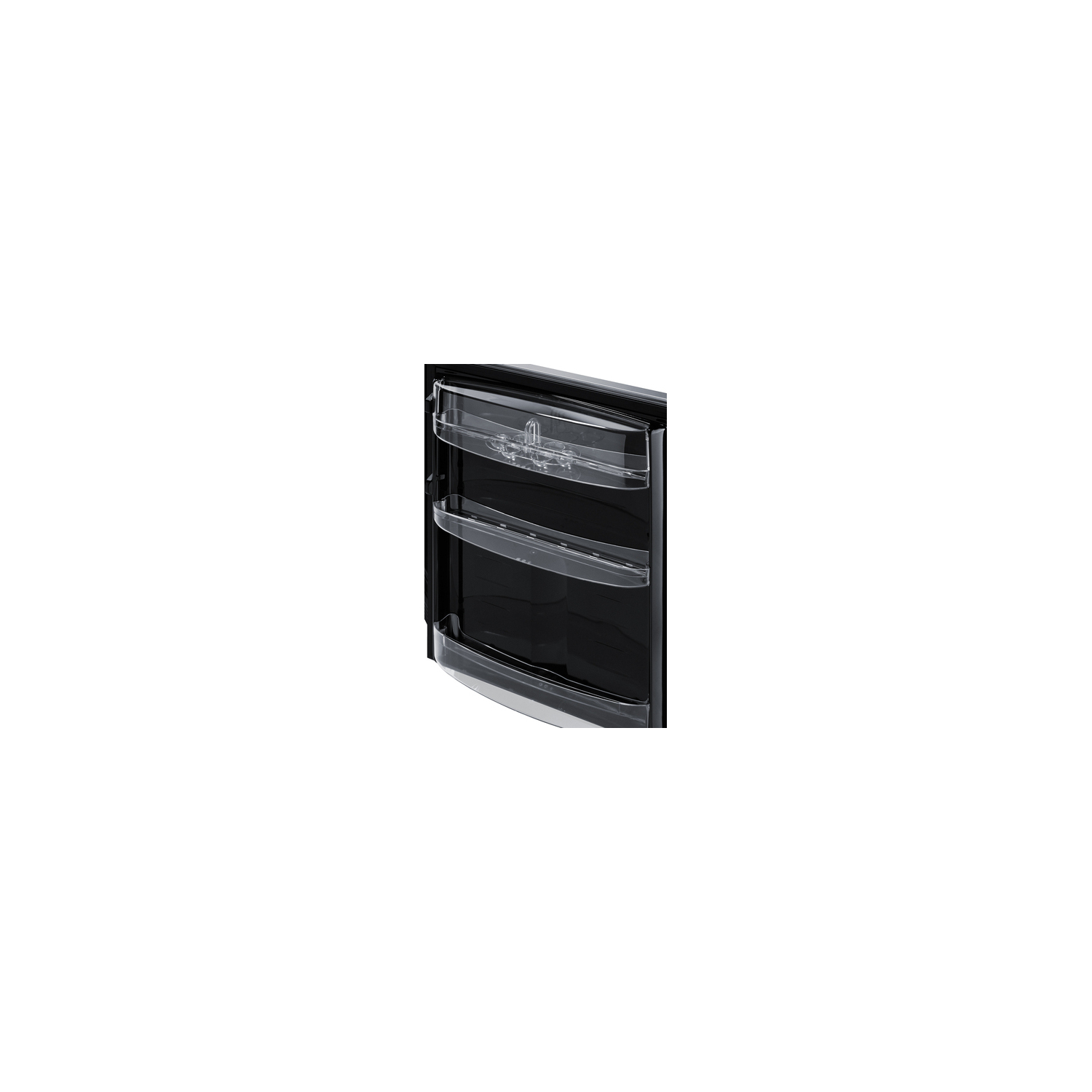

Door storage Store tall bottles and condiments right on the door for convenient access

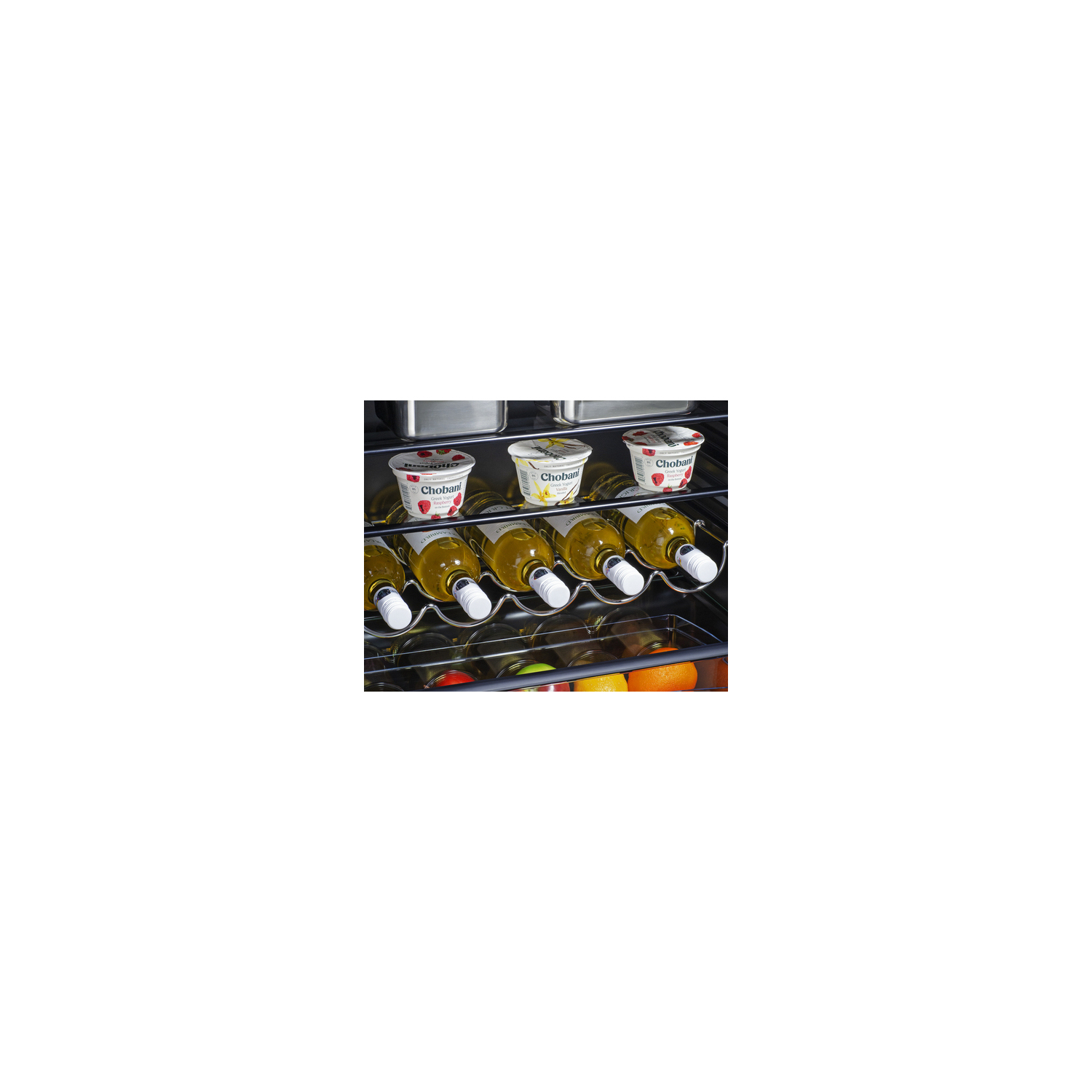

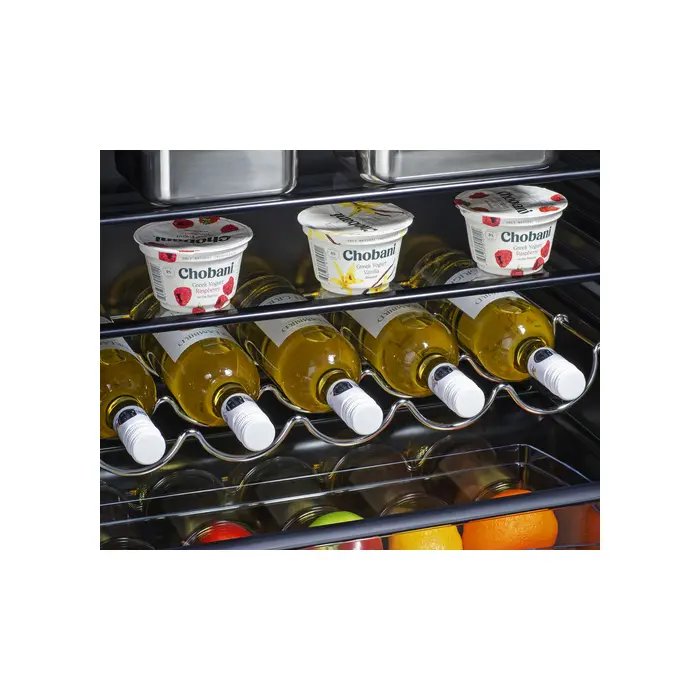

Bottle shelf included Removable scalloped steel shelf lets you keep wine and other bottles stored horizontally

Fruit and vegetable crisper Removable clear crisper drawer offers the ideal conditions for keeping produce at its best

Interior light Automatically illuminates when you open the door

One piece interior liner Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Hidden evaporator Cold wall design with hidden evaporator creates a seamless, easy to clean interior

Black interior Attractive jet black finish inside to match the cabinet and kickplate

Adjustable mechanical thermostat Simple and intuitive analog controls located inside for easy temperature management

Quiet operation Runs at under 33 dB for a quiet performance in any setting

Fully finished black cabinet Allows the unit to be used freestanding

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (FF6BK2SSIFADA.pdf)

TECHNICAL DRAWING (.dwg) (FF6BK2SSIFADA.dwg)

ASSEMBLY DRAWING (FF6BK2SSIFADA-Assembly.pdf)

REVIT MODEL (QF_Summit_FF6BK2SSIFADA_Refrigerator.rfa)

USE & CARE (FF6BK2SSIFADA-User-Manual.pdf)

Energy Guide
