Summit Undercounter auto defrost all-refrigerator for residential use with a customizable door front to accept overlay panels and black cabinet finish, FF63BKIF

Summit's Peak24 series of undercounter European-made refrigeration features energy efficient, counter height choices that offer the largest capacity in the industry.

Sized with a 24” footprint and 32” height, the FF63BKIF is an ENERGY STAR certified all-refrigerator designed for residential use. The door includes an integrated stainless steel frame that accepts full custom panels (sized 23 5/16" W x 28 1/4" H and at least 3/4" thick) to create a customized look that can seamlessly blend with other kitchen cabinetry. This model has a jet black cabinet. Customers provide their own handle.

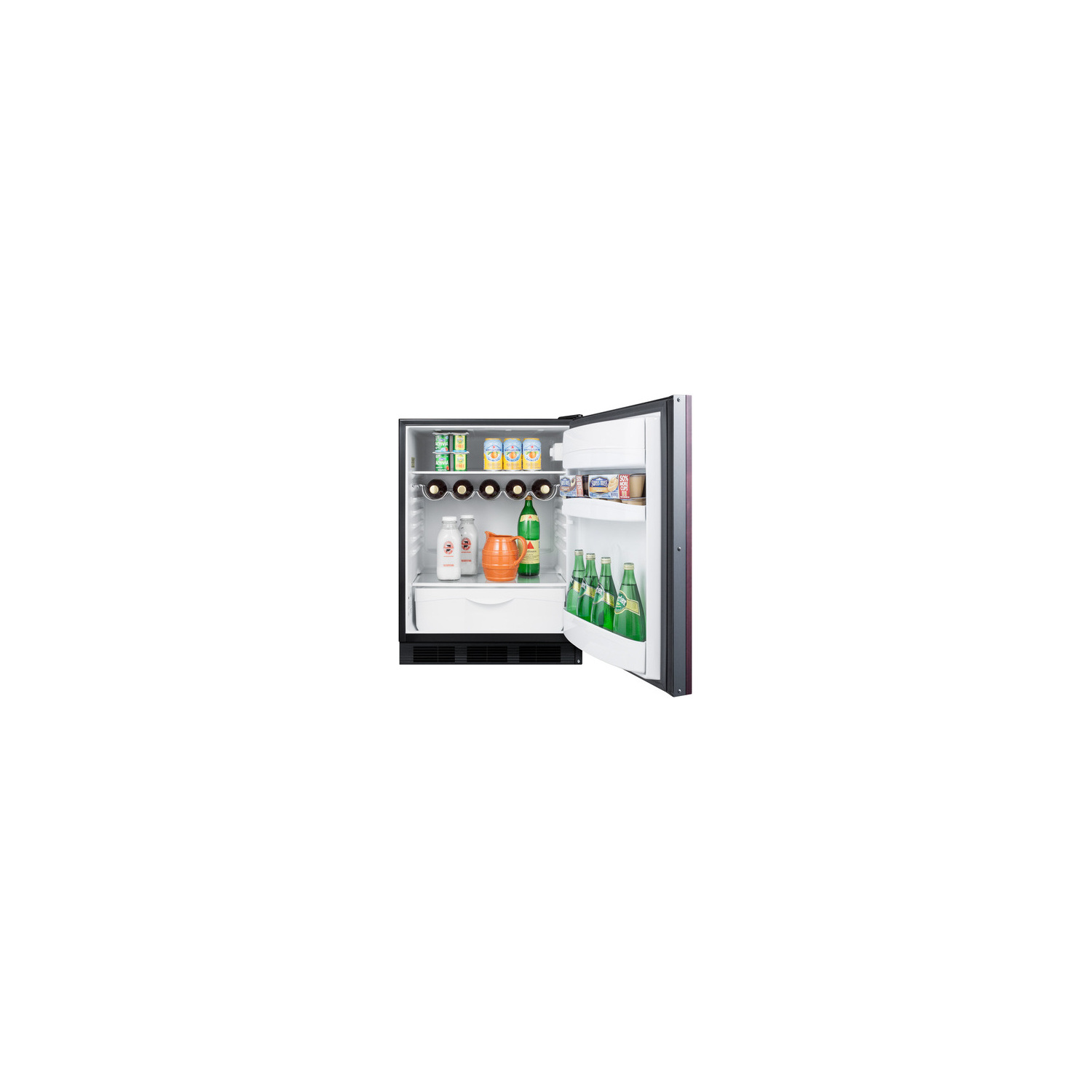

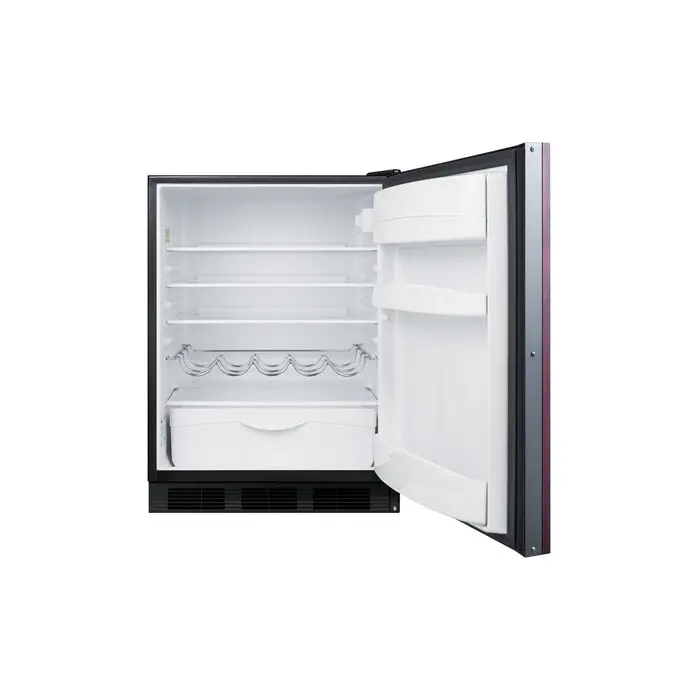

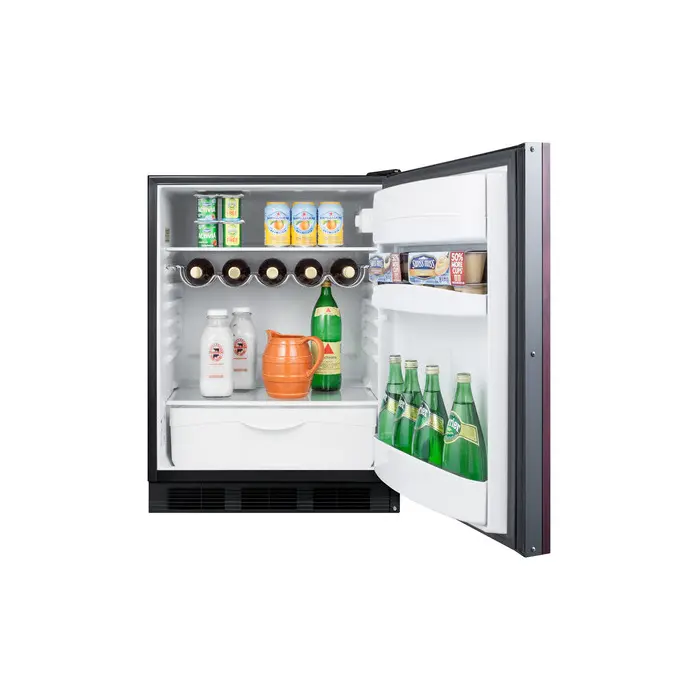

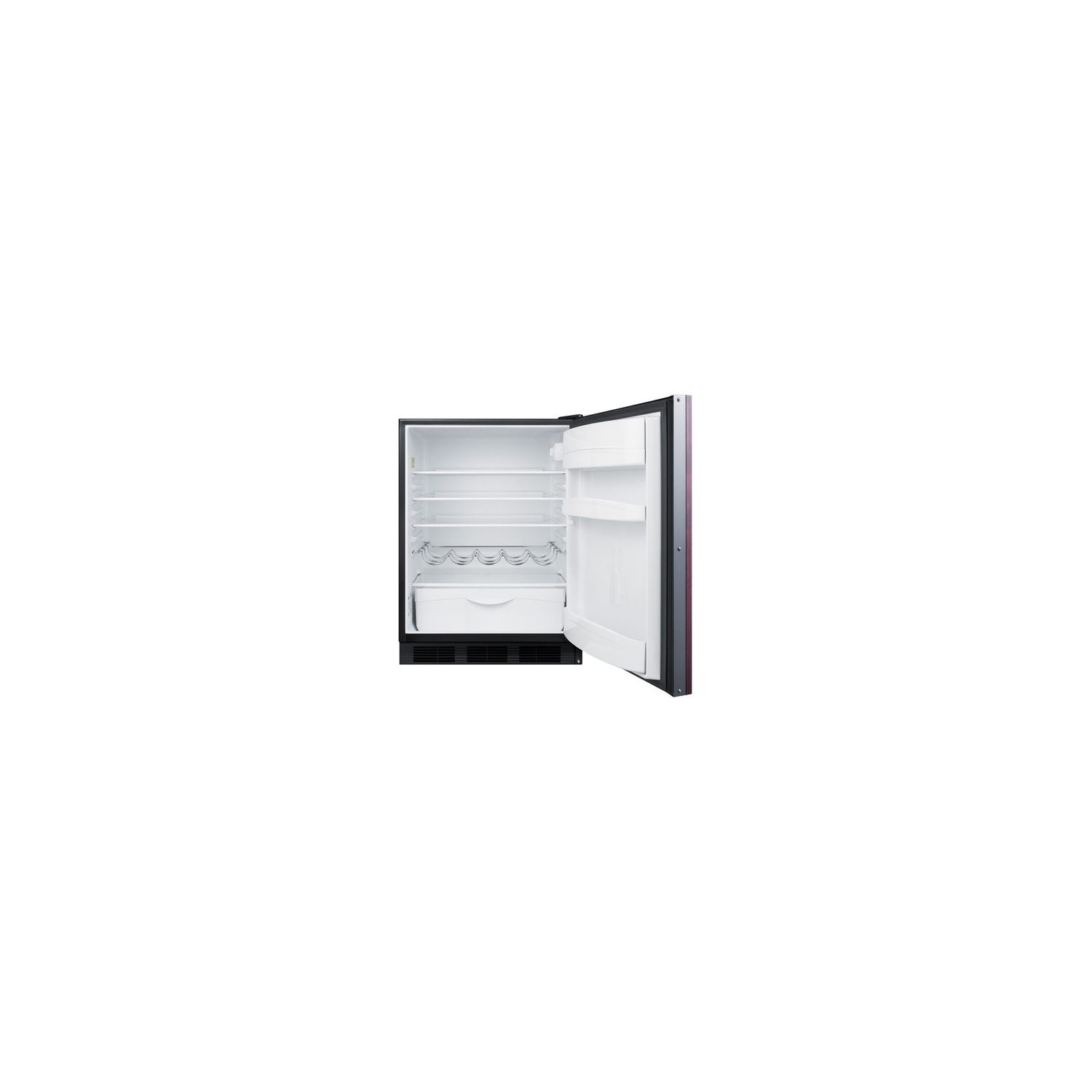

With a full 5.8 cu.ft. interior, the Peak24 series offers a higher storage capacity than other counter height units in the market. Inside, the FF63BKIF utilizes automatic defrost operation to ensure minimum user maintenance. The 5.8 cu.ft. interior offers more storage space than most models in this size class. Adjustable glass shelves ensure spill-proof storage, while a large crisper drawer is ideal for keeping produce at its best. A removable wine shelf lets you keep bottles securely in place. The door includes three storage racks for condiments and tall bottles. The seamless interior also features a dial thermostat and automatic light.

The FF63BKIFADA is UL listed for residential use. With its large capacity and user-friendly features, this freezerless refrigerator is a convenient option for homes, offices, schools, and other settings in need of reliable cold storage. Additional choices are available in lower ADA height, as well as with freezer compartments (model CT663BKIF). Browse the full Summit catalog to discover the perfect appliance for your refrigeration needs.

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 33.25" (84 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 23.0" (58 cm)

Depth 23.0" (58 cm)

Depth with door at 90° 45.38" (115 cm)

Capacity 5.8 cu.ft. (164 L)

Defrost Type Automatic

Door Panel-Ready

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 280.0kWh/year

Amps 1.4

Voltage/Frequency 115 V AC/60 Hz

Weight 100.0 lbs. (45 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101108568

Refrigerator Features

Door Swing RHD

Reversible Factory Reversible

Crisper Qty 1

Crisper Finish Opaque

Crisper Cover Glass

Shelf Type Glass

Shelf Qty 3

Full Door Shelf Qty 3

Adjustable Shelves Yes

Wine Bottle Shelves Yes

Thermostat Type Dial

Refrigerant Type R600a

Refrigerant Amount 0.64oz.

High Side PSI 180.0

Low Side PSI 80.0

Level Legs Qty 4

Interior Light Yes

Dimensions

Interior Height 26.25" (67 cm)

Interior Width 21.0" (53 cm)

Interior Depth 18.0" (46 cm)

Compressor Step Height 5.5" (14 cm)

Compressor Step Width 21.0" (53 cm)

Compressor Step Depth 6.0" (15 cm)

FEATURES

24" Wide European All-Refrigerator Freezerless refrigerator designed and manufactured in Europe for residential use

Peak24 Series European-made collection featuring large capacity interiors, ENERGY STAR certified performances, and versatile style for recessed installation

ENERGY STAR certified Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

Slim undercounter dimensions Ideal 24" footprint offers full 5.8 cu.ft. storage capacity in a slim fit

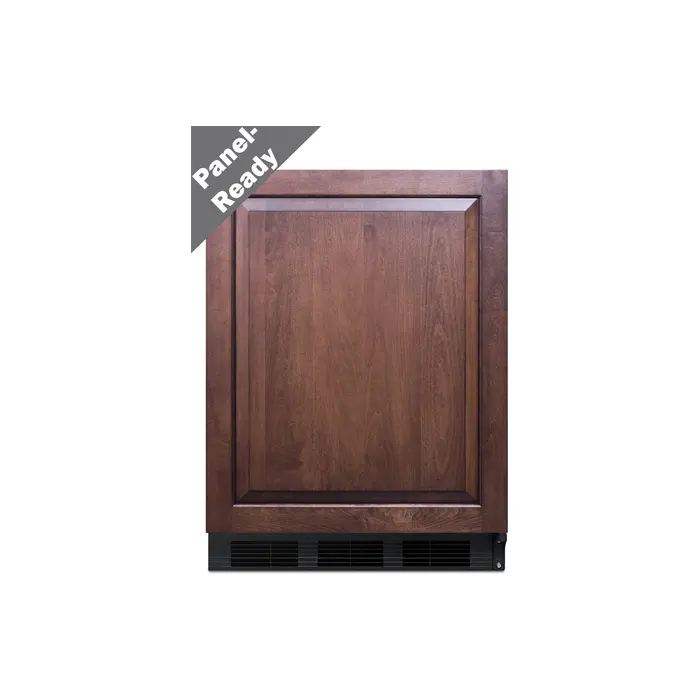

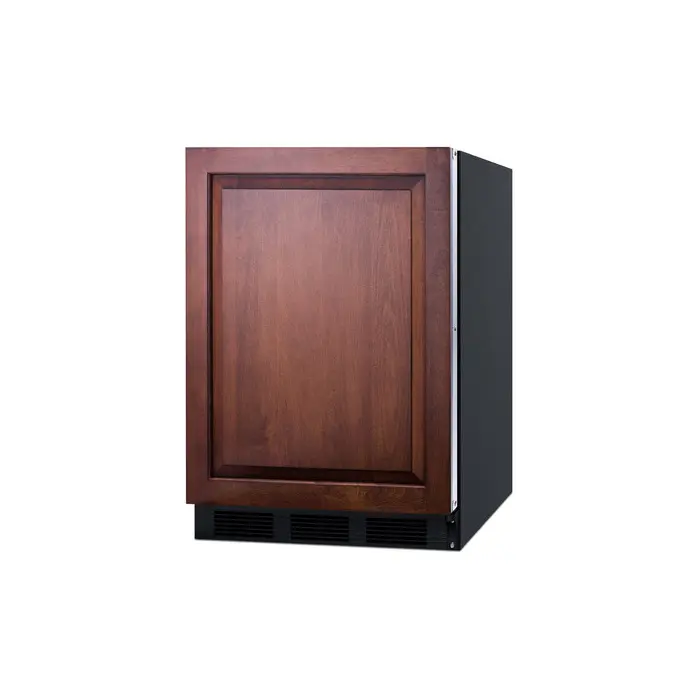

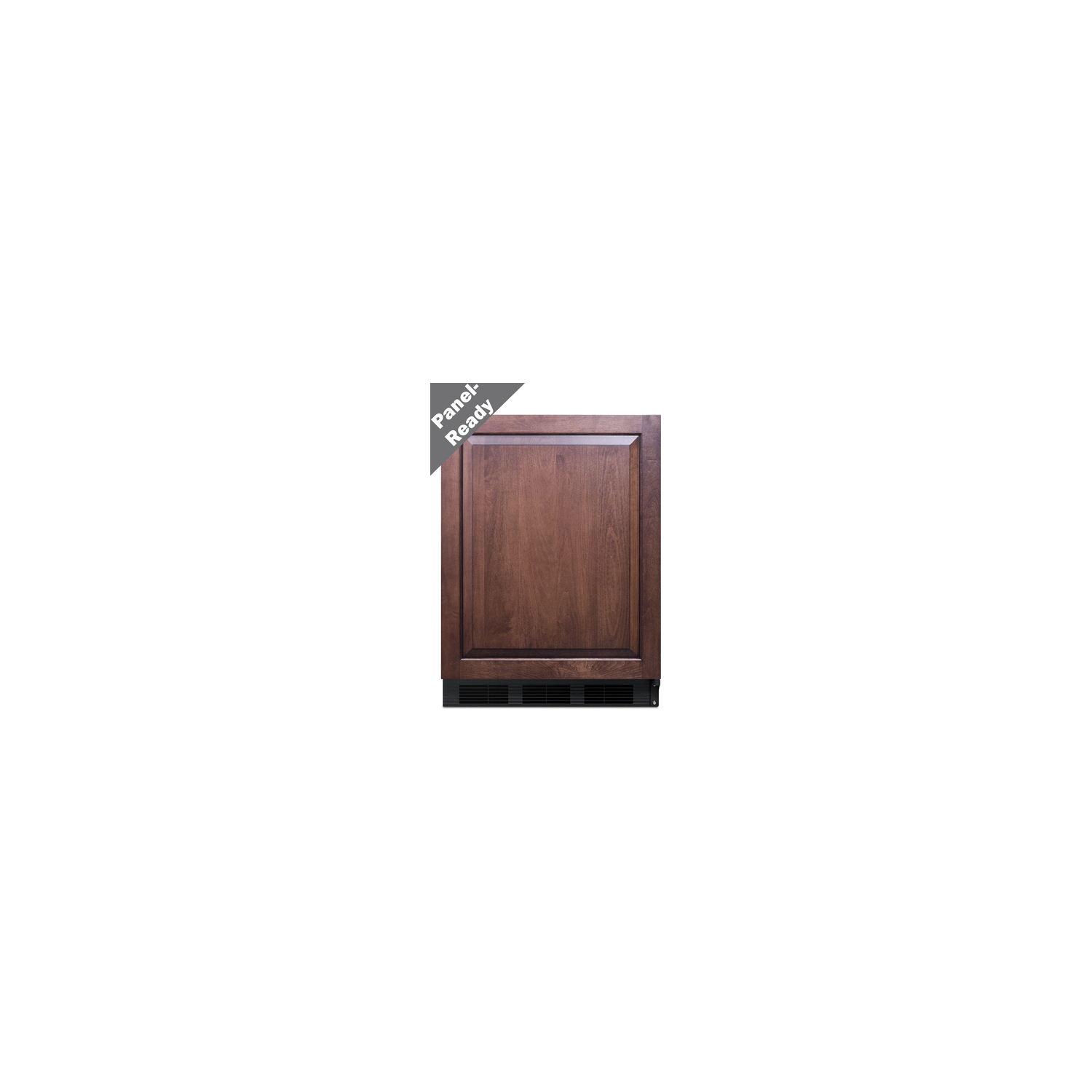

Panel-ready door Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)

Automatic defrost Reduced maintenance with auto defrost system

Adjustable glass shelves Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Door shelves Store tall bottles and condiments right on the door for convenient access

Wine shelf Removable scalloped wine shelf is included to store champagne and wine bottles

Fruit and vegetable crisper Get the longest life and best taste out of produce by storing greens in a convenient slide drawer

Interior light Automatically illuminates when you open the door

Hidden evaporator Cold wall design with hidden evaporator and seamless interior

One piece interior liner Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Adjustable thermostat Dial thermostat located inside for easy temperature management

Fully finished black cabinet Allows the refrigerator to be used freestanding

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC free Environmentally friendly design without ozone-damaging chemicals
