Summit ADA height refrigerator-freezer with timer-based auto defrost system, 7.61101e+011, FF43BADA

Summit manufactures a wide selection of ADA height refrigerator-freezers for hospitality settings, including timer-based automatic defrost options.

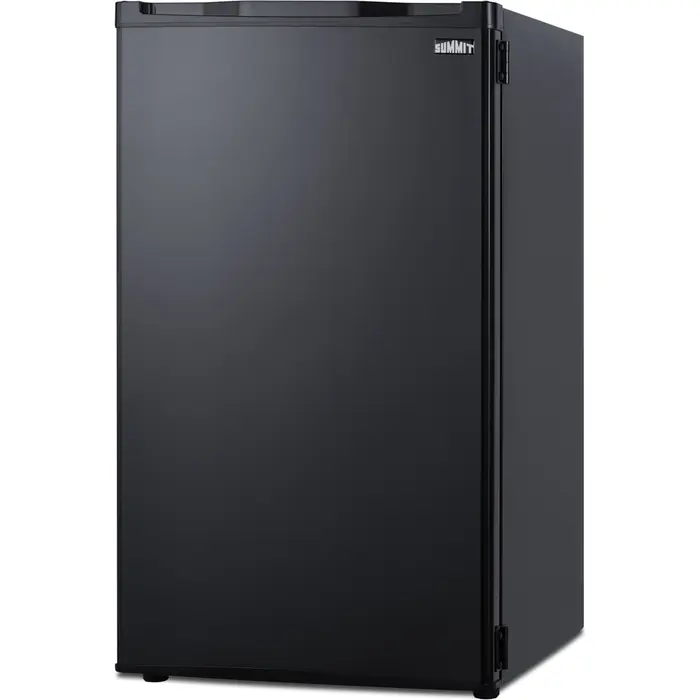

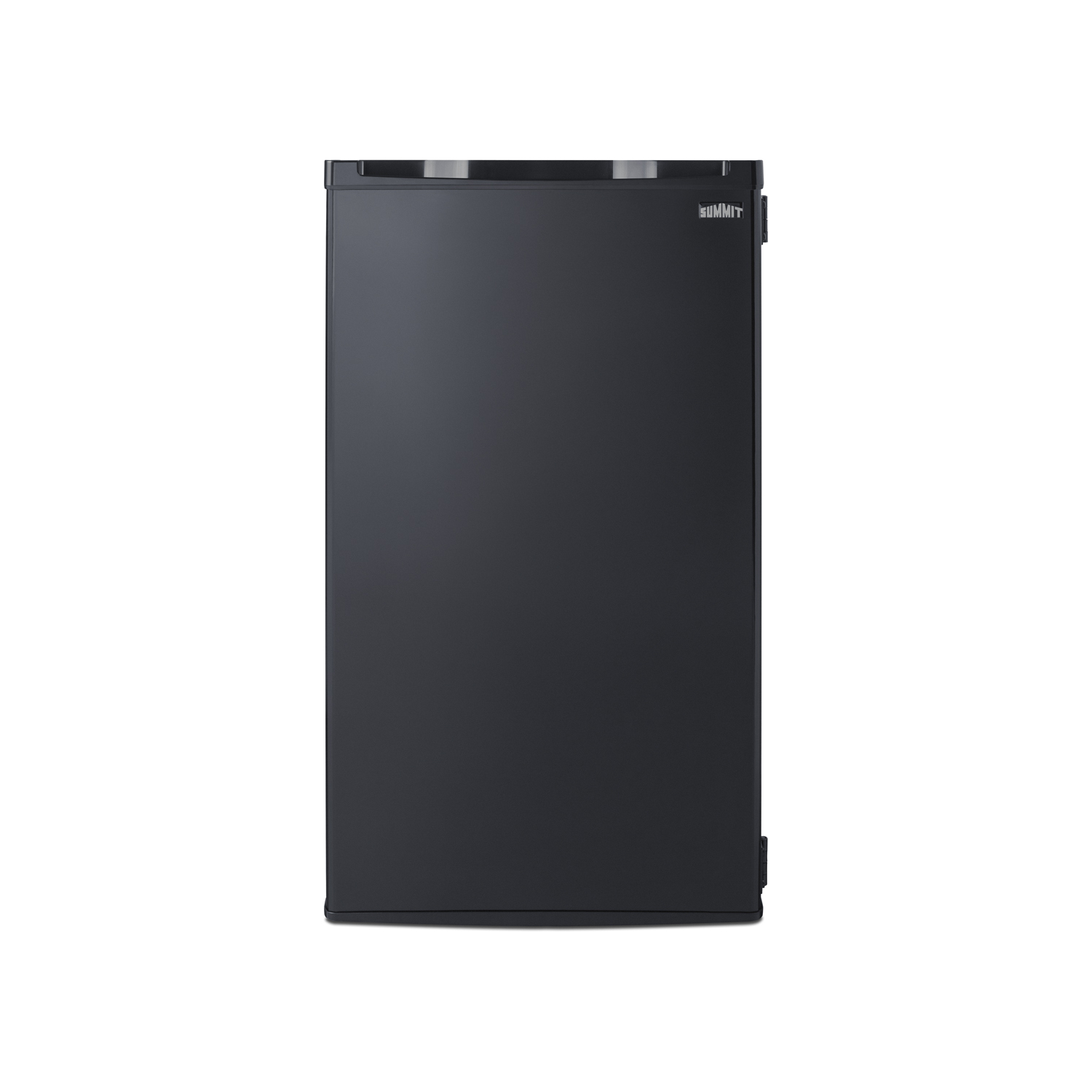

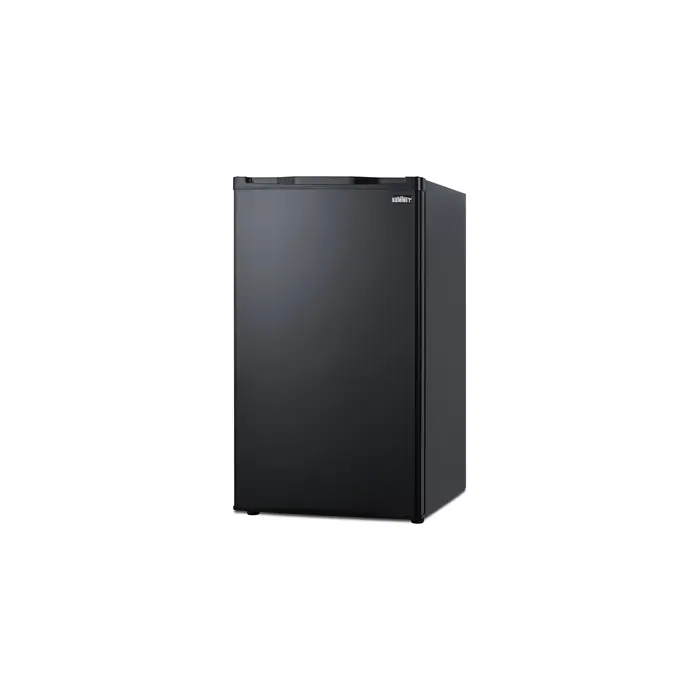

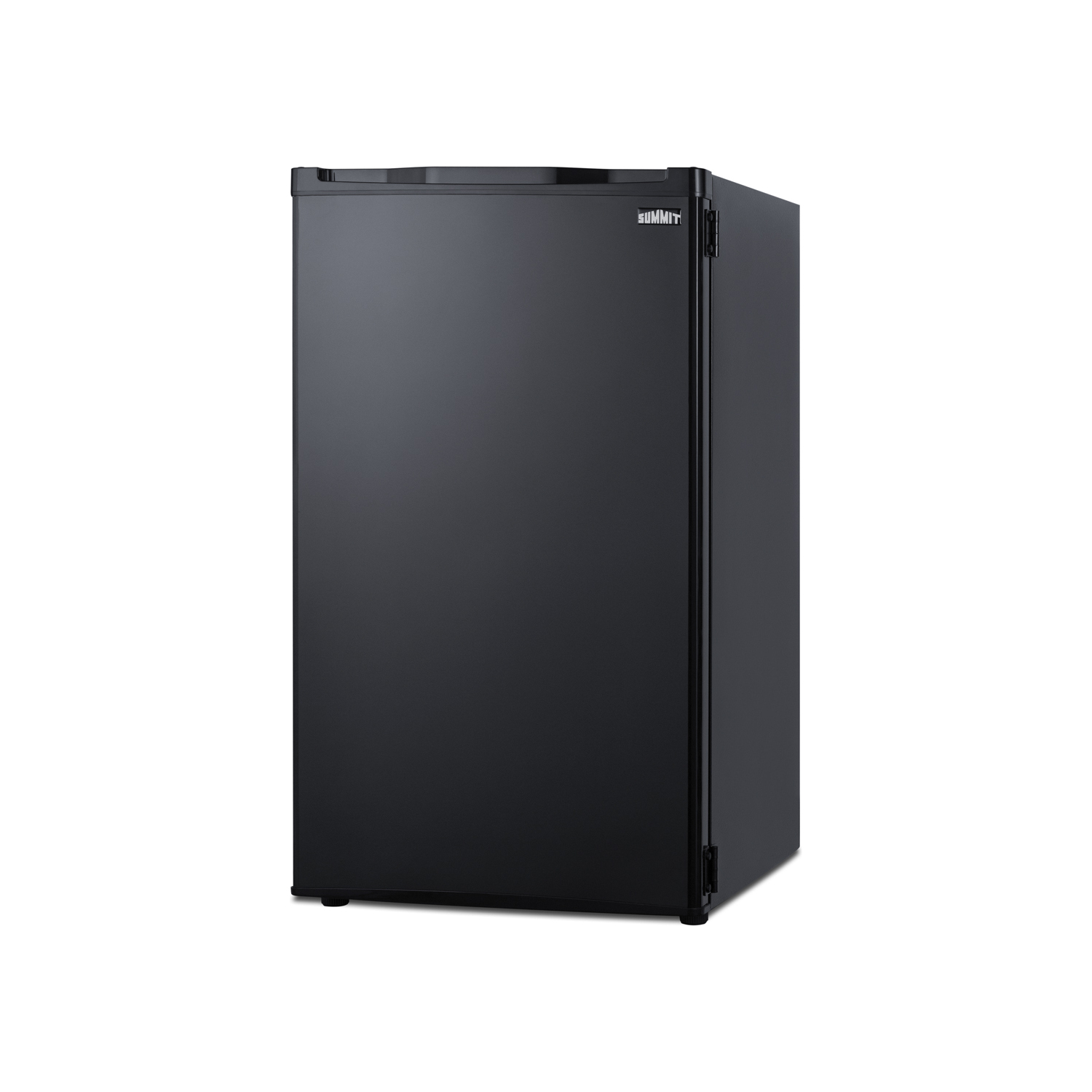

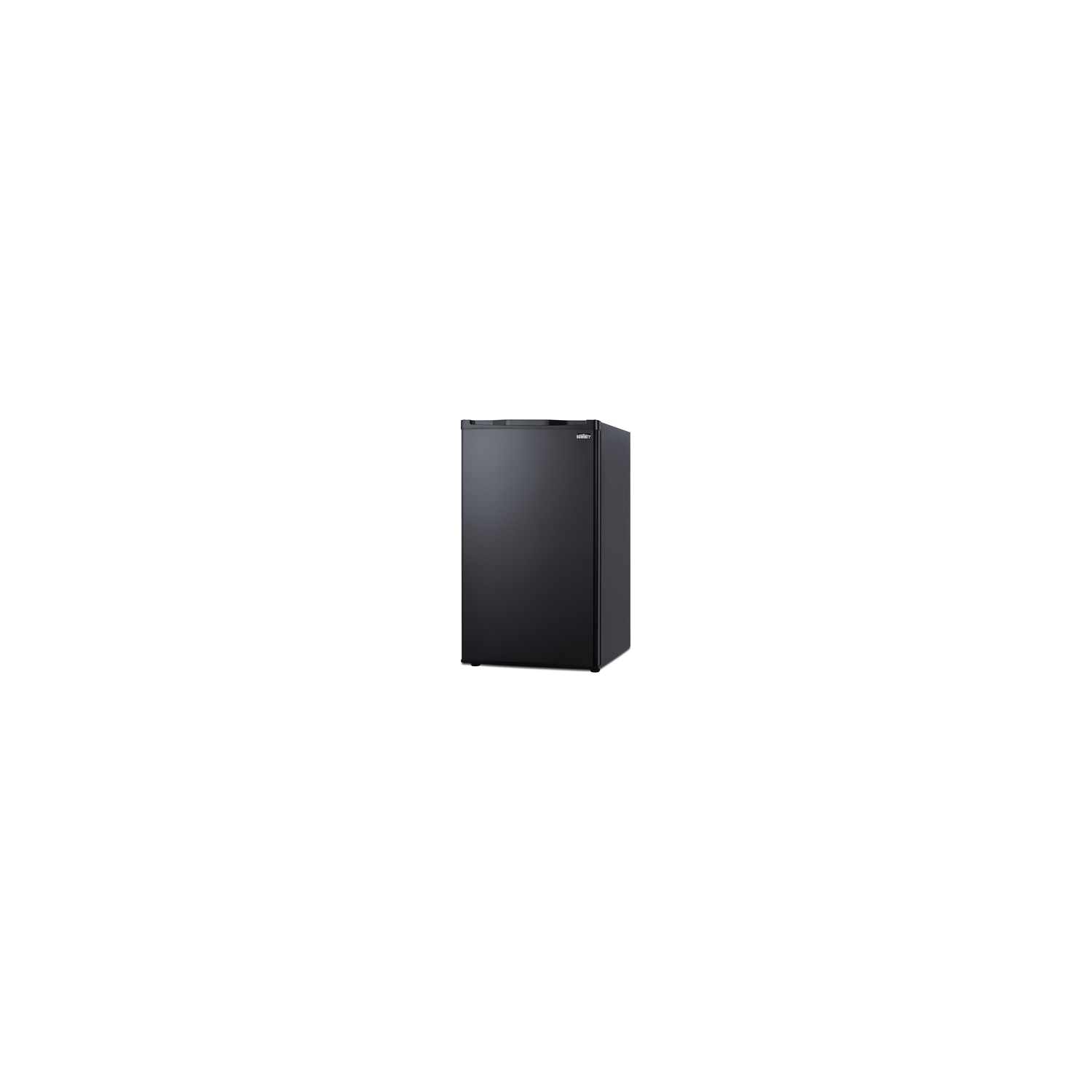

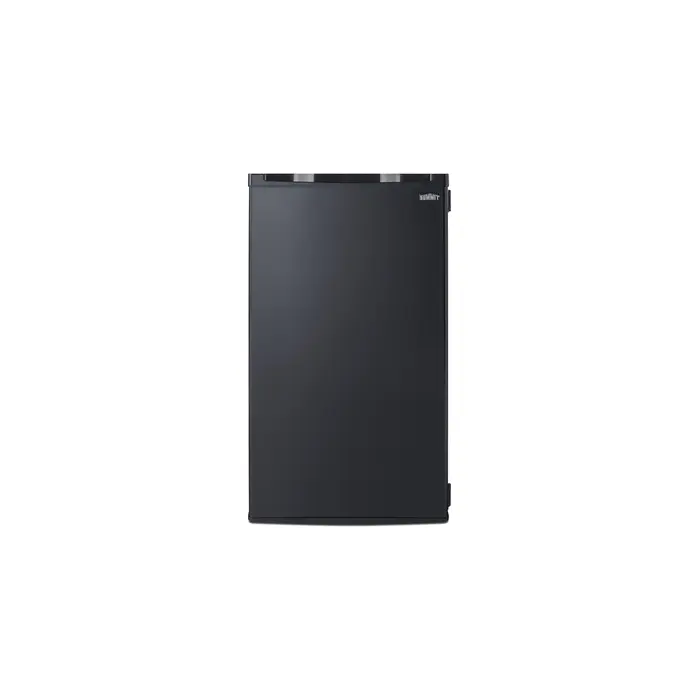

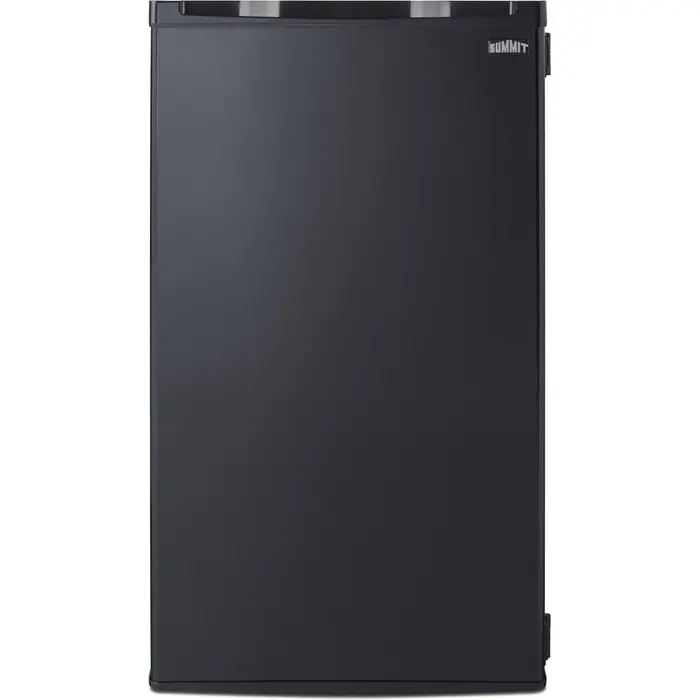

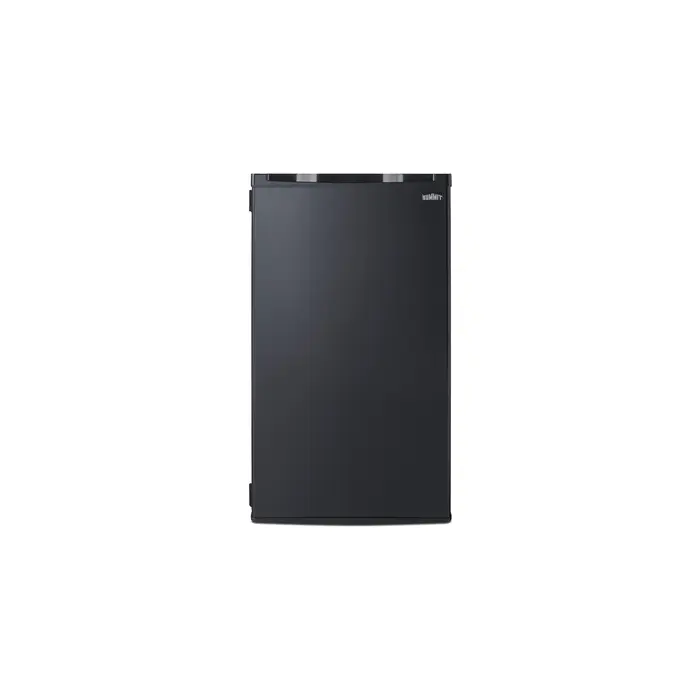

Model FF43BADA is a freestanding refrigerator sized at just 19" wide and 32.25" high for use in ADA compliant settings. The compact size is ideal for hotels, dormitories, offices, and other spaces. It comes with a textured black cabinet and user-reversible door for versatile placement.

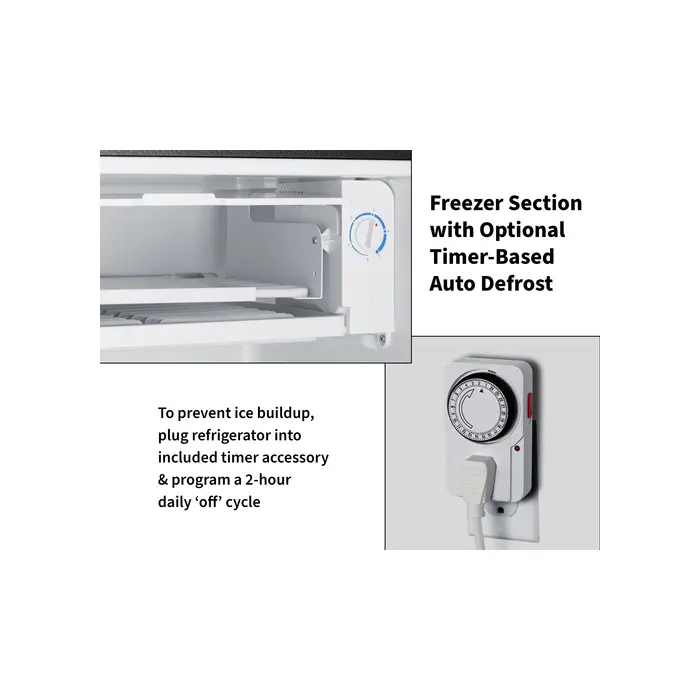

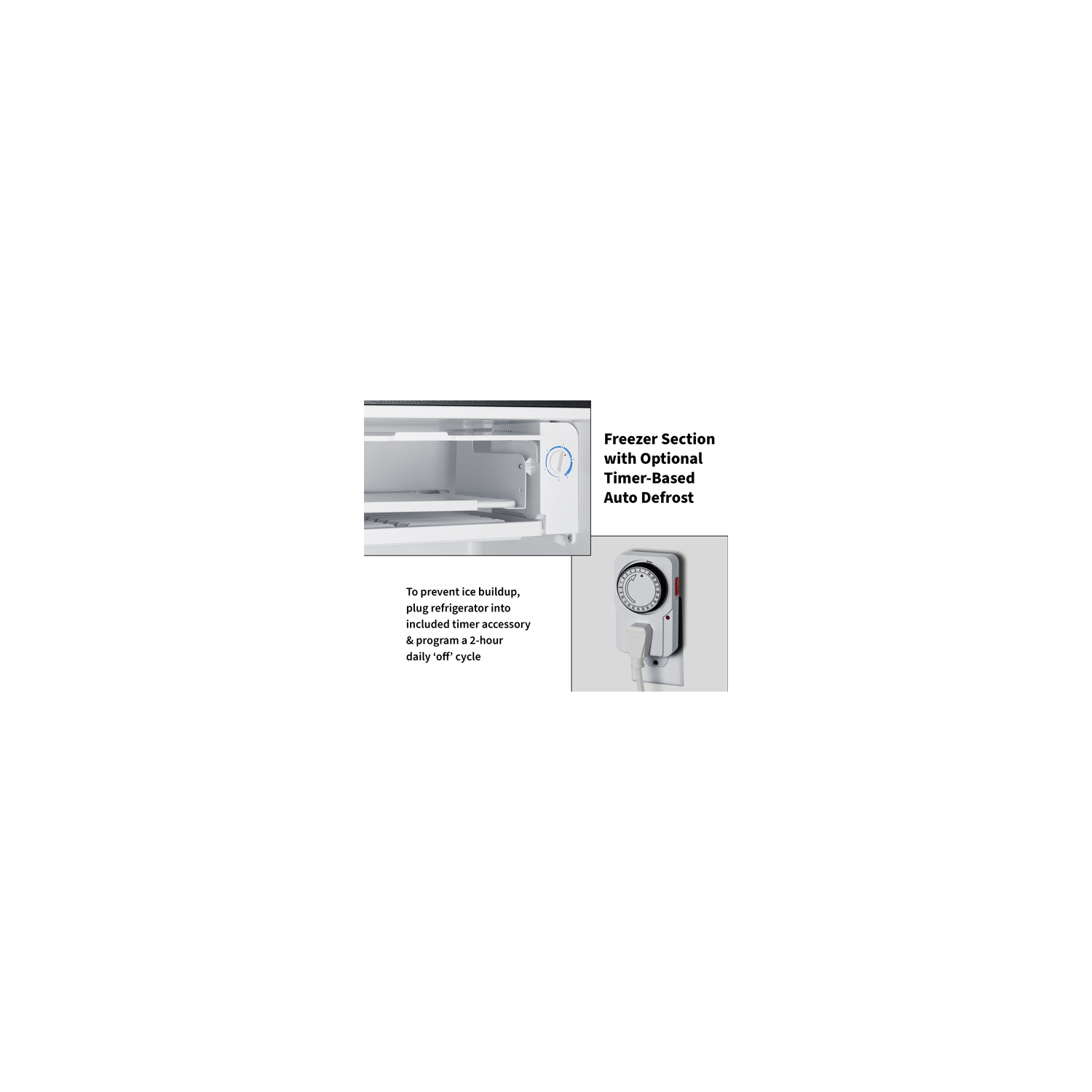

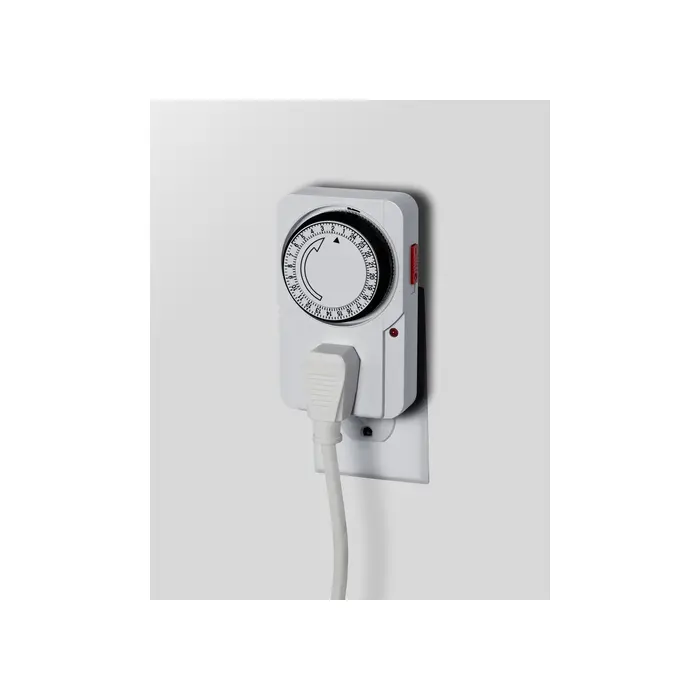

This unit includes a large refrigerator section and interior ice compartment. To use this as a low maintenance auto defrost refrigerator-freezer, plug the refrigerator into the included timer accessory and plug the timer into your wall socket. The timer allows you to program an "off" period that will power off the unit and restore power after the set time is over. This helps to prevent ice buildup in the freezer compartment. We recommend setting the timer to run from 2 to 3 hours in the middle of the night. Alternatively, the refrigerator can be used without the timer and will function as a standard manual defrost refrigerator-freezer.

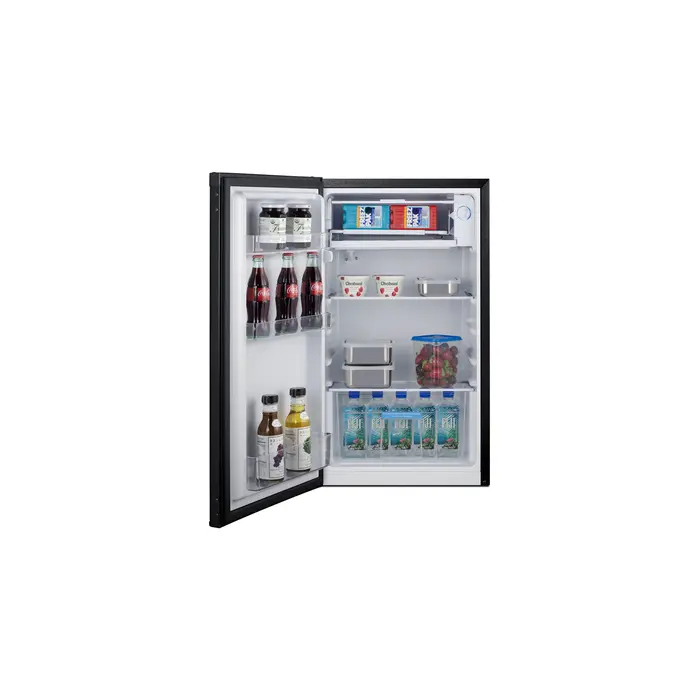

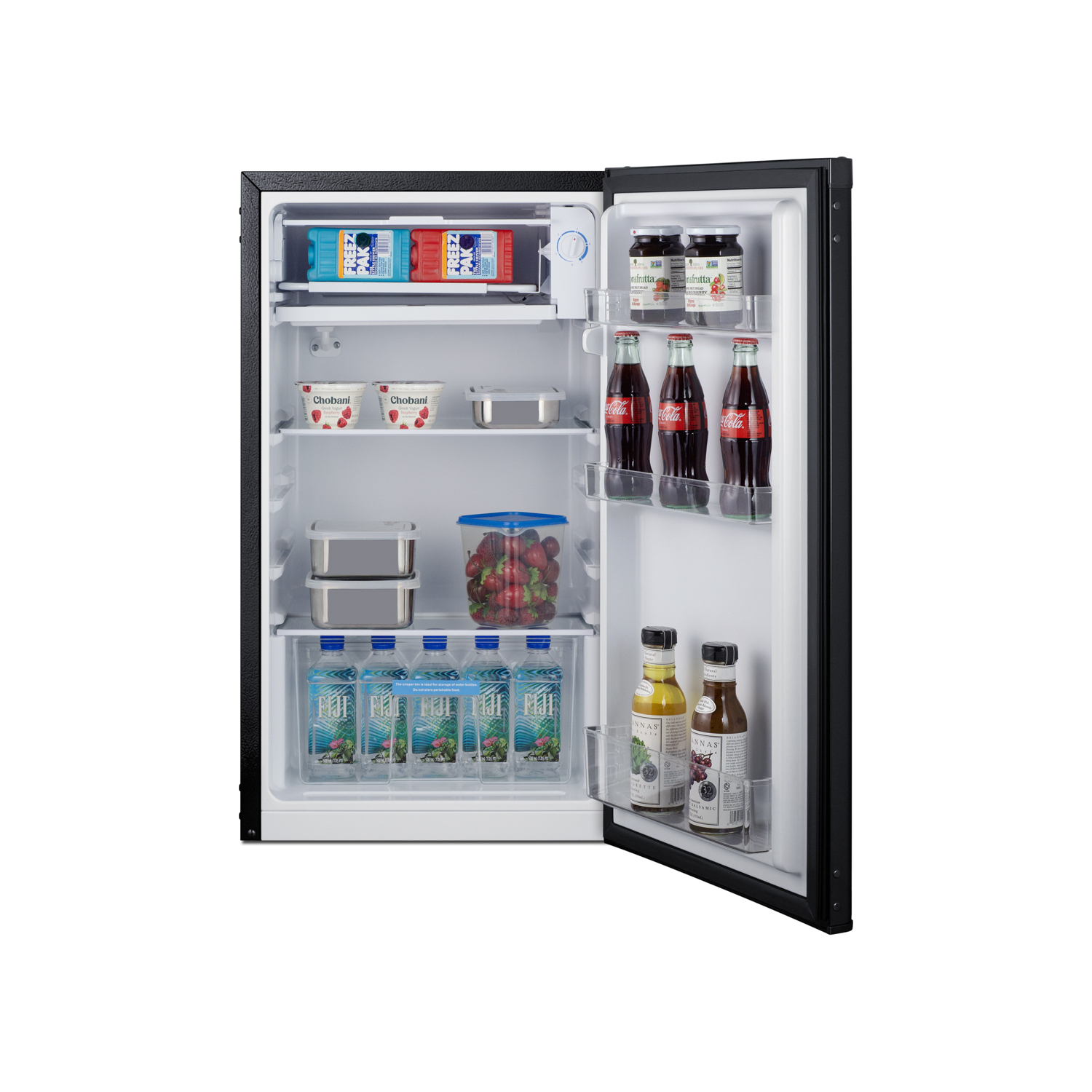

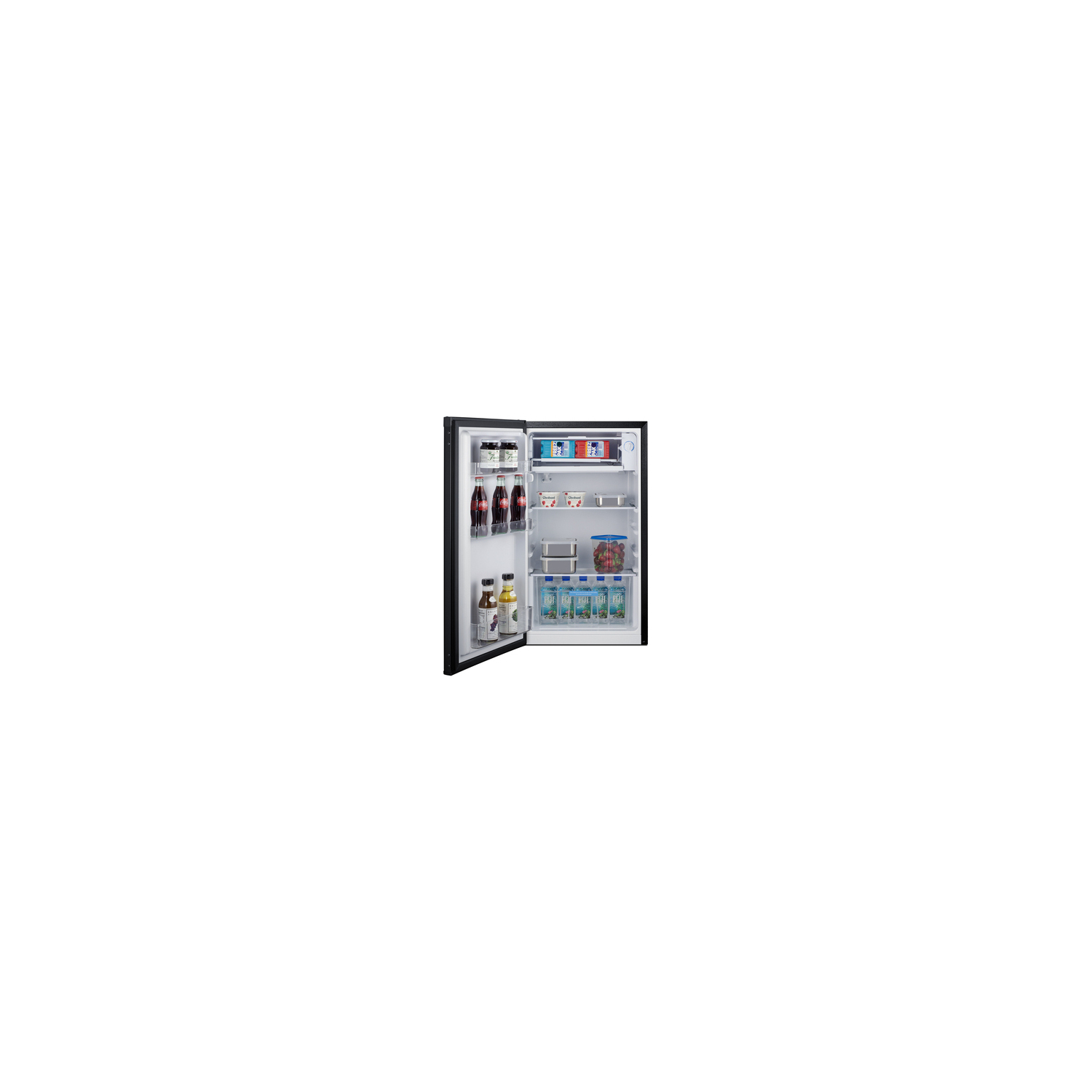

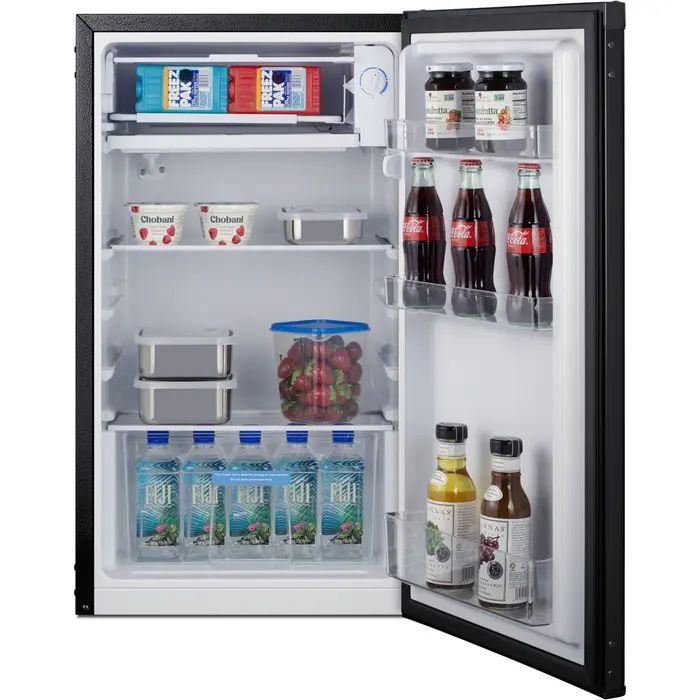

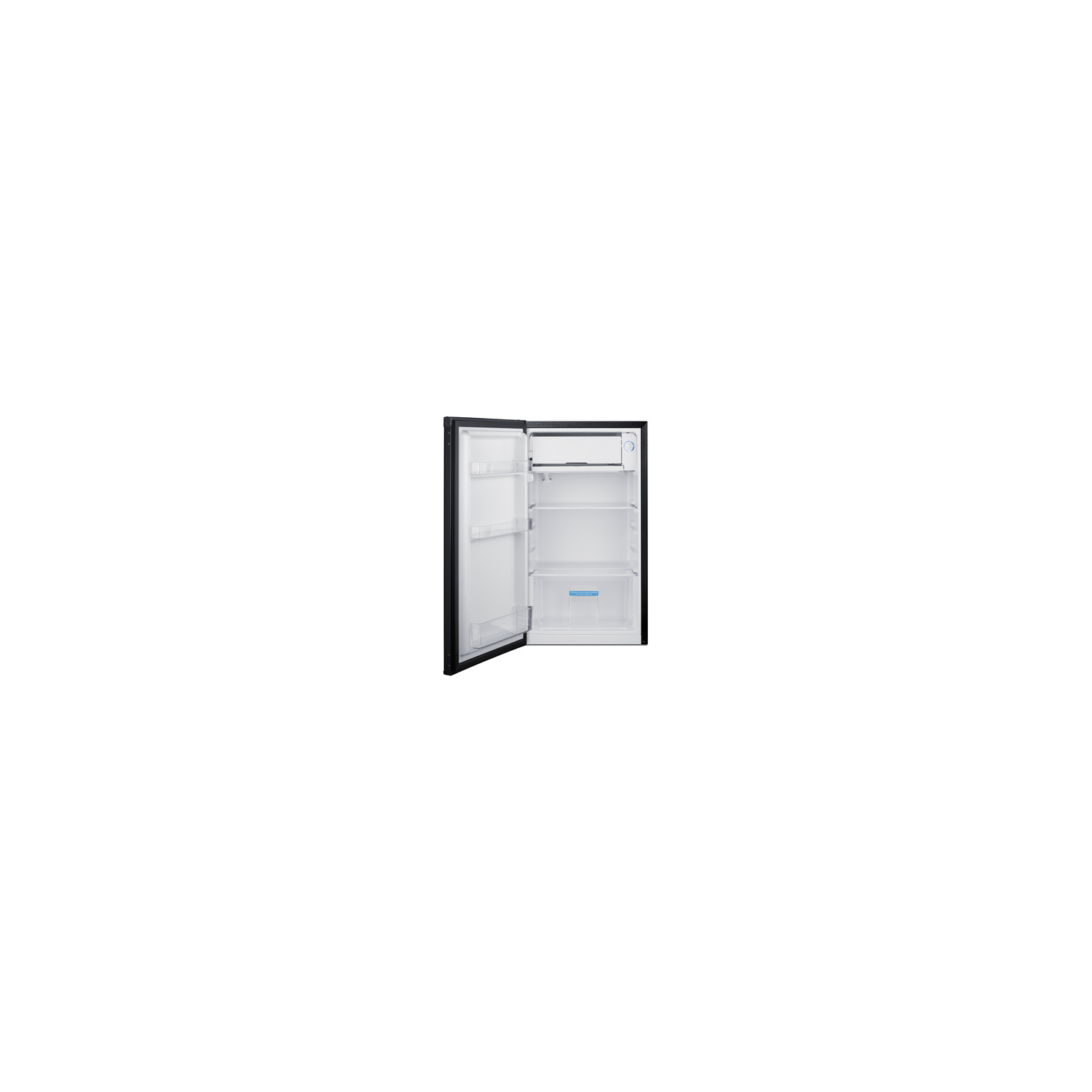

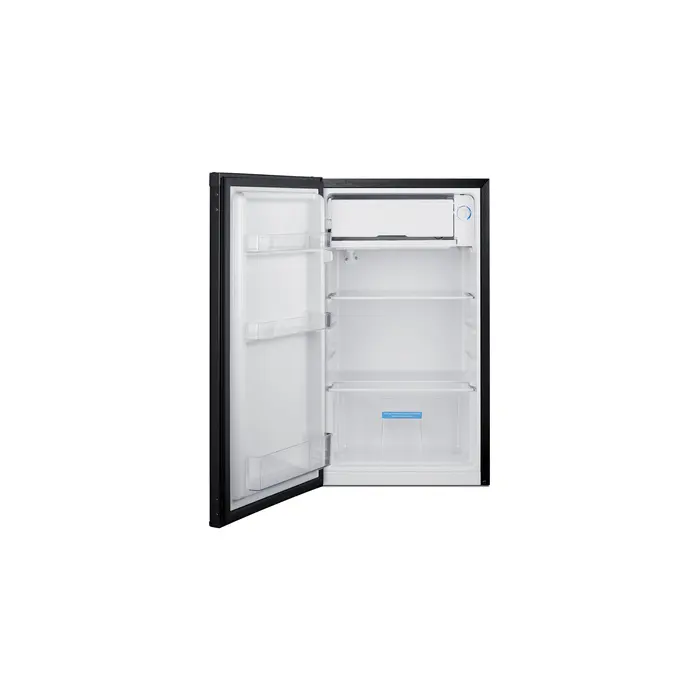

The FF43BADA refrigerator section includes adjustable glass shelves for spill-proof storage and three door racks ideal for storing condiments and cans. The lower crisper drawer is best suited for non-perishable items. The upper freezer compartment is designed to store ice packs and ice cubes. This unit offers a generous 3 cu.ft. of storage capacity. The dial thermostat offers easy temperature management.

With its slim-fitting footprint and low-maintenance design, the FF43BADA is the ideal solution for student housing, hotel rooms, offices, and other settings with limited space.

SPECIFICATIONS

Overview

Nominal Height 33.0" (84 cm)

Height of Cabinet 32.25" (82 cm)

Nominal Width 19.0" (48 cm)

Width 19.0" (48 cm)

Width with Door Open 19.38" (49 cm)

Nominal Depth 18.0" (46 cm)

Depth 17.88" (45 cm)

Depth with Handle 20.25" (51 cm)

Depth with door at 90° 37.38" (95 cm)

Capacity 3.0 cu.ft. (85 L)

Defrost Type Automatic

Door Black

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 230.0kWh/year

Amps 1.0

Voltage/Frequency 115 V AC/60 Hz

Weight 52.0 lbs. (24 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101108124

Refrigerator-Freezer

Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Glass

Refrigerator - Interior Height 22.5" (57 cm)

Refrigerator - Interior Width 15.0" (38 cm)

Refrigerator - Interior Depth 13.75" (35 cm)

Refrigerator - Shelf Type Glass

Refrigerator - Shelf Qty 2

Refrigerator - Full Door Shelves 3

Freezer - Interior Height 2.75" (7 cm)

Freezer - Interior Width 12.5" (32 cm)

Freezer - Interior Depth 13.75" (35 cm)

Freezer - Shelf Type Plastic

Freezer - Shelf Qty 1

Thermostat Type Dial

Refrigerant Type R600a

Refrigerant Amount 0.71 oz.

High Side PSI 180.0

Low Side PSI 80.0

Compressor Step Height 7.75" (20 cm)

Compressor Step Width 15.0" (38 cm)

Compressor Step Depth 6.0" (15 cm)

FEATURES

19" Wide Compact Refrigerator-Freezer Slim-fitting refrigerator with freezer compartment for easy storage in hospitality settings

Timer-based automatic defrost Ships with a convenient timer accessory that lets you program a 2-3 hour 'off' period to ensure the freezer compartment does not build up ice and require defrosting. The unit can also function without the timer in standard manual defrost mode.

ADA-Compliant 32.25 inch height is designed to meet ADA guidelines for lower counter height

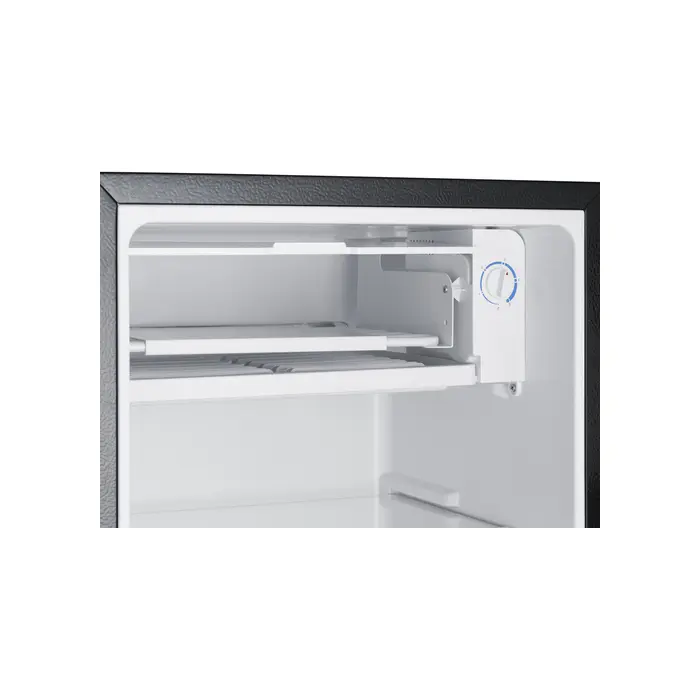

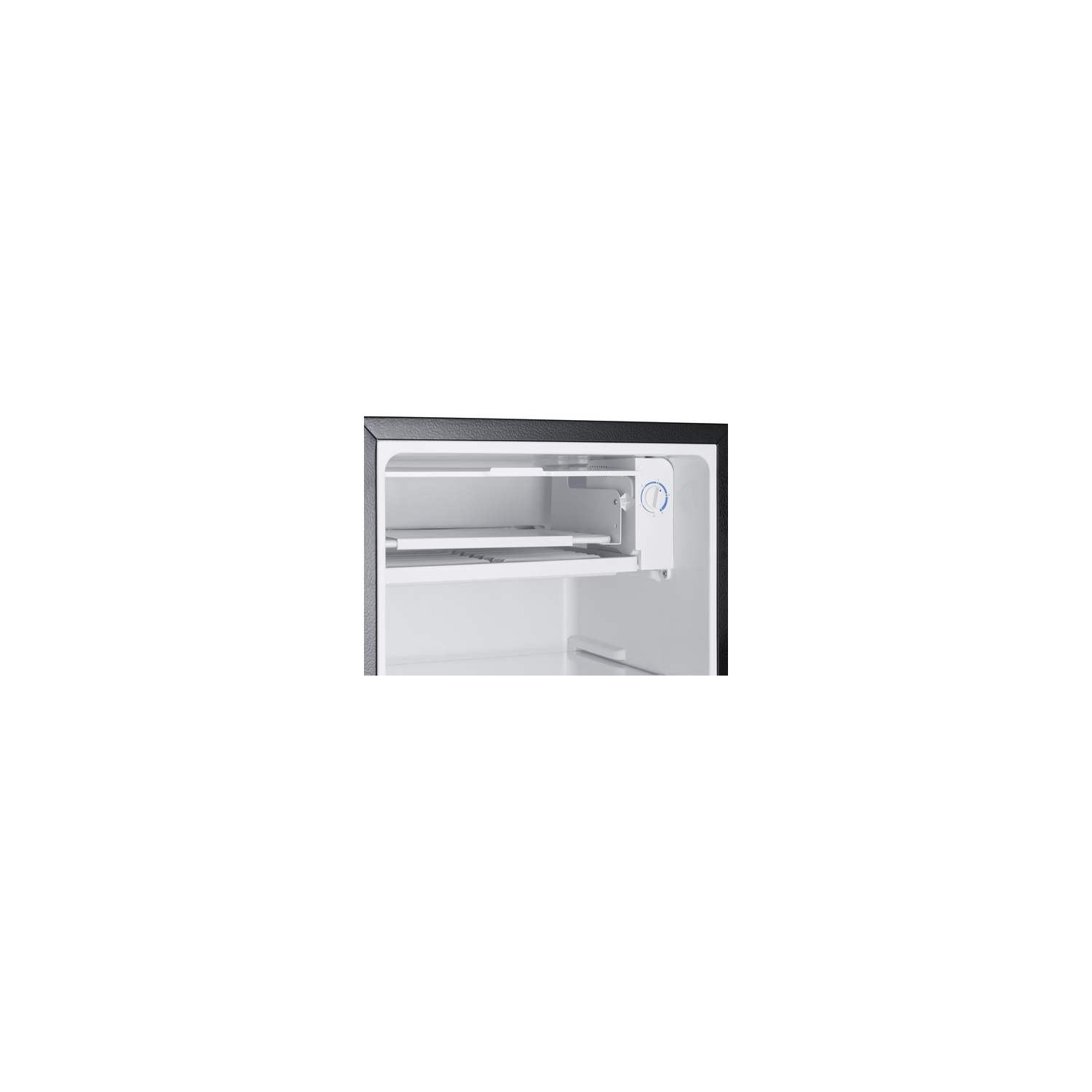

Freezer compartment Interior freezer compartment offers convenient storage for ice packs and ice cubes

Adjustable thermostat Dial thermostat located inside for easy temperature management

Adjustable shelves Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup

Door storage Store large bottles right on the door for easy access

Crisper drawer Removable clear drawer ideal for organizing non-perishable items

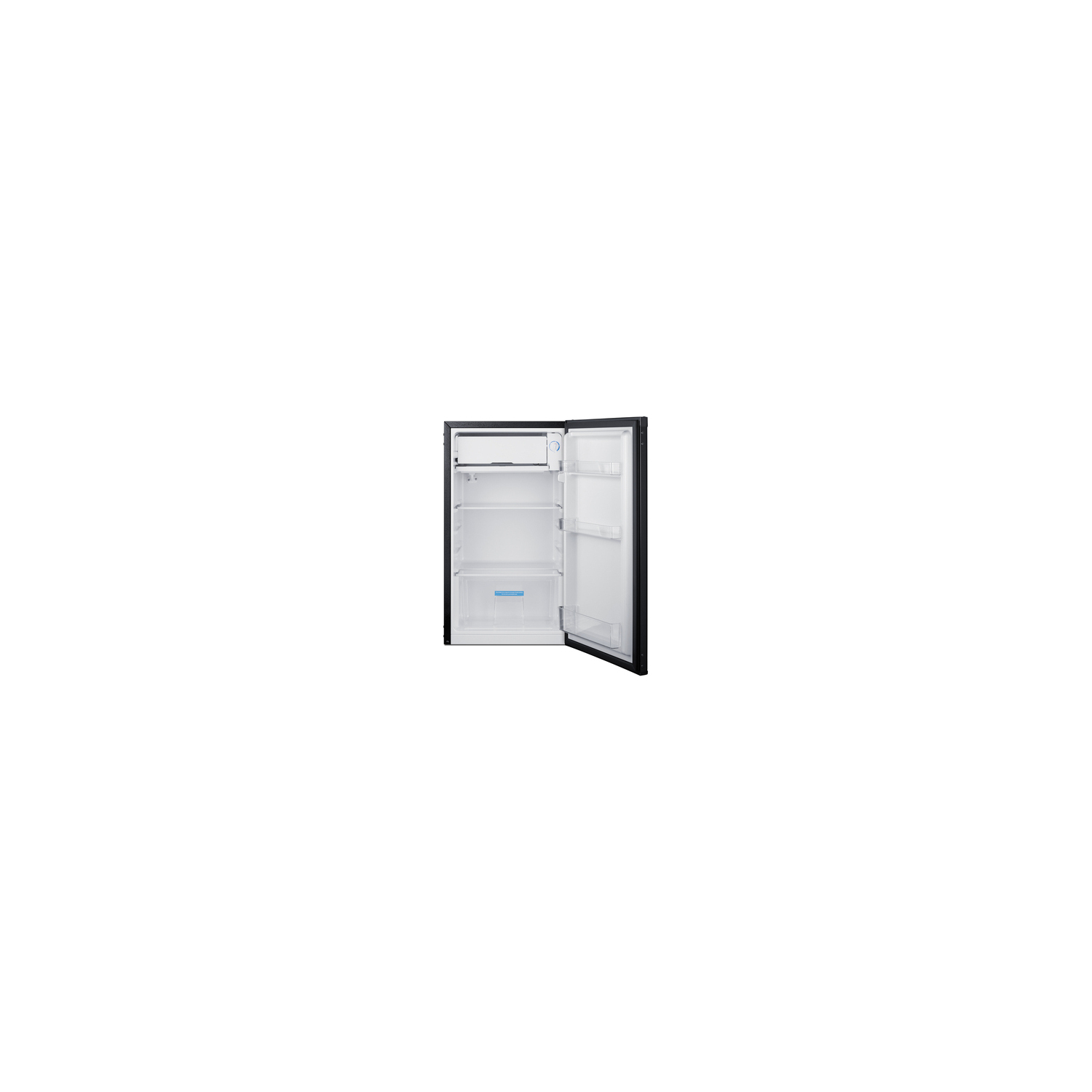

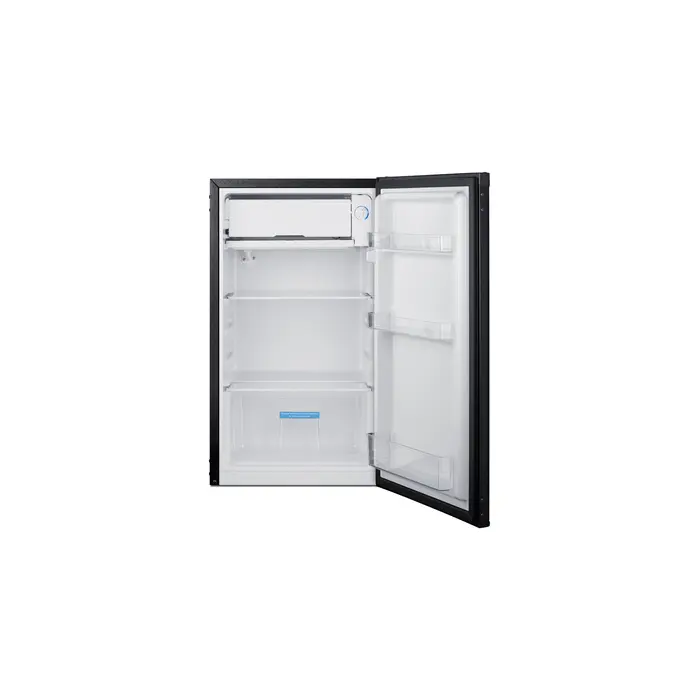

Reversible door Keep your options flexible with a reversible door that is easy to switch when your arrangement changes

Sealed back Space-saving design with no exposed coils for easier cleanability

Fully finished black cabinet Allows the unit to be used freestanding

100% CFC free Environmentally friendly design does not contain ozone-damaging chemicals

CARB compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
