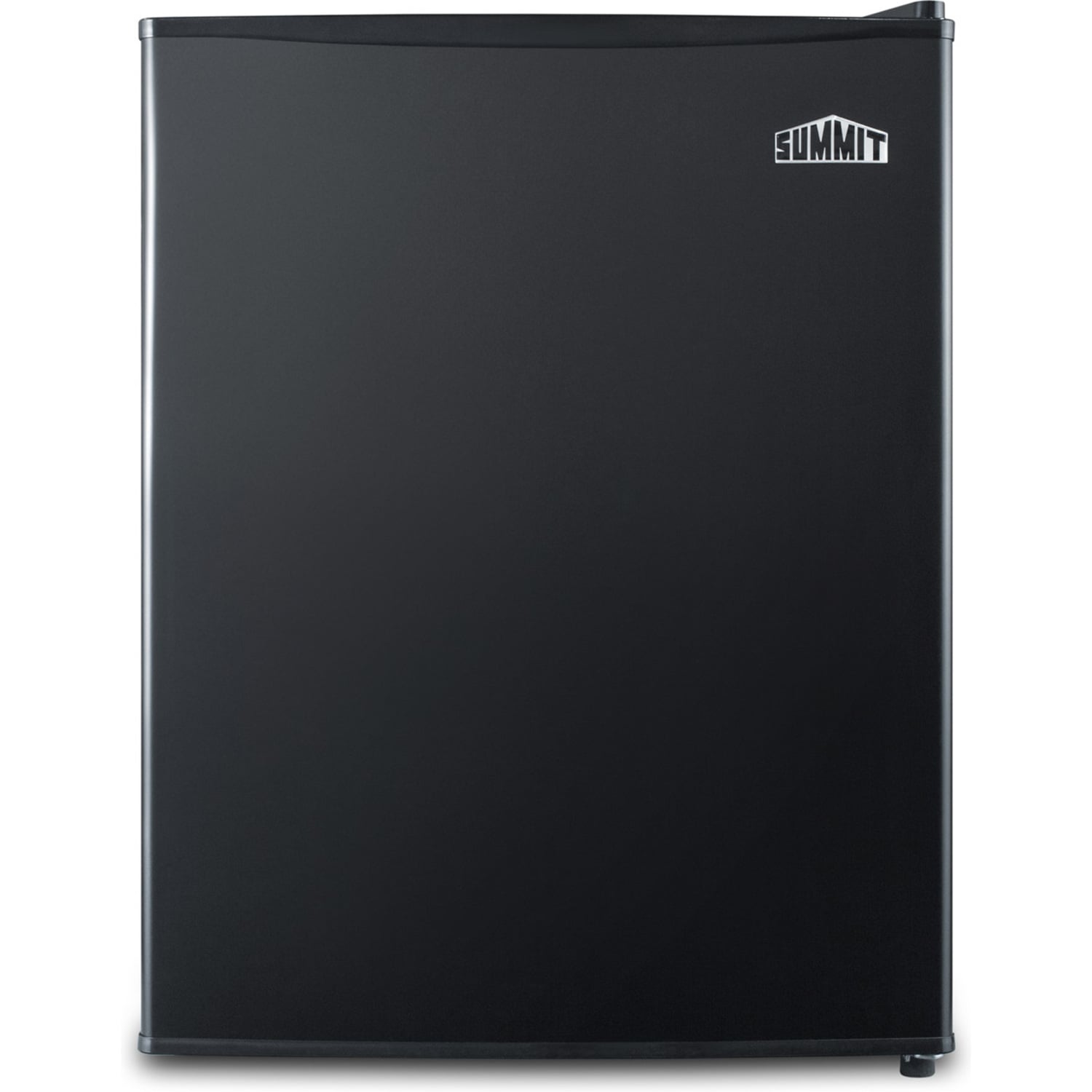

Summit Compact all-refrigerator with automatic defrost, glass shelves, and black exterior finish, 7.61101e+011, FF29K

SUMMIT's FF29K is a compact automatic defrost all-refrigerator that fits easily on any counter space.

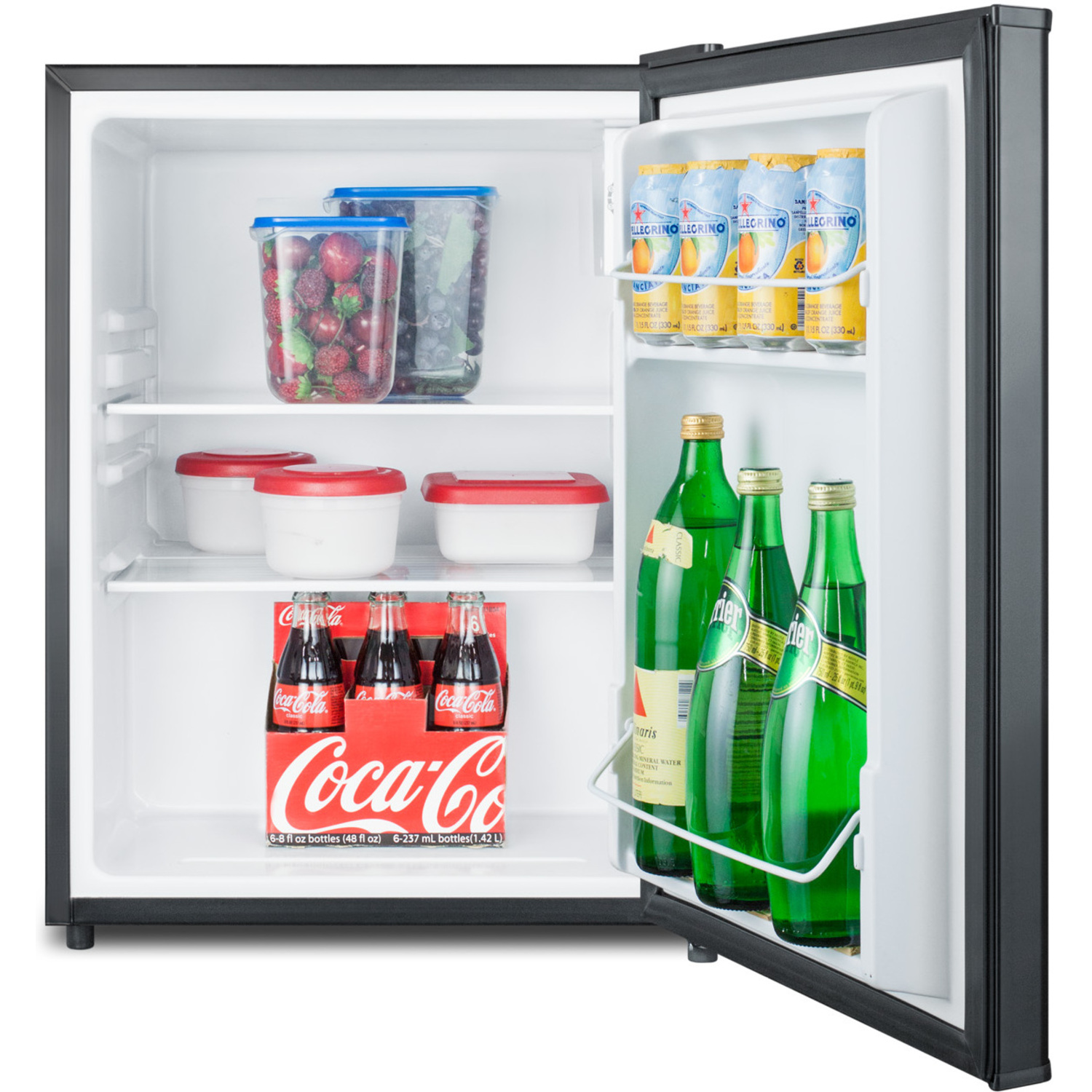

Sized for countertop use, the FF29K features a jet black exterior finish. The user-reversible door offers added placement flexibility for any setting. Inside, automatic defrost ensures minimum maintenance while the seamless interior liner makes cleaning a snap. Adjustable glass shelves offer spill-proof storage and door racks hold tall bottles.

With compact dimensions for an easy fit, the FF29K is the perfect refrigerator for hotels, dorms, offices, or any other setting in need of quality cooling in a small package.

SPECIFICATIONS

Overview

Nominal Height 25.0" (64 cm)

Height of Cabinet 24.5" (62 cm)

Height to Hinge Cap 24.88" (63 cm)

Nominal Width 19.0" (48 cm)

Width 18.5" (47 cm)

Nominal Depth 19.0" (48 cm)

Depth 18.38" (47 cm)

Depth with door at 90° 34.5" (88 cm)

Capacity 2.4 cu.ft. (68 L)

Defrost Type Automatic

Door Black

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 266.0kWh/year

Amps 0.6

Voltage/Frequency 115 V AC/60 Hz

Weight 40.0 lbs. (18 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101046891

Refrigerator Features

Door Swing RHD

Reversible Yes

Shelf Type Glass

Shelf Qty 2

Full Door Shelf Qty 2

Adjustable Shelves Yes

Thermostat Type Dial

Refrigerant Type R600a

Refrigerant Amount 0.63oz.

Level Legs Qty 2

Sound Level 33.4 dB

Dimensions

Interior Height 20.5" (52 cm)

Interior Width 15.5" (39 cm)

Interior Depth 13.5" (34 cm)

Compressor Step Height 8.75" (22 cm)

Compressor Step Width 15.5" (39 cm)

Compressor Step Depth 5.0" (13 cm)

FEATURES

Fully finished black cabinet Allows the refrigerator to be used freestanding

Compact dimensions Slim width and compact depth for easy placement above or below the counter

Automatic defrost Reduced user maintenance with auto defrost system

One piece interior liner Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Door shelves Store large bottles right on the door for easy access

Adjustable glass shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Reversible door Keep your options flexible with a reversible door that's easy to switch when your arrangement changes

Adjustable thermostat Manage the interior temperature with ease and accuracy

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (FF29K.pdf)

TECHNICAL DRAWING (.dwg) (FF29K__REFRIGERATORS__A-C_2000_.dwg)

REVIT MODEL (Qf_Summit_FF29K_Compact_All-Refrigerator.rfa)

USE & CARE (FF29K-User-Manual.pdf)

MSDS INFORMATION (R600a_AO.pdf)

Energy Guide
