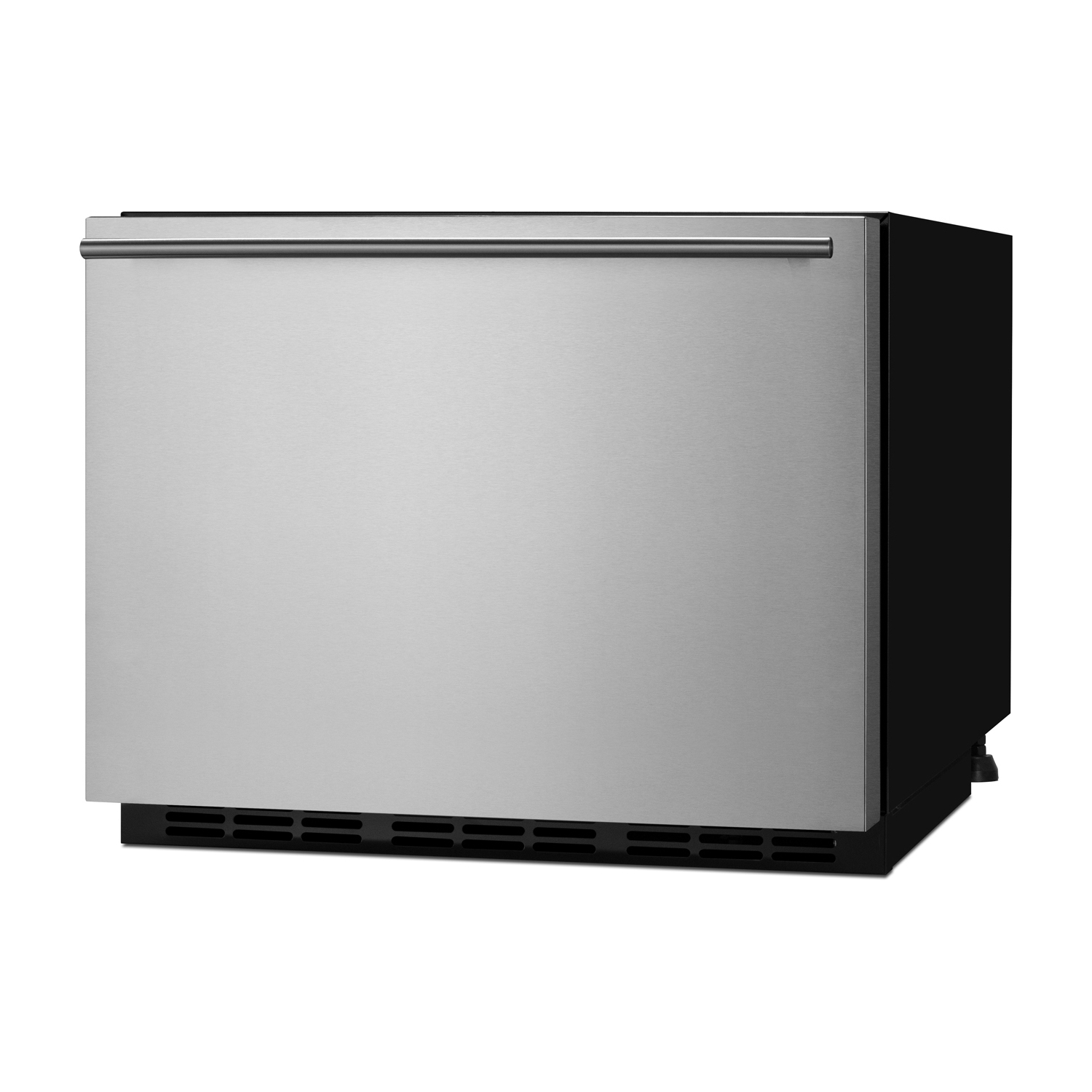

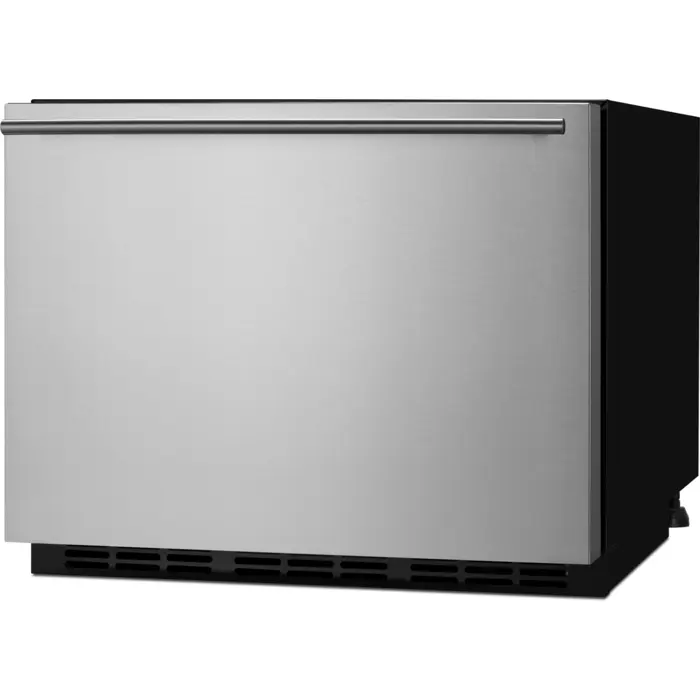

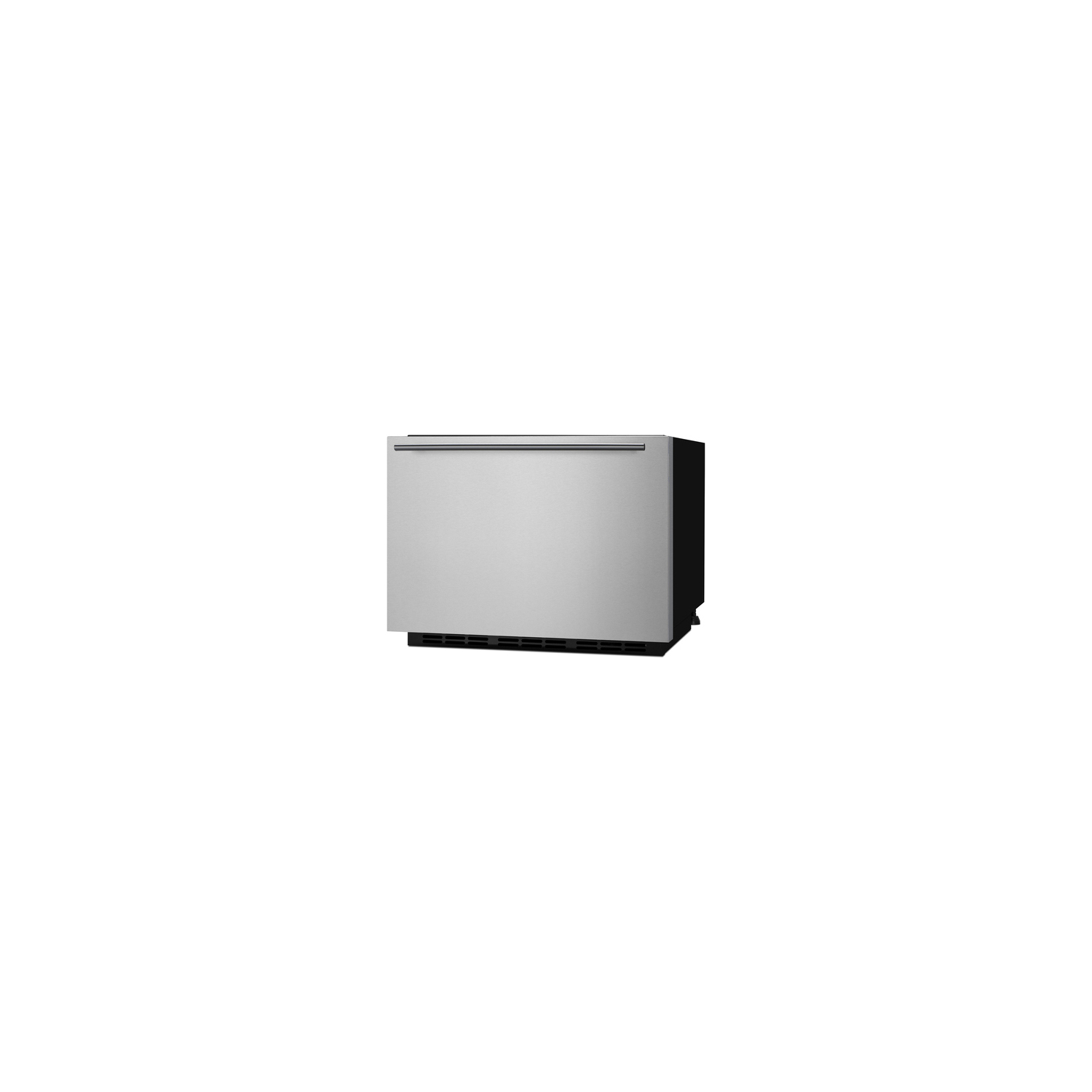

Summit 21.5 inch wide single drawer bulit-in all-refrigerator for indoor or outdoor use with panel-ready front, 7.61101e+011, FF1DSS
$1,593.95
Retail Price: $2,110.00
Free shipping
$ 1,593.95
Description
Summit offers a quality line of commercially approved drawer refrigerators fully featured for indoor or outdoor use.

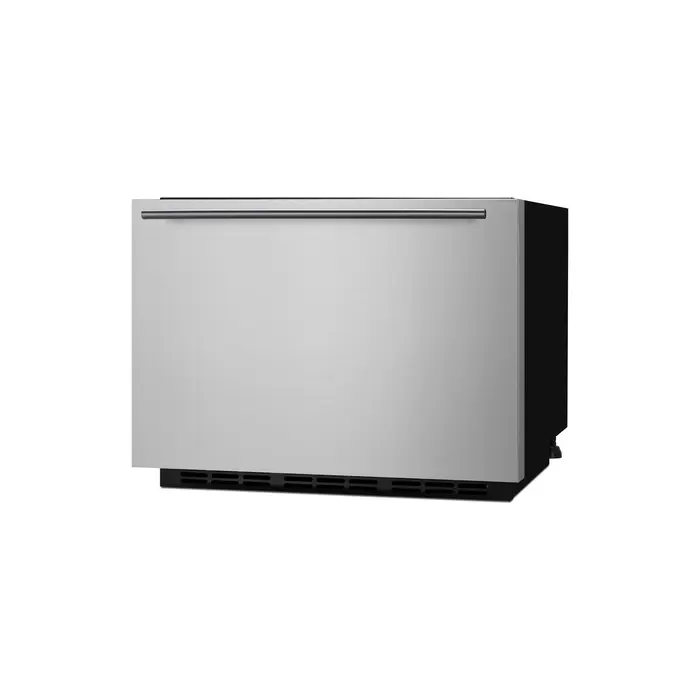

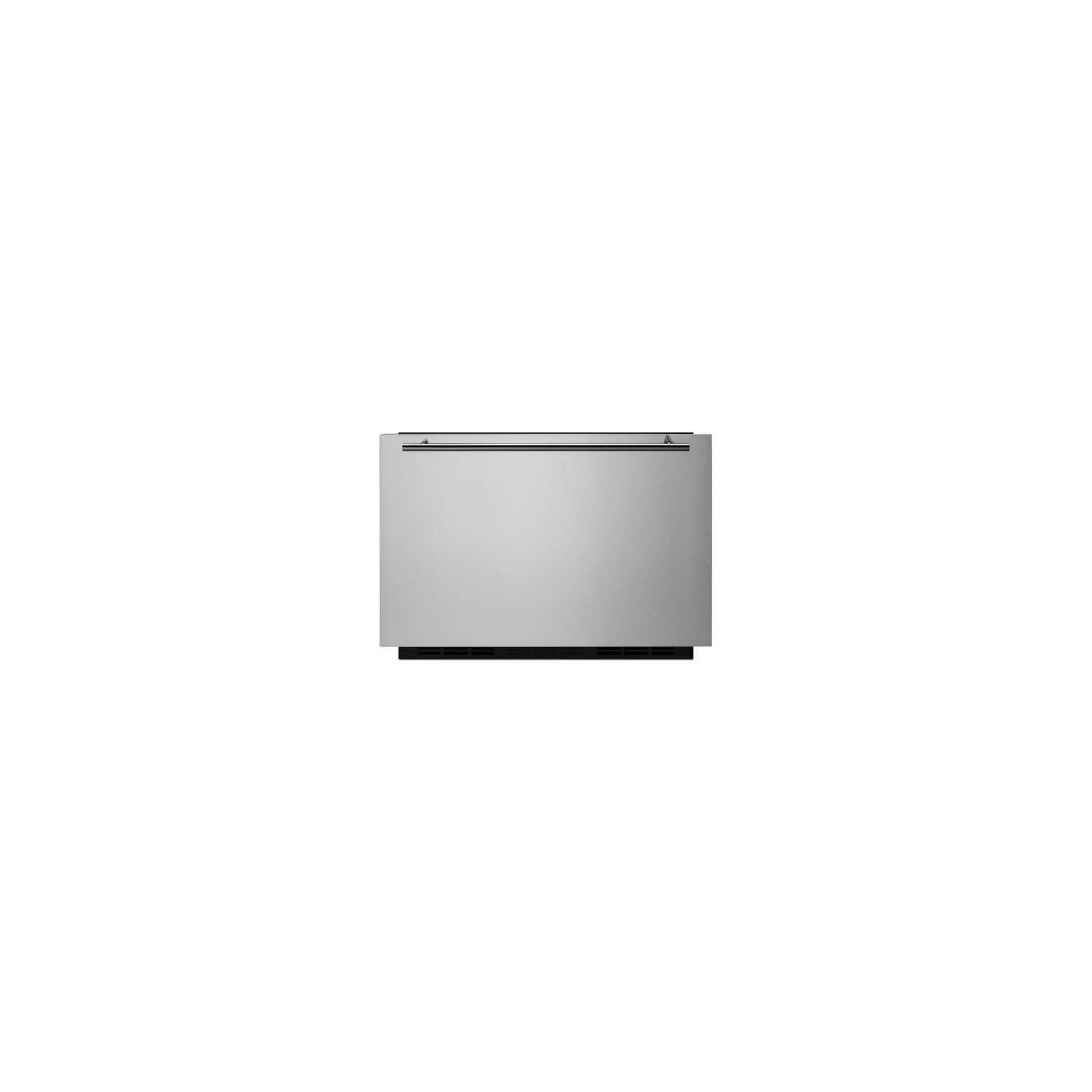

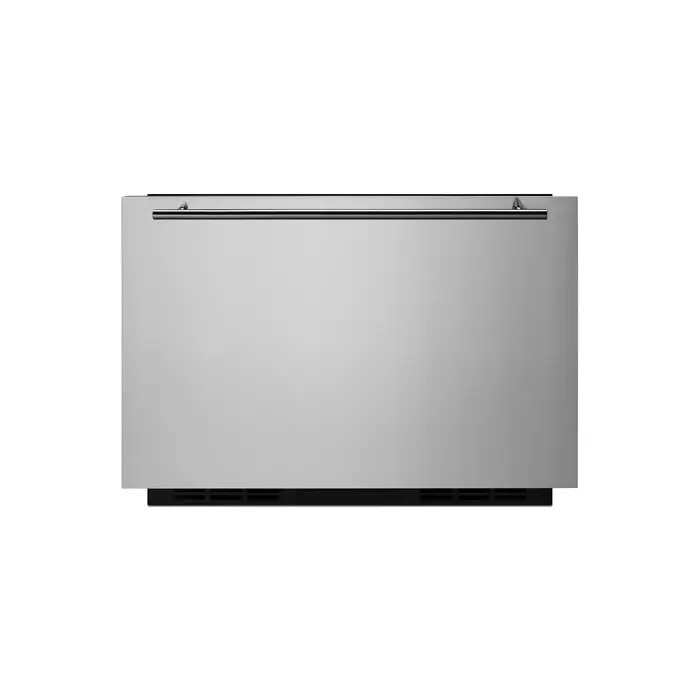

The FF1DSS is a single drawer all-refrigerator that meets NSF-7 and UL-471 commercial standards and is also approved for residential settings. At just 21.5" wide, it has a front-breathing design that allows built-in installation, while the fully finished black cabinet also enables freestanding use. Its versatile 304 grade stainless steel drawer with a full-width pro handle provides durable, weatherproof protection, perfect for use in outdoor kitchens, bars, or similar spaces. Additionally, the drawer is panel-ready and can be customized with an overlay panel (not included) to match or accent an existing cabinetry design (panel dimensions: 15.6" H x 21.4" W at 3/4" maximum thickness). The included ground fault circuit interrupter (GFCI) 3-prong plug helps protect users from electrical shocks for added safety, ideal for outdoor spaces.

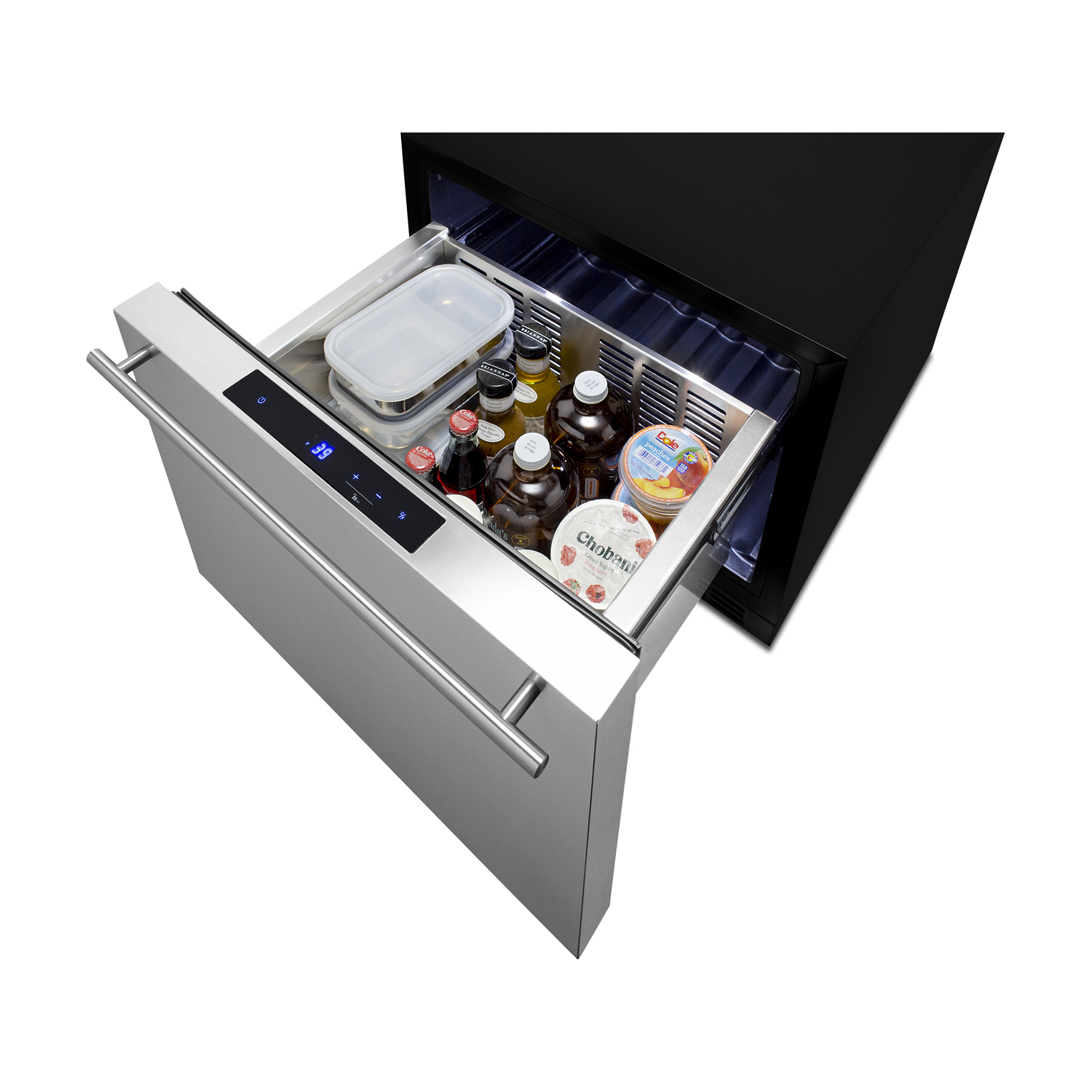

Inside, the FF1DSS has a 1.6 cu.ft. capacity to accommodate your storage needs. Frost-free operation with fan-forced cooling ensures even temperature distribution with minimal user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two removable dividers let you separate the drawer into one, two, or three zones to accommodate a variety of sizes. LED lighting affords a convenient view of store contents, while a child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, while a temporary memory function helps to recover all settings in the event of power loss. The Sabbath Mode setting disables certain electrical features during periods of religious observance.

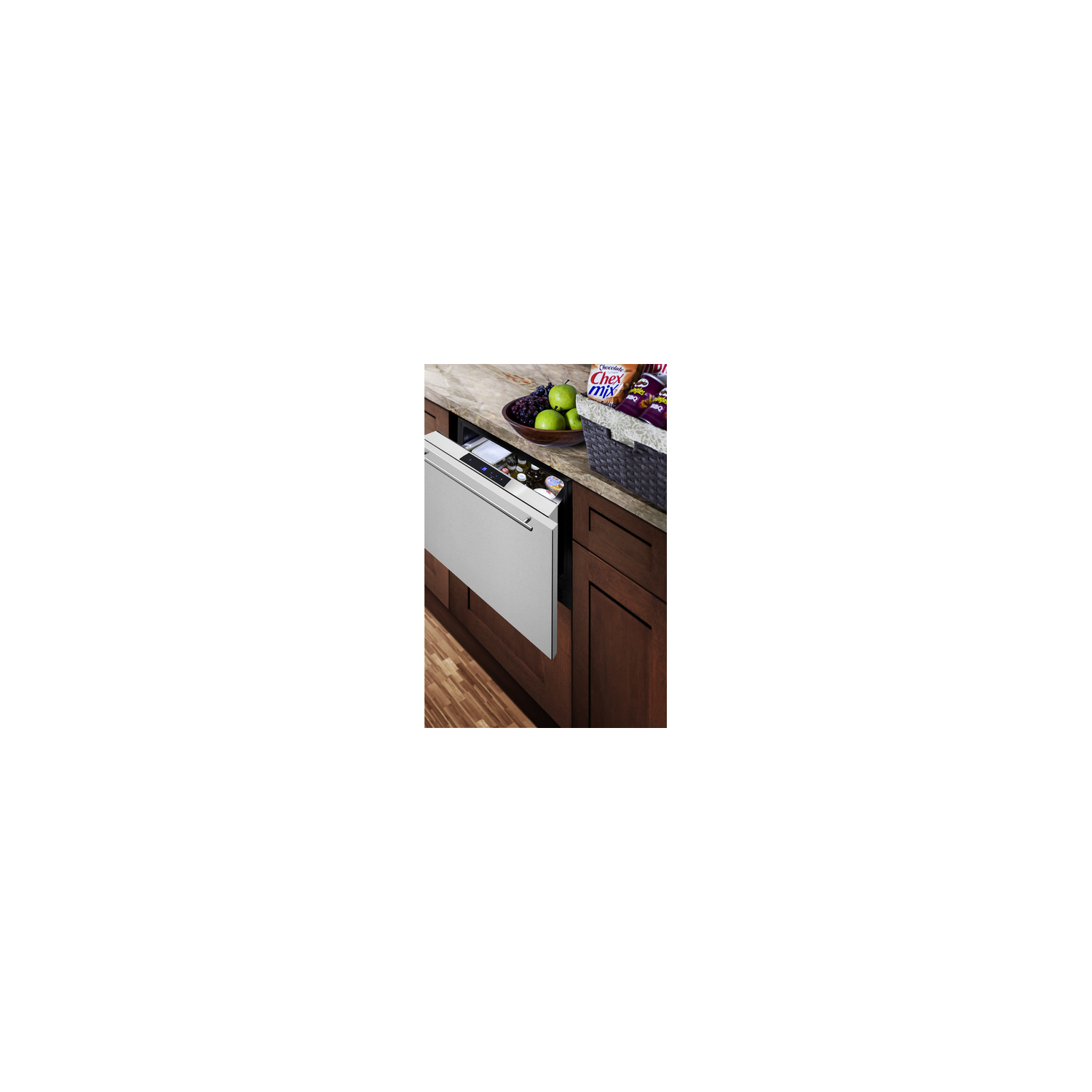

With its fully-featured, weatherproof design, the FF1DSS is the perfect cooling compartment or beverage holder in outdoor or indoor home kitchens, as well as hotel spaces, foodservice areas, and more. For this unit sized to fit 24" wide spaces, see the SDR24.
Note: This unit ships with a polycarbonate strip over the control panel to protect it from the elements. If installing this drawer in outdoor kitchens, keep the cover in place.
SPECIFICATIONS
Overview
Nominal Height 18.0" (46 cm)
Height of Cabinet 17.75" (45 cm)
Nominal Width 22.0" (56 cm)
Width 21.5" (55 cm)
Nominal Depth 23.0" (58 cm)
Depth 22.25" (57 cm)
Depth with Handle 23.75" (60 cm)
Depth with door at 90° 35.5" (90 cm)
Capacity 1.6 cu.ft. (45 L)
Defrost Type Frost-Free
Door Stainless Steel/Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 273.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 53.0 lbs. (24 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101066974
Refrigerator Features
Sabbath Mode Yes
Door Swing Drawer
Reversible No
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.78oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36 to 43ºF
Sound Level 33.3 dB
Dimensions
Interior Height 13.0" (33 cm)
Interior Width 16.0" (41 cm)
Interior Depth 11.5" (29 cm)
Compressor Step Height 7.0" (18 cm)
Compressor Step Width 16.0" (41 cm)
Compressor Step Depth 1.0" (3 cm)
FEATURES
Commercially approved ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
Indoor/outdoor compatible Durable construction designed to hold up to the elements

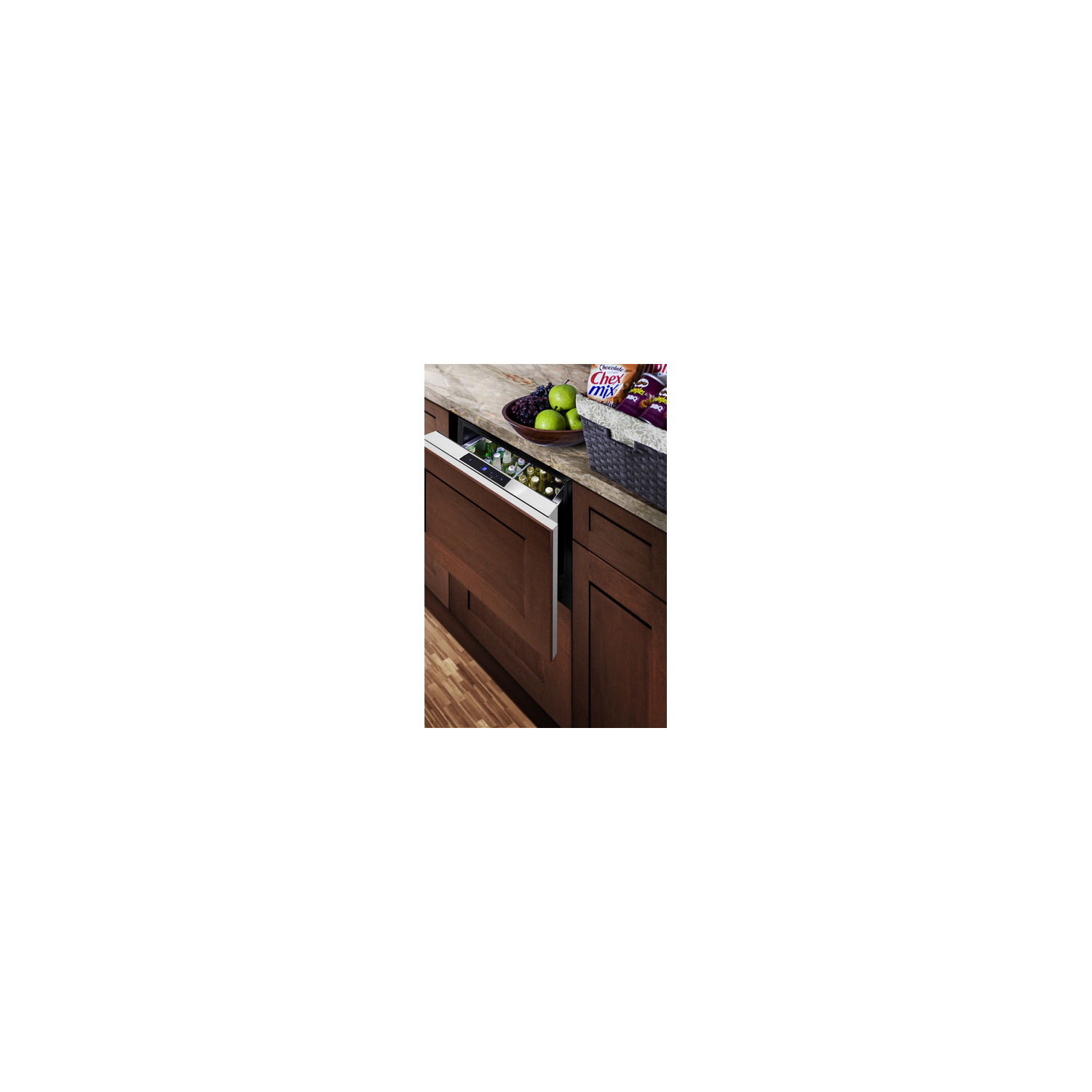

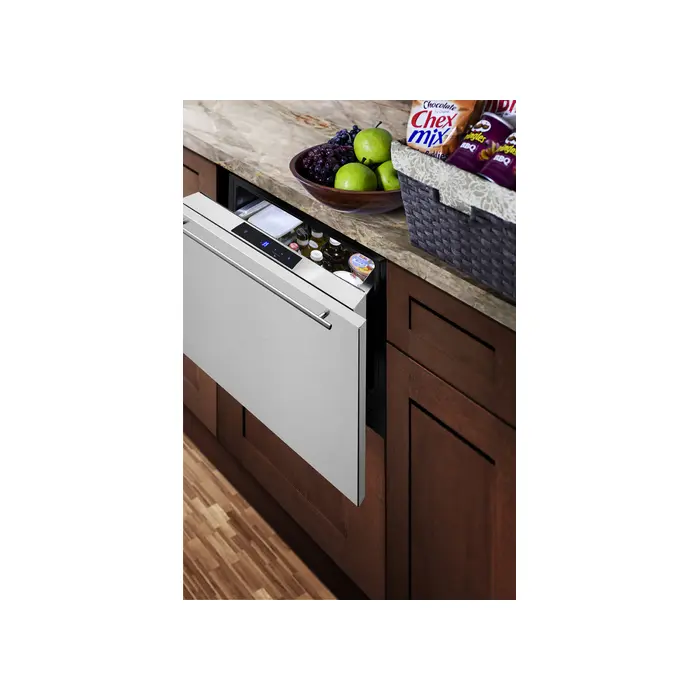

Built-in capable Front-breathing design allows you to build the drawer into cabinetry

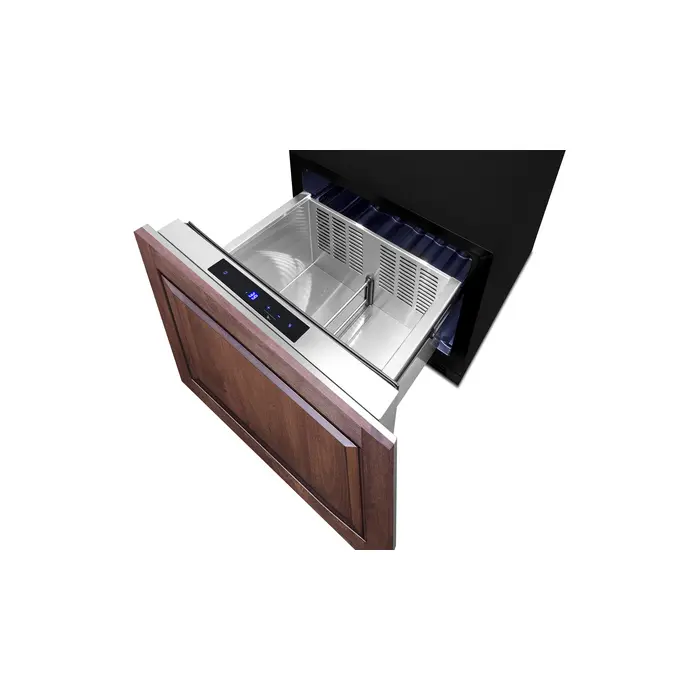

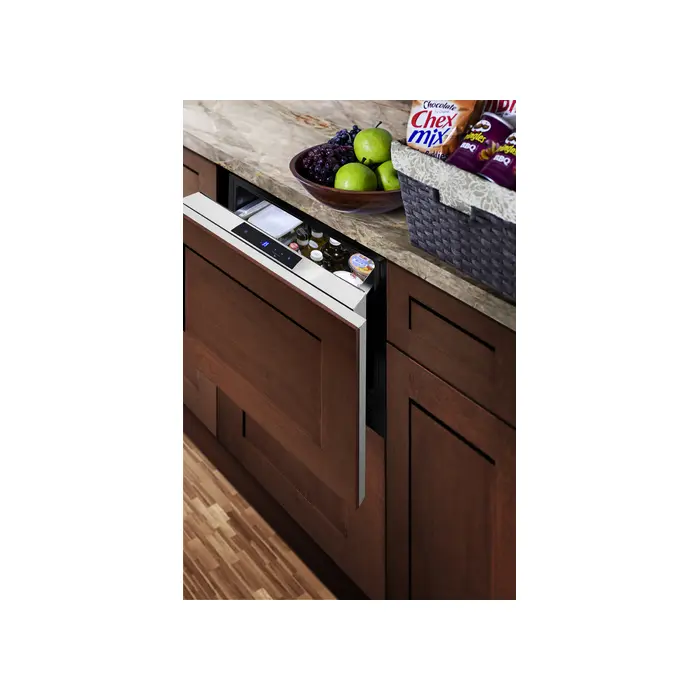

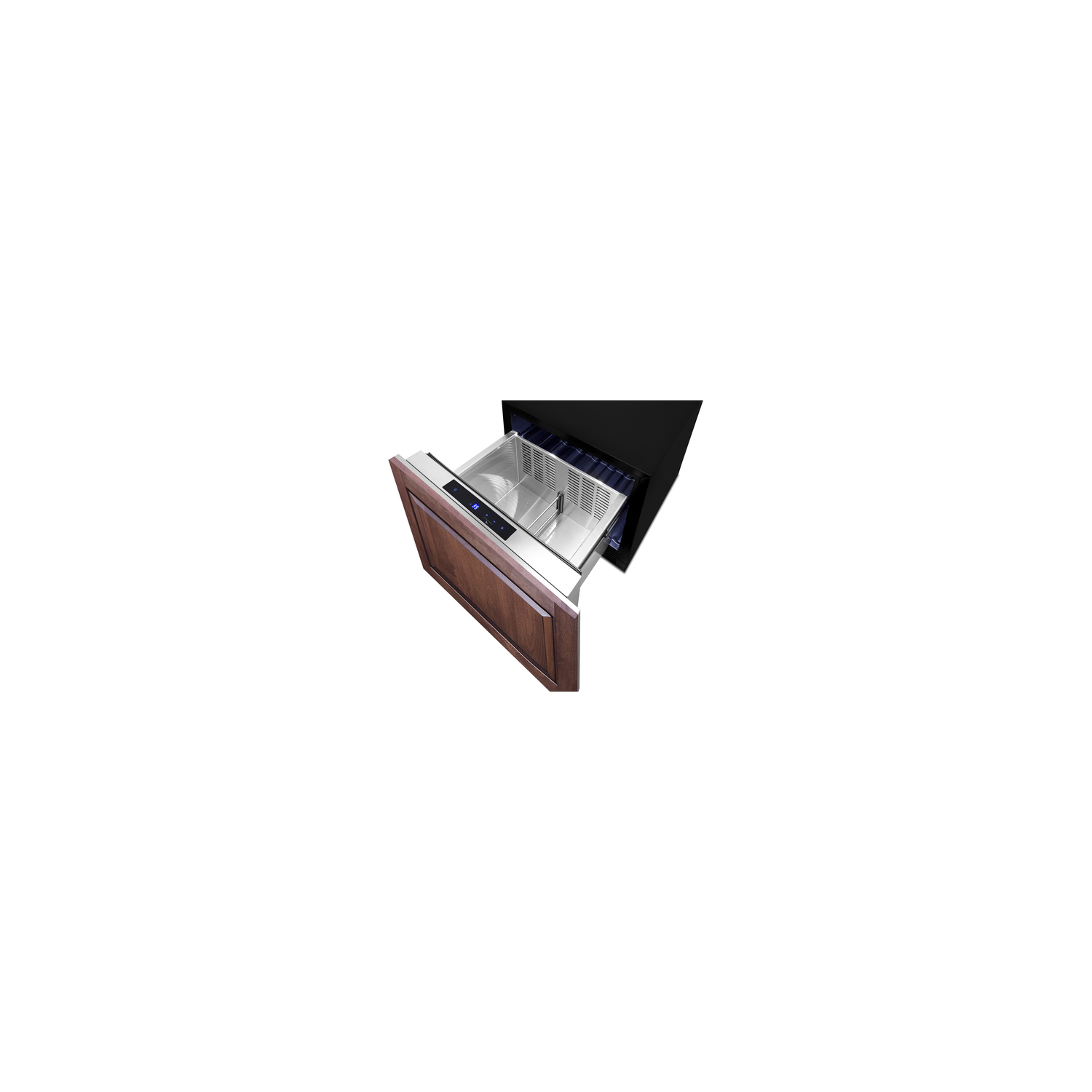

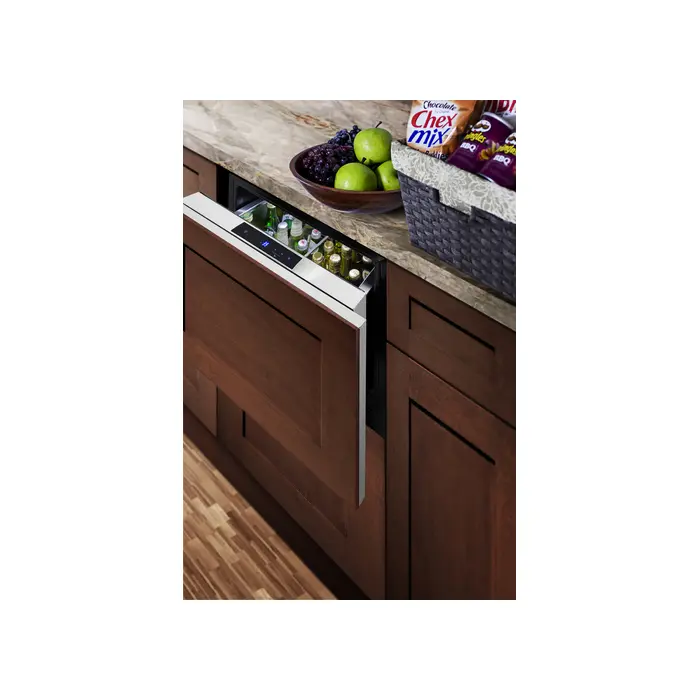

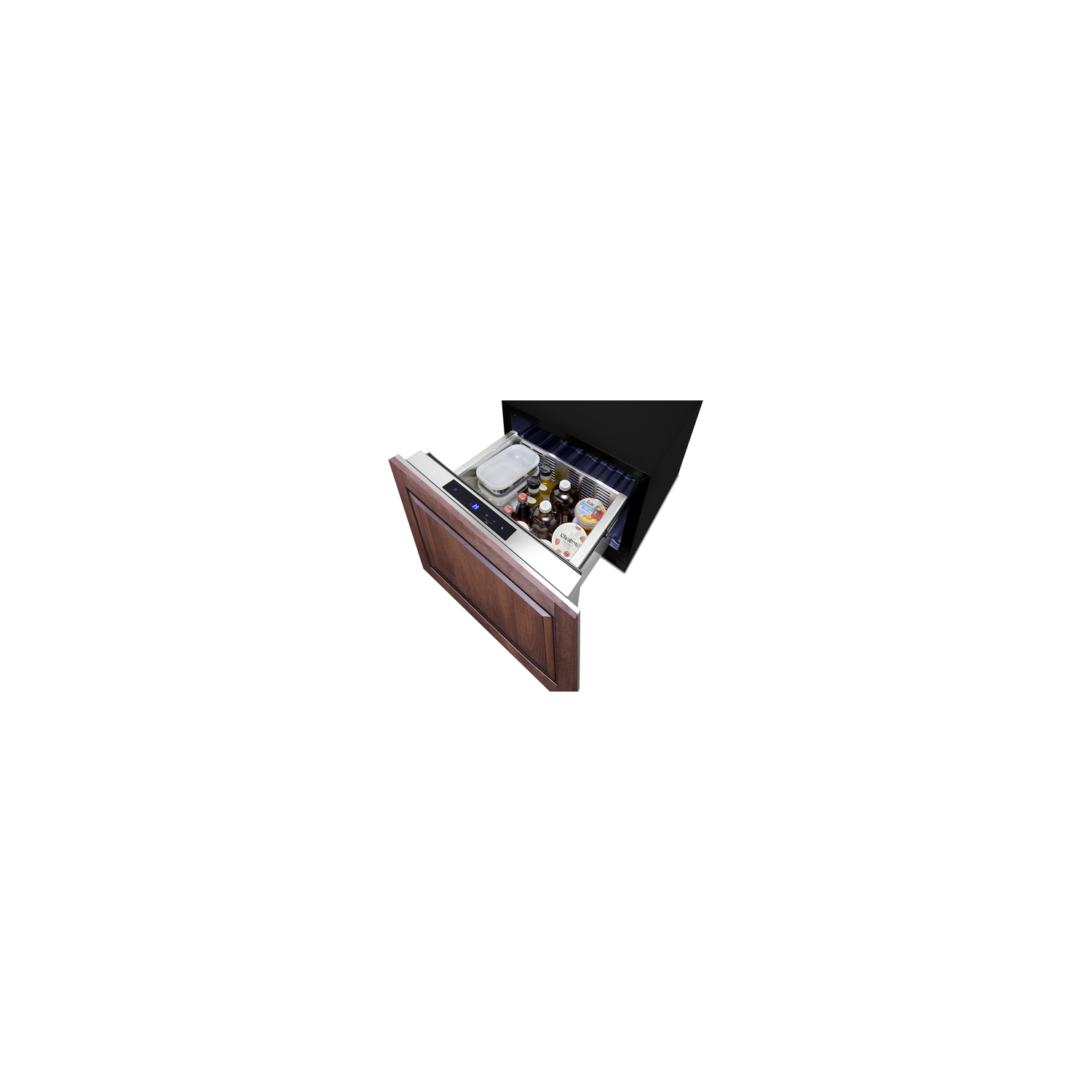

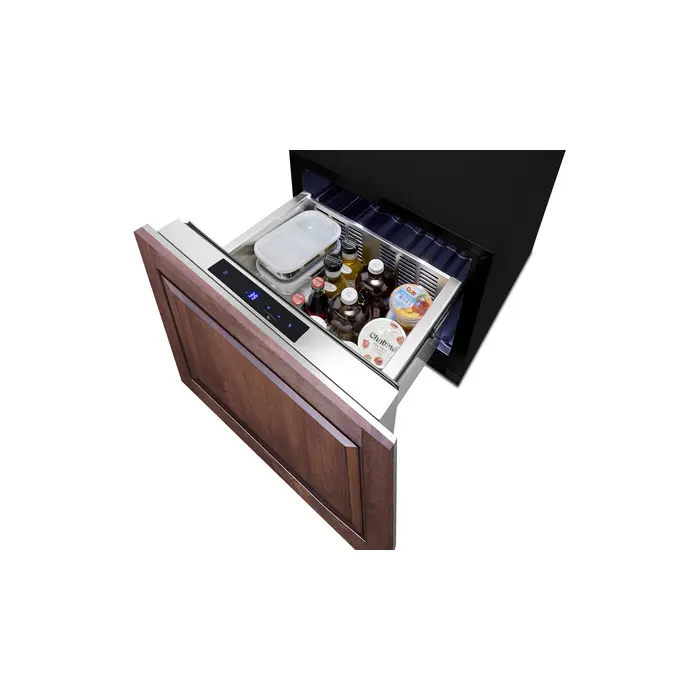

Panel-ready drawer front Drawer accepts an overlay panel to let you seamlessly blend the unit into an existing cabinetry design (panel dimensions: 15.6" H x 21.4" W at 3/4" maximum thickness)

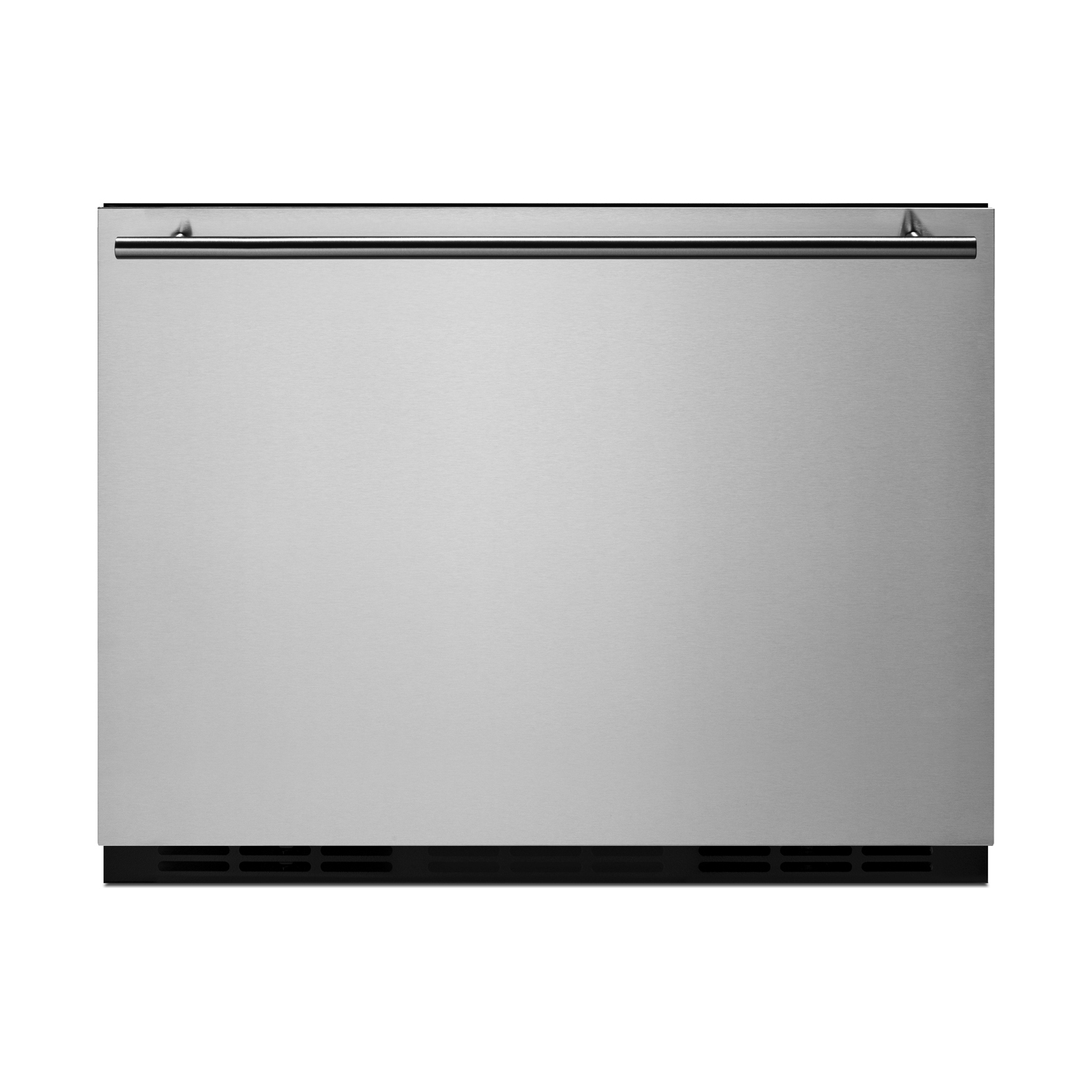

304 grade stainless steel drawer Drawer front and interior constructed from stainless steel for added durability and easy cleanability
Frost-free operation Minimum user maintenance with a fully no-frost operation system

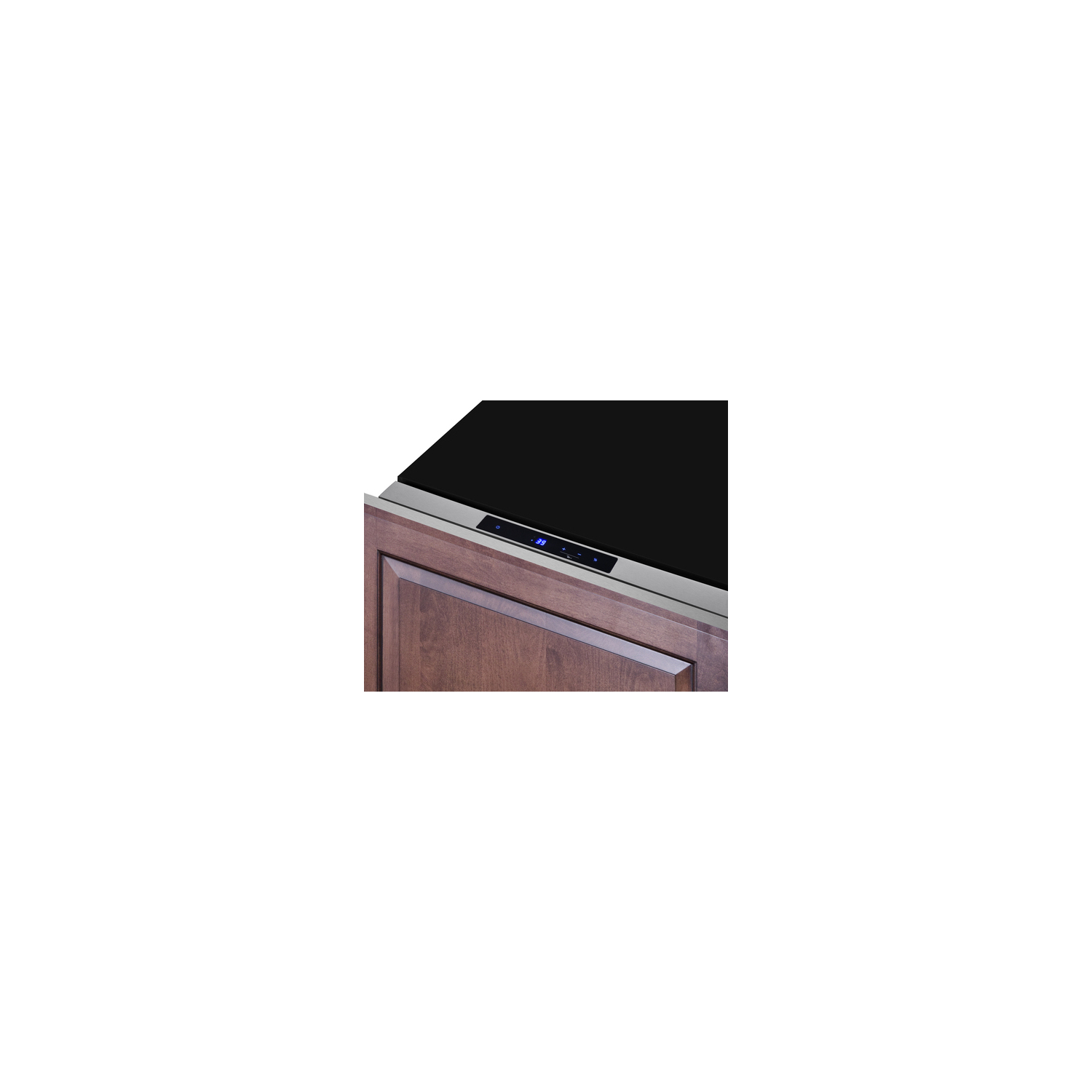

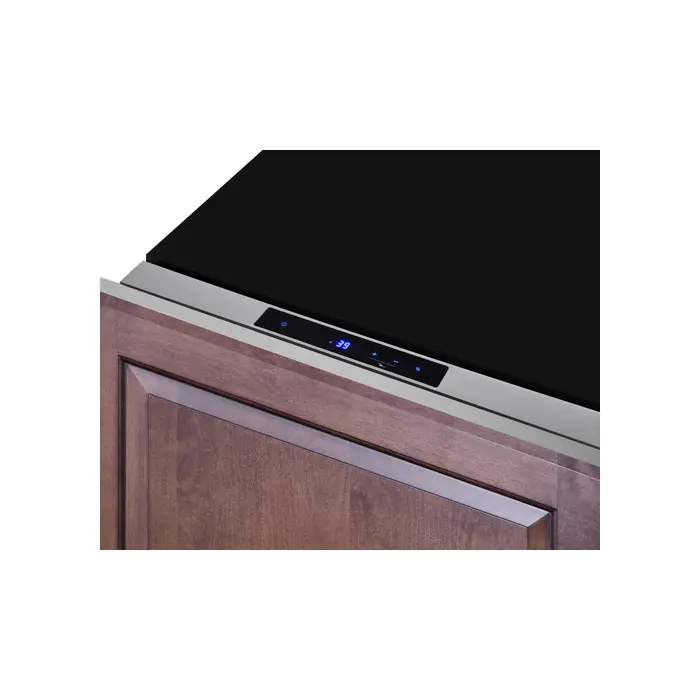

Digital thermostat Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit
LED lighting Elegant LED lighting in a gentle white hue illuminates the refrigerator for an easy view of the interior

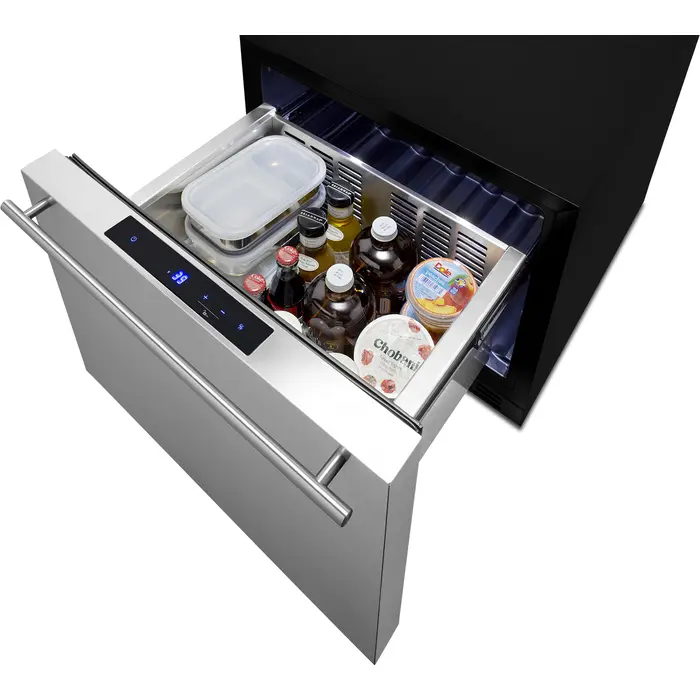

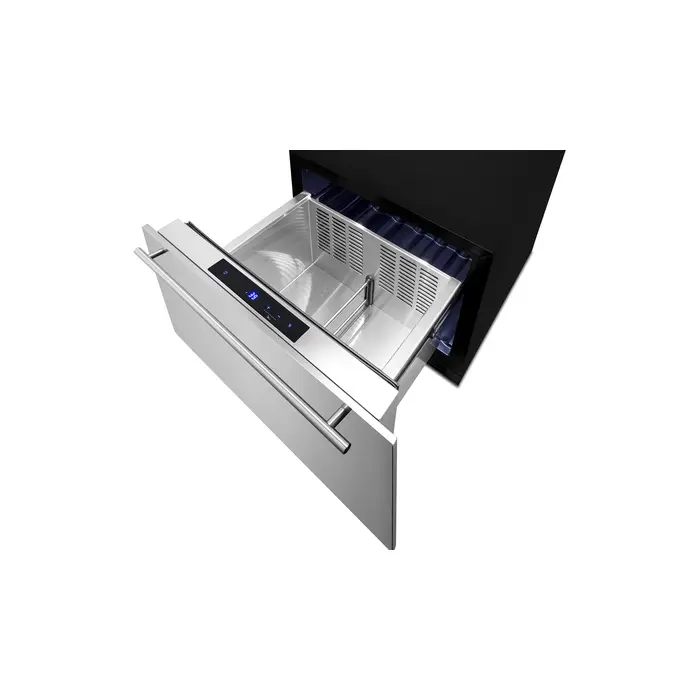

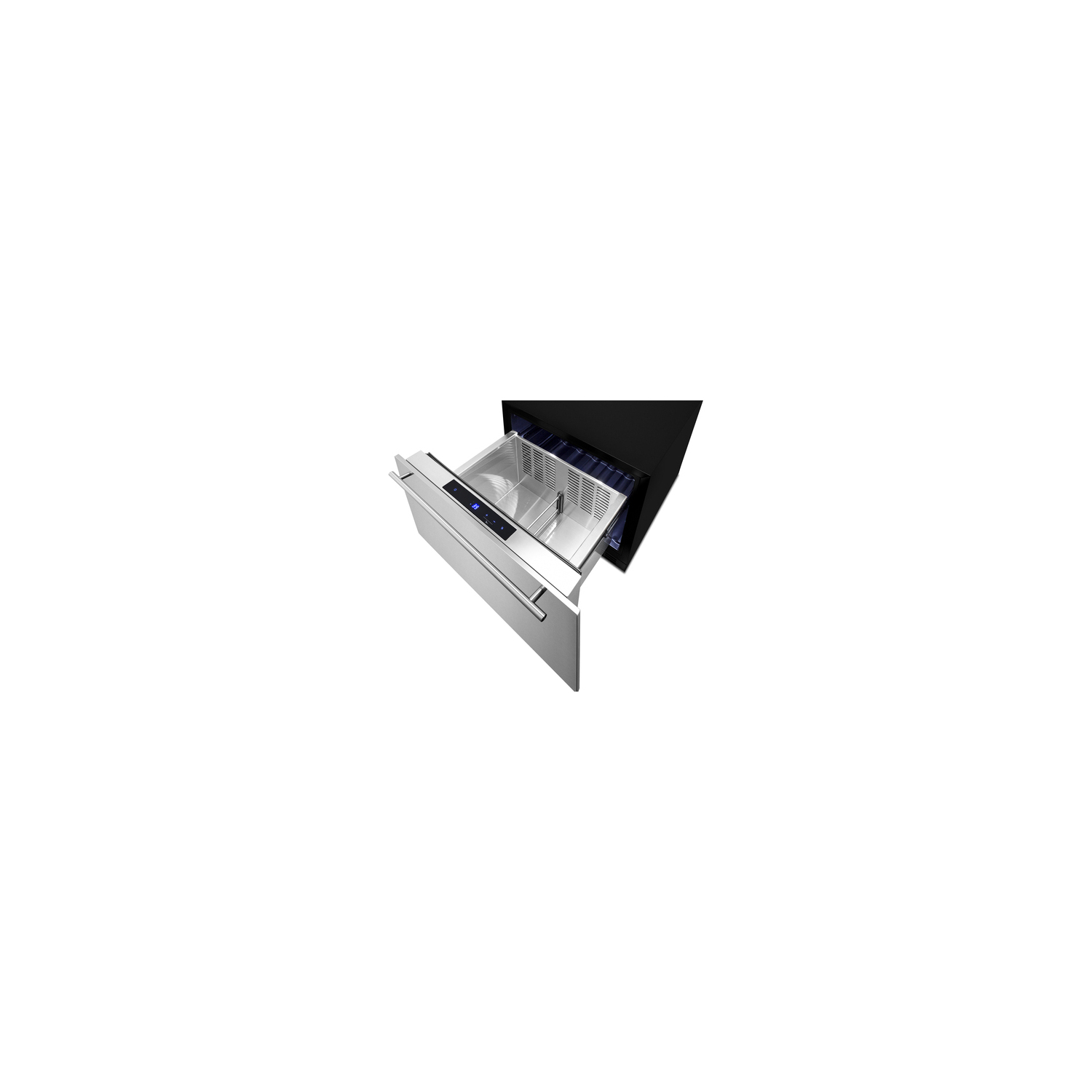

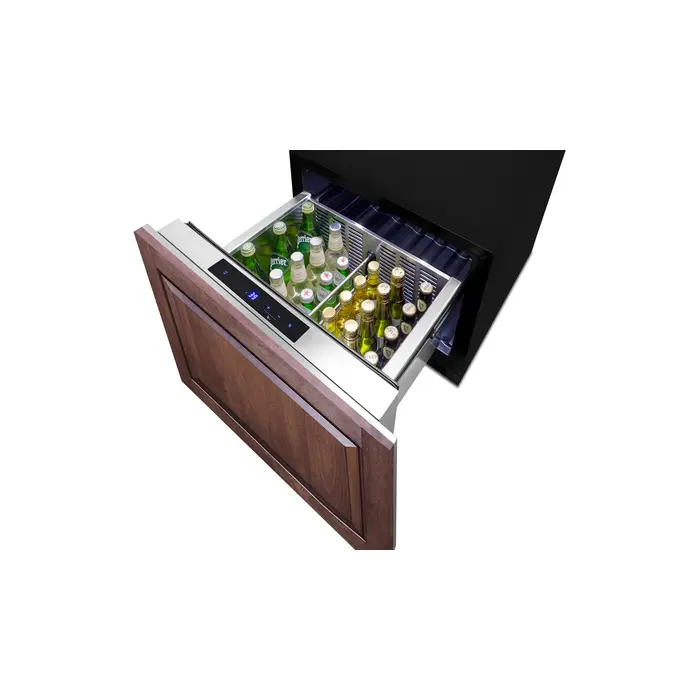

Drawer dividers Two dividers make it simple to organize the drawer interior
Internal fan Fan-forced cooling ensures the unit is evenly cooled
Temperature Memory Function Unit will retain its last settings when power is restored in the event of power loss

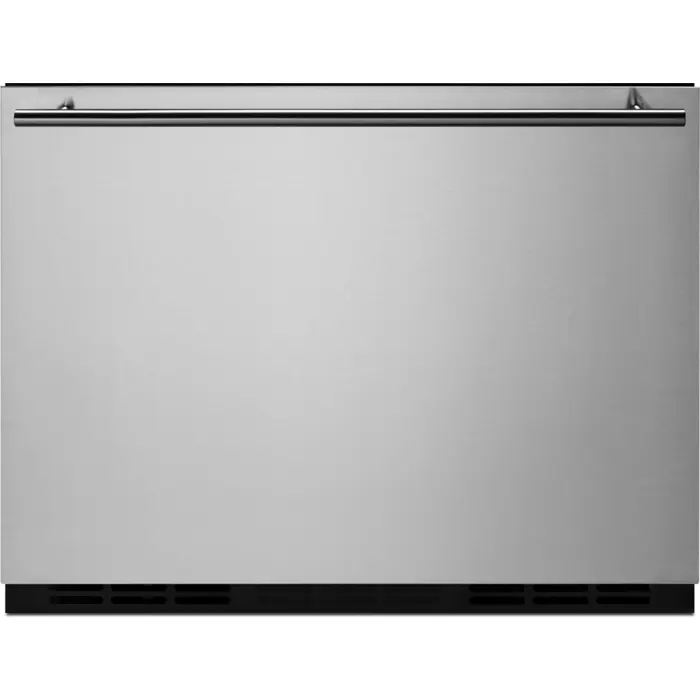

Professional handle A sleek stainless steel handle adds an elegant touch to any setting
Temperature alarm High temperature alarm sounds if the unit's interior goes out of the recommended range
Open drawer alarm Audible alarm will sound if the drawer is left open longer than one minute
Sabbath Mode Optional setting lets you disable certain electrical functions during periods of religious observance for 48 hours
Quiet operation Runs at under 34 dB for a quiet performance in any setting
Child lock Disables digital controls after two minutes of activity for added safety
Fully finished black cabinet Allows the unit to be used freestanding
Ground Fault Circuit Interrupter (GFCI) plug Included 3-prong plug helps to protect users from electrical shocks for added safety, ideal for outdoor spaces
100% CFC free Environmentally friendly design without ozone-damaging chemicals
CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DOWNLOADS
BROCHURE w/ DRAWINGS (FF1DSS.pdf)
TECHNICAL DRAWING (.dwg) (FF1DSS__1__Drawer_Ref.__A-C_2018_.dwg)
REVIT MODEL (QF_Summit_FF1DSS_Refrigerated_Drawer.rfa)
USE & CARE (FF1DSS-User-Manual.pdf)
Energy Guide
