Summit 19 inch wide shallow depth built-in undercounter all-refrigerator with stainless steel exterior, and front lock, 7.61101e+011, FF195CSS

Summit's shallow depth series of built-in undercounter refrigeration includes ENERGY STAR certified choices for improved efficiency in modern style.

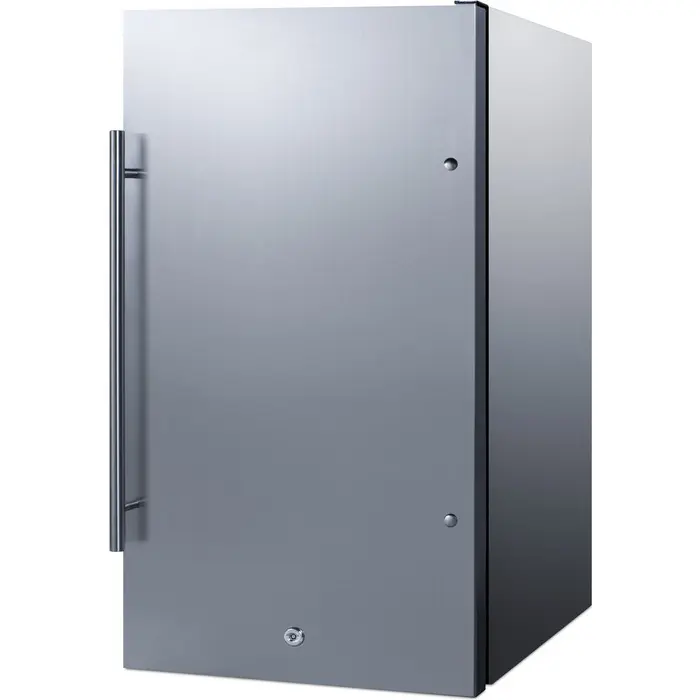

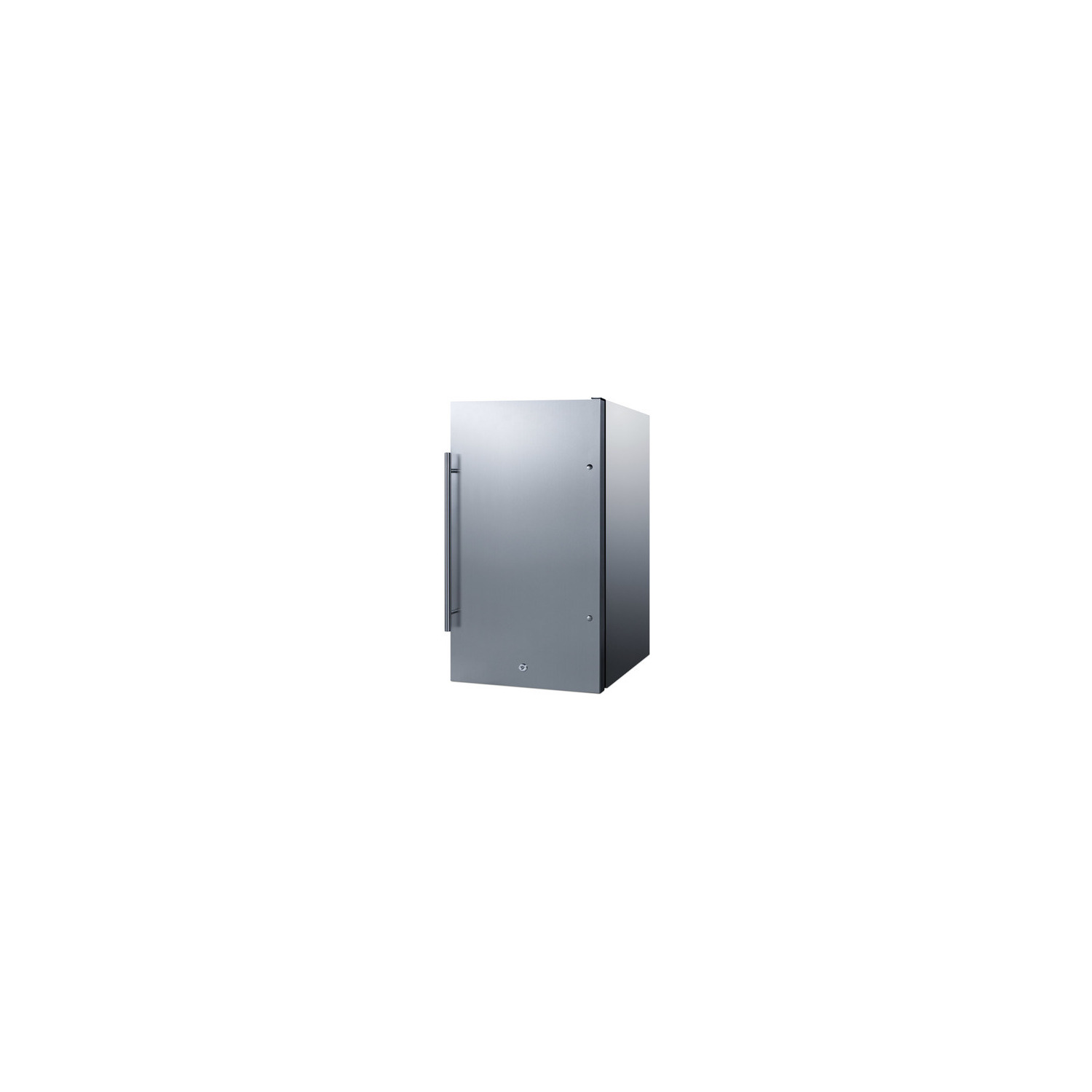

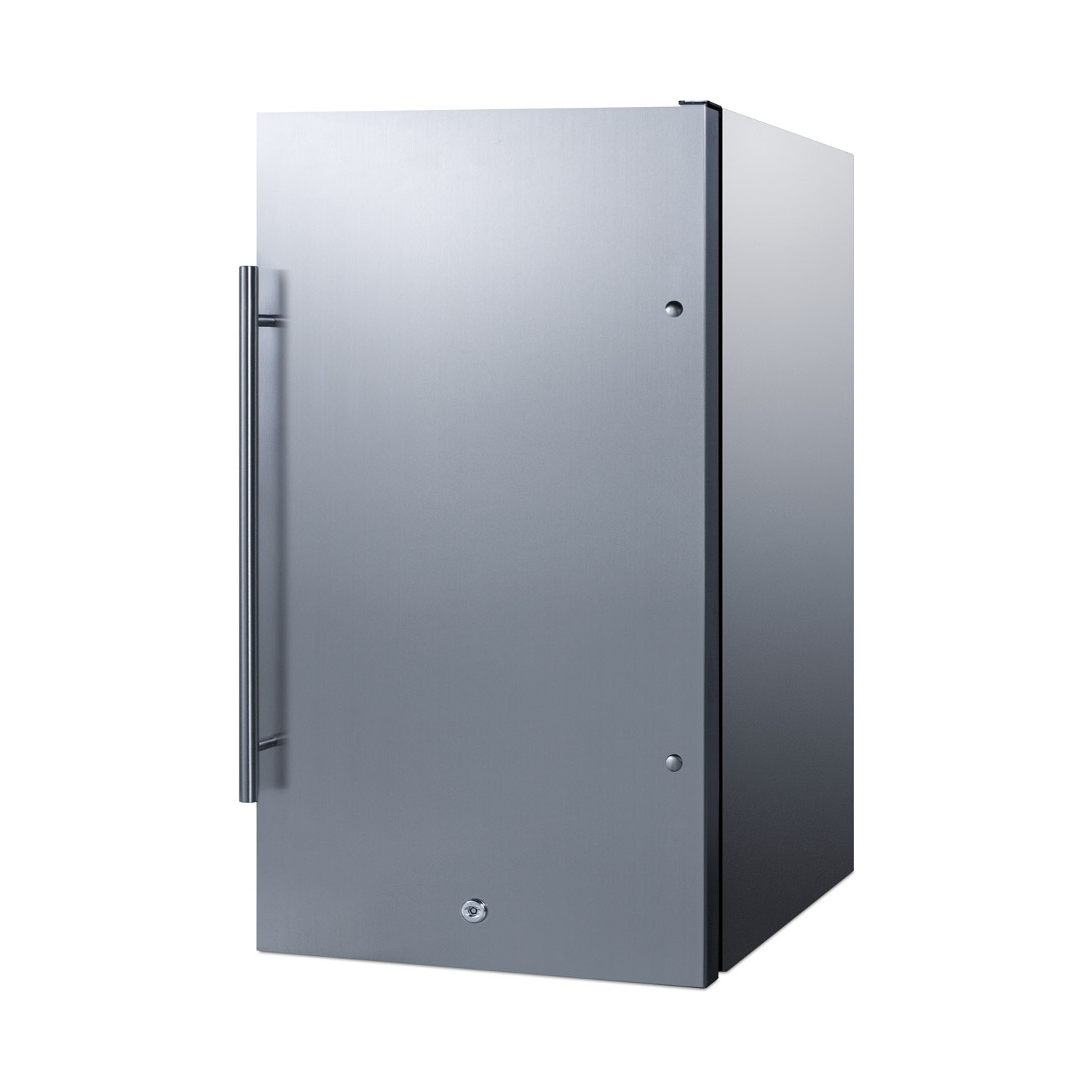

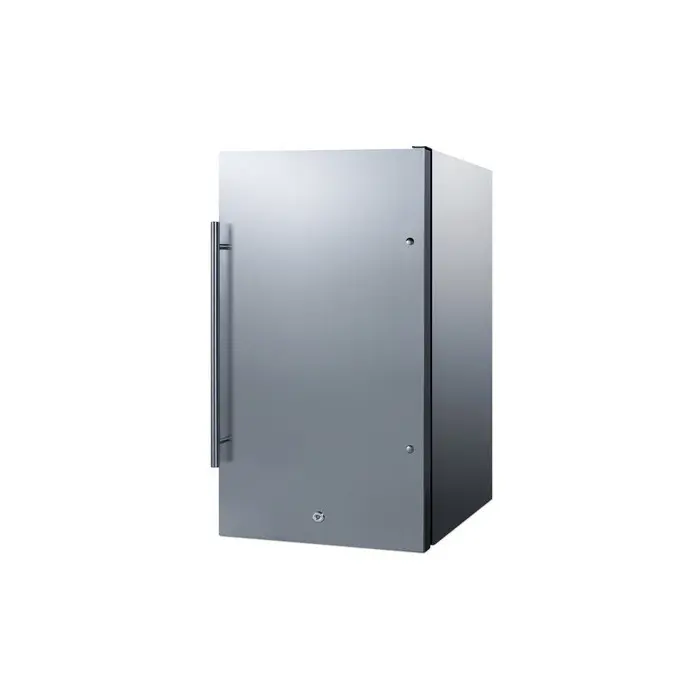

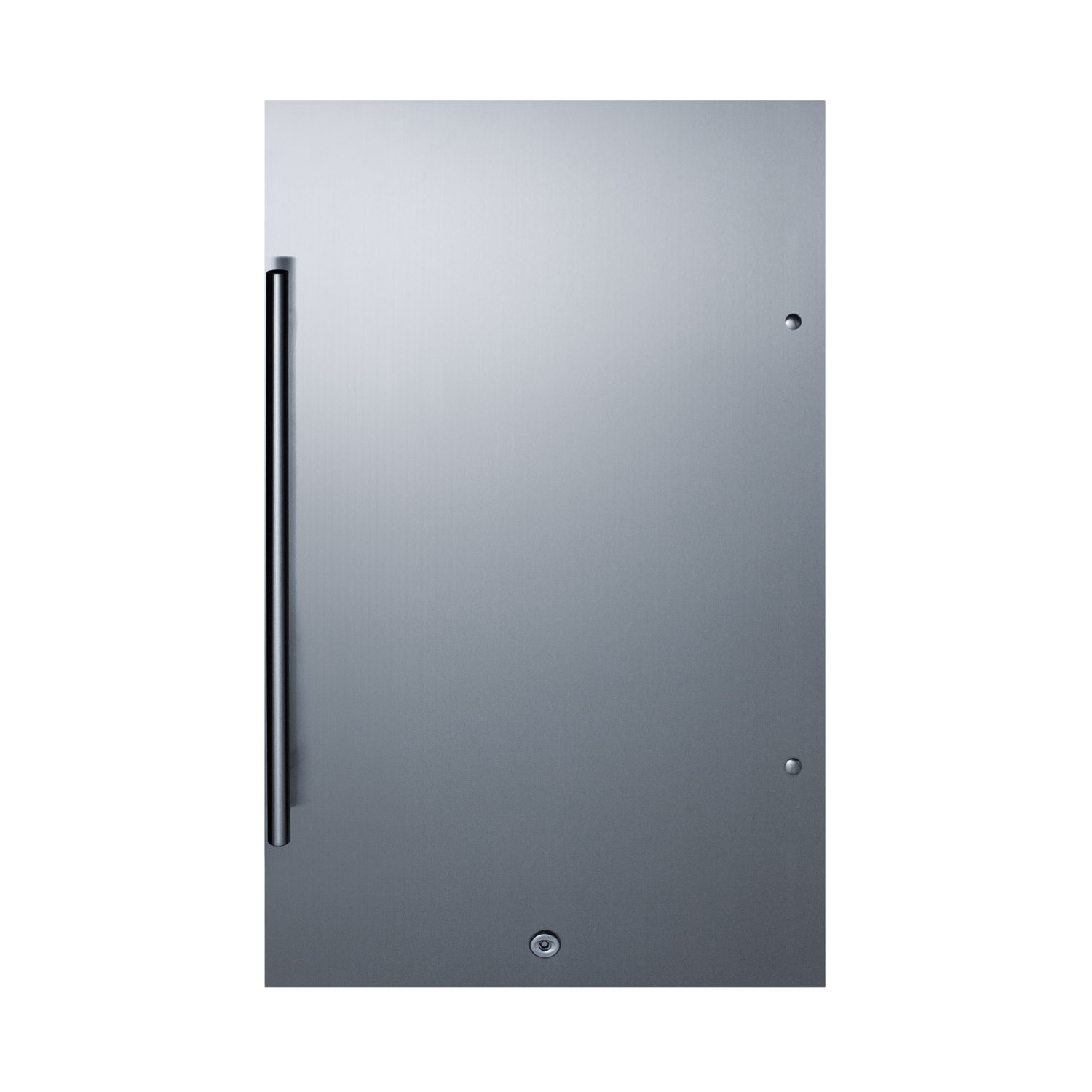

The FF195CSS features a versatile design that meets NSF-7 and UL-471 commercial standards but is also approved for residential use. Sized at just 19 inches wide and 17.25 inches deep, it features a stainless steel wrapped cabinet with a sealed back for easy cleaning of the unit. The user-reversible stainless steel door adds elegance to any setting and the stainless steel pro-style handle completes the look. A factory-installed lock offers added security, while the space-saving right-angle plug and integrated hinge provide added flexibility in unit placement. Two leveling legs keep the unit level on uneven surfaces.

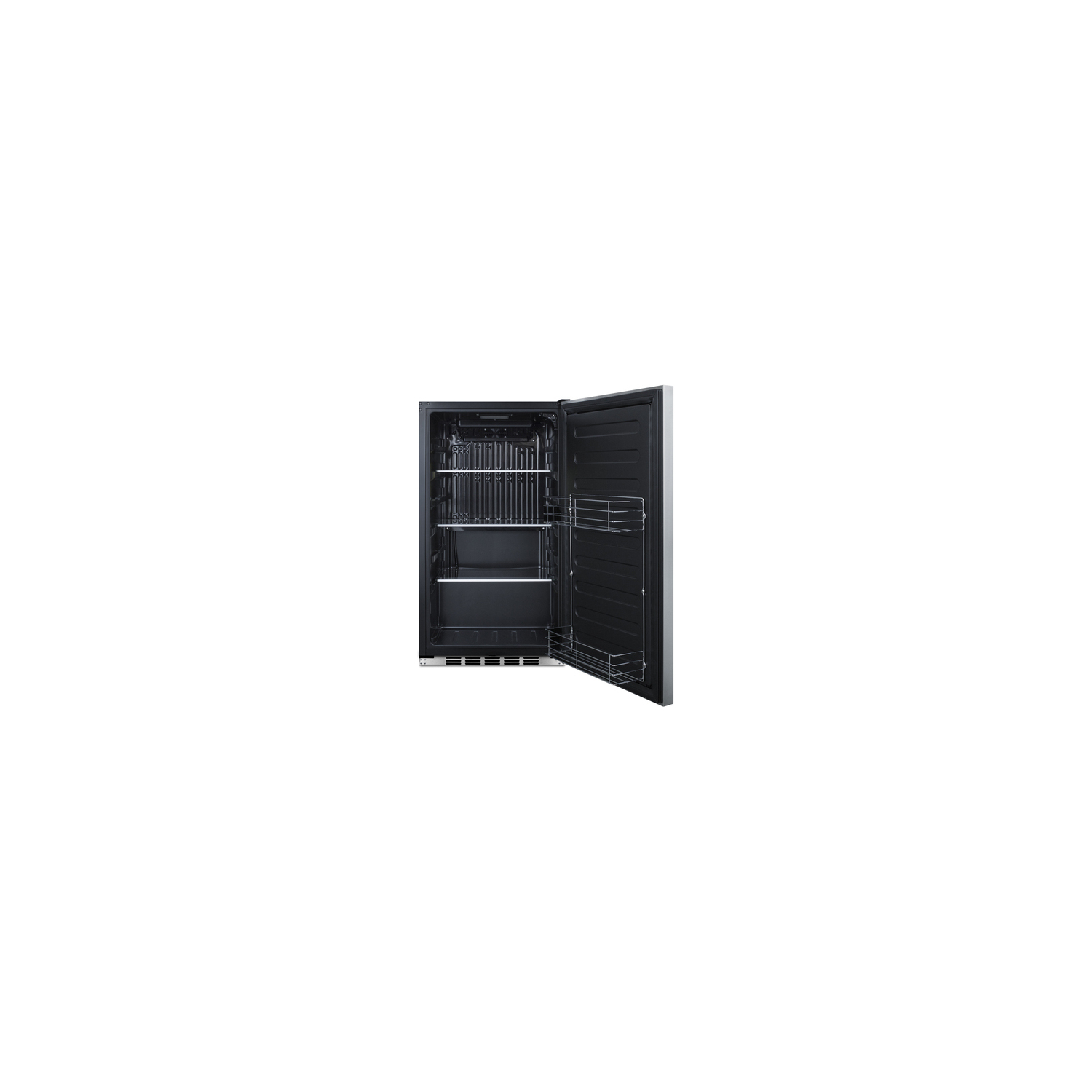

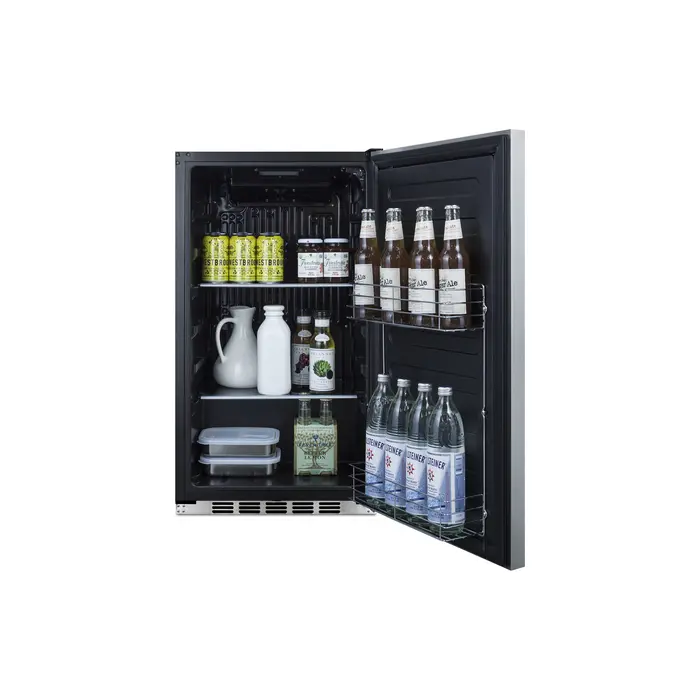

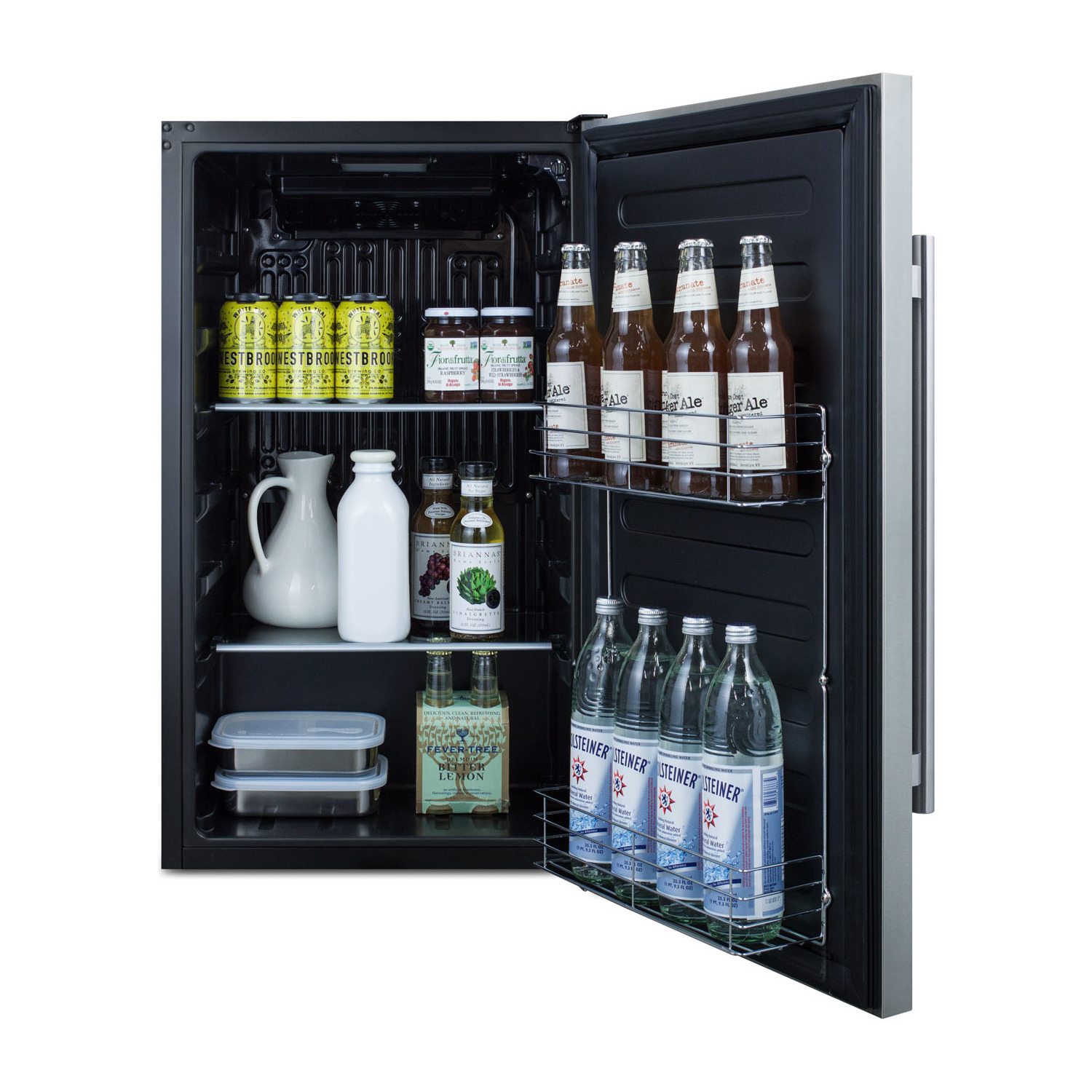

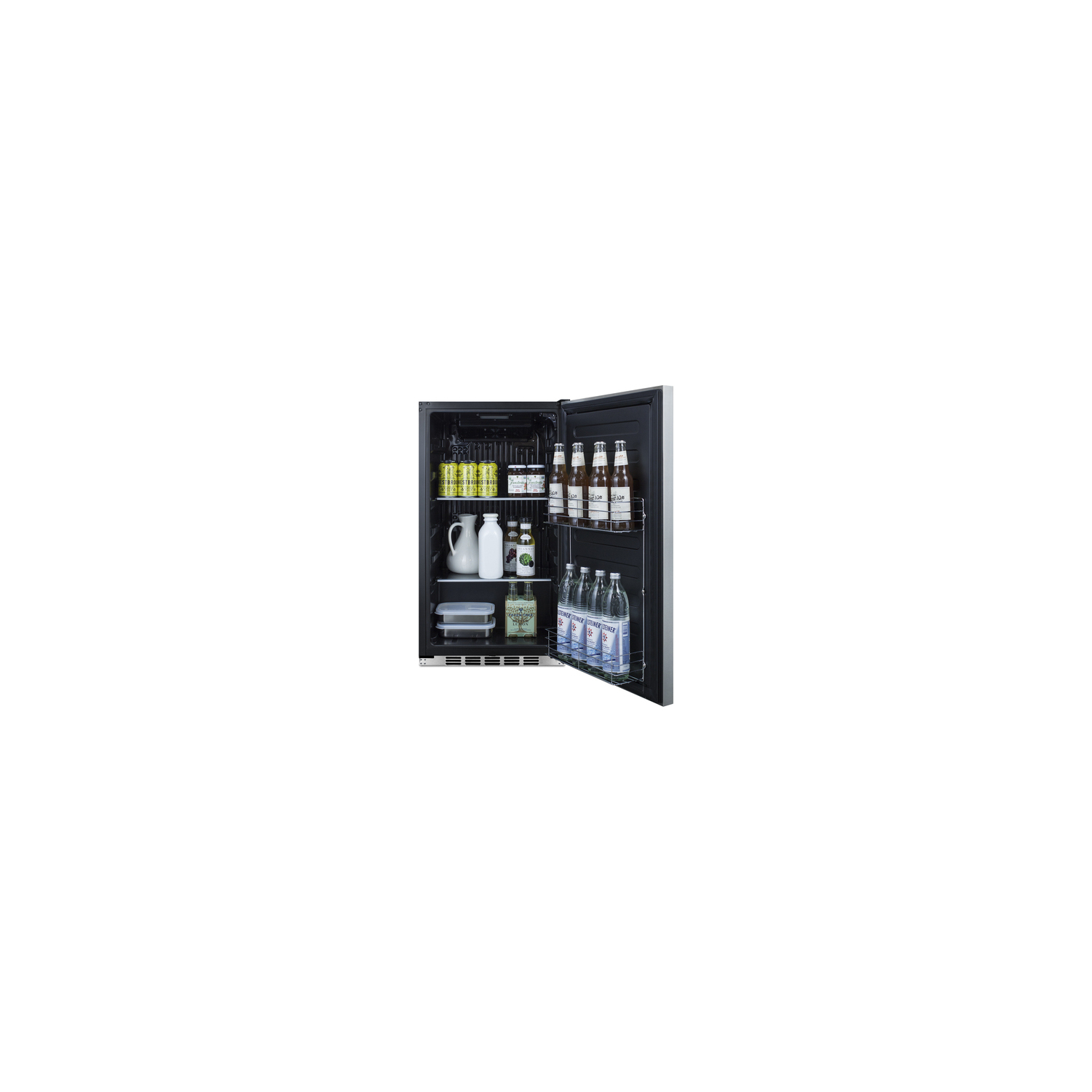

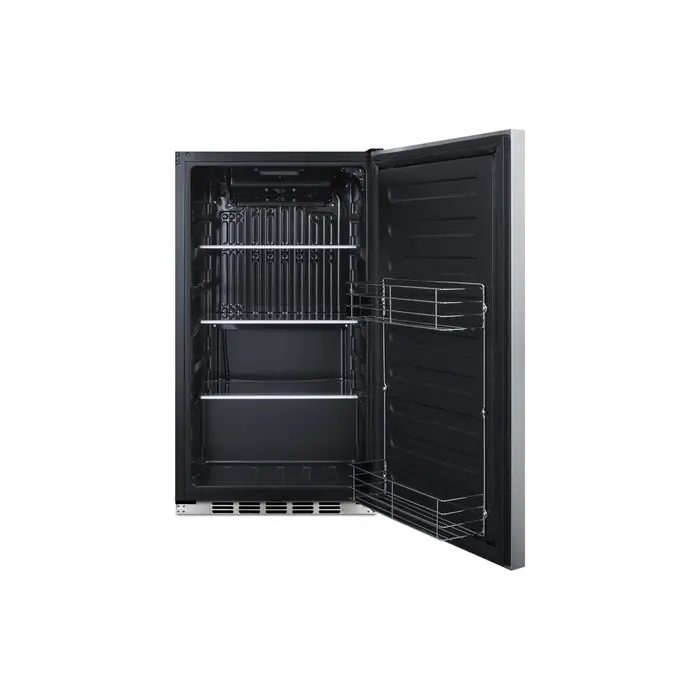

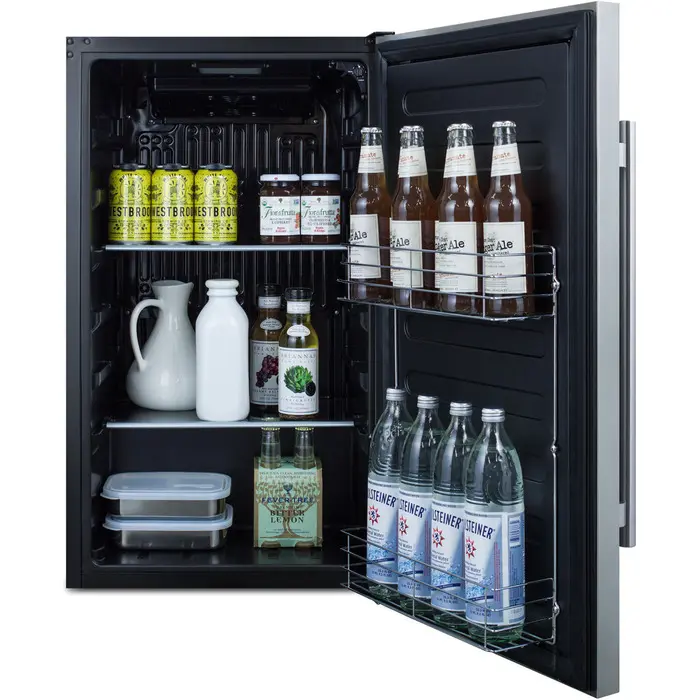

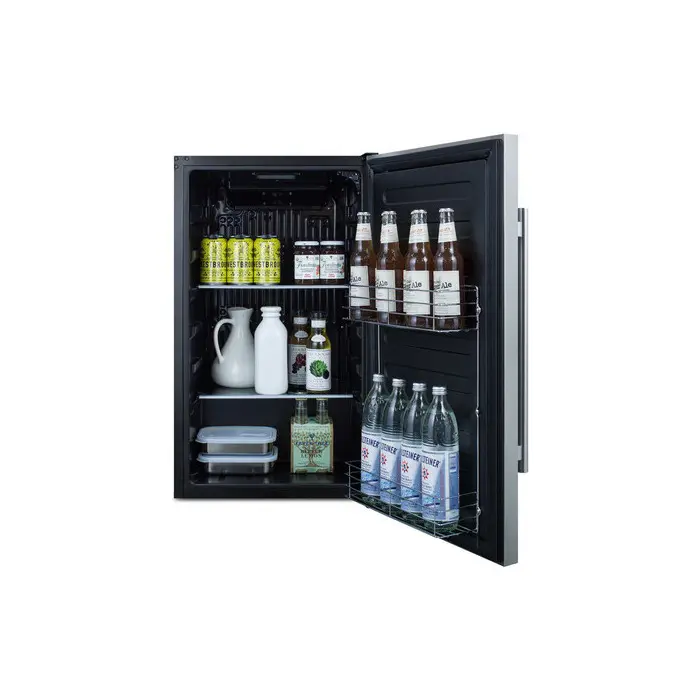

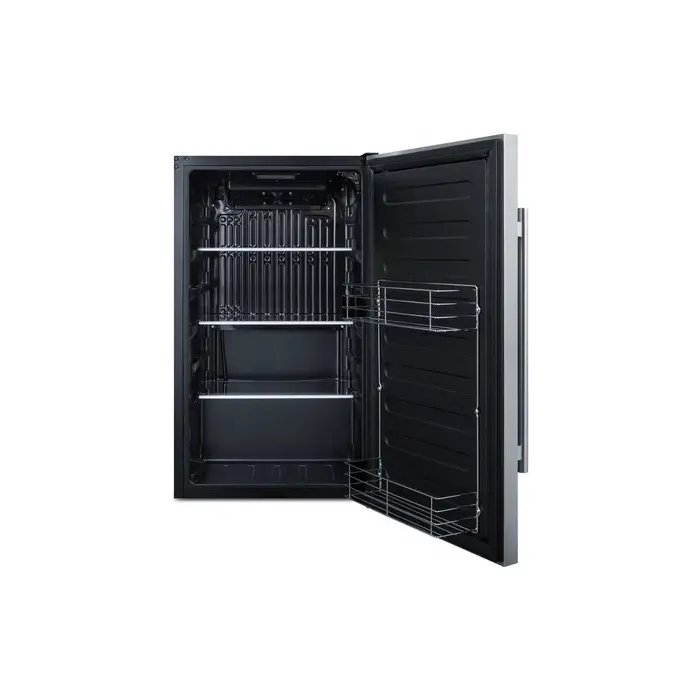

Inside, the FF195CSS utilizes an internal fan to ensure the unit is evenly cooled from top to bottom. An automatic defrost system ensures minimal user maintenance, while LED lighting allows full visibility of stored items in the jet black interior. Three adjustable slide-out glass shelves with six placement positions provide flexible storage capacity inside the 3.1 cu. ft. interior. A shelving brake system offers added safety when moving and storing contents, while two chrome door racks are ideal for storing condiments, canned beverages, and other larger items. The dial thermostat, with seven temperature settings, is located in the front upper-right corner for easy temperature management.

The FF195CSS is ENERGY STAR certified and designed for built-in or freestanding use. For a similar glass door unit commercially approved for outdoor use, see the SPR489OSCSS.

SPECIFICATIONS

Overview

Nominal Height 33.0" (84 cm)

Height of Cabinet 33.0" (84 cm)

Nominal Width 19.0" (48 cm)

Width 19.0" (48 cm)

Nominal Depth 18.0" (46 cm)

Depth 17.25" (44 cm)

Depth with Handle 19.0" (48 cm)

Depth with door at 90° 35.0" (89 cm)

Capacity 3.13 cu.ft. (89 L)

Defrost Type Automatic

Door Stainless Steel

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 259.0kWh/year

Amps 1.3

Voltage/Frequency 115 V AC/60 Hz

Weight 75.0 lbs. (34 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101068008

Refrigerator Features

Door Swing RHD

Reversible Yes

Shelf Type Glass

Shelf Qty 3

Adjustable Shelves Yes

Thermostat Type Dial

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 0.88oz.

High Side PSI 320.0

Low Side PSI 120.0

Level Legs Qty 2

Interior Light Yes

Temperature Range 34 to 50ºF

Sound Level 33.4 dB

Dimensions

Interior Height 29.0" (74 cm)

Interior Width 16.0" (41 cm)

Interior Depth 12.75" (32 cm)

Compressor Step Height 7.0" (18 cm)

Compressor Step Width 16.0" (41 cm)

Compressor Step Depth 6.25" (16 cm)

FEATURES

17.25" shallow depth Ideal for home wet bars, island kitchens, and other applications with limited footprint space

ENERGY STAR certified Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

Commercially approved ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings

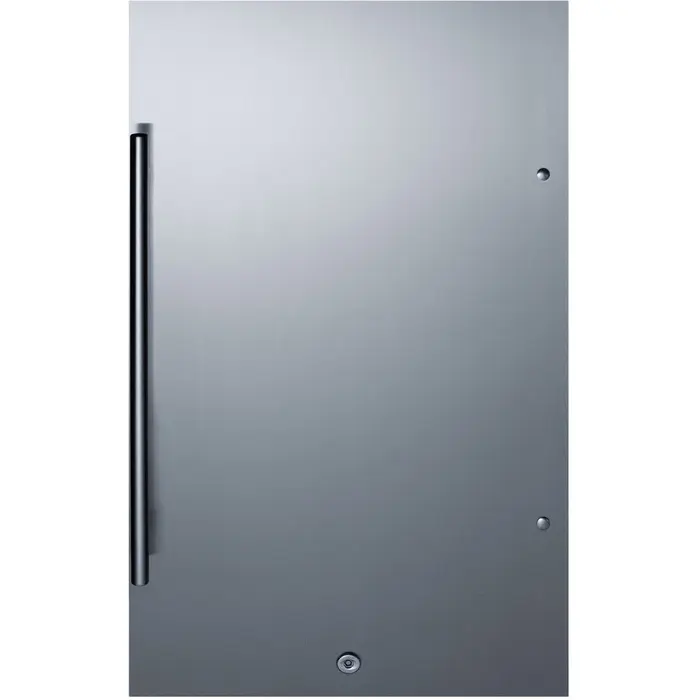

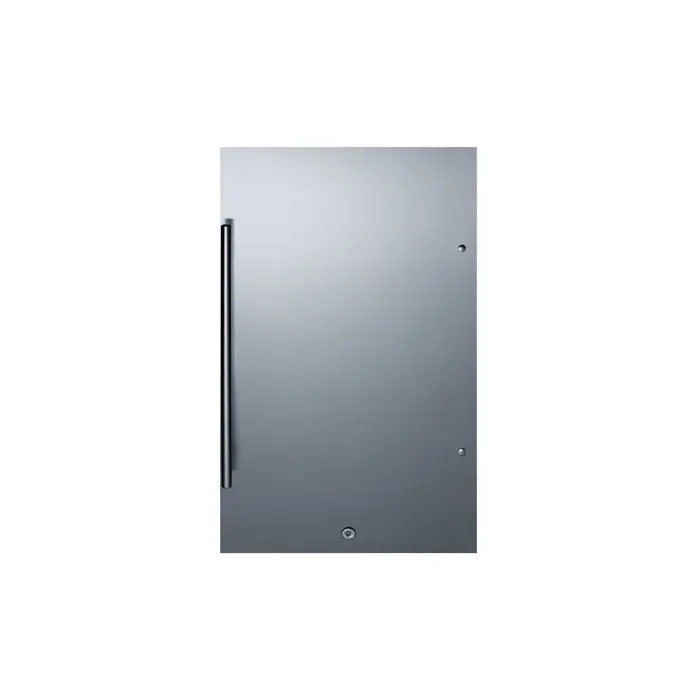

Stainless steel door Stainless steel door offers an elegant look

Automatic defrost Reduced user maintenance with auto defrost system

Reversible door User-reversible door swing makes it easy to adjust to your setting as needed

Factory installed lock Keyed lock offers added security, with two keys included

Professional handle Stainless steel handle adds an attractive touch

Adjustable shelves Three glass shelves with brake system ensures safe, optimal storage

Door racks Two chrome racks accommodate a variety of sizes for optimal interior storage

LED lighting Automatically illuminates when the door is open for an attractive and energy efficient view

Black interior finish Allows for easy cleaning and organization within the interior of the unit

Adjustable thermostat Dial thermostat with seven temperature settings offers easy temperature management

Versatile construction Versatile design allows for residential use

Sealed back Space saving design for easier cleanability

Fully finished stainless steel cabinet Allows the unit to be used freestanding

Right-angle plug Provides flexibility in unit placement without needing added depth

100% CFC free Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
