Summit 24 inch wide shallow depth built-in undercounter all-refrigerator with slide-out side storage compartment, 7.61101e+011, FF19524

Summit's shallow depth series of built-in undercounter refrigeration includes residential options with pull-out side compartments for added storage convenience in a modern style.

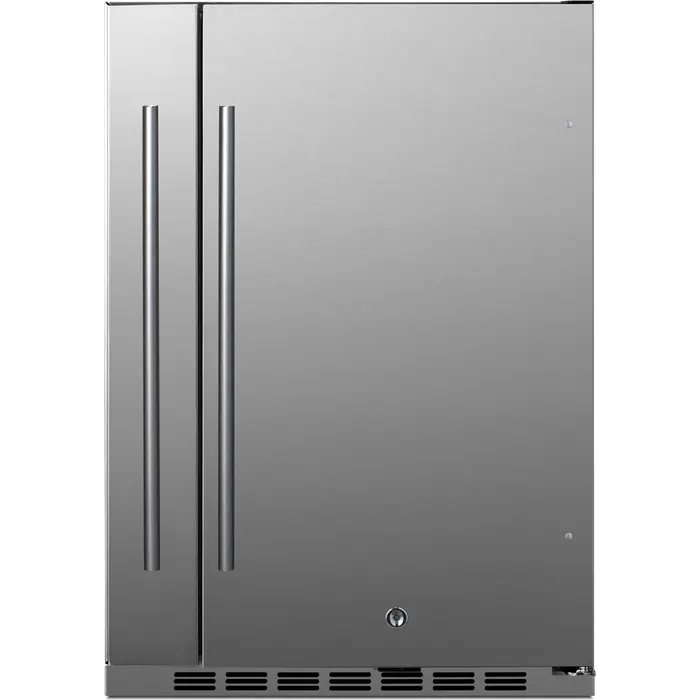

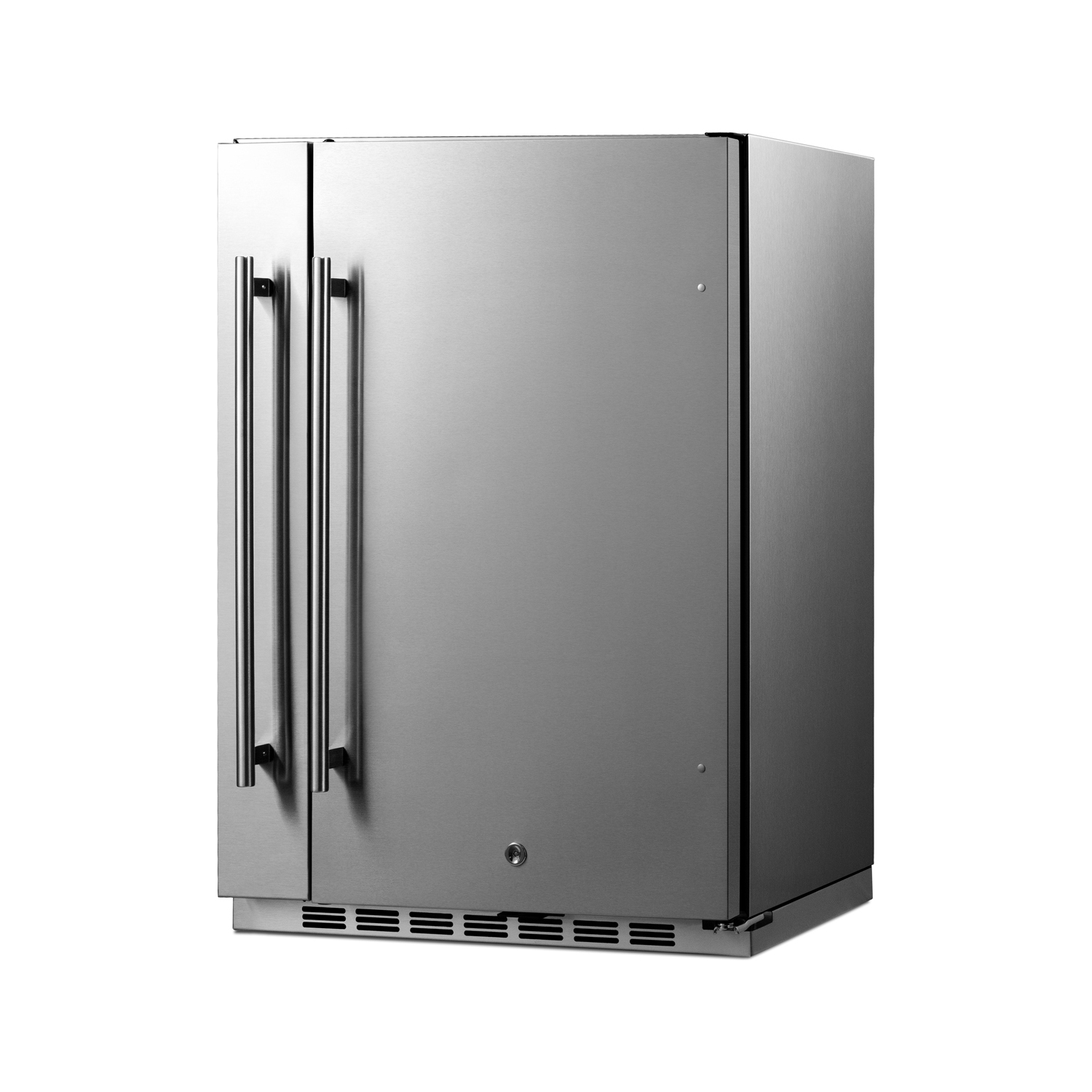

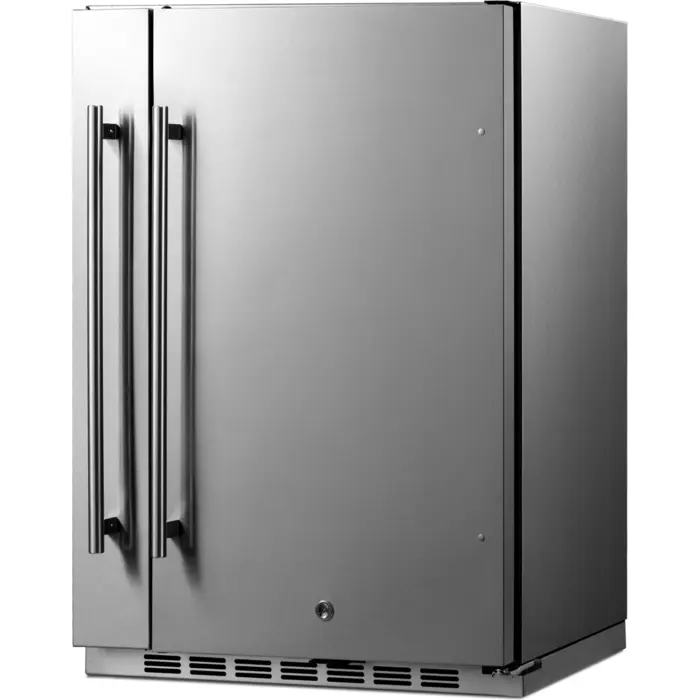

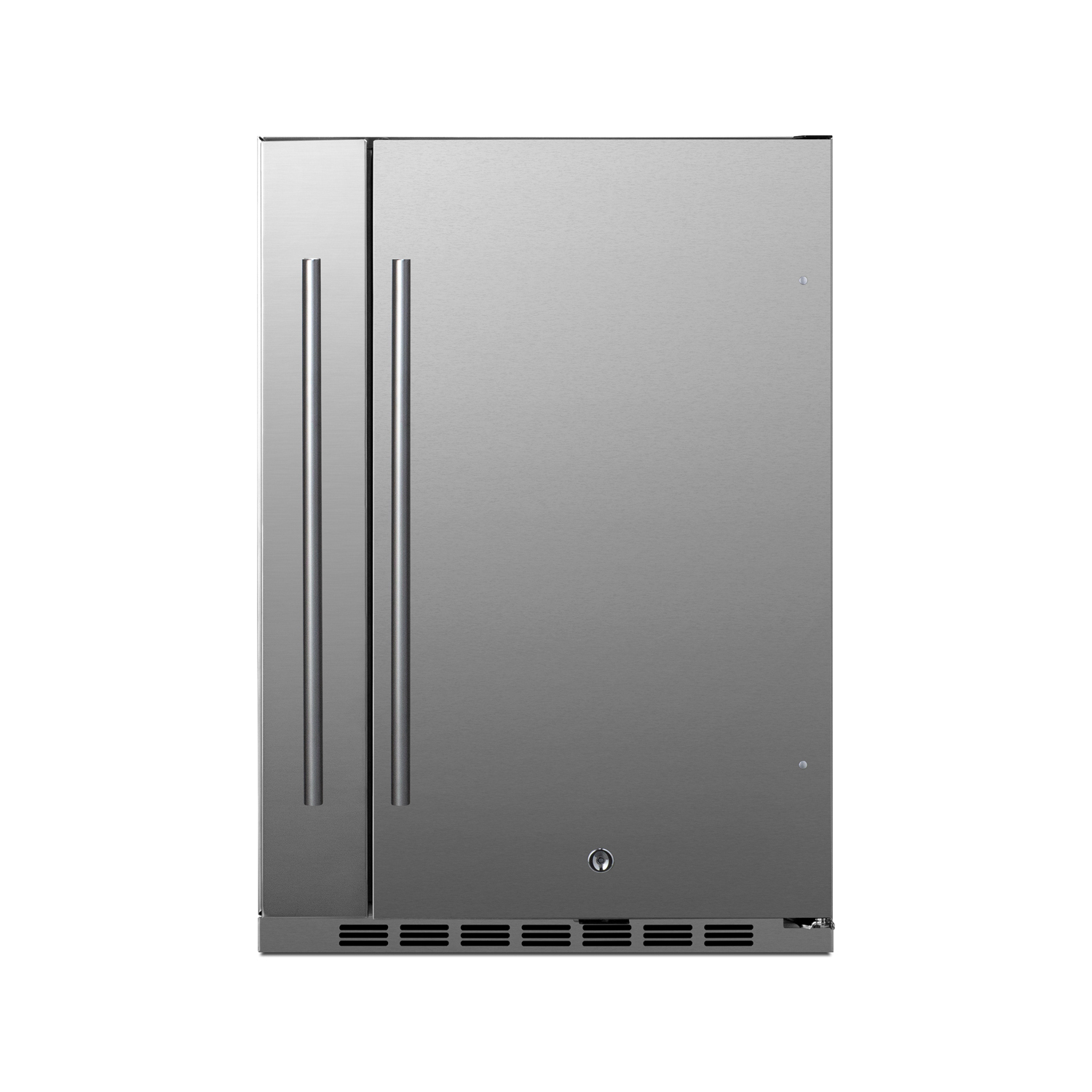

The FF19524 is sized at just 24 inches wide and 17.25 inches deep, with a front-breathing design for built-in installation under counters and a fully finished stainless steel wrapped cabinet to also allow freestanding use. The stainless steel refrigerator door and storage drawer front bring elegance to any setting, with pro-style handles to complete the look. A factory-installed lock offers added security in the refrigeration compartment, while the space-saving right-angle plug and integrated hinge provide added flexibility in unit placement. Leveling legs keep the unit level on uneven surfaces.

For added storage convenience, this unit includes a non-refrigerated pull-out storage compartment in complete stainless steel, with a matching handle to the refrigerator section. The interior features two height adjustable stainless steel full-width shelves providing storage space for non-heat sensitive items such as glassware and sealed, shelf-stable foods including canned goods, dried fruits, crackers, and certain boxed foods like mac and cheese. We include three adjustable two-prong peg hooks that let you hang lighter accessories such as tongs and other cooking utensils. The upper part of the cabinet is slotted, allowing you to suspend slimmer glasses from the ceiling.

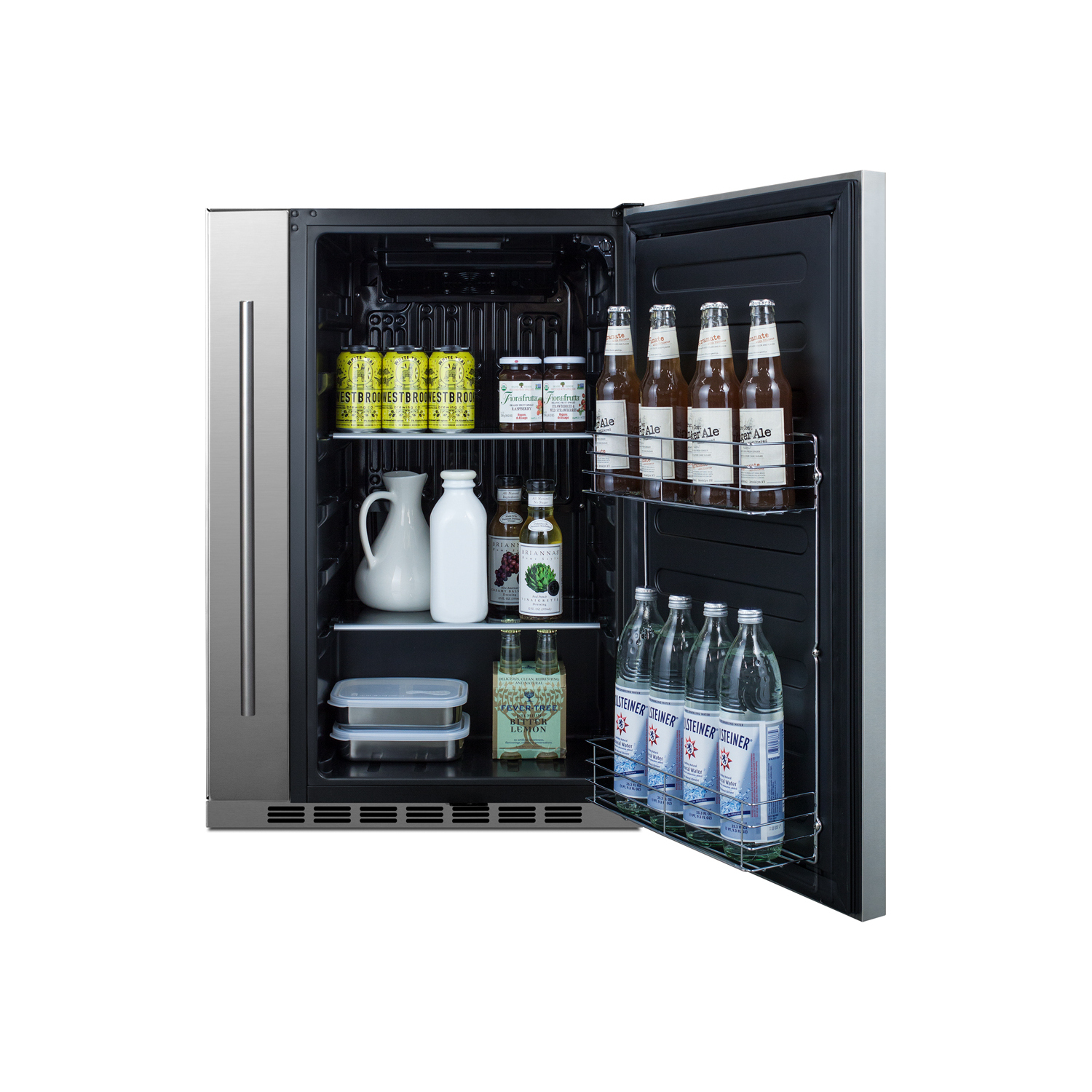

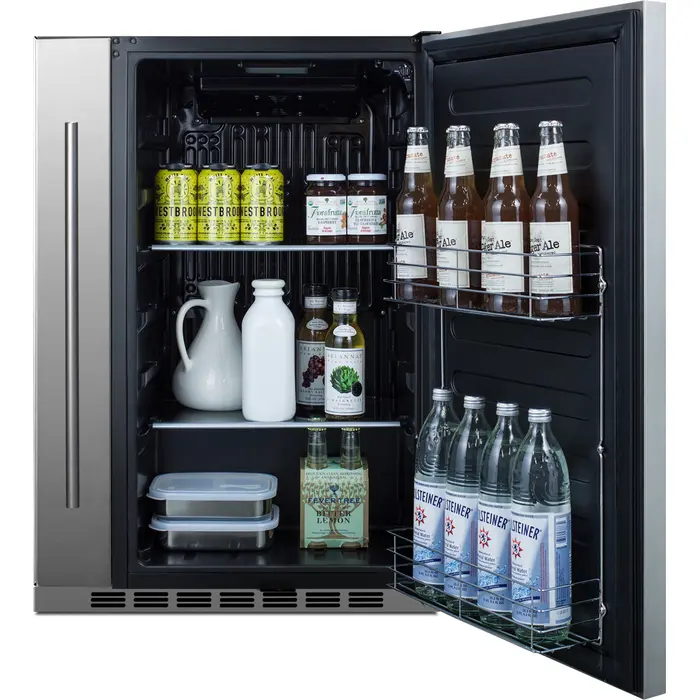

The refrigerated compartment utilizes an internal fan to ensure the unit is evenly cooled from top to bottom. An automatic defrost system ensures minimal user maintenance, while LED lighting allows full visibility of stored items in the jet black interior. Three adjustable slide-out glass shelves with six placement positions provide flexible storage capacity inside the 3.1 cu. ft. interior. A shelving brake system offers added safety when moving and storing contents, while two chrome door racks are ideal for storing condiments, canned beverages, and other larger items. The dial thermostat, with seven temperature settings, is located in the front upper-right corner for easy temperature management.

With its unique space-saving design and convenient shallow depth fit, the FF19524 is the perfect addition to any home bar or other residential space. For an outdoor version of this unit, see the SPR196OS24.

SPECIFICATIONS

Overview

Nominal Height 35.0" (89 cm)

Height of Cabinet 34.25" (87 cm)

Nominal Width 24.0" (61 cm)

Width 23.75" (60 cm)

Nominal Depth 18.0" (46 cm)

Depth 17.25" (44 cm)

Depth with Handle 19.0" (48 cm)

Depth with door at 90° 35.0" (89 cm)

Capacity 3.13 cu.ft. (89 L)

Defrost Type Automatic

Door Stainless Steel

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 259.0kWh/year

Amps 1.3

Voltage/Frequency 115 V AC/60 Hz

Weight 70.0 lbs. (32 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101078717

Refrigerator Features

Door Swing RHD

Reversible No

Shelf Type Glass

Shelf Qty 3

Adjustable Shelves Yes

Thermostat Type Dial

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 0.88oz.

High Side PSI 320.0

Low Side PSI 120.0

Level Legs Qty 4

Interior Light Yes

Temperature Range 34 to 50ºF

Sound Level 33.4 dB

Drawer Dimensions

Interior Height 1 29.0" (74 cm)

Interior Width 1 4.25" (11 cm)

Interior Depth 1 12.75" (32 cm)

Dimensions

Interior Height 29.0" (74 cm)

Interior Width 16.0" (41 cm)

Interior Depth 12.75" (32 cm)

Compressor Step Height 7.0" (18 cm)

Compressor Step Width 16.0" (41 cm)

Compressor Step Depth 6.25" (16 cm)

FEATURES

All-refrigerator with extra storage Perfectly designed to maximize storage convenience in a slim, shallow fit

17.25" shallow depth Ideal for home wet bars, island kitchens, and other applications with limited footprint space

24" wide Conveniently sized for home bar use

Complete stainless steel construction Stainless steel wrapped cabinet, kickplate, and exterior front brings an elegant look in a durable design

Pull-out side compartment Non-refrigerated side compartment with a smoothly gliding pull-out door offers convenient storage of non-heat sensitive items such as glassware and cooking utensils and sealed, shelf-stable foods

Factory installed lock Keyed lock on the refrigerator offers added security, with two keys included

Professional handles Stainless steel handles on both compartments add an attractive touch

Stainless steel shelves (side compartment) Two adjustable full-width stainless steel shelves afford convenient added storage

3 peg hooks (side compartment) Adjustable two-prong hooks allow users to hang cooking utensils, washcloths, and other lightweight items as needed

Wine glass storage (side compartment) Slide-out compartment includes three upper slots to suspend slim wine or champagne glasses

Automatic defrost Reduced user maintenance with auto defrost system

Adjustable shelves Three glass shelves with brake system ensures safe, optimal storage

Refrigerator door storage Two chrome racks are ideal for keeping condiments and bottles within easy reach

LED lighting Automatically illuminates when the door is open for an attractive and energy efficient view

Black interior finish Allows for easy cleaning and organization within the interior of the refrigerator

Adjustable thermostat Dial thermostat with seven temperature settings offers easy temperature management

Sealed back Space saving design for easier cleanability

Fully finished stainless steel cabinet Allows the unit to be used freestanding

Right-angle plug Provides flexibility in unit placement without needing added depth

Outdoor approved version available For this unit in an outdoor approved model, see the SPR196OS24

100% CFC free Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
