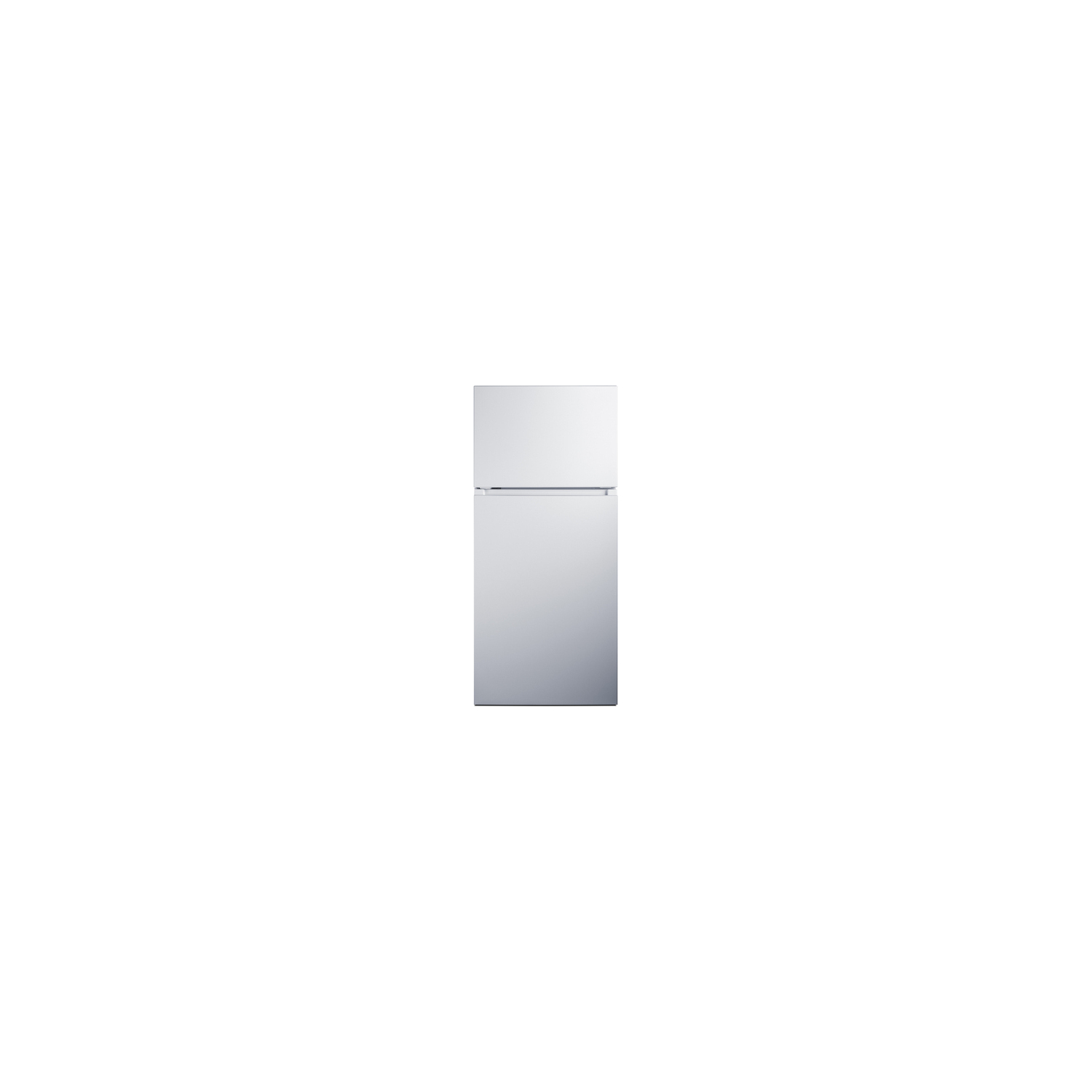

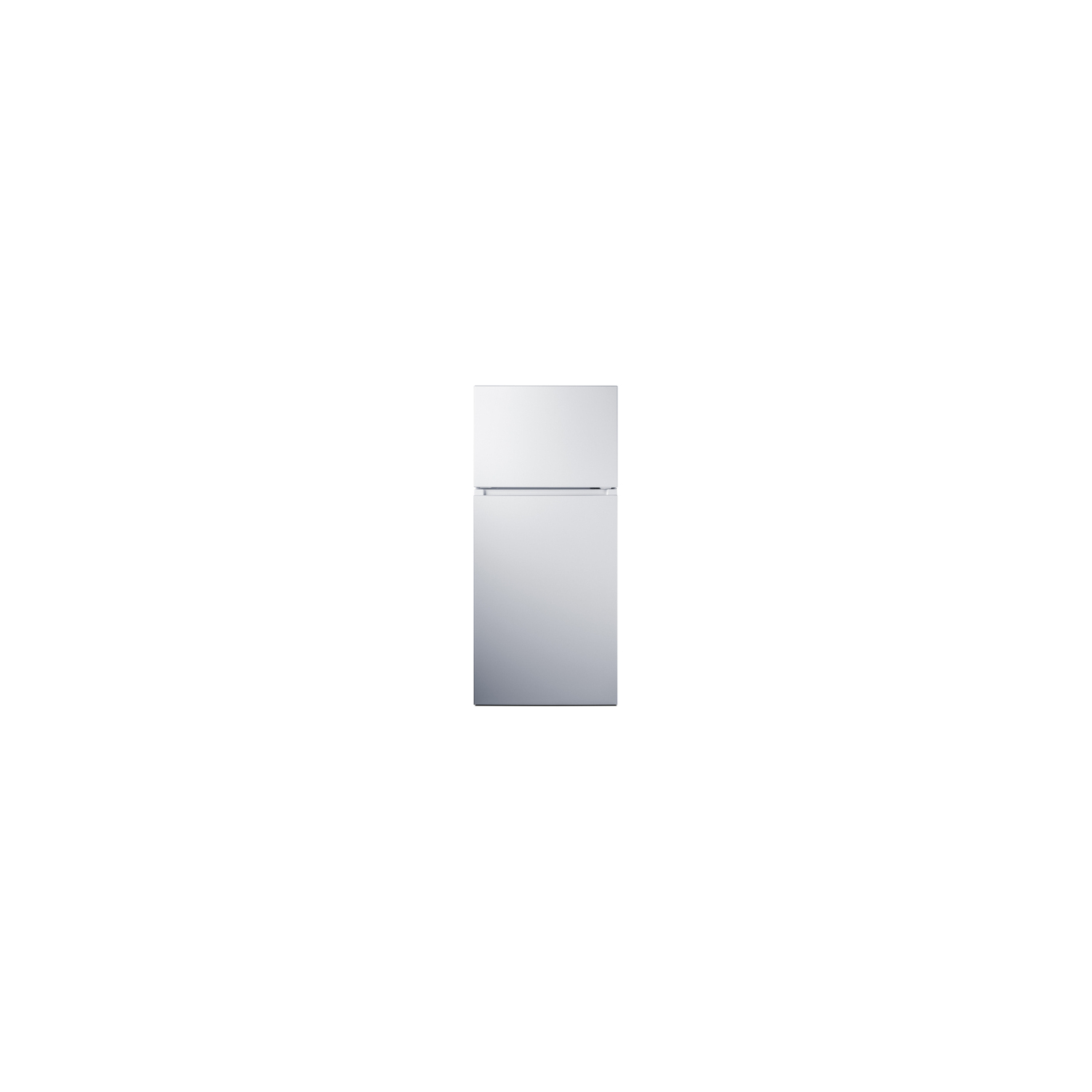

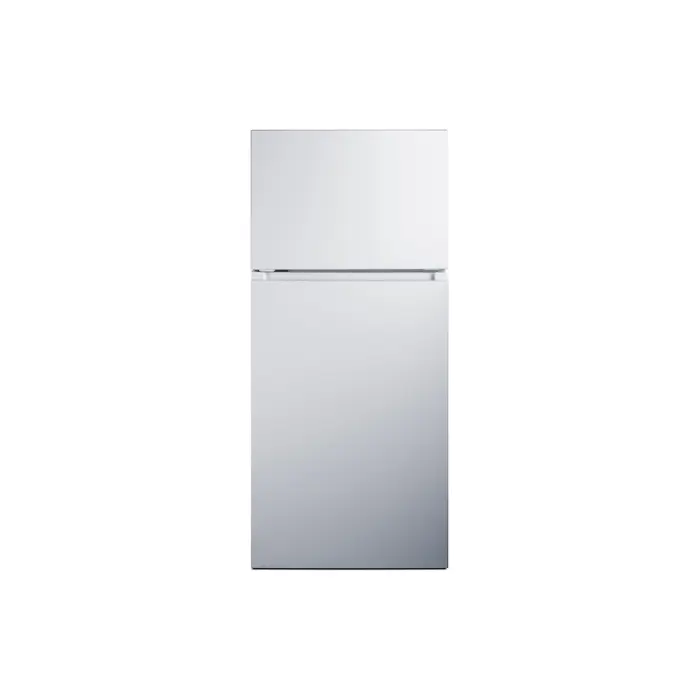

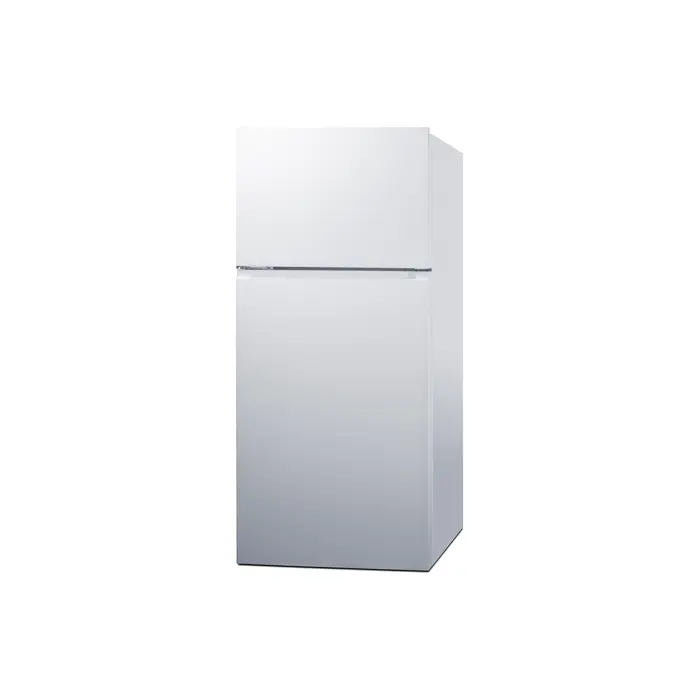

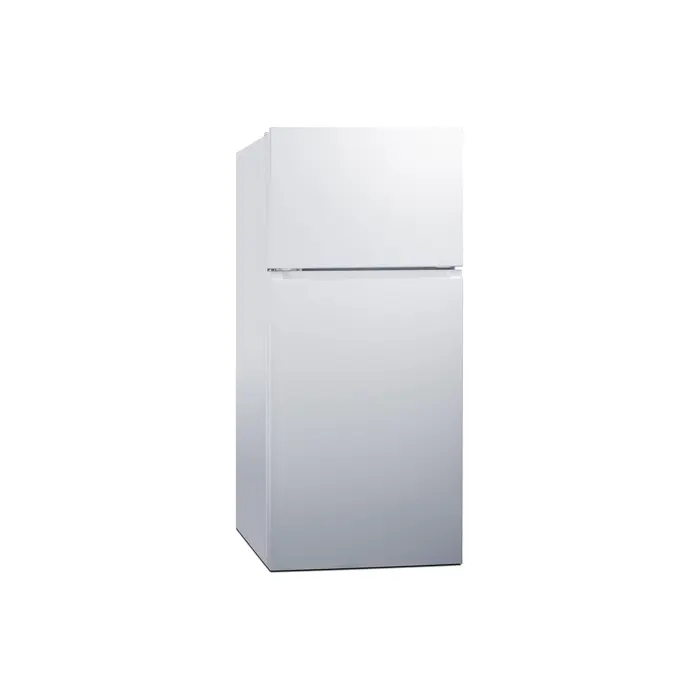

Summit 18 cu.ft. top-mount refrigerator-freezer, FF18W

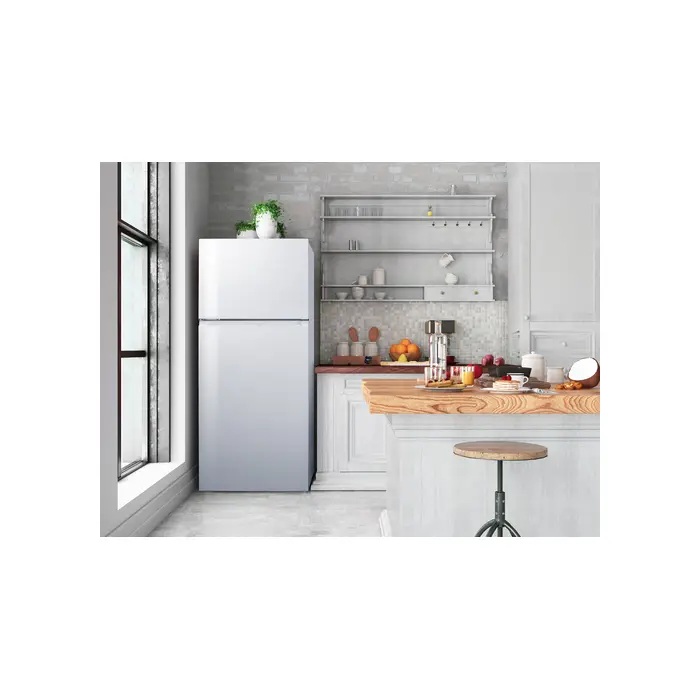

Summit's fully-featured, top-mount refrigerator-freezers are specially designed to bring modern style and true convenience to any kitchen.

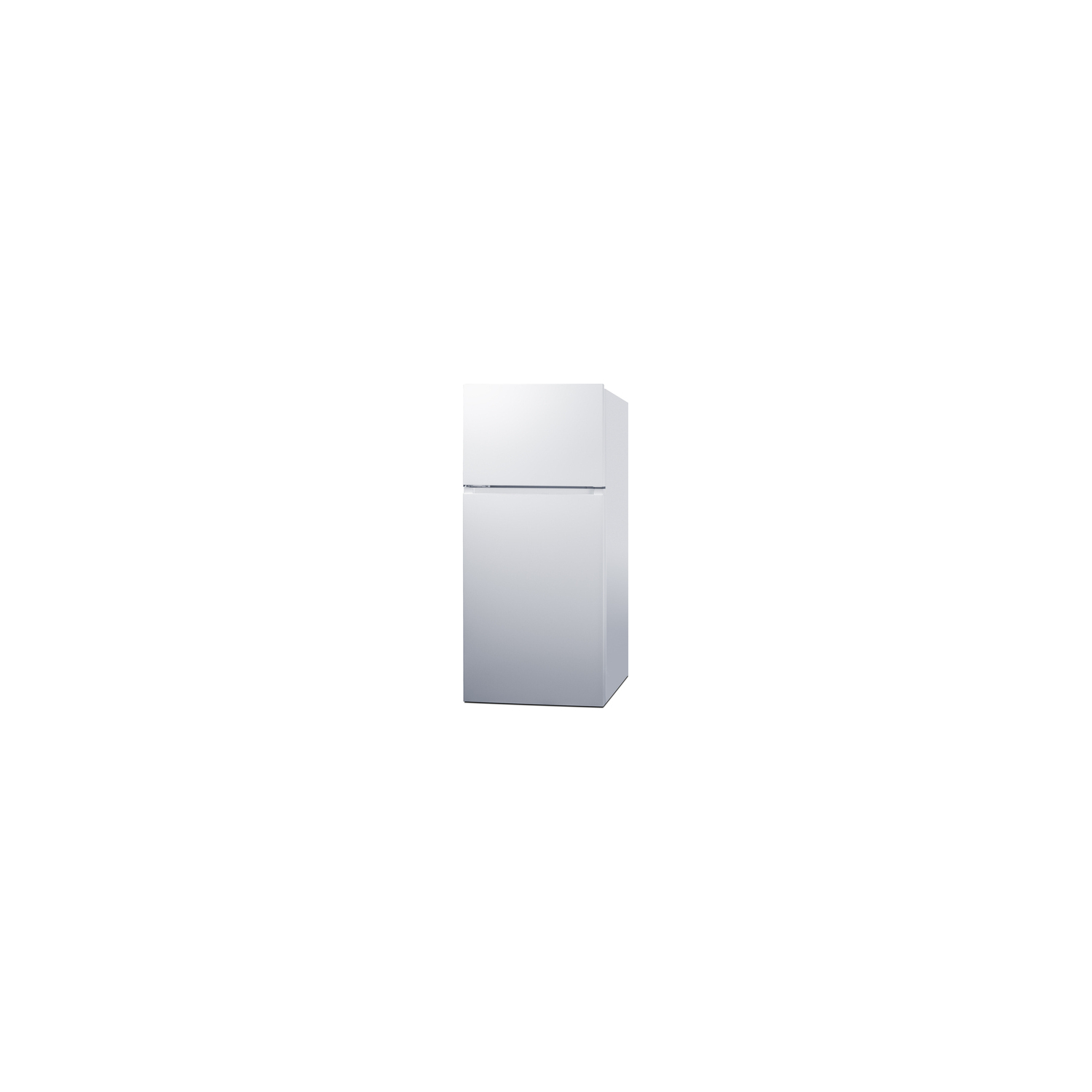

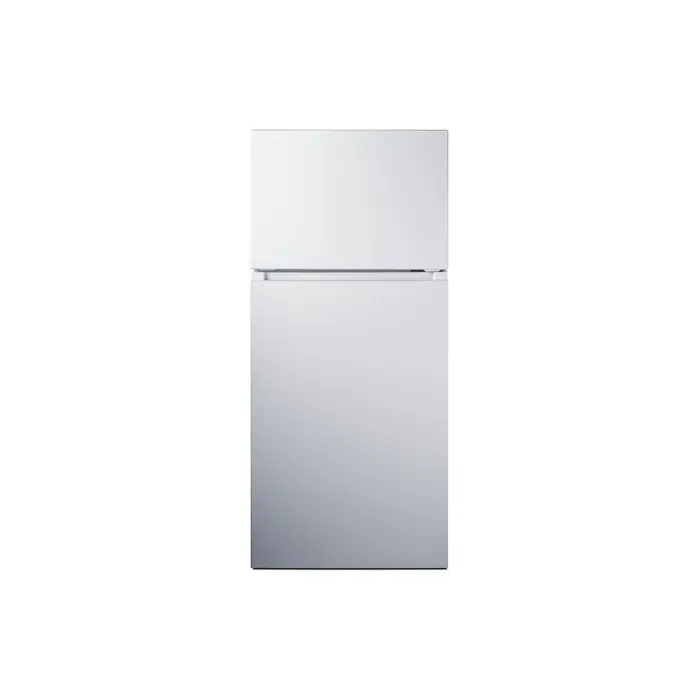

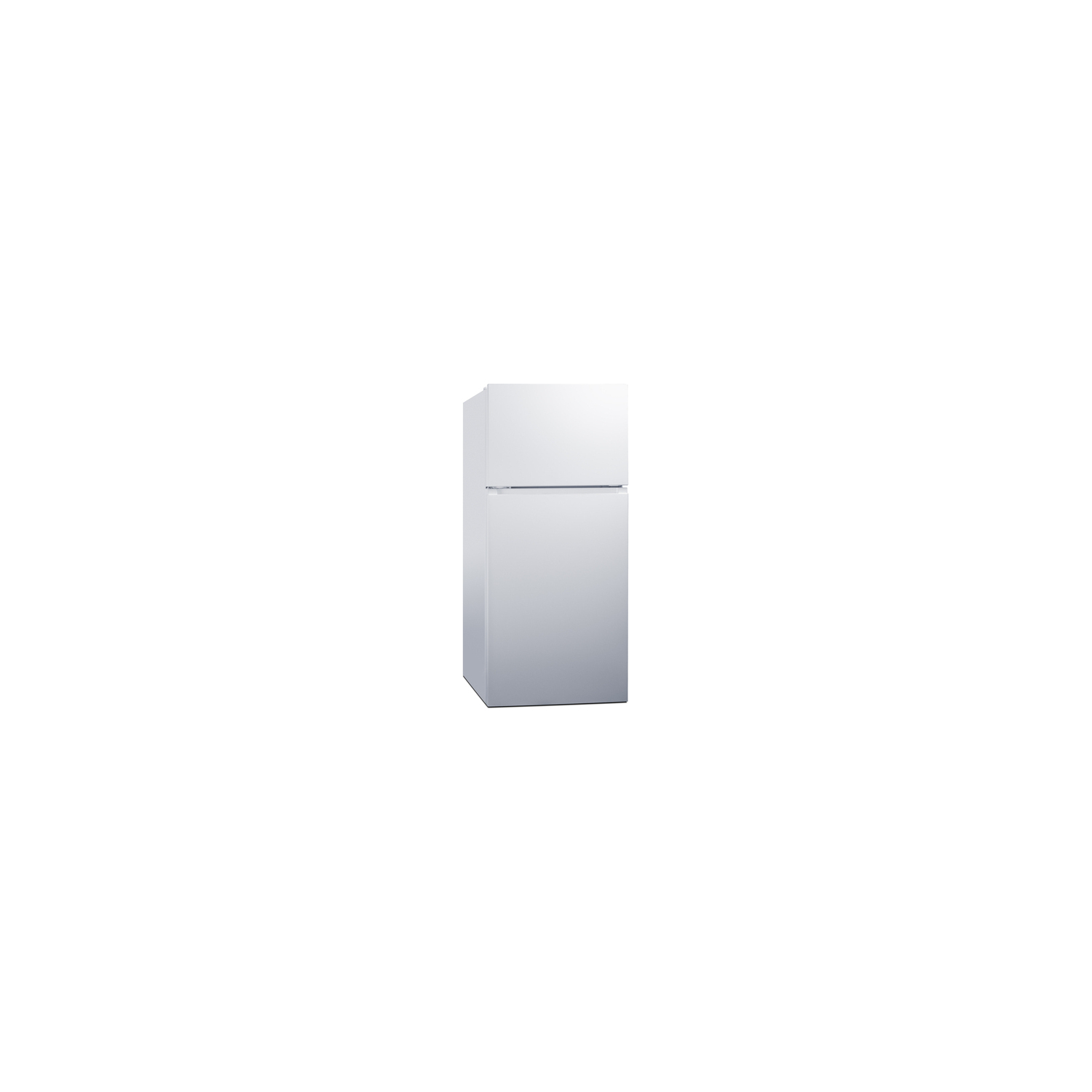

Made in North America, model FF18W is a 30" wide ENERGY STAR-certified top-mount refrigerator-freezer that offers over 18 cu.ft. of storage capacity. Classic white doors feature pocket handles, with a smooth white cabinet for a timeless look in any kitchen. This unit has a sealed rear and right-angle cord for a better fit. Both doors are user-reversible to best suit your space.

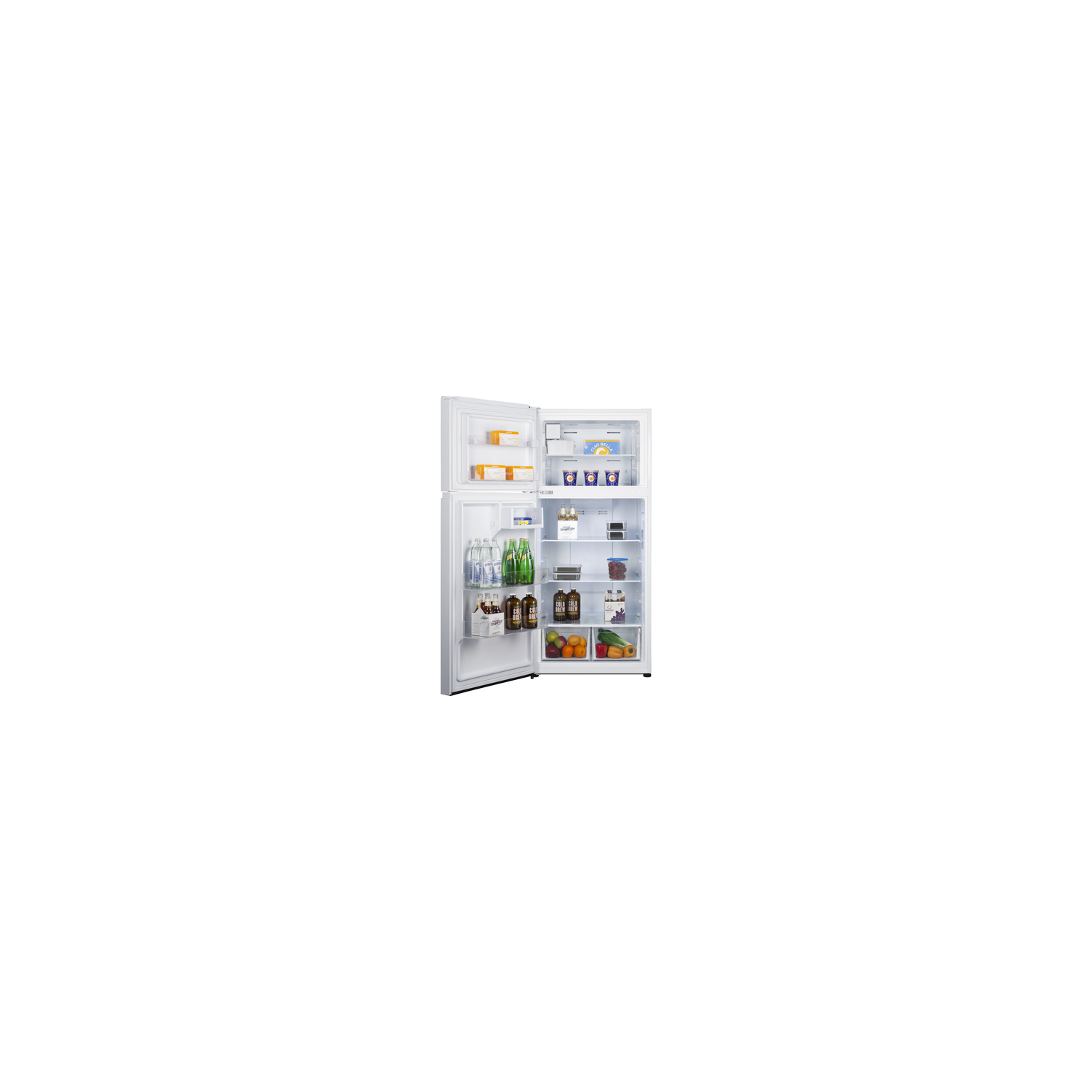

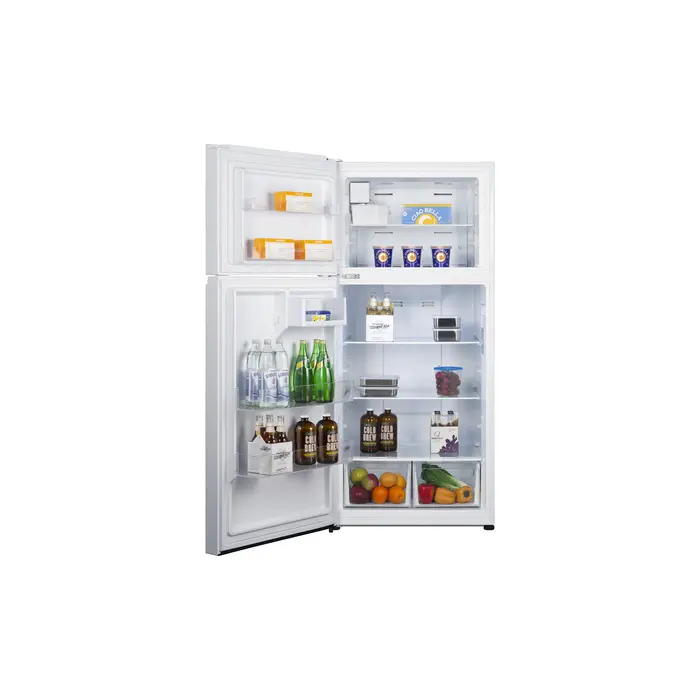

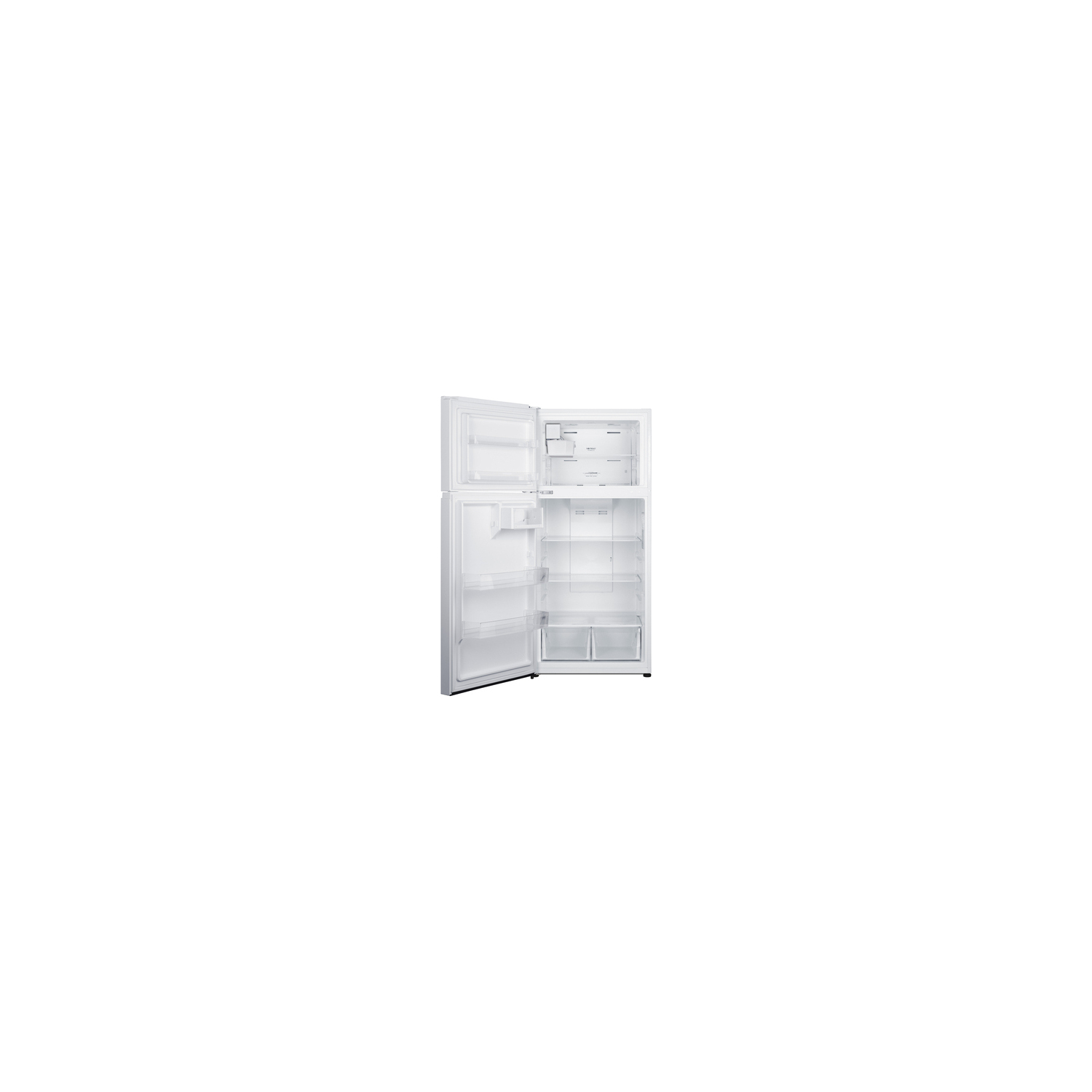

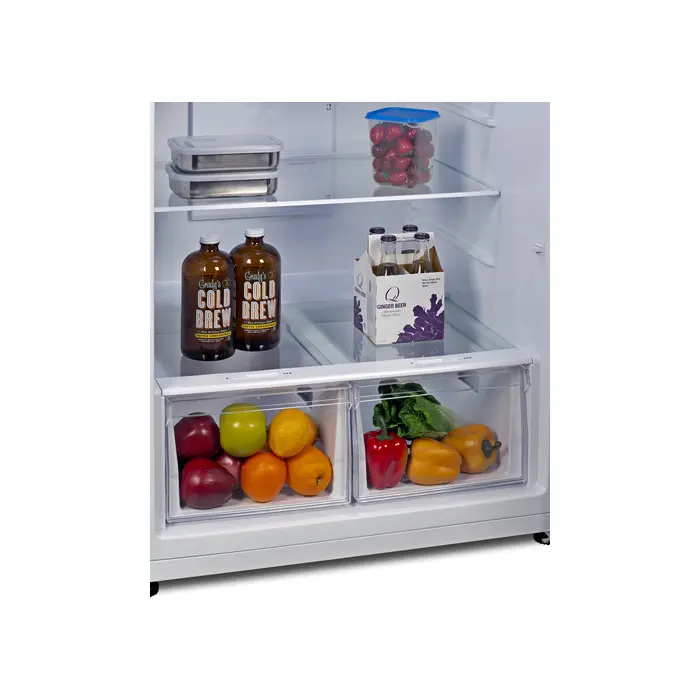

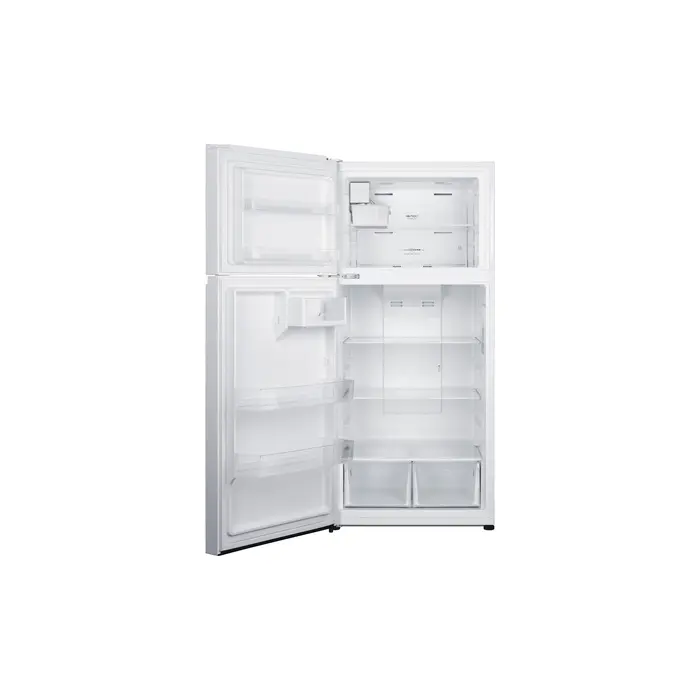

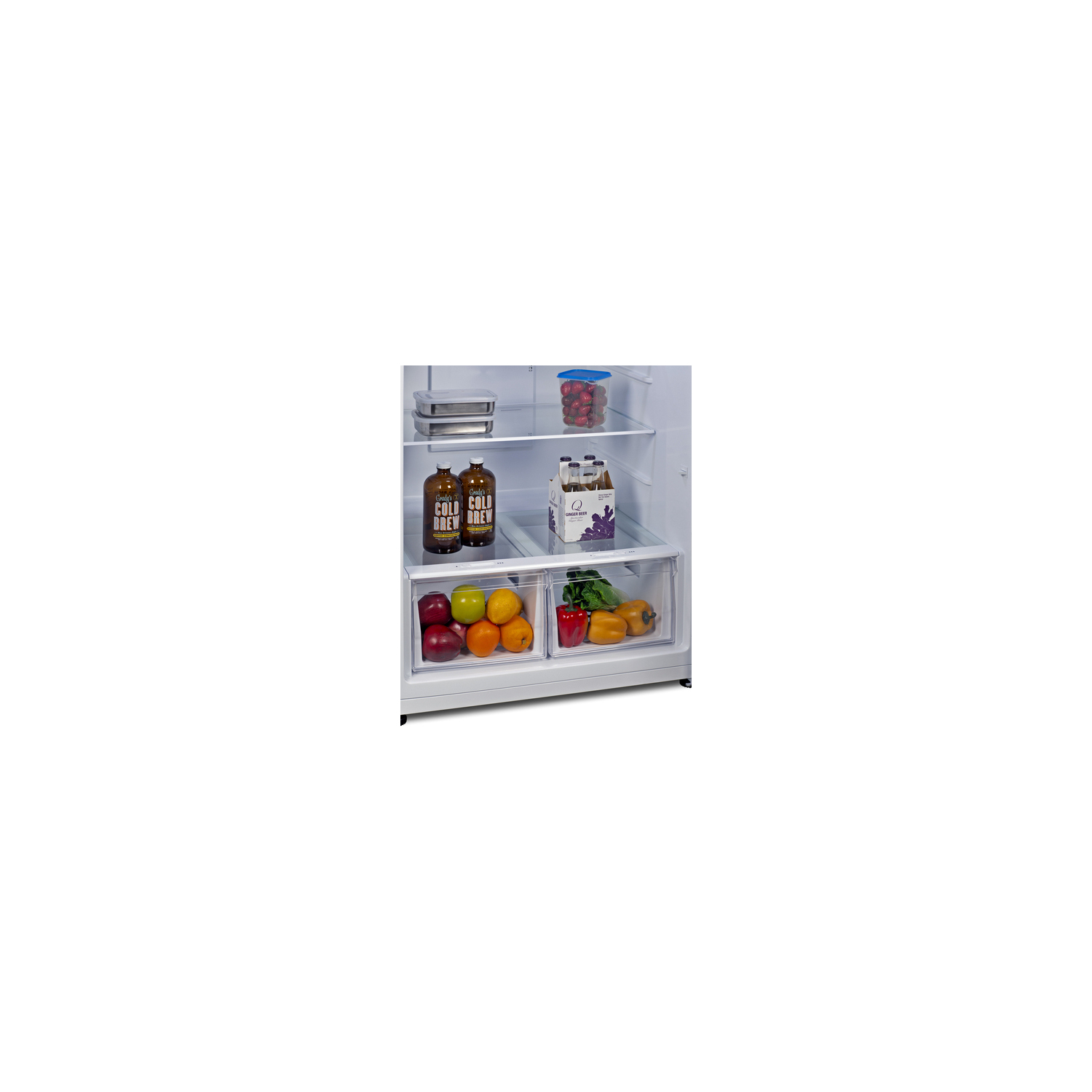

Inside, the FF18W comes fully featured for convenient storage. The refrigerator section includes adjustable spill-proof glass shelves and two clear crispers with humidity-control for optimum produce storage. The refrigerator's door includes two full gallon racks and a covered butter rack. The fresh food section features intuitive touch controls and LED lighting. The spacious freezer compartment includes its own dial thermostat for exact temperature control, two door shelves, and an adjustable glass shelf.

This refrigerator-freezer ships icemaker-ready for aftermarket setup. We also offer a version with a factory-installed icemaker (model FF18WIM).

Model FF18W is designed to operate efficiently in non-climate-controlled environments like garages, where temperatures can fluctuate. With its ENERGY STAR certified performance, attractive design, and convenient features, the FF18W is the ideal choice for kitchens looking for an energy-efficient refrigerator-freezer. For this unit in a stainless steel finish, see model FF18SS.

SPECIFICATIONS

Overview

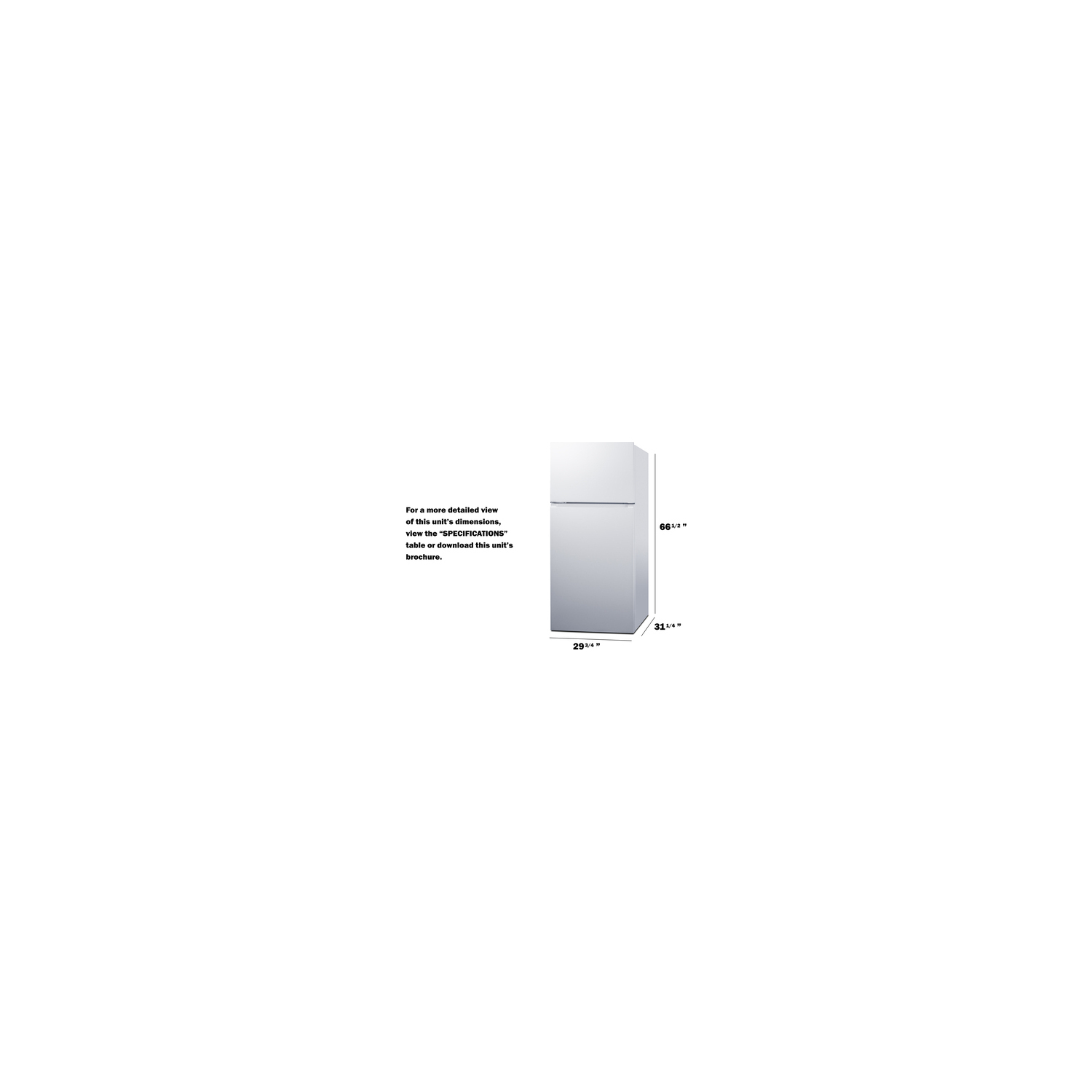

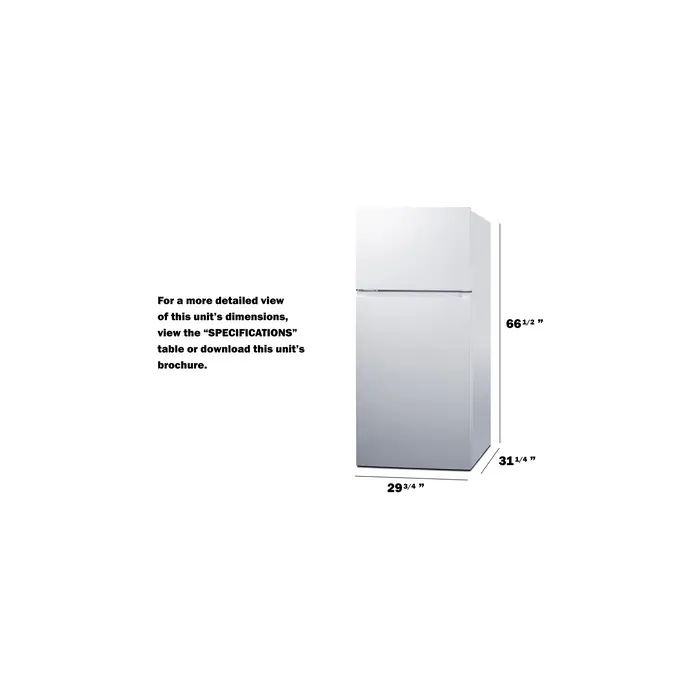

Height of Cabinet 66.5" (169 cm)

Width 29.75" (76 cm)

Width with Door Open 31.25" (79 cm)

Depth 31.25" (79 cm)

Depth with door at 90° 61.0" (155 cm)

Capacity 18.0 cu.ft. (510 L)

Defrost Type Frost-Free

Door White

Cabinet White

US Electrical Safety UL

Canadian Electrical Safety ULC

Energy Usage/Year 363.0kWh/year

Amps 2.5

Voltage/Frequency 115 V AC/60 Hz

Weight 190.0 lbs. (86 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101155500

Refrigerator-Freezer

Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Crisper Qty 2

Crisper Finish Transparent

Crisper Cover Glass

Interior Light Yes

Refrigerator - Interior Height 40.0" (102 cm)

Refrigerator - Interior Width 25.0" (64 cm)

Refrigerator - Interior Depth 25.25" (64 cm)

Refrigerator - Capacity 14.0 cu.ft

Refrigerator - Shelf Type Glass

Refrigerator - Shelf Qty 2

Refrigerator - Full Door Shelves 2

Refrigerator - Half Door Shelves 1

Can Storage Yes

Freezer - Interior Height 15.5" (39 cm)

Freezer - Interior Width 22.75" (58 cm)

Freezer - Interior Depth 19.0" (48 cm)

Freezer - Capacity 4.0 cu.ft

Freezer - Shelf Type Glass

Freezer - Shelf Qty 1

Freezer - Full Door Shelves 2

Gallon Door Storage Yes

Thermostat Type Digital

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 2.05 oz.

High Side PSI 250.0

Low Side PSI 88.0

Level Legs 2

Compressor Step Height 9.0" (23 cm)

Compressor Step Width 25.0" (64 cm)

Compressor Step Depth 7.0" (18 cm)

Sound Level 32.2 dB

FEATURES

30" Wide Top-Mount Refrigerator-Freezer Full-sized top-mount refrigerator-freezer with a spacious interior to add true convenience to any kitchen space

ENERGY STAR certified Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

Frost-free operation No-frost convenience for reduced user maintenance

Large capacity 18 cu.ft. interior offers generous storage

Humidity controlled crispers Twin crisper drawers offer the ideal storage conditions for produce, helping you to keep your fruits and vegetables separated

Adjustable glass shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

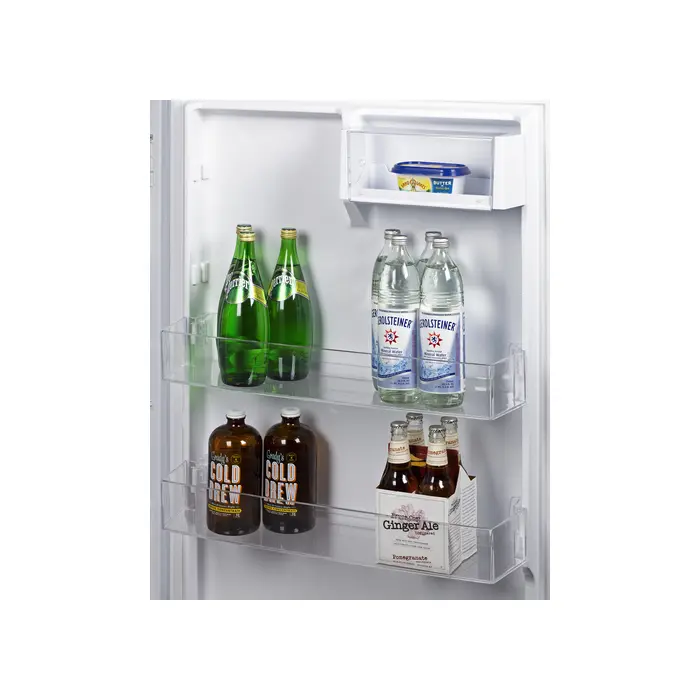

Gallon door storage Two adjustable full-width door racks offer convenient storage for gallon-sized containers

Covered butter rack Door includes an adjustable half shelf with clear cover, ideal for butter and other small items

Adjustable touch control thermostat (refrigerator section) Easy electronic controls lets you manage the interior temperature at the touch of a button

LED lighting Energy efficient lighting located inside the walls to provide a better view of the refrigerator interior

Adjustable freezer thermostat Dial thermostat located inside for easy temperature management

Adjustable freezer shelf Glass shelf with three positions allows you to adjust your freezer storage as needed

Icemaker-ready Users can install their own icemakers directly into the model's freezer

Garage-ready Model designed to operate efficiently in non-climate-controlled environments like garages, where temperatures can fluctuate

Reversible doors User-reversible door swing for added flexibility

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

TAA Compliant Made in North America

Approved for Canadian sales UL/UL-C and NRCAN registered for use in Canada

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE (FF18W.pdf)

TECHNICAL DRAWING (.dwg) (FF18W_FF18SS_5.dwg)

ASSEMBLY DRAWING (FF18W_FF18SS-Assembly_5.pdf)

USE & CARE (FF18W-User-Manual.pdf)

Energy Guide
