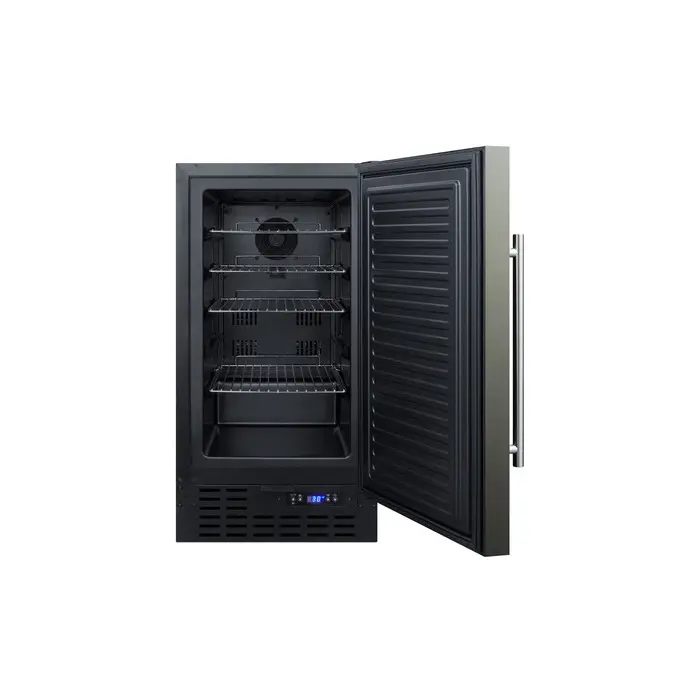

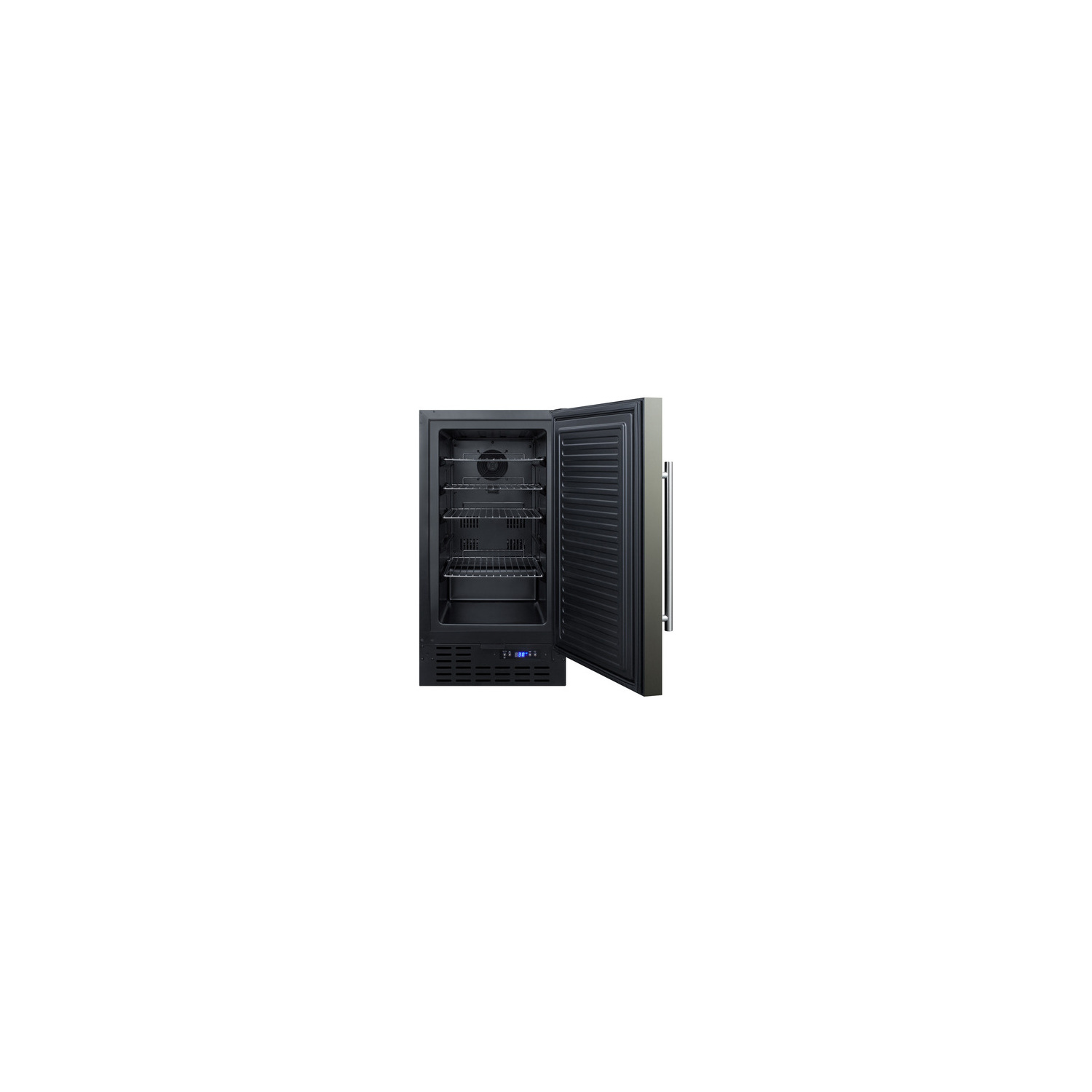

Summit 18 inch wide ADA compliant built-in undercounter all-refrigerator with a black stainless steel door, black cabinet, digital thermostat and front lock, 7.61101e+011, FF1843BKSADA

SUMMIT's selection of built-in undercounter refrigeration includes one of the industry's only complete 18" wide lines for use in ADA compliant settings.

Sized just under 18" wide and 32" high, the FF1843BKSADA is the perfect all-refrigerator for space-challenged kitchens following ADA guidelines. The front-breathing design allows built-in installation, while the fully finished black cabinet also makes it possible to use the unit freestanding.

The FF1843BKSADA comes in our new black stainless steel finish from our exclusive basalt collection. The wrapped door is made from 304 grade stainless steel with a high gloss finish in a neutral hue to perfectly accent or complement your kitchen design. The door is strongly resistant to most fingerprints and can easily be wiped clean with a dry cloth. A pro style handle in brushed stainless steel completes the look. The user-reversible door includes a factory installed lock for added security.

Inside, the FF1843BKSADA utilizes automatic defrost operation for low maintenance use. Four adjustable chrome shelves accommodate a variety of sizes and LED lighting offers an efficient interior view. This unit includes a digital thermostat for optimum temperature management.

Combine the FF1843BKSADA with its matching freezer, wine cellar, or beverage refrigerator. We also offer this model in black or with a panel-ready door.

NOTE: Black stainless steel may vary slightly in appearance from the image displayed, as it has a reflective quality that can be affected by surrounding colors and textures. Summit's black stainless steel comes with a high gloss finish and is not designed as a direct match to other brands.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 31.5" (80 cm)

Nominal Width 18.0" (46 cm)

Width 17.75" (45 cm)

Width with Door Open 18.5" (47 cm)

Nominal Depth 24.0" (61 cm)

Depth 24.0" (61 cm)

Depth with Handle 24.75" (63 cm)

Depth with door at 90° 40.0" (102 cm)

Capacity 2.7 cu.ft. (76 L)

Defrost Type Automatic

Door Black Stainless Steel

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 250.0kWh/year

Amps 1.1

Voltage/Frequency 115 V AC/60 Hz

Weight 103.0 lbs. (47 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101060064

Refrigerator Features

Door Swing RHD

Reversible Yes

Shelf Type Chrome

Shelf Qty 4

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.06oz.

High Side PSI 150.0

Low Side PSI 50.0

Level Legs Qty 2

Interior Light Yes

Sound Level 33.1 dB

Dimensions

Interior Height 23.5" (60 cm)

Interior Width 12.75" (32 cm)

Interior Depth 16.75" (43 cm)

Compressor Step Height 4.5" (11 cm)

Compressor Step Width 12.75" (32 cm)

Compressor Step Depth 4.5" (11 cm)

FEATURES

Built-in capable Make the best use of space by installing your appliance under the counter

ADA compliant 32" height is designed to fit under lower ADA compliant counters

Black stainless steel wrapped door 304 grade stainless steel in a high gloss neutral finish from our basalt collection; note: due to the reflective quality of our door finish, this color may appear different under different lighting and surrounding conditions

Fingerprint resistant Door wipes clean with a dry cloth, while the dark basalt finish hides most smudges

Commercially approved ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments

Factory installed lock Keyed lock for a secure interior

Automatic defrost Reduced maintenance with auto defrost system

Digital thermostat Electronic controls for precise temperature management.

LED lighting Automatically illuminates when the door is open

Reversible door User-reversible door swing allows for more flexibility in placing the unit

Adjustable chrome shelves Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup

Flush back Space saving design

Fully finished black cabinet Allows the unit to be used freestanding

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (FF1843BKSADA.pdf)

TECHNICAL DRAWING (.dwg) (FF1843BADA_REF.__A-C_2000__2.dwg)

USE & CARE (FF1843BKSADA-User-Manual.pdf)

SUPPORT (584.bin)

MSDS INFORMATION (R600a_K.pdf)

Energy Guide
