Summit 18 inch wide built-in undercounter all-refrigerator with a panel-ready door, digital thermostat and front lock, 7.61101e+011, FF1843BIF

SUMMIT's selection of built-in undercounter refrigeration includes one of the industry's only complete 18" wide lines for use in the home.

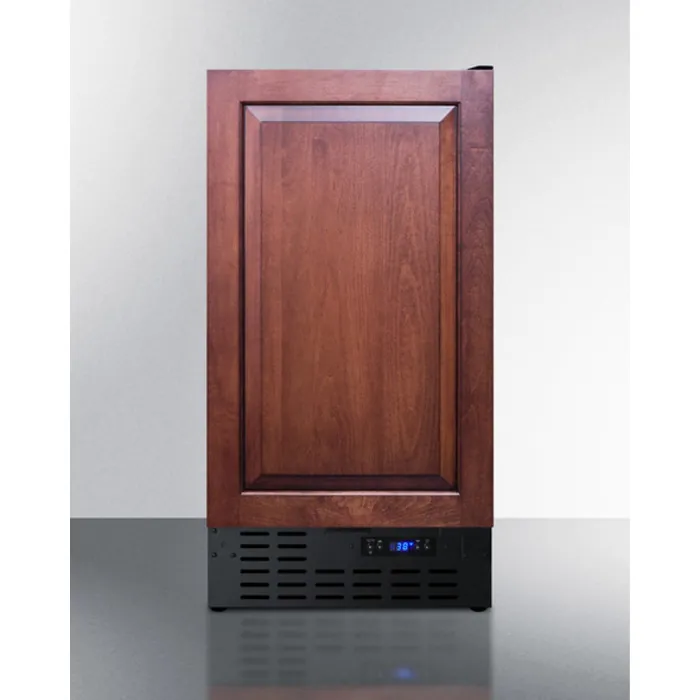

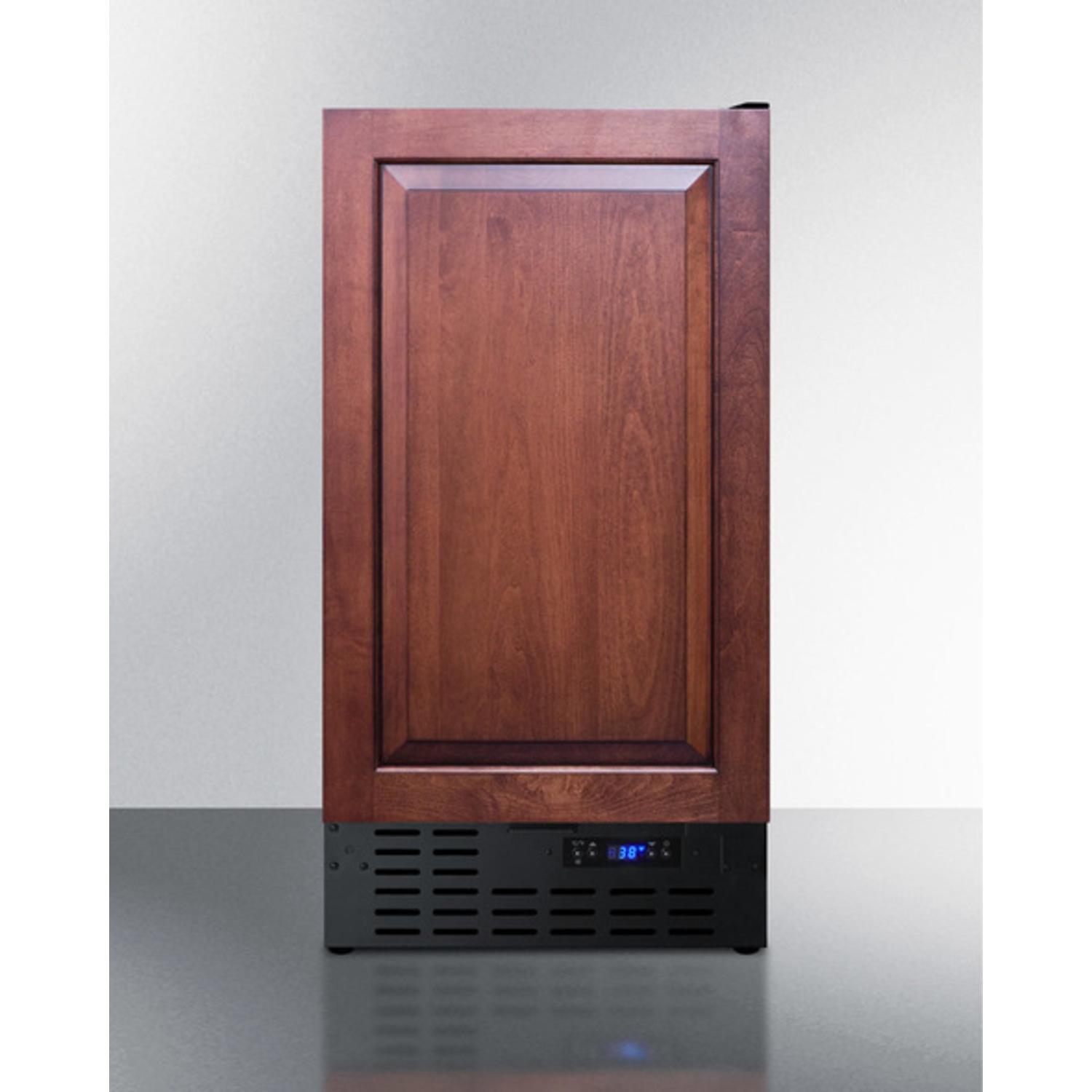

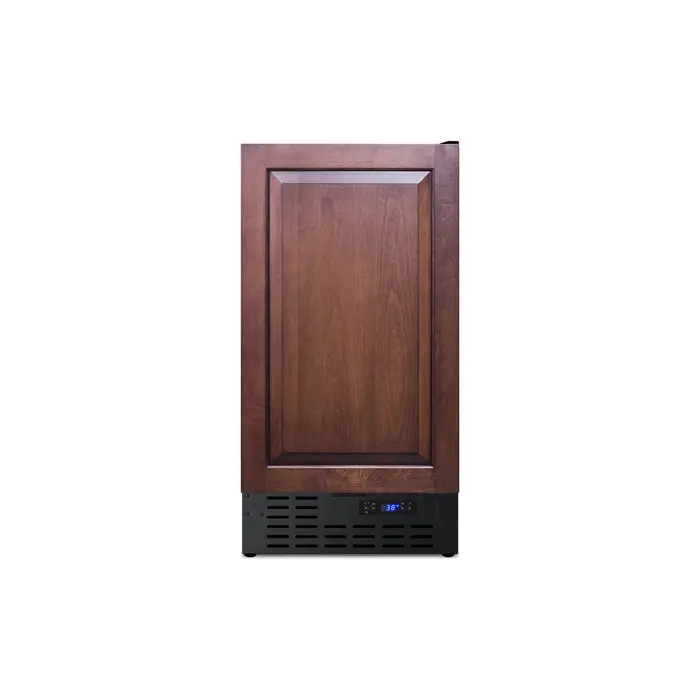

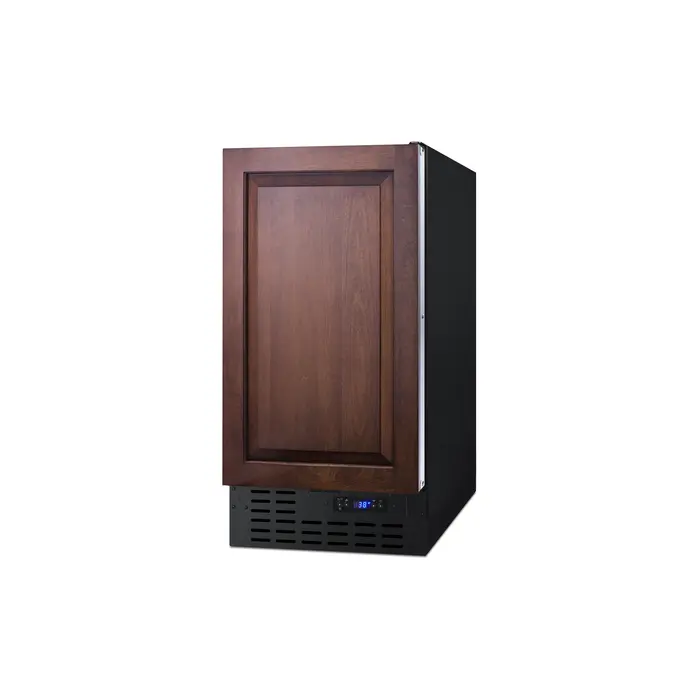

Sized just under 18" wide, the FF1843BIF is the perfect all-refrigerator for space-challenged kitchens. It comes with a black cabinet. The door features an integrated stainless steel door frame designed to accept full overlay panels for a custom look. This unit can be used built-in or freestanding. Users provide their own handle.

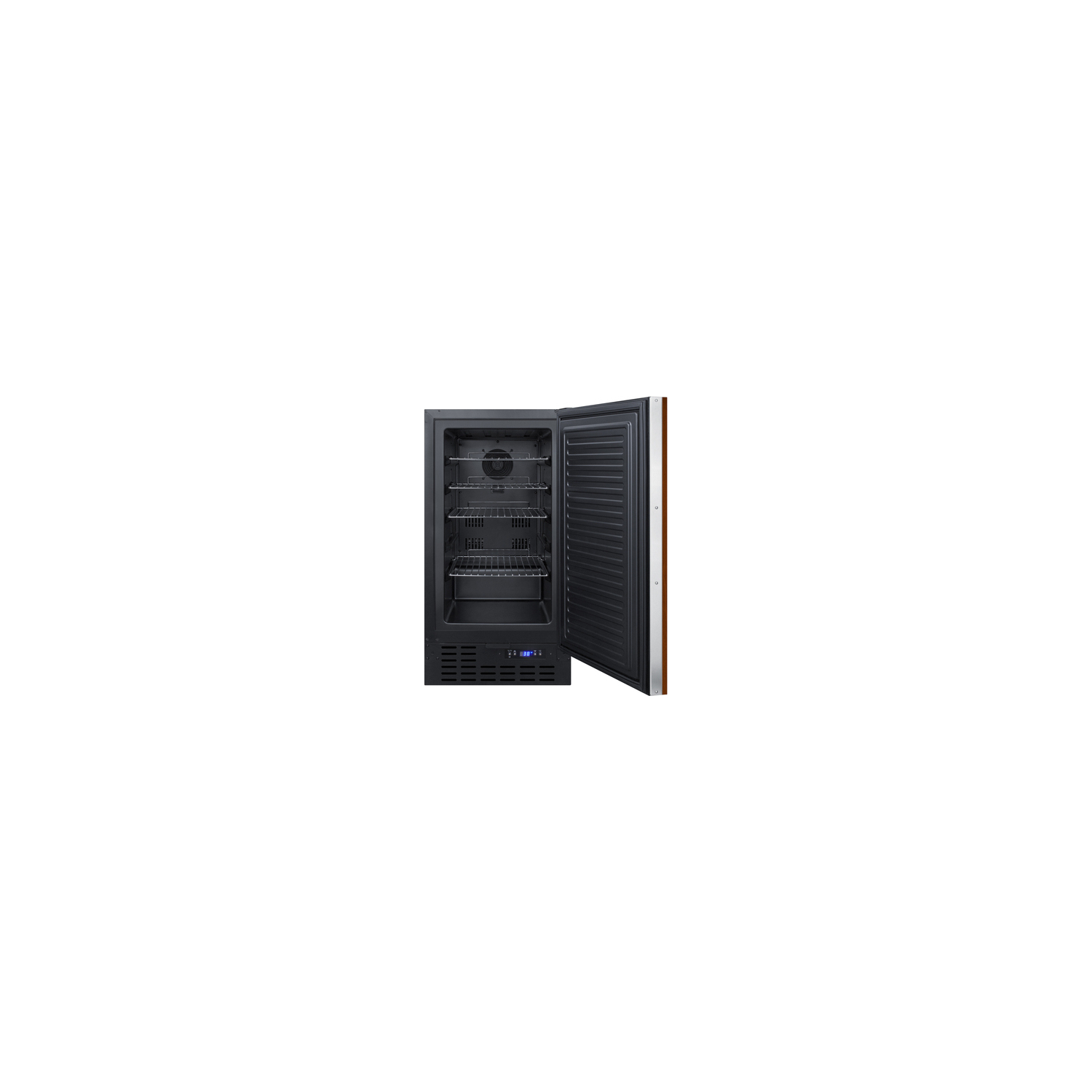

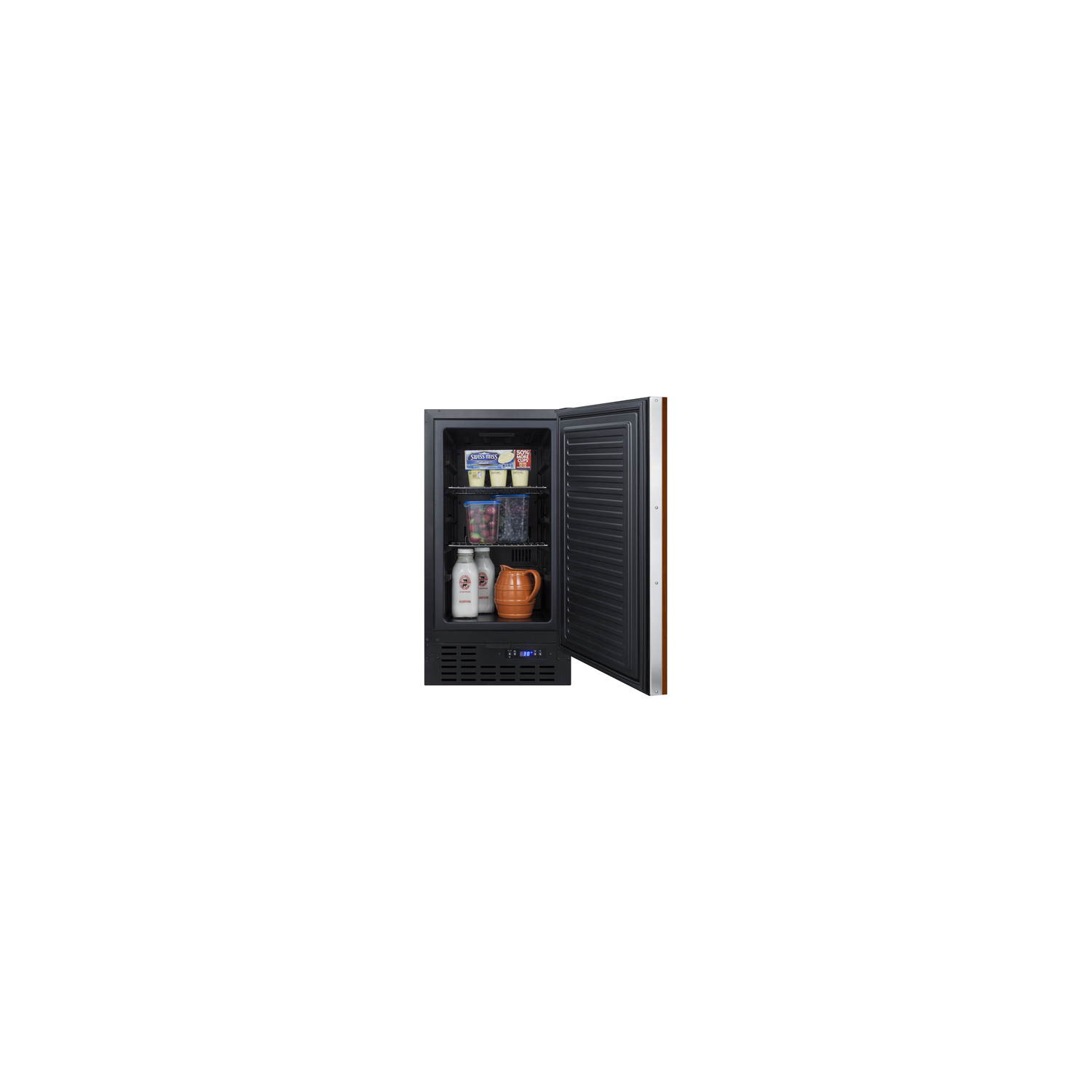

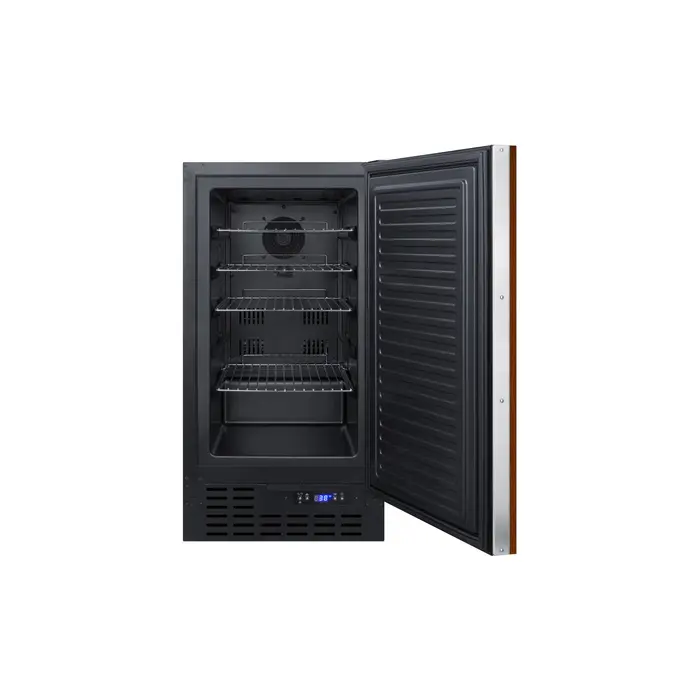

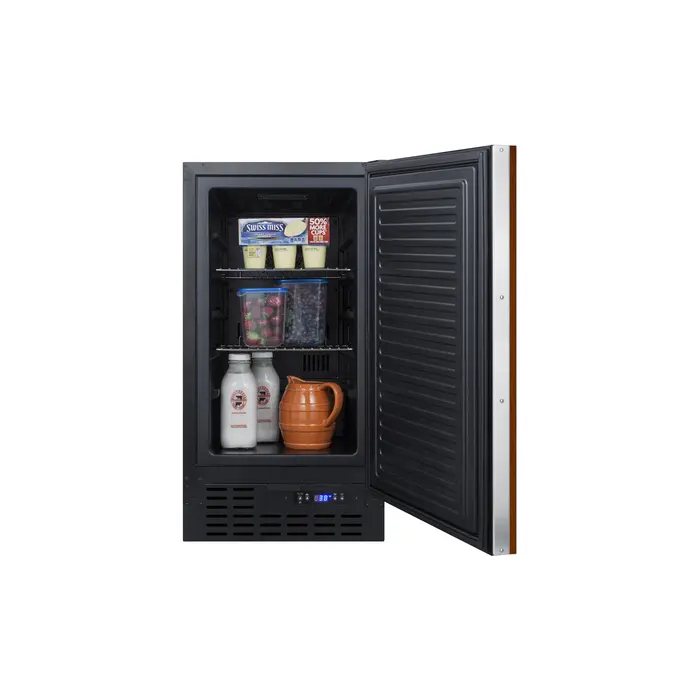

Inside, the FF1843BIF utilizes automatic defrost operation for low maintenance use. Four adjustable chrome shelves accommodate a variety of sizes and LED lighting offers an efficient interior view. This unit includes a digital thermostat for optimum temperature management.

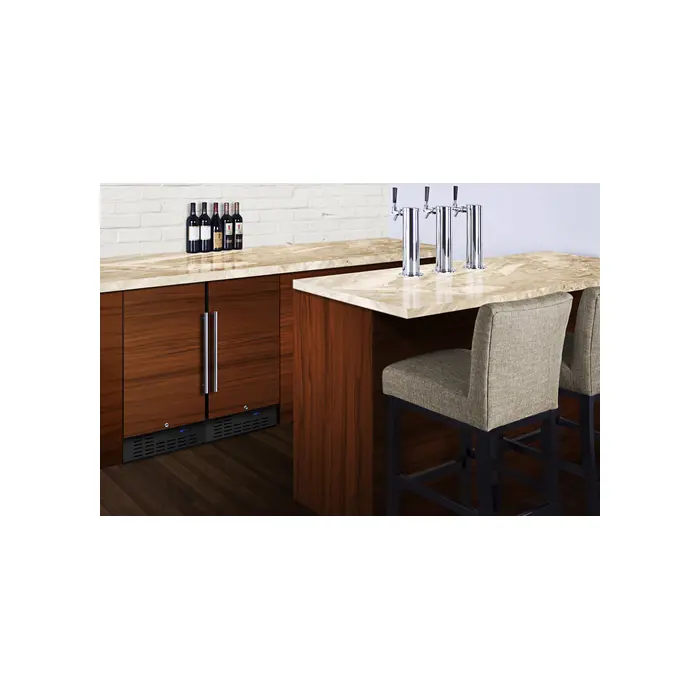

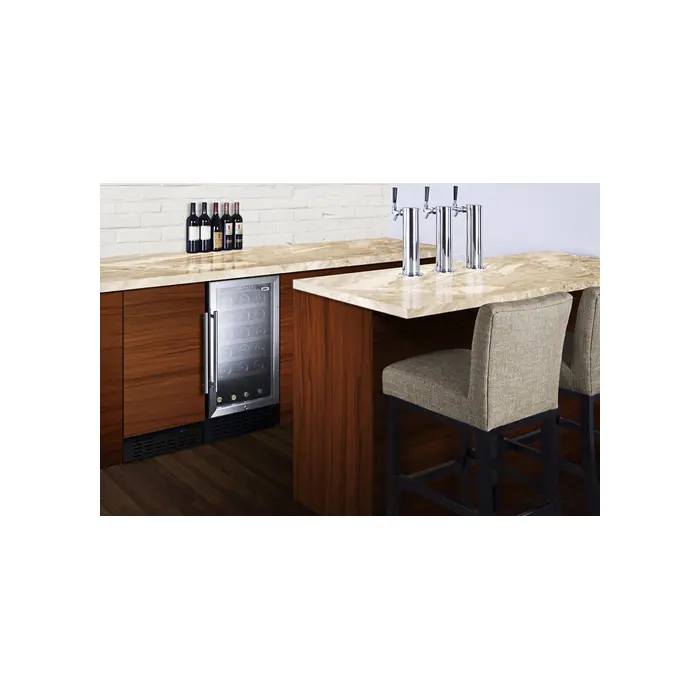

Combine the FF1843BIF with its matching freezer, wine cellar, or beverage refrigerator. We also offer this model in black or stainless steel. For a 32" high ADA compliant version, see the FF1843BIFADA.

SPECIFICATIONS

Overview

Nominal Height 35.0" (89 cm)

Height of Cabinet 34.25" (87 cm)

Nominal Width 18.0" (46 cm)

Width 17.75" (45 cm)

Width with Door Open 18.63" (47 cm)

Nominal Depth 24.0" (61 cm)

Depth 24.0" (61 cm)

Depth with door at 90° 40.0" (102 cm)

Capacity 2.7 cu.ft. (76 L)

Defrost Type Automatic

Door Panel-Ready

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 250.0kWh/year

Amps 1.1

Voltage/Frequency 115 V AC/60 Hz

Weight 90.0 lbs. (41 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101047003

Refrigerator Features

Door Swing RHD

Reversible Factory Reversible

Shelf Type Chrome

Shelf Qty 4

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.06oz.

High Side PSI 150.0

Low Side PSI 50.0

Level Legs Qty 2

Interior Light Yes

Sound Level 33.1 dB

Dimensions

Interior Height 23.5" (60 cm)

Interior Width 12.75" (32 cm)

Interior Depth 16.75" (43 cm)

Compressor Step Height 4.5" (11 cm)

Compressor Step Width 12.75" (32 cm)

Compressor Step Depth 4.5" (11 cm)

FEATURES

Commercially approved ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments

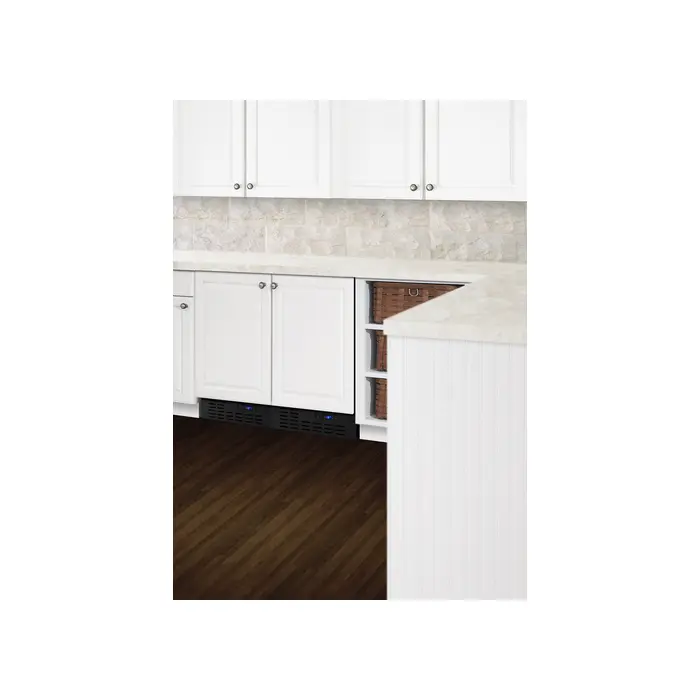

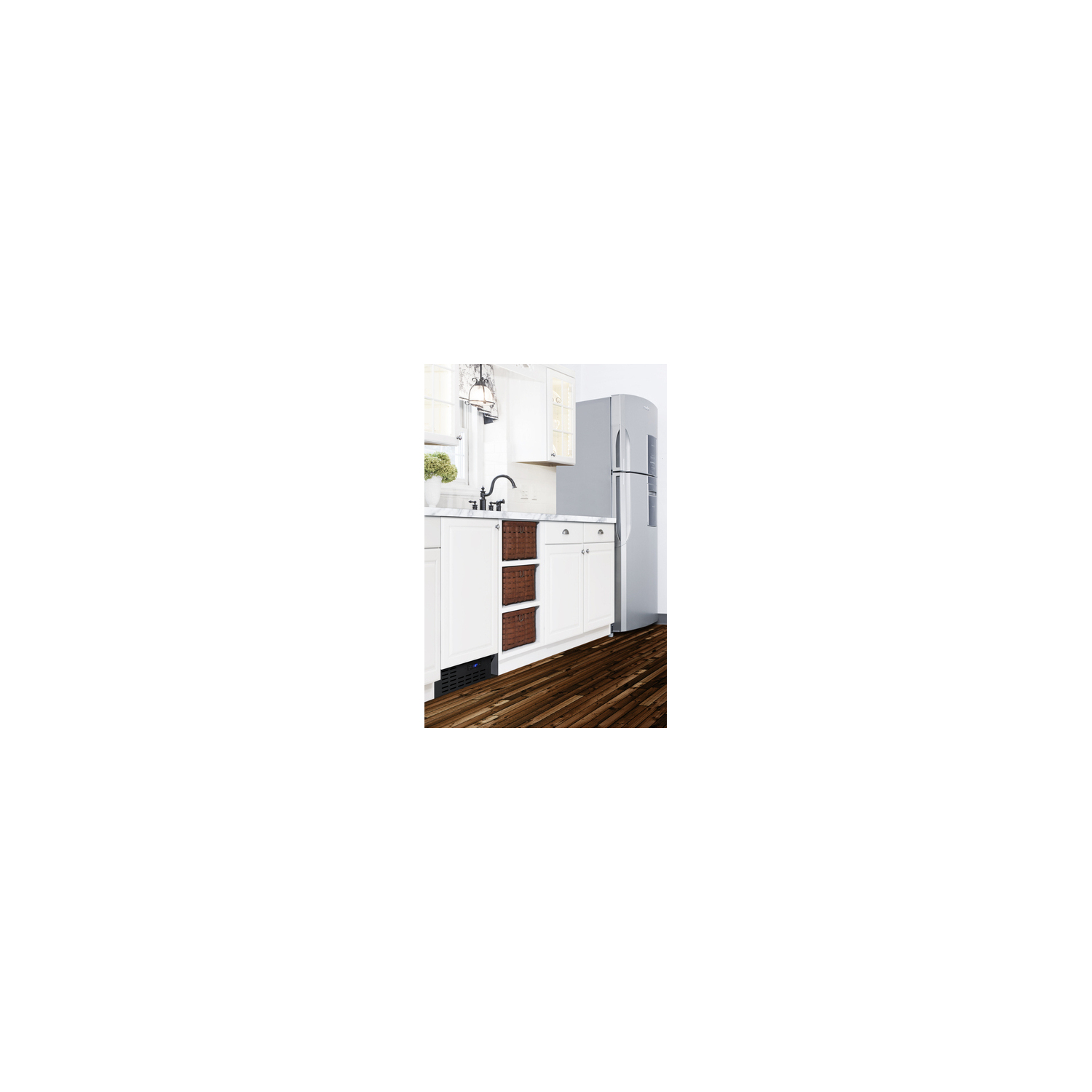

Built-in capable Front-breathing design lets you make the best use of space by installing your appliance under the counter

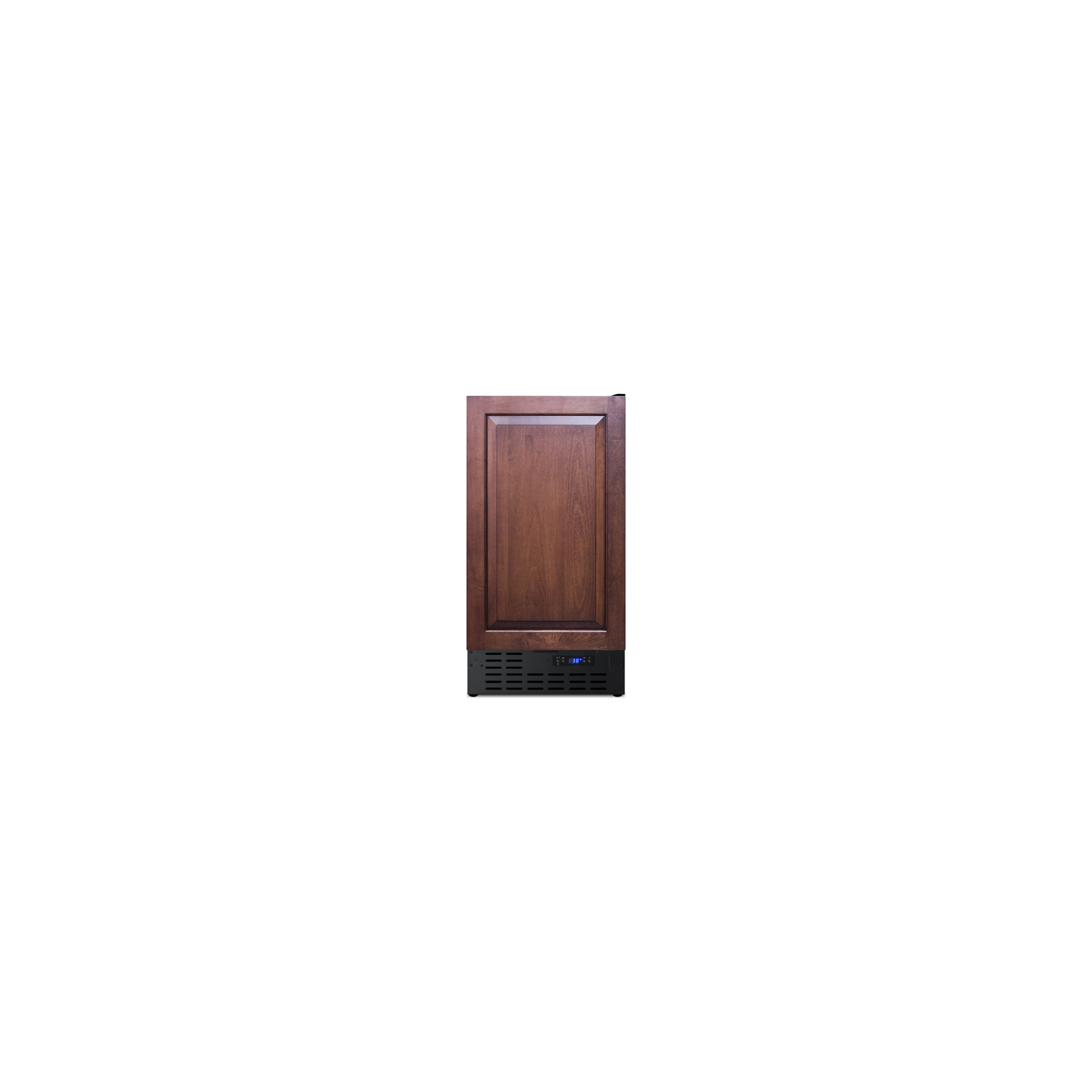

Integrated door frame Stainless steel door frame accepts full overlay panels for users to create a seamless custom look (panel size: 17 1/2" W x 27 3/4" H; maximum weight: 10 lbs.)

Automatic defrost Reduced maintenance with auto defrost system

Digital thermostat Electronic controls for precise temperature management.

Digital display Temperature readout can be shown in Celsius or Fahrenheit

LED lighting Automatically illuminates when the door is open

Adjustable chrome shelves Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup

Flush back Space saving design

Fully finished black cabinet Allows the unit to be used freestanding

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
