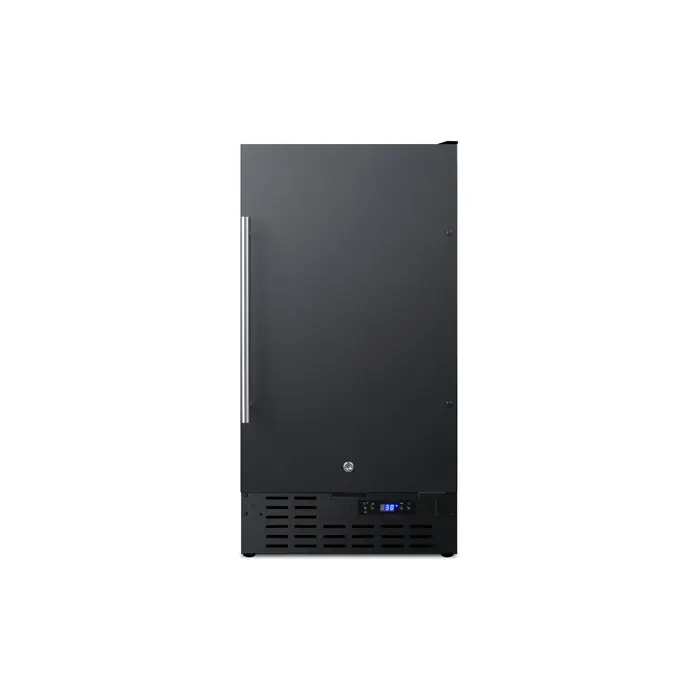

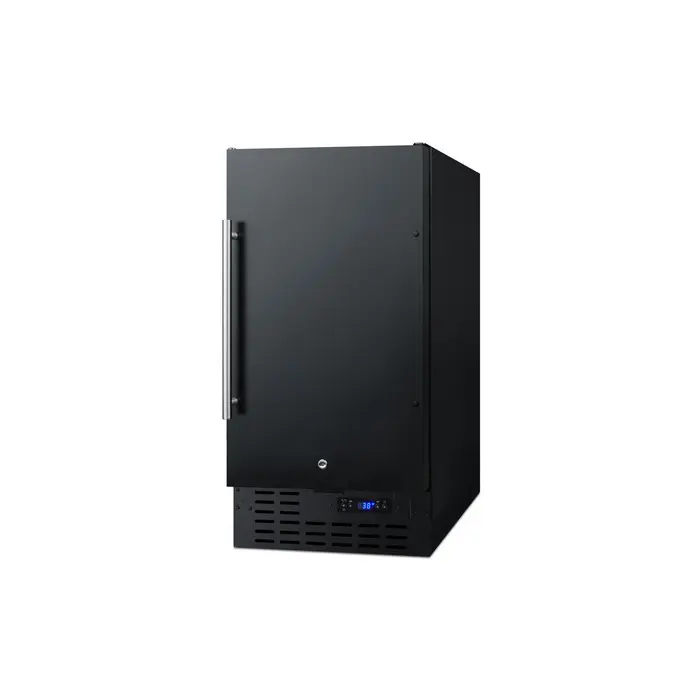

Summit 18 inch wide built-in undercounter all-refrigerator in black with digital thermostat and front lock, 7.61101e+011, FF1843B

SUMMIT's selection of built-in undercounter refrigeration includes one of the industry's only complete 18" wide lines for the home.

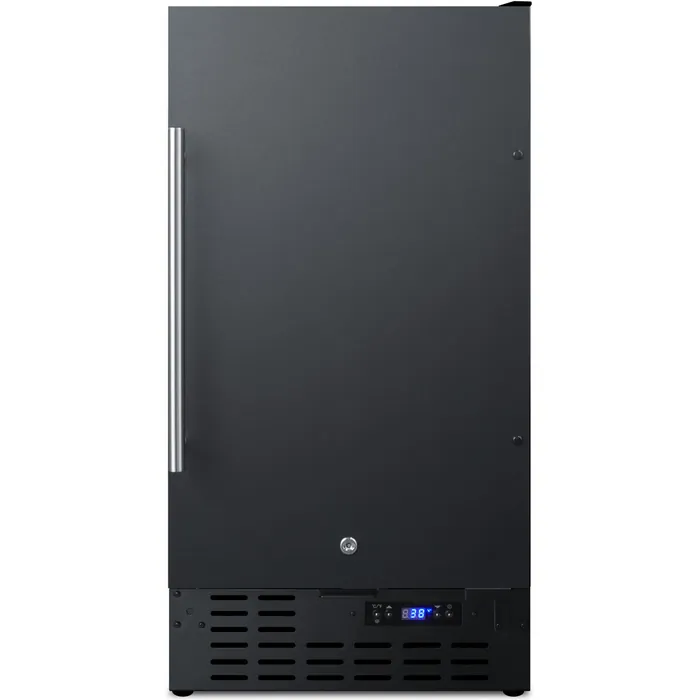

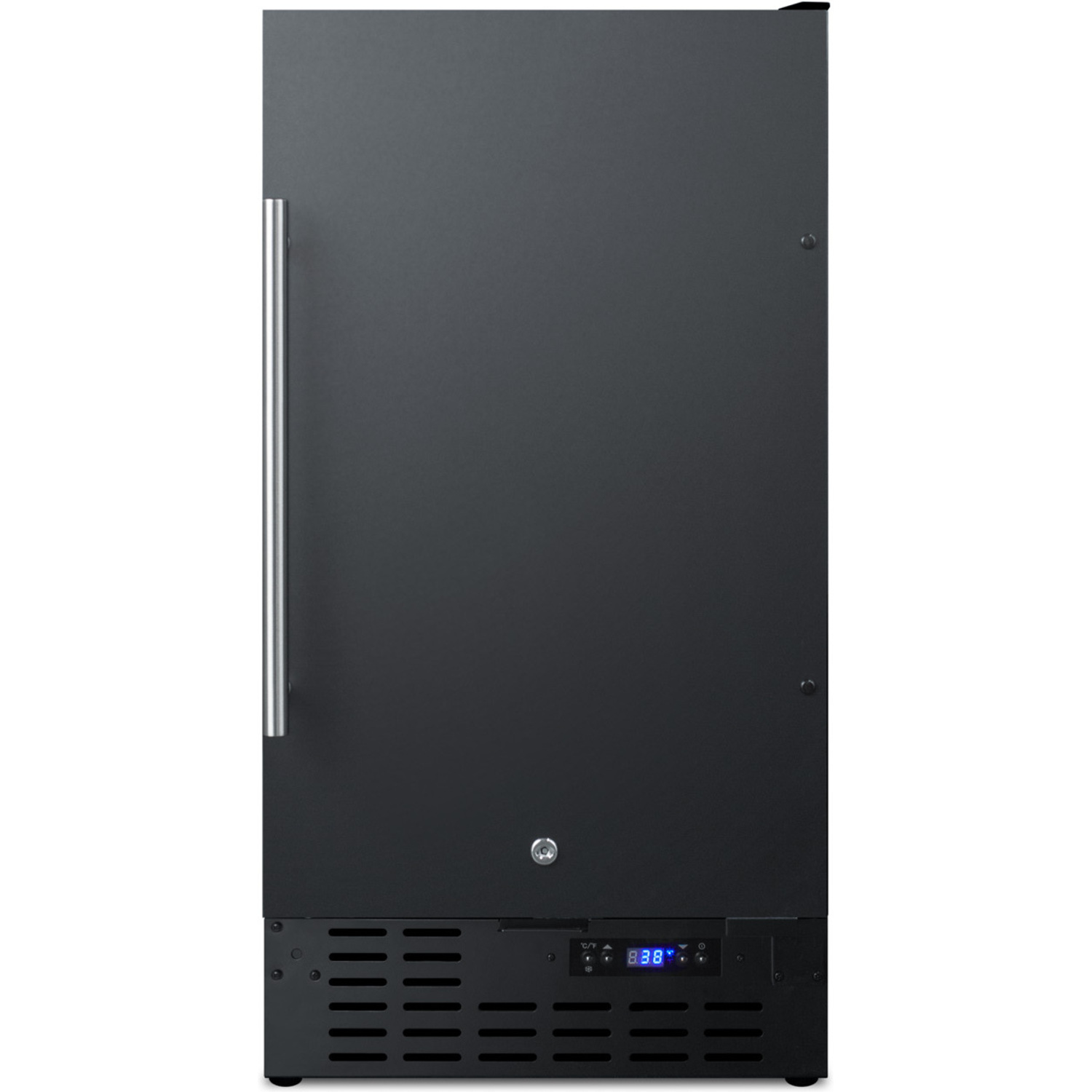

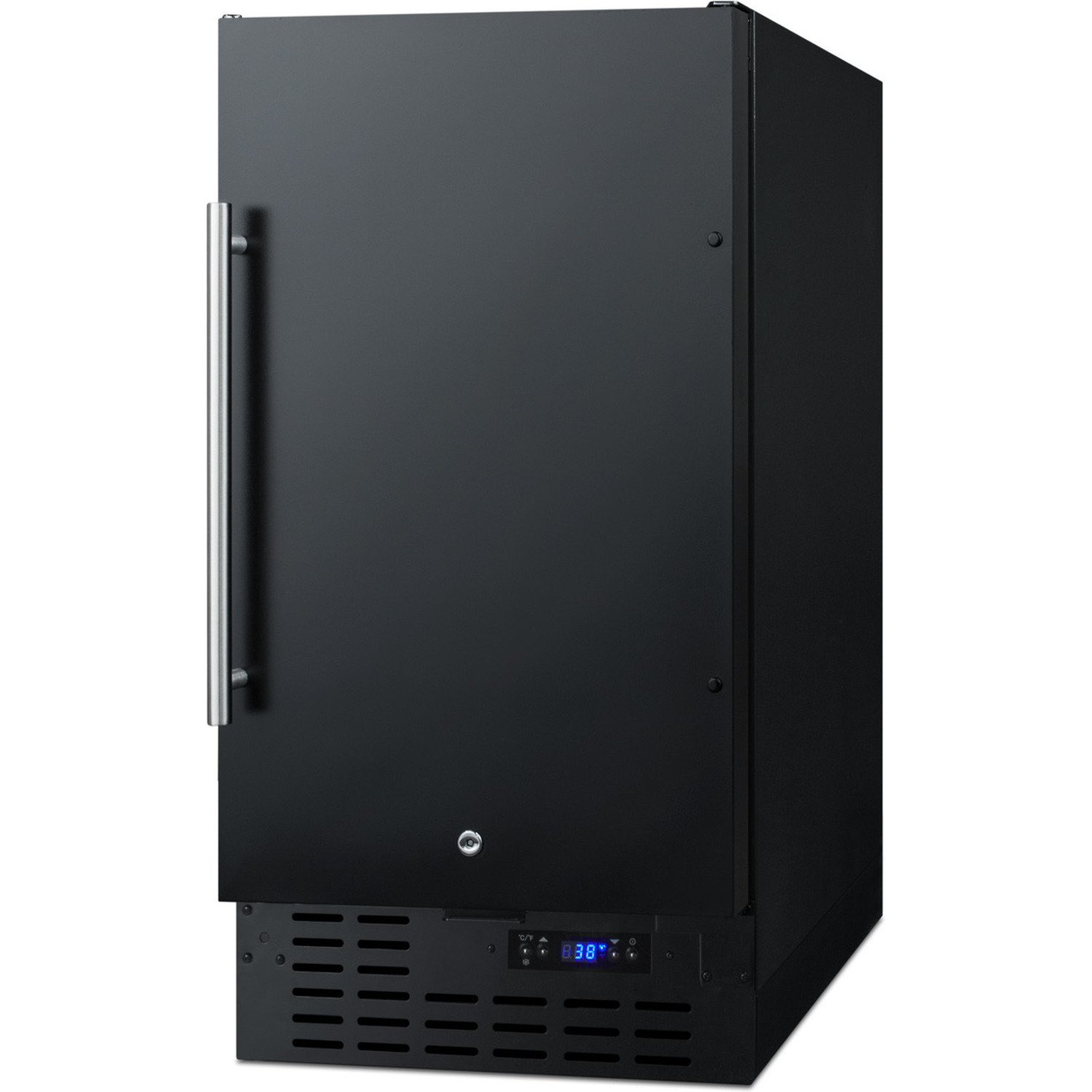

Sized just under 18" wide, the FF1843B is the perfect all-refrigerator for space-challenged kitchens. It comes in a jet black finish and can be used built-in or freestanding. The user-reversible door includes a factory installed front lock.

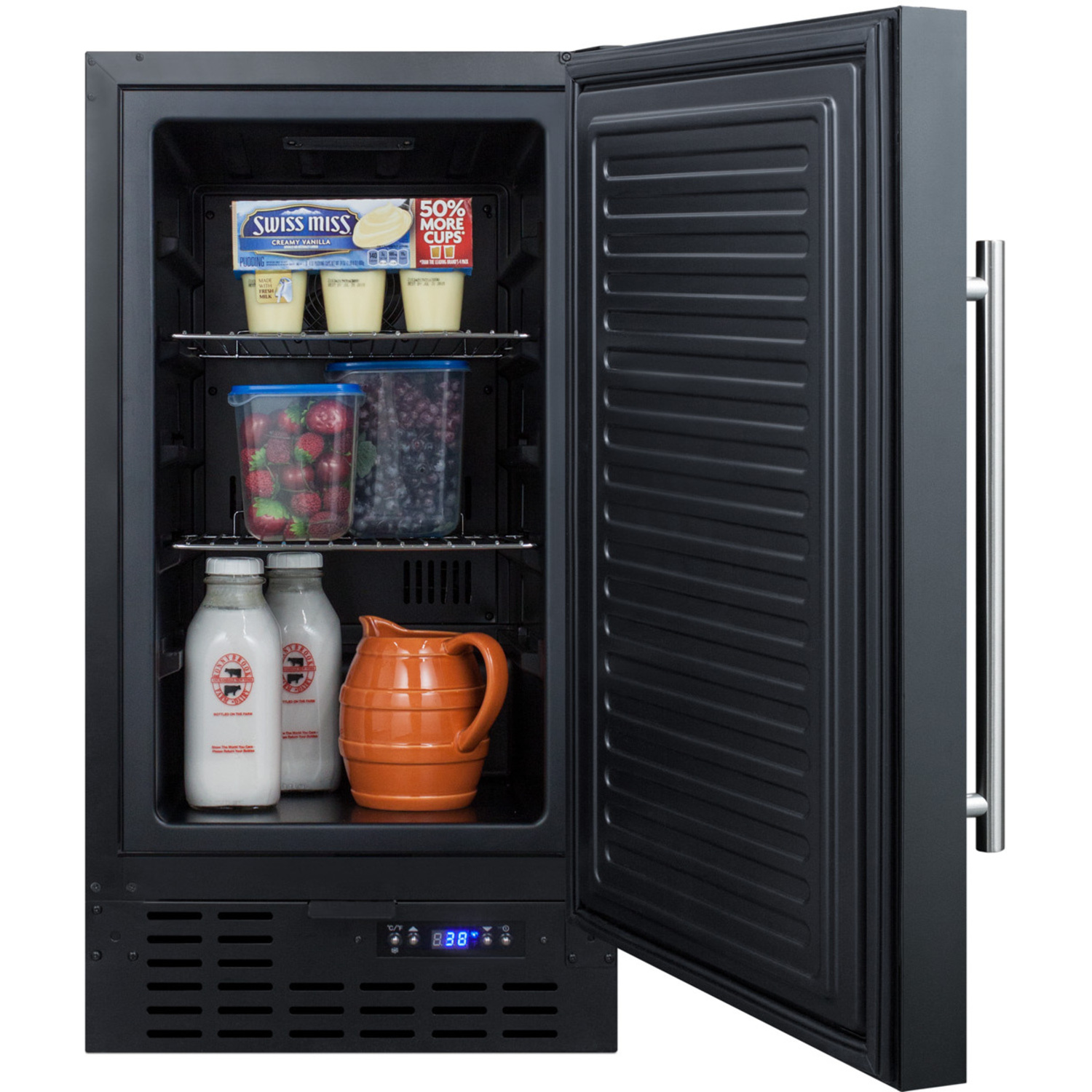

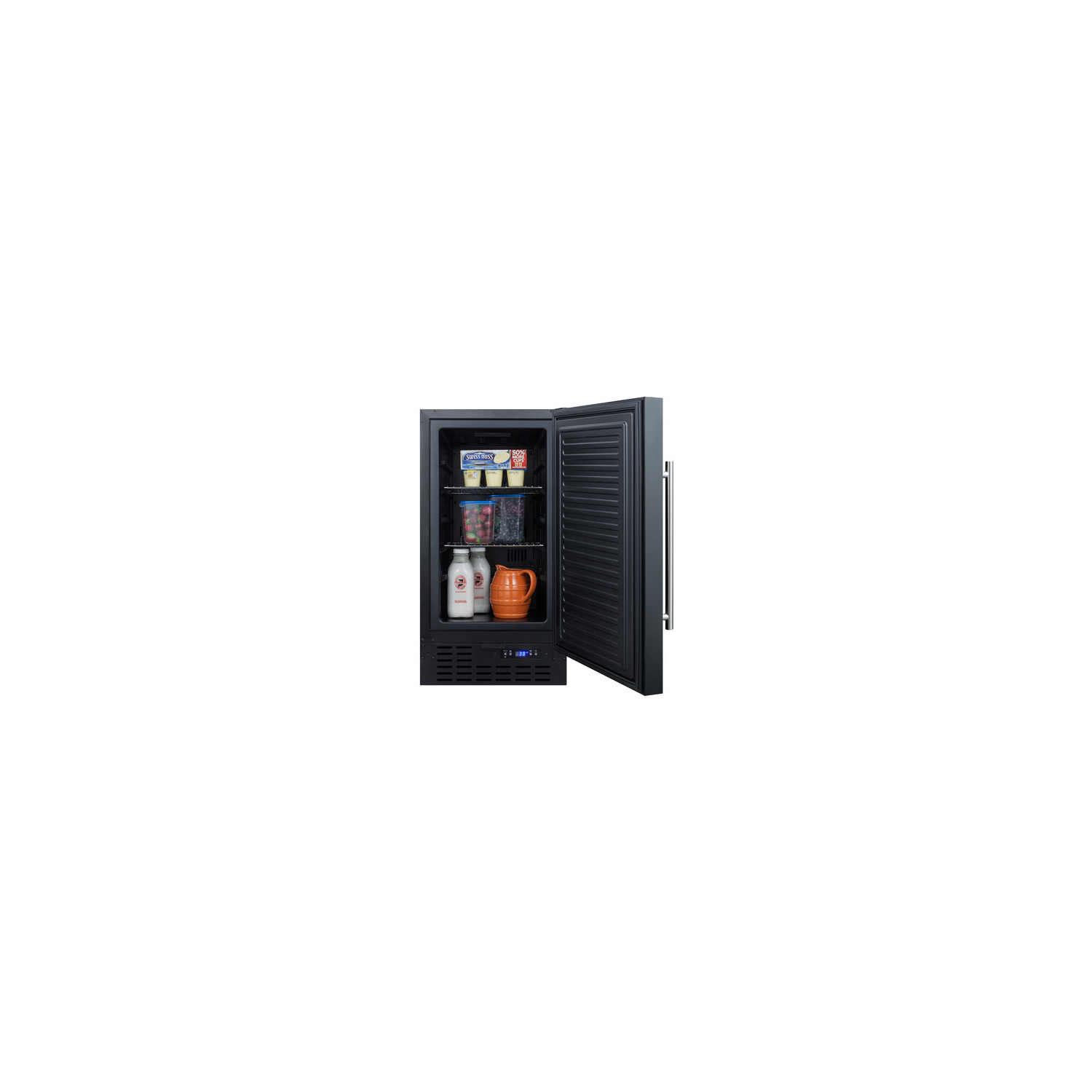

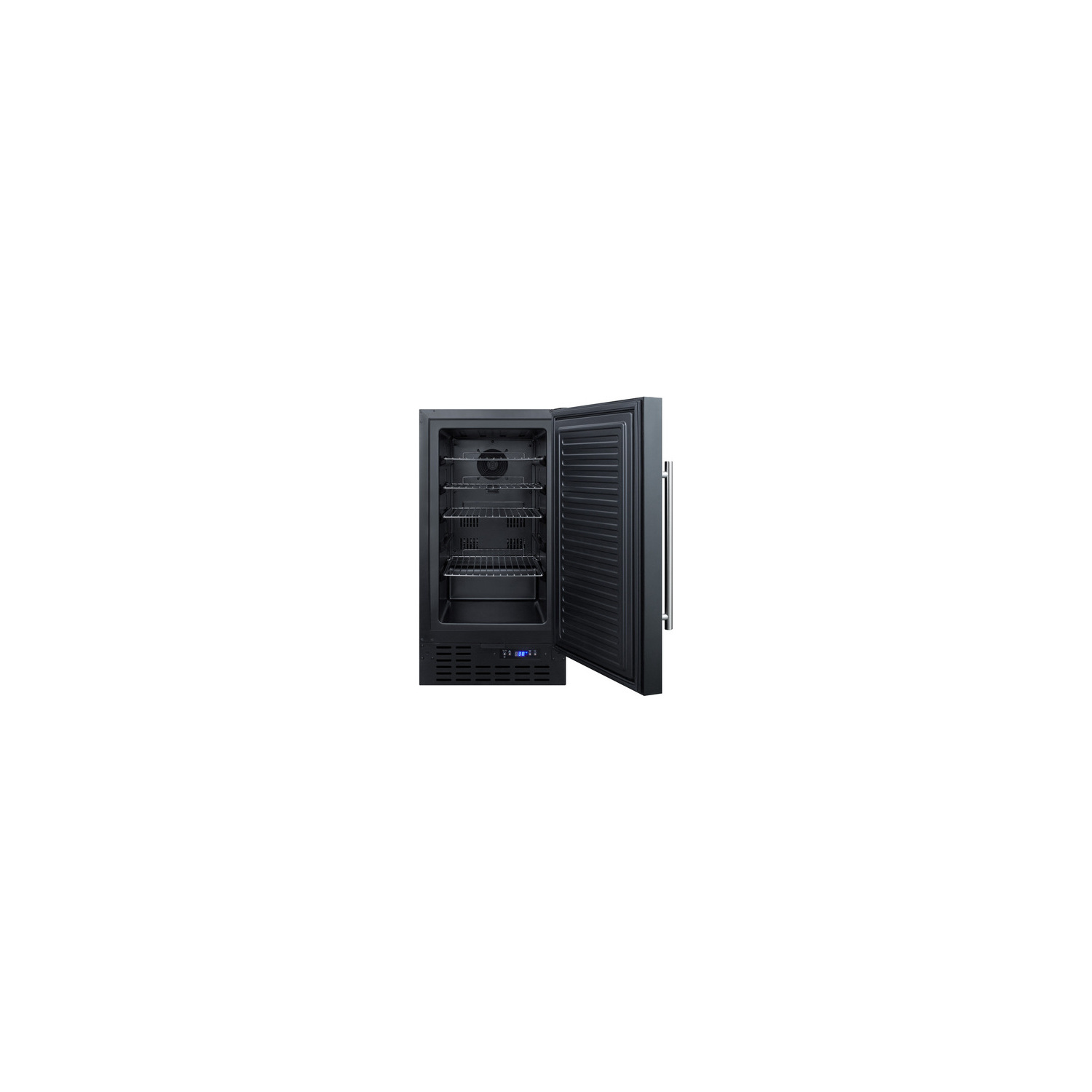

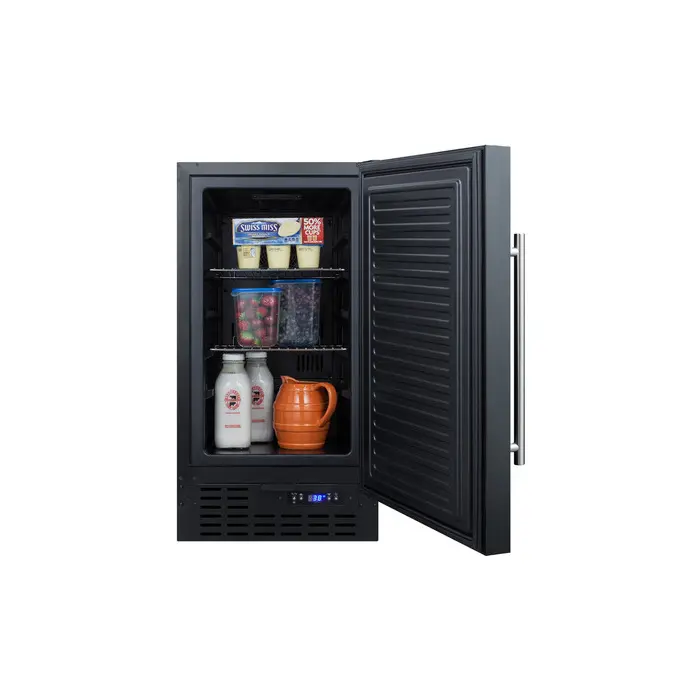

Inside, the FF1843B utilizes automatic defrost operation for low maintenance use. Four adjustable chrome shelves accommodate a variety of sizes and LED lighting offers an efficient interior view. This unit includes a digital thermostat for optimum temperature management.

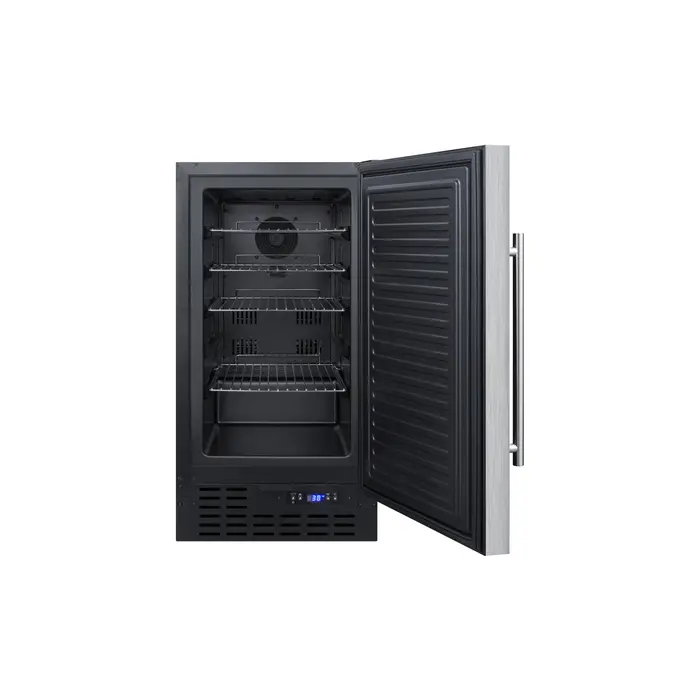

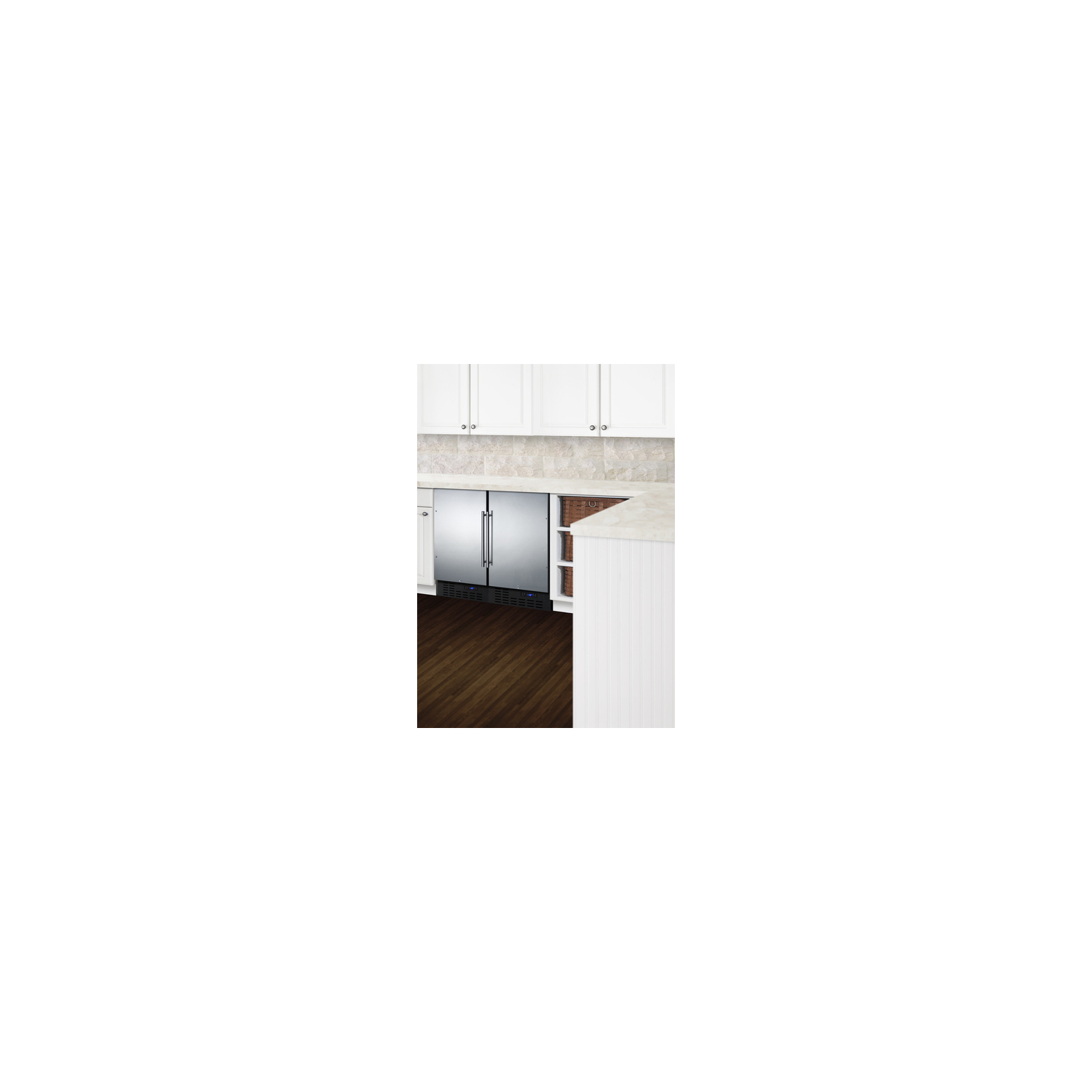

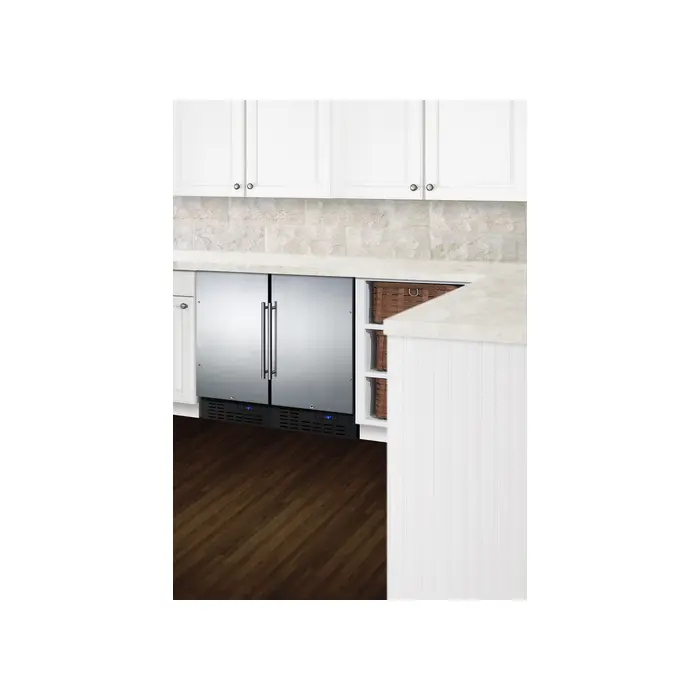

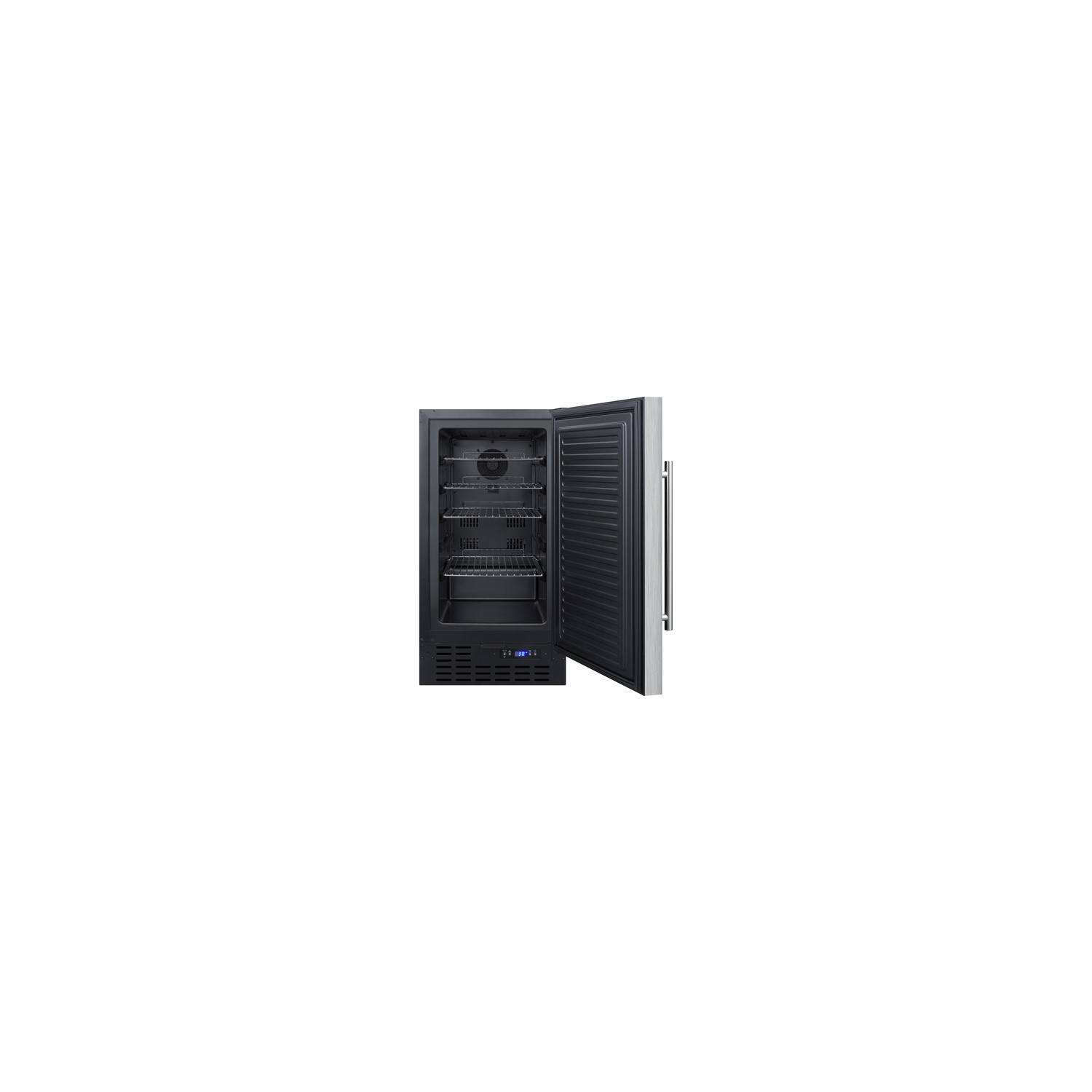

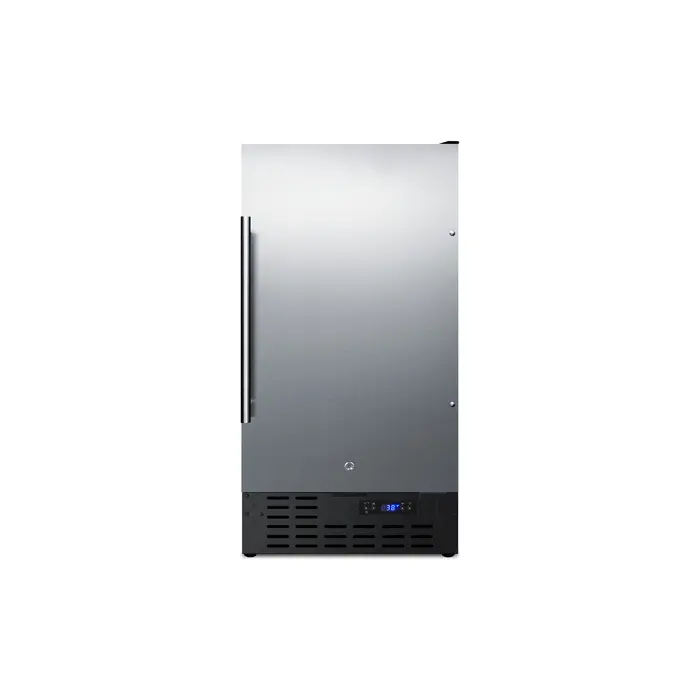

Combine the FF1843B with its matching freezer, wine cellar, or beverage refrigerator. We also offer this model in stainless steel or with a panel-ready door. For a 32" high ADA compliant version, see the FF1843BADA.

SPECIFICATIONS

Overview

Nominal Height 35.0" (89 cm)

Height of Cabinet 34.25" (87 cm)

Nominal Width 18.0" (46 cm)

Width 17.75" (45 cm)

Width with Door Open 18.5" (47 cm)

Nominal Depth 24.0" (61 cm)

Depth 24.0" (61 cm)

Depth with Handle 25.75" (65 cm)

Depth with door at 90° 40.0" (102 cm)

Capacity 2.7 cu.ft. (76 L)

Defrost Type Automatic

Door Black

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 250.0kWh/year

Amps 1.1

Voltage/Frequency 115 V AC/60 Hz

Weight 90.0 lbs. (41 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101046983

Refrigerator Features

Door Swing RHD

Reversible Yes

Shelf Type Chrome

Shelf Qty 4

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.06oz.

High Side PSI 150.0

Low Side PSI 50.0

Level Legs Qty 2

Interior Light Yes

Sound Level 33.1 dB

Dimensions

Interior Height 23.5" (60 cm)

Interior Width 12.75" (32 cm)

Interior Depth 16.75" (43 cm)

Compressor Step Height 4.5" (11 cm)

Compressor Step Width 12.75" (32 cm)

Compressor Step Depth 4.5" (11 cm)

FEATURES

Commercially approved ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments

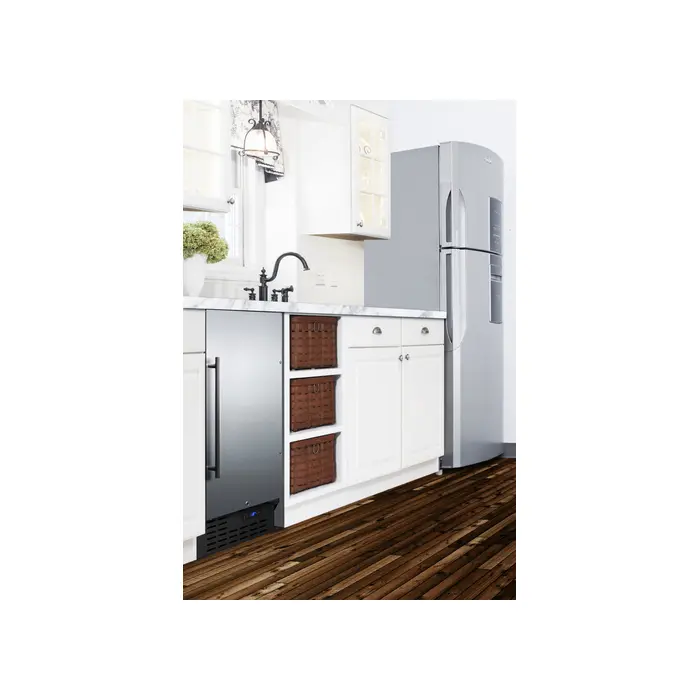

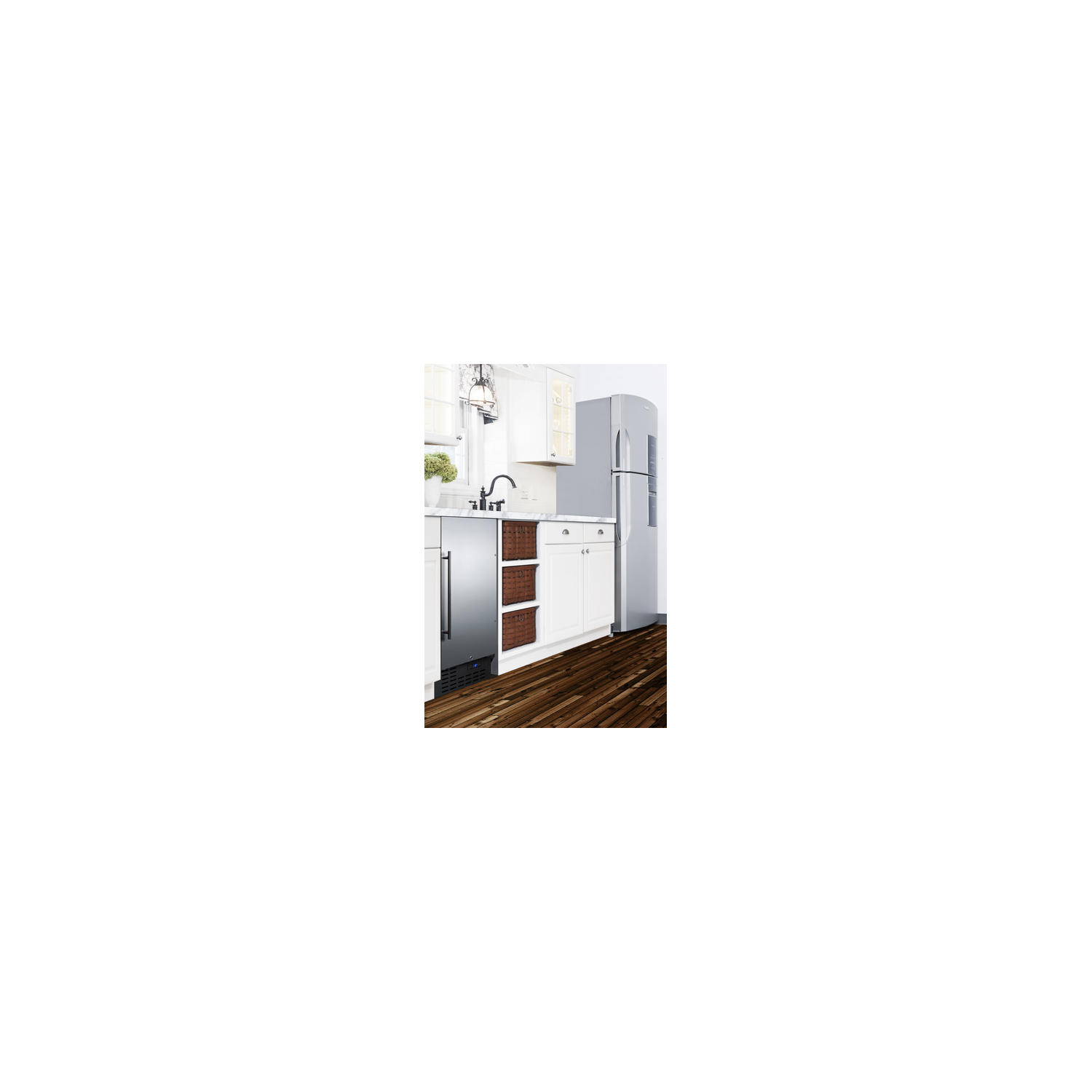

Built-in capable Make the best use of space by installing your appliance under the counter

Reversible door User reversible door swing for added flexibility

Factory installed lock Keyed lock for a secure interior

Automatic defrost Reduced maintenance with auto defrost system

Digital thermostat Electronic controls for precise temperature management.

Digital display Temperature readout can be shown in Celsius or Fahrenheit

LED lighting Automatically illuminates when the door is open

Adjustable chrome shelves Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup

Flush back Space saving design

Fully finished black cabinet Allows the unit to be used freestanding

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (FF1843B.pdf)

TECHNICAL DRAWING (.dwg) (FF1843B_REF.__A-C_2000_.dwg)

REVIT MODEL (QF_Summit_FF1843B_Refrigerator.rfa)

USE & CARE (FF1843B-User-Manual.pdf)

MSDS INFORMATION (R600a_K.pdf)

Energy Guide
