Summit 15 inch wide all-refrigerator for built-in or freestanding use, with reversible stainless steel door and lock, 7.61101e+011, FF1532BSS

Summit's selection of built-in undercounter refrigeration includes uniquely sized 15" wide units for a slim fit with user-friendly convenience.

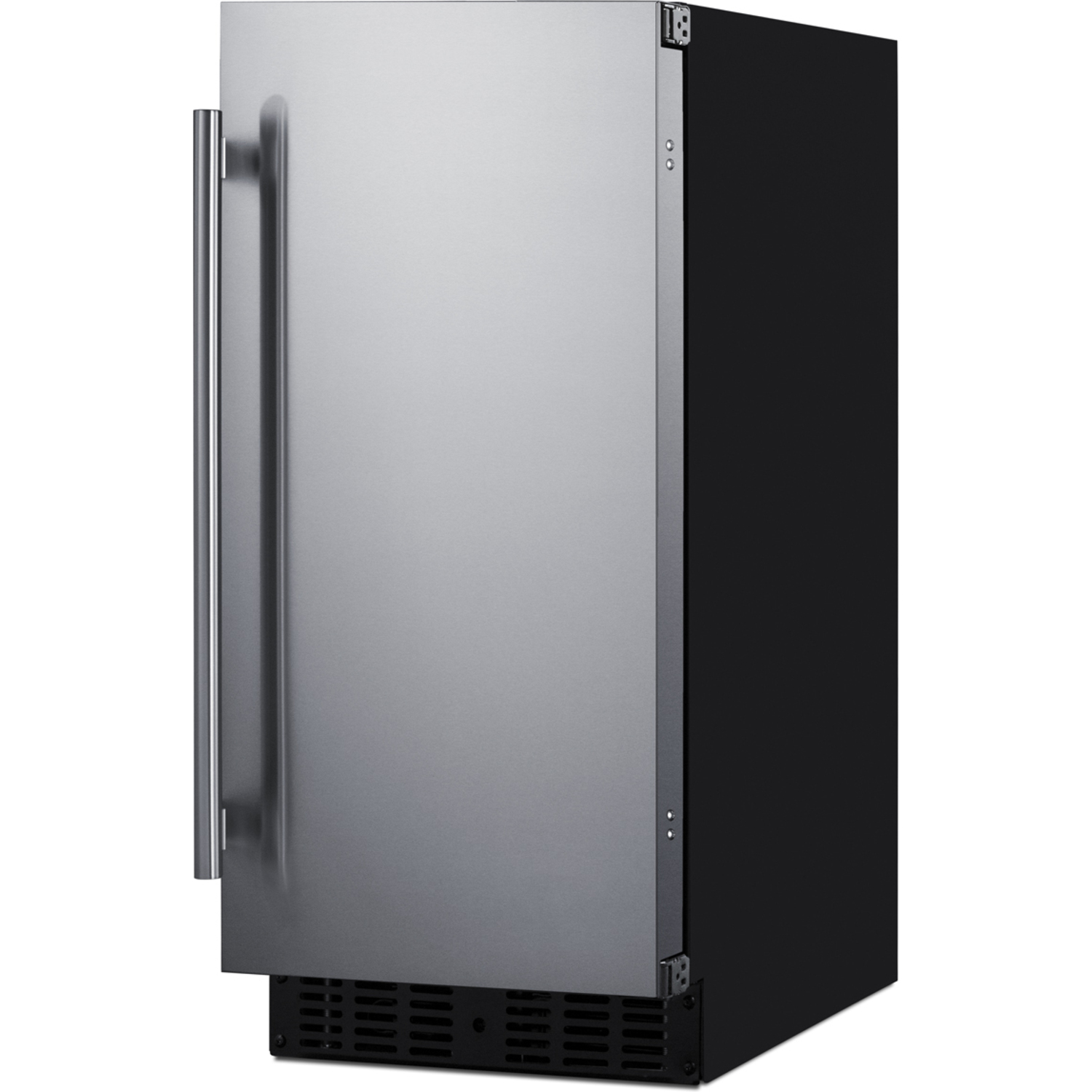

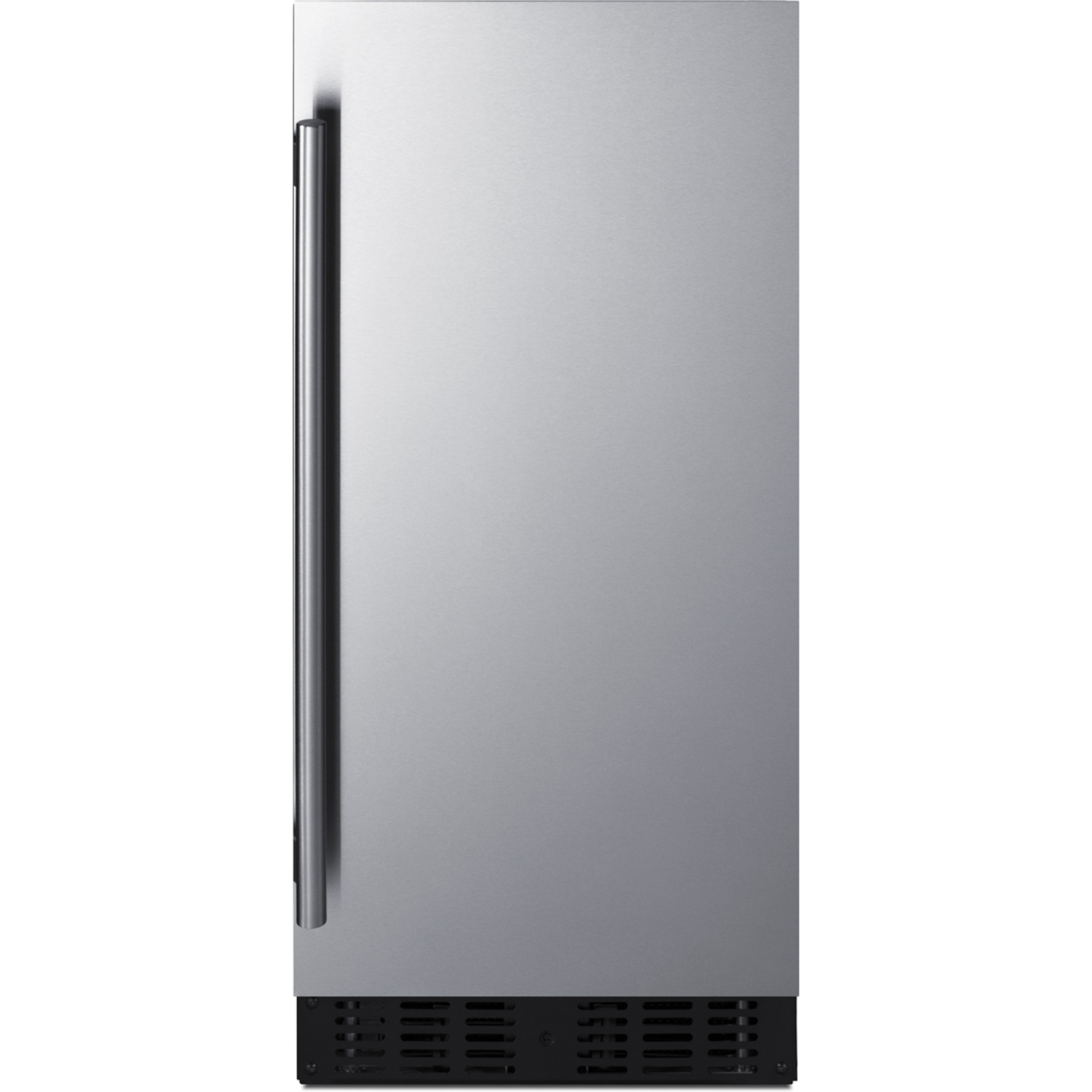

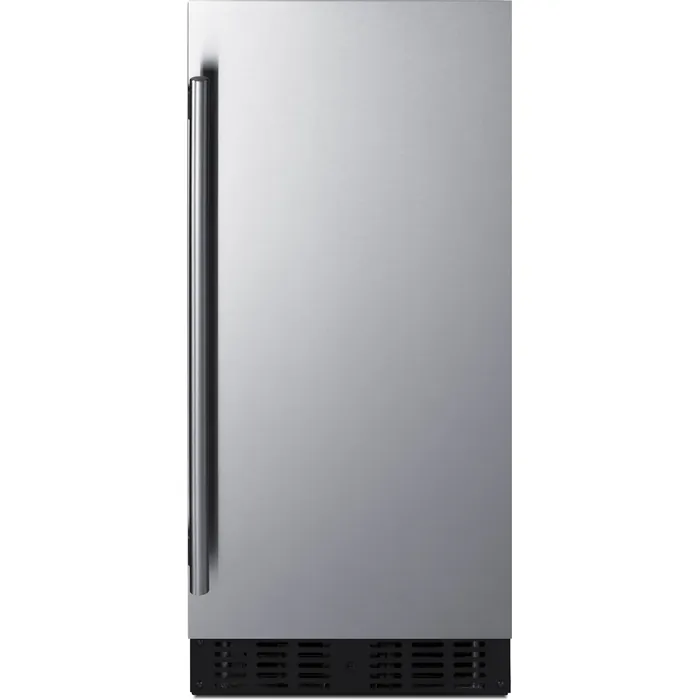

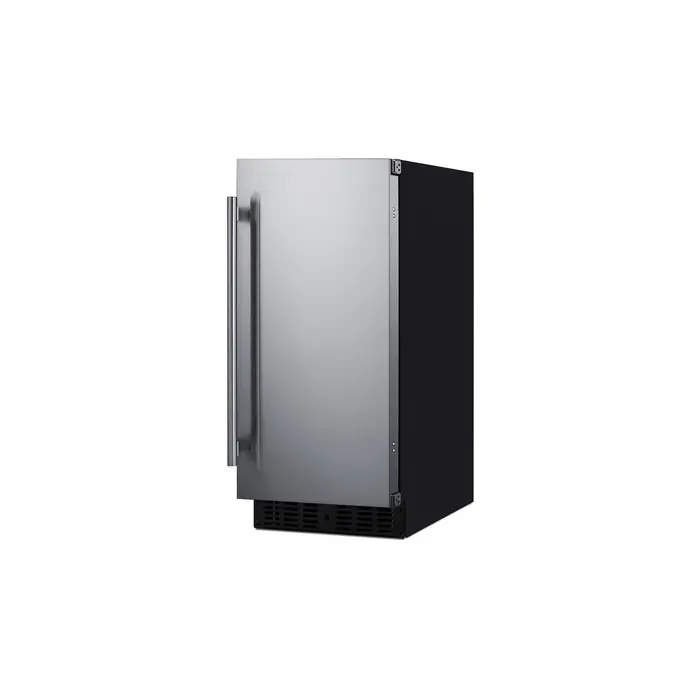

The FF1532BSS is a frost-free all-refrigerator in a slim 15" width. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a user reversible stainless steel wrapped door complete with a sleek handle. A factory installed lock offers added security and the fully articulating European style hinge ensures a clean fit.

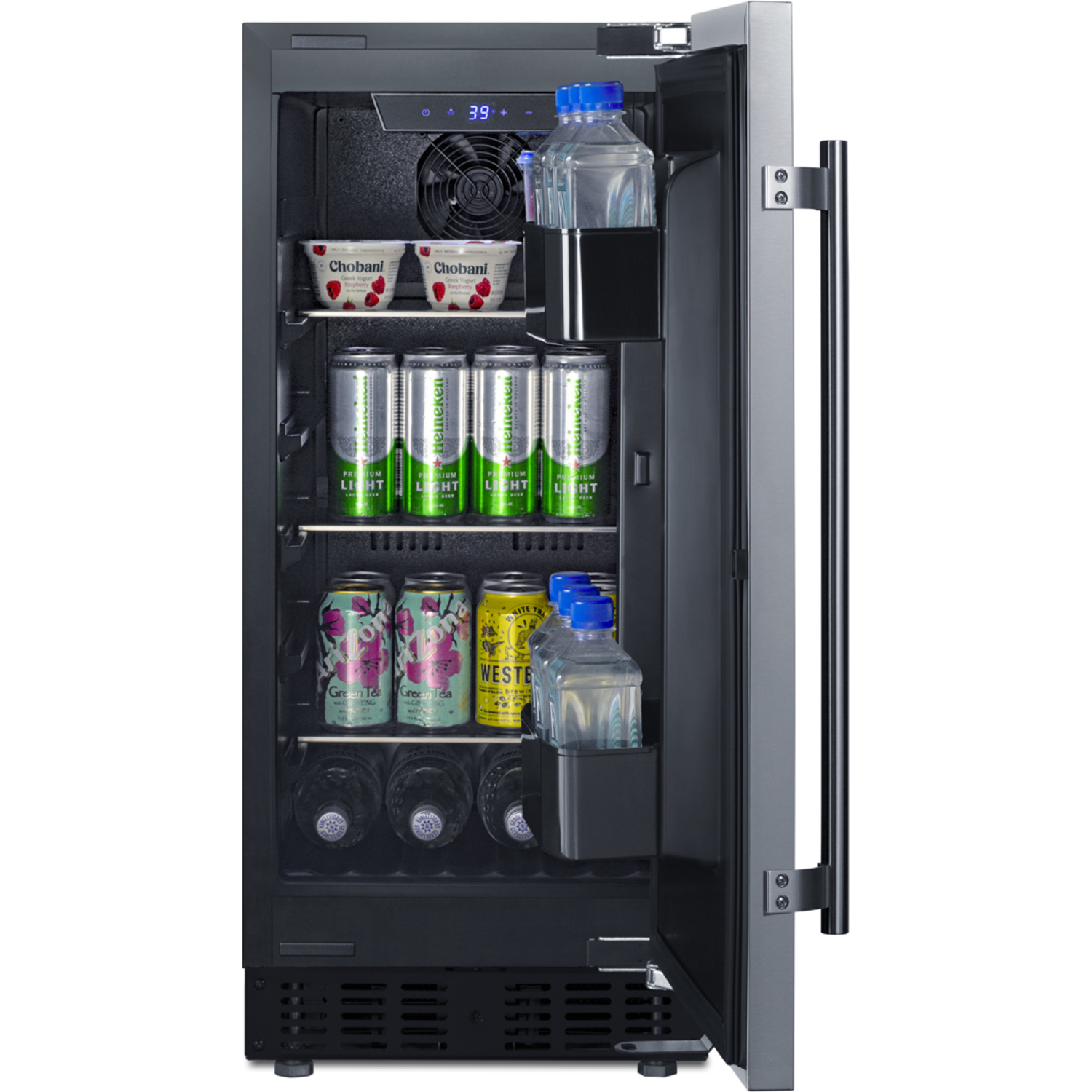

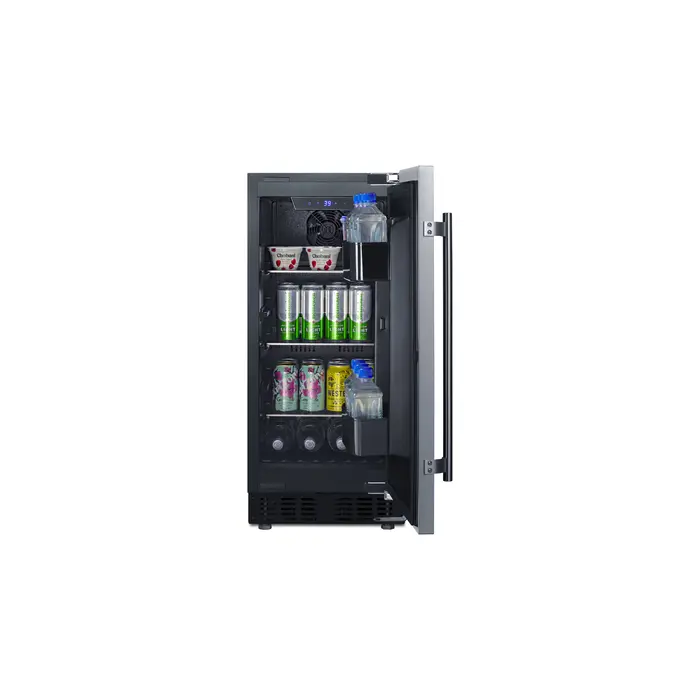

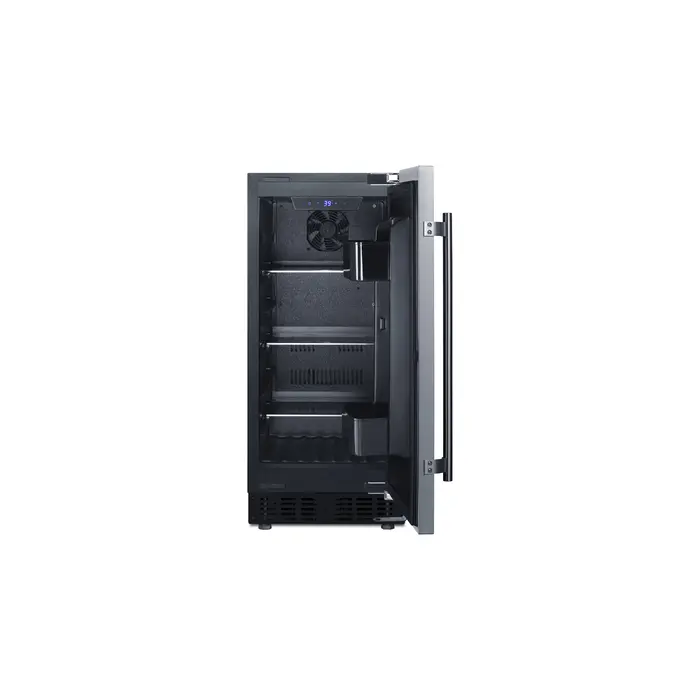

Inside, the FF1532BSS includes adjustable glass shelves for easy storage. Two door shelves are perfect for holding beverages and condiments, while the floor is specially slotted to store wine bottles. LED lighting provides an attractive presentation inside the 3 cu.ft. interior. The digital thermostat features a readout in Celsius or Fahrenheit for easy and intuitive temperature control.

With ideal dimensions and advanced product features, the FF1532BSS is the perfect choice for unique kitchen spaces. This unit can be paired with the matching SCFF1533BSS all-freezer as a side-by-side set or combined with our StackRack.

SPECIFICATIONS

Overview

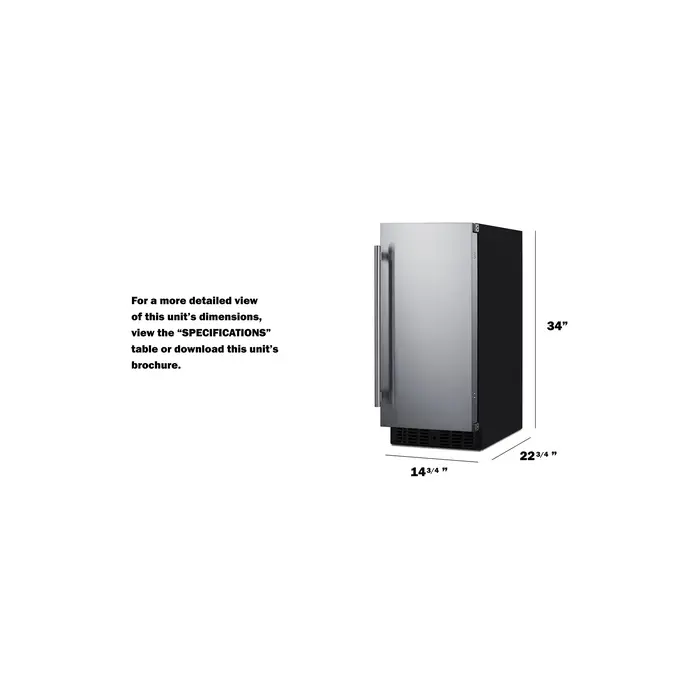

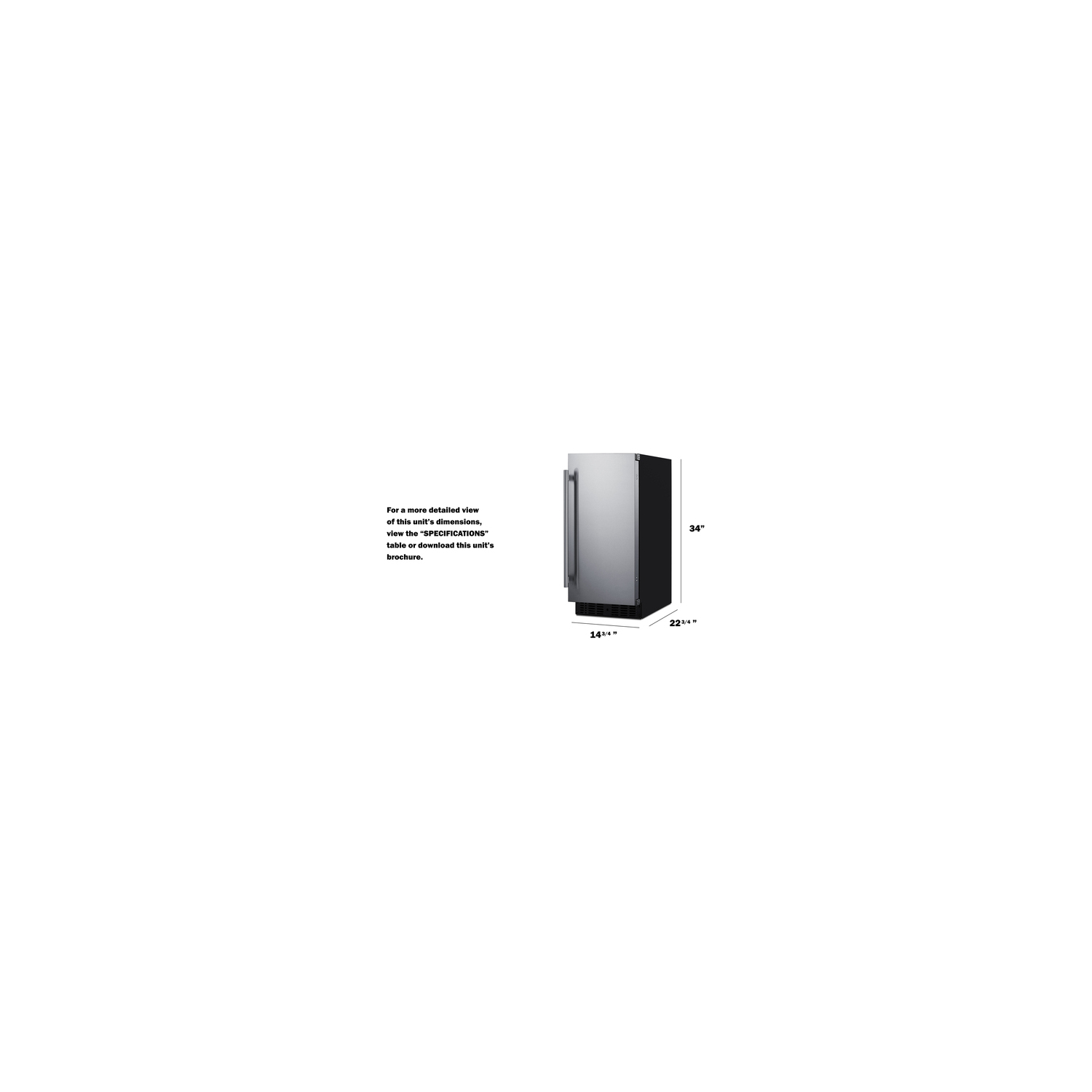

Nominal Height 34.0" (86 cm)

Height of Cabinet 34.0" (86 cm)

Nominal Width 15.0" (38 cm)

Width 14.75" (37 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.75" (58 cm)

Depth with door at 90° 36.25" (92 cm)

Capacity 2.9 cu.ft. (82 L)

Defrost Type Frost-Free

Door Stainless Steel

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 255.0kWh/year

Amps 1.4

Voltage/Frequency 115 V AC/60 Hz

Weight 73.0 lbs. (33 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101048819

Refrigerator Features

Sabbath Mode Yes

Door Swing RHD

Reversible Yes

Shelf Type Glass

Shelf Qty 3

Full Door Shelf Qty 2

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 0.64oz.

High Side PSI 270.0

Low Side PSI 105.0

Level Legs Qty 4

Interior Light Yes

Dimensions

Interior Height 24.63" (63 cm)

Interior Width 12.0" (30 cm)

Interior Depth 17.63" (45 cm)

Compressor Step Height 3.13" (8 cm)

Compressor Step Width 12.0" (30 cm)

Compressor Step Depth 5.25" (13 cm)

FEATURES

15" Wide Undercounter Refrigerator Front-breathing all-refrigerator for easy installation under the counter

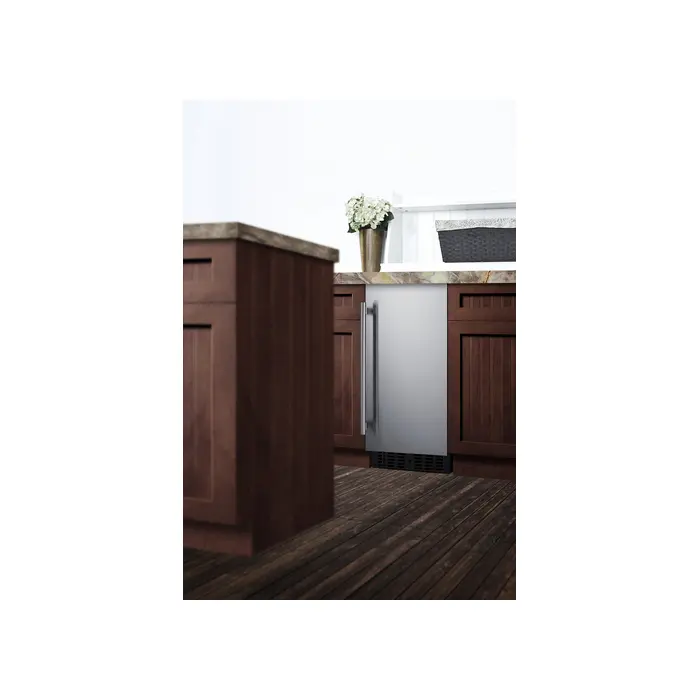

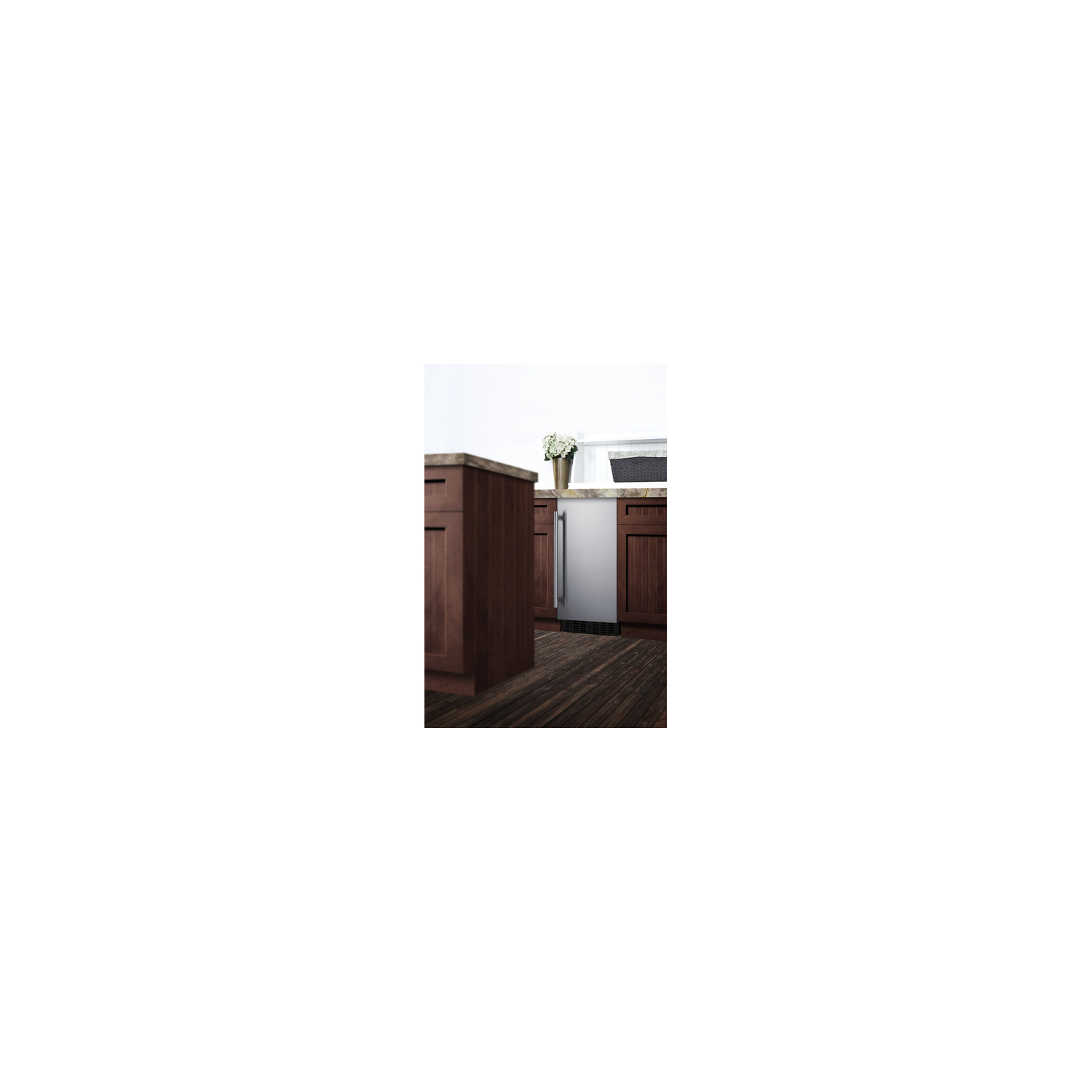

Built-in capable Make the best use of space by installing your appliance under the counter

Fully finished black cabinet Allows the unit to be used freestanding

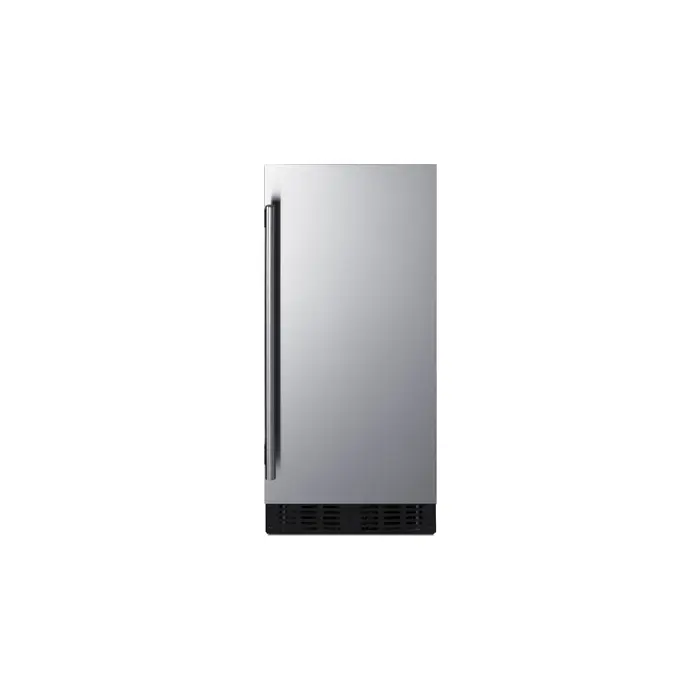

Stainless steel door Wrapped stainless steel door offers a professional look with lasting durability

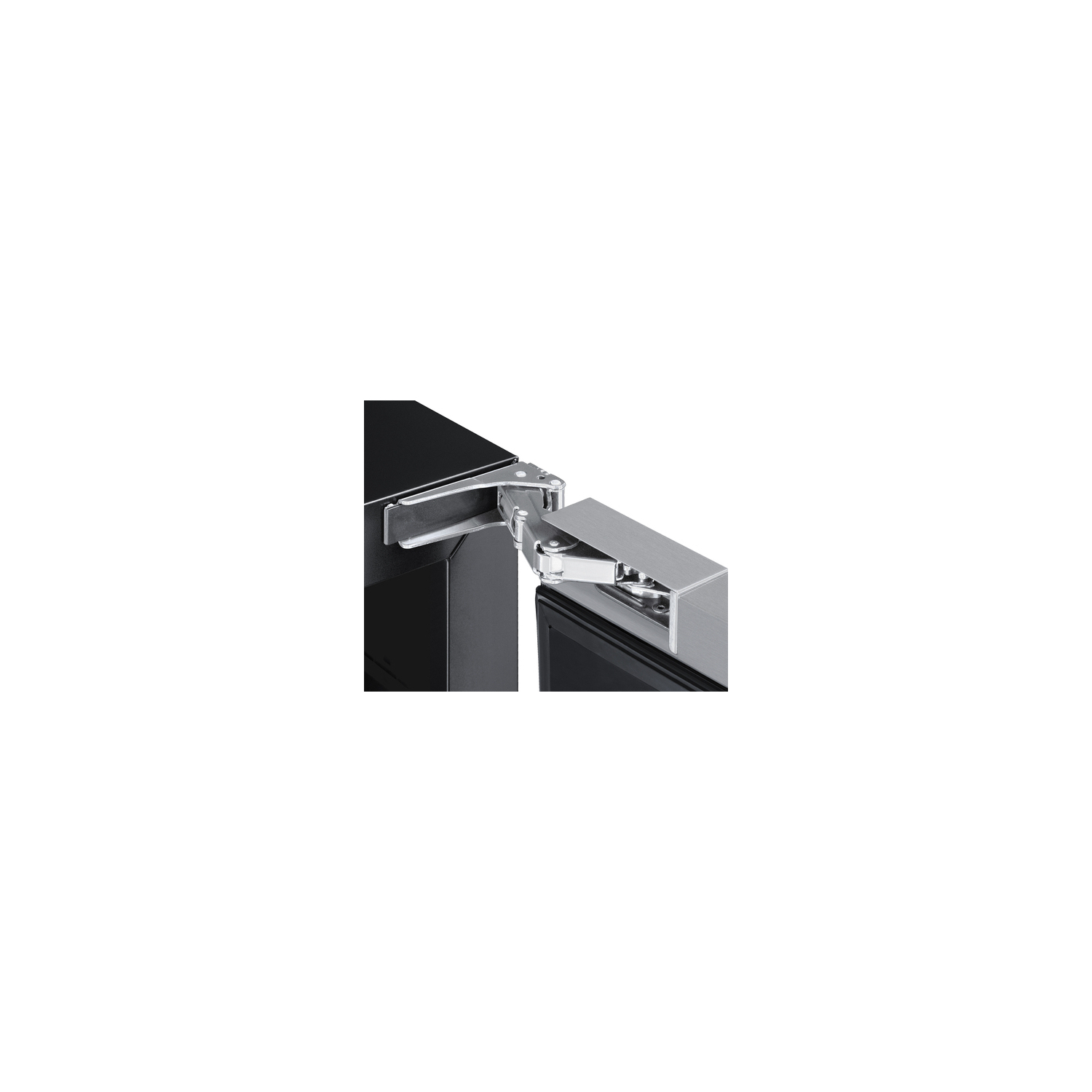

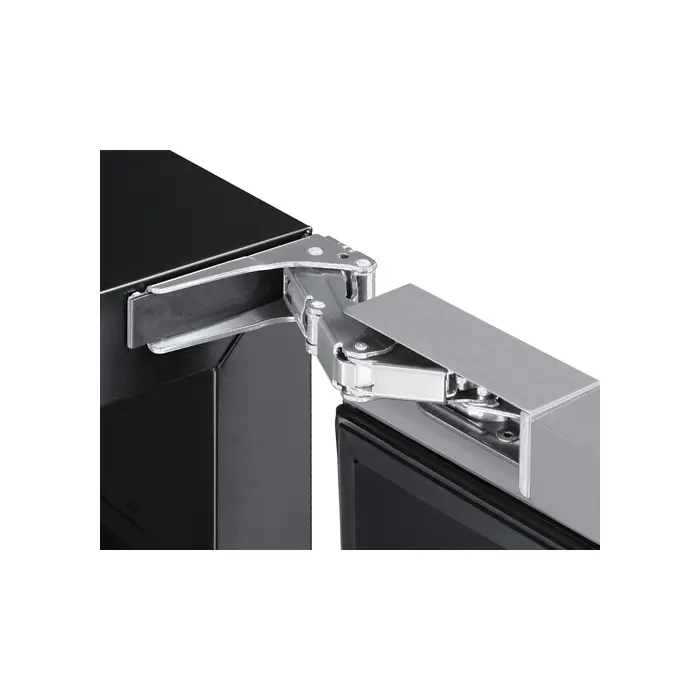

Fully articulating European style hinge Smoother opening and a better fit with an integrated European hinge

Factory installed lock Keyed lock located in the kickplate for optional security

Digital thermostat Electronic controls for precise temperature management.

Digital display Temperature readout can be shown in Celsius or Fahrenheit

LED lighting Gentle illumination with an on/off switch

Frost-free operation No-frost operation ensures reduced maintenance

Adjustable glass shelves Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Door storage Two racks offer the perfect storage solution for tall bottles and condiments

Reversible door User-reversible door swing

Flush back Space saving design that is easy to clean

Matching freezer available Pair with the frost-free SCFF1537BSS to create a complete set

CEE Tier I qualified Efficient design meets CEE Tier I specifications, using 20% less energy than DOE standards require for this product category

Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 48 hours

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
