Summit ENERGY STAR certified counter depth refrigerator-freezer with stainless steel doors, platinum cabinet, and icemaker, 7.61101e+011, FF1514SSIMLHD

Summit manufactures perfectly sized appliances that bring full capacity to smaller kitchen spaces.

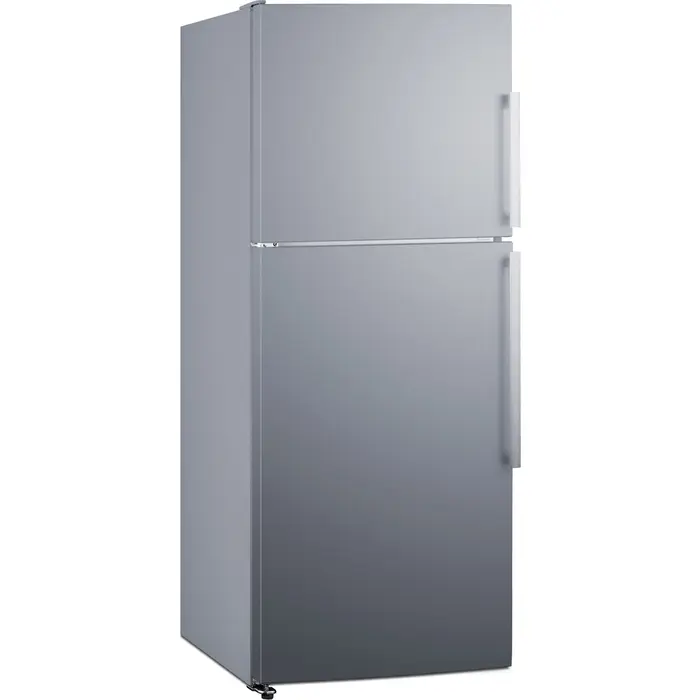

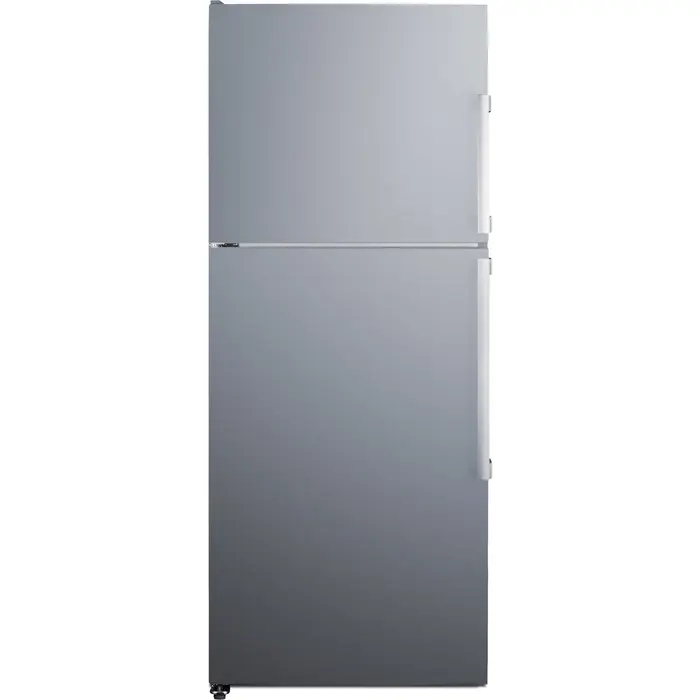

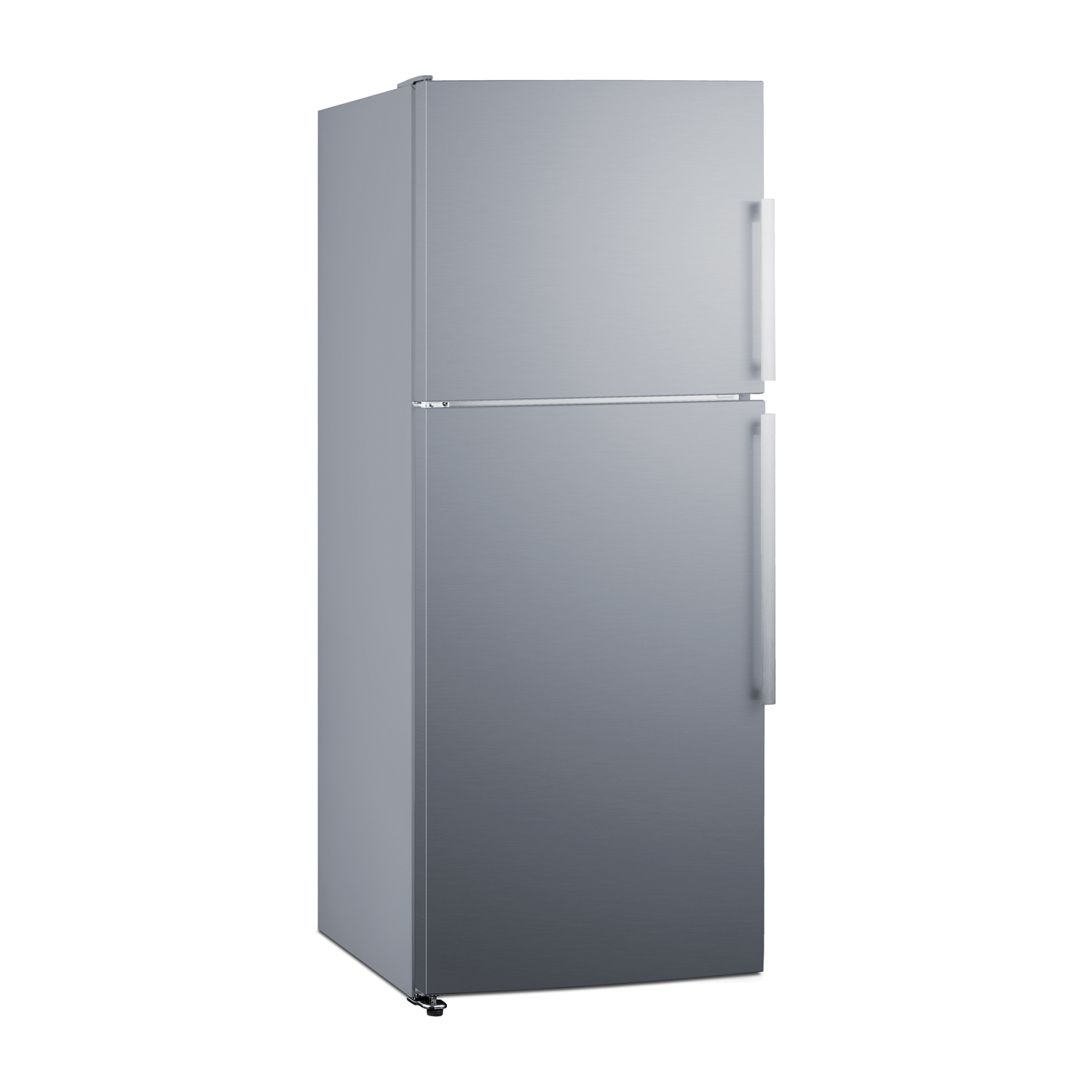

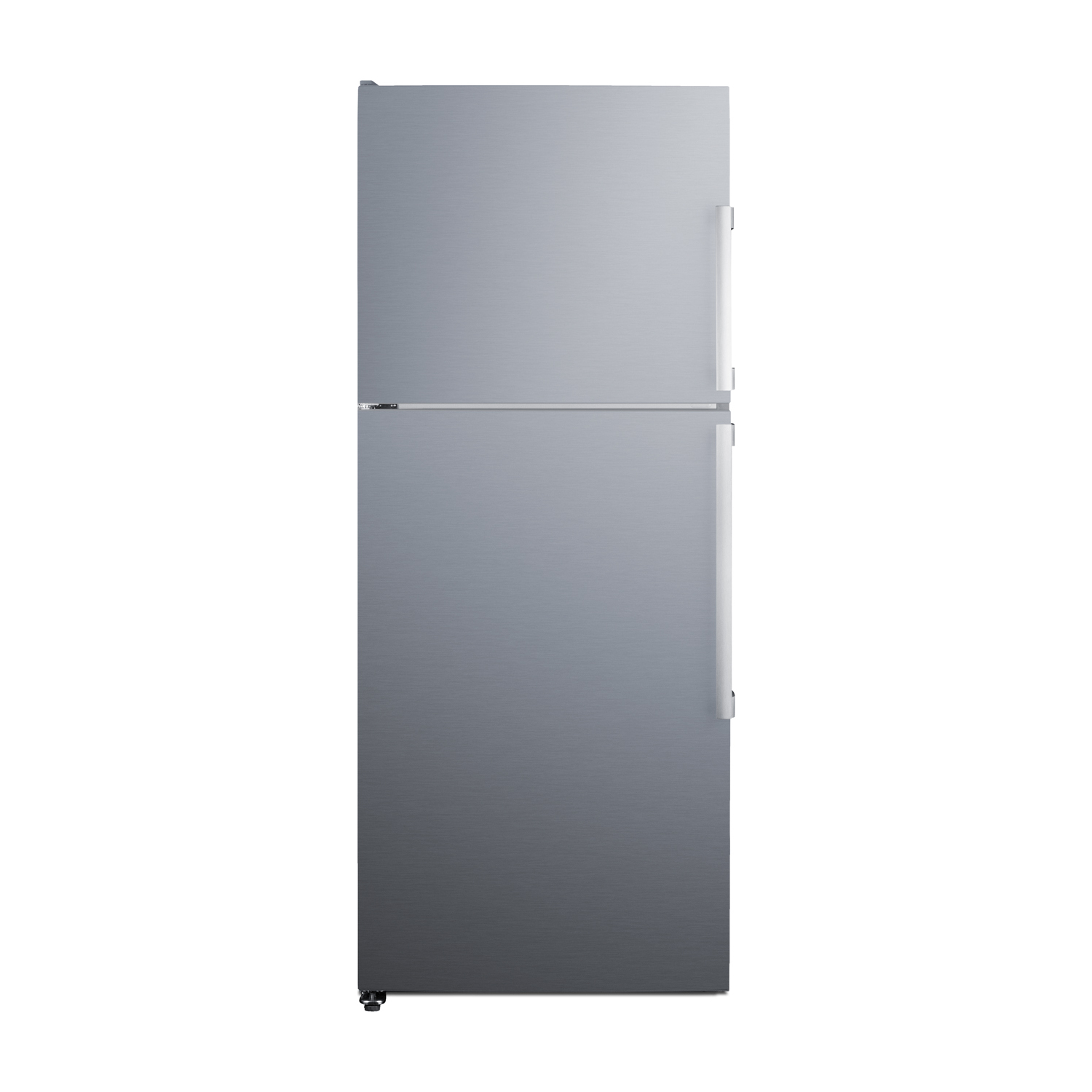

Model FF1514SSIMLHD is a top mount refrigerator-freezer that offers nearly 14 cu.ft. of storage capacity inside a unique 27.5" W x 26.25" D footprint. It comes with stainless steel doors and designer style handles. The doors come with a left-hand swing. A factory-installed icemaker allows you to maintain a steady supply of cubes in the freezer.

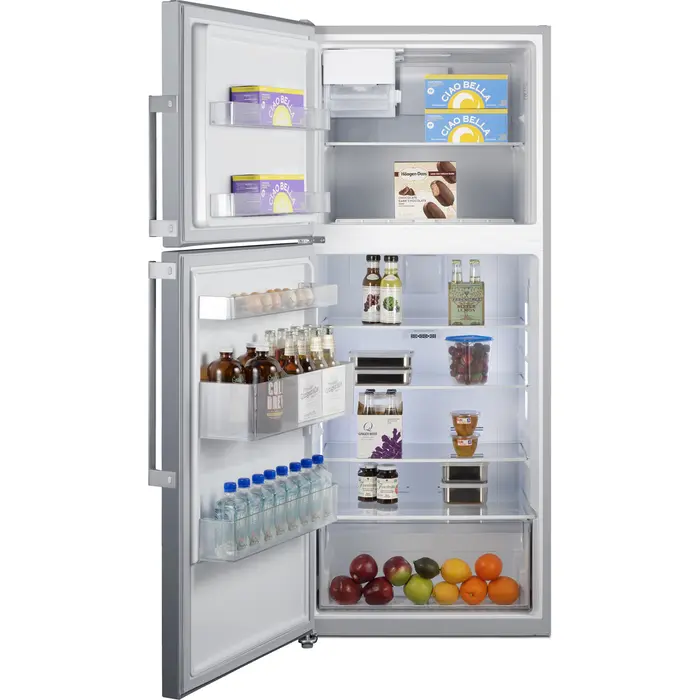

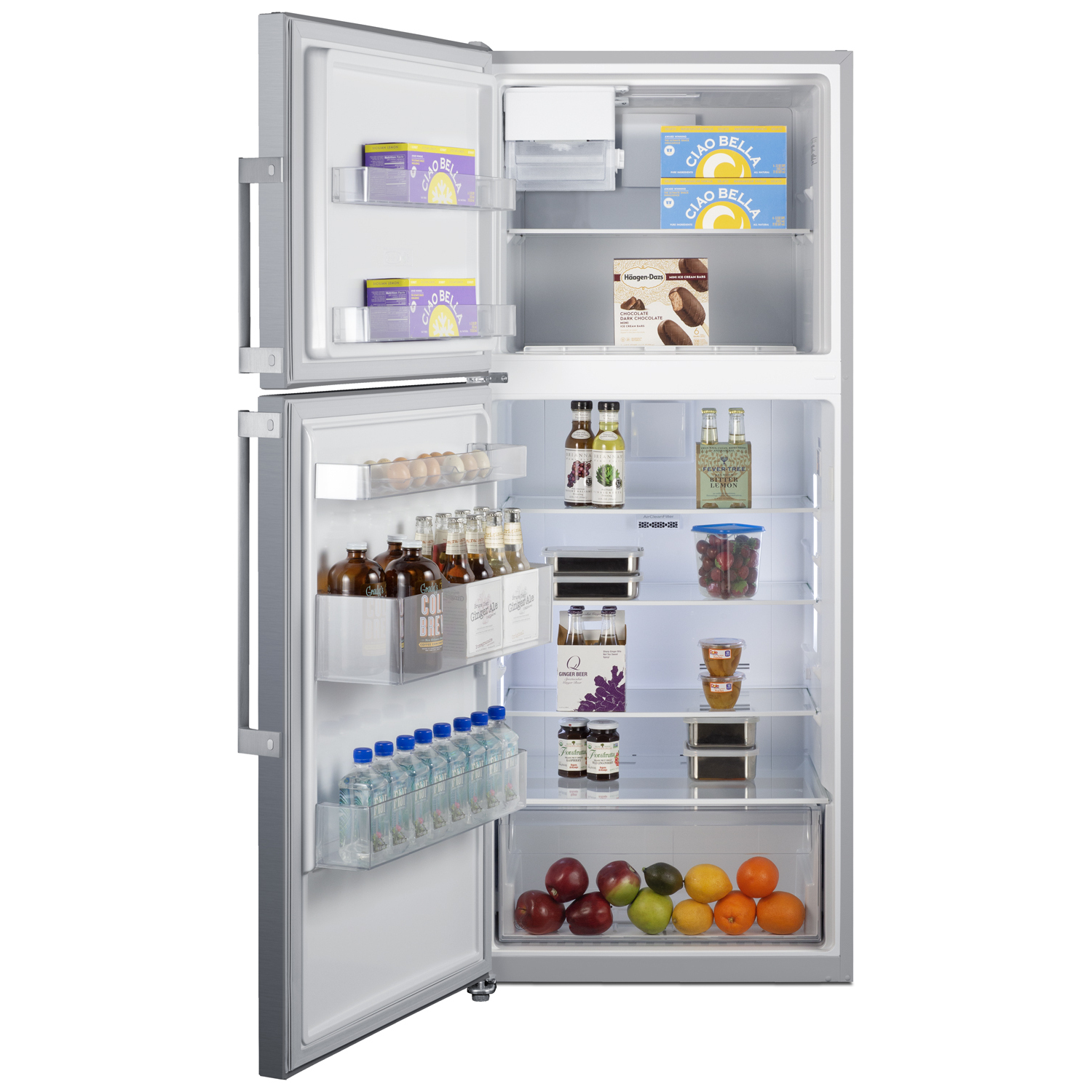

Inside, the FF1514SSIMLHD utilizes frost-free operation for minimum user maintenance and a dual evaporator system for improved cooling. Adjustable glass shelves offer spill-proof storage while removable door racks are ideal for keeping condiments in easy reach. We include a deeper rack that can hold full gallon-sized containers. A large clear crisper offers optimum conditions for produce storage.

Additional features make the FF1514SSIMLHD a user-friendly choice. LED lighting in the side walls of the refrigerator offers an efficient and attractive view inside. This unit includes an innovative touch control system that lets you manage the refrigerator and freezer temperature with an intuitive digital thermostat. For added energy savings, it features a vacation setting. The open door alarm alerts with an audio and visual signal when the door is left ajar for over one minute.

With its professional style, unique size, and innovative features, this model is a great choice for smaller kitchens with full storage needs.

SPECIFICATIONS

Overview

Nominal Height 68.0" (173 cm)

Height of Cabinet 67.25" (171 cm)

Height to Hinge Cap 67.75" (172 cm)

Nominal Width 28.0" (71 cm)

Width 27.5" (70 cm)

Width with Door Open 28.5" (72 cm)

Nominal Depth 27.0" (69 cm)

Depth 26.25" (67 cm)

Depth with Handle 27.75" (70 cm)

Depth with door at 90° 51.38" (131 cm)

Capacity 13.6 cu.ft. (385 L)

Defrost Type Frost-Free

Door Stainless Steel

Cabinet Platinum

US Electrical Safety UL

Canadian Electrical Safety ULC

Energy Usage/Year 426.0kWh/year

Amps 2.4

Voltage/Frequency 115 V AC/60 Hz

Weight 185.0 lbs. (84 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101094328

Refrigerator-Freezer

Door Swing LHD

Adjustable Shelves Yes

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Glass

Interior Light Yes

Refrigerator - Interior Height 39.0" (99 cm)

Refrigerator - Interior Width 23.5" (60 cm)

Refrigerator - Interior Depth 17.0" (43 cm)

Refrigerator - Capacity 10.1 cu.ft

Refrigerator - Shelf Type Glass

Refrigerator - Shelf Qty 3

Refrigerator - Full Door Shelves 3

Freezer - Interior Height 19.0" (48 cm)

Freezer - Interior Width 22.25" (57 cm)

Freezer - Interior Depth 19.25" (49 cm)

Freezer - Capacity 3.23 cu.ft

Freezer - Shelf Type Glass

Freezer - Shelf Qty 1

Freezer - Full Door Shelves 2

Gallon Door Storage Yes

Thermostat Type Digital

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 2.26 oz.

Level Legs 2

Compressor Step Height 10.0" (25 cm)

Compressor Step Width 23.5" (60 cm)

Compressor Step Depth 5.5" (14 cm)

Sound Level 32.9 dB

FEATURES

Counter Depth Refrigerator-Freezer Top mount design in an efficient 27.5" W x 26.25" D footprint ideal for space-challenged kitchens

Stainless steel doors Attractive look with lasting durability

Designer handles Brushed steel handles offer a modern look for the refrigerator

Frost-free operation No-frost convenience for reduced user maintenance

Factory installed icemaker Keep a constant supply of ice cubes on hand inside the freezer

Large capacity Generous capacity inside a counter deep footprint

Adjustable glass shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Crisper drawer Get the longest life and best taste out of produce by storing it in a convenient slide drawer

Gallon door shelf Deeper rack included to accommodate full gallon containers

Interior LED lighting Energy efficient lighting located inside the walls to provide a better view of the interior

Digital temperature control Innovative control panel located inside the refrigerator makes it easy to manage the refrigerator and freezer temperature at the touch of a button

Open door alarm Alarm sends an audio and visual signal when the door is left ajar for over one minute

Full freezer shelf Removable glass shelf offers spill-proof storage in the freezer compartment

Sealed back Space-saving design offers easy cleanability

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Vacation setting Allows you to disable certain features during periods of inactivity

Left hand door swing For this unit with the door opening from the other side, see model FF1514SSIM

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE (FF1514SSIMLHD.pdf)

USE & CARE (FF1514SSIMLHD-User-Manual.pdf)

MSDS INFORMATION (R600a_MSDS_A.PDF)

Energy Guide
