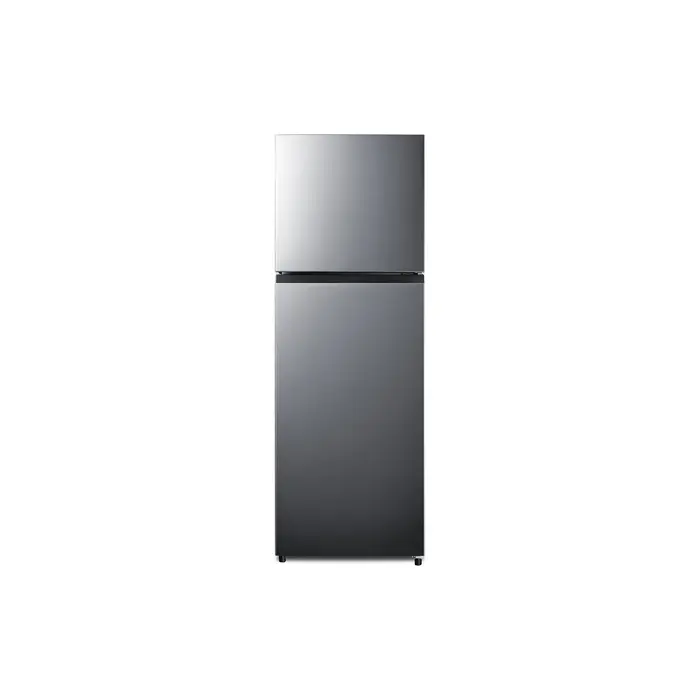

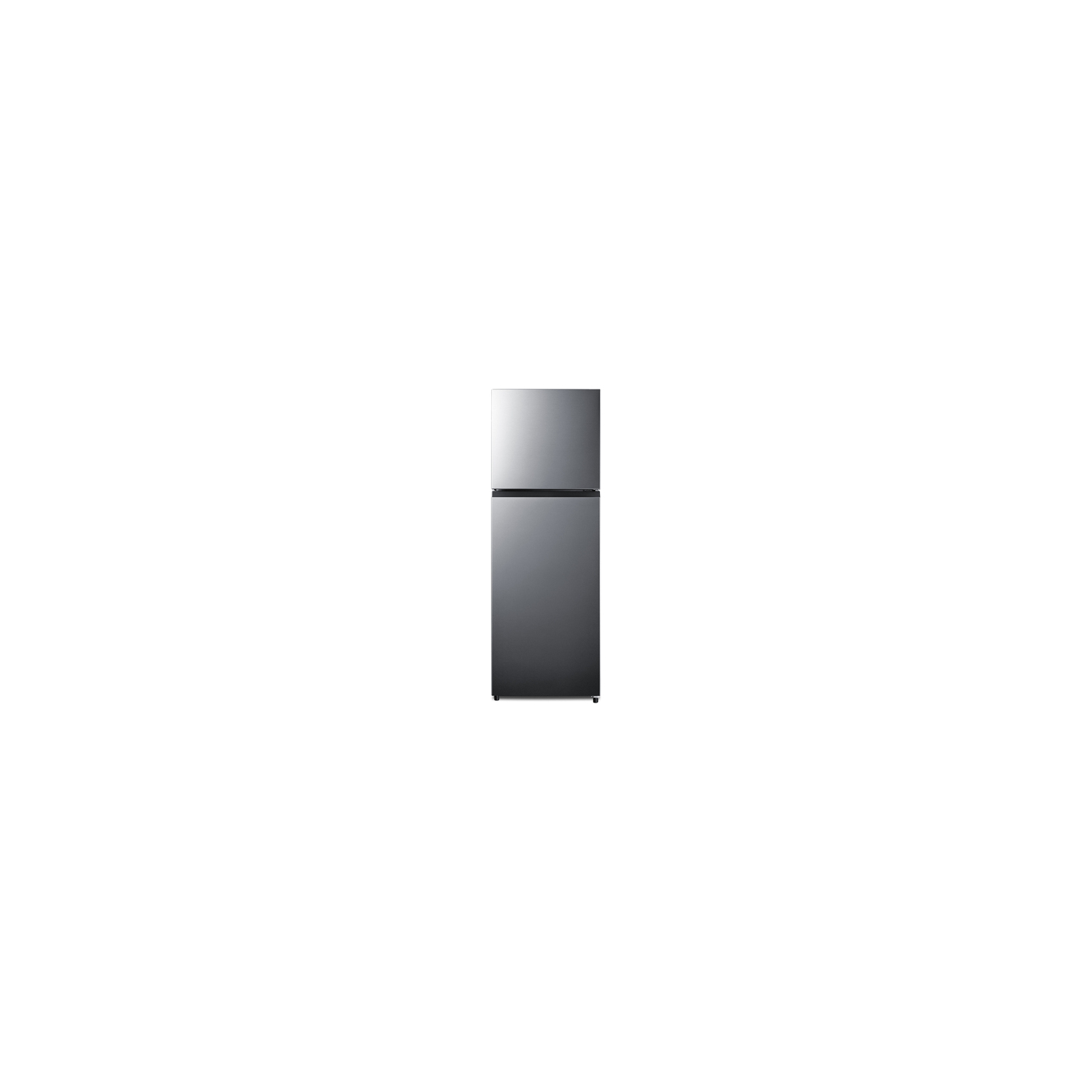

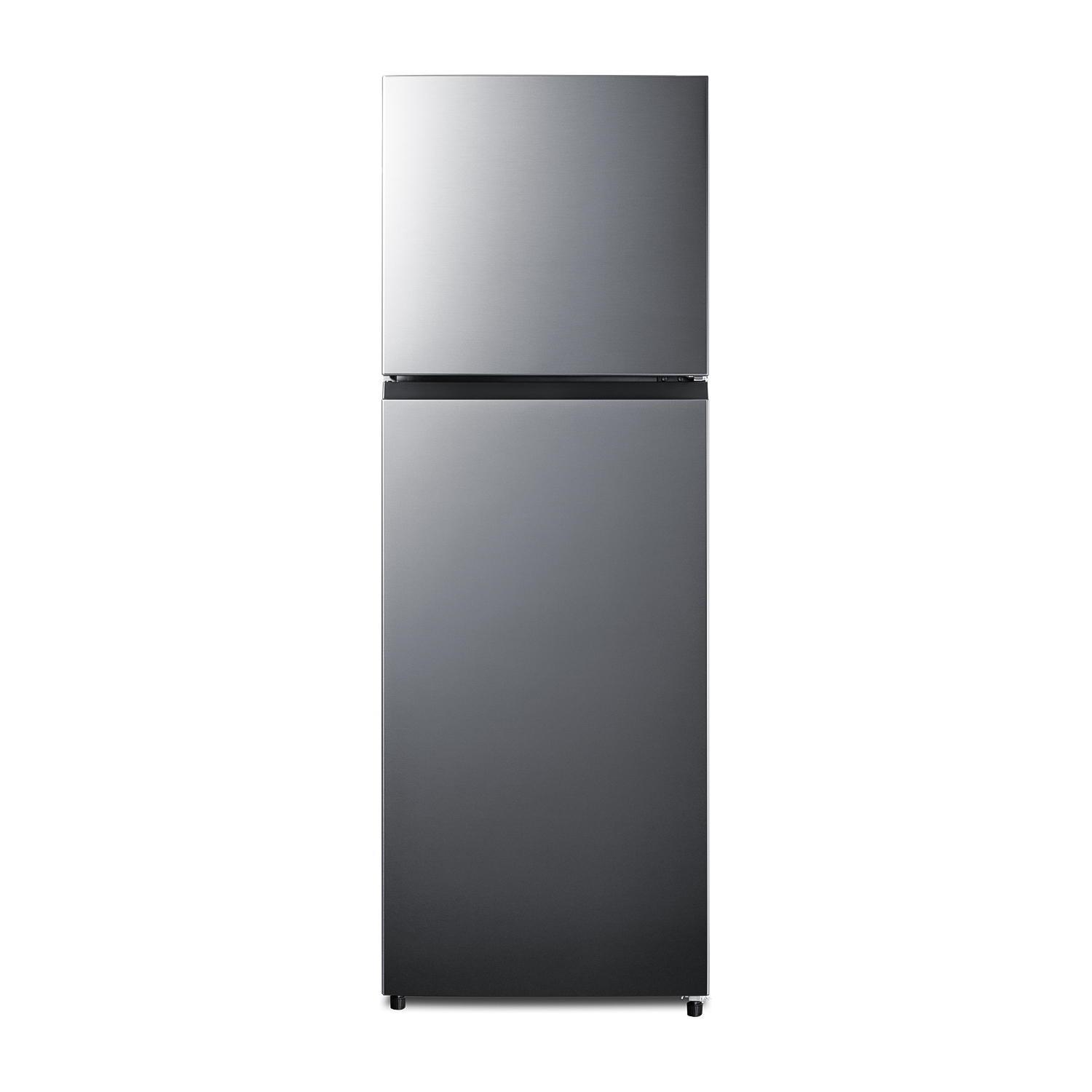

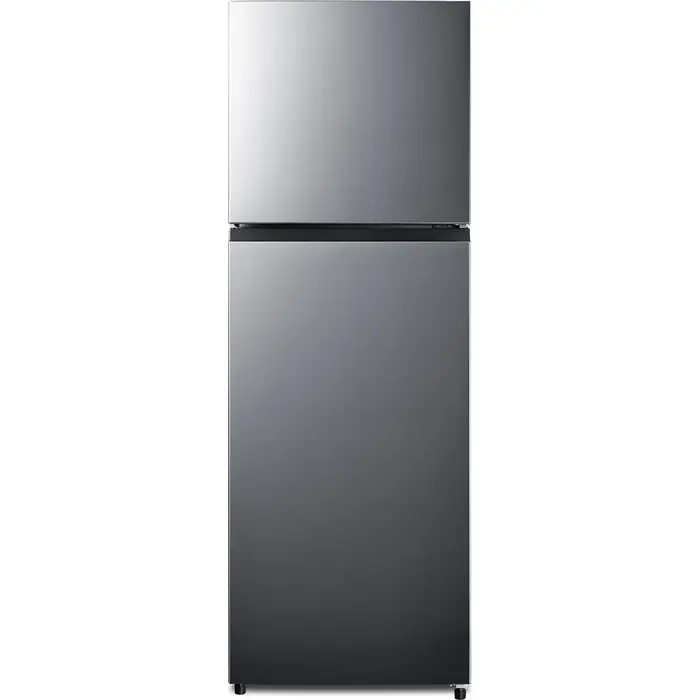

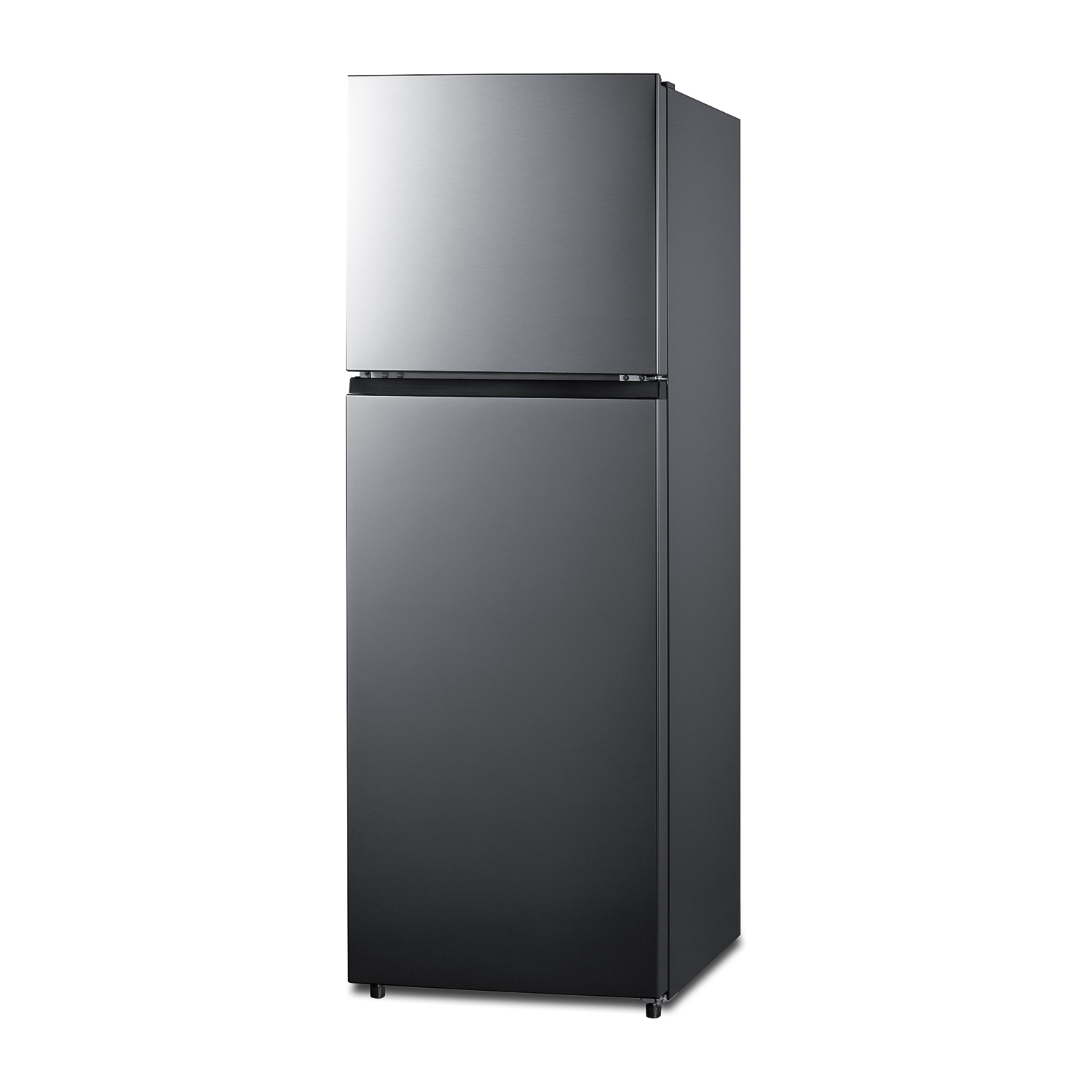

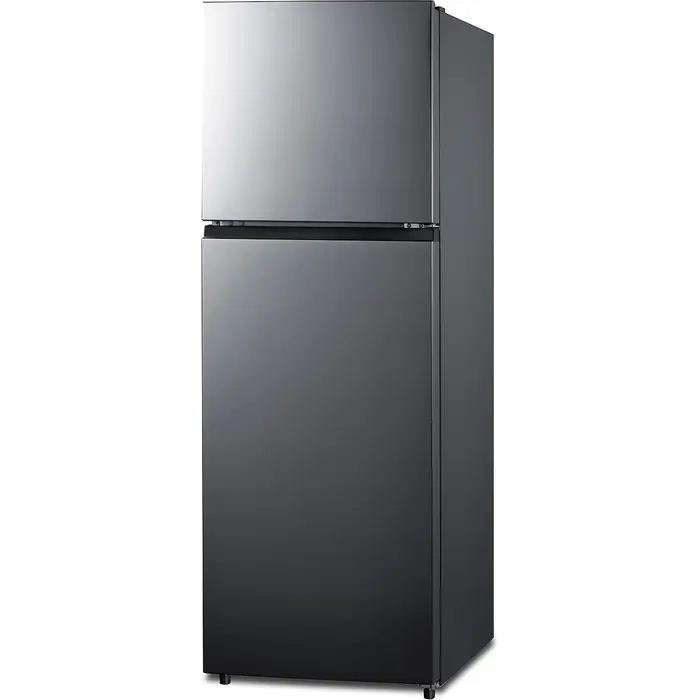

Summit 24 inch wide top freezer refrigerator in stainless steel look, 7.61101e+011, FF1142PL

Summit Appliance manufactures the industry's most extensive collections of frost-free refrigerator-freezers in unique footprints for apartments, ADUs, and smaller kitchens.

The ENERGY STAR-certified FF1142PL offers over 11 cu.ft. of storage capacity in a slim fit under 24" wide and 66.75" high. The reversible doors feature a stainless steel look with a vertical grain, perfect for elevating your space without the hassle of fingerprint stains. This unit has a gray cabinet that allows for freestanding placement. The rear is sealed with no exposed coils for a better fit and easier cleanup.

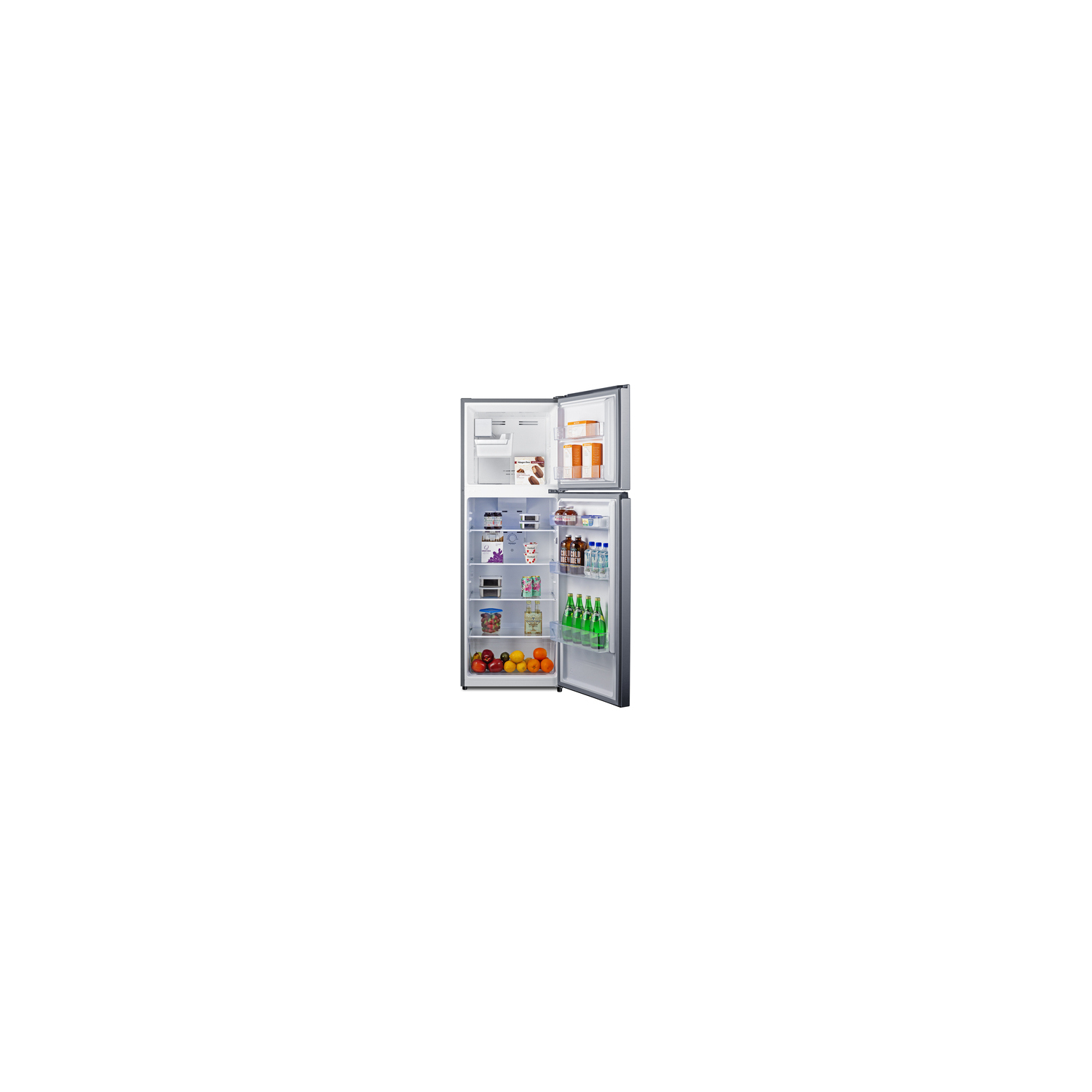

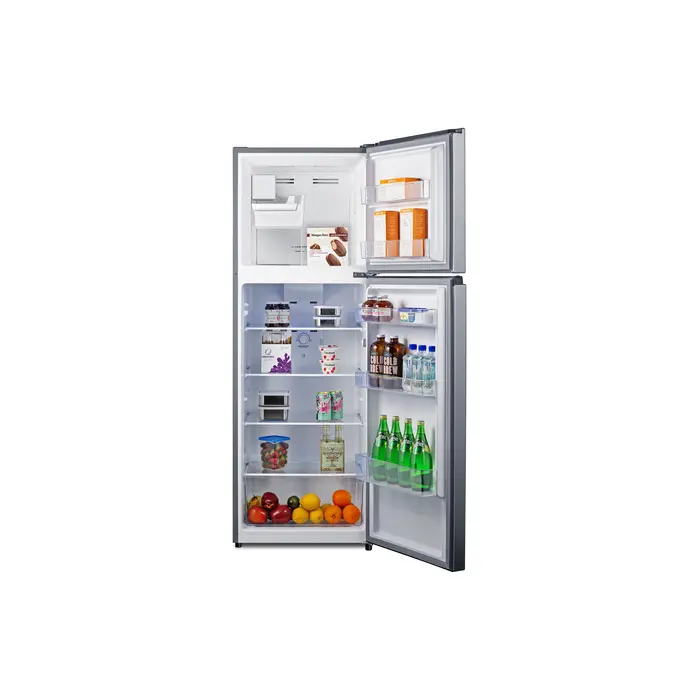

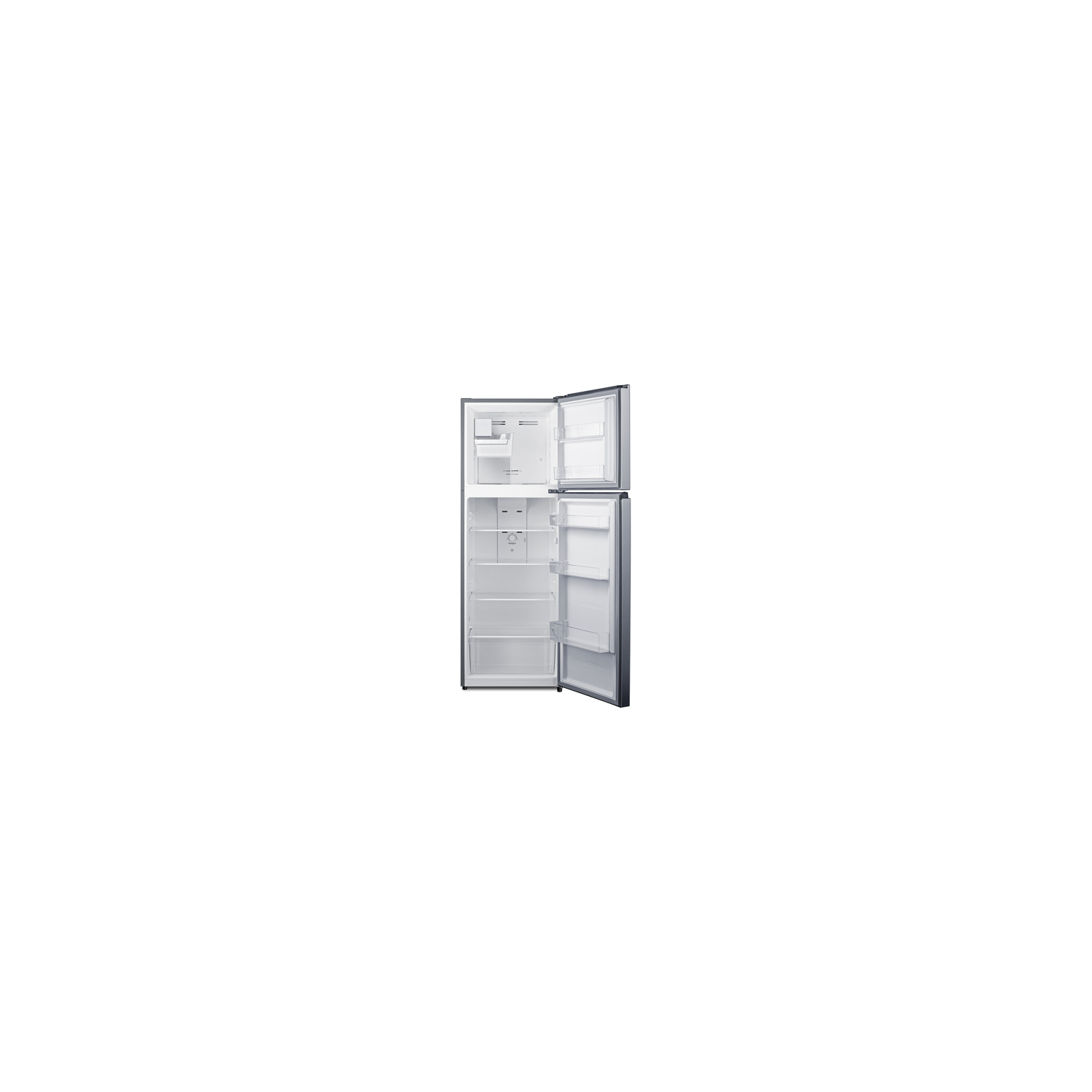

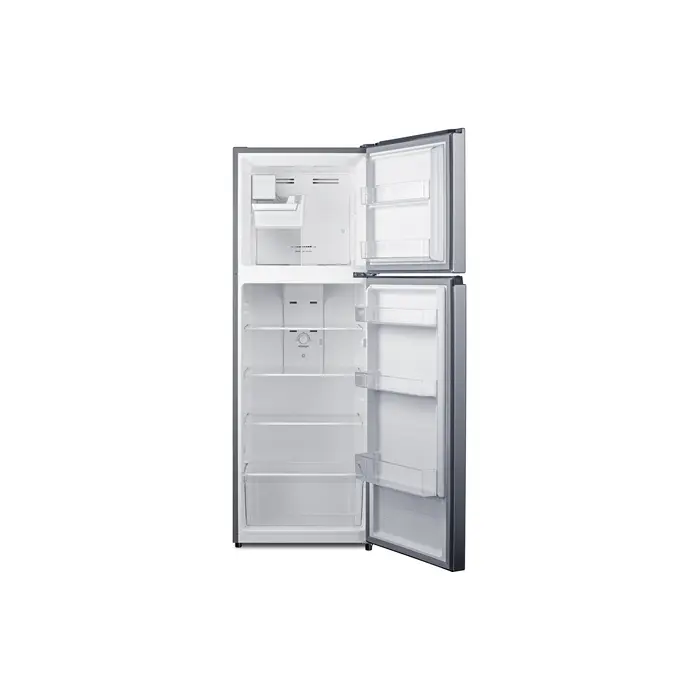

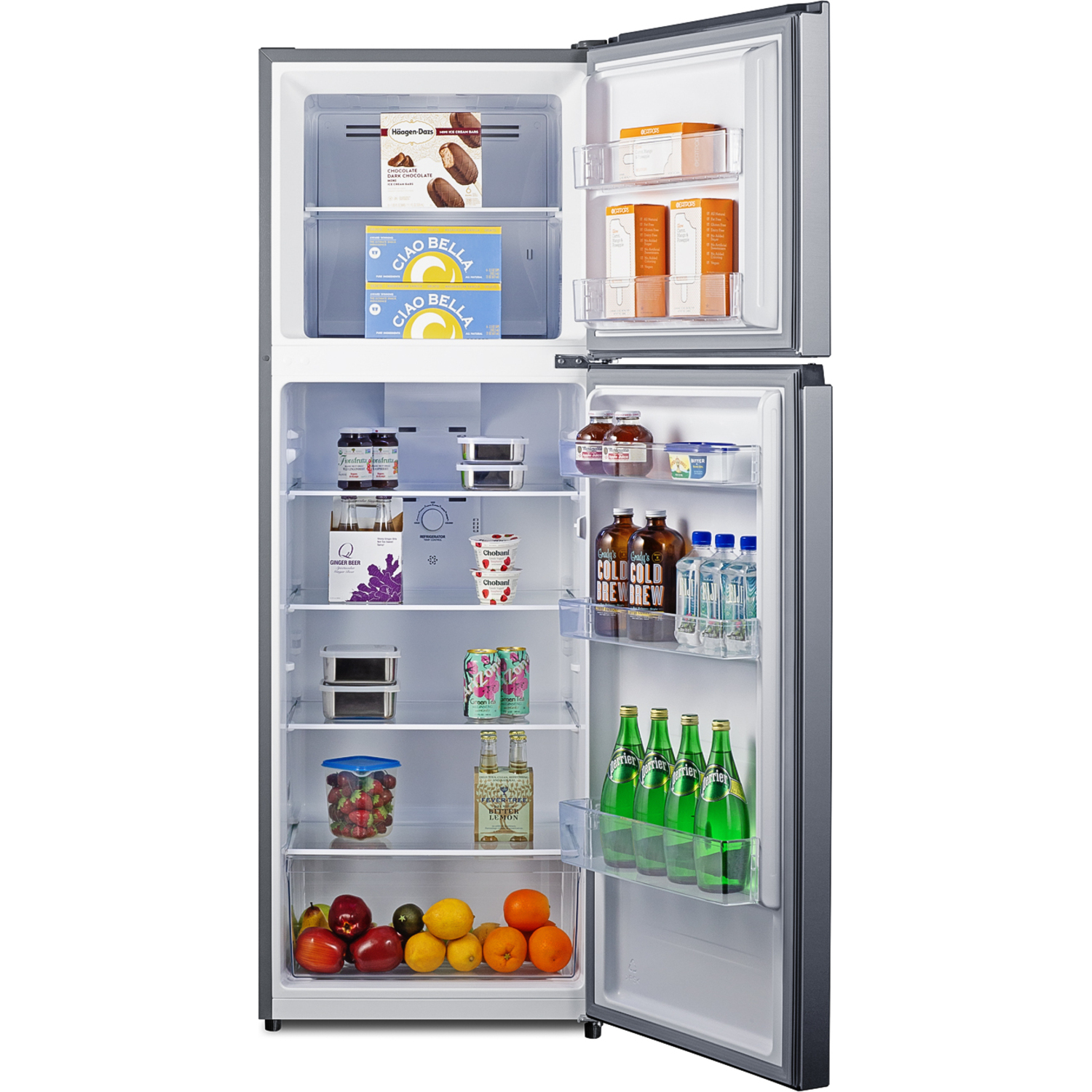

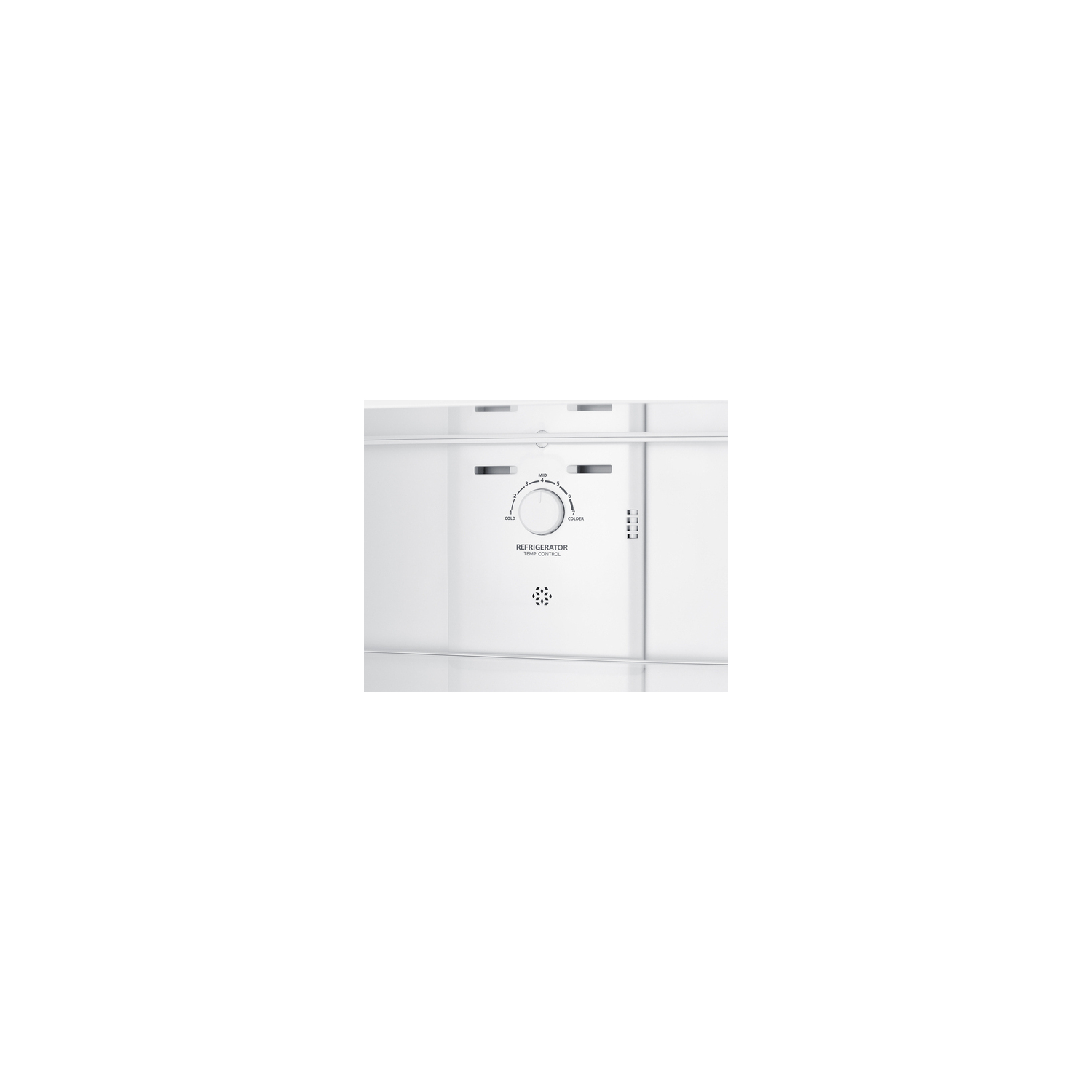

Inside, the FF1142PL comes fully featured for convenient storage. The refrigerator section includes three adjustable spill-proof glass shelves and a clear crisper for optimum produce storage. The unit's door storage consists of a large bottom rack to hold half-gallon containers and two removable door racks offer flexible condiment and bottle storage. The fresh food section features an intuitive dial thermostat and an automatic interior light. The large freezer compartment includes its own slide thermostat, two door shelves, and an adjustable glass shelf.

Conveniently featured and perfectly sized, the FF1142PL is the ideal choice for apartments and other smaller kitchens looking for an energy-efficient refrigerator-freezer.

SPECIFICATIONS

Overview

Nominal Height 67.0" (170 cm)

Height of Cabinet 66.75" (170 cm)

Nominal Width 24.0" (61 cm)

Width 23.5" (60 cm)

Width with Door Open 50.0" (127 cm)

Nominal Depth 26.0" (66 cm)

Depth 25.5" (65 cm)

Depth with door at 90° 50.0" (127 cm)

Capacity 11.5 cu.ft. (326 L)

Defrost Type Frost-Free

Door Stainless Look

Cabinet Gray

US Electrical Safety CSA

Canadian Electrical Safety CSA-C

Energy Usage/Year 308.0kWh/year

Amps 2.5

Plug Type NEMA 5-15P

Voltage/Frequency 115 V AC/60 Hz

Weight 121.0 lbs. (55 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101103600

Refrigerator-Freezer

Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Plastic

Interior Light Yes

Refrigerator - Interior Height 40.63" (103 cm)

Refrigerator - Interior Width 20.5" (52 cm)

Refrigerator - Interior Depth 19.5" (50 cm)

Refrigerator - Shelf Type Glass

Refrigerator - Shelf Qty 3

Refrigerator - Full Door Shelves 3

Freezer - Interior Height 16.75" (43 cm)

Freezer - Interior Width 17.5" (44 cm)

Freezer - Interior Depth 15.75" (40 cm)

Freezer - Shelf Type Glass

Freezer - Full Door Shelves 2

Thermostat Type Dial

Refrigerant Type R600a

Refrigerant Amount 1.2 oz.

High Side PSI 250.0

Low Side PSI 88.0

Level Legs 2

Interior Height - Drawer 1 9.5" (24 cm)

Interior Width - Drawer 1 20.5" (52 cm)

Interior Depth - Drawer 1 16.0" (41 cm)

Compressor Step Height 9.5" (24 cm)

Compressor Step Width 20.5" (52 cm)

Compressor Step Depth 6.0" (15 cm)

Sound Level 32.6 dB

FEATURES

24" Wide Top Mount Refrigerator-Freezer Slim-fitting design ideal for smaller kitchens

ENERGY STAR-certified Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

Frost-free operation No-frost convenience for reduced user maintenance

Thin-line design Limited space is no problem for our thin-line models, designed specifically for those hard-to-fit spots

Large capacity 11.5 cu.ft. interior offers generous storage in a slim fit

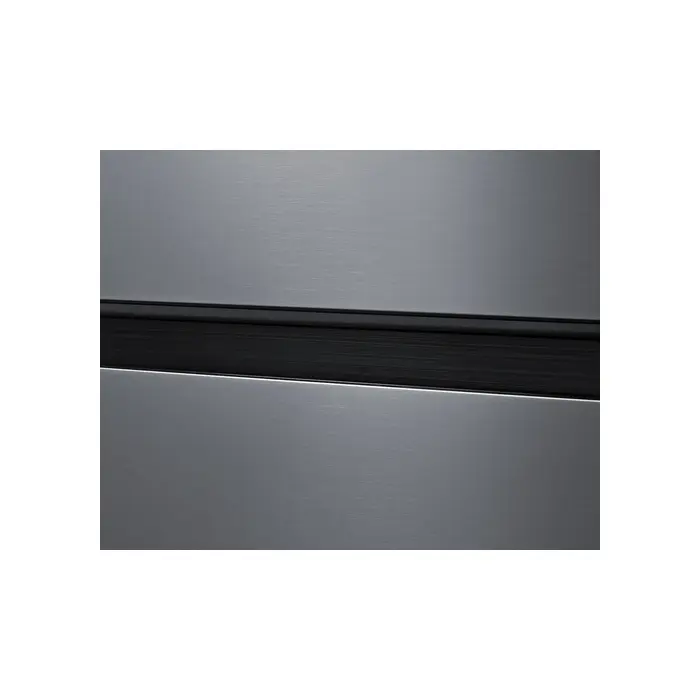

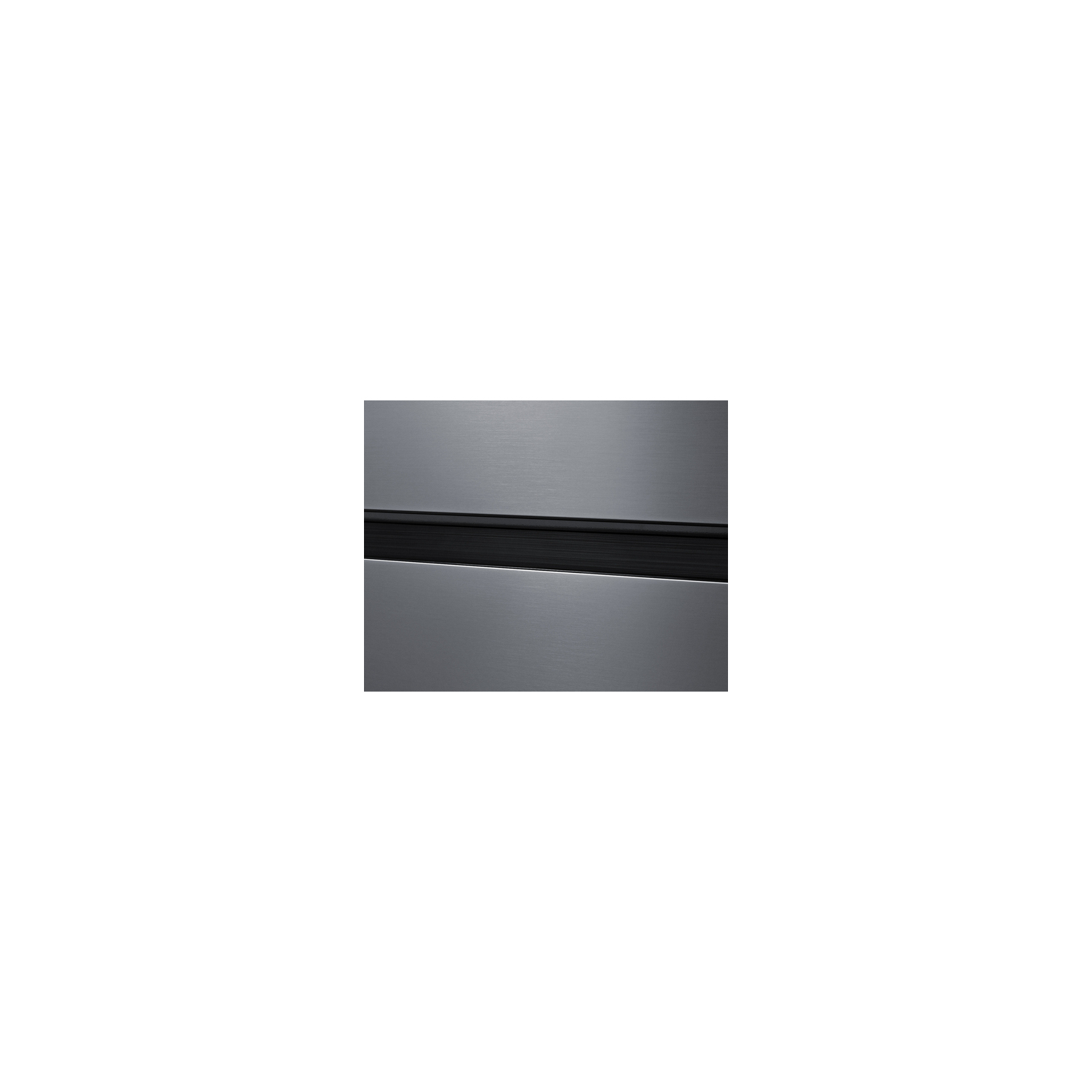

Stainless steel look Doors offer the look of stainless steel complete with a vertical grain, but the easier cleanability of a fingerprint-resistant steel finish

Adjustable glass shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Crisper drawer Get the longest life and best taste out of produce by storing it in a convenient slide drawer

Door storage Multiple door shelves in both the refrigerator and freezer compartments offer convenient storage for condiments and bottles

Adjustable door storage Store tall bottles and condiments right on the door for convenient access

Full freezer shelf Adjustable glass shelf included to accommodate a variety of sizes inside the top freezer compartment

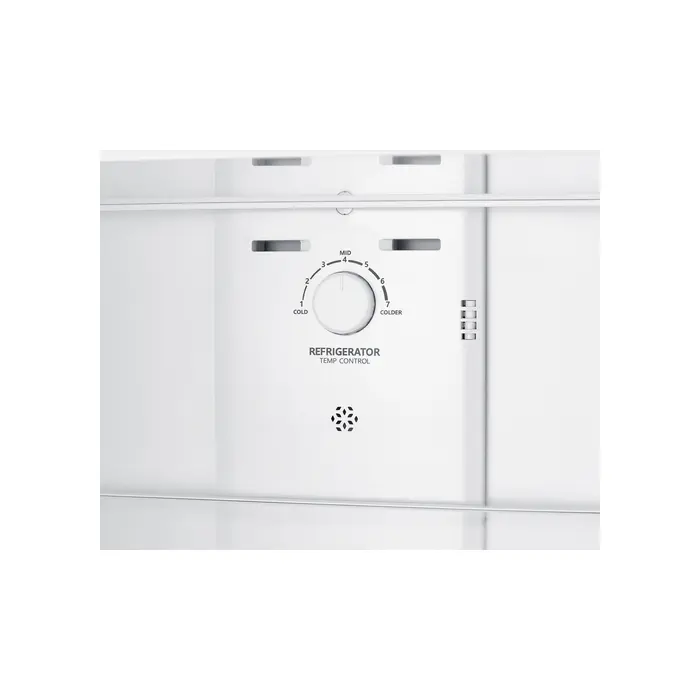

Adjustable thermostat Dial thermostat offers easy temperature management

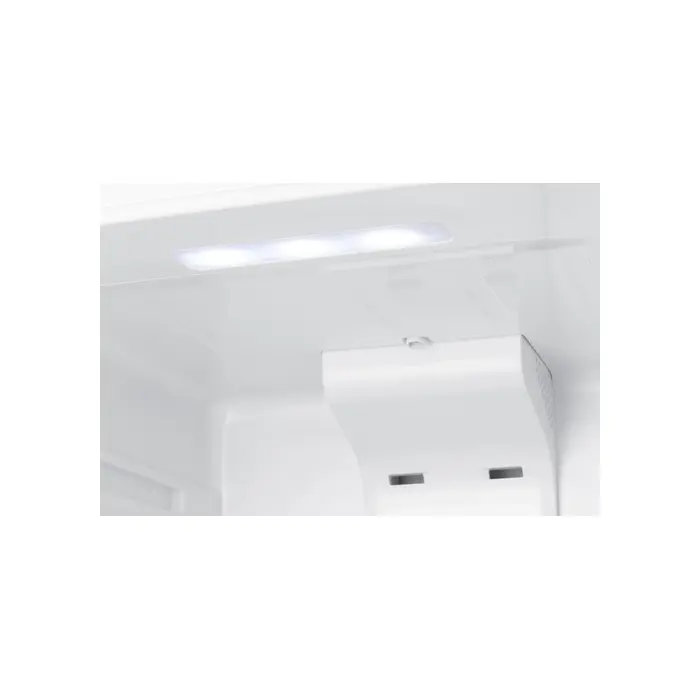

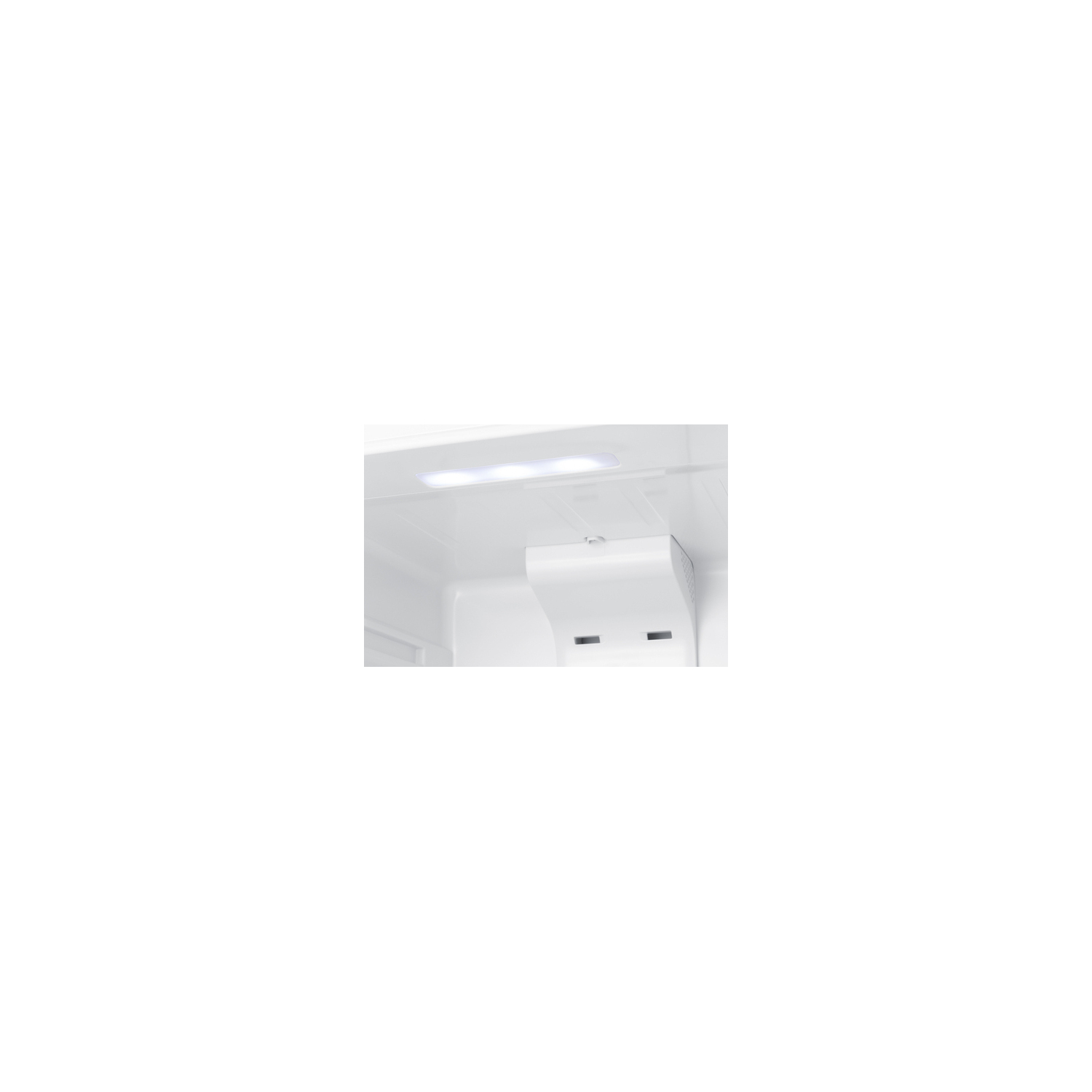

Interior light Automatically illuminates when you open the door

Gray cabinet Textured gray cabinet allows the unit to be used freestanding

Reversible doors User-reversible door swing for added flexibility

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (FF1142PL.pdf)

TECHNICAL DRAWING (.dwg) (FF1142PL.dwg)

ASSEMBLY DRAWING (FF1142PL-Assembly.pdf)

USE & CARE (FF1142PL-User-Manual.pdf)

Energy Guide
