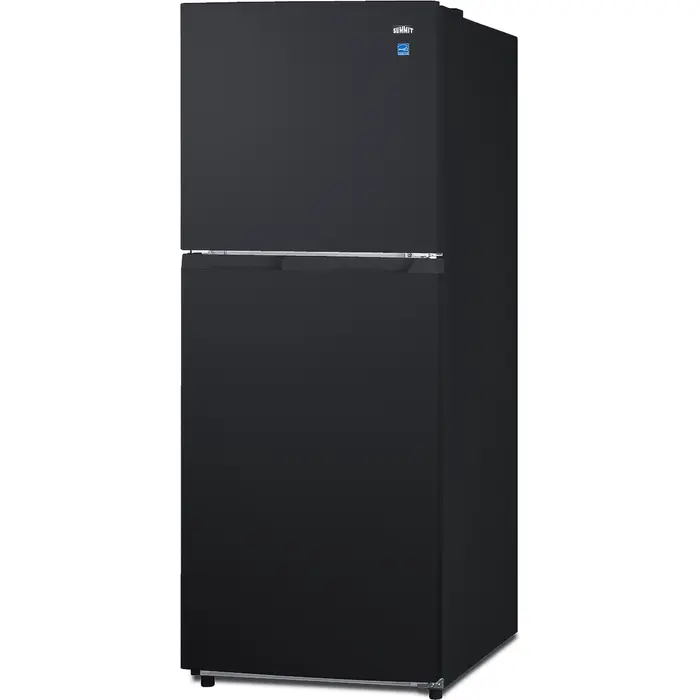

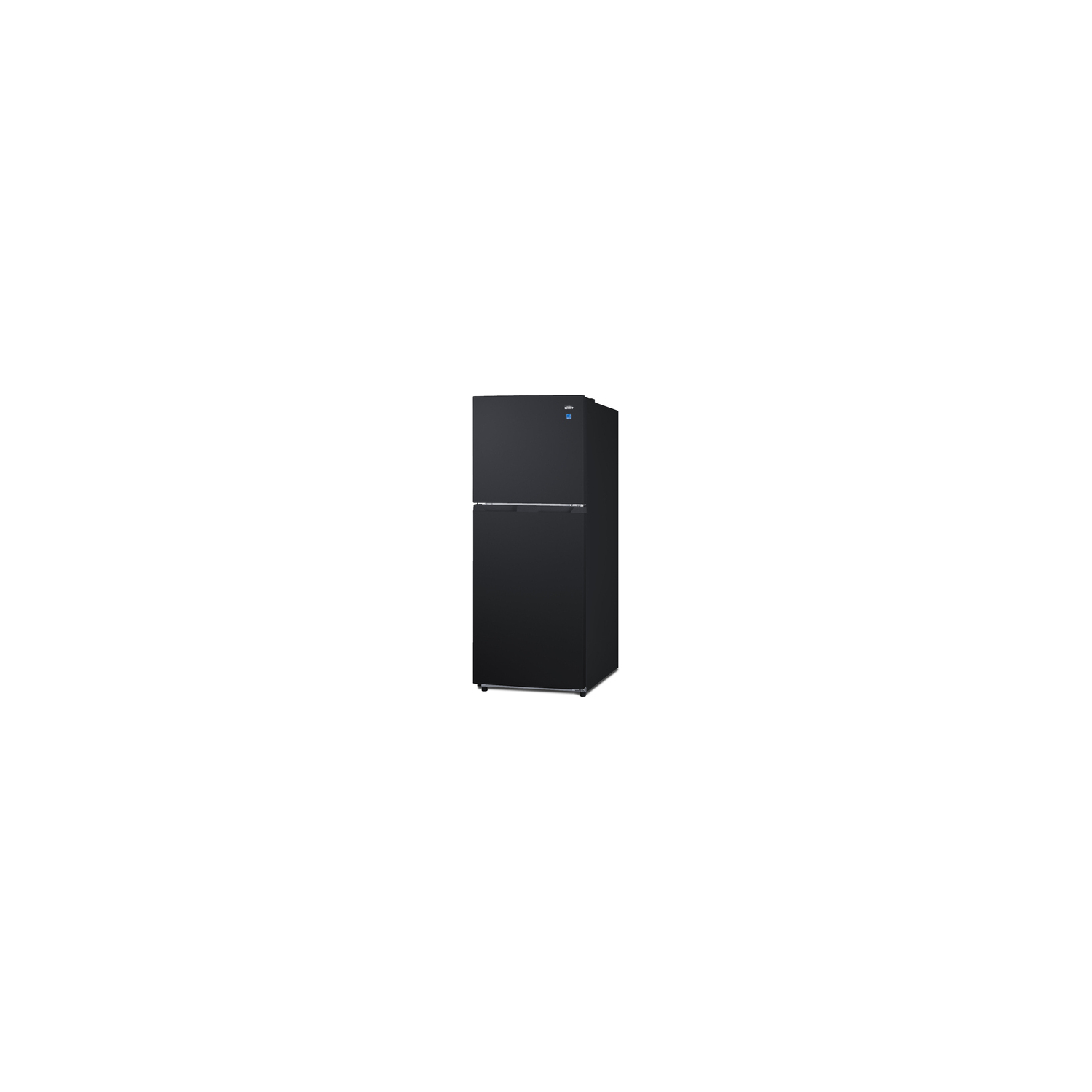

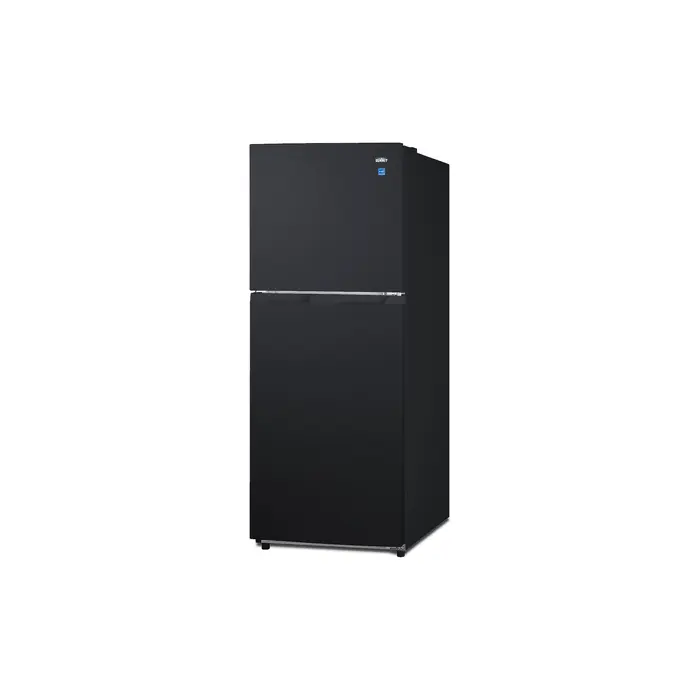

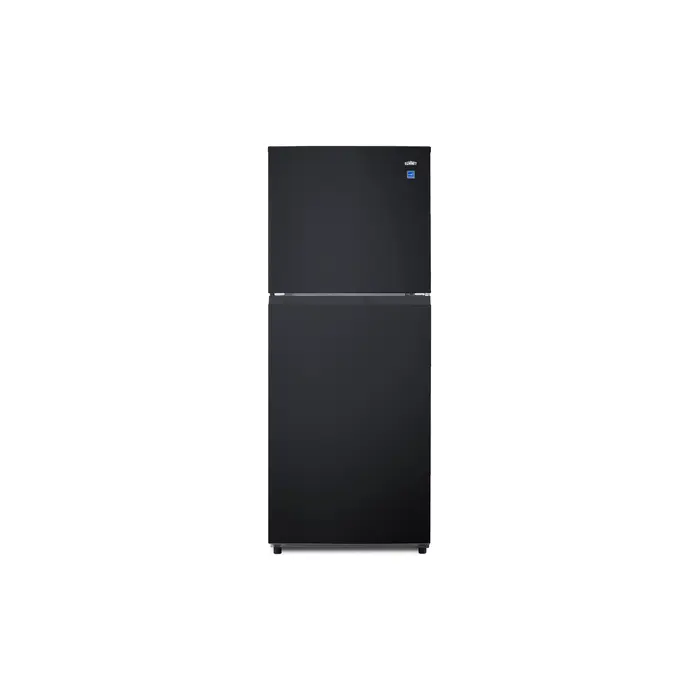

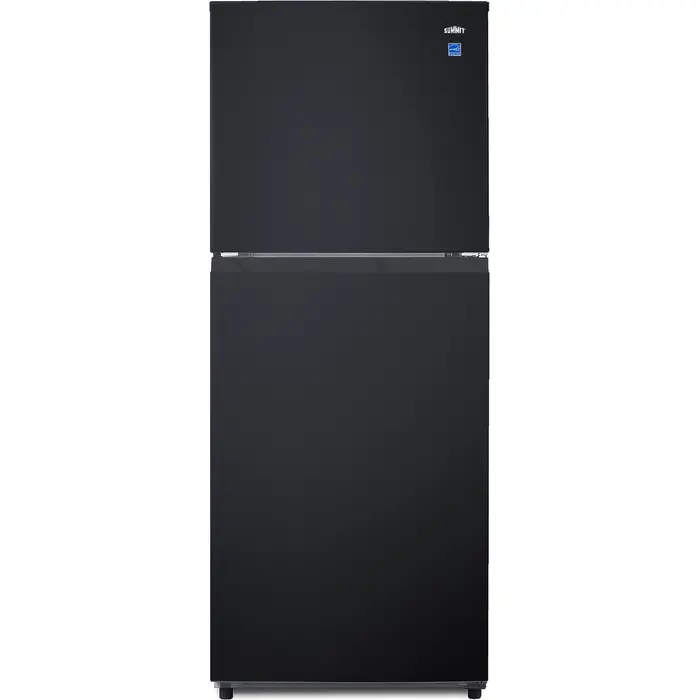

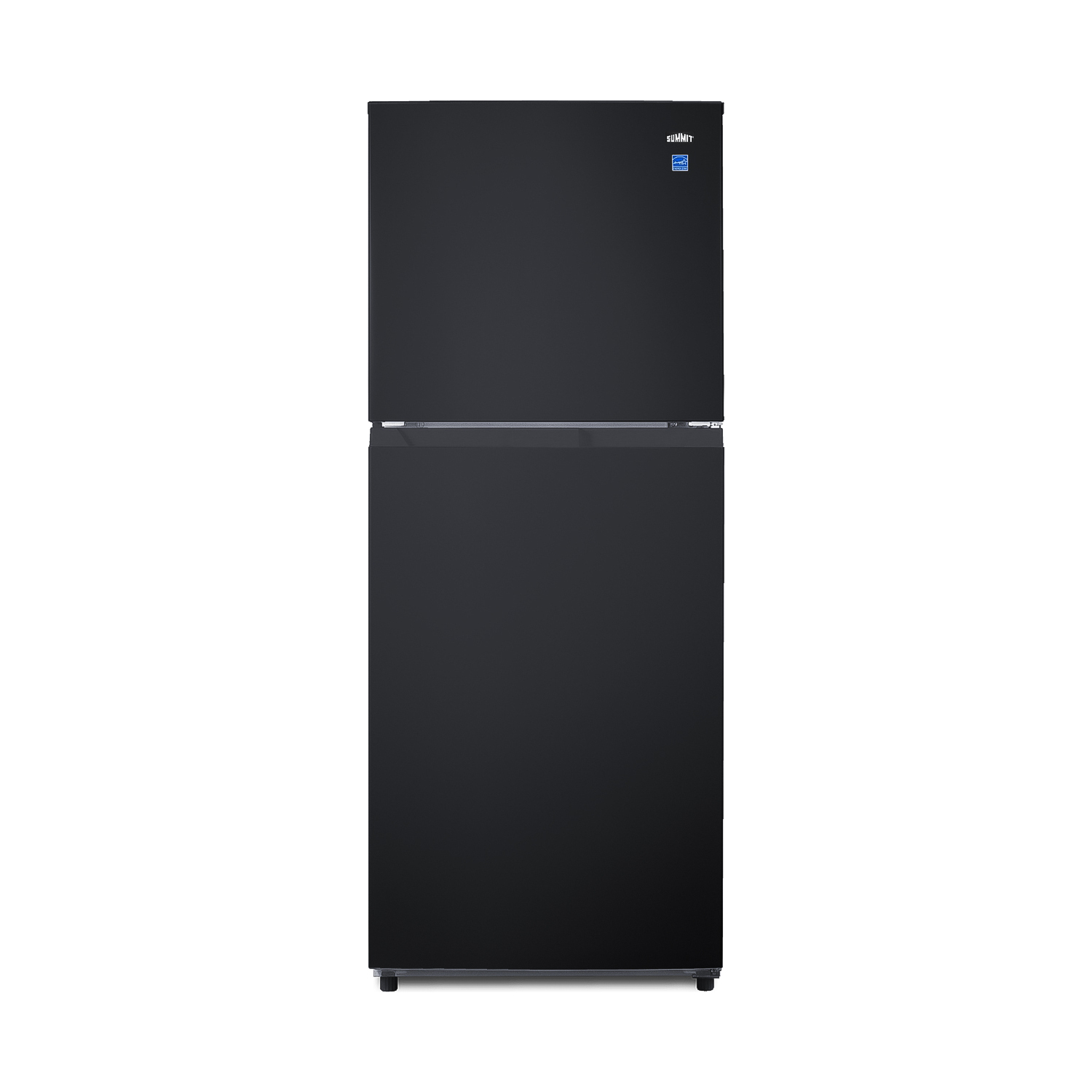

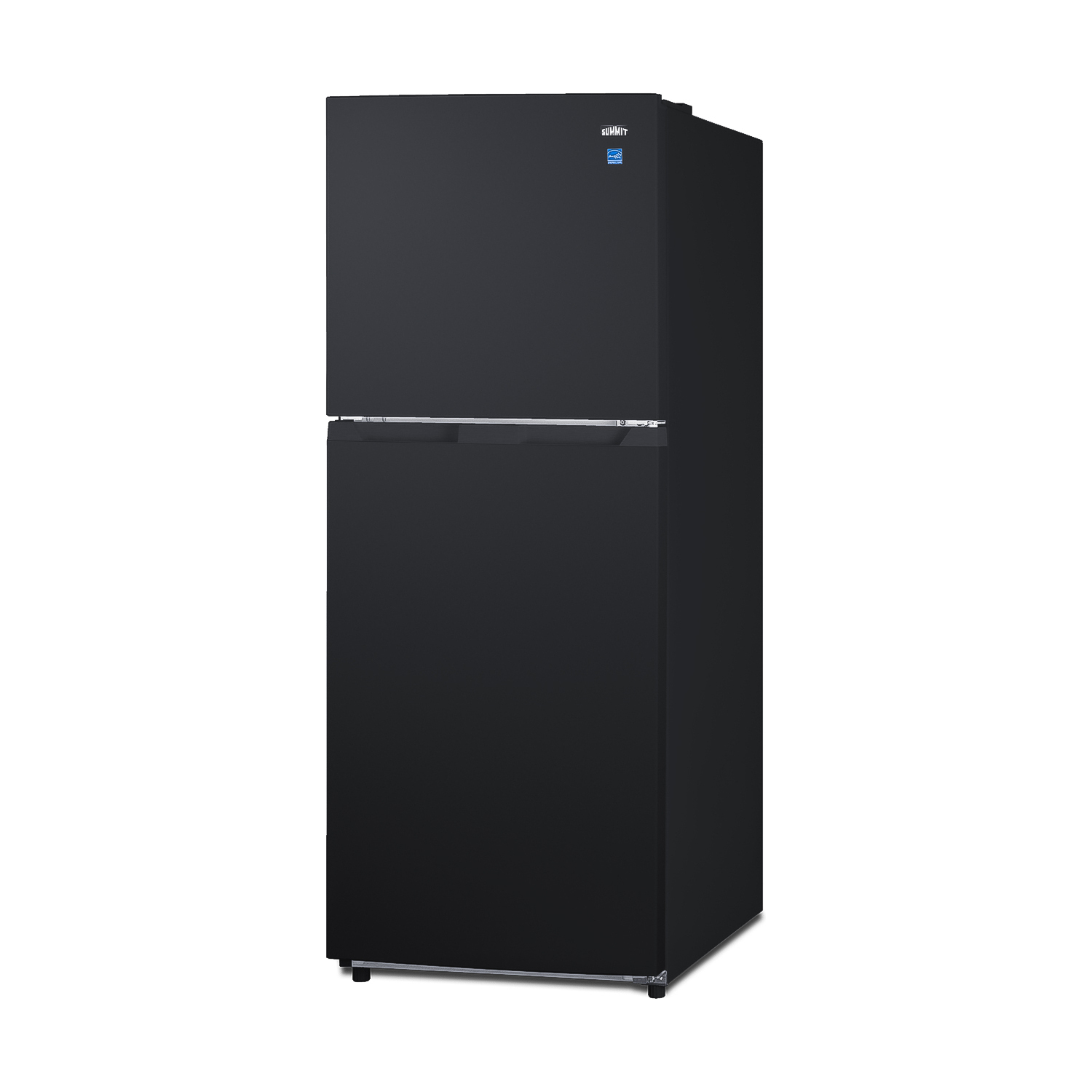

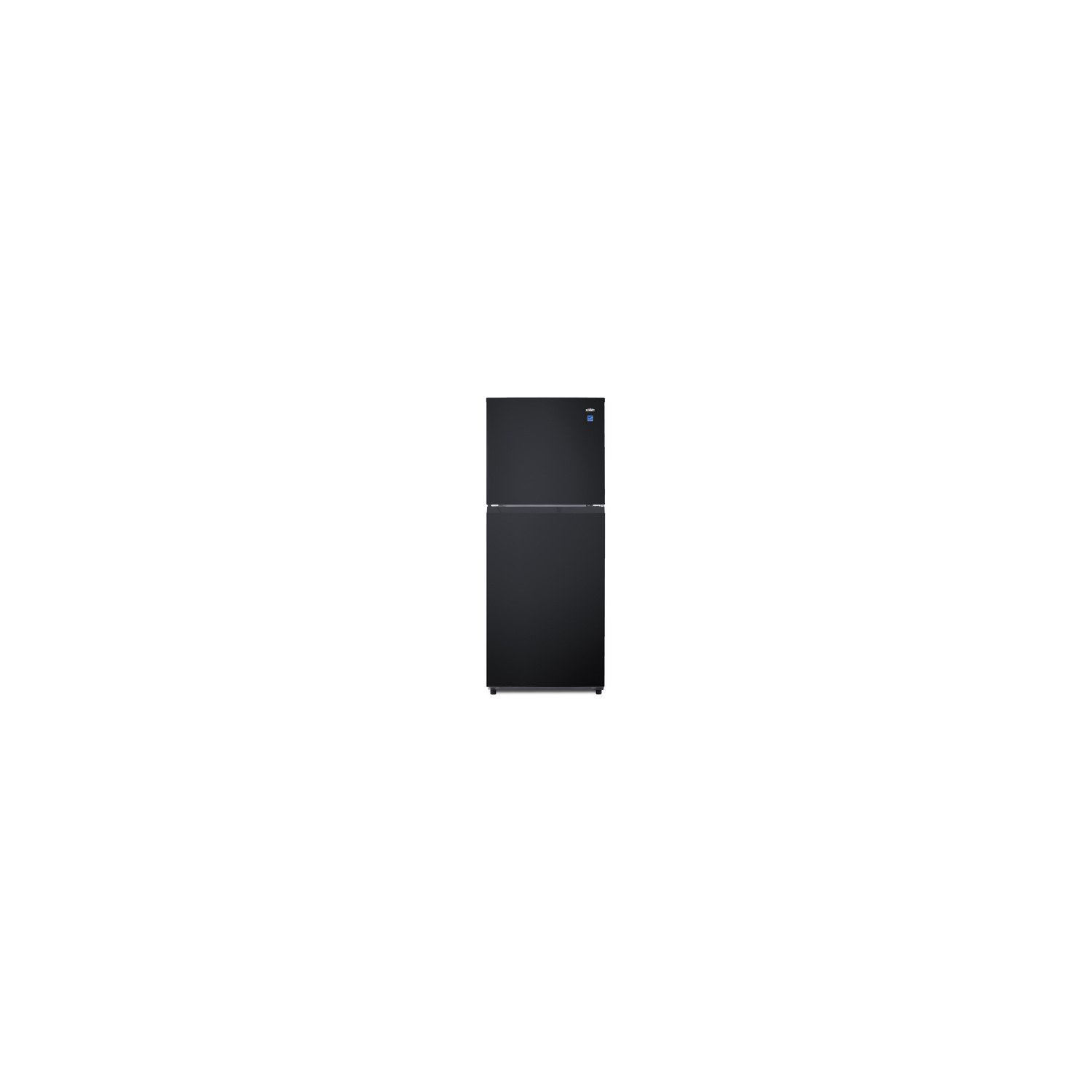

Summit 10 cu.ft. ENERGY STAR certified top mount refrigerator-freezer in black, 7.61101e+011, FF1087B

Summit Appliance manufactures one of the industry's most extensive lines of frost-free refrigerator-freezers in unique footprints for apartments and smaller kitchens.

The ENERGY STAR certified FF1087B offers over 10 cu.ft. of storage capacity in a slim fit under 24" wide and 60" high. The design meets ADA guidelines for user accessibility. This unit comes in a clean white finish with a user-reversible door swing to accommodate any space. The rear is sealed with no exposed coils for a better fit and easier cleanup.

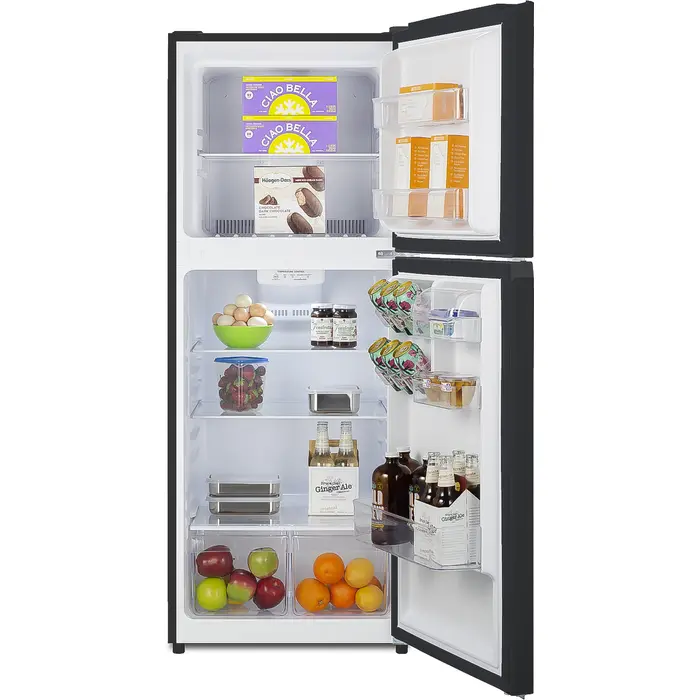

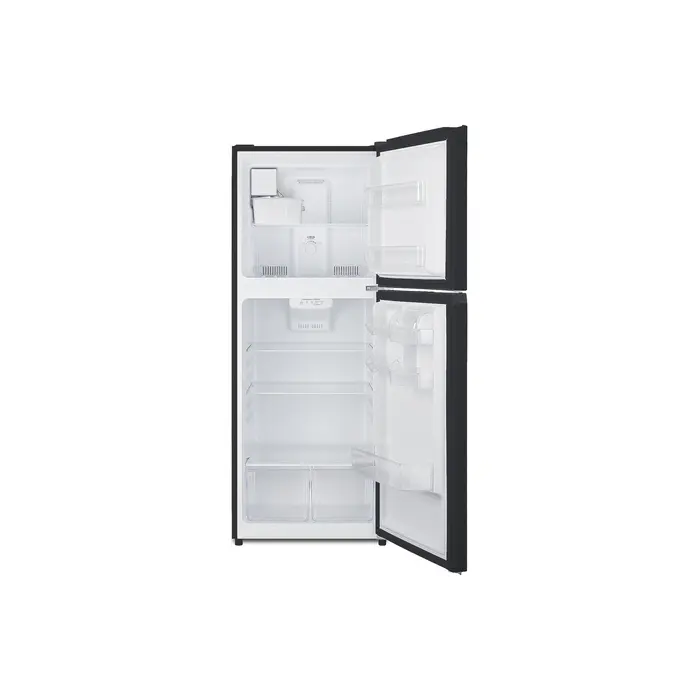

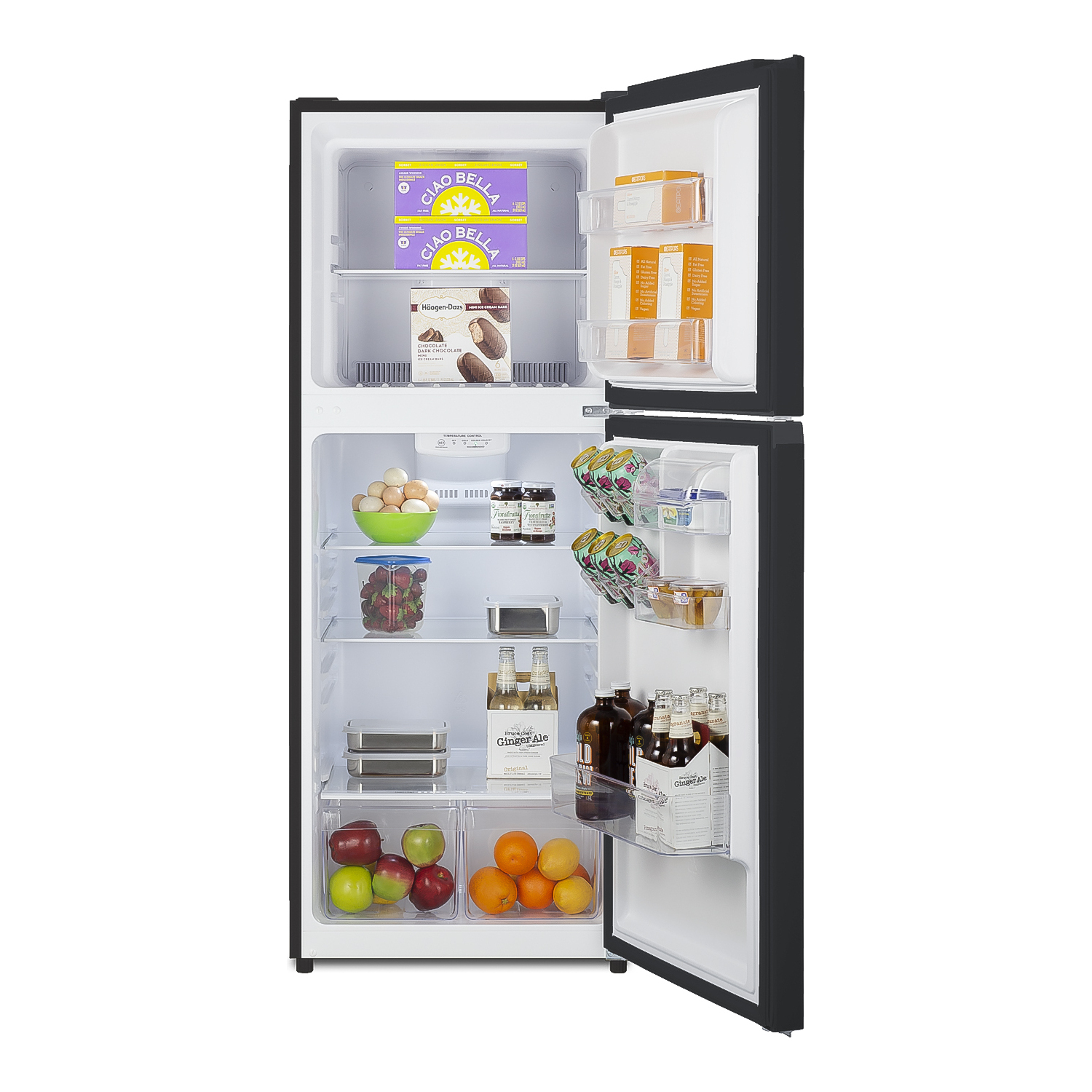

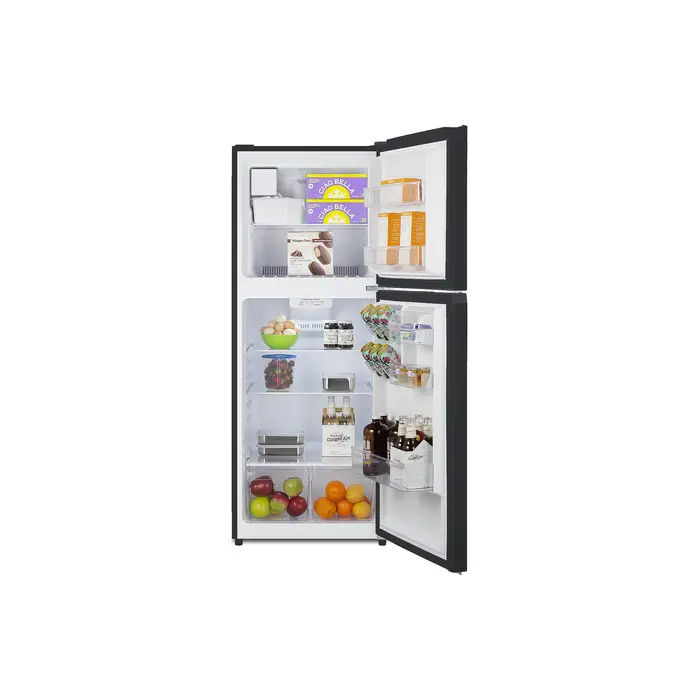

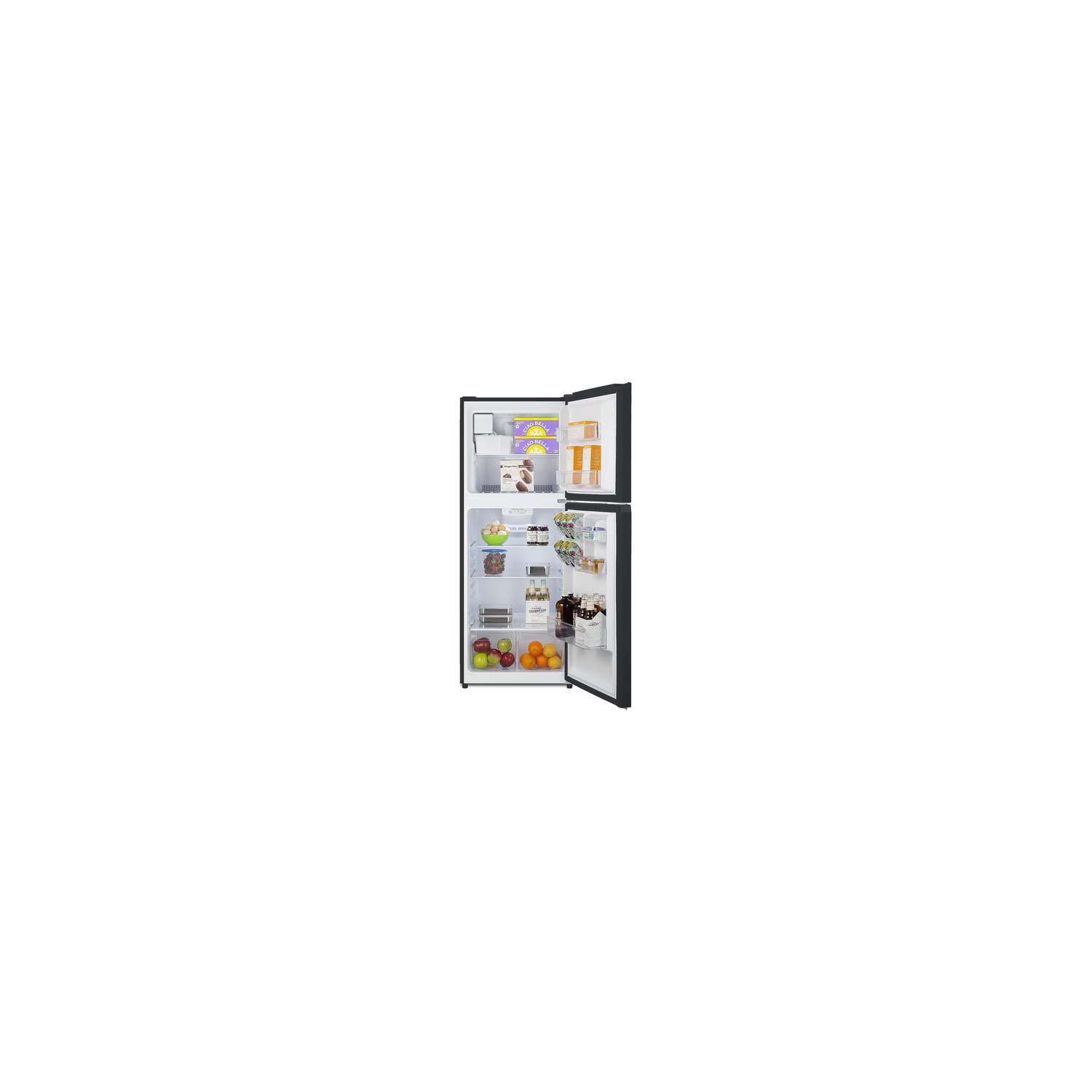

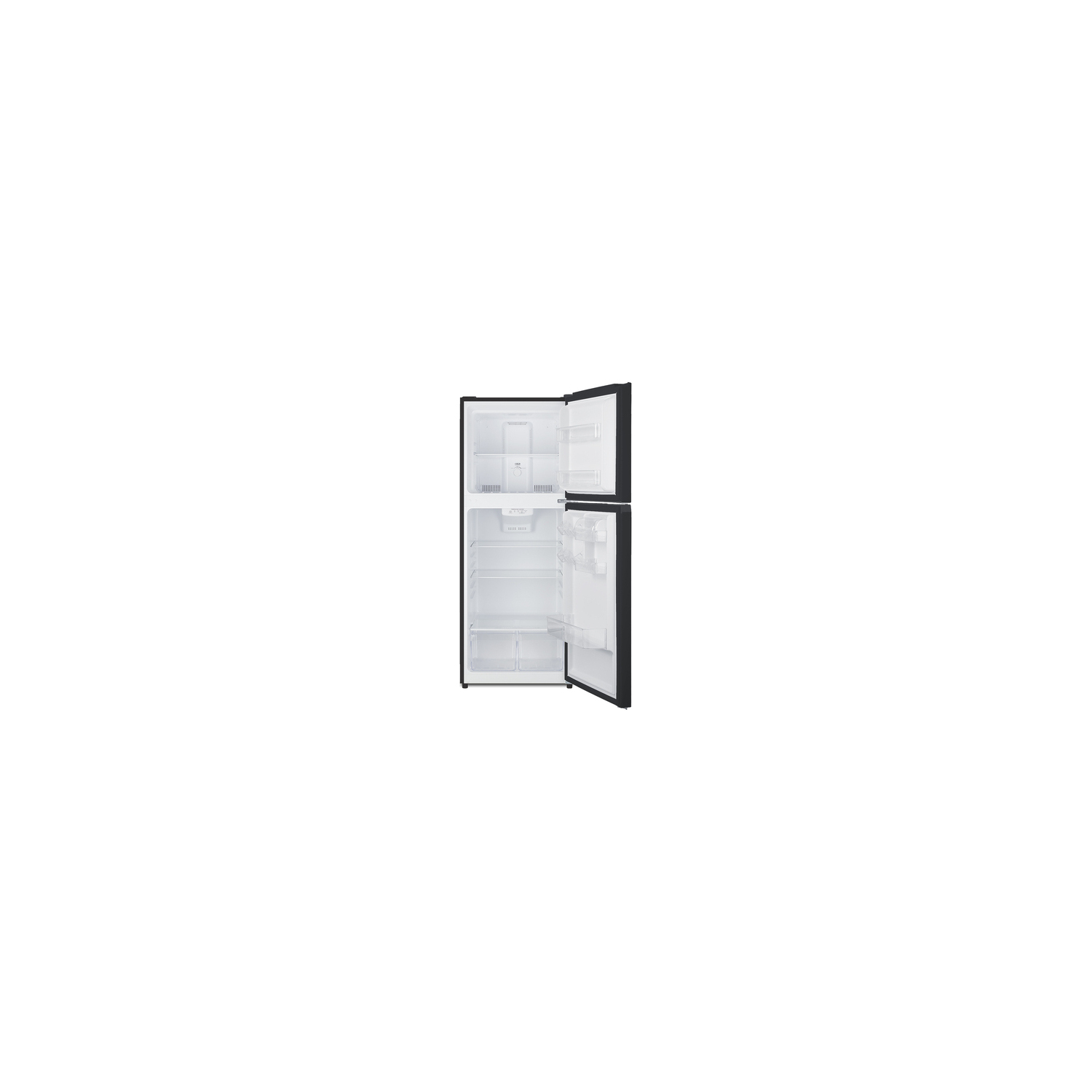

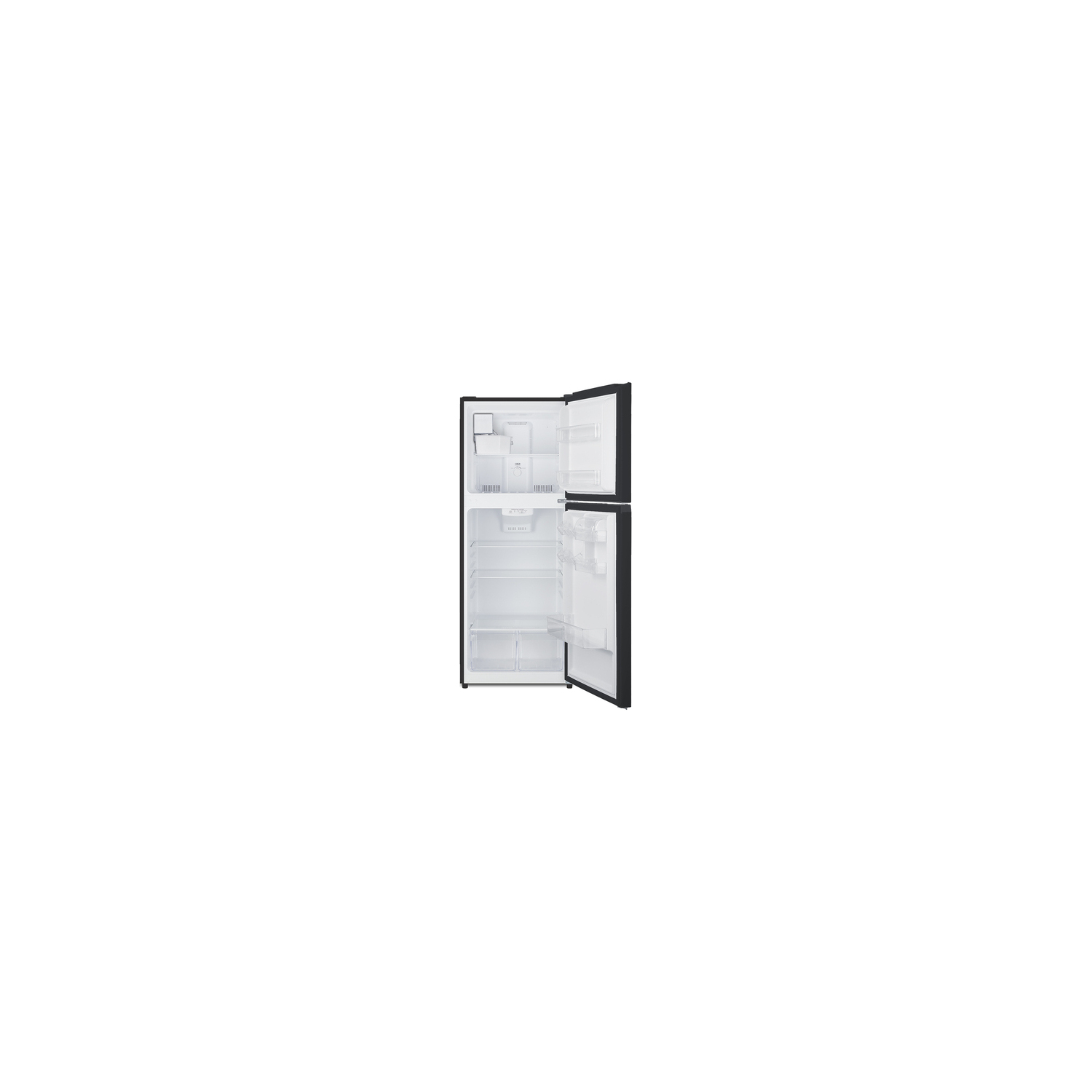

Inside, the FF1087B comes fully featured for convenient storage. The refrigerator section includes adjustable spill-proof glass shelves and two clear crispers with humidity slides for optimum produce storage. Door storage includes a large rack sized to hold gallon containers, removable half rack, covered butter rack, and two can racks to keep jars and other round containers in place. The fresh food section features intuitive touch controls and an automatic interior light. The large freezer compartment includes its own dial thermostat, two door shelves, and an adjustable glass shelf.

Conveniently featured and perfectly sized, the FF1087B is the ideal choice for apartments and other smaller kitchens looking for an energy efficient refrigerator-freezer. Additional choices are available in white (FF1088W) and with a stainless steel look (FF1089PL).

SPECIFICATIONS

Overview

Nominal Height 60.0" (152 cm)

Height of Cabinet 59.63" (151 cm)

Height to Hinge Cap 60.25" (153 cm)

Nominal Width 24.0" (61 cm)

Width 23.25" (59 cm)

Width with Door Open 24.0" (61 cm)

Nominal Depth 27.0" (69 cm)

Depth 26.5" (67 cm)

Depth with door at 90° 48.0" (122 cm)

Capacity 10.1 cu.ft. (286 L)

Defrost Type Frost-Free

Door Black

Cabinet Black

US Electrical Safety CSA

Canadian Electrical Safety CSA-C

Energy Usage/Year 297.0kWh/year

Amps 1.5

Voltage/Frequency 115 V AC/60 Hz

Weight 117.0 lbs. (53 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101103433

Refrigerator-Freezer

Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Crisper Qty 2

Crisper Finish Transparent

Crisper Cover Glass

Interior Light Yes

Refrigerator - Interior Height 24.75" (63 cm)

Refrigerator - Interior Width 19.5" (50 cm)

Refrigerator - Interior Depth 21.0" (53 cm)

Refrigerator - Shelf Type Glass

Refrigerator - Shelf Qty 2

Refrigerator - Full Door Shelves 1

Refrigerator - Half Door Shelves 4

Can Storage Yes

Freezer - Interior Height 16.25" (41 cm)

Freezer - Interior Width 17.25" (44 cm)

Freezer - Interior Depth 17.0" (43 cm)

Freezer - Shelf Type Glass

Freezer - Shelf Qty 1

Freezer - Full Door Shelves 1

Gallon Door Storage Yes

Thermostat Type Digital

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 1.73 oz.

Level Legs 2

Freezer - Refrigerant Type R600a

Freezer - Refrigerant Amount 1.73 oz.

Compressor Step Height 8.5" (22 cm)

Compressor Step Width 19.5" (50 cm)

Compressor Step Depth 7.0" (18 cm)

Sound Level 33.4 dB

FEATURES

24" Wide Top-Mount Refrigerator-Freezer Over 10 cu.ft. capacity in a slim fit ideal for apartments and small kitchens

ENERGY STAR certified Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

Frost-free operation No-frost convenience for reduced user maintenance

ADA compliant Unit's height and control location meets guidelines for ADA compliant refrigeration

Thin-line design Limited space is no problem for our thin-line models, designed specifically for those hard-to-fit spots

Large capacity 10.1 cu.ft. interior offers generous storage in a slim fit

Humidity controlled crispers Twin crisper drawers offer the ideal storage conditions for produce, helping you to keep your fruits and vegetables separated

Adjustable glass shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Gallon door storage Lower refrigerator door shelf can hold gallon-sized containers

Can racks Two removable door racks perfectly sized to hold cans, jars, and other round containers in place

Adjustable touch control thermostat (refrigerator section) Easy electronic controls lets you manage the interior temperature at the touch of a button

Interior light Automatically illuminates when you open the door

Adjustable freezer thermostat Dial thermostat located inside for easy temperature management

Adjustable freezer shelf Glass shelf with three positions allows you to adjust your freezer storage as needed

ADA compliant design Unit's height and control location meets guidelines for ADA compliant refrigeration

Reversible doors User-reversible door swing for added flexibility

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (FF1087B.pdf)

TECHNICAL DRAWING (.dwg) (FF1088W_FF1089PL-FF1087B_REFRIGERATOR_RFEEZER_.dwg)

ASSEMBLY DRAWING (FF1088W_FF1087B_FF1089PL_ASS_Y.pdf)

REVIT MODEL (QF_Summit_FF1087B_Frost_Free_Refrigerator_Freezer.rfa)

USE & CARE (FF1087B-User-Manual.pdf)

Energy Guide
