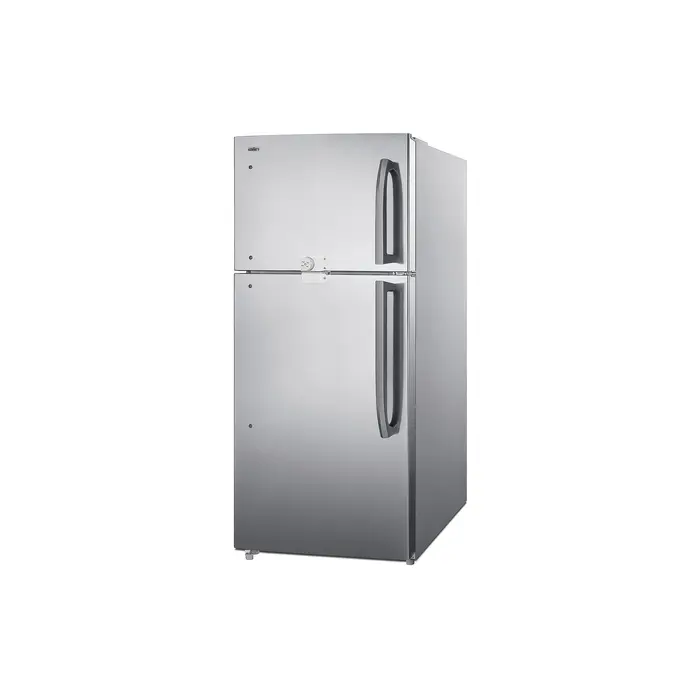

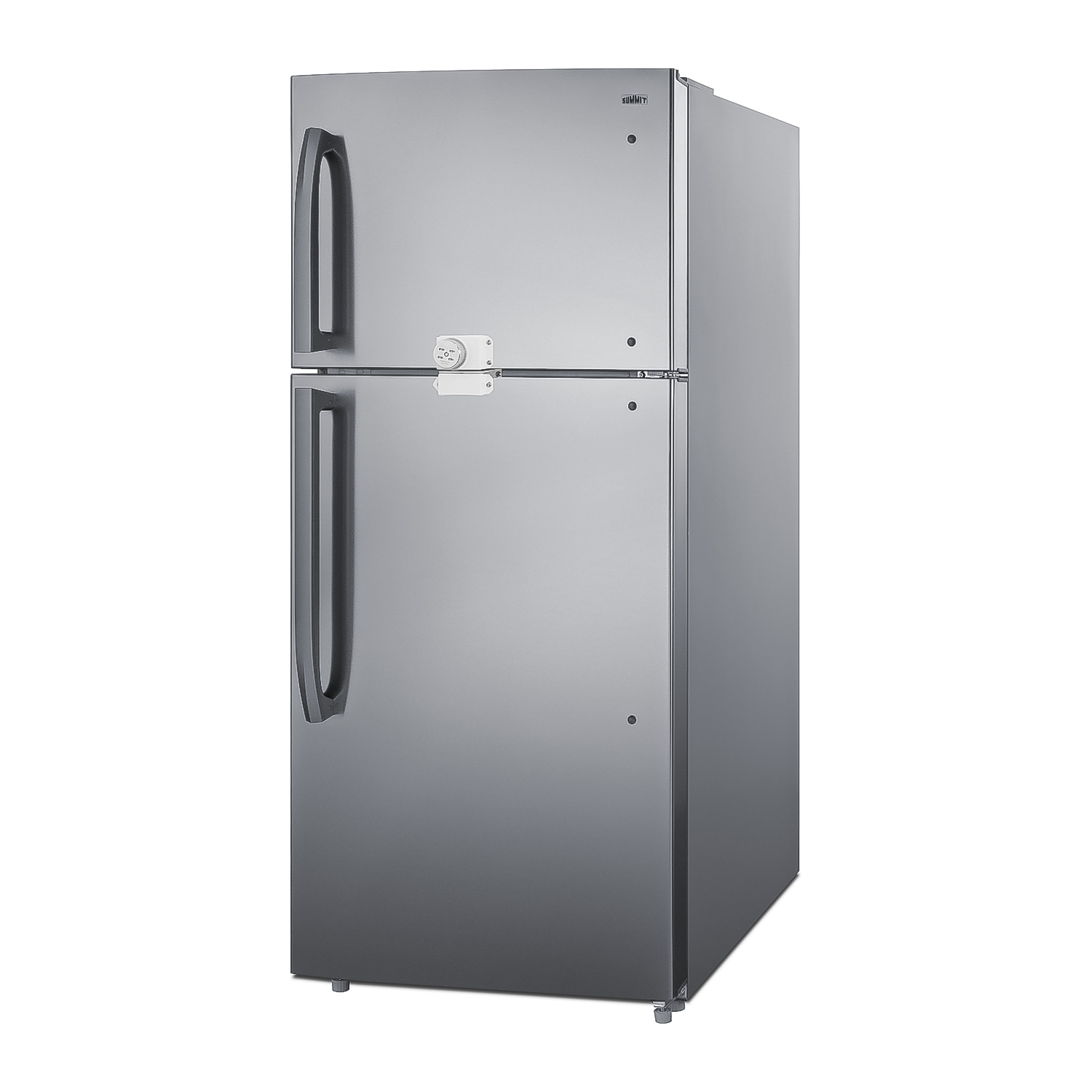

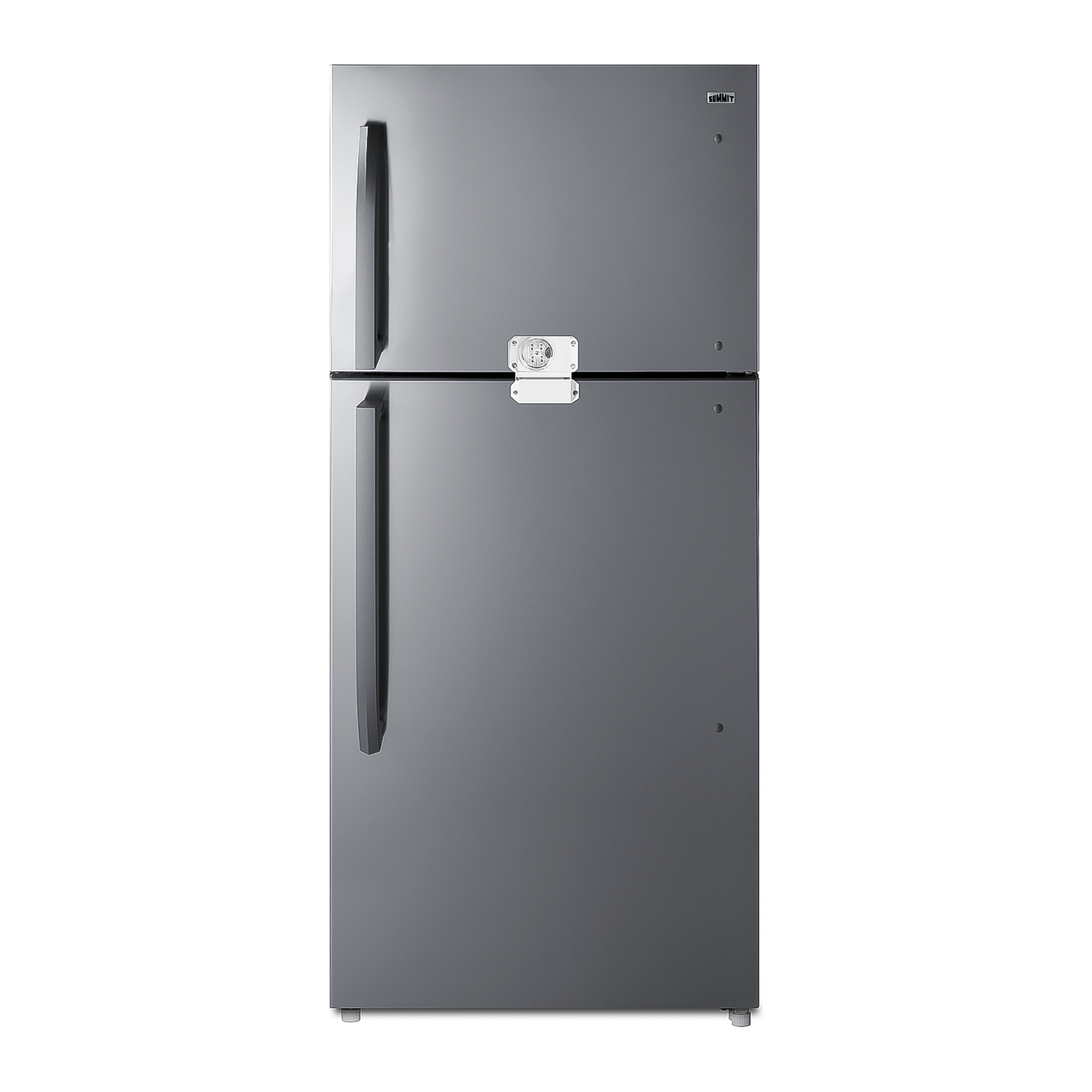

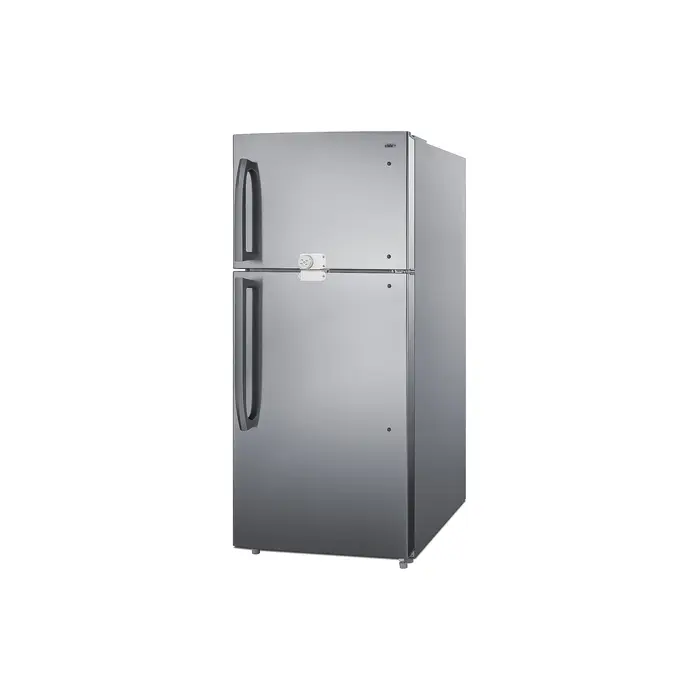

Summit Full-size top mount refrigerator-freezer with combination lock in stainless steel, CTR21PLLLF2

SUMMIT's selection of top freezer refrigerators offers true convenience for every kitchen, including break rooms and other general purpose facilities.

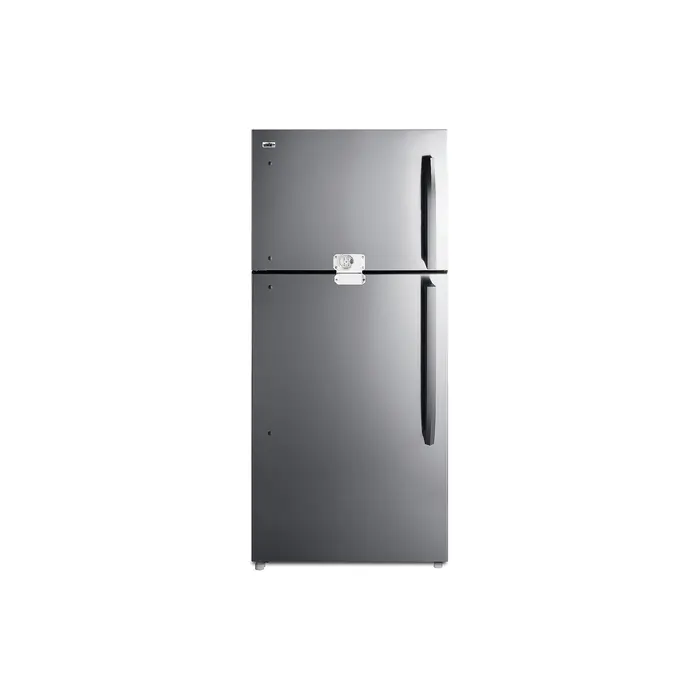

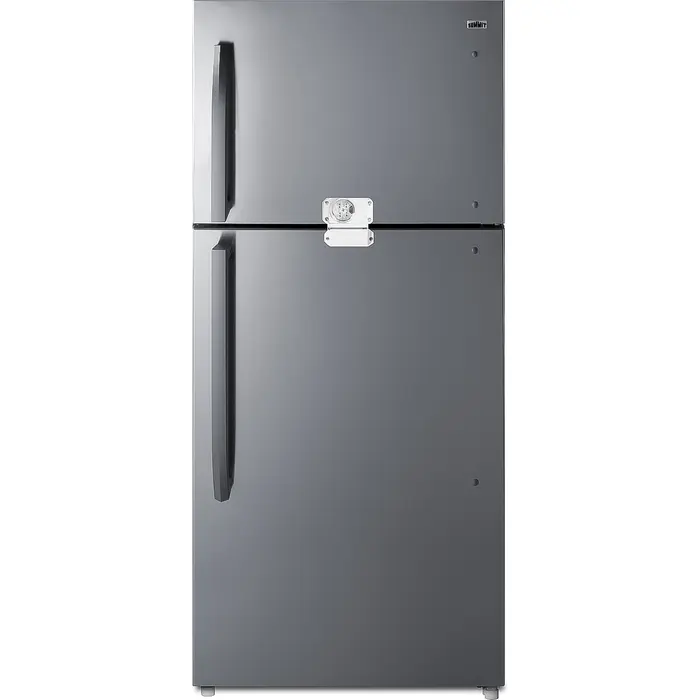

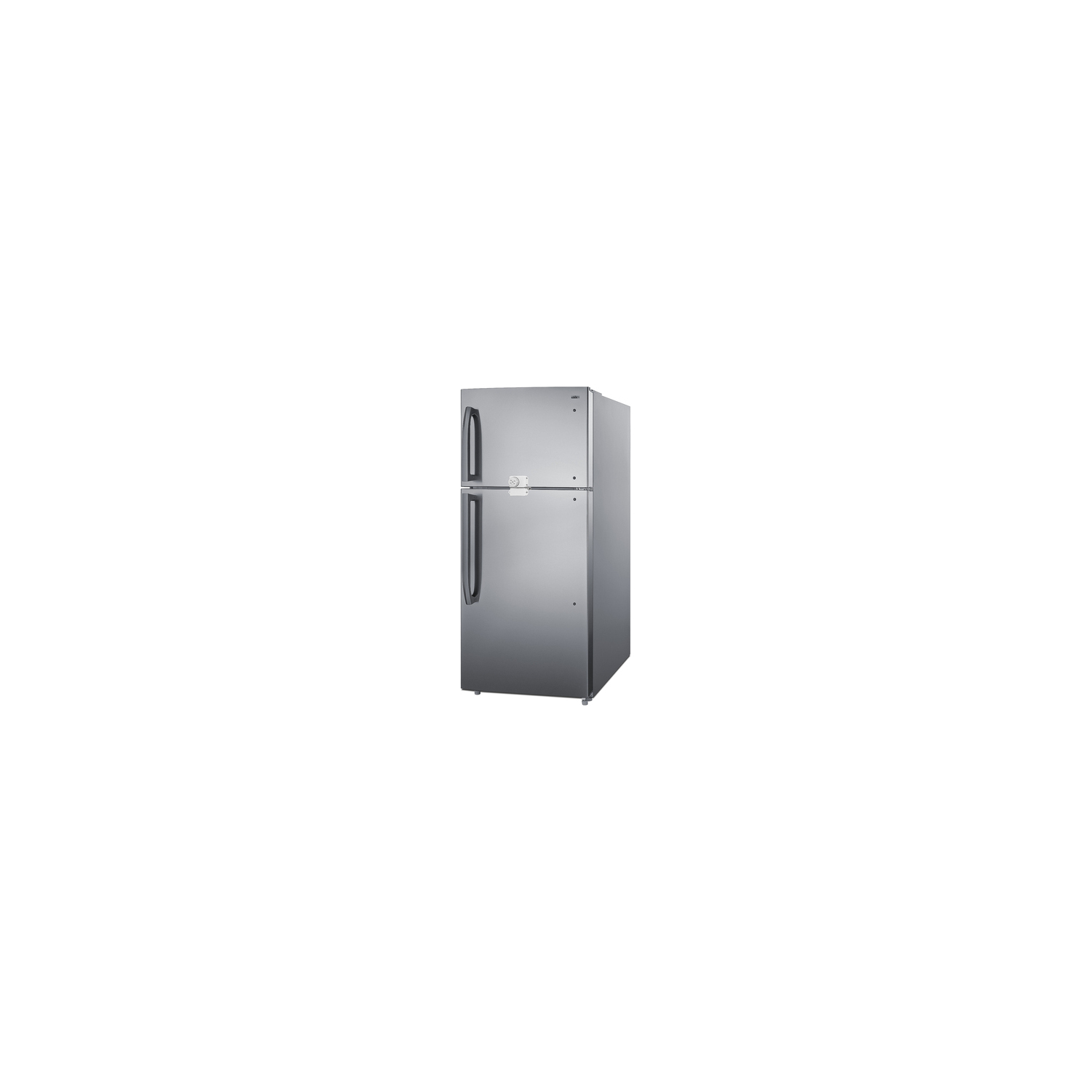

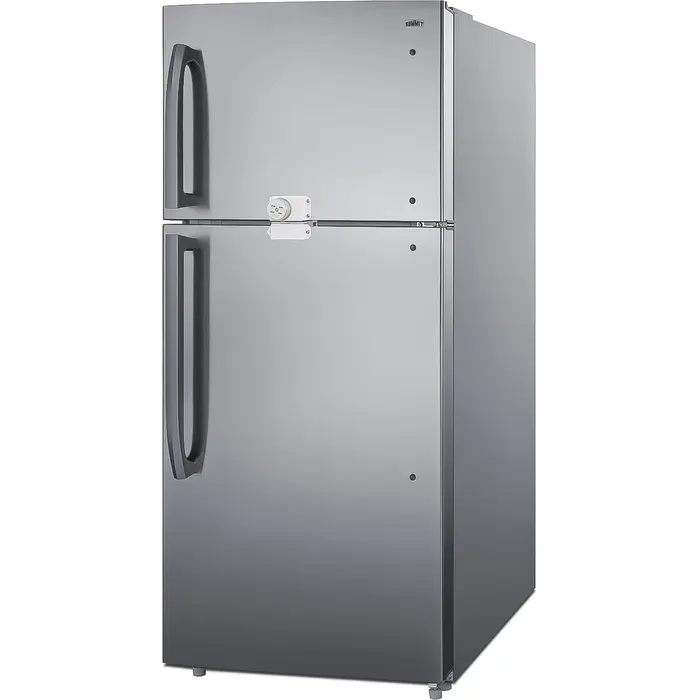

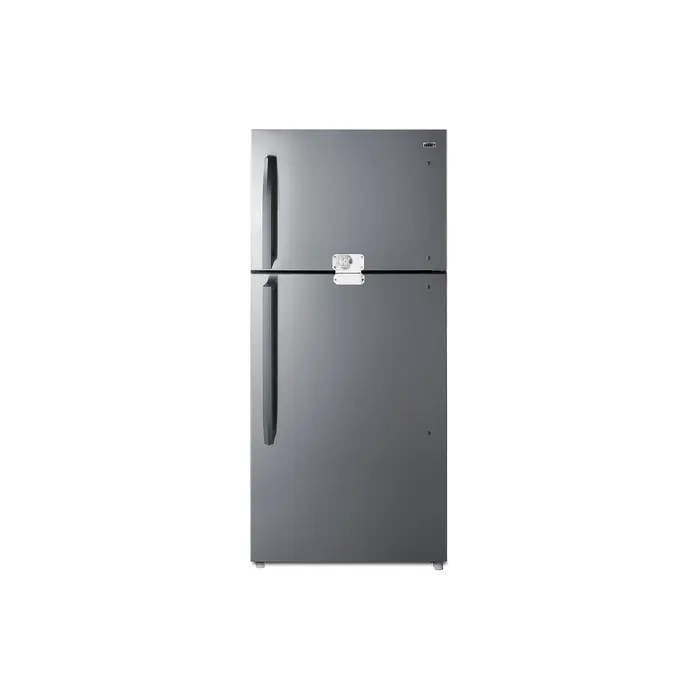

The CTR21PLLLF2 is a full-sized refrigerator-freezer. The large interior offers 20.5 cu.ft. of storage capacity, with frost-free operation for low maintenance use. It comes in a textured gray cabinet with user-reversible fingerprint-free doors that offer the look of stainless steel without the constant cleanup. We include a factory-installed lock that secures both the refrigerator and freezer section with a single dial combination. A key override is included in case of lost codes.

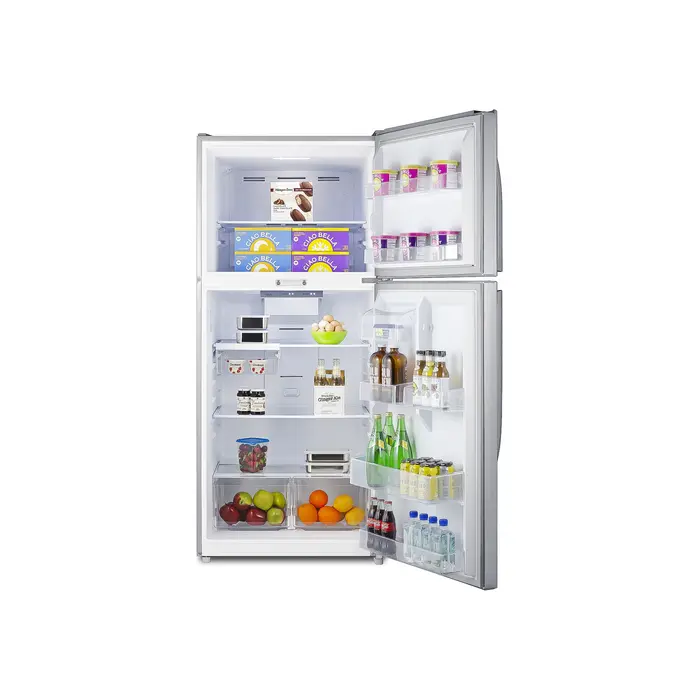

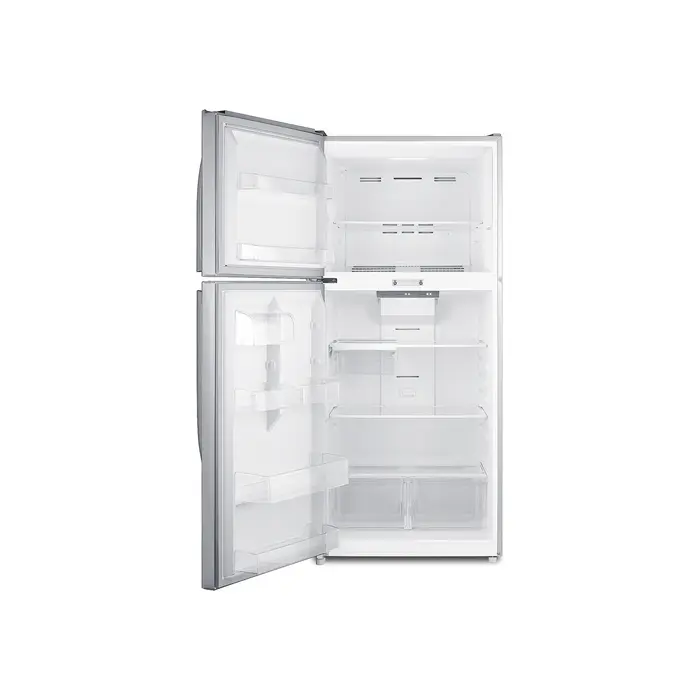

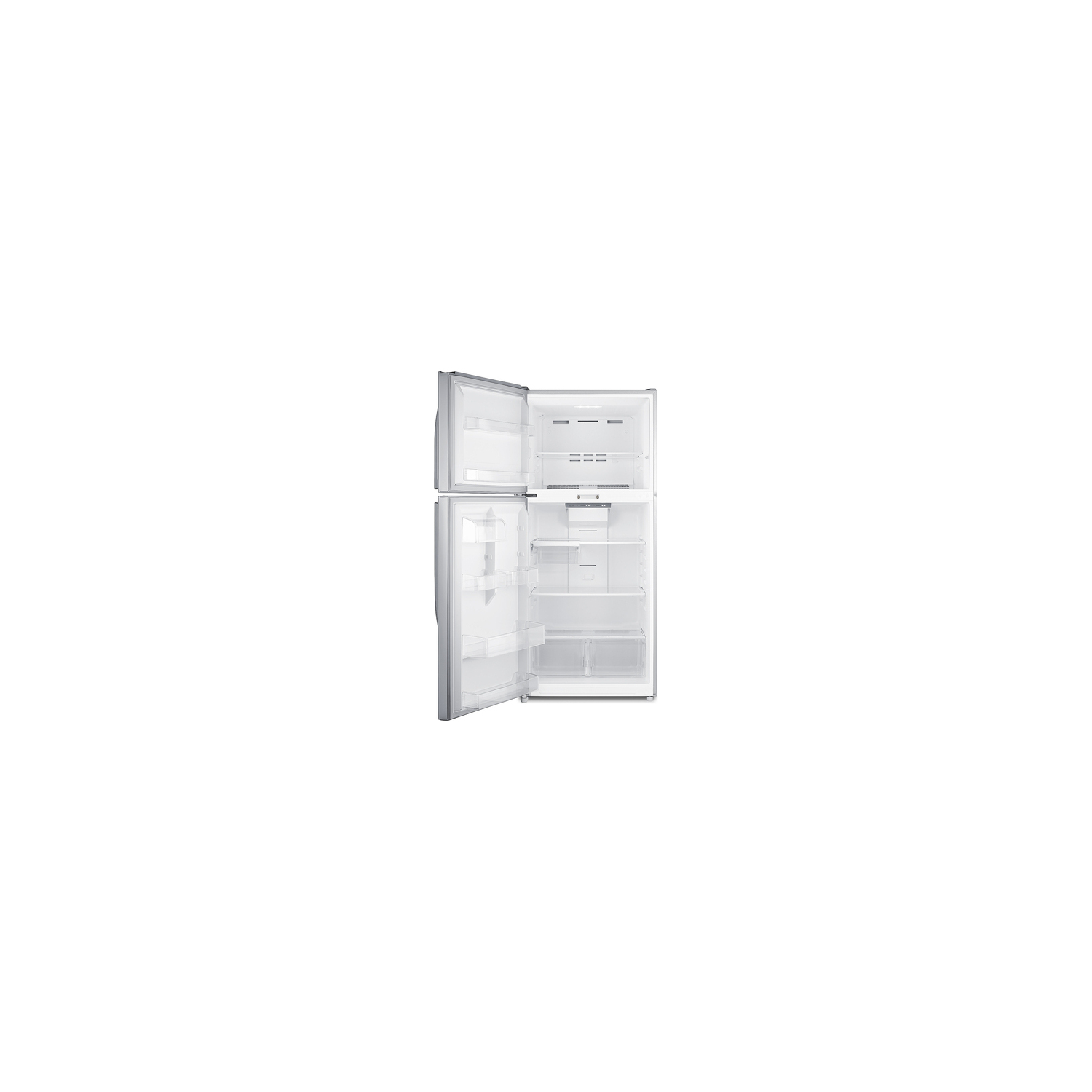

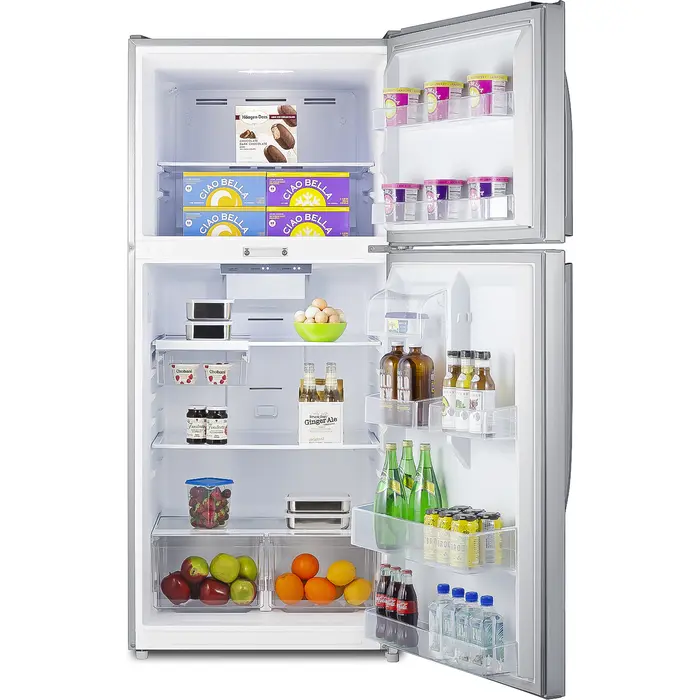

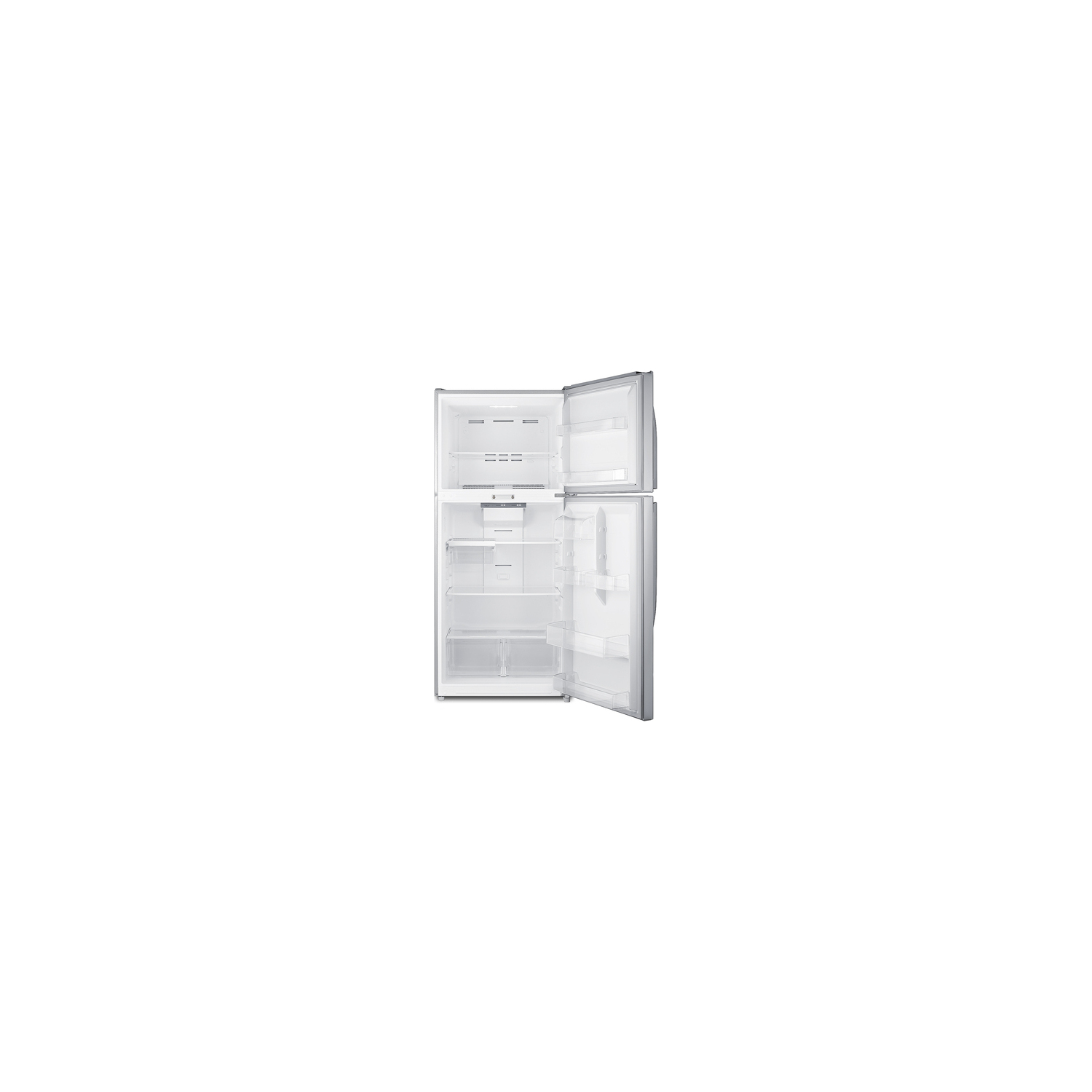

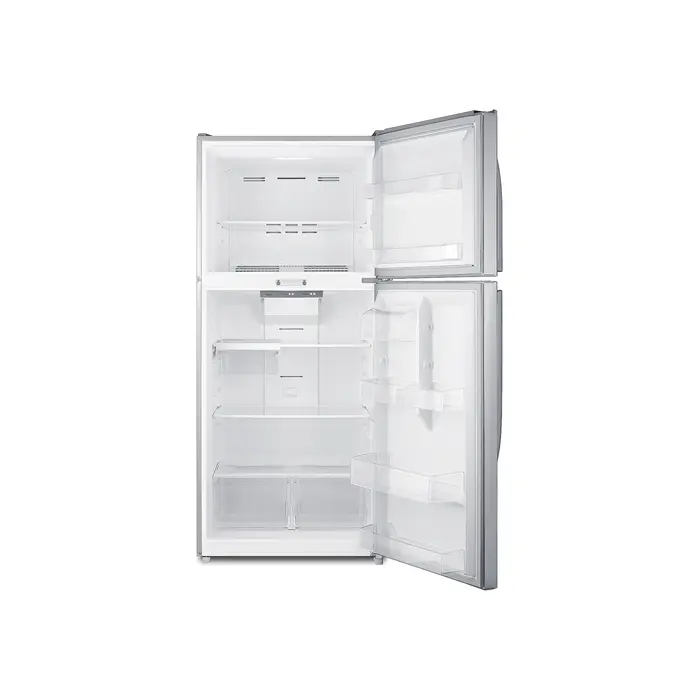

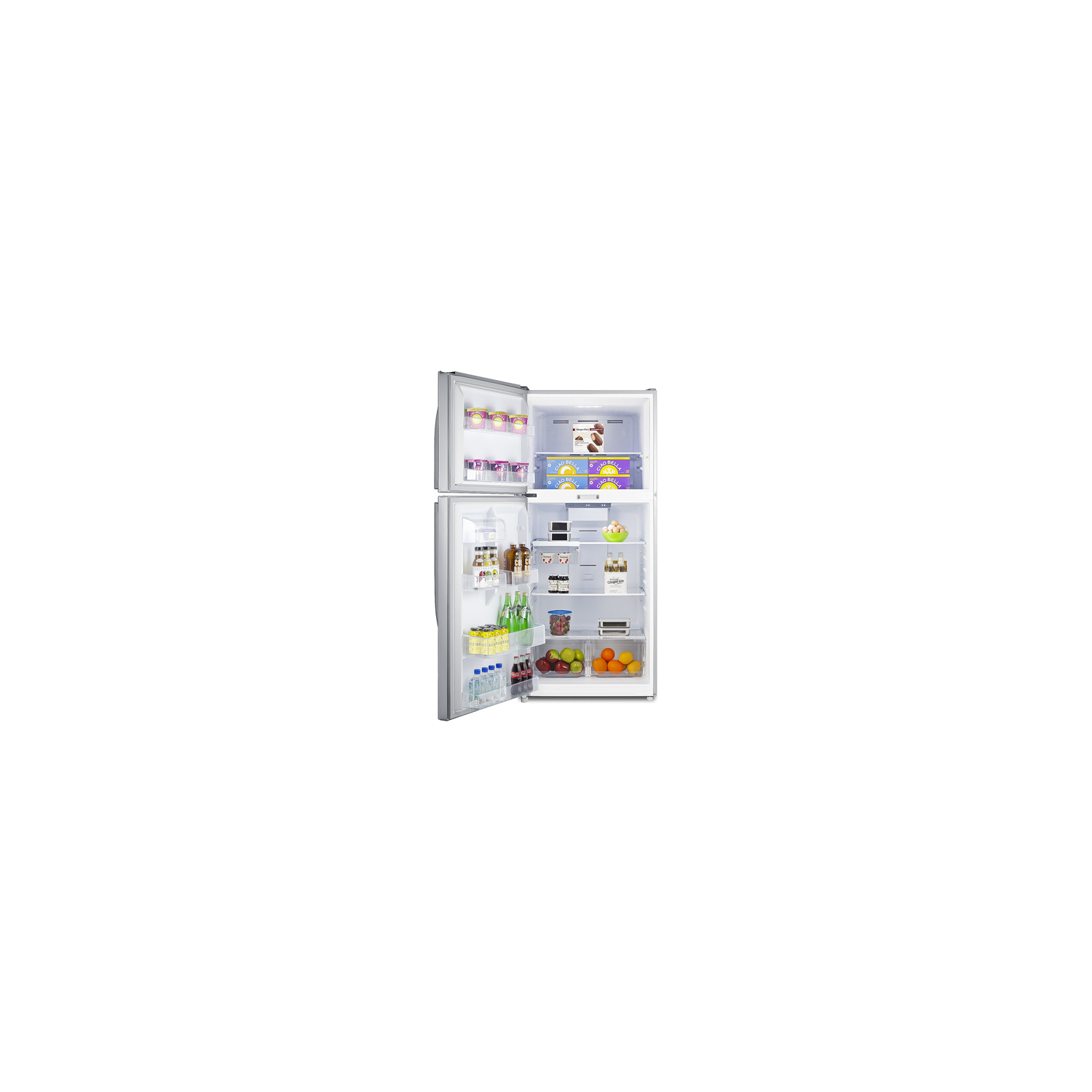

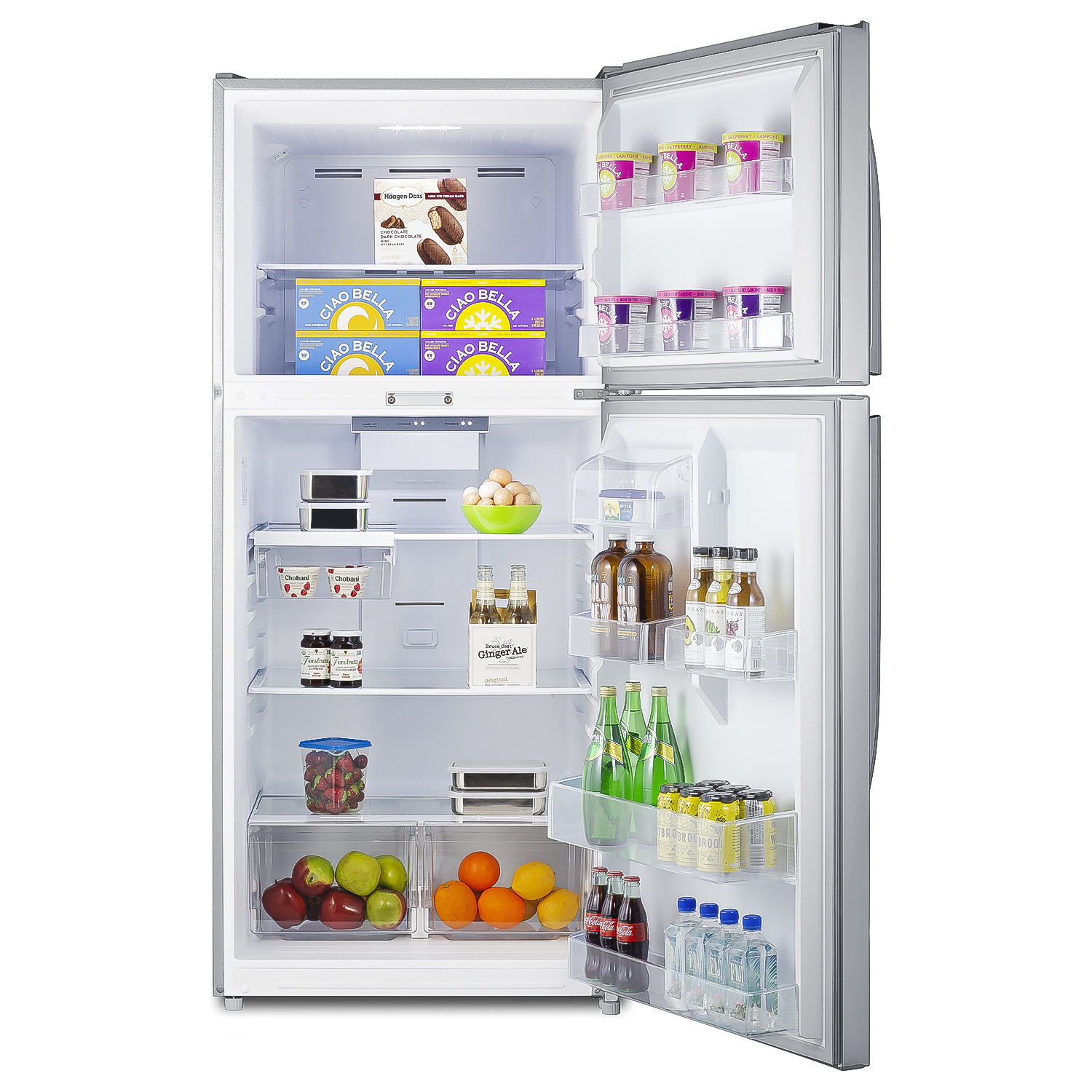

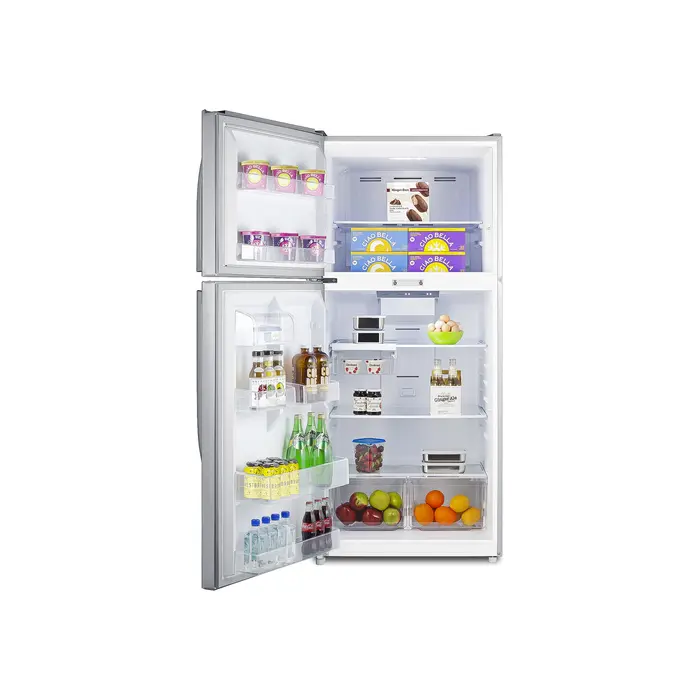

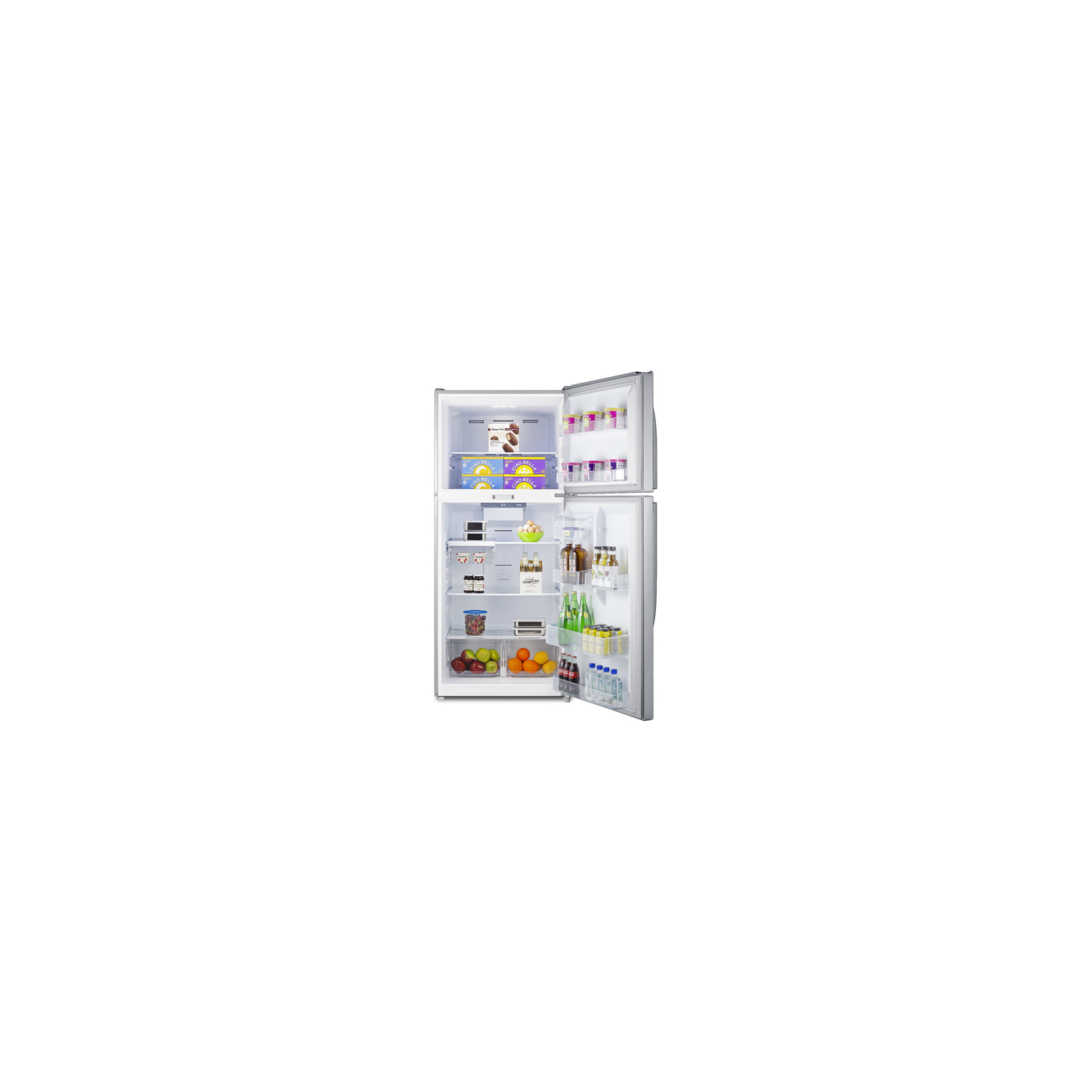

Inside, the CTR21PLLLF2 includes adjustable glass shelves in the refrigerator compartment and two clear crispers. The door features full-sized storage racks, including one that holds full gallon containers. Two half-sized door racks are adjustable to accommodate different sized items, with an additional fixed butter dish. The upper freezer compartment comes with a full-width wire shelf and two door bins. This unit includes an automatic interior LED light and easy-to-use interior thermostat.

In addition to this model, Summit manufactures a variety of refrigerators for a wide variety of applications. Browse the full catalog to explore our full product line.

SPECIFICATIONS

Overview

Nominal Height 66.0" (168 cm)

Height of Cabinet 66.0" (168 cm)

Height to Hinge Cap 66.63" (169 cm)

Nominal Width 30.0" (76 cm)

Width 29.5" (75 cm)

Width with Door Open 30.25" (77 cm)

Nominal Depth 33.0" (84 cm)

Depth 32.88" (84 cm)

Depth with Handle 34.88" (89 cm)

Depth with door at 90° 60.25" (153 cm)

Capacity 20.5 cu.ft. (580 L)

Defrost Type Frost-Free

Door Stainless Look

Cabinet Gray

US Electrical Safety UL

Canadian Electrical Safety ULC

Energy Usage/Year 390.0kWh/year

Amps 1.1

Voltage/Frequency 115 V AC/60 Hz

Weight 172.0 lbs. (78 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101106731

Refrigerator-Freezer

Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Crisper Qty 2

Crisper Finish Transparent

Crisper Cover Glass

Interior Light Yes

Refrigerator - Interior Height 38.75" (98 cm)

Refrigerator - Interior Width 26.0" (66 cm)

Refrigerator - Interior Depth 27.0" (69 cm)

Refrigerator - Shelf Type Glass

Refrigerator - Shelf Qty 2

Refrigerator - Full Door Shelves 2

Refrigerator - Half Door Shelves 2

Refrigerator - Temperature Range 36 to 46ºF

Freezer - Interior Height 18.5" (47 cm)

Freezer - Interior Width 24.5" (62 cm)

Freezer - Interior Depth 22.25" (57 cm)

Freezer - Shelf Type Wire

Freezer - Shelf Qty 1

Freezer - Full Door Shelves 2

Gallon Door Storage Yes

Thermostat Type Dial

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 2.29 oz.

High Side PSI 150.0

Low Side PSI 60.0

Freezer - Temperature Range 0 to 10ºF

Compressor Step Height 9.5" (24 cm)

Compressor Step Width 26.0" (66 cm)

Compressor Step Depth 9.0" (23 cm)

FEATURES

Top Mount Refrigerator-Freezer Full-size refrigerator-freezer ideal for break rooms and other kitchen settings

LLF2 Combination lock Factory-installed lock secures both secures with a single user-set combination (key supplied to override in case of lost codes)

ENERGY STAR certified Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

Frost-free operation No-frost convenience requires no manual defrosting

Adjustable shelves Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Interior light Automatically illuminates when you open the door

Crisper drawers Clear twin crispers with humidity control

Door storage Keep bottles and condiments in easy reach

Gallon door storage Lower refrigerator door shelf can hold gallon-sized containers

Adjustable thermostat Interior thermostat with simple control panel for easy use

Freezer shelf Removable full-width wire shelf in the freezer compartment

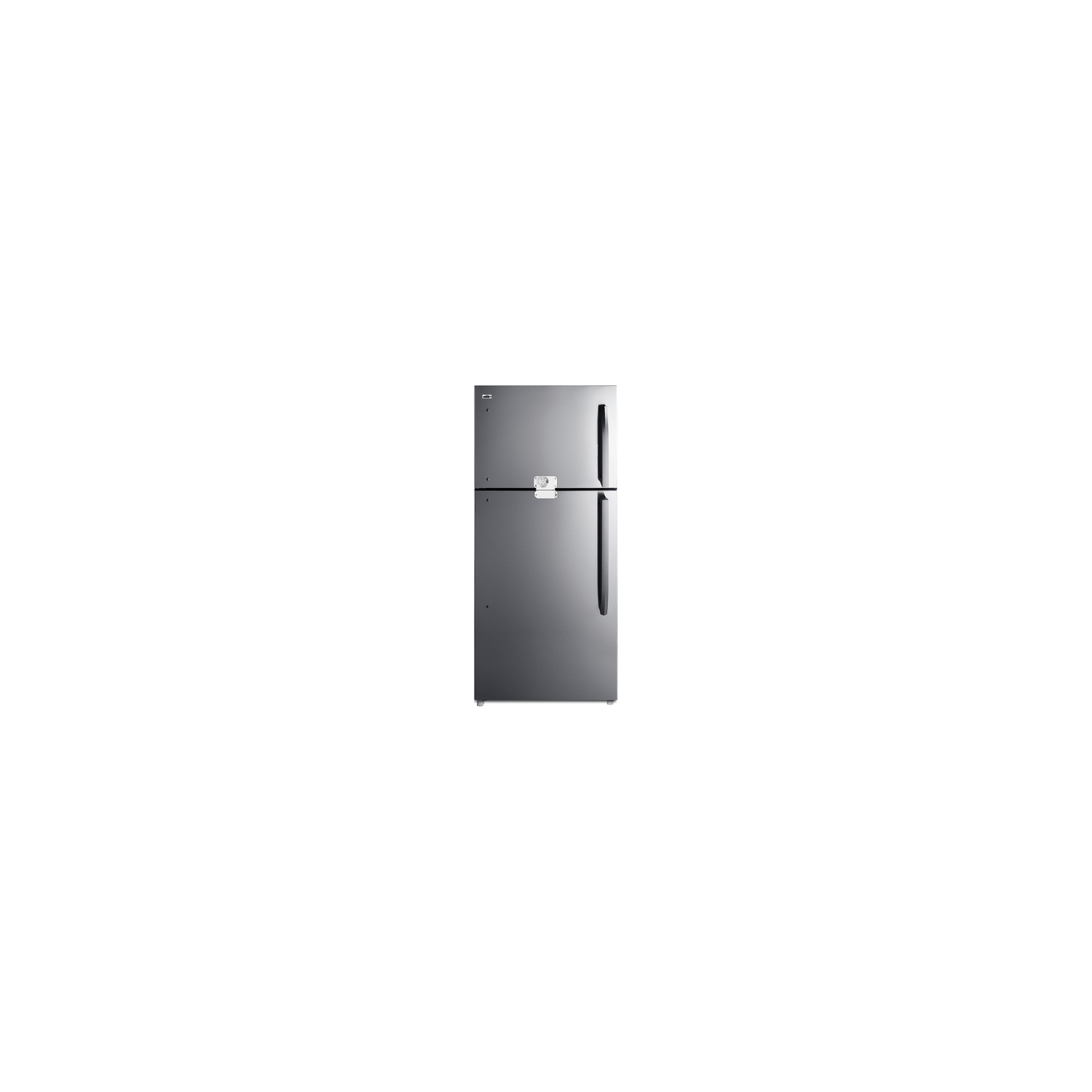

Reversible doors User-reversible door swing for added flexibility

Stainless steel look Doors offer the look of stainless steel complete with a horizontal grain, but the easier cleanability of a fingerprint-resistant steel finish

Sealed back Space-saving design with no exposed coils in the rear offers easy cleanability

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

DOWNLOADS

BROCHURE w/ DRAWINGS (CTR21PLLLF2.pdf)

TECHNICAL DRAWING (.dwg) (CTR21PL_CTR21W_3.dwg)

ASSEMBLY DRAWING (CTR21PL_CTR21W-Assembly_3.pdf)

SUPPORT (LLF2_Instructions_2.pdf)

USE & CARE (CTR21PLLLF2-User-Manual.pdf)

Energy Guide
