Summit Full-size top mount refrigerator-freezer in stainless steel look with front combination lock, CTR18PLLLF2LHD

Summit's selection of top-mount refrigerator-freezers offer true convenience for every kitchen, including break rooms and other general purpose facilities.

The CTR18PLLLF2LHD is a full-sized refrigerator-freezer. The large interior offers 18 cu.ft. of storage capacity, with frost-free operation for low maintenance use. It comes in a textured gray cabinet with doors in a stainless steel look complete with easy to grab handles. We include a factory-installed lock that secures both the refrigerator and freezer section with a single dial combination. A key override is included in case of lost codes.

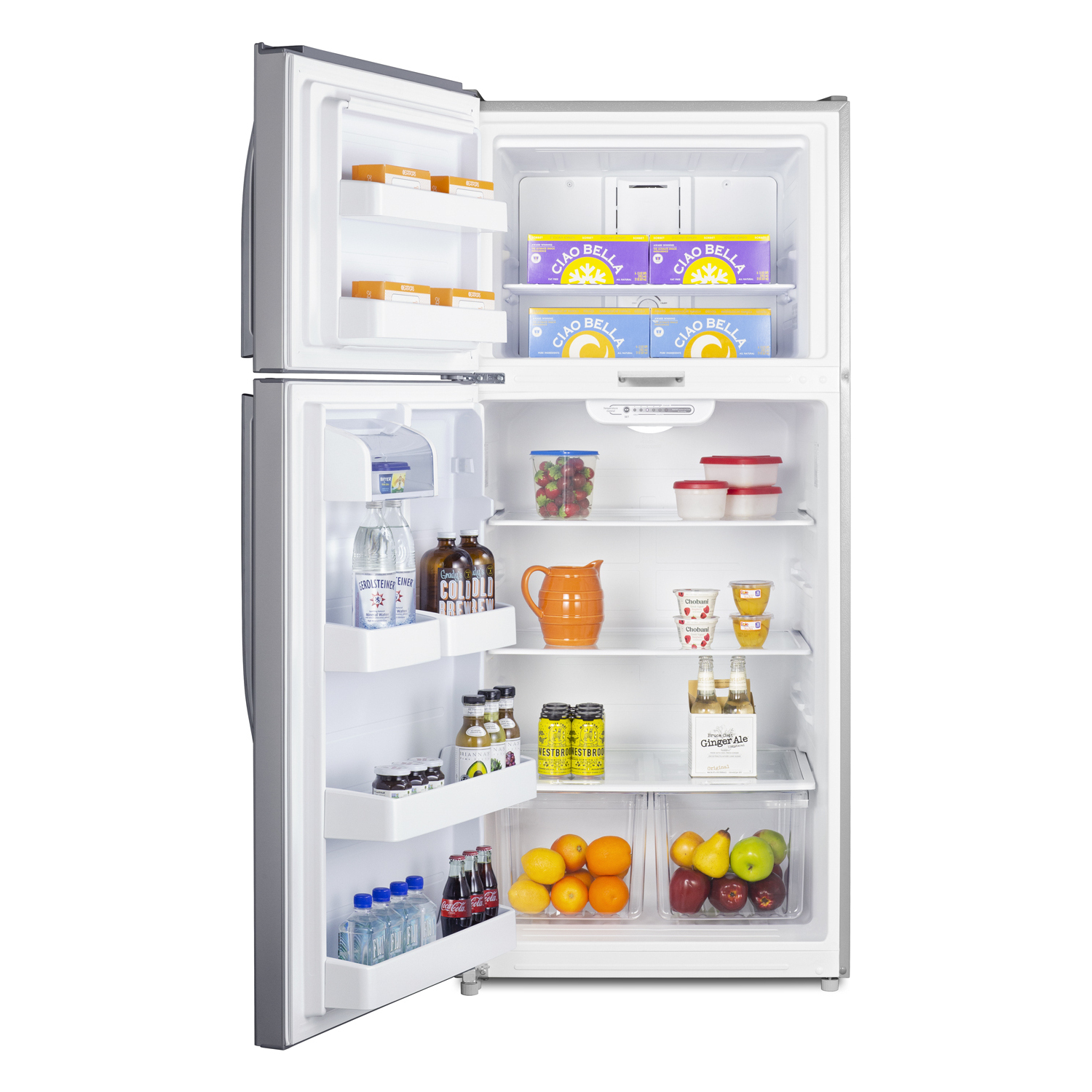

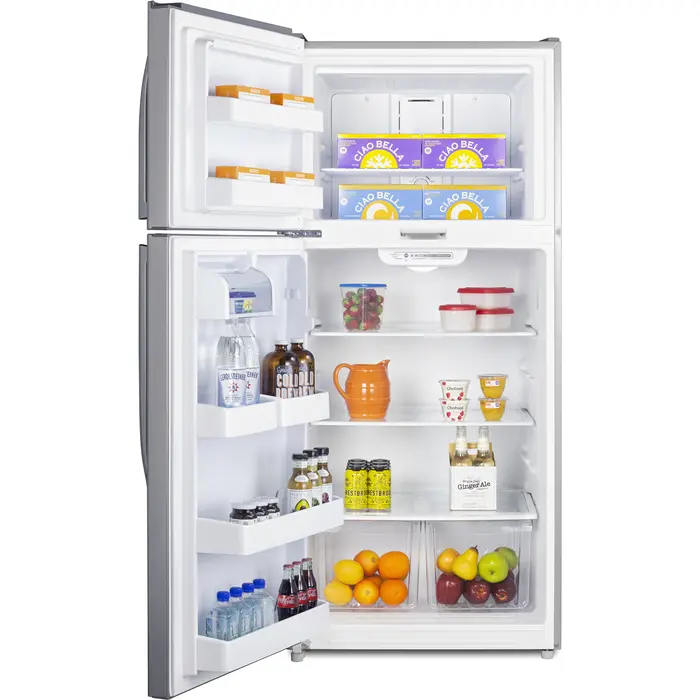

Inside, the CTR18PLLLF2LHD includes adjustable glass shelves in the refrigerator compartment and two clear crispers. The door features full-sized storage racks, including one that holds full gallon containers. Two half-sized door racks are adjustable to accommodate different sized items, with an additional fixed butter dish. The upper freezer compartment comes with a full-width wire shelf and two door bins. This unit includes an automatic interior LED light and easy-to-use interior thermostat. This unit ships with a left hand door swing. For this unit with the door opening from the other side, see model CTR18PLLLF2.

In addition to this model, Summit manufactures a variety of refrigerators for a wide variety of applications. Browse the full catalog to explore our full product line.

SPECIFICATIONS

Overview

Nominal Height 66.0" (168 cm)

Height of Cabinet 66.0" (168 cm)

Height to Hinge Cap 66.63" (169 cm)

Nominal Width 30.0" (76 cm)

Width 29.5" (75 cm)

Width with Door Open 30.25" (77 cm)

Nominal Depth 32.0" (81 cm)

Depth 31.25" (79 cm)

Depth with Handle 33.25" (84 cm)

Depth with door at 90° 58.75" (149 cm)

Capacity 18.0 cu.ft. (510 L)

Defrost Type Frost-Free

Door Stainless Look

Cabinet Gray

US Electrical Safety UL

Canadian Electrical Safety ULC

Energy Usage/Year 362.0kWh/year

Amps 1.1

Voltage/Frequency 115 V AC/60 Hz

Weight 172.0 lbs. (78 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101078090

Refrigerator-Freezer

Door Swing LHD

Reversible No

Adjustable Shelves Yes

Crisper Qty 2

Crisper Finish Transparent

Crisper Cover Glass

Interior Light Yes

Refrigerator - Interior Height 40.0" (102 cm)

Refrigerator - Interior Width 25.25" (64 cm)

Refrigerator - Interior Depth 21.0" (53 cm)

Refrigerator - Shelf Type Glass

Refrigerator - Shelf Qty 2

Refrigerator - Full Door Shelves 2

Refrigerator - Half Door Shelves 2

Refrigerator - Temperature Range 36 to 46ºF

Freezer - Interior Height 15.75" (40 cm)

Freezer - Interior Width 22.25" (57 cm)

Freezer - Interior Depth 25.5" (65 cm)

Freezer - Shelf Type Wire

Freezer - Shelf Qty 1

Freezer - Full Door Shelves 2

Gallon Door Storage Yes

Thermostat Type Dial

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 1.73 oz.

High Side PSI 150.0

Low Side PSI 60.0

Freezer - Temperature Range 0 to 10ºF

Compressor Step Height 10.0" (25 cm)

Compressor Step Width 25.25" (64 cm)

Compressor Step Depth 6.0" (15 cm)

FEATURES

Top Mount Refrigerator-Freezer Full-size refrigerator-freezer ideal for break rooms and other kitchen settings

LLF2 Combination lock Factory-installed lock secures both secures with a single user-set combination (key supplied to override in case of lost codes)

ENERGY STAR certified Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

Frost-free operation No-frost convenience requires no manual defrosting

Adjustable shelves Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Interior light Automatically illuminates when you open the door

Crisper drawers Clear twin crispers with humidity control

Door storage Keep bottles and condiments in easy reach

Gallon door storage Lower refrigerator door shelf can hold gallon-sized containers

Adjustable thermostat Interior thermostat with simple control panel for easy use

Freezer shelf Removable full-width wire shelf in the freezer compartment

Stainless steel look Doors offer the look of stainless steel complete with a horizontal grain, but the easier cleanability of a fingerprint-resistant steel finish

Left hand door swing For this unit with the door opening from the other side, see model CTR18PLLLF2

Sealed back Space-saving design with no exposed coils in the rear offers easy cleanability

ADA compliant design Unit's height and control location meets guidelines for ADA compliant refrigeration

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (CTR18PLLLF2LHD.pdf)

TECHNICAL DRAWING (.dwg) (CTR18PL_18W_REF._FREEZER__A-C_2018__5.dwg)

SUPPORT (LLF2_Instructions_2.pdf)

USE & CARE (CTR18PLLLF2LHD-User-Manual.pdf)

Energy Guide
