Summit Full-size top mount refrigerator-freezer with combination lock, CTR15SSLLF2

Summit's selection of top-mount freezer refrigerators offers true convenience for every kitchen, including break rooms and other general-purpose facilities.

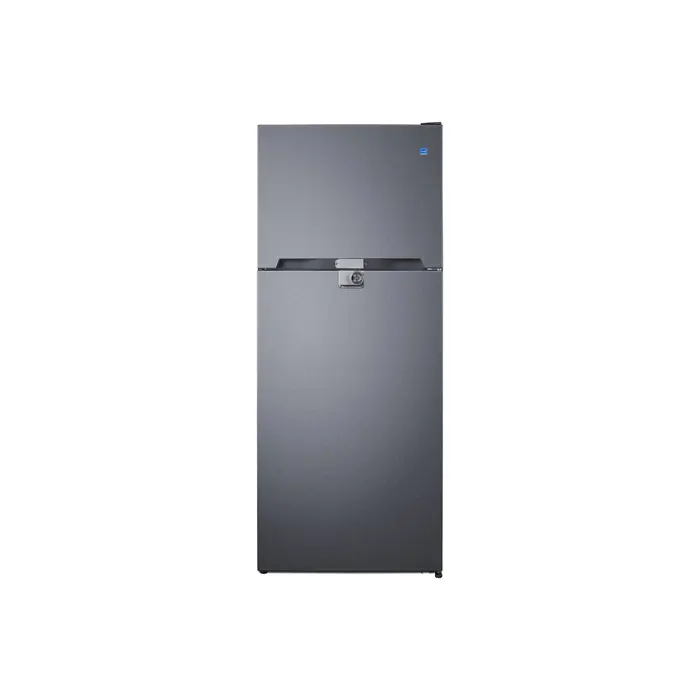

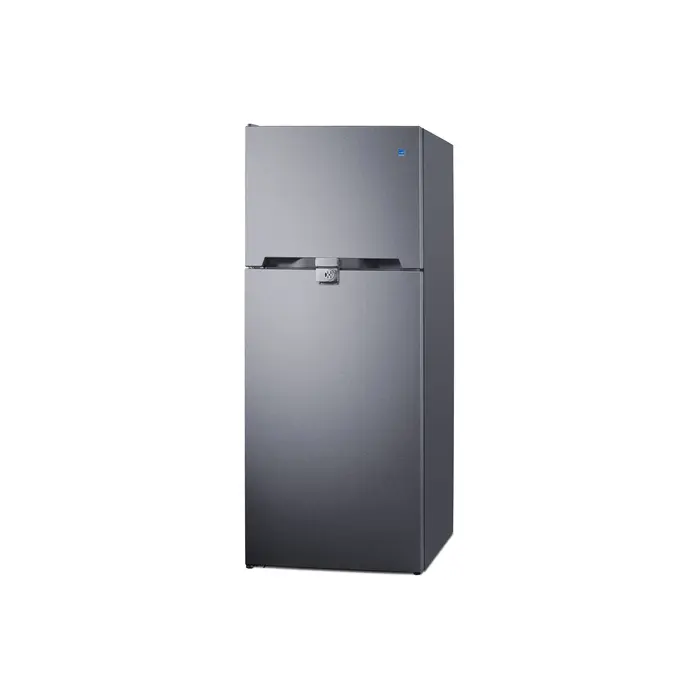

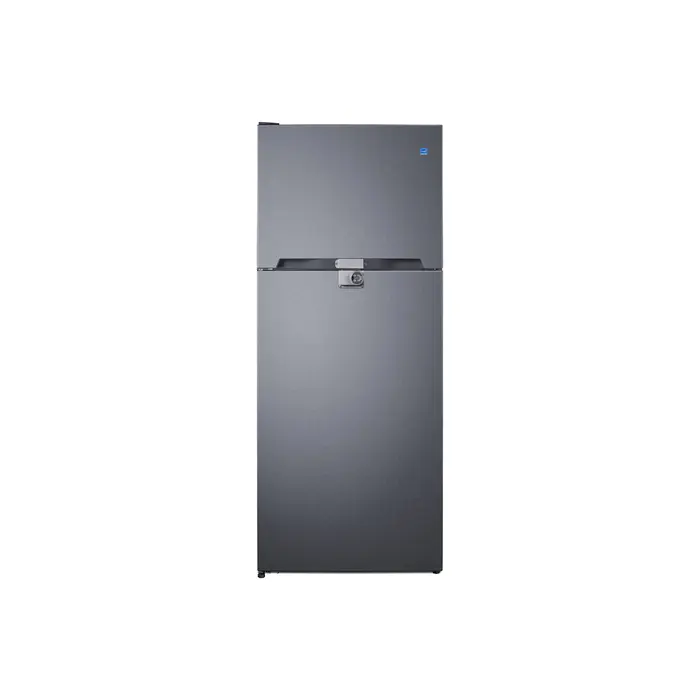

The ENERGY STAR certified CTR15SSLLF2 is a top-mount refrigerator-freezer that offers a spacious 14.3 cu.ft. of storage capacity in a popular 28" fit. The stainless steel doors and cabinet offer a modern look for contemporary kitchens, with a sealed back design to ensure easier cleanup. The doors are user-reversible to best suit your space.

We include a factory-installed lock that secures both the refrigerator and freezer sections with a single dial combination. A key override is included in case of lost codes.

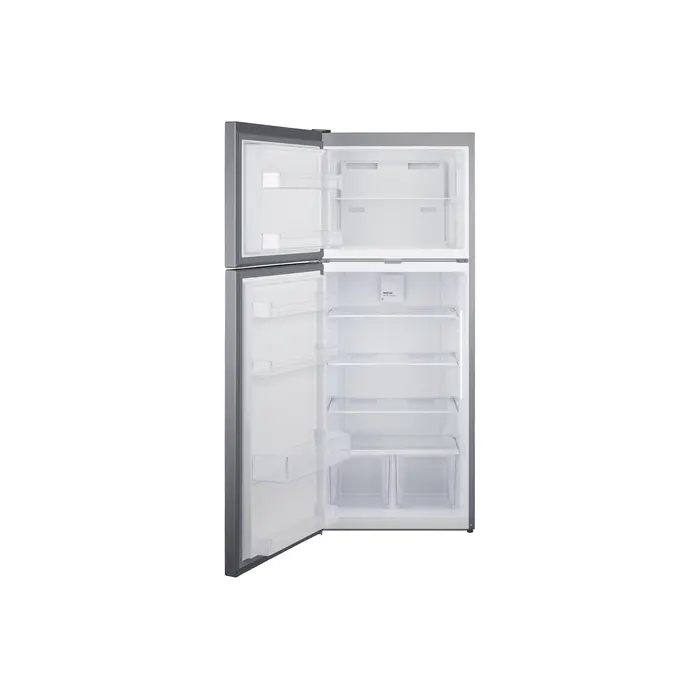

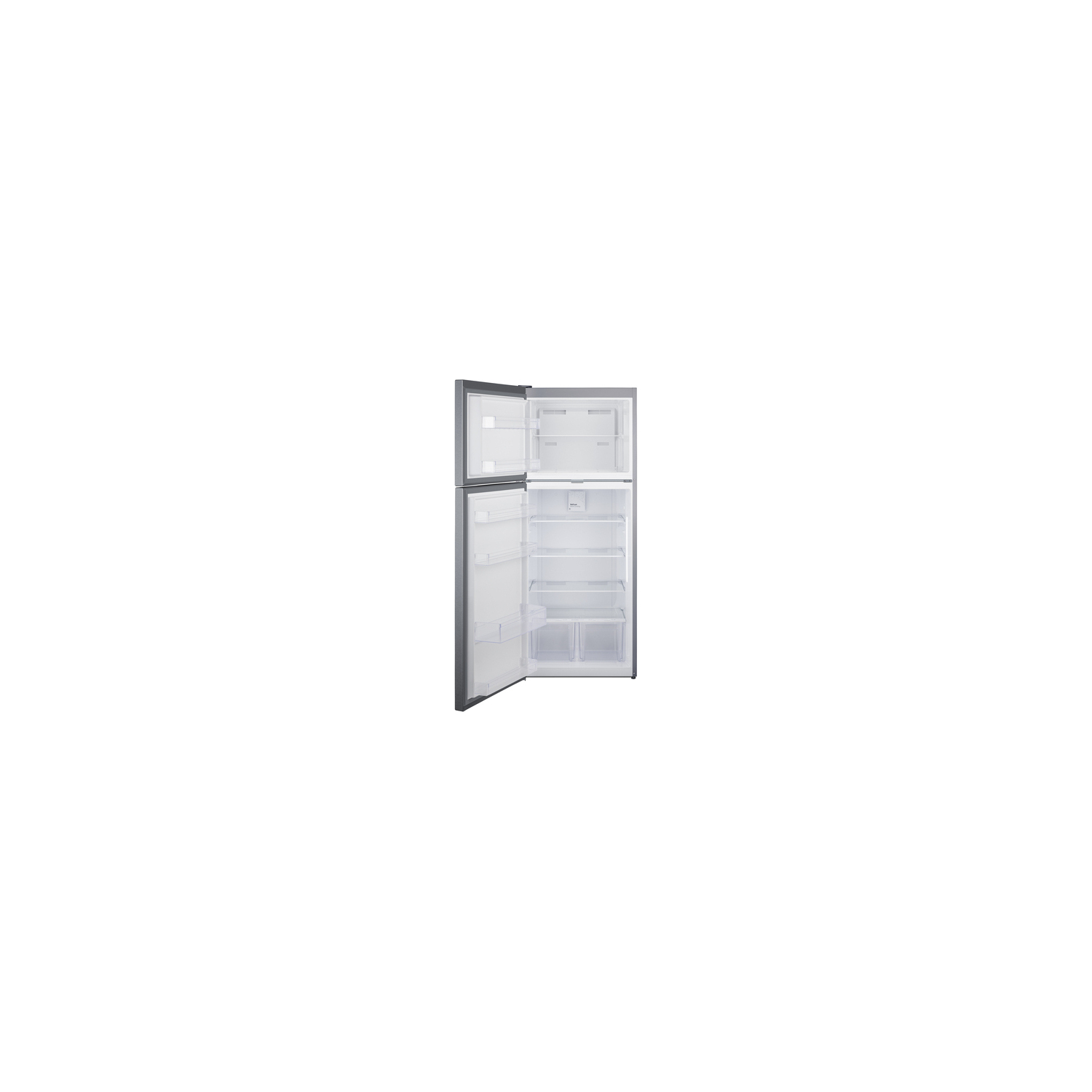

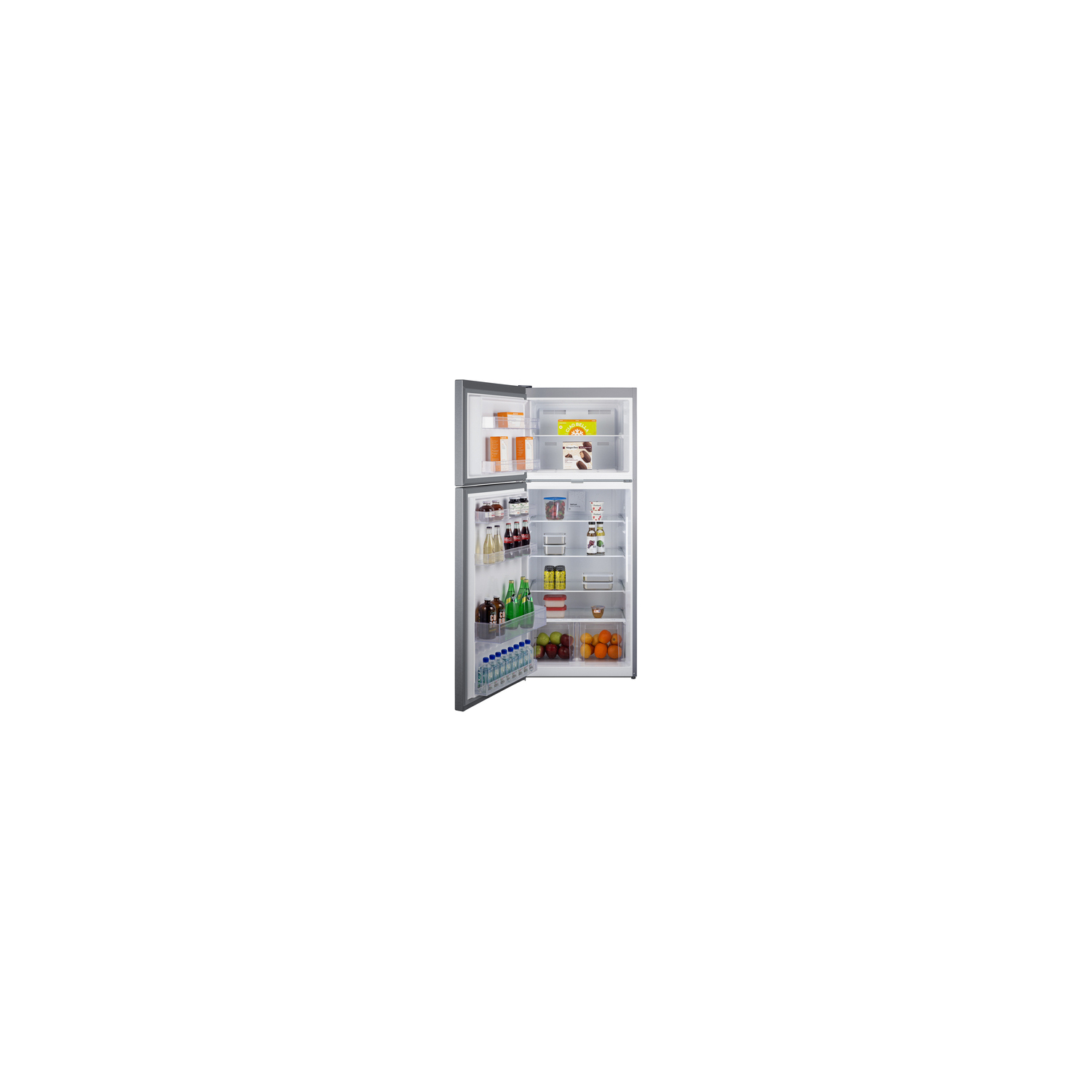

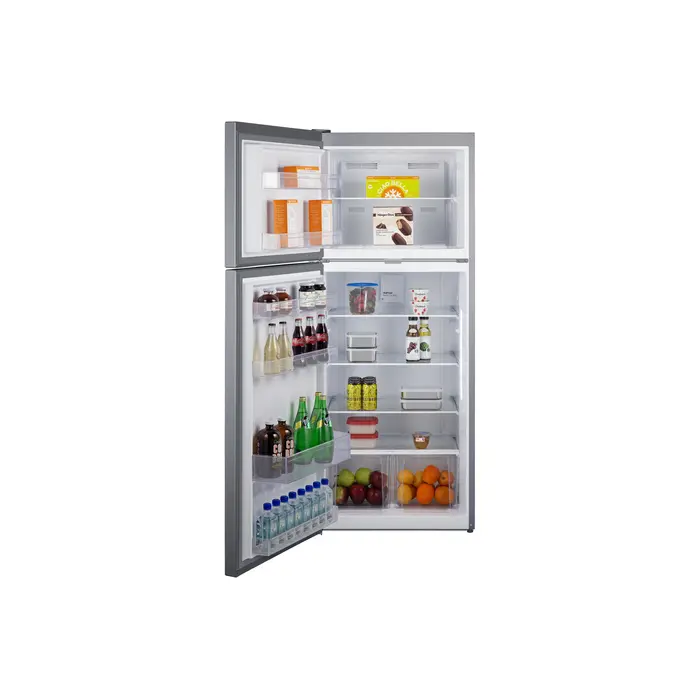

Inside, the CTR15SSLLF2 utilizes frost-free defrost to minimize user-maintenance. he refrigerator section is fully featured for fresh foods with interior lighting, spill-proof adjustable glass shelves, two humidity-controlled clear crispers, and removable door racks that accommodate gallon-sized containers. The freezer compartment includes a removable glass shelf and two fixed door shelves. The SuperFreeze setting is ideal for freezing newly loaded foods quickly.

With its ENERGY STAR certified performance and convenient features, the European-made CTR15SSLLF2 is an ideal choice for break rooms and facilities looking for an energy-efficient refrigerator-freezer.

Explore all of our break room and general-purpose refrigerator-freezers at summitappliance.com.

SPECIFICATIONS

Overview

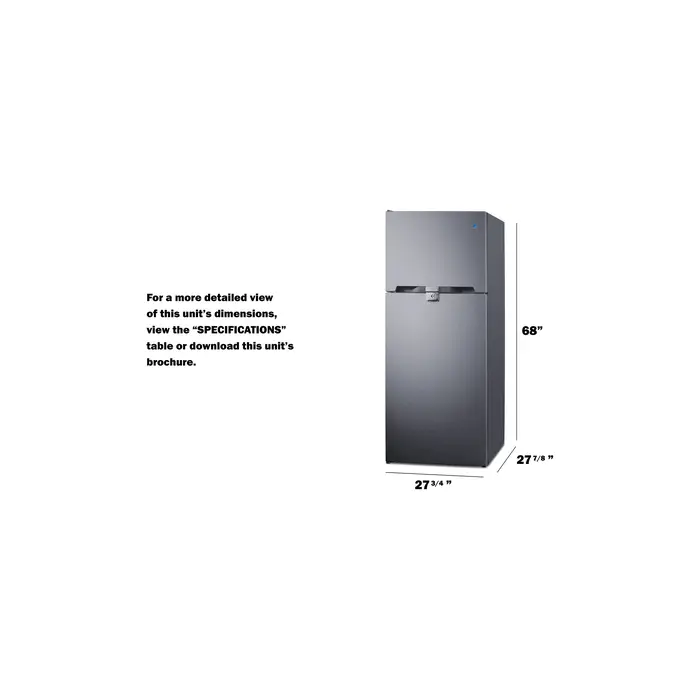

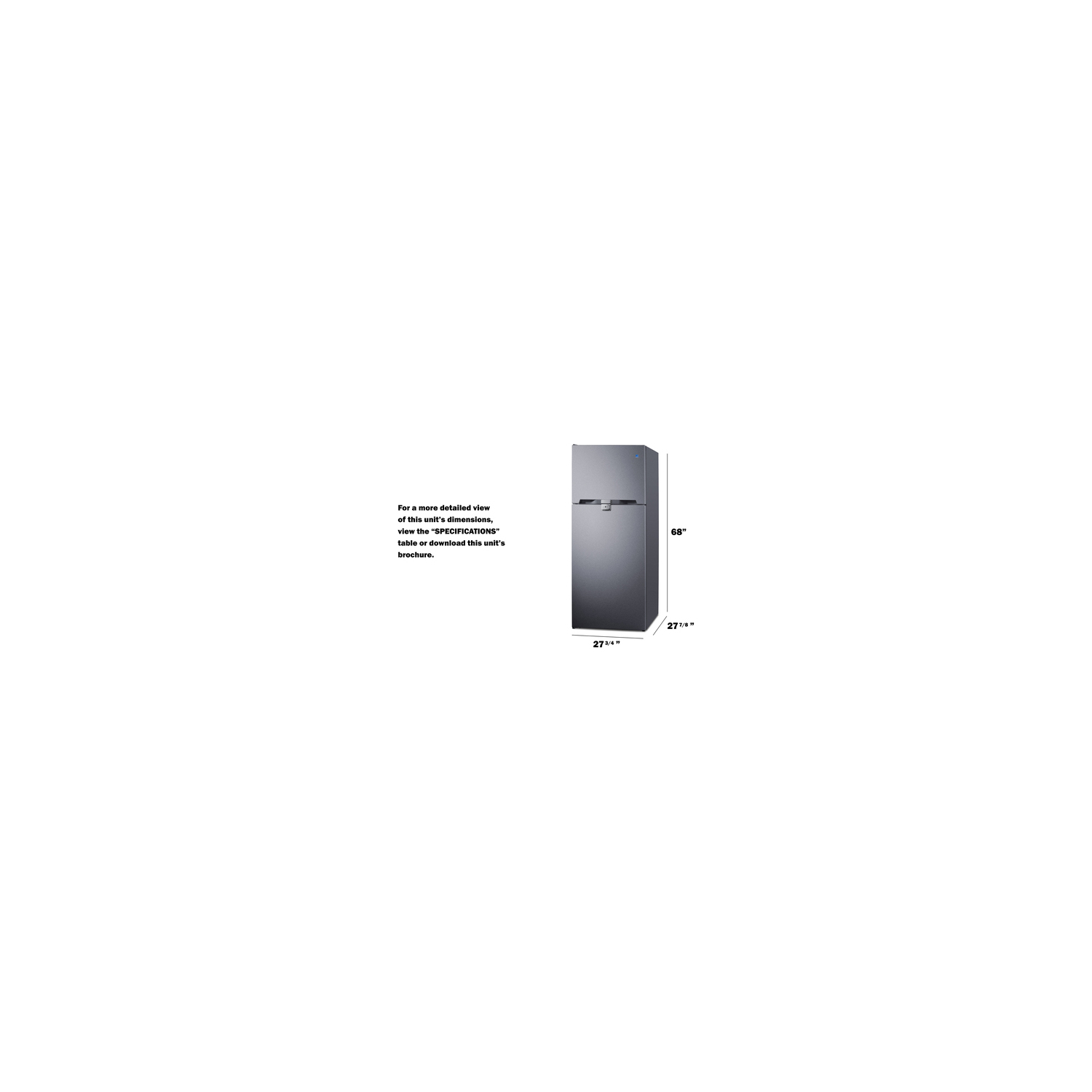

Nominal Height 68.0" (173 cm)

Height of Cabinet 67.5" (171 cm)

Height to Hinge Cap 68.0" (173 cm)

Nominal Width 28.0" (71 cm)

Width 27.75" (70 cm)

Nominal Depth 28.0" (71 cm)

Depth 27.88" (71 cm)

Depth with door at 90° 53.5" (136 cm)

Capacity 14.3 cu.ft. (405 L)

Defrost Type Frost-Free

Door Stainless Steel

Cabinet Stainless Look

US Electrical Safety UL

Canadian Electrical Safety ULC

Energy Usage/Year 332.0kWh/year

Amps 1.84

Voltage/Frequency 115 V AC/60 Hz

Weight 166.0 lbs. (75 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101159676

Refrigerator-Freezer

Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Crisper Qty 2

Crisper Finish Transparent

Crisper Cover Plastic

Interior Light Yes

Refrigerator - Interior Height 41.0" (104 cm)

Refrigerator - Interior Width 23.0" (58 cm)

Refrigerator - Interior Depth 21.0" (53 cm)

Refrigerator - Shelf Type Glass

Refrigerator - Shelf Qty 4

Refrigerator - Full Door Shelves 4

Freezer - Interior Height 16.75" (43 cm)

Freezer - Interior Width 22.0" (56 cm)

Freezer - Interior Depth 17.75" (45 cm)

Freezer - Shelf Type Glass

Freezer - Shelf Qty 1

Freezer - Full Door Shelves 2

Gallon Door Storage Yes

Thermostat Type Digital

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 2.29 oz.

Compressor Step Height 9.75" (25 cm)

Compressor Step Width 23.0" (58 cm)

Compressor Step Depth 6.5" (17 cm)

FEATURES

28" Wide Top-Mount European Refrigerator-Freezer With Combination Lock Full-sized 14.3 cu.ft. refrigerator-freezer with a spacious interior and a combination lock to add security and convenience to any kitchen space

LLF2 Combination lock Factory-installed lock secures both secures with a single user-set combination (key supplied to override in case of lost codes)

ENERGY STAR certified Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

Large capacity 14.3 cu.ft. interior offers generous storage in a slim fit

Stainless steel finish Cabinet and doors come in a sleek stainless steel white finish with a smooth texture for easier cleaning

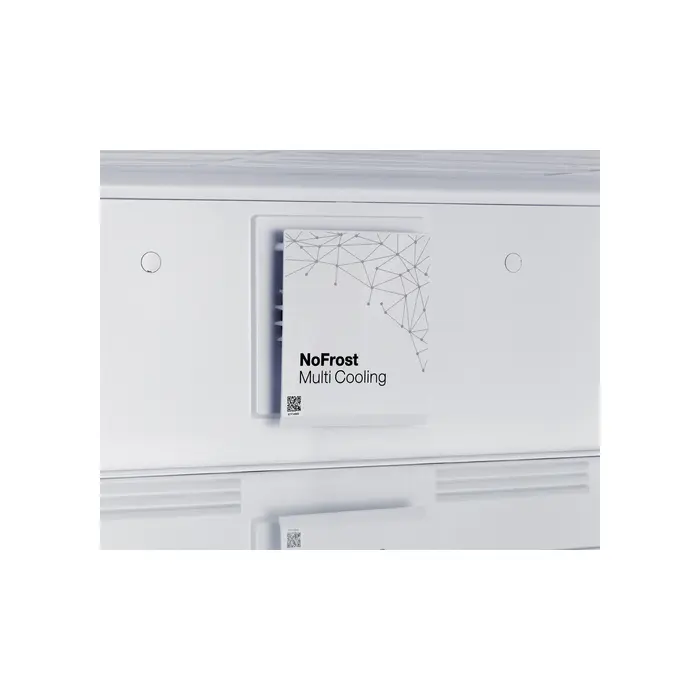

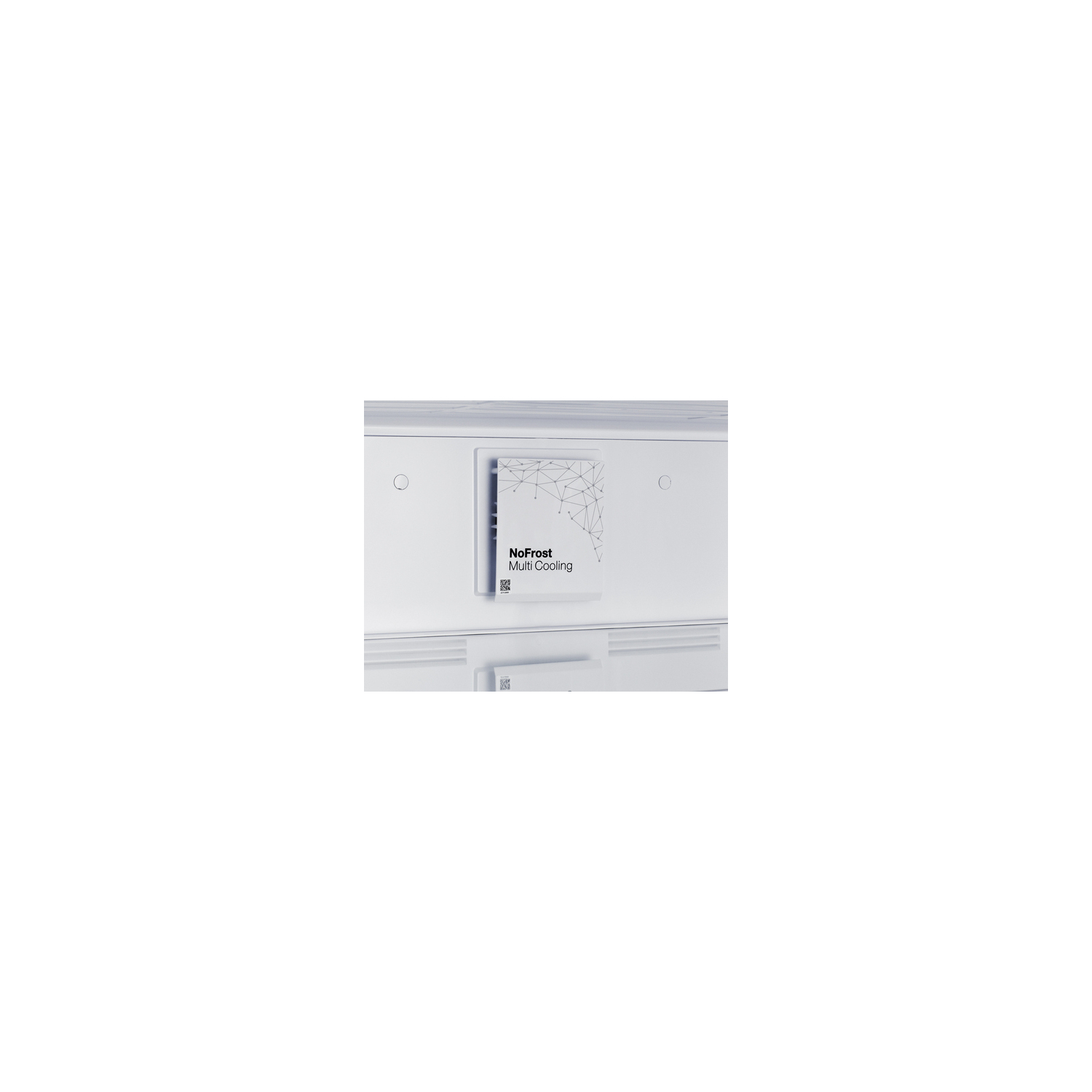

Frost-free operation No-frost convenience requires no manual defrosting

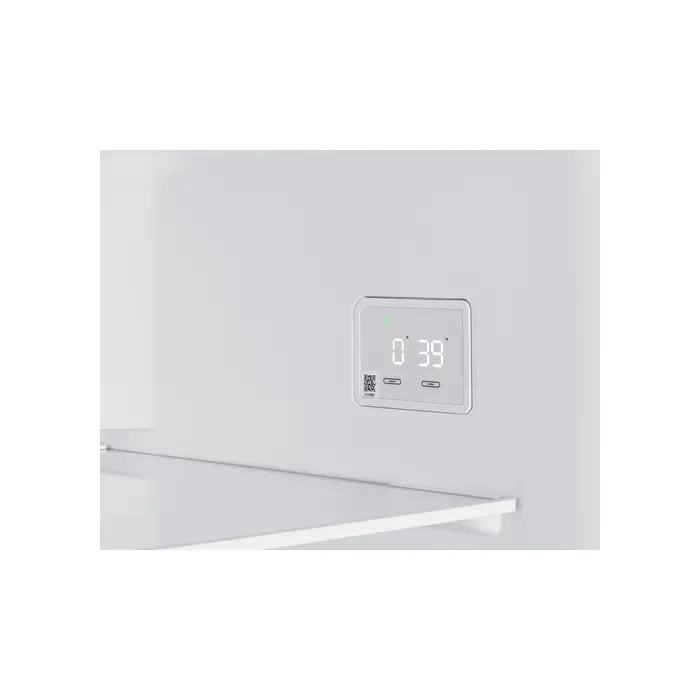

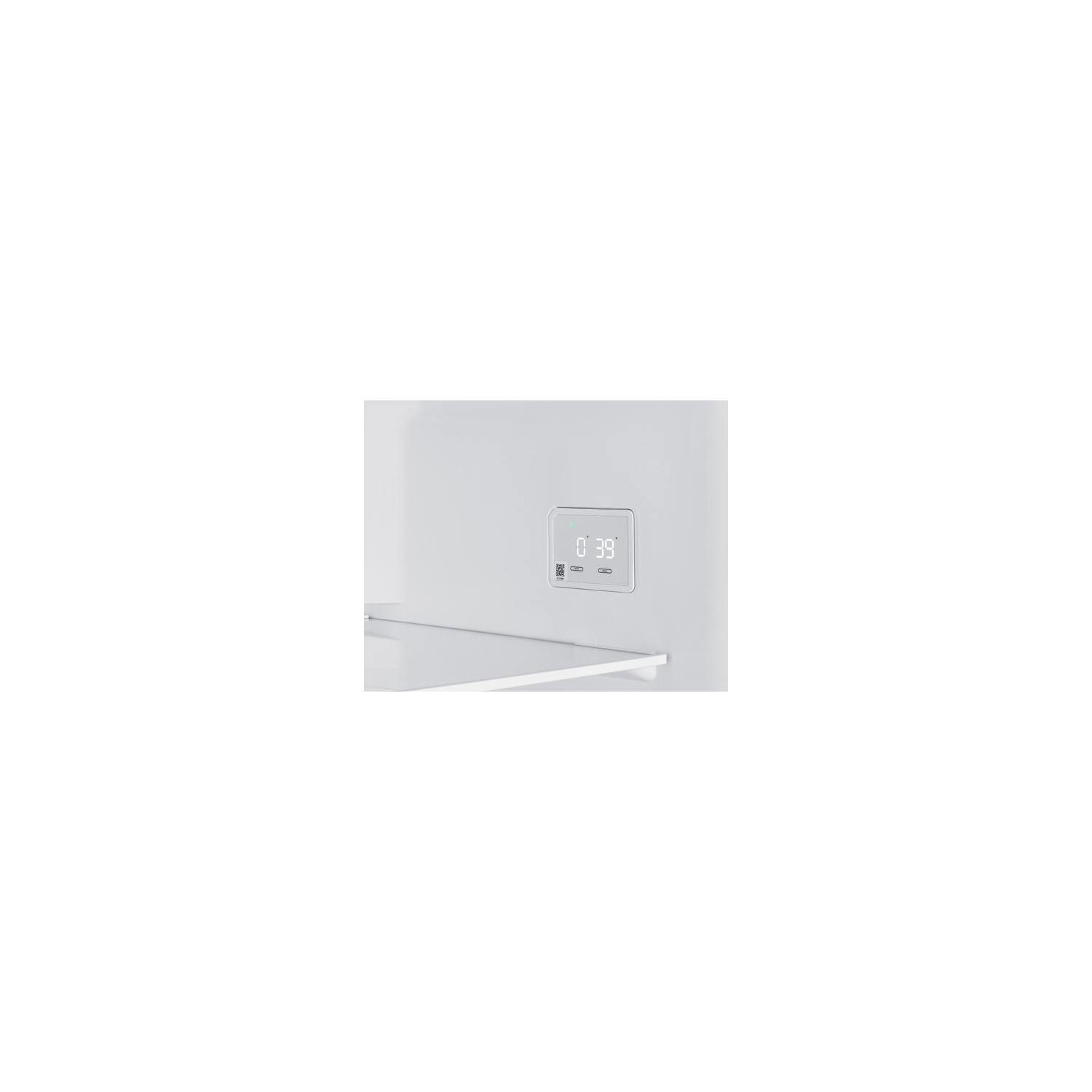

Digital temperature control Innovative control panel located inside the refrigerator makes it easy to manage the refrigerator and freezer temperature at the touch of a button

Adjustable glass shelves Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Crisper drawers Clear twin crispers with humidity control for optimum storage of fruits and vegetables

Door storage Keep bottles and condiments in easy reach

Gallon door storage Lower refrigerator door shelf can hold gallon-sized containers

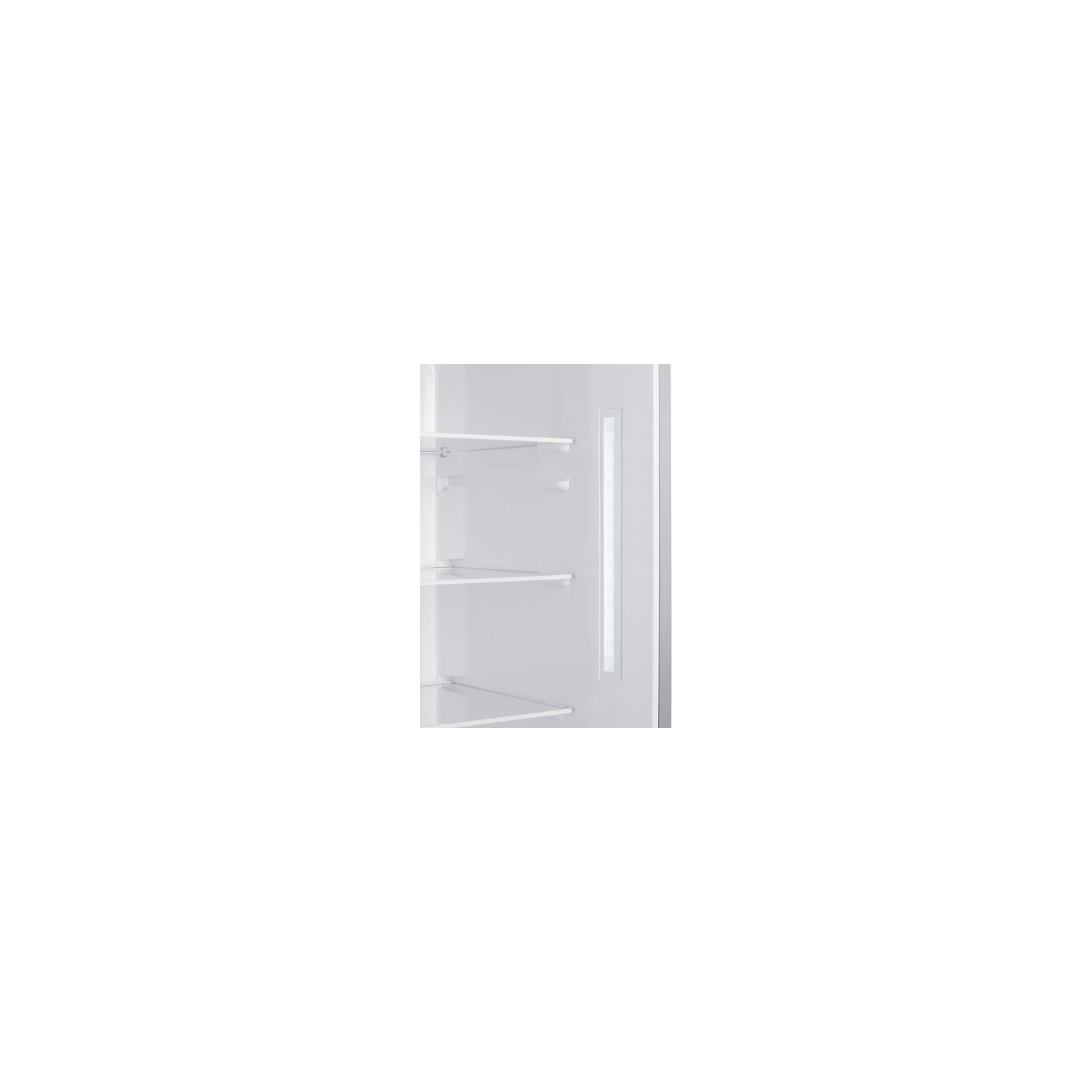

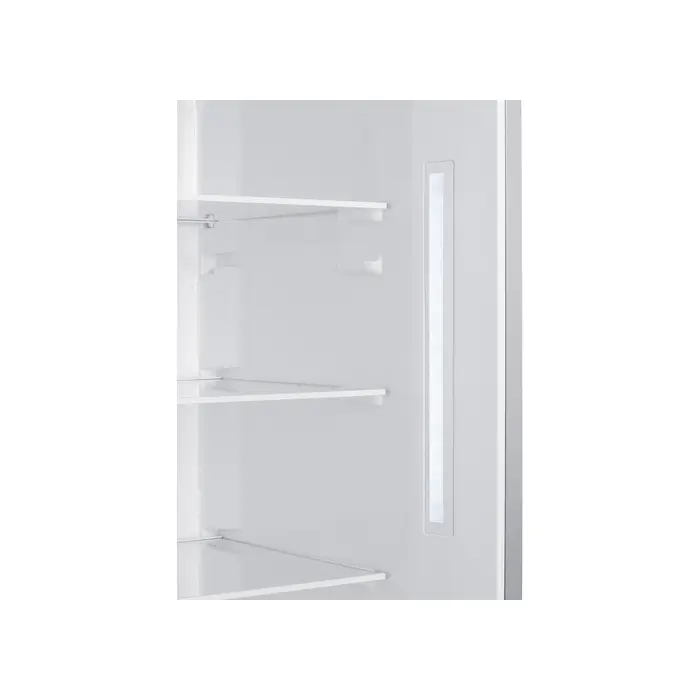

Interior light Automatically illuminates when you open the door

Freezer shelving Removable glass shelf and two door racks for convenient storage in the upper compartment

SuperFreeze Function This setting is ideal for freezing fresh foods quickly. Function overrides current thermostat controls to ensure compressor operates continuously

Reversible doors User-reversible door swing for added flexibility

Approved for Canadian sales UL-C and NRCAN registered for use in Canada

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE (CTR15SSLLF2.pdf)

TECHNICAL DRAWING (.dwg) (CTR151W_CTR152B_CTR15SS_AUTOCAD_10.dwg)

ASSEMBLY DRAWING (CTR151W_CTR152B_CTR15SS_-Assembly_9.pdf)

USE & CARE (CTR15SSLLF2-User-Manual.pdf)

SUPPORT (LLF2_Instructions_2.pdf)

Energy Guide
