Summit Built-in undercounter refrigerator-freezer for general purpose use, with dual evaporator cooling, SS door, lock, horizontal handle and white cabinet, CT66LWBISSHH

Accucold by Summit Appliance offers a wide range of undercounter refrigeration for general purpose storage. The CT66JBI Series includes built-in undercounter refrigerator-freezers equipped with dual evaporator cooling for optimum storage conditions.

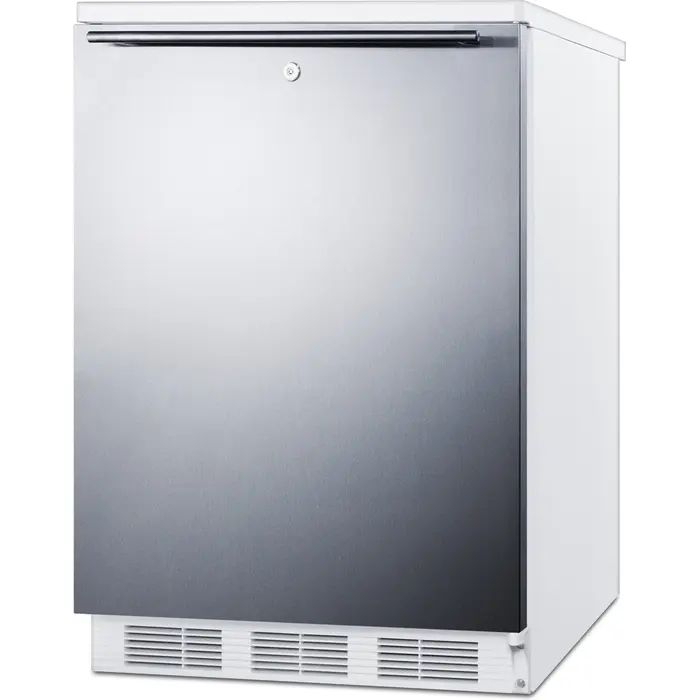

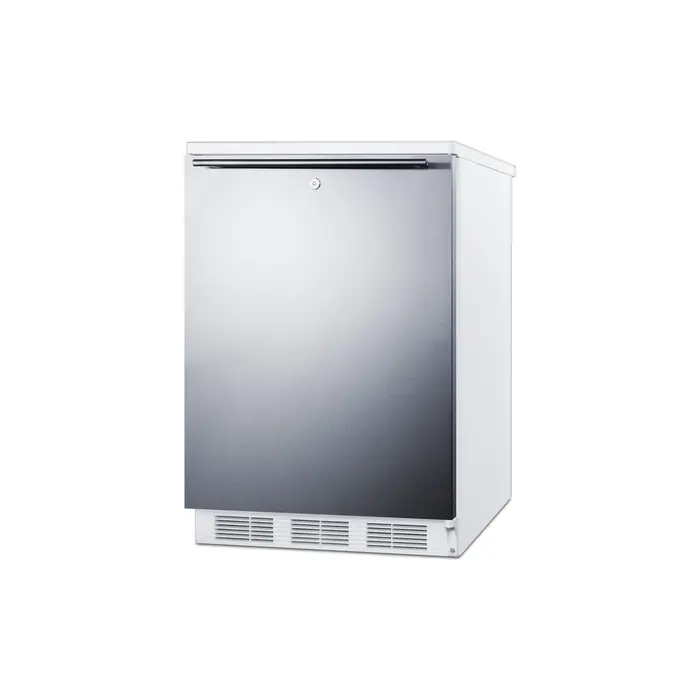

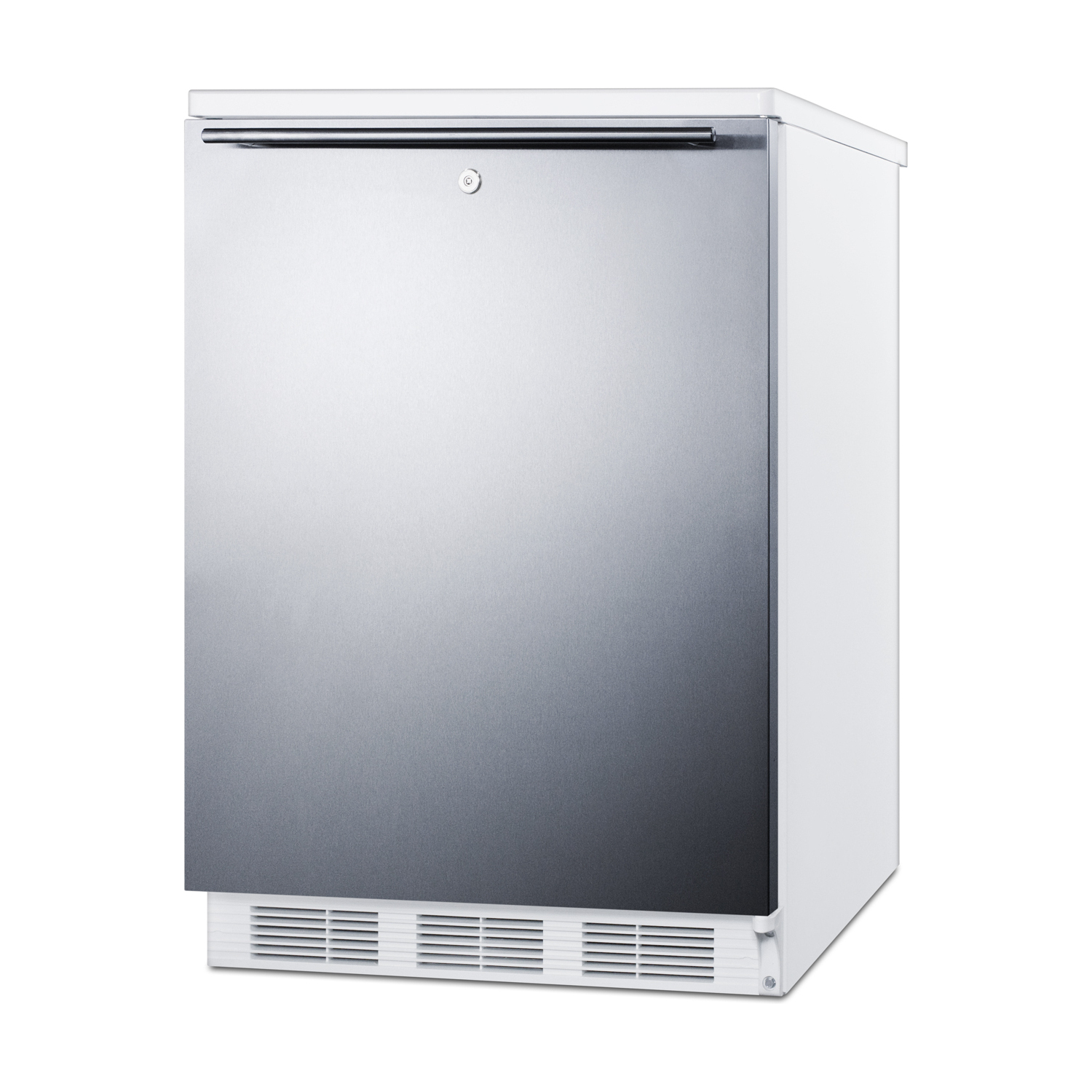

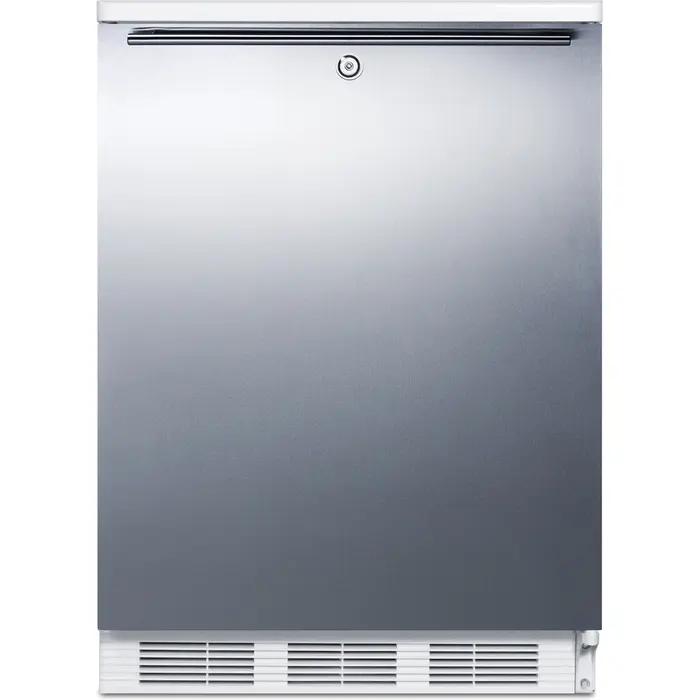

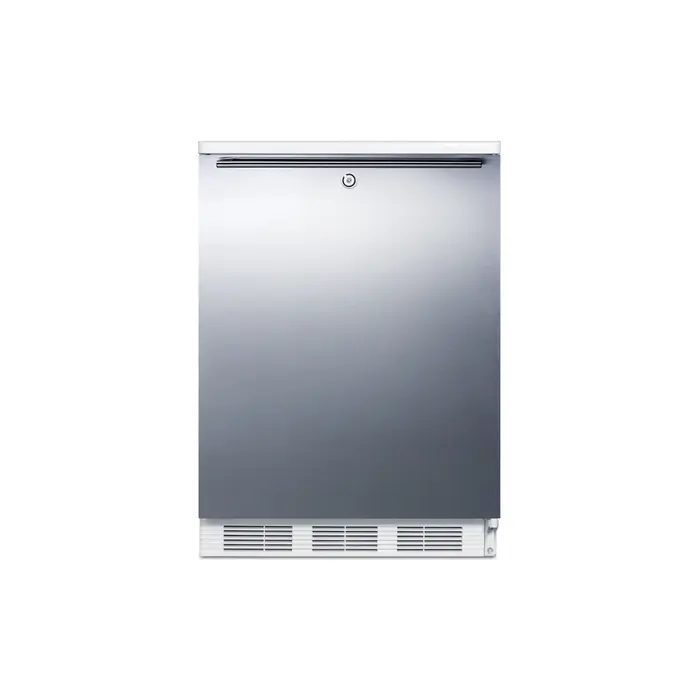

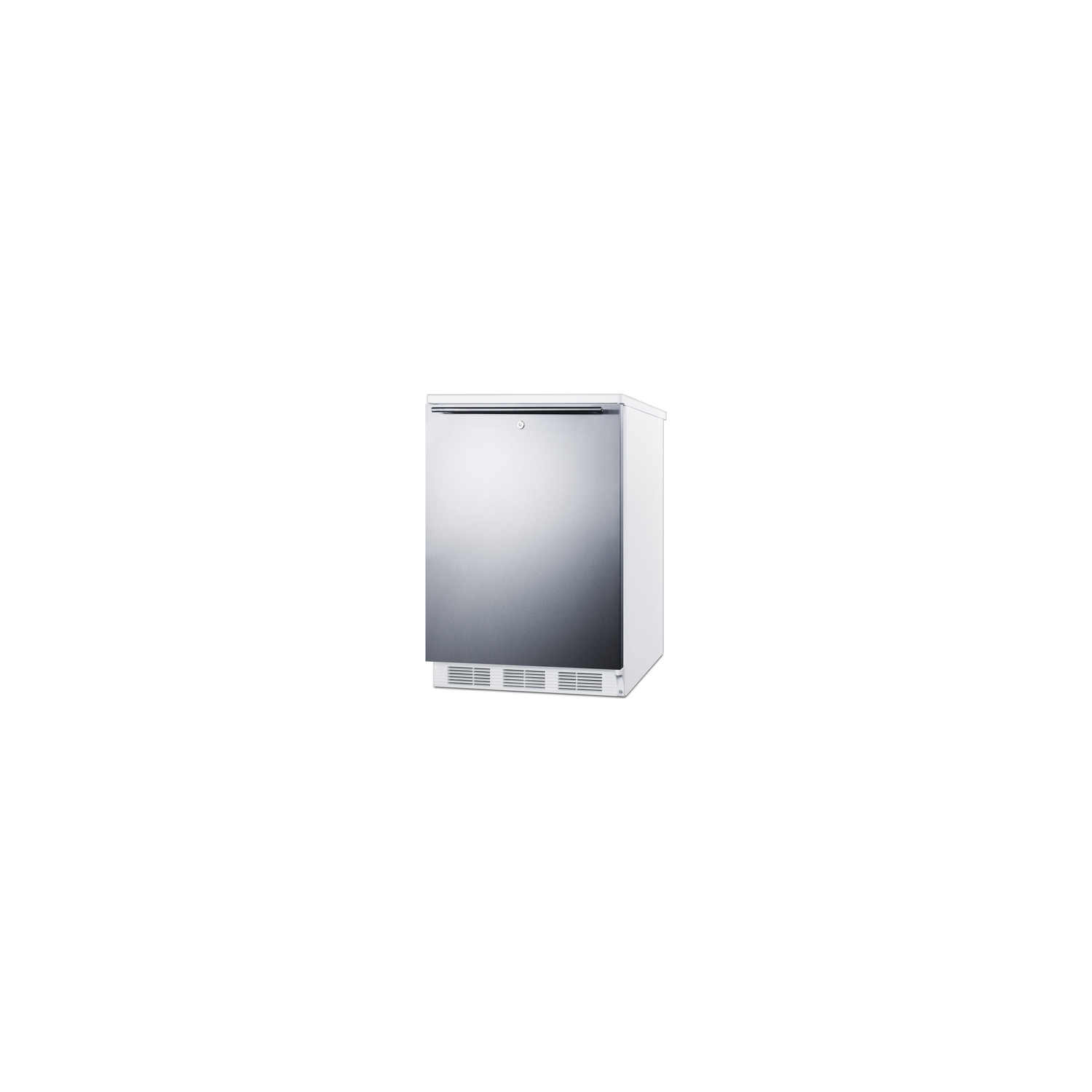

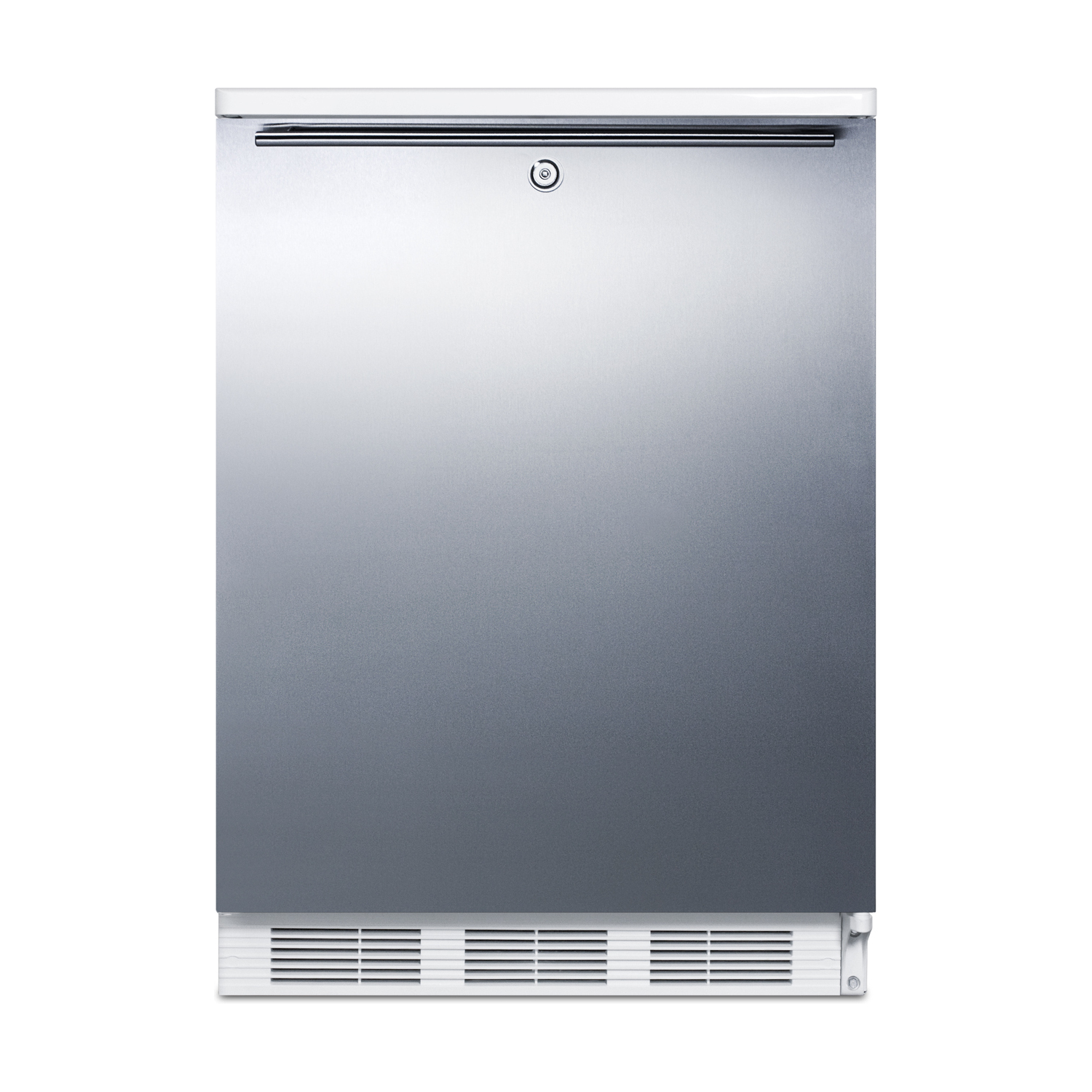

Sized with a 24" footprint, the CT66LWBISSHH can be used built-in under counters or freestanding. The interior offers over 5 cu.ft. of storage capacity. This model has a white cabinet and reversible stainless steel wrapped door with a factory installed front lock. A thin handle with a 14mm diameter is mounted horizontally for a sleek, modern look.

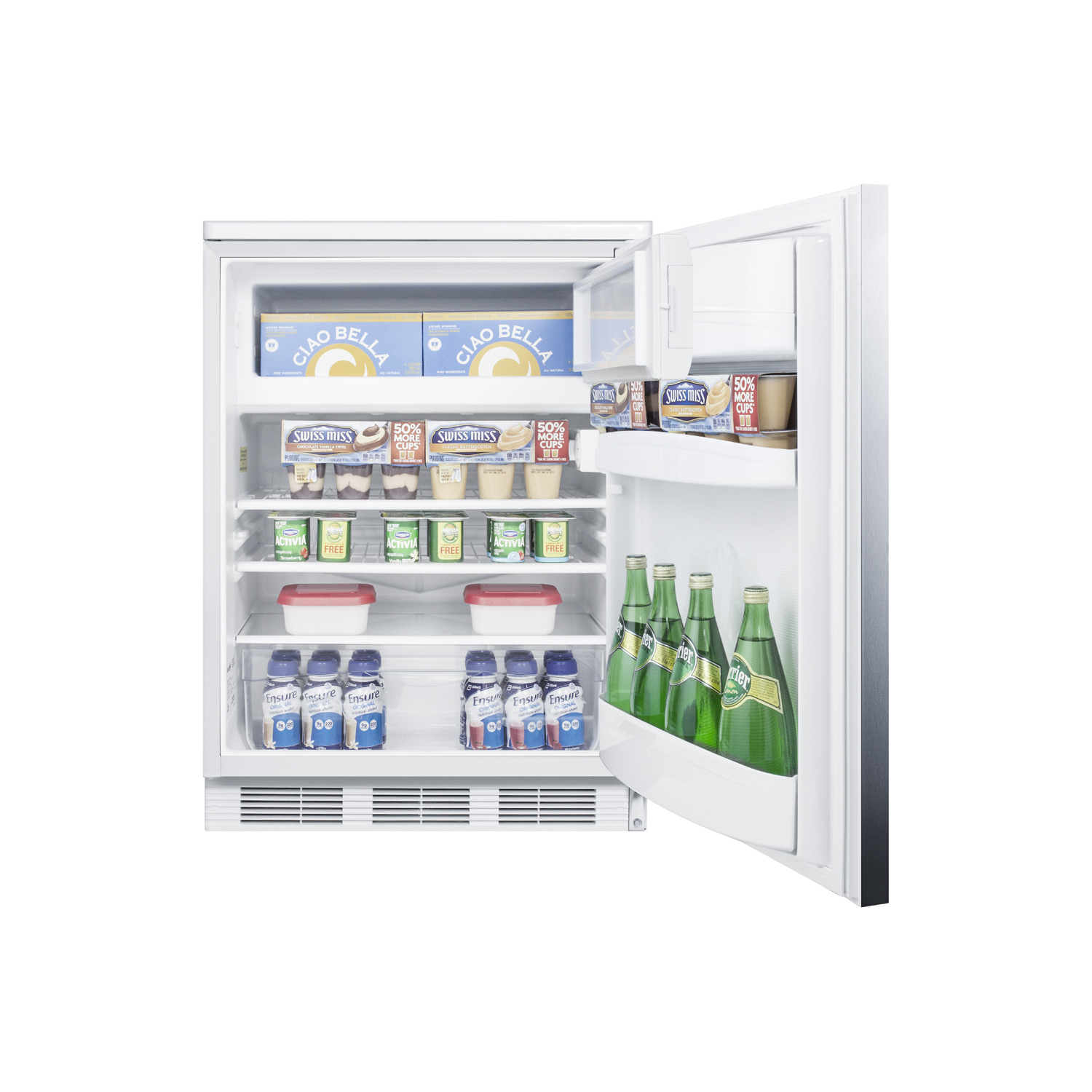

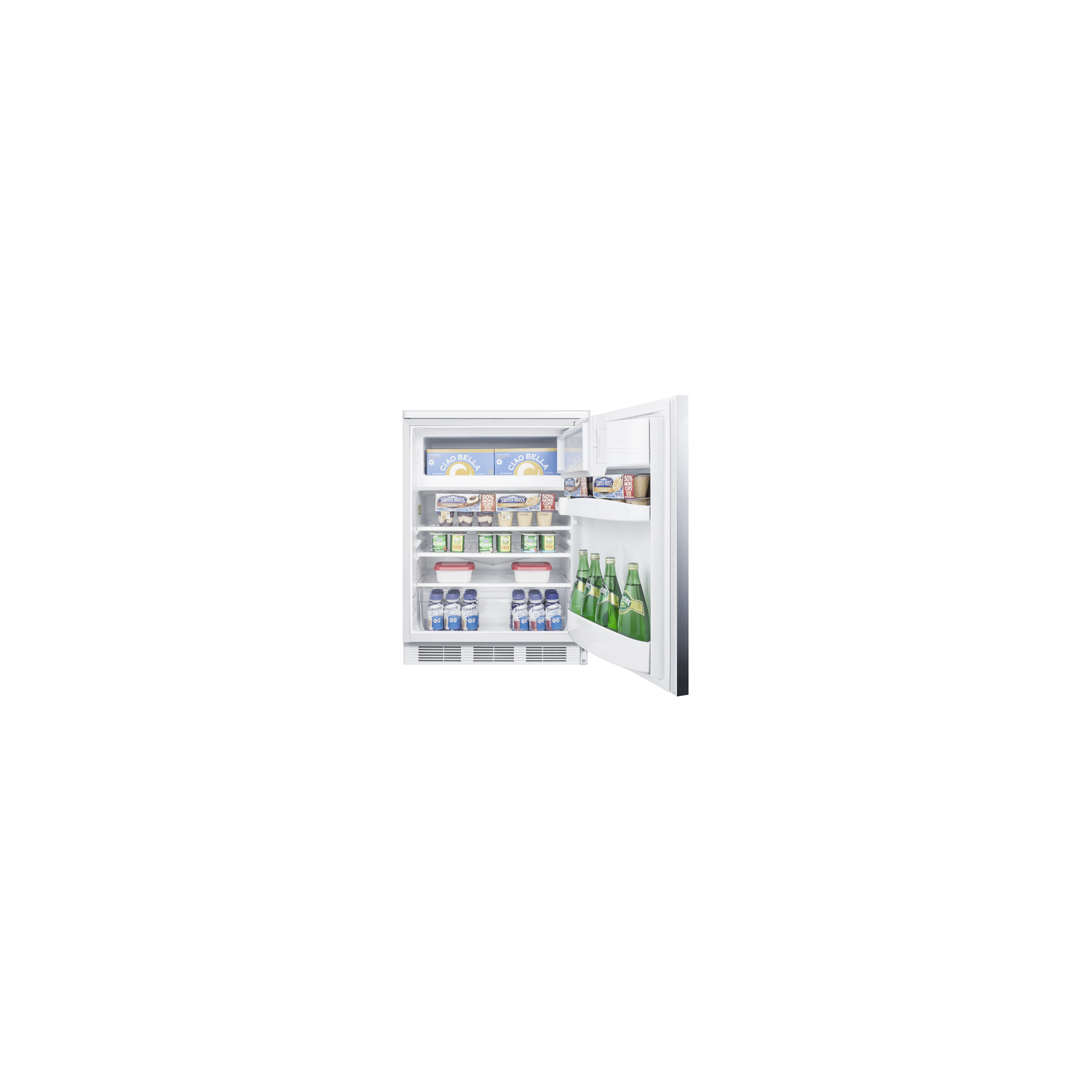

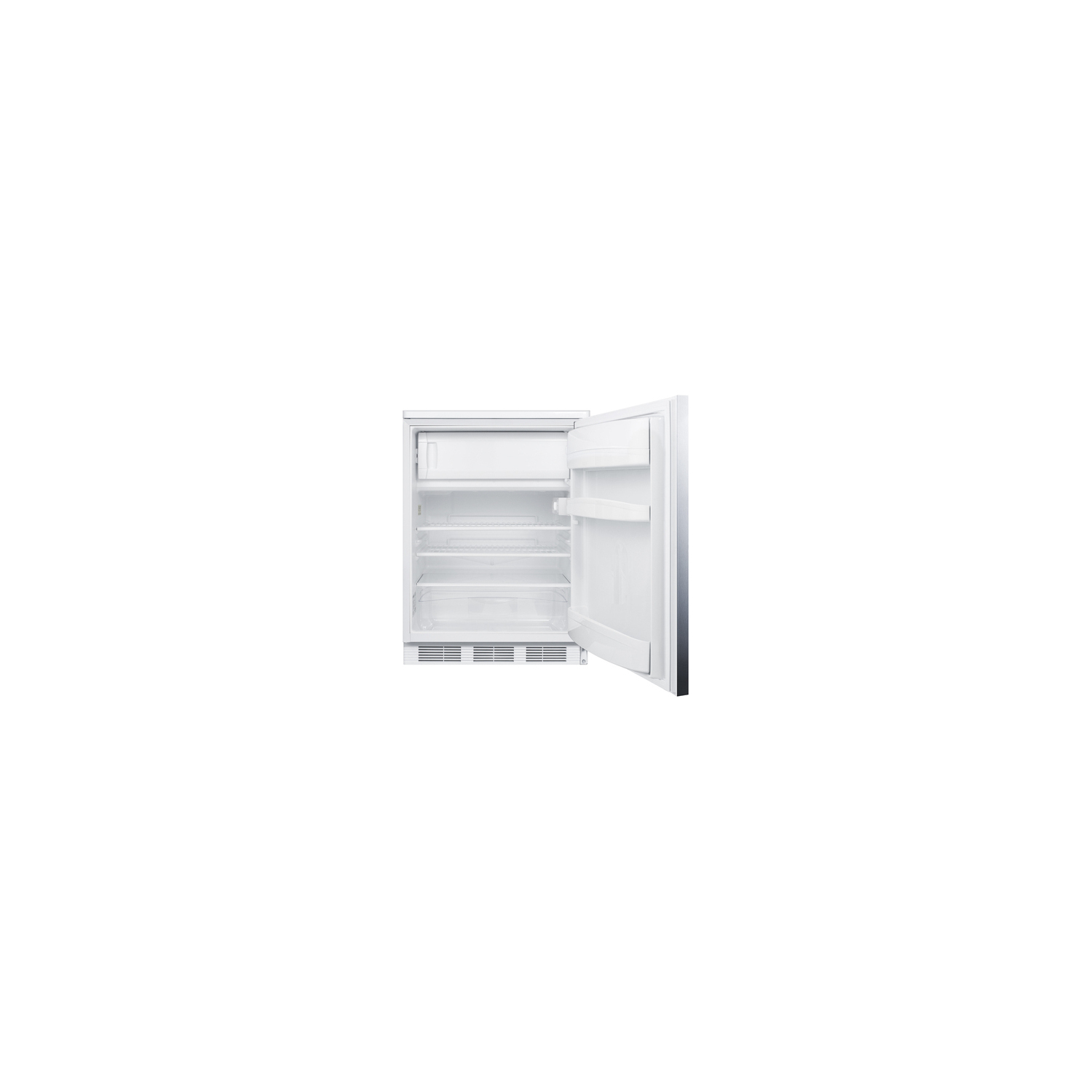

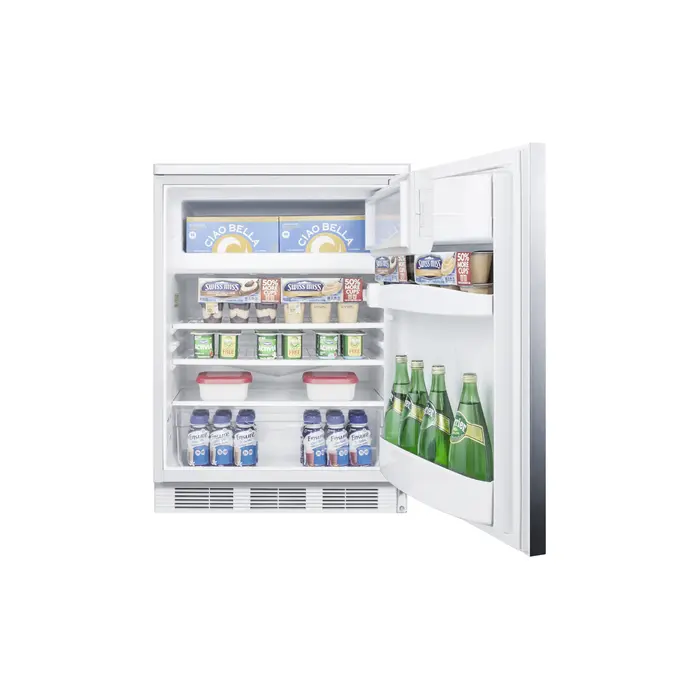

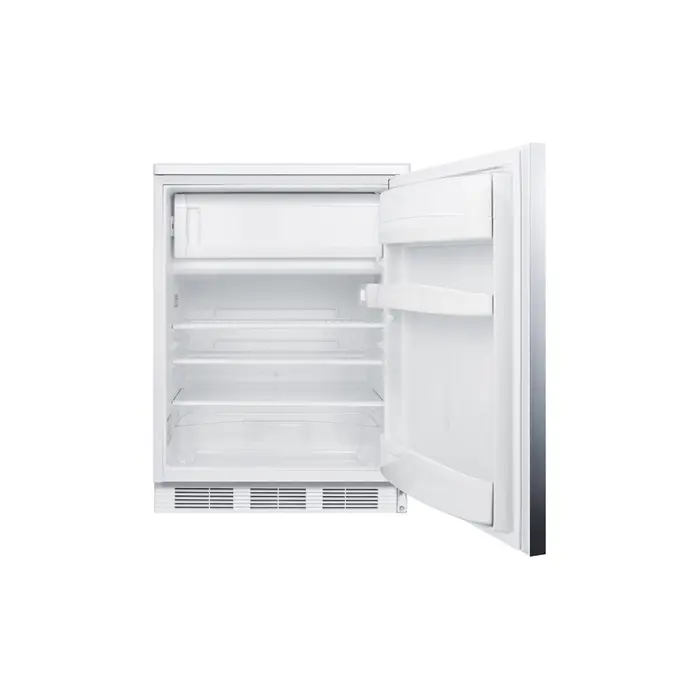

Inside, our unique dual evaporator system separately cools the refrigerator and freezer section to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, with static manual defrost operation in the freezer compartment. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable shelves, a clear crisper, and automatic interior lighting.

The CT66LWBISSHH has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full CT66WBI Series.

NOTE: This unit is designed for general purpose applications and does not meet DOE energy standards for residential use.

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 33.5" (85 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.5" (60 cm)

Depth with Handle 25.63" (65 cm)

Depth with door at 90° 45.63" (116 cm)

Capacity 5.1 cu.ft. (144 L)

Defrost Type Cycle

Door Stainless Steel

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 1.4

Voltage/Frequency 115 V AC/60 Hz

Weight 100.0 lbs. (45 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101068862

Refrigerator-Freezer

Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Wire

Interior Light Yes

Refrigerator - Interior Height 19.5" (50 cm)

Refrigerator - Interior Width 20.5" (52 cm)

Refrigerator - Interior Depth 17.0" (43 cm)

Refrigerator - Shelf Type Wire

Refrigerator - Shelf Qty 2

Refrigerator - Full Door Shelves 3

Freezer - Interior Height 5.0" (13 cm)

Freezer - Interior Width 19.0" (48 cm)

Freezer - Interior Depth 11.5" (29 cm)

Thermostat Type Dial

Fan Type Exterior

Refrigerant Type R600a

Refrigerant Amount 0.92 oz.

High Side PSI 180.0

Low Side PSI 80.0

Level Legs 4

Compressor Step Height 7.0" (18 cm)

Compressor Step Width 20.5" (52 cm)

Compressor Step Depth 5.0" (13 cm)

FEATURES

Slim undercounter dimensions Less than 24 inches wide to fit tight spaces

Factory installed lock Keyed lock offers added security

Built-in capable Make the best use of space by installing your appliance under the counter and flush with other cabinetry

Fully finished white cabinet Allows the unit to be used freestanding

Height Adjustable Adjustable legs allow the unit to be sized from 33 1/2" to 34 3/4" high

Stainless steel door Durable design with lasting elegance

Professional horizontal handle Thin 14mm diameter on stainless steel handle, mounted horizontally across the door

Cycle defrost This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment

Dual evaporator cooling Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators

Adjustable shelves Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup

Crisper drawer Get the longest life and best taste out of produce by storing greens in lower slide drawer

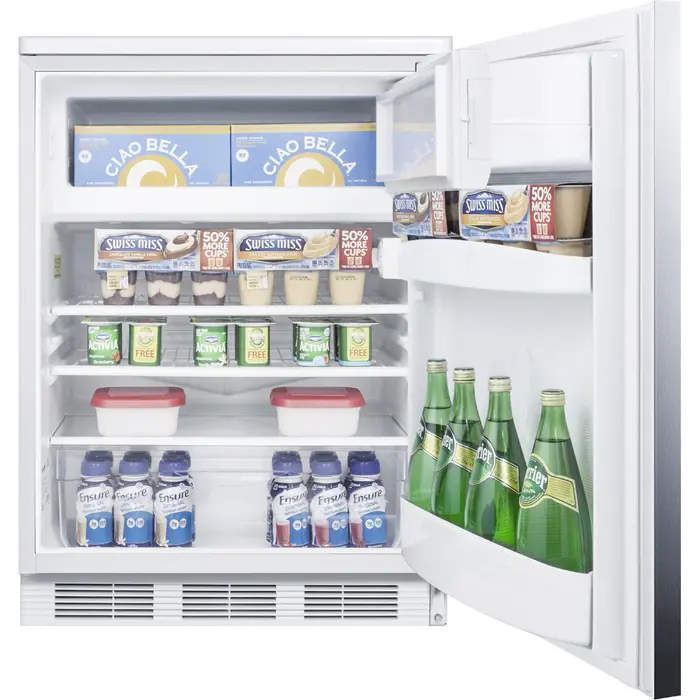

Door shelves Store tall bottles and condiments right on the door for convenient access

Interior light Automatically illuminates when the door is opened

Adjustable thermostat Dial thermostat located inside for easy temperature management

Reversible door User-reversible door swing for added flexibility

Hidden evaporator Cold wall design with hidden evaporator and seamless interior

100% CFC free Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
