Summit Built-in undercounter ADA compliant refrigerator-freezer for general purpose use, cycle defrost w/dual evaporators, panel-ready door, lock, and white cabinet, CT66LWBIIFADA

Accucold by Summit Appliance offers a wide range of undercounter refrigeration for general purpose storage. The CT66JBIADA Series includes refrigerator-freezers designed for optimum storage conditions in built-in applications under lower ADA compliant counters.

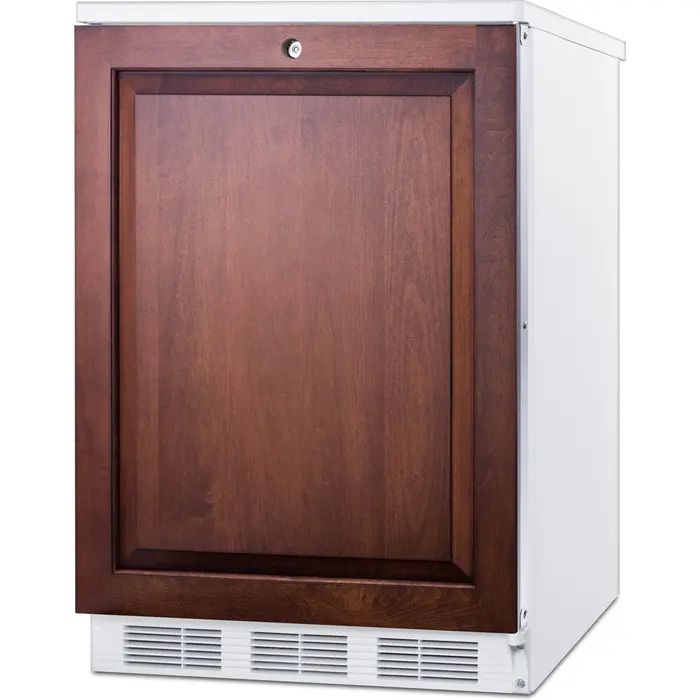

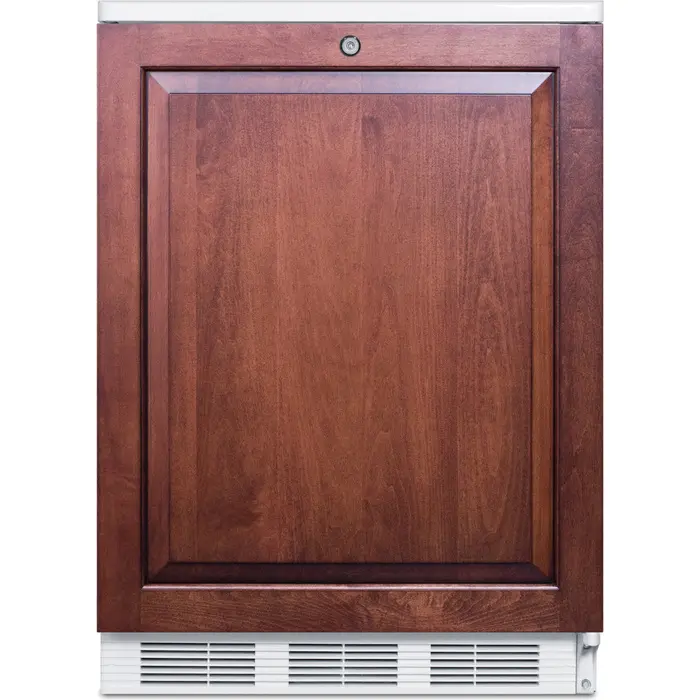

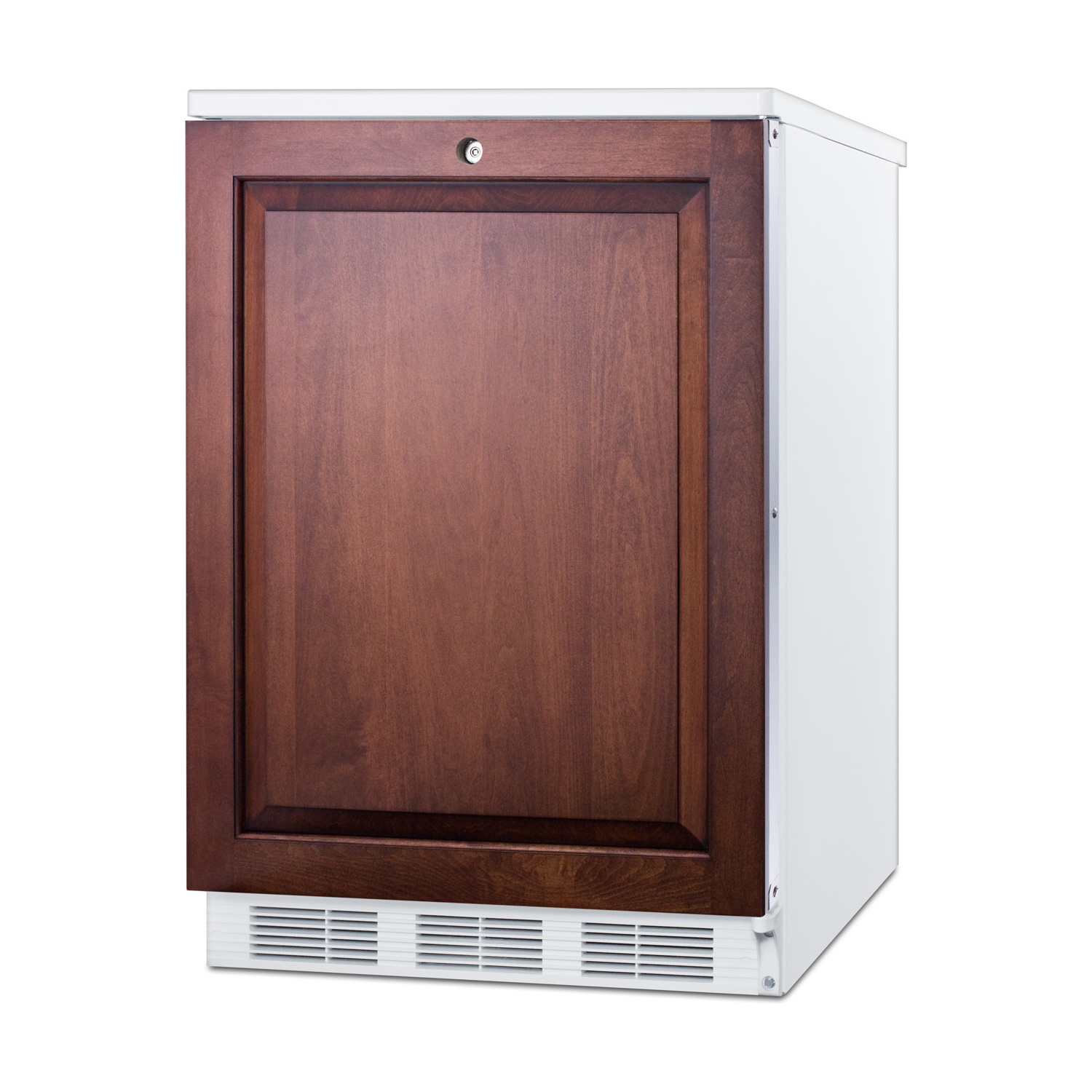

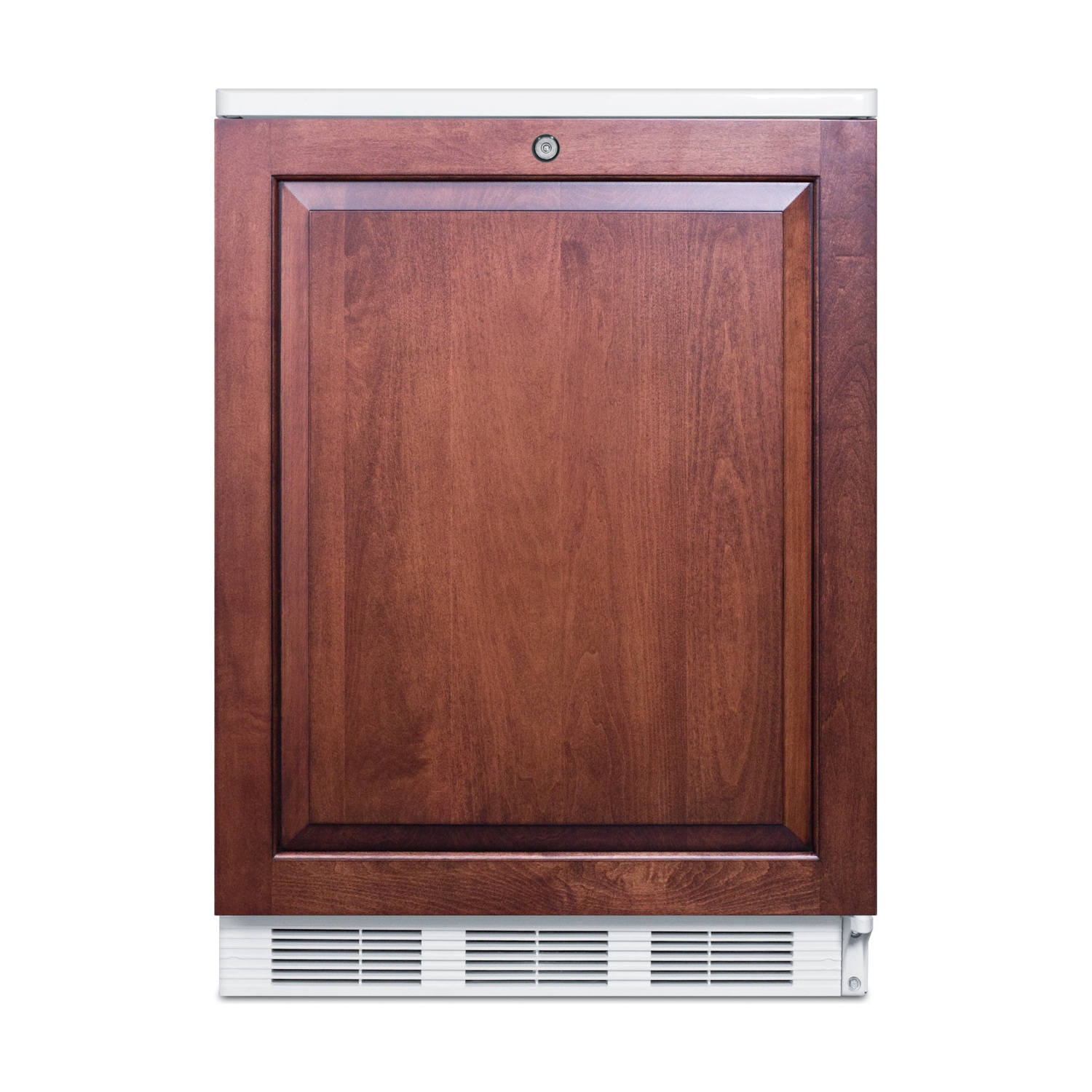

At 32" high, the CT66LWBIIFADA can be used built-in or freestanding in ADA compliant settings. The 24" footprint fits many popular cutouts while offering over 5 cu.ft. of storage capacity. This model has a white cabinet. The factory reversible door includes a lock and an integrated stainless steel frame designed to accept full overlay panels for a custom look. Users provide their own handle.

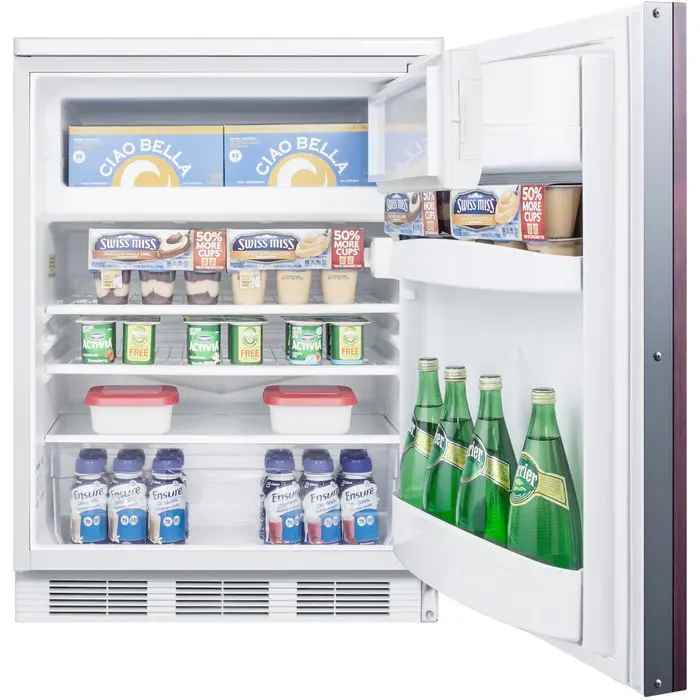

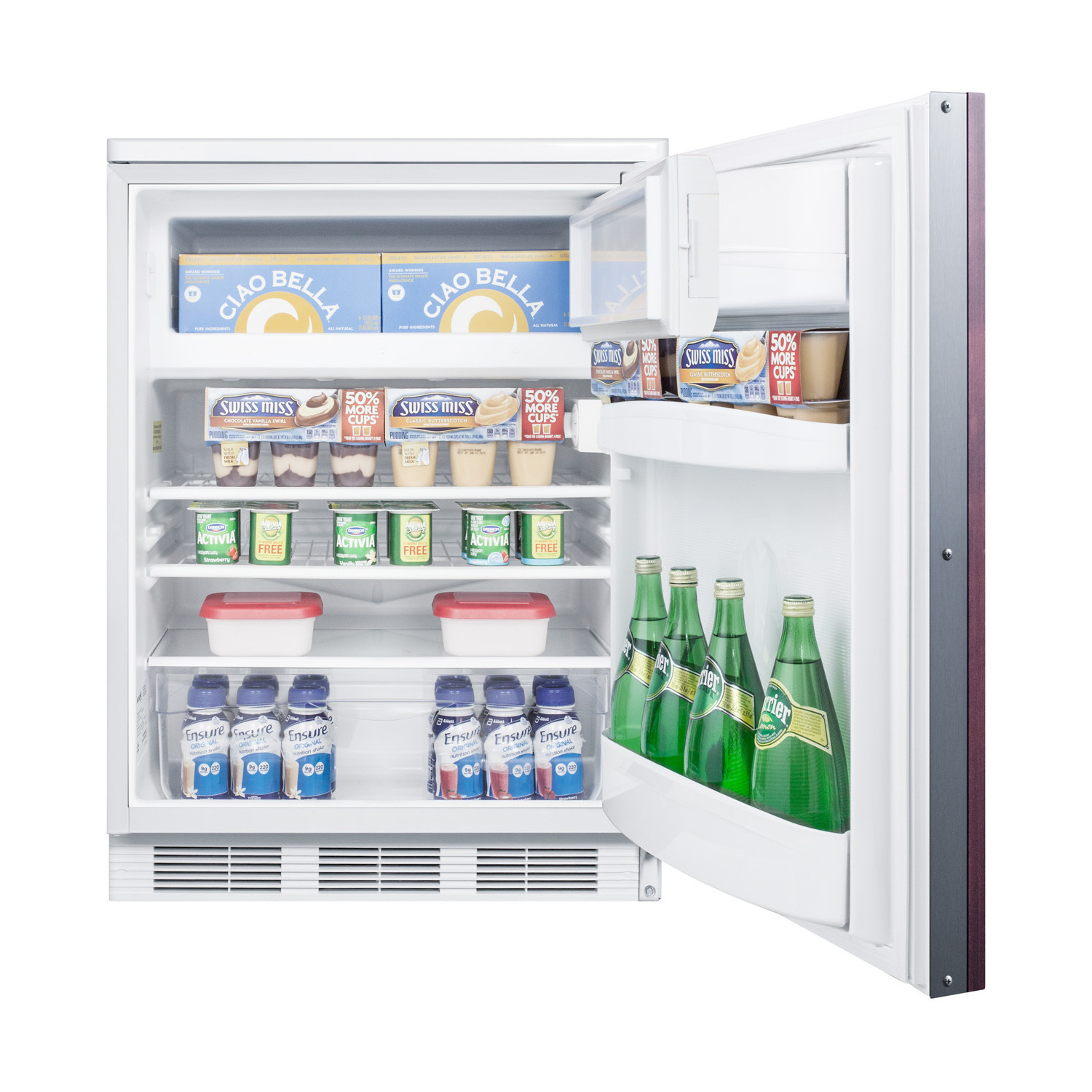

Inside, our unique dual evaporator system separately cools the refrigerator and freezer sections to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, with static manual defrost operation in the freezer compartment. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable shelves, a clear crisper, and automatic interior lighting.

The CT66LWBIIFADA has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full CT66WBIADA Series.

NOTE: This unit is designed for general purpose applications and does not meet DOE energy standards for residential use.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.0" (81 cm)

Height to Hinge Cap 32.38" (82 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.5" (60 cm)

Depth with door at 90° 45.13" (115 cm)

Capacity 5.1 cu.ft. (144 L)

Defrost Type Cycle

Door Panel-Ready

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 1.4

Voltage/Frequency 115 V AC/60 Hz

Weight 100.0 lbs. (45 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101068855

Refrigerator-Freezer

Door Swing RHD

Reversible Factory Reversible

Adjustable Shelves Yes

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Glass

Interior Light Yes

Refrigerator - Interior Height 19.5" (50 cm)

Refrigerator - Interior Width 20.5" (52 cm)

Refrigerator - Interior Depth 17.0" (43 cm)

Refrigerator - Shelf Type Wire

Refrigerator - Shelf Qty 2

Refrigerator - Full Door Shelves 3

Freezer - Interior Height 5.0" (13 cm)

Freezer - Interior Width 19.0" (48 cm)

Freezer - Interior Depth 11.5" (29 cm)

Thermostat Type Dial

Fan Type Exterior

Refrigerant Type R600a

Refrigerant Amount 0.92 oz.

High Side PSI 180.0

Low Side PSI 80.0

Level Legs 4

Compressor Step Height 7.0" (18 cm)

Compressor Step Width 20.5" (52 cm)

Compressor Step Depth 5.0" (13 cm)

FEATURES

ADA compliant 32" high to fit under lower ADA compliant counters

Slim undercounter dimensions Less than 24" wide with a generous storage capacity

Built-in capable Front-breathing design lets you make the best use of space by installing your appliance under the counter

Fully finished white cabinet Allows the unit to be used freestanding

Factory installed lock Keyed security on the refrigerator door

Integrated door frame Stainless steel door frame accepts full overlay panels to match adjacent cabinetry (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)

Cycle defrost This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment

Dual evaporator Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators

Adjustable thermostat Dial thermostat located inside for easy temperature management

Door storage Store tall bottles and condiments right on the door for convenient access

Clear crisper drawer Get the longest life and best taste out of produce by storing greens in a bottom crisper

Interior light Automatically illuminates when you open the door

Adjustable shelves Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals
