Summit Built-in undercounter refrigerator-freezer for residential use, cycle defrost with black stainless steel wrapped door, horizontal handle, and black cabinet, CT663BKBIKSHH

SUMMIT brings quality and value under the counter with the industry’s largest collection of built-in refrigeration. The CT663BBI Series features residential refrigerator-freezers made in Europe and designed for reliable cold storage in any home kitchen.

Sized with a 24" footprint, CT663BKBIKSHH refrigerator-freezer offers a generous 5.1 cu.ft. storage capacity, a larger interior than many units in this size class. The front-breathing design allows built-in installation under counters, while the fully finished black cabinet also enables freestanding use.

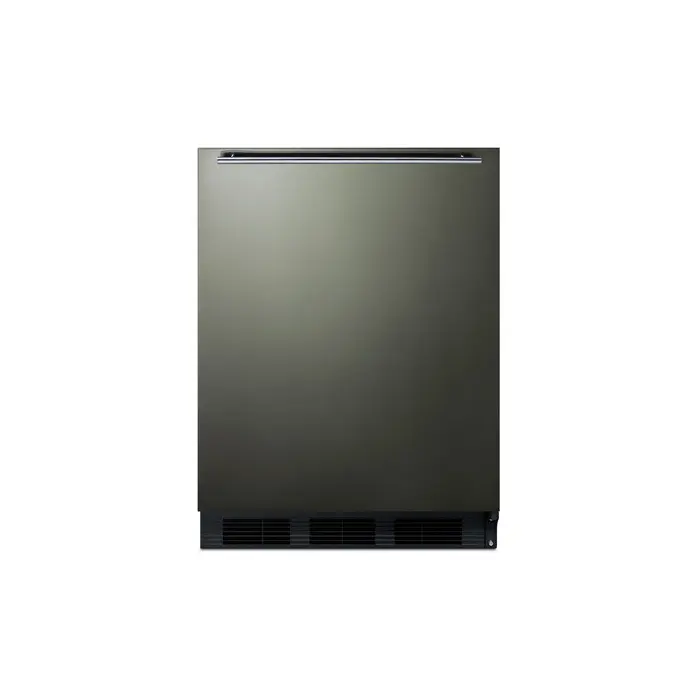

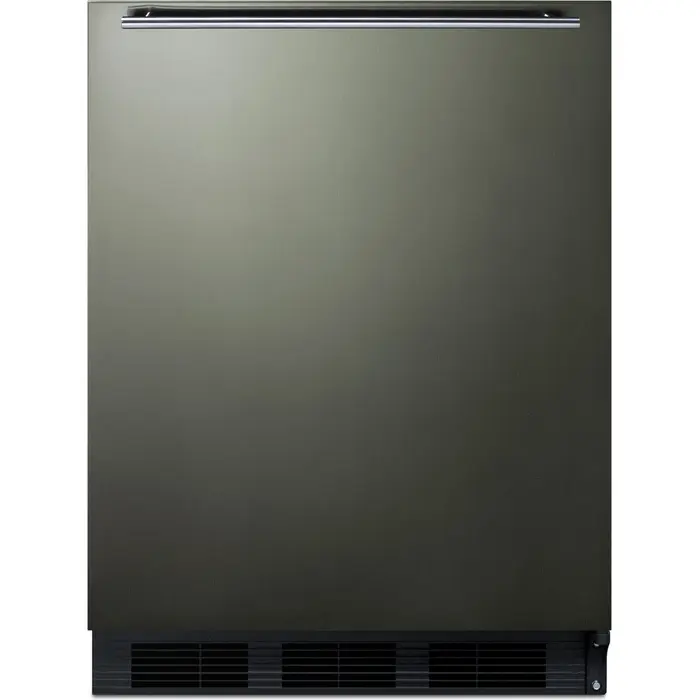

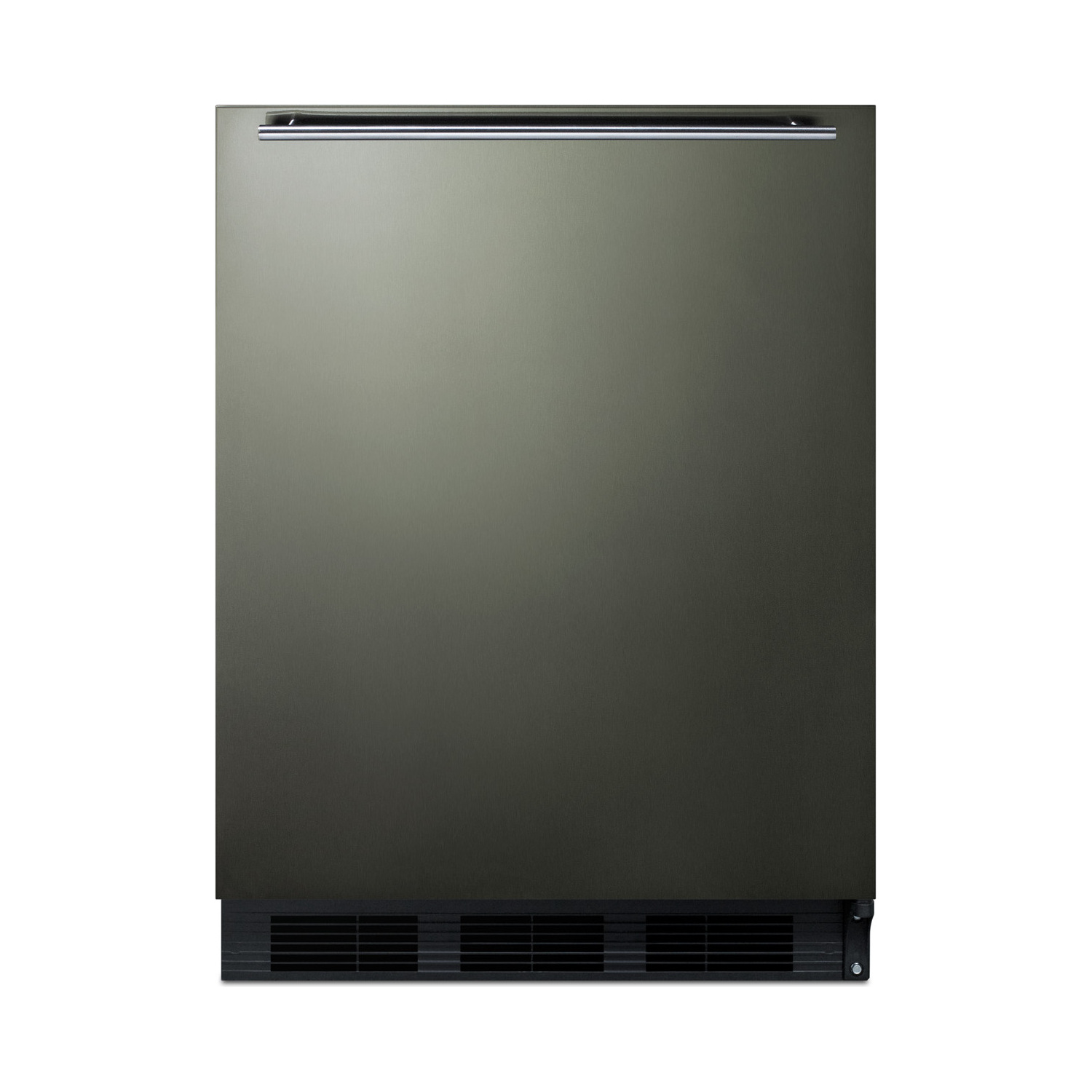

The CT663BKBIKSHH comes in our new black stainless steel finish from our exclusive basalt collection. The wrapped door is made from 304 grade stainless steel with a high gloss finish in a neutral hue to perfectly accent or complement your kitchen design. The door is strongly resistant to most fingerprints and can easily be wiped clean with a dry cloth. Our signature thin handle in brushed stainless steel is mounted horizontally to complete the modern look.

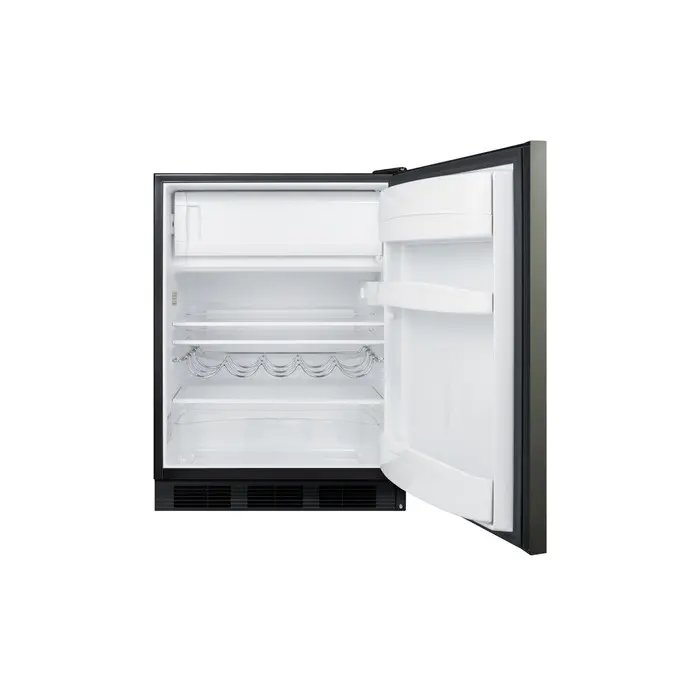

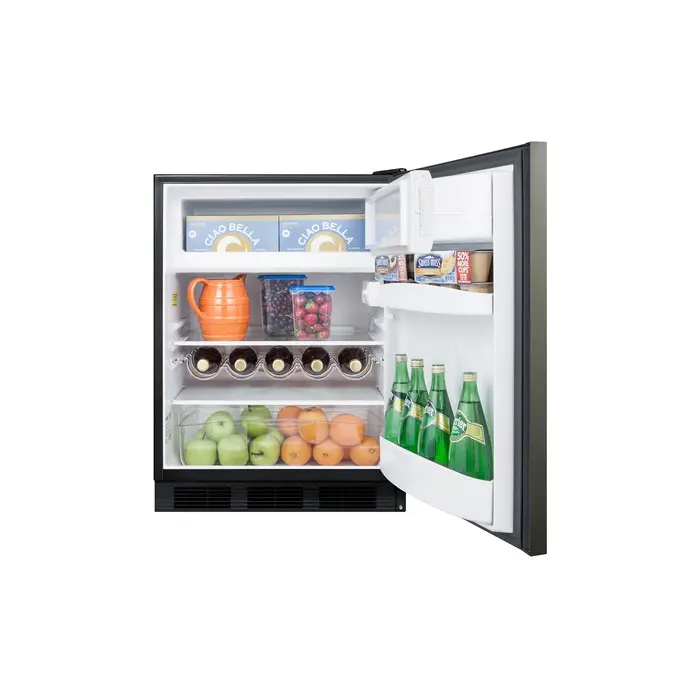

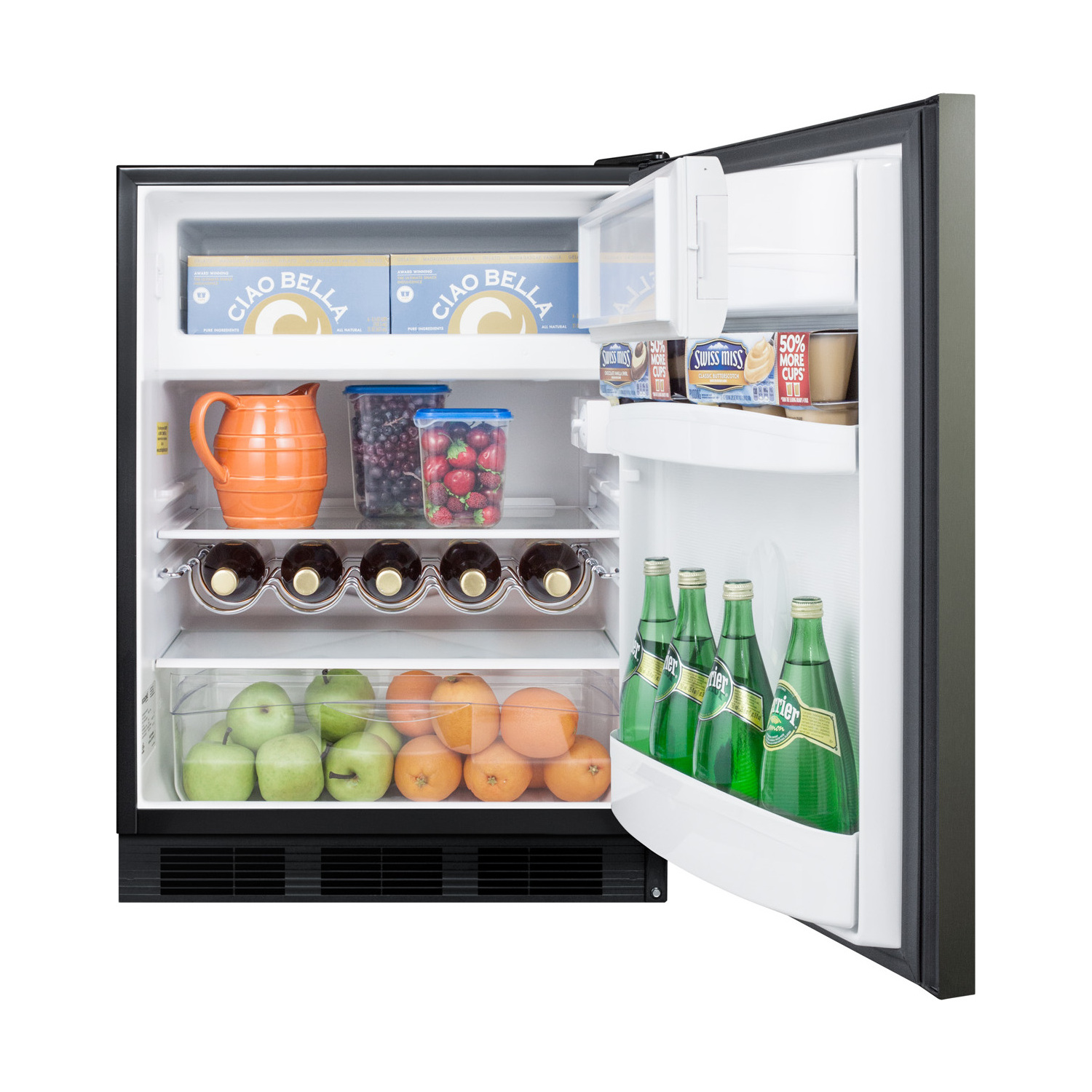

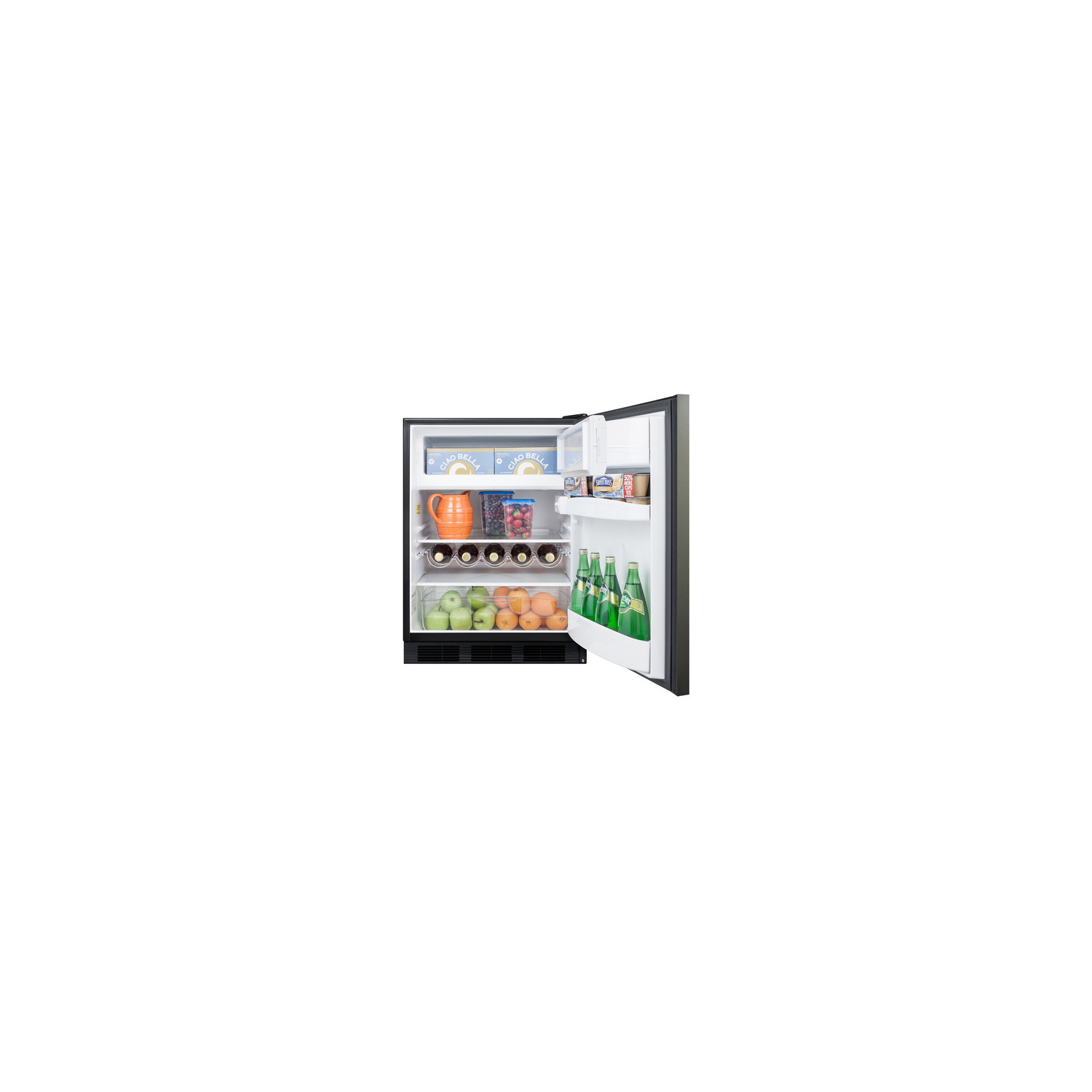

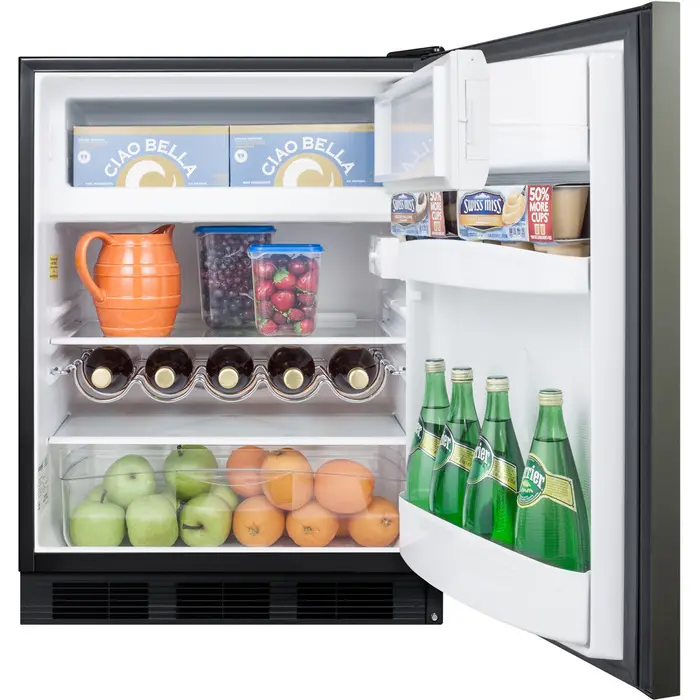

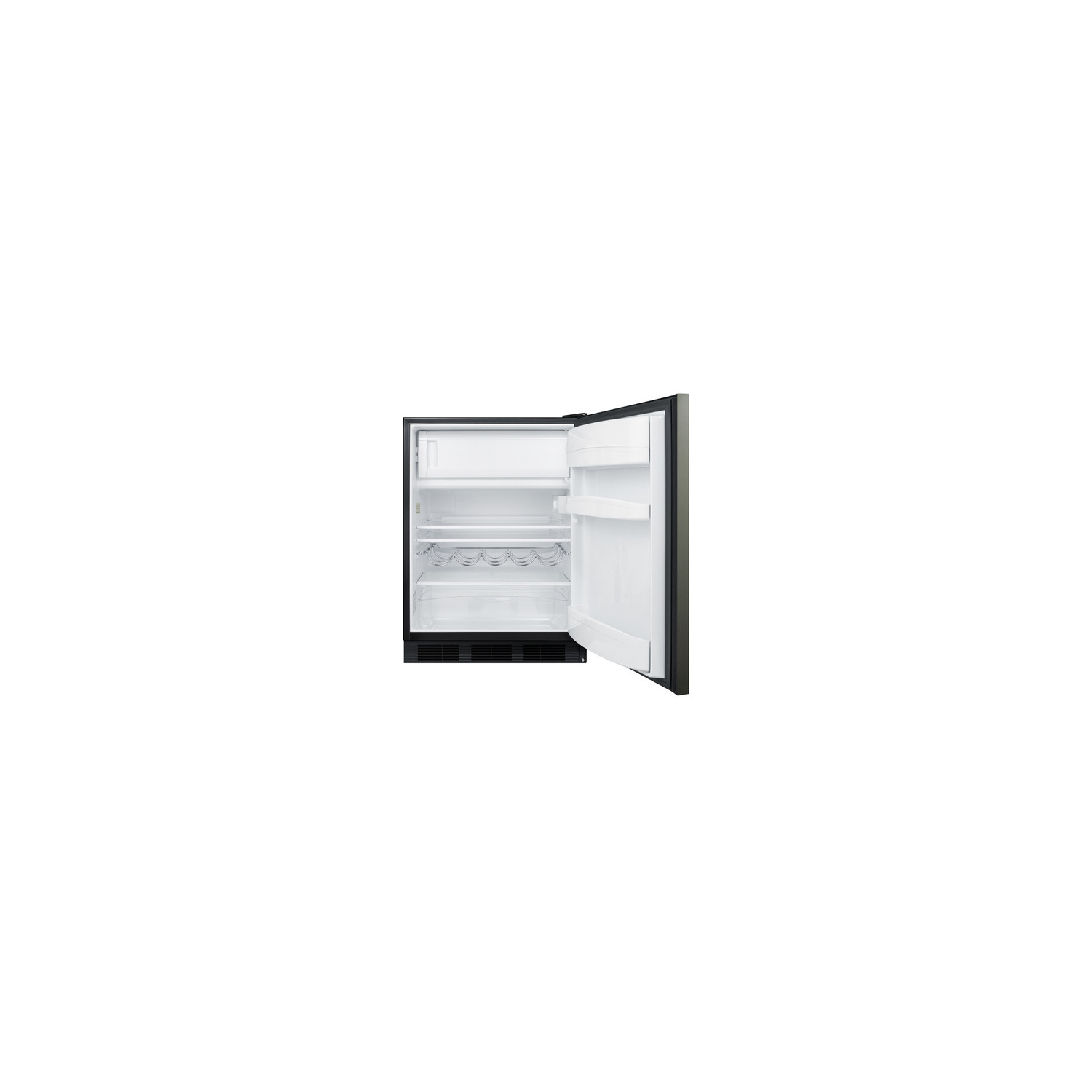

Inside, the CT663BKBIKSHH features a dual evaporator to allow separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for ice cream and other frozen food. The deluxe interior includes adjustable glass shelves for spill-proof storage and easier cleaning, as well as a scalloped wine shelf to hold wine and champagne bottles safely in place. Door racks offer additional convenience for tall bottles and condiments and a clear crisper drawer ensures your produce is stored under the ideal conditions. This model includes automatic interior lighting and an adjustable dial thermostat.

With its ideal dimensions and user-friendly features, the CT663BKBIKSHH is the perfect refrigerator-freezer for any home in need of versatile storage under the counter.

NOTE: Black stainless steel may vary slightly in appearance from the image displayed, as it has a reflective quality that can be affected by surrounding colors and textures. Summit's black stainless steel comes with a high gloss finish and is not designed as a direct match to other brands.

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 33.25" (84 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.5" (60 cm)

Depth with door at 90° 45.38" (115 cm)

Capacity 5.1 cu.ft. (144 L)

Defrost Type Cycle

Door Black Stainless Steel

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 365.0kWh/year

Amps 1.4

Voltage/Frequency 115 V AC/60 Hz

Weight 100.0 lbs. (45 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101068565

Refrigerator-Freezer

Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Glass

Wine Bottle Shelving Yes

Interior Light Yes

Refrigerator - Interior Height 18.0" (46 cm)

Refrigerator - Interior Width 21.0" (53 cm)

Refrigerator - Interior Depth 18.0" (46 cm)

Refrigerator - Capacity 4.5 cu.ft

Refrigerator - Shelf Type Glass

Refrigerator - Shelf Qty 2

Refrigerator - Full Door Shelves 3

Freezer - Interior Height 5.25" (13 cm)

Freezer - Interior Width 19.0" (48 cm)

Freezer - Interior Depth 11.5" (29 cm)

Freezer - Capacity 0.6 cu.ft

Thermostat Type Dial

Fan Type Exterior

Refrigerant Type R600a

Refrigerant Amount 0.92 oz.

High Side PSI 180.0

Low Side PSI 80.0

Level Legs 4

Compressor Step Height 5.5" (14 cm)

Compressor Step Width 21.0" (53 cm)

Compressor Step Depth 6.0" (15 cm)

FEATURES

Built-in capable Make the best use of space by installing your appliance under the counter and flush with other cabinetry

Slim undercounter dimensions Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit

Black stainless steel wrapped door 304 grade stainless steel in a high gloss neutral finish from our basalt collection; note: due to the reflective quality of our door finish, this color may appear different under different lighting and surrounding conditions

Fingerprint resistant Door wipes clean with a dry cloth, while the dark basalt finish hides most smudges

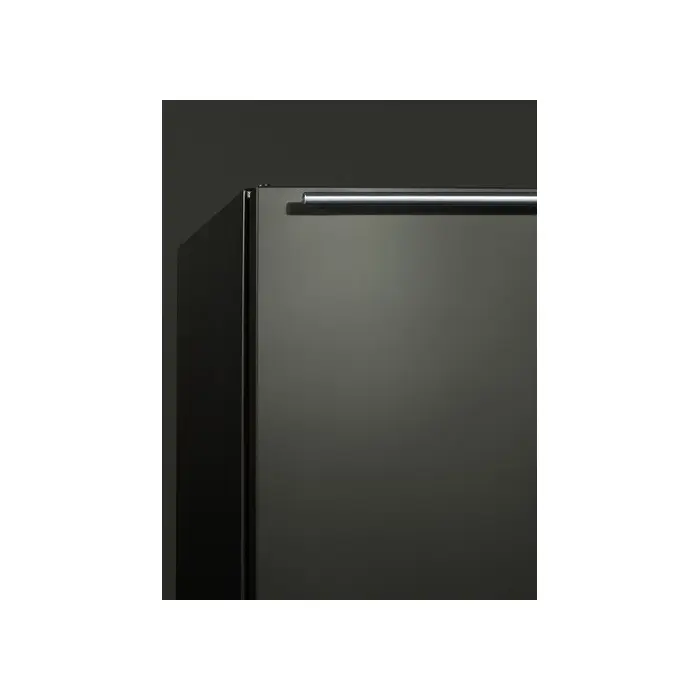

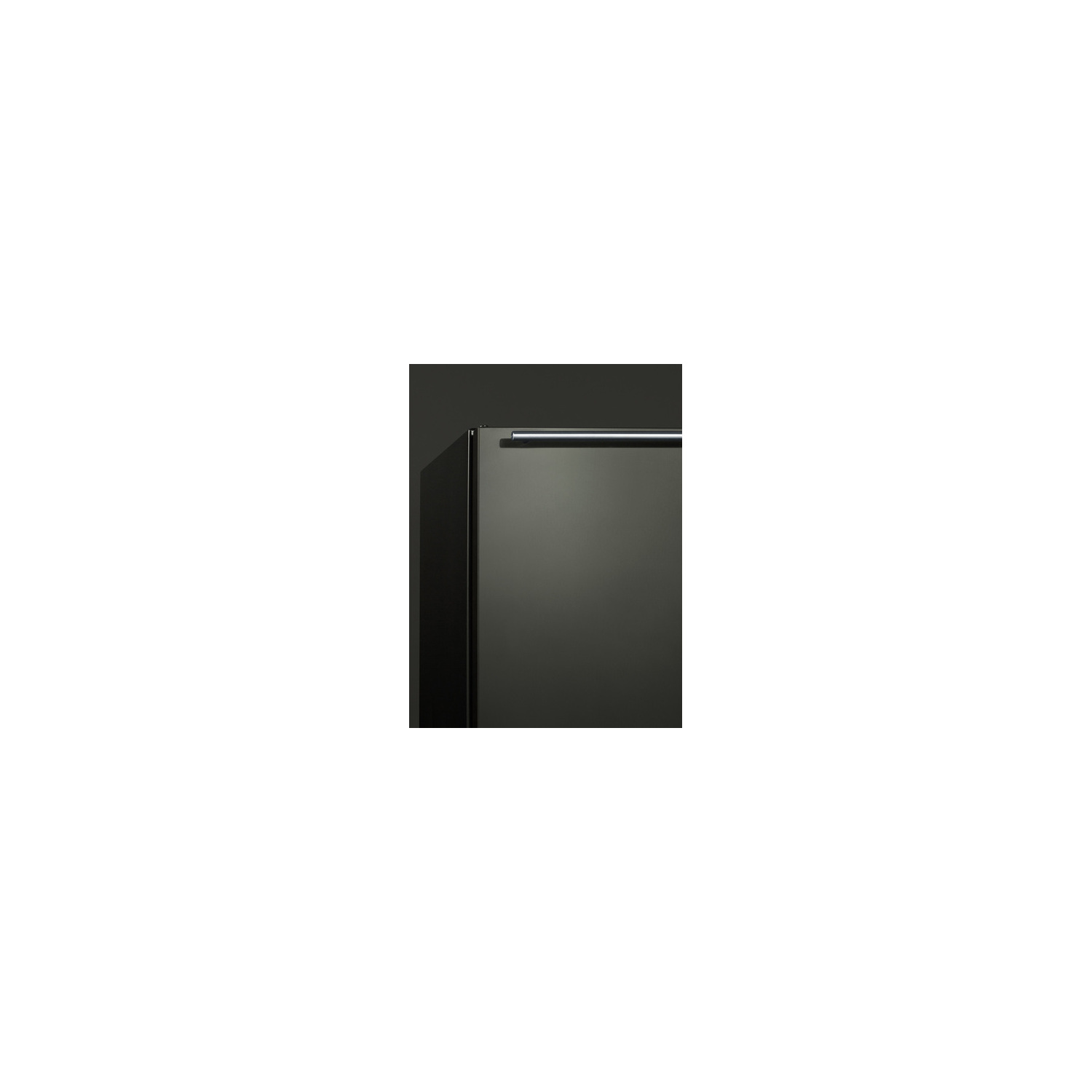

Professional horizontal handle Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look

Cycle defrost Combines an automatic defrost refrigerator with a manual defrost freezer to save unit energy and user maintenance

Dual evaporator cooling Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators

Adjustable glass shelves Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup

Door shelves Store tall bottles and condiments right on the door for convenient access

Wine shelf Removable scalloped wine shelf is included to store champagne and wine bottles

Crisper drawer Get the longest life and best taste out of produce by storing greens in lower slide drawer

Interior light Automatically illuminates when the door is opened

Hidden evaporator Cold wall design with hidden evaporator creates a seamless, easy to clean interior

Adjustable thermostat Dial thermostat located inside for easy temperature management

Reversible door User-reversible door swing for added flexibility

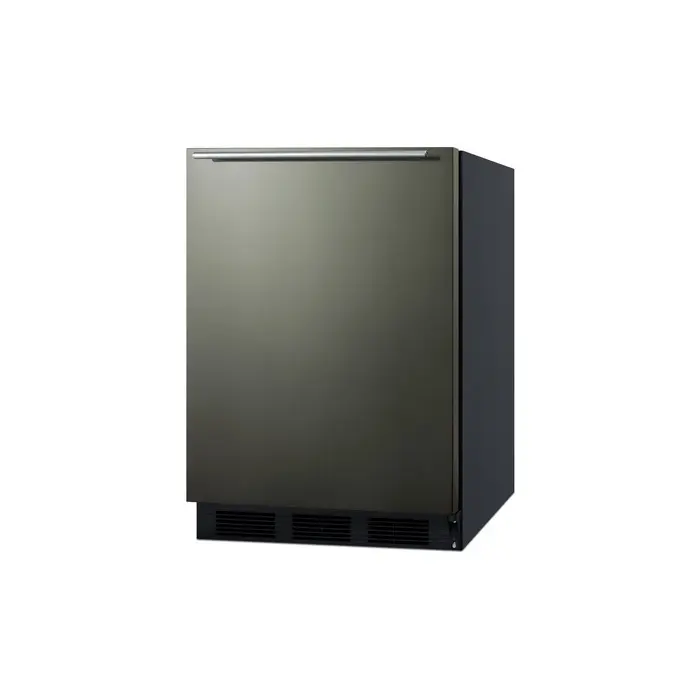

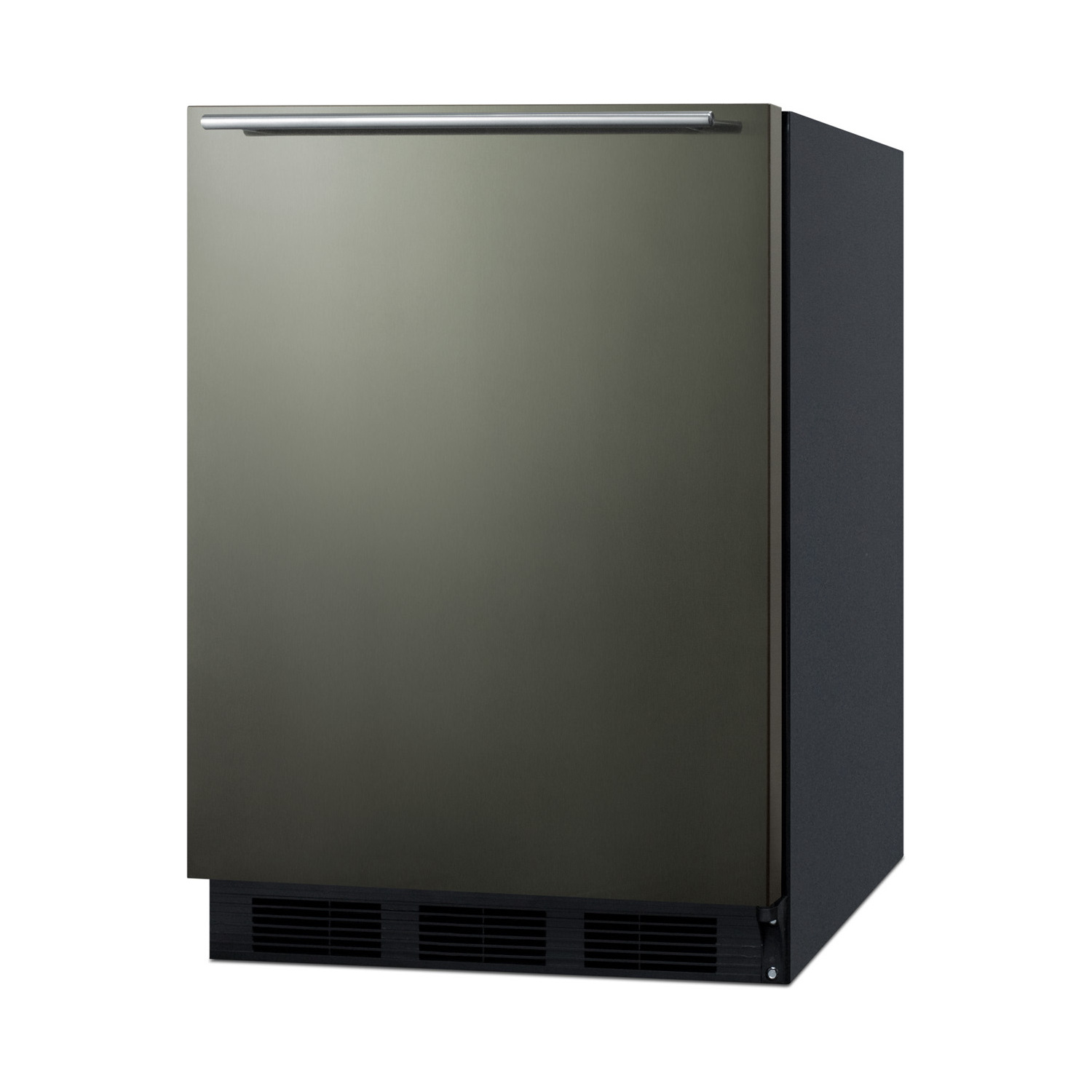

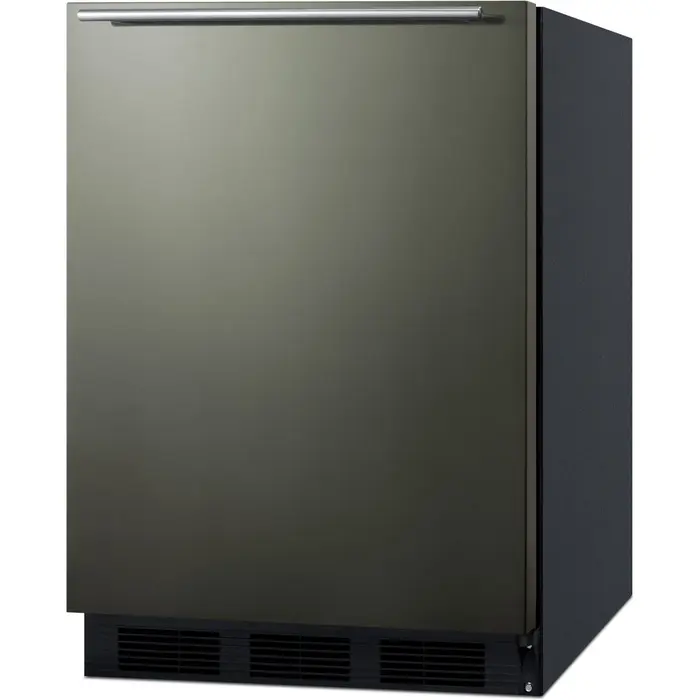

Fully finished black cabinet Allows the unit to be used freestanding

Height Adjustable Adjustable legs allow the unit to be sized from 32 1/2" to 34" high

100% CFC free Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
