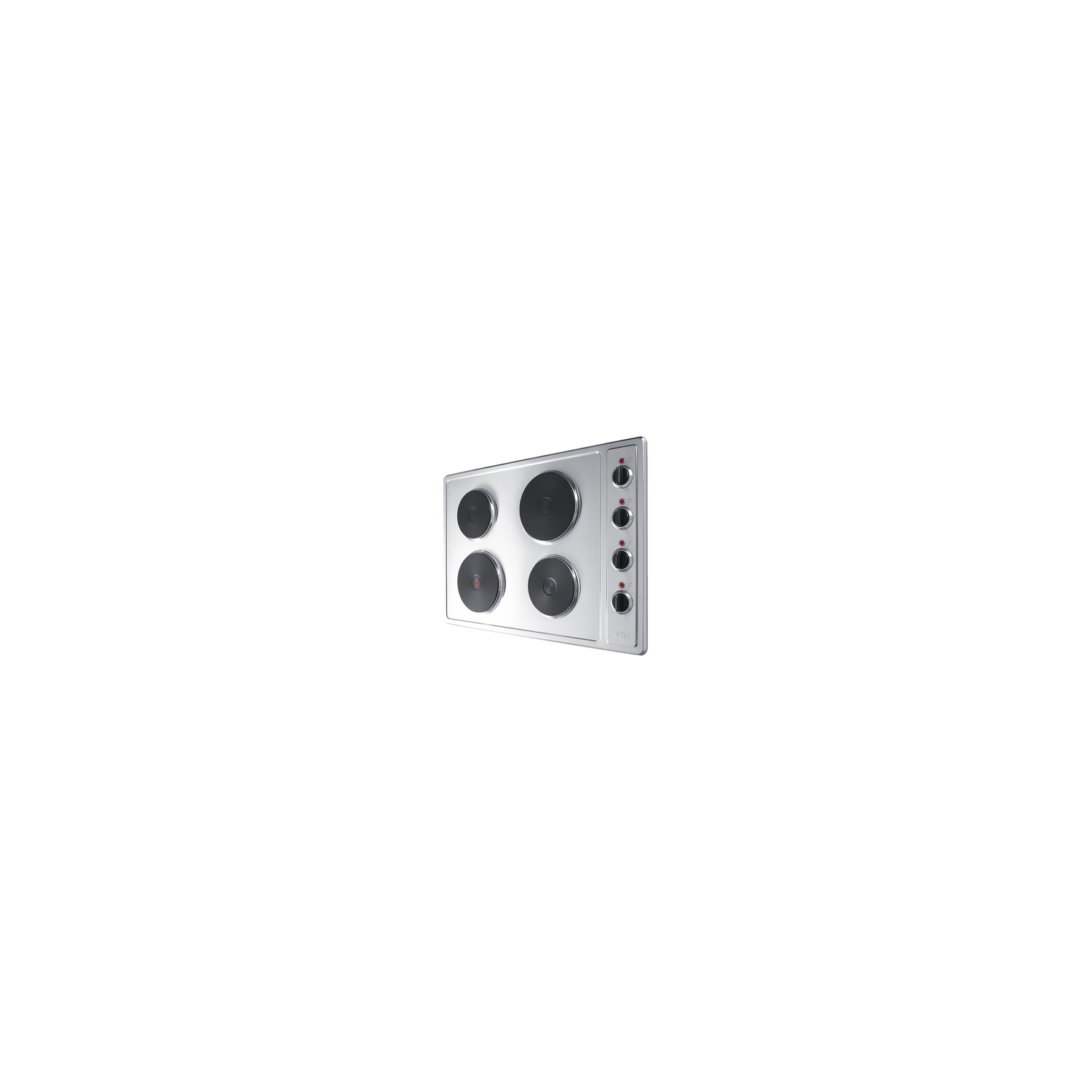

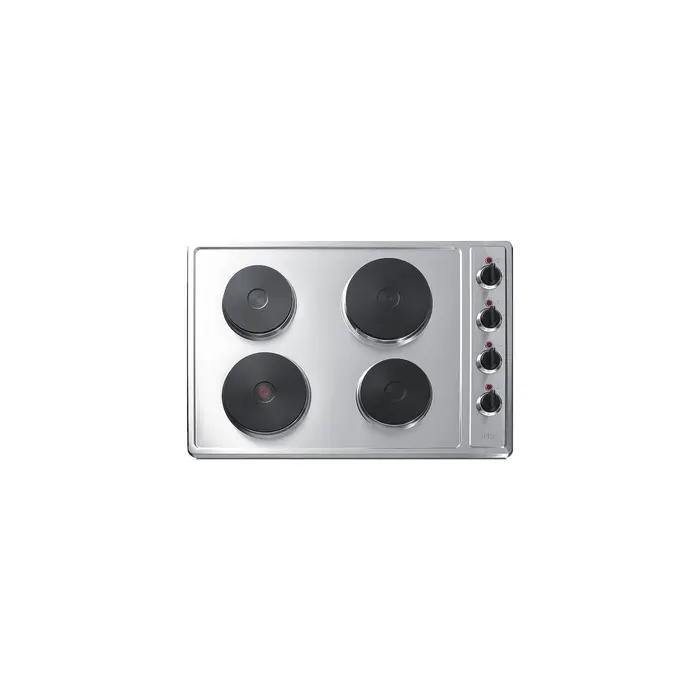

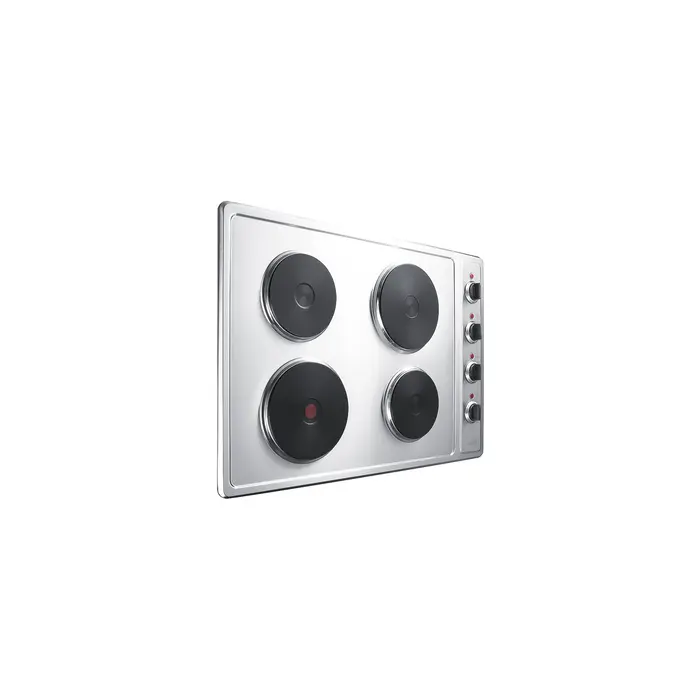

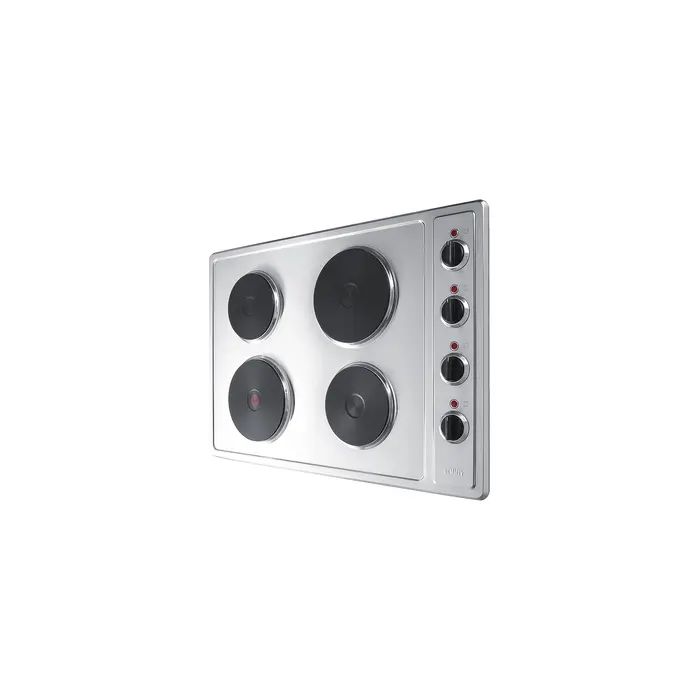

Summit 30 inch wide 4-burner solid disk cooktop in stainless steel, 7.61101e+011, CSD4B300
$528.80
Retail Price: $670.00
Free shipping
$ 528.80
Description
Summit's selection of electric cooktops offers the perfect fit for every application.

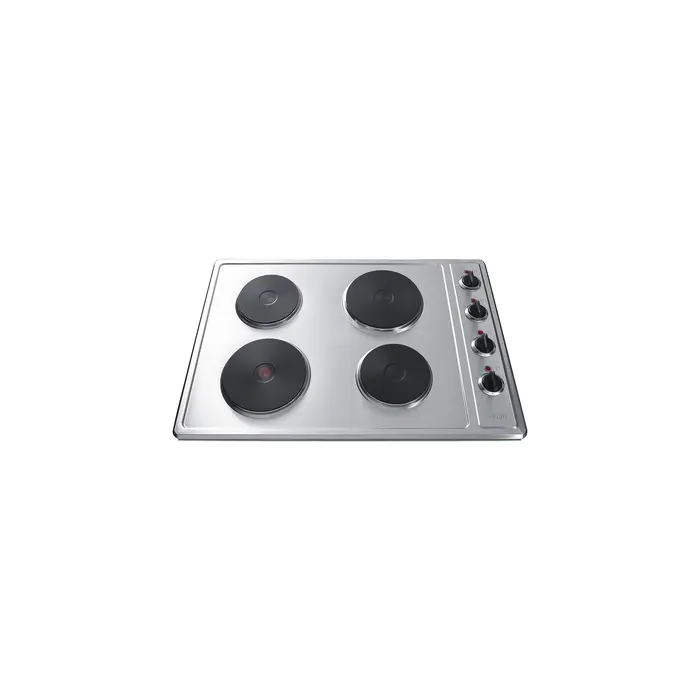

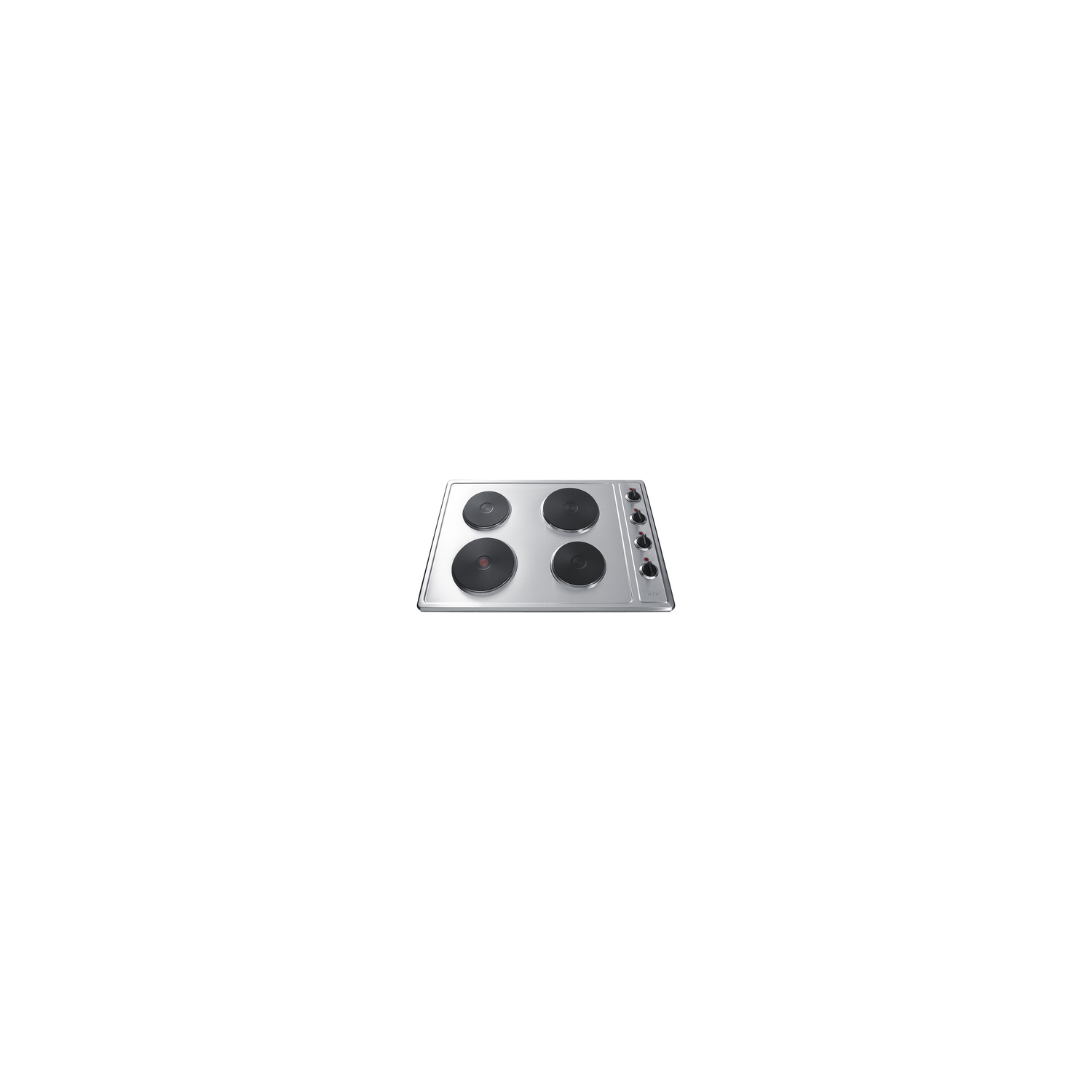

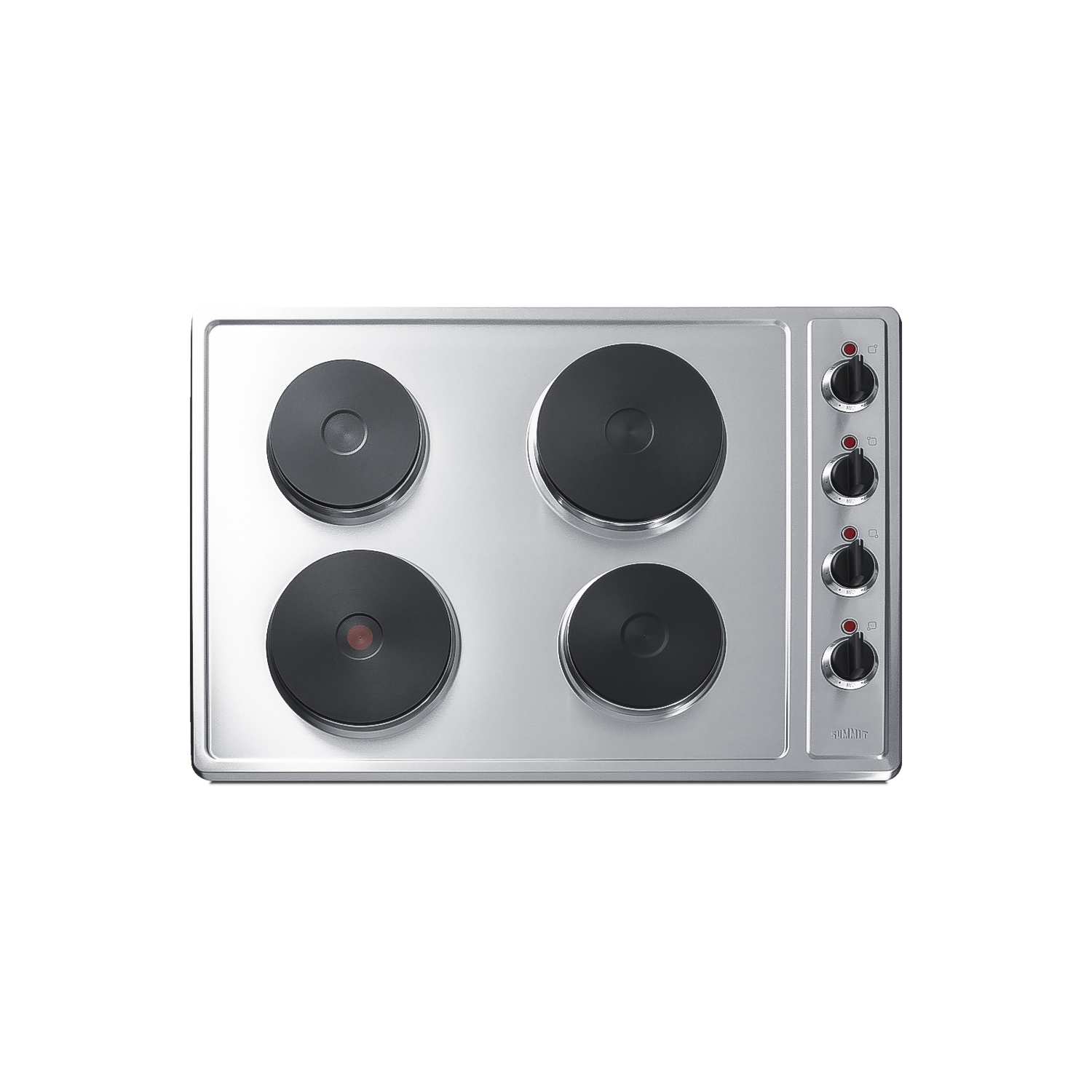

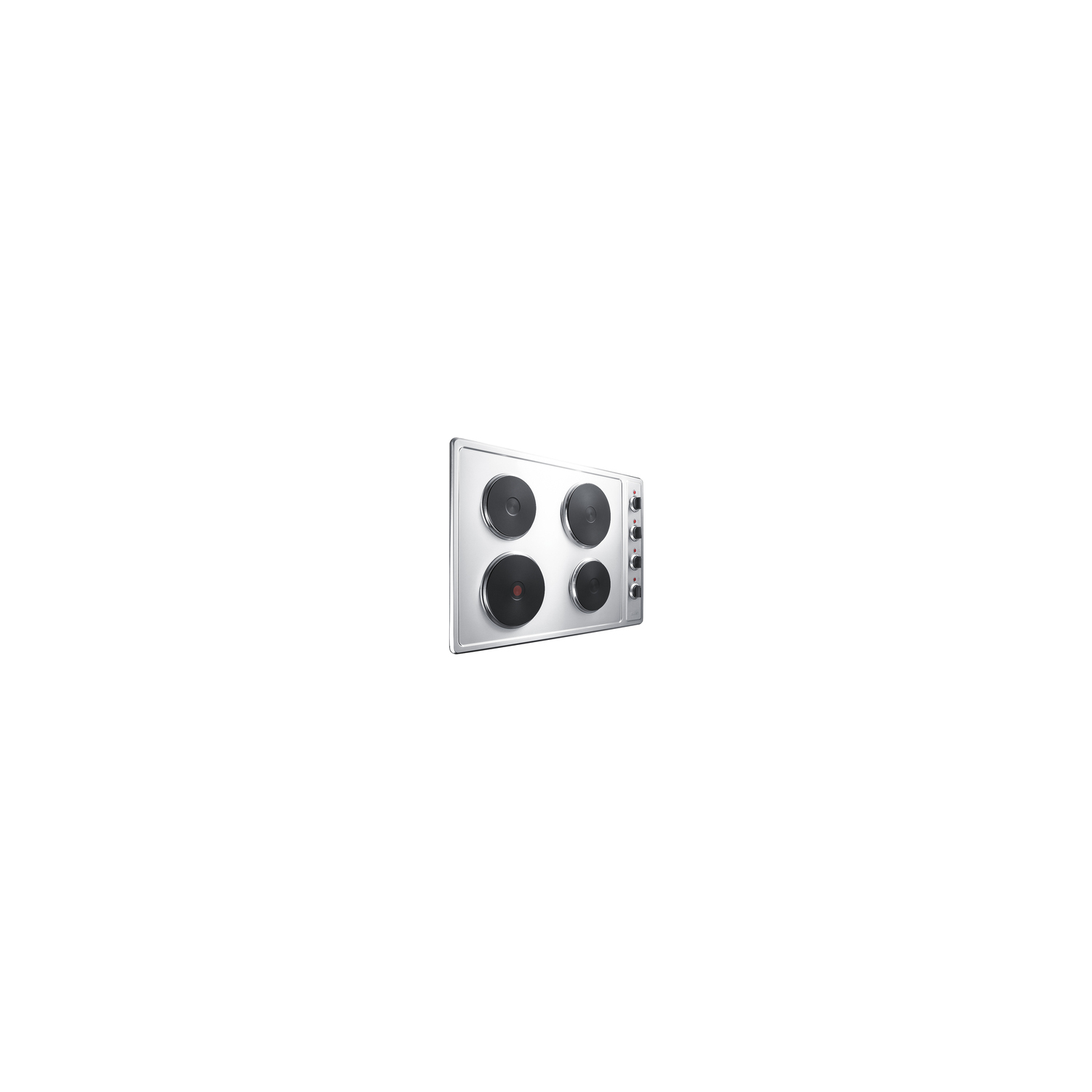

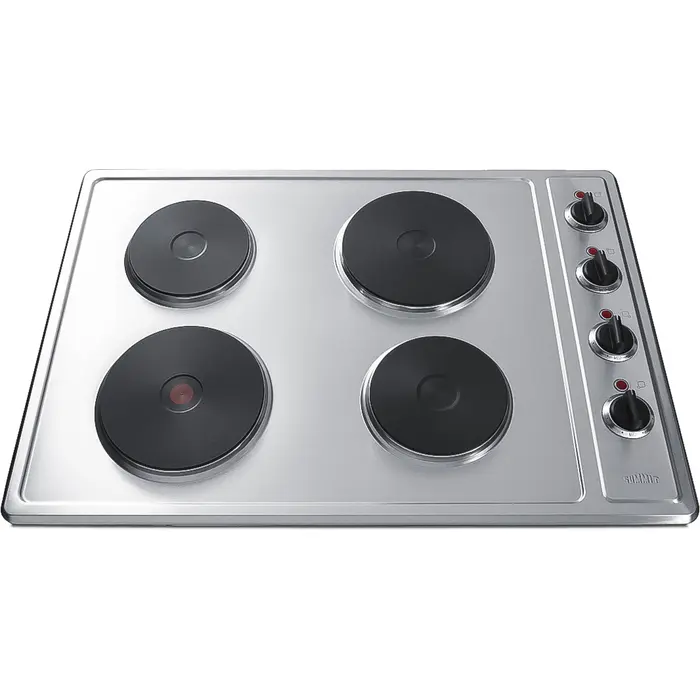

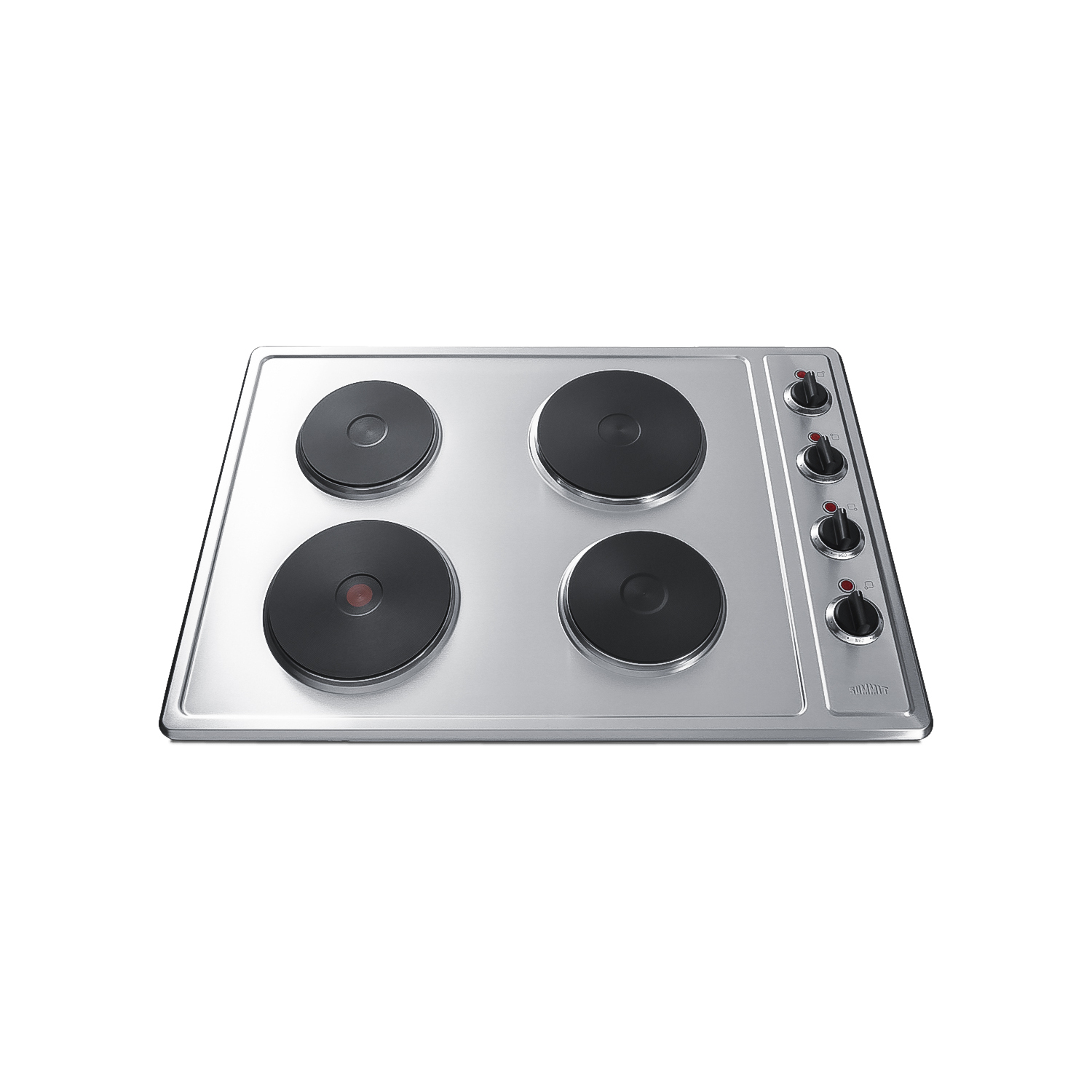

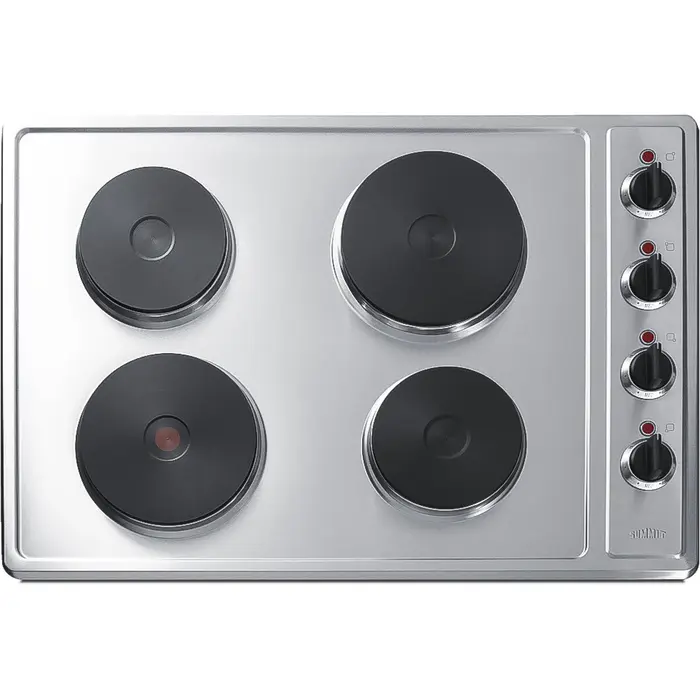

Sized at 30" wide, the CSD4B300 is a 230V cooktop with four solid disk elements. The surface comes in brushed stainless steel for an attractive look built to last. The element located in the front left side is 8" wide, with 2000W of cooking power ideal for larger cookware. The rear 1500W 8" element also accommodates full-sized pots and pans, while two 1000W 6" heating elements meet most general heating needs.

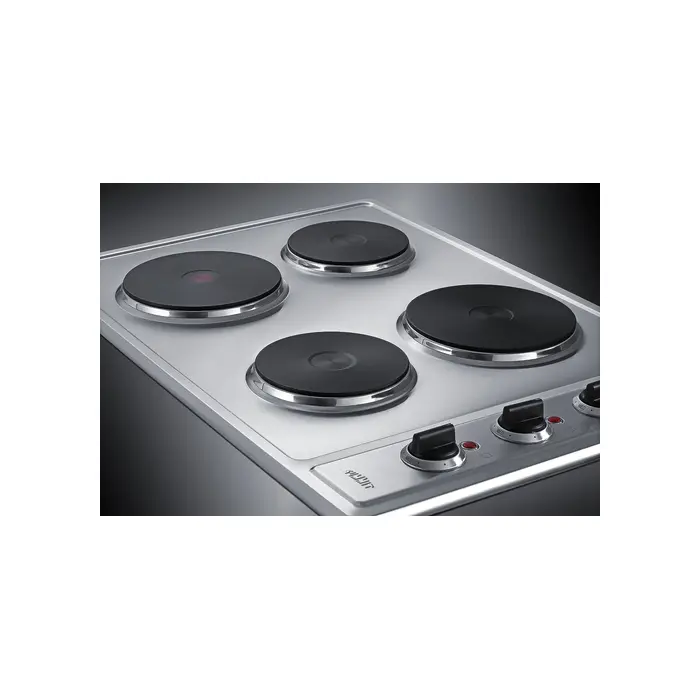

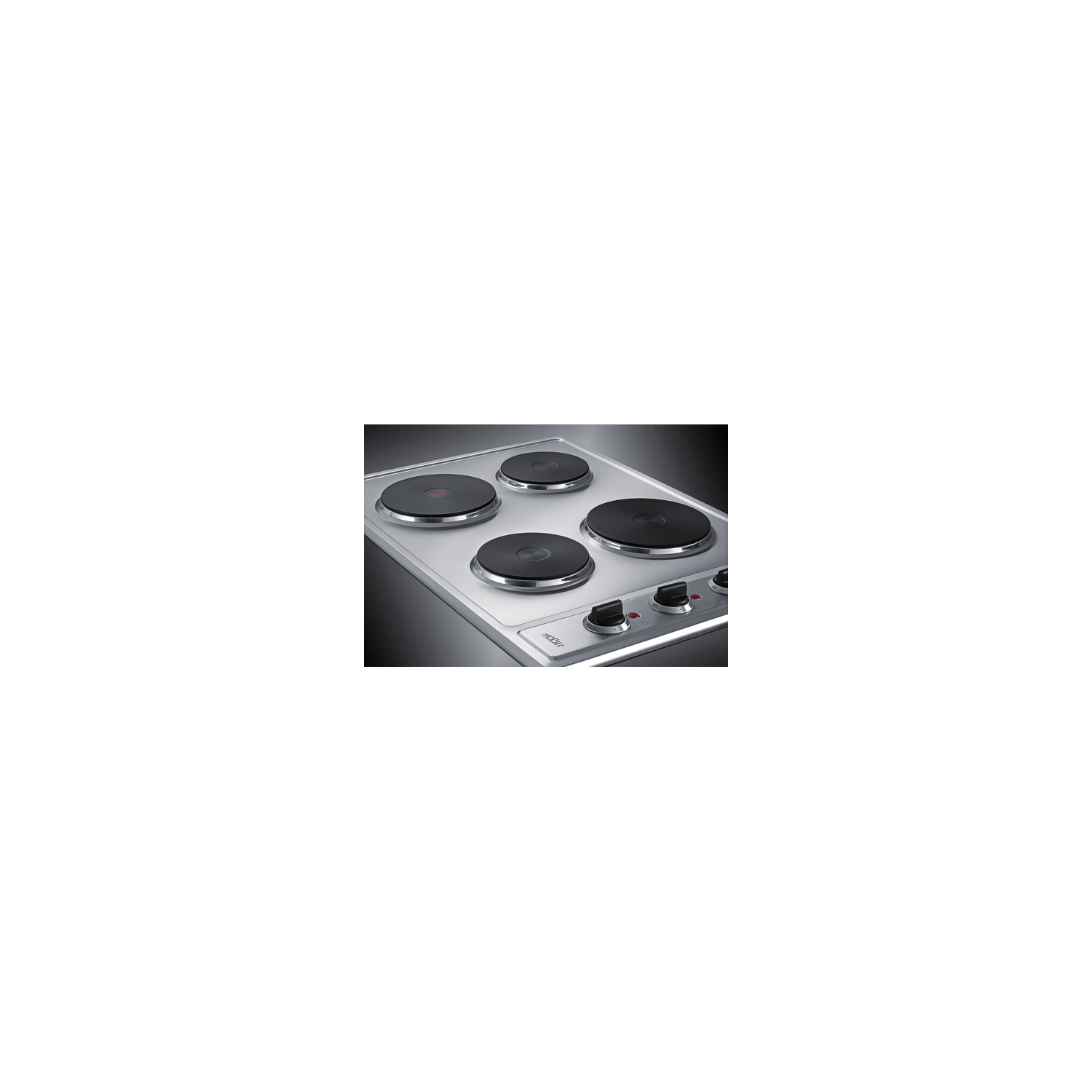

The solid disk elements are constructed from cast iron, ensuring extreme durability. These elements also retain heat longer than traditional coil or glass top surfaces, making them ideal for keeping the contents in your pots and pans warmer before serving. Even heat distribution helps to improve your cooking results. This unit includes push-to-turn knobs and an "on" indicator light for each burner for added safety.

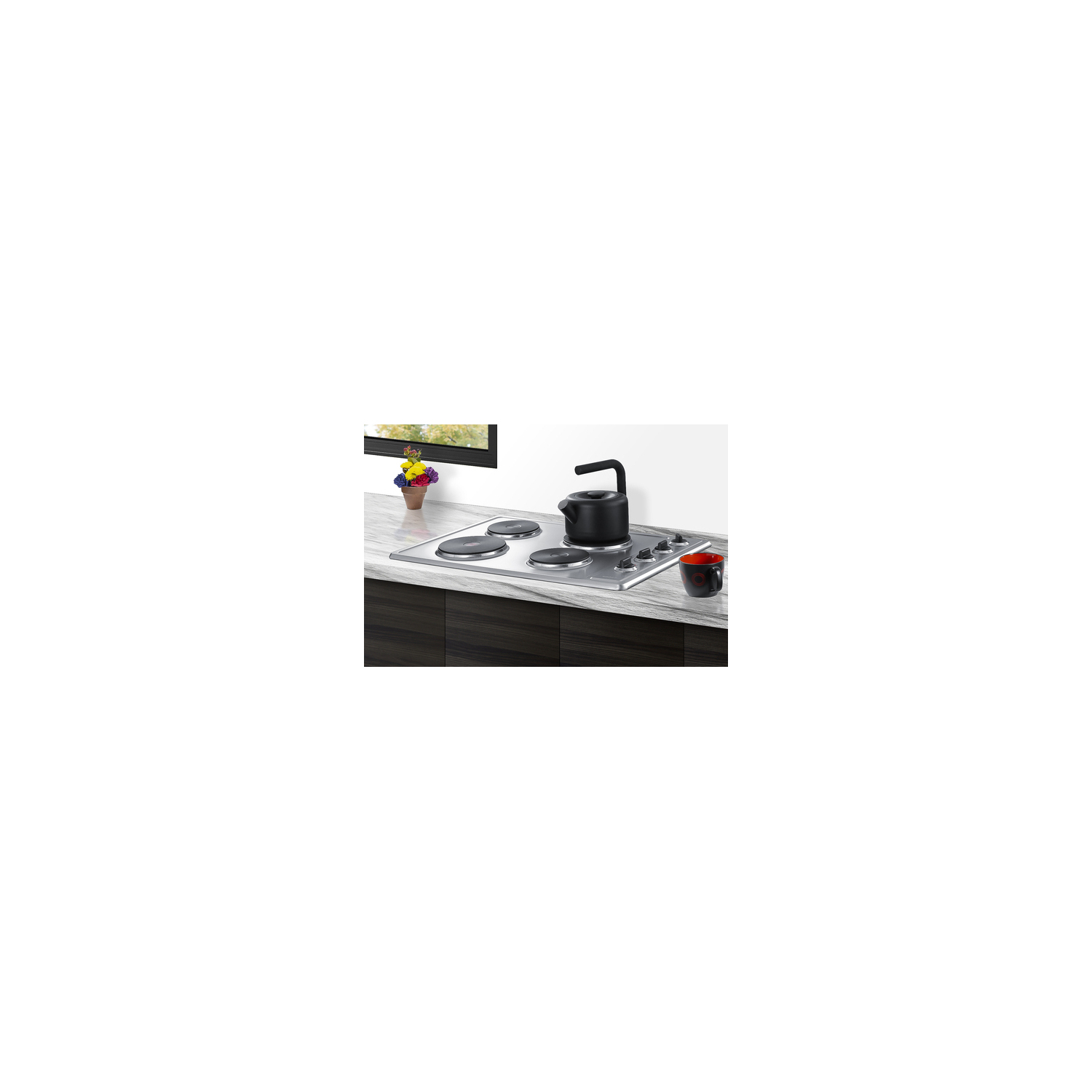

With its modern style and durable design, the CSD4B300 is a great choice for hotels, mobile homes, tiny houses, and other small kitchens with specific cooking needs. This is a 230V cooktop that requires professional installation. Additional sizes are available in solid disk, as well as traditional radiant, coil, induction, and gas. Browse the full Summit product line to explore your options.
SPECIFICATIONS
Overview
Nominal Height 2.75" (7 cm)
Height of Cabinet 2.75" (7 cm)
Nominal Width 30.0" (76 cm)
Width 29.63" (75 cm)
Nominal Depth 21.0" (53 cm)
Depth 20.38" (52 cm)
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 23.0
Voltage/Frequency 230 V AC/60 Hz
Weight 26.0 lbs. (12 kg)
Parts & Labor Warranty 1 Year
UPC 761101089478
Electric Cooktop
Heating Type Radiant
Surface Stainless Steel
Element Type Cast Iron
Number of Elements 4
Controls Dial
Countertop Cutout Height 4.13" (10 cm)
Countertop Cutout Width 28.5" (72 cm)
Countertop Cutout Depth 19.75" (50 cm)
Power Source 230V
Element #1 Size 8.0" (20 cm)
Element #1 Wattage 2000.0
Element #2 Size 6.0" (15 cm)
Element #2 Wattage 1000.0
Element #3 Size 8.0" (20 cm)
Element #3 Wattage 1500.0
Element #4 Size 6.0" (15 cm)
Element #4 Wattage 1000.0
Power Cord Included No
FEATURES
4-Burner Electric Cooktop 30" wide 230V cooktop with four solid disk heating elements
Solid disk elements Popular in Europe, solid disk cooktops offer even heat distribution and longer heat retention for a uniquely efficient cooking experience
Stainless steel finish Surface is made from stainless steel for an attractive and easy to clean look
Durable cast iron design Solid metal elements hold up to heavy duty use
Easier cleanup Fully sealed cast iron elements offer easier cleanup than traditional coil elements
Two 6" elements 1000W elements accommodate most lighter cooking needs
Two 8" elements Front left 2000W element and rear right 1500W element offer a wide diameter and higher cooking power for large pots and pans
Push-to-turn controls Knobs require a small amount of force to help prevent accidents
Side knobs Cooktop knobs are located on the right side of the cooktop, reducing the risk of accidentally adjusting the heating in busy kitchens
Indicator lights Operating indicators light up to show which burner is in use

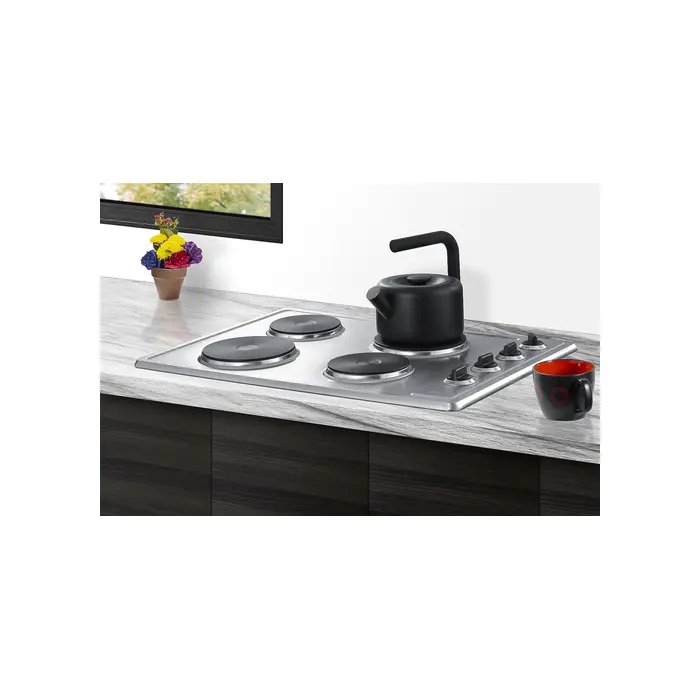

Designed for built-in installation Fits common counter cutout sizes that are 28.5" W x 19 3/4" D
230V operation Professional installation required
DOWNLOADS
BROCHURE w/ DRAWINGS (CSD4B300.pdf)
TECHNICAL DRAWING (.dwg) (CSD4B300.dwg)
