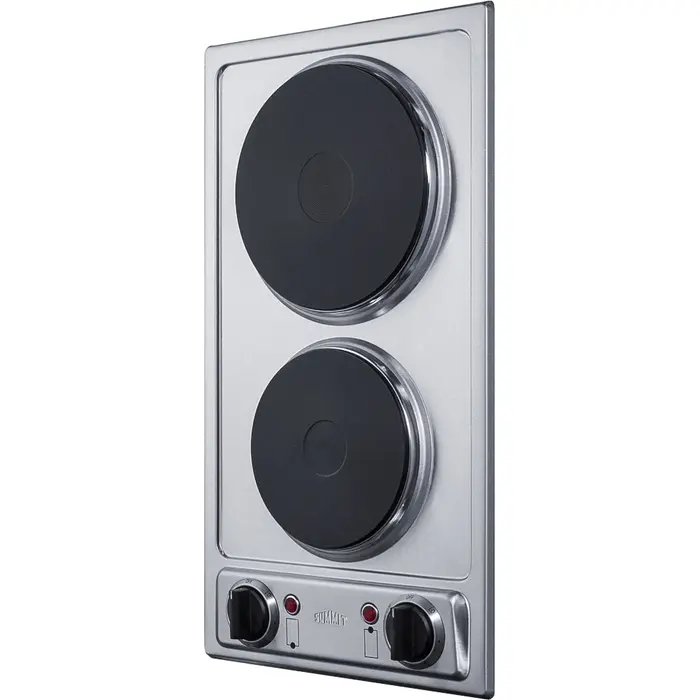

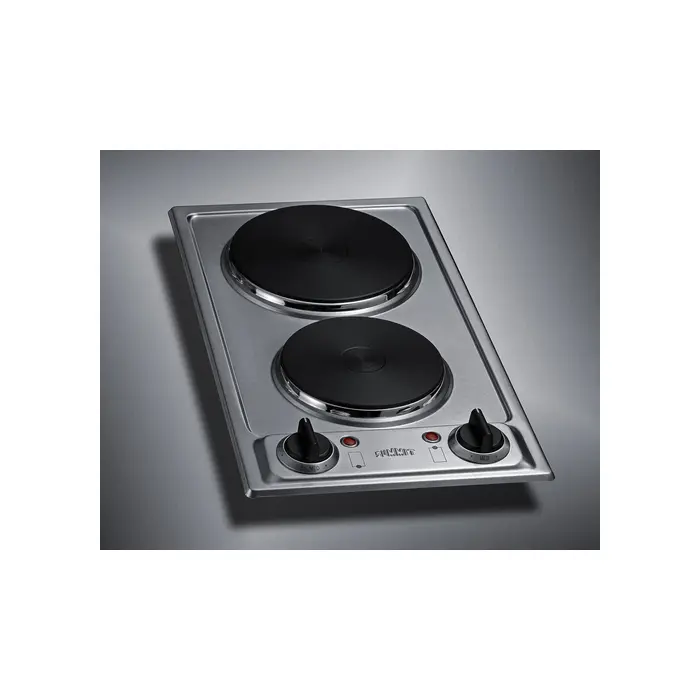

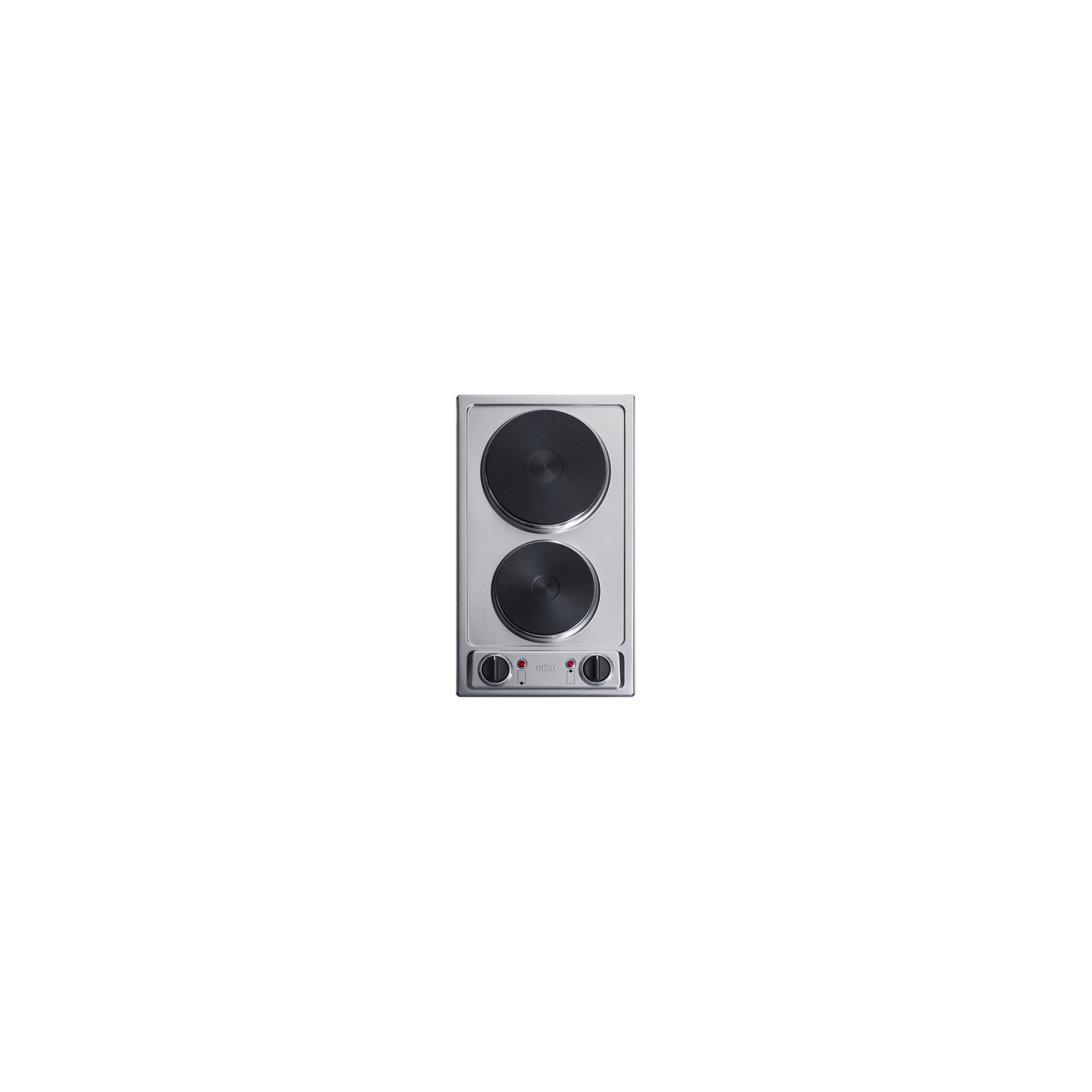

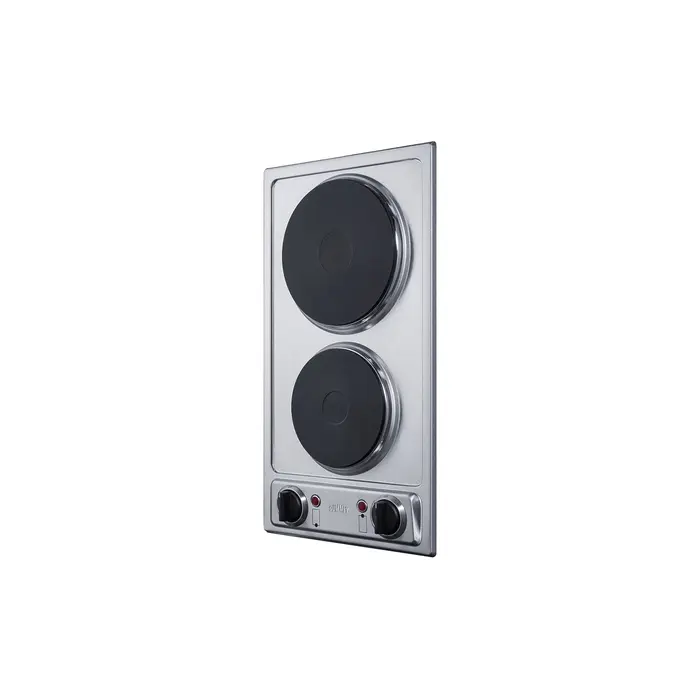

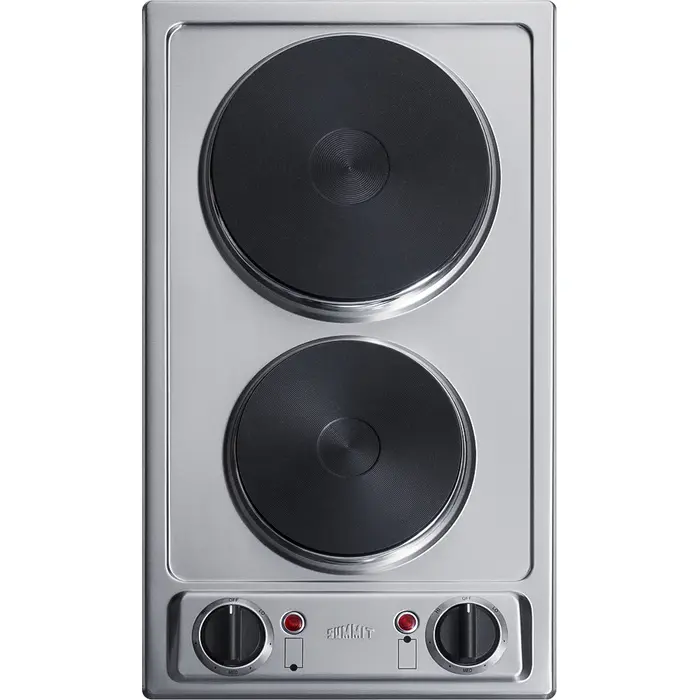

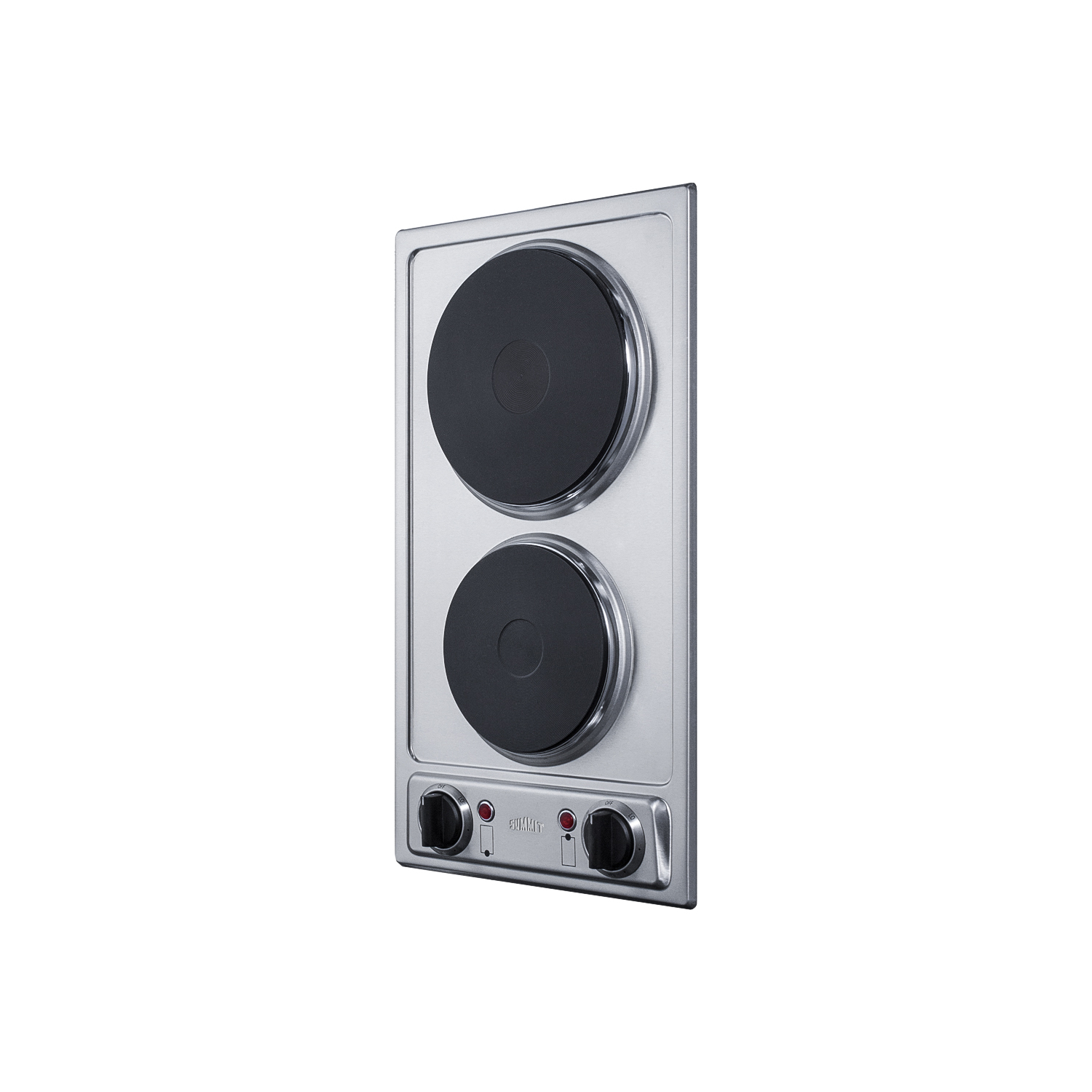

Summit 115V 2-burner solid disk cooktop in stainless steel with pre-installed cord and plug, 7.61101e+011, CSD2B115
$366.51
Retail Price: $415.00
Free shipping
$ 366.51
Description
Summit's selection of electric 115V cooktops offers the perfect fit for every application, including our unique line of solid disk elements designed for maximum durability.

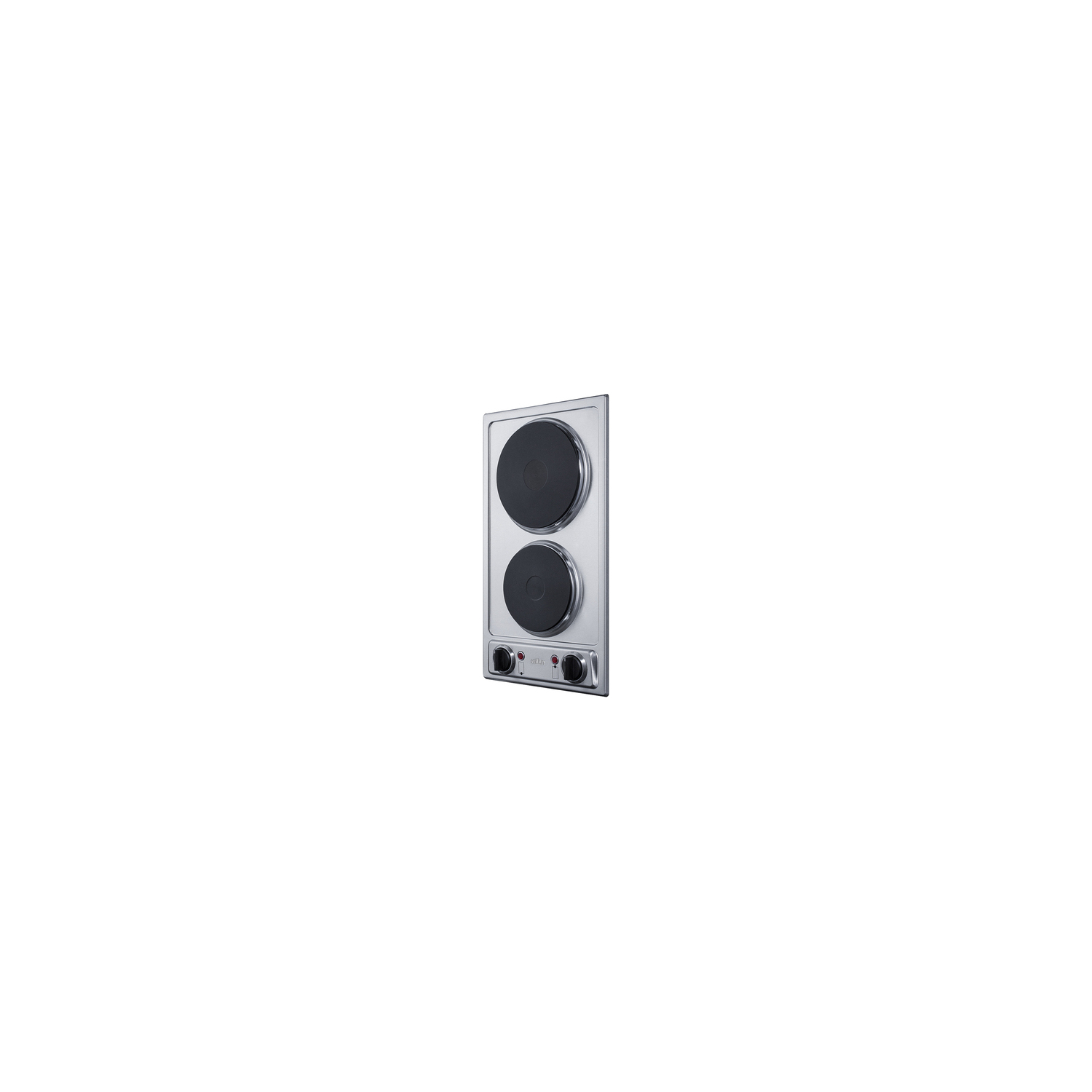

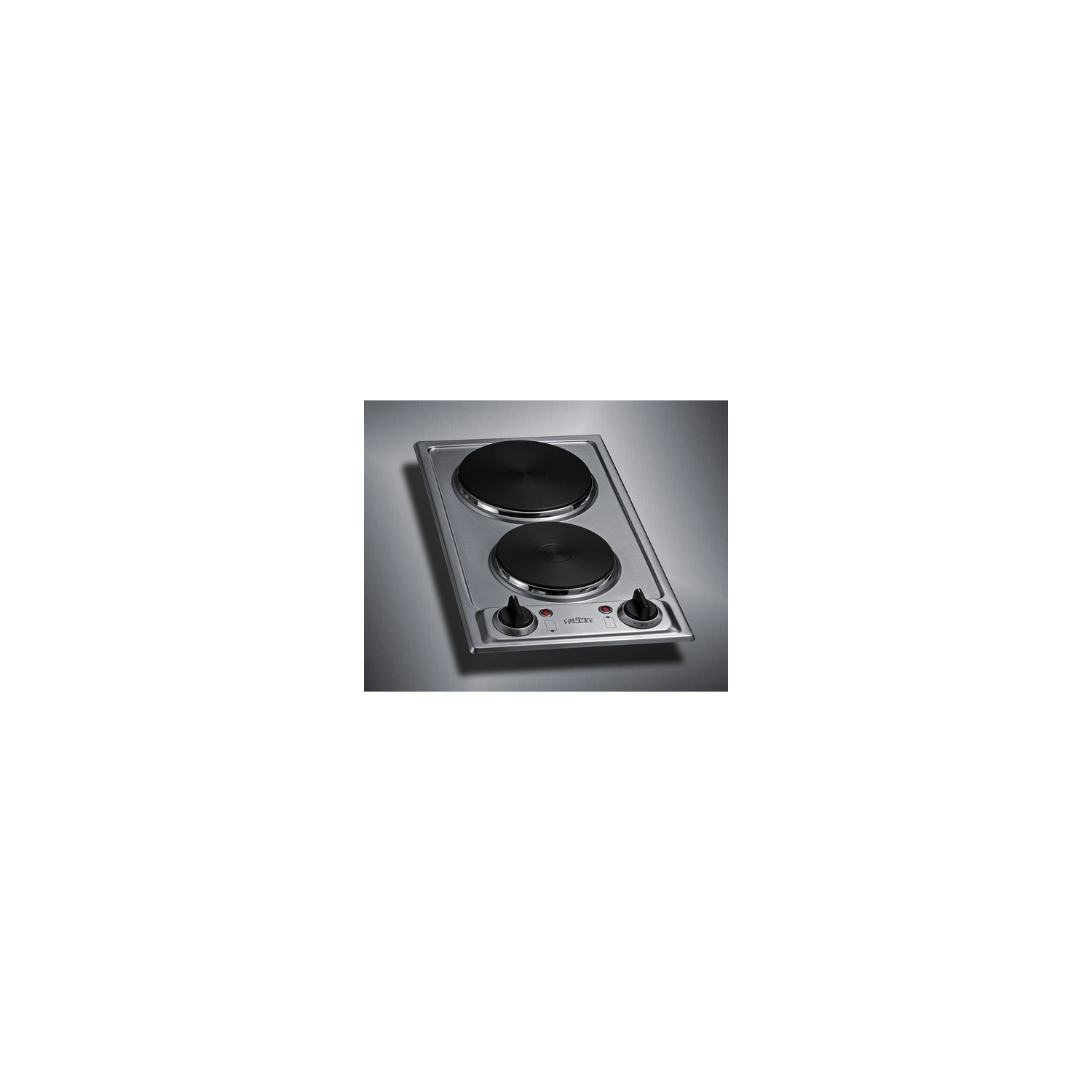

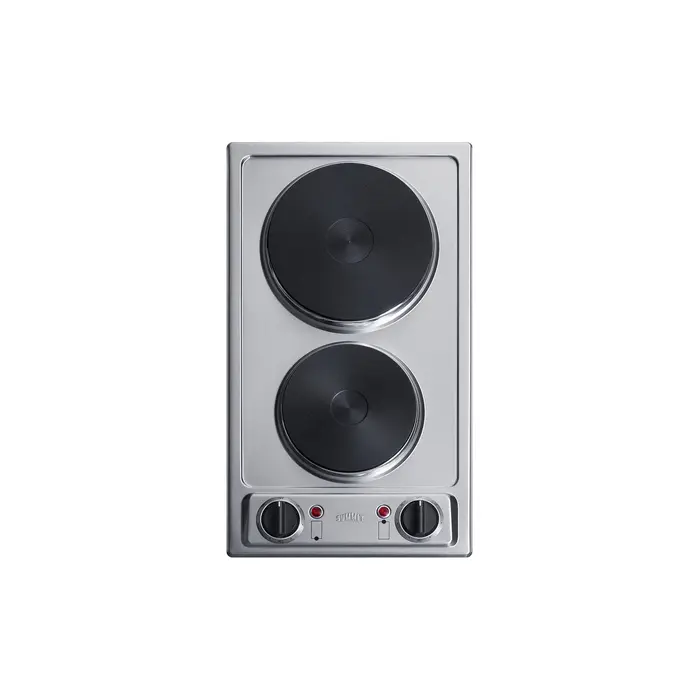

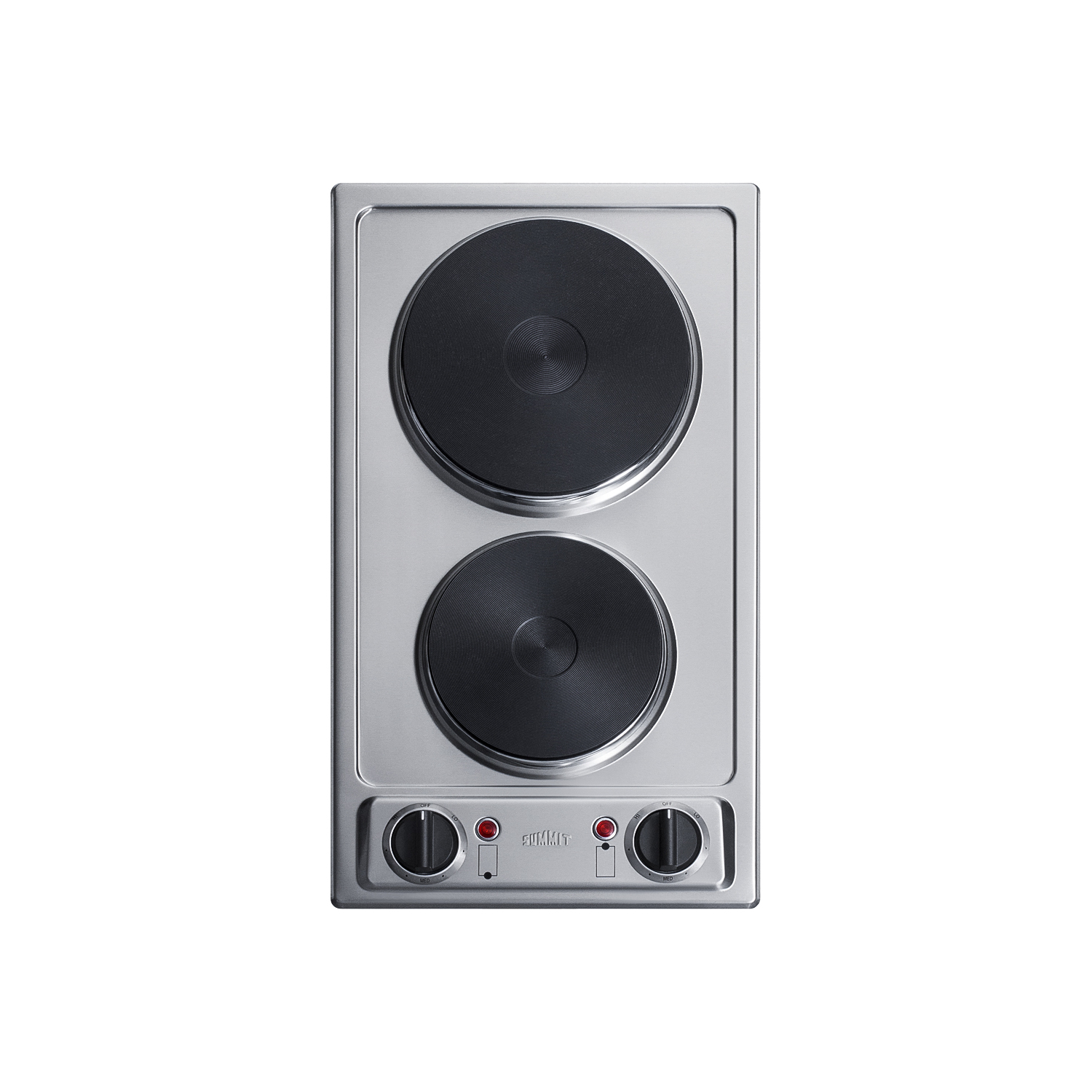

Sized at 12" wide, the CSD2B115 is a 115V cooktop with two solid disk elements. The pre-installed power cord includes a right angle 3-prong plug for easy installation in common cutouts sized at 10 1/2" W x 19 1/4" D. Upfront push-to-turn knobs meet ADA guidelines for user accessibility while also ensuring maximum safety.
This cooktop surface comes in brushed stainless steel for an attractive look built to last. The rear 900W burner is sized with an 8" diameter to fit large cookware, while the front 500W 6" element accommodates smaller pots and pans. The solid disk elements are constructed from cast iron, ensuring extreme durability. These elements also retain heat longer than traditional coil or glass top surfaces, making them ideal for keeping the contents in your pots and pans warmer before serving. Even heat distribution helps to improve your cooking results.
With its modern style and durable design, the CSD2B115 is a great choice for hotels, mobile homes, tiny houses, ADUs, temporary housing, and other small kitchens with specific cooking needs. Additional 115V cooktops are available in coil, radiant, and induction style, as well as 230V solid disk cooktops in 2 and 4-burner configurations. Browse the full Summit line to find the perfect choice for your kitchen.
SPECIFICATIONS
Overview
Nominal Height 4.13" (10 cm)
Height of Cabinet 4.13" (10 cm)
Nominal Width 12.0" (30 cm)
Width 11.25" (29 cm)
Nominal Depth 20.0" (51 cm)
Depth 20.0" (51 cm)
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 12.5
Voltage/Frequency 115 V AC/60 Hz
Weight 13.0 lbs. (6 kg)
Parts & Labor Warranty 1 Year
UPC 761101089447
Electric Cooktop
Heating Type Radiant
Surface Stainless Steel
Element Type Cast Iron
Number of Elements 2
Controls Dial
Countertop Cutout Height 5.0" (13 cm)
Countertop Cutout Width 10.5" (27 cm)
Countertop Cutout Depth 19.25" (49 cm)
Power Source 115
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 500.0
Element #2 Size 8.0" (20 cm)
Element #2 Wattage 900.0
Power Cord Included Yes

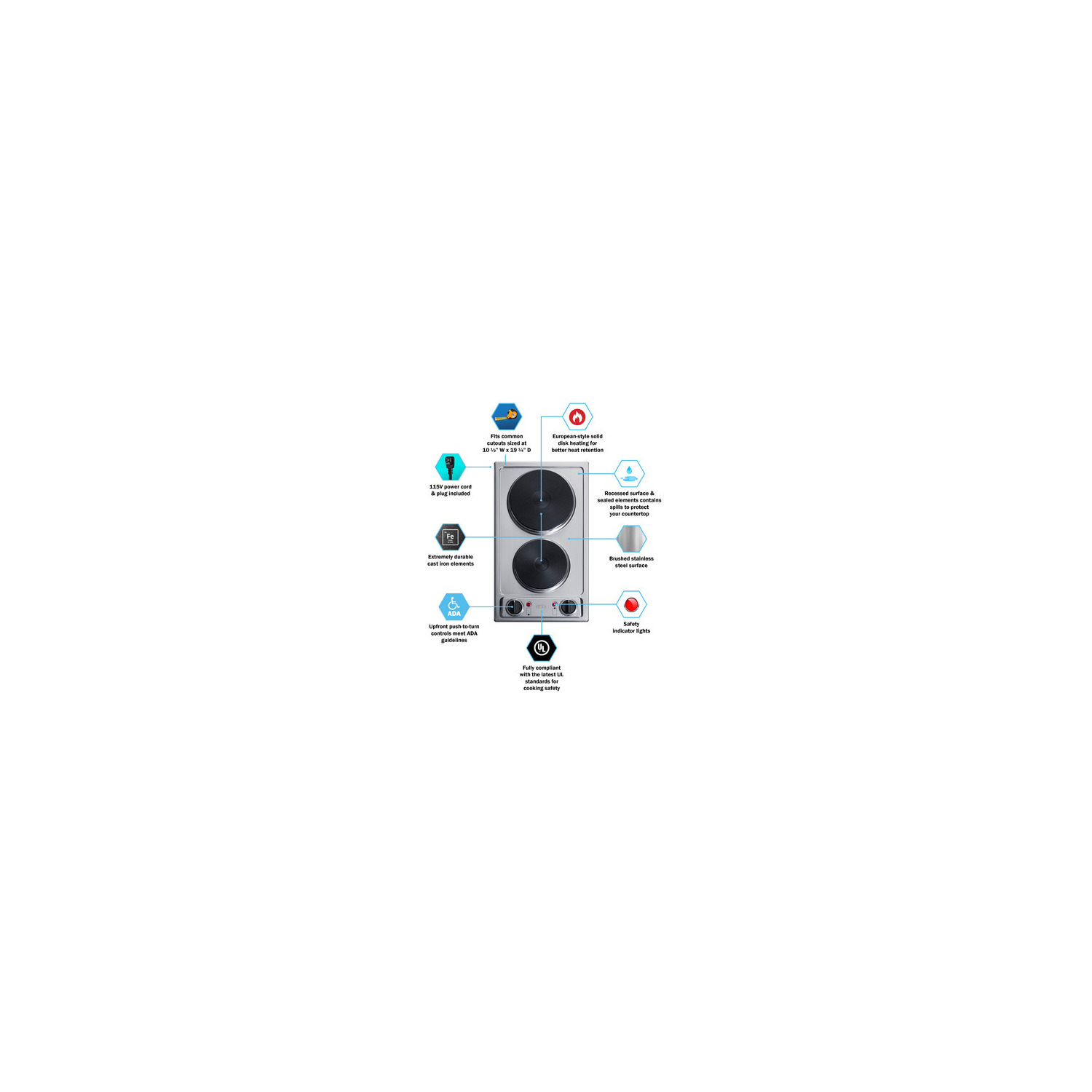

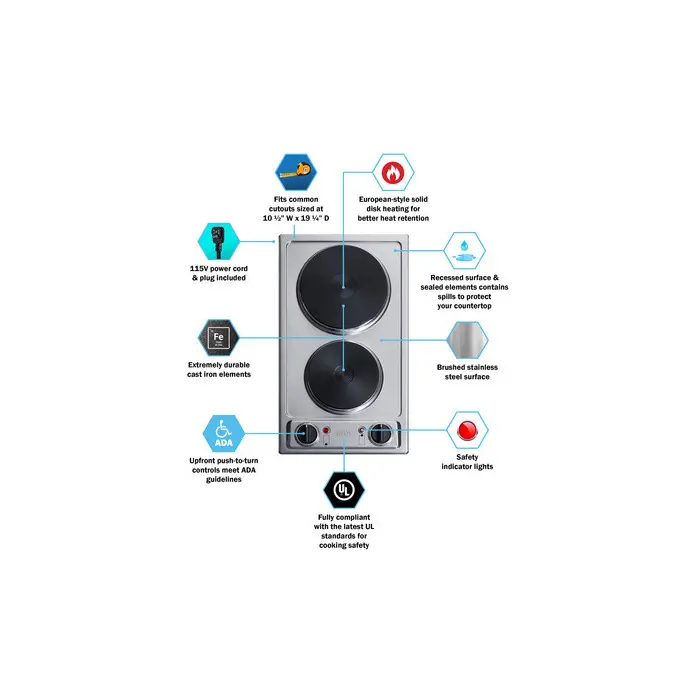

FEATURES
2-Burner electric cooktop 12" wide 115V cooktop with two solid disk heating elements
115V operation Designed for use with 110-120V / 20 amp connections

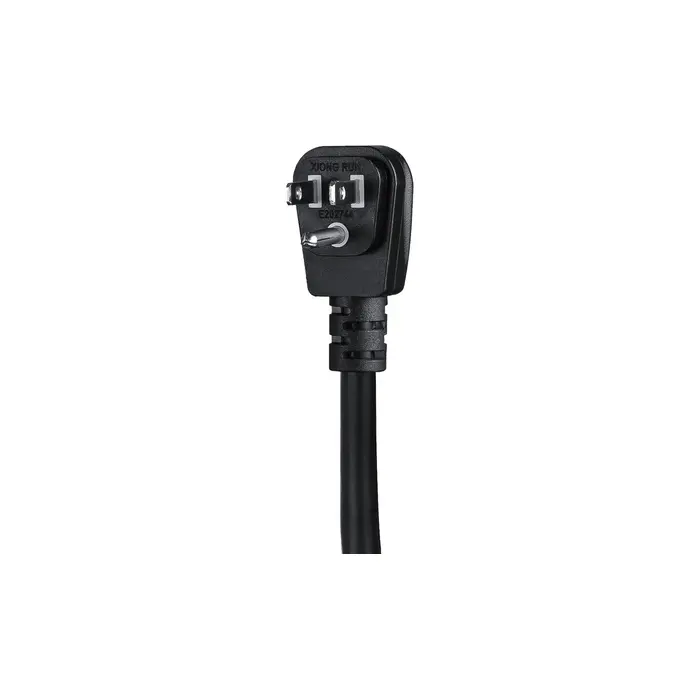

Power cord & plug included Pre-installed 115V cord with 3-pronged plug for easier setup
Solid disk elements Popular in Europe, solid disk cooktops offer even heat distribution and longer heat retention for a uniquely efficient cooking experience
Durable cast iron design Solid metal elements hold up to heavy duty use
8" element Rear 900W burner with wide 8" diameter is ideal for heating larger cooking vessels
6" element Front element offers 500W of cooking power to accommodate most heating needs
Easier cleanup Fully sealed cast iron elements offer easier cleanup than traditional coil elements
Stainless steel finish Surface is made from stainless steel for an attractive and easy to clean look

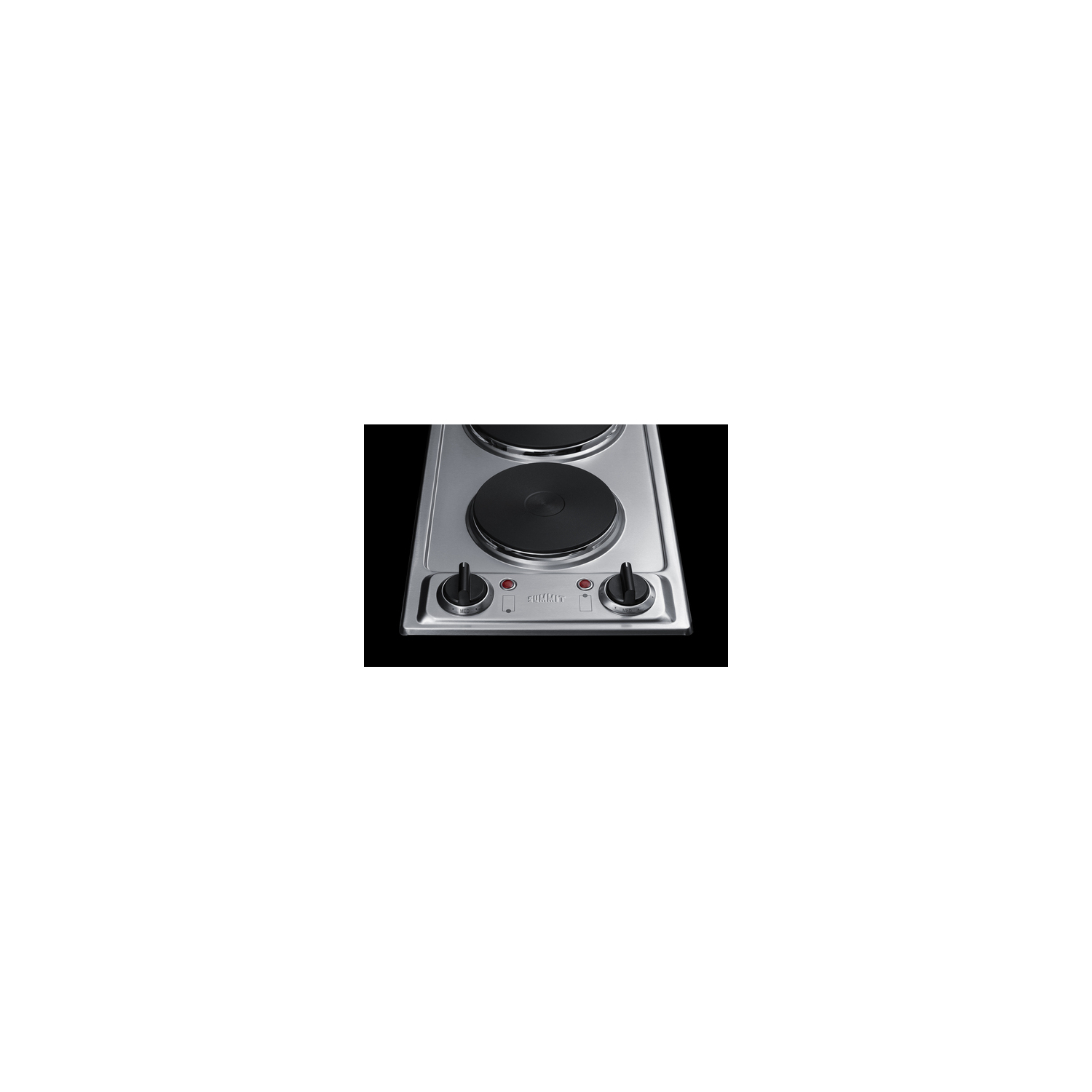

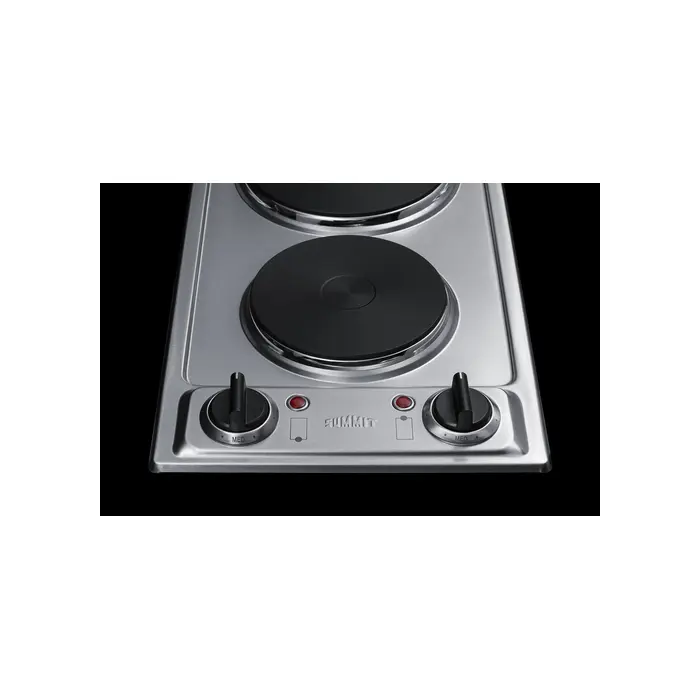

Push-to-turn controls Knobs require a small amount of force to help prevent accidents
Indicator lights Operating indicators light up to show which burner is in use
Recessed surface Slight indent helps to contain spills and protect adjacent countertops
Designed for built-in installation Fits counter cutout sizes that are 10 1/2" W x 19 1/4" D
Engineered for user safety Compliant with the latest UL 858 safety standards
ADA compliant design Upfront controls and easy-to-operate knobs offer easier accessibility
DOWNLOADS
BROCHURE w/ DRAWINGS (CSD2B115.pdf)
TECHNICAL DRAWING (.dwg) (CSD2B115.dwg)
ASSEMBLY DRAWING (CSD2B115-Detail.pdf)
ASSEMBLY DRAWING (CSD2B115-Assembly.pdf)
