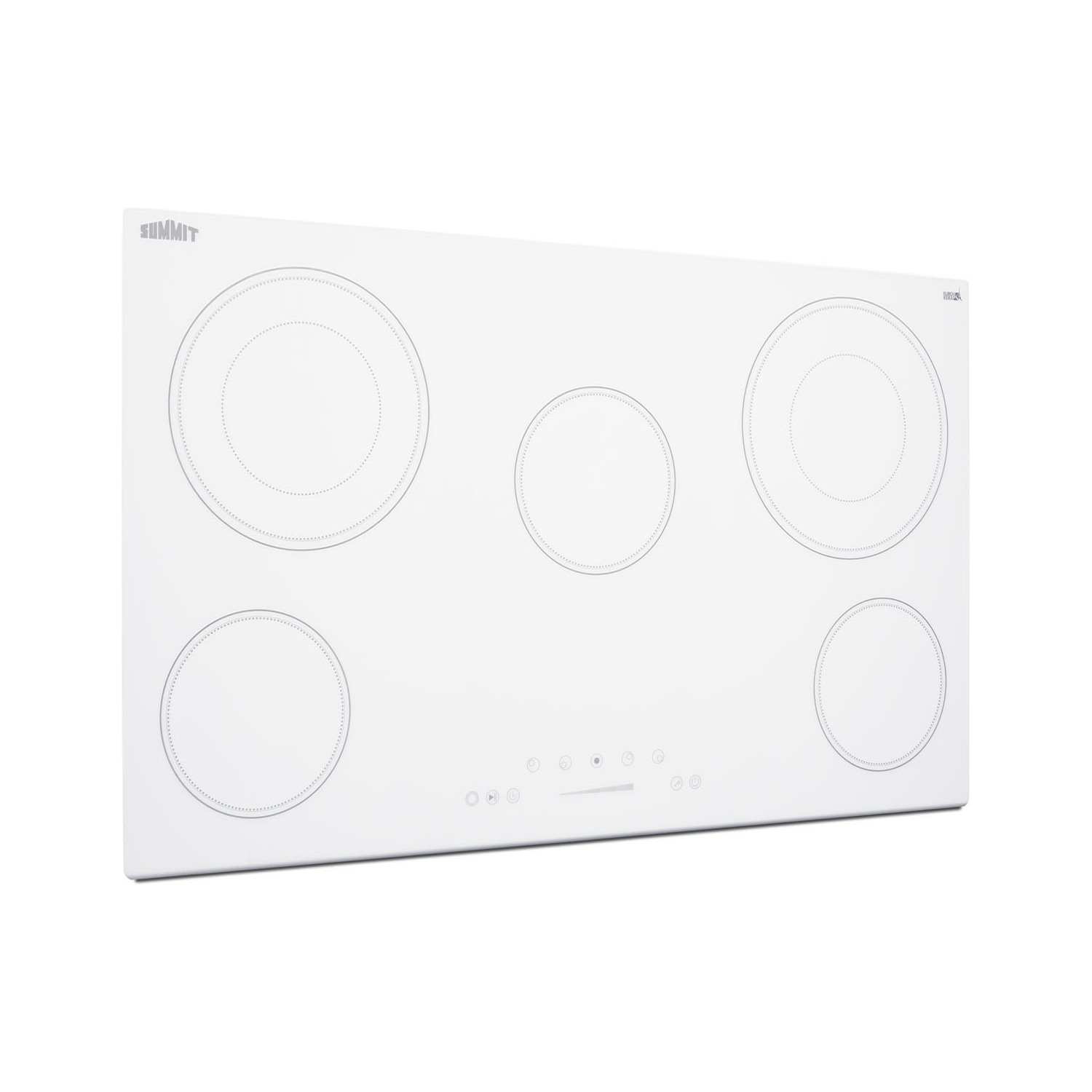

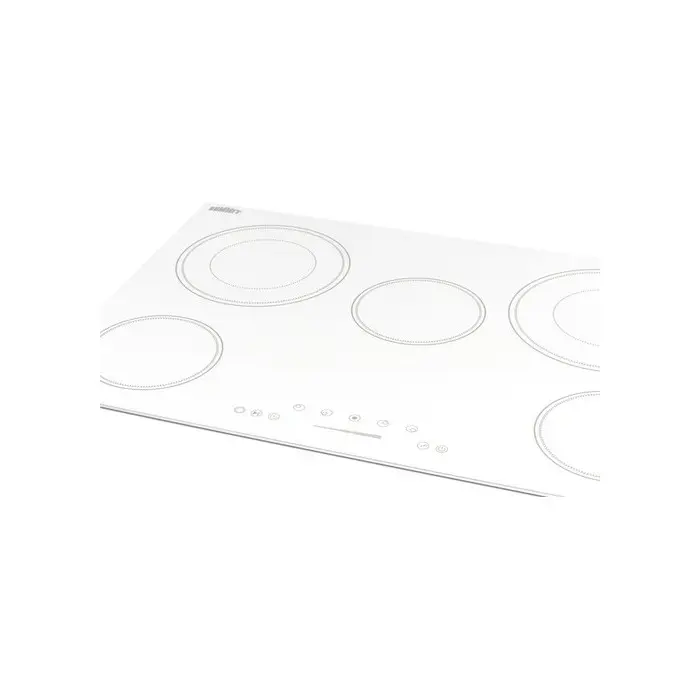

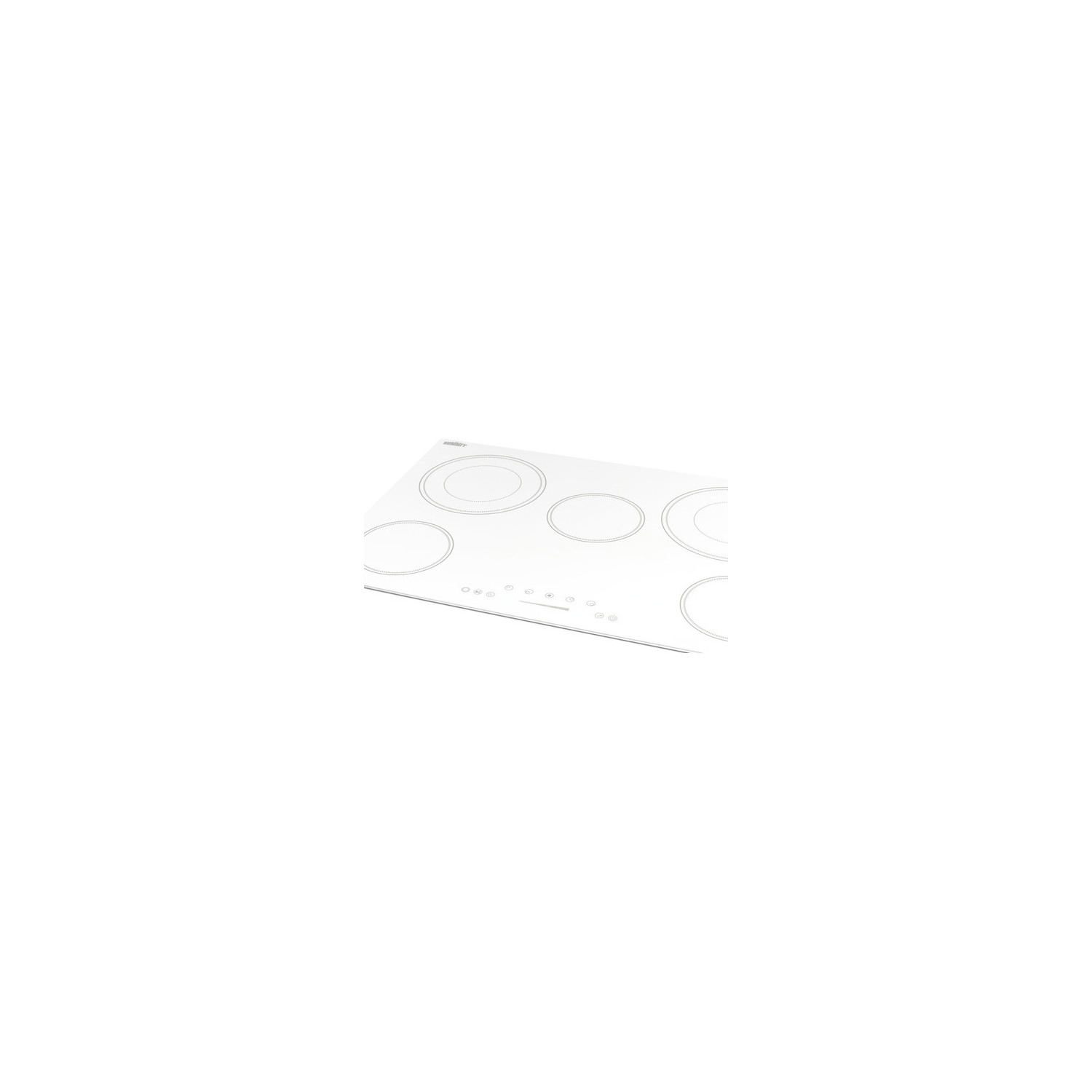

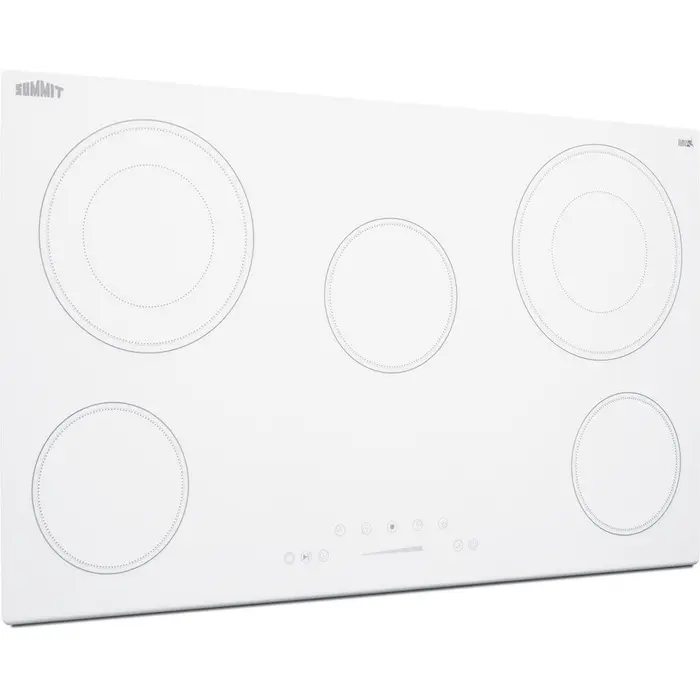

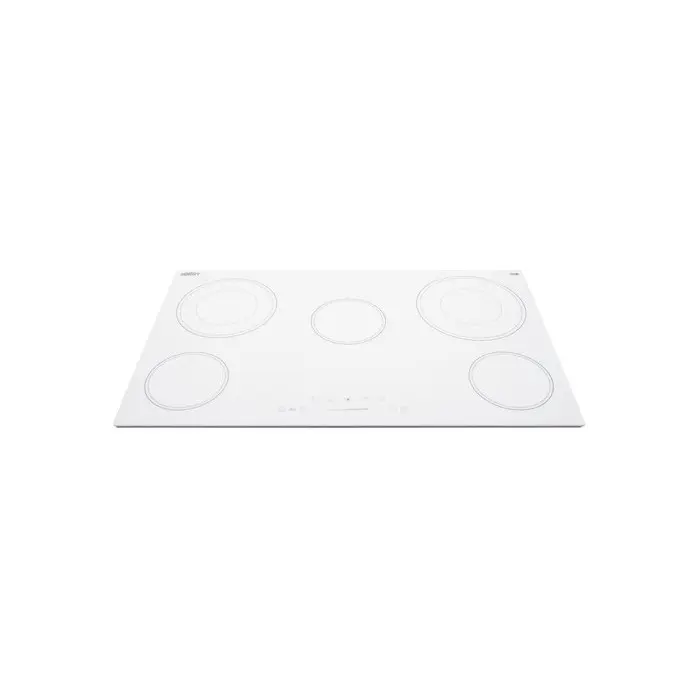

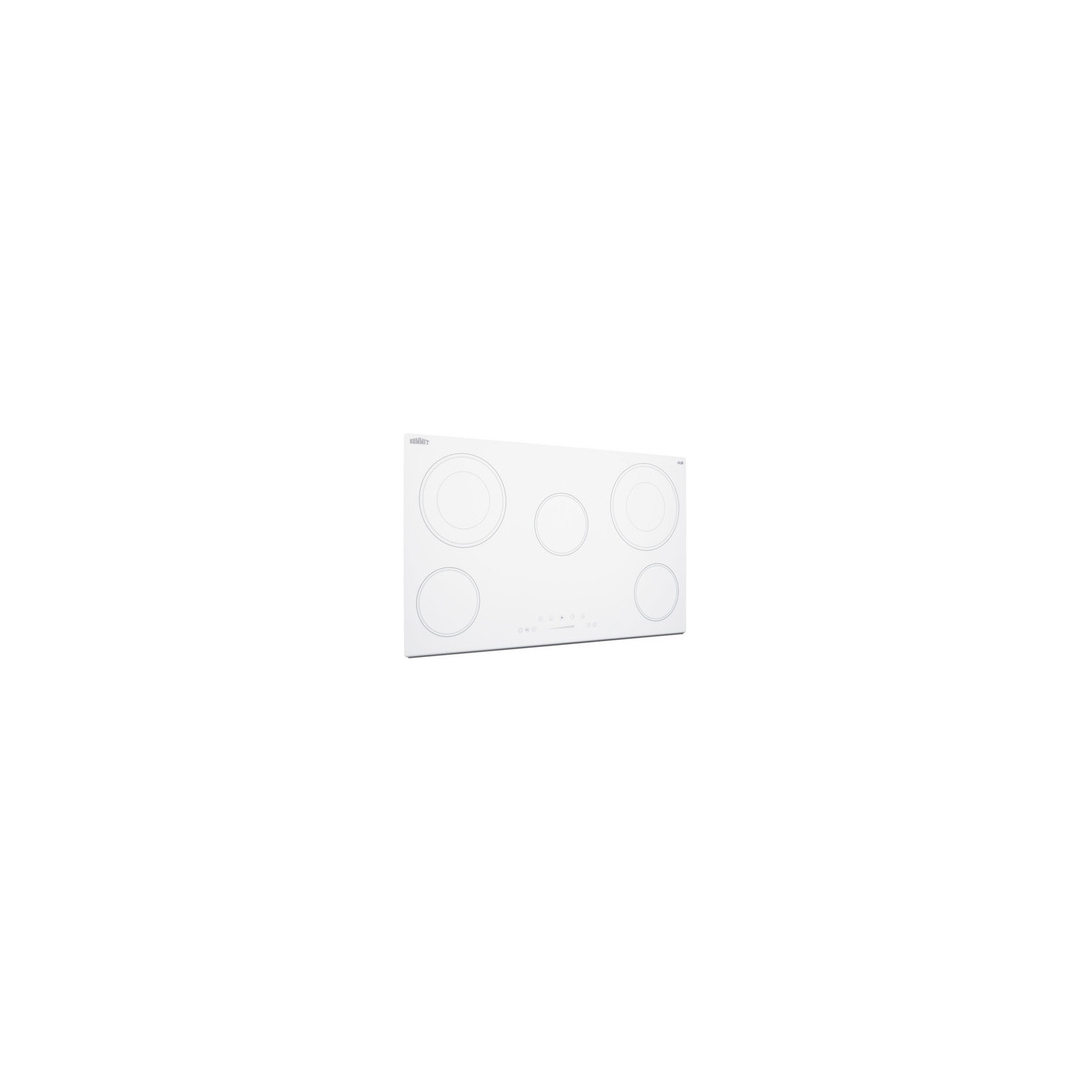

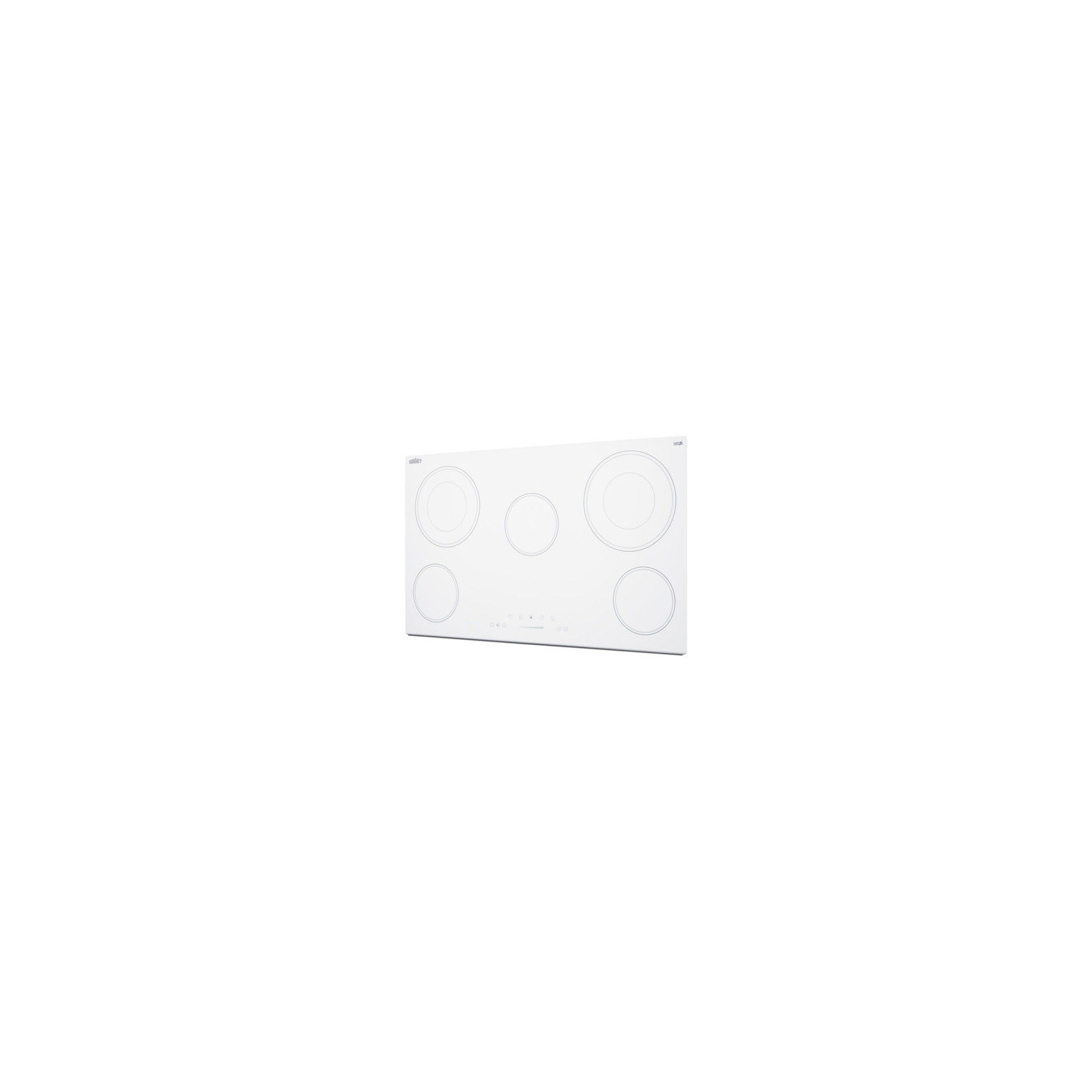

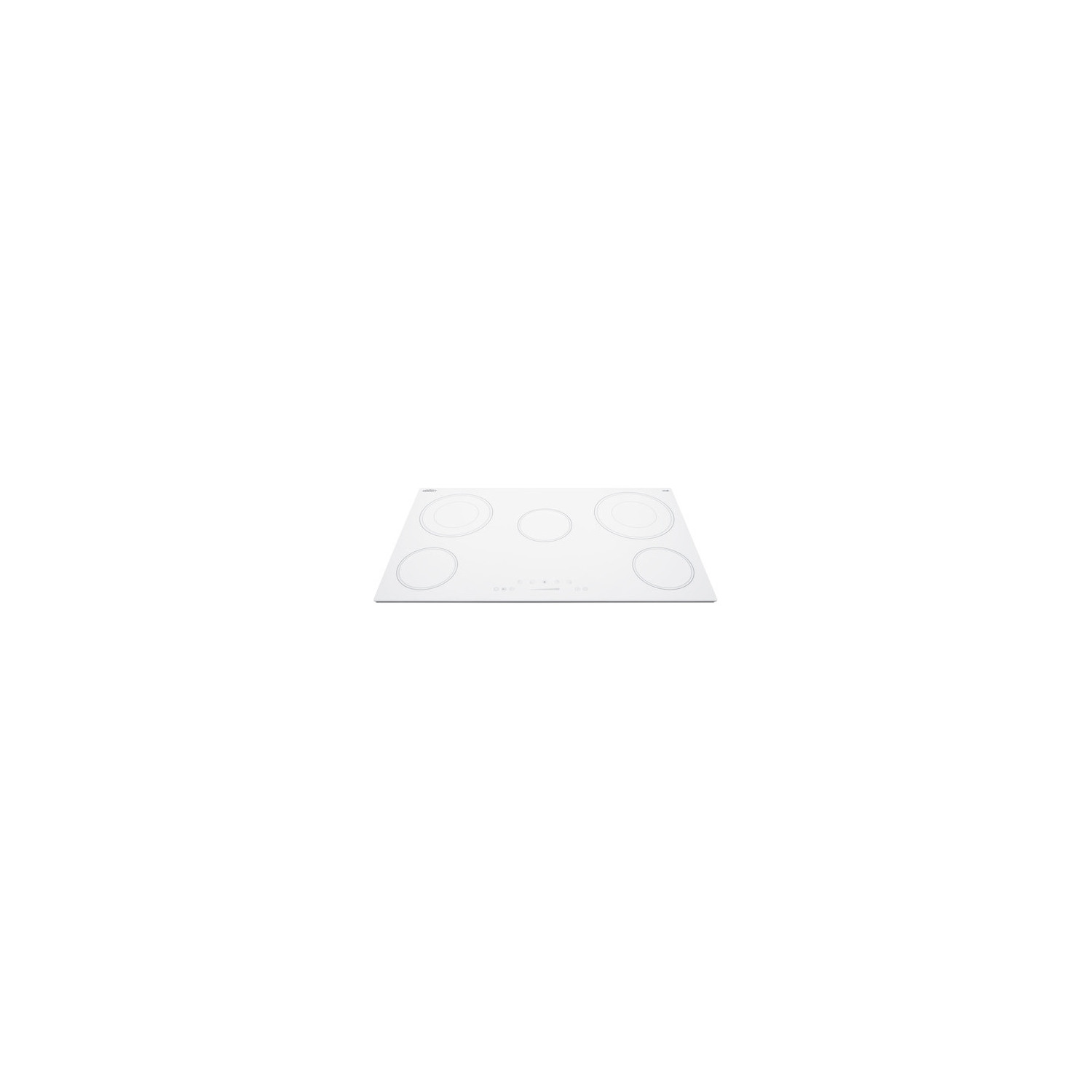

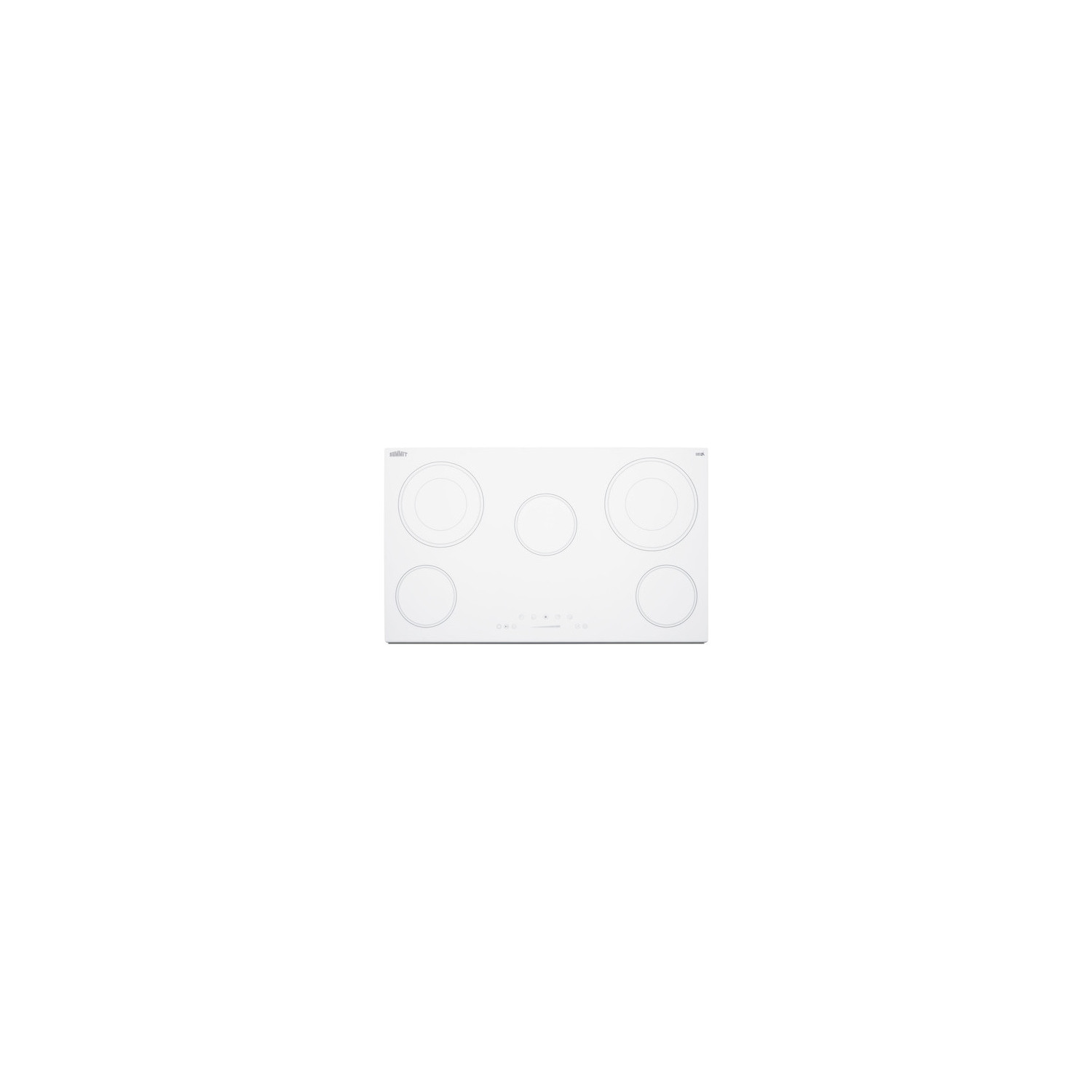

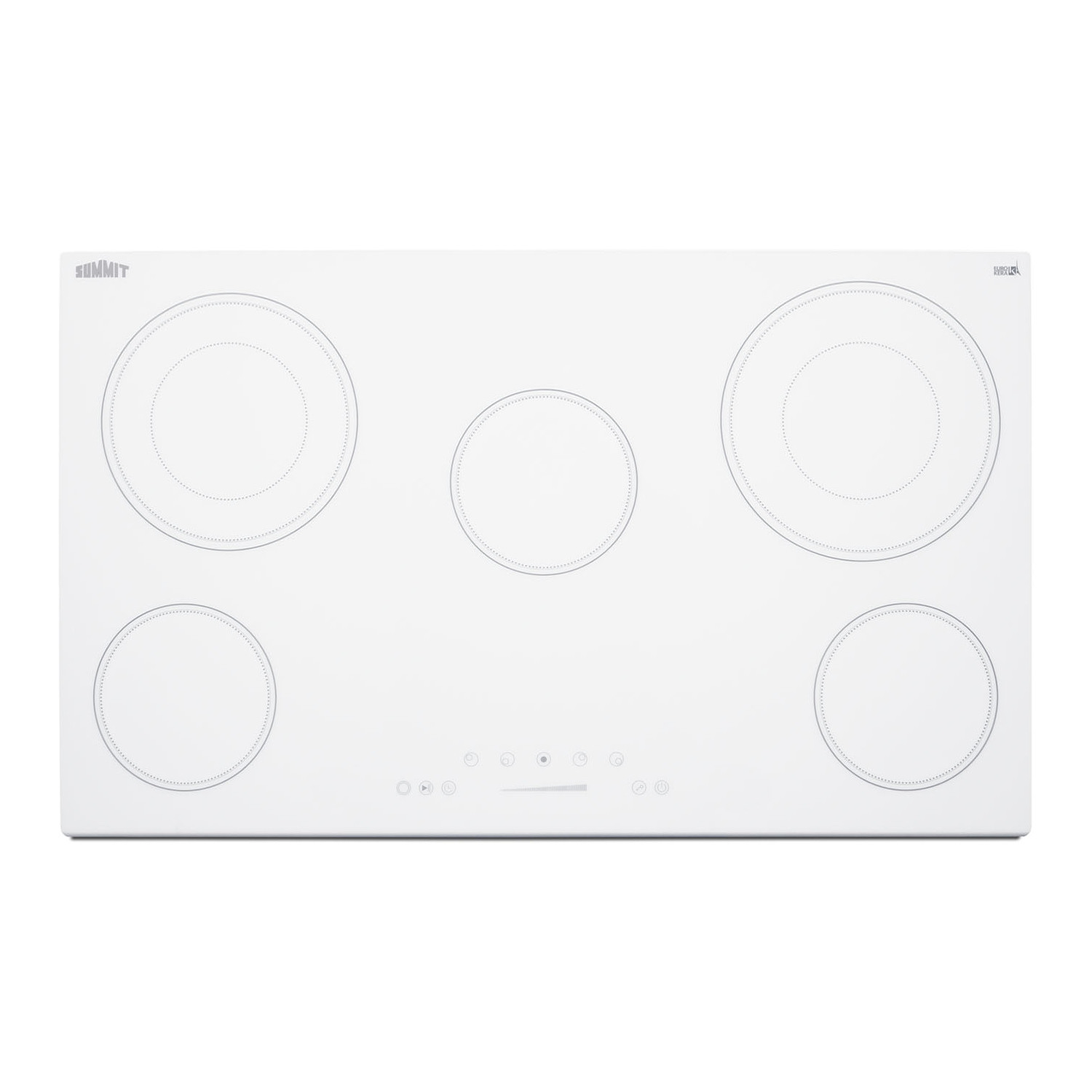

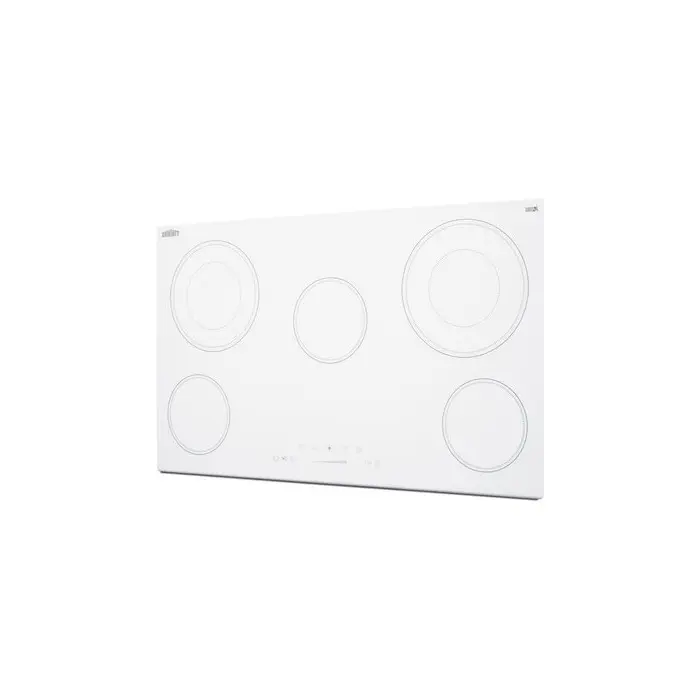

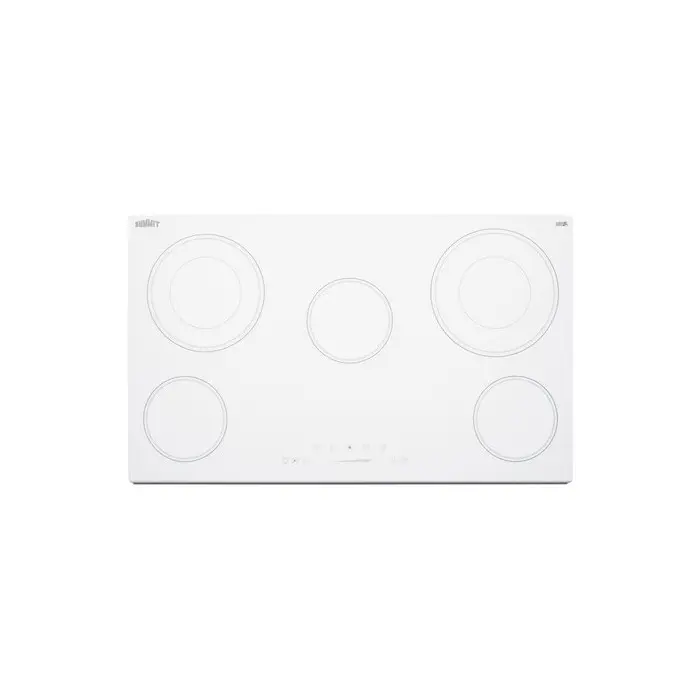

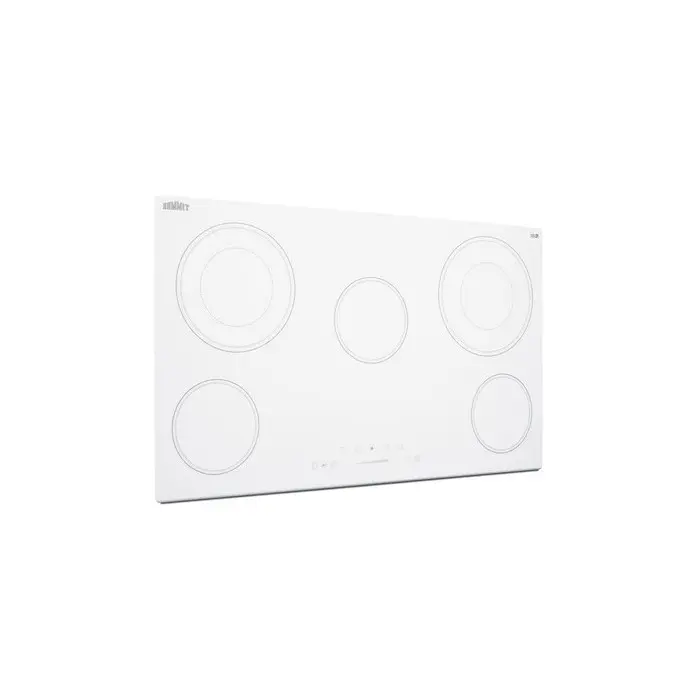

Summit 36 inch wide 5-burner smooth-top cooktop in white with touch controls, 7.61101e+011, CR5B36TXW
$1,133.02
Retail Price: $1,505.00
Free shipping
$ 1,133.02
Description
Summit's collection of smooth-top radiant cooktops includes fully featured models sized for standard kitchen counters, with user-friendly touch controls.
The CR5B36TXW is a 36" wide 208-240V radiant cooktop designed to fit popular 34 3/4" W x 19 5/8" D counter cutouts. The surface is made from smooth EuroKera ceramic glass in a classic white finish for a durable, modern look. This unit does not ship with a power cord and must be hard-wired by a professional.

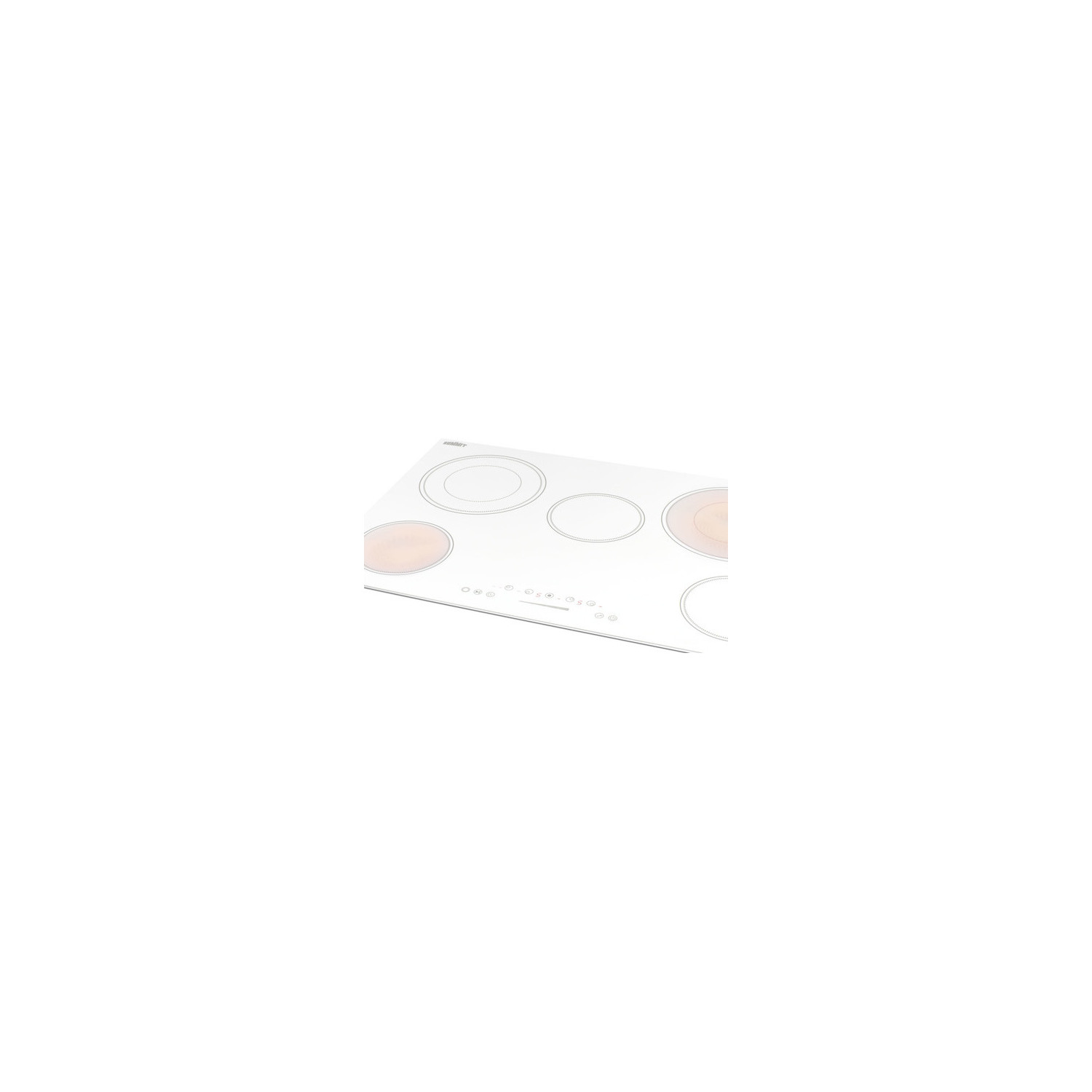

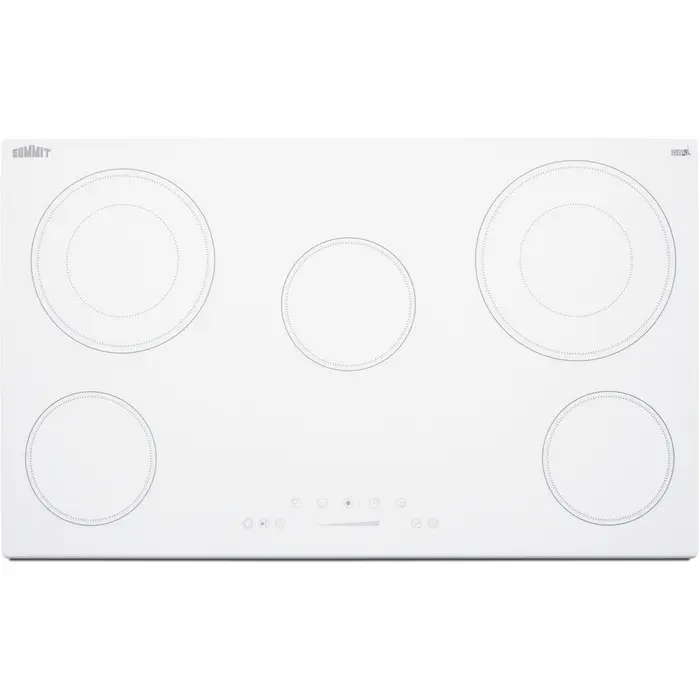

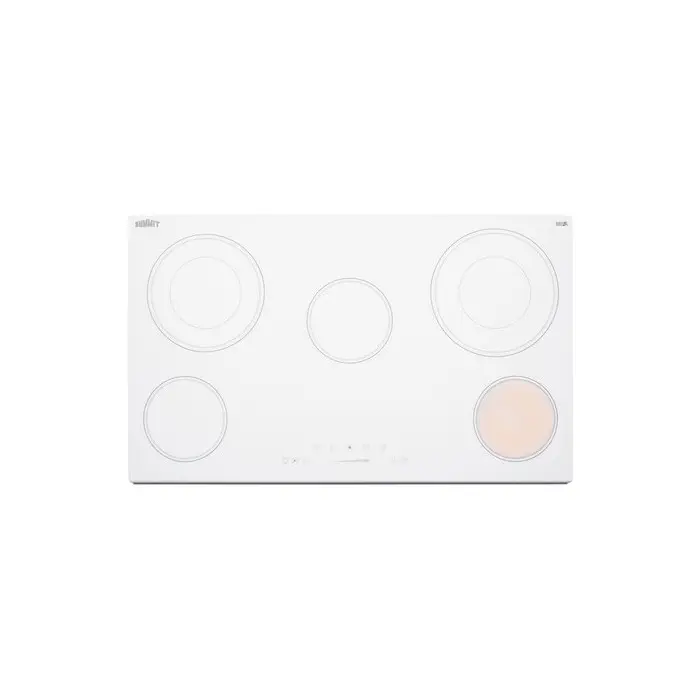

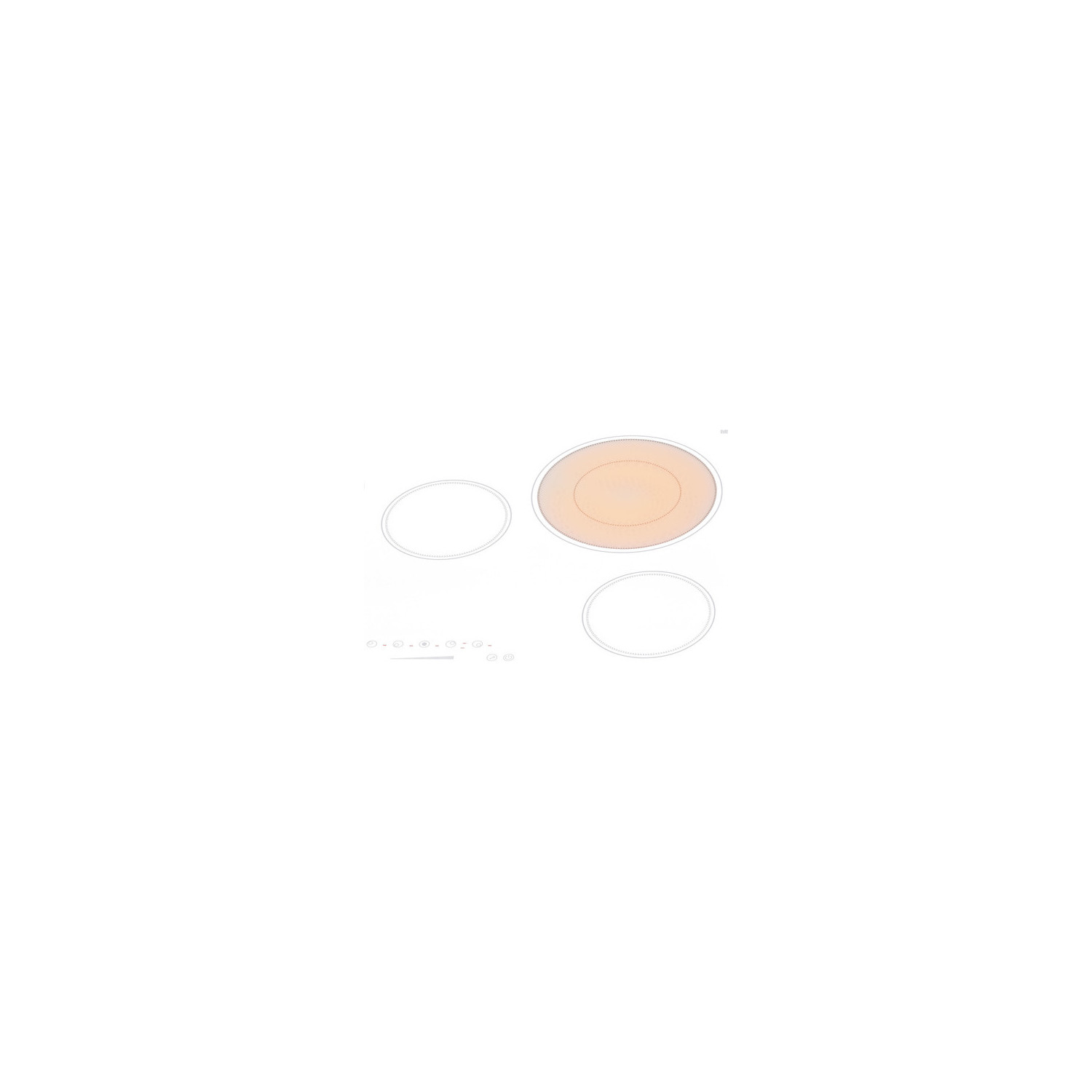

Five elements let you meet a variety of cooking needs. The two extra large dual ring elements in the rear (2200W 9" element on the left and 3000W 9 3/4" element on the right) allow you to efficiently heat woks, Dutch ovens, and other large cooking vessels or to switch to the inner 5 1/2" elements as needed. The 6 1/2" 1200W front burners cover standard sizes, while the center 100W warming zone element lets you keep cookware heated without overcooking.
The digital controls are centered upfront, ensuring users won't have to reach over hot burners to adjust the temperature. The intuitive touch design is easy to operate and clean. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes) that can either turn the unit off when complete, or serve as a visual countdown with an audible alert when the set time has been reached. Safety features include a child lock function, automatic shutoff after two hours, and a residual heat indicator.
With its attractive design, smartly designed burner configuration, and intuitive touch controls, the CR5B36TXW brings a user-friendly cooking performance with reliable safety to the kitchen. Additional choices are available in 24" and 30" wide sizes, as well as black glass finishes. Browse the full Summit lineup for more.
SPECIFICATIONS
Overview
Nominal Height 2.13" (5 cm)
Height of Cabinet 2.13" (5 cm)
Nominal Width 36.0" (91 cm)
Width 35.5" (90 cm)
Nominal Depth 21.0" (53 cm)
Depth 20.5" (52 cm)
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 30.0
Voltage/Frequency 240 V AC/60 Hz
Weight 36.0 lbs. (16 kg)
Parts & Labor Warranty 1 Year
UPC 761101077581
Electric Cooktop
Heating Type Radiant
Surface Glass
Element Type Glasstop
Number of Elements 5
Controls Digital
Cooking Timer Yes
Countertop Cutout Height 3.2" (8 cm)
Countertop Cutout Width 34.75" (88 cm)
Countertop Cutout Depth 19.63" (50 cm)
Element #1 Size 6.5" (17 cm)
Element #1 Wattage 1200.0
Element #2 Size 9.0" (23 cm)
Element #2 Wattage 2200.0
Element #3 Size 6.5" (17 cm)
Element #3 Wattage 100.0
Element #4 Size 9.75" (25 cm)
Element #4 Wattage 3000.0
Element #5 Size 6.5" (17 cm)
Element #5 Wattage 1200.0
Power Cord Included No
FEATURES
36" Wide 5-Burner Radiant Cooktop Designed to fit common 34 3/4" x 19 5/8" counter cutouts
EuroKera glass surface Easy cleanup and elegant style on a smooth ceramic glass surface in a clean white finish

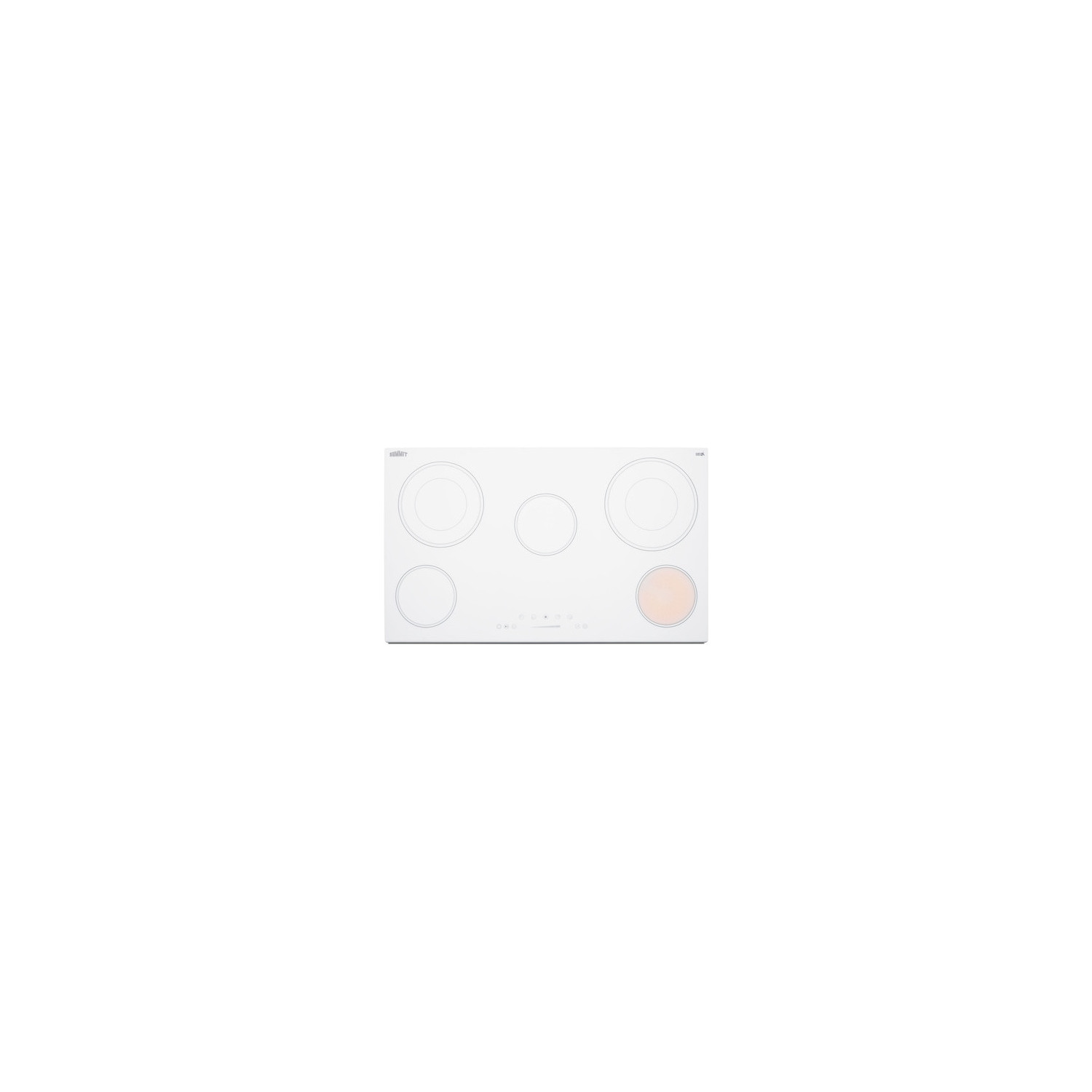

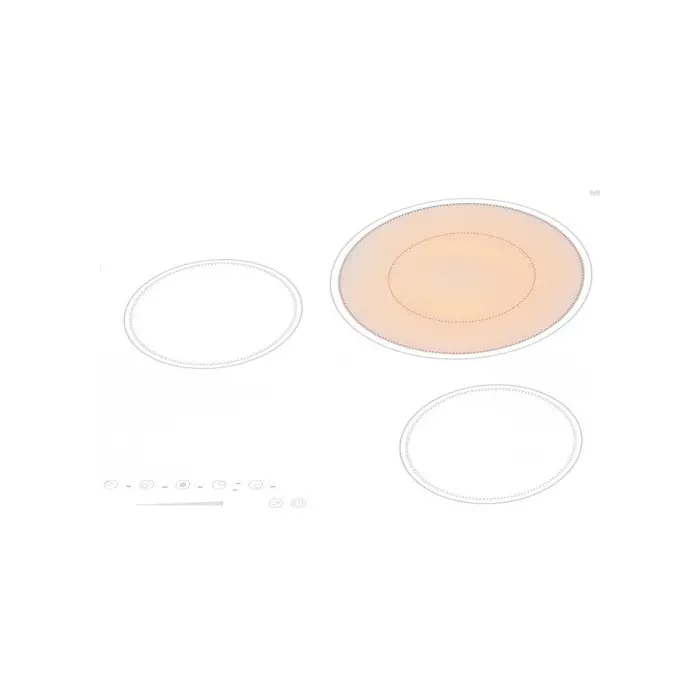

Extra large 3000W burner Rear right burner comes with a 9 3/4" diameter and powerful 3000W cooking power to handle large pots and help boil water with more speed
Large 2200W burner Left rear 2200W element is 9" in diameter to handle larger cooking vessels
2 Standard 1200W burners Front left and front right burners are 6.5" in diameter to meet most cooking needs

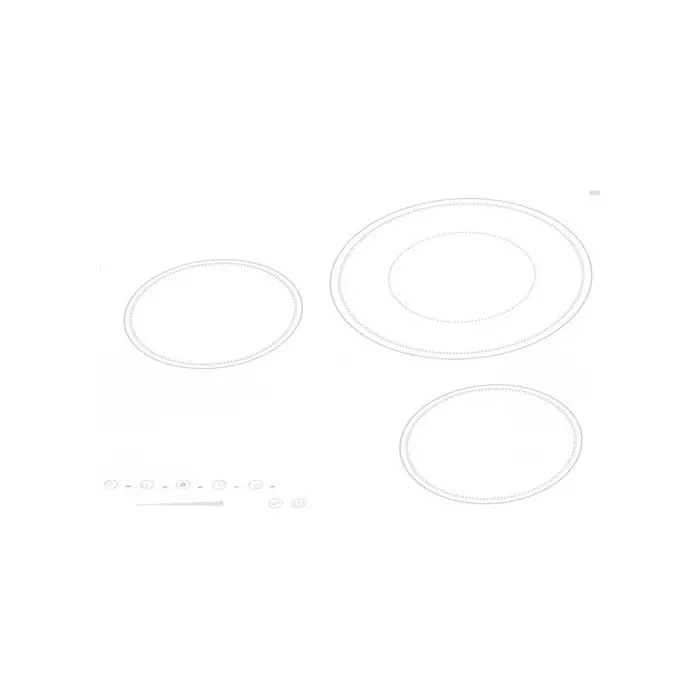

Dual cooking zones Rear burners include an inner 5 1/2" burner, allowing you to save energy when heating smaller cookware
Warming zone Center 6 1/2" element operates at a low 100W to help keep cookware warm without overheating

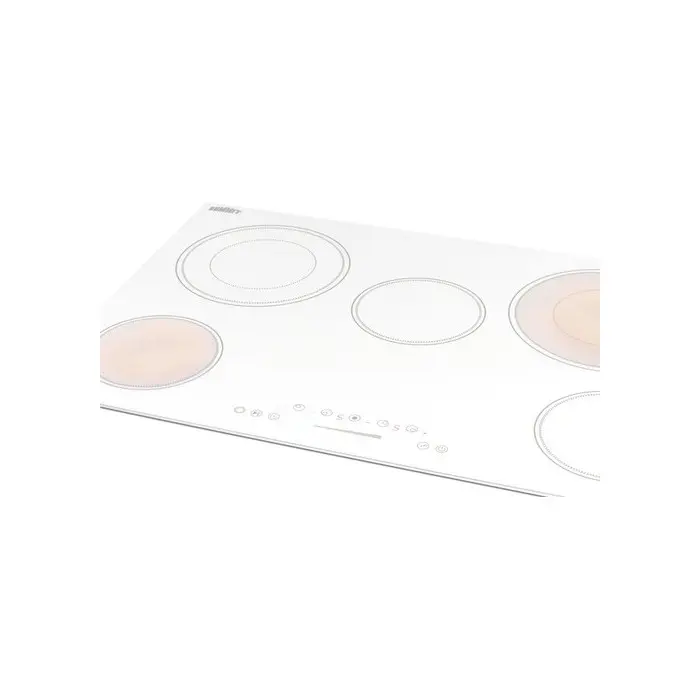

Digital touch controls Easy operation with a digital control panel and digital display conveniently centered upfront
9 power levels Select and adjust your heating levels at the touch of a button
Timer Allows you to program either burner to heat at a specified level for up to 99 minutes and either turn off when finished or display a countdown with an audible alert when the time is up
Residual heat indicator light Indicator shows when the surface is still hot to touch
ADA compliant design Upfront controls meet ADA guidelines for easier accessibility
Child lock Safety feature lets you lock the cooktop to prevent unsupervised heating
Safety cut-off function If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off
Automatic shutoff If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating
208-240V operation Requires professional hardwired installation (cord not included)
DOWNLOADS
BROCHURE w/ DRAWINGS (CR5B36TXW.pdf)
TECHNICAL DRAWING (.dwg) (CR5B36T9B-LCR5B36TB_COOKTOP__A-C_.dwg)
ASSEMBLY DRAWING (CR5B36T9B-LCR5B36TB_CUTOUT.pdf)
REVIT MODEL (QF_Summit_CR5B36TXW_5_Burner_Radiant_Cooktop.rfa)
