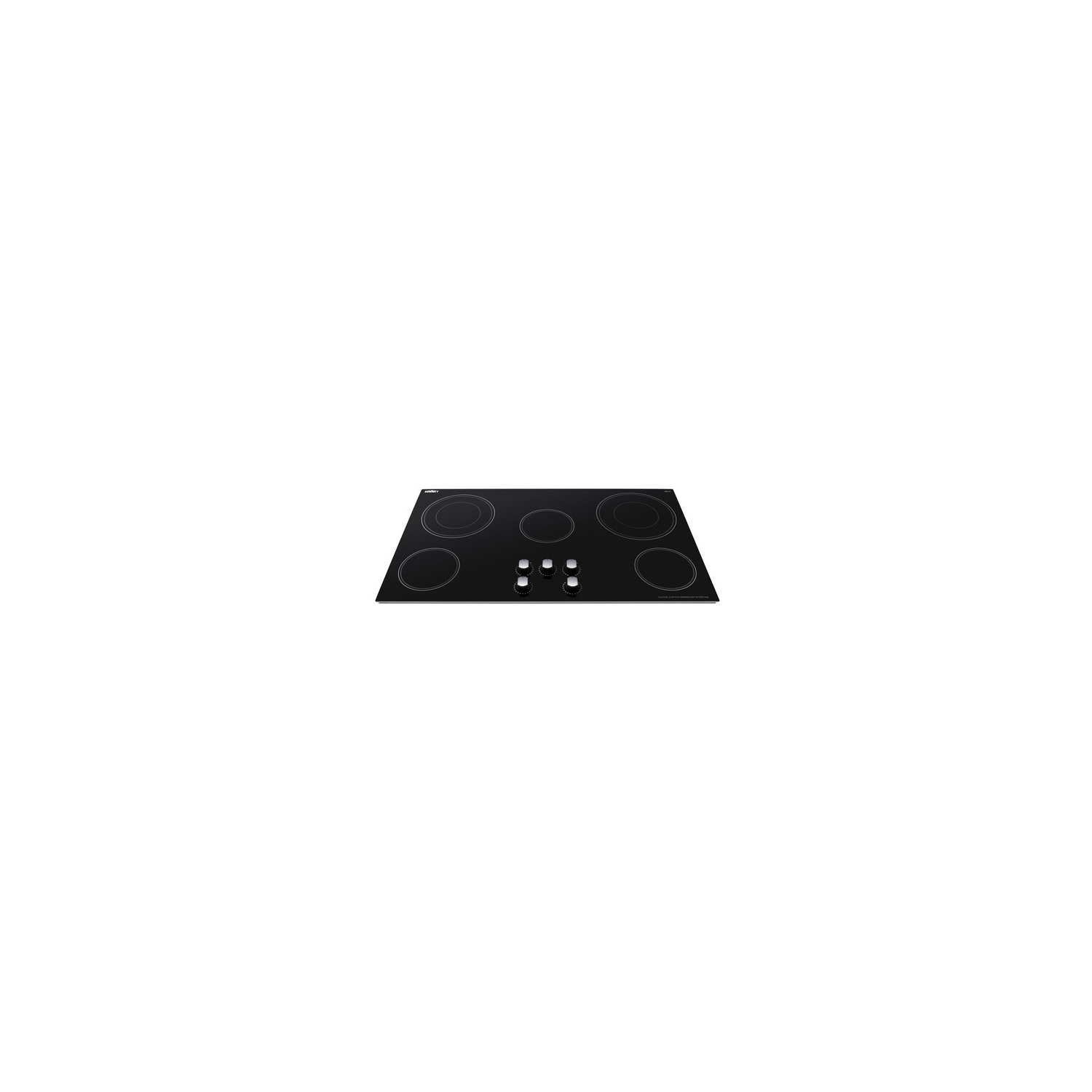

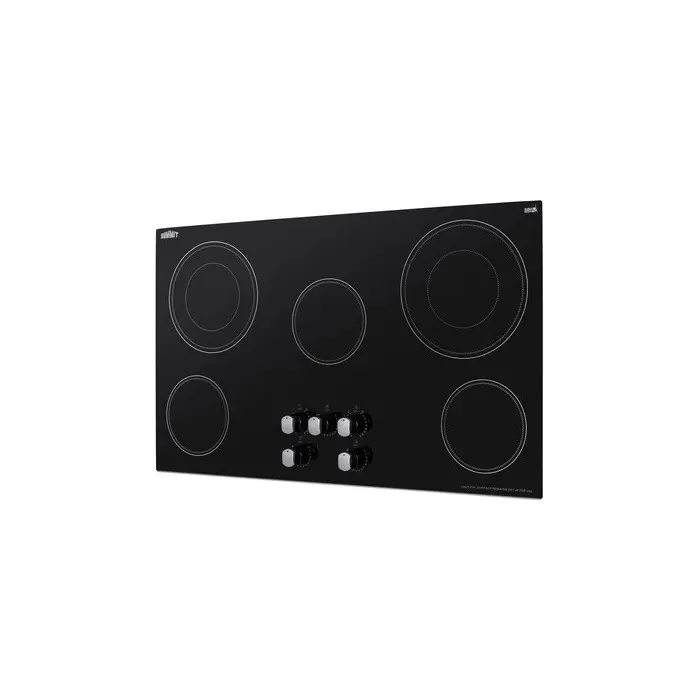

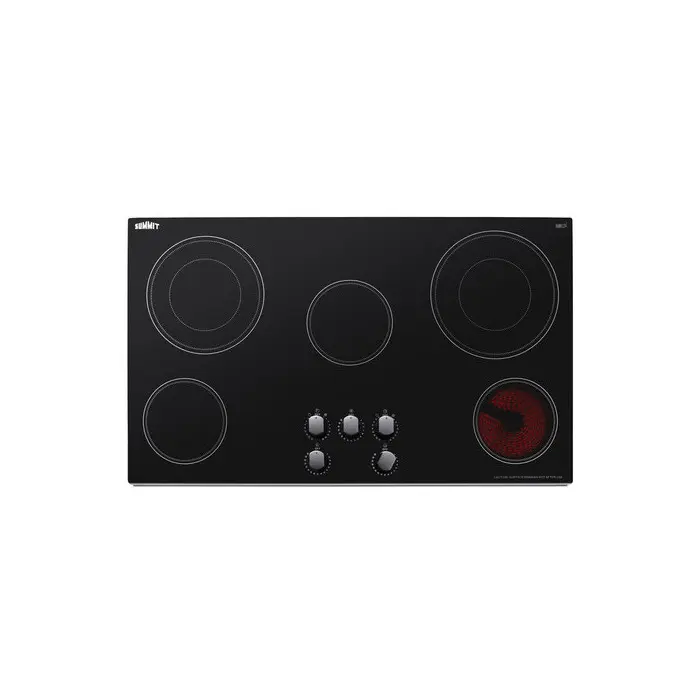

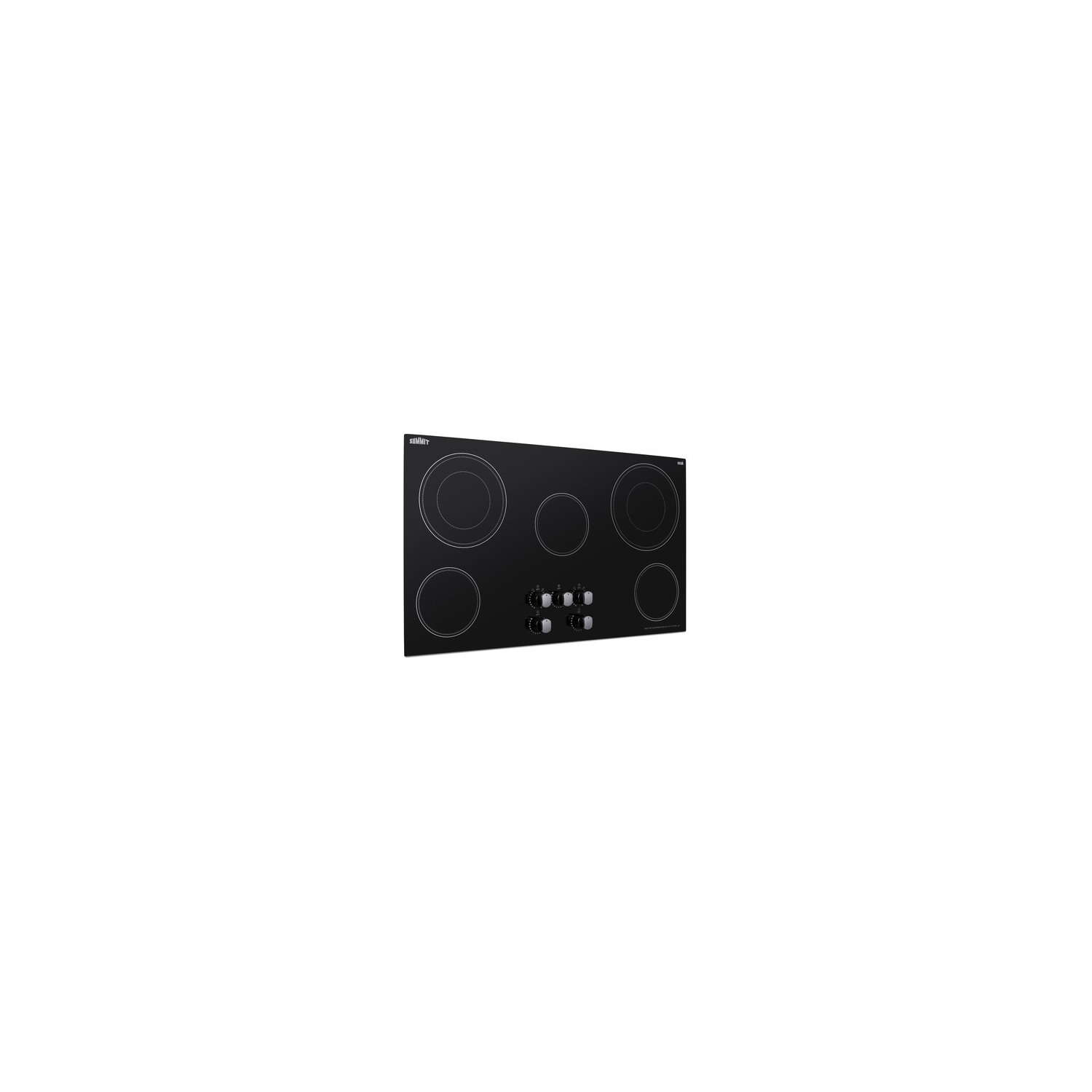

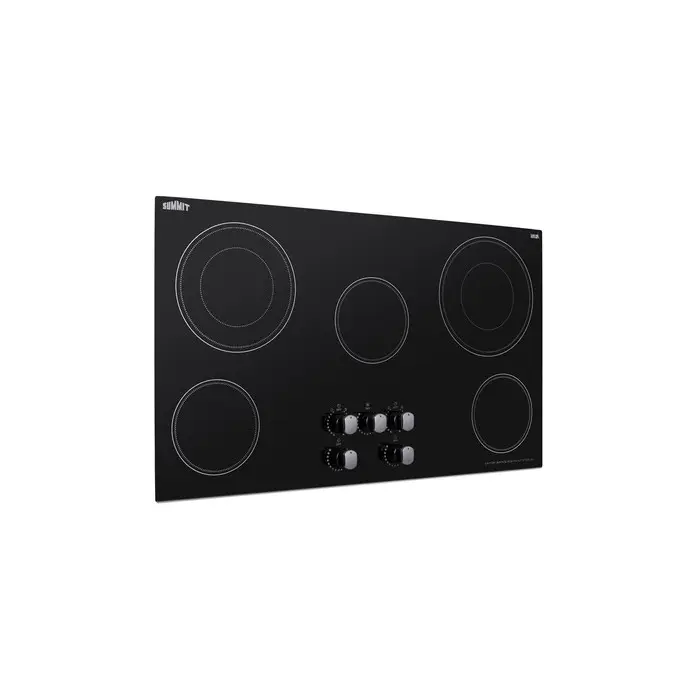

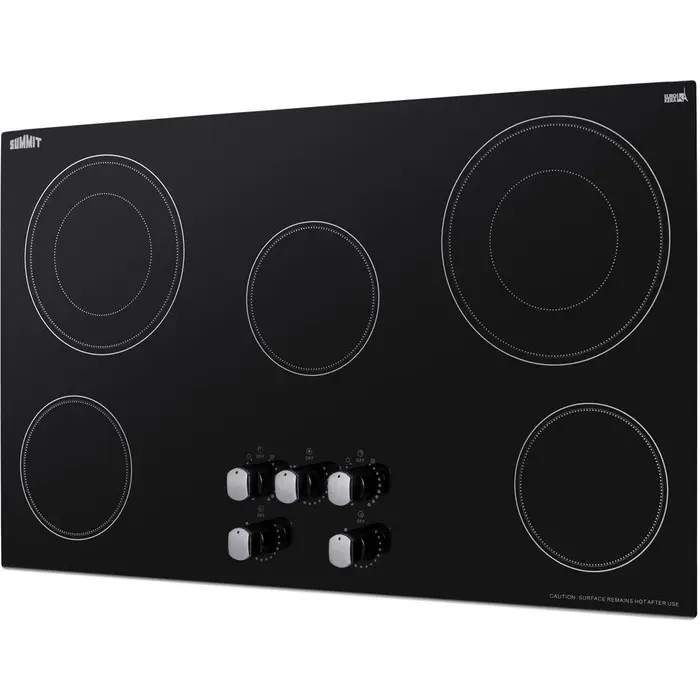

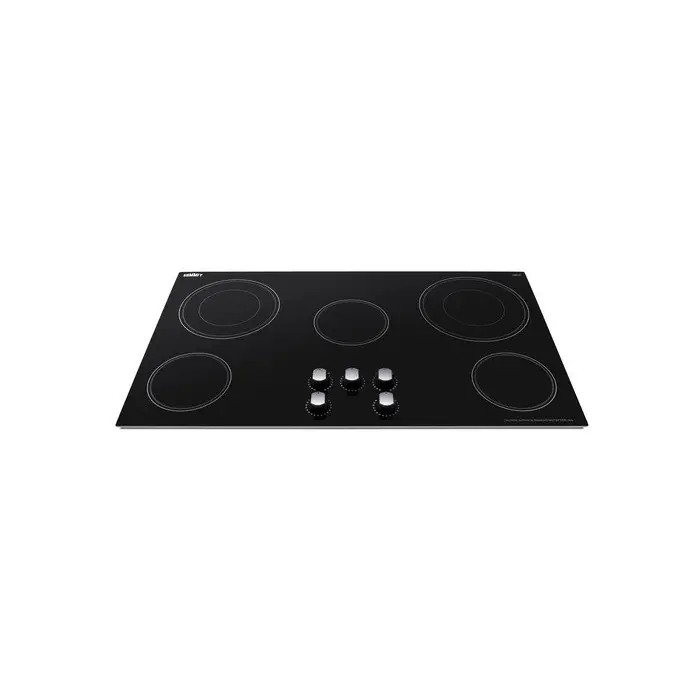

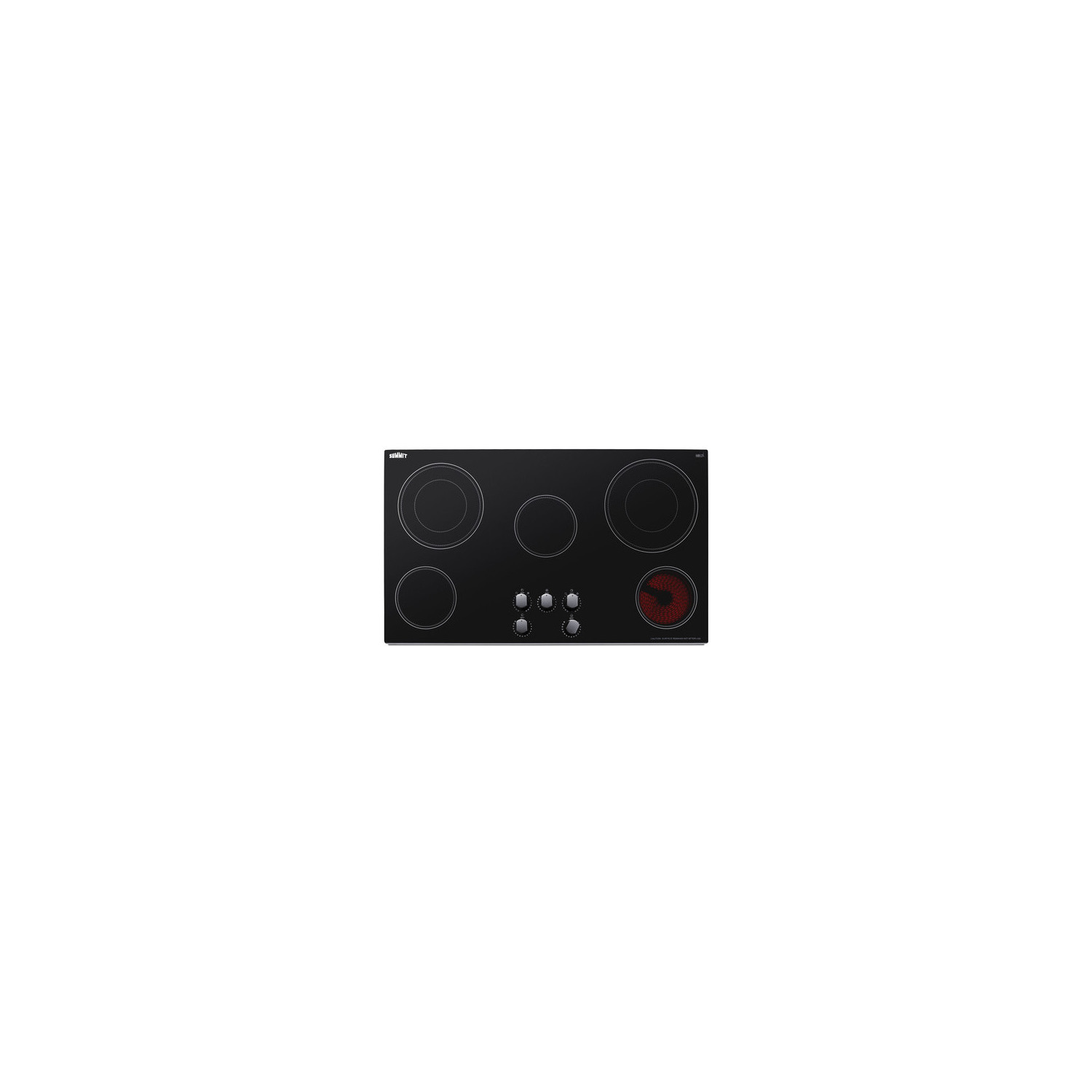

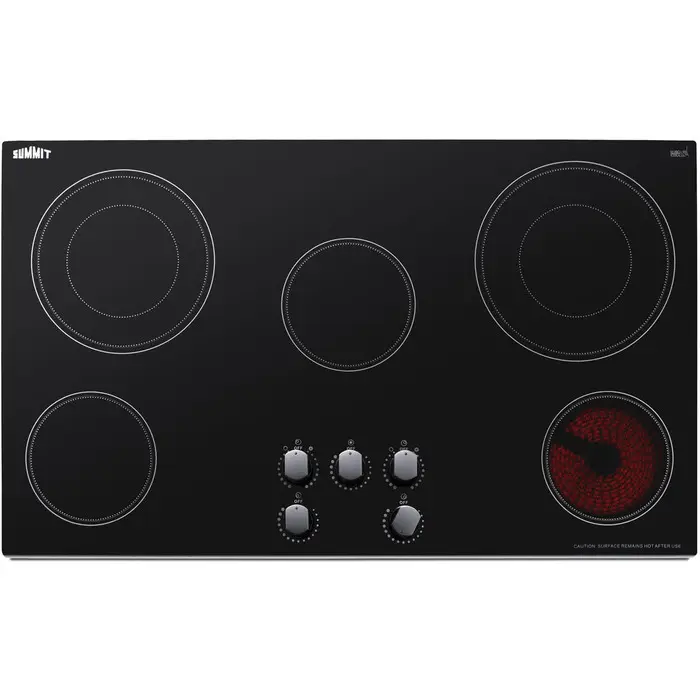

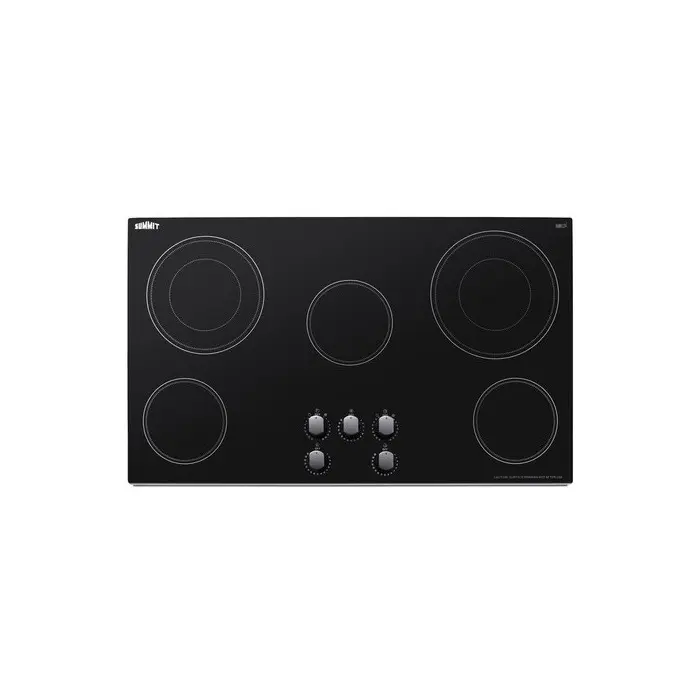

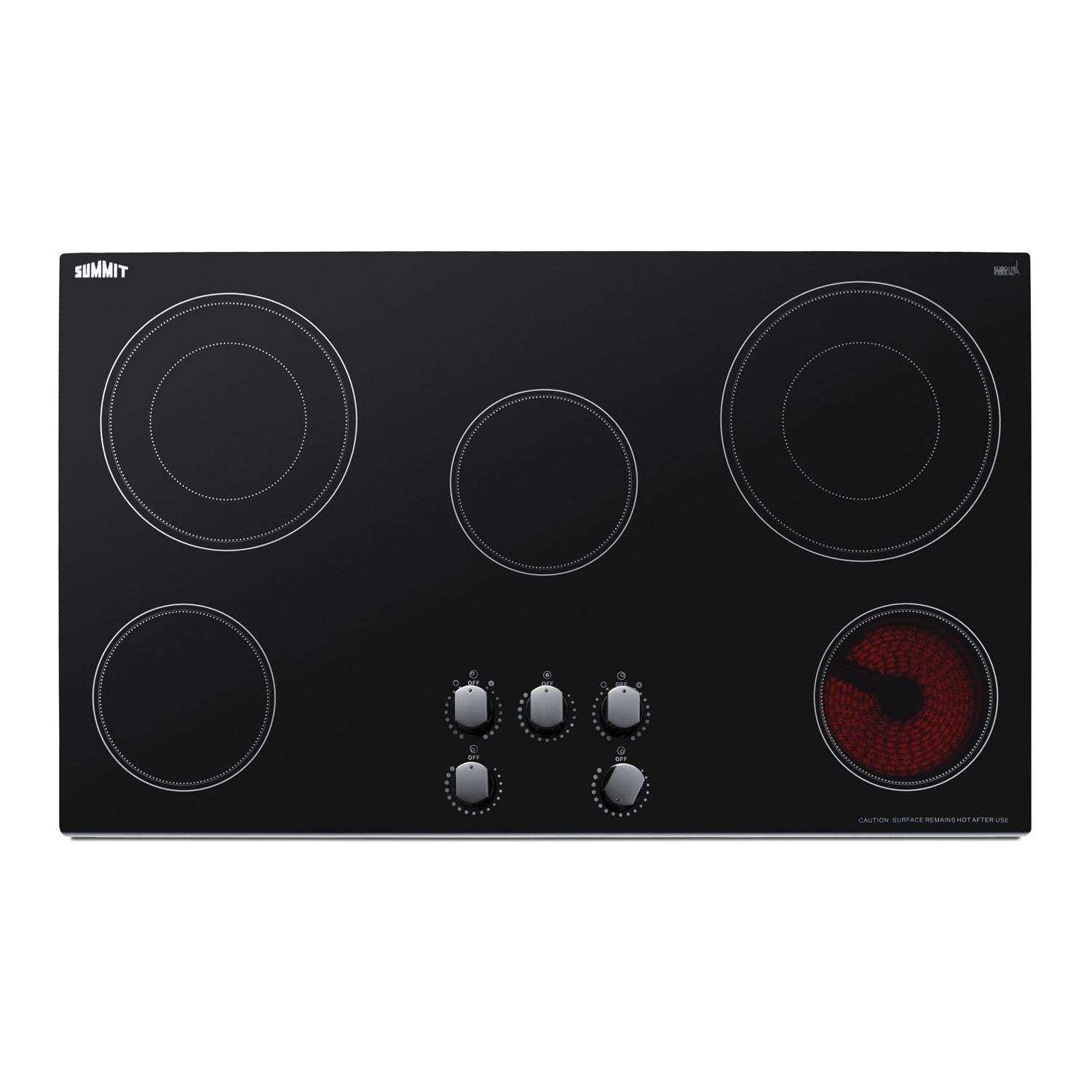

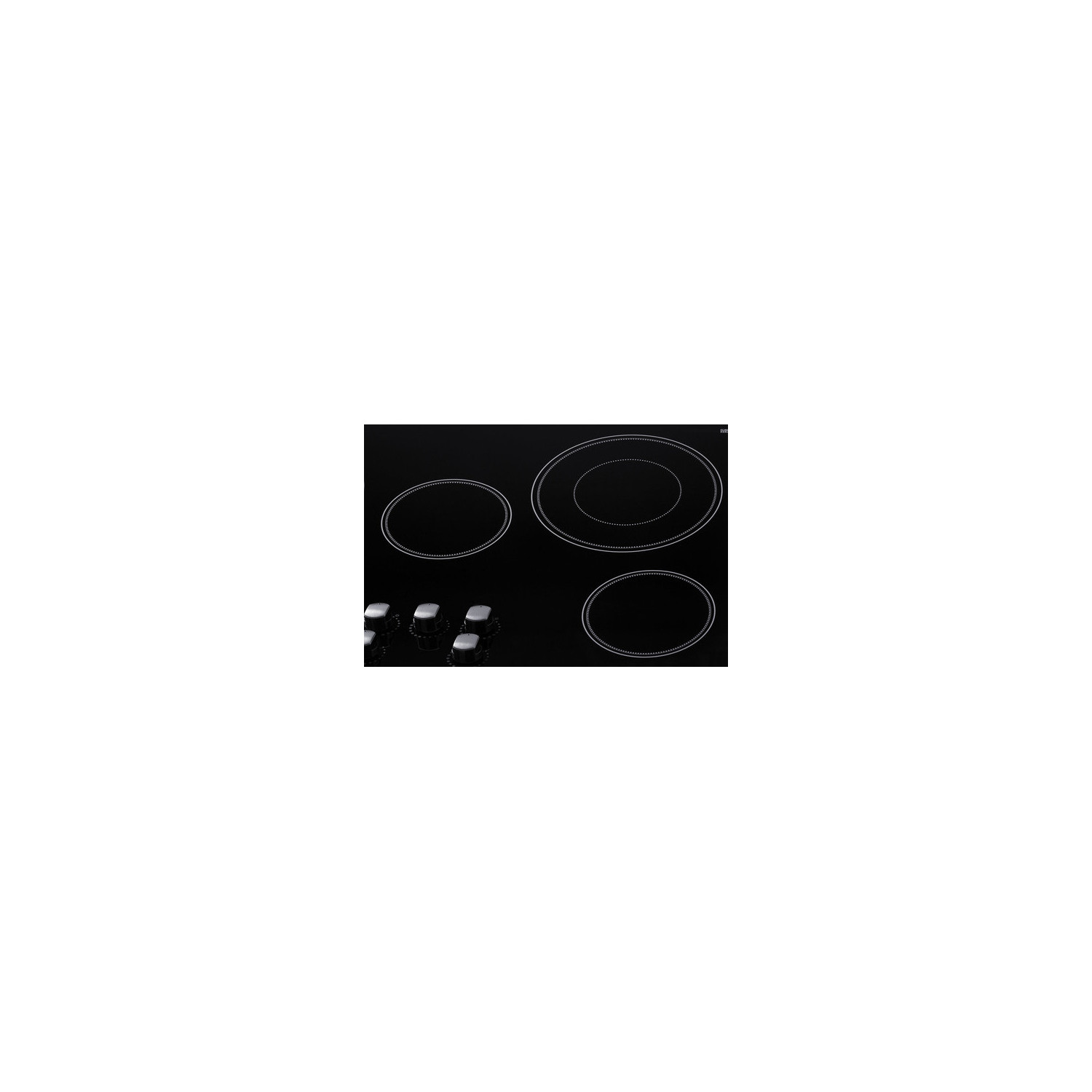

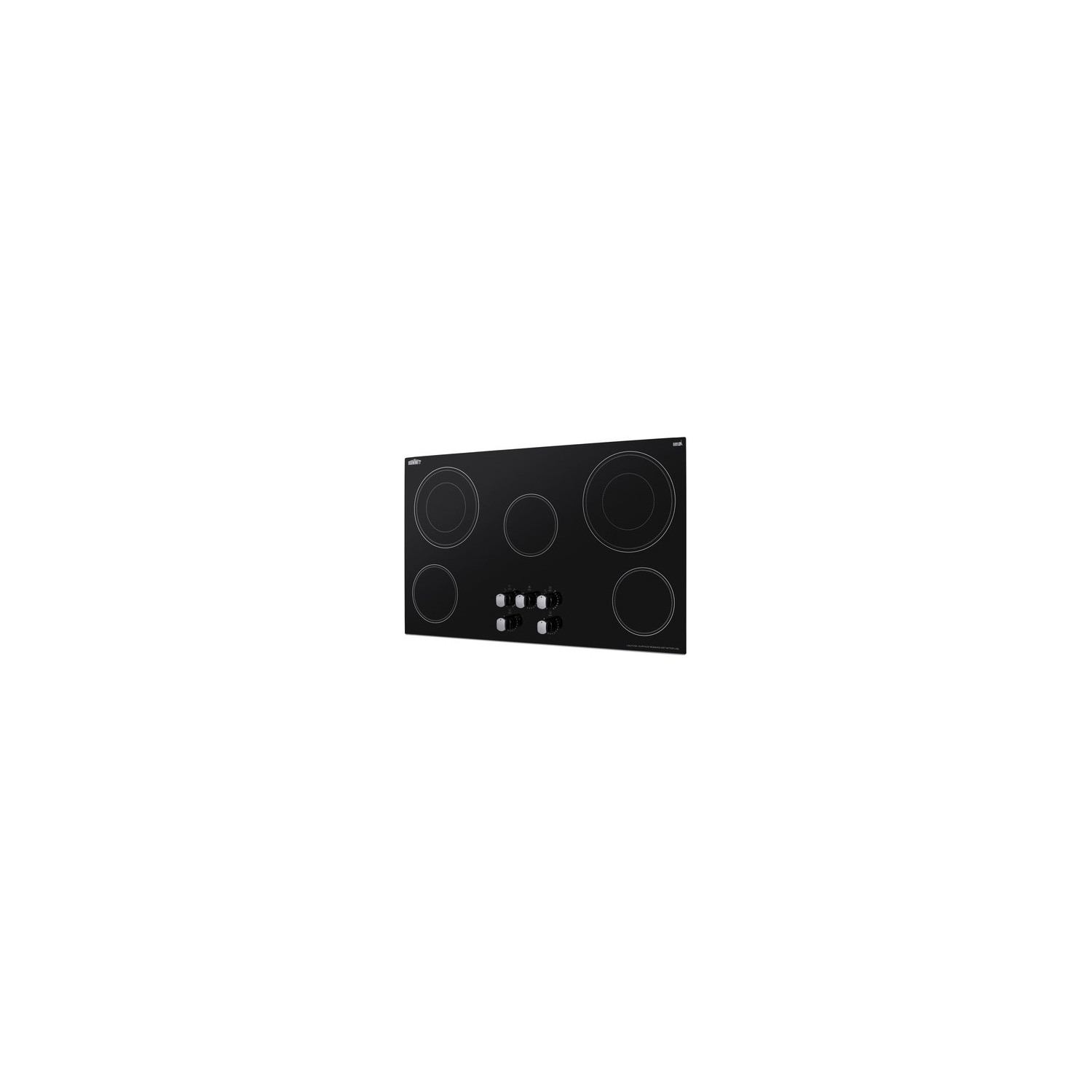

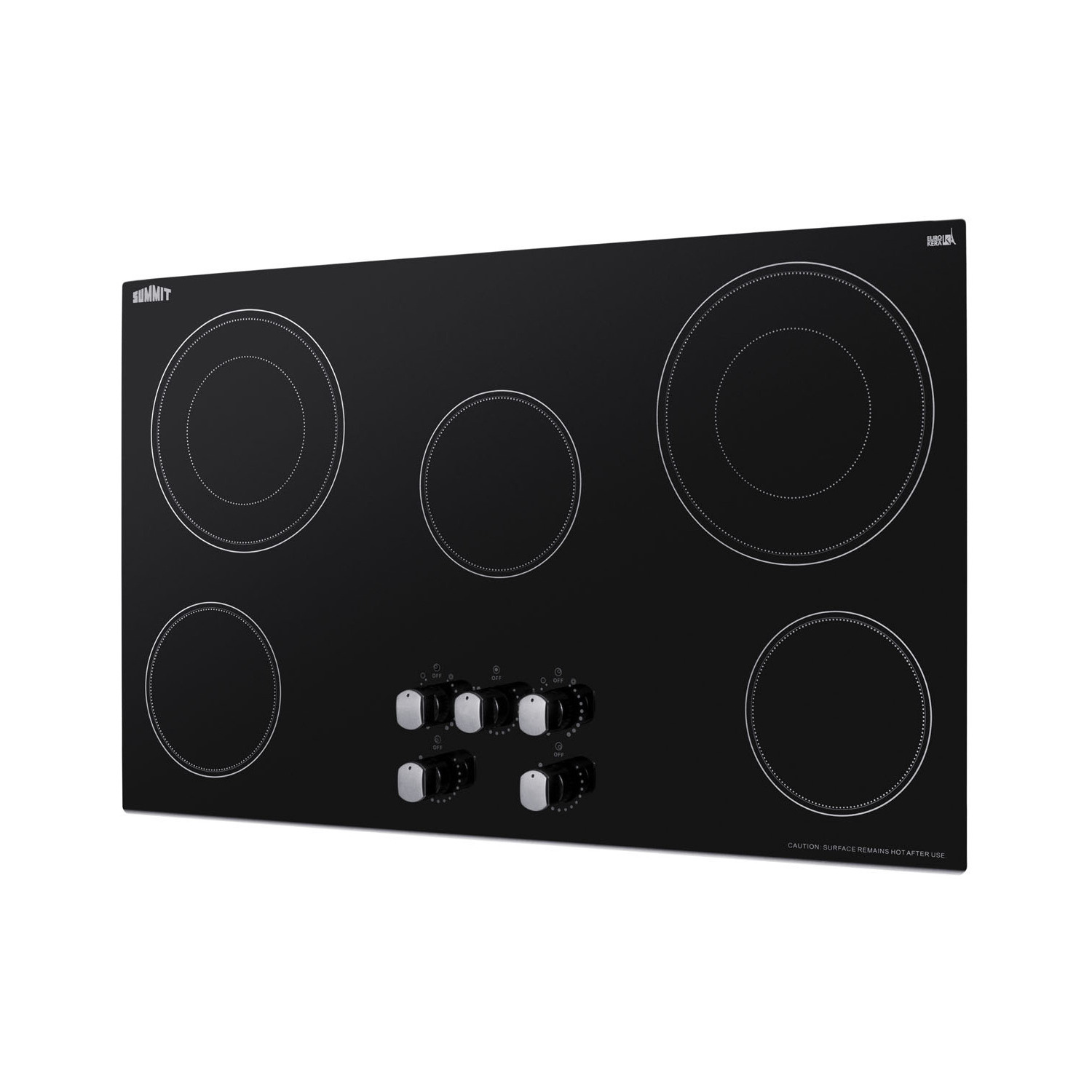

Summit 36 inch wide smooth-top 5-burner radiant cooktop in black glass, 7.61101e+011, CR5B36MB
$781.15
Retail Price: $1,015.00
Free shipping
$ 781.15
Description
Summit's collection of smooth-top radiant cooktops includes fully featured models sized for standard kitchen counters.
The CR5B36MB is a 36" wide 208-240V radiant cooktop designed to fit popular 34 3/4" W x 19 5/8" D counter cutouts. Its surface is made of jet black glass for a contemporary look that's easier to clean. This unit does not ship with a power cord and must be hard-wired by a professional.

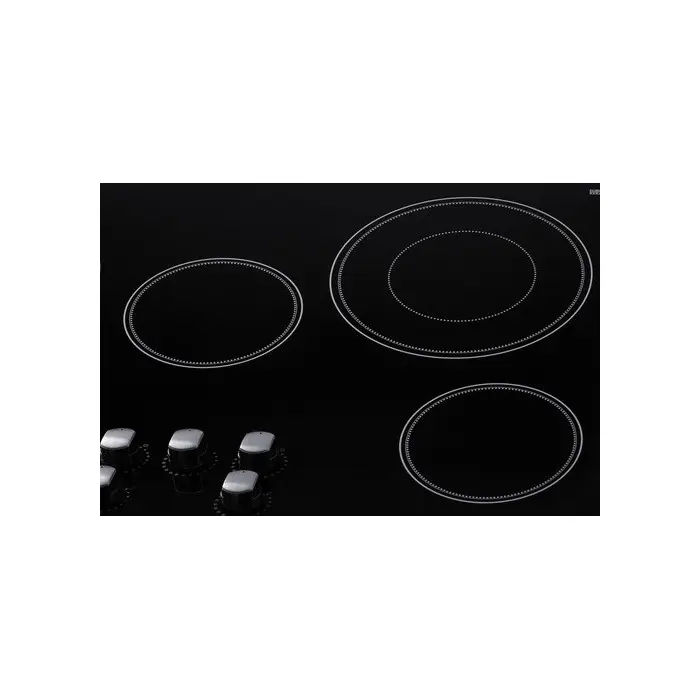

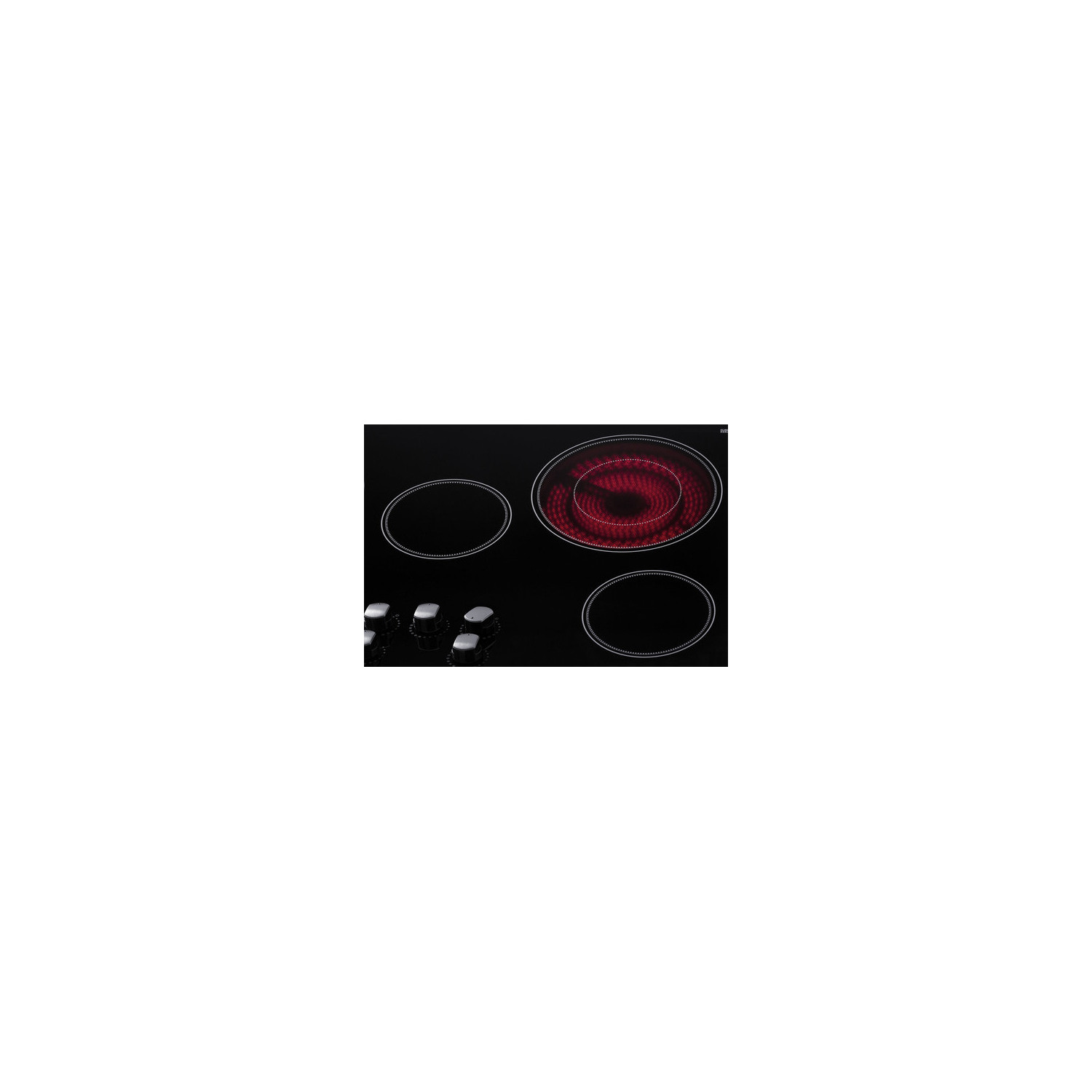

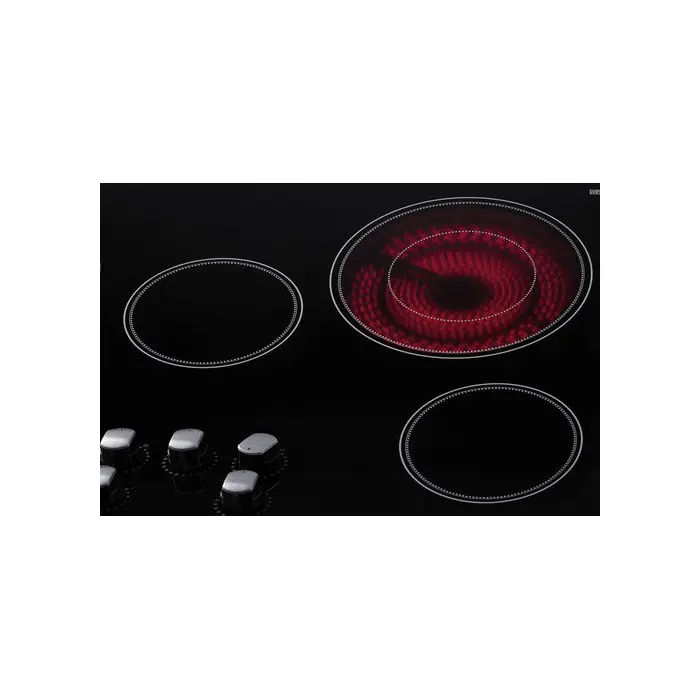

Five elements let you meet a variety of cooking needs. The two extra large dual ring elements in the rear (2200W 9" element on the left and 3000W 9 3/4" element on the right) allow you to efficiently heat woks, Dutch ovens, and other large cooking vessels or to switch to the inner 5 1/2" elements as needed. The 6 1/2" 1200W front burners cover standard sizes, while the center 100W warming zone element lets you keep cookware heated without overcooking.

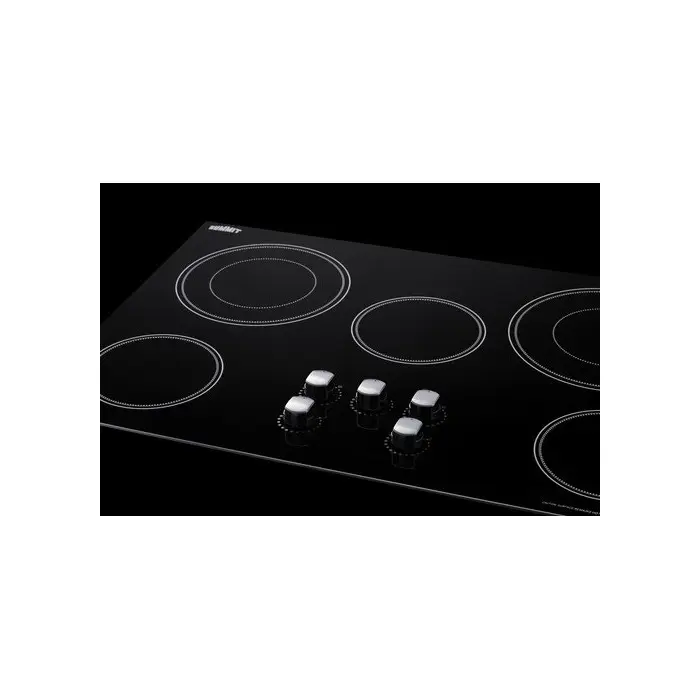

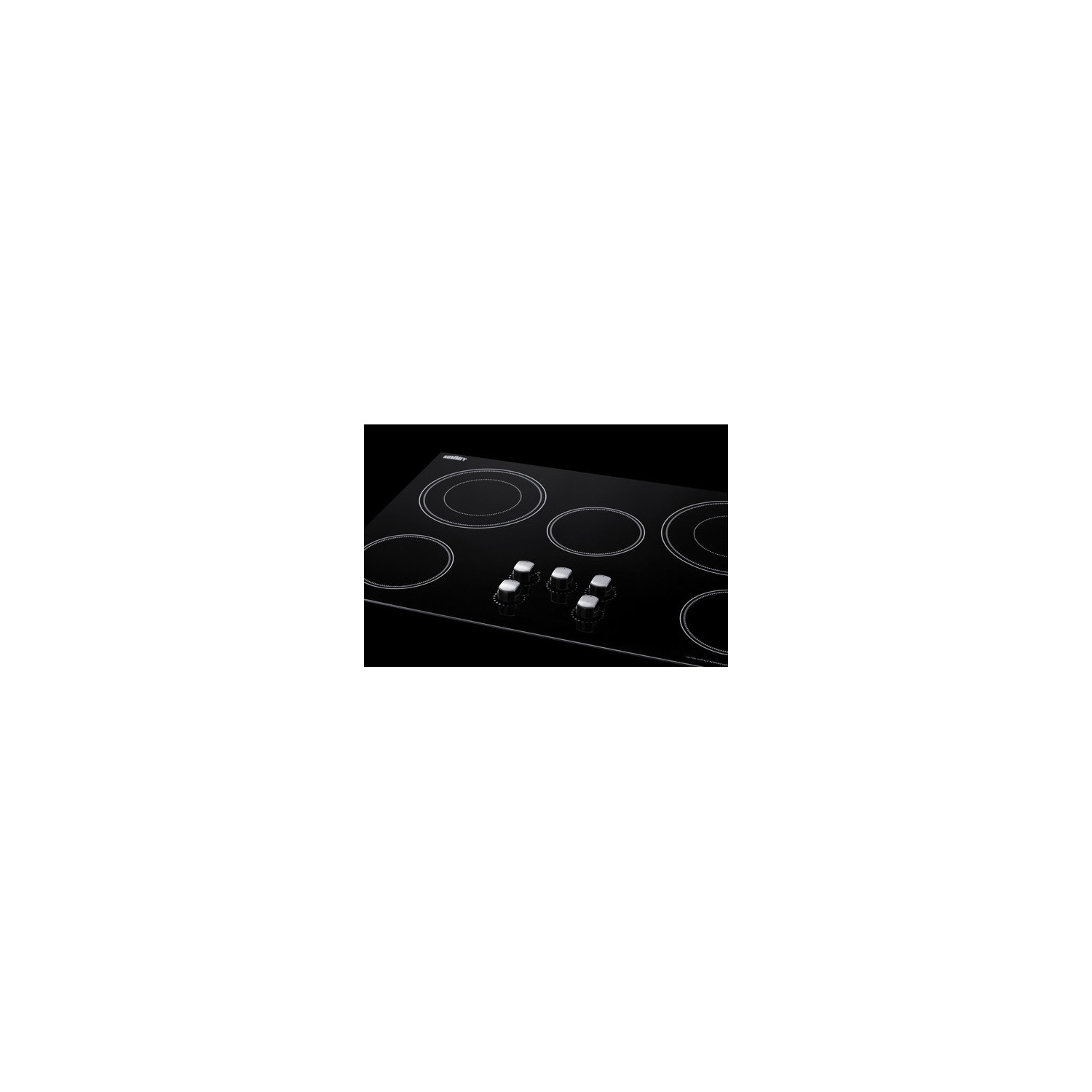

The knob controls are centered upfront, ensuring users won't have to reach over hot burners to adjust the temperature. Each knob features a stainless steel look for added style. For added safety, the knobs require a light push-to-turn force to help prevent accidental adjustments. A residual heat indicator light lets you know when the surface is still hot to touch.
With its attractive design and smartly designed burner configuration, the CR5B36MB is the perfect choices for convenient cooking. Additional choices are available in 24" and 30" wide sizes, as well as white glass finishes and with touch controls. Browse the full Summit lineup for more.
SPECIFICATIONS
Overview
Nominal Height 2.13" (5 cm)
Height of Cabinet 2.13" (5 cm)
Nominal Width 36.0" (91 cm)
Width 35.5" (90 cm)
Nominal Depth 21.0" (53 cm)
Depth 20.5" (52 cm)
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 30.0
Voltage/Frequency 240 V AC/60 Hz
Weight 36.0 lbs. (16 kg)
Parts & Labor Warranty 1 Year
UPC 761101077567
Electric Cooktop
Heating Type Radiant
Surface Glass
Element Type Glasstop
Number of Elements 5
Controls Dial
Countertop Cutout Height 3.2" (8 cm)
Countertop Cutout Width 34.75" (88 cm)
Countertop Cutout Depth 19.63" (50 cm)
Element #1 Size 6.5" (17 cm)
Element #1 Wattage 1200.0
Element #2 Size 9.0" (23 cm)
Element #2 Wattage 2200.0
Element #3 Size 6.5" (17 cm)
Element #3 Wattage 100.0
Element #4 Size 9.75" (25 cm)
Element #4 Wattage 3000.0
Element #5 Size 6.5" (17 cm)
Element #5 Wattage 1200.0
Power Cord Included No
FEATURES
36" wide 5-burner radiant cooktop 5-burner radiant cooktop designed to fit common 34 3/4" x 19 5/8" counter cutouts
Jet black glass surface Easy cleanup and elegant style on a smooth ceramic glass surface in a jet black finish
Extra large 3000W burner Rear right burner comes with a 9 3/4" diameter and powerful 3000W cooking power to handle large pots and help boil water with more speed
Large 2200W burner Left rear 2200W element is 9" in diameter to handle larger cooking vessels
2 Standard 1200W burners Front left and front right burners are 6.5" in diameter to meet most cooking needs
Dual cooking zones Rear burners include an inner 5 1/2" burner, allowing you to save energy when heating smaller cookware
Warming zone Center 6 1/2" element operates at a low 100W to help keep cookware warm without overheating
Push-to-turn knobs Controls require a gentle push to help prevent cooking accidents
Residual heat light Indicator shows when the surface is still hot to touch
ADA compliant design Upfront controls meet ADA guidelines for easier accessibility
208-240V operation Requires professional hardwired installation (cord not included)
DOWNLOADS
BROCHURE w/ DRAWINGS (CR5B36MB.pdf)
TECHNICAL DRAWING (.dwg) (CR5B36MB-LCR5B36K_COOKTOP__A-C_.dwg)
ASSEMBLY DRAWING (CR5B36MB-LCR5B36K_CUTOUT.pdf)
